In this webinar, we were discussing about layered network, protocols, protocol analyzer, and why those were designed like that. we discussed several features on mikrotik RouterOS that can be used as traffic sniffer to capture flowing packets. the recording is available on youtube (GLC NETWORKS CHANNEL): https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg

1. www.glcnetworks.com
Using protocol analyzer on
GLC webinar, 20 april 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1

2. www.glcnetworks.com
Agenda
● Introduction
● Protocol suite
● Mikrotik protocol analyzer
● Demo
● Q & A
2

3. www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner
● Mikrotik Certified Consultant
● Mikrotik distributor
3

4. www.glcnetworks.com

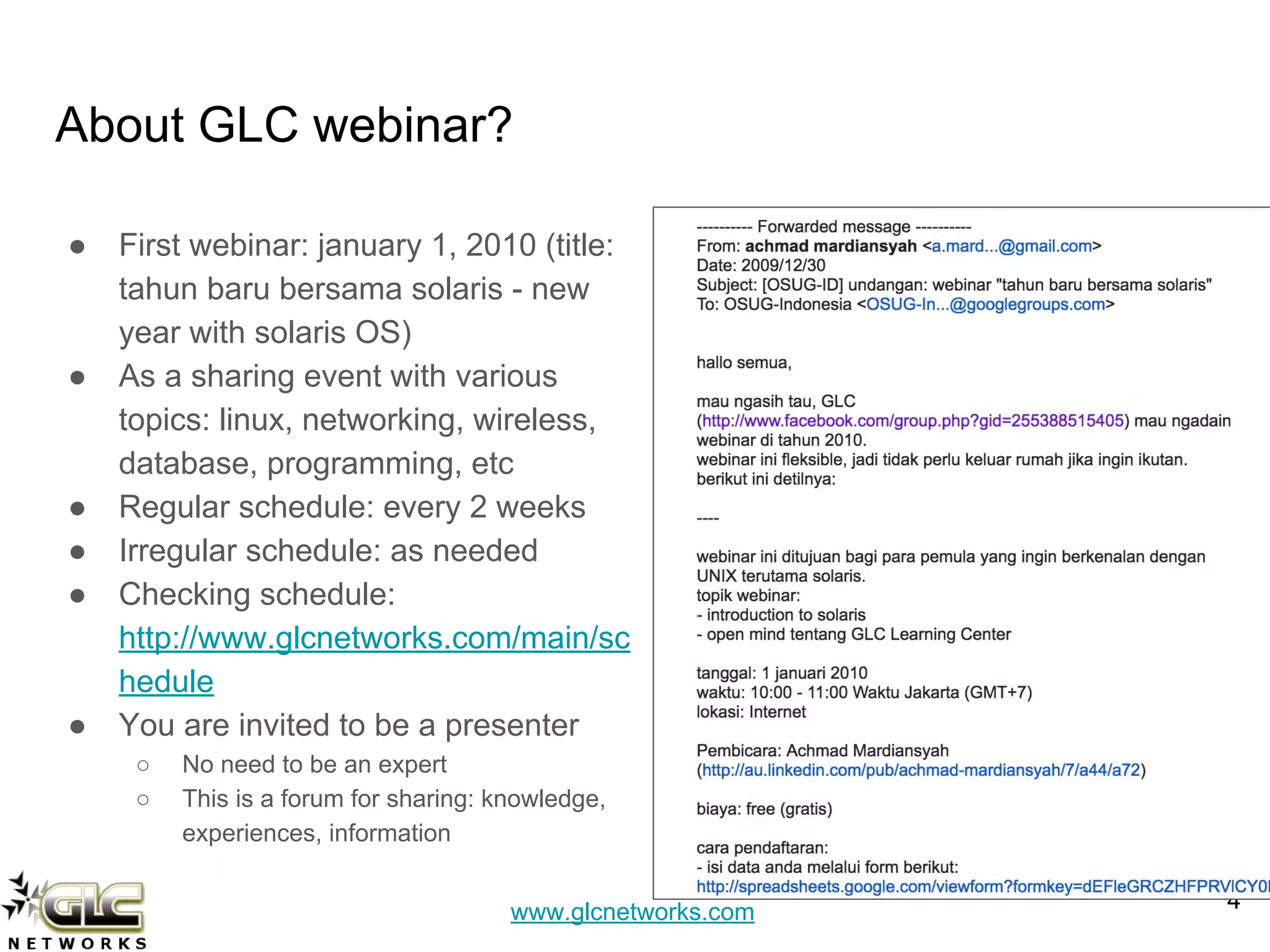

About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user since 1999
● Mikrotik user since 2007
● Certified Trainer (MTCNA/RE/WE/UME/INE/TCE)
● Mikrotik Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com

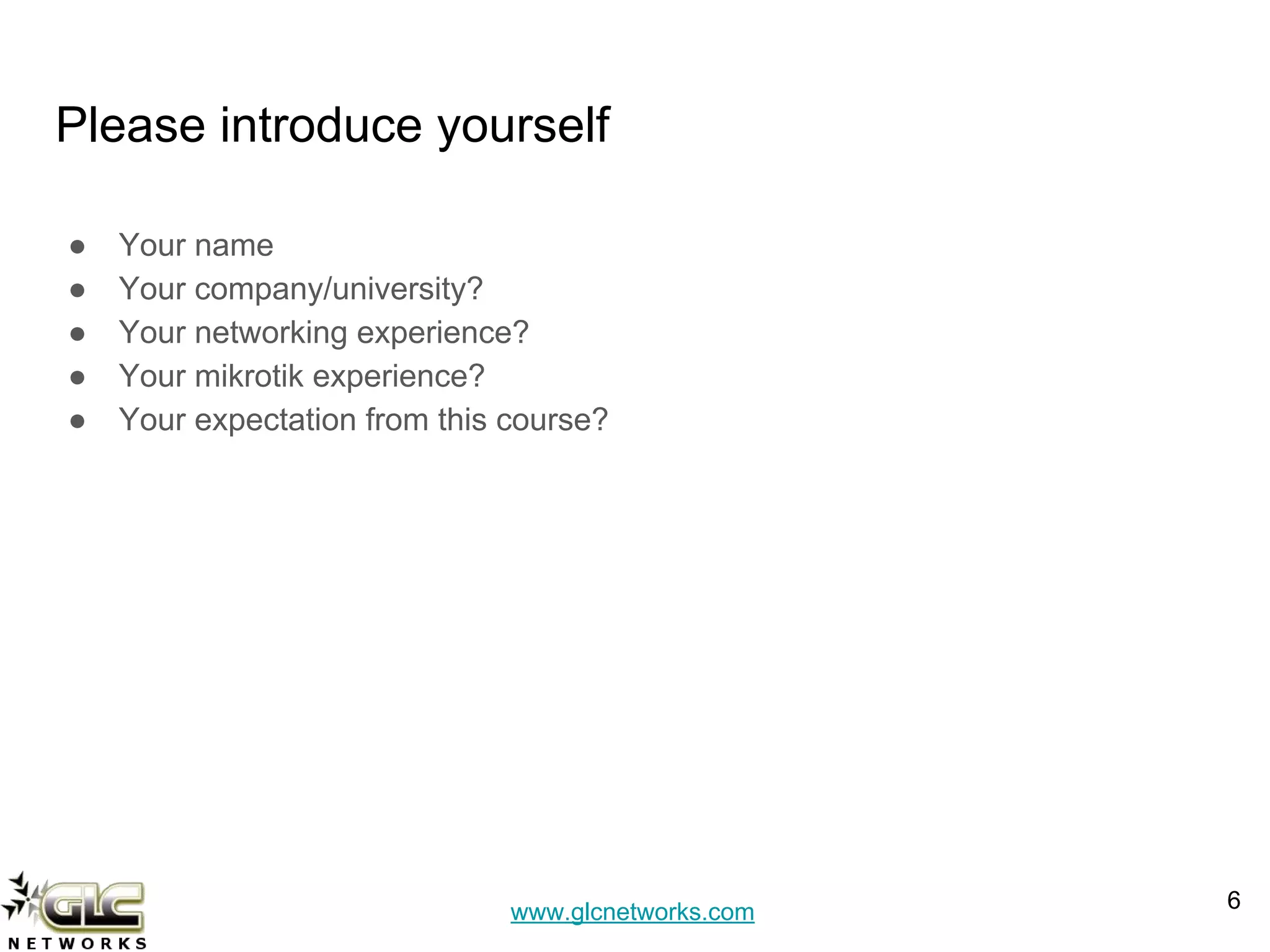

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6

7. www.glcnetworks.com
What is Mikrotik?
● Name of a company
● A brand
● A program (e.g. mikrotik academy)
● Headquarter: Riga, Latvia
7

8. www.glcnetworks.com
What are mikrotik products?
● Router OS
○ The OS. Specialized for networking
○ Website: www.mikrotik.com/download
● RouterBoard
○ The hardware
○ RouterOS installed
○ Website: www.routerboard.com
8

9. www.glcnetworks.com
What Router OS can do?
● Go to www.mikrotik.com
○ Download: what_is_routeros.pdf
○ Download: product catalog
○ Download: newsletter
9

10. www.glcnetworks.com
What are Mikrotik training & certifications?
10
Certificate validity is 3 years

11. www.glcnetworks.com

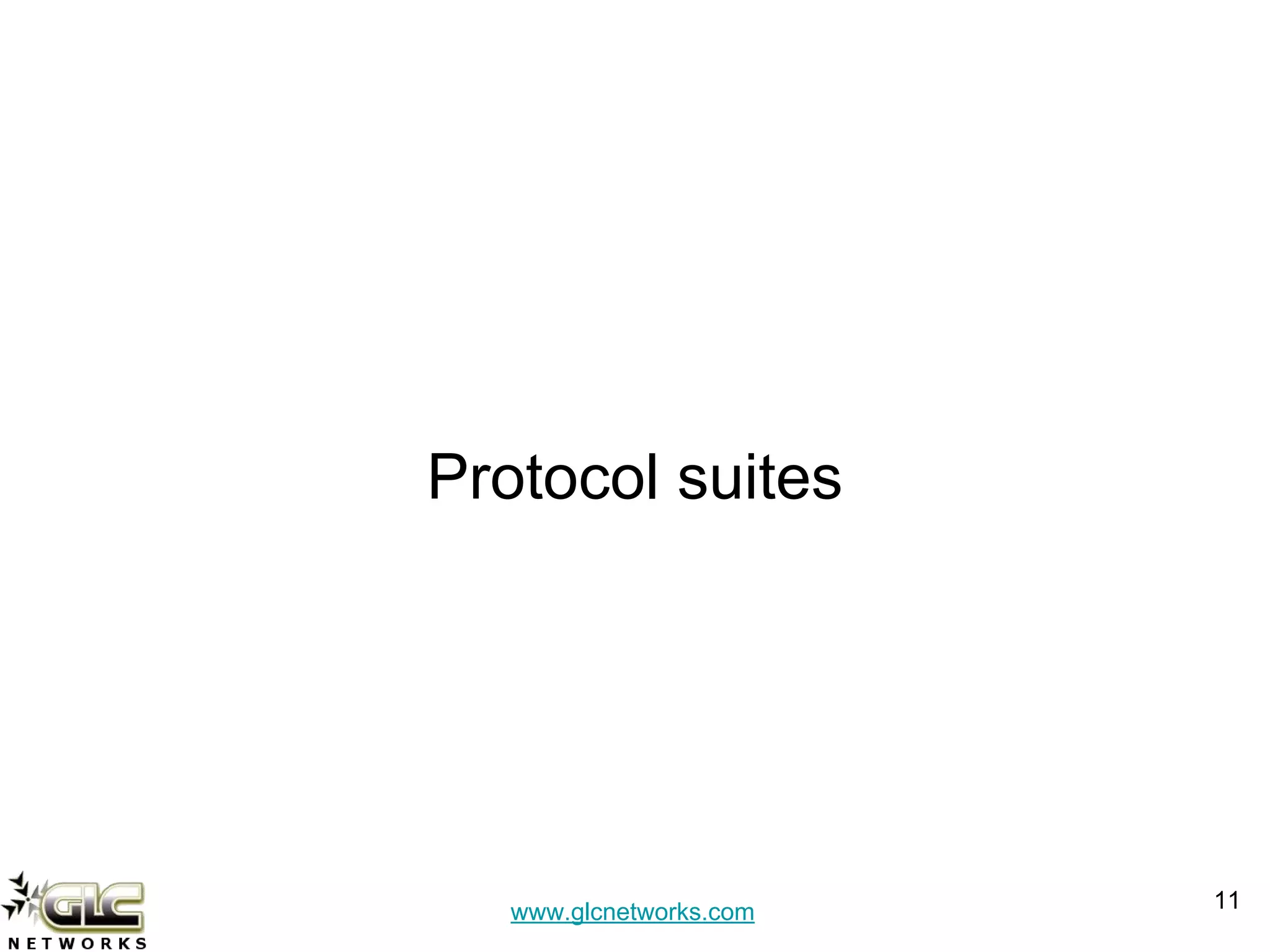

Protocol suites
11

12. www.glcnetworks.com

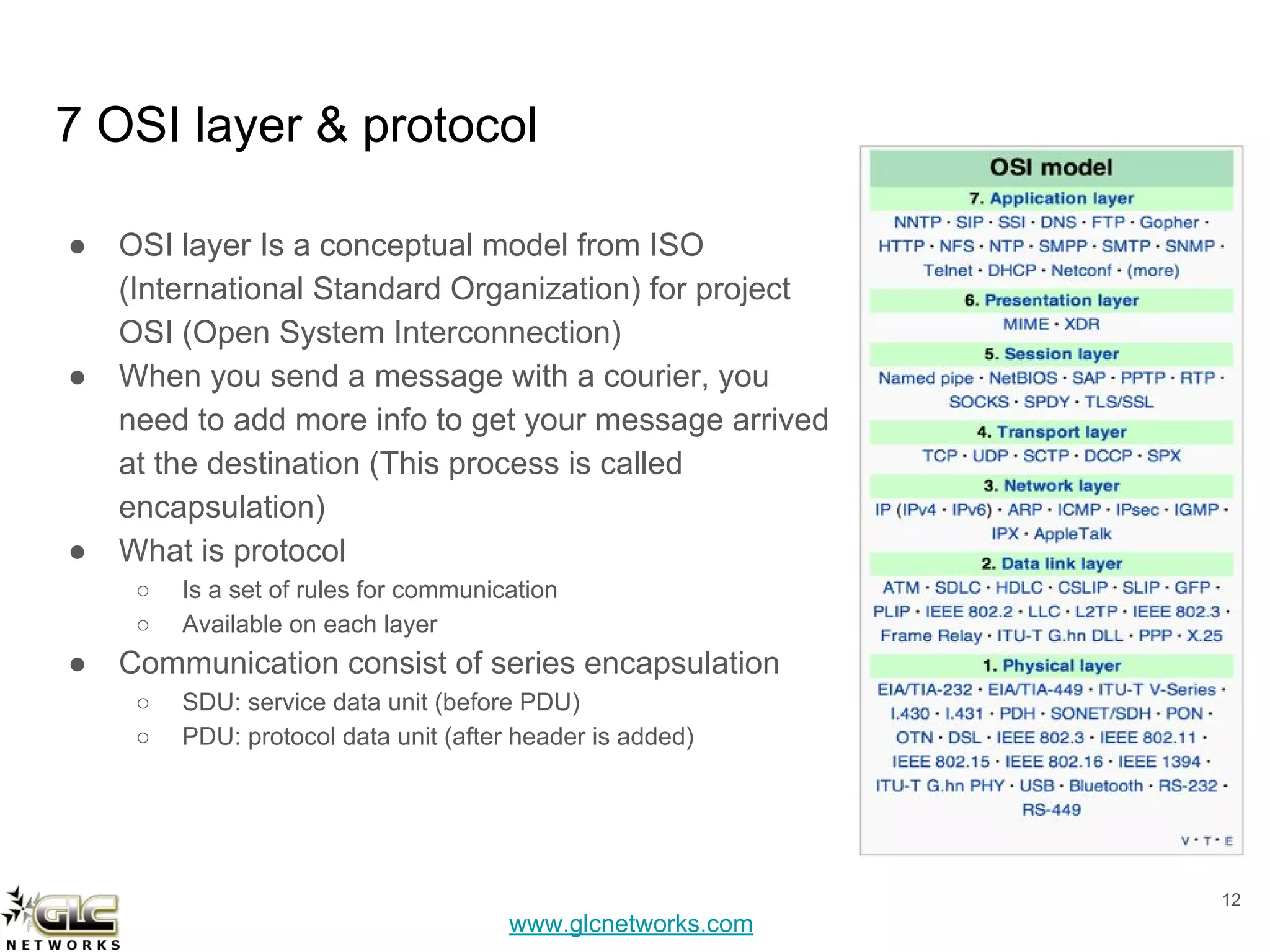

7 OSI layer & protocol
12
● OSI layer Is a conceptual model from ISO
(International Standard Organization) for project
OSI (Open System Interconnection)
● When you send a message with a courier, you
need to add more info to get your message arrived
at the destination (This process is called
encapsulation)
● What is protocol
○ Is a set of rules for communication
○ Available on each layer
● Communication consist of series encapsulation
○ SDU: service data unit (before PDU)
○ PDU: protocol data unit (after header is added)

13. www.glcnetworks.com
Layered model (TCP/IP vs ISO) and encapsulation
13
/ datagram

14. www.glcnetworks.com

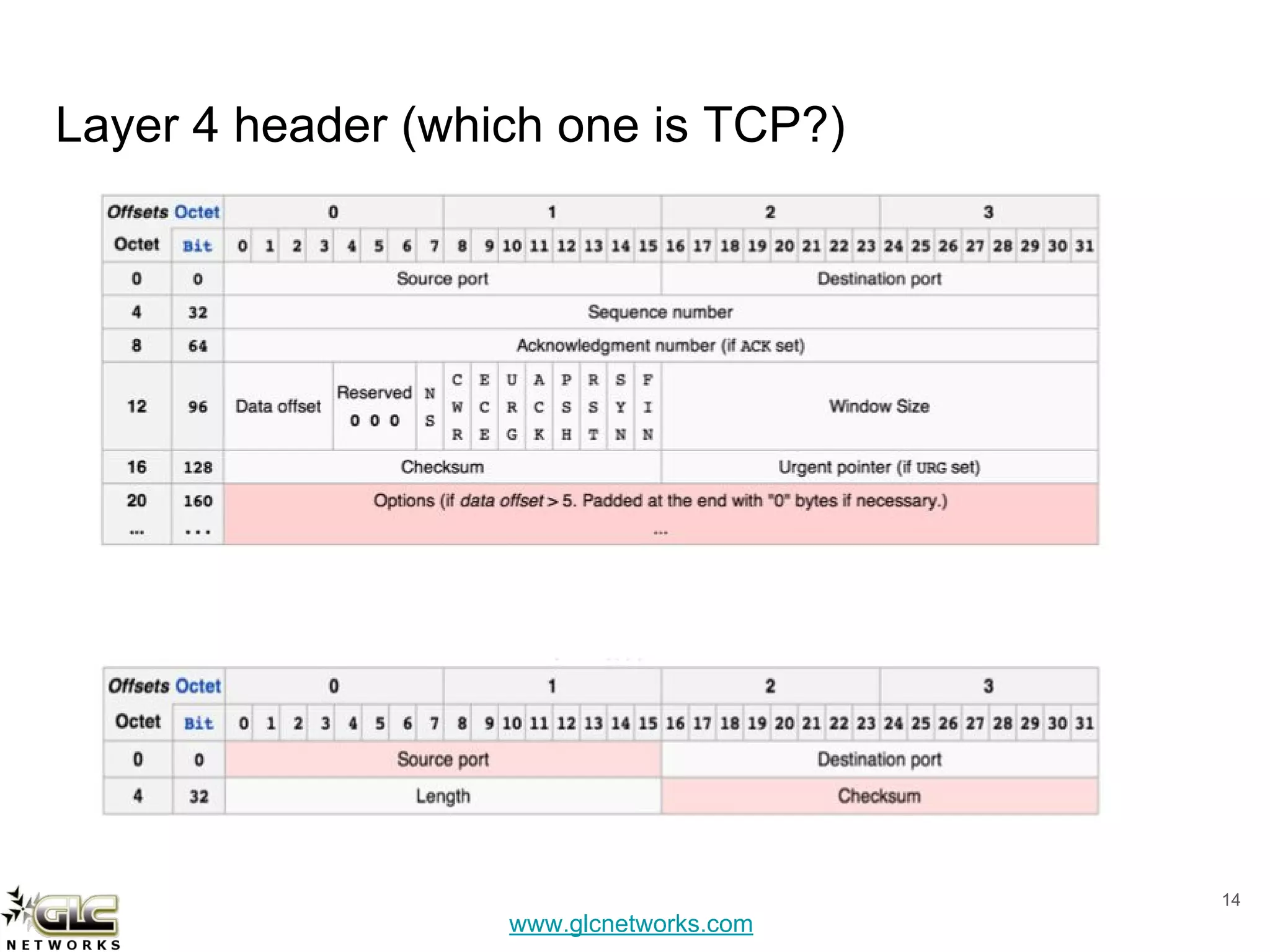

Layer 4 header (which one is TCP?)
14

15. www.glcnetworks.com

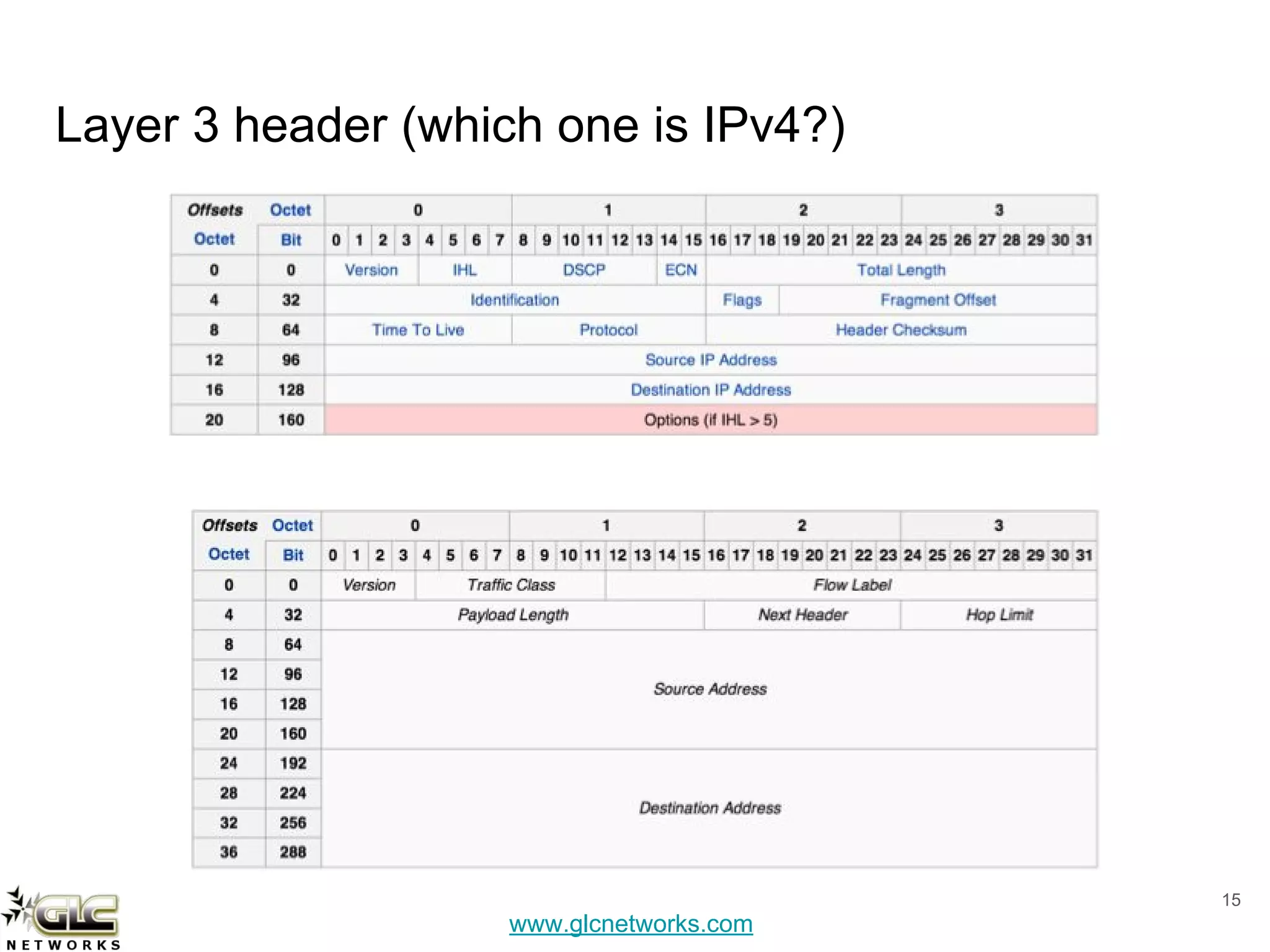

Layer 3 header (which one is IPv4?)
15

16. www.glcnetworks.com

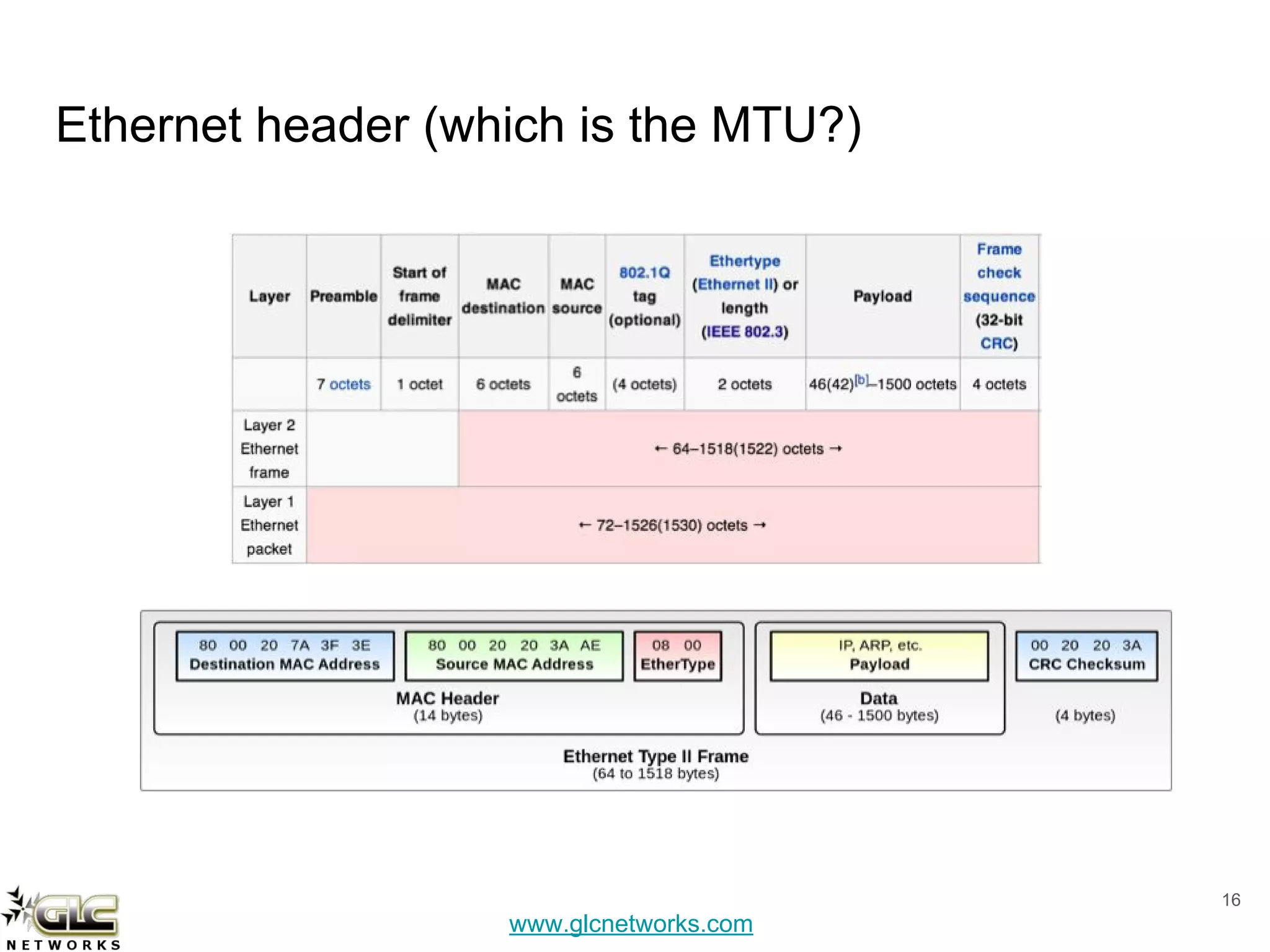

Ethernet header (which is the MTU?)
16

17. www.glcnetworks.com

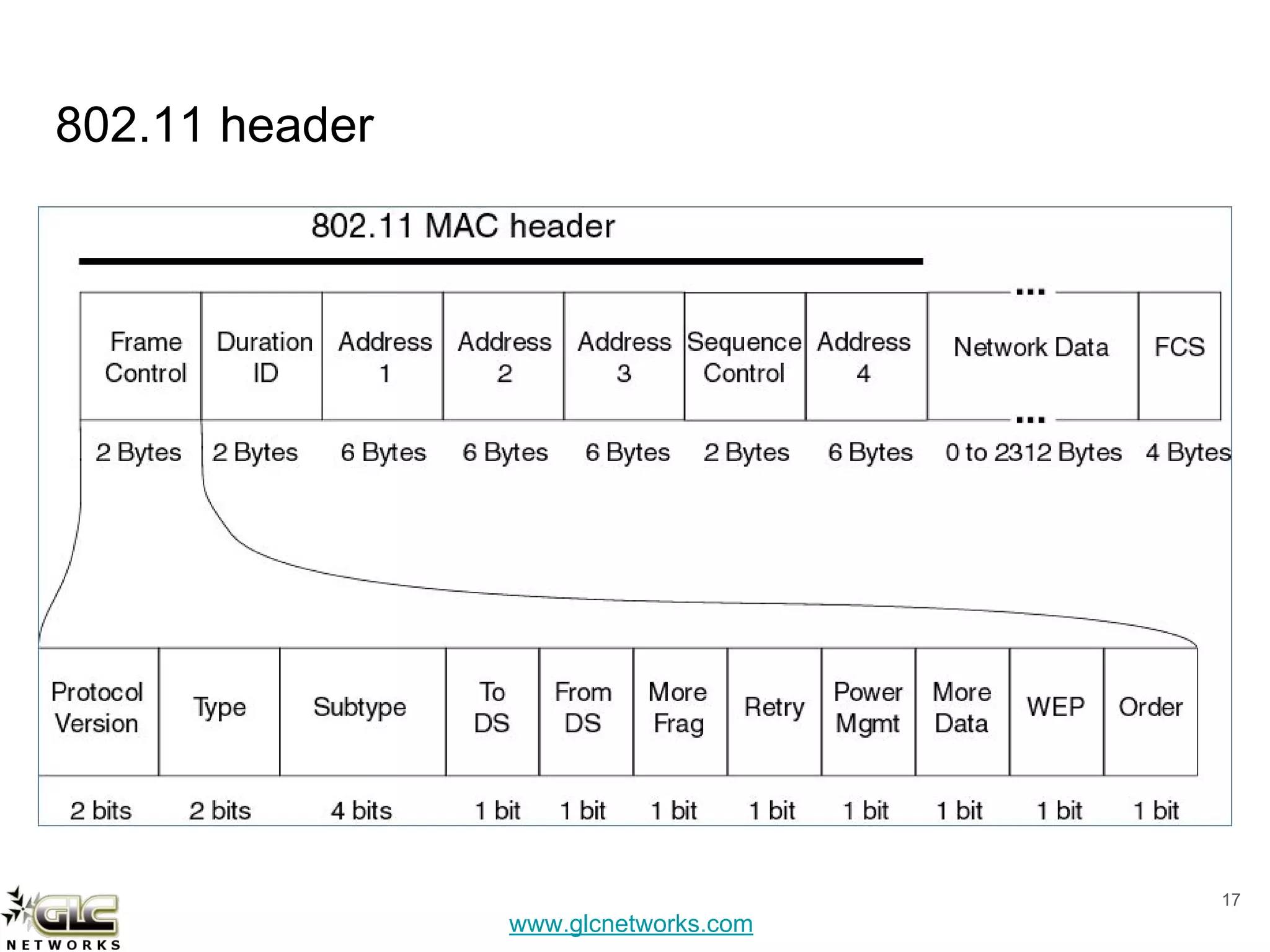

802.11 header
17

18. www.glcnetworks.com

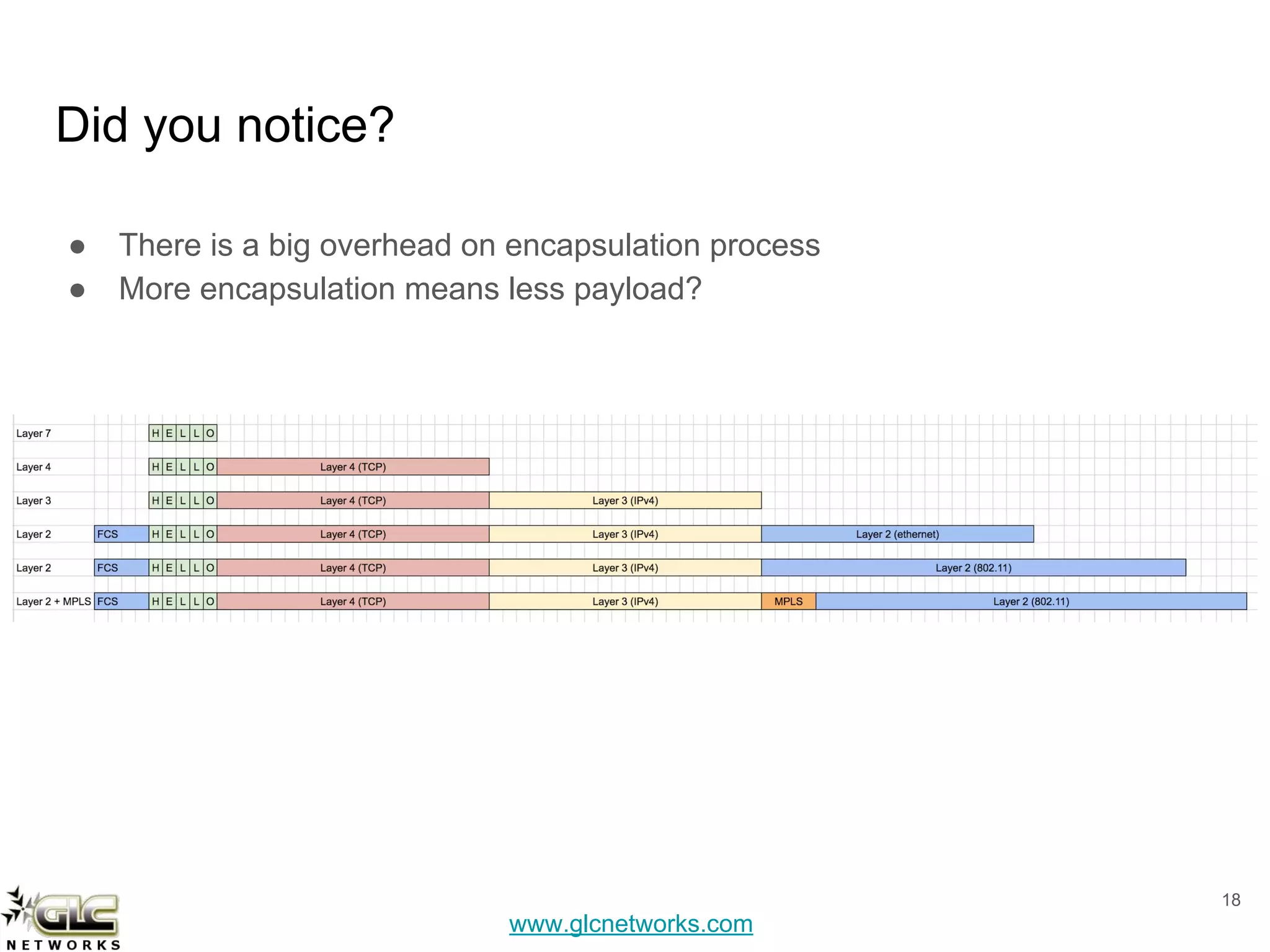

Did you notice?
● There is a big overhead on encapsulation process
● More encapsulation means less payload?
18

19. www.glcnetworks.com

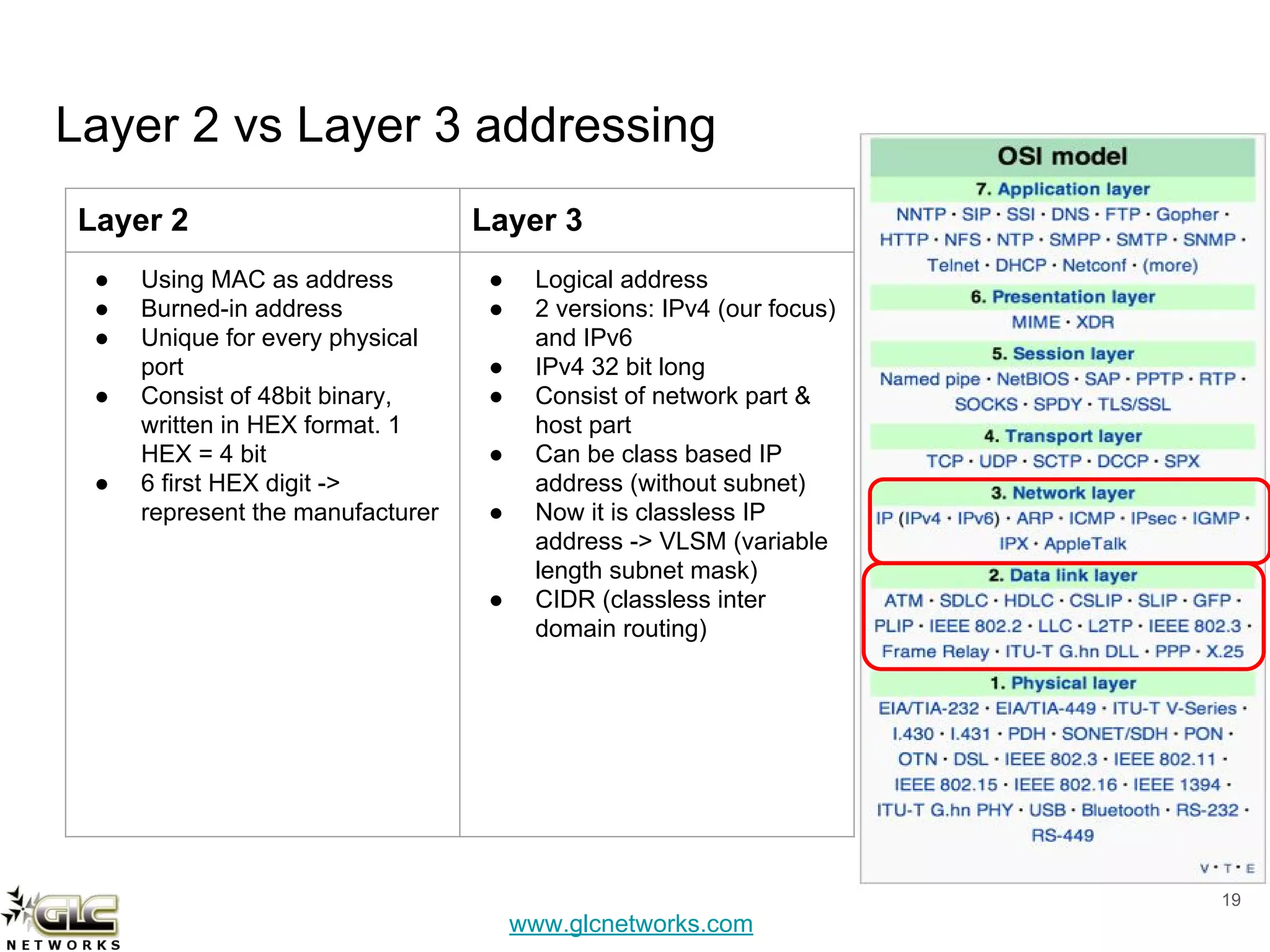

Layer 2 vs Layer 3 addressing
19
Layer 2 Layer 3
● Using MAC as address
● Burned-in address
● Unique for every physical
port
● Consist of 48bit binary,
written in HEX format. 1
HEX = 4 bit
● 6 first HEX digit ->
represent the manufacturer
● Logical address
● 2 versions: IPv4 (our focus)
and IPv6
● IPv4 32 bit long
● Consist of network part &
host part
● Can be class based IP
address (without subnet)
● Now it is classless IP
address -> VLSM (variable
length subnet mask)
● CIDR (classless inter
domain routing)

20. www.glcnetworks.com
IP spec (RFC 791)
● Defined long time ago (what 1981?)
● Defines how the IP header looks like
● Still used up to know
● New version -> IPv6
20

21. www.glcnetworks.com
Protocol analyzer
21

22. www.glcnetworks.com
What is a protocol analyzer?
22
Is a software / hardware that is able
to:
● Capture packets on interface
● Parsing the protocol inside a
frame
● Do some analytical tasks
● And display the result on an
output devices
Examples:
● Wireshark (defacto software)
● Tektronix
● etc

23. www.glcnetworks.com

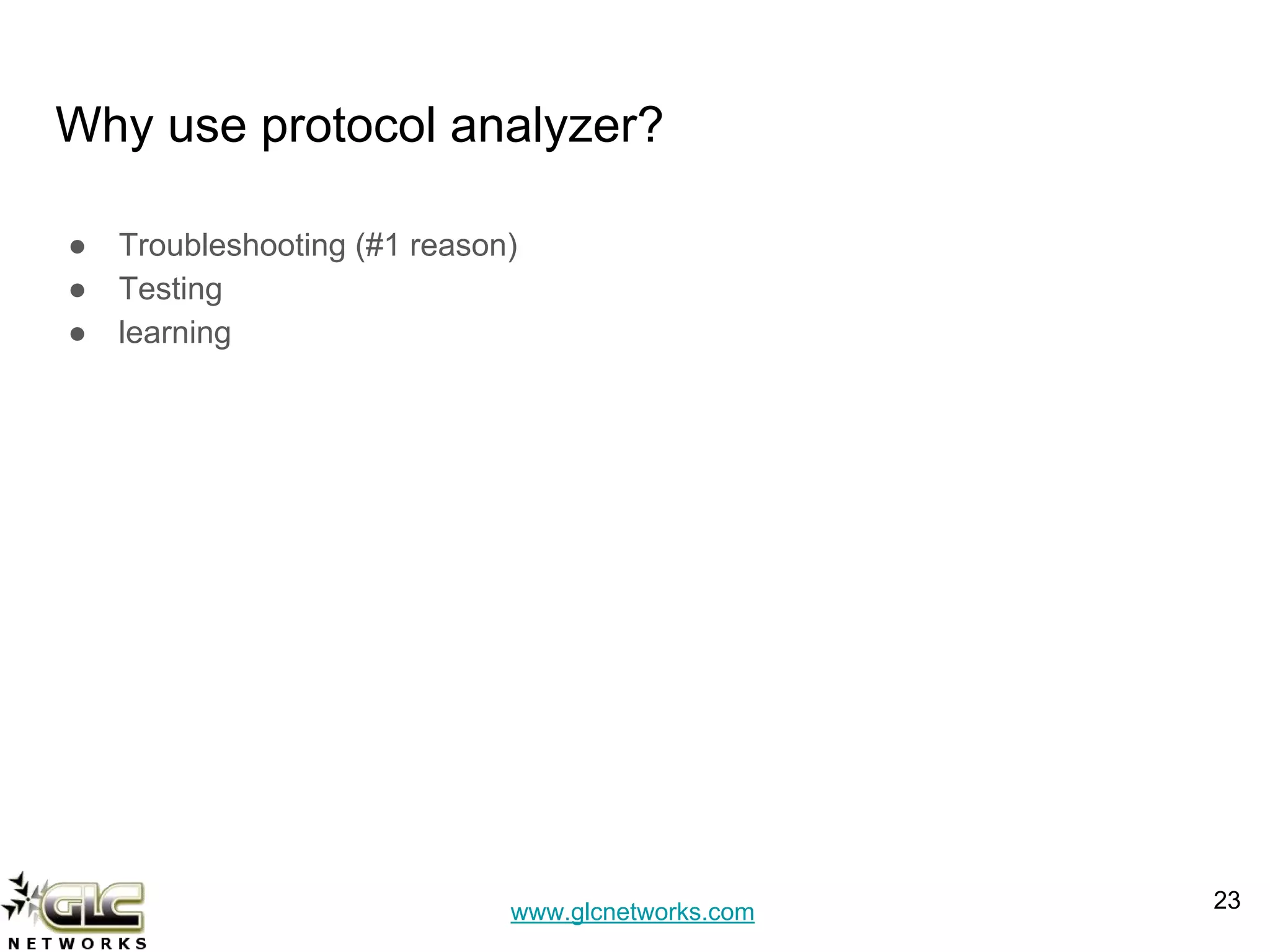

Why use protocol analyzer?
● Troubleshooting (#1 reason)
● Testing
● learning
23

24. www.glcnetworks.com

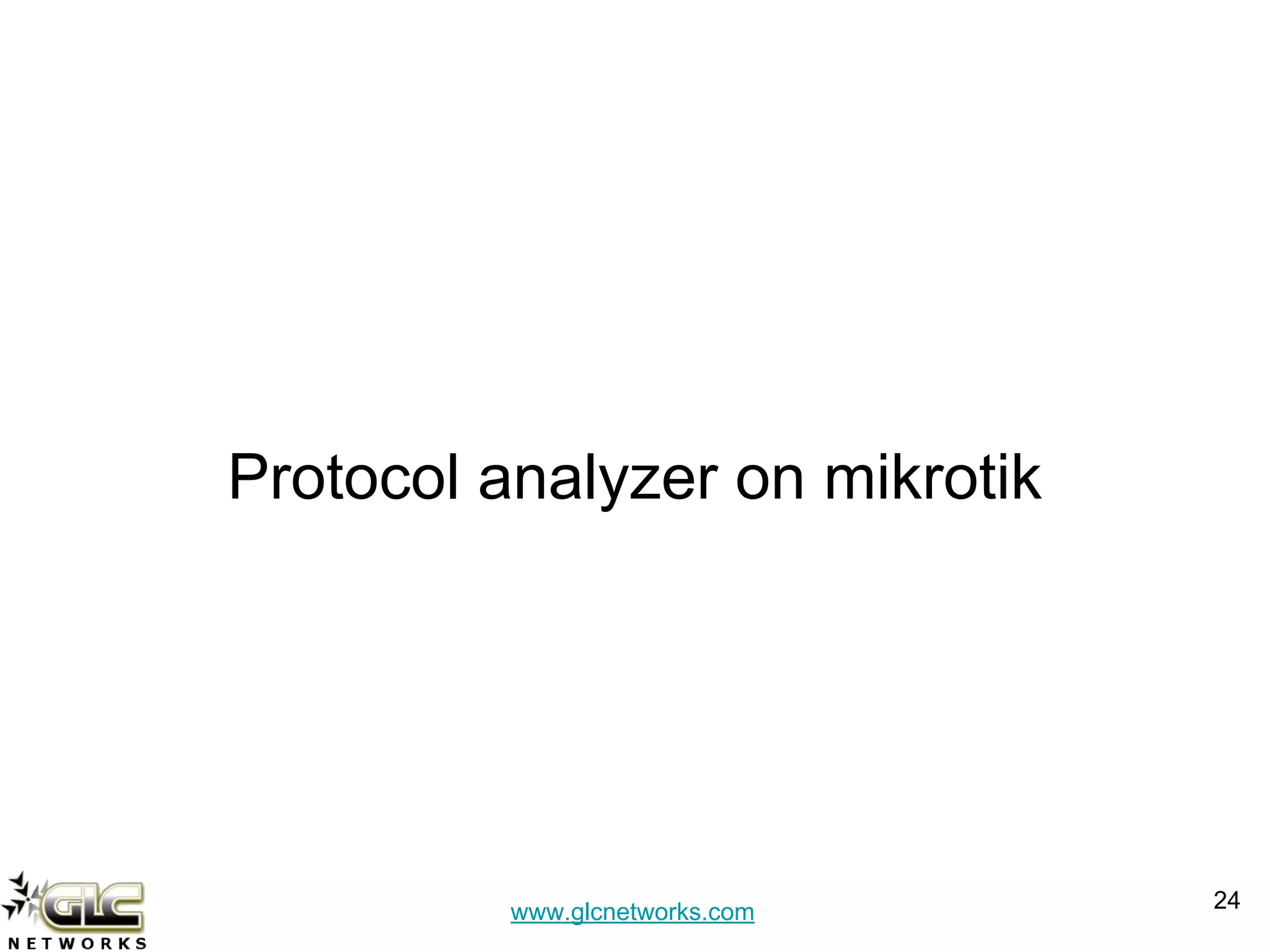

Protocol analyzer on mikrotik
24

25. www.glcnetworks.com
/tool sniffer
25

26. www.glcnetworks.com

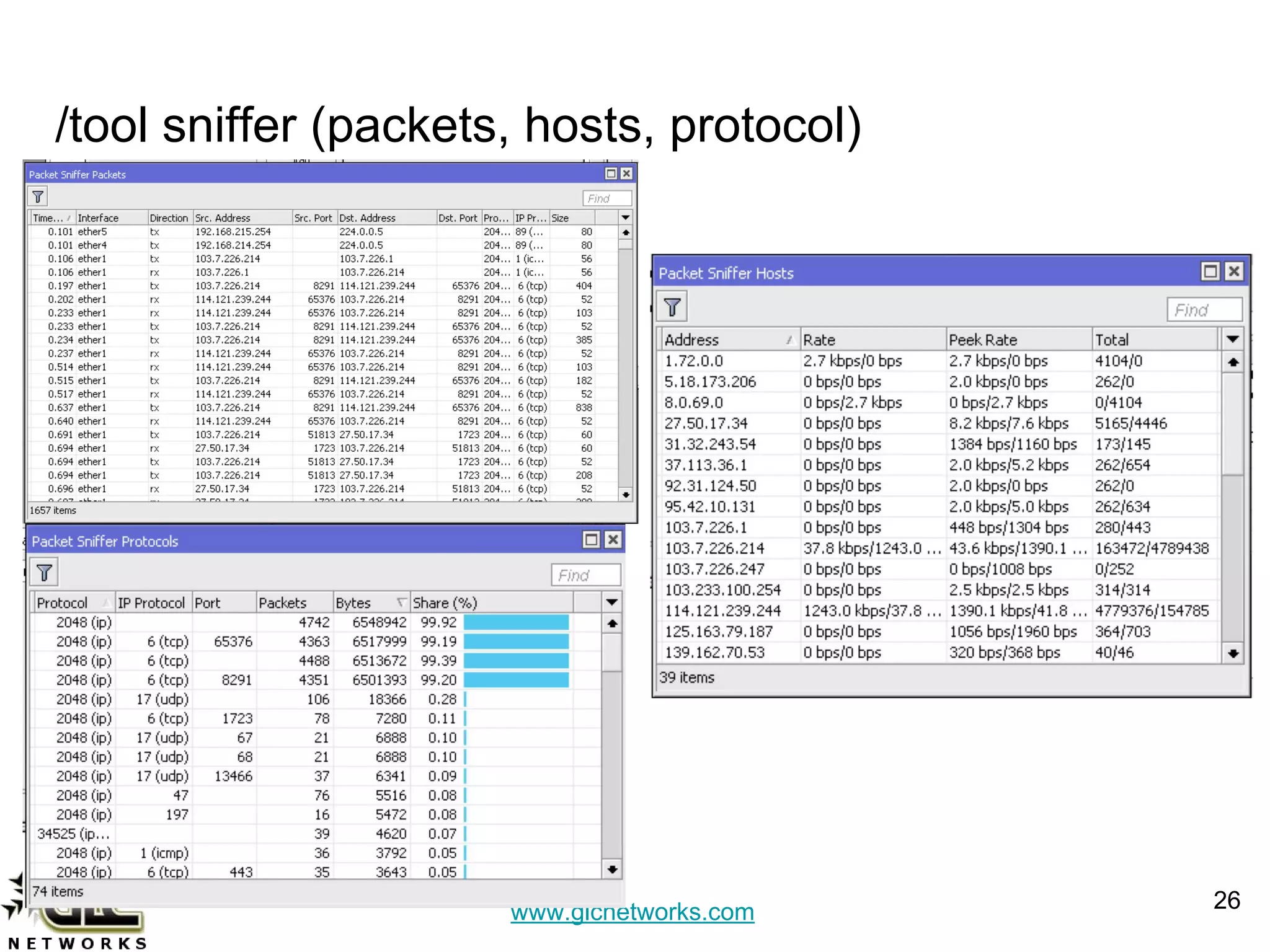

/tool sniffer (packets, hosts, protocol)
26

27. www.glcnetworks.com

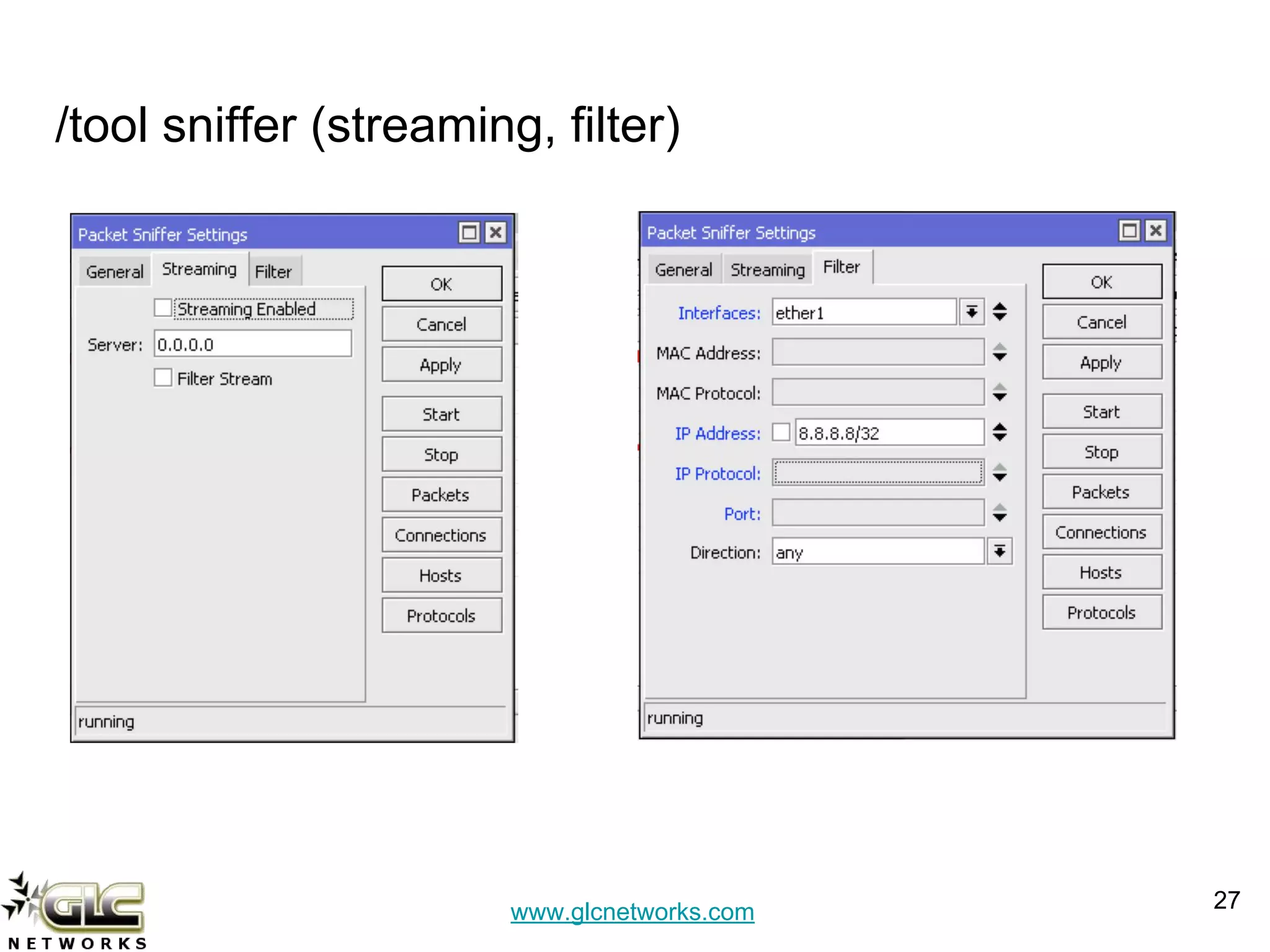

/tool sniffer (streaming, filter)
27

28. www.glcnetworks.com
/tool torch
28

29. www.glcnetworks.com

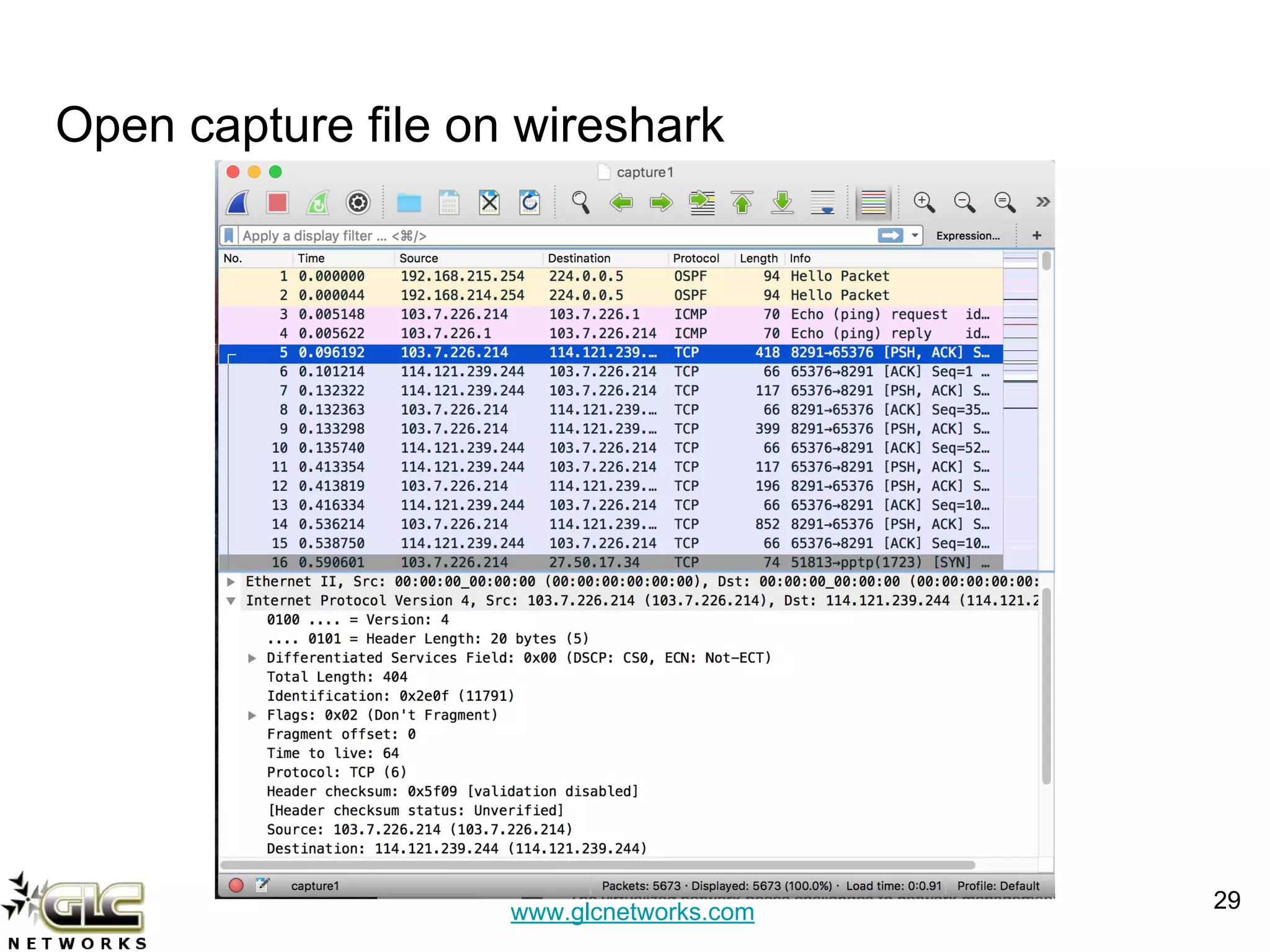

Open capture file on wireshark
29

30. www.glcnetworks.com
QA
30

31. www.glcnetworks.com
Interested?
Just come to our
training...
Special price for webinar
attendees…
http://www.glcnetworks.c
om/main/schedule
31

32. www.glcnetworks.com

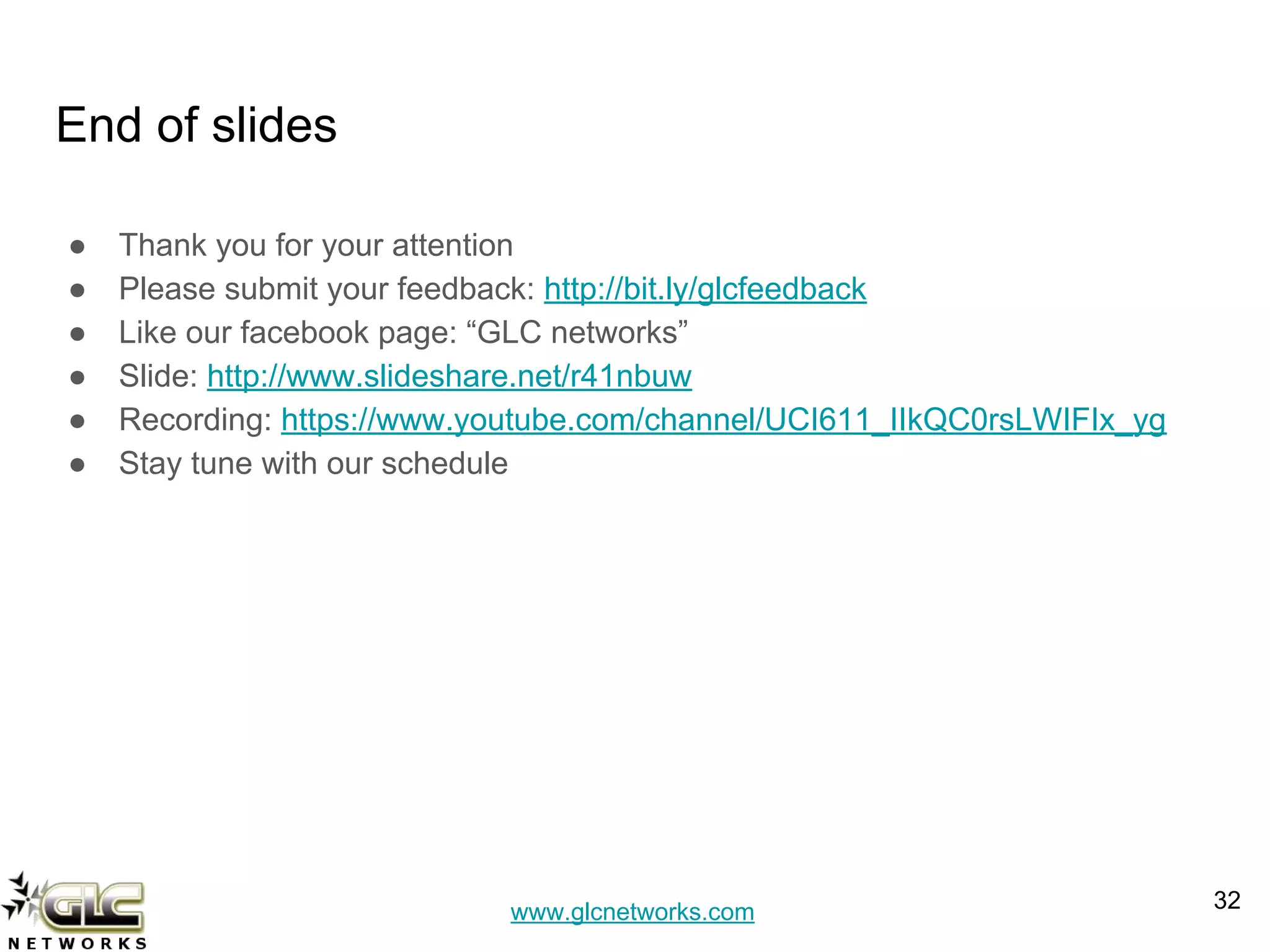

End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
32
