In this webinar, we discuss a mikrotik feature that is called VRRP (Virtual Router Redundancy Protocol ) which could provide dedundancy on the your network. We started the webinar by introducing the VRRP protocol, then discuss an example implementation on Mikrotik Router. some mistakes on VRRP configuration were also covered here. The recording is available on youtube (GLC Networks Channel): https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg

1. www.glcnetworks.com
VRRP
GLC webinar, 27 july 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1

2. www.glcnetworks.com
Agenda
● Introduction
● VRRP Mikrotik
● Demo
● Q & A
2

3. www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner/Consultant/Distributor
● Ubiquiti Certified Trainer/Consultant
● RedHat Certified Trainer
3

4. www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user (since 1999), Mikrotik user (since 2007),
ubnt user (since 2011)
● Certified Trainer (Mikrotik, Ubiquiti, Redhat)
● Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com
Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6

7. www.glcnetworks.com
VRRP
7

8. www.glcnetworks.com
What is VRRP
● Virtual Router Redundancy Protocol
● Provides for automatic assignment of available Internet Protocol (IP) routers
to participating hosts
● Increases the availability and reliability of routing paths via automatic default
gateway selections on an IP subnetwork
● Consist of master and slave node
● Provides information on the state of a router, not the prefixes
● Available on single subnet with direct connection between nodes
● Support IPv4 and IPv6
● Described in IETF RFC 5798
8

9. www.glcnetworks.com
VRRP topology
9
● Master router is forwarding
traffic
● There is an additional virtual IP
on master
● The virtual IP is acting as
gateway
● Virtual IP should use /32
● When master fail, slave will
become Master router
● Virtual IP will move to master
router

10. www.glcnetworks.com
VRRP on Mikrotik
10

11. www.glcnetworks.com
VRRP configuration
ROUTER 1
/interface vrrp add name=vrrp-wan
interface=ether1 vrid=10 priority=150
/ip address add address=17.4.5.2/32
interface=vrrp-wan
/interface vrrp add name=vrrp-lan
interface=ether2 vrid=20 priority=150
/ip address add address=192.168.1.1/32
interface=vrrp-lan
/ip address add address=17.4.5.3/29
interface=ether1
/ip address add address=192.168.1.2/24
interface=ether2
ROUTER 2
/interface vrrp add name=vrrp-wan
interface=ether1 vrid=10 priority=100
/ip address add address=17.4.5.2/32
interface=vrrp-wan
/interface vrrp add name=vrrp-lan
interface=ether2 vrid=20 priority=100
/ip address add address=192.168.1.1/32
interface=vrrp-lan
/ip address add address=17.4.5.4/29
interface=ether1
/ip address add address=192.168.1.3/24
interface=ether2
11

12. www.glcnetworks.com

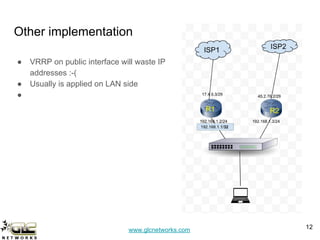

Other implementation
● VRRP on public interface will waste IP
addresses :-(
● Usually is applied on LAN side
●
12

13. www.glcnetworks.com
Other parameters

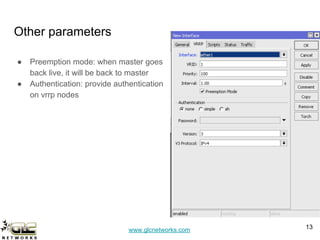

● Preemption mode: when master goes
back live, it will be back to master
● Authentication: provide authentication
on vrrp nodes
13

14. www.glcnetworks.com
Interested?
Just come to our
training...
Special price for webinar
attendees…
http://www.glcnetworks.c
om/main/schedule
14

15. www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
