1. www.glcnetworks.com
ISP load balancing with
GLC webinar, 16 november 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1
ECMP

2. www.glcnetworks.com

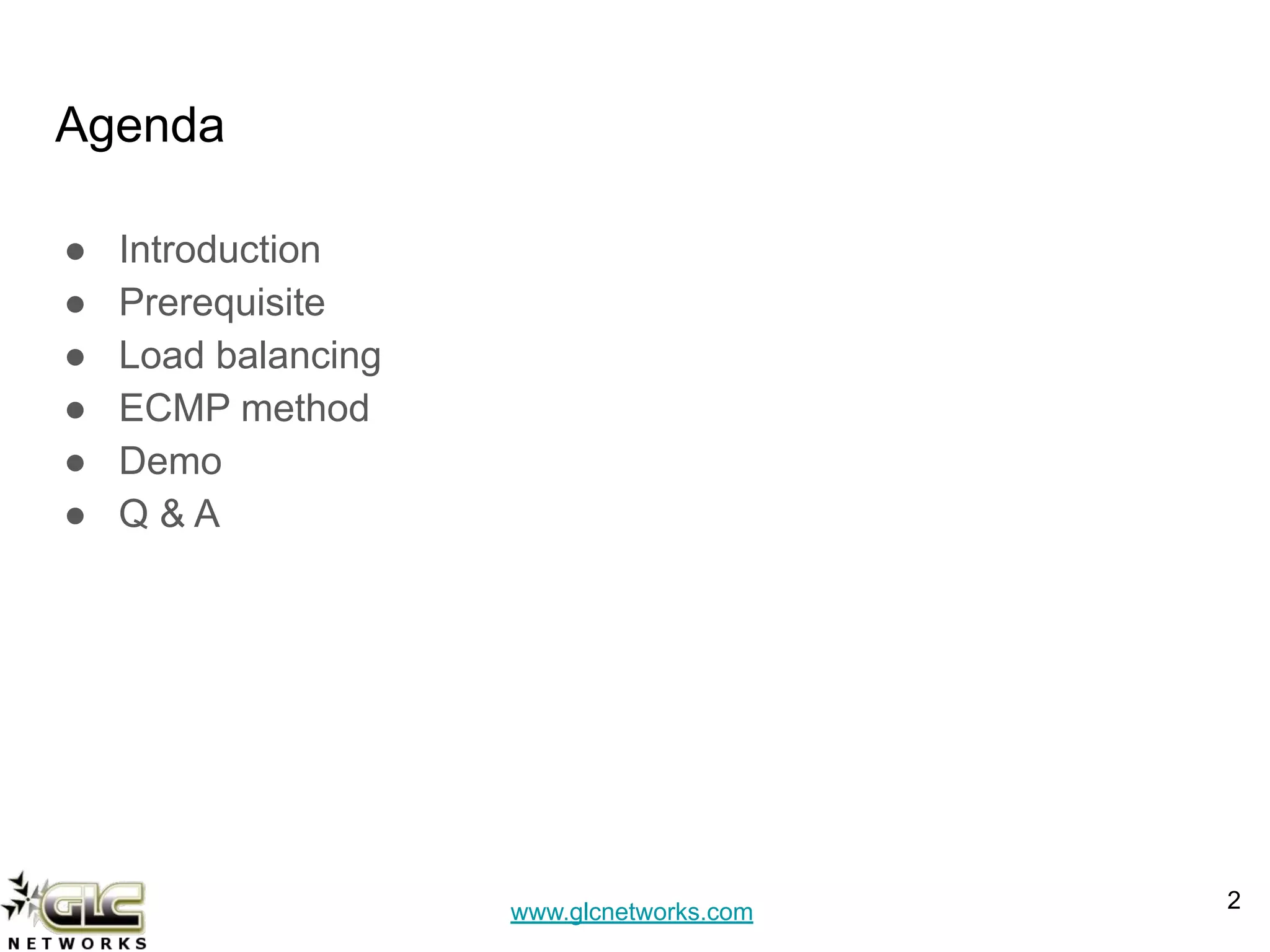

Agenda
● Introduction
● Prerequisite
● Load balancing
● ECMP method
● Demo
● Q & A
2

3. www.glcnetworks.com

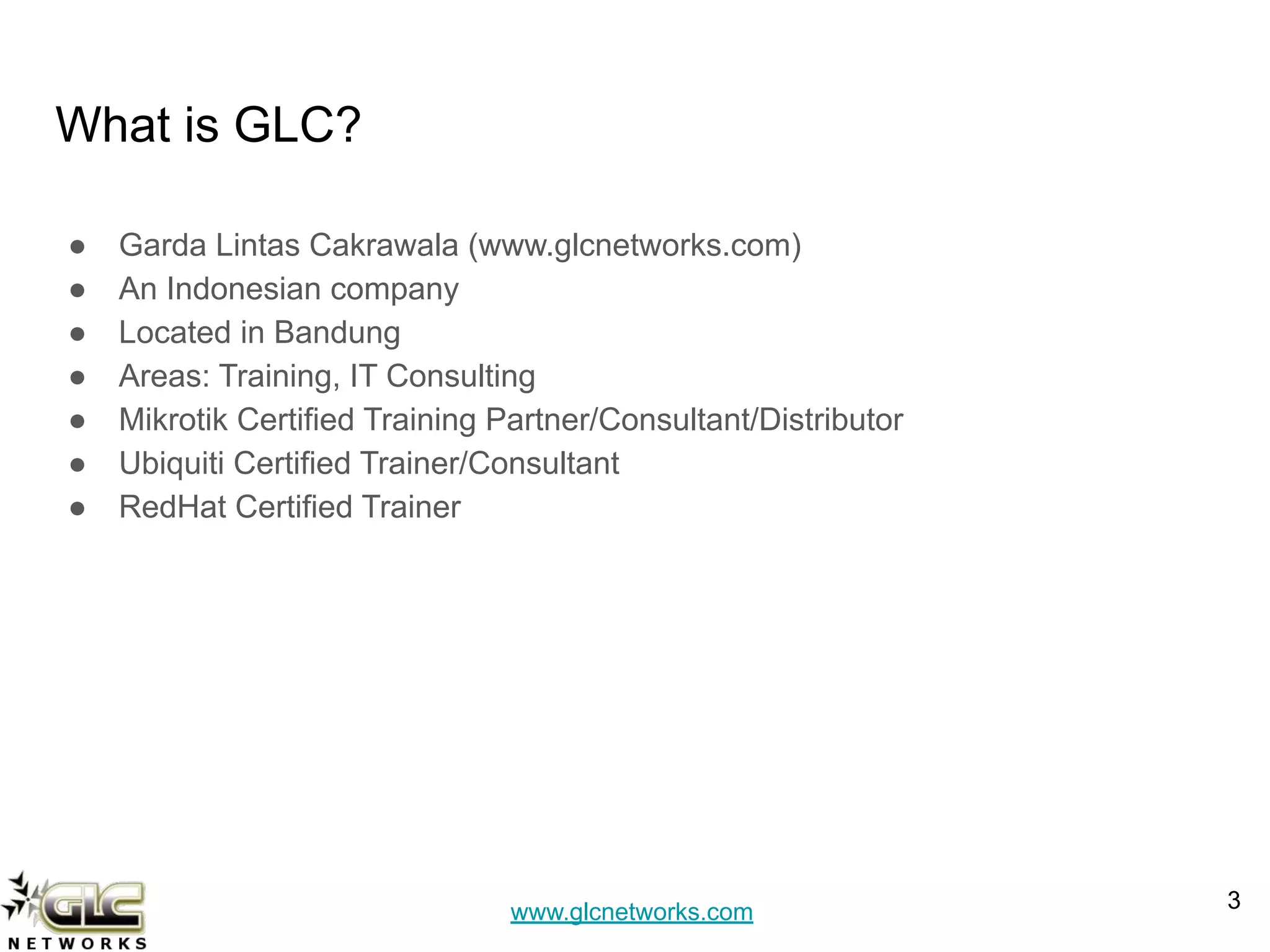

What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner/Consultant/Distributor
● Ubiquiti Certified Trainer/Consultant
● RedHat Certified Trainer
3

4. www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4

5. www.glcnetworks.com

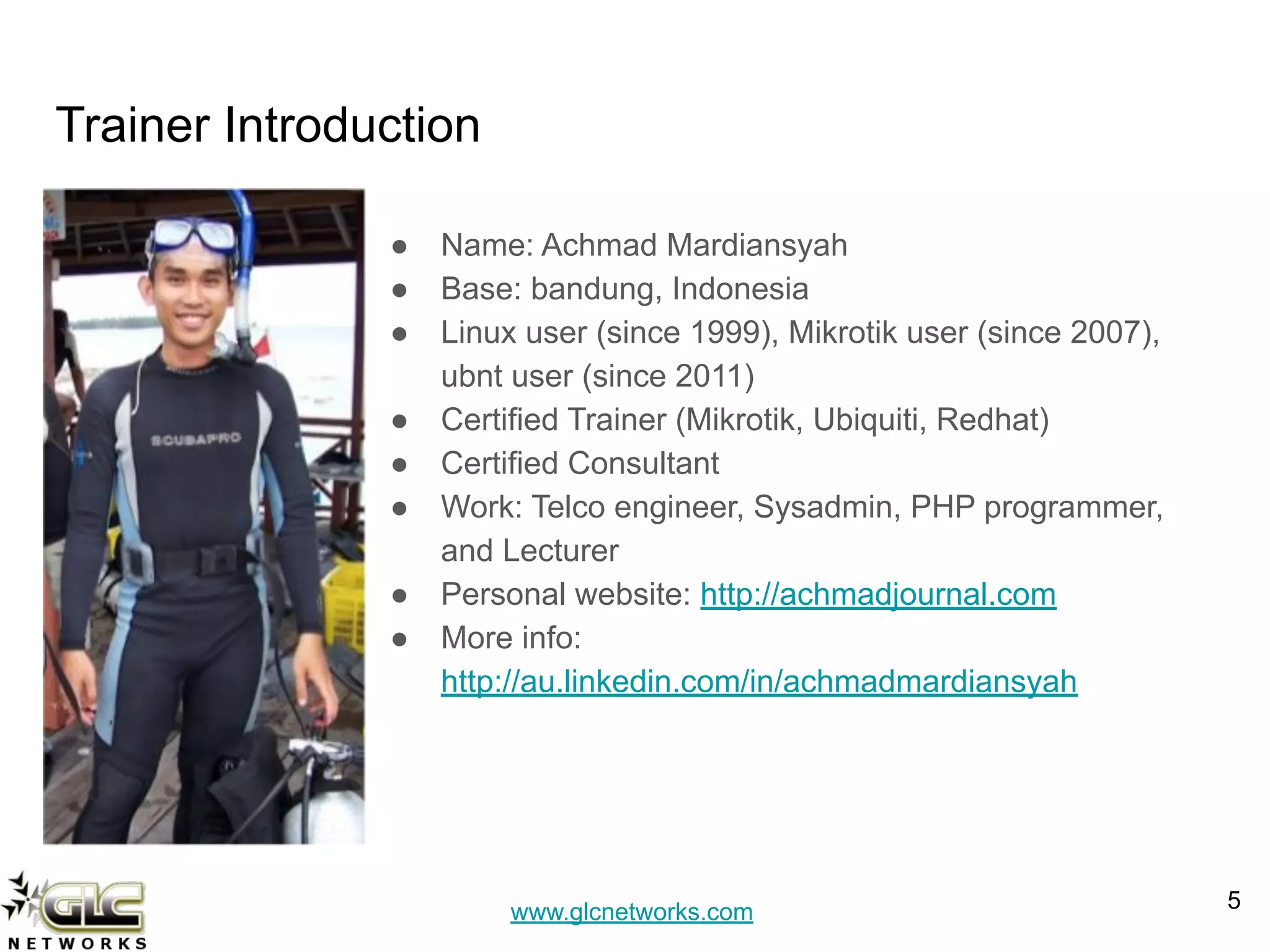

Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user (since 1999), Mikrotik user (since 2007),
ubnt user (since 2011)
● Certified Trainer (Mikrotik, Ubiquiti, Redhat)
● Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com

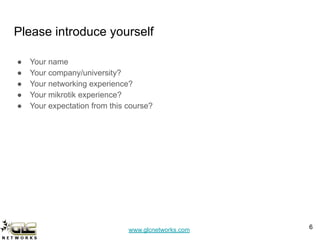

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6

7. www.glcnetworks.com

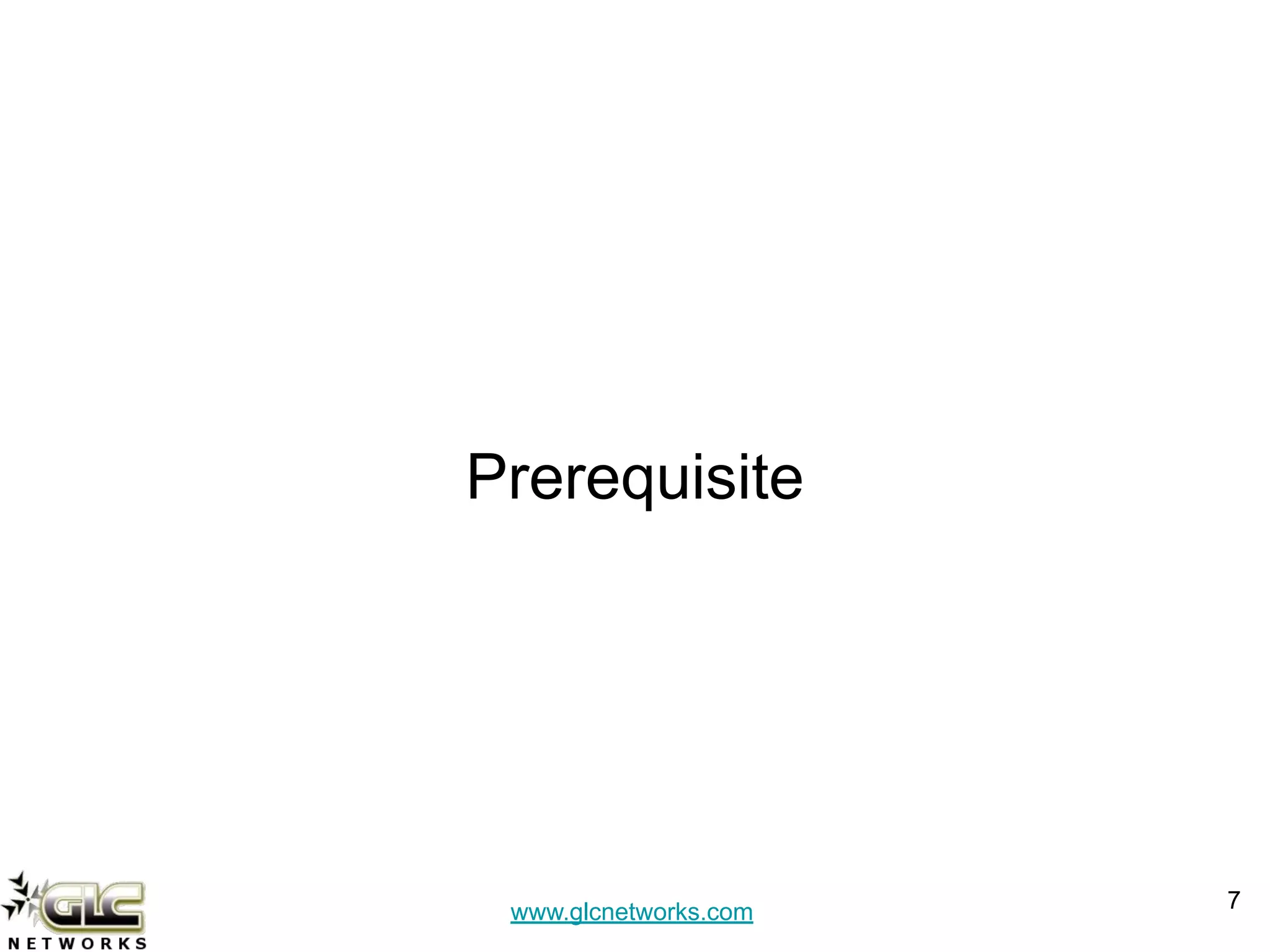

Prerequisite
7

8. www.glcnetworks.com
wait, load balancing is easy...
● Lots of tutorials in internet!!!
● Tons of pages, tutorials, videos
Questions to reader:
● Do you really understand what its
written?
● Did the writer understand what
they wrote?
● Is it really works as expected in
your environment?
8

9. www.glcnetworks.com

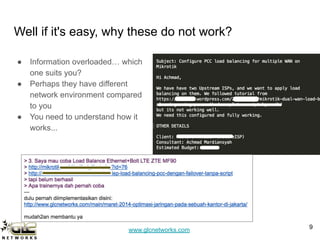

Well if it's easy, why these do not work?
● Information overloaded… which
one suits you?
● Perhaps they have different
network environment compared
to you
● You need to understand how it
works...
9

10. www.glcnetworks.com

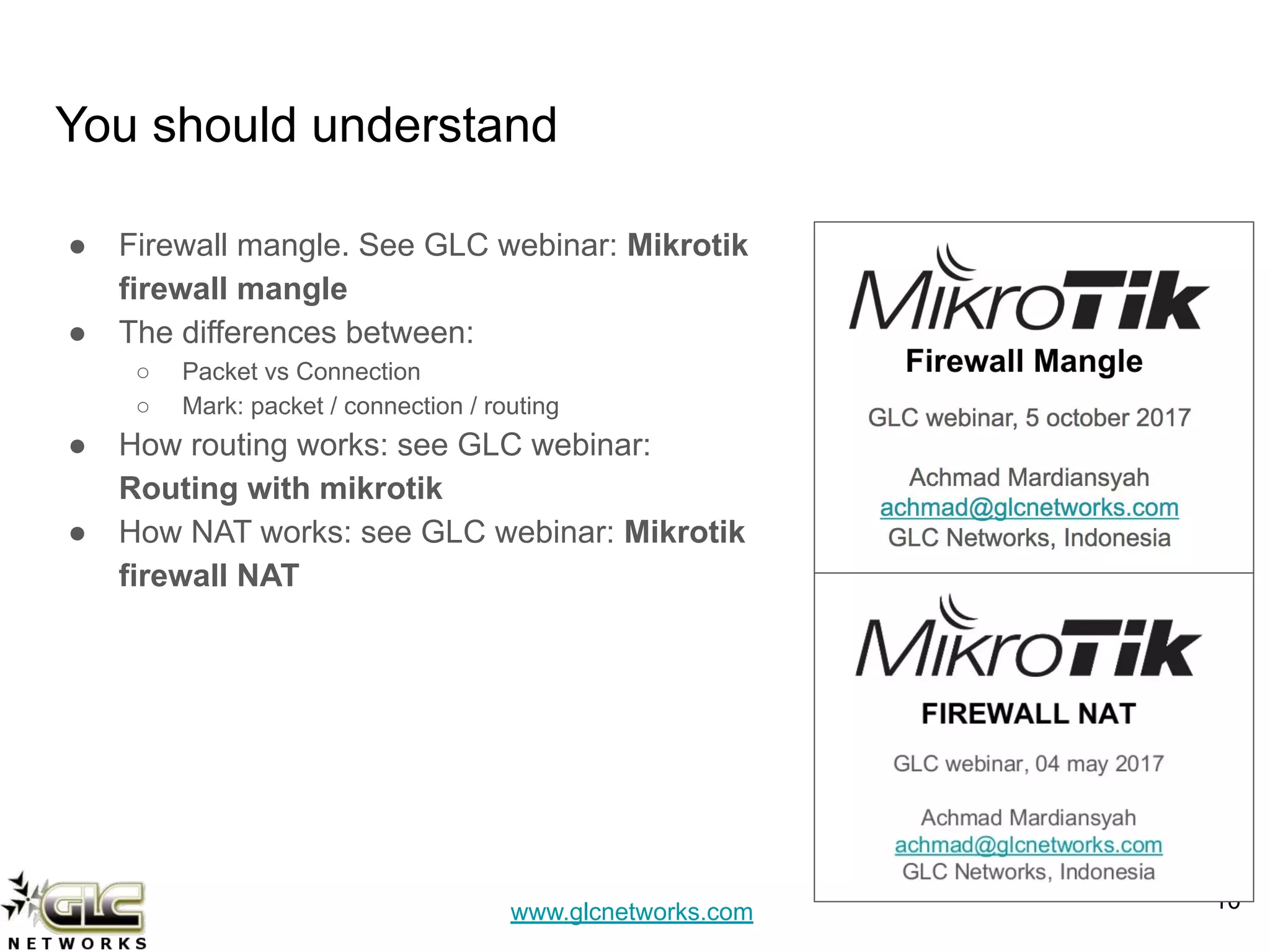

You should understand
● Firewall mangle. See GLC webinar: Mikrotik
firewall mangle
● The differences between:
○ Packet vs Connection
○ Mark: packet / connection / routing
● How routing works: see GLC webinar:
Routing with mikrotik
● How NAT works: see GLC webinar: Mikrotik
firewall NAT
10

11. www.glcnetworks.com

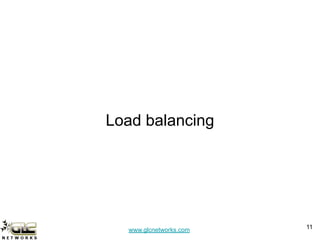

Load balancing
11

12. www.glcnetworks.com

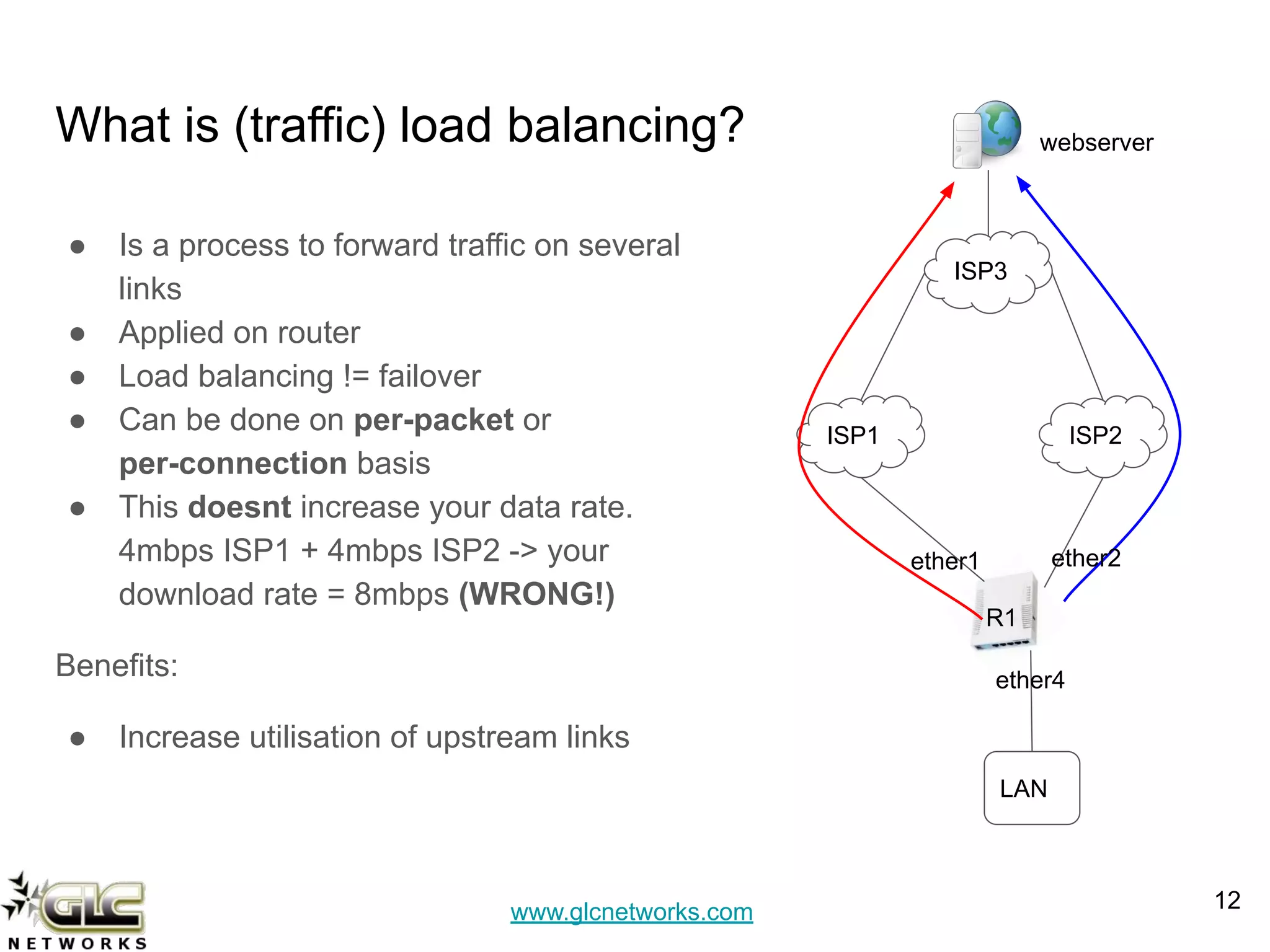

What is (traffic) load balancing?
● Is a process to forward traffic on several
links
● Applied on router
● Load balancing != failover
● Can be done on per-packet or
per-connection basis
● This doesnt increase your data rate.
4mbps ISP1 + 4mbps ISP2 -> your
download rate = 8mbps (WRONG!)
Benefits:
● Increase utilisation of upstream links
12
ISP1 ISP2
LAN
ether1 ether2
webserver
ISP3
ether4
R1

13. www.glcnetworks.com
Load balancing techniques
13
Method Per-connection per-packet
Firewall marking YES YES
ECMP (our focus) YES NO
PCC YES NO
Nth YES YES
Bonding NO YES
OSPF YES NO
BGP YES NO

14. www.glcnetworks.com

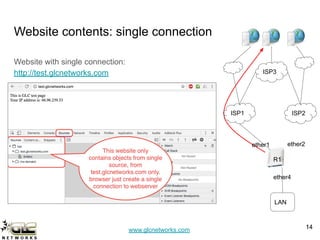

Website contents: single connection
Website with single connection:
http://test.glcnetworks.com
14
14
ISP1 ISP2
LAN
ether1 ether2
ISP3
ether4
R1

15. www.glcnetworks.com
Website contents: multi connection
15
15
ISP1 ISP2
LAN
ether1 ether2
ISP3
● Client will open multiple connections to get
website components
Connect
ion 1
Connect
ion 2
Connect
ion 3
ether4
R1

16. www.glcnetworks.com
ECMP technique
16

17. www.glcnetworks.com
How ECMP works?
ECMP = Equal Cost Multi-Path ECMP. steps:
● ECMP will identify connections from clients
(per-src-dst-address combination)
● ECMP will forward the connection based on
weight/cost of the gateway
● ECMP does persistent per-connection load
balancing
● Its recommended to use “check-gateway” option
● As soon as one of the gateway is not responding,
check-gateway will remove it from gateway list,
and you will have a "failover" effect.
17
ISP1
LAN
ether1
ISP3
conn 1
conn 2
conn 3
ISP2
ether2
ether4

18. www.glcnetworks.com

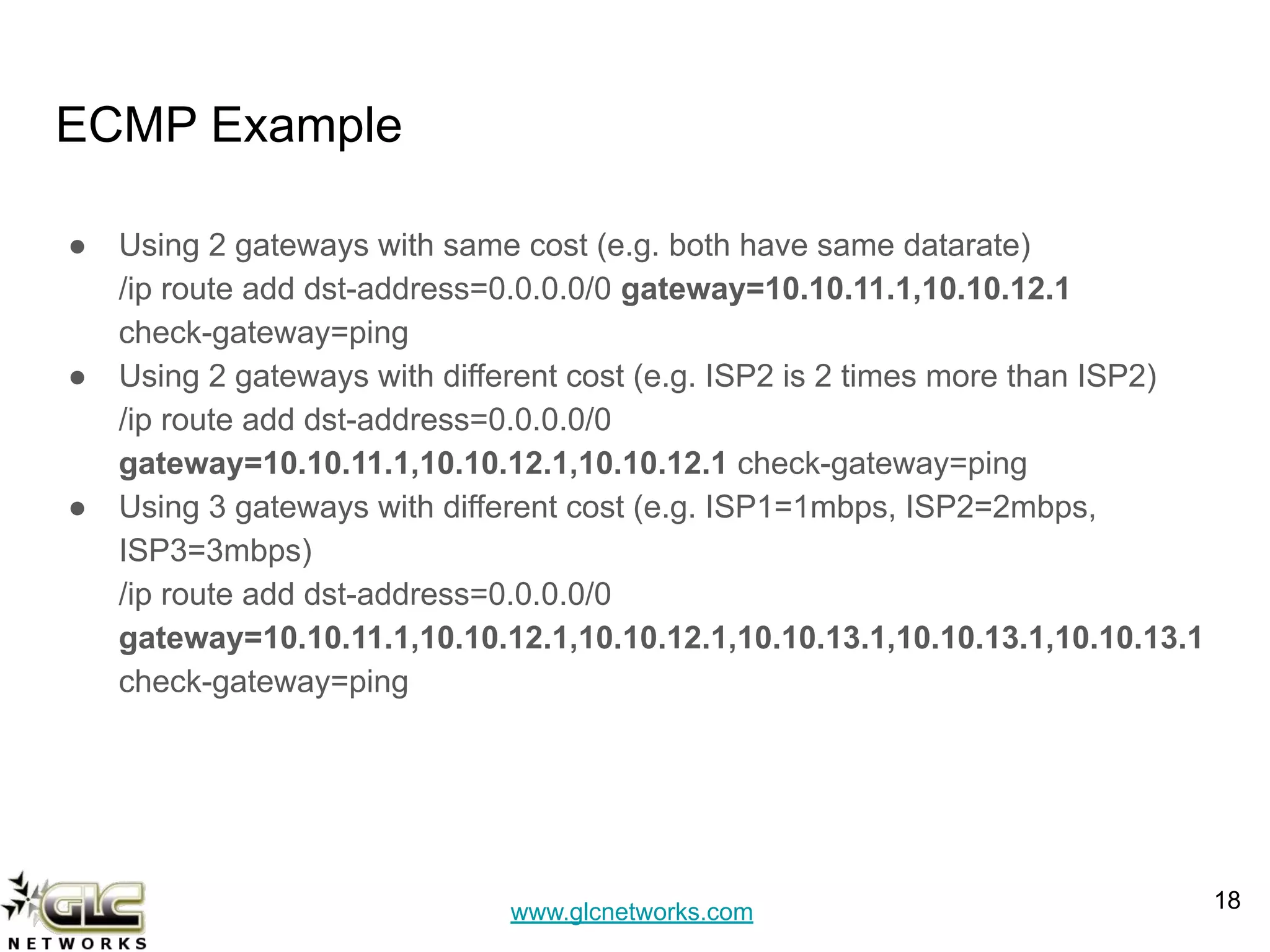

ECMP Example
● Using 2 gateways with same cost (e.g. both have same datarate)
/ip route add dst-address=0.0.0.0/0 gateway=10.10.11.1,10.10.12.1
check-gateway=ping
● Using 2 gateways with different cost (e.g. ISP2 is 2 times more than ISP2)
/ip route add dst-address=0.0.0.0/0
gateway=10.10.11.1,10.10.12.1,10.10.12.1 check-gateway=ping
● Using 3 gateways with different cost (e.g. ISP1=1mbps, ISP2=2mbps,
ISP3=3mbps)
/ip route add dst-address=0.0.0.0/0
gateway=10.10.11.1,10.10.12.1,10.10.12.1,10.10.13.1,10.10.13.1,10.10.13.1
check-gateway=ping
18

19. www.glcnetworks.com
ECMP via GUI
19

20. www.glcnetworks.com

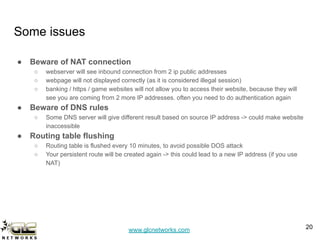

Some issues
● Beware of NAT connection
○ webserver will see inbound connection from 2 ip public addresses
○ webpage will not displayed correctly (as it is considered illegal session)
○ banking / https / game websites will not allow you to access their website, because they will
see you are coming from 2 more IP addresses. often you need to do authentication again
● Beware of DNS rules
○ Some DNS server will give different result based on source IP address -> could make website
inaccessible
● Routing table flushing
○ Routing table is flushed every 10 minutes, to avoid possible DOS attack
○ Your persistent route will be created again -> this could lead to a new IP address (if you use
NAT)
20

21. www.glcnetworks.com
Recommendations
● Avoid NAT if possible -> dont use private address -> use public IP address
end-to-end -> use BGP -> better performance
● Use IPv6 -> IPv6 is designed to have a large address space
21

22. www.glcnetworks.com

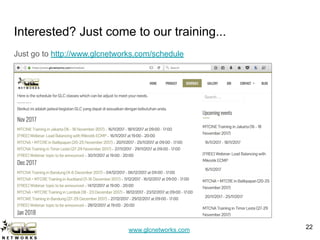

Interested? Just come to our training...
Just go to http://www.glcnetworks.com/schedule
22

23. www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
23
