1. www.glcnetworks.com
ISP load balancing with
GLC webinar, 19 october 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1
Nth
(nth)

2. www.glcnetworks.com

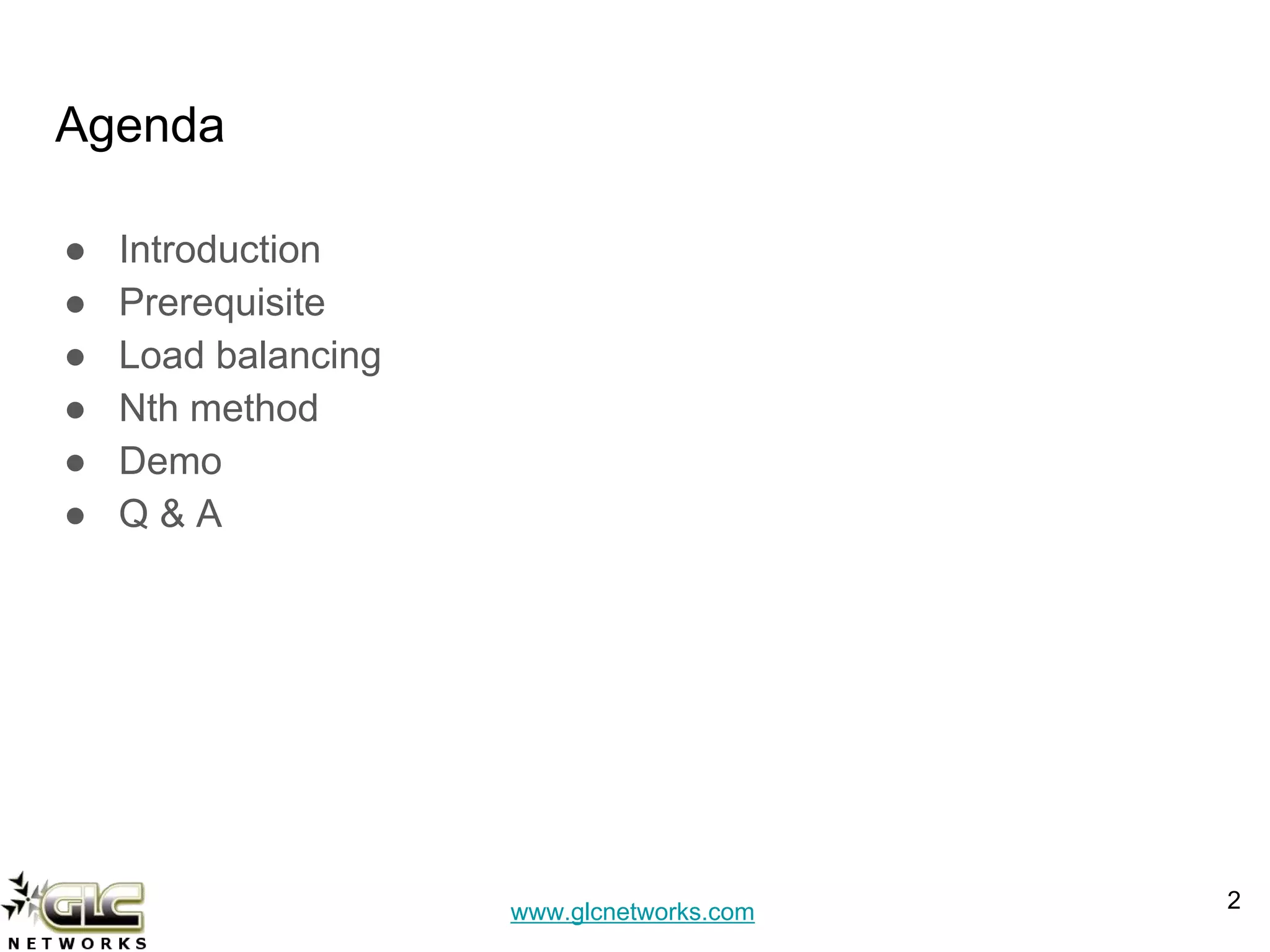

Agenda
● Introduction
● Prerequisite
● Load balancing
● Nth method
● Demo
● Q & A
2

3. www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner/Consultant/Distributor
● Ubiquiti Certified Trainer/Consultant
● RedHat Certified Trainer
3

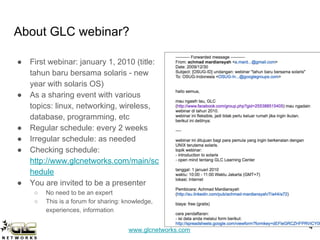

4. www.glcnetworks.com
About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user (since 1999), Mikrotik user (since 2007),
ubnt user (since 2011)
● Certified Trainer (Mikrotik, Ubiquiti, Redhat)
● Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com

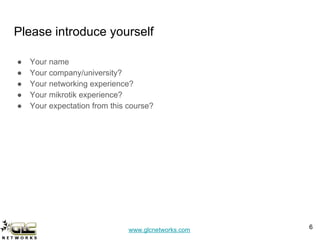

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6

7. www.glcnetworks.com

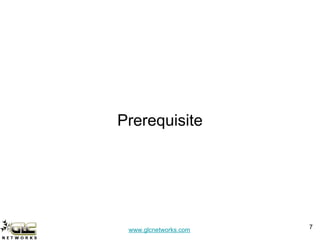

Prerequisite
7

8. www.glcnetworks.com
But hey, load balancing is easy...
● Lots of tutorials in internet!!!
● Tons of pages, tutorial, videos
Questions to reader:
● Do you really understand what its
written?
● Did the writer understand what
they wrote?
● Is it really works as expected in
real environment?
8

9. www.glcnetworks.com
Well if it's easy, why these do not work?
● Information overloaded… which
one suits you?
● Perhaps they have different
environment on their network
● You need to understand how it
works...
9

10. www.glcnetworks.com
You should understand
● Firewall mangle. See GLC webinar: Mikrotik
firewall mangle
● The differences between:
○ Packet vs Connection
○ Mark: packet / connection / routing
● How routing works: see GLC webinar:
Routing with mikrotik
● How NAT works: see GLC webinar: Mikrotik
firewall NAT
10

11. www.glcnetworks.com
Load balancing
11

12. www.glcnetworks.com
What is (traffic) load balancing?
● Is a process to forward traffic on several
links
● Applied on router
● Load balancing != failover
● Can be done on per-packet or
per-connection basis
● This doesnt increase your data rate.
4mbps ISP1 + 4mbps ISP2 -> your
download rate = 8mbps (WRONG!)
Benefits:
● Increase utilisation of upstream links
12
ISP1 ISP2
LAN
ether1 ether2
webserver
ISP3
ether4
R1

13. www.glcnetworks.com
Load balancing techniques
13
Method Per-connection per-packet
Firewall marking YES YES
ECMP YES NO
PCC YES NO
Nth (our focus) YES YES
Bonding NO YES
OSPF YES NO
BGP YES NO

14. www.glcnetworks.com

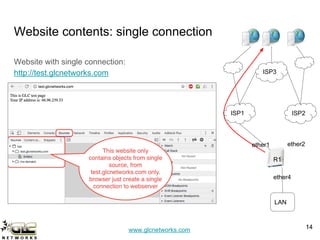

Website contents: single connection
Website with single connection:
http://test.glcnetworks.com
1414
ISP1 ISP2
LAN
ether1 ether2
ISP3
ether4
R1

15. www.glcnetworks.com
Website contents: multi connection
1515
ISP1 ISP2
LAN
ether1 ether2
ISP3
● Client will open multiple connections to get
website components
Connect
ion 1
Connect
ion 2
Connect
ion 3
ether4
R1

16. www.glcnetworks.com
Nth
(NTH) technique
16

17. www.glcnetworks.com
How Nth
(NTH) works?
NTH method matches a particular Nth
packet received
by the rule. Format: (E,P). See below
● Every - match every Every Nth
packet. For
example, if Every=2 then rule will check every 2
packet
● Packet - match on the given packet number.
○ Must not be 0
○ Must be less or equal to every
17
ISP1
LAN
ether1
ISP3
packet
1
packet 2
packet 3

18. www.glcnetworks.com

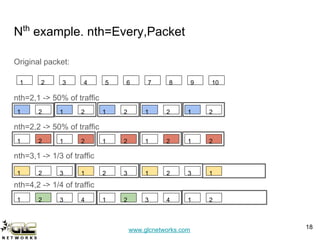

Nth
example. nth=Every,Packet
Original packet:
nth=2,1 -> 50% of traffic
nth=2,2 -> 50% of traffic
nth=3,1 -> 1/3 of traffic
nth=4,2 -> 1/4 of traffic
18
1 2 3 4 5 6 7 8 9 10
1 2 1 2 1 2 1 2 1 2
1 2 1 2 1 2 1 2 1 2
1 2 3 1 2 3 1 2 3 1
1 2 3 4 1 2 3 4 1 2

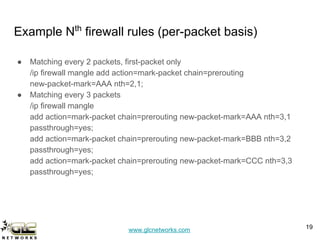

19. www.glcnetworks.com
Example Nth
firewall rules (per-packet basis)
● Matching every 2 packets, first-packet only
/ip firewall mangle add action=mark-packet chain=prerouting
new-packet-mark=AAA nth=2,1;
● Matching every 3 packets
/ip firewall mangle
add action=mark-packet chain=prerouting new-packet-mark=AAA nth=3,1
passthrough=yes;
add action=mark-packet chain=prerouting new-packet-mark=BBB nth=3,2
passthrough=yes;
add action=mark-packet chain=prerouting new-packet-mark=CCC nth=3,3
passthrough=yes;
19

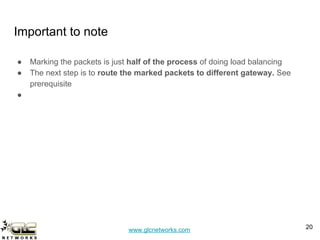

20. www.glcnetworks.com
Important to note
● Marking the packets is just half of the process of doing load balancing
● The next step is to route the marked packets to different gateway. See
prerequisite
●
20

21. www.glcnetworks.com

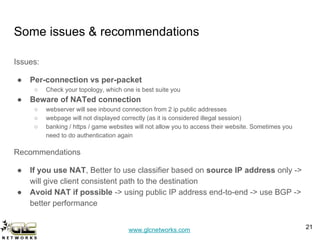

Some issues & recommendations
Issues:
● Per-connection vs per-packet
○ Check your topology, which one is best suite you
● Beware of NATed connection
○ webserver will see inbound connection from 2 ip public addresses
○ webpage will not displayed correctly (as it is considered illegal session)
○ banking / https / game websites will not allow you to access their website. Sometimes you
need to do authentication again
Recommendations
● If you use NAT, Better to use classifier based on source IP address only ->
will give client consistent path to the destination
● Avoid NAT if possible -> using public IP address end-to-end -> use BGP ->
better performance
21

22. www.glcnetworks.com
Interested?
Just come to our
training...
Special price for webinar
attendees…
http://www.glcnetworks.c
om/main/schedule
22

23. www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
23
