1. www.glcnetworks.com
BGP on
RouterOS 7
GLC Webinar,
18 Jan 2022
Achmad Mardiansyah
M. Taufik nurhuda
1
BORDER GATEWAY PROTOCOL

2. www.glcnetworks.com

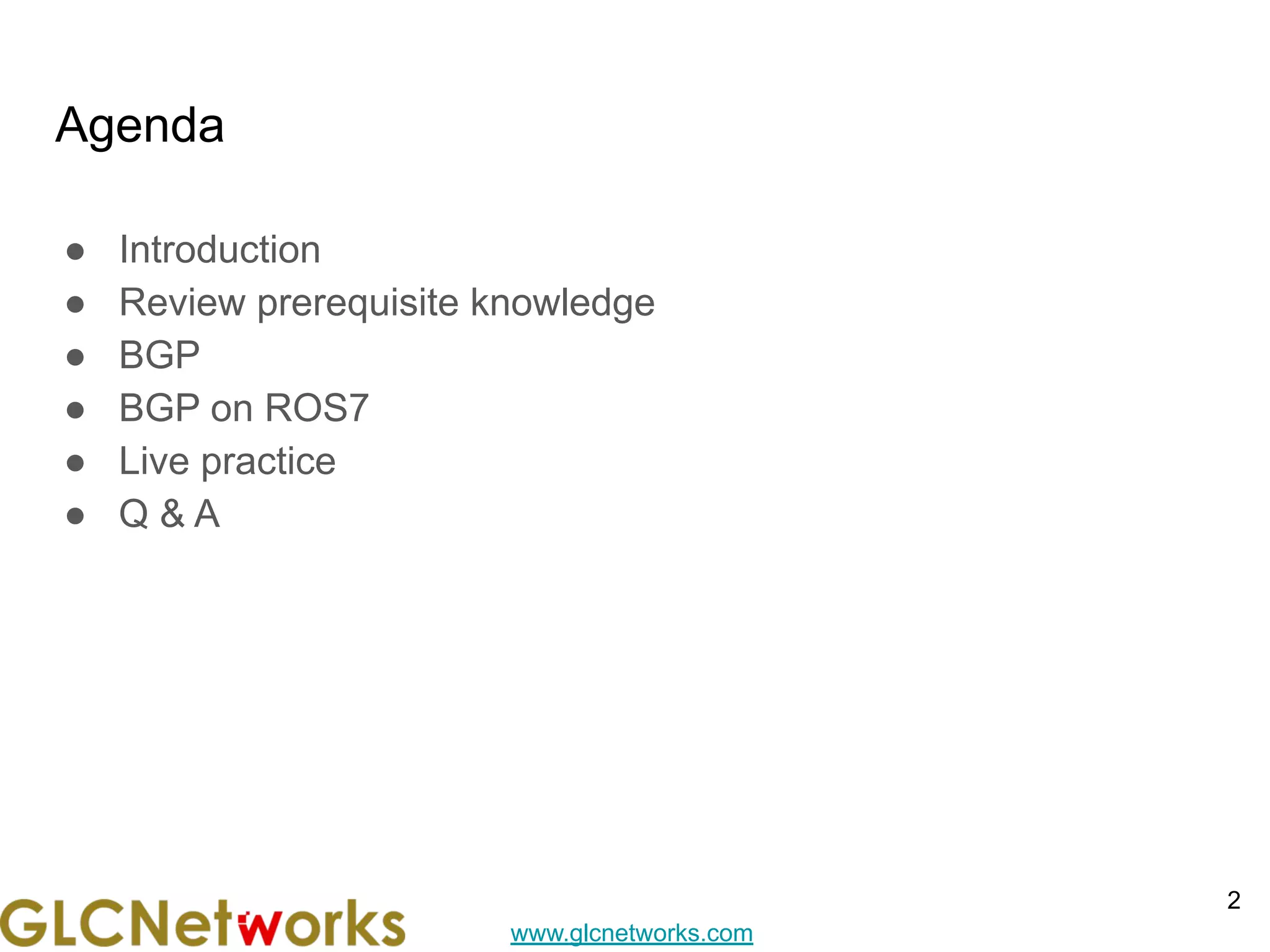

Agenda
● Introduction
● Review prerequisite knowledge
● BGP
● BGP on ROS7
● Live practice
● Q & A
2

3. www.glcnetworks.com
introduction
3

4. www.glcnetworks.com
What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● Based in Bandung, Indonesia
● Areas: Training, IT Consulting
● Certified partner for: Mikrotik, Ubiquity, Linux foundation
● Product: GLC radius manager
● Regular event
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user since 1999, mikrotik user since 2007, UBNT
2011
● Mikrotik Certified Trainer
(MTCNA/RE/WE/UME/INE/TCE/IPv6)
● Mikrotik/Linux Certified Consultant
● Website contributor: achmadjournal.com, mikrotik.tips,
asysadmin.tips
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com
Past experience
6
● 2021 (PNG, Malaysia): network support, radius/billing
integration
● 2020 (Congo DRC, Malaysia): IOT integration,
network automation
● 2019, Congo (DRC): build a wireless ISP from
ground-up
● 2018, Malaysia: network revamp, develop billing
solution and integration, setup dynamic routing
● 2017, Libya (north africa): remote wireless migration
for a new Wireless ISP
● 2016, United Kingdom: workshop for wireless ISP,
migrating a bridged to routed network

7. www.glcnetworks.com

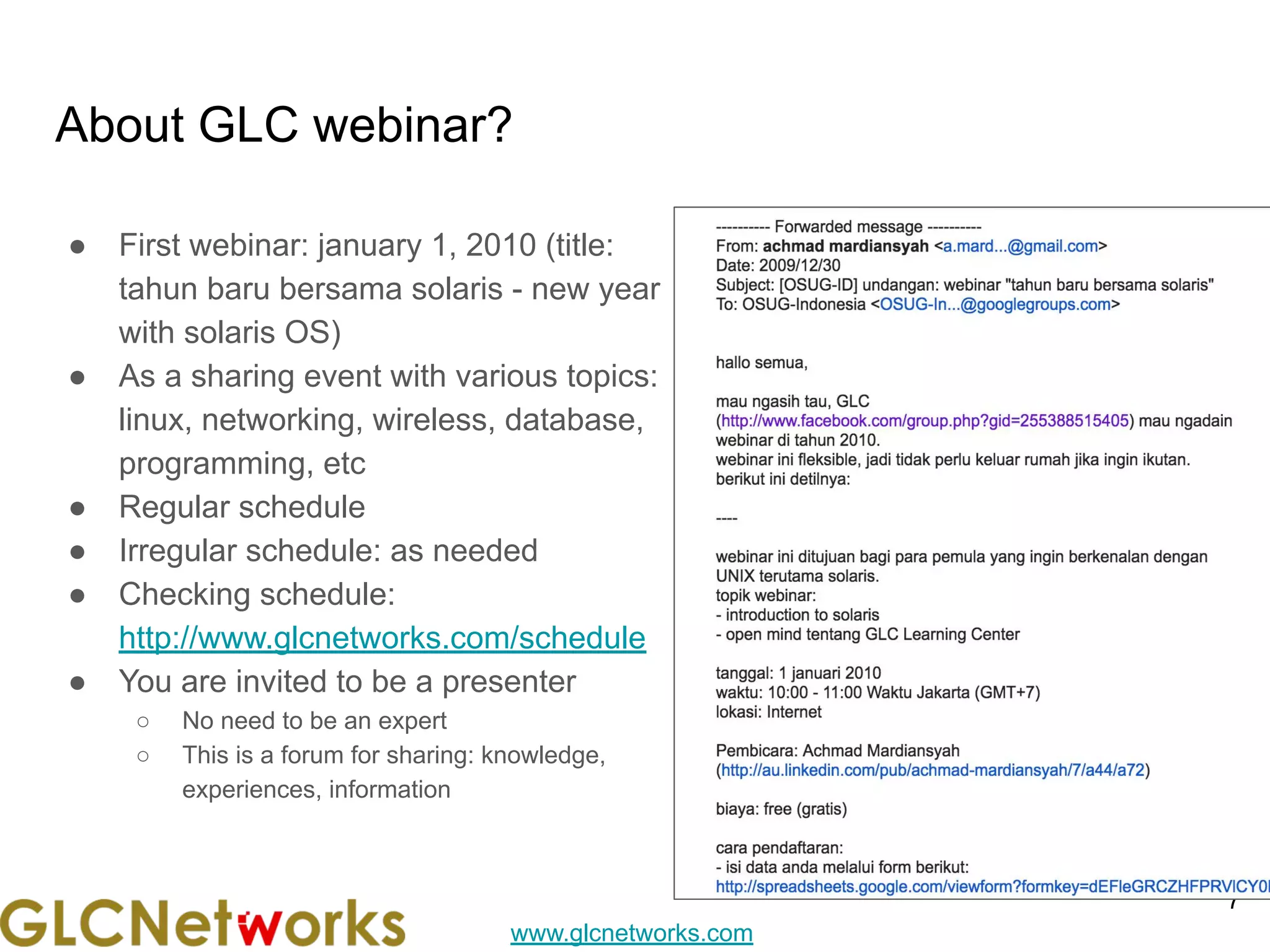

About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new year
with solaris OS)
● As a sharing event with various topics:
linux, networking, wireless, database,
programming, etc
● Regular schedule
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/schedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
7

8. www.glcnetworks.com

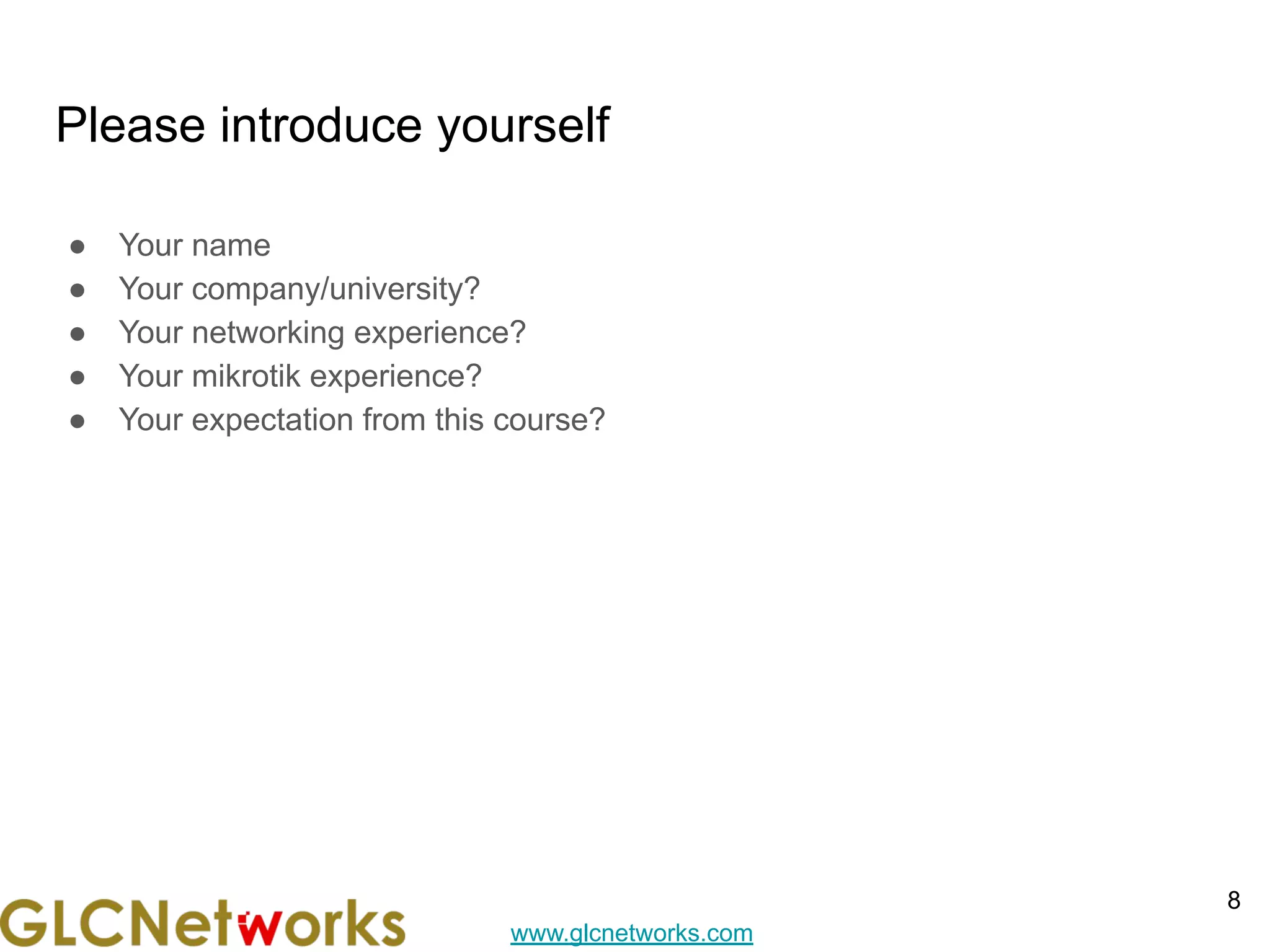

Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
8

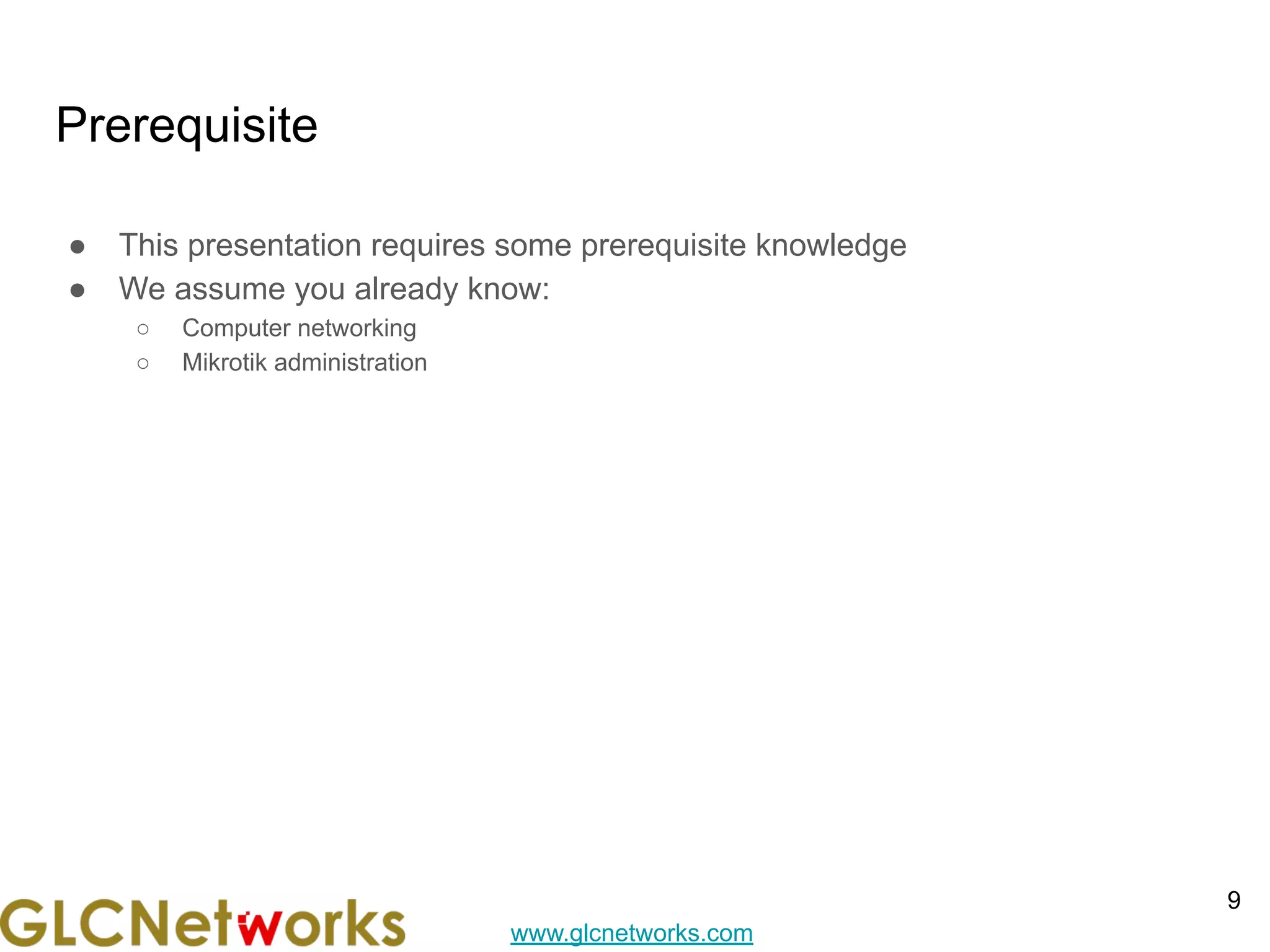

9. www.glcnetworks.com
Prerequisite
● This presentation requires some prerequisite knowledge
● We assume you already know:
○ Computer networking
○ Mikrotik administration
9

10. www.glcnetworks.com

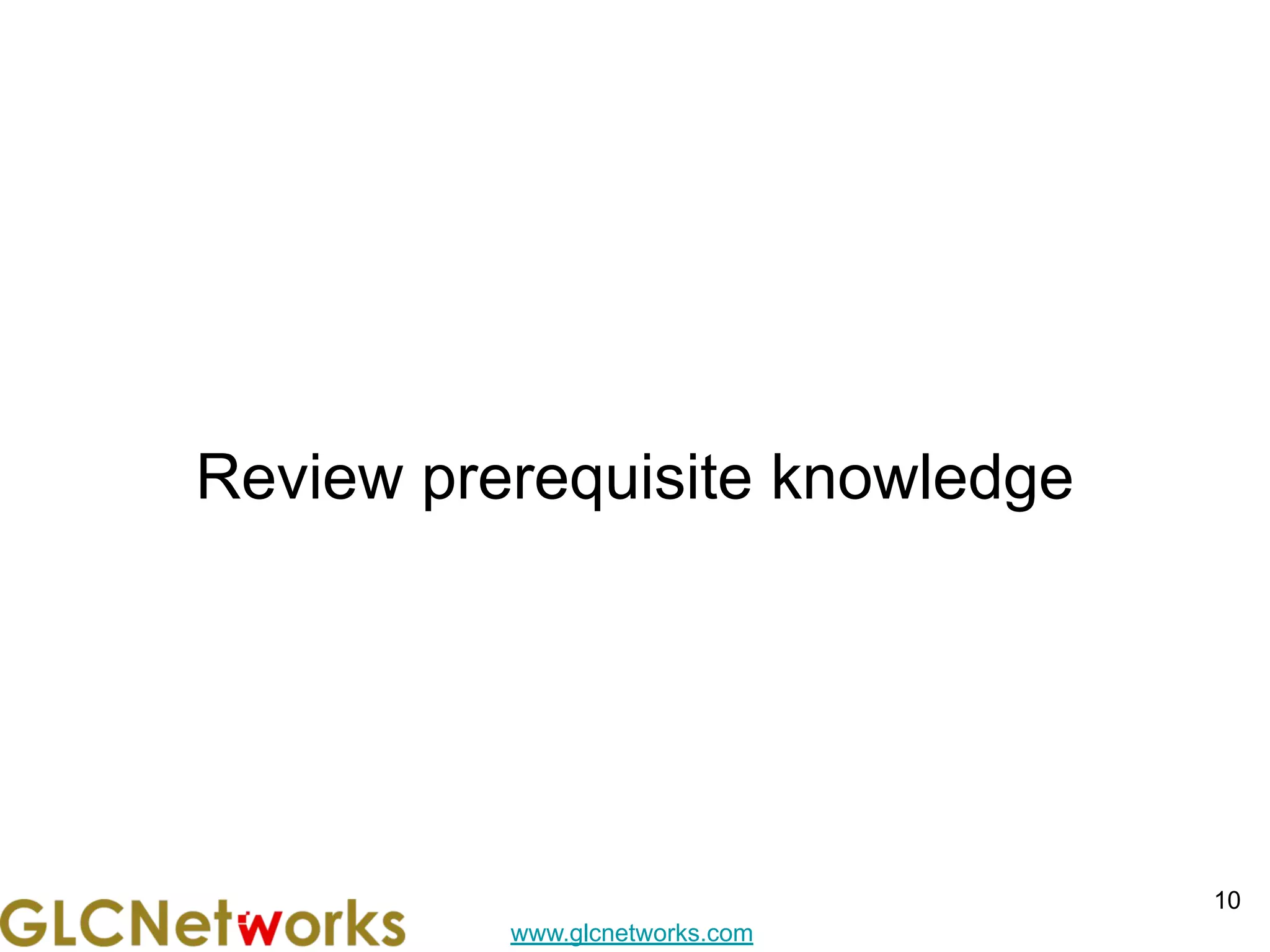

Review prerequisite knowledge
10

11. www.glcnetworks.com

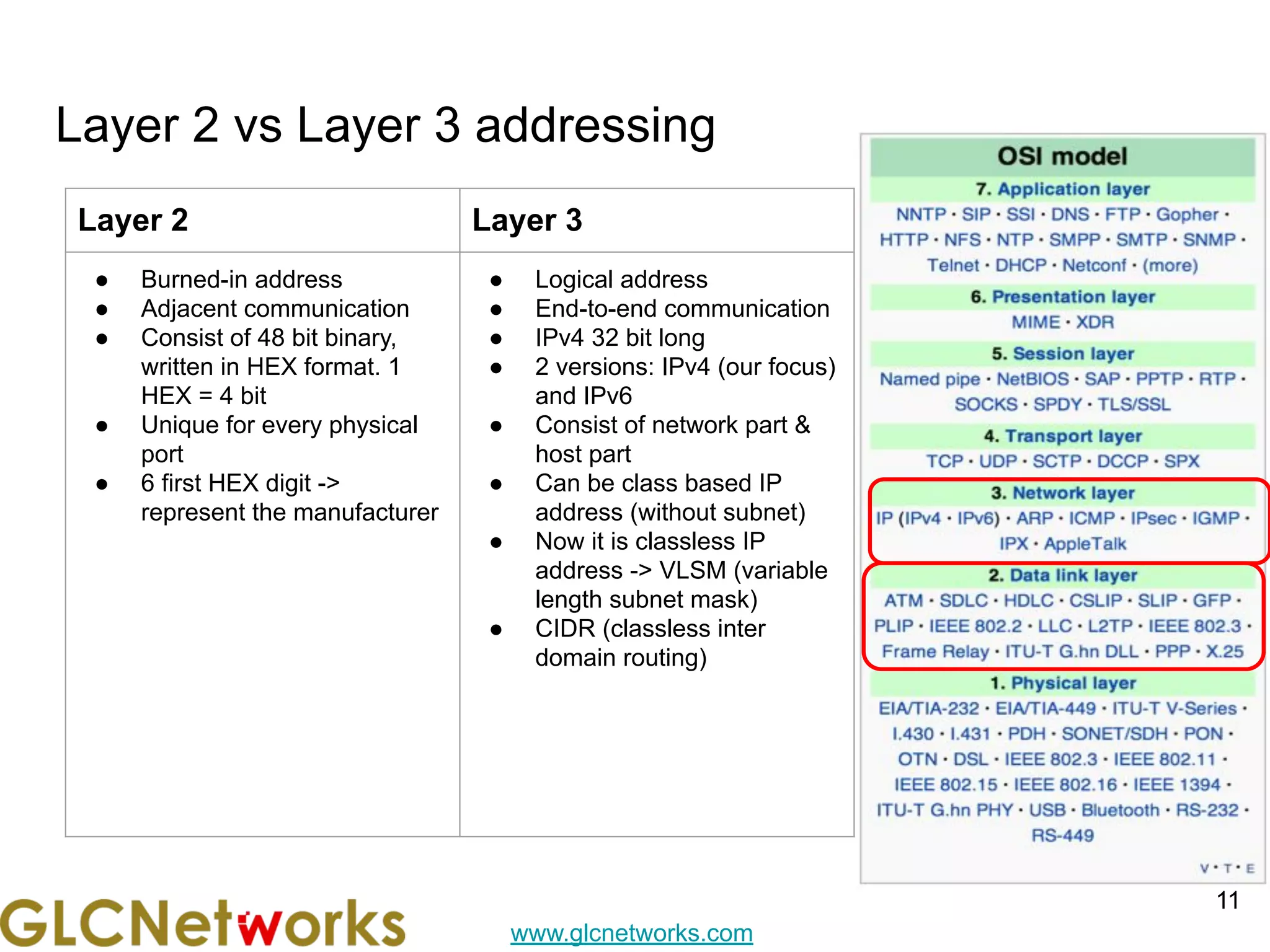

Layer 2 vs Layer 3 addressing
11
Layer 2 Layer 3
● Burned-in address
● Adjacent communication
● Consist of 48 bit binary,
written in HEX format. 1
HEX = 4 bit
● Unique for every physical
port
● 6 first HEX digit ->
represent the manufacturer
● Logical address
● End-to-end communication
● IPv4 32 bit long
● 2 versions: IPv4 (our focus)
and IPv6
● Consist of network part &
host part
● Can be class based IP
address (without subnet)
● Now it is classless IP
address -> VLSM (variable
length subnet mask)
● CIDR (classless inter
domain routing)

12. www.glcnetworks.com

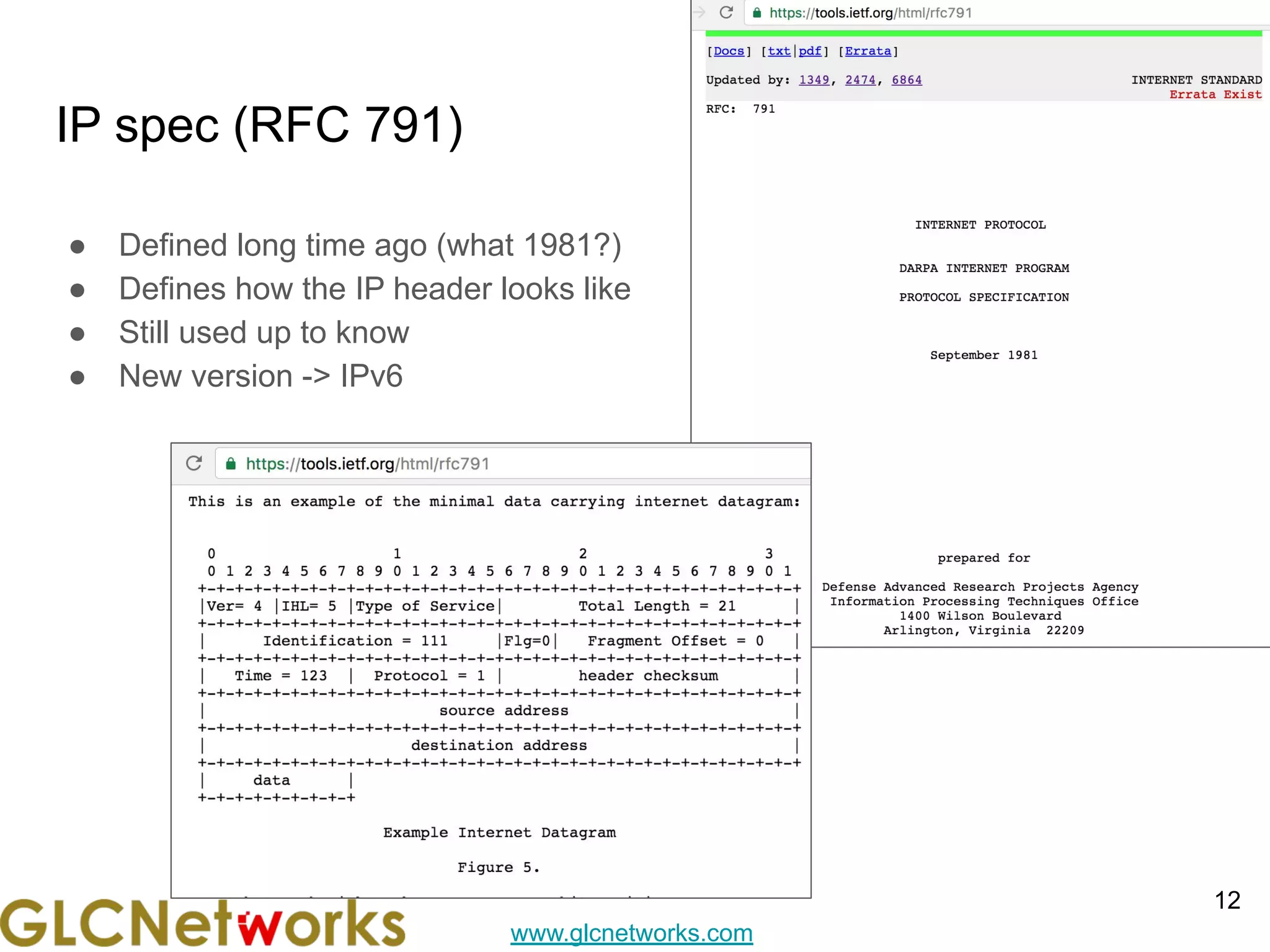

IP spec (RFC 791)
● Defined long time ago (what 1981?)
● Defines how the IP header looks like
● Still used up to know
● New version -> IPv6
12

13. www.glcnetworks.com

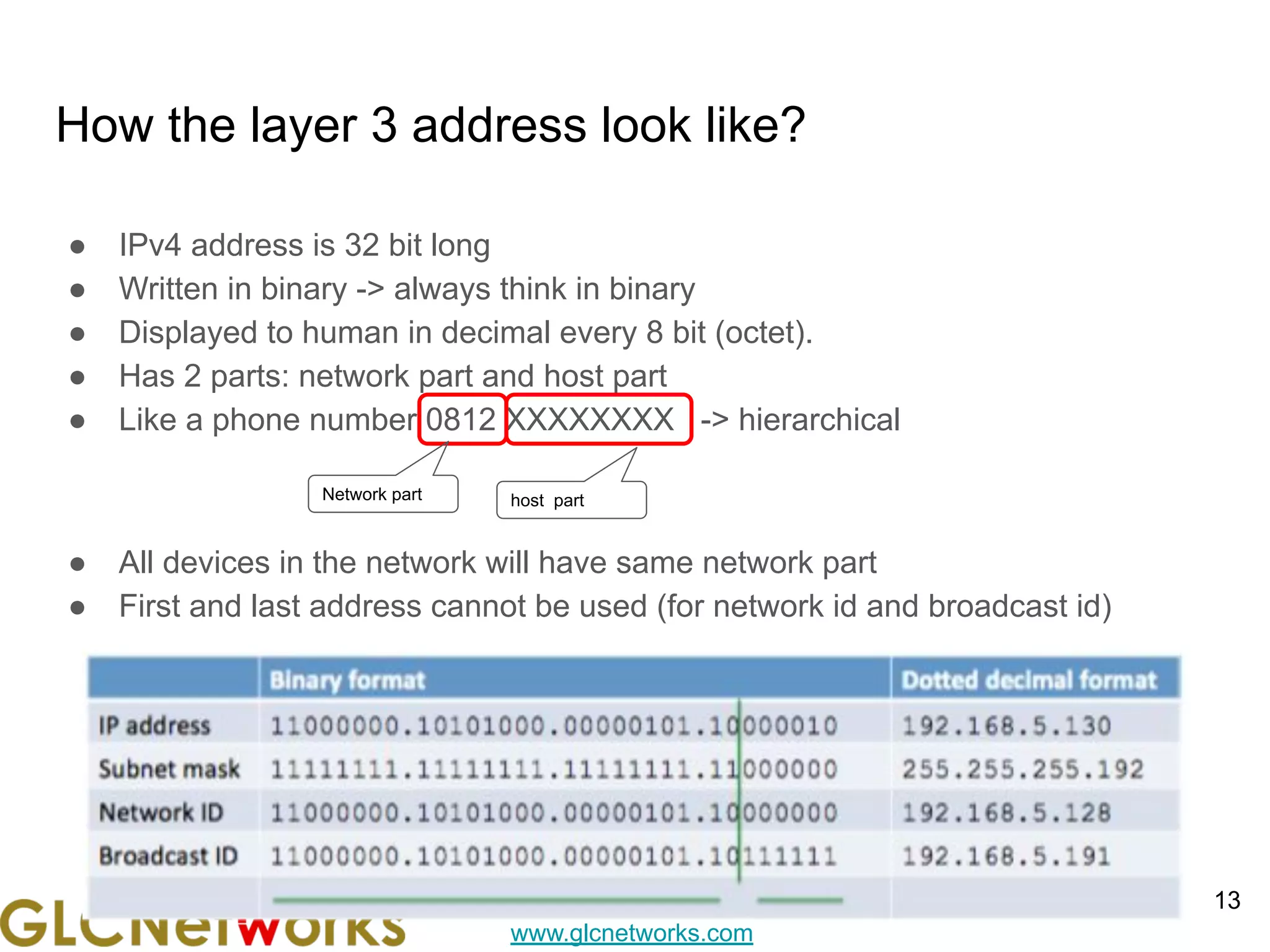

How the layer 3 address look like?
● IPv4 address is 32 bit long
● Written in binary -> always think in binary
● Displayed to human in decimal every 8 bit (octet).
● Has 2 parts: network part and host part
● Like a phone number 0812 XXXXXXXX -> hierarchical
● All devices in the network will have same network part
● First and last address cannot be used (for network id and broadcast id)
13
Network part host part

14. www.glcnetworks.com

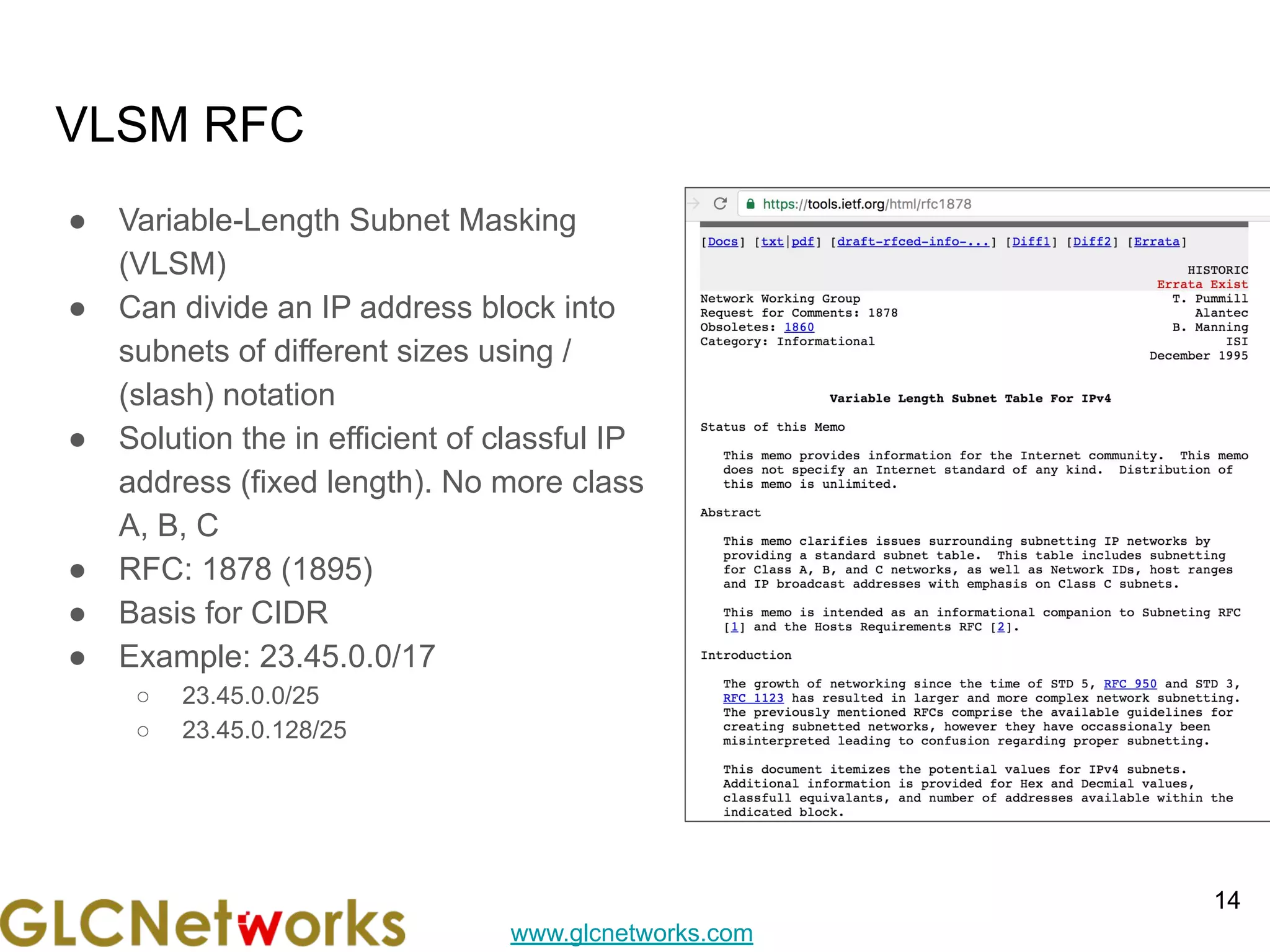

VLSM RFC
● Variable-Length Subnet Masking
(VLSM)
● Can divide an IP address block into
subnets of different sizes using /
(slash) notation
● Solution the in efficient of classful IP
address (fixed length). No more class
A, B, C
● RFC: 1878 (1895)
● Basis for CIDR
● Example: 23.45.0.0/17
○ 23.45.0.0/25
○ 23.45.0.128/25
14

15. www.glcnetworks.com

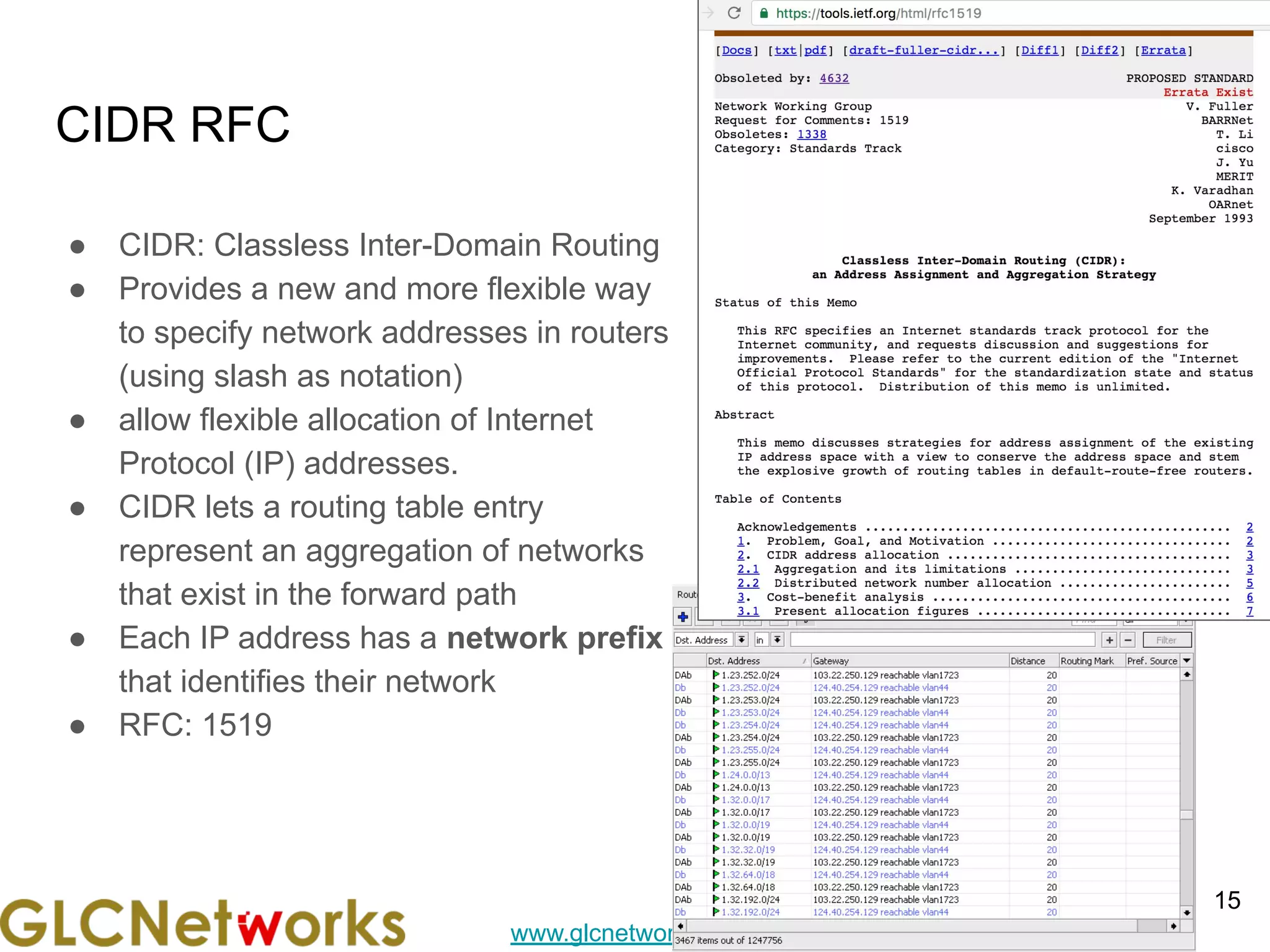

CIDR RFC
● CIDR: Classless Inter-Domain Routing
● Provides a new and more flexible way
to specify network addresses in routers
(using slash as notation)
● allow flexible allocation of Internet
Protocol (IP) addresses.
● CIDR lets a routing table entry
represent an aggregation of networks
that exist in the forward path
● Each IP address has a network prefix
that identifies their network
● RFC: 1519
15

16. www.glcnetworks.com

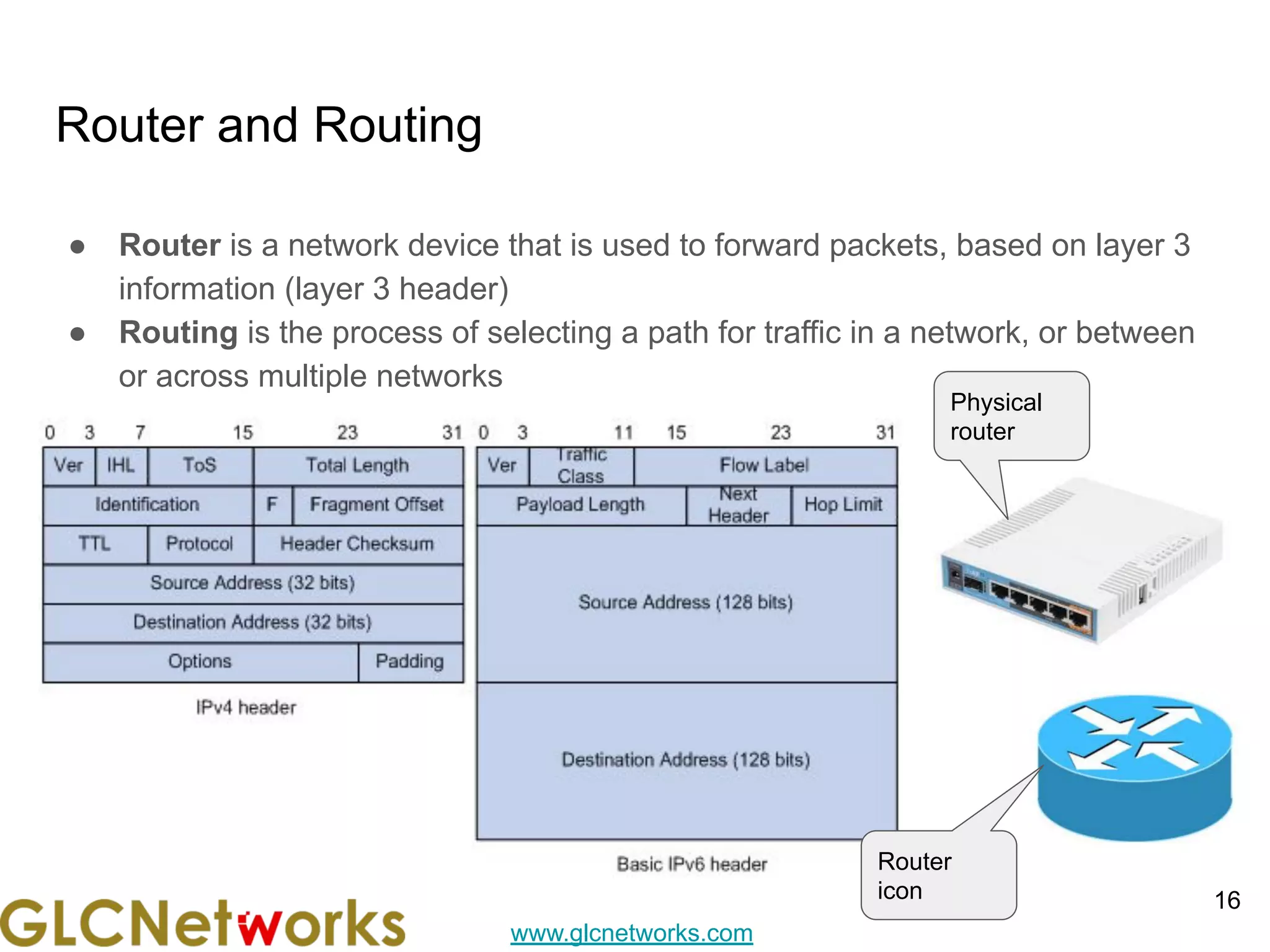

Router and Routing
● Router is a network device that is used to forward packets, based on layer 3
information (layer 3 header)
● Routing is the process of selecting a path for traffic in a network, or between
or across multiple networks
16
Physical
router
Router
icon

17. www.glcnetworks.com

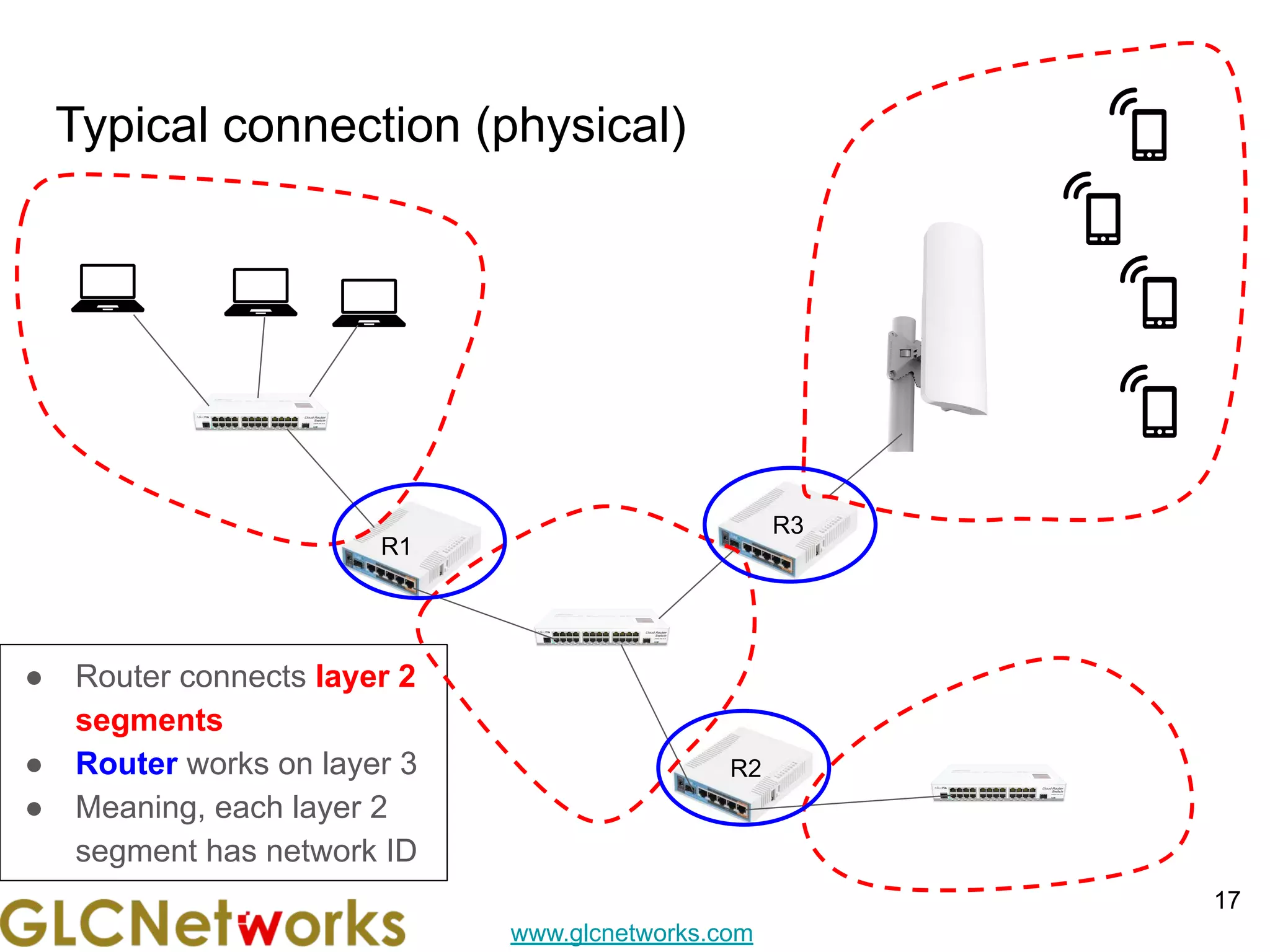

Typical connection (physical)
17
R2
R1
R3
● Router connects layer 2
segments
● Router works on layer 3
● Meaning, each layer 2
segment has network ID

18. www.glcnetworks.com
Typical connection (logical) and routing table
Routing table:
● A table at router that is used to forward packet
● Available on every devices (router and host)
● Entry is executed sequentially
18
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 (default gw) 192.168.0.3

19. www.glcnetworks.com

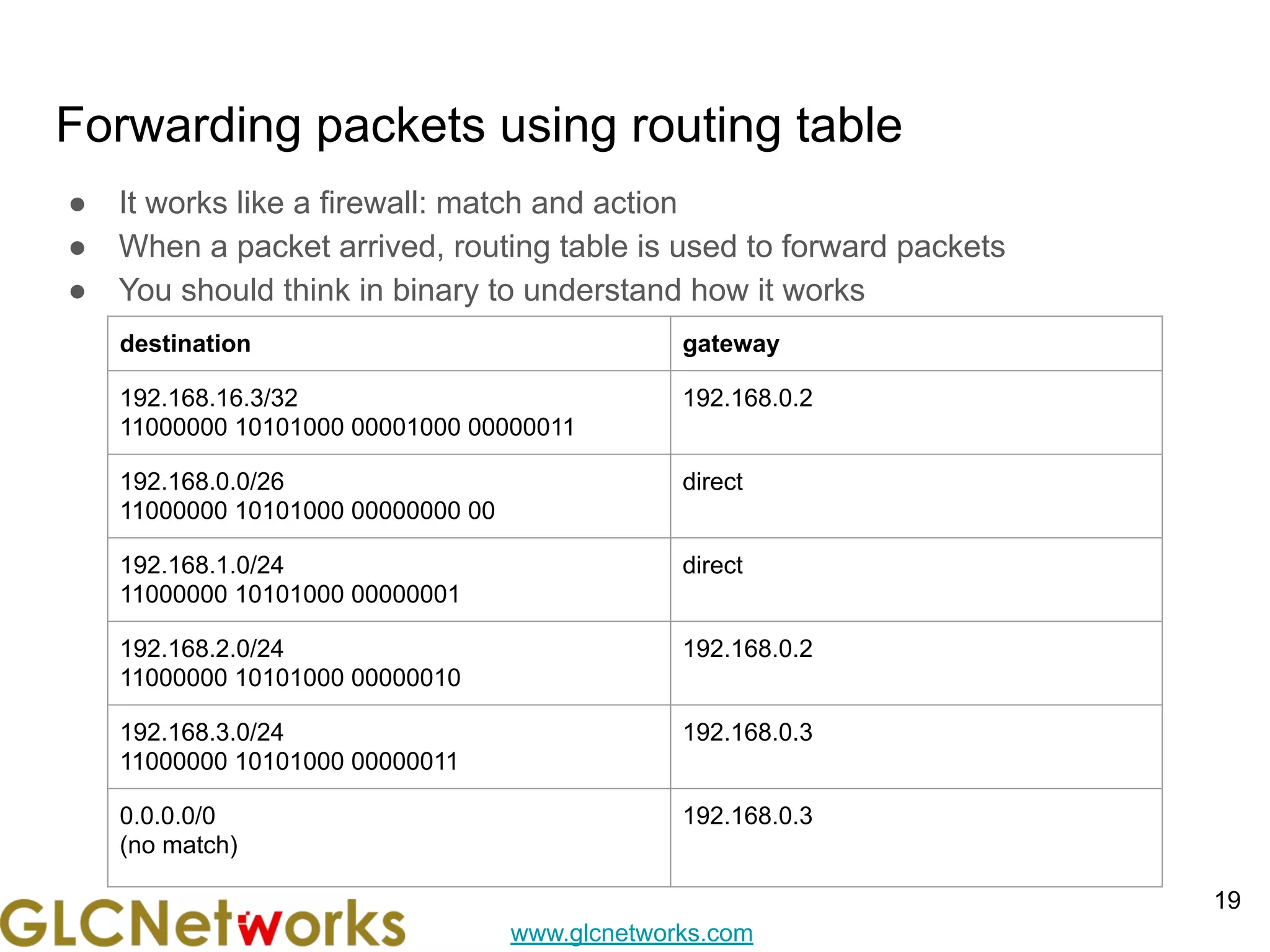

Forwarding packets using routing table
● It works like a firewall: match and action
● When a packet arrived, routing table is used to forward packets
● You should think in binary to understand how it works
19
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0
(no match)
192.168.0.3

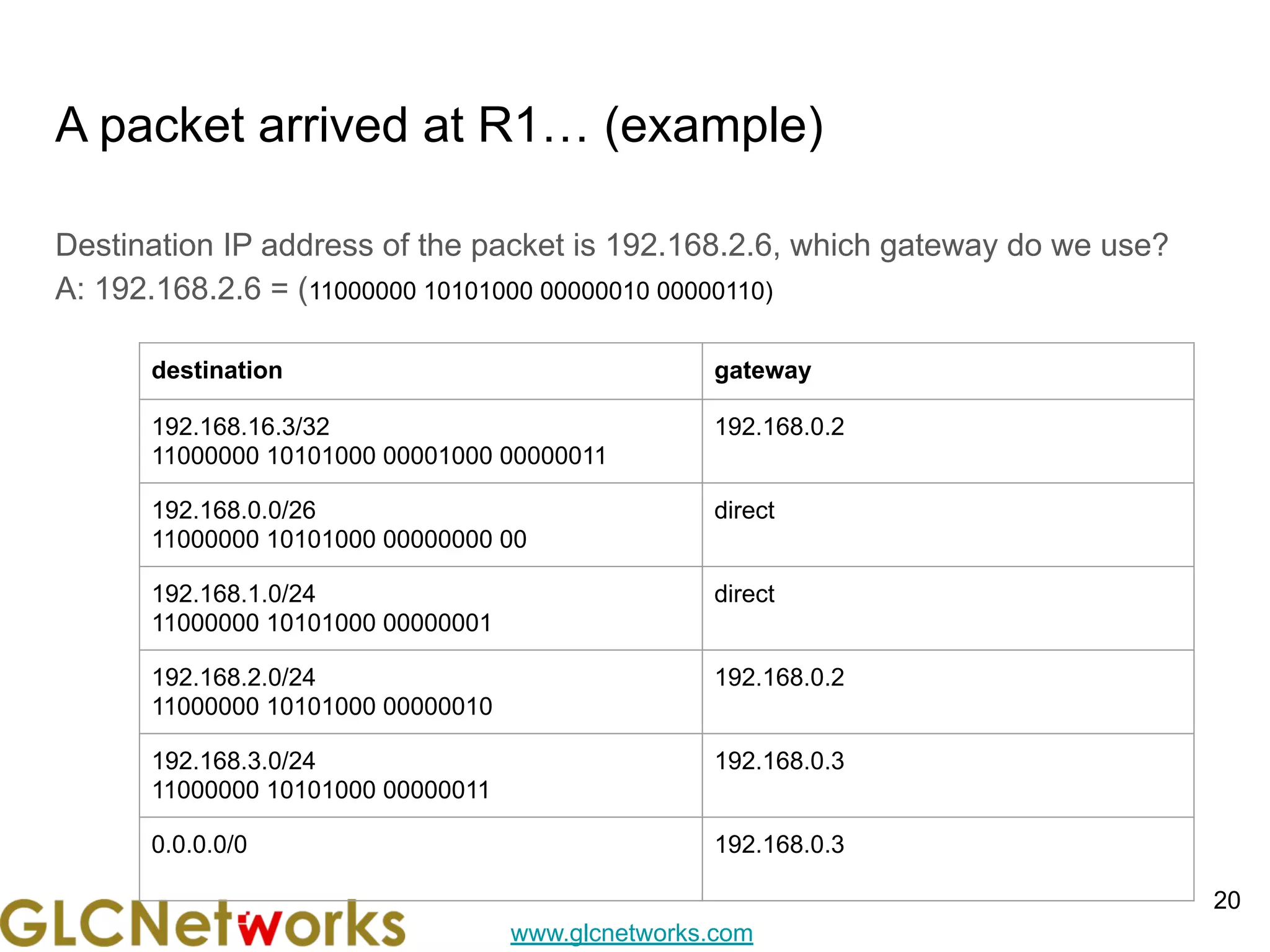

20. www.glcnetworks.com
A packet arrived at R1… (example)
Destination IP address of the packet is 192.168.2.6, which gateway do we use?
A: 192.168.2.6 = (11000000 10101000 00000010 00000110)
20
destination gateway
192.168.16.3/32
11000000 10101000 00001000 00000011
192.168.0.2
192.168.0.0/26
11000000 10101000 00000000 00
direct
192.168.1.0/24
11000000 10101000 00000001
direct
192.168.2.0/24
11000000 10101000 00000010
192.168.0.2
192.168.3.0/24
11000000 10101000 00000011
192.168.0.3
0.0.0.0/0 192.168.0.3

21. www.glcnetworks.com

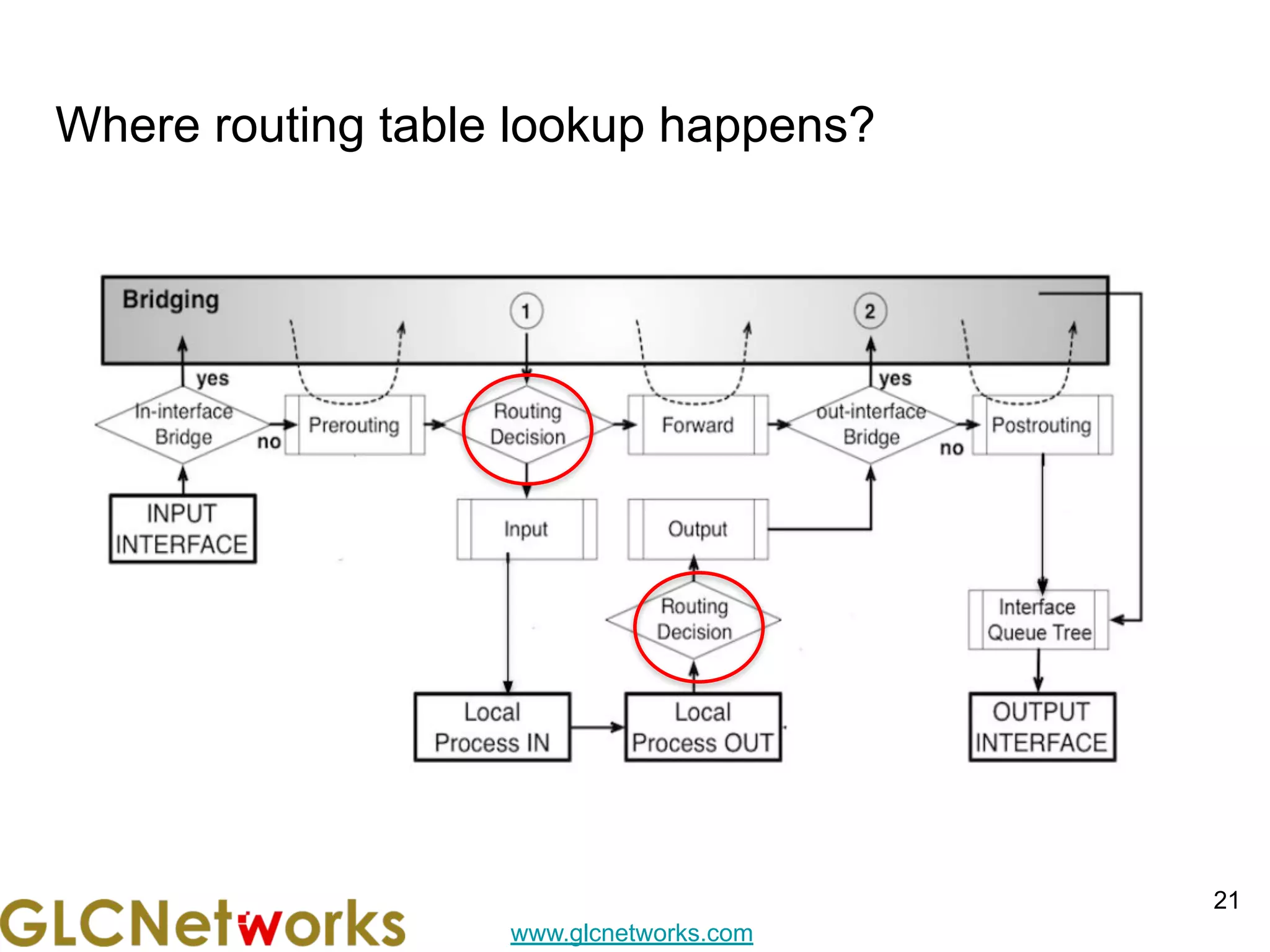

Where routing table lookup happens?
21

22. www.glcnetworks.com

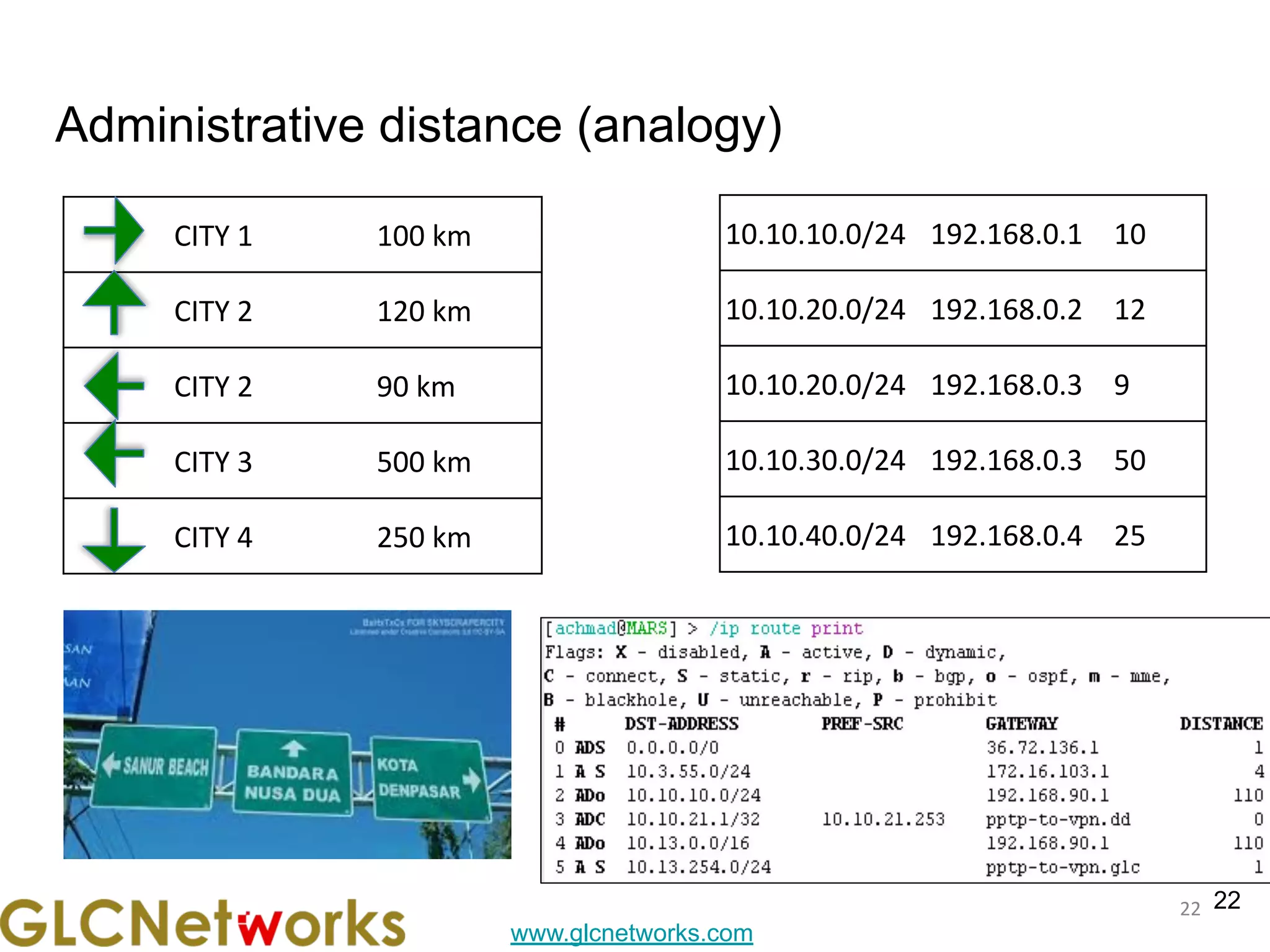

Administrative distance (analogy)
22
22
CITY 1 100 km
CITY 2 120 km
CITY 2 90 km
CITY 3 500 km
CITY 4 250 km
10.10.10.0/24 192.168.0.1 10
10.10.20.0/24 192.168.0.2 12
10.10.20.0/24 192.168.0.3 9
10.10.30.0/24 192.168.0.3 50
10.10.40.0/24 192.168.0.4 25

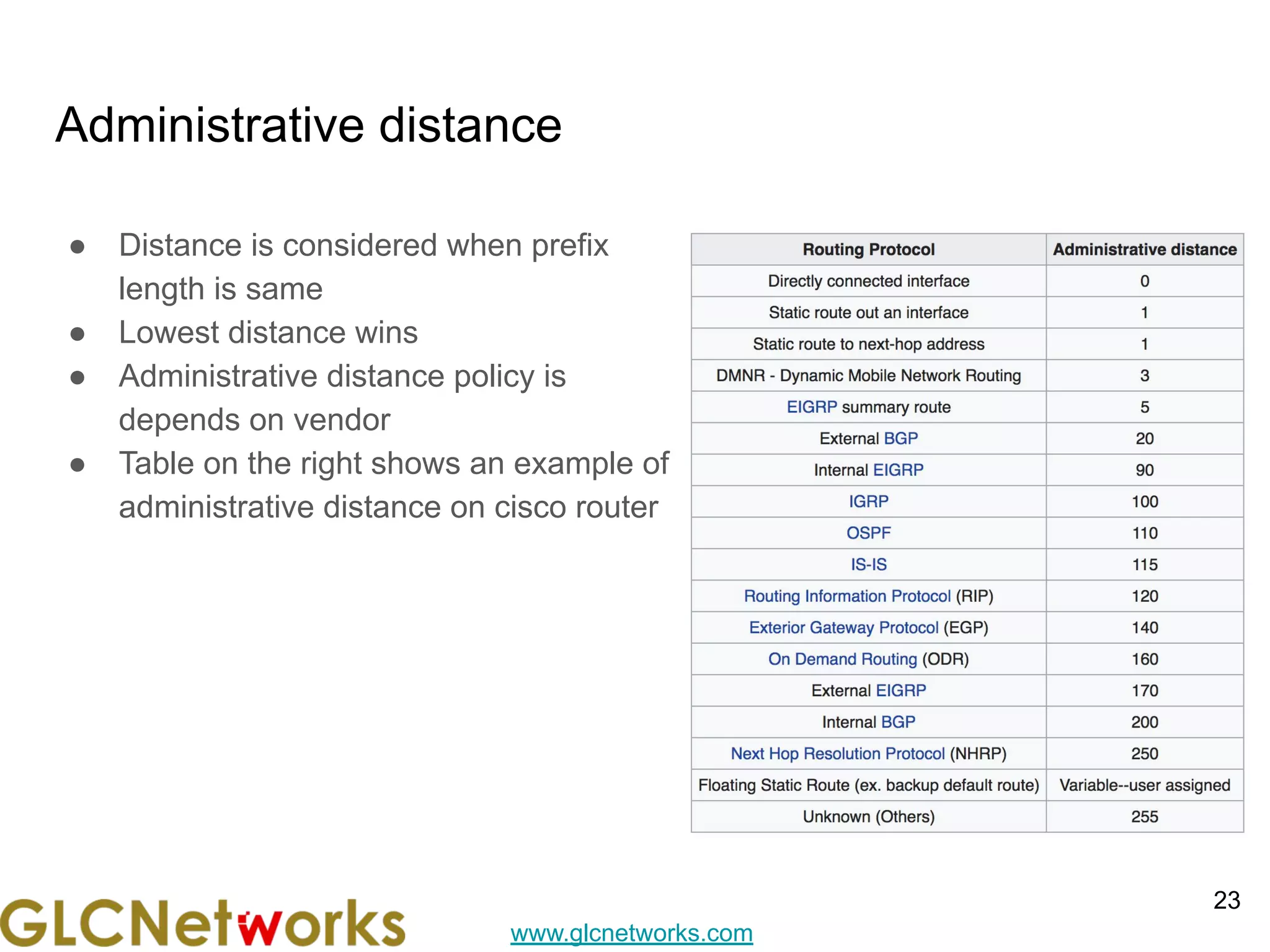

23. www.glcnetworks.com
Administrative distance
● Distance is considered when prefix
length is same
● Lowest distance wins
● Administrative distance policy is
depends on vendor
● Table on the right shows an example of
administrative distance on cisco router
23

24. www.glcnetworks.com

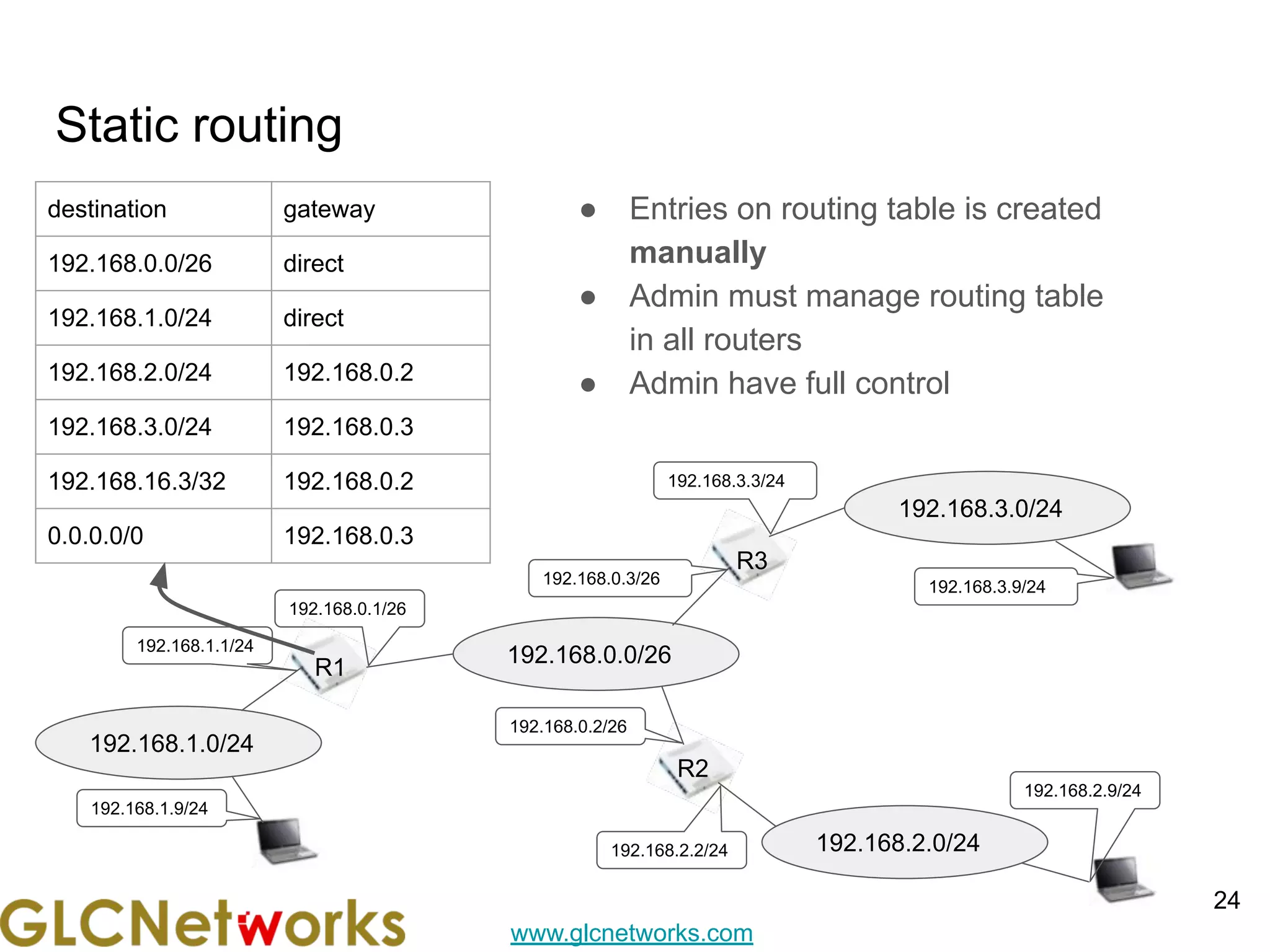

Static routing
● Entries on routing table is created
manually
● Admin must manage routing table
in all routers
● Admin have full control
24
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3

25. www.glcnetworks.com

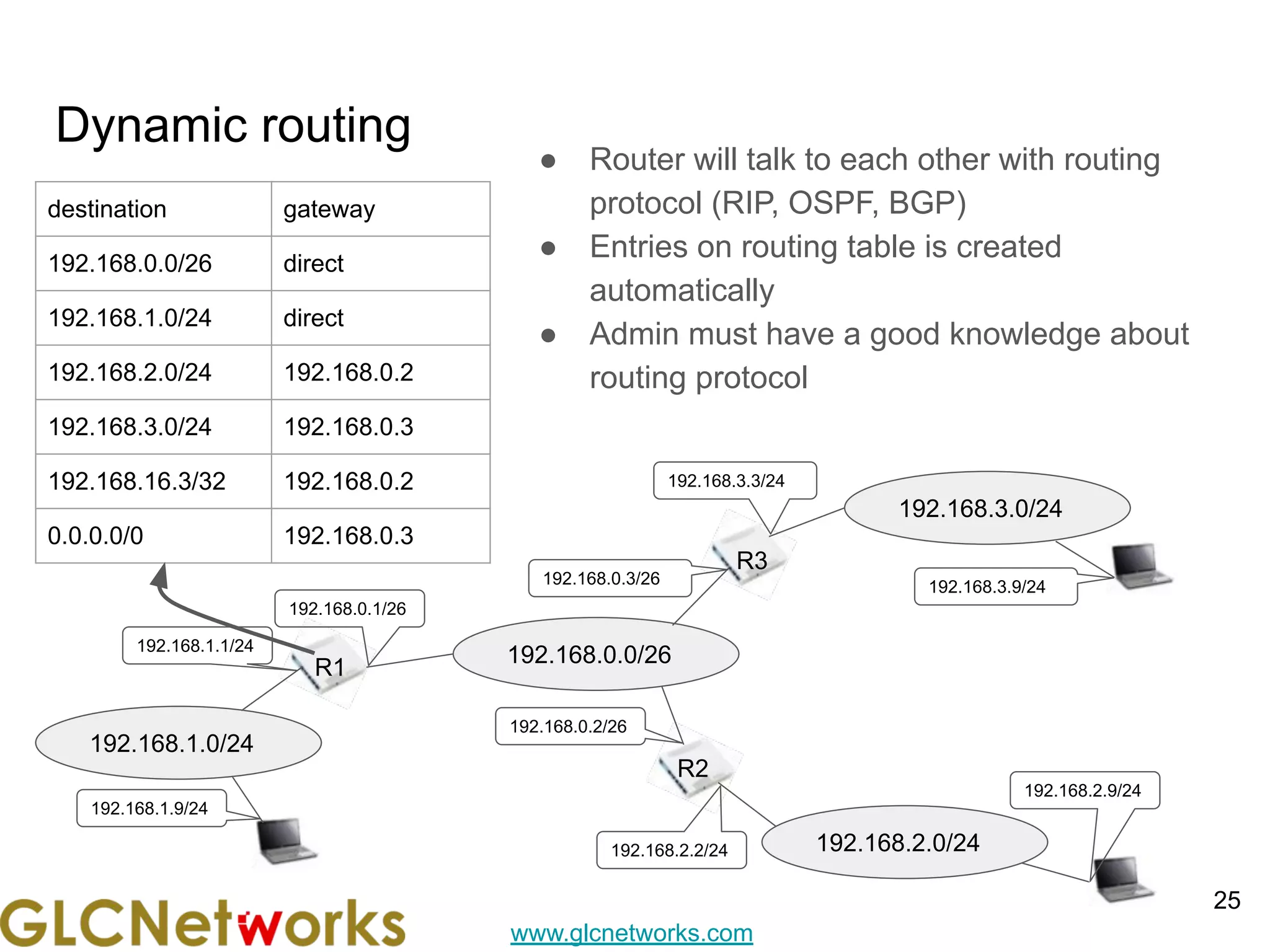

Dynamic routing
● Router will talk to each other with routing
protocol (RIP, OSPF, BGP)
● Entries on routing table is created
automatically
● Admin must have a good knowledge about
routing protocol
25
192.168.0.0/26
R1
192.168.0.1/26
192.168.0.3/26
192.168.0.2/26
R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24
destination gateway
192.168.0.0/26 direct
192.168.1.0/24 direct
192.168.2.0/24 192.168.0.2
192.168.3.0/24 192.168.0.3
192.168.16.3/32 192.168.0.2
0.0.0.0/0 192.168.0.3

26. www.glcnetworks.com

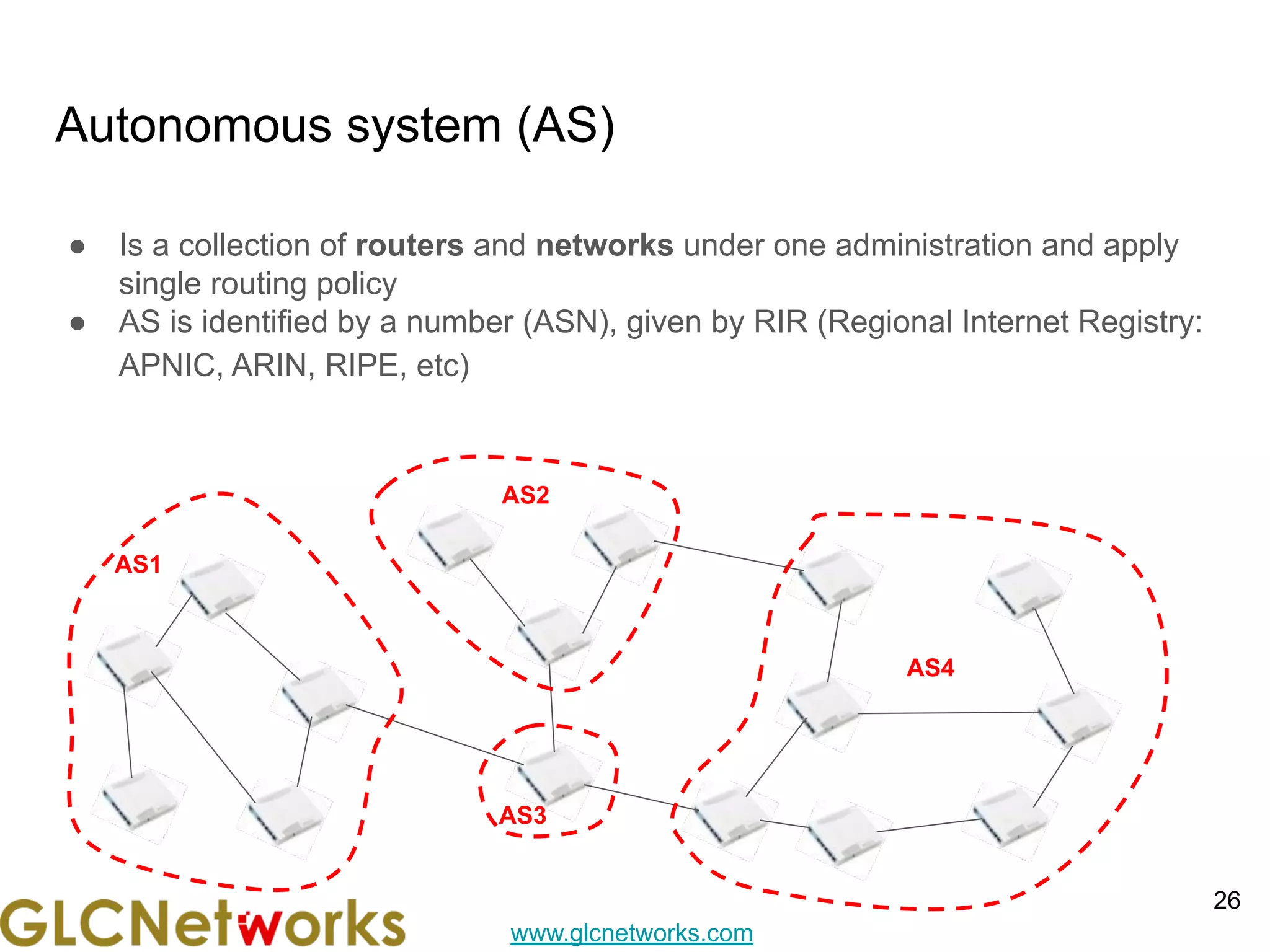

Autonomous system (AS)
● Is a collection of routers and networks under one administration and apply
single routing policy
● AS is identified by a number (ASN), given by RIR (Regional Internet Registry:
APNIC, ARIN, RIPE, etc)
26
AS1
AS4
AS3
AS2

27. www.glcnetworks.com

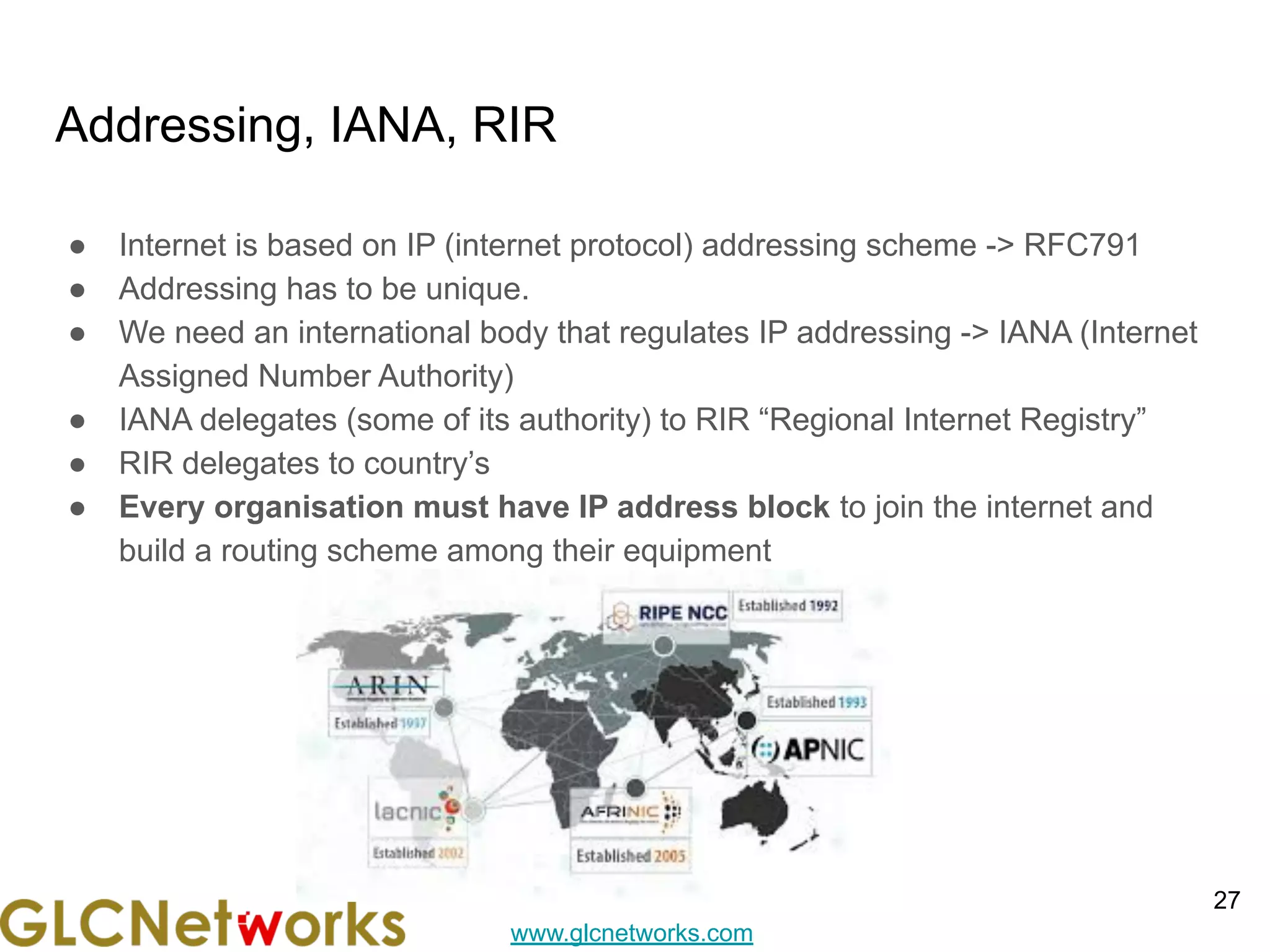

Addressing, IANA, RIR
● Internet is based on IP (internet protocol) addressing scheme -> RFC791
● Addressing has to be unique.
● We need an international body that regulates IP addressing -> IANA (Internet
Assigned Number Authority)
● IANA delegates (some of its authority) to RIR “Regional Internet Registry”
● RIR delegates to country’s
● Every organisation must have IP address block to join the internet and
build a routing scheme among their equipment
27

28. www.glcnetworks.com

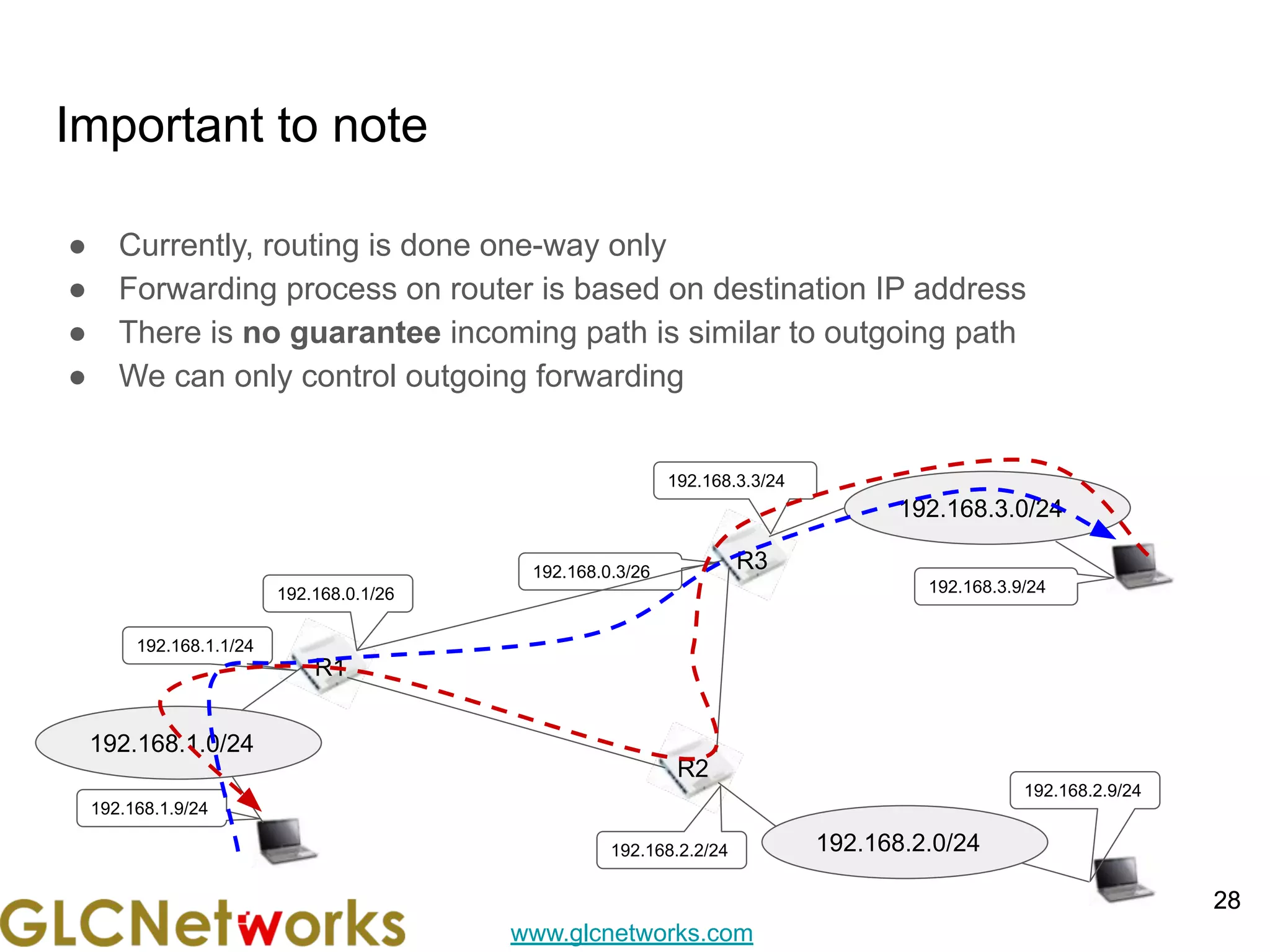

● Currently, routing is done one-way only
● Forwarding process on router is based on destination IP address
● There is no guarantee incoming path is similar to outgoing path
● We can only control outgoing forwarding
Important to note
28
28
R1
192.168.0.1/26
192.168.0.3/26 R3
R2
192.168.1.0/24
192.168.2.0/24
192.168.3.0/24
192.168.3.3/24
192.168.3.9/24
192.168.2.9/24
192.168.2.2/24
192.168.1.1/24
192.168.1.9/24

29. www.glcnetworks.com

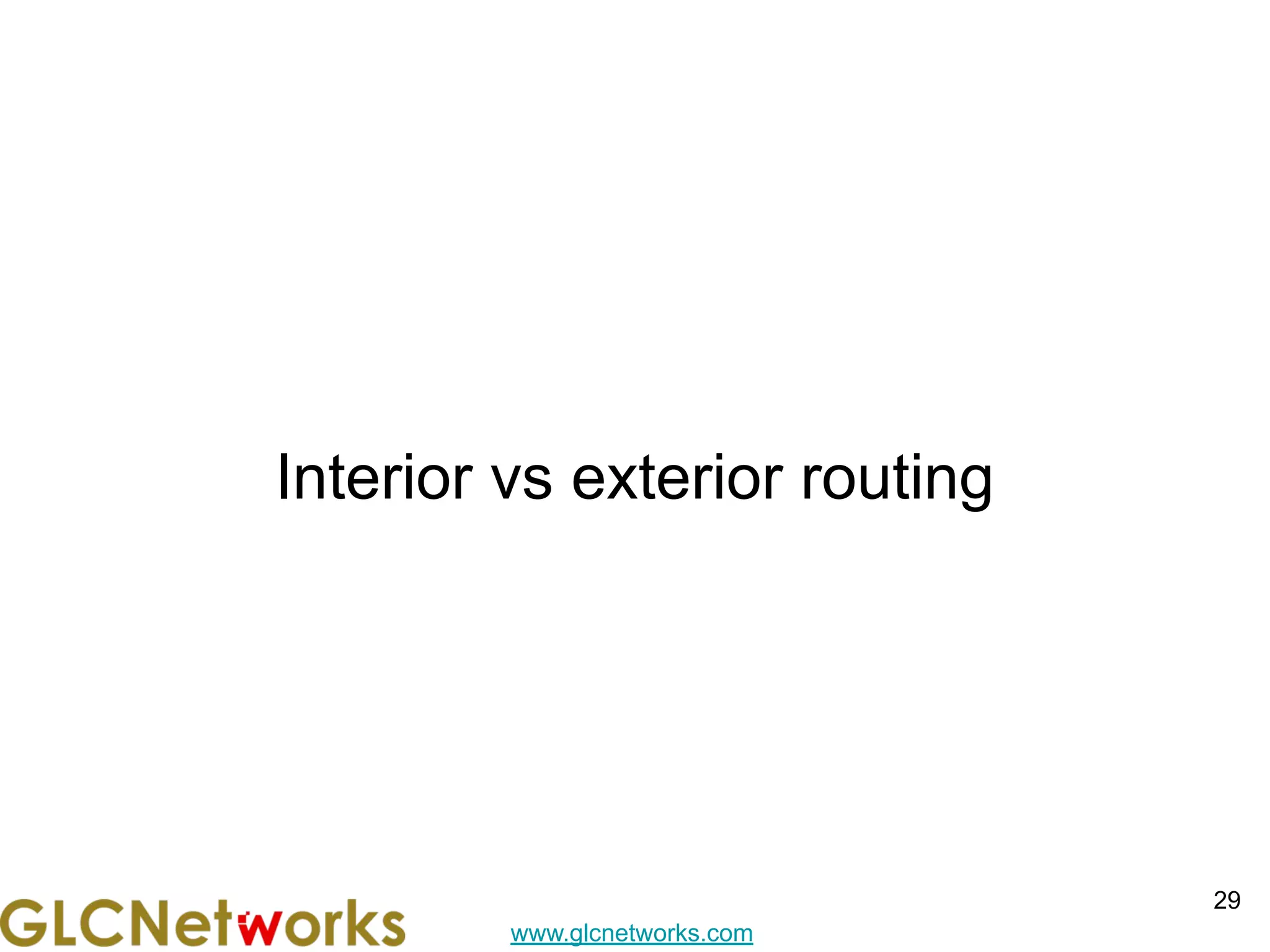

Interior vs exterior routing
29

30. www.glcnetworks.com

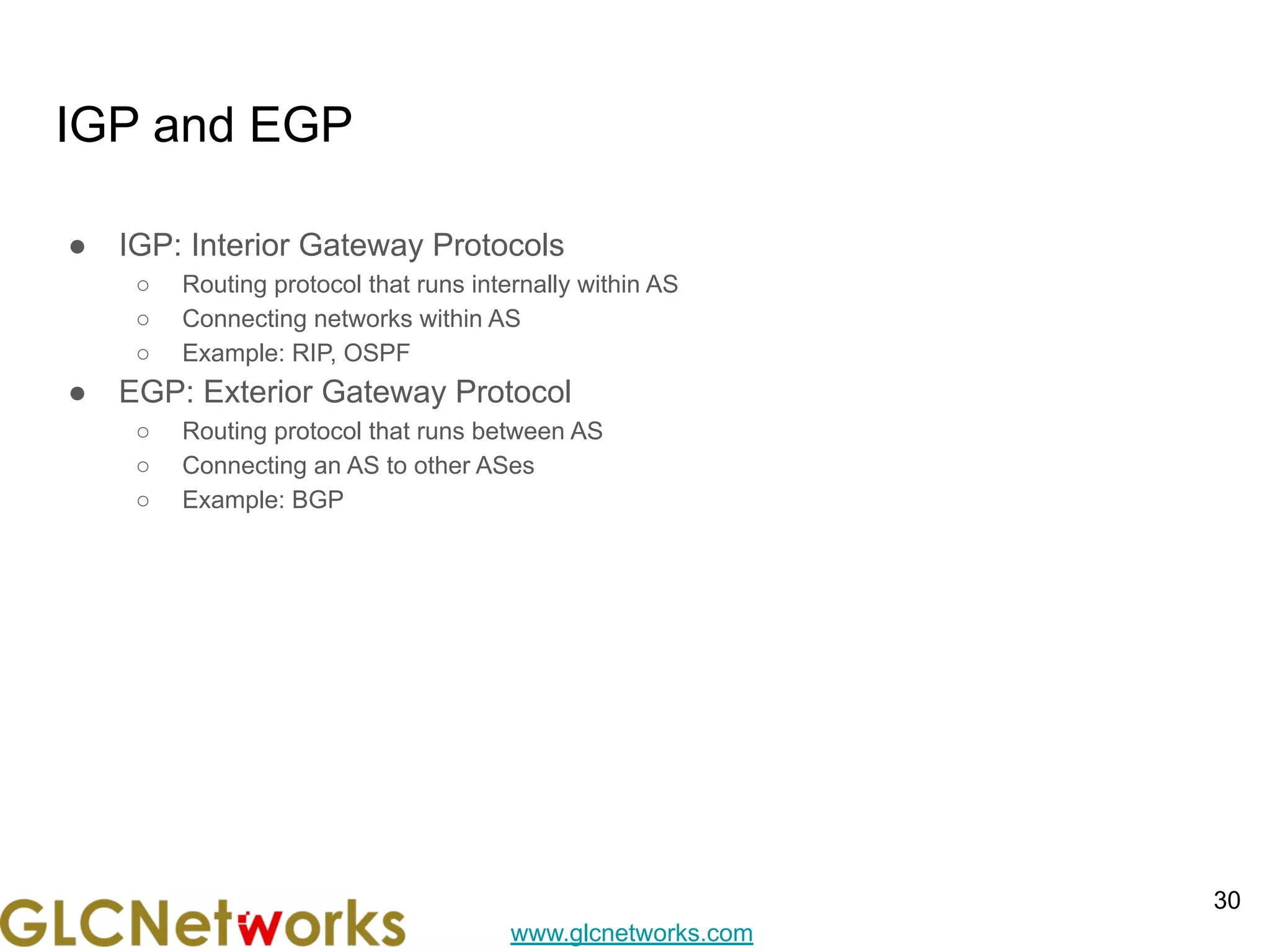

IGP and EGP
● IGP: Interior Gateway Protocols
○ Routing protocol that runs internally within AS
○ Connecting networks within AS
○ Example: RIP, OSPF
● EGP: Exterior Gateway Protocol
○ Routing protocol that runs between AS
○ Connecting an AS to other ASes
○ Example: BGP
30

31. www.glcnetworks.com
AS1

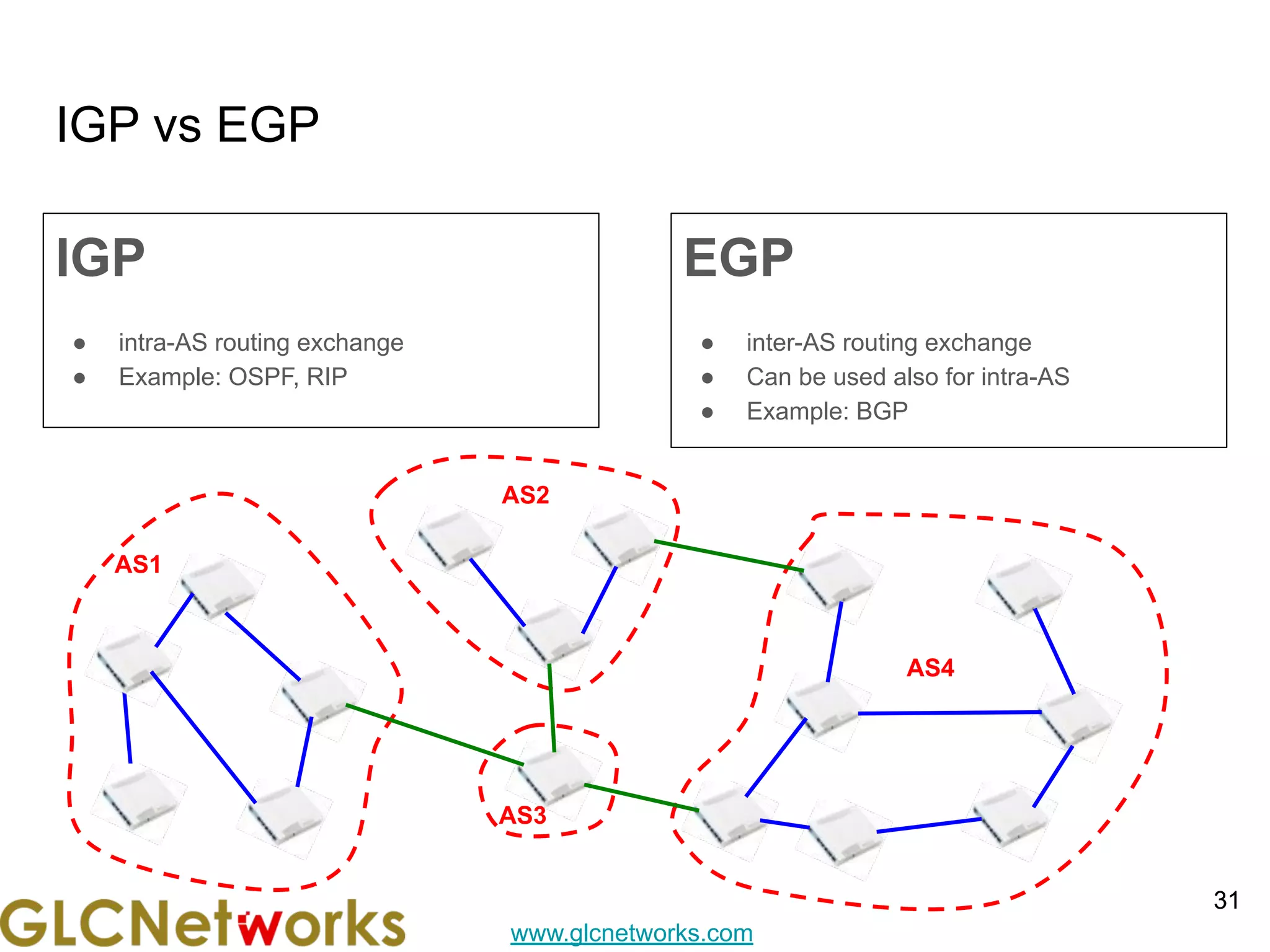

IGP vs EGP
IGP
● intra-AS routing exchange
● Example: OSPF, RIP
EGP
● inter-AS routing exchange
● Can be used also for intra-AS
● Example: BGP
31
31
AS4
AS3
AS2

32. www.glcnetworks.com

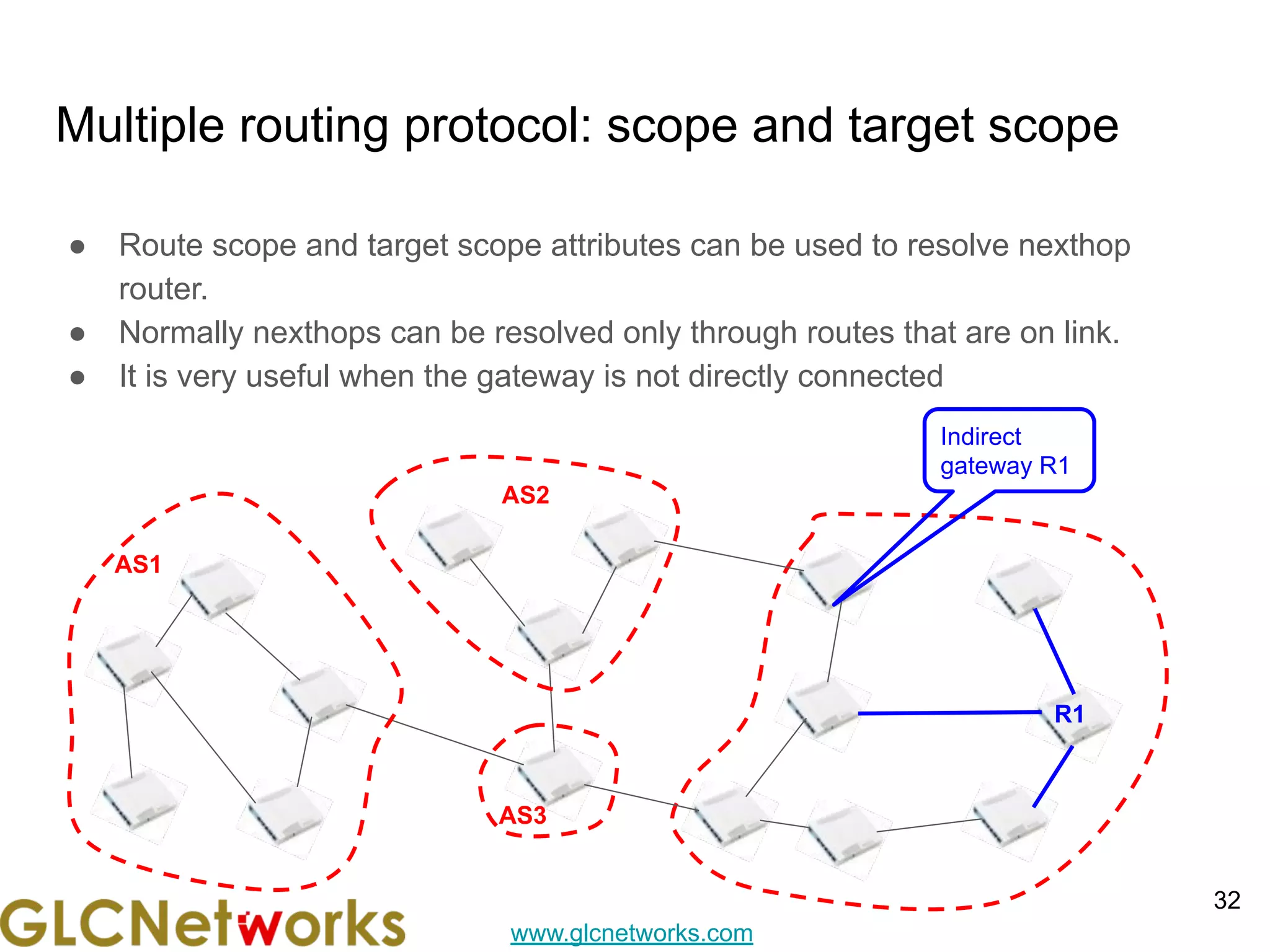

● Route scope and target scope attributes can be used to resolve nexthop
router.
● Normally nexthops can be resolved only through routes that are on link.
● It is very useful when the gateway is not directly connected
Multiple routing protocol: scope and target scope
32
AS1
R1
AS3
AS2
Indirect
gateway R1

33. www.glcnetworks.com
How BGP works
33

34. www.glcnetworks.com

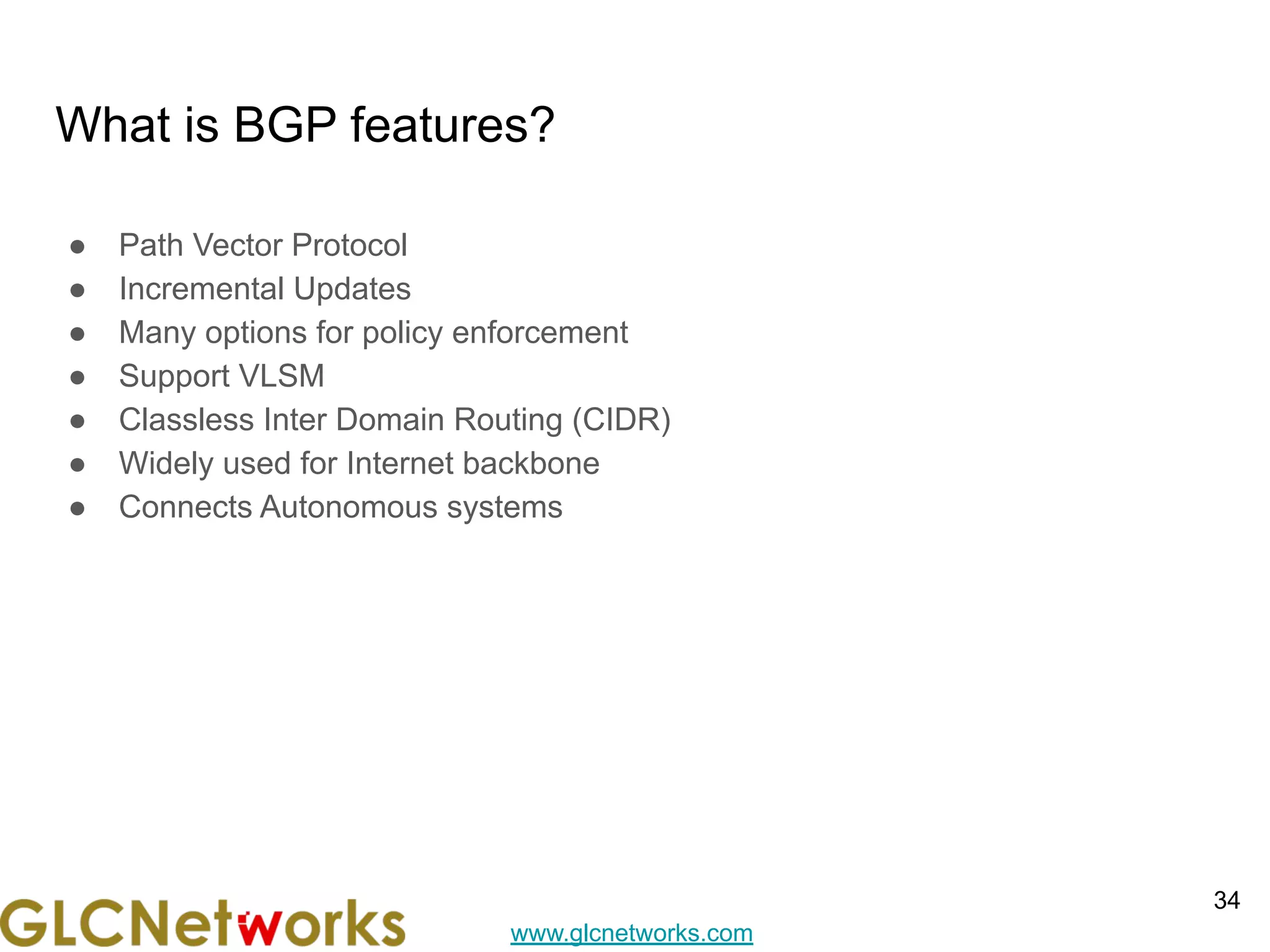

What is BGP features?
● Path Vector Protocol
● Incremental Updates
● Many options for policy enforcement
● Support VLSM
● Classless Inter Domain Routing (CIDR)
● Widely used for Internet backbone
● Connects Autonomous systems
34

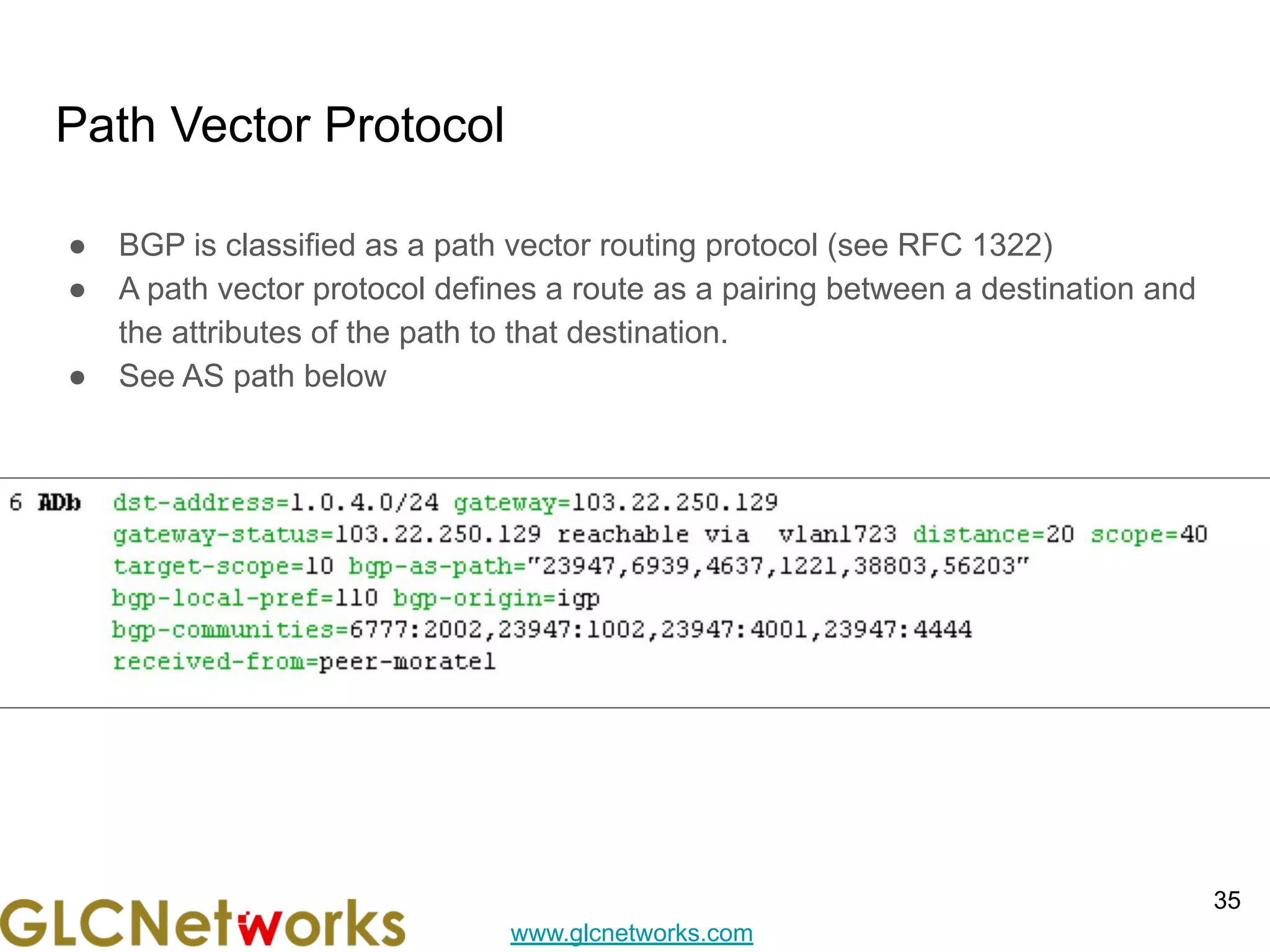

35. www.glcnetworks.com
Path Vector Protocol
● BGP is classified as a path vector routing protocol (see RFC 1322)
● A path vector protocol defines a route as a pairing between a destination and
the attributes of the path to that destination.
● See AS path below
35

36. www.glcnetworks.com

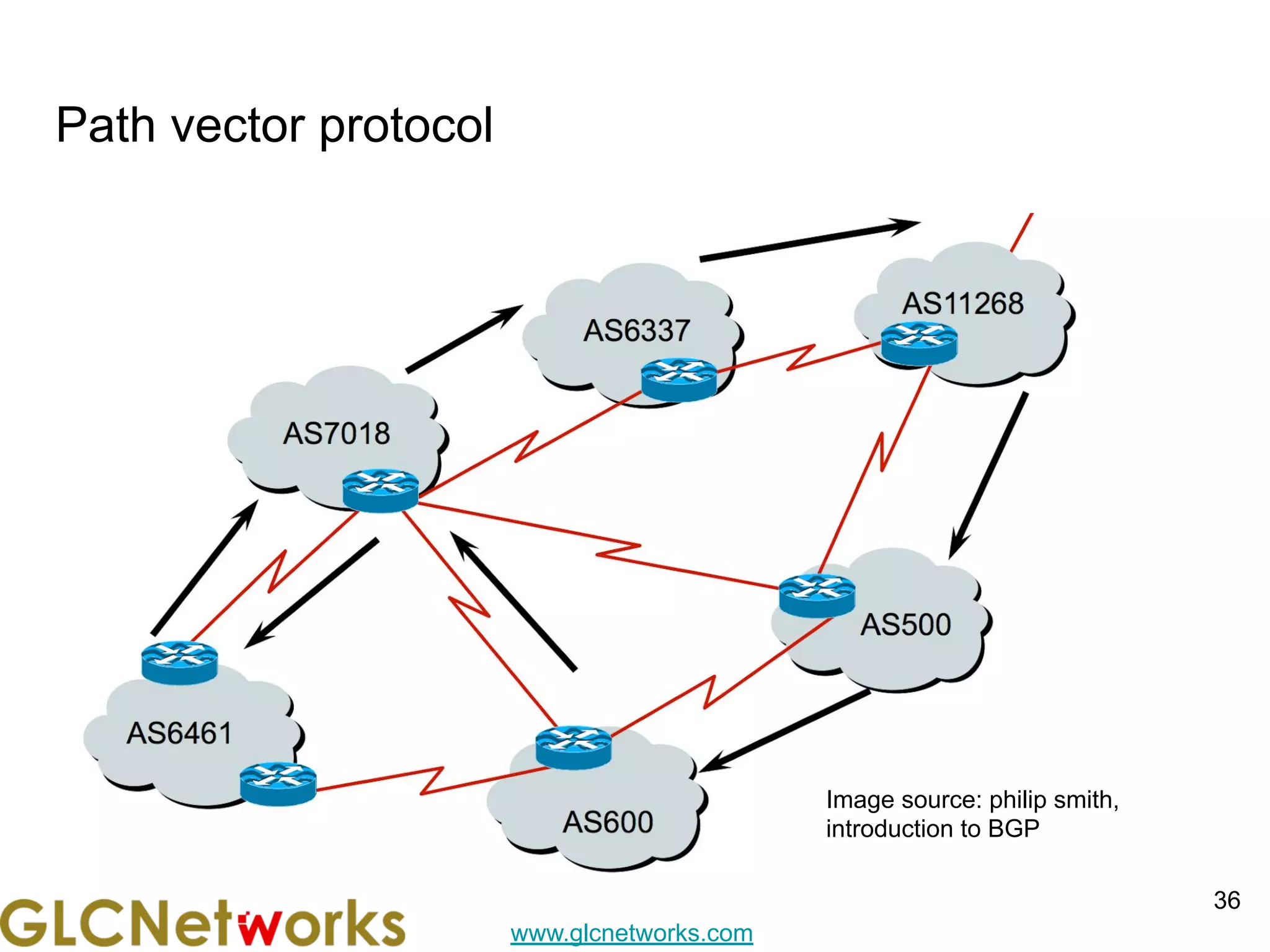

Path vector protocol
36
Image source: philip smith,
introduction to BGP

37. www.glcnetworks.com

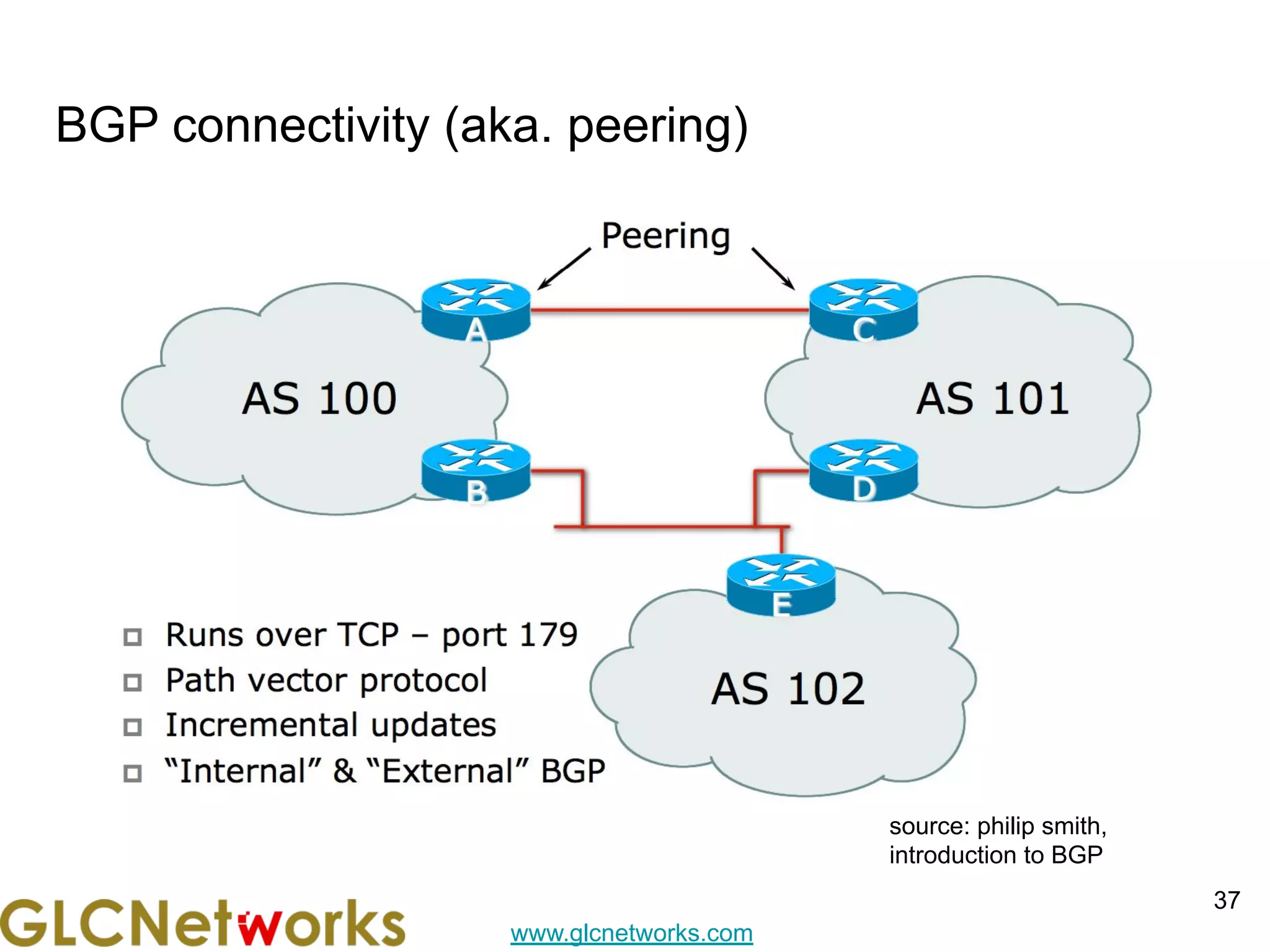

BGP connectivity (aka. peering)
37
source: philip smith,
introduction to BGP

38. www.glcnetworks.com

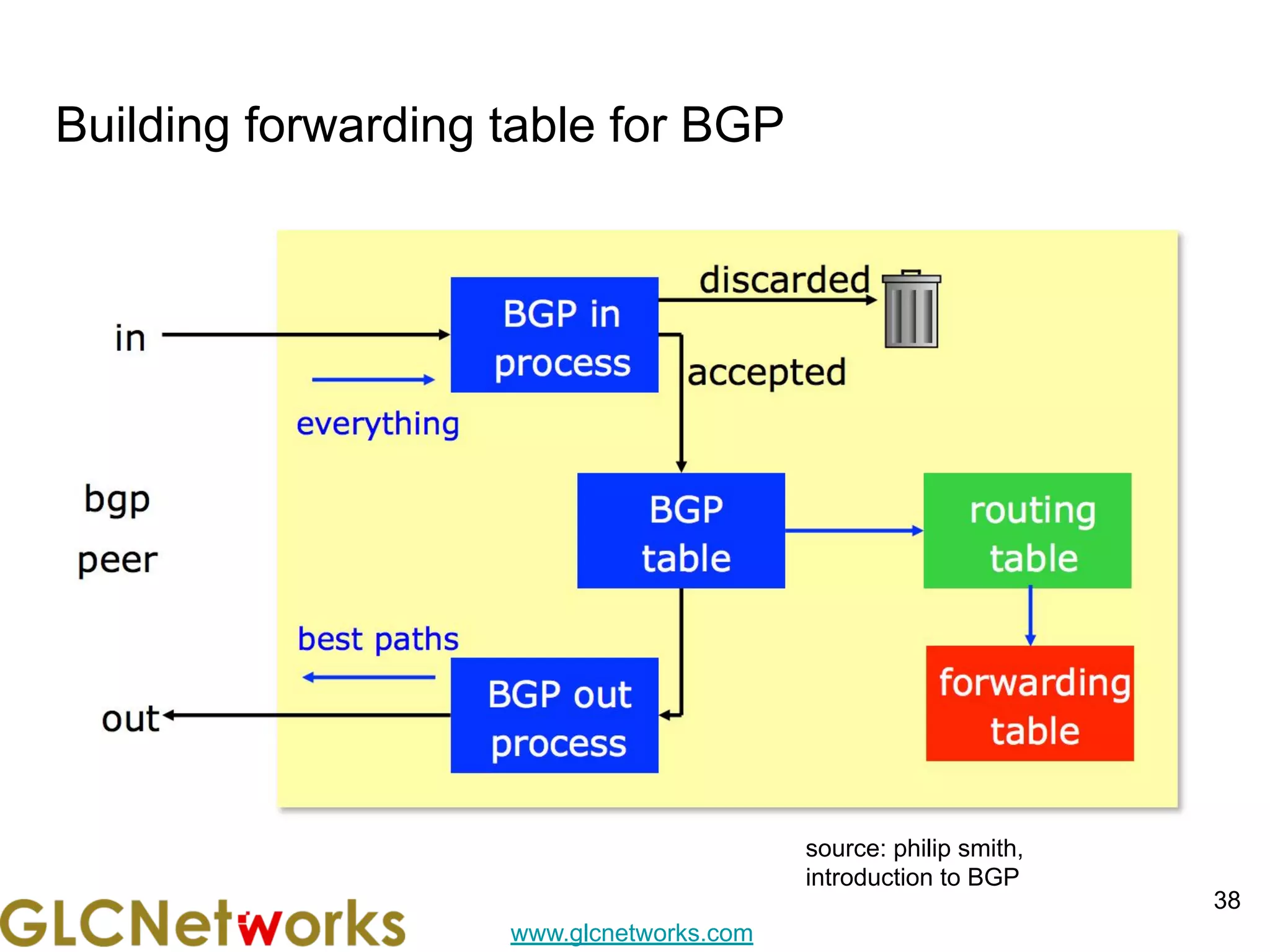

Building forwarding table for BGP
38
source: philip smith,
introduction to BGP

39. www.glcnetworks.com

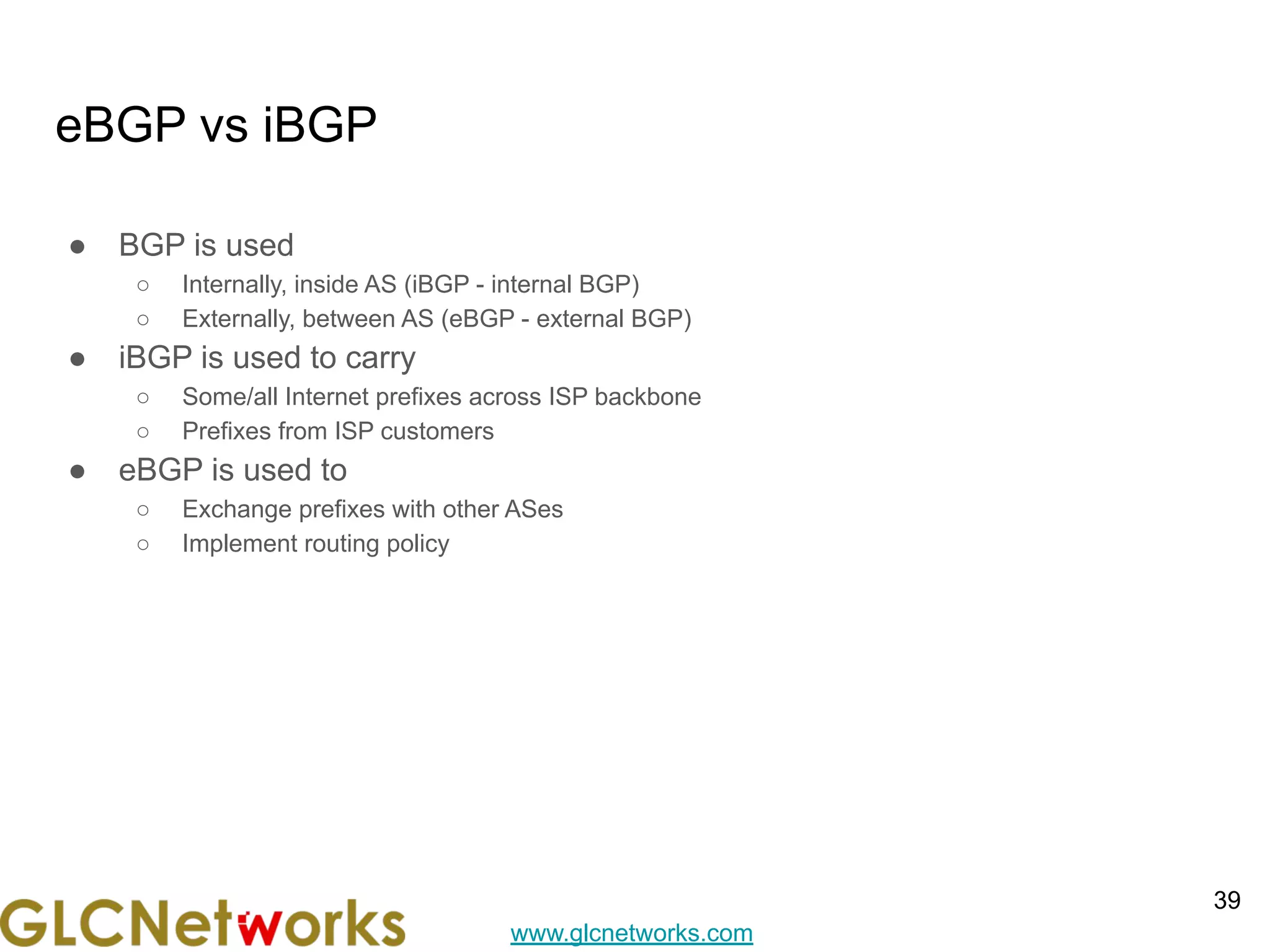

eBGP vs iBGP
● BGP is used
○ Internally, inside AS (iBGP - internal BGP)
○ Externally, between AS (eBGP - external BGP)
● iBGP is used to carry
○ Some/all Internet prefixes across ISP backbone
○ Prefixes from ISP customers
● eBGP is used to
○ Exchange prefixes with other ASes
○ Implement routing policy
39

40. www.glcnetworks.com

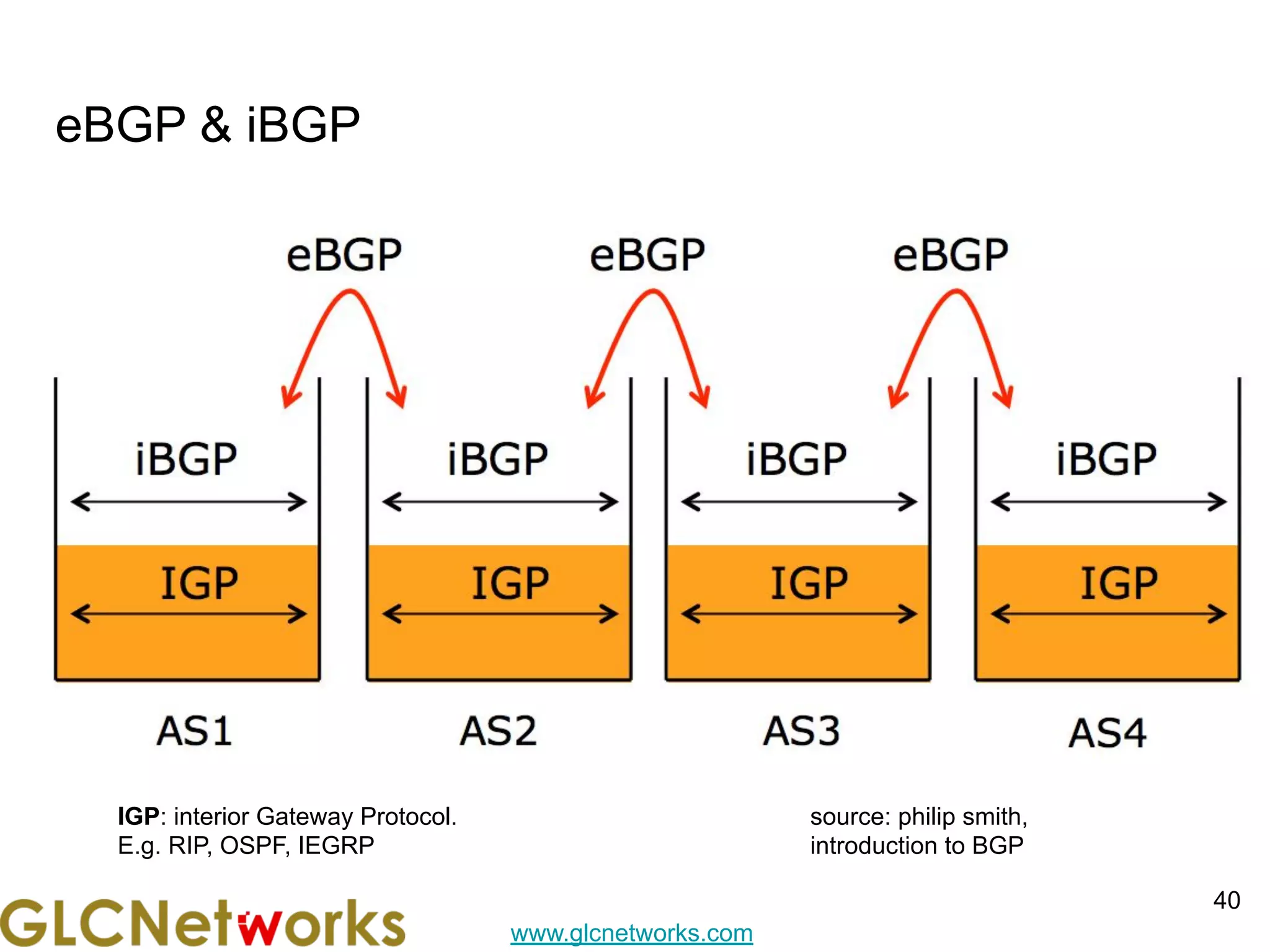

eBGP & iBGP
40
source: philip smith,
introduction to BGP
IGP: interior Gateway Protocol.
E.g. RIP, OSPF, IEGRP

41. www.glcnetworks.com

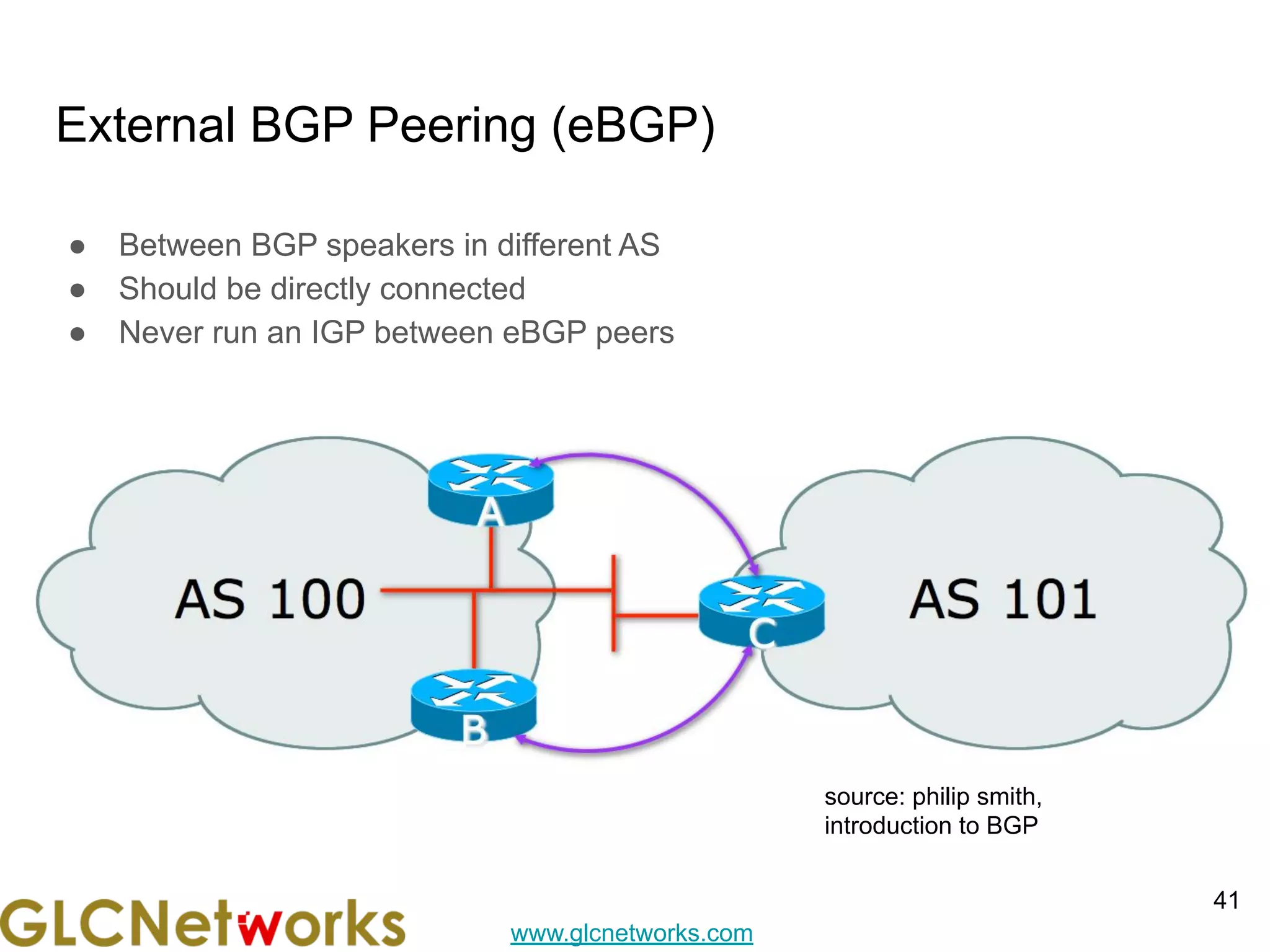

External BGP Peering (eBGP)
● Between BGP speakers in different AS
● Should be directly connected
● Never run an IGP between eBGP peers
41
source: philip smith,
introduction to BGP

42. www.glcnetworks.com

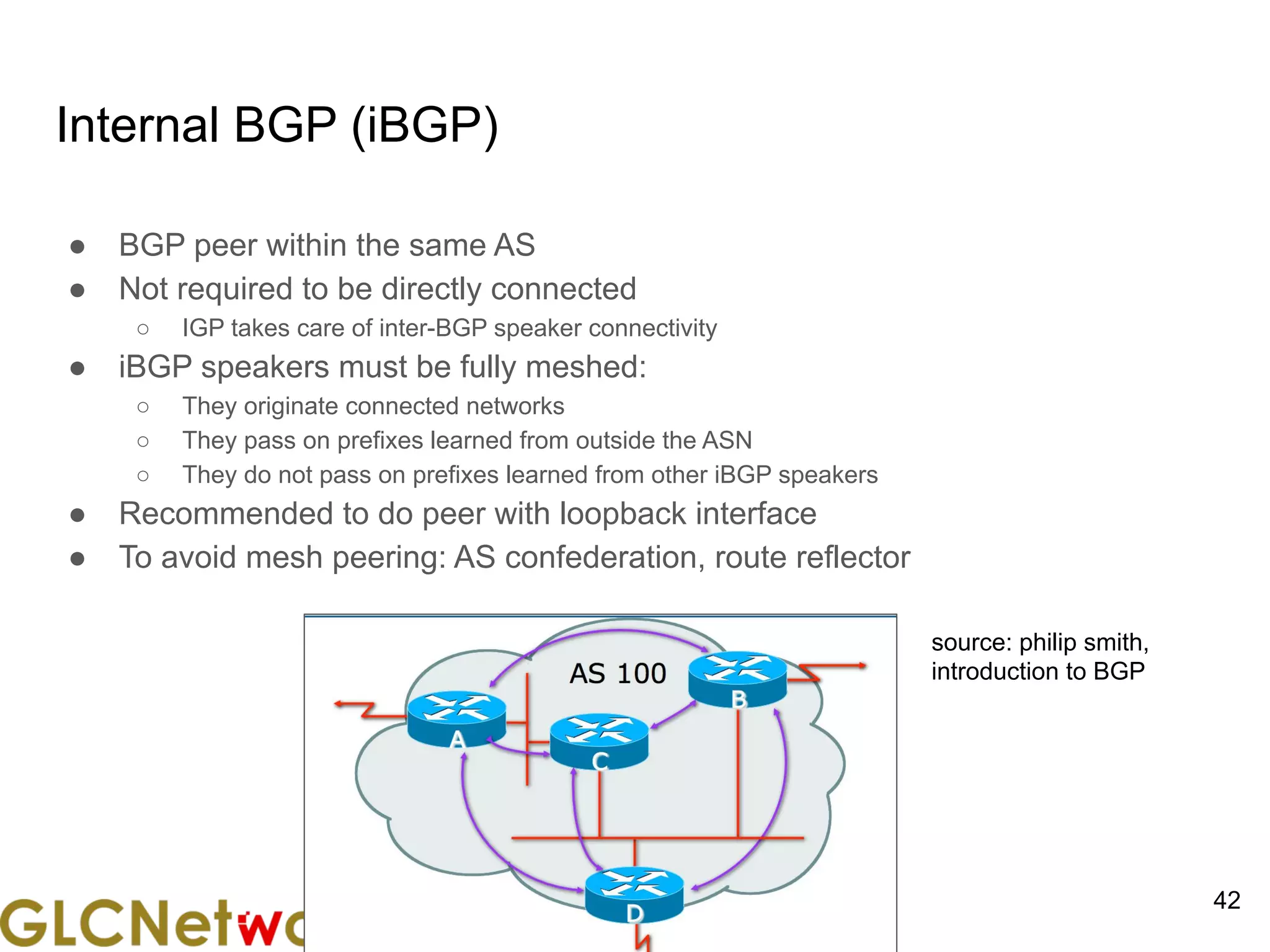

Internal BGP (iBGP)
● BGP peer within the same AS
● Not required to be directly connected
○ IGP takes care of inter-BGP speaker connectivity
● iBGP speakers must be fully meshed:
○ They originate connected networks
○ They pass on prefixes learned from outside the ASN
○ They do not pass on prefixes learned from other iBGP speakers
● Recommended to do peer with loopback interface
● To avoid mesh peering: AS confederation, route reflector
42
source: philip smith,
introduction to BGP

43. www.glcnetworks.com

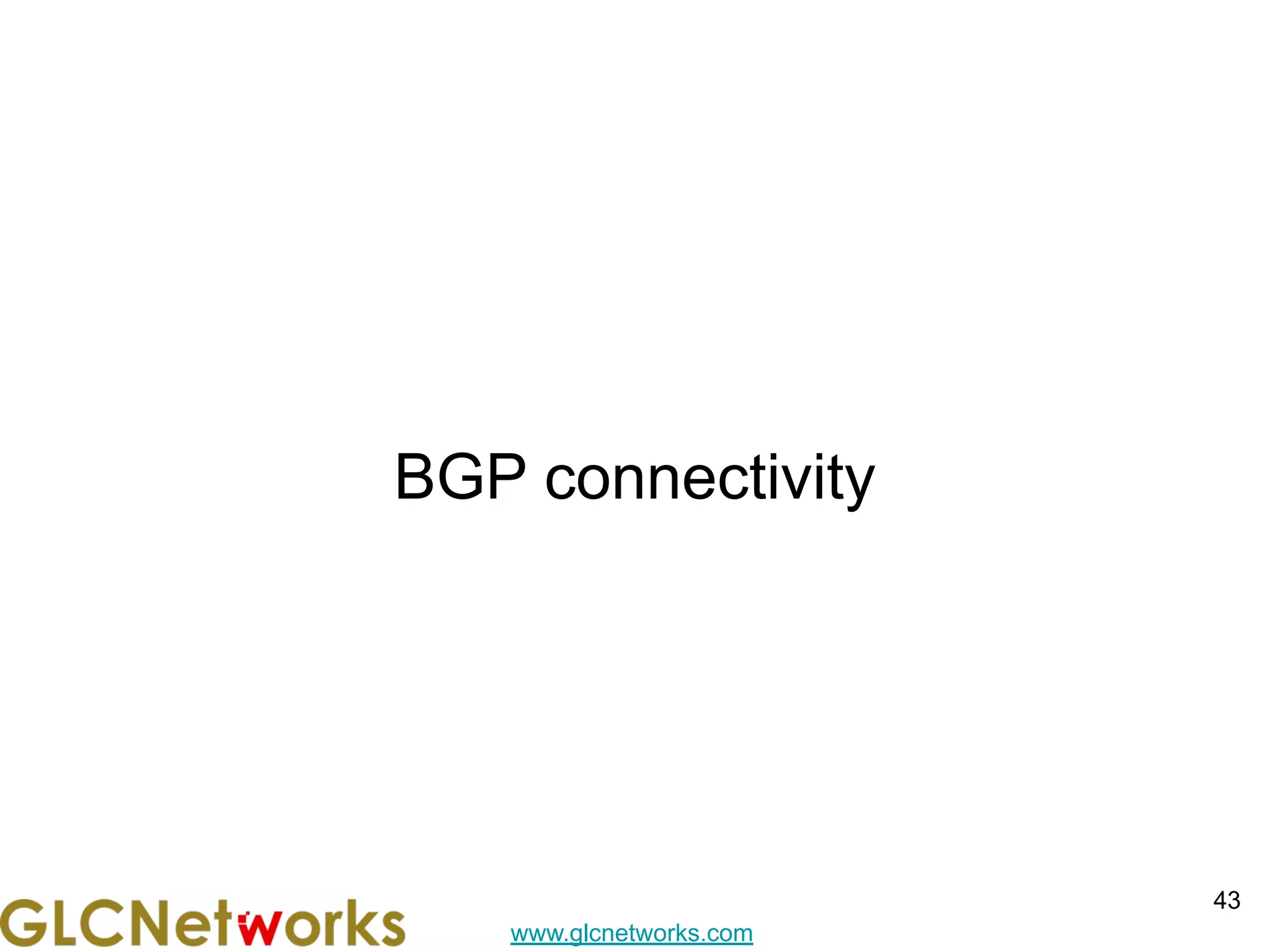

BGP connectivity
43

44. www.glcnetworks.com

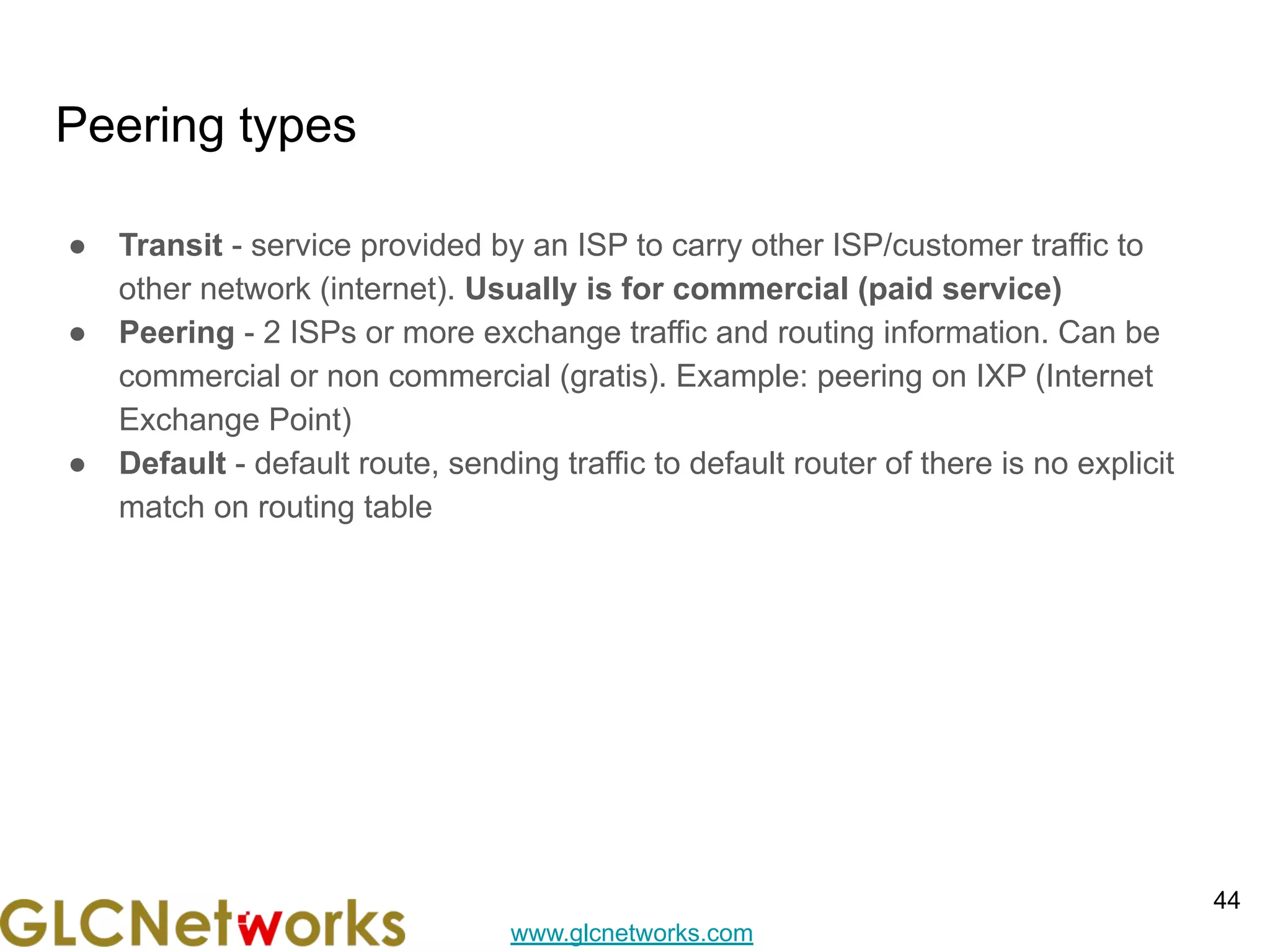

Peering types
● Transit - service provided by an ISP to carry other ISP/customer traffic to
other network (internet). Usually is for commercial (paid service)
● Peering - 2 ISPs or more exchange traffic and routing information. Can be
commercial or non commercial (gratis). Example: peering on IXP (Internet
Exchange Point)
● Default - default route, sending traffic to default router of there is no explicit
match on routing table
44

45. www.glcnetworks.com

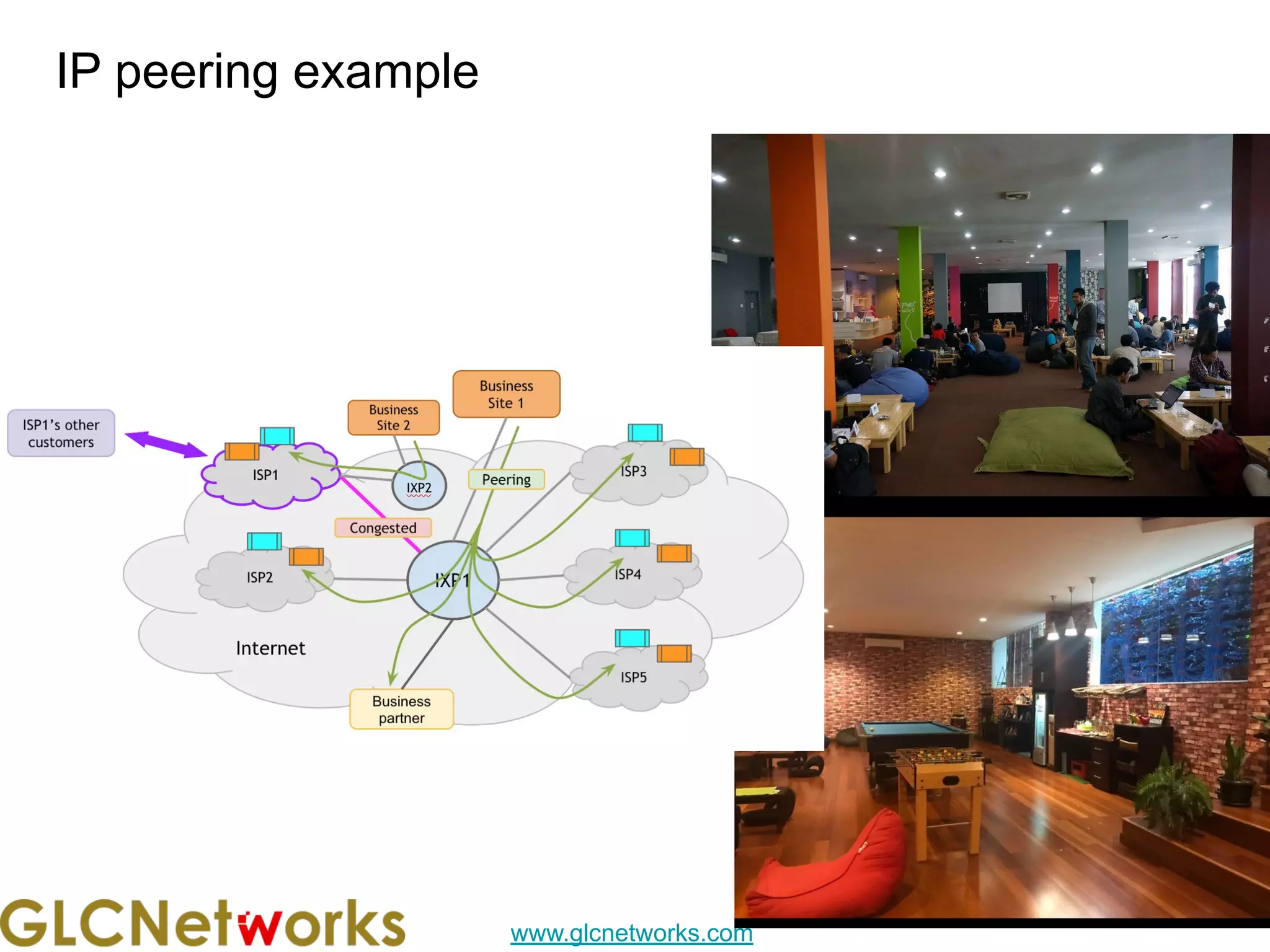

IP peering example
45

46. www.glcnetworks.com

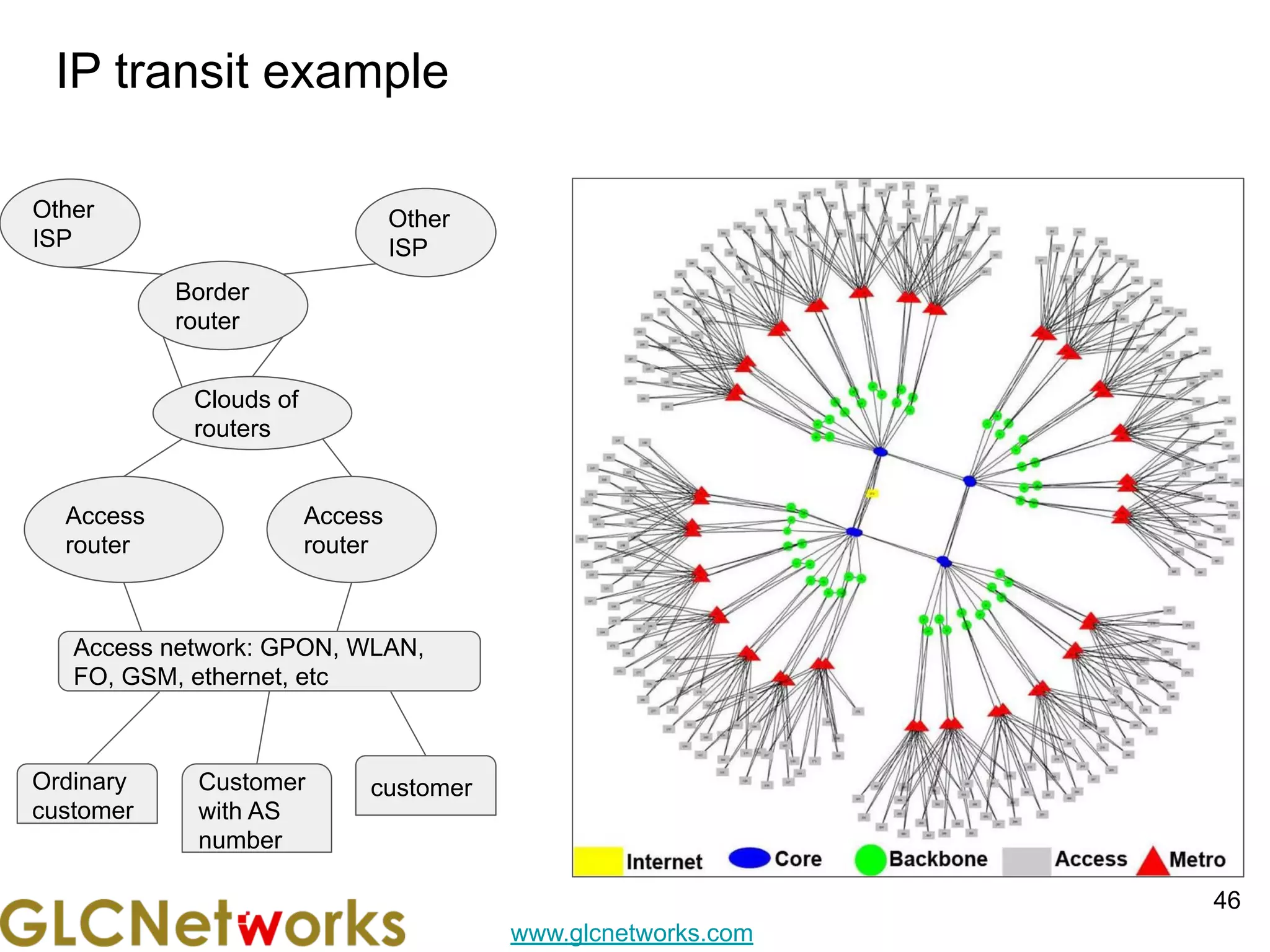

IP transit example
46
Border
router
Other
ISP
Other
ISP
Access
router
Access
router
Ordinary
customer
Customer
with AS
number
customer
Access network: GPON, WLAN,
FO, GSM, ethernet, etc
Clouds of
routers

47. www.glcnetworks.com

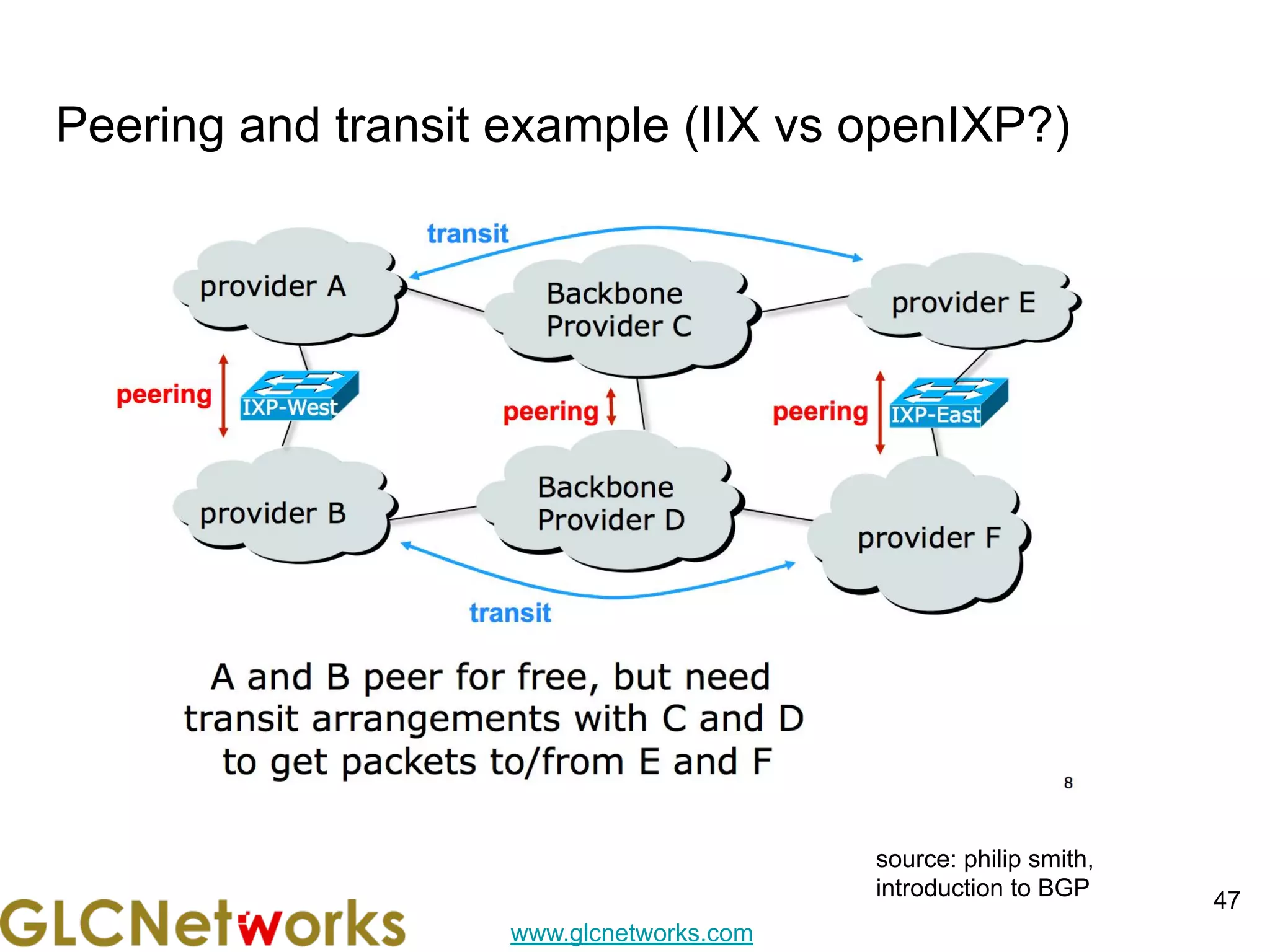

Peering and transit example (IIX vs openIXP?)
47
source: philip smith,
introduction to BGP

48. www.glcnetworks.com
LIVE practice
48

49. www.glcnetworks.com

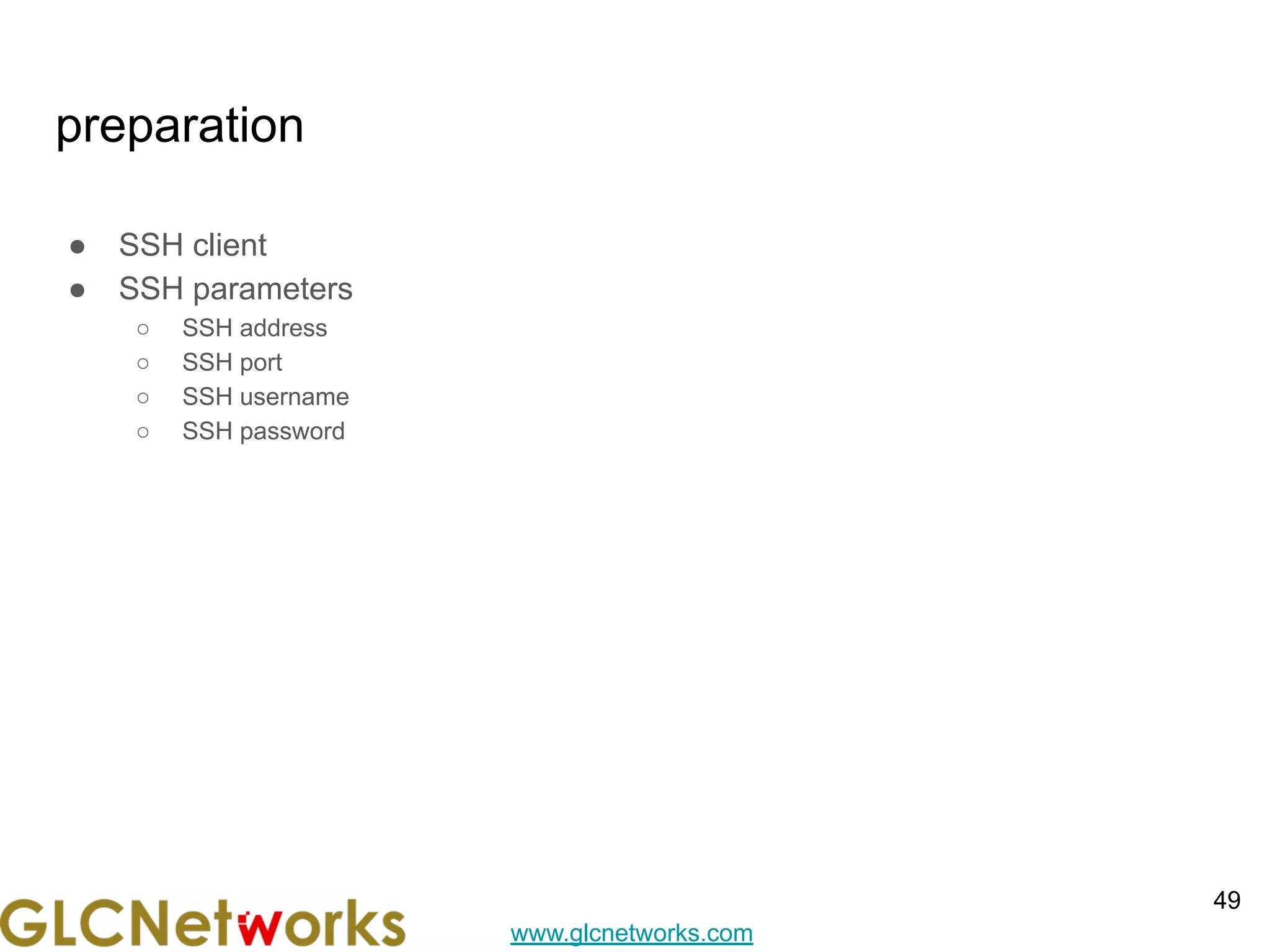

preparation
● SSH client
● SSH parameters
○ SSH address
○ SSH port
○ SSH username
○ SSH password
49

50. www.glcnetworks.com
Q & A
50

51. www.glcnetworks.com
Interested? Just come to our training...
● Topics are arranged in systematic and logical way
● You will learn from experienced teacher
● Not only learn the materials, but also sharing experiences, best-practices, and
networking
51

52. www.glcnetworks.com
End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Find our further event on our website : https://www.glcnetworks.com/en/
● Like our facebook page: https://www.facebook.com/glcnetworks
● Slide: https://www.slideshare.net/glcnetworks/
● Discord (bahasa indonesia): (https://discord.gg/6MZ3KUHHBX)
● Recording (youtube): https://www.youtube.com/c/GLCNetworks
● Stay tune with our schedule
● Any questions?
52
