Mikrotik Bridge Deep Dive

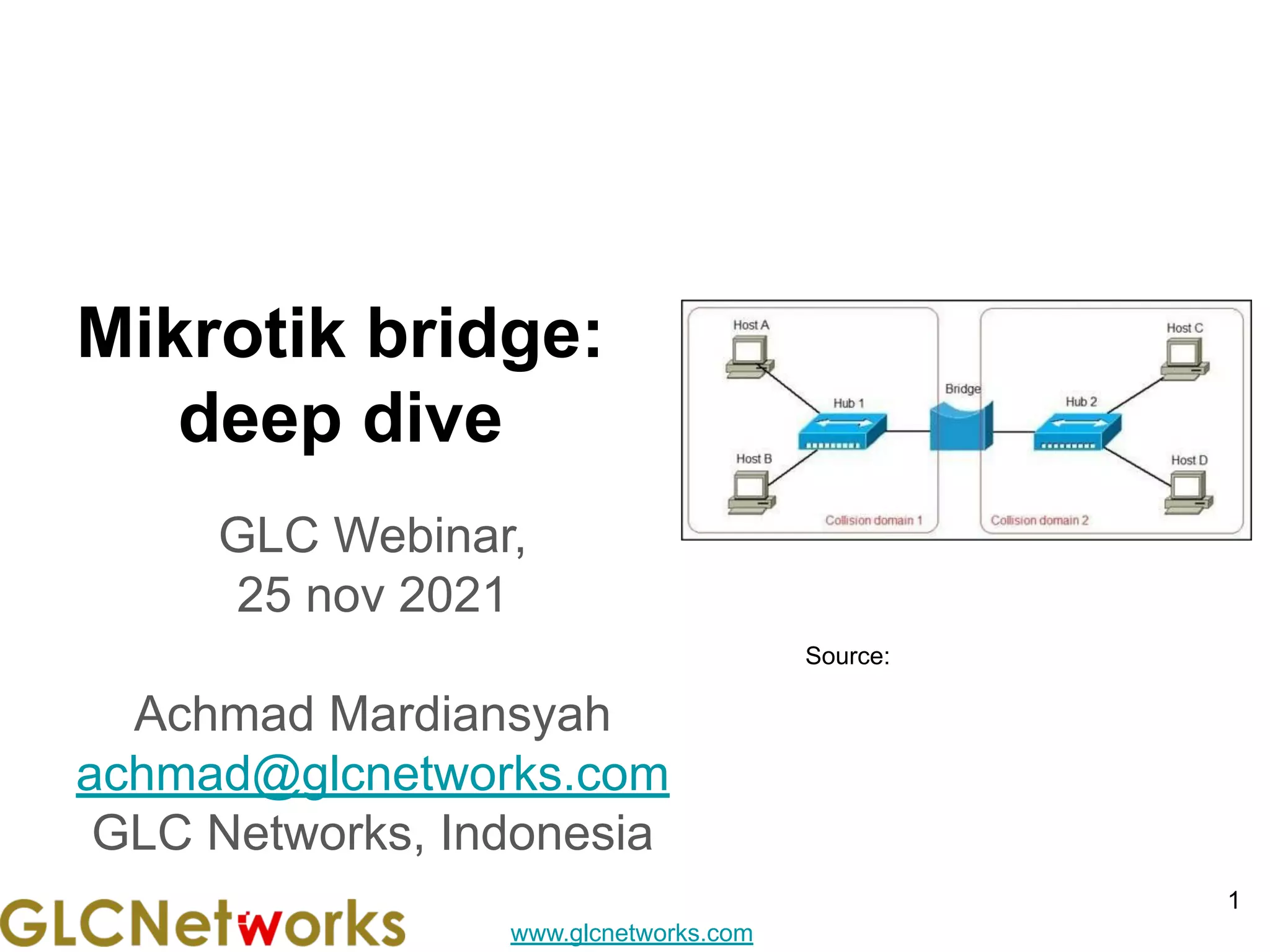

- 1. www.glcnetworks.com Mikrotik bridge: deep dive GLCWebinar, 25 nov 2021 Achmad Mardiansyah achmad@glcnetworks.com GLC Networks, Indonesia 1 Source:

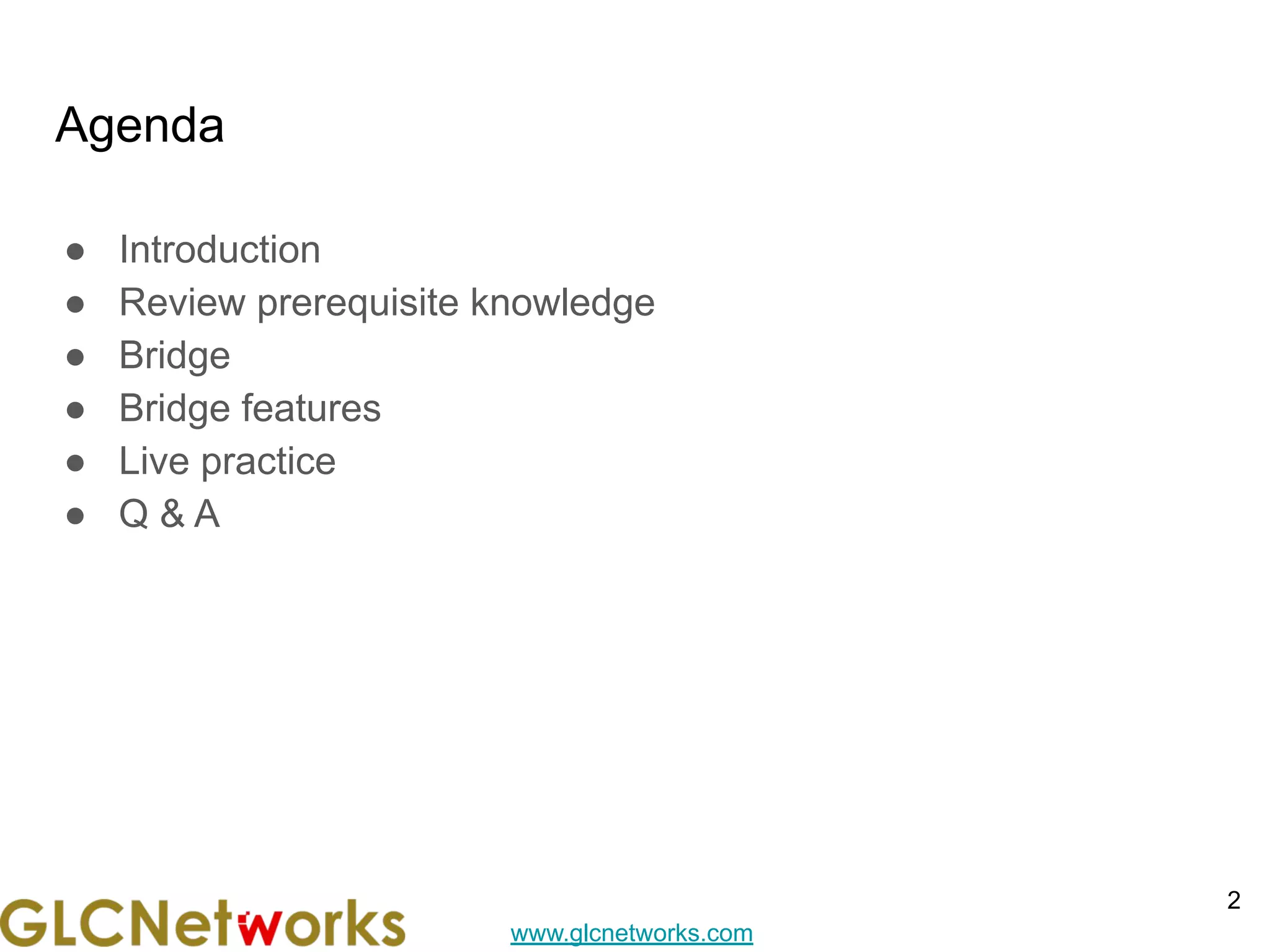

- 2. www.glcnetworks.com Agenda ● Introduction ● Reviewprerequisite knowledge ● Bridge ● Bridge features ● Live practice ● Q & A 2
- 3.
- 4. www.glcnetworks.com What is GLC? ●Garda Lintas Cakrawala (www.glcnetworks.com) ● Based in Bandung, Indonesia ● Areas: Training, IT Consulting ● Certified partner for: Mikrotik, Ubiquity, Linux foundation ● Product: GLC radius manager ● Regular event 4
- 5. www.glcnetworks.com Trainer Introduction ● Name:Achmad Mardiansyah ● Base: bandung, Indonesia ● Linux user since 1999, mikrotik user since 2007, UBNT 2011 ● Mikrotik Certified Trainer (MTCNA/RE/WE/UME/INE/TCE/IPv6) ● Mikrotik/Linux Certified Consultant ● Website contributor: achmadjournal.com, mikrotik.tips, asysadmin.tips ● More info: http://au.linkedin.com/in/achmadmardiansyah 5
- 6. www.glcnetworks.com Past experience 6 ● 2021(Congo DRC, Malaysia): network support, radius/billing integration ● 2020 (Congo DRC, Malaysia): IOT integration, network automation ● 2019, Congo (DRC): build a wireless ISP from ground-up ● 2018, Malaysia: network revamp, develop billing solution and integration, setup dynamic routing ● 2017, Libya (north africa): remote wireless migration for a new Wireless ISP ● 2016, United Kingdom: workshop for wireless ISP, migrating a bridged to routed network

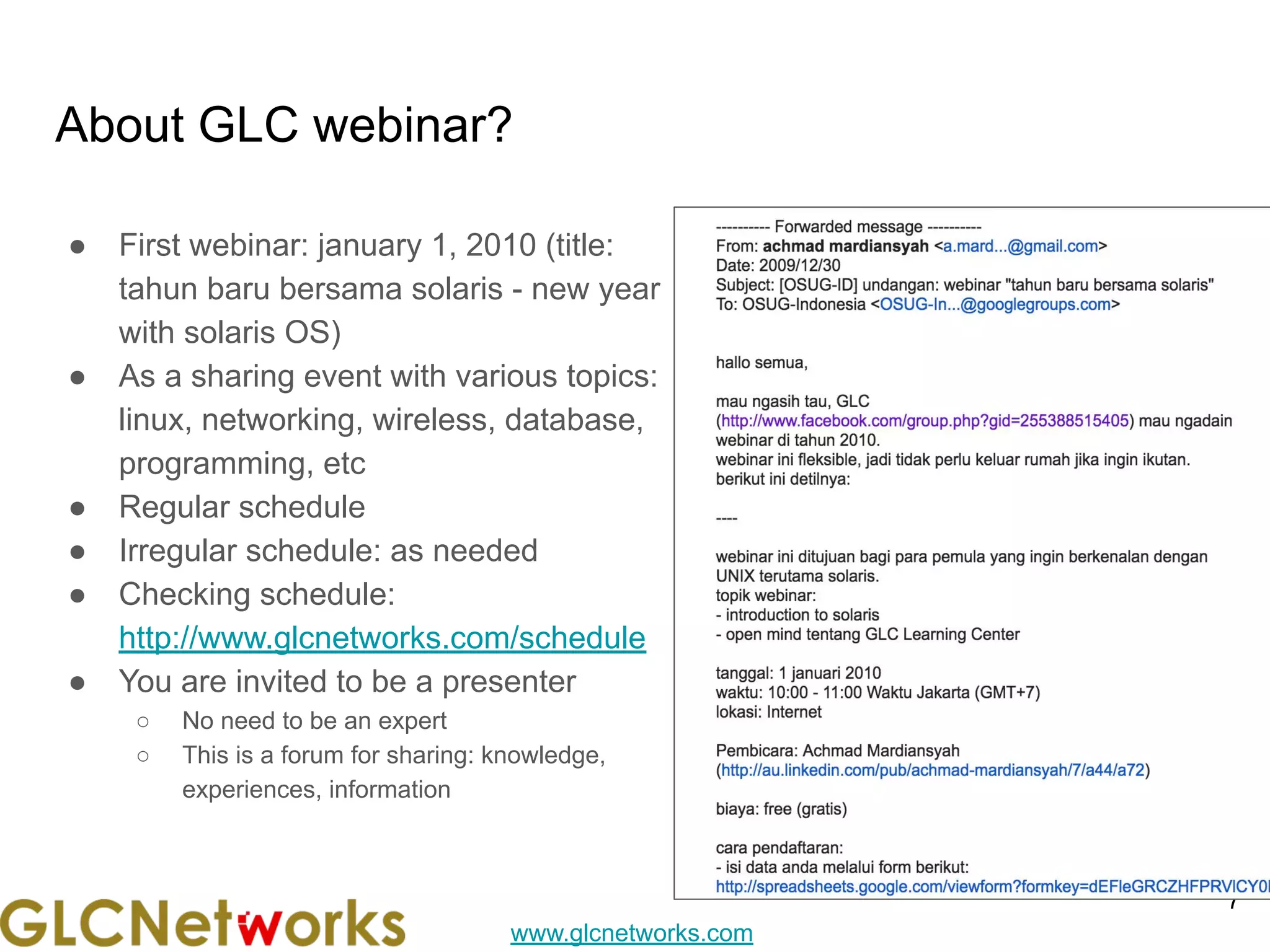

- 7. www.glcnetworks.com About GLC webinar? ●First webinar: january 1, 2010 (title: tahun baru bersama solaris - new year with solaris OS) ● As a sharing event with various topics: linux, networking, wireless, database, programming, etc ● Regular schedule ● Irregular schedule: as needed ● Checking schedule: http://www.glcnetworks.com/schedule ● You are invited to be a presenter ○ No need to be an expert ○ This is a forum for sharing: knowledge, experiences, information 7

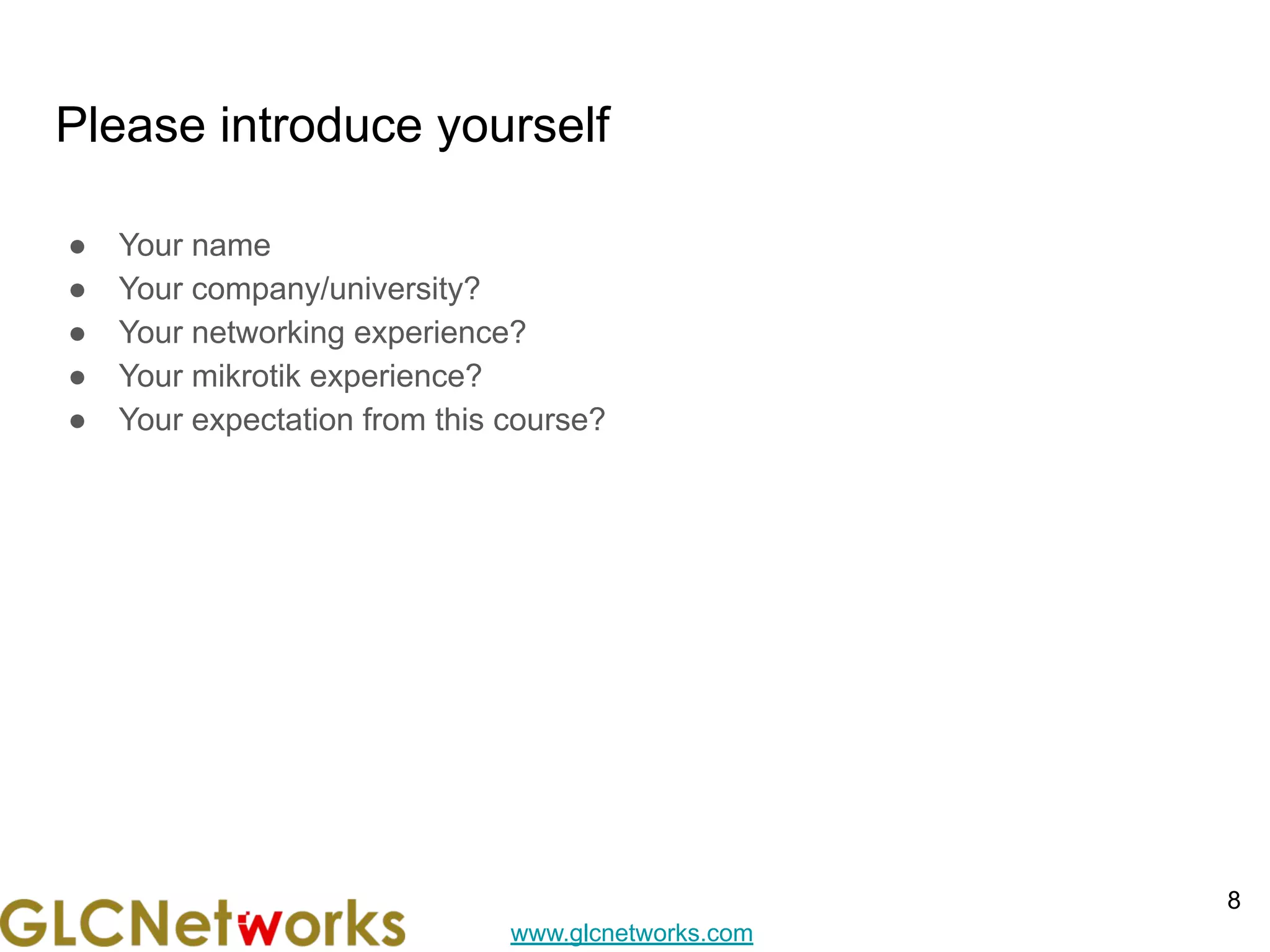

- 8. www.glcnetworks.com Please introduce yourself ●Your name ● Your company/university? ● Your networking experience? ● Your mikrotik experience? ● Your expectation from this course? 8

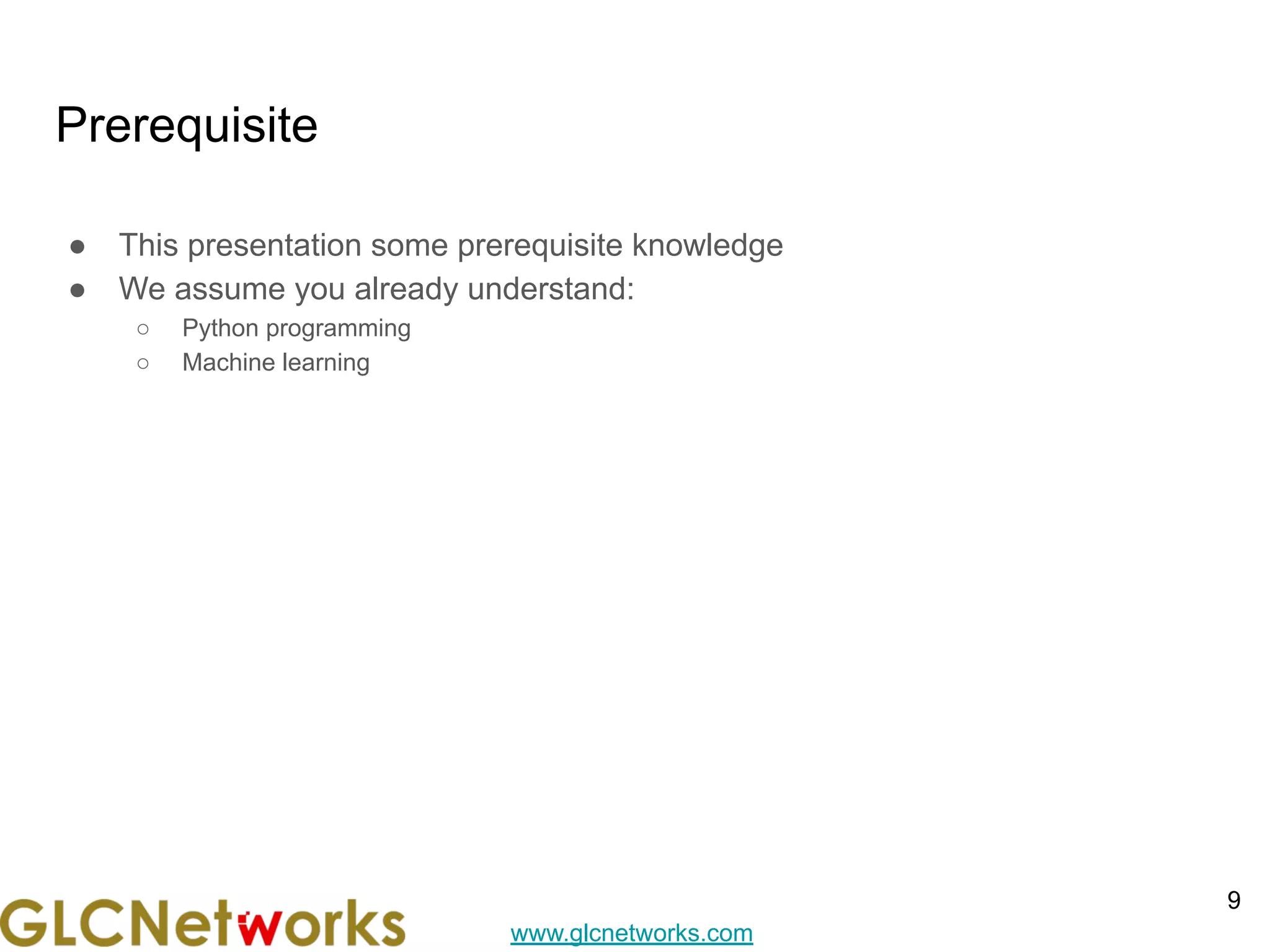

- 9. www.glcnetworks.com Prerequisite ● This presentationsome prerequisite knowledge ● We assume you already understand: ○ Python programming ○ Machine learning 9
- 10.

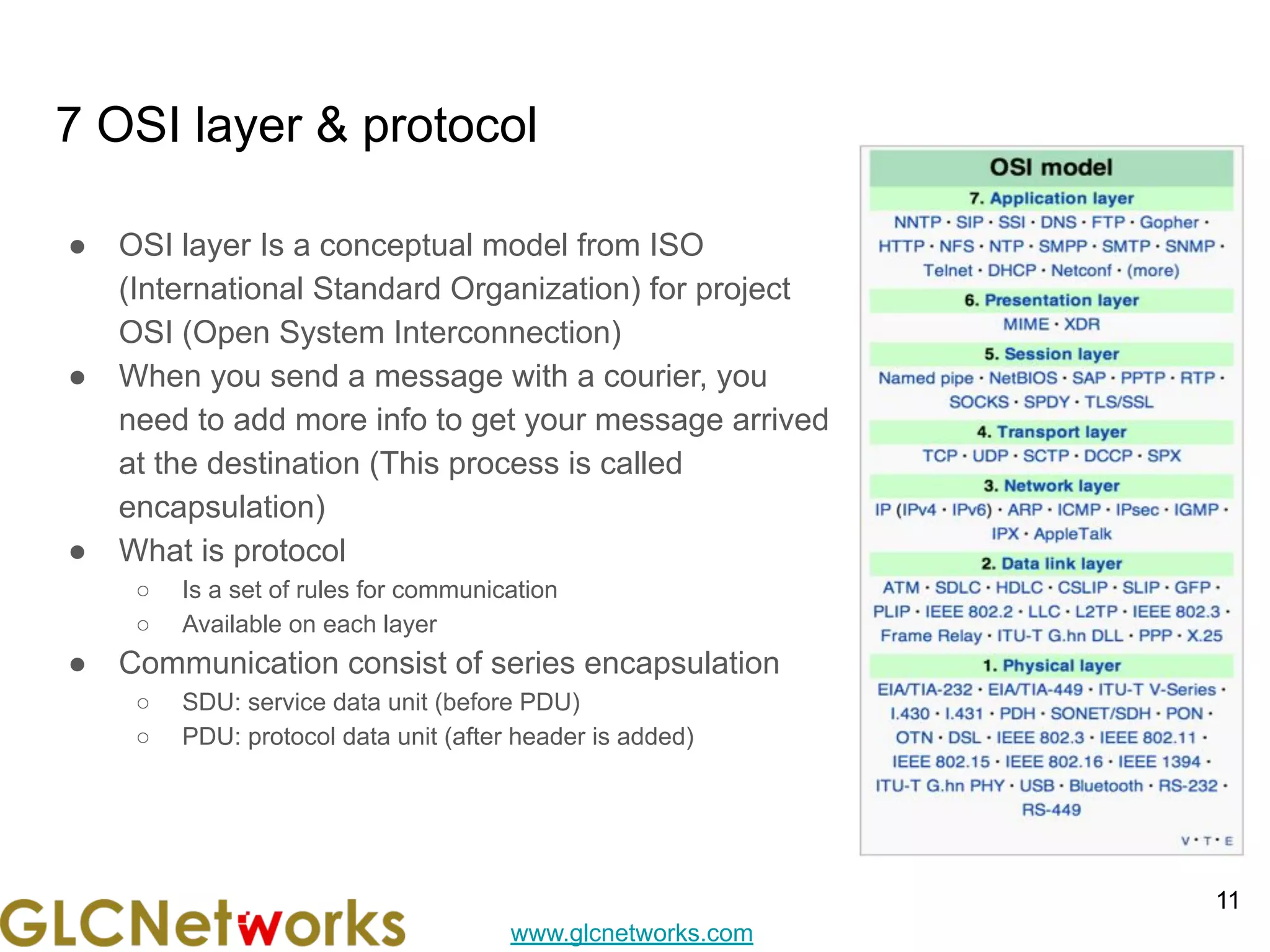

- 11. www.glcnetworks.com 7 OSI layer& protocol 11 ● OSI layer Is a conceptual model from ISO (International Standard Organization) for project OSI (Open System Interconnection) ● When you send a message with a courier, you need to add more info to get your message arrived at the destination (This process is called encapsulation) ● What is protocol ○ Is a set of rules for communication ○ Available on each layer ● Communication consist of series encapsulation ○ SDU: service data unit (before PDU) ○ PDU: protocol data unit (after header is added)

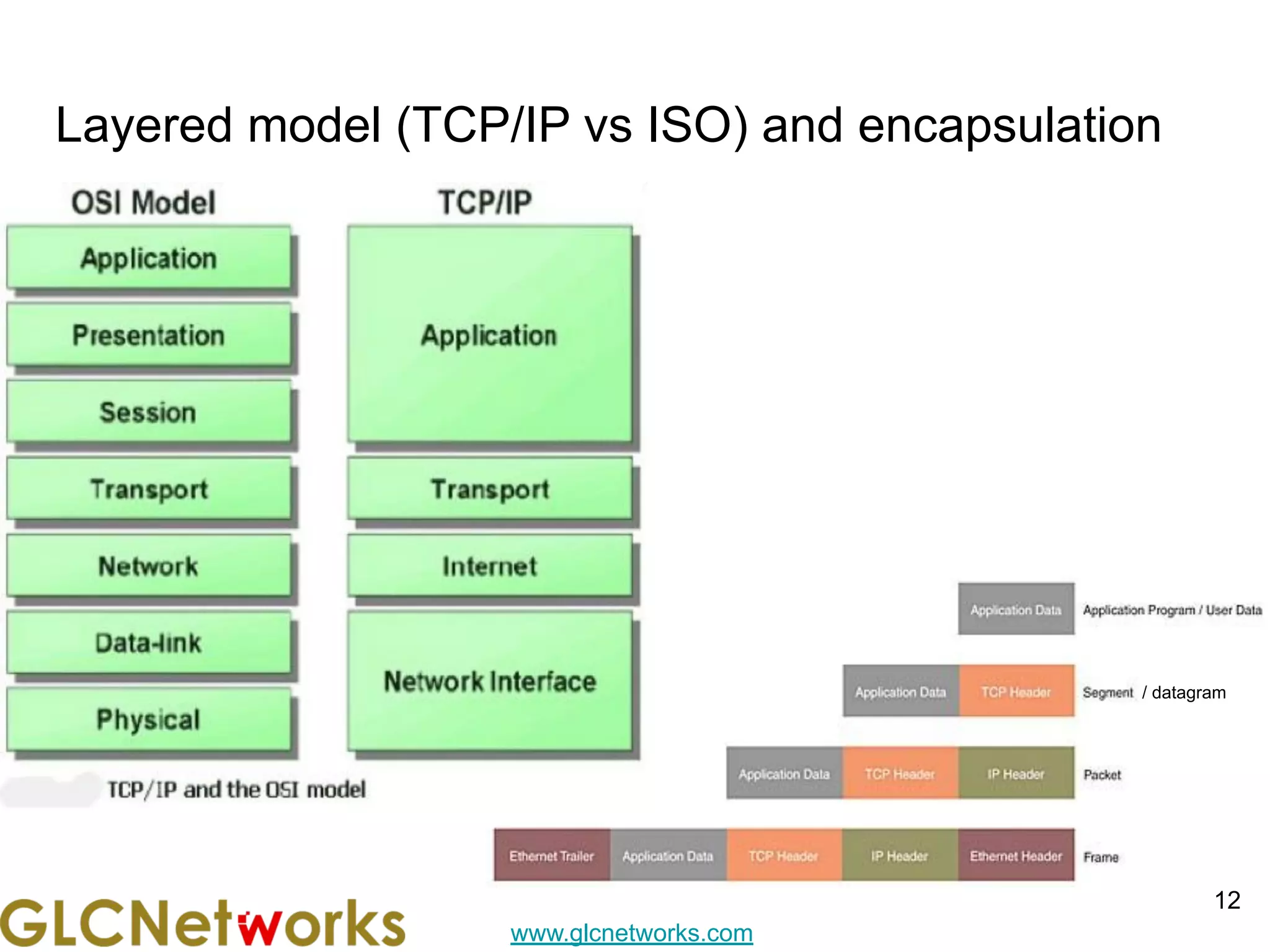

- 12. www.glcnetworks.com Layered model (TCP/IPvs ISO) and encapsulation 12 / datagram

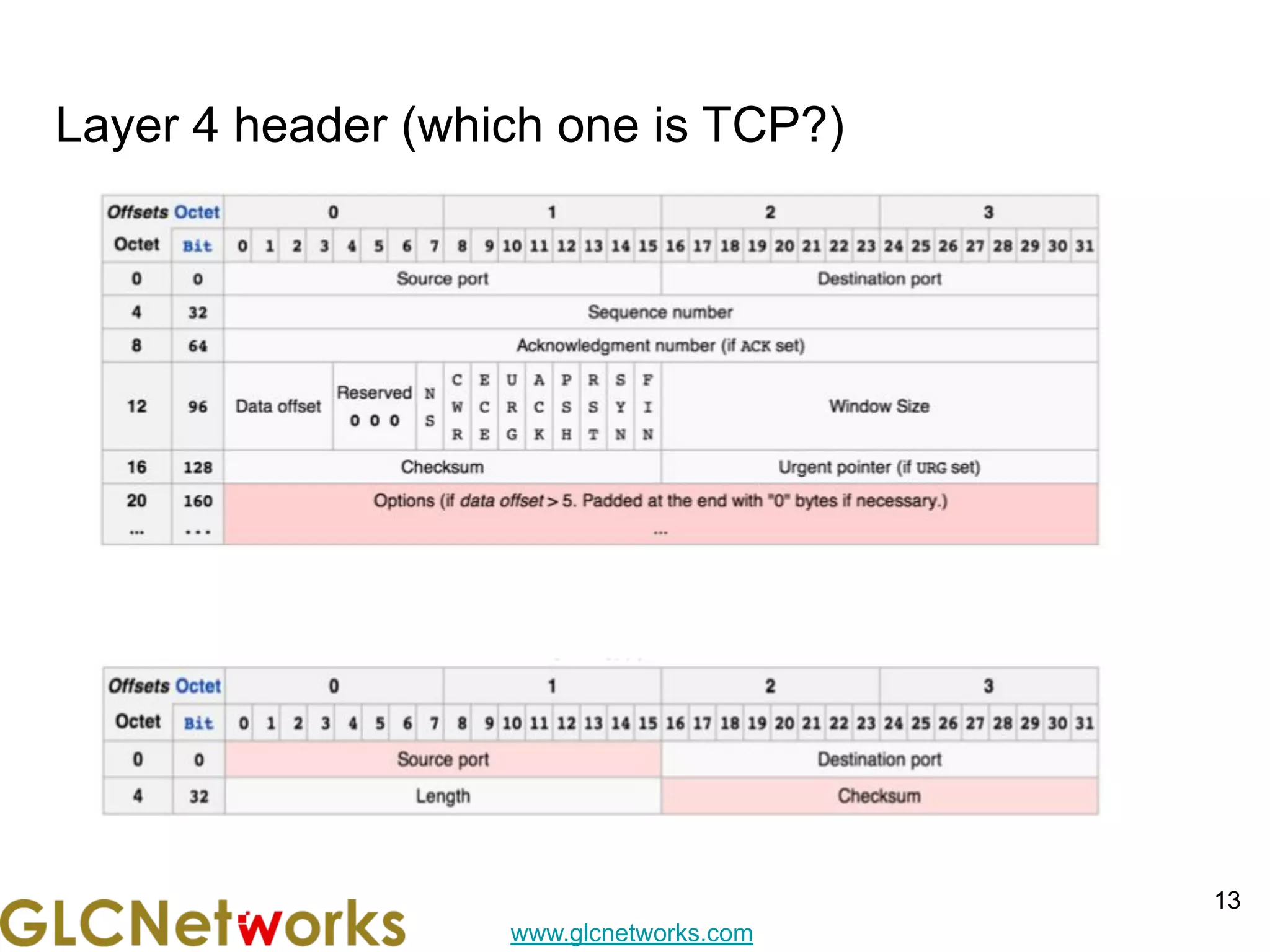

- 13. www.glcnetworks.com Layer 4 header(which one is TCP?) 13

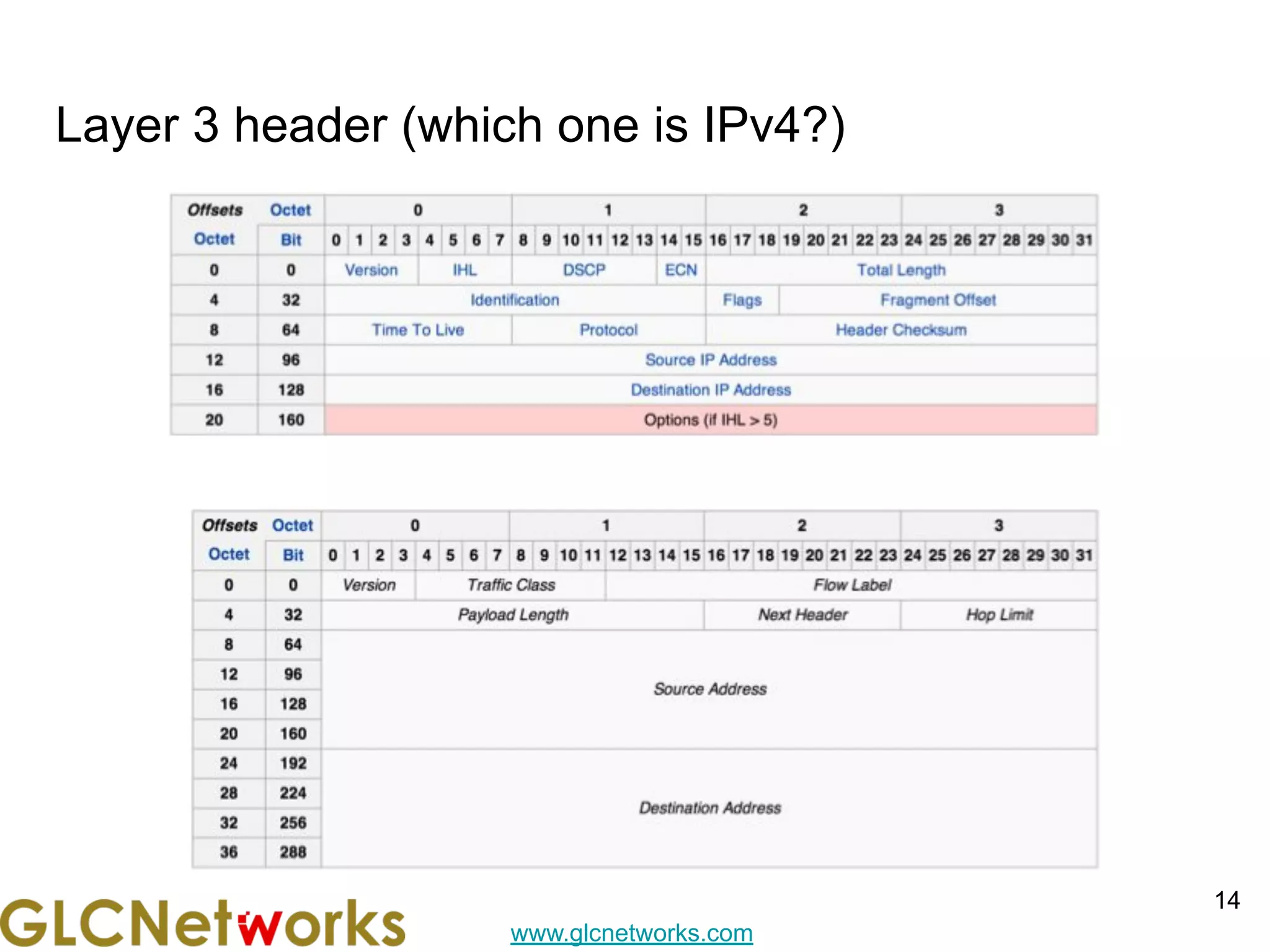

- 14. www.glcnetworks.com Layer 3 header(which one is IPv4?) 14

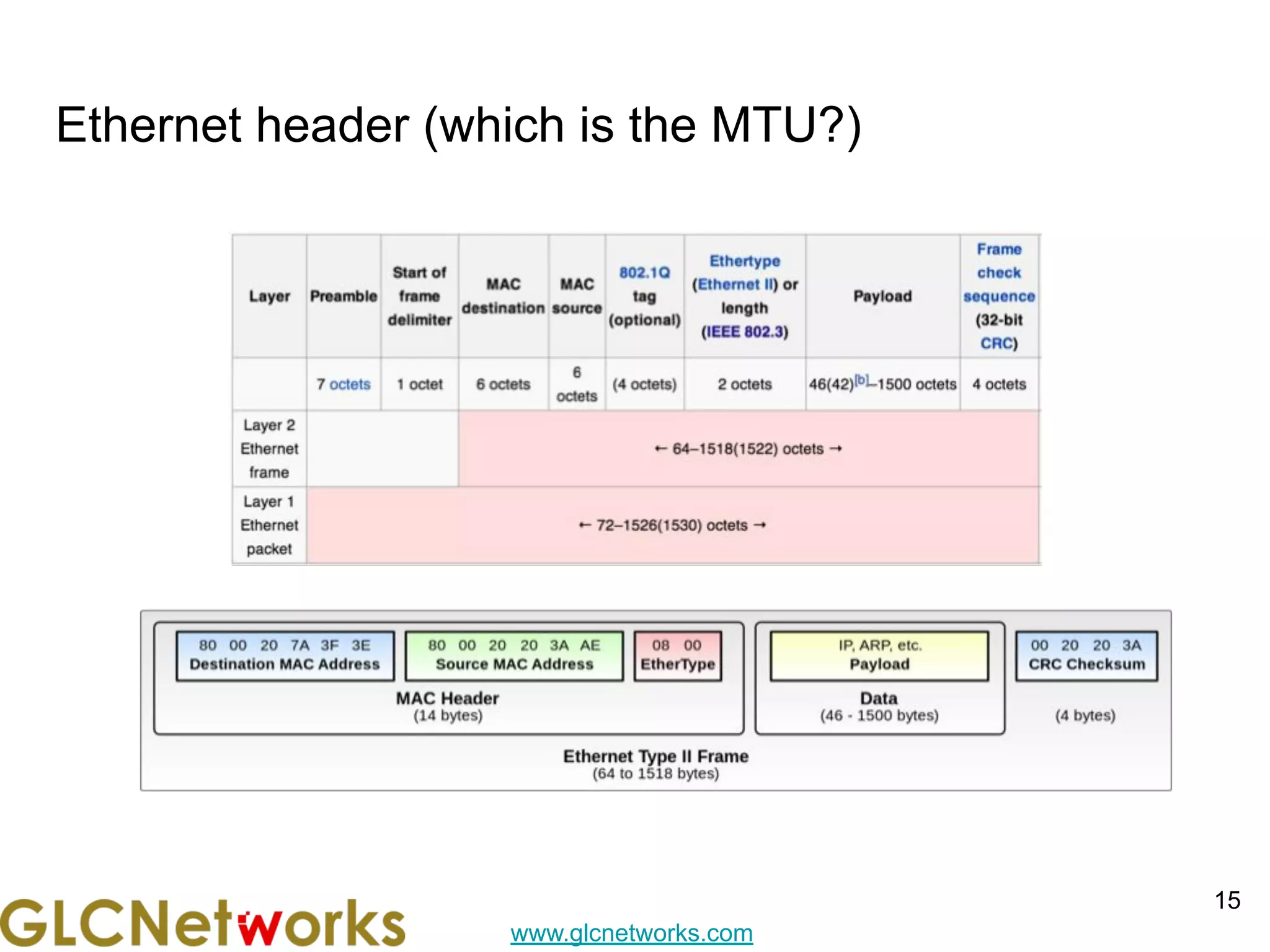

- 15. www.glcnetworks.com Ethernet header (whichis the MTU?) 15

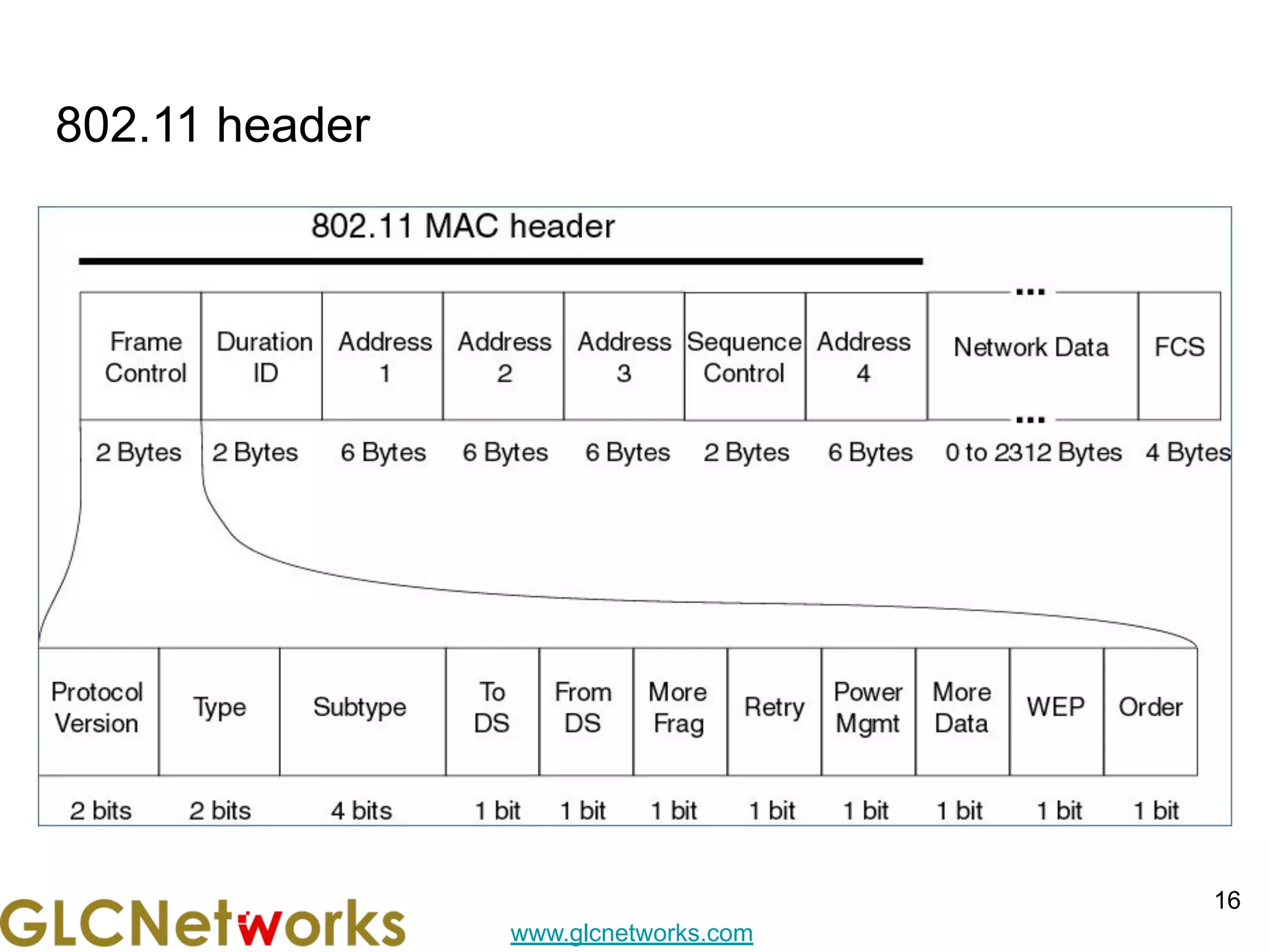

- 16.

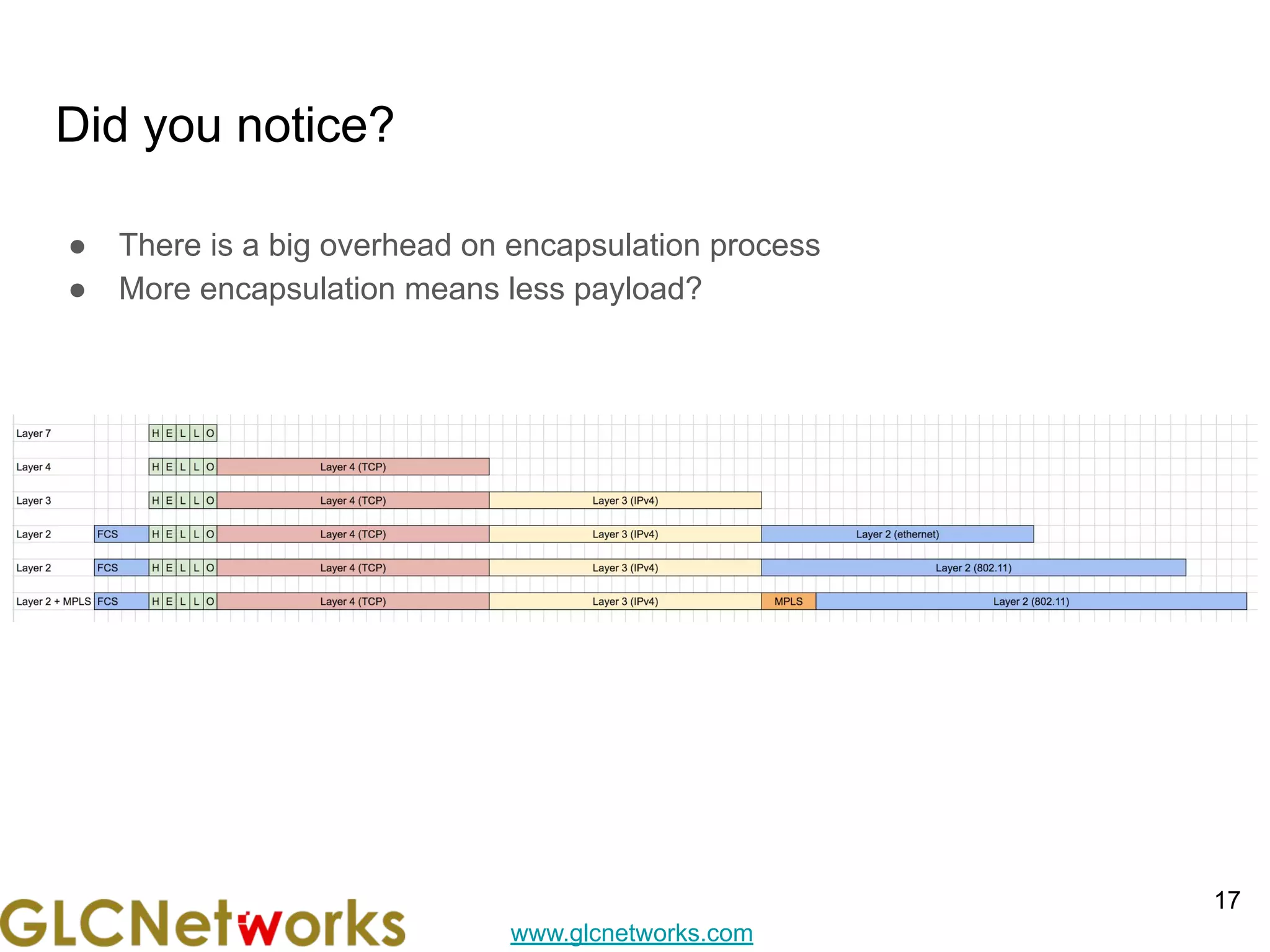

- 17. www.glcnetworks.com Did you notice? ●There is a big overhead on encapsulation process ● More encapsulation means less payload? 17
- 18.

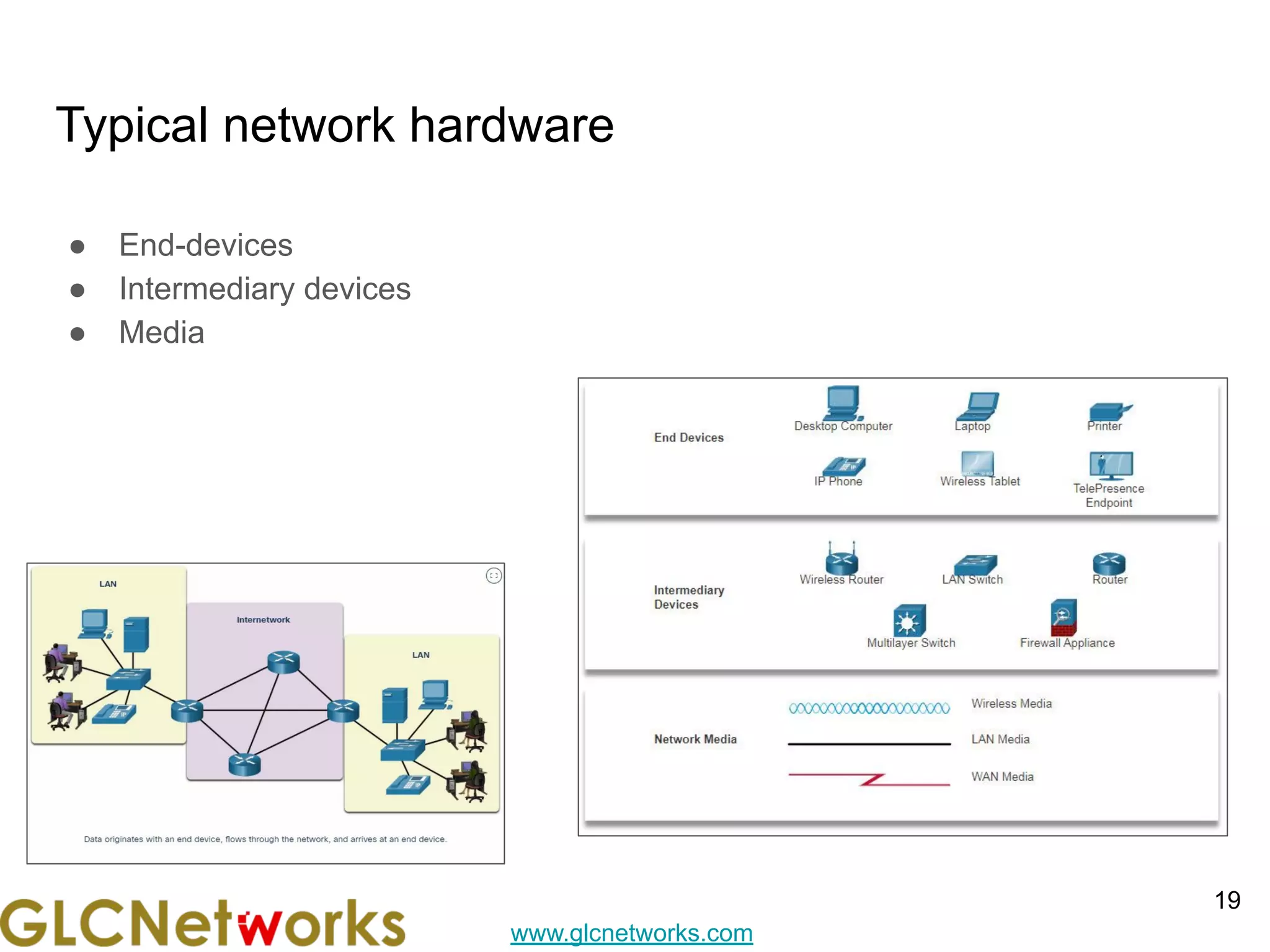

- 19. www.glcnetworks.com Typical network hardware ●End-devices ● Intermediary devices ● Media 19

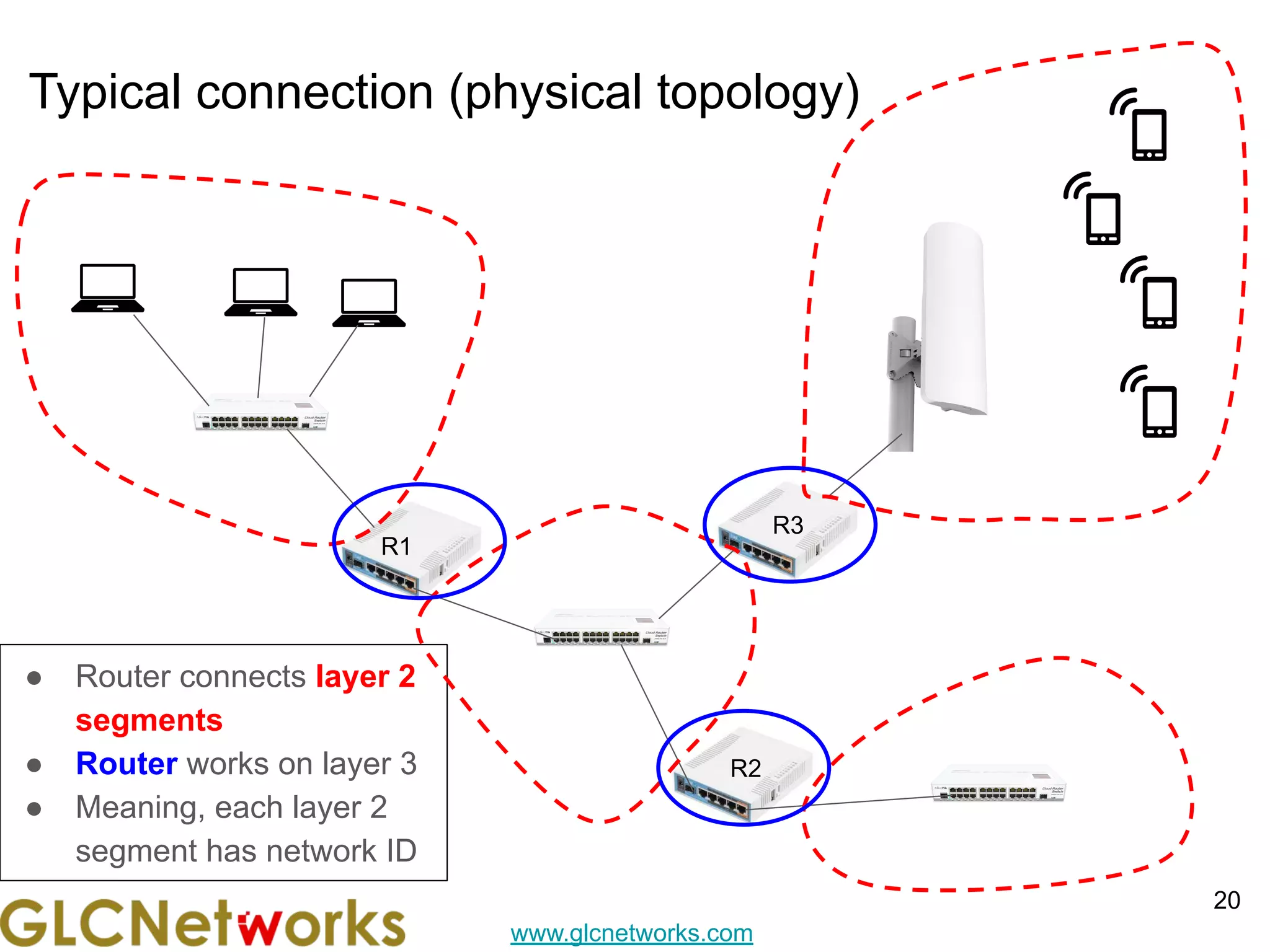

- 20. www.glcnetworks.com Typical connection (physicaltopology) 20 R2 R1 R3 ● Router connects layer 2 segments ● Router works on layer 3 ● Meaning, each layer 2 segment has network ID

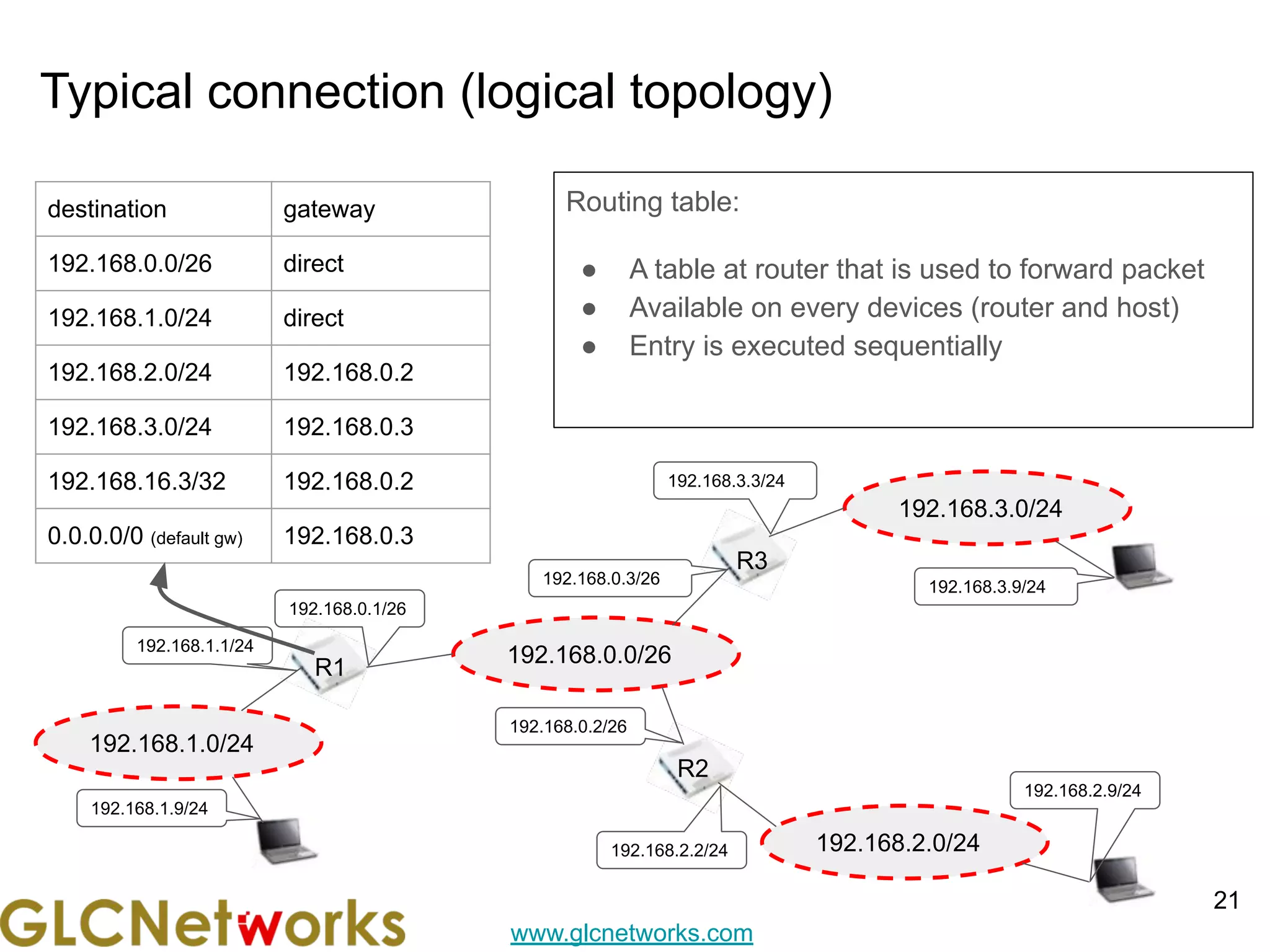

- 21. www.glcnetworks.com Typical connection (logicaltopology) Routing table: ● A table at router that is used to forward packet ● Available on every devices (router and host) ● Entry is executed sequentially 21 192.168.0.0/26 R1 192.168.0.1/26 192.168.0.3/26 192.168.0.2/26 R3 R2 192.168.1.0/24 192.168.2.0/24 192.168.3.0/24 192.168.3.3/24 192.168.3.9/24 192.168.2.9/24 192.168.2.2/24 192.168.1.1/24 192.168.1.9/24 destination gateway 192.168.0.0/26 direct 192.168.1.0/24 direct 192.168.2.0/24 192.168.0.2 192.168.3.0/24 192.168.0.3 192.168.16.3/32 192.168.0.2 0.0.0.0/0 (default gw) 192.168.0.3

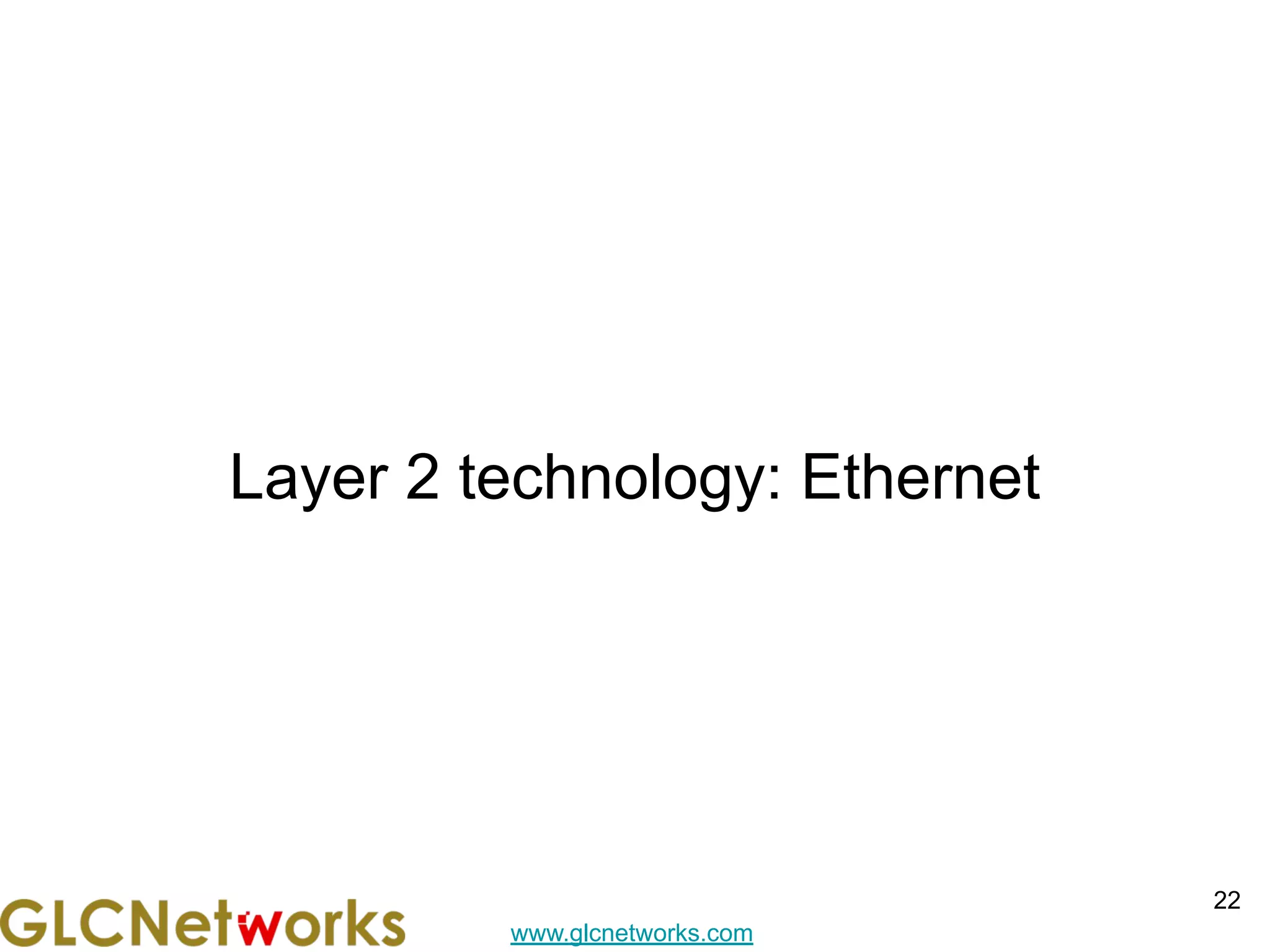

- 22. www.glcnetworks.com Layer 2 technology:Ethernet 22

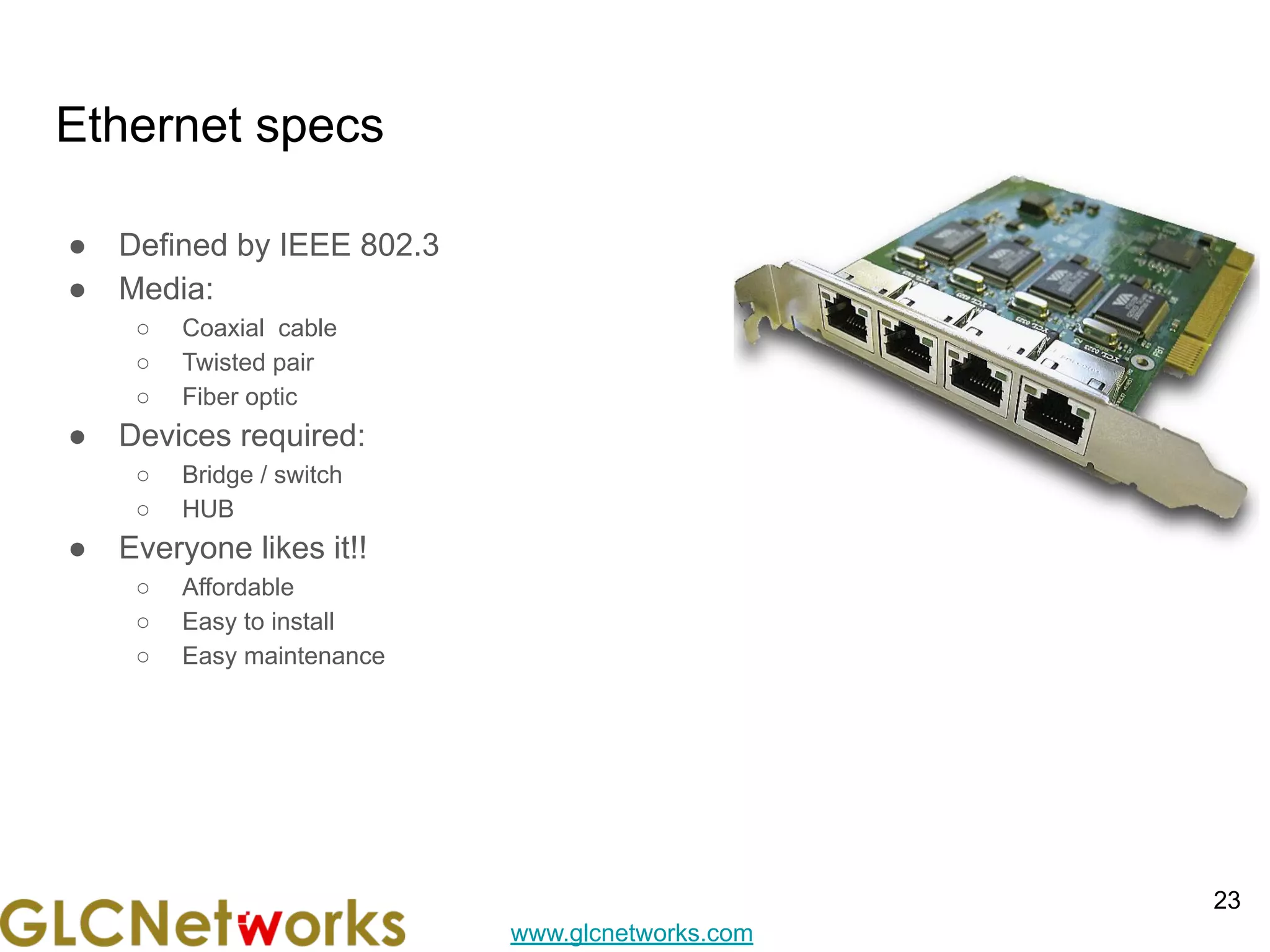

- 23. www.glcnetworks.com Ethernet specs ● Definedby IEEE 802.3 ● Media: ○ Coaxial cable ○ Twisted pair ○ Fiber optic ● Devices required: ○ Bridge / switch ○ HUB ● Everyone likes it!! ○ Affordable ○ Easy to install ○ Easy maintenance 23

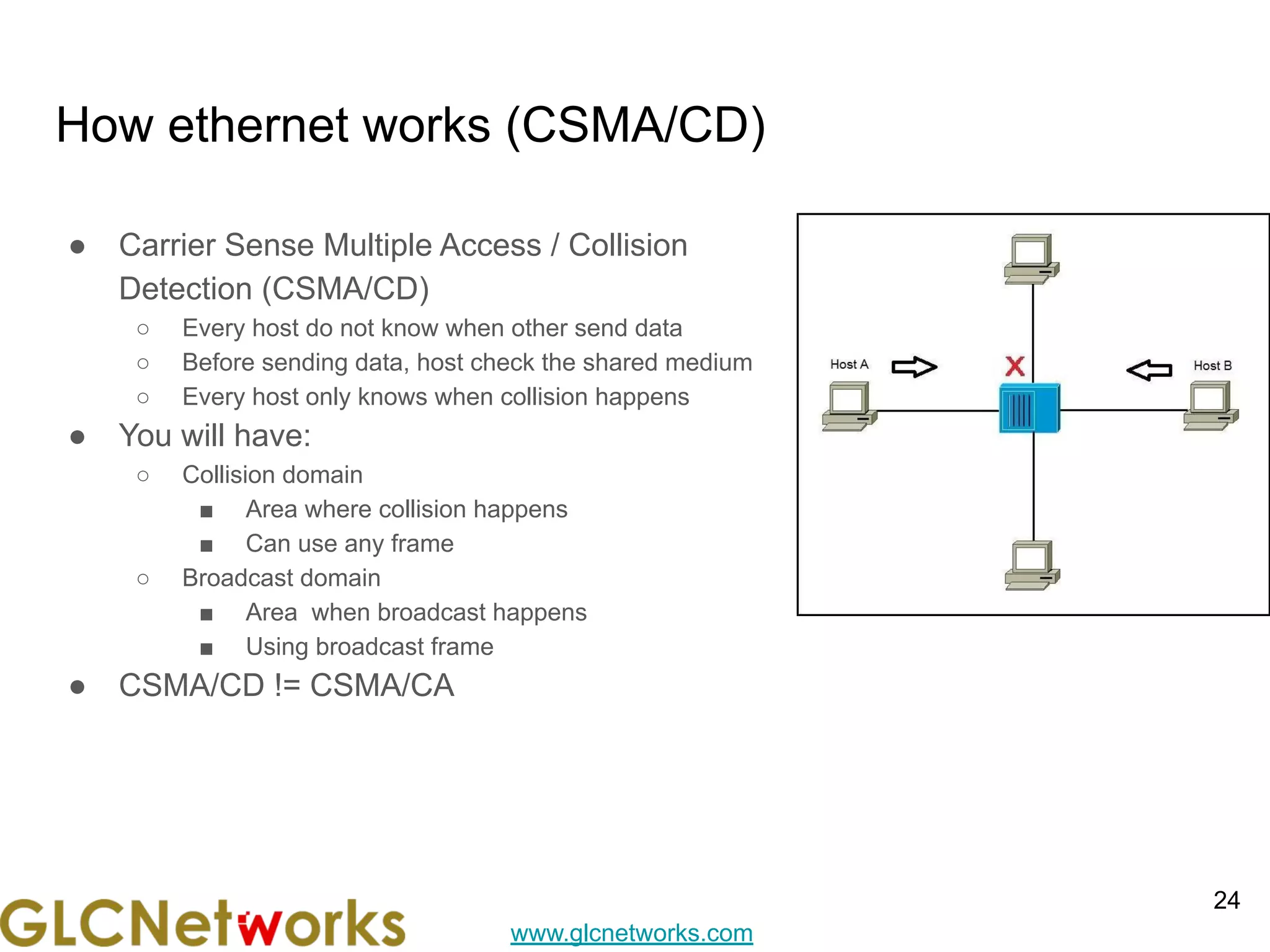

- 24. www.glcnetworks.com How ethernet works(CSMA/CD) ● Carrier Sense Multiple Access / Collision Detection (CSMA/CD) ○ Every host do not know when other send data ○ Before sending data, host check the shared medium ○ Every host only knows when collision happens ● You will have: ○ Collision domain ■ Area where collision happens ■ Can use any frame ○ Broadcast domain ■ Area when broadcast happens ■ Using broadcast frame ● CSMA/CD != CSMA/CA 24

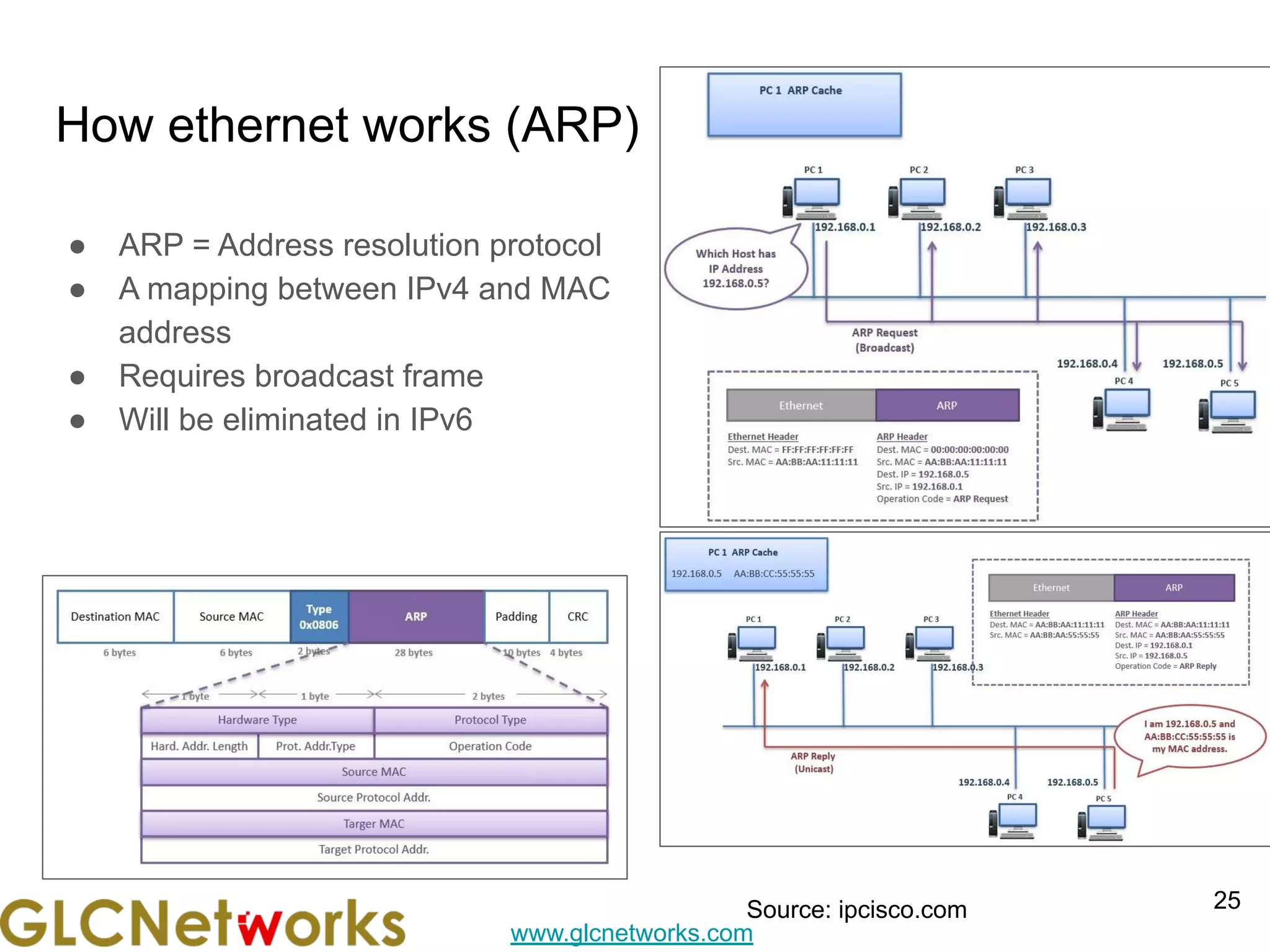

- 25. www.glcnetworks.com How ethernet works(ARP) ● ARP = Address resolution protocol ● A mapping between IPv4 and MAC address ● Requires broadcast frame ● Will be eliminated in IPv6 25 Source: ipcisco.com

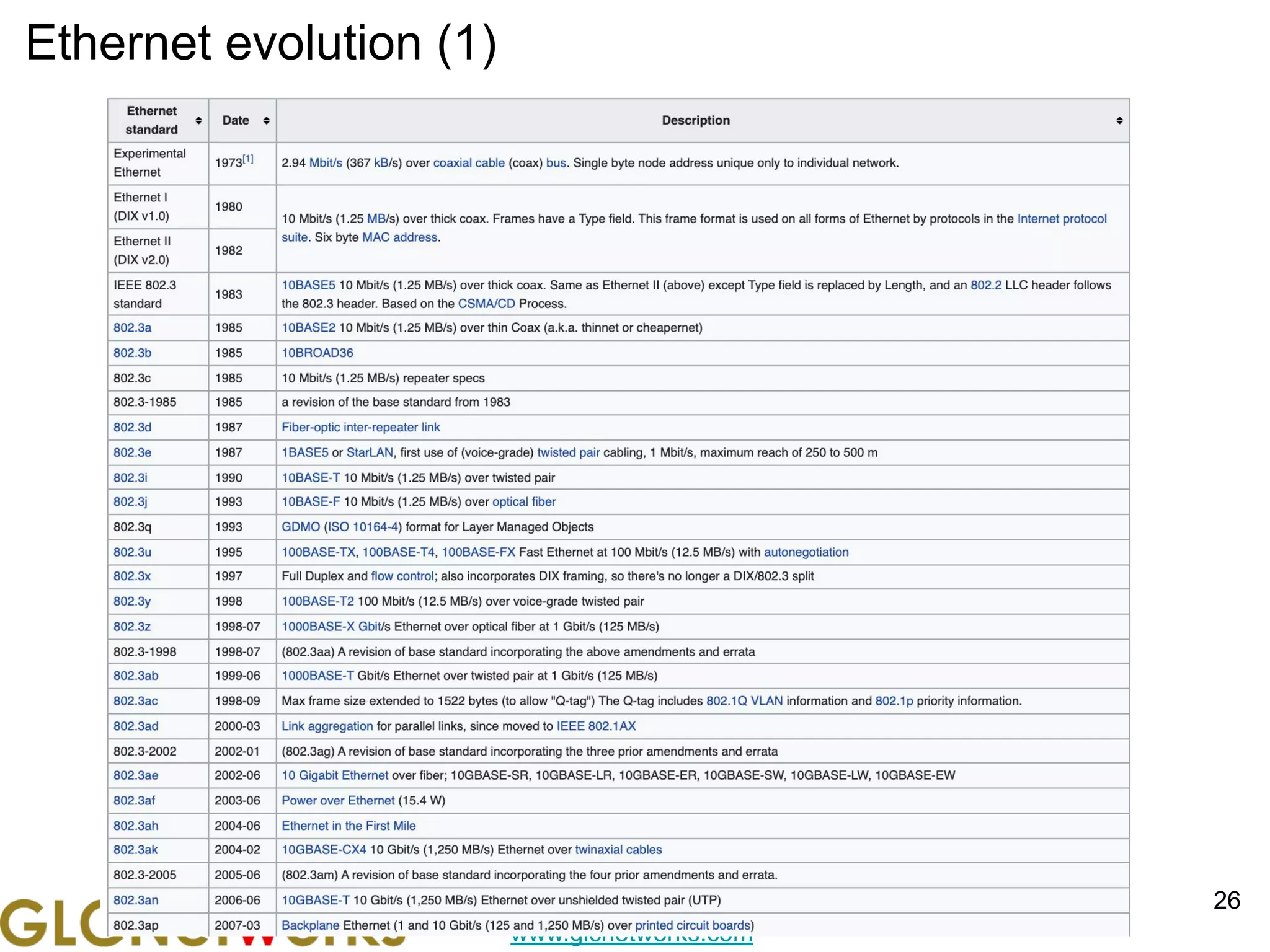

- 26.

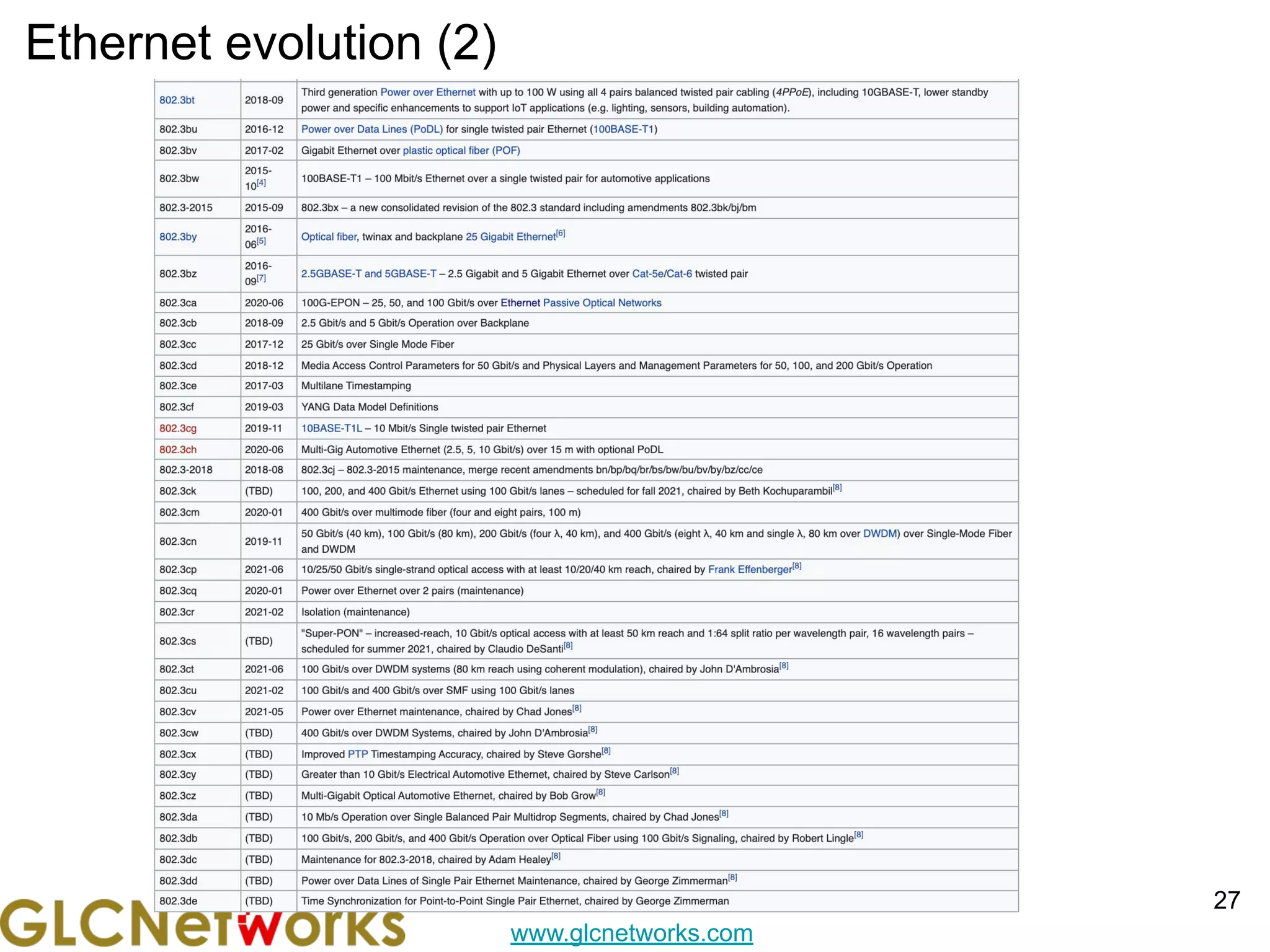

- 27.

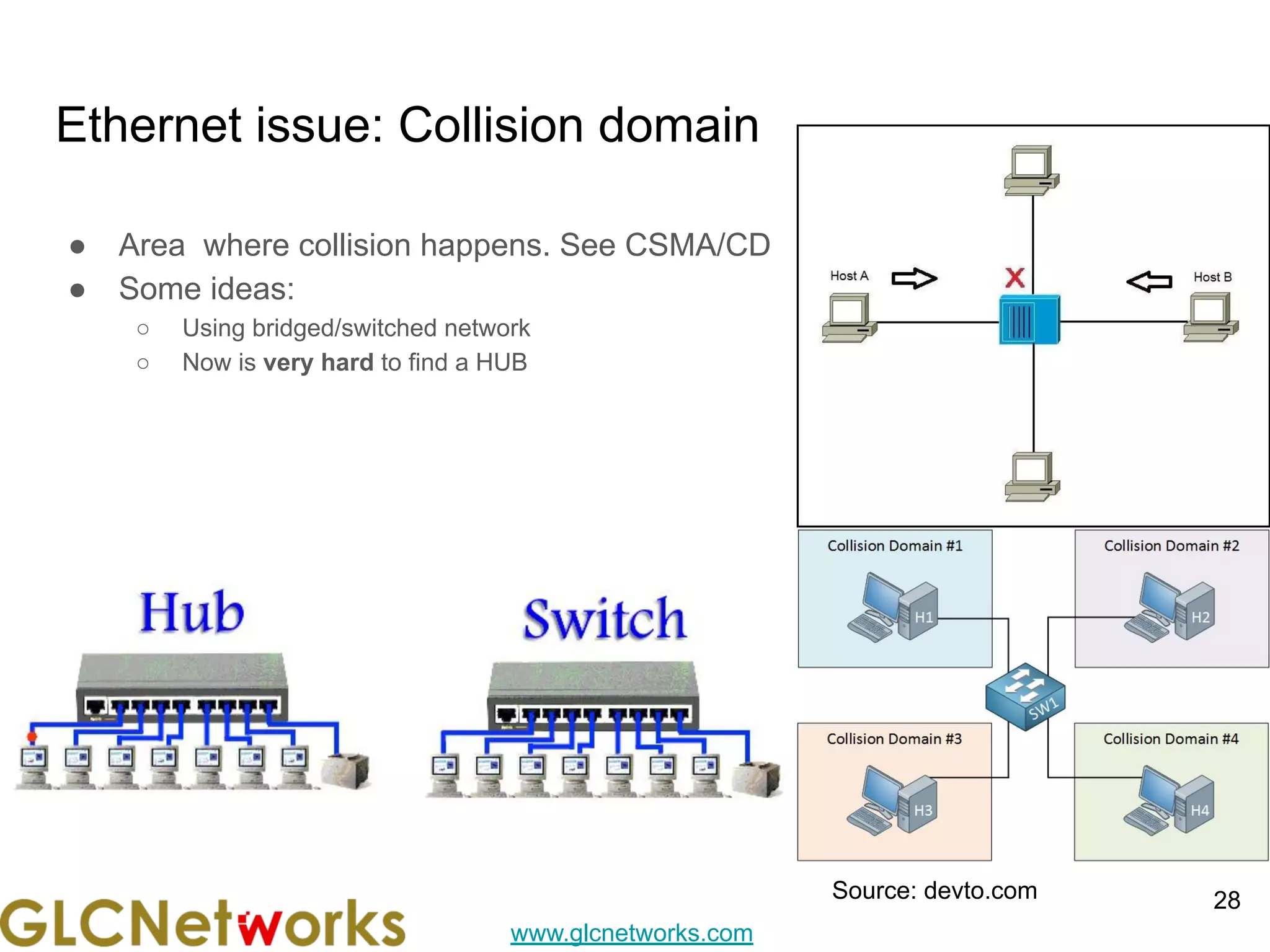

- 28. www.glcnetworks.com Ethernet issue: Collisiondomain ● Area where collision happens. See CSMA/CD ● Some ideas: ○ Using bridged/switched network ○ Now is very hard to find a HUB 28 Source: devto.com

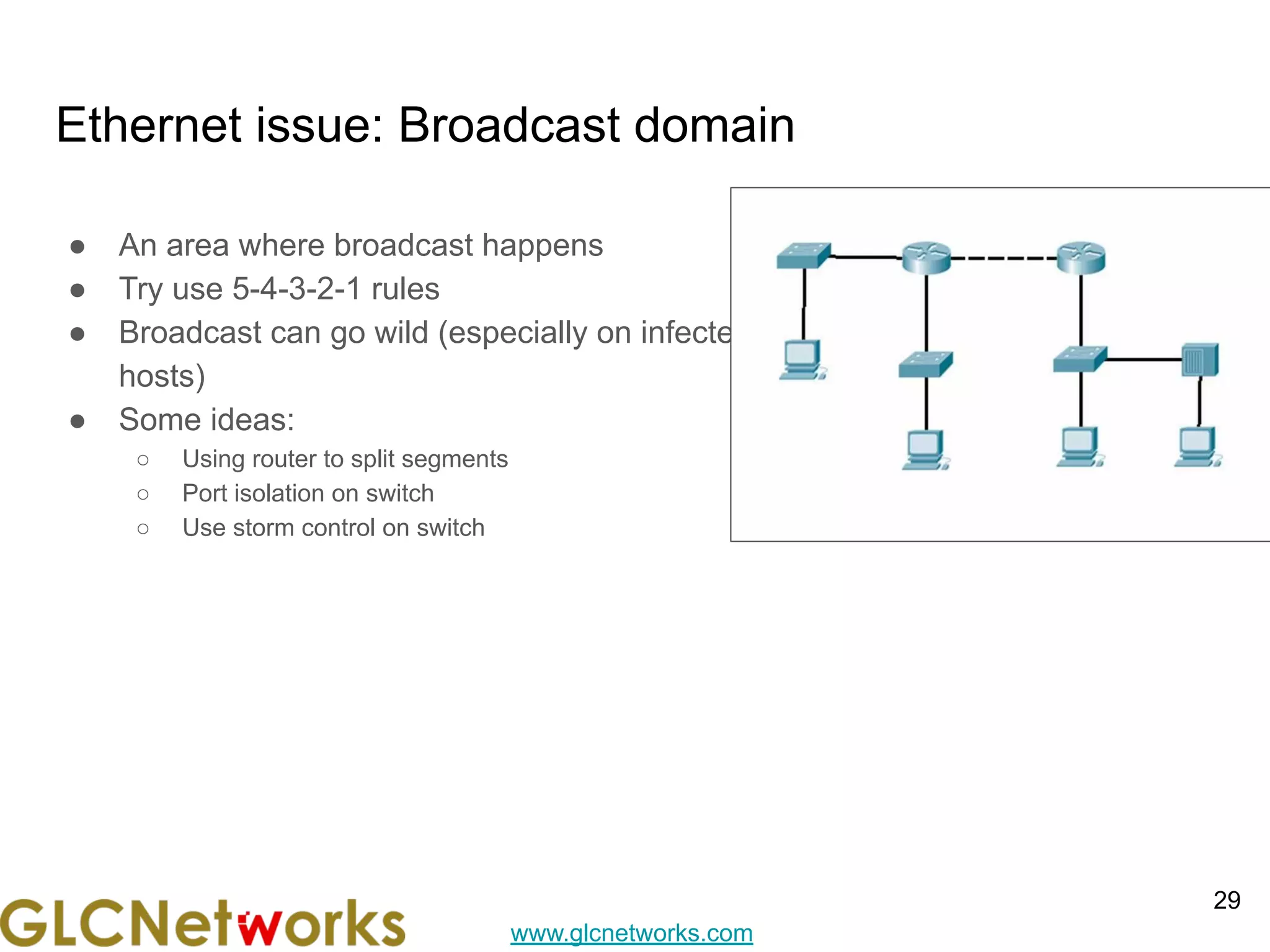

- 29. www.glcnetworks.com Ethernet issue: Broadcastdomain ● An area where broadcast happens ● Try use 5-4-3-2-1 rules ● Broadcast can go wild (especially on infected hosts) ● Some ideas: ○ Using router to split segments ○ Port isolation on switch ○ Use storm control on switch 29

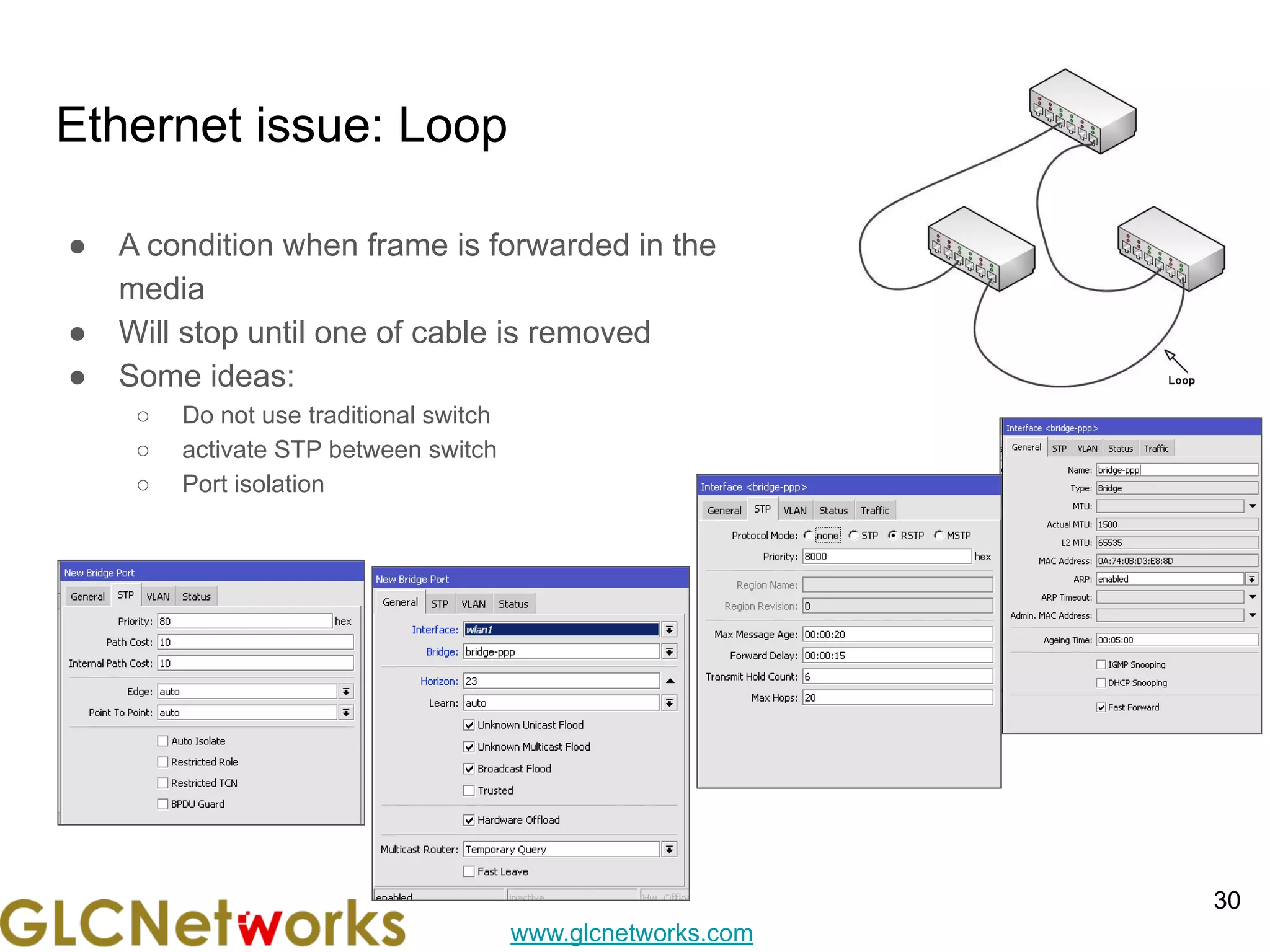

- 30. www.glcnetworks.com Ethernet issue: Loop ●A condition when frame is forwarded in the media ● Will stop until one of cable is removed ● Some ideas: ○ Do not use traditional switch ○ activate STP between switch ○ Port isolation 30

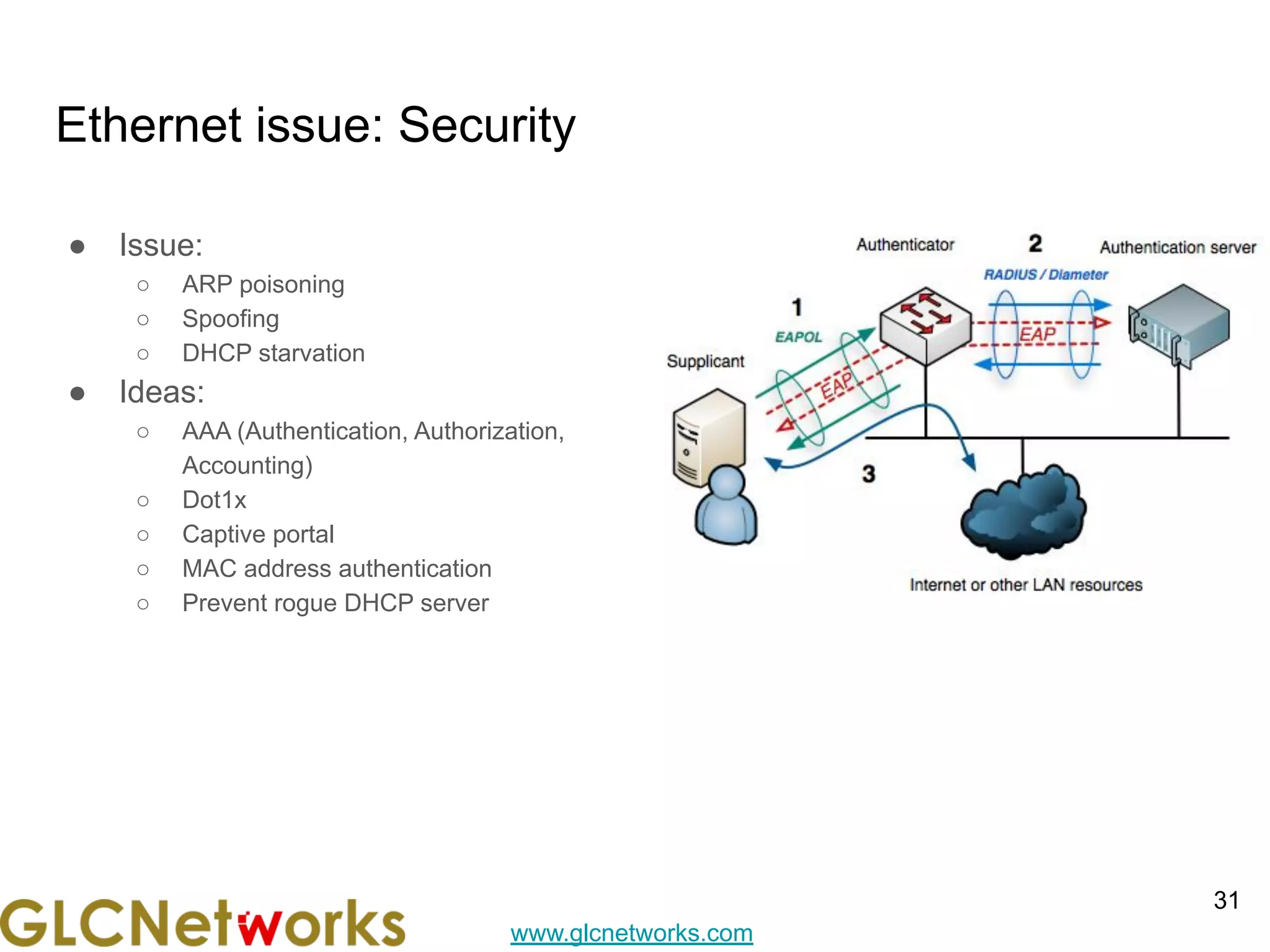

- 31. www.glcnetworks.com Ethernet issue: Security ●Issue: ○ ARP poisoning ○ Spoofing ○ DHCP starvation ● Ideas: ○ AAA (Authentication, Authorization, Accounting) ○ Dot1x ○ Captive portal ○ MAC address authentication ○ Prevent rogue DHCP server 31
- 32.

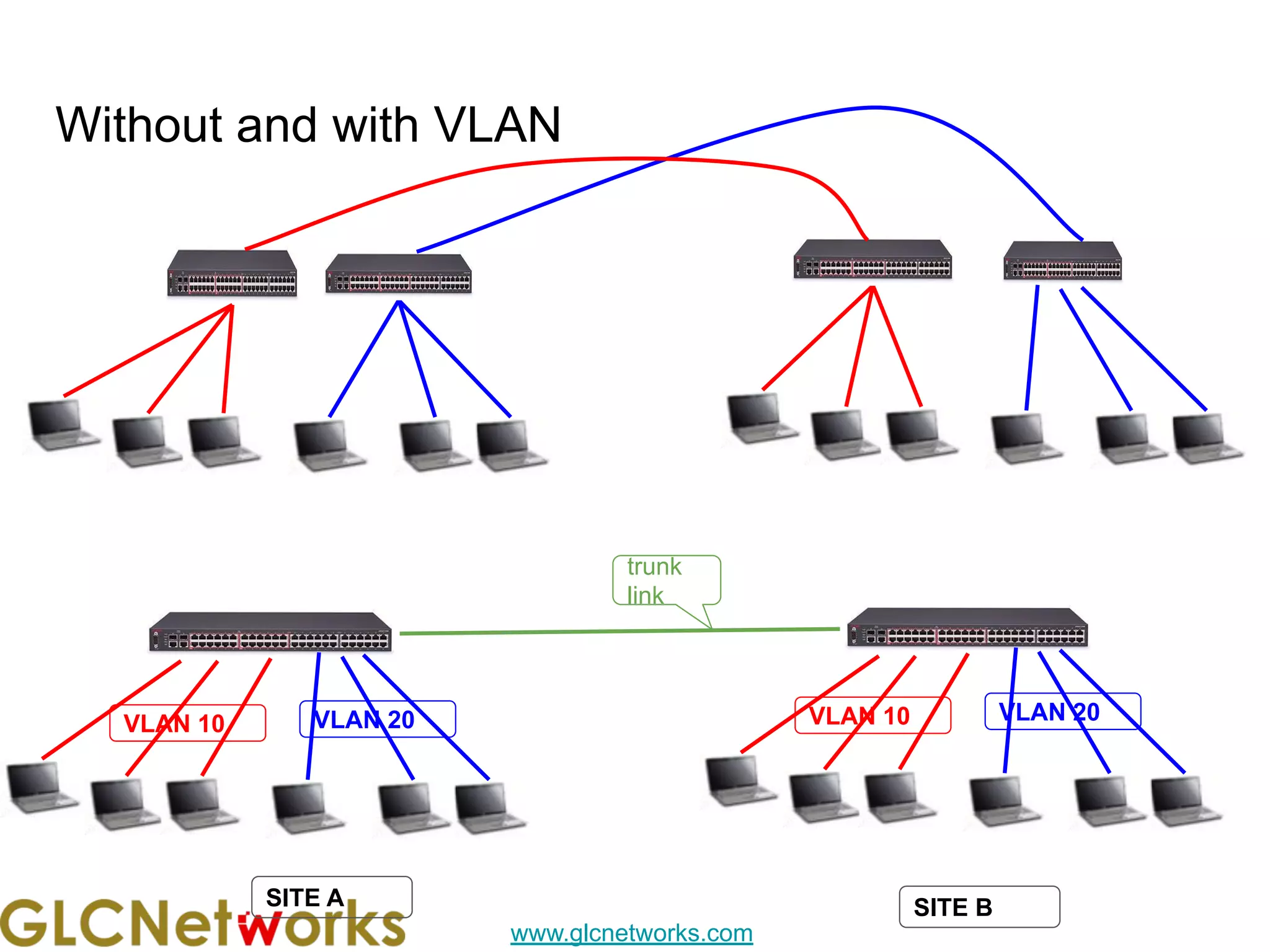

- 33. www.glcnetworks.com Without and withVLAN trunk link VLAN 10 VLAN 20 VLAN 10 VLAN 20 SITE A SITE B

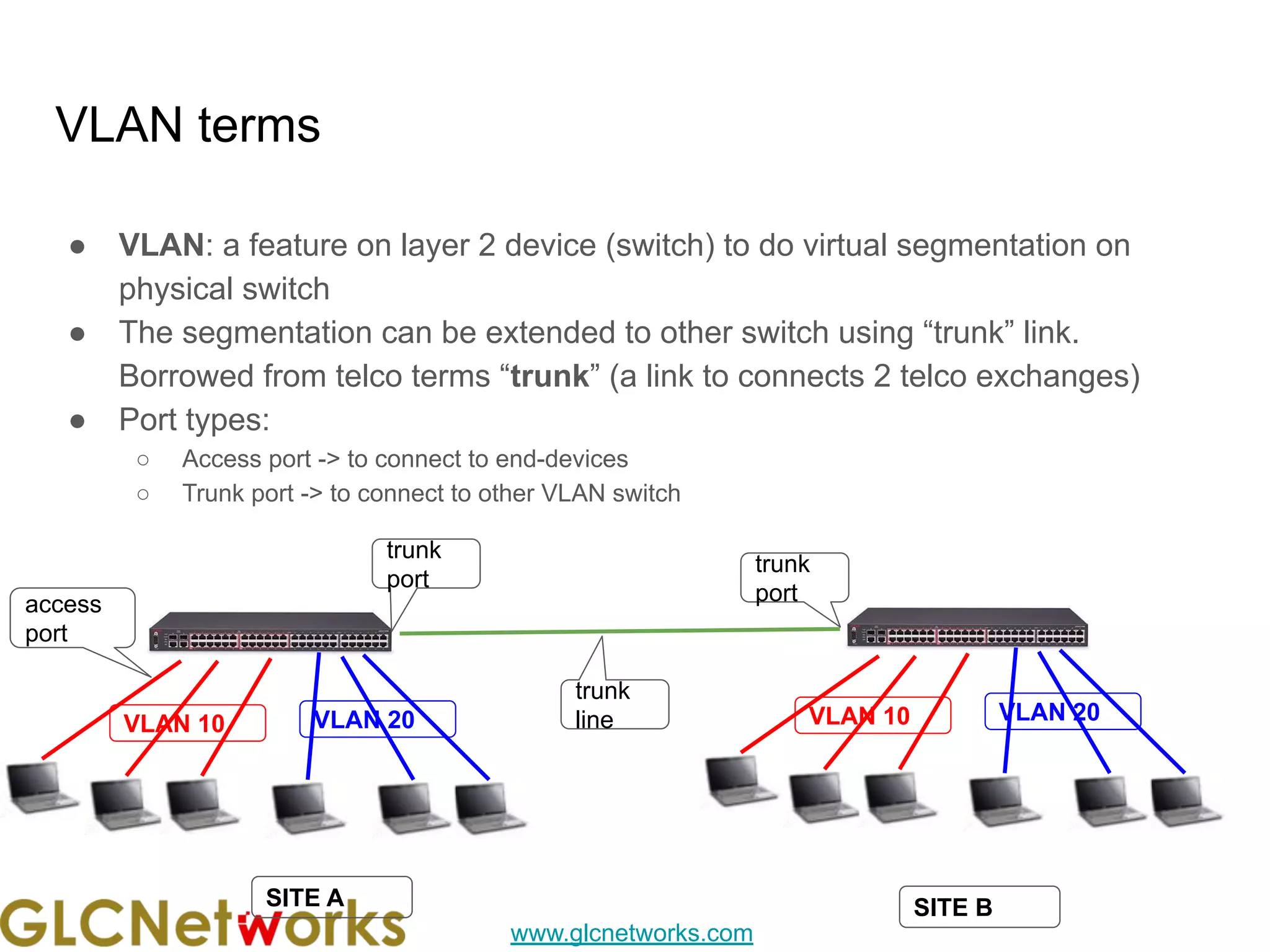

- 34. www.glcnetworks.com VLAN terms ● VLAN:a feature on layer 2 device (switch) to do virtual segmentation on physical switch ● The segmentation can be extended to other switch using “trunk” link. Borrowed from telco terms “trunk” (a link to connects 2 telco exchanges) ● Port types: ○ Access port -> to connect to end-devices ○ Trunk port -> to connect to other VLAN switch access port trunk port trunk port VLAN 10 VLAN 20 VLAN 10 VLAN 20 SITE A SITE B trunk line

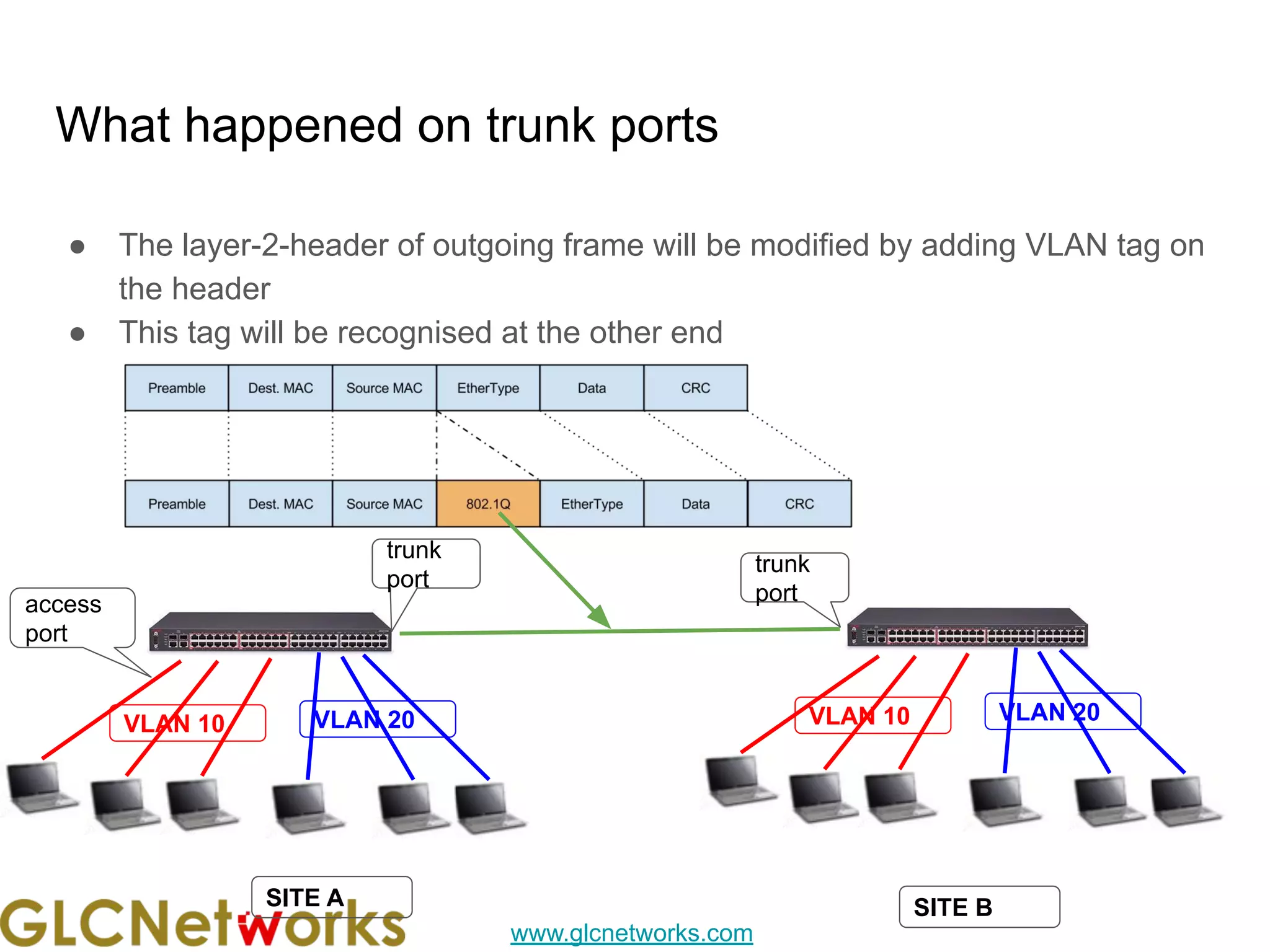

- 35. www.glcnetworks.com What happened ontrunk ports ● The layer-2-header of outgoing frame will be modified by adding VLAN tag on the header ● This tag will be recognised at the other end access port trunk port trunk port SITE A SITE B VLAN 10 VLAN 20 VLAN 10 VLAN 20

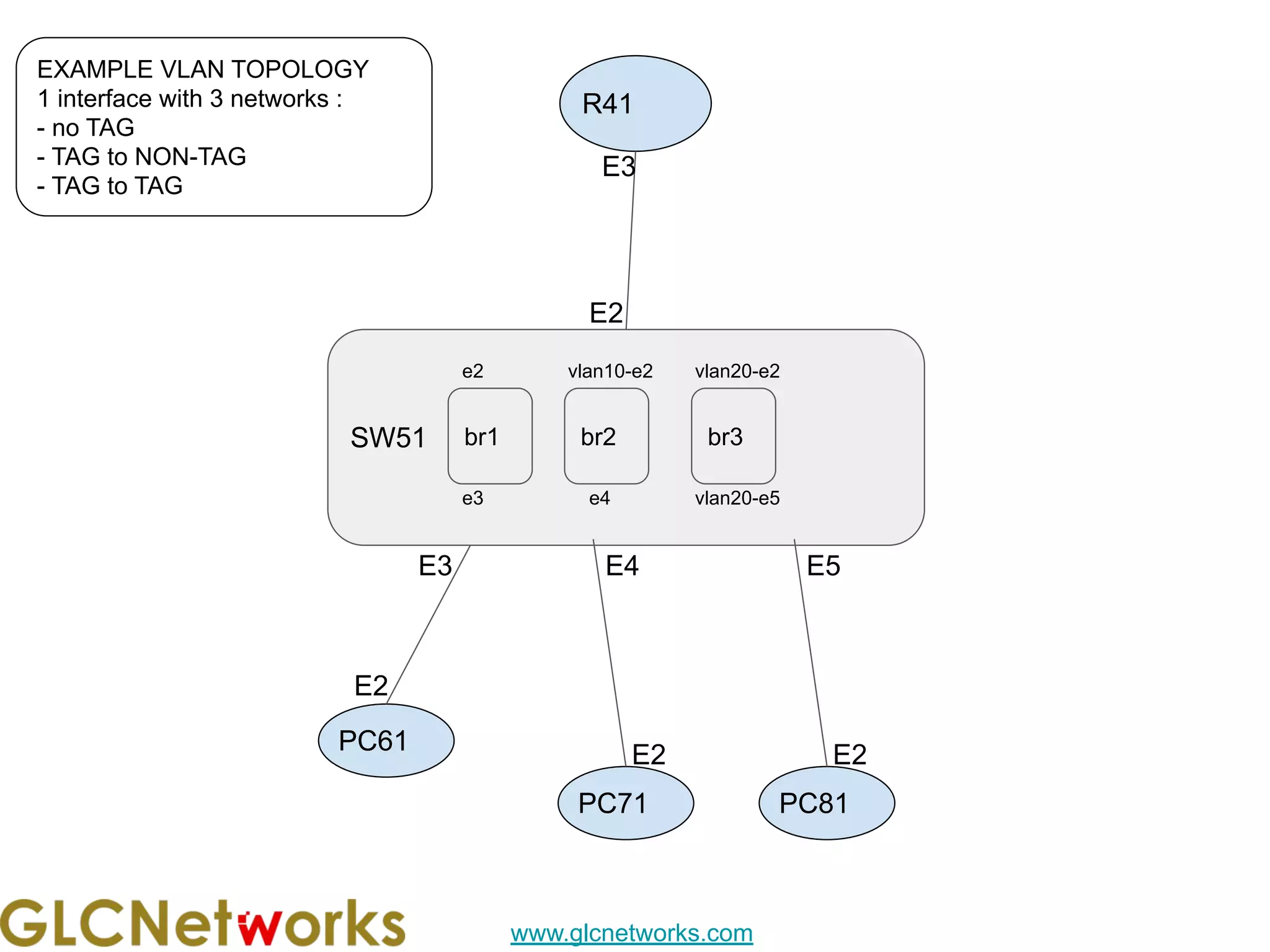

- 36. www.glcnetworks.com R41 EXAMPLE VLAN TOPOLOGY 1interface with 3 networks : - no TAG - TAG to NON-TAG - TAG to TAG PC61 E3 E2 E2 SW51 E2 PC71 E3 E4 br1 e2 e3 br2 vlan10-e2 e4 E2 PC81 E5 br3 vlan20-e2 vlan20-e5
- 37.

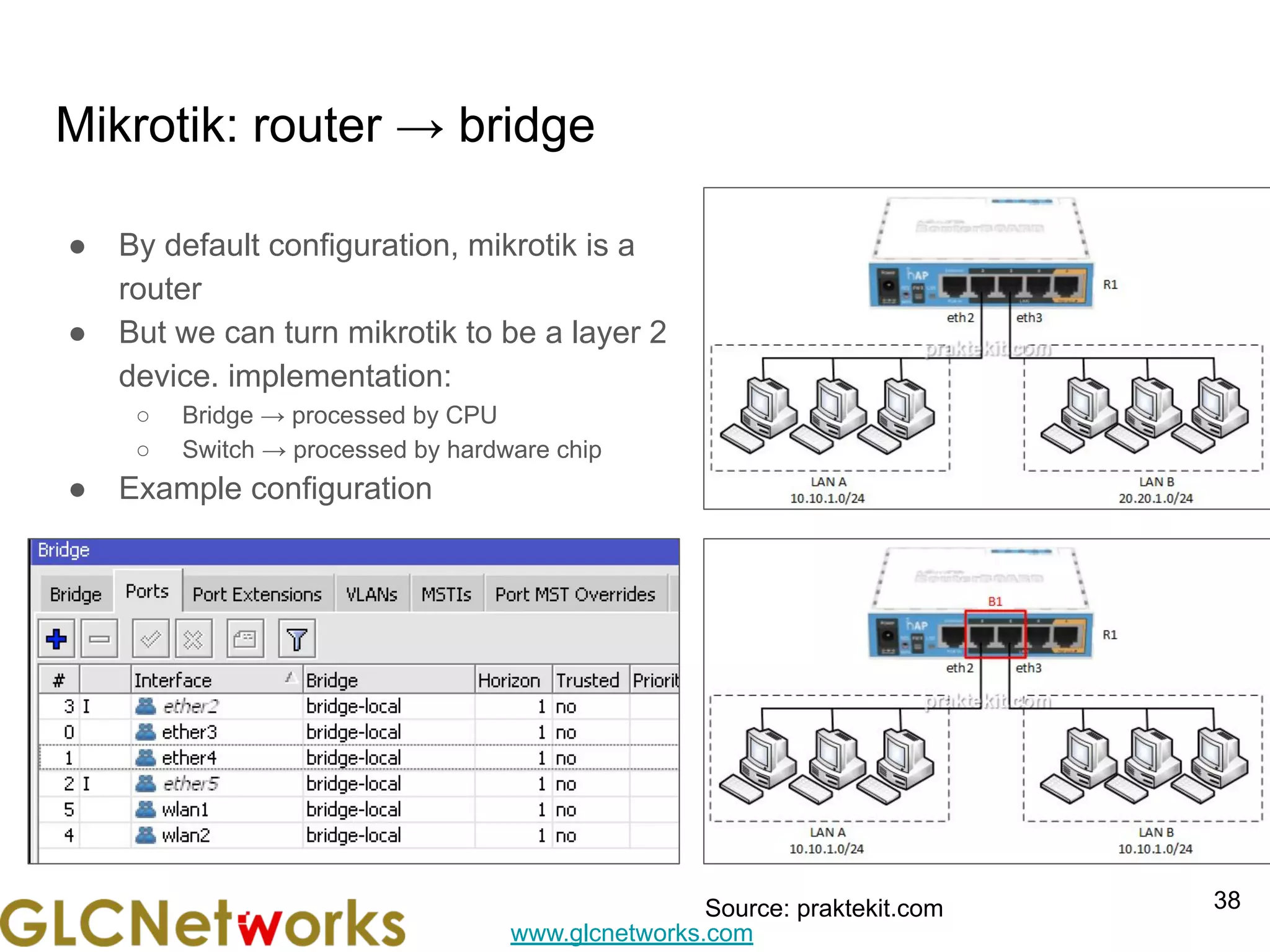

- 38. www.glcnetworks.com Mikrotik: router →bridge ● By default configuration, mikrotik is a router ● But we can turn mikrotik to be a layer 2 device. implementation: ○ Bridge → processed by CPU ○ Switch → processed by hardware chip ● Example configuration 38 Source: praktekit.com

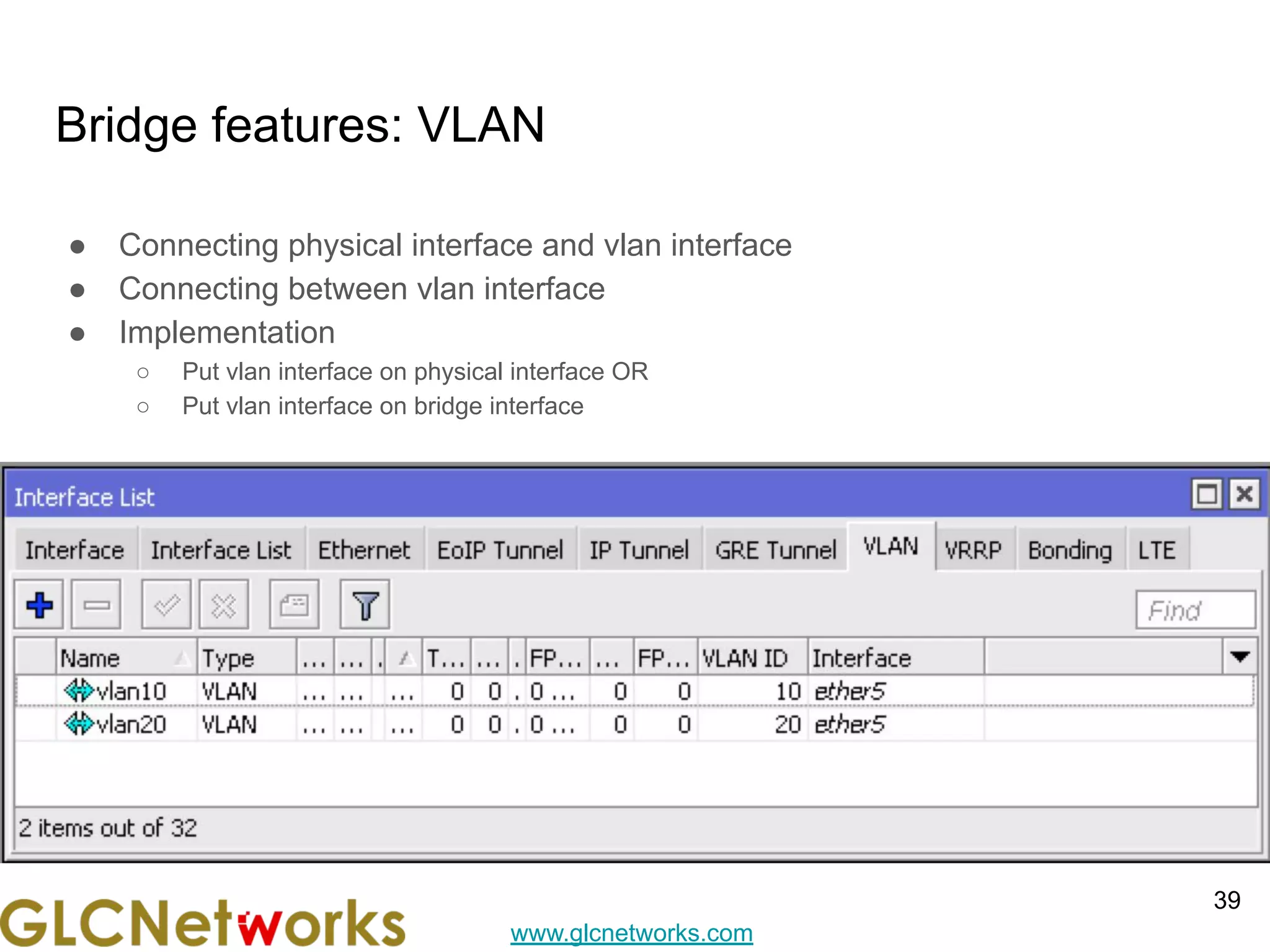

- 39. www.glcnetworks.com Bridge features: VLAN ●Connecting physical interface and vlan interface ● Connecting between vlan interface ● Implementation ○ Put vlan interface on physical interface OR ○ Put vlan interface on bridge interface 39

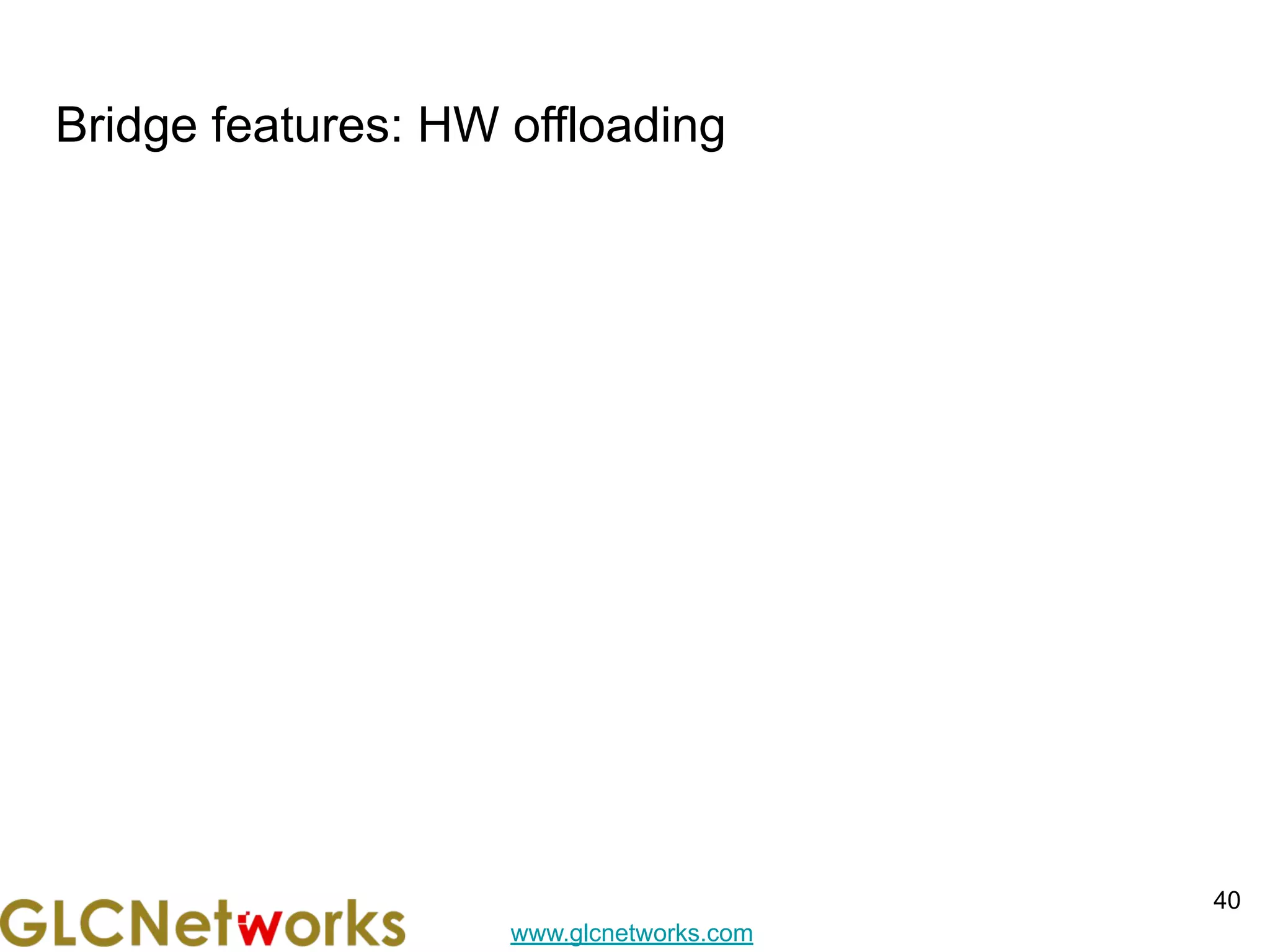

- 40. www.glcnetworks.com Bridge features: HWoffloading 40
- 41.
- 42.

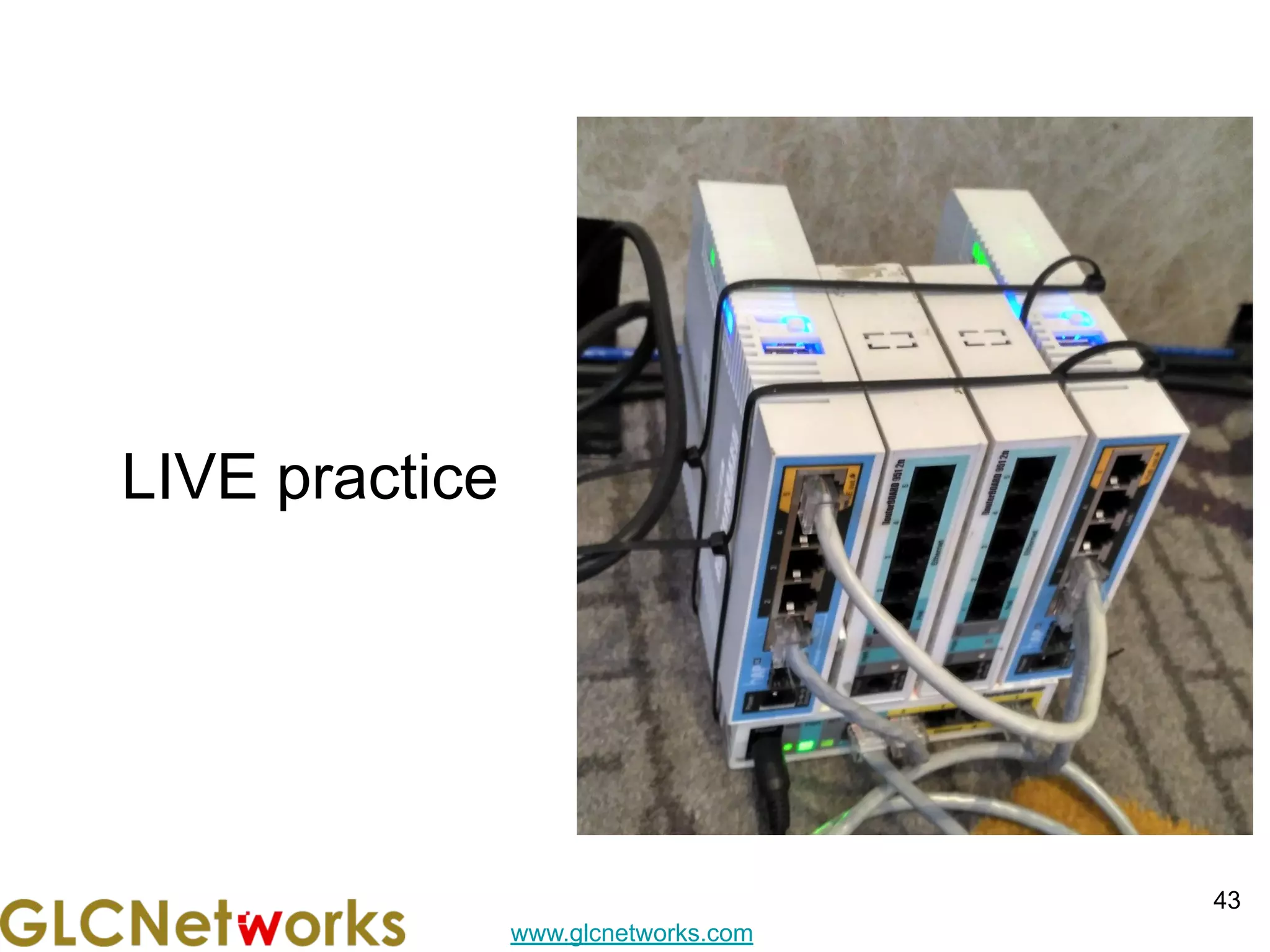

- 43.

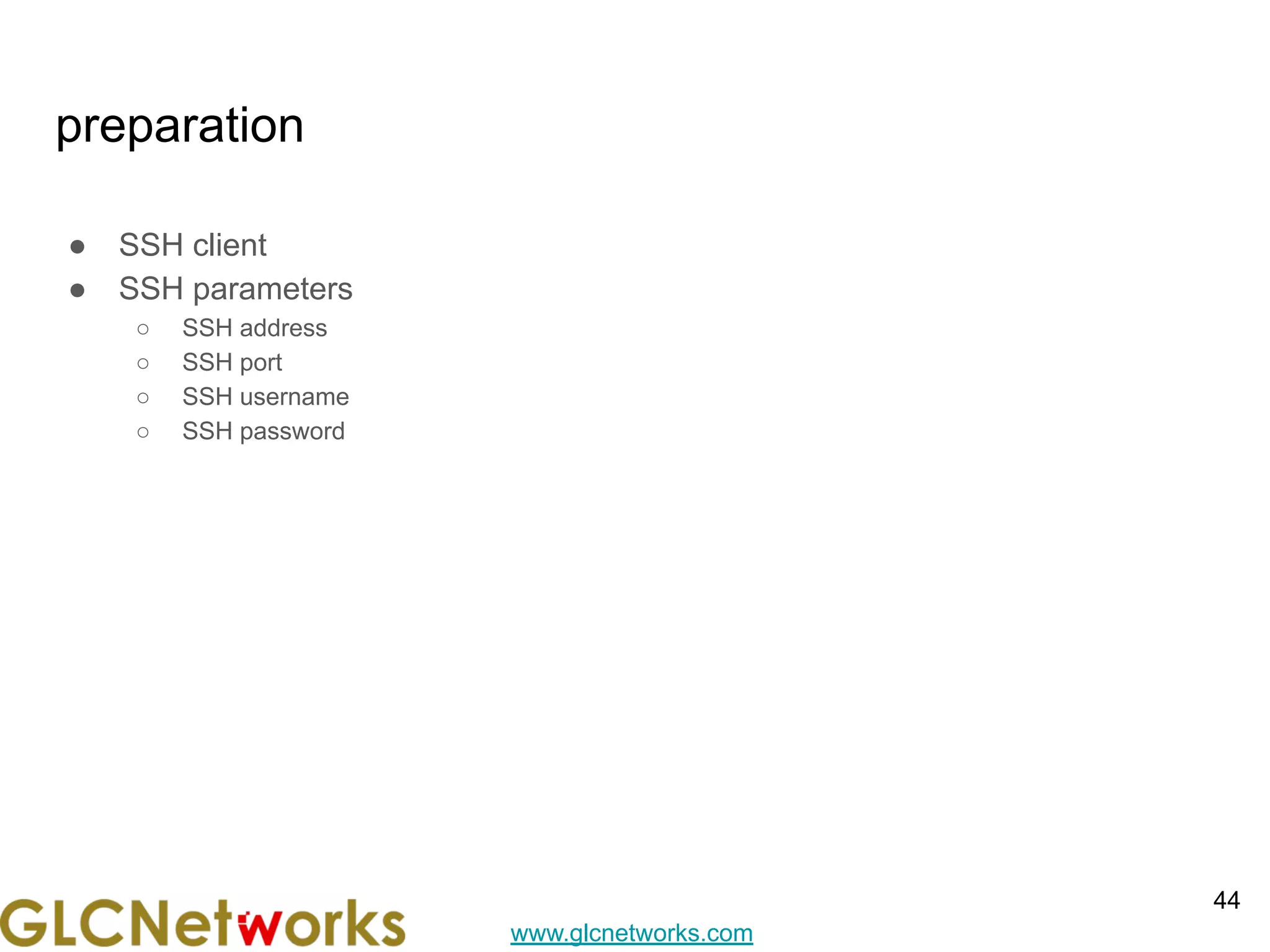

- 44. www.glcnetworks.com preparation ● SSH client ●SSH parameters ○ SSH address ○ SSH port ○ SSH username ○ SSH password 44
- 45.
- 46. www.glcnetworks.com Interested? Just cometo our training... ● Topics are arranged in systematic and logical way ● You will learn from experienced teacher ● Not only learn the materials, but also sharing experiences, best-practices, and networking 46
- 47. www.glcnetworks.com End of slides ●Thank you for your attention ● Please submit your feedback: http://bit.ly/glcfeedback ● Find our further event on our website : https://www.glcnetworks.com/en/ ● Like our facebook page: https://www.facebook.com/glcnetworks ● Slide: https://www.slideshare.net/glcnetworks/ ● Discord (bahasa indonesia): (https://discord.gg/6MZ3KUHHBX) ● Recording (youtube): https://www.youtube.com/c/GLCNetworks ● Stay tune with our schedule ● Any questions? 47
