1. www.glcnetworks.com
Fastpath
GLC webinar, 29 june 2017
Achmad Mardiansyah
achmad@glcnetworks.com
GLC Networks, Indonesia
1

2. www.glcnetworks.com
Agenda
● Introduction
● Mikrotik fasttrack / fastpath
● Demo
● Q & A
2

3. www.glcnetworks.com

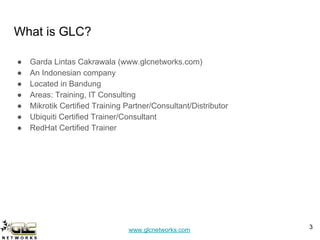

What is GLC?
● Garda Lintas Cakrawala (www.glcnetworks.com)
● An Indonesian company
● Located in Bandung
● Areas: Training, IT Consulting
● Mikrotik Certified Training Partner/Consultant/Distributor
● Ubiquiti Certified Trainer/Consultant
● RedHat Certified Trainer
3

4. www.glcnetworks.com

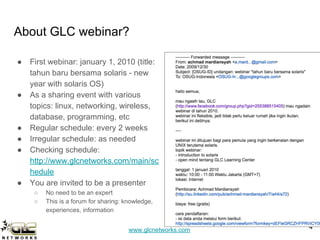

About GLC webinar?
● First webinar: january 1, 2010 (title:
tahun baru bersama solaris - new
year with solaris OS)
● As a sharing event with various
topics: linux, networking, wireless,
database, programming, etc
● Regular schedule: every 2 weeks
● Irregular schedule: as needed
● Checking schedule:
http://www.glcnetworks.com/main/sc
hedule
● You are invited to be a presenter
○ No need to be an expert
○ This is a forum for sharing: knowledge,
experiences, information
4

5. www.glcnetworks.com
Trainer Introduction
● Name: Achmad Mardiansyah
● Base: bandung, Indonesia
● Linux user (since 1999), Mikrotik user (since 2007),
ubnt user (since 2011)
● Certified Trainer (Mikrotik, Ubiquiti, Redhat)
● Certified Consultant
● Work: Telco engineer, Sysadmin, PHP programmer,
and Lecturer
● Personal website: http://achmadjournal.com
● More info:
http://au.linkedin.com/in/achmadmardiansyah
5

6. www.glcnetworks.com
Please introduce yourself
● Your name
● Your company/university?
● Your networking experience?
● Your mikrotik experience?
● Your expectation from this course?
6

7. www.glcnetworks.com
Mikrotik Fastpath
7

8. www.glcnetworks.com 8

9. www.glcnetworks.com

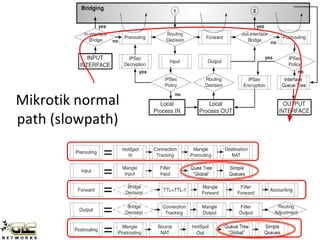

Drawbacks of slowpath
● SLOW -> lower performance -> lower
packet per second
● Packets should go through many processing
post -> higher CPU usage
9

10. www.glcnetworks.com
Can we improve slowpath?
Yes -> fastpath
● Just skip the processing posts (in
case you dont use them)
● This will improve routerboard
performance
10

11. www.glcnetworks.com
Fastpath conditions (1)?
YES. fastpath will active if following conditions are met (aka. handler)
● IPv4 handler
○ firewal rules are not configured;
○ firewall address lists are not configured;
○ Simple and queue trees with parent=global are not configured;
○ no mesh, metarouter interface configuration;
○ sniffer, torch and traffic generator is not running;
○ connection tracking is not active;
○ ip accounting is disabled (/ip accounting enabled=no);
○ VRFs are not set (/ip route vrf is empty);
○ Hotspot is not used (/ip hostspot has no interfaces);
○ IpSec policies are not configured (ROS v6.8);
○ /tool mac-scan is not actively used;
○ /tool ip-scan is not actively used;
○ route cache must be enabled
○ /ip firewall connection tracking set enabled parameter has new auto value Which means that
connection tracking is disabled by default until firewall rules are added.
11

12. www.glcnetworks.com

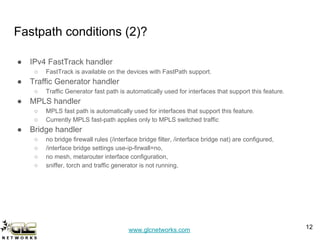

Fastpath conditions (2)?
● IPv4 FastTrack handler
○ FastTrack is available on the devices with FastPath support.
● Traffic Generator handler
○ Traffic Generator fast path is automatically used for interfaces that support this feature.
● MPLS handler
○ MPLS fast path is automatically used for interfaces that support this feature.
○ Currently MPLS fast-path applies only to MPLS switched traffic
● Bridge handler
○ no bridge firewall rules (/interface bridge filter, /interface bridge nat) are configured,
○ /interface bridge settings use-ip-firwall=no,
○ no mesh, metarouter interface configuration,
○ sniffer, torch and traffic generator is not running,
12

13. www.glcnetworks.com
Is my routerboard supported by Fastpath?
● Almost all routerboard support fastpath
● To check physical interface: /interface print detail
13

14. www.glcnetworks.com

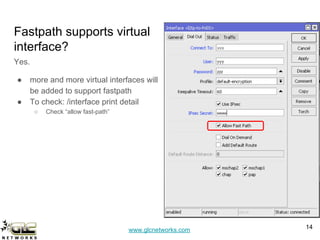

Fastpath supports virtual
interface?
Yes.
● more and more virtual interfaces will
be added to support fastpath
● To check: /interface print detail
○ Check “allow fast-path”
14

15. www.glcnetworks.com

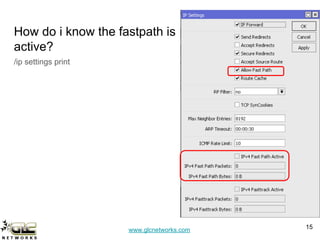

How do i know the fastpath is
active?
/ip settings print
15

16. www.glcnetworks.com

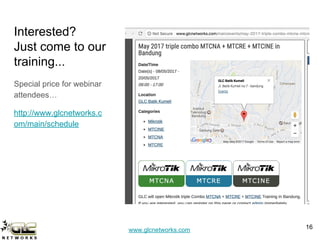

Interested?
Just come to our
training...
Special price for webinar
attendees…
http://www.glcnetworks.c
om/main/schedule
16

17. www.glcnetworks.com

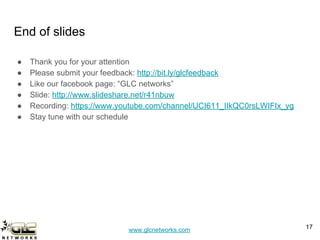

End of slides
● Thank you for your attention
● Please submit your feedback: http://bit.ly/glcfeedback
● Like our facebook page: “GLC networks”
● Slide: http://www.slideshare.net/r41nbuw
● Recording: https://www.youtube.com/channel/UCI611_IIkQC0rsLWIFIx_yg
● Stay tune with our schedule
17
