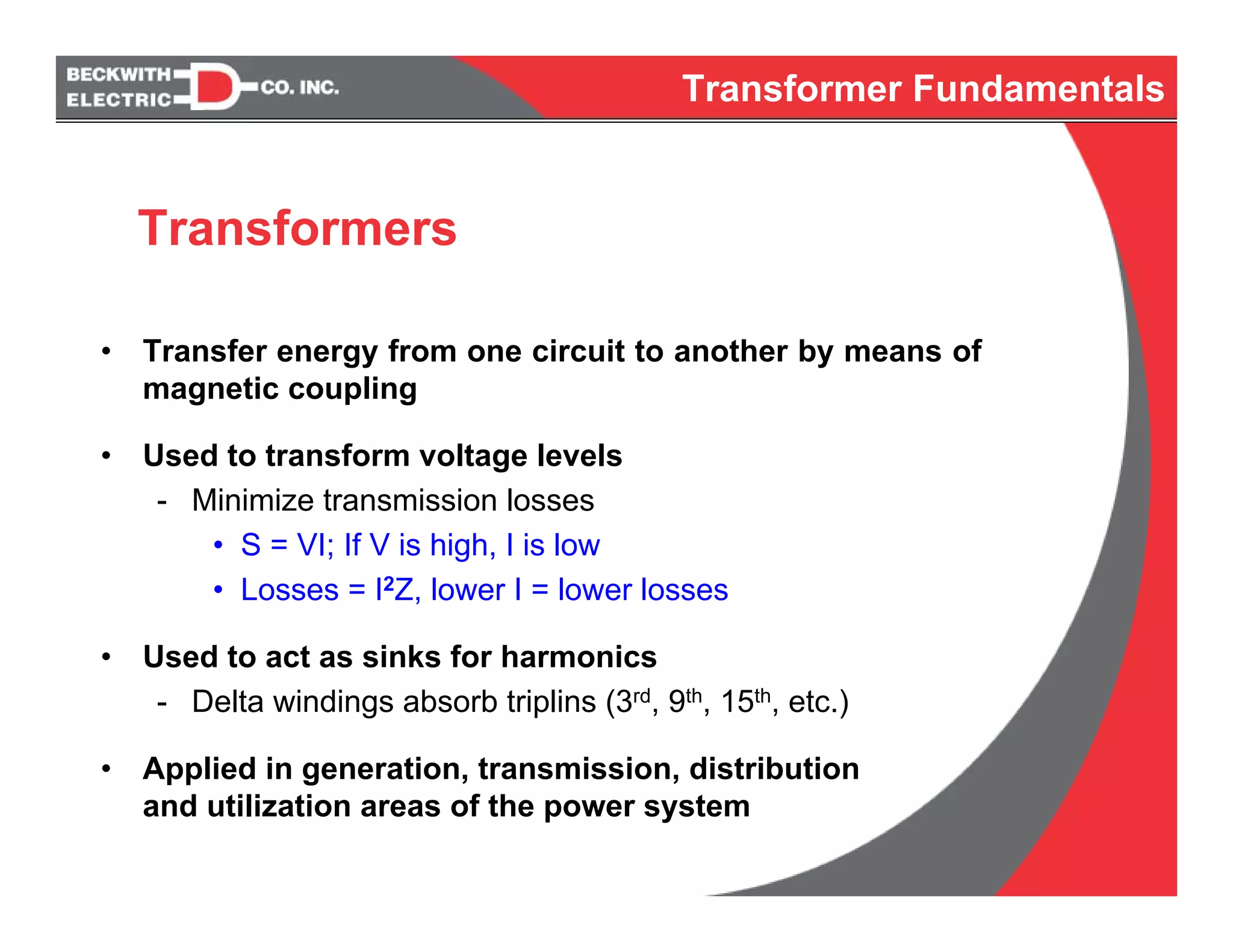

2. Transformers
• Transfer energy from one circuit to another by means of
magnetic coupling
• Used to transform voltage levels
- Minimize transmission losses
• S = VI; If V is high, I is low
• Losses = I2Z, lower I = lower losses
• Used to act as sinks for harmonics
- Delta windings absorb triplins (3rd, 9th, 15th, etc.)
• Applied in generation, transmission, distribution
and utilization areas of the power system
Transformer Fundamentals
5. R = resistance; X = reactance (inductive); N = No of turns; E = voltage
Basic Equivalent Circuit
Winding Losses
(≈1.5% at full load)
Magnetizing
Losses (≈0.5%)
√
√
Transformer Fundamentals
6. • V1I1 = V2I2
• N1V2 = N2V1
• N1I1 = N2I2
AA
I = 5 A I = 10 A
V = 100 V V = 50 V
N = 100 N = 50
Ideal Transformer – No Losses
Transformer Formulas
Transformer Fundamentals
8. • Found in generation, transmission, and distribution areas of
the power system
- Used to transfer large amounts of bulk power to different
voltage levels
• Step Up, Step Down
- Used to regulate transmission and sub-transmission voltages
• Autotransformer
• Typically iron core
• Typically liquid insulation (wet vs. dry)
• Two or Three Winding
• With or without Taps
• With or without Load Tap changers (LTC)
Power Transformers
Transformer Fundamentals
13. REF REF
87T 87T
High Speed Trip for Bus Faults
Main-Tie-Main Substation
Typical Applications
Transformer Fundamentals
14. From IEEE Press Book
• Small 500 to 10,000 kVA
• Medium 10,000 kVA to 100 MVA
• Large 100 MVA and above
• Less than 500 kVA not considered a power
transformer
Ratings and Classifications
Transformer Fundamentals
15. • Core Form
- Single path for the magnetic circuit
- Less $$$
• Shell Form
- Multiple paths for the magnetic circuit
- Better through-fault withstand
Windings
Core
Core
Core
Core
Core Types
Transformer Fundamentals
16. • Dry
- Used where liquid spill cannot be tolerated
- Small ratings, lower voltage distribution
• Wet
- Offer smaller size, lower cost and greater overload
capacity
- Liquids have greater coefficient of heat than dry
insulation
- Vast majority of power transformers use wet (liquid)
insulation
Insulation Materials
Transformer Fundamentals
17. • Single Phase
- Typical for lower voltage load-serving distribution
- May be applied in higher capacities where a spare is
desired
- 4 transformers on site, 3 connected for three phase duty,
1 as a spare
• Three Phase
- Typical for T&D
- Less expensive than 3 single phase transformers of the
same rating
- Vast majority of power transformers
Single vs. Three Phase
Transformer Fundamentals
18. • No load taps
- Taps are adjusted under no-load conditions to bring
secondary voltage to desired level
- Cheaper than on-load tapchanger
- Cannot dynamically adjust to voltage to load and line
drop conditions
• On-load tapchanger (LTC)
- Taps are adjusted under load
- Can respond dynamically to adjust voltage to load and
line drop conditions
Ratio Adjustment
Transformer Fundamentals
20. • H1, H2, H3
- Primary Bushings
• X1, X2, X3
- Secondary Bushings
Transformer
H1
H2
H3
X1
X2
X3
Wye-Wye H1 and X1 at zero degrees
Delta-Delta H1 and X1 at zero degrees
Delta-Wye H1 lead X1 by 30 degrees
Wye-Delta H1 lead X1 by 30 degrees
ANSI Standard
Bushing Nomenclature
Wye-Wye H1 and X1 at zero degrees
Delta-Delta H1 and X1 at zero degrees
Delta-Wye H1 lead X1 by 30 degrees or X1 Lags H1 by 30 degrees
Wye-Delta H1 lead X1 by 30 degrees or X1 Lags H1 by 30 degrees
Transformer Fundamentals
21. • Polarity – used to describe the phase relationship of single
phase transformers
- ANSI Standard
• Additive if voltage is 8660 or below and the kVA is 200 or
less (voltage across any two bushings can be rated)
• Subtractive otherwise (voltage across any two bushings less
than rated)
• Angular Displacement – used to describe the voltage phasing
on three phase transformers
- ANSI Standard
• Wye-wye and delta-delta; 0 degrees displacement
• Wye-delta and delta-wye; X1 lags H1 by 30 degrees
or “High leads low by 30”
ANSI C57.12 & C57.105
Polarity & Angular Displacement
Transformer Fundamentals
22. • Wye-Wye
– Cheaper than 2 winding if auto bank
– Conducts zero-sequence between circuits
– Provides ground source for secondary circuit
• Delta-Delta
– Blocks zero-sequence between circuits
– Does not provide a ground source
• Delta-Wye
– Blocks zero-sequence between circuits
– Provides ground source for secondary circuit
• Wye-Delta
– Blocks zero-sequence between circuits
– Does not provide a ground source for secondary
circuit
Winding Arrangements
Transformer Fundamentals
23. • ANSI Y-Y & Δ-Δ @ 0°
• ANSI Y-Δ & Δ-Y @ H1 lead X1 by 30° or X1 lag H1 by 30°
Angular Displacement
Transformer Fundamentals
24. • ANSI Y-Y & Δ-Δ @ 0°
• ANSI Y-Δ & Δ-Y @ X1 lags H1 by 30°
- ANSI makes our life easy
• Euro-designations use 30° CW increments
from the H1 bushing to the X1 bushings
- Dy1=X1 lags H1 by (1*30°) 30°
• or, H1 leads X1 by 30°
- Think of a clock – each hour is 30
degrees
0
6
39
8
7
10
11 1
2
5
4
H1
X1
• Dy1 = X1 lags H1 by 1*30 = 30, or H1 leads X1 by 30 (ANSI std.)
• Dy1 equivalent to ANSI DabY
Transformer Fundamentals
Polarity & Angular Displacement
25. *1
*1
*2
*2
*1 = ANSI std. @ 0°
*2 = ANSI std. @ X1 lag H1 by 30°,
or “high lead low by 30°”
• IEC (Euro) practice does not
have a standard like ANSI
• Most common GSU connection
is Yd1 (High lead low by 30°)
• Obviously observation of
angular displacement is
extremely important when
paralleling transformers!
Angular Displacement
Transformer Fundamentals
