2. 2
Advantages of Digital Communication
Digital systems are less sensitive to noise and signal distortion. For long transmission line, the signal may
be regenerated effectively error-free at different points along the path.
With digital systems, it is easier to integrate different services, e.g., video and the accompanying
soundtrack, into the same transmission scheme.
The transmission scheme can be relatively independent of the source
Circuitry for digital signals is easier to repeat and digital circuits are less sensitive to physical effects
such as vibration and temperature
Digital signals are simpler to characterize and typically do not have the same amplitude range and
variability as analog signals. This makes the associated hardware design easier.
Various media sharing strategies (known as multiplexing) are more easily implemented with digital
transmission strategies
Source coding techniques can be used for removing redundancy from digital transmission
Error-control coding can be used for adding redundancy, which can be used to detect and correct
errors at the receiver side
Digital communication systems can be made highly secure by exploiting powerful encryption algorithms
Digital communication systems are inherently more efficient than analog communication systems in
the tradeoff between transmission bandwidth and signal-to-noise ratio
Various channel compensation techniques, such as, channel estimation and equalization, are easier to
implement
3. 3
Sampling (1)
Sampling is an operation that is basic to digital signal processing and digital communications
Through the use of sampling process, an analog signal is converted into a corresponding
sequence of samples that are usually spaced uniformly in time
Message
Sampled Signal
Sampling Signal
n
ssT nffffs
7. 7
Sampling Theorem
Sampling theorem is a fundamental bridge between continuous signals (analog
domain) and discrete signals (digital domain)
It only applies to a class of mathematical functions whose Fourier transforms are
zero outside of a finite region of frequencies
Nyquist Sampling Theorem / Nyquist-Shanon Sampling Theorem:
fs = Sampling frequency
fs = 2W: Nyquist frequency / Nyquist rate / Minimum sampling frequency
A signal whose bandwidth is limited to W Hz can be reconstructed exactly
(without any error) from its samples uniformly taken at a rate fs ≥ 2W Hz
8. 8
Antialiasing Filter
All practical signals are time-limited, i.e., non band-limited => Aliasing inevitable
To limit aliasing, use anti-aliasing filter (LPF) before sampling
Original
Signal
Anti-aliasing
filter
Sample
Reconstruction
Filter
Reconstructed
Signal
10. 10
Quantization (1)
Quantizer characteristic:
Here, k = 1, 2, 3, … , L
L = Number of representation levels
(Number of intervals)
It is the process of transforming the sample amplitude m(nTS) of a baseband signal at time t = nTS
into a discrete amplitude v(nTS) taken from a finite set of possible levels
kth interval:
Quantizer output equals to vk if the input signal sample m belongs to the interval Ik
mk: Decision levels / Decision thresholds
vk: Representation levels / Reconstruction levels
Δ=|vk +1 – vk|: Step-size / quantum
kk Imifvv
11. 11

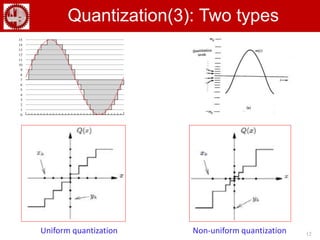

Quantization(2): Two types
Mid-tread quantization Mid-rise quantization
Mid-rise quantizer:
Decision threshold value is exactly zero
Mid-tread quantizer:
Reconstruction value is exactly zero
Reconstruction
levels
13. 13
Quantization Error for Uniform Quantization (1)
Quantization error (noise)
q = m – v => Q = M – V
If mean of M is zero and the quantizer is
symmetric, then V is also a RV of zero mean
Q is also a RV variable of zero mean in the
range [– Δ/2, Δ/2]
If Δ is sufficiently small, Q can be assumed
a uniform RV with zero mean
– Δ/2 0 Δ/2 q
fQ(q)
1/Δ
Quantization noise power
2/
2/
2
22
12
dqqfq QQ
22
12
PP
SNR
Q
Signal-to-nose-ratio (SNR): P = Average power of m(t)
14. 14
Quantization Error for Uniform Quantization (2)
Special case:
m(t) is a sinusoidal signal with amplitude equal to mmax
R
m
L
m
2
22 maxmax
Suppose m(t) of continuous amplitude in the range [-mmax, mmax]:
R
m
P
SNR 2
2
max
2
3
R
SNR 2
2
2
3
2
max
3
log1002.6
m
P
RSNRdB
8.16 RSNRdB
Each additional bit increases the SNR by 6.02 dB and
a corresponding increase in required channel BW
R = Number of bits for presenting each level (bits/sample)
15. 15
Non-Uniform Quantization
SNR of weak signals is much lower than that of strong signal
Instantaneous SNR is also lower for the smaller amplitudes compared to that of the
larger amplitudes
16. 16
Non-Uniform Quantization
- Step size increases as the separation from the origin of the input–output amplitude
characteristic is increased
- First Compression and then uniform quantization
- Achieve more even SNR over the
dynamic range using fewer bits (e.g.,
8 bits instead of 13/14 bits)
Receiver side: Expansion required
Compression + Expansion = Companding
Original
Signal
Compression
Uniform
Quantization
Reconstruction Expansion
Original
Signal
17. 17

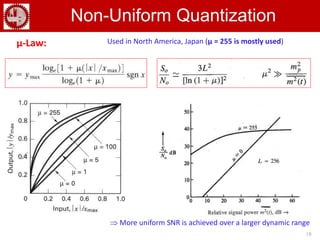

Non-Uniform Quantization
Compressor Input Compressor Output
The compression here occurs in the amplitude values
Compression in amplitudes means that the amplitudes of the compressed signal
are more closely spaced in comparison to the original signal
To do so, the compressor boosts the small amplitudes by a large amount. However,
the large amplitude values receive very small gain and the maximum value remains
the same
20. 20
Encoding
Each quantized samples is encoded into a code word
Each element in a code word is called code element
Binary code:
Each code element is either of two distinct
values, customarily denoted as 0 and 1
Binary symbol withstands a relatively high
level of noise and also easy to regenerate
Each binary code word consists of R bits and
hence, this code can represent 2R distinct
numbers (i.e., at best R bit quantizer can be
used)
21. 21
Pulse Code Modulation (PCM)
In PCM, a message signal is represented by a sequence of coded pulses, which is accomplished
by representing the signal in discrete form in both time and amplitude
Three basic operations in a PCM Transmitter:
- Sampling
- Quantization
- Encoding
Transmitter
Receiver
Transmission
Path
22. 22
Differential PCM (DPCM)
Transmitter
When a signal is sampled at a rate slightly higher than the Nyquist rate, there exists a
high degree correlation between adjacent samples, i.e., in an average sense, the signal
does not change rapidly from one sample to the next
When these highly correlated samples are encoded as in a standard PCM system, the
resulting encoded signal contains redundant information implying that symbols that are not
absolutely essential to the transmission of information are generated
DPCM removes this redundancy before encoding by taking the difference between the
actual sample m(nTS) and its predicted value
The quantized version of the prediction error e(nTS) are encoded instead of encoding
the samples of the original signal
This will result in much smaller quantization intervals leading to less quantization noise
and much higher SNR
SSS nTmnTmnTe ˆ
Prediction error
SnTmˆ
23. 23
Predictor for DPCM:
Liner predictor of order p:
Transversal filter (tapped-delay-line filter) used as a linear predictor
p
k
SqkS TknmwnTm
1
ˆ
25. 25
Delta Modulation (DM) … (1)
DM encodes the difference between the current sample and the previous sample using just one bit
Correlation between samples are increased by oversampling (i.e., at a rate much higher, typically 4 times
higher than the Nyquist rate)
DM involves the generation of the staircase approximation of the oversampled version message
The difference between the input and the approximation is quantized into only two levels:
1-bit version of DPCM (i.e., 2-level quantization) requiring less bandwidth than that of DPCM and PCM
27. 27
Predictor for DM
Transmitter
Note:
(1) DPCM uses a higher order filter.
(2) DM uses a 1st order predictor with w1 = 1. Thus, the predicted output is the previous sample.
28. 28
Delta Modulation (DM)…(3)
Two types of quantization error:
(2) Granular noise(1) Slope overload distortion/noise
Comments:
(1) For avoiding slope overload distortion: larger Δ is desired
(2) For avoiding granular noise: smaller Δ is desired
An optimal step size (Δ) has to be chosen for minimum overall noise
mq(t)
eq(nTS)
Example:
s
s
mm f
T
Atm
max|| tAtm mm cos
m
s
m
f
A
max
r
s
Voicem
f
A
max
8002 r
29. 29
Line Coding (1)
PCM, DPCM and DM are different strategies for source
encoding, which converts an analog signal into digital form
Once a binary sequence of 1s and 0s is produced, the
sequence is transformed into electrical pulses or
waveforms for transmission over a channel and this is
known as line coding
Multi-level line coding is possible
Various line coding
(binary) methods:
(0 means transition)
(f) Split-phase
or Manchester
Or RZ-AMI
Or NRZ-L
30. 30
Line Coding (2)
Book:
Digital Communications:
Fundamentals and Applications
- Bernard Sklar
Applications:
Polar NRZ / NRZ-L: Digital logic circuits
NRZ-M/NRZ-S: Magnetic tap recording
RZ line codes: Base band transmission and magnetic recording (e.g., Bipolar RZ / RZ-AMI
is used for telephone system)
Manchester Coding: Magnetic recording, optical communications and satellite telemetry
Polar NRZ /
31. 31
Line Coding (3)
Desired properties (i.e., design criteria) for line coding:
Transmission bandwidth: should be as small as possible
Noise immunity: should be immune to noise
Power efficiency: for a given bandwidth and given error probability, transmission power
requirement should be as small as possible
Error detection and correction capability: should be possible to detect and correct errors
Favorable power spectral density (PSD): should have zero PSD at zero (i.e., DC)
frequency, otherwise the ac coupling and the transformers used in communication systems
would block the DC component
Adequate timing information / self-clocking: should carry the timing or clock information
which can be used for self-synchronization
Transparency: should be possible to transmit a digital signal correctly regardless of the
patterns of 1’s and 0’s (by preventing long string of 0s and 1s)
