This remote sensing e-course focuses on principal component analysis (PCA) and classification techniques using remotely sensed SPOT 6 and Landsat 8 data. The course will illustrate how to analyze and classify the satellite imagery for land use mapping using open source GRASS software. Students will learn about PCA, how it is calculated in GRASS, and its benefits for classification. Exercises will have students run PCA on SPOT6 data to determine optimal band ratios for classification and produce a land use map.

1. Remote sensing e-course
PCA and Classification Technique
Fatwa Ramdani
Geoenvironment, Earth Science, Grad. School of Science

2. Outline
• This course will focus in Principal Component Analysis and
Classification Technique based on remotely-sensed data, SPOT 6
& Landsat 8 OLI. The methods how to analyze and exploit the
SPOT 6 Landsat 8 OLI information for Land Use mapping will be
illustrated in GRASS open source software.
• In final section will be follow with the exercise and questions to
allow student expand their understanding.

3. Course Goal and Objectives
• Understand the concept of PCA
• Understand formula module function in open source software
• Understand the benefit of PCA in Classification Technique

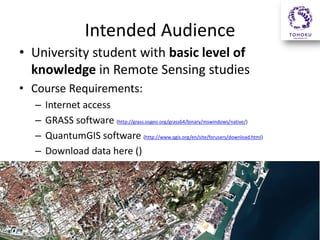

4. Intended Audience
• University student with basic level of
knowledge in Remote Sensing studies
• Course Requirements:
–
–
–
–
Internet access
GRASS software (http://grass.osgeo.org/grass64/binary/mswindows/native/)
QuantumGIS software (http://www.qgis.org/en/site/forusers/download.html)
Download data here ()

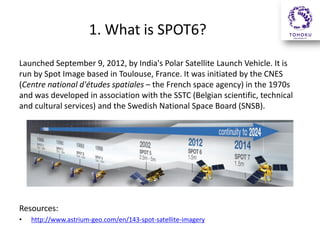

5. 1. What is SPOT6?
Launched September 9, 2012, by India's Polar Satellite Launch Vehicle. It is
run by Spot Image based in Toulouse, France. It was initiated by the CNES
(Centre national d'études spatiales – the French space agency) in the 1970s
and was developed in association with the SSTC (Belgian scientific, technical
and cultural services) and the Swedish National Space Board (SNSB).
Resources:
•
http://www.astrium-geo.com/en/143-spot-satellite-imagery

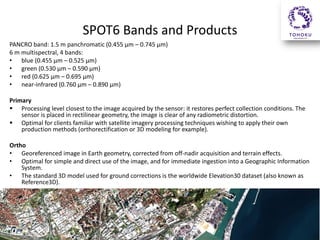

6. SPOT6 Bands and Products
PANCRO band: 1.5 m panchromatic (0.455 µm – 0.745 µm)
6 m multispectral, 4 bands:
• blue (0.455 µm – 0.525 µm)
• green (0.530 µm – 0.590 µm)
• red (0.625 µm – 0.695 µm)
• near-infrared (0.760 µm – 0.890 µm)
Primary
 Processing level closest to the image acquired by the sensor: it restores perfect collection conditions. The
sensor is placed in rectilinear geometry, the image is clear of any radiometric distortion.
 Optimal for clients familiar with satellite imagery processing techniques wishing to apply their own
production methods (orthorectification or 3D modeling for example).
Ortho
• Georeferenced image in Earth geometry, corrected from off-nadir acquisition and terrain effects.
• Optimal for simple and direct use of the image, and for immediate ingestion into a Geographic Information
System.
• The standard 3D model used for ground corrections is the worldwide Elevation30 dataset (also known as
Reference3D).

7. Principal Component Analysis (PCA)
is a dimensionality reduction technique used extensively in Remote Sensing studies
(e.g. in change detection studies, image enhancement tasks and more). PCA is in fact a
linear transformation applied on (usually) highly correlated multidimensional (e.g.
multispectral) data.
The input dimensions are transformed in a new coordinate system in which the
produced dimensions (called principal components) contain, in decreasing order, the
greatest variance related with unchanged landscape features. We can guided purely
by the statistical properties of the image itself. The new bands are called components.
PCA has two algebraic solutions:
• Eigenvectors of Covariance (or Correlation) of a given data matrix >> GRASS
• Singular Value Decomposition of a given data matrix

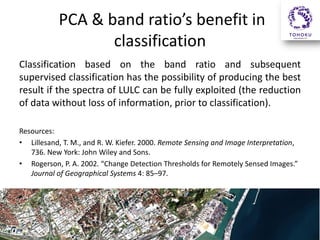

8. PCA & band ratio’s benefit in
classification
Classification based on the band ratio and subsequent
supervised classification has the possibility of producing the best
result if the spectra of LULC can be fully exploited (the reduction
of data without loss of information, prior to classification).
Resources:
• Lillesand, T. M., and R. W. Kiefer. 2000. Remote Sensing and Image Interpretation,
736. New York: John Wiley and Sons.
• Rogerson, P. A. 2002. “Change Detection Thresholds for Remotely Sensed Images.”
Journal of Geographical Systems 4: 85–97.

9. Activities!
• Import file using GRASS
• Explore basic statistics
• Displaying the data:
• Produce RGB composite image
• PCA
– Run i.pca module
– Analyze the result
• C

10. PCA Analysis (for Landsat 8 OLI)
PC has the most positive or negative contribution
i.pca input=B1,B2,B3,B4,B5,B7 output_prefix=PCA
•
•
•
•
•
•
PC1 2553.26 (-0.2998,-0.2313,-0.4177,-0.2342,-0.6702,-0.4221) [91.10%]
PC2 168.11 (-0.4841,-0.2400,-0.3196, 0.6894, 0.3382,-0.1276) [ 6.00%]
PC3 58.00 (-0.3717,-0.2467,-0.3222,-0.5897, 0.3657, 0.4645) [ 2.07%]
PC4 16.27 ( 0.1545, 0.0497,-0.3195, 0.3426,-0.4678, 0.7317) [ 0.58%]
PC5 6.27 (-0.6507, 0.0183, 0.6650, 0.0396,-0.2856, 0.2254) [ 0.22%]
PC6 0.92 ( 0.3005,-0.9084, 0.2743, 0.0572,-0.0494, 0.0596) [ 0.03%]
Eigen values, (vectors), and [percent importance]:
The band ratio derived from PC1 is B5/B2. Similarly, the results for PC2–PC3
lead to the choice of the ratios B1/B4, and B4/B7, respectively

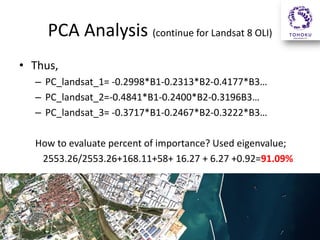

11. PCA Analysis (continue for Landsat 8 OLI)
• Thus,
– PC_landsat_1= -0.2998*B1-0.2313*B2-0.4177*B3…
– PC_landsat_2=-0.4841*B1-0.2400*B2-0.3196B3…
– PC_landsat_3= -0.3717*B1-0.2467*B2-0.3222*B3…
How to evaluate percent of importance? Used eigenvalue;
2553.26/2553.26+168.11+58+ 16.27 + 6.27 +0.92=91.09%

12. PCA Analysis (continue for Landsat 8 OLI)
•
•
•
PC1 has the highest factor loading of -0.2313 from band 2 (blue), followed by band
4 (red), and then band 1 (coastal aerosol). Therefore, this component is suitable
for mapping coastal environment, wetland, and lake environment. Also capable of
differentiating soil and rock surfaces from vegetation
PC2 has the highest factor loading of 0.6894 from band 4 (red), followed by band 5
(NIR), and then band 7 (SWIR). This component can be termed a healthy (dense,
vigorous) vegetation component because healthy vegetation reflects highly in near
infrared and also some mid infrared energy except in the water absorption zones
in this region
PC3 has the highest factor from band 7 (SWIR), followed by band 5 (NIR), and
then band 2 (blue). PC3 can be termed a dark, dry land component due to the high
mid infrared factor loading. Separated land and water sharply. Band 7 has strong
water absorption region.

13. Exercise!
• Run i.pca for SPOT6!
i.pca input=spot1,spot2,spot3,spot4 output_prefix=pca.spot
1. Eigen values, (vectors), and [percent importance]:
2. Band Ratio:
?

14. LULC Classification
#We use the bands ratio result from PCA output
• i.group group=spot_group subgroup=spot_sub
input=pc_spot1,pc_spot2,pc_spot3
• i.cluster group=spot_group subgroup=spot_sub sigfile=urban classes=7
report=urban_report.txt
• remember name of file containing signatures: urban
• i.maxlik group=spot_group subgroup=spot_sub sigfile=spot
class=spot_class
#Converting raster to vector
• r.to.vect -s input=spot_class output=spot_class feature=area

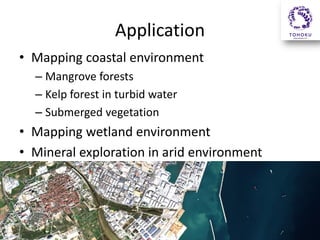

15. Application
• Mapping coastal environment
– Mangrove forests
– Kelp forest in turbid water
– Submerged vegetation
• Mapping wetland environment
• Mineral exploration in arid environment

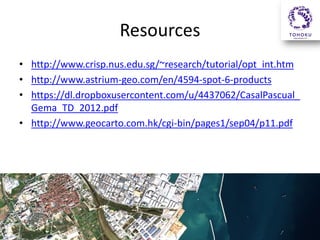

16. Resources
• http://www.crisp.nus.edu.sg/~research/tutorial/opt_int.htm
• http://www.astrium-geo.com/en/4594-spot-6-products
• https://dl.dropboxusercontent.com/u/4437062/CasalPascual_
Gema_TD_2012.pdf
• http://www.geocarto.com.hk/cgi-bin/pages1/sep04/p11.pdf

17. Result; RGB PC123
d.rgb red=pca.spot.1 green=pca.spot.2 blue=pca.spot.3

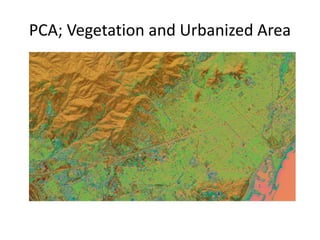

18. PCA; Vegetation and Urbanized Area

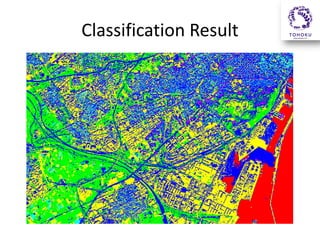

19. Classification Result

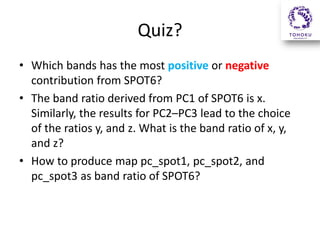

20. Quiz?
• Which bands has the most positive or negative
contribution from SPOT6?
• The band ratio derived from PC1 of SPOT6 is x.
Similarly, the results for PC2–PC3 lead to the choice
of the ratios y, and z. What is the band ratio of x, y,
and z?
• How to produce map pc_spot1, pc_spot2, and
pc_spot3 as band ratio of SPOT6?

21. Thank you!
Questions?
