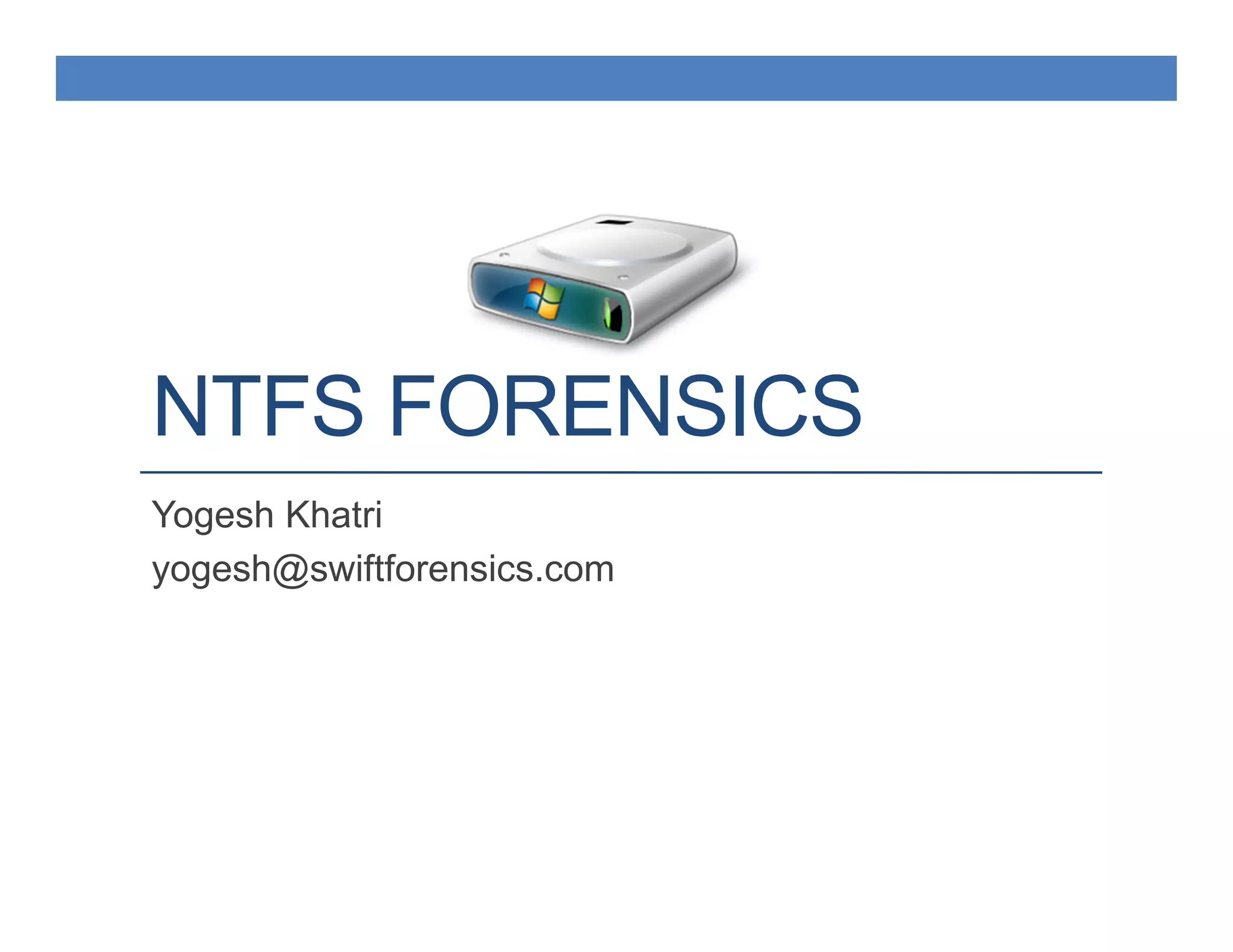

Ntfs forensics

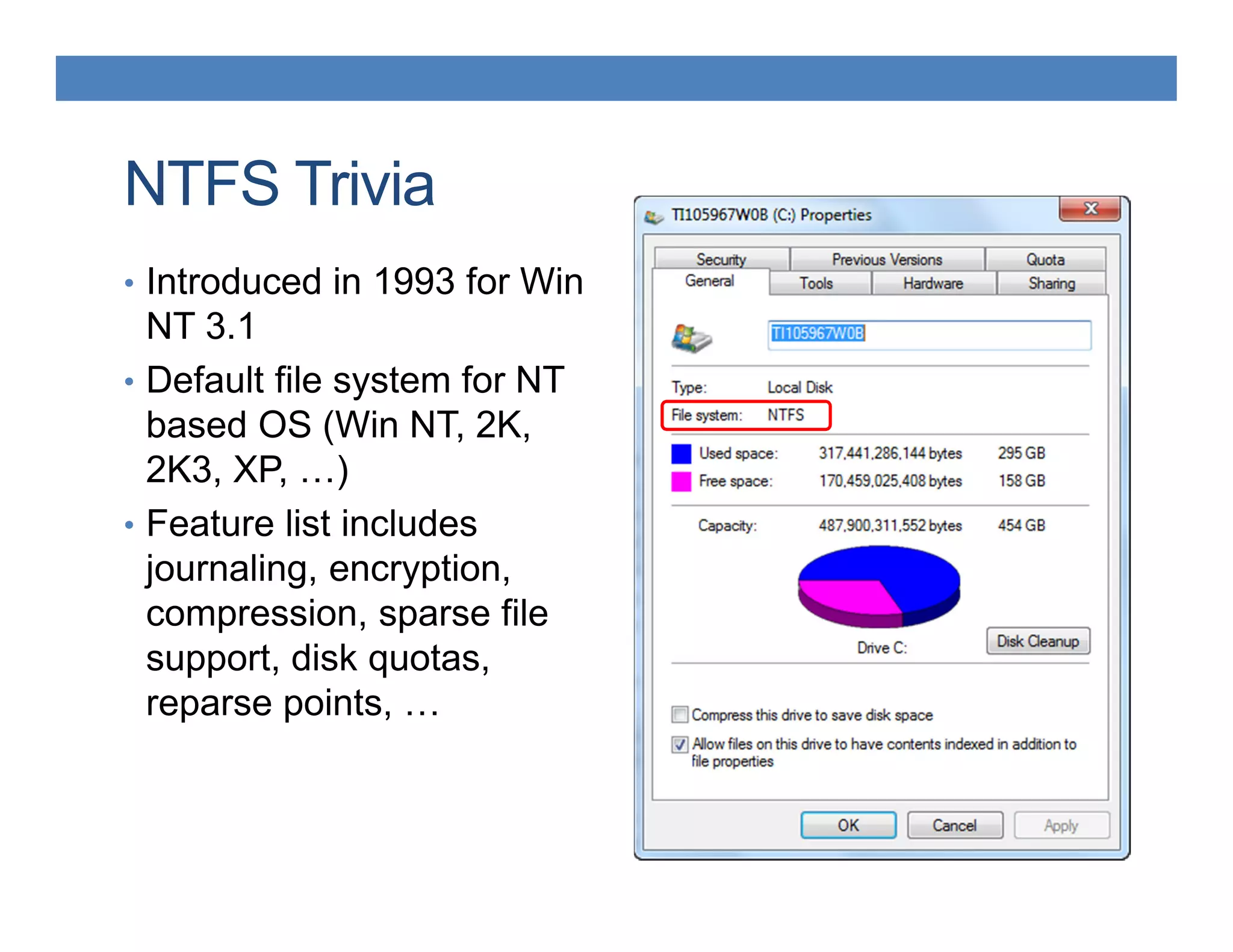

- 2. NTFS Trivia • Introduced in 1993 for Win NT 3.1 • Default file system for NT based OS (Win NT, 2K, 2K3, XP, ) • Feature list includes journaling, encryption, compression, sparse file support, disk quotas, reparse points,
- 3. Why NTFS forensics? • To understand its format and inner-working • To device effective file recovery strategies for deleted / lost data • To find forensically useful artifacts like • Existence of hidden timestamps • Logs • Deleted / Leftover Metadata
- 4. NTFS Basics • Everything is a file, even the core file system internals • The internal files are always hidden from user view Hidden files and folders in NTFS
- 5. Hidden Internal Files Filename Description $MFT Master File Table $MFTMirr Backup of first 4 records of MFT $LogFile Transaction log file $Volume Volume related information, usually empty $AttrDef Table listing MFT attribute names and numbers . Root folder on NTFS $Bitmap Map showing which clusters on volume are in use $Boot Boot code used during bootstrap $BadClus Map of bad clusters $Secure Security descriptors and ACLs are listed here $Upcase Keeps all lowercase to uppercase character mappings $Extend Optional extensions listed here (This is a folder)
- 6. Physical Layout of NTFS Volume $Boot Logical Sector 0 (Cluster 0) - Boot Manager Internal Files $MFT $Bitmap Internal Files usually start at Cluster 2 Allocated Cluster Free Cluster
- 7. Master File Table - $MFT • Consists of 1024 byte records • Has an entry for every file and folder including itself • Records can be identified by header “FILE” • A record consists of header and attributes • All metadata is stored in attributes • Common attributes: • $Standard_Information • $File_Name • $Data
- 8. Reading an MFT Entry
- 9. Understanding File Storage MFT Entry for “Hello.txt” $MFT $DATA Attribute Start Length Cluster 52 3 72 2 Illustration: NTFS concept of Data Runs Allocated Cluster Free Cluster Cluster view of NTFS Volume
- 10. Timestamps on NTFS • 64 bit Timestamp • Number of 100 Nanosecond intervals since 1st January 1601 • 1 second = 0x989680 • 4 Timestamps • Created • Modified • Accessed • MFT Entry Modified - ?
- 11. Concept of Initialized Data • NTFS has 3 size fields for each file • Logical • Initialized • Physical File ‘Properties’ snippet Logical Size Initialized Size Physical Size File ‘on disk’ view
- 12. Alternate Data Stream • Every file has single $Data stream, but NTFS allows multiple data streams • A place to store (hide) data, which is not displayed by Windows Explorer or command line ‘dir’ view. • Intended to store extra file metadata • Used by IE, Outlook Express, AV programs • Exploited by malware to hide malicious tools
- 13. Alternate Data Streams Demonstration
- 14. USN Journal - USNJRNL • USN = Update Sequence Number • As files, directories, and other NTFS file system objects are added, deleted, modified, the NTFS file system makes entries here. • $UsnJrnl:$J • This is a system management feature used for recovering quickly from a computer or volume failure
- 15. $UsnJrnl:$J record Record Length TimeStamp Reason File Attributes File name
- 17. INDX Records • NTFS indexes directory metadata and stores it in a B+ tree Explorer view Hex view of INDX directory structure
- 18. INDX Records • This indexed data is stored in $I30 attributes in MFT Attribute ID Description Name 0x90 $INDEX_ROOT $I30 0xA0 $INDEX_ALLOCATION $I30 0xB0 $BITMAP $I30 • Non-Resident vs. Resident • “INDX” header if non-resident • Forensic Value? • Find Deleted file metadata (MACE times, file name, logical & physical size, etc..)
- 19. $LogFile • Contains information used by NTFS for faster recoverability • Used to restore metadata consistency to NTFS after a system failure • Format not reverse engineered completely • It is common to find INDX records, MFT records and LNK records here
- 20. File Recovery on NTFS Get Data Runs from $MFT entry • • • “FILE” • Start Cluster=54 • Number of Search Clusters = 10 Read Data Unallocated for from Disk $MFT entries
- 21. Questions • More forensic stuff on my Blog – www.swiftforensics.com • Email me at yogesh@swiftforensics.com • Thanks
- 22. References • Books • File System Forensic Analysis – Brian Carrier • Online Resources • MSDN
