This presentation discusses NTFS and inodes. It provides an overview of NTFS, including its architecture, metadata files like the master file table, directories, files, security features, and clusters. It also describes Unix file systems and how they use inodes to store metadata about each file, such as the file size, owner, and pointers to data blocks. Inodes are allocated from a free inode list and contain information about the file as well as pointers to data blocks.

1. 06/11/2010
1
NTFS & INODE
This presentation was given at IIT,
University of Dhaka
By
Md. Rayhanur Rahman
And
Amit Seal Ami
As a part of class presentation
On 6th
November, 2010

2. 06/11/2010
2

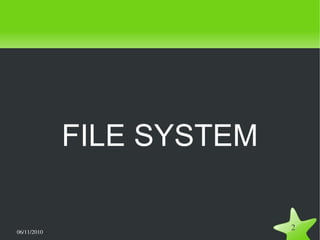

FILE SYSTEM

3. 06/11/2010
3

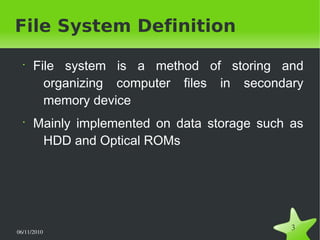

File System Definition
•
File system is a method of storing and
organizing computer files in secondary
memory device
•
Mainly implemented on data storage such as
HDD and Optical ROMs

4. 06/11/2010
4
Types Of File System
•
Disk file system
•
Flash file system
•
Tape file system
•
Database file system
•
Transactional file system
•
Network file system
•
Shared file system

5. 06/11/2010
5

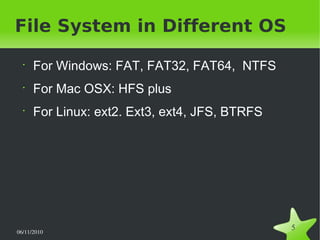

File System in Different OS
•
For Windows: FAT, FAT32, FAT64, NTFS
•
For Mac OSX: HFS plus
•
For Linux: ext2. Ext3, ext4, JFS, BTRFS

6. 06/11/2010
6

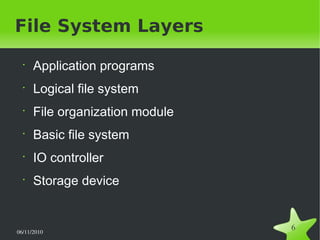

File System Layers
•
Application programs
•
Logical file system
•
File organization module
•
Basic file system
•
IO controller
•
Storage device

7. 06/11/2010
7

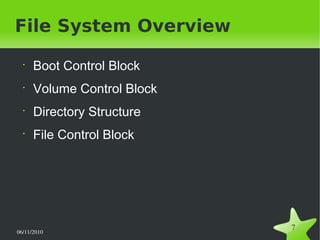

File System Overview
•
Boot Control Block
•
Volume Control Block
•
Directory Structure
•
File Control Block

8. 06/11/2010
8
NTFS

9. 06/11/2010
9

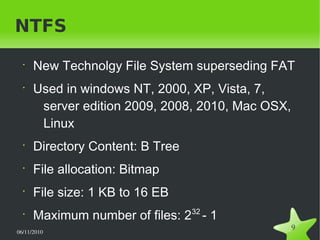

NTFS
•
New Technolgy File System superseding FAT
•
Used in windows NT, 2000, XP, Vista, 7,
server edition 2009, 2008, 2010, Mac OSX,
Linux
•
Directory Content: B Tree
•
File allocation: Bitmap
•
File size: 1 KB to 16 EB
•
Maximum number of files: 232
- 1

10. 06/11/2010
10
NTFS General Concept
•
Every structures in NTFS is considered as file
•
Control information of the structures and
volumes are stored in metadata files
•
Every filein NTFS system is a collection of
attributes
•
All files are stored in NTFS system by using
clusters

11. 06/11/2010
11

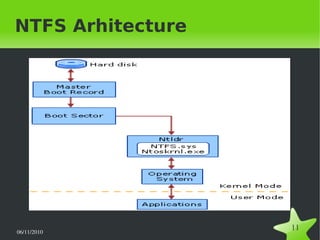

NTFS Arhitecture

12. 06/11/2010
12

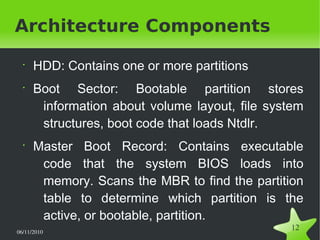

Architecture Components
•
HDD: Contains one or more partitions
•
Boot Sector: Bootable partition stores
information about volume layout, file system
structures, boot code that loads Ntdlr.
•
Master Boot Record: Contains executable
code that the system BIOS loads into
memory. Scans the MBR to find the partition
table to determine which partition is the
active, or bootable, partition.

13. 06/11/2010
13

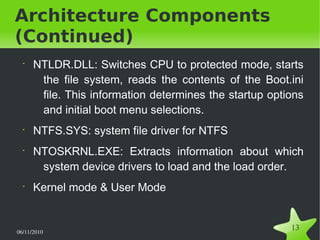

Architecture Components
(Continued)
•
NTLDR.DLL: Switches CPU to protected mode, starts
the file system, reads the contents of the Boot.ini
file. This information determines the startup options
and initial boot menu selections.
•
NTFS.SYS: system file driver for NTFS
•
NTOSKRNL.EXE: Extracts information about which
system device drivers to load and the load order.
•
Kernel mode & User Mode

14. 06/11/2010
14

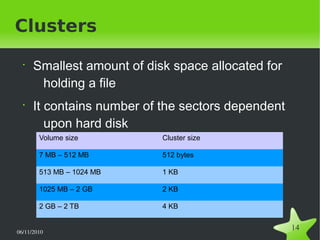

Clusters
•
Smallest amount of disk space allocated for
holding a file
•
It contains number of the sectors dependent
upon hard disk
Volume size Cluster size
7 MB – 512 MB 512 bytes
513 MB – 1024 MB 1 KB
1025 MB – 2 GB 2 KB
2 GB – 2 TB 4 KB

15. 06/11/2010
15

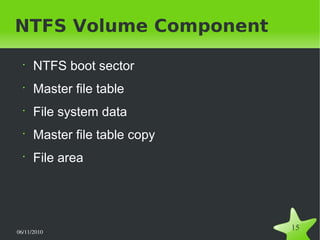

NTFS Volume Component
•
NTFS boot sector
•
Master file table
•
File system data
•
Master file table copy
•
File area

16. 06/11/2010
16

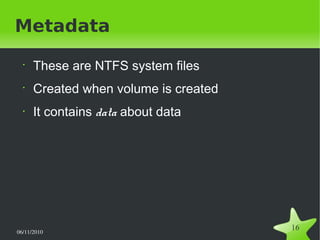

Metadata
•
These are NTFS system files
•
Created when volume is created
• It contains data about data

17. 06/11/2010
17

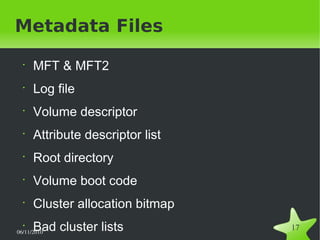

Metadata Files
•
MFT & MFT2
•
Log file
•
Volume descriptor
•
Attribute descriptor list
•
Root directory
•
Volume boot code
•
Cluster allocation bitmap
•
Bad cluster lists

18. 06/11/2010
18

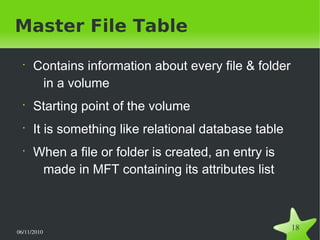

Master File Table
•
Contains information about every file & folder
in a volume
•
Starting point of the volume
•
It is something like relational database table
•
When a file or folder is created, an entry is
made in MFT containing its attributes list

19. 06/11/2010
19

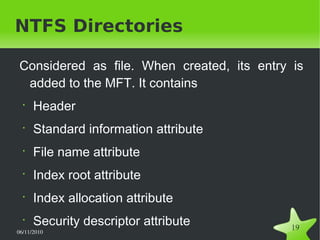

NTFS Directories
Considered as file. When created, its entry is
added to the MFT. It contains
•
Header
•
Standard information attribute
•
File name attribute
•
Index root attribute
•
Index allocation attribute
•
Security descriptor attribute

20. 06/11/2010
20
NTFS Files
File is a collection of any kind of data. In NTFS, it
is implemented by combining various attributes.
They are:
•
Header
•
Standard information attributes
•
File name attributes
•
Data attributes
•
Security descriptor attributes

21. 06/11/2010
21

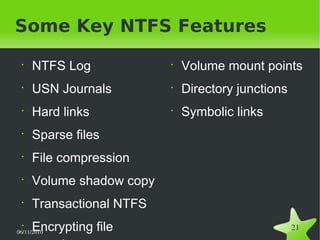

Some Key NTFS Features
•
NTFS Log
•
USN Journals
•
Hard links
•
Sparse files
•
File compression
•
Volume shadow copy
•
Transactional NTFS
•
Encrypting file
•
Volume mount points
•
Directory junctions
•
Symbolic links

22. 06/11/2010
22

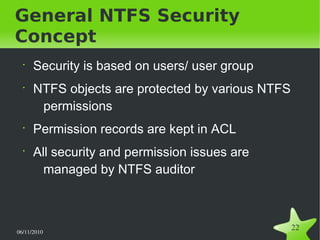

General NTFS Security
Concept
•
Security is based on users/ user group
•
NTFS objects are protected by various NTFS
permissions
•
Permission records are kept in ACL
•
All security and permission issues are
managed by NTFS auditor

23. 06/11/2010
23

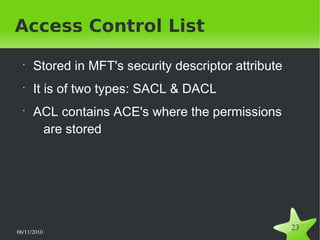

Access Control List
•
Stored in MFT's security descriptor attribute
•
It is of two types: SACL & DACL
•
ACL contains ACE's where the permissions
are stored

24. 06/11/2010
24

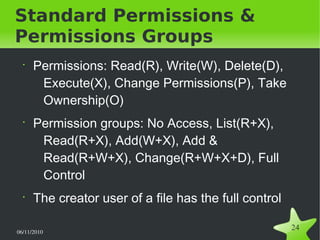

Standard Permissions &
Permissions Groups
•
Permissions: Read(R), Write(W), Delete(D),
Execute(X), Change Permissions(P), Take
Ownership(O)
•
Permission groups: No Access, List(R+X),
Read(R+X), Add(W+X), Add &
Read(R+W+X), Change(R+W+X+D), Full
Control
•
The creator user of a file has the full control

25. 06/11/2010
25

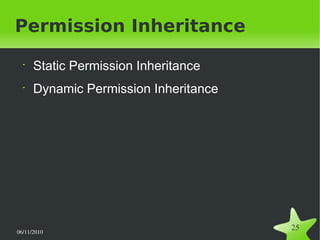

Permission Inheritance
•
Static Permission Inheritance
•
Dynamic Permission Inheritance

26. 06/11/2010
26

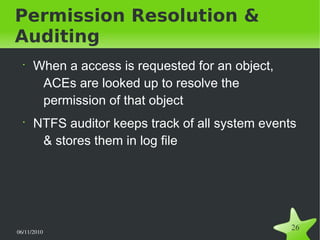

Permission Resolution &
Auditing
•
When a access is requested for an object,
ACEs are looked up to resolve the
permission of that object
•
NTFS auditor keeps track of all system events
& stores them in log file

27. 06/11/2010
27
INODE

28. 06/11/2010
28
A Look At UFS
•
Used in Unix and Unix Like OS
•
Also called Berkeley Fast File System or FFD
or BSD (Berkeley Software Distribution) Fast
File System

29. 06/11/2010
29

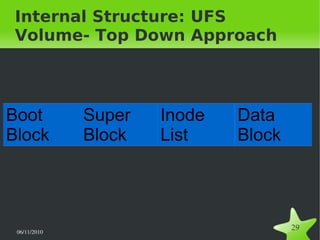

Internal Structure: UFS
Volume- Top Down Approach
Boot
Block
Super
Block
Inode
List
Data
Block

30. 06/11/2010
30
•
Size of the file system
•
Number of free blocks on the system
•
A list of free blocks
•
Index to next free block on the list
•
Size of the inode list
Super Block Contents

31. 06/11/2010
31

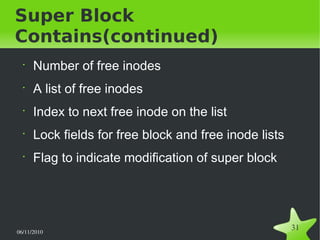

Super Block
Contains(continued)
•
Number of free inodes
•
A list of free inodes
•
Index to next free inode on the list
•
Lock fields for free block and free inode lists
•
Flag to indicate modification of super block

32. 06/11/2010
32

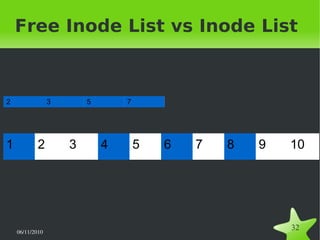

Free Inode List vs Inode List
1 2 3 4 5 6 7 8 9 10
2 3 5 7

33. 06/11/2010
33
Inode
•
An inode is a data structure on a traditional
Unix-style file system such as UFS. An inode
stores basic information about a regular file,
directory, or other file system object.

34. 06/11/2010
34

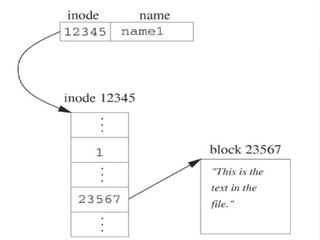

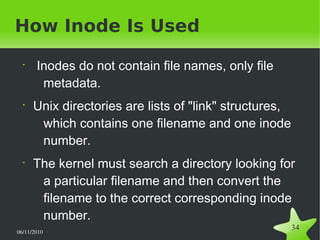

How Inode Is Used
•
Inodes do not contain file names, only file
metadata.
•
Unix directories are lists of "link" structures,
which contains one filename and one inode
number.
•
The kernel must search a directory looking for
a particular filename and then convert the
filename to the correct corresponding inode
number.

35. 06/11/2010
35

36. 06/11/2010
36

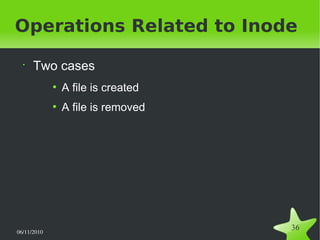

Operations Related to Inode
•
Two cases
●
A file is created
●
A file is removed

37. 06/11/2010
37

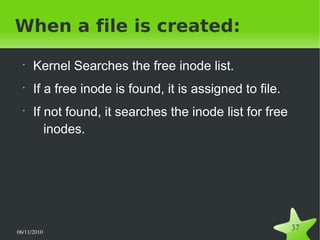

When a file is created:
•
Kernel Searches the free inode list.
•
If a free inode is found, it is assigned to file.
•
If not found, it searches the inode list for free
inodes.

38. 06/11/2010
38

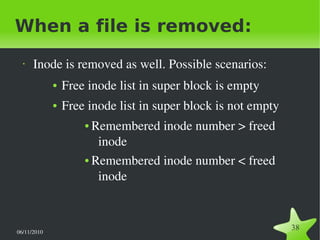

When a file is removed:
• Inode is removed as well. Possible scenarios:
● Free inode list in super block is empty
● Free inode list in super block is not empty
● Remembered inode number > freed
inode
● Remembered inode number < freed
inode

39. 06/11/2010
39

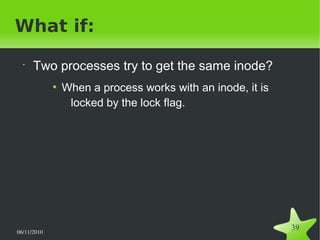

What if:
•
Two processes try to get the same inode?
●
When a process works with an inode, it is
locked by the lock flag.

40. 06/11/2010
40

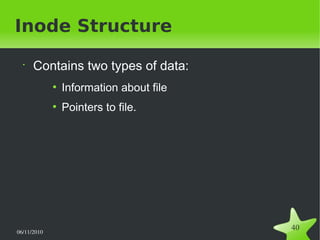

Inode Structure
•
Contains two types of data:
●
Information about file
●
Pointers to file.

41. 06/11/2010
41

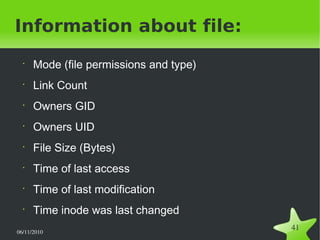

Information about file:
•
Mode (file permissions and type)
•
Link Count
•
Owners GID
•
Owners UID
•
File Size (Bytes)
•
Time of last access
•
Time of last modification
•
Time inode was last changed

42. 06/11/2010
42
Pointers to Data block
•
Total pointers: 15
•
12 direct pointers to data blocks
●
Each data block is of 8 KB
●
Without indirect pointers, it can represent 76KB
data blocks.
•
3 indirect pointers
●
First indirect pointer (16MB)
●
Double indirect pointer (32GB)
●
Third indirect pointer (upto 70TB)

43. 06/11/2010
43

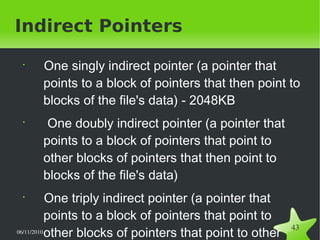

Indirect Pointers
•
One singly indirect pointer (a pointer that
points to a block of pointers that then point to
blocks of the file's data) - 2048KB
•
One doubly indirect pointer (a pointer that
points to a block of pointers that point to
other blocks of pointers that then point to
blocks of the file's data)
•
One triply indirect pointer (a pointer that
points to a block of pointers that point to
other blocks of pointers that point to other

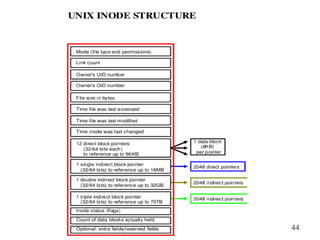

44. 06/11/2010
44

45. 06/11/2010
45

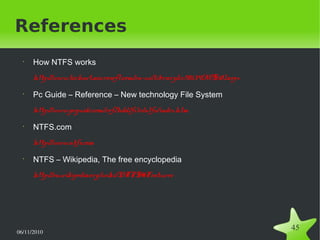

References
•
How NTFS works
http://www.technet.microsoft.com/en-us/library/cc781134(WS.10).aspx
•
Pc Guide – Reference – New technology File System
http://www.pcguide.com/ref/hdd/file/ntfs/index.htm
•
NTFS.com
http://www.ntfs.com
•
NTFS – Wikipedia, The free encyclopedia
http://en.wikipedia.org/wiki/NTFS#Features

46. 06/11/2010
46

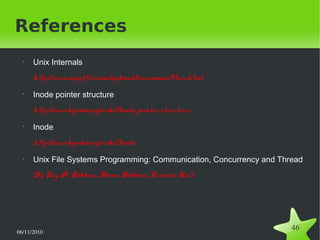

References
•
Unix Internals
http://www.angelfire.com/myband/binusoman/Unix.html
•
Inode pointer structure
http://en.wikipedia.org/wiki/Inode_pointer_structure
•
Inode
http://en.wikipedia.org/wiki/Inode
•
Unix File Systems Programming: Communication, Concurrency and Thread
By Kay A. Robbins, Steven Robbins, Prentice Hall
