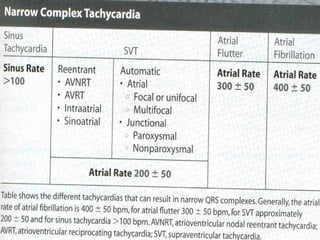

NARROW QRS TACHYCARDIA
SVTs from a sinoatrial source:
Inappropriate sinus tachycardia (IST)
Sinoatrial nodal reentrant tachycardia (SNRT)
SVTs from an atrial source:
Ectopic (unifocal) atrial tachycardia (EAT)
Multifocal atrial tachycardia (MAT)
Atrial fibrillation with a rapid ventricular response
Atrial flutter with a rapid ventricular response
Without rapid ventricular response, fibrillation and flutter are usually not
classified as SVT
SVTs from an atrioventricular source (junctional tachycardia):
AVNRT or junctional reciprocating tachycardia (JRT)
Permanent (or persistent) junctional reciprocating tachycardia (PJRT), a
form of JRT which occurs predominantly in infants and children but can
occasionally occur in adults
AV reciprocating tachycardia (AVRT) - visible or concealed (including
Wolff-Parkinson-White syndrome)
Junctional ectopic tachycardia (JET)
In brief
Response to carotid sinus massage or adenosine –with
termination of arrhythmia with Pwave –AVNRT with atrial
premature beat .
Tachycardia persists with AV block –AT,AFL,SANRT

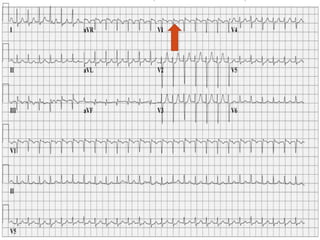

Pseudo r ‘ wave in V1 –AVNRT
SHORT RP interval – AVNRT,AVRT
Long RP interval – AT,SANRT,AVNRT atypical
ECG findings
Main Mechanisms and Typical Electrocardiographic Recordings of Supraventricular Tachycard

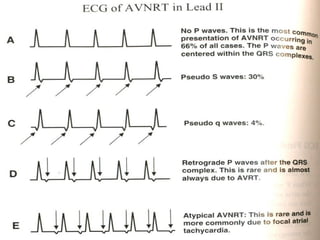

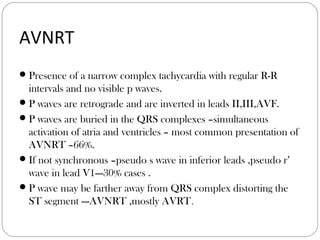

AVNRT
Presence of a narrow complex tachycardia with regular R-R
intervals and no visible p waves.
P waves are retrograde and are inverted in leads II,III,AVF.
P waves are buried in the QRS complexes –simultaneous
activation of atria and ventricles – most common presentation of
AVNRT –66%.

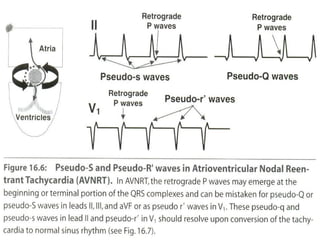

If not synchronous –pseudo s wave in inferior leads ,pseudo r’
wave in lead V1---30% cases .
P wave may be farther away from QRS complex distorting the
ST segment ---AVNRT ,mostly AVRT.

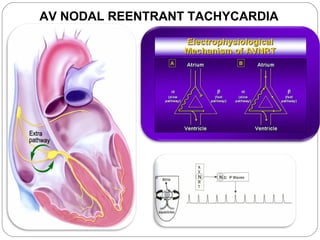

AV NODAL REENTRANT TACHYCARDIA

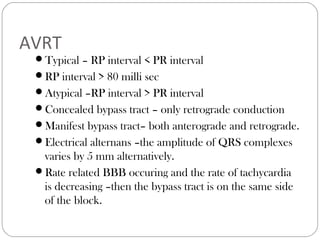

AVRT
Typical – RP interval < PR interval
RP interval > 80 milli sec
Atypical –RP interval > PR interval
Concealed bypass tract – only retrograde conduction
Manifest bypass tract– both anterograde and retrograde.
Electrical alternans –the amplitude of QRS complexes
varies by 5 mm alternatively.

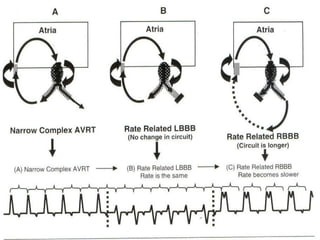

Rate related BBB occuring and the rate of tachycardia
is decreasing –then the bypass tract is on the same side
of the block.

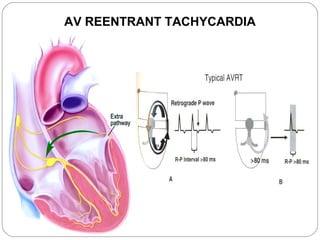

AV REENTRANT TACHYCARDIA
WPW syndrome

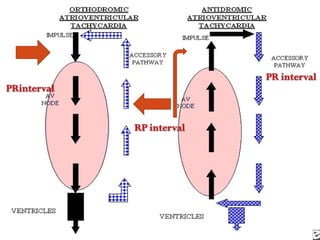

Two types

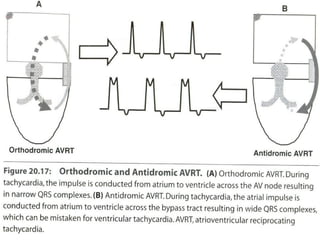

Orthodromic
Antidromic

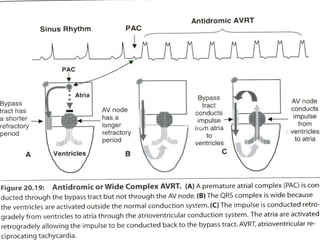

Antidromic is wide complex tachycardia
In NSR detected by delta wave.
Can ppt into AF and VF on use of AV nodal blockers
MEMBRANE ACTIVE ANTIARRHTYHMIC DRUGS are
safe.
CONCEALED WPW syndrome – no delta wave .less risk
of AF

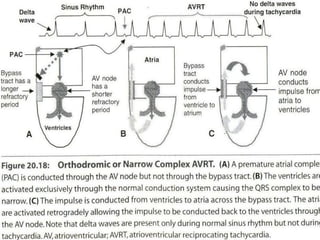

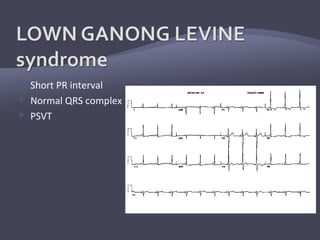

Orthodromic AVRT
 Short PR interval
 Normal QRS complex
 PSVT
Sinus Tachycardia
Focal Atrial Tachycardia
P wave morphology changes.
PR interval > 0.12 sec .
Second,third degree AV block can occur.
Tachycardia terminates with a qrs complex ..

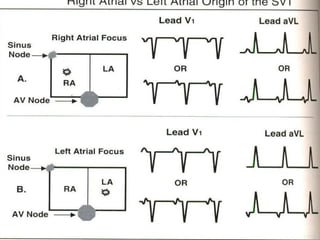

Right atrial origin– p wave inverted in V1.
If biphasic in V1—initially positive then negative.
Upright in lead AVL
Opposite if of left atrial origin
Superior origin –upright p waves in inferior leads
Inferior origin –p waves are inverted in inferior leads.
Focal atrial tachycardia (LA focus)

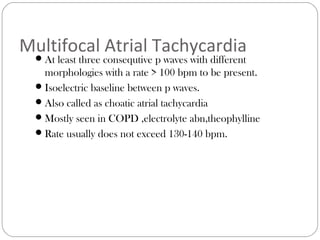

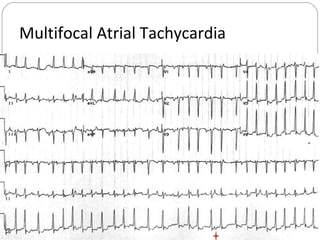

Multifocal Atrial Tachycardia
At least three consequtive p waves with different
morphologies with a rate > 100 bpm to be present.
Isoelectric baseline between p waves.
Also called as choatic atrial tachycardia
Mostly seen in COPD ,electrolyte abn,theophylline
Rate usually does not exceed 130-140 bpm.
Multifocal Atrial Tachycardia
SANRTMicroreentrant tachycardia
Usually precipitated and terminated by premature atrial
complexes.
Atrial rate is usually 120-150 bpm.
IART - Large or small reentrant circuit.
AV block can occur.
Junctional tachycardias
Non paroxysmal – accelerated junctional rhythm
Rate < 100 bpm Usually junctional node 40-60 bpm
Paroxysmal or focal junctional tachycardia is rare –
automaticity.
110-250bpm.
P waves may be before or after QRS complex
Infrequent and nonsustained episodes –no treatment

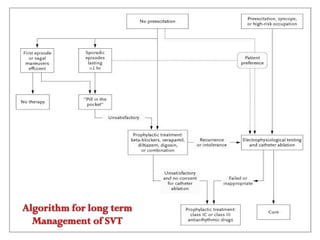

Acute termination of SVT and establish the mechanism of SVT
in case of acute setting.
Long term goal is abolishing the arryhthmia substrate.
Precipitating factors – electrolyte
imbalance,hypoxia,ischemia,hyperthyroidism to be sought
out.
Thank you reading this.

More Related Content

What's hot

ECG LOCALISATION OF CULPRIT ARTERY IN STEMI
ECG LOCALISATION OF CULPRIT ARTERY IN STEMIECG LOCALISATION OF CULPRIT ARTERY IN STEMI
ECG LOCALISATION OF CULPRIT ARTERY IN STEMI
Praveen Nagula


What's hot (20)

Bundle branch blocks by Dr Sujith Chadala
Bundle branch blocks by Dr Sujith ChadalaBundle branch blocks by Dr Sujith Chadala
Bundle branch blocks by Dr Sujith Chadala

Localization of WPW( accessory Pathway) by surface ECG
Localization of WPW( accessory Pathway) by surface ECGLocalization of WPW( accessory Pathway) by surface ECG
Localization of WPW( accessory Pathway) by surface ECG

Wpw syndrome
Wpw syndromeWpw syndrome
Wpw syndrome

SUPRAVENTRICULAR TACHYCARDIA - SVT
SUPRAVENTRICULAR TACHYCARDIA - SVTSUPRAVENTRICULAR TACHYCARDIA - SVT
SUPRAVENTRICULAR TACHYCARDIA - SVT

EBSTEIN ANOMALY
EBSTEIN ANOMALYEBSTEIN ANOMALY
EBSTEIN ANOMALY

LBBB
LBBBLBBB
LBBB

SINOATRIAL (SA) node
SINOATRIAL (SA) node SINOATRIAL (SA) node
SINOATRIAL (SA) node

Supraventricular tachyarrythmias
Supraventricular tachyarrythmiasSupraventricular tachyarrythmias
Supraventricular tachyarrythmias

Ventricular tachycardia
Ventricular tachycardiaVentricular tachycardia
Ventricular tachycardia

ECG LOCALISATION OF CULPRIT ARTERY IN STEMI
ECG LOCALISATION OF CULPRIT ARTERY IN STEMIECG LOCALISATION OF CULPRIT ARTERY IN STEMI
ECG LOCALISATION OF CULPRIT ARTERY IN STEMI

Brady arryhthmias
Brady arryhthmiasBrady arryhthmias
Brady arryhthmias

SVT
SVTSVT
SVT

Myocardial infarction (MI) ecg localisation
Myocardial infarction (MI) ecg localisationMyocardial infarction (MI) ecg localisation
Myocardial infarction (MI) ecg localisation

Atrial tachycardia
Atrial tachycardiaAtrial tachycardia
Atrial tachycardia

Narrow complex tachycardia
Narrow complex tachycardiaNarrow complex tachycardia
Narrow complex tachycardia

ECG: WPW Syndrome
ECG: WPW SyndromeECG: WPW Syndrome
ECG: WPW Syndrome

Asd device closure
Asd device closureAsd device closure
Asd device closure

Ventricular arrhythmias
Ventricular arrhythmias Ventricular arrhythmias
Ventricular arrhythmias

Vasoreactive testing in pulmonary hypertension
Vasoreactive testing in pulmonary hypertensionVasoreactive testing in pulmonary hypertension
Vasoreactive testing in pulmonary hypertension

Non infarction Q waves
Non infarction Q wavesNon infarction Q waves
Non infarction Q waves


Viewers also liked

Approch narrow complex tachycardia
Approch narrow complex tachycardiaApproch narrow complex tachycardia
Approch narrow complex tachycardia
Dharam Prakash Saran

Supra ventricular tachycardia
Supra ventricular tachycardiaSupra ventricular tachycardia
Supra ventricular tachycardia
Tamil Mani

Differentiation between AVNRT and AVRT_advanced lecture
Differentiation between AVNRT and AVRT_advanced lectureDifferentiation between AVNRT and AVRT_advanced lecture
Differentiation between AVNRT and AVRT_advanced lecture
Taiwan Heart Rhythm Society


Viewers also liked (20)

Approach to a case of narrow complex tachycardia
Approach to a case of narrow complex tachycardiaApproach to a case of narrow complex tachycardia
Approach to a case of narrow complex tachycardia

Approch narrow complex tachycardia
Approch narrow complex tachycardiaApproch narrow complex tachycardia
Approch narrow complex tachycardia

Narrow complex tachycardias
Narrow complex tachycardiasNarrow complex tachycardias
Narrow complex tachycardias

SVT-Alogarythm
SVT-AlogarythmSVT-Alogarythm
SVT-Alogarythm

Wide complex tachycardia
Wide complex tachycardiaWide complex tachycardia
Wide complex tachycardia

Supra ventricular tachycardia
Supra ventricular tachycardiaSupra ventricular tachycardia
Supra ventricular tachycardia

ECG - Narrow complex tachycardia
ECG - Narrow complex tachycardiaECG - Narrow complex tachycardia
ECG - Narrow complex tachycardia

Psvt
PsvtPsvt
Psvt

Narrow qrs tachy i.tammi raju
Narrow qrs tachy i.tammi rajuNarrow qrs tachy i.tammi raju
Narrow qrs tachy i.tammi raju

Circuits in avrt,avnrt i.tammi raju
Circuits in avrt,avnrt  i.tammi rajuCircuits in avrt,avnrt  i.tammi raju
Circuits in avrt,avnrt i.tammi raju

WIDE QRS TACHYCARDIA
WIDE  QRS TACHYCARDIAWIDE  QRS TACHYCARDIA
WIDE QRS TACHYCARDIA

Differentiation between AVNRT and AVRT_advanced lecture
Differentiation between AVNRT and AVRT_advanced lectureDifferentiation between AVNRT and AVRT_advanced lecture
Differentiation between AVNRT and AVRT_advanced lecture

Tachyarrhythmia
TachyarrhythmiaTachyarrhythmia
Tachyarrhythmia

Chylothorax and chyloptysis
Chylothorax and chyloptysisChylothorax and chyloptysis
Chylothorax and chyloptysis

Betablockers satya
Betablockers satyaBetablockers satya
Betablockers satya

Wide complex Tachycardia by Dr. Vaibhav Yawalkar
Wide complex Tachycardia by Dr. Vaibhav YawalkarWide complex Tachycardia by Dr. Vaibhav Yawalkar
Wide complex Tachycardia by Dr. Vaibhav Yawalkar

Svt evaluation
Svt evaluationSvt evaluation
Svt evaluation

Peri-arrest Arrhythmias
Peri-arrest ArrhythmiasPeri-arrest Arrhythmias
Peri-arrest Arrhythmias

Management of svt in adult
Management of svt in adultManagement of svt in adult
Management of svt in adult

case study on arrythmia
case study on arrythmiacase study on arrythmia
case study on arrythmia


Similar to Narrow QRS Tachycardia

APPROACH TO NARROW COMPLEX TACHYCARDIA
APPROACH TO NARROW COMPLEX TACHYCARDIAAPPROACH TO NARROW COMPLEX TACHYCARDIA
APPROACH TO NARROW COMPLEX TACHYCARDIA
PDT DM CARDIOLOGY

TACHYARRYTHMIAS 11 MAY 23.pptx
TACHYARRYTHMIAS 11 MAY 23.pptxTACHYARRYTHMIAS 11 MAY 23.pptx
TACHYARRYTHMIAS 11 MAY 23.pptx
DrAJ35


Similar to Narrow QRS Tachycardia (20)

ECG Rhythm Abnormalities
ECG Rhythm AbnormalitiesECG Rhythm Abnormalities
ECG Rhythm Abnormalities

APPROACH TO NARROW COMPLEX TACHYCARDIA
APPROACH TO NARROW COMPLEX TACHYCARDIAAPPROACH TO NARROW COMPLEX TACHYCARDIA
APPROACH TO NARROW COMPLEX TACHYCARDIA

approach to narrow comlex tachycardia
approach to narrow comlex tachycardiaapproach to narrow comlex tachycardia
approach to narrow comlex tachycardia

ELectrophysiology basics part4
ELectrophysiology basics part4ELectrophysiology basics part4
ELectrophysiology basics part4

Tachyarrhythmia Management
Tachyarrhythmia ManagementTachyarrhythmia Management
Tachyarrhythmia Management

Pre-excitation Syndromes.ppt
Pre-excitation Syndromes.pptPre-excitation Syndromes.ppt
Pre-excitation Syndromes.ppt

TACHYARRYTHMIAS 11 MAY 23.pptx
TACHYARRYTHMIAS 11 MAY 23.pptxTACHYARRYTHMIAS 11 MAY 23.pptx
TACHYARRYTHMIAS 11 MAY 23.pptx

Wolf Parkinson Syndrome By Dr Hasan Mahmud.
Wolf Parkinson Syndrome By Dr Hasan Mahmud.Wolf Parkinson Syndrome By Dr Hasan Mahmud.
Wolf Parkinson Syndrome By Dr Hasan Mahmud.

Avrt vz vt
Avrt vz vtAvrt vz vt
Avrt vz vt

Supraventricular tacchycardias
Supraventricular tacchycardias Supraventricular tacchycardias
Supraventricular tacchycardias

Arrhythmias July 09
Arrhythmias July 09Arrhythmias July 09
Arrhythmias July 09

Supra ventri cular arrhythmia 2021
Supra ventri cular arrhythmia  2021Supra ventri cular arrhythmia  2021
Supra ventri cular arrhythmia 2021

VT-diagnosis.ppt
VT-diagnosis.pptVT-diagnosis.ppt
VT-diagnosis.ppt

EP diagnosis of WIDE COMPLEX TACHYCARDIA
EP diagnosis of WIDE COMPLEX TACHYCARDIAEP diagnosis of WIDE COMPLEX TACHYCARDIA
EP diagnosis of WIDE COMPLEX TACHYCARDIA

Tachyarrhythmias
TachyarrhythmiasTachyarrhythmias
Tachyarrhythmias

SVT in pediatrics
SVT in pediatrics SVT in pediatrics
SVT in pediatrics

FASCICULAR VENTRICULAR TACHYCARDIA( VT)
FASCICULAR VENTRICULAR TACHYCARDIA( VT)FASCICULAR VENTRICULAR TACHYCARDIA( VT)
FASCICULAR VENTRICULAR TACHYCARDIA( VT)

Evaluation and Initial Treatment of Supraventricular Tachycardia
Evaluation and Initial Treatment of Supraventricular TachycardiaEvaluation and Initial Treatment of Supraventricular Tachycardia
Evaluation and Initial Treatment of Supraventricular Tachycardia

SVT final.pptx
SVT final.pptxSVT final.pptx
SVT final.pptx

NARROW COMPLEX TACHYCARDIA.pptx
NARROW COMPLEX TACHYCARDIA.pptxNARROW COMPLEX TACHYCARDIA.pptx
NARROW COMPLEX TACHYCARDIA.pptx


More from Ramachandra Barik

Brugada syndrome
Brugada syndromeBrugada syndrome
Brugada syndrome
Ramachandra Barik


More from Ramachandra Barik (20)

Willens's syndrome.pptx
Willens's syndrome.pptxWillens's syndrome.pptx
Willens's syndrome.pptx

Intensive care of congenital heart disease.pptx
Intensive care of congenital heart disease.pptxIntensive care of congenital heart disease.pptx
Intensive care of congenital heart disease.pptx

Management of Hypetension.pptx
Management of Hypetension.pptxManagement of Hypetension.pptx
Management of Hypetension.pptx

CRISPR and cardiovascular diseases.pdf
CRISPR and cardiovascular diseases.pdfCRISPR and cardiovascular diseases.pdf
CRISPR and cardiovascular diseases.pdf

Pacemaker Pocket Infection After Splenectomy
Pacemaker Pocket Infection After SplenectomyPacemaker Pocket Infection After Splenectomy
Pacemaker Pocket Infection After Splenectomy

Piccolo Duct Occluder.pdf
Piccolo Duct Occluder.pdfPiccolo Duct Occluder.pdf
Piccolo Duct Occluder.pdf

MISPLACED ECG LEADS.pptx
MISPLACED ECG LEADS.pptxMISPLACED ECG LEADS.pptx
MISPLACED ECG LEADS.pptx

A Case of Device Closure of an Eccentric Atrial Septal Defect Using a Large D...
A Case of Device Closure of an Eccentric Atrial Septal Defect Using a Large D...A Case of Device Closure of an Eccentric Atrial Septal Defect Using a Large D...
A Case of Device Closure of an Eccentric Atrial Septal Defect Using a Large D...

Arrythmia-IV.pptx
Arrythmia-IV.pptxArrythmia-IV.pptx
Arrythmia-IV.pptx

Arrythmia-III.pptx
Arrythmia-III.pptxArrythmia-III.pptx
Arrythmia-III.pptx

Arrythmia-II.pptx
Arrythmia-II.pptxArrythmia-II.pptx
Arrythmia-II.pptx

Arrythmia-I.pptx
Arrythmia-I.pptxArrythmia-I.pptx
Arrythmia-I.pptx

Trio of Rheumatic Mitral Stenosis, Right Posterior Septal Accessory Pathway a...
Trio of Rheumatic Mitral Stenosis, Right Posterior Septal Accessory Pathway a...Trio of Rheumatic Mitral Stenosis, Right Posterior Septal Accessory Pathway a...
Trio of Rheumatic Mitral Stenosis, Right Posterior Septal Accessory Pathway a...

Anticoagulation therapy during pregnancy
Anticoagulation therapy during pregnancyAnticoagulation therapy during pregnancy
Anticoagulation therapy during pregnancy

Coronary guidewire
Coronary guidewireCoronary guidewire
Coronary guidewire

Intracoronary optical coherence tomography
Intracoronary optical coherence tomographyIntracoronary optical coherence tomography
Intracoronary optical coherence tomography

Brugada syndrome
Brugada syndromeBrugada syndrome
Brugada syndrome

A roadmap for the human development
A roadmap for the human developmentA roadmap for the human development
A roadmap for the human development

Intra aortic balloon pump
Intra aortic balloon pumpIntra aortic balloon pump
Intra aortic balloon pump

Left ventricular false tendons
Left ventricular false tendonsLeft ventricular false tendons
Left ventricular false tendons


Recently uploaded

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptx
claviclebrown44

Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics
Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose AcademicsHistology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics
Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics
MedicoseAcademics

Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics
Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose AcademicsCytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics
Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics
MedicoseAcademics

CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
ocean4396


Recently uploaded (20)

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptx

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf

Tips to Choose the Best Psychiatrists in Indore
Tips to Choose the Best Psychiatrists in IndoreTips to Choose the Best Psychiatrists in Indore
Tips to Choose the Best Psychiatrists in Indore

Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...
Unlocking Holistic Wellness: Addressing Depression, Mental Well-Being, and St...

Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics
Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose AcademicsHistology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics
Histology of Epithelium - Dr Muhammad Ali Rabbani - Medicose Academics

Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler
Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best supplerCas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler
Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler

Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics
Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose AcademicsCytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics
Cytoskeleton and Cell Inclusions - Dr Muhammad Ali Rabbani - Medicose Academics

The Clean Living Project Episode 24 - Subconscious
The Clean Living Project Episode 24 - SubconsciousThe Clean Living Project Episode 24 - Subconscious
The Clean Living Project Episode 24 - Subconscious

ESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failureESC HF 2024 Spotlights Day-2.pptx heart failure
ESC HF 2024 Spotlights Day-2.pptx heart failure

DR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in IndiaDR. Neha Mehta Best Psychologist.in India
DR. Neha Mehta Best Psychologist.in India

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...

Signs It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing WellnessSigns It’s Time for Physiotherapy Sessions Prioritizing Wellness
Signs It’s Time for Physiotherapy Sessions Prioritizing Wellness

CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...
CAS 110-63-4 BDO Liquid 1,4-Butanediol 1 4 BDO Warehouse Supply For Excellent...

Tissue Banking and Umbilical Cord Blood Banking
Tissue Banking and Umbilical Cord Blood BankingTissue Banking and Umbilical Cord Blood Banking
Tissue Banking and Umbilical Cord Blood Banking

Quality control tests of suppository ...
Quality control tests  of suppository ...Quality control tests  of suppository ...
Quality control tests of suppository ...

Tips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES examTips and tricks to pass the cardiovascular station for PACES exam
Tips and tricks to pass the cardiovascular station for PACES exam

Vip ℂall Girls Shalimar Bagh Phone No 9999965857 High Profile ℂall Girl Delhi...
Vip ℂall Girls Shalimar Bagh Phone No 9999965857 High Profile ℂall Girl Delhi...Vip ℂall Girls Shalimar Bagh Phone No 9999965857 High Profile ℂall Girl Delhi...
Vip ℂall Girls Shalimar Bagh Phone No 9999965857 High Profile ℂall Girl Delhi...

Video capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in childrenVideo capsule endoscopy (VCE ) in children
Video capsule endoscopy (VCE ) in children

VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and NightVIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night
VIP Pune 7877925207 WhatsApp: Me All Time Serviℂe Available Day and Night

HIFI* ℂall Girls In Thane West Phone 🔝 9920874524 🔝 💃 Me All Time Serviℂe Ava...
HIFI* ℂall Girls In Thane West Phone 🔝 9920874524 🔝 💃 Me All Time Serviℂe Ava...HIFI* ℂall Girls In Thane West Phone 🔝 9920874524 🔝 💃 Me All Time Serviℂe Ava...
HIFI* ℂall Girls In Thane West Phone 🔝 9920874524 🔝 💃 Me All Time Serviℂe Ava...


Narrow QRS Tachycardia

  • 2. SVTs from a sinoatrial source: Inappropriate sinus tachycardia (IST) Sinoatrial nodal reentrant tachycardia (SNRT) SVTs from an atrial source: Ectopic (unifocal) atrial tachycardia (EAT) Multifocal atrial tachycardia (MAT) Atrial fibrillation with a rapid ventricular response Atrial flutter with a rapid ventricular response Without rapid ventricular response, fibrillation and flutter are usually not classified as SVT SVTs from an atrioventricular source (junctional tachycardia): AVNRT or junctional reciprocating tachycardia (JRT) Permanent (or persistent) junctional reciprocating tachycardia (PJRT), a form of JRT which occurs predominantly in infants and children but can occasionally occur in adults AV reciprocating tachycardia (AVRT) - visible or concealed (including Wolff-Parkinson-White syndrome) Junctional ectopic tachycardia (JET)
  • 3.
  • 4.

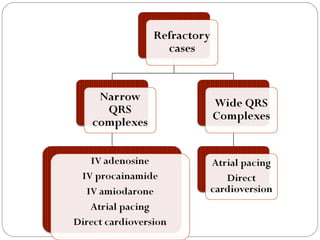

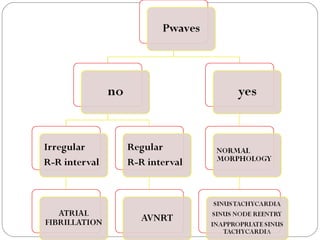

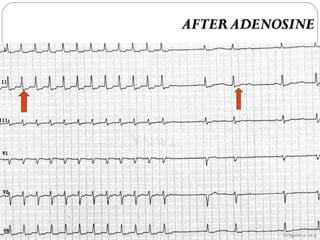

  • 5. In brief Response to carotid sinus massage or adenosine –with termination of arrhythmia with Pwave –AVNRT with atrial premature beat . Tachycardia persists with AV block –AT,AFL,SANRT Pseudo r ‘ wave in V1 –AVNRT SHORT RP interval – AVNRT,AVRT Long RP interval – AT,SANRT,AVNRT atypical
  • 6.

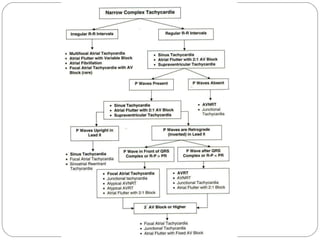

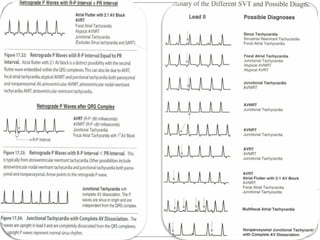

  • 8. Main Mechanisms and Typical Electrocardiographic Recordings of Supraventricular Tachycard
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14. AVNRT Presence of a narrow complex tachycardia with regular R-R intervals and no visible p waves. P waves are retrograde and are inverted in leads II,III,AVF. P waves are buried in the QRS complexes –simultaneous activation of atria and ventricles – most common presentation of AVNRT –66%. If not synchronous –pseudo s wave in inferior leads ,pseudo r’ wave in lead V1---30% cases . P wave may be farther away from QRS complex distorting the ST segment ---AVNRT ,mostly AVRT.
  • 15. AV NODAL REENTRANT TACHYCARDIA
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.

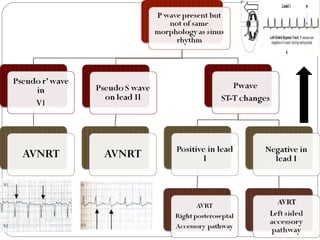

  • 21. AVRT Typical – RP interval < PR interval RP interval > 80 milli sec Atypical –RP interval > PR interval Concealed bypass tract – only retrograde conduction Manifest bypass tract– both anterograde and retrograde. Electrical alternans –the amplitude of QRS complexes varies by 5 mm alternatively. Rate related BBB occuring and the rate of tachycardia is decreasing –then the bypass tract is on the same side of the block.
  • 23.
  • 24.
  • 25.
  • 26. WPW syndrome Two types Orthodromic Antidromic Antidromic is wide complex tachycardia In NSR detected by delta wave. Can ppt into AF and VF on use of AV nodal blockers MEMBRANE ACTIVE ANTIARRHTYHMIC DRUGS are safe. CONCEALED WPW syndrome – no delta wave .less risk of AF
  • 27.
  • 28.
  • 29.
  • 31.  Short PR interval  Normal QRS complex  PSVT
  • 33. Focal Atrial Tachycardia P wave morphology changes. PR interval > 0.12 sec . Second,third degree AV block can occur. Tachycardia terminates with a qrs complex .. Right atrial origin– p wave inverted in V1. If biphasic in V1—initially positive then negative. Upright in lead AVL Opposite if of left atrial origin Superior origin –upright p waves in inferior leads Inferior origin –p waves are inverted in inferior leads.
  • 34.
  • 36. Multifocal Atrial Tachycardia At least three consequtive p waves with different morphologies with a rate > 100 bpm to be present. Isoelectric baseline between p waves. Also called as choatic atrial tachycardia Mostly seen in COPD ,electrolyte abn,theophylline Rate usually does not exceed 130-140 bpm.
  • 38. SANRTMicroreentrant tachycardia Usually precipitated and terminated by premature atrial complexes. Atrial rate is usually 120-150 bpm. IART - Large or small reentrant circuit. AV block can occur.
  • 39. Junctional tachycardias Non paroxysmal – accelerated junctional rhythm Rate < 100 bpm Usually junctional node 40-60 bpm Paroxysmal or focal junctional tachycardia is rare – automaticity. 110-250bpm. P waves may be before or after QRS complex Infrequent and nonsustained episodes –no treatment Acute termination of SVT and establish the mechanism of SVT in case of acute setting. Long term goal is abolishing the arryhthmia substrate. Precipitating factors – electrolyte imbalance,hypoxia,ischemia,hyperthyroidism to be sought out.
  • 40.
  • 41.
  • 42.

Editor's Notes

  1. Figure 2. Main Mechanisms and Typical Electrocardiographic Recordings of Supraventricular Tachycardia. In patients with atrioventricular (AV) nodal reentrant tachycardia (Panels A and B), the atrioventricular node is functionally divided into two pathways that form the reentrant circuit. In the majority of patients, during this type of tachycardia, antegrade conduction to the ventricle occurs over the slow pathway and retrograde conduction over the fast pathway. The activation of atria and ventricles is synchronous so that the retrograde P wave is buried in the QRS complex, or it may be visible soon after the QRS complex (as pseudo r&apos; in V1 or pseudo s in the inferior leads). Orthodromic AV reentrant tachycardia (Panels A and B) is the most frequent arrhythmia in patients who have an accessory pathway, with antegrade conduction through the AV node, activation of the ventricles, and retrograde conduction through the accessory pathway. Typically, there is a short RP interval, but a long RP interval may be associated with slow-conducting accessory pathways. With the use of adenosine or vagal maneuvers (Panel C), tachycardia often terminates with a retrograde P wave. In the approximately 70 percent of patients with this type of tachycardia who have an obvious accessory pathway, preexcitation may be seen in the ensuing beats; however, it is absent in the approximately 30 percent of patients with a concealed accessory pathway. In antidromic AV reentrant tachycardia (Panels A and B), the activation wave front travels in the opposite direction. On electrocardiography, it is impossible to distinguish antidromic AV reentrant tachycardia from ventricular tachycardia. Atrial tachycardias (Panels A and B) typically have a focal origin (star), and different mechanisms might be involved (reentry within several millimeters, automaticity, and triggered activity). RP intervals are typically long (longer than PR intervals), but this depends on the rate of tachycardia and properties of AV conduction. The PR interval can be prolonged by the use of vagal maneuvers and adenosine (Panel C), which may also produce a transient AV block. A substantial proportion of focal atrial tachycardias are terminated with the use of adenosine. Atrial flutter with 2:1 AV conduction (Panels A and B) may resemble atrial tachycardia or another type of supraventricular tachycardia and can be revealed when vagal maneuvers or adenosine is used (Panel C).
  2. Figure 2. Diagram of AV nodal reentrant tachycardia (AVNRT). The electrical impulse travels in a circle using extra fibers in and around the AV node.
  3. Figure 3. A diagram of AV reentrant tachycardia (AVRT). The electrical impulse travels down the AV node to the ventricles and back to the atrium via extra fibers that connect the atria and ventricles.
  4. Figure 3. Algorithm for the Short-Term Management of Supraventricular Tachycardia (SVT). If the diagnosis of SVT with aberration or SVT with preexcitation is not certain, tachycardia with a wide QRS complex must be considered as an unknown mechanism and treated as such. SVT with preexcitation can be the result of either antidromic atrioventricular reentry or, uncommonly, another type of SVT (e.g., atrial tachycardia) with an accessory pathway that is not critical for the maintenance of the arrhythmia. BBB denotes bundle-branch block, VT ventricular tachycardia, IV intravenous, and ECG electrocardiogram. Adapted from Blomstrom-Lundqvist et al.8
  5. Figure 4. Algorithm for the Long-Term Management of Supraventricular Tachycardia. In many circumstances, patient preference is an important consideration in the selection of therapy. Referral to an electrophysiologist should be considered for discussion of the risks and benefits of catheter ablation.
