1. A Survey on Linux Volatile Memory
Forensic Techniques
Suba Surianarayanan
suba.suri@gmail.com
Dr. V. Uma Maheswari
umam_in@yahoo.com
College Of Engineering, Chennai
Anna University

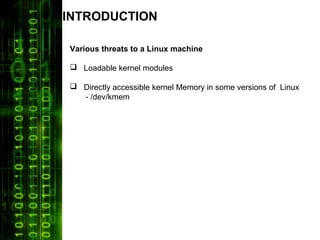

2. INTRODUCTION
Various threats to a Linux machine
 Loadable kernel modules
 Directly accessible kernel Memory in some versions of Linux
- /dev/kmem

3. Volatile Memory Forensics
 Volatile memory – Evidence gathered from RAM
 Hidden malware
 Live techniques - Based on in-built utilities or tools
Disadvantage: Leave footprint on the memory image
 Linux - LKM and direct kernel memory access
in-built utilities like ps (process enumeration) unreliable and
untrustworthy
 Static techniques - Capture state of system during seizure

4. Linux Volatile Memory Forensics -
Challenges
 Numerous builds and versions – Challenges applicability of
techniques
 Kernel structure changes between versions
 Security vulnerabilities – LKM and Direct access of
/dev/kmem

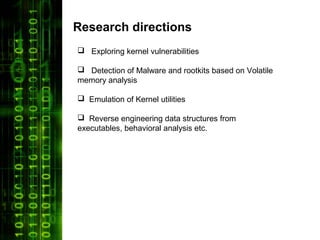

5. Research directions
 Exploring kernel vulnerabilities
 Detection of Malware and rootkits based on Volatile
memory analysis
 Emulation of Kernel utilities
 Reverse engineering data structures from
executables, behavioral analysis etc.

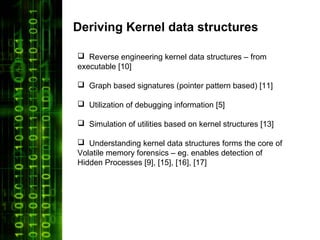

6. Deriving Kernel data structures
 Reverse engineering kernel data structures – from
executable [10]
 Graph based signatures (pointer pattern based) [11]
 Utilization of debugging information [5]
 Simulation of utilities based on kernel structures [13]
 Understanding kernel data structures forms the core of
Volatile memory forensics – eg. enables detection of
Hidden Processes [9], [15], [16], [17]

7. Detecting hidden Processes:
Kernel structures
next
task_struct prev task_struct … task_struct
files
files_struct
fd_array
file file
f_path
dentry
d_inode
inode

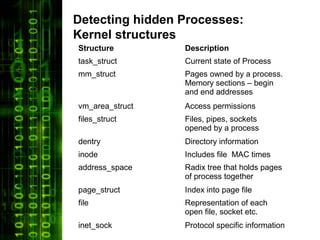

8. Detecting hidden Processes:
Kernel structures
Structure Description
task_struct Current state of Process
mm_struct Pages owned by a process.
Memory sections – begin
and end addresses
vm_area_struct Access permissions
files_struct Files, pipes, sockets
opened by a process
dentry Directory information
inode Includes file MAC times
address_space Radix tree that holds pages
of process together
page_struct Index into page file
file Representation of each
open file, socket etc.
inet_sock Protocol specific information

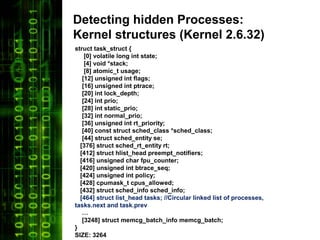

9. Detecting hidden Processes:
Kernel structures (Kernel 2.6.32)
struct task_struct {
[0] volatile long int state;
[4] void *stack;
[8] atomic_t usage;
[12] unsigned int flags;
[16] unsigned int ptrace;
[20] int lock_depth;
[24] int prio;
[28] int static_prio;
[32] int normal_prio;
[36] unsigned int rt_priority;
[40] const struct sched_class *sched_class;
[44] struct sched_entity se;
[376] struct sched_rt_entity rt;
[412] struct hlist_head preempt_notifiers;
[416] unsigned char fpu_counter;
[420] unsigned int btrace_seq;
[424] unsigned int policy;
[428] cpumask_t cpus_allowed;
[432] struct sched_info sched_info;
[464] struct list_head tasks; //Circular linked list of processes,
tasks.next and task.prev
…
[3248] struct memcg_batch_info memcg_batch;
}
SIZE: 3264

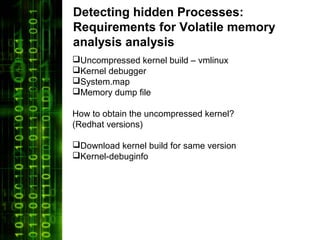

10. Detecting hidden Processes:
Requirements for Volatile memory
analysis analysis
Uncompressed kernel build – vmlinux
Kernel debugger
System.map
Memory dump file
How to obtain the uncompressed kernel?
(Redhat versions)
Download kernel build for same version
Kernel-debuginfo

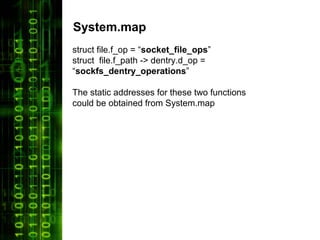

11. System.map
struct file.f_op = “socket_file_ops”
struct file.f_path -> dentry.d_op =
“sockfs_dentry_operations”
The static addresses for these two functions
could be obtained from System.map

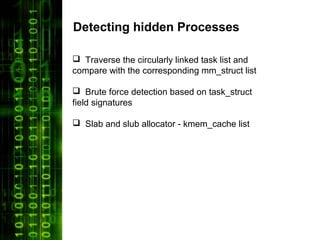

12. Detecting hidden Processes
 Traverse the circularly linked task list and
compare with the corresponding mm_struct list
 Brute force detection based on task_struct
field signatures
 Slab and slub allocator - kmem_cache list

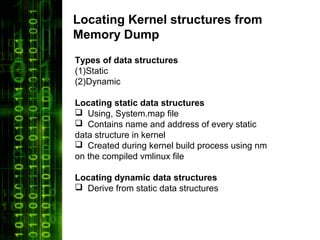

13. Locating Kernel structures from
Memory Dump
Types of data structures
(1)Static
(2)Dynamic
Locating static data structures
 Using, System.map file
 Contains name and address of every static
data structure in kernel
 Created during kernel build process using nm
on the compiled vmlinux file
Locating dynamic data structures
 Derive from static data structures

14. Malware detection techniques
Based on:
 Data access patterns and structural signatures
[4],[6],[8]
 Binary analysis based on instruction sequence
[12]
 task structure analysis [14]

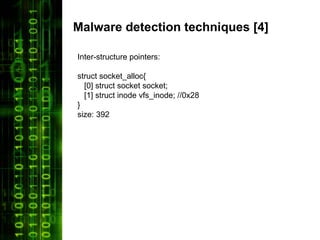

15. Malware detection techniques [4]
Inter-structure pointers:
struct socket_alloc{
[0] struct socket socket;
[1] struct inode vfs_inode; //0x28
}
size: 392

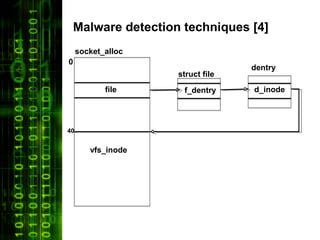

16. Malware detection techniques [4]
socket_alloc
0
dentry
struct file
file f_dentry d_inode
40
vfs_inode

17. Rootkit Detection
Hidden Rootkit – DKOM and Function hooking
Remain undetected through normal modes of
detection such as ps
Finding hidden objects such as sockets and
processes based on field types and inter-structure
pointers in kernel structures [4, 6]
Behavioral analysis – such as data access
patterns [8]

18. Classification of various techniques
Title Analysis type Application
Detecting stealthy
malware with Inter-
Structure and In-execution Malware detection
imported Signatures
[4]
Characterizing Kernel
Malware Behavior
In-execution Malware detection
with Kernel Data
Access Patterns [8]
In-Execution Malware
Detection using Task
In-execution Malware detection
Structures of Linux
Processes [14]
Detecting Kernel-level
Rootkits
In-execution Rootkit detection
using Data Structure
Invariants [6]
Detecting Kernel- Pre execution Rootkit detection
Level Rootkits
Through Binary
Analysis [12]
Locating 386 paging Memory dump Hidden process
structures in memory analysis detection
images [9]

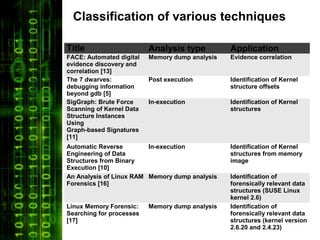

19. Classification of various techniques
Title Analysis type Application
FACE: Automated digital Memory dump analysis Evidence correlation
evidence discovery and
correlation [13]
The 7 dwarves: Post execution Identification of Kernel
debugging information structure offsets
beyond gdb [5]
SigGraph: Brute Force In-execution Identification of Kernel
Scanning of Kernel Data structures
Structure Instances
Using
Graph-based Signatures
[11]
Automatic Reverse In-execution Identification of Kernel
Engineering of Data structures from memory
Structures from Binary image
Execution [10]
An Analysis of Linux RAM Memory dump analysis Identification of
Forensics [16] forensically relevant data
structures (SUSE Linux
kernel 2.6)
Linux Memory Forensic: Memory dump analysis Identification of
Searching for processes forensically relevant data
[17] structures (kernel version
2.6.20 and 2.4.23)

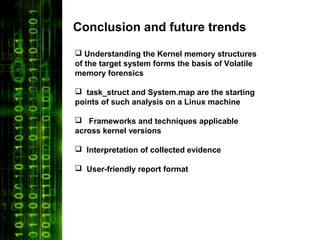

20. Conclusion and future trends
 Understanding the Kernel memory structures
of the target system forms the basis of Volatile
memory forensics
 task_struct and System.map are the starting
points of such analysis on a Linux machine
 Frameworks and techniques applicable
across kernel versions
 Interpretation of collected evidence
 User-friendly report format

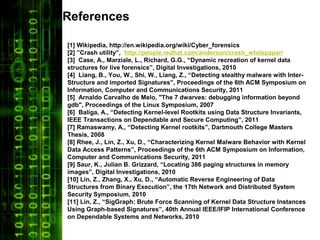

21. References
[1] Wikipedia, http://en.wikipedia.org/wiki/Cyber_forensics
[2] ”Crash utility”, http://people.redhat.com/anderson/crash_whitepaper/
[3] Case, A., Marziale, L., Richard, G.G., “Dynamic recreation of kernel data
structures for live forensics”, Digital Investigations, 2010
[4] Liang, B., You, W., Shi, W., Liang, Z., “Detecting stealthy malware with Inter-
Structure and imported Signatures”, Proceedings of the 6th ACM Symposium on
Information, Computer and Communications Security, 2011
[5] Arnaldo Carvalho de Melo, "The 7 dwarves: debugging information beyond
gdb", Proceedings of the Linux Symposium, 2007
[6] Baliga, A., “Detecting Kernel-level Rootkits using Data Structure Invariants,
IEEE Transactions on Dependable and Secure Computing”, 2011
[7] Ramaswamy, A., “Detecting Kernel rootkits”, Dartmouth College Masters
Thesis, 2008
[8] Rhee, J., Lin, Z., Xu, D., “Characterizing Kernel Malware Behavior with Kernel
Data Access Patterns”, Proceedings of the 6th ACM Symposium on Information,
Computer and Communications Security, 2011
[9] Saur, K., Julian B. Grizzard, “Locating 386 paging structures in memory
images”, Digital Investigations, 2010
[10] Lin, Z., Zhang, X., Xu, D., “Automatic Reverse Engineering of Data
Structures from Binary Execution”, the 17th Network and Distributed System
Security Symposium, 2010
[11] Lin, Z., “SigGraph: Brute Force Scanning of Kernel Data Structure Instances
Using Graph-based Signatures”, 40th Annual IEEE/IFIP International Conference
on Dependable Systems and Networks, 2010

22. References
[12] Christopher , K., “Detecting Kernel-Level Rootkits Through Binary Analysis”,
Computer Security Applications Conference, 2004
[13] Case, A., Cristina, A., Marziale, L., Golden G. Richard, Roussev, V., “FACE:
Automated digital evidence discovery and correlation”, Digital Investigations,
2008
[14] Shahzad, F. et al, “In-Execution Malware Detection using Task Structures of
Linux Processes”, IEEE International Conference on Communications, 2011
[15] Burdach, M., “Digital Forensics of the physical memory”, 2005
[16] Urrea, J.M., “An analysis of Linux RAM forensics”, Naval Postgraduate
School Thesis, 2006
[17] Gao, Y., Cao, T., “Linux Memory Forensic: Searching for processes”,
Computer Security Applications Conference, 2010
[18] Movall, P., Nelson, W., Wetzstein, S., “Linux Physical Memory Analysis”,
Proceedings of the annual conference on USENIX Annual Technical Conference,
2005
[19] Wikipedia, http://en.wikipedia.org/wiki/Computer_forensics
[20] DFRWS. Dfrws 2005 forensics challenge,
http://www.dfrws.org/2005/challenge/index.shtml; 2005.
[21] Volatility framework, https://www.volatilesystems.com/default/volatility
