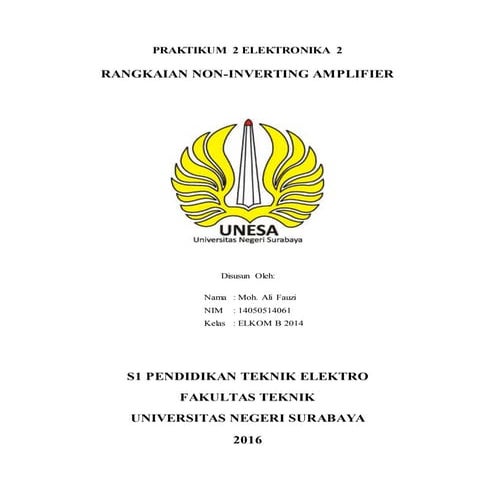

Ini adalah percobaan yang akan saya dan teman-teman saya lakukan mengenai topik yaitu Non Inverting Amplifier.Semoga ini bisa bermanfaat bagi pembaca semua.Terima kasih sudah mampir...
Ini adalah percobaan yang akan saya dan teman-teman saya lakukan mengenai topik yaitu Non Inverting Amplifier.Semoga ini bisa bermanfaat bagi pembaca semua.Terima kasih sudah mampir...

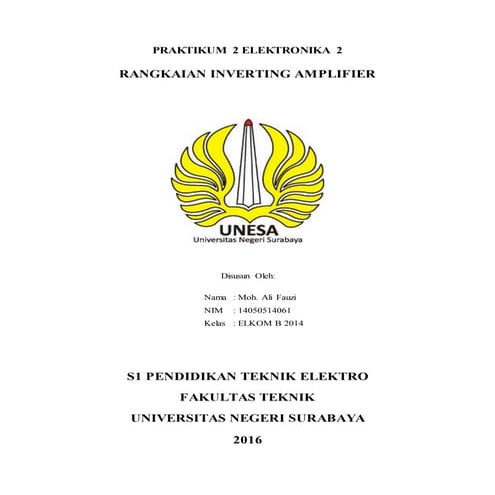

Laporan Percobaan 2 (Inverting Amplifier)Moh Ali Fauzi
Ini adalah hasil percobaan yang telah kami lakukan mengenai topik yaitu Inverting Amplifier.Semoga ini bisa bermanfaat bagi pembaca semua.Terima kasih sudah mampir...
Introduction to Linear ICs– BJT differential amplifier-Operational amplifier IC 741–Block diagram and Characteristics - Inverting, non inverting and difference amplifier – Adder, Subtractor, Integrator, Differentiator-Comparator- Window detector- Regenerative comparator (Schmitttrigger) - Precision rectifier- Current to voltage converter – Voltage to current converter
-Log and antilog amplifiers- Instrumentation amplifiers.
Block diagram of a typical op-amp – characteristics of ideal and practical op-amp - parameters of opamp – inverting and non-inverting amplifier configurations - frequency response - circuit stability.
The OPerational AMPlifier or OPAMP is a versatile analog Integrated Circuit (IC) that is capable of producing a very high gain.
An amplifier is a circuit that receives a signal at its input and delivers an undistorted larger
version of the signal at its output. The operational amplifier is a high gain amplifier to which feedback is added to control its overall response characteristic.
In closed loop connection, an external resistance is connected between the output and the negative (inverting) input terminal as a negative feedback. Here, the gain can be controlled by changing the values of the resistors.
Saudi Arabia stands as a titan in the global energy landscape, renowned for its abundant oil and gas resources. It's the largest exporter of petroleum and holds some of the world's most significant reserves. Let's delve into the top 10 oil and gas projects shaping Saudi Arabia's energy future in 2024.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Forklift Classes Overview by Intella PartsIntella Parts
Discover the different forklift classes and their specific applications. Learn how to choose the right forklift for your needs to ensure safety, efficiency, and compliance in your operations.
For more technical information, visit our website https://intellaparts.com
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Courier management system project report.pdfKamal Acharya
It is now-a-days very important for the people to send or receive articles like imported furniture, electronic items, gifts, business goods and the like. People depend vastly on different transport systems which mostly use the manual way of receiving and delivering the articles. There is no way to track the articles till they are received and there is no way to let the customer know what happened in transit, once he booked some articles. In such a situation, we need a system which completely computerizes the cargo activities including time to time tracking of the articles sent. This need is fulfilled by Courier Management System software which is online software for the cargo management people that enables them to receive the goods from a source and send them to a required destination and track their status from time to time.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdf

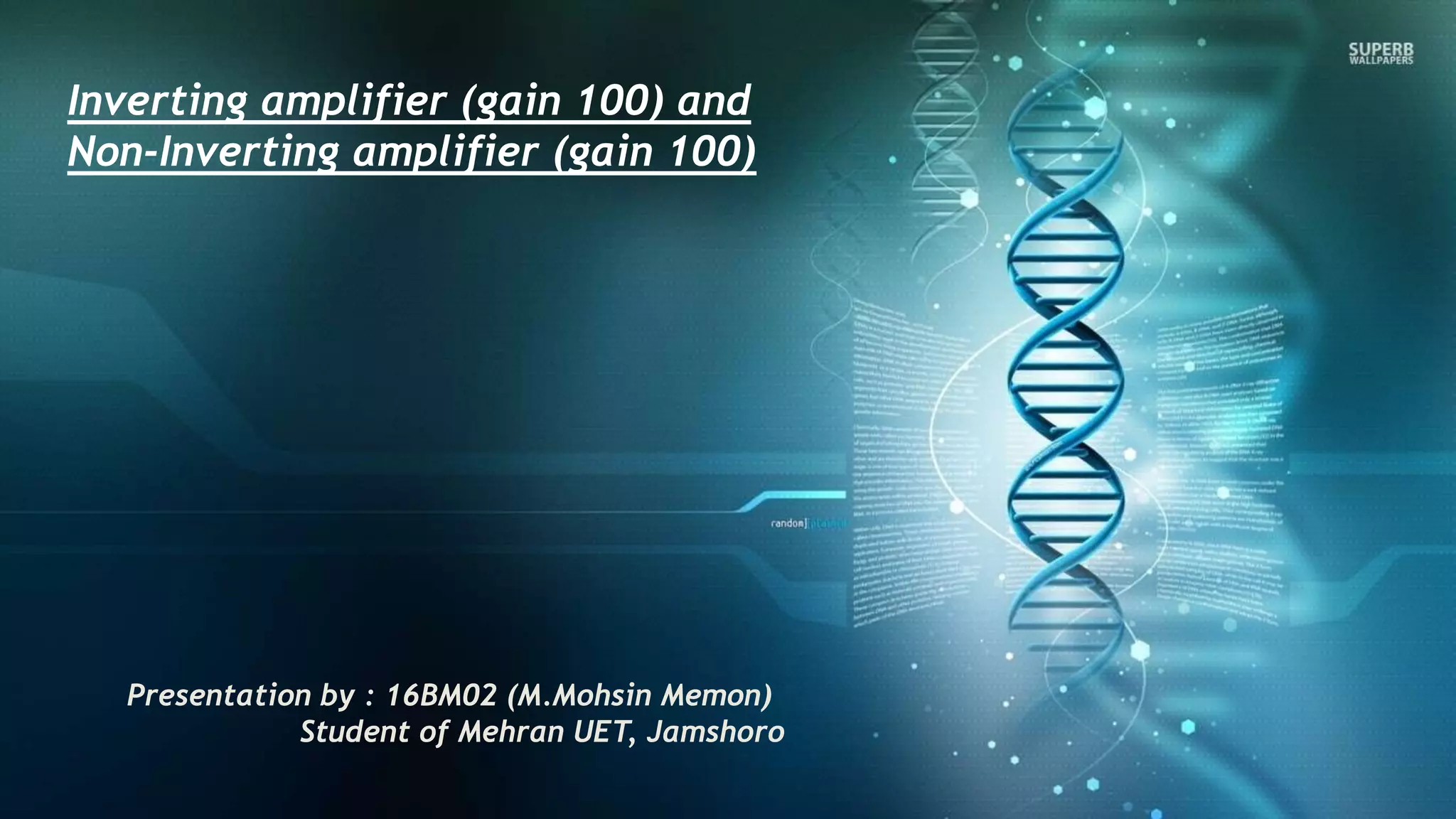

Invering and non inverting amplifiers
1. Inverting amplifier (gain 100) and
Non-Inverting amplifier (gain 100)
Presentation by : 16BM02 (M.Mohsin Memon)
Student of Mehran UET, Jamshoro
2. Inverting Amplifiers:
Introduction
A basic op-amp circuit is one
that produces an 180 signal
phase shift, The inverting
amplifier is the op-amp
counterpart of common
emitter and common-source
amplifiers.

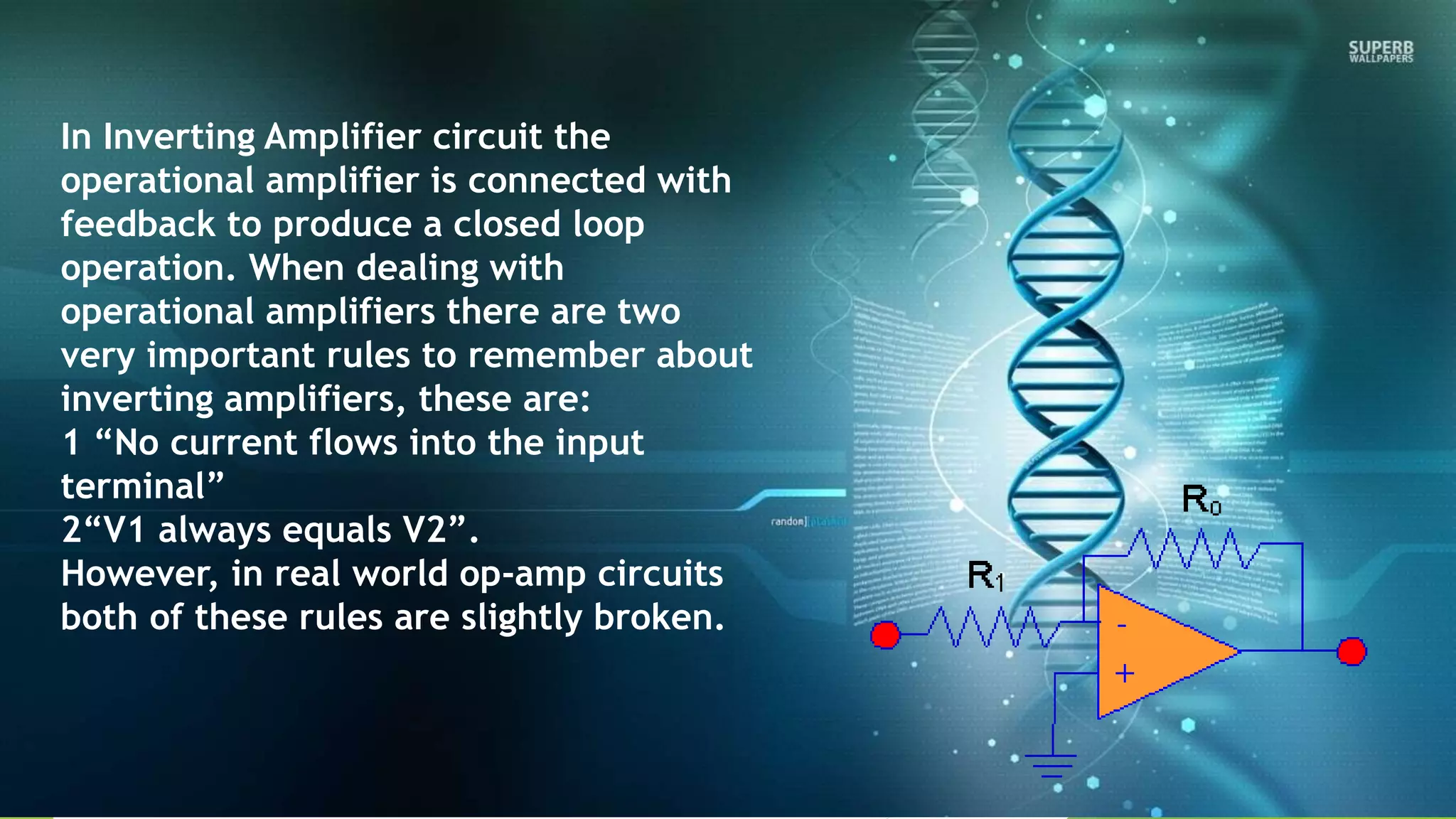

3. In Inverting Amplifier circuit the
operational amplifier is connected with
feedback to produce a closed loop
operation. When dealing with
operational amplifiers there are two
very important rules to remember about
inverting amplifiers, these are:
1 “No current flows into the input
terminal”
2“V1 always equals V2”.
However, in real world op-amp circuits
both of these rules are slightly broken.

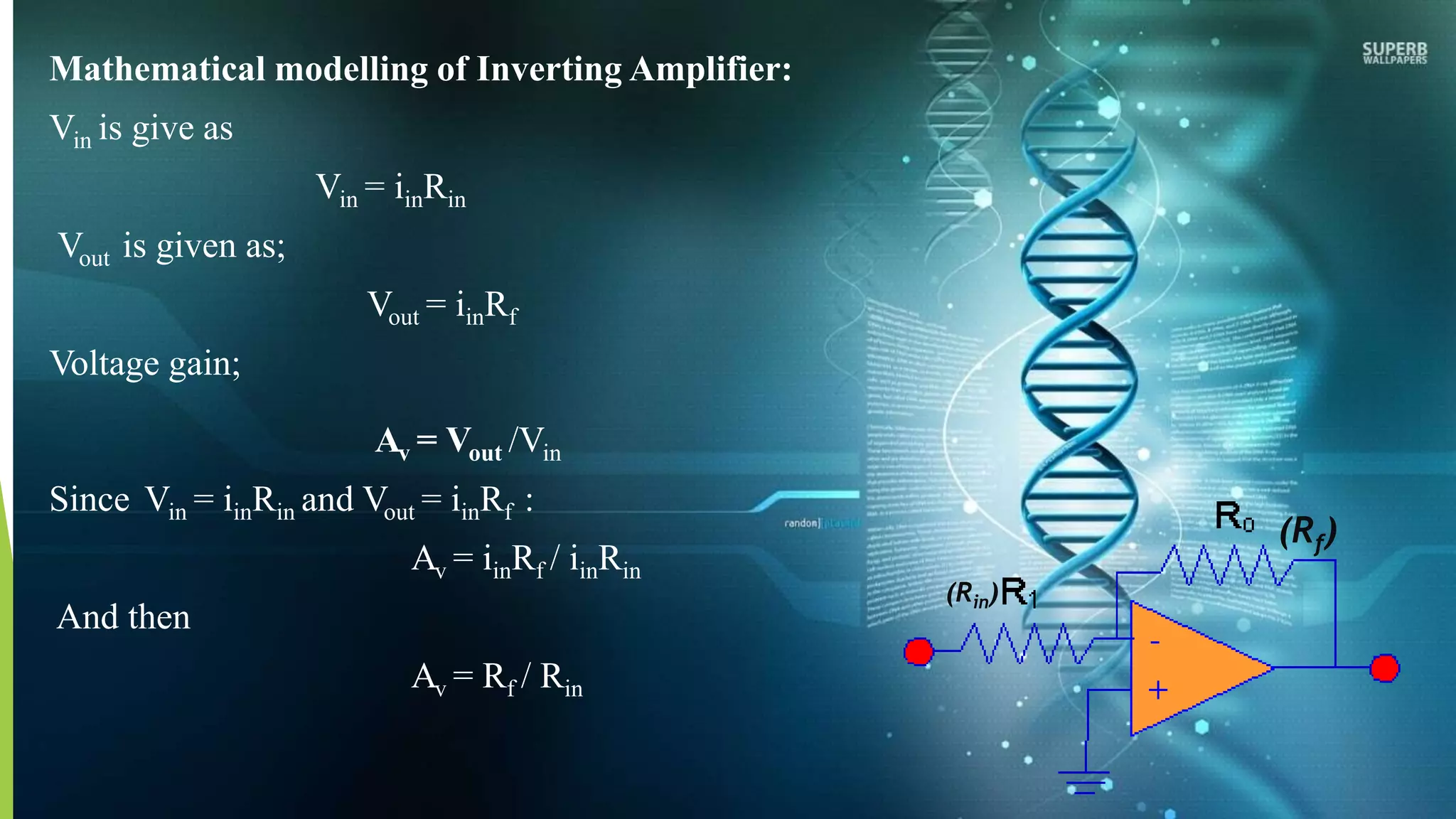

4. Mathematical modelling of Inverting Amplifier:
Vin is give as
Vin = iinRin
Vout is given as;
Vout = iinRf
Voltage gain;
Av = Vout /Vin
Since Vin = iinRin and Vout = iinRf :
Av = iinRf / iinRin
And then
Av = Rf / Rin
(Rf)
(Rin)

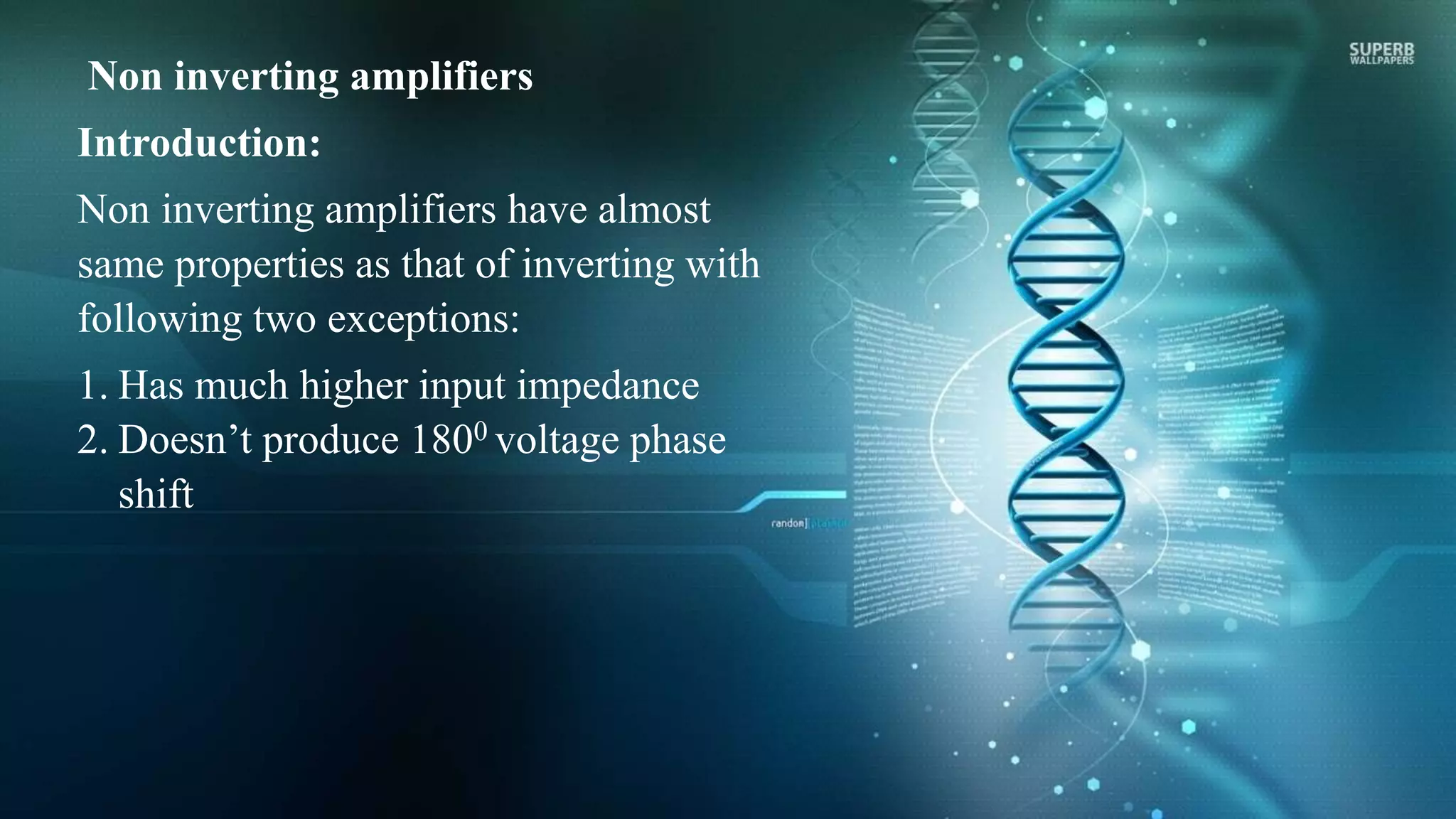

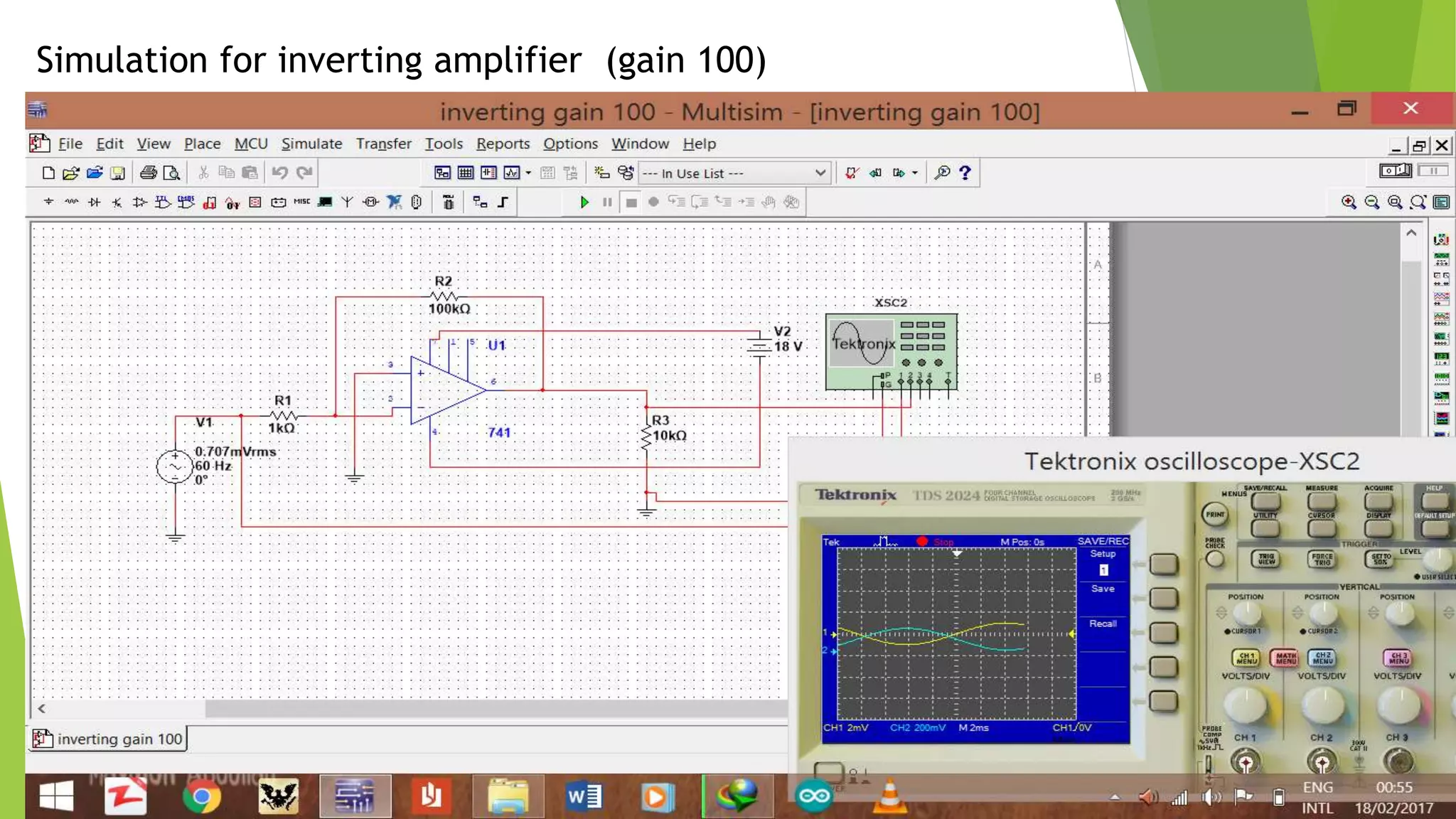

6. Non inverting amplifiers
Introduction:
Non inverting amplifiers have almost
same properties as that of inverting with
following two exceptions:
1. Has much higher input impedance
2. Doesn’t produce 1800 voltage phase
shift

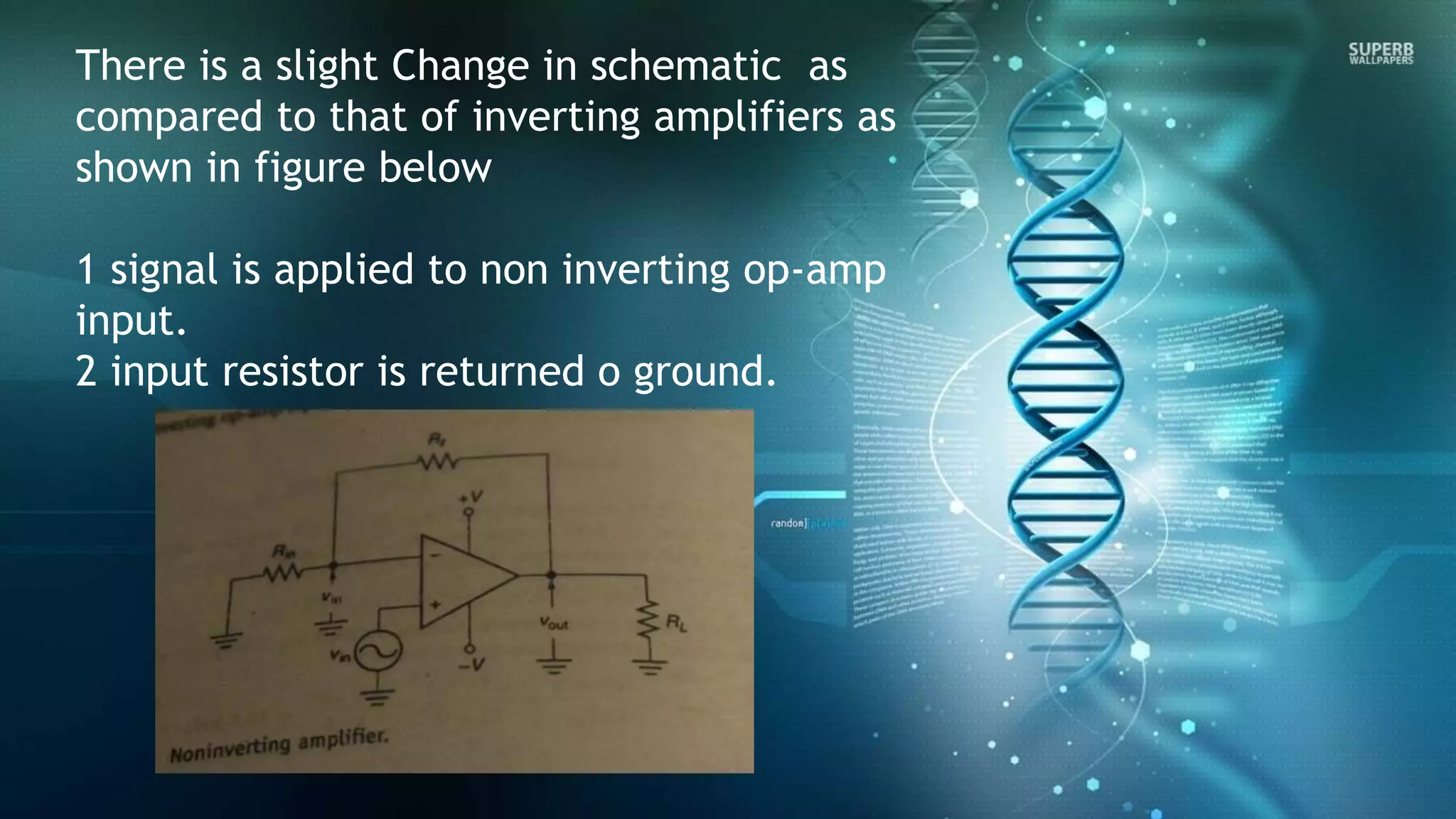

7. There is a slight Change in schematic as
compared to that of inverting amplifiers as
shown in figure below
1 signal is applied to non inverting op-amp
input.
2 input resistor is returned o ground.

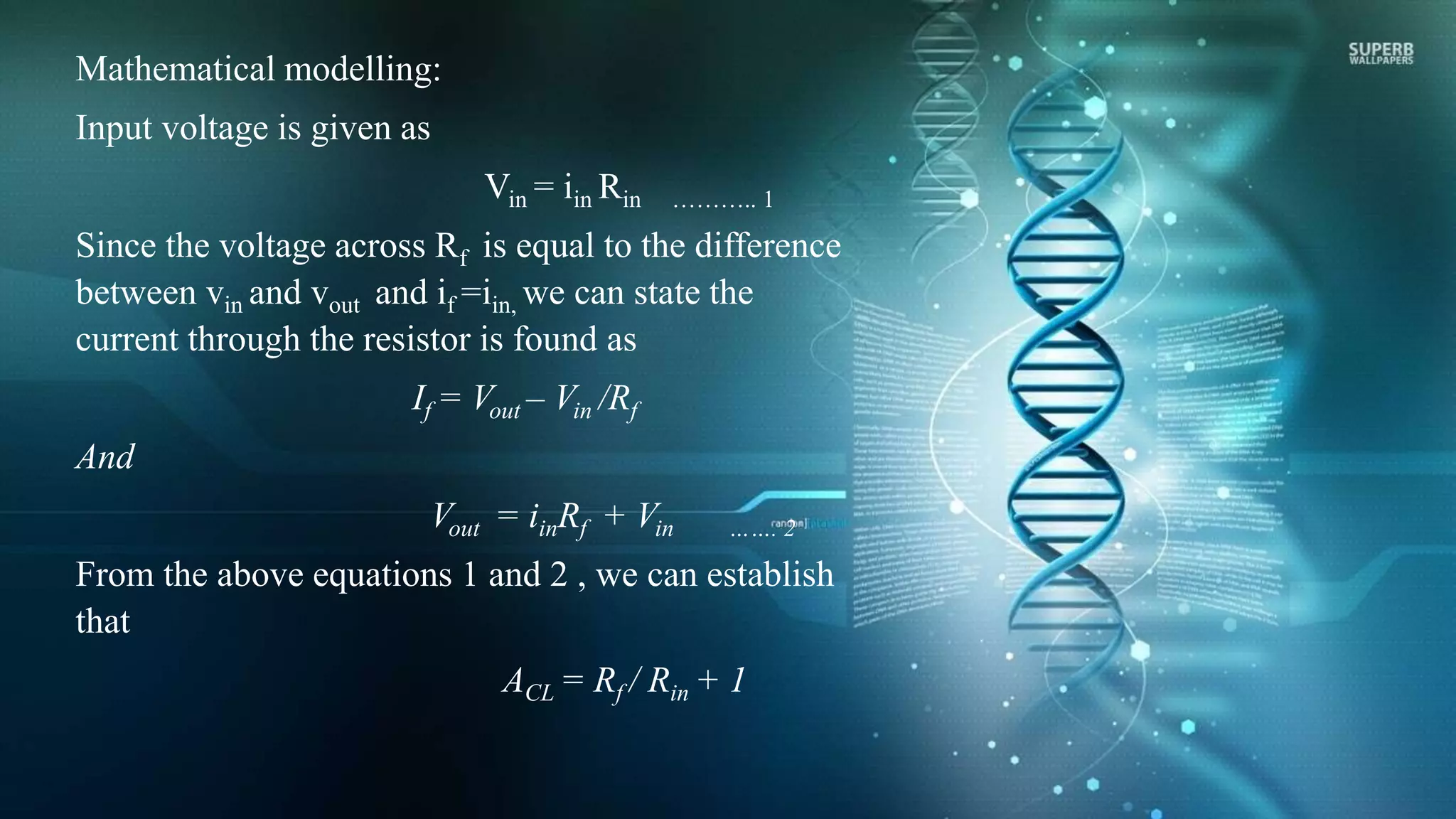

8. Mathematical modelling:
Input voltage is given as
Vin = iin Rin ……….. 1
Since the voltage across Rf is equal to the difference
between vin and vout and if =iin, we can state the
current through the resistor is found as
If = Vout – Vin /Rf
And
Vout = iinRf + Vin ……. 2
From the above equations 1 and 2 , we can establish
that
ACL = Rf / Rin + 1
9.
10.

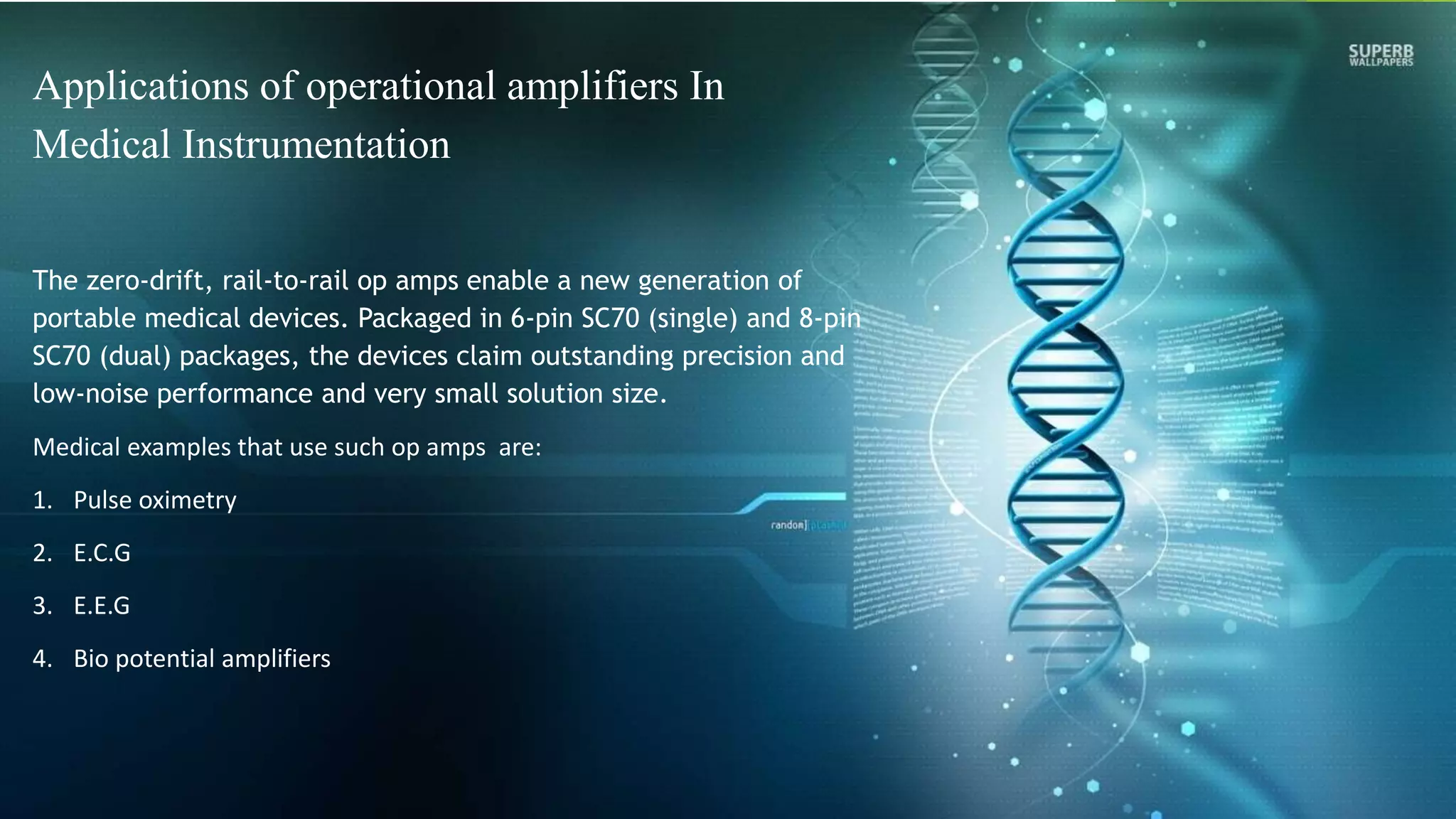

11. Applications of operational amplifiers In
Medical Instrumentation
The zero-drift, rail-to-rail op amps enable a new generation of
portable medical devices. Packaged in 6-pin SC70 (single) and 8-pin
SC70 (dual) packages, the devices claim outstanding precision and
low-noise performance and very small solution size.
Medical examples that use such op amps are:
1. Pulse oximetry
2. E.C.G
3. E.E.G
4. Bio potential amplifiers

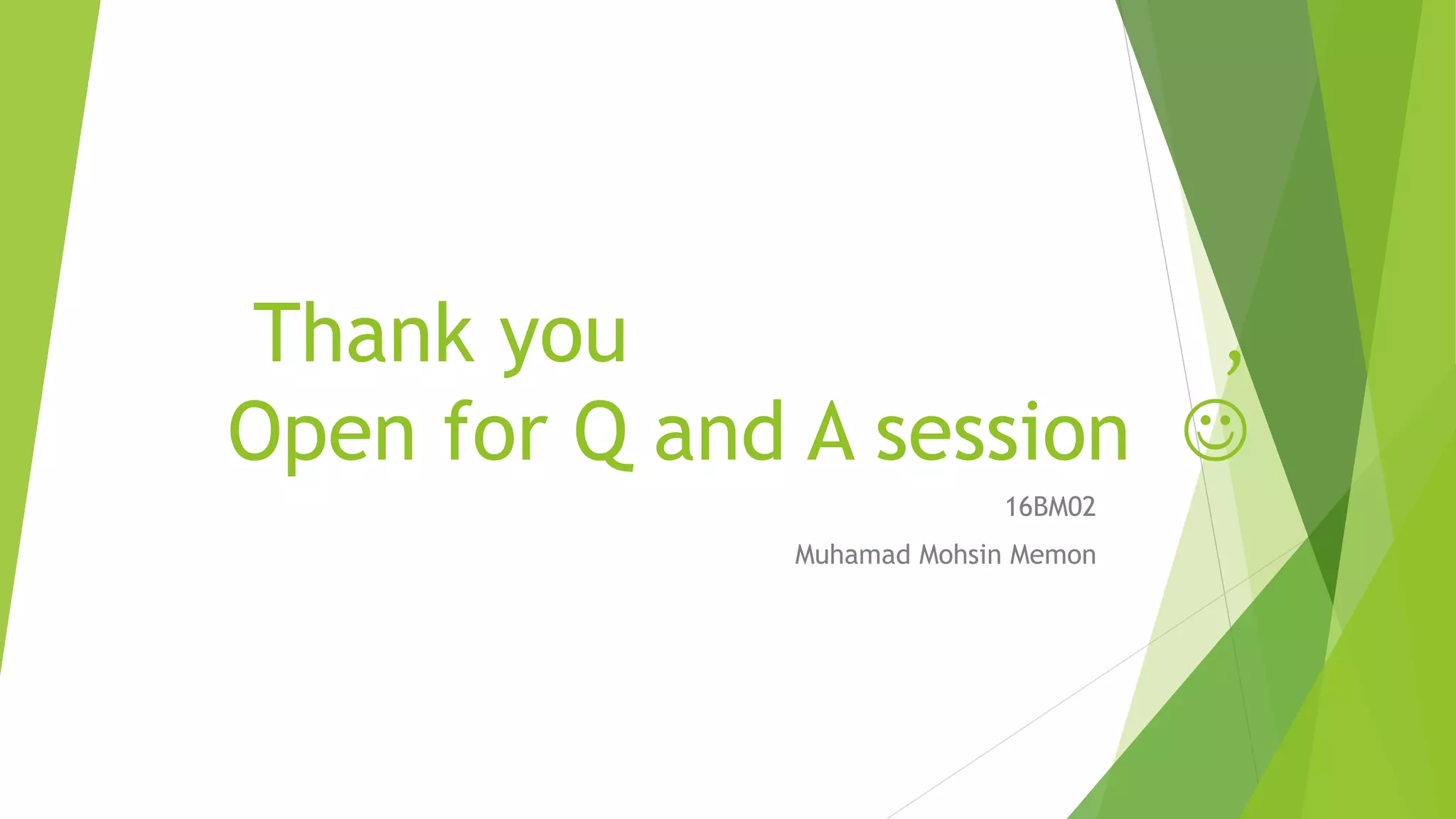

12. Thank you ,
Open for Q and A session
16BM02
Muhamad Mohsin Memon
