Introduction to Simulation
modeling
Submitted To:-
Prof. D.K. Chaturvedi,
Electrical Department,
Faculty of Engineering,
Dayalbagh Educational Institute,
Dayalbagh, Agra.
Submitted By:-
Bhupendra Kumar
M.Tech(Int.) – 094008
Introduction to model

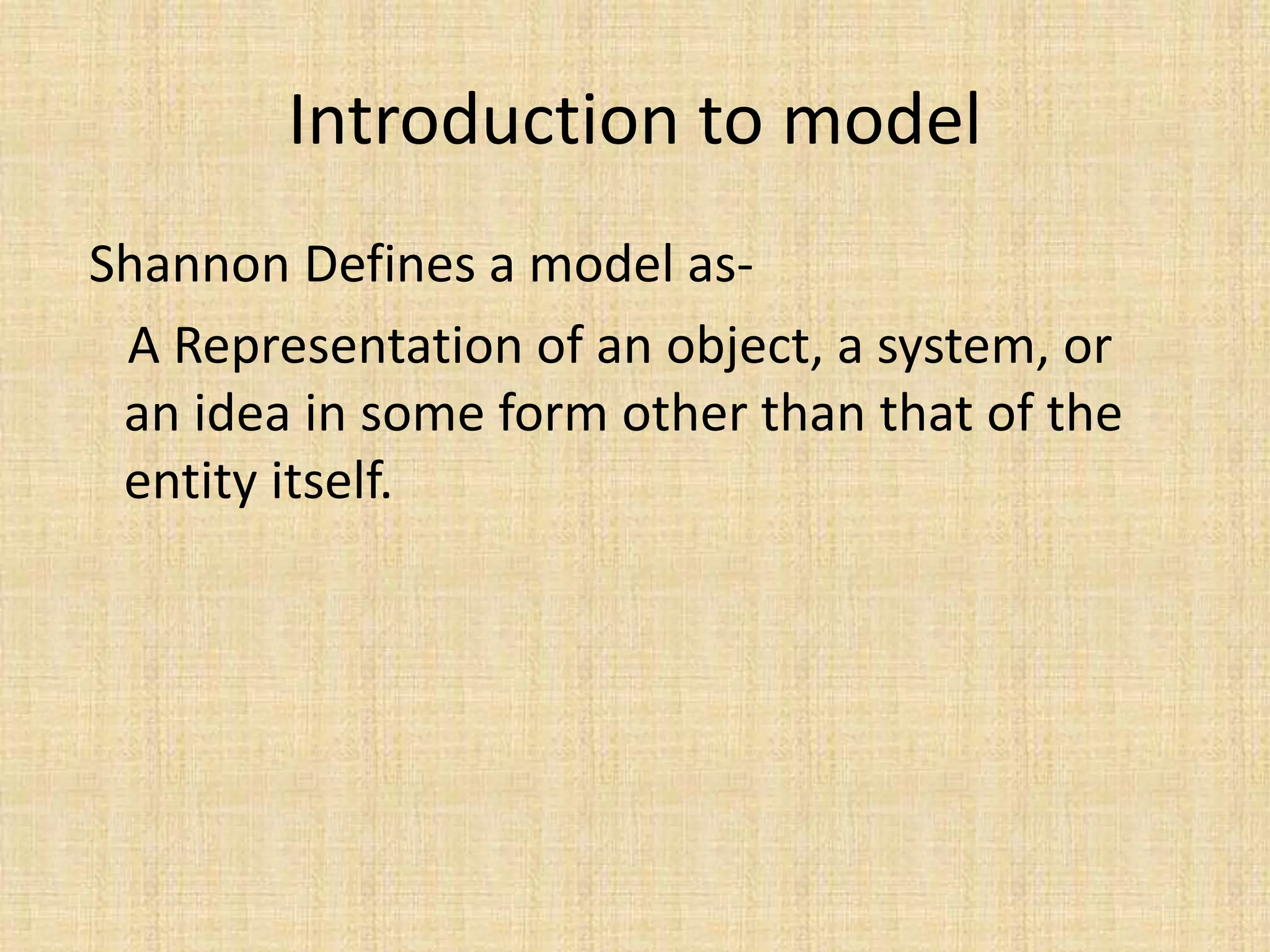

Shannon Defines a model as-
A Representation of an object, a system, or
an idea in some form other than that of the
entity itself.
Definition - Simulation
“Simulation is the process of designing
a model of a real system and conducting
experiments with this model for the
purpose of either understanding the
behavior of the system and/or
evaluating various strategies for the
operation of the system.”
- Introduction to Simulation Using SIMAN
(2nd Edition)
Some other definitions

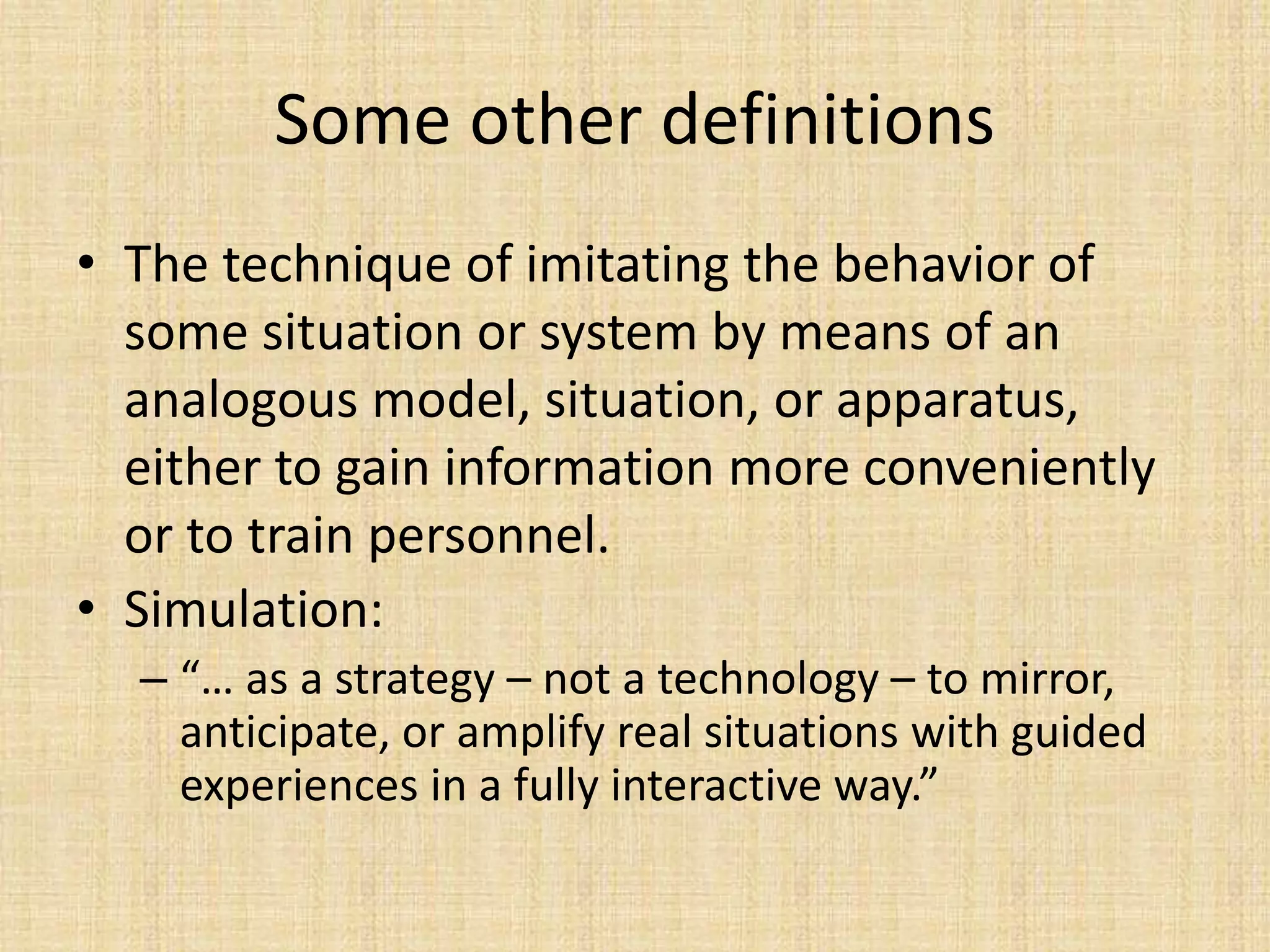

• The technique of imitating the behavior of
some situation or system by means of an
analogous model, situation, or apparatus,
either to gain information more conveniently
or to train personnel.
• Simulation:
– “… as a strategy – not a technology – to mirror,
anticipate, or amplify real situations with guided
experiences in a fully interactive way.”
Simulation
• Where simulation fits in
Simulation
Programming
Analysis
Modeling
Probability &
Statistics
6

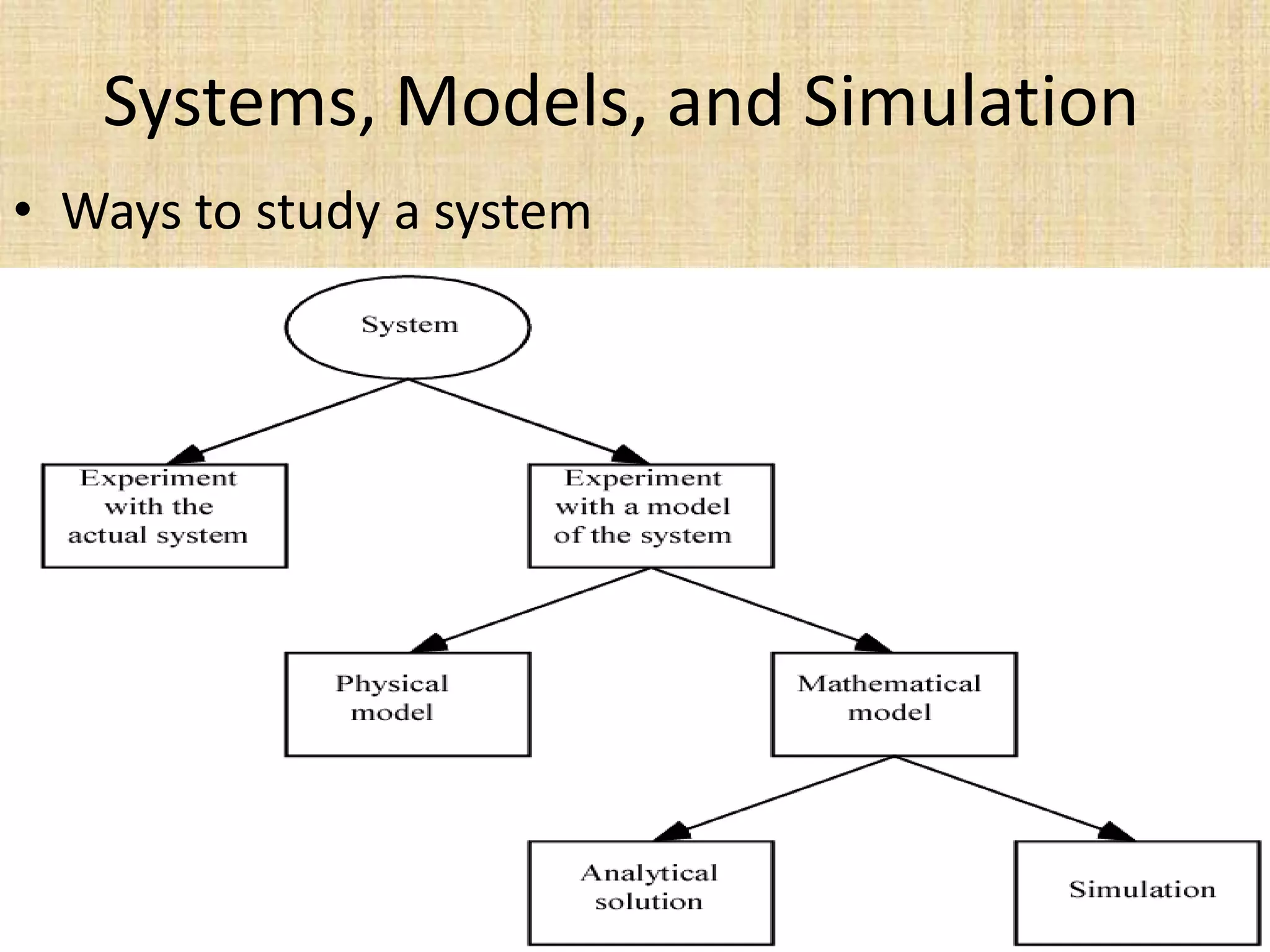

• Ways to study a system
Systems, Models, and Simulation
7

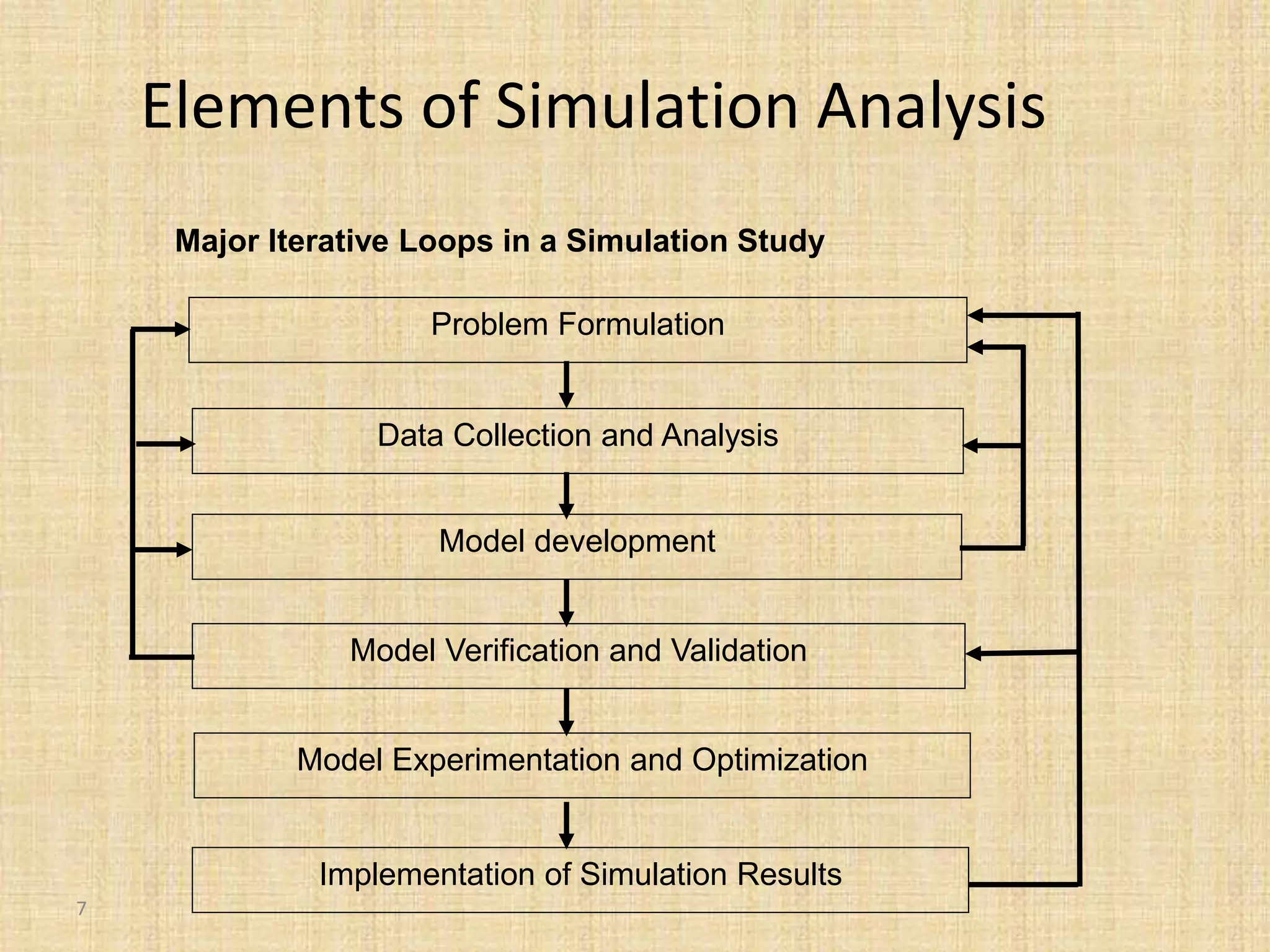

Elements of Simulation Analysis
Problem Formulation
Data Collection and Analysis
Model development
Model Verification and Validation
Model Experimentation and Optimization
Implementation of Simulation Results
Major Iterative Loops in a Simulation Study

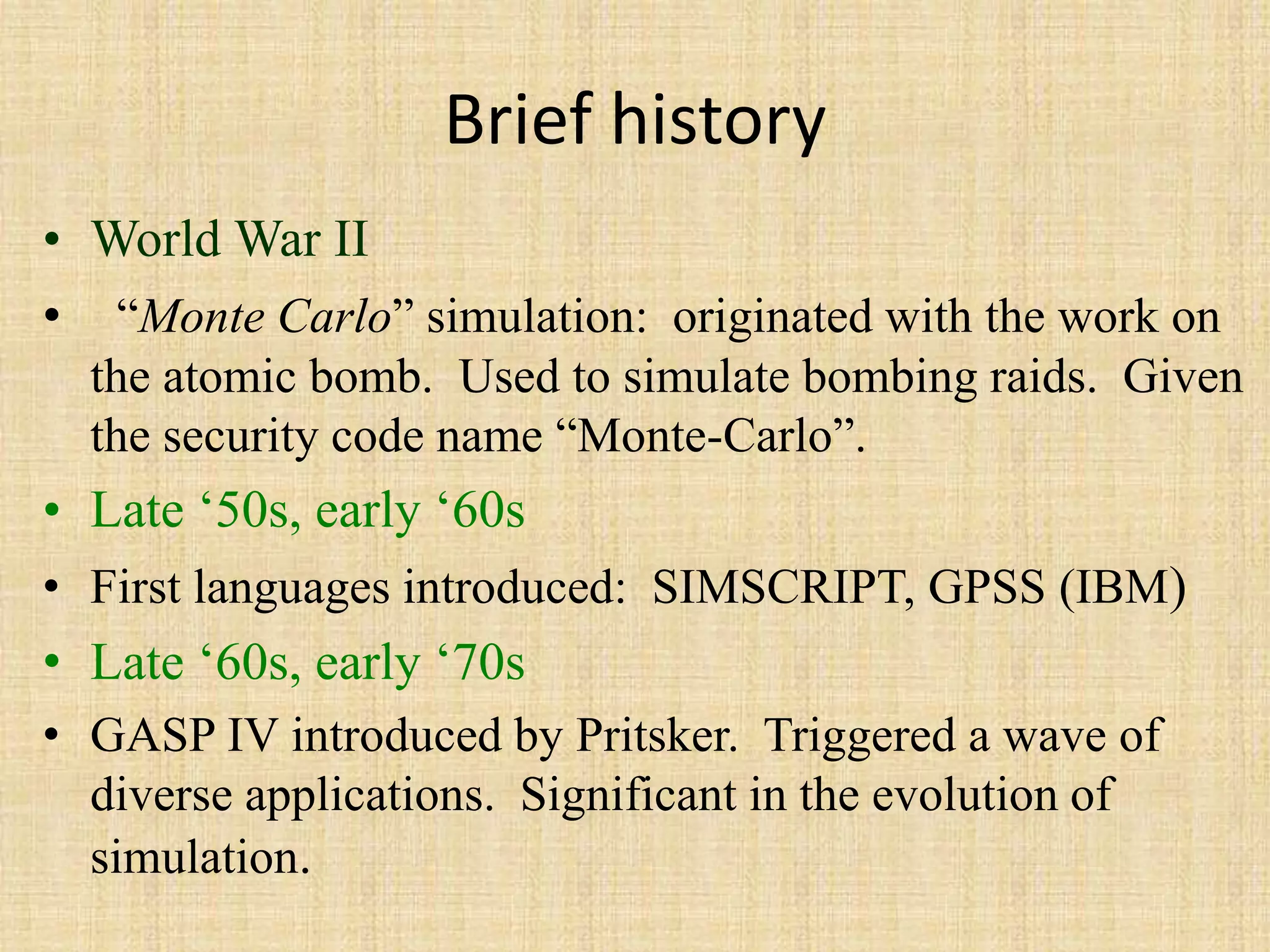

Brief history
• World War II
• “Monte Carlo” simulation: originated with the work on
the atomic bomb. Used to simulate bombing raids. Given
the security code name “Monte-Carlo”.
• Late ‘50s, early ‘60s
• First languages introduced: SIMSCRIPT, GPSS (IBM)
• Late ‘60s, early ‘70s
• GASP IV introduced by Pritsker. Triggered a wave of
diverse applications. Significant in the evolution of
simulation.
• Late ‘70s, early ’80
• SLAM introduced in 1979 by Pritsker and Pegden.
• Models more credible because of sophisticated tools
• SIMAN introduced in 1982 by Pegden. First language to
run on both a mainframe as well as a microcomputer.
• Late ‘80s through present
• Powerful PCs
• Languages are very sophisticated (market almost saturated)
• Major advancement: graphics. Models can now be
animated!

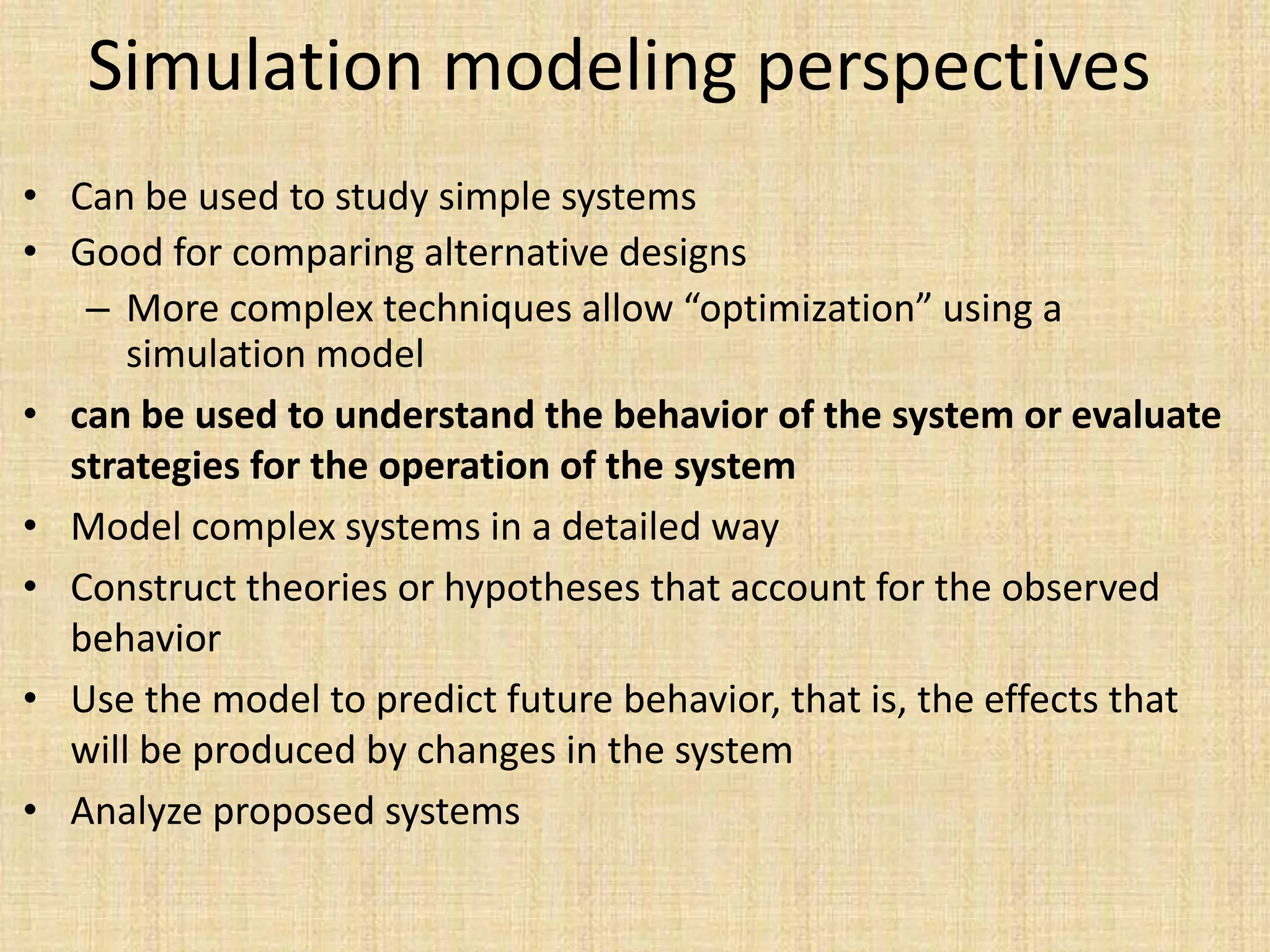

Simulation modeling perspectives
• Can be used to study simple systems
• Good for comparing alternative designs
– More complex techniques allow “optimization” using a
simulation model
• can be used to understand the behavior of the system or evaluate
strategies for the operation of the system
• Model complex systems in a detailed way
• Construct theories or hypotheses that account for the observed
behavior
• Use the model to predict future behavior, that is, the effects that
will be produced by changes in the system
• Analyze proposed systems
11

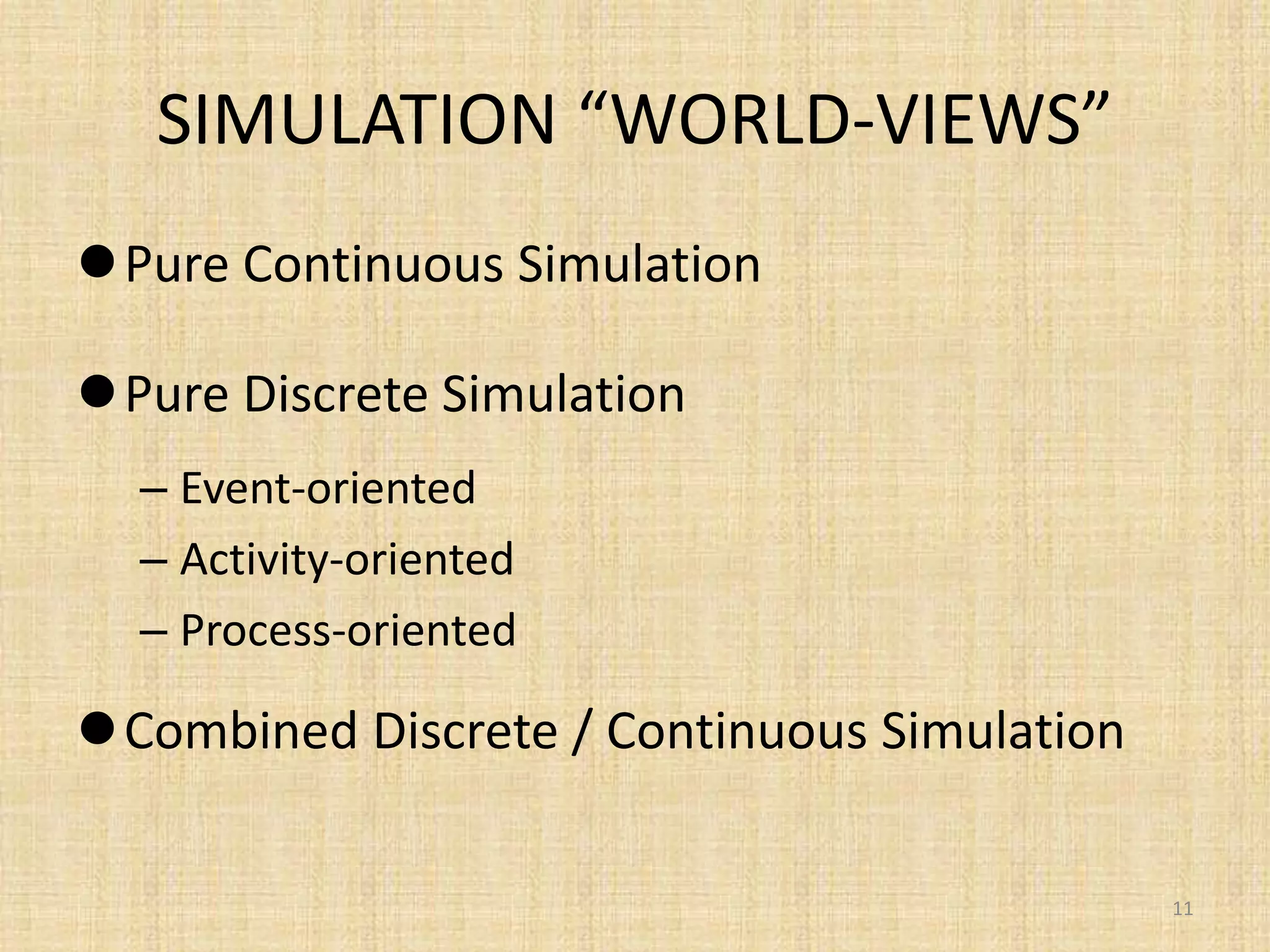

SIMULATION “WORLD-VIEWS”
Pure Continuous Simulation
Pure Discrete Simulation
– Event-oriented
– Activity-oriented
– Process-oriented
Combined Discrete / Continuous Simulation
12

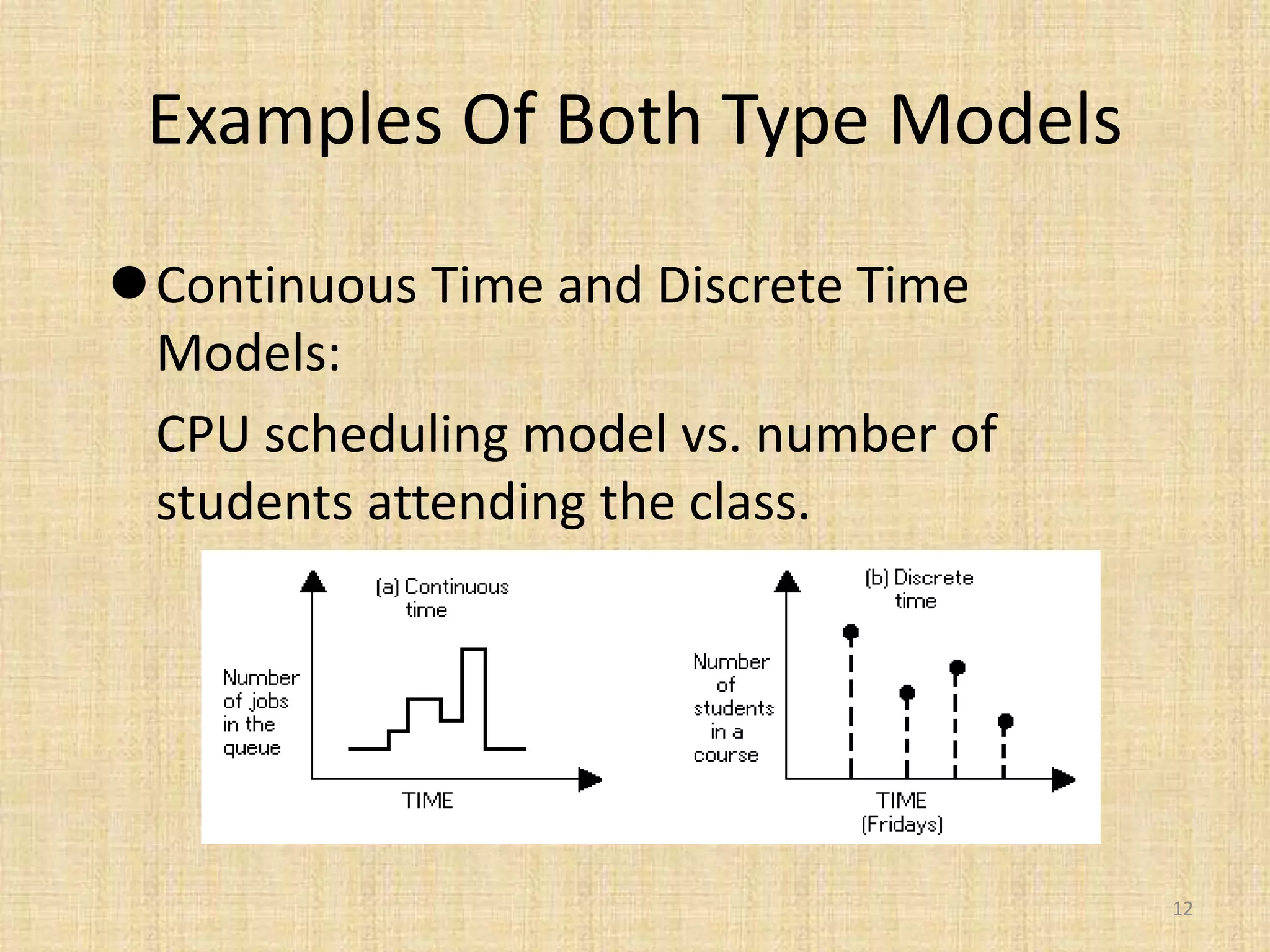

Examples Of Both Type Models
Continuous Time and Discrete Time
Models:
CPU scheduling model vs. number of
students attending the class.

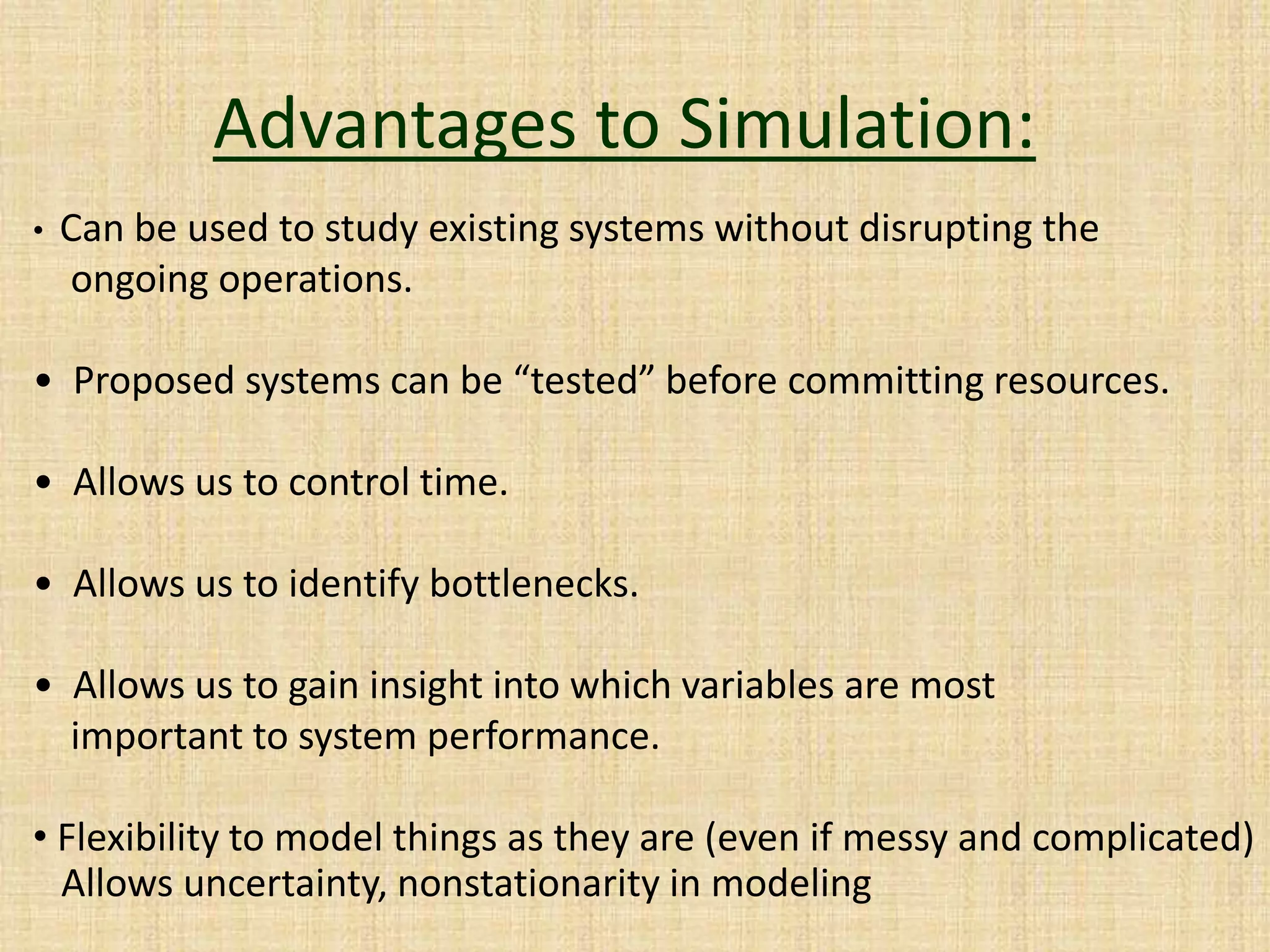

Advantages to Simulation:
• Can be used to study existing systems without disrupting the
ongoing operations.
• Proposed systems can be “tested” before committing resources.
• Allows us to control time.
• Allows us to identify bottlenecks.
• Allows us to gain insight into which variables are most
important to system performance.
• Flexibility to model things as they are (even if messy and complicated)
Allows uncertainty, nonstationarity in modeling

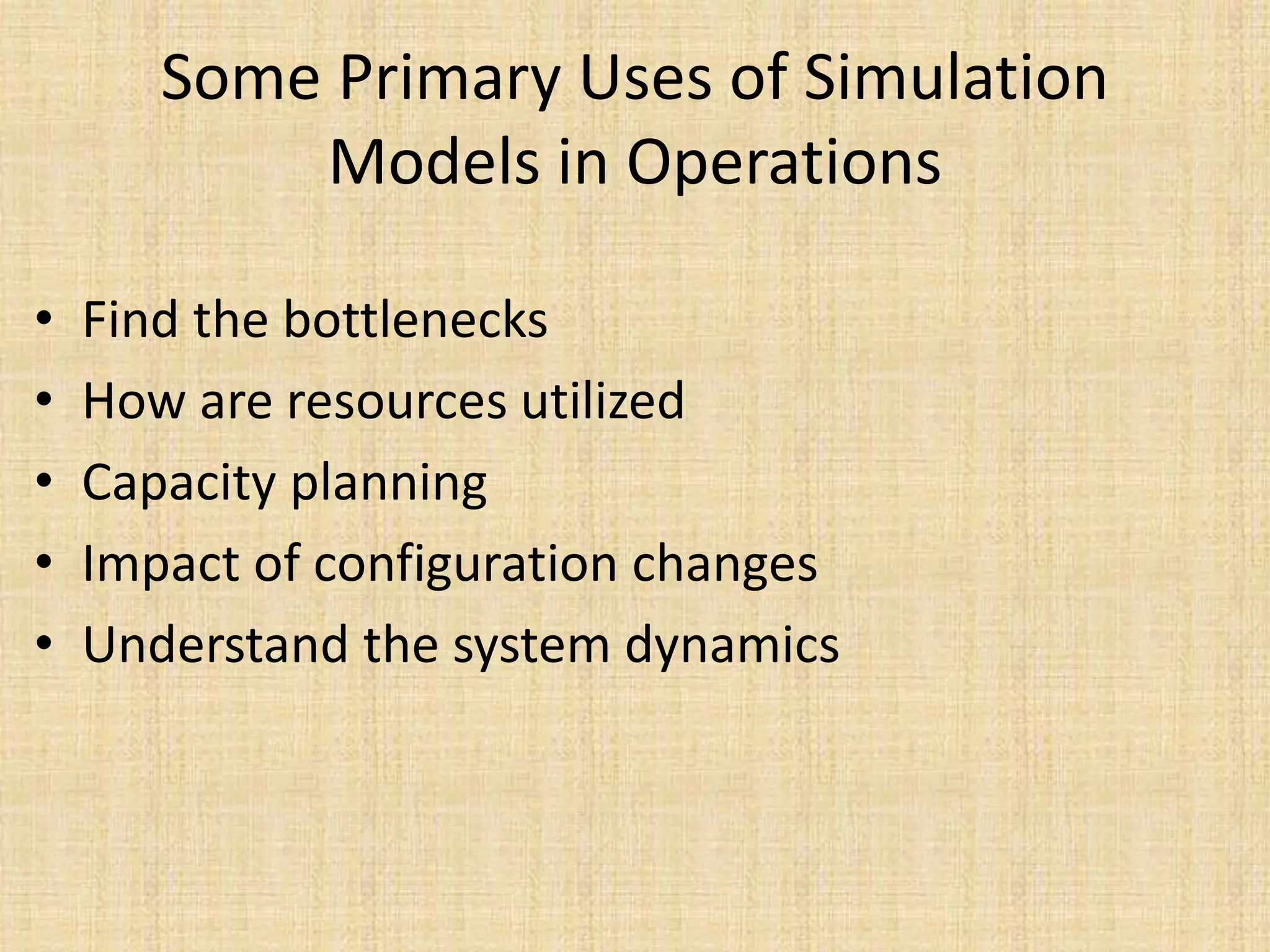

Some Primary Uses of Simulation
Models in Operations
• Find the bottlenecks
• How are resources utilized
• Capacity planning
• Impact of configuration changes
• Understand the system dynamics

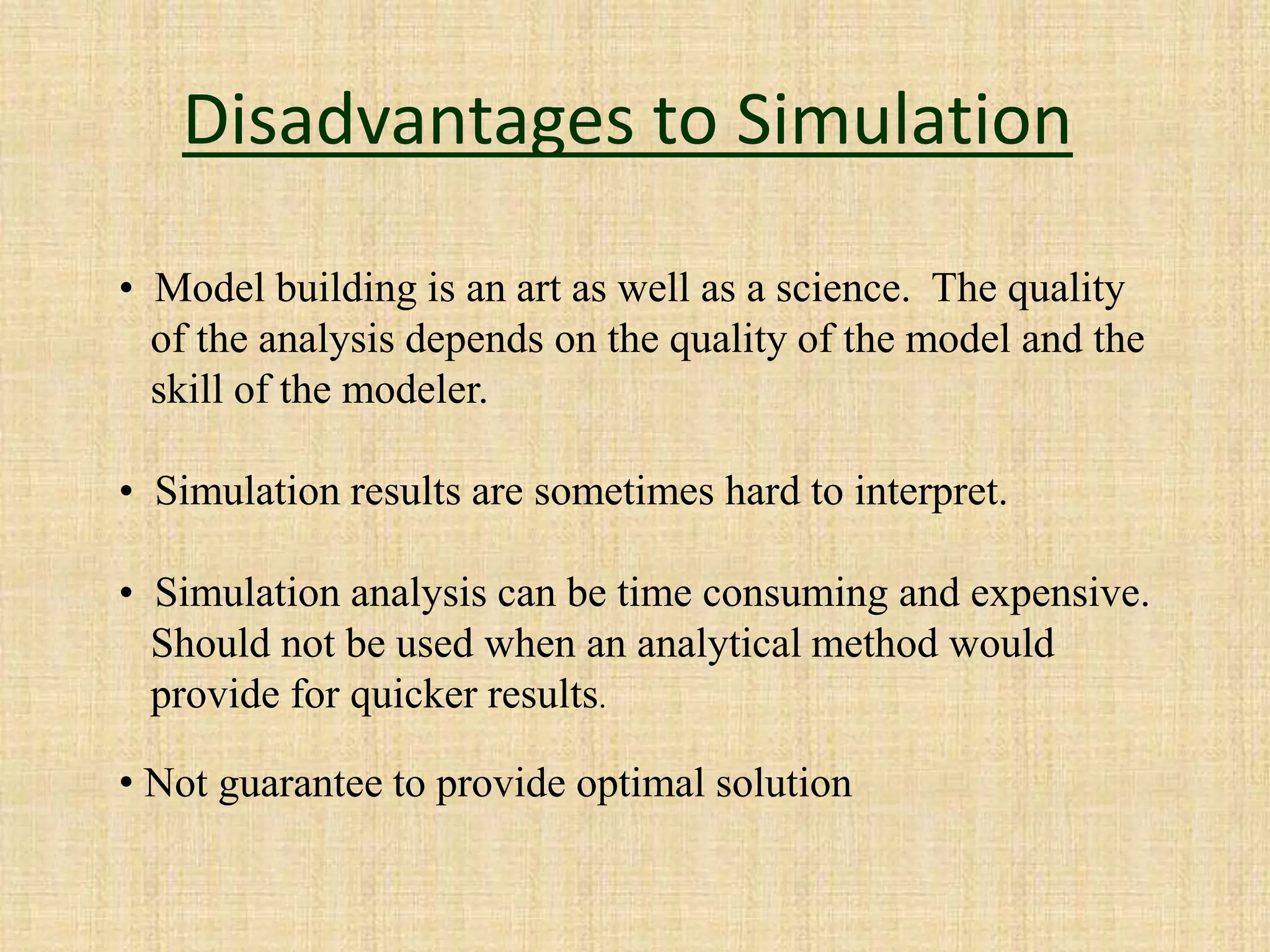

Disadvantages to Simulation
• Model building is an art as well as a science. The quality
of the analysis depends on the quality of the model and the
skill of the modeler.
• Simulation results are sometimes hard to interpret.
• Simulation analysis can be time consuming and expensive.
Should not be used when an analytical method would
provide for quicker results.
• Not guarantee to provide optimal solution

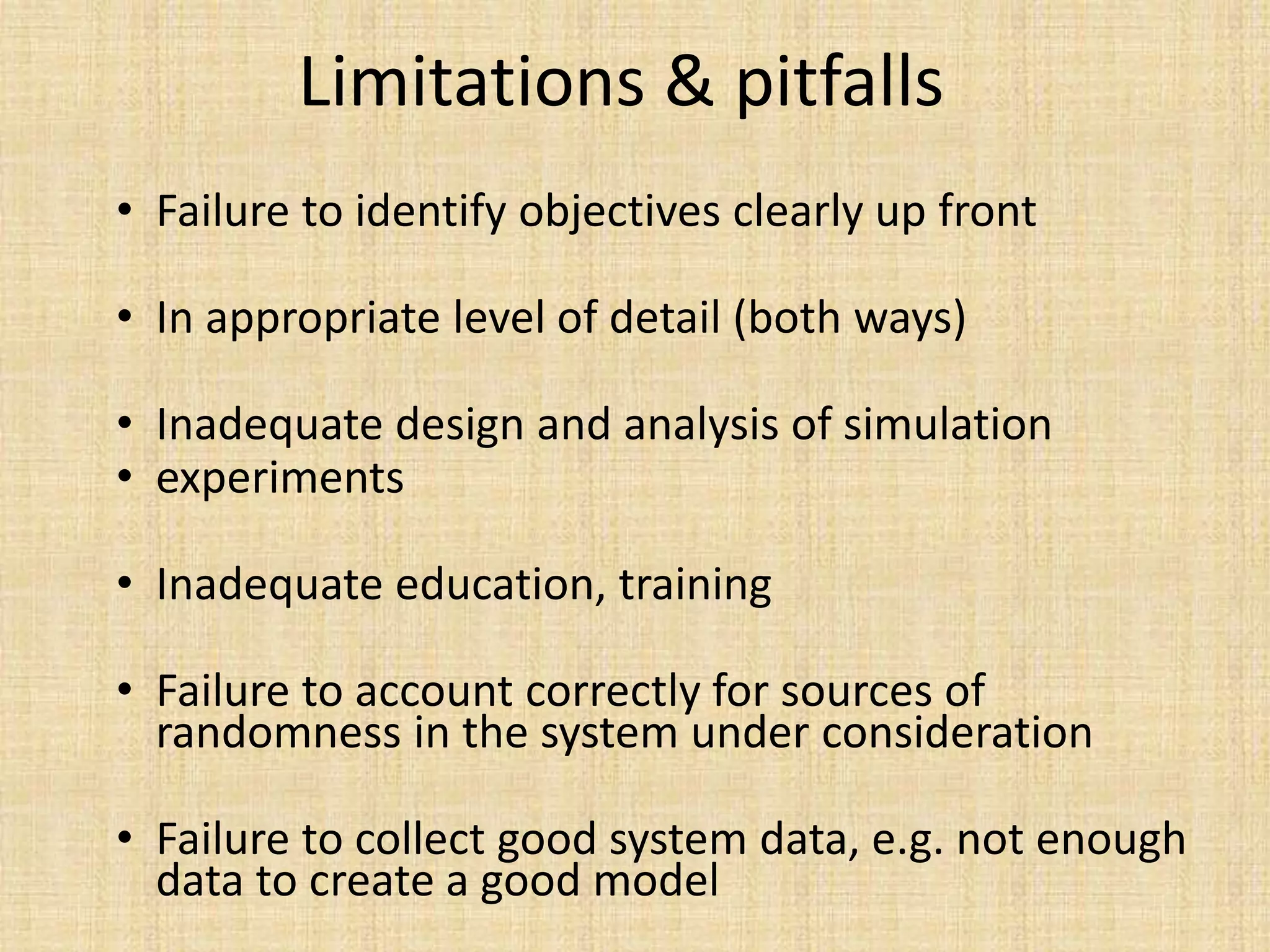

Limitations & pitfalls
• Failure to identify objectives clearly up front
• In appropriate level of detail (both ways)
• Inadequate design and analysis of simulation
• experiments
• Inadequate education, training
• Failure to account correctly for sources of
randomness in the system under consideration
• Failure to collect good system data, e.g. not enough
data to create a good model
17

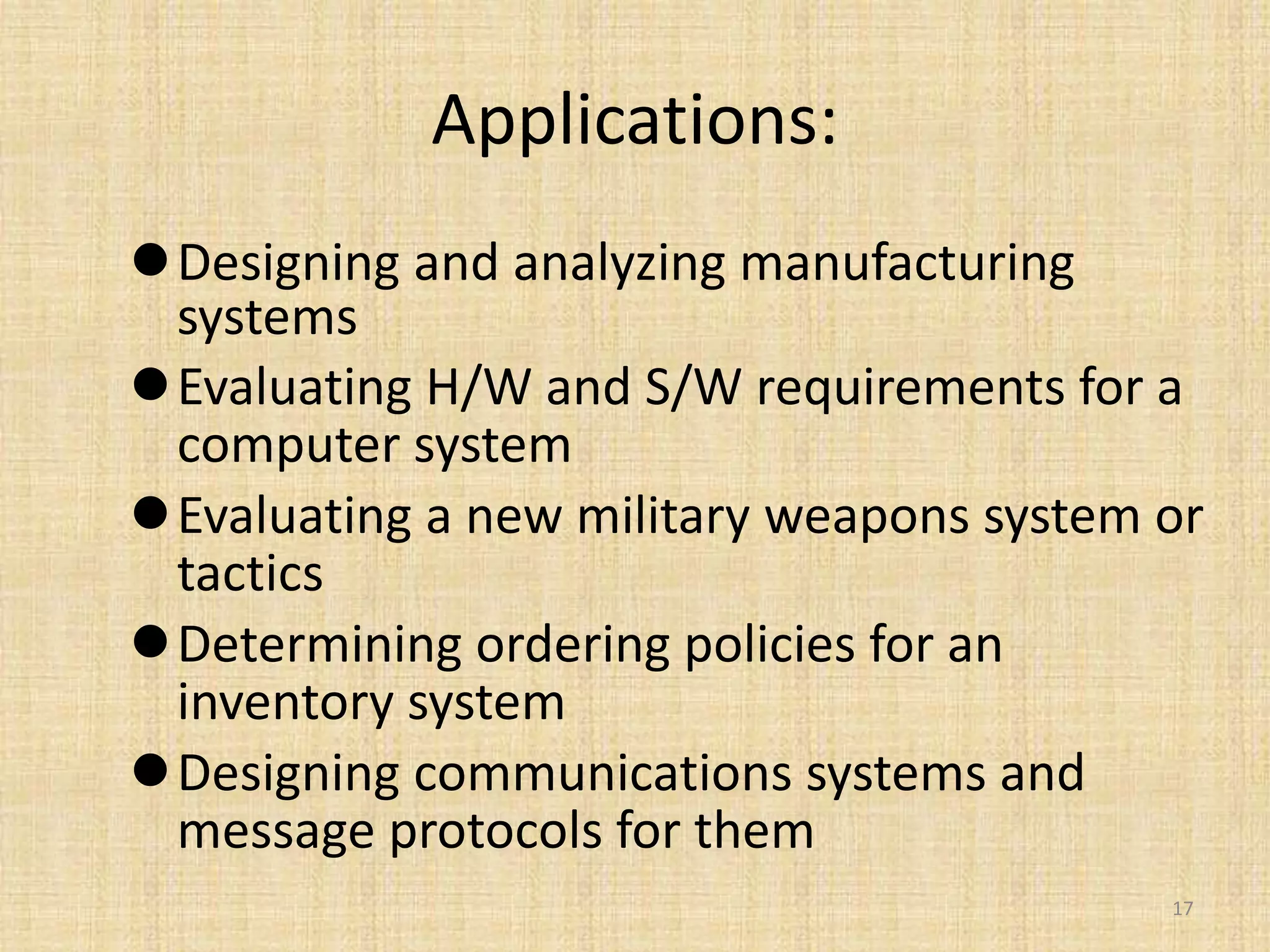

Applications:
Designing and analyzing manufacturing
systems
Evaluating H/W and S/W requirements for a
computer system
Evaluating a new military weapons system or
tactics
Determining ordering policies for an
inventory system
Designing communications systems and
message protocols for them
18

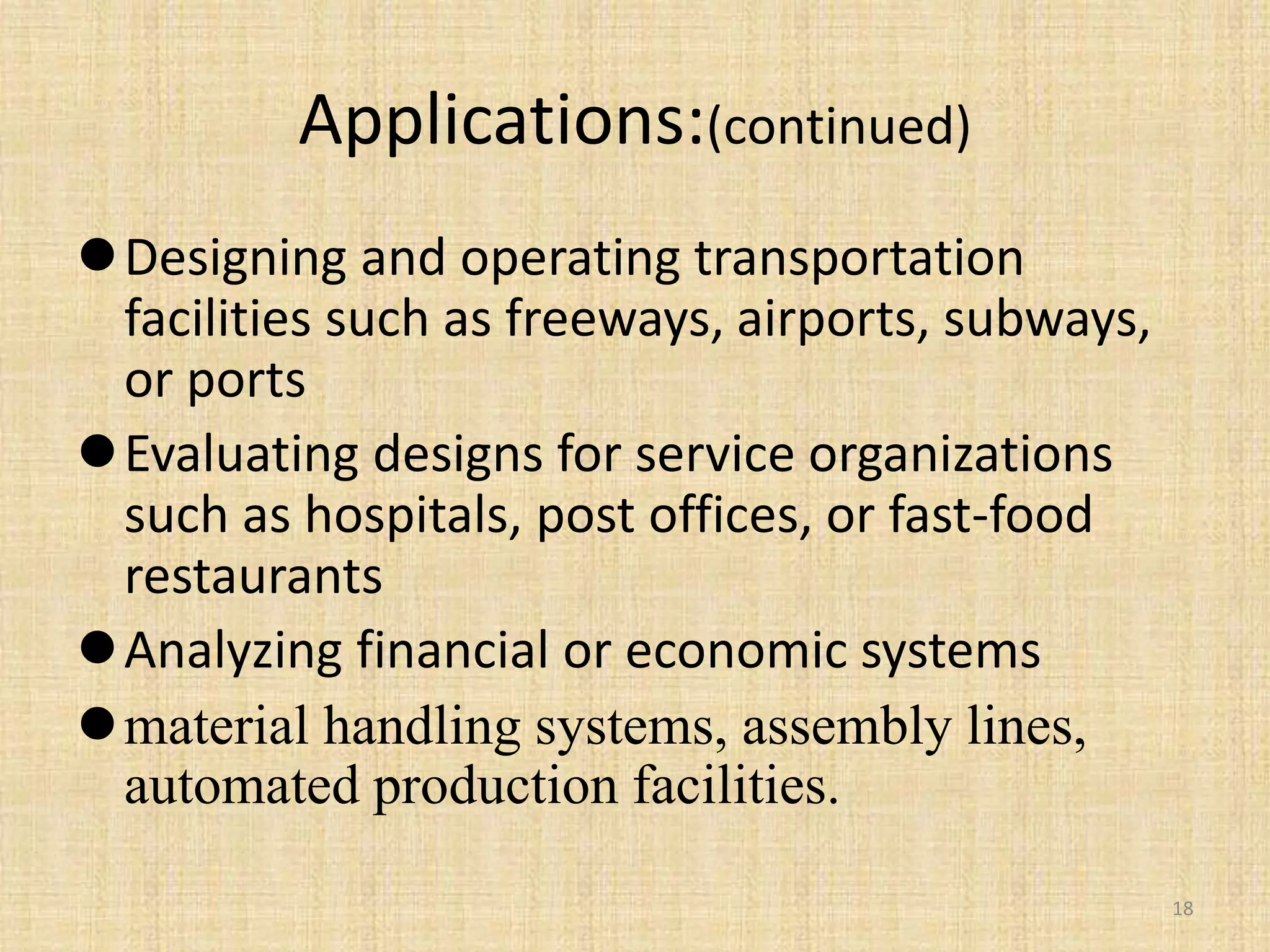

Applications:(continued)
Designing and operating transportation
facilities such as freeways, airports, subways,
or ports
Evaluating designs for service organizations
such as hospitals, post offices, or fast-food
restaurants
Analyzing financial or economic systems
material handling systems, assembly lines,
automated production facilities.

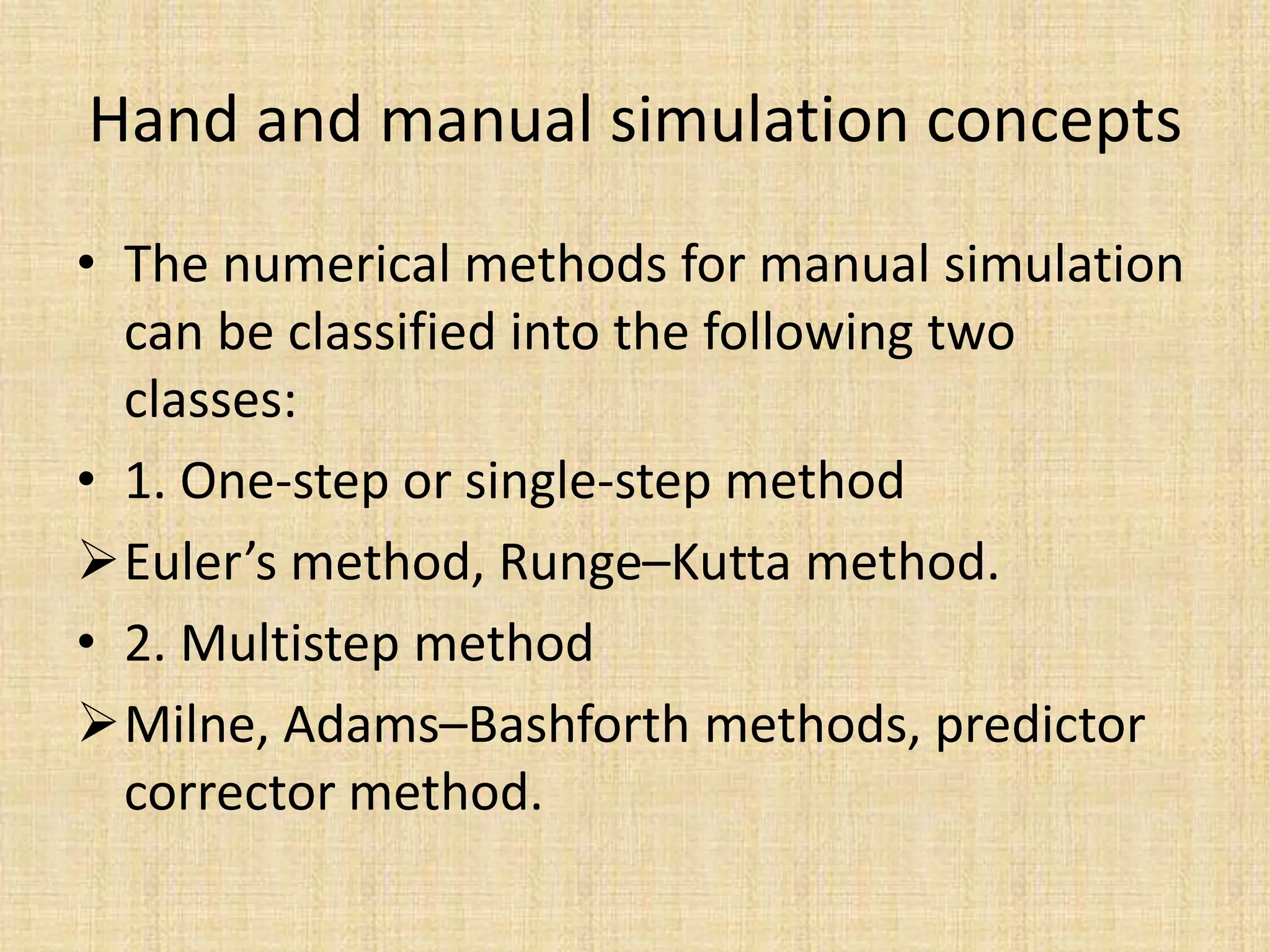

Hand and manual simulation concepts
• The numerical methods for manual simulation
can be classified into the following two
classes:
• 1. One-step or single-step method
Euler’s method, Runge–Kutta method.
• 2. Multistep method
Milne, Adams–Bashforth methods, predictor
corrector method.

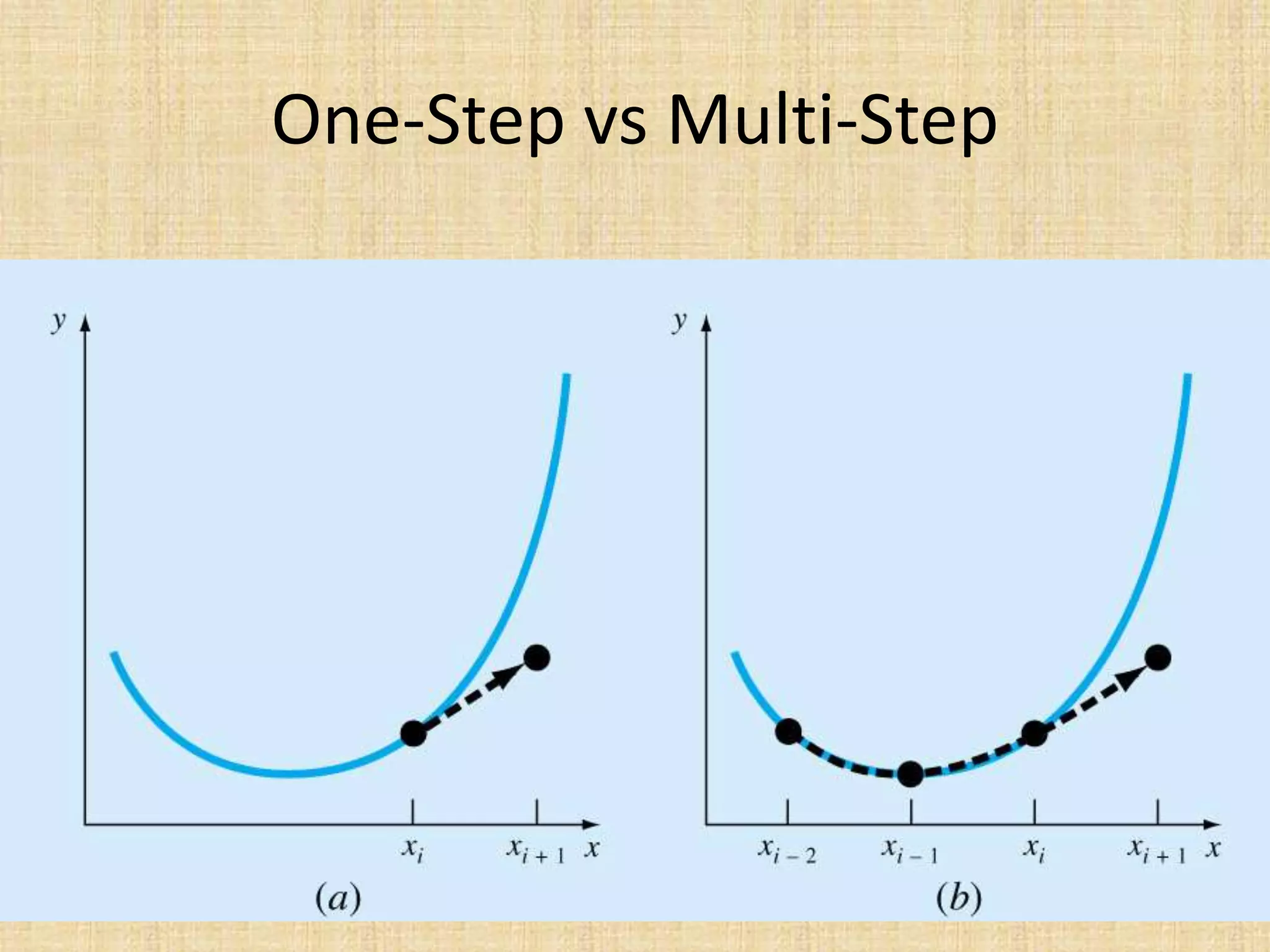

One-Step vs Multi-Step
21

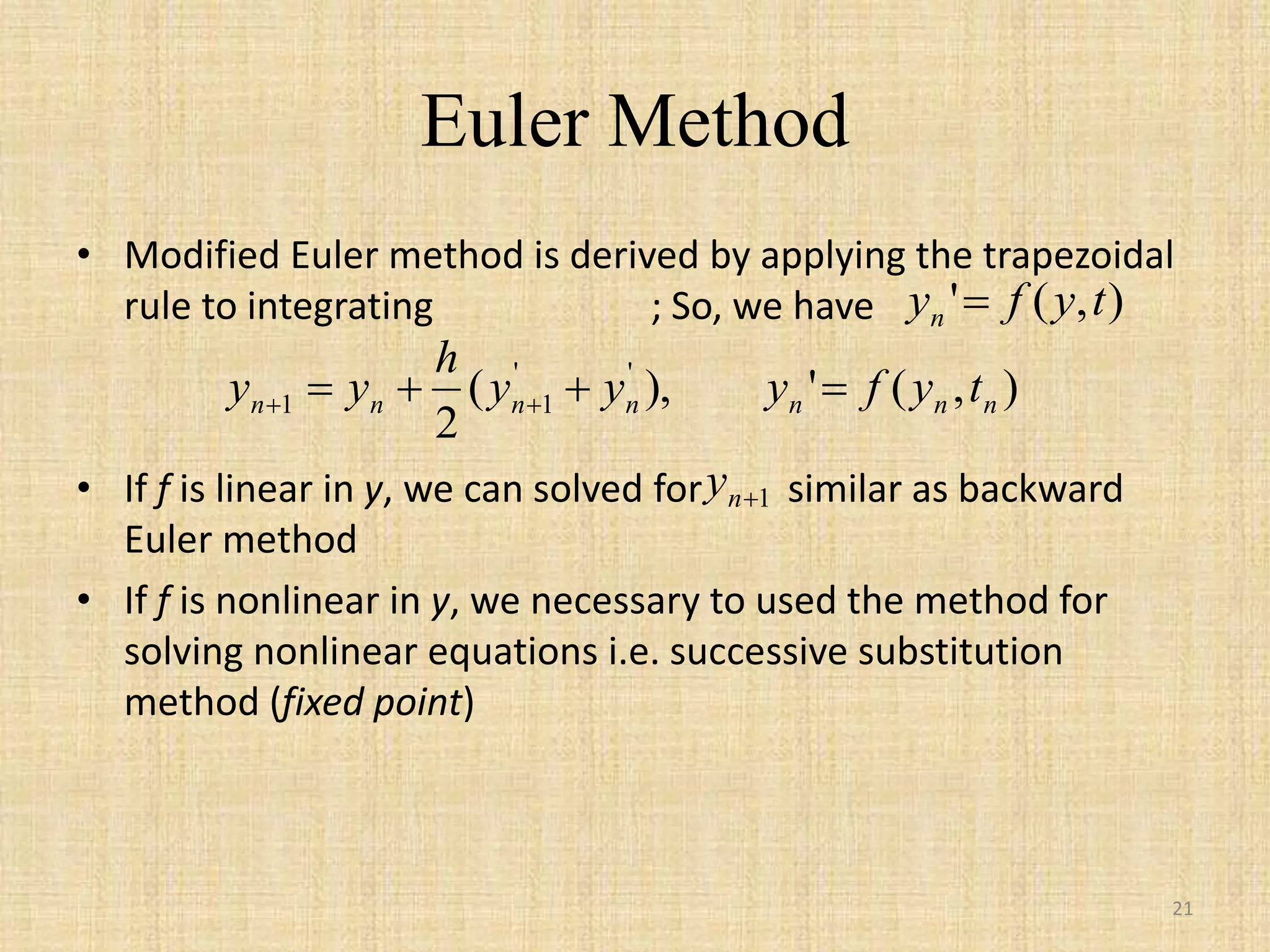

Euler Method
• Modified Euler method is derived by applying the trapezoidal
rule to integrating ; So, we have
• If f is linear in y, we can solved for similar as backward
Euler method
• If f is nonlinear in y, we necessary to used the method for
solving nonlinear equations i.e. successive substitution
method (fixed point)
),(' tyfyn 
),('),(
2
''
11 nnnnnnn tyfyyy
h
yy  
1ny
22

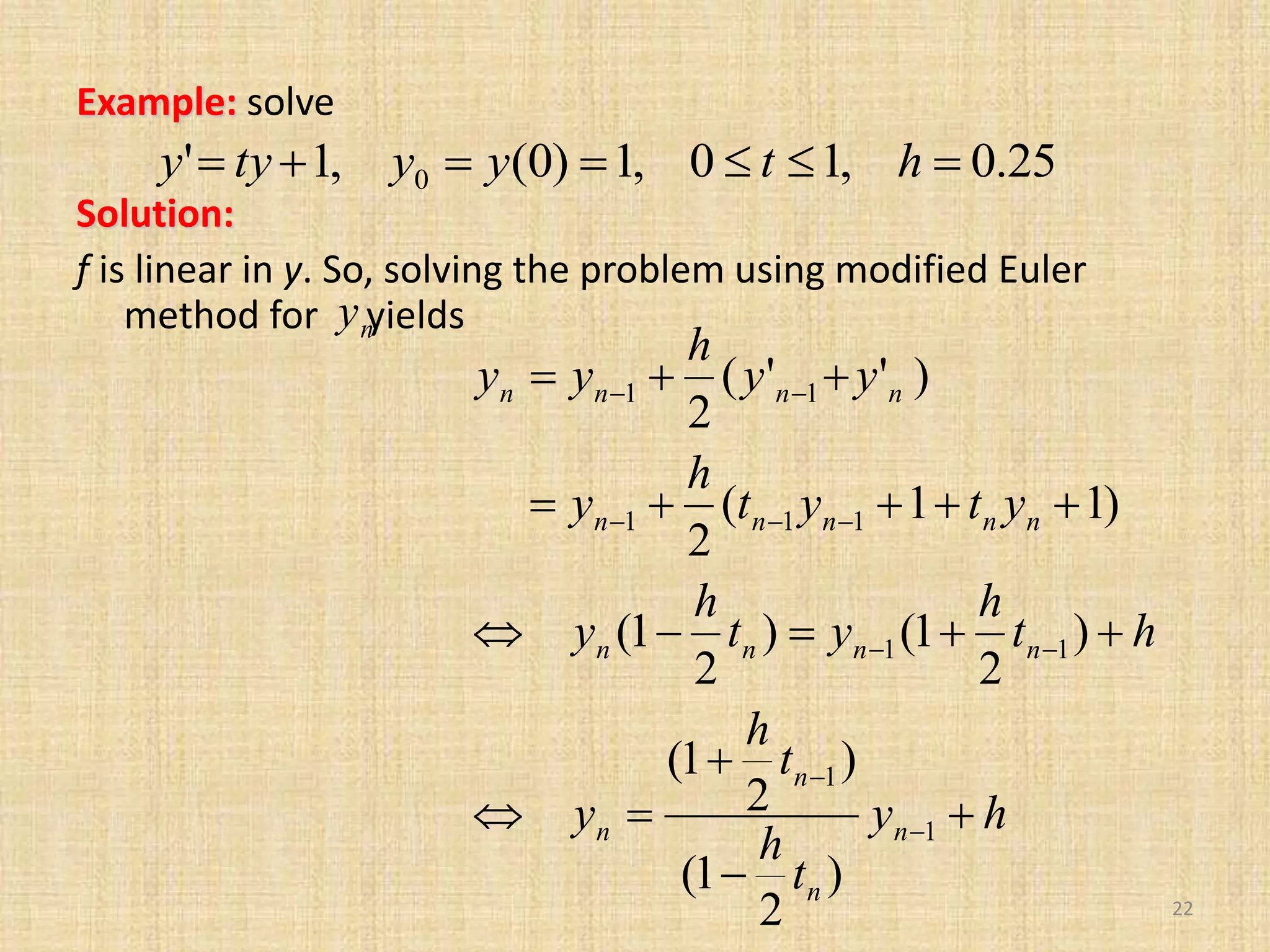

Example: solve
Solution:
f is linear in y. So, solving the problem using modified Euler
method for yields
25.0,10,1)0(,1' 0  htyytyy
hy
t
h
t
h
y
ht
h
yt
h
y
ytyt
h
y
yy
h
yy
n
n
n
n
nnnn
nnnnn
nnnn












1
1
11
111
11
)
2
1(
)
2
1(
)
2
1()
2
1(
)11(
2
)''(
2
ny
23

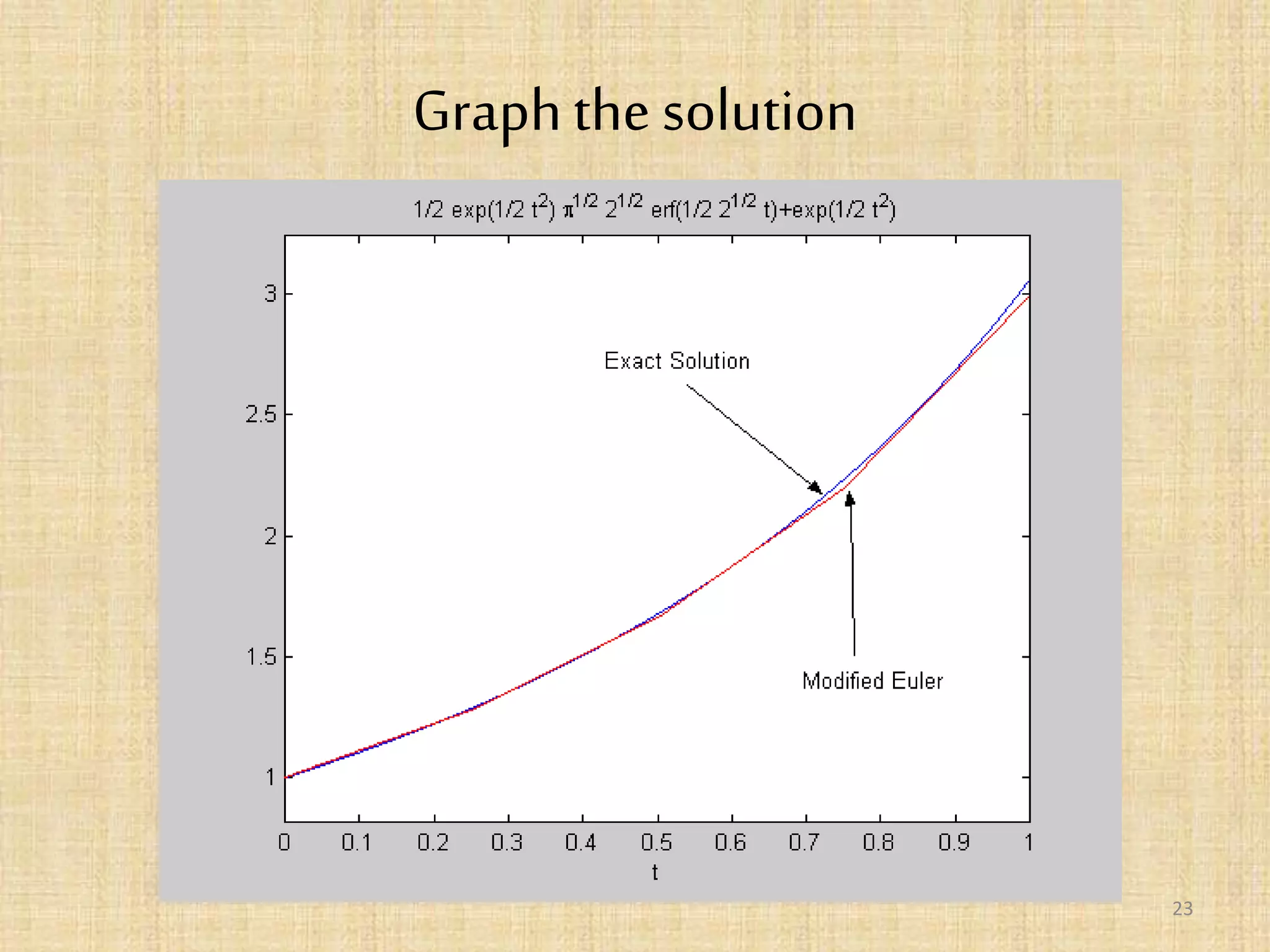

Graphthe solution

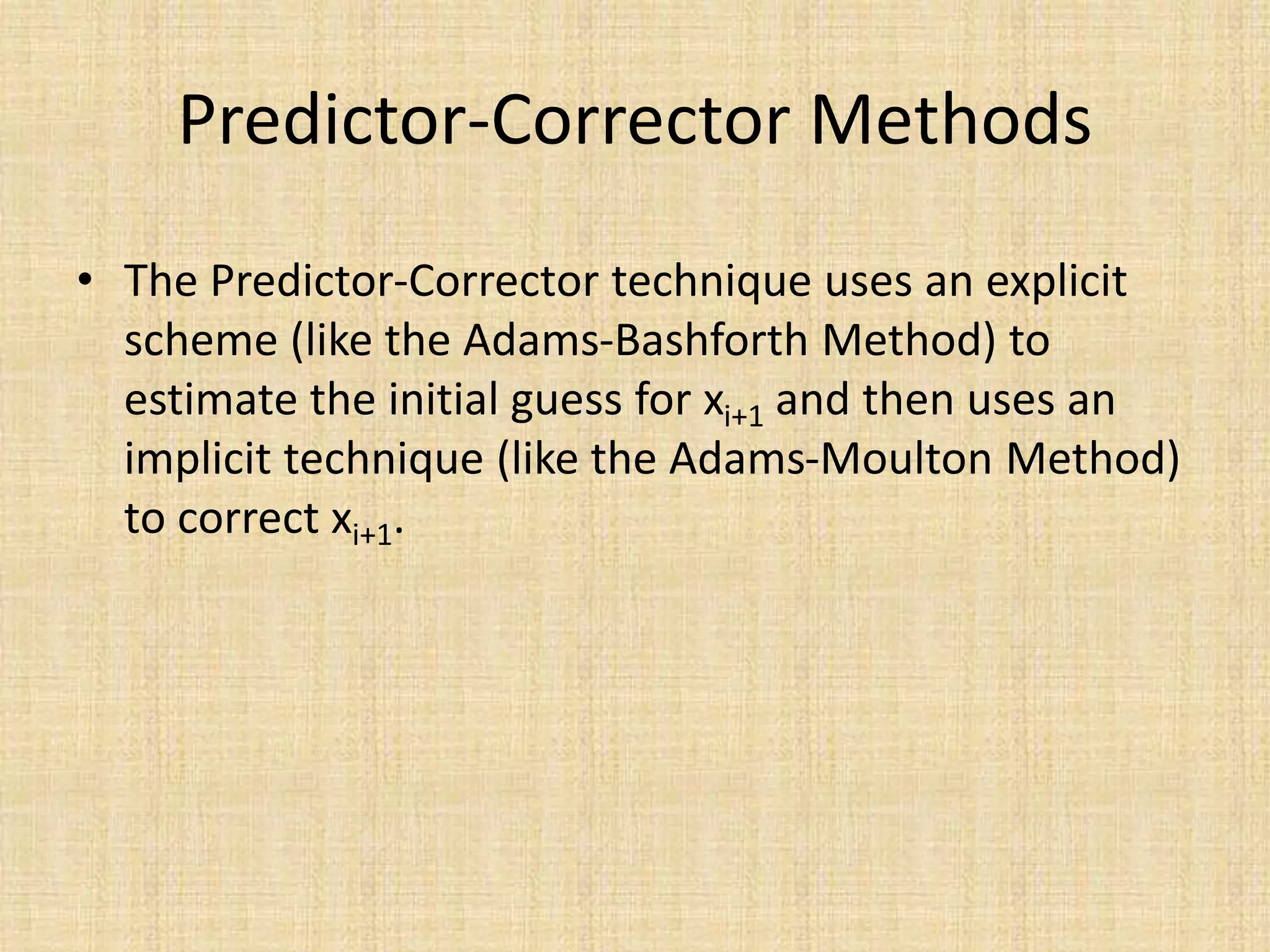

Predictor-Corrector Methods
• The Predictor-Corrector technique uses an explicit
scheme (like the Adams-Bashforth Method) to
estimate the initial guess for xi+1 and then uses an
implicit technique (like the Adams-Moulton Method)
to correct xi+1.
Predictor-Corrector Example
• Adams third order Predictor-Corrector scheme:
• Use the Adams-Bashforth three point explicit scheme
for the initial value.
• Use the Adams-Moulton three-point implicit method
to correct.
 2i1iii1i 51623
12
*   fff
h
xx
 ),(),(8),(5
12
11
*
11i1i   iiiiii xtfxtfxtf
h
xx

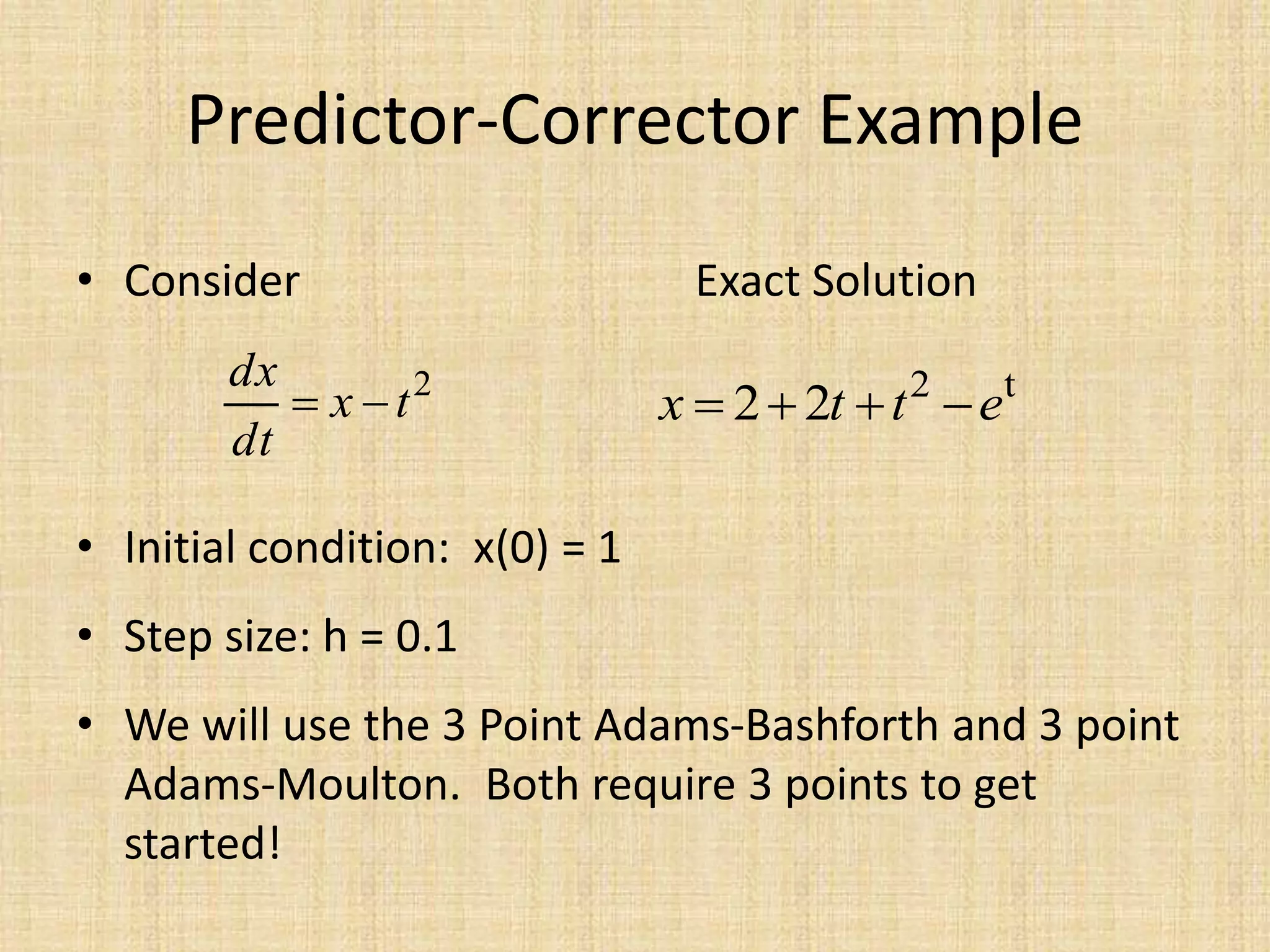

Predictor-Corrector Example
• Consider Exact Solution
• Initial condition: x(0) = 1
• Step size: h = 0.1
• We will use the 3 Point Adams-Bashforth and 3 point
Adams-Moulton. Both require 3 points to get
started!
2
tx
dt
dx
 t2
22 ettx 

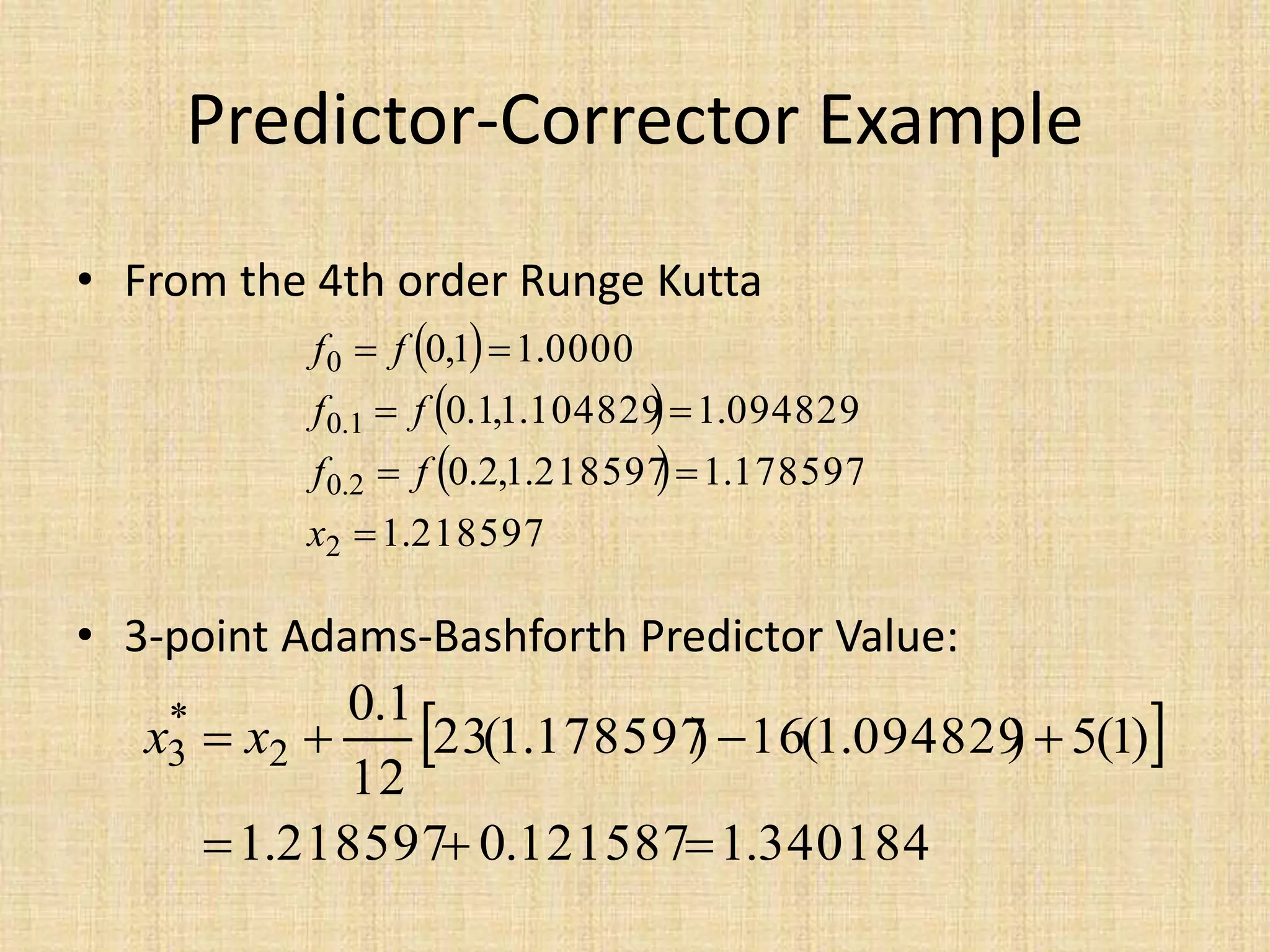

Predictor-Corrector Example
• From the 4th order Runge Kutta
• 3-point Adams-Bashforth Predictor Value:
 
340184.1121587.0218597.1
)1(5)094829.1(16)178597.1(23
12
1.0
2
*
3

 xx
 
 
 
218597.1
178597.1218597.1,2.0
094829.1104829.1,1.0
0000.11,0
2
2.0
1.0
0




x
ff
ff
ff

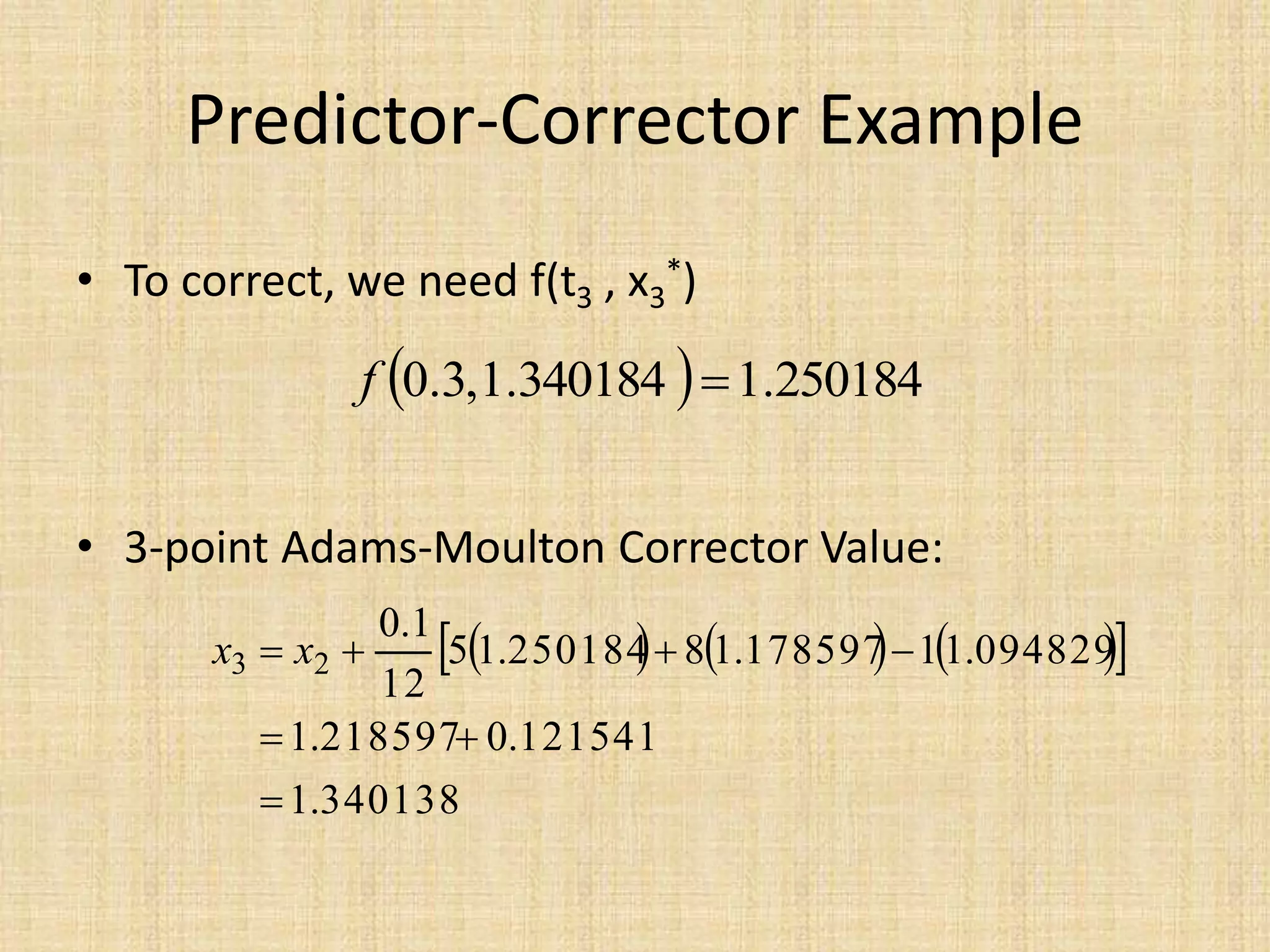

Predictor-Corrector Example
• To correct, we need f(t3 , x3
*)
• 3-point Adams-Moulton Corrector Value:
  250184.1340184.1,3.0 f
      
340138.1
121541.0218597.1
094829.11178597.18250184.15
12
1.0
23


 xx

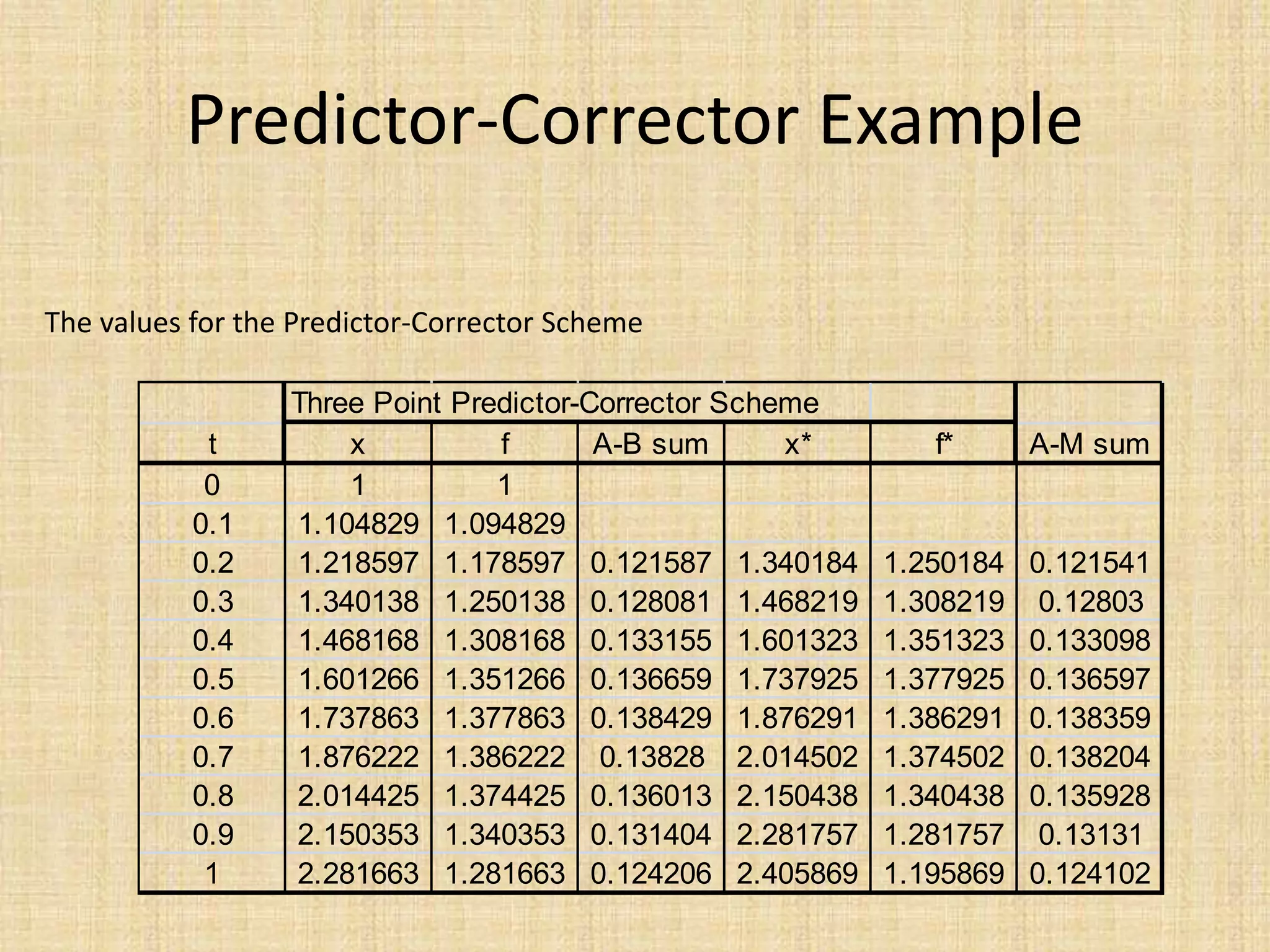

The values for the Predictor-Corrector Scheme
Three Point Predictor-Corrector Scheme
t x f A-B sum x* f* A-M sum
0 1 1
0.1 1.104829 1.094829
0.2 1.218597 1.178597 0.121587 1.340184 1.250184 0.121541
0.3 1.340138 1.250138 0.128081 1.468219 1.308219 0.12803
0.4 1.468168 1.308168 0.133155 1.601323 1.351323 0.133098
0.5 1.601266 1.351266 0.136659 1.737925 1.377925 0.136597
0.6 1.737863 1.377863 0.138429 1.876291 1.386291 0.138359
0.7 1.876222 1.386222 0.13828 2.014502 1.374502 0.138204
0.8 2.014425 1.374425 0.136013 2.150438 1.340438 0.135928
0.9 2.150353 1.340353 0.131404 2.281757 1.281757 0.13131
1 2.281663 1.281663 0.124206 2.405869 1.195869 0.124102
Predictor-Corrector Example
The predictor-corrector method
produces a solution with nearly the
same accuracy as the RK order 4
method.
Generally, the n-step method will
have truncation error of order at
least n.
-10
-8
-6
-4
-2
0
2
4
0 1 2 3 4
xValue
t Value
3 Point Predictor-Corrector Method
4th order Runge-Kutta
Exact
Adam Moulton
Adam Bashforth
Predictor-Corrector Example
Introduction to simulation modeling

More Related Content

What's hot

Discrete And Continuous Simulation
Discrete And Continuous SimulationDiscrete And Continuous Simulation
Discrete And Continuous Simulation
Nguyen Chien

Introduction to Simulation
Introduction to SimulationIntroduction to Simulation
Introduction to Simulation
chimco.net

Simulation
SimulationSimulation
System Modeling & Simulation Introduction
System Modeling & Simulation  IntroductionSystem Modeling & Simulation  Introduction
System Modeling & Simulation Introduction
SharmilaChidaravalli

Unit 1 introduction to simulation
Unit 1 introduction to simulationUnit 1 introduction to simulation
Unit 1 introduction to simulation
DevaKumari Vijay

Discrete event-simulation
Discrete event-simulationDiscrete event-simulation
Discrete event-simulation
PrimeAsia University

Modeling & Simulation Lecture Notes
Modeling & Simulation Lecture NotesModeling & Simulation Lecture Notes
Modeling & Simulation Lecture Notes
FellowBuddy.com

Simulation
SimulationSimulation
Simulation
Mario Clement

Discrete event simulation
Discrete event simulationDiscrete event simulation
Discrete event simulation
ssusera970cc

System simulation & modeling notes[sjbit]
System simulation & modeling notes[sjbit]System simulation & modeling notes[sjbit]
System simulation & modeling notes[sjbit]
qwerty626

Learning With Complete Data
Learning With Complete DataLearning With Complete Data
Learning With Complete Data
Vishnuprabhu Gopalakrishnan

Simulation concept, Advantages & Disadvantages
Simulation concept, Advantages & DisadvantagesSimulation concept, Advantages & Disadvantages
Simulation concept, Advantages & Disadvantages
Pankaj Verma

Computer Simulation And Modeling
Computer Simulation And ModelingComputer Simulation And Modeling
Computer Simulation And Modeling
Pakistan Loverx

Queuing model
Queuing model Queuing model
Queuing model
goyalrama

Validation and verification
Validation and verificationValidation and verification
Validation and verification
De La Salle University-Manila

Desirable software features simulation & modeling
Desirable software features simulation & modelingDesirable software features simulation & modeling
Desirable software features simulation & modeling
Shashwat Shriparv

Analysis modeling
Analysis modelingAnalysis modeling
Analysis modeling
Preeti Mishra

General purpose simulation System (GPSS)
General purpose simulation System (GPSS)General purpose simulation System (GPSS)
General purpose simulation System (GPSS)
Tushar Aneyrao

Object Oriented Analysis and Design
Object Oriented Analysis and DesignObject Oriented Analysis and Design
Object Oriented Analysis and Design
Haitham El-Ghareeb

Unit 4 queuing models
Unit 4 queuing modelsUnit 4 queuing models
Unit 4 queuing models
raksharao


What's hot (20)

Discrete And Continuous Simulation
Discrete And Continuous SimulationDiscrete And Continuous Simulation
Discrete And Continuous Simulation

Introduction to Simulation
Introduction to SimulationIntroduction to Simulation
Introduction to Simulation

Simulation
SimulationSimulation
Simulation

System Modeling & Simulation Introduction
System Modeling & Simulation  IntroductionSystem Modeling & Simulation  Introduction
System Modeling & Simulation Introduction

Unit 1 introduction to simulation
Unit 1 introduction to simulationUnit 1 introduction to simulation
Unit 1 introduction to simulation

Discrete event-simulation
Discrete event-simulationDiscrete event-simulation
Discrete event-simulation

Modeling & Simulation Lecture Notes
Modeling & Simulation Lecture NotesModeling & Simulation Lecture Notes
Modeling & Simulation Lecture Notes

Simulation
SimulationSimulation
Simulation

Discrete event simulation
Discrete event simulationDiscrete event simulation
Discrete event simulation

System simulation & modeling notes[sjbit]
System simulation & modeling notes[sjbit]System simulation & modeling notes[sjbit]
System simulation & modeling notes[sjbit]

Learning With Complete Data
Learning With Complete DataLearning With Complete Data
Learning With Complete Data

Simulation concept, Advantages & Disadvantages
Simulation concept, Advantages & DisadvantagesSimulation concept, Advantages & Disadvantages
Simulation concept, Advantages & Disadvantages

Computer Simulation And Modeling
Computer Simulation And ModelingComputer Simulation And Modeling
Computer Simulation And Modeling

Queuing model
Queuing model Queuing model
Queuing model

Validation and verification
Validation and verificationValidation and verification
Validation and verification

Desirable software features simulation & modeling
Desirable software features simulation & modelingDesirable software features simulation & modeling
Desirable software features simulation & modeling

Analysis modeling
Analysis modelingAnalysis modeling
Analysis modeling

General purpose simulation System (GPSS)
General purpose simulation System (GPSS)General purpose simulation System (GPSS)
General purpose simulation System (GPSS)

Object Oriented Analysis and Design
Object Oriented Analysis and DesignObject Oriented Analysis and Design
Object Oriented Analysis and Design

Unit 4 queuing models
Unit 4 queuing modelsUnit 4 queuing models
Unit 4 queuing models


Viewers also liked

SIMULATION
SIMULATIONSIMULATION
SIMULATION
Eminent Planners

Simulation Techniques
Simulation TechniquesSimulation Techniques
Simulation Techniques
mailrenuka

ppt
pptppt
Ma2002 1.16 rm
Ma2002 1.16 rmMa2002 1.16 rm
Ma2002 1.16 rm
Ramakrishna Paduchuri

A2 /EXPT/THER/KELLY/APRIL
A2 /EXPT/THER/KELLY/APRILA2 /EXPT/THER/KELLY/APRIL
A2 /EXPT/THER/KELLY/APRIL
Rama Chandra

Simulation Technology Challenges
Simulation Technology ChallengesSimulation Technology Challenges
Simulation Technology Challenges
CETES

Unit 1 introduction
Unit 1 introductionUnit 1 introduction
Unit 1 introduction
raksharao

Mourão Moura - input2012
Mourão Moura - input2012Mourão Moura - input2012
Mourão Moura - input2012
INPUT 2012

Introduction to Simulation- Predictive Analytics
Introduction to Simulation- Predictive AnalyticsIntroduction to Simulation- Predictive Analytics
Introduction to Simulation- Predictive Analytics
PerformanceG2, Inc.

Introduction to simulation
Introduction to simulationIntroduction to simulation
Introduction to simulation
n_cool001

02 20110314-simulation
02 20110314-simulation02 20110314-simulation
02 20110314-simulation
Saad Gabr

The use of 3D simulation technology to improve health and safety performance ...
The use of 3D simulation technology to improve health and safety performance ...The use of 3D simulation technology to improve health and safety performance ...
The use of 3D simulation technology to improve health and safety performance ...
Stephen Au

An Introduction to Simulation in the Social Sciences
An Introduction to Simulation in the Social SciencesAn Introduction to Simulation in the Social Sciences
An Introduction to Simulation in the Social Sciences
fsmart01

Future Of Simulation In Healthcare Education
Future Of Simulation In Healthcare EducationFuture Of Simulation In Healthcare Education
Future Of Simulation In Healthcare Education
Carolyn Jenkins

Esri CityEngine
Esri CityEngineEsri CityEngine
Esri CityEngine
Esri

Smell Simulation...A technology that can smell
Smell Simulation...A technology that can smellSmell Simulation...A technology that can smell
Smell Simulation...A technology that can smell
Er. Vivek Kumar Gupta ( Technohunter)

Simulation technology, speed up your iterative process (by Jan Buytaert)
Simulation technology, speed up your iterative process (by Jan Buytaert)Simulation technology, speed up your iterative process (by Jan Buytaert)
Simulation technology, speed up your iterative process (by Jan Buytaert)
Verhaert Masters in Innovation

Dashboard Business Simulation Deck
Dashboard  Business Simulation DeckDashboard  Business Simulation Deck
Dashboard Business Simulation Deck
APSinc

Simulator
SimulatorSimulator

Viewers also liked (19)

SIMULATION
SIMULATIONSIMULATION
SIMULATION

Simulation Techniques
Simulation TechniquesSimulation Techniques
Simulation Techniques

ppt
pptppt
ppt

Ma2002 1.16 rm
Ma2002 1.16 rmMa2002 1.16 rm
Ma2002 1.16 rm

A2 /EXPT/THER/KELLY/APRIL
A2 /EXPT/THER/KELLY/APRILA2 /EXPT/THER/KELLY/APRIL
A2 /EXPT/THER/KELLY/APRIL

Simulation Technology Challenges
Simulation Technology ChallengesSimulation Technology Challenges
Simulation Technology Challenges

Unit 1 introduction
Unit 1 introductionUnit 1 introduction
Unit 1 introduction

Mourão Moura - input2012
Mourão Moura - input2012Mourão Moura - input2012
Mourão Moura - input2012

Introduction to Simulation- Predictive Analytics
Introduction to Simulation- Predictive AnalyticsIntroduction to Simulation- Predictive Analytics
Introduction to Simulation- Predictive Analytics

Introduction to simulation
Introduction to simulationIntroduction to simulation
Introduction to simulation

02 20110314-simulation
02 20110314-simulation02 20110314-simulation
02 20110314-simulation

The use of 3D simulation technology to improve health and safety performance ...
The use of 3D simulation technology to improve health and safety performance ...The use of 3D simulation technology to improve health and safety performance ...
The use of 3D simulation technology to improve health and safety performance ...

An Introduction to Simulation in the Social Sciences
An Introduction to Simulation in the Social SciencesAn Introduction to Simulation in the Social Sciences
An Introduction to Simulation in the Social Sciences

Future Of Simulation In Healthcare Education
Future Of Simulation In Healthcare EducationFuture Of Simulation In Healthcare Education
Future Of Simulation In Healthcare Education

Esri CityEngine
Esri CityEngineEsri CityEngine
Esri CityEngine

Smell Simulation...A technology that can smell
Smell Simulation...A technology that can smellSmell Simulation...A technology that can smell
Smell Simulation...A technology that can smell

Simulation technology, speed up your iterative process (by Jan Buytaert)
Simulation technology, speed up your iterative process (by Jan Buytaert)Simulation technology, speed up your iterative process (by Jan Buytaert)
Simulation technology, speed up your iterative process (by Jan Buytaert)

Dashboard Business Simulation Deck
Dashboard  Business Simulation DeckDashboard  Business Simulation Deck
Dashboard Business Simulation Deck

Simulator
SimulatorSimulator
Simulator


Similar to Introduction to simulation modeling

Simulation and Modelling Reading Notes.pptx
Simulation and Modelling  Reading Notes.pptxSimulation and Modelling  Reading Notes.pptx
Simulation and Modelling Reading Notes.pptx
DanMuendo1

Cs854 lecturenotes01
Cs854 lecturenotes01Cs854 lecturenotes01
Cs854 lecturenotes01
Mehmet Çelik

cs1538.ppt
cs1538.pptcs1538.ppt
cs1538.ppt
TaraLeander

MODELING & SIMULATION.docx
MODELING & SIMULATION.docxMODELING & SIMULATION.docx
MODELING & SIMULATION.docx
JAMEEL AHMED KHOSO

lecture 1.pptx
lecture 1.pptxlecture 1.pptx
lecture 1.pptx
AmnaMuneer9

M 3 iot
M 3 iotM 3 iot
M 3 iot
VIT VELLORE

What is sim?ulation
What is sim?ulationWhat is sim?ulation
What is sim?ulation
Musab Cannon

SIMULATION.pdf
SIMULATION.pdfSIMULATION.pdf
SIMULATION.pdf
davidrutalomba

Introduction to simulation.pdf
Introduction to simulation.pdfIntroduction to simulation.pdf
Introduction to simulation.pdf
nadimhossain24

Introduction to System, Simulation and Model
Introduction to System, Simulation and ModelIntroduction to System, Simulation and Model
Introduction to System, Simulation and Model
Md. Hasan Imam Bijoy

Simulation and modeling introduction.pptx
Simulation and modeling introduction.pptxSimulation and modeling introduction.pptx
Simulation and modeling introduction.pptx
ShamasRehman4

MSPresentation_Spring2011
MSPresentation_Spring2011MSPresentation_Spring2011
MSPresentation_Spring2011
Shaun Smith

Materi 10 - Penelitian Pemodelan Komputer.pdf
Materi 10 - Penelitian Pemodelan Komputer.pdfMateri 10 - Penelitian Pemodelan Komputer.pdf
Materi 10 - Penelitian Pemodelan Komputer.pdf
MahesaRioAditya

Discreate Event Simulation_PPT1-R0.ppt
Discreate Event Simulation_PPT1-R0.pptDiscreate Event Simulation_PPT1-R0.ppt
Discreate Event Simulation_PPT1-R0.ppt
diklatMSU

Introduction to networks simulation
Introduction to networks simulationIntroduction to networks simulation
Introduction to networks simulation
ahmed L. Khalaf

Simulation
SimulationSimulation
Simulation
Michael Adly

simulation modeling in DSS
 simulation modeling in DSS simulation modeling in DSS
simulation modeling in DSS
Enaam Alotaibi

mathematical modeling nikki.pptx
mathematical modeling nikki.pptxmathematical modeling nikki.pptx
mathematical modeling nikki.pptx
ArikB

Applications of simulation in Business with Example
Applications of simulation in Business with ExampleApplications of simulation in Business with Example
Applications of simulation in Business with Example
Pratima Ray

Modeling&Simulation_Ch01_part 3.pptx
Modeling&Simulation_Ch01_part 3.pptxModeling&Simulation_Ch01_part 3.pptx
Modeling&Simulation_Ch01_part 3.pptx
MaiGaafar


Similar to Introduction to simulation modeling (20)

Simulation and Modelling Reading Notes.pptx
Simulation and Modelling  Reading Notes.pptxSimulation and Modelling  Reading Notes.pptx
Simulation and Modelling Reading Notes.pptx

Cs854 lecturenotes01
Cs854 lecturenotes01Cs854 lecturenotes01
Cs854 lecturenotes01

cs1538.ppt
cs1538.pptcs1538.ppt
cs1538.ppt

MODELING & SIMULATION.docx
MODELING & SIMULATION.docxMODELING & SIMULATION.docx
MODELING & SIMULATION.docx

lecture 1.pptx
lecture 1.pptxlecture 1.pptx
lecture 1.pptx

M 3 iot
M 3 iotM 3 iot
M 3 iot

What is sim?ulation
What is sim?ulationWhat is sim?ulation
What is sim?ulation

SIMULATION.pdf
SIMULATION.pdfSIMULATION.pdf
SIMULATION.pdf

Introduction to simulation.pdf
Introduction to simulation.pdfIntroduction to simulation.pdf
Introduction to simulation.pdf

Introduction to System, Simulation and Model
Introduction to System, Simulation and ModelIntroduction to System, Simulation and Model
Introduction to System, Simulation and Model

Simulation and modeling introduction.pptx
Simulation and modeling introduction.pptxSimulation and modeling introduction.pptx
Simulation and modeling introduction.pptx

MSPresentation_Spring2011
MSPresentation_Spring2011MSPresentation_Spring2011
MSPresentation_Spring2011

Materi 10 - Penelitian Pemodelan Komputer.pdf
Materi 10 - Penelitian Pemodelan Komputer.pdfMateri 10 - Penelitian Pemodelan Komputer.pdf
Materi 10 - Penelitian Pemodelan Komputer.pdf

Discreate Event Simulation_PPT1-R0.ppt
Discreate Event Simulation_PPT1-R0.pptDiscreate Event Simulation_PPT1-R0.ppt
Discreate Event Simulation_PPT1-R0.ppt

Introduction to networks simulation
Introduction to networks simulationIntroduction to networks simulation
Introduction to networks simulation

Simulation
SimulationSimulation
Simulation

simulation modeling in DSS
 simulation modeling in DSS simulation modeling in DSS
simulation modeling in DSS

mathematical modeling nikki.pptx
mathematical modeling nikki.pptxmathematical modeling nikki.pptx
mathematical modeling nikki.pptx

Applications of simulation in Business with Example
Applications of simulation in Business with ExampleApplications of simulation in Business with Example
Applications of simulation in Business with Example

Modeling&Simulation_Ch01_part 3.pptx
Modeling&Simulation_Ch01_part 3.pptxModeling&Simulation_Ch01_part 3.pptx
Modeling&Simulation_Ch01_part 3.pptx


More from bhupendra kumar

Two port networks (y parameters)
Two port networks (y parameters)Two port networks (y parameters)
Two port networks (y parameters)
bhupendra kumar

Small signal stability analysis
Small signal stability analysisSmall signal stability analysis
Small signal stability analysis
bhupendra kumar

An introduction to system dynamics & feedback loop
An introduction to system dynamics & feedback loopAn introduction to system dynamics & feedback loop
An introduction to system dynamics & feedback loop
bhupendra kumar

Activity diagram
Activity diagramActivity diagram
Activity diagram
bhupendra kumar

static series synchronus compensator
static series synchronus compensatorstatic series synchronus compensator
static series synchronus compensator
bhupendra kumar

Representing uncertainty in expert systems
Representing uncertainty in expert systemsRepresenting uncertainty in expert systems
Representing uncertainty in expert systems
bhupendra kumar

Online shopping management information system flipkart
Online shopping management information system  flipkartOnline shopping management information system  flipkart
Online shopping management information system flipkartbhupendra kumar

the cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heartthe cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heart
bhupendra kumar


More from bhupendra kumar (8)

Two port networks (y parameters)
Two port networks (y parameters)Two port networks (y parameters)
Two port networks (y parameters)

Small signal stability analysis
Small signal stability analysisSmall signal stability analysis
Small signal stability analysis

An introduction to system dynamics & feedback loop
An introduction to system dynamics & feedback loopAn introduction to system dynamics & feedback loop
An introduction to system dynamics & feedback loop

Activity diagram
Activity diagramActivity diagram
Activity diagram

static series synchronus compensator
static series synchronus compensatorstatic series synchronus compensator
static series synchronus compensator

Representing uncertainty in expert systems
Representing uncertainty in expert systemsRepresenting uncertainty in expert systems
Representing uncertainty in expert systems

Online shopping management information system flipkart
Online shopping management information system  flipkartOnline shopping management information system  flipkart
Online shopping management information system flipkart

the cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heartthe cardiovascular system and Physiology of heart
the cardiovascular system and Physiology of heart


Recently uploaded

ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have oneISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
Las Vegas Warehouse

Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball playEric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
enizeyimana36

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Christina Lin

Engine Lubrication performance System.pdf
Engine Lubrication performance System.pdfEngine Lubrication performance System.pdf
Engine Lubrication performance System.pdf
mamamaam477

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring
IJECEIAES

Modelagem de um CSTR com reação endotermica.pdf
Modelagem de um CSTR com reação endotermica.pdfModelagem de um CSTR com reação endotermica.pdf
Modelagem de um CSTR com reação endotermica.pdf
camseq

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样
171ticu

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx
Madan Karki

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
VICTOR MAESTRE RAMIREZ

basic-wireline-operations-course-mahmoud-f-radwan.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdfbasic-wireline-operations-course-mahmoud-f-radwan.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdf
NidhalKahouli2

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Sinan KOZAK

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content
Hitesh Mohapatra

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
insn4465

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources
mahammadsalmanmech

A review on techniques and modelling methodologies used for checking electrom...
A review on techniques and modelling methodologies used for checking electrom...A review on techniques and modelling methodologies used for checking electrom...
A review on techniques and modelling methodologies used for checking electrom...
nooriasukmaningtyas

International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...
gerogepatton

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation
kandramariana6

ML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptxML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptx
JamalHussainArman

Understanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine LearningUnderstanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine Learning
SUTEJAS

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
University of Maribor


Recently uploaded (20)

ISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have oneISPM 15 Heat Treated Wood Stamps and why your shipping must have one
ISPM 15 Heat Treated Wood Stamps and why your shipping must have one

Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball playEric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play
Eric Nizeyimana's document 2006 from gicumbi to ttc nyamata handball play

Harnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming PipelinesHarnessing WebAssembly for Real-time Stateless Streaming Pipelines
Harnessing WebAssembly for Real-time Stateless Streaming Pipelines

Engine Lubrication performance System.pdf
Engine Lubrication performance System.pdfEngine Lubrication performance System.pdf
Engine Lubrication performance System.pdf

Embedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoringEmbedded machine learning-based road conditions and driving behavior monitoring
Embedded machine learning-based road conditions and driving behavior monitoring

Modelagem de um CSTR com reação endotermica.pdf
Modelagem de um CSTR com reação endotermica.pdfModelagem de um CSTR com reação endotermica.pdf
Modelagem de um CSTR com reação endotermica.pdf

学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样学校原版美国波士顿大学毕业证学历学位证书原版一模一样
学校原版美国波士顿大学毕业证学历学位证书原版一模一样

Manufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptxManufacturing Process of molasses based distillery ppt.pptx
Manufacturing Process of molasses based distillery ppt.pptx

IEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student MemberIEEE Aerospace and Electronic Systems Society as a Graduate Student Member
IEEE Aerospace and Electronic Systems Society as a Graduate Student Member

basic-wireline-operations-course-mahmoud-f-radwan.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdfbasic-wireline-operations-course-mahmoud-f-radwan.pdf
basic-wireline-operations-course-mahmoud-f-radwan.pdf

Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024
Optimizing Gradle Builds - Gradle DPE Tour Berlin 2024

Generative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of contentGenerative AI leverages algorithms to create various forms of content
Generative AI leverages algorithms to create various forms of content

哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样
哪里办理(csu毕业证书)查尔斯特大学毕业证硕士学历原版一模一样

Question paper of renewable energy sources
Question paper of renewable energy sourcesQuestion paper of renewable energy sources
Question paper of renewable energy sources

A review on techniques and modelling methodologies used for checking electrom...
A review on techniques and modelling methodologies used for checking electrom...A review on techniques and modelling methodologies used for checking electrom...
A review on techniques and modelling methodologies used for checking electrom...

International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...International Conference on NLP, Artificial Intelligence, Machine Learning an...
International Conference on NLP, Artificial Intelligence, Machine Learning an...

132/33KV substation case study Presentation
132/33KV substation case study Presentation132/33KV substation case study Presentation
132/33KV substation case study Presentation

ML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptxML Based Model for NIDS MSc Updated Presentation.v2.pptx
ML Based Model for NIDS MSc Updated Presentation.v2.pptx

Understanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine LearningUnderstanding Inductive Bias in Machine Learning
Understanding Inductive Bias in Machine Learning

Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...


Introduction to simulation modeling

  • 1. Introduction to Simulation modeling Submitted To:- Prof. D.K. Chaturvedi, Electrical Department, Faculty of Engineering, Dayalbagh Educational Institute, Dayalbagh, Agra. Submitted By:- Bhupendra Kumar M.Tech(Int.) – 094008
  • 2. Introduction to model Shannon Defines a model as- A Representation of an object, a system, or an idea in some form other than that of the entity itself.
  • 3. Definition - Simulation “Simulation is the process of designing a model of a real system and conducting experiments with this model for the purpose of either understanding the behavior of the system and/or evaluating various strategies for the operation of the system.” - Introduction to Simulation Using SIMAN (2nd Edition)
  • 4. Some other definitions • The technique of imitating the behavior of some situation or system by means of an analogous model, situation, or apparatus, either to gain information more conveniently or to train personnel. • Simulation: – “… as a strategy – not a technology – to mirror, anticipate, or amplify real situations with guided experiences in a fully interactive way.”
  • 5. Simulation • Where simulation fits in Simulation Programming Analysis Modeling Probability & Statistics
  • 6. 6 • Ways to study a system Systems, Models, and Simulation
  • 7. 7 Elements of Simulation Analysis Problem Formulation Data Collection and Analysis Model development Model Verification and Validation Model Experimentation and Optimization Implementation of Simulation Results Major Iterative Loops in a Simulation Study
  • 8. Brief history • World War II • “Monte Carlo” simulation: originated with the work on the atomic bomb. Used to simulate bombing raids. Given the security code name “Monte-Carlo”. • Late ‘50s, early ‘60s • First languages introduced: SIMSCRIPT, GPSS (IBM) • Late ‘60s, early ‘70s • GASP IV introduced by Pritsker. Triggered a wave of diverse applications. Significant in the evolution of simulation.
  • 9. • Late ‘70s, early ’80 • SLAM introduced in 1979 by Pritsker and Pegden. • Models more credible because of sophisticated tools • SIMAN introduced in 1982 by Pegden. First language to run on both a mainframe as well as a microcomputer. • Late ‘80s through present • Powerful PCs • Languages are very sophisticated (market almost saturated) • Major advancement: graphics. Models can now be animated!
  • 10. Simulation modeling perspectives • Can be used to study simple systems • Good for comparing alternative designs – More complex techniques allow “optimization” using a simulation model • can be used to understand the behavior of the system or evaluate strategies for the operation of the system • Model complex systems in a detailed way • Construct theories or hypotheses that account for the observed behavior • Use the model to predict future behavior, that is, the effects that will be produced by changes in the system • Analyze proposed systems
  • 11. 11 SIMULATION “WORLD-VIEWS” Pure Continuous Simulation Pure Discrete Simulation – Event-oriented – Activity-oriented – Process-oriented Combined Discrete / Continuous Simulation
  • 12. 12 Examples Of Both Type Models Continuous Time and Discrete Time Models: CPU scheduling model vs. number of students attending the class.
  • 13. Advantages to Simulation: • Can be used to study existing systems without disrupting the ongoing operations. • Proposed systems can be “tested” before committing resources. • Allows us to control time. • Allows us to identify bottlenecks. • Allows us to gain insight into which variables are most important to system performance. • Flexibility to model things as they are (even if messy and complicated) Allows uncertainty, nonstationarity in modeling
  • 14. Some Primary Uses of Simulation Models in Operations • Find the bottlenecks • How are resources utilized • Capacity planning • Impact of configuration changes • Understand the system dynamics
  • 15. Disadvantages to Simulation • Model building is an art as well as a science. The quality of the analysis depends on the quality of the model and the skill of the modeler. • Simulation results are sometimes hard to interpret. • Simulation analysis can be time consuming and expensive. Should not be used when an analytical method would provide for quicker results. • Not guarantee to provide optimal solution
  • 16. Limitations & pitfalls • Failure to identify objectives clearly up front • In appropriate level of detail (both ways) • Inadequate design and analysis of simulation • experiments • Inadequate education, training • Failure to account correctly for sources of randomness in the system under consideration • Failure to collect good system data, e.g. not enough data to create a good model
  • 17. 17 Applications: Designing and analyzing manufacturing systems Evaluating H/W and S/W requirements for a computer system Evaluating a new military weapons system or tactics Determining ordering policies for an inventory system Designing communications systems and message protocols for them
  • 18. 18 Applications:(continued) Designing and operating transportation facilities such as freeways, airports, subways, or ports Evaluating designs for service organizations such as hospitals, post offices, or fast-food restaurants Analyzing financial or economic systems material handling systems, assembly lines, automated production facilities.
  • 19. Hand and manual simulation concepts • The numerical methods for manual simulation can be classified into the following two classes: • 1. One-step or single-step method Euler’s method, Runge–Kutta method. • 2. Multistep method Milne, Adams–Bashforth methods, predictor corrector method.
  • 21. 21 Euler Method • Modified Euler method is derived by applying the trapezoidal rule to integrating ; So, we have • If f is linear in y, we can solved for similar as backward Euler method • If f is nonlinear in y, we necessary to used the method for solving nonlinear equations i.e. successive substitution method (fixed point) ),(' tyfyn  ),('),( 2 '' 11 nnnnnnn tyfyyy h yy   1ny
  • 22. 22 Example: solve Solution: f is linear in y. So, solving the problem using modified Euler method for yields 25.0,10,1)0(,1' 0  htyytyy hy t h t h y ht h yt h y ytyt h y yy h yy n n n n nnnn nnnnn nnnn             1 1 11 111 11 ) 2 1( ) 2 1( ) 2 1() 2 1( )11( 2 )''( 2 ny
  • 24. Predictor-Corrector Methods • The Predictor-Corrector technique uses an explicit scheme (like the Adams-Bashforth Method) to estimate the initial guess for xi+1 and then uses an implicit technique (like the Adams-Moulton Method) to correct xi+1.
  • 25. Predictor-Corrector Example • Adams third order Predictor-Corrector scheme: • Use the Adams-Bashforth three point explicit scheme for the initial value. • Use the Adams-Moulton three-point implicit method to correct.  2i1iii1i 51623 12 *   fff h xx  ),(),(8),(5 12 11 * 11i1i   iiiiii xtfxtfxtf h xx
  • 26. Predictor-Corrector Example • Consider Exact Solution • Initial condition: x(0) = 1 • Step size: h = 0.1 • We will use the 3 Point Adams-Bashforth and 3 point Adams-Moulton. Both require 3 points to get started! 2 tx dt dx  t2 22 ettx 
  • 27. Predictor-Corrector Example • From the 4th order Runge Kutta • 3-point Adams-Bashforth Predictor Value:   340184.1121587.0218597.1 )1(5)094829.1(16)178597.1(23 12 1.0 2 * 3   xx       218597.1 178597.1218597.1,2.0 094829.1104829.1,1.0 0000.11,0 2 2.0 1.0 0     x ff ff ff
  • 28. Predictor-Corrector Example • To correct, we need f(t3 , x3 *) • 3-point Adams-Moulton Corrector Value:   250184.1340184.1,3.0 f        340138.1 121541.0218597.1 094829.11178597.18250184.15 12 1.0 23    xx
  • 29. The values for the Predictor-Corrector Scheme Three Point Predictor-Corrector Scheme t x f A-B sum x* f* A-M sum 0 1 1 0.1 1.104829 1.094829 0.2 1.218597 1.178597 0.121587 1.340184 1.250184 0.121541 0.3 1.340138 1.250138 0.128081 1.468219 1.308219 0.12803 0.4 1.468168 1.308168 0.133155 1.601323 1.351323 0.133098 0.5 1.601266 1.351266 0.136659 1.737925 1.377925 0.136597 0.6 1.737863 1.377863 0.138429 1.876291 1.386291 0.138359 0.7 1.876222 1.386222 0.13828 2.014502 1.374502 0.138204 0.8 2.014425 1.374425 0.136013 2.150438 1.340438 0.135928 0.9 2.150353 1.340353 0.131404 2.281757 1.281757 0.13131 1 2.281663 1.281663 0.124206 2.405869 1.195869 0.124102 Predictor-Corrector Example
  • 30. The predictor-corrector method produces a solution with nearly the same accuracy as the RK order 4 method. Generally, the n-step method will have truncation error of order at least n. -10 -8 -6 -4 -2 0 2 4 0 1 2 3 4 xValue t Value 3 Point Predictor-Corrector Method 4th order Runge-Kutta Exact Adam Moulton Adam Bashforth Predictor-Corrector Example
