HERNIA
SURGERY
TONY 2010 MBBS
HERNIA
• PROTRUSION OF A VISCUS OR A PART OF VISCUS THROUGH A NORMAL OR
ABNORMAL OPENING IN THE WALLS OF ITS CONTAINING CAVITY
TONY 2010 MBBS
HERNIA COMMON
INGUINAL
INCISIONAL
FEMORAL
UMBILICAL
EPIGASTRIC
RARE
OBTURATOR
SPIGELIAN
GLUTEAL
LUMBAR
DIAPHRAGMATIC
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
HISTORY
TONY 2010 MBBS
HISTORY
• AGE :
YOUNG
•INDIRECT
OLD AGE (weak musculature)
•DIRECT
TONY 2010 MBBS
HISTORY
• OCCUPATION =STRENOUS
STRENOUS
WORK
PERSISTENT
PROCESSUS
VAGINALIS
WEAK
ABDOMINAL
WALL
HERNIATION
TONY 2010 MBBS
• SEX
• MOST COMMON HERNIA (BOTH IN MALES & FEMALES) INDIRECT
• FEMORAL HERNIA IS COMMON IN FEMALES
• DIRECT HERNIA IS ABSENT IN FEMALES & CHILDREN
TONY 2010 MBBS
IN FEMALES
PELVIS IS TILTED ANTERIORLY APEX & BASE OF
HSSELBACH TRIANGLE AT THE SAME LEVEL 
OBLITERATEDLESS CHANCE
PRESENTING COMPLAINTS
TONY 2010 MBBS
• ABOUT LUMP
• COMPLICATIONS
• ETIOLOGY (PRECIPITATING FACTORS)
TONY 2010 MBBS
LUMP
• 1. Duration
• 2. Onset: Suddenly/gradually
• 3. Site of start:
• From groin to scrotum (hernia)
• From scrotum to groin (hydrocele and varicocele)
• 4. Aggravating factors:
• – On straining
• – On standing
• – On coughing
• 5. Relieving factors:
• – By lying down
• – Manuallybyhimself
• 6. Associated with pain: Usually painless
TONY 2010 MBBS
PRESENTING COMPLAINTS
LUMP
• Onset : coughing
lifting weight
• Site: groin  scrotum} inguinal hernia
below groin crease & ascends above it} femoral hernia
• Size and extent:
congenital: reaches bottom of scrotum at its first
appearance itself
THOUGH
CONGENITAL
CAN APPEAR AT
ANY AGE due to
preformed sac
TONY 2010 MBBS
PAIN
• PAIN= DRAGGING & ACHING TYPE
Appears b4
the swelling
Increase
with time
Subsides
when it is
fully formed
TONY 2010 MBBS
PAIN
Acute pain
around
umbilicus
tenderness strangulation
Due to drag
on mesentry
TONY 2010 MBBS
PAIN
• In strangulation due to drag on mesentry pain all over the abdomen
TONY 2010 MBBS
HISTORY SUGGESTIVE OF
COMPLICATIONS:
• Irreducibility,
• severe pain in the groin over the swelling and also
• colicky abdominal pain, abdominal distension, vomiting,
• constipation
TONY 2010 MBBS
acquired } small initially ↑ size gradually
• REDUCIBILITY
Reduces on lying down DIRECT
Does not reduce on lying
down INDIRECT
TONY 2010 MBBS
• SYMPTOMS OF OBSTRUCTION
COLICKY ABDOMINAL PAIN
VOMITING
•BILIOUS
•FAECAL (USUALLY)
ABDOMINAL DISTENSION
ABSOLUTE CONSTIPATION
TONY 2010 MBBS
PRECIPITATING FACTORS
• C/C COUGH=TB ,BA,C/C BRONCHITIS
• STRAINING IN
• CONSTIPATION
• FREQUENCY OF MICTURITION
• URGENCY OF BENIGN ENLARGEMENT OF PROSTATE
• PHIMOSIS
• PINHOLE MEATUS
• PENILE STRICTURES
TONY 2010 MBBS
OBSTRUCTION
PAST HISTORY
• TB BA
• PREVIOUS SURGERY
•Damage to ilioinguinal nerve
 weak abdominal wall
DIRECT hernia
APPENDICECTOMY
•Same side
•Opposite side
RECURRENT HERNIA
TONY 2010 MBBS
FAMILY HISTORY
• CONNECTIVE TISSUE DISORDERS
TONY 2010 MBBS
PERSONAL HISTORY
• History of Smoking:
• Smoking leads to chronic bronchitis
• Collagen deficiency occurs in smokers.
TONY 2010 MBBS
LOCAL EXAMINATION
TONY 2010 MBBS
INSPECTION
TONY 2010 MBBS
INSPECTION
• Patient in standing position
• 1. Site
• 2. Size
• 3. Shape
• 4. Extent
• 5. Surface
• 6. Skin over the swelling
• 7. Visible peristalsis
• 8. Cough impulse
• 9. Draining lymph nodes
• 10. Penis
• 11. Urethral meatus
• 12. Opposite scrotum
TONY 2010 MBBS
INSPECTION
• EXPOSE 4M UMBILICUSMID THIGH
POSITION OF
PATIENT
STANDING
Inguinal, lumbar,
femoral,
epigastric,
obturator, gluteal,
spigelian
SUPINE
TONY 2010 MBBS
SWELLING
shape spherical femoral
direct
pyriform indirect
TONY 2010 MBBS
POSITION & EXTENT
• Inguinal hernia  above the inner part of inguinal ligament
Inguinal
hernia
Congenital
(complete)
Extend in to
scrotum
acquired
(funicular)
Stops
above testis
TONY 2010 MBBS
POSITION & EXTENT
• Femoral hernia  starts below the inginal ligament and ascend over it
TONY 2010 MBBS
VISIBLE PERISTALSIS
• Invisible = femoral hernia
• Visible in case of inguinal hernia when skin is thin as in case of recurrent
hernia
TONY 2010 MBBS
SKIN OVER THE SWELLING
• Uncomplicated=normal
• Strangulated=reddened
• Truss 4 long time=discolouration, due to deposition of hemosiderin
streaks,
• Scar=recurrence
• Wide irregular puckered=wound infectionrecurrence
TONY 2010 MBBS
IMPULSE ON COUGHING
• Characteristic of hernia
Impulse on
coughing
present
Expansile impulse
on coughing
(increase in size
with coughing)
Momentary bulge
synchronous with
coughing
absent obstructed
TONY 2010 MBBS
POSITION OF PENIS
• Deviation of penis to opposite side= in large complete inguinal hernia
TONY 2010 MBBS
PALPATION
TONY 2010 MBBS
PALPATION
• 1. Temperature
• 2. Tenderness
• 3. Site
• 4. Size
• 5. Shape
• 6. Extent
• 7. Surface
• 8. Skin over the swelling
• 9. Consistency
• 10. Reducibility
• 11. Get above the swelling
• 12. Cough impulse
• 13. Invagination test
• 14. Ring occlusion test
• 15. Zieman's technique.
TONY 2010 MBBS
POSITION & EXTENT
• SWELLING REACHING SCROTUM/LABIA MAJORA}INGUINAL HERNIA
Swelling in the groin
Above inguinal
ligament
Medial to pubic
tubercle
INGUINAL
Below inguinal
ligament
Lateral to pubic
tubercle
FEMORAL
TONY 2010 MBBS
HOW TO IDENTIFY PUBIC TUBERCLE
TONY 2010 MBBS
GET ABOVE THE SWELLING
• DISTINGUISH B/W INGUINAL & INGUINOSCROTAL SWELLING
• NO USE IN FEMORAL HERNIA
ROOT OF SCROTUM IS HELD B/W THUMB IN FRONT &
OTHER FINGERS BEHIND THE SWELLING IN AN ATTEMPT
TO GET ABOVE THE SWELLING
TONY 2010 MBBS
GET ABOVE THE SWELLING
INGUINAL HERNIA
• NOT ABLE TO GET ABOVE THE
SWELLING
SCROTAL SWELLING
• ABLE TO GET SBOVE THE SWELLING
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS

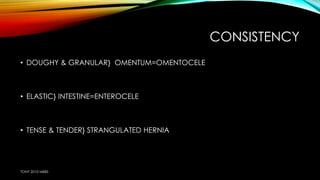

CONSISTENCY
• DOUGHY & GRANULAR} OMENTUM=OMENTOCELE
• ELASTIC} INTESTINE=ENTEROCELE
• TENSE & TENDER} STRANGULATED HERNIA
TONY 2010 MBBS
RELATION OF THE SWELLING TO
THE TESTIS & SPERMATIC CORD
INGUINAL HERNIA
•Remains in front & sides of spermatc cord and
testes which remains incorporated in front and sides
FUNICULAR
• Stops just above the testis
TONY 2010 MBBS
CLASSICAL SIGNS OF AN UNCOMPLICATED
HERNIA
TONY 2010 MBBS
EXPANSILE IMPULSE ON
COUGHING
• STANDING POSITION
• ABSENT IN CASE OF STRANGULATED & INCARCERATED HERNIA
1. MOMENTARY BULGE IN SUPERFICIAL RING ON COUGHUING
2. ROOT OF SCROTUM B/W INDEX FINGER & THUMB IS SEPARATED ON
COUGHING
TONY 2010 MBBS
TONY 2010 MBBS
EXPANSILE IMPULSE IS ALSO
PRESENT IN
• Meningocele
• Laryngocele
• Empyema necessitans
TONY 2010 MBBS
ZEIMANN’S TECHNIQUE
• Distinguish b/w direct, indirect or femoral hernia
• Can be used only when the swelling is completely reduce
when there is no visible swelling
Index finger deep inguinal ring (1/2 “ above mid inguinal point)
Middle finger superficial inguinal ring (superomedial to pubic tubercle)
Ring finger saphenous opening (4cm blw & lateral 2 pubic tubercle)
Hold the nose & blow or cough
TONY 2010 MBBS
ZEIMANN’S TECHNIQUE
Impulse on
Index finger
Middle finger
Ring finger
Indirect inguinal hernia
Direct inguinal hernia
Femoral hernia
TONY 2010 MBBS
ZEIMANN’S TECHNIQUE
• In presence of swelling  coughing  expansile impulse on coughing
Movement of swelling is not a criterion
bcz as these swellings move with
coughing
Encysted hydrocele of
cord : localized swelling
of spermatic cord
Undescended testis
TONY 2010 MBBS
HOW TO IDENTIFY DEEP RING
TONY 2010 MBBS
HOW TO IDENTIFY DEEP RING
TONY 2010 MBBS
TONY 2010 MBBS
REDUCIBILITY
• Reduces on lying down  direct hernia
• Using TAXIS
• Flexes the thigh
• Adduct the thigh
• Rotate internally
Relaxes
superficial
inguinal ring +
oblique muscles
• Reduces with gurgling=>ENTEROCELE  Difficult to reduce initially but last
part slips of easily
• First part reduces easily last part difficultomentocele
TONY 2010 MBBS
REDUCIBILITY
TONY 2010 MBBS
INVAGINATION TEST
• After reduction of hernia in recumbent position
• Using little finger  rt. Hand side for rt. Side
lt. hand side for lt. side
• Invaginate skin 4m the bottom of scrotum & the little finger is pushed to
palpate pubic tubercle
• Finger is then rotated & pushed further up in to superficial inguinal ring
• Nail will be against spermatic cord pulp will feel walls of ring
• Normal ring transmits only tip of finger ,>1 finger}abnormally large
TONY 2010 MBBS
INVAGINATION TEST
TONY 2010 MBBS
INVAGINATION TEST
TONY 2010 MBBS
INVAGINATION TEST
Finger goes
directly
backward=direct
hernia
TONY 2010 MBBS
INVAGINATION TEST
Finger goes upwards,
backwards,
outwards= indirect
TONY 2010 MBBS

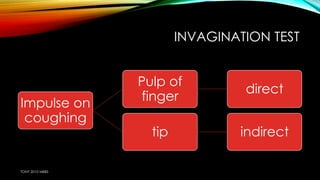

INVAGINATION TEST
Impulse on
coughing
Pulp of
finger
direct
tip indirect
TONY 2010 MBBS
RING OCCLUSION TEST
• Standing position after reduction of swelling
• Using thumb pressure over the deep inguinal ring (1/2 “ above mid inguinal
point) & is asked to cough
• Occlude direct hernia but not direct hernia
• Similarly on saphenous opening= femoral hernia
TONY 2010 MBBS
RING OCCLUSION TEST
• Swelling appears even when deep ring is occluded=direct hernia
• No swelling when deep ring is occluded = indirect hernia
TONY 2010 MBBS
TONY 2010 MBBS
IN CASE OF A CHILD
• Inguinal hernia is invisible in child due to presence of thick pad of fat over
inguinal region
• To make it visible ask him to jolt/jump/make it cry
• Gornalls test: child is held from back by both hands of the clinician on its
abdomen,abdomen is pressed and child is lifted up
increased intra abdominal pressure
hernia more prominent
TONY 2010 MBBS
PERCUSSION
• Resonant=enterocele
• Dull =omentum/extraperitoneal fatty tissue
Diff b/w a/c epididymitis
a/c filalrial funiclitis &
strangulated hernia
TONY 2010 MBBS
AUSCULTATION
• Peristaltic sounds=enterocele
TONY 2010 MBBS
EXAMINATION OF TESTIS
,SPERMATIC CORDS & EPIDIDYMIS
• Testis traction test: pull testis downwards
encysted hydrocele}descends slightly & become fixed
inguinal hernia}cant be fixed
TONY 2010 MBBS
EXAMINATION OF TONE OF
ABDOMINAL MUSCLES
• Inspectionprotrusion of lower abdominal wall
• Malgaigne’s bulging:
• oval shaped b/l bulge on straining above & parallel to medial half of inguinal
ligament
• weakness of abdominal wall
• DIRECT HERNIA
• HERNIOPLASTY IS REQUIRED
TONY 2010 MBBS
ABDOMINAL MUSCLE STRENGTH
TONY 2010 MBBS
MALGAGNES BULGING
• Head or leg raising test: to test for abdominal muscle tone & malgaignes
bulging
TONY 2010 MBBS
SYSTEMIC EXAMINATION
• RESPIRATORY SYSTEM
• R/O
• C/C BRONCHITIS ,TB
• ABDOMEN
• MASS
• ASCITES
TONY 2010 MBBS
• Abdominal examination
• Respiratory system
• Urinary systems
• Per rectal examination
TONY 2010 MBBS
PER-RECTAL EXAMINATION
• 1. Benign Prostate hypertrophy—micturition difficulty
• 2.Malignant obstruction
• 3. Chronic fissure—constipation
TONY 2010 MBBS
• Diagnosis
• • Side—right/left
• • Type—indirect/direct
• • Inguinal—femoral
• • Complete/Incomplete
• • Complicated/Uncomplicated
• • Content—enterocele/omentocele
TONY 2010 MBBS
DIFFERENTIAL DIAGNOSIS
Inguinal Swelling
• 1. Enlarged lymph
nodes
• 2. Undescended
testis
• 3. Lipoma
• 4. Femoral hernia
• 5. Saphena varix
• 6. Psoas abscess
• 7. Femoral aneurysm
Inguinoscrotal Swelling
• 1. Encysted
hydrocele of cord
• 2. Varicocele
• 3. Lymphvarix
• 4. Diffuse lipoma of
cord
• 5. Inflammatory
thickening of cord
Femoral Hernia
• 1. Inguinal hernia
• 2. Saphenavarix
• 3. Cloquet’s node
• 4. Lipoma
• 5. Femoral aneurysm
• 6. Psoas abscess
TONY 2010 MBBS
DIFFERENTIAL DIAGNOSIS
In males
• Hydrocele –
infantile/encysted/large vaginal/
• Undescended testis
• Femoral hernia
• Lipoma of the cord
• Hydrocele of the canal of nuck
(in females)
• Inguinal lymph node
enlargement
• Groin abscess
In females
• hydrocele of the canal of Nuck –
this is the most common dif-ferential
diagnostic problem
• femoral hernia.
TONY 2010 MBBS
MANAGEMENT
TONY 2010 MBBS
• Investigations
• Treatment
TONY 2010 MBBS
INVESTIGATIONS
• I. Routine
• • Hemoglobin
• • Bleeding time/Clotting time
• • Total count, differential count, ESR
• • Urine—albumin, sugar deposits
• • Blood—urea, sugar
• • Blood grouping/typing—for irreducible hernia/huge hernia
• II. Anesthetic Purpose
• • X-ray chest (Chronic TB, Asthma—precipitate hernia)
• • ECG all leads
• III. USG Abdomen and Pelvis
• • In old age group—to find benign prostate hyperplasia calculate post-voidal
residual urine. If >100 ml it is significant
• • To find any mass
TONY 2010 MBBS
TREATMENT
• TREATMENT
• Treat the precipitating cause of hernia first.
• 1. Benign prostate hypertrophy
• 2. Tuberculosis
• 3. Stop smoking
• Conservative management
• indicated only in cases of very old man with direct hernia; since there is no
chance of obstruction.
• TRUSS
• surgery
TONY 2010 MBBS
TRUSS
• Not Curative for hernia.
• It is a special belt devised to keep the hernia reduced at the deep ring or
Hesselbach triangle for those who are unfit or unwilling for surgery
• Hernia should be reducible to wear a truss.
• Contraindicated
• cases of irreducible hernia,
• undescended testis,
• associated huge hydrocele,
• unintelligent people.
TONY 2010 MBBS
TAXIS
• Supine hip & knee flexed hip internally rotated
• Contents are pushed with one hand directed with the other
TONY 2010 MBBS
TREATMENT
• Surgery= treatment of choice
• Under LA/GA/spinal/epidural
surgery
Hernioplasty
herniorraphy
TONY 2010 MBBS
Herniorraphy(strenghthenin
g of posterior wall)
• 1. Original Bassini
• 2. Modified Bassini
• 3. McVay’s
• 4. Shouldice
Hernioplasty (prosthetic
repair )
• 1. Lichtenstein
• 2. Gilbert’s plug
• 3. Prolene hernia system
• 4. Laparoscopic mesh repair
• 5. Stoppas repair
TONY 2010 MBBS
HERNIORRHAPHY
• 1. Herniotomy
• 2. Narrowing of the deepring with 2'0 prolene (Lytle'sRepair)
• 3. Approximation of conjoint tendon with inguinal ligament using 1‘
polypropylene material
TONY 2010 MBBS
HERNIOTOMY
In indirect inguinal hernia
• Dissecting out and opening of hernia sac ,reducing any contents ,transfixing
neck of sac & removing the remainder
• NO NEED TO OPEN UP CANAL IN CHILDREN BECAUSE SUPERFICIAL AND DEEP
RING ARE SUPERIMPOSED ……THERE FORE NO NEED OF REPAIR
• HENCE DONE ALONE IN CHILDREN,ADOLESCENT
TONY 2010 MBBS
TONY 2010 MBBS
PROCEDURE
• ANAESTHESIA: spinal or G/A
• Incision is made parallel to medial 2/3rd of inguinal ligament about 1.25 cm
above inguinal ligament
• After dividing superficial fascia and securing hemostasis
• Identify external oblique muscle & superficial inguinal ring
• External oblique Apo neurosis is incised in the line of its fibers and is reflected
above and below.thus visualize inguinal ligament
• Ilioinguinal nerve is thus identified and preserved
TONY 2010 MBBS
PROCEDURE
• Cremasteric muscle is opened
TONY 2010 MBBS
• Herniotomy = ligation & excision of sac only
• Herniorraphy = herniotomy + repair of posterior wall
• Hernioplasty= herniotomy + reconstruction of posterior wall with prosthetics
TONY 2010 MBBS
HERNIORRAPHY
TONY 2010 MBBS
HERNIORRHAPHY
• HERNIOTOMY+ REPAIR OF THE POSTERIOR WALL OF INGUINAL CANAL BY
APPOSING CONJOINED MUSCLE TO THE INGUINAL LIGAMENT
• INDN
• IN ALL INDIRECT HERNIA EXCEPT IN CHILDREN
• IN ADULTS WITH GOOD MUSCLE TONE
TONY 2010 MBBS
BASSINI REPAIR
• Is frequently used for indirect
inguinal hernias and small
direct hernias
• The conjoined tendon of the
transversus abdominis and the
internal oblique muscles is
sutured to the inguinal
ligament
TONY 2010 MBBS
TONY 2010 MBBS
BASSINI REPAIR
• The conjoined tendon is retracted upward
• the aponeurosis of the transversus abdominis muscle is approximated to the
iliopubic tract that lies adjacent to the inguinal ligament with several
interrupted 3-0 silk sutures.
• The second layer of the repair involves suturing the conjoined tendon to the
inguinal ligament with interrupted 2-0 silk sutures.
• This suture line extends from the pubic tubercle to the medial border of the
internal ring.
TONY 2010 MBBS
MODIFIED BASSINIS REPAIR
• Most commonly used EARLIER
• Using non absorbable monofilament interrupted suture material
strengthening of posterior wall of inguinal canal approximation of conjoint
tendon to inguinal ligament
• Nonsorbable  adequate tensile strength for about 6 months
• Monofilamentpolyfilament has crevices=infn
• Interrupted continuous suture= decrease blood supply interfere with
healing
TONY 2010 MBBS
MODIFIED BASSINIS REPAIR
TONY 2010 MBBS
MCVAY REPAIR
• inguinal and
femoral canal
defects
• The conjoined
tendon is sutured to
Cooper’s ligament
from the pubic
cubicle laterally
TONY 2010 MBBS
MC VAYS REPAIR
TONY 2010 MBBS
SHOULDICE REPAIR
• With a no. 15 scalpel an incision is made in the transversalis fascia. This
incision is extended from the internal ring to the pubic tubercle.
• The repair involves placing four lines of sutures.
TONY 2010 MBBS
SHOULDICE REPAIR
• First, the transversalis fascia is divided from the internal inguinal ring to the pubic
tubercle. The posterior wall repair is accomplished by imbricating the lateral and
medial leaves of the divided transverse aponeurotic fascial fibers with a continuous
suture. The superomedial flap is brought over the inferolateral flap. The first suture line
begins at the pubic tubercle and is sewn in a continuous fashion up to the internal
ring, suturing the free edge of the inferolateral flap to the underside of the
superomedial flap. At the internal inguinal ring, the cranial portion of the cremaster
may be included in the suture line. This gives additional strength to the internal
inguinal ring. The suture line is then doubled back bringing the leading edge of the
superomedial flap to the edge of the inguinal ligament. The lacunar ligament is
included in this suture line to obliterate the dead space medial to the femoral
vessels. A second suture, beginning at the internal ring, brings the internal oblique
and transversus muscles down to the deep surface of the inguinal ligament. At the
level of the pubic bone, this suture doubles back, attaching the same structures in a
more superficial plane and the suture is tied to itself at the internal ring.
TONY 2010 MBBS
SHOULDICE REPAIR
• The first suture line
• is started at the pubic tubercle using 3-0 continuous polypropylene, and the
white line is approximated to the free edge of the inferior transversalis fascial
flap.
• The 2nd suture line :
• At the internal ring the suture is tied and then continued medially by
approximating the free edge of the superior flap to the shelving edge of the
inguinal ligament. When the pubic tubercle is reached, the suture is tied and
divided.
TONY 2010 MBBS
SHOULDICE REPAIR
• The third suture line is started at the level of the internal ring where the
conjoined tendon is approximated to the inguinal ligament and tied when
the pubic tubercle is reached.
• Using the same suture, the fourth suture line attaches these same structures
to one another and is tied at the level of the internal ring.
TONY 2010 MBBS
SHOULDICE REPAIR
• The cord is replaced within the inguinal canal, and the external inguinal
aponeurosis is reapproximated with continuous 2-0 absorbable sutures
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
Tanner's muscle slide
DARNING
• • A type of herniorrhaphy which is done by suturing the conjoined tendon
with inguinal ligament using 1 prolene without tension.
• • The suture material appears like mesh due to multiple crossings.
TONY 2010 MBBS
TANNER'S MUSCLE SLIDE
• Basically all the herniorrhaphy are tension repairs
• To avoid tension in the rhaphy site, the incision made curvilinearly over the
anterior rectus sheath
• This relaxes the conjoined muscles and thus gets approximated with inguinal
ligament without tension
TONY 2010 MBBS
HERNIOPLASTY
• SOME FORM OF supportive MATERIAL IS USED TO STRENGTHEN POSTERIOR
ABDOMINAL WALL
HERNIOPLASTY
SYNTHETIC
BIOLOGICAL
Synthetic non
absorbable prolene,
Dacron are used
Tensor fascia
lata,temporal
fascia,skin
TONY 2010 MBBS
INDICATION FOR HERNIOPLASTY
• Direct hernia,
• Indirect hernia with poor muscle tone
• Recurrent hernia
• Re-recurrent hernia
• Incisional hernia
• Old age
• Sliding hernia
TONY 2010 MBBS
COMPLICATION
• Mesh extrusion
• Foreign body reaction
• infection
TONY 2010 MBBS
PRINCIPLE
• Size of mesh >size of defect
• Attached above & below to conjoint tendon & inguinal ligament/abdominal
wall using non absorbable sutures
• Haemostasis, reduce risk of infection
TONY 2010 MBBS

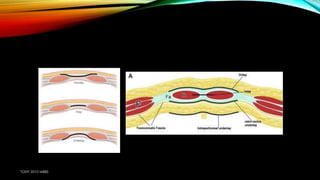

TYPES OF MESH REPAIR
• 1. In lay mesh
• 2. On lay mesh
• 3. Nyhus preperitoneal mesh repair
• 4. Stoppa procedure
• 5. Gilbert mesh repair
• 6. Lichtenstein’s method
• 7. TAPP
• 8. TEP
TONY 2010 MBBS
TONY 2010 MBBS

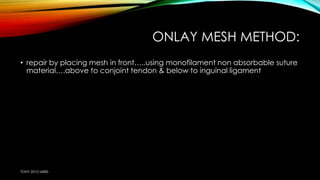

ONLAY MESH METHOD:
• repair by placing mesh in front…..using monofilament non absorbable suture
material….above to conjoint tendon & below to inguinal ligament
TONY 2010 MBBS
INLAY MESH METHOD
• mesh deep to conjoint tendon
TONY 2010 MBBS

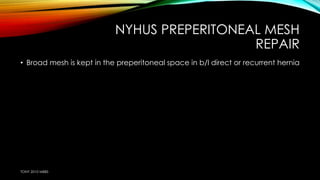

NYHUS PREPERITONEAL MESH
REPAIR
• Broad mesh is kept in the preperitoneal space in b/l direct or recurrent hernia
TONY 2010 MBBS
LICHTENSTEIN TENSION FREE MESH
REPAIR
• Less recurrence
• Cord is covered with mesh and is sutured as in onlay method
TONY 2010 MBBS
LICHENSTEIN TENSION FREE REPAIR
TONY 2010 MBBS
TENSION – FREE REPAIR
TONY 2010 MBBS
TENSION – FREE REPAIR
TONY 2010 MBBS

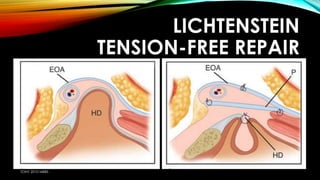

LICHTENSTEIN
TENSION-FREE REPAIR
TONY 2010 MBBS

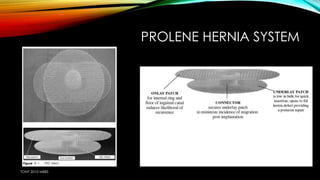

PROLENE HERNIA SYSTEM
TONY 2010 MBBS
PROLENE HERNIAL SYSTEM
TONY 2010 MBBS
TONY 2010 MBBS
STOPPAS REPAIR
• GPRVS (Giant Prosthesis for
Reinforcement of Visceral Sac)
• OVER FRICHAUDS MYOPECTINEAL
ORIFICE
TONY 2010 MBBS
• The Stoppa Repair is a tension free type of hernia repair. It is performed by
wrapping the lower part of the parietal peritoneum with prosthetic mesh and
placing it at a preperitoneal level over Fruchauds myopectineal orifice. It
was first described in 1975 by Rene Stoppa.[1] This operation is also known
as giant prosthetic reinforcement of the visceral sac (GPRVS).[2]
• This technique has met particular success in the repair of bilateral hernias,
large scrotal hernias, and recurrent or rerecurrent hernias in which
conventional repair is difficult and carries a high morbidity and failure rate.
TONY 2010 MBBS
LAPAROSCOPIC
HERNIA REPAIR
• Transabdominal Preperitoneal Procedure (TAPP)
• Totally Extraperitoneal (TEP) Repair
• Indications include bilateral inguinal hernia, recurring
hernia, need for early recovery
TONY 2010 MBBS
TONY 2010 MBBS
TEP
TONY 2010 MBBS
TEP
TONY 2010 MBBS
TAPP
TONY 2010 MBBS
COMPLICATIONS OF HERNIA
REPAIR
IMMEDIATE
1. Injury to the blood vessels
(inferior epigastric and
femoral)
2. Injury to bowel and
bladder
3. Injury to ilioinguinal and
iliohypogastric nerves
4. Injury to cord structures
EARLY
1. Urine retention
2. Hematoma
3. Infection
4. Periostitis of pubic tubercle (as
the stitch is taken from periosteum)
5. Postherniorrhaphy hydrocele
(due to obstruction of lymphatics
At deep ring when narrowed tightly)
LATE
1. Recurrence
2. Numbness over the
local region if the
nerve was cut during
surgery
TONY 2010 MBBS
DISCUSSION
TONY 2010 MBBS
INGUINAL HERNIA
• ANATOMY
Superficial inguinal ring: triangular opening in aponeurosis of external oblique
muscle
1.25 above pubic tubercle
normally ring does not admit tip of little finger
TONY 2010 MBBS
• Deep inguinal ring: u shaped defect in transversalis fascia 1.25cm above
mid inguinal point
• Inguinal ligament: It is formed by the lower
border of the external oblique aponeurosis
which is
thickened and folded backwards on itself
, extending from
anterior superior iliac spine to pubic tubercle.
TONY 2010 MBBS
TONY 2010 MBBS

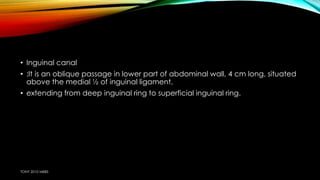

• Inguinal canal
• :It is an oblique passage in lower part of abdominal wall, 4 cm long, situated
above the medial ½ of inguinal ligament,
• extending from deep inguinal ring to superficial inguinal ring.
TONY 2010 MBBS

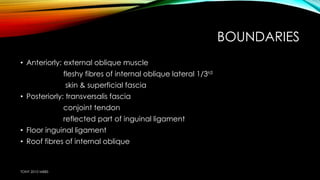

BOUNDARIES
• Anteriorly: external oblique muscle
fleshy fibres of internal oblique lateral 1/3rd
skin & superficial fascia
• Posteriorly: transversalis fascia
conjoint tendon
reflected part of inguinal ligament
• Floor inguinal ligament
• Roof fibres of internal oblique
TONY 2010 MBBS
TONY 2010 MBBS
1, External oblique fascia (fascia of Gallaudet); 2,
External oblique aponeurosis; 3, Internal oblique
muscle; 4, Transversus abdominis muscle and its
aponeurosis; 5, Transversalis fascia anterior lamina
(third layer); 6, External spermatic fascia; 7, Cooper's
ligament; 8, Pubic bone; 9, Pectineus muscle; 10,
Possible union of transversalis fascia laminae; 11,
Transversalis fascia posterior lamina (second layer);
12, Vessels (second space); 13, Peritoneum (first
layer); 14, Space of Bogros (first space); 15,
Preperitoneal fat; 16, Transversus abdominis
aponeurosis and anterior lamina of transversalis
fascia; 17, Femoral artery; 18, Femoral vein.
TONY 2010 MBBS
TONY 2010 MBBS
CONTENTS OF INGUINALCANAL
SPERMATIC CORD IN
MALE
• Vas deferens
• Artery to vas
• Testicular & cremasteric artery
• Pampiniform plexus
• Remains of processus vaginalis
• Genital branch of
genitofemoral nerve
• Sympathetic plexus
• lymphatics
ROUND LIGAMENT IN
FEMALE
ILIO INGUINAL NERVE
TONY 2010 MBBS
CONTENTS OF INGUINALCANAL
TONY 2010 MBBS
COVERING OF SPERMATIC CORD
TONY 2010 MBBS
DEFENCE MECHANISM OF
INGUINAL CANAL
• Obliquity of inguinal canal
• Arching of conjoint tendon
• Shutter mechanism of internal oblique
• Ball valve mechanism due to contraction of cremasteric muscle
• Slit valve mechanism due to contraction of external oblique muscle
• hormone
TONY 2010 MBBS
FRICHAUDS MYOPECTINEAL
ORIFICE
The MPO is divided anteriorly by the inguinal
ligament, and posteriorly by the iliopubic tract. It is
bounded medially by the lateral border of the rectus
muscle, superiorly by the arching fibers of the
transversus abdominus and the internal oblique
muscles, laterally by the iliopsoas muscle and
inferiorly by the Cooper ligament.
ALL HERNOA ARE THROGH THI
ORIFICE
TONY 2010 MBBS
TONY 2010 MBBS
FRUCHAUD’S MYOPECTINEAL ORIFICE
• osseo-myo-aponeurotic tunnel.
• medially
• lateral border of rectus sheath;
• above
• the arched fibres of internal oblique and transverse abdominis muscle;
• laterally
• by the iliopsoas muscle;
• below
by the pectin pubis and fascia covering it.
It Is through this tunnel all groin hernias occur.
TONY 2010 MBBS
HASSELBACHS TRIANGLE
TONY 2010 MBBS
The boundaries of the inguinal triangle are as follows
• Medial: Lower 5 cm of the lateral border of the
rectus abdominis muscle.
• Lateral: Inferior epigastric artery.
• Inferior: Medial half of the inguinal ligament.
• The floor of the triangle is covered by the
peritoneum, extraperitoneal tissue, and fascia
transversalis.
• The lateral umbilical ligament (obliterated umbilical artery) crosses the
triangle and divides it into
• medial and lateral parts. The medial part of the floor of the triangle is
strengthened by the conjoint tendon. The lateral part of the floor of the triangle
is weak, hence direct inguinal hernia usually occurs through this part.
TONY 2010 MBBS
ETIOLOGY
• STRAINING
C/C CONSTIPATION (HABITUAL,STRICTURE)
URINARY PROBLEMS
 OLD AGE =BPH, Ca prostate
 YOUNG AGE=STRICTURE URETHRA
 VERY YOUNG=PHIMOSIS,MEATAL STENOSIS
LIFTING OF HEAVY WEIGHT
• C/C COUGH =T.B, B.A, C/C BRONCHITIS
• OBESITY
• PREGNANCY
• SMOKING
• ASCITES
TONY 2010 MBBS
ETIOLOGY
• APPENDICECTOMY  DESTROY ILIO INGUINAL NDIRECT INGUINALHERNIA
McBURNEYS INCISION
• FAMILIAL COLLAGEN DISORDER
• CONGENITAL PREFORMED SAC (REMAINS OF PROCESSUS VAGINALIS)
TONY 2010 MBBS
PARTS OF A HERNIA
• SAC
• COVERING OF SAC
• CONTENTS OF SAC
TONY 2010 MBBS
SAC
• A DIVERTICULUM OF PERITONEUM WITH
 MOUTH
 NECK
 BODY
 FUNDUS
• NECK IS NARROW IN CASE OF INDIRECT WIDE IN CASE OF DIRECT
• HERNIA WITHOUT NECK: HERNIA WITH A WIDE MOUTH ,DIRCT
HERNIA,INCISIONAL HERNIA
• SAC IS THIN IN INFANTS & CHILD THICK IN LONG STANDING & DIRECT HERNIA
• HERNIA WITHOUT SAC: EPIGASTRIC HERNIA(Protrusion of extra peritoneal pad
of fat)
TONY 2010 MBBS
COVERING OF SAC
• LAYERS OF ABDOMINAL WALL
TONY 2010 MBBS
CONTENTS OF SAC
• OMENTOCELE: omentum….easy to reduce initially,…but difficult later
• ENTEROCELE: usuaslly SI,….difficult to reduce initially…easy later
• RICHTERS HERNIA :a portion of circumference of bowel
• LITTRE’S HERNIA: meckels diverticulum
• CYSTOCELE :bladder
• Ovary,fallopian tube
• Fluid :ascitic, blood from strangulated hernia, from congested bowel
TONY 2010 MBBS
TONY 2010 MBBS
CLINICAL CLASSIFICATION
HERNIA
REDUCIBLE
HERNIA
IRREDUCIBLE
HERNIA
OBSTRUCTED
HERNIA
INCARCERATED
HERNIA
STRANGULATED
HERNIA
INFLAMMED
HERNIA
TONY 2010 MBBS
CLINICAL CLASSIFICATION
• REDUCIBLE HERNIA contents can be reduced by the patient or surgeon
expansile impulse on coughing
TONY 2010 MBBS
• IRREDUCIBLE HERNIA can’t be reduced …due to adhesions b/w contents
and sac…or due to crowding
irreducibility + no other symptoms}OMENTOCELE
Irreducibility predisposes to strangulation
TONY 2010 MBBS
 OBSTRUCTED HERNIA : bowel is obstructed…but blood supply is good
TONY 2010 MBBS
 INCARCERATED HERNIA
that the lumen of that portion of the colon
occupying a hernial sac is blocked with faeces. In this case, the
scybalous contents of the bowel should be capable of being
indented with the finger, like putty.
In incarcerated hernia, sac and contents are densely
adherent to each other (contents are fixed to sac). It
is always irreducible; often obstructed but may not
be strangulated.
TONY 2010 MBBS
STRANGULATED HERNIA blood supply is impaired ISCHAEMIAGANGRENE
OF INTESTINE
TENDERNESS…. TENSE SAC
NO IMPULSE ON COUGHING
FEATURES OF INTESTINAL OBSTRUCTION
TONY 2010 MBBS
• INFLAMMED HERNIA
inflammation of contents of hernia sac
appendicitis,salpingitis
TONY 2010 MBBS
CLASSIFICATION
hernia
congenital
acquired
TONY 2010 MBBS
TYPES OF INGUINAL HERNIA
Inguinal
hernia
Direct
indirect
Through hesselbachs
triangle in posterior wall of
inguinal canal (medially
by lateral border of rectus
sheath,below by inguinal
ligament,laterally by
inferior epigastric artery)
Through deep ring along with
spermatic cord,lateral to
inferior epigastric artery
TONY 2010 MBBS
Indirect inguinal hernia Direct inguinal hernia
1.any age from childhood to adult 1.Common in elderly
2.Occurs in a pre-existing sac 2.Always acquired
3. Protrusion through the deep ring; herniation
occurs later
3.Herniation through posterior wall of the
inguinal canal
4.Pyriform /oval in shape; descends obliquely
and downwards
4.Globular/round in shape;
descends directly forward bulge
5.Can become complete by
descending down into the scrotum
5.Rarely descend down into the scrotum
6.Sac is antero-lateral to the cord 6.Sac is posterior to the cord
7.Ring occlusion test no impulse after
occluding the deep ring
7. impulse even
after occluding the deep ring
8.Invagination test shows impulse on the tip of
the little finger
8.Invagination test shows impulse on the pulp
of the little finger
9.Zieman’s test impulse
on the index finger
9.impulse on the middle finger
10.Commonly unilateral may be bilateral 10.Commonly bilateral
11.Obstruction/strangulation
are common
11.Rare but can occur
TONY 2010 MBBS
TONY 2010 MBBS
INDIRECT HERNIA
Deep ring
Whole of
inguinal canal
Superficial ring
TONY 2010 MBBS
DIRECT HERNIA
Weak post wall of
inguinal canal
(hesselbachs triangle)
Part of inguinal canal
Superficial ring
INDIRECT INGUINAL HERNIA
• Commonest more in males
• Thin sac
• Narrow neck
• Lateral to inferior epigastric vessels
TONY 2010 MBBS
TONY 2010 MBBS
CLASSIFICATION( BASED ON
EXTENT)
Inguinal
hernia
incomplete
bubonocele
funicular
complete
Sac is
confined to
inguinalcanal
Sac crosses
superficial
ring but not
reaches
bottom of
scrotum
Reaches
bottom of
scrotum
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
NYHUS CLASSIFICATION
SYSTEM
Type I
INDIRECT HERNIA; internal abdominal ring normal; typically in infants, children,
small adults
Type II
INDIRECT HERNIA; internal ring enlarged without impingement on the floor of the
inguinal canal; does not extend to the scrotum
Type IIIA DIRECT HERNIA; size is not taken into account
Type IIIB
INDIRECT HERNIA that has enlarged enough to encroach upon the posterior
inguinal wall; INDIRECT SLIDING OR SCROTAL HERNIAS are usually placed in this
category because they are commonly associated with EXTENSION TO THE DIRECT
SPACE; also includes PANTALOON HERNIAS
Type IIIC FEMORAL HERNIA
Type IV
RECURRENT HERNIA; modifiers A–D are sometimes added, which correspond TO
INDIRECT, DIRECT, FEMORAL, AND MIXED, RESPECTIVELY
TONY 2010 MBBS
DIRECT INGUINAL HERNIA
• ALWAYS ACQUIRED
• MEDIAL TO INFERIOR EPIGASTRIC ARTERY
• SAC IS THICK
• THROUGH HESSELBACHS TRIANGLE….. HESSELBACHS TRIANGLE IS DIVIDED IN
TO LATERAL & MEDIAL HALVES BY OBLITERATED UMBILICAL ARTERY(LATERAL
UMBILICAL LIGAMENT) DIRECT HERNIA CAN BE DIVIDED IN TO LATERAL AND
MEDIAL BASED UPON THIS LIGAMENT
TONY 2010 MBBS
Direct
hernia
medial
lateral
TONY 2010 MBBS
TONY 2010 MBBS
2 CLASSICAL SIGNS OF
UNCOMPLICATED HERNIA
• Impulse on coughing
• Reducibility
TONY 2010 MBBS
COMPLICATIONS OF HERNIA
• Irreducibility
• Obstructed hernia
• Strangulated hernia
• Inflammation
• Incarceration
TONY 2010 MBBS
IRREDUCIBILITY
• Adhesions of its contents to each other
• Adhesion of its contents with the sac
• Adhesion of one part of sac to other
• Sliding hernia
• Massive hernia (scrotal abdomen)
TONY 2010 MBBS
OBSTRUCTED HERNIA
• Irreducibility + intestinal obstruction ( lumen obstruction)
• It does not occur in
• Richters hernia
• Omentocele
• Littres hernia
• Features of obstructed hernia
• No expansile impulse on coughing
• Irreducible
• No pain
• Lax non tender
• symptoms
TONY 2010 MBBS
INCARCERATED HERNIA
• When it contains a portion of colon with faeces  indenting with fingers
putty like feeling
TONY 2010 MBBS
STRANGULATED HERNIA
• Irredudicibility + intestinal obstruction + arrest of blood supply
• Due to constriction at the neck
TONY 2010 MBBS
SIGNS OF STRANGULATED HERNIA
• Tense
• Tender
• No impulse on coughing
• irreducible
• Recent increase in size
TONY 2010 MBBS
TREATMENT
• Raise the foot end (gravityredn of hernia)
• Ice bag applin  redue congestion & edema
• Nasogastric tube for gastric aspiration
• Iv fluid admn
• Parenteral antibiotics.
• Herniotomy open at the fundus & drain the fluid divide constriction ring &
examine the bowel for viability
• Nonviable Bowel
• Small bowel—end to end resection anastomosis
• Omentum—excise the gangrenous part.
TONY 2010 MBBS

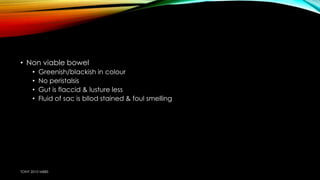

• Non viable bowel
• Greenish/blackish in colour
• No peristalsis
• Gut is flaccid & lusture less
• Fluid of sac is bllod stained & foul smelling
TONY 2010 MBBS
FEMORAL HERNIA
Femoral
canal
Saphenous
opening
TONY 2010 MBBS
ANATOMY
• Femoral canal: 2 x 2 cm size
• Medial compartment of femoral sheath
• Base: Femoral ring
• Bounded
• Anteriorly—inguinal ligament
• Posteriorly—cooper’s ligament
• Medially—lacunar ligament
• Laterally—femoral vein
• Contents:
• Cloquets node
• Lymphatics
• Areolar tissue
TONY 2010 MBBS
TONY 2010 MBBS
SAPHENOUS OPENING
TONY 2010 MBBS
• 4cm below & lateral to pubic
tubercle
• Covered by cribriform fascia
• Upper & outer margin are sharp
will turn femoral hernia upwards
ANATOMY
TONY 2010 MBBS
COURSE OF FEMORAL HERNIA
TONY 2010 MBBS
COVERINGS
• Skin
• Superficial fascia
• Cribriform fscia
• Anterior layer of femoral sheath
• Fatty content of femoral canal
• Femoral septum
• peritoneum
TONY 2010 MBBS
• Increased chance of strangulation
• F>M
• Uncommon in children
• Symptoms
• Pain
• Swelling
TONY 2010 MBBS
• Position
• Below & lateral to pubic tubercle
• Shape
• Globular/ retort (if large)
• Narrow neck
• Absent impulse on coughing
• Irreducible
• Strangulation
• consistency
TONY 2010 MBBS
• Position
• Zeimanns test
• Impulse on ring finger
• Invagination test
• Empty inguinal canal
• Ring occlusion of saphenous opening
TONY 2010 MBBS
DD
• Saphena varix
• Aneurysm
• Psoas abscess
• Undescended ectopic testis
• Lipoma
• Psoas bursa
• Hydrocele of femoral hernia sac
TONY 2010 MBBS
TREATMENT
• High operation of McEvedy
• A incision above the inguinal ligament. Sac is dissected from below, neck
• from above and repair is done from above. It gives a
• very good exposure of both neck, fundus of sac and
• repair is also easier. strangulated femoral
• hernia
• Lotheissens operation
• Lockwood operation low approach
TONY 2010 MBBS
MAYDL’S HERNIA
• Bowel loop = W SHAPE (HERNIA IN W)
• CENTRAL PART CAN GET STRANGULATED
(INTRA ABDOMINAL)
• NO LOCAL TENDERNESS AS IN OTHER CASES
OF STRANGULATION
PERITONITIS
TONY 2010 MBBS
RICHTER’S HERNIA
• A portion of circumference of bowel
• Usually ANTIMESENTERIC BORDER
• ISCHEMIA IN HERNIATED PART
• NO OBSTRUCTION AS LUMEN NOT INVOLVED
TONY 2010 MBBS
SLIDING HERNIA
• Hernia –en-glissade
• Part of a viscus forms a part of herniating sac
• Usually occurs on left side( caeum) &
if on right side(sigmoid colon) bladder on both side
• In males
• Some times sac less
TONY 2010 MBBS
PANTALOON HERNIA DOUBLE
HERNIA
• When both direct & indirect hernia sacs are present on the same side
• Hernias on both sides of epigatric vessels(like a pants)=pantaloons
• Recurrent hernia
TONY 2010 MBBS
SPIGELIAN HERNIA
• Lateral ventral hernia
• Herniate b/w muscles of abdomen
• At or blw arcuate line due to absence of posterior rectus sheath(half way
b/w umbilicus & inguinal ligament)
• High risk of strangulation
• Rectus abdominis medially & arcuate line laterally
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
TONY 2010 MBBS
LUMBAR HERNIA
TONY 2010 MBBS
UMBILICAL HERNIA
Umbilical hernia
Exomphalos
Umbilical hernia in
infants & children
Para umbilical
hernia of adults
TONY 2010 MBBS
EXOMPHALOS
• Failure of all or part of the midgut
to return to the abdominal cavity
during early fetal life
• Outer } amniotic membrane
• Middle } whartons jelly
• Inner } peritoneum exomphalos
Exomphalos
minor
Exomphalos
major
TONY 2010 MBBS
TONY 2010 MBBS
EXOMPHALOS MAJOR
• Umbilical cord attached to inferior aspect of large swelling
• Contains SI… LI & part of liver
TONY 2010 MBBS
• Exomphalos major may burst
• So emergency Sx is needed
TONY 2010 MBBS
EXOMPHALOS MINOR
• Sac is small
• Umbilical cord is attached to its summit
TONY 2010 MBBS
TONY 2010 MBBS
UMBILICAL HERNIA IN INFANTS &
CHILDRENS
• Through umbilical cicatrix
• Spherical in shape
• Increase in size in crying
TONY 2010 MBBS
TONY 2010 MBBS
PARAUMBILICAL HERNIA OF
ADULTS
• Not through umbilical cicatrix but through linea alba
• Above (supraumbilical)
• Below (infraumbilical)
TONY 2010 MBBS

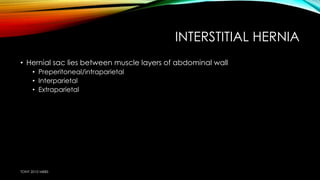

INTERSTITIAL HERNIA
• Hernial sac lies between muscle layers of abdominal wall
• Preperitoneal/intraparietal
• Interparietal
• Extraparietal
TONY 2010 MBBS
LITTRE’S HERNIA
• Meckels diverticulum is the content
TONY 2010 MBBS
CAUSES OF RECURRENCE OF
INGUINAL HERNIA
• Failure to ligate the sac at the neck
• Increased tension
• Use of absorbable sutures
• Fault in selection of operation
• Infection
• Lifting of heavy weight with in 3 months
• Persistent predisposing factors
• Appearance of new hernia
TONY 2010 MBBS
HERNIA OF A HYDROCELE
LOCALIZED THINNING OF TUNICA LEADING TO PSEUDOPODIUM-LIKE
PROJECTION, USUALLY SEEN WHEN THE SAC IS THICK AND FLUID IS UNDER
TENSION through
HYDROCELE OF A HERNIA
FLUID SEQUESTRATION IN A LOCULUS OF THE HERNIAL SAC, RESEMBLING
HYDROCELE. THIS IS SEEN IN LONG STANDING CASES WITH ADHESIONS WITHIN
THE SAC
MORE COMMON IN VENTRAL HERNIA CONTAING OMENTUM
OGILVIE HERNIA
• • Direct hernias are always acquired. Indirect may be congenital or
acquired.
• • Only congenital direct hernia is ogilvie hernia; through a rigid circular
orifice
• in the conjoined tendon just lateral to where it inserts into the rectus sheath.
TONY 2010 MBBS

More Related Content

What's hot

Hernia examination by Dr Min Oo
Hernia examination by Dr Min OoHernia examination by Dr Min Oo
Hernia examination by Dr Min Oo
Dr. Rubz


What's hot (20)

Inguinal hernia ppt
Inguinal hernia pptInguinal hernia ppt
Inguinal hernia ppt

Inguinal hernia examination
Inguinal hernia examinationInguinal hernia examination
Inguinal hernia examination

Right iliac fossa mass
Right iliac fossa massRight iliac fossa mass
Right iliac fossa mass

Sigmoid volvulus/ Generalised abdominal pain
Sigmoid volvulus/  Generalised abdominal painSigmoid volvulus/  Generalised abdominal pain
Sigmoid volvulus/ Generalised abdominal pain

Hydrocele- All types & treatment options
Hydrocele- All types & treatment optionsHydrocele- All types & treatment options
Hydrocele- All types & treatment options

Obstructive jaundice
Obstructive jaundiceObstructive jaundice
Obstructive jaundice

Pilonidal Disease
Pilonidal DiseasePilonidal Disease
Pilonidal Disease

Acute appendicitis &lump
Acute appendicitis &lumpAcute appendicitis &lump
Acute appendicitis &lump

Management of inguinal hernia
Management of inguinal herniaManagement of inguinal hernia
Management of inguinal hernia

Direct and indirect inguinal hernia final for website
Direct and indirect inguinal hernia final for websiteDirect and indirect inguinal hernia final for website
Direct and indirect inguinal hernia final for website

Lump abdomen
Lump abdomenLump abdomen
Lump abdomen

Surgery hernia
Surgery   herniaSurgery   hernia
Surgery hernia

Hernia examination by Dr Min Oo
Hernia examination by Dr Min OoHernia examination by Dr Min Oo
Hernia examination by Dr Min Oo

Abdiminal tuberculosis
Abdiminal tuberculosisAbdiminal tuberculosis
Abdiminal tuberculosis

Hydrocele
HydroceleHydrocele
Hydrocele

Obstructive jaundice.
Obstructive jaundice.Obstructive jaundice.
Obstructive jaundice.

Anal & Perianal diseases
Anal & Perianal diseases   Anal & Perianal diseases
Anal & Perianal diseases

Rectal bleeding
Rectal bleedingRectal bleeding
Rectal bleeding

9 hernia
9 hernia9 hernia
9 hernia

Gastric Outlet Obstruction (GOO)
Gastric Outlet Obstruction (GOO)Gastric Outlet Obstruction (GOO)
Gastric Outlet Obstruction (GOO)


Viewers also liked

Surgical Options In The Management Of Hernia Repair
Surgical Options In The Management Of Hernia RepairSurgical Options In The Management Of Hernia Repair
Surgical Options In The Management Of Hernia Repair
safarmas


Viewers also liked (16)

Hernia & abd wall lecture
Hernia & abd wall lectureHernia & abd wall lecture
Hernia & abd wall lecture

Surgical Options In The Management Of Hernia Repair
Surgical Options In The Management Of Hernia RepairSurgical Options In The Management Of Hernia Repair
Surgical Options In The Management Of Hernia Repair

Ca esophagus
Ca esophagusCa esophagus
Ca esophagus

Examining the Acute Abdomen
Examining the Acute AbdomenExamining the Acute Abdomen
Examining the Acute Abdomen

Hyperthyroidism Guidelines
Hyperthyroidism GuidelinesHyperthyroidism Guidelines
Hyperthyroidism Guidelines

Acute Abdomen
Acute AbdomenAcute Abdomen
Acute Abdomen

Lymphedema lower limb
Lymphedema lower limbLymphedema lower limb
Lymphedema lower limb

Anatomy of Cholelithiasis
Anatomy of Cholelithiasis Anatomy of Cholelithiasis
Anatomy of Cholelithiasis

4. management of head injury 6th aug 14
4. management of head injury 6th aug 144. management of head injury 6th aug 14
4. management of head injury 6th aug 14

Obstructive jaundice 19_9_2014
Obstructive jaundice 19_9_2014Obstructive jaundice 19_9_2014
Obstructive jaundice 19_9_2014

Head injury.ppt
Head injury.pptHead injury.ppt
Head injury.ppt

Generalized lymphadenopathy
Generalized lymphadenopathyGeneralized lymphadenopathy
Generalized lymphadenopathy

Trends in the management of Lymphedema
Trends in the management of LymphedemaTrends in the management of Lymphedema
Trends in the management of Lymphedema

Inguinal hernia
Inguinal herniaInguinal hernia
Inguinal hernia

Thyrotoxicosis- complete review of anatomy, physiology, types and clinical fe...
Thyrotoxicosis- complete review of anatomy, physiology, types and clinical fe...Thyrotoxicosis- complete review of anatomy, physiology, types and clinical fe...
Thyrotoxicosis- complete review of anatomy, physiology, types and clinical fe...

Case study on cholelithiasis
Case study on cholelithiasisCase study on cholelithiasis
Case study on cholelithiasis


Similar to Hernia

Instruments SURGERY updated PPT
Instruments SURGERY updated PPT Instruments SURGERY updated PPT
Instruments SURGERY updated PPT
TONY SCARIA

Chronic infections of jaw (oral infections)
Chronic infections of jaw (oral infections)Chronic infections of jaw (oral infections)
Chronic infections of jaw (oral infections)
beenish_jalil


Similar to Hernia (20)

Instruments SURGERY updated PPT
Instruments SURGERY updated PPT Instruments SURGERY updated PPT
Instruments SURGERY updated PPT

9hernia-130718004923-phpapp01.pdf
9hernia-130718004923-phpapp01.pdf9hernia-130718004923-phpapp01.pdf
9hernia-130718004923-phpapp01.pdf

Hernias by MHR Corp
Hernias by MHR CorpHernias by MHR Corp
Hernias by MHR Corp

Acute apical abscess dr anirudh singh chauhan
Acute apical abscess   dr anirudh singh chauhanAcute apical abscess   dr anirudh singh chauhan
Acute apical abscess dr anirudh singh chauhan

Or. habits
Or. habitsOr. habits
Or. habits

Hernia surgery lecture mbbs Maharashtra.pptx
Hernia surgery lecture mbbs Maharashtra.pptxHernia surgery lecture mbbs Maharashtra.pptx
Hernia surgery lecture mbbs Maharashtra.pptx

Abdominal hernia presentation.pptx
Abdominal hernia presentation.pptxAbdominal hernia presentation.pptx
Abdominal hernia presentation.pptx

Ponceti techniqe
Ponceti techniqePonceti techniqe
Ponceti techniqe

Instruments ent ppt with uses otorhinolaryngology ent
Instruments ent ppt with uses otorhinolaryngology  ent Instruments ent ppt with uses otorhinolaryngology  ent
Instruments ent ppt with uses otorhinolaryngology ent

DEEP BITE..RX.ppt, orthodontic extractions
DEEP BITE..RX.ppt, orthodontic extractionsDEEP BITE..RX.ppt, orthodontic extractions
DEEP BITE..RX.ppt, orthodontic extractions

Operative surgery ppt mbbs students
Operative surgery ppt mbbs students Operative surgery ppt mbbs students
Operative surgery ppt mbbs students

Femoral hernia lec to 1st year
Femoral hernia lec to 1st yearFemoral hernia lec to 1st year
Femoral hernia lec to 1st year

MANDIBULAR FRACTURE in plastic surgery.pptx
MANDIBULAR FRACTURE in plastic surgery.pptxMANDIBULAR FRACTURE in plastic surgery.pptx
MANDIBULAR FRACTURE in plastic surgery.pptx

Hernia REVISION NOTES FOR NEET PREPARATION
Hernia REVISION NOTES FOR NEET PREPARATIONHernia REVISION NOTES FOR NEET PREPARATION
Hernia REVISION NOTES FOR NEET PREPARATION

Vertical jaw relation
Vertical jaw relationVertical jaw relation
Vertical jaw relation

Chronic infections of jaw (oral infections)
Chronic infections of jaw (oral infections)Chronic infections of jaw (oral infections)
Chronic infections of jaw (oral infections)

Open bite
Open biteOpen bite
Open bite

Abdominal wall hernia
Abdominal wall herniaAbdominal wall hernia
Abdominal wall hernia

Hernia
Hernia Hernia
Hernia

HERNIA PDF.pdf
HERNIA PDF.pdfHERNIA PDF.pdf
HERNIA PDF.pdf


More from TONY SCARIA

Special senses physiology revison topics
Special senses physiology revison topics Special senses physiology revison topics
Special senses physiology revison topics
TONY SCARIA

Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES
Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES
Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES
TONY SCARIA


More from TONY SCARIA (20)

Mucormycosis
MucormycosisMucormycosis
Mucormycosis

Phosphorus metabolism
Phosphorus metabolism Phosphorus metabolism
Phosphorus metabolism

cbc Histogram
cbc Histogramcbc Histogram
cbc Histogram

Osteoporosis clinical features and management
Osteoporosis clinical features and management Osteoporosis clinical features and management
Osteoporosis clinical features and management

Calcium METABOLISM
Calcium METABOLISM Calcium METABOLISM
Calcium METABOLISM

Magnesium metabolism
Magnesium metabolism Magnesium metabolism
Magnesium metabolism

Special senses physiology revison topics
Special senses physiology revison topics Special senses physiology revison topics
Special senses physiology revison topics

CSF PHYSIOLOGY ANALYSIS NORMAL AND DISEASE
CSF PHYSIOLOGY ANALYSIS NORMAL AND DISEASE CSF PHYSIOLOGY ANALYSIS NORMAL AND DISEASE
CSF PHYSIOLOGY ANALYSIS NORMAL AND DISEASE

Plantar reflex
Plantar reflexPlantar reflex
Plantar reflex

Dna viruses
Dna virusesDna viruses
Dna viruses

Deep neck space infection ENT REVISION NOTES
Deep neck space infection ENT REVISION NOTES Deep neck space infection ENT REVISION NOTES
Deep neck space infection ENT REVISION NOTES

Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES
Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES
Antirheumatic drugs & anti gout drugs PHARMACOLOGY REVISION NOTES

Trauma to eye REVISION NOTES
Trauma to eye REVISION NOTES Trauma to eye REVISION NOTES
Trauma to eye REVISION NOTES

Orbit OPHTHALMOLOGY REVISION NOTES
Orbit OPHTHALMOLOGY REVISION NOTES Orbit OPHTHALMOLOGY REVISION NOTES
Orbit OPHTHALMOLOGY REVISION NOTES

Vision 2020 REVISION NOTES
Vision 2020 REVISION NOTES Vision 2020 REVISION NOTES
Vision 2020 REVISION NOTES

Cataract revisionnotes ophthalmology
Cataract revisionnotes ophthalmology  Cataract revisionnotes ophthalmology
Cataract revisionnotes ophthalmology

Uvea ophthalmology revision notes
Uvea ophthalmology revision notesUvea ophthalmology revision notes
Uvea ophthalmology revision notes

Retinoblastoma revision notes
Retinoblastoma revision notes Retinoblastoma revision notes
Retinoblastoma revision notes

Genetics pathology revision notes
Genetics pathology revision notes Genetics pathology revision notes
Genetics pathology revision notes

Cell injury pathology revision notes
Cell injury pathology revision notes Cell injury pathology revision notes
Cell injury pathology revision notes


Recently uploaded

Difference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac MusclesDifference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac Muscles
MedicoseAcademics

Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...
Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...
Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...
Cara Menggugurkan Kandungan 087776558899

Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan 081901222272 Obat Penggugur Kandu...
Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan  081901222272 Obat Penggugur Kandu...Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan  081901222272 Obat Penggugur Kandu...
Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan 081901222272 Obat Penggugur Kandu...
Halo Docter

Physiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdfPhysiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdf
MedicoseAcademics


Recently uploaded (20)

Face and Muscles of facial expression.pptx
Face and Muscles of facial expression.pptxFace and Muscles of facial expression.pptx
Face and Muscles of facial expression.pptx

Difference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac MusclesDifference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac Muscles

7 steps How to prevent Thalassemia : Dr Sharda Jain & Vandana Gupta
7 steps How to prevent Thalassemia : Dr Sharda Jain & Vandana Gupta7 steps How to prevent Thalassemia : Dr Sharda Jain & Vandana Gupta
7 steps How to prevent Thalassemia : Dr Sharda Jain & Vandana Gupta

Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024

VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...

TEST BANK For Guyton and Hall Textbook of Medical Physiology, 14th Edition by...
TEST BANK For Guyton and Hall Textbook of Medical Physiology, 14th Edition by...TEST BANK For Guyton and Hall Textbook of Medical Physiology, 14th Edition by...
TEST BANK For Guyton and Hall Textbook of Medical Physiology, 14th Edition by...

Intro to disinformation and public health
Intro to disinformation and public healthIntro to disinformation and public health
Intro to disinformation and public health

VIP ℂall Girls Thane West Mumbai 9930245274 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Thane West Mumbai 9930245274 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Thane West Mumbai 9930245274 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Thane West Mumbai 9930245274 WhatsApp: Me All Time Serviℂe Ava...

SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdfSEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf
SEMESTER-V CHILD HEALTH NURSING-UNIT-1-INTRODUCTION.pdf

Part I - Anticipatory Grief: Experiencing grief before the loss has happened
Part I - Anticipatory Grief: Experiencing grief before the loss has happenedPart I - Anticipatory Grief: Experiencing grief before the loss has happened
Part I - Anticipatory Grief: Experiencing grief before the loss has happened

Creeping Stroke - Venous thrombosis presenting with pc-stroke.pptx
Creeping Stroke - Venous thrombosis presenting with pc-stroke.pptxCreeping Stroke - Venous thrombosis presenting with pc-stroke.pptx
Creeping Stroke - Venous thrombosis presenting with pc-stroke.pptx

TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...

Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...
Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...
Cara Menggugurkan Kandungan Dengan Cepat Selesai Dalam 24 Jam Secara Alami Bu...

Test bank for critical care nursing a holistic approach 11th edition morton f...
Test bank for critical care nursing a holistic approach 11th edition morton f...Test bank for critical care nursing a holistic approach 11th edition morton f...
Test bank for critical care nursing a holistic approach 11th edition morton f...

Physicochemical properties (descriptors) in QSAR.pdf
Physicochemical properties (descriptors) in QSAR.pdfPhysicochemical properties (descriptors) in QSAR.pdf
Physicochemical properties (descriptors) in QSAR.pdf

ABO Blood grouping in-compatibility in pregnancy
ABO Blood grouping in-compatibility in pregnancyABO Blood grouping in-compatibility in pregnancy
ABO Blood grouping in-compatibility in pregnancy

spinal cord disorders and paraplegia .
spinal cord disorders  and  paraplegia .spinal cord disorders  and  paraplegia .
spinal cord disorders and paraplegia .

Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan 081901222272 Obat Penggugur Kandu...
Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan  081901222272 Obat Penggugur Kandu...Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan  081901222272 Obat Penggugur Kandu...
Obat Aborsi Ampuh Usia 1,2,3,4,5,6,7 Bulan 081901222272 Obat Penggugur Kandu...

Physiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdfPhysiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdf

Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024


Hernia

  • 2. HERNIA • PROTRUSION OF A VISCUS OR A PART OF VISCUS THROUGH A NORMAL OR ABNORMAL OPENING IN THE WALLS OF ITS CONTAINING CAVITY TONY 2010 MBBS
  • 3. HERNIA COMMON INGUINAL INCISIONAL FEMORAL UMBILICAL EPIGASTRIC RARE OBTURATOR SPIGELIAN GLUTEAL LUMBAR DIAPHRAGMATIC TONY 2010 MBBS
  • 7. HISTORY • AGE : YOUNG •INDIRECT OLD AGE (weak musculature) •DIRECT TONY 2010 MBBS
  • 8. HISTORY • OCCUPATION =STRENOUS STRENOUS WORK PERSISTENT PROCESSUS VAGINALIS WEAK ABDOMINAL WALL HERNIATION TONY 2010 MBBS
  • 9. • SEX • MOST COMMON HERNIA (BOTH IN MALES & FEMALES) INDIRECT • FEMORAL HERNIA IS COMMON IN FEMALES • DIRECT HERNIA IS ABSENT IN FEMALES & CHILDREN TONY 2010 MBBS IN FEMALES PELVIS IS TILTED ANTERIORLY APEX & BASE OF HSSELBACH TRIANGLE AT THE SAME LEVEL  OBLITERATEDLESS CHANCE
  • 11. • ABOUT LUMP • COMPLICATIONS • ETIOLOGY (PRECIPITATING FACTORS) TONY 2010 MBBS
  • 12. LUMP • 1. Duration • 2. Onset: Suddenly/gradually • 3. Site of start: • From groin to scrotum (hernia) • From scrotum to groin (hydrocele and varicocele) • 4. Aggravating factors: • – On straining • – On standing • – On coughing • 5. Relieving factors: • – By lying down • – Manuallybyhimself • 6. Associated with pain: Usually painless TONY 2010 MBBS
  • 13. PRESENTING COMPLAINTS LUMP • Onset : coughing lifting weight • Site: groin  scrotum} inguinal hernia below groin crease & ascends above it} femoral hernia • Size and extent: congenital: reaches bottom of scrotum at its first appearance itself THOUGH CONGENITAL CAN APPEAR AT ANY AGE due to preformed sac TONY 2010 MBBS
  • 14. PAIN • PAIN= DRAGGING & ACHING TYPE Appears b4 the swelling Increase with time Subsides when it is fully formed TONY 2010 MBBS
  • 15. PAIN Acute pain around umbilicus tenderness strangulation Due to drag on mesentry TONY 2010 MBBS
  • 16. PAIN • In strangulation due to drag on mesentry pain all over the abdomen TONY 2010 MBBS
  • 17. HISTORY SUGGESTIVE OF COMPLICATIONS: • Irreducibility, • severe pain in the groin over the swelling and also • colicky abdominal pain, abdominal distension, vomiting, • constipation TONY 2010 MBBS
  • 18. acquired } small initially ↑ size gradually • REDUCIBILITY Reduces on lying down DIRECT Does not reduce on lying down INDIRECT TONY 2010 MBBS
  • 19. • SYMPTOMS OF OBSTRUCTION COLICKY ABDOMINAL PAIN VOMITING •BILIOUS •FAECAL (USUALLY) ABDOMINAL DISTENSION ABSOLUTE CONSTIPATION TONY 2010 MBBS
  • 20. PRECIPITATING FACTORS • C/C COUGH=TB ,BA,C/C BRONCHITIS • STRAINING IN • CONSTIPATION • FREQUENCY OF MICTURITION • URGENCY OF BENIGN ENLARGEMENT OF PROSTATE • PHIMOSIS • PINHOLE MEATUS • PENILE STRICTURES TONY 2010 MBBS OBSTRUCTION
  • 21. PAST HISTORY • TB BA • PREVIOUS SURGERY •Damage to ilioinguinal nerve  weak abdominal wall DIRECT hernia APPENDICECTOMY •Same side •Opposite side RECURRENT HERNIA TONY 2010 MBBS
  • 22. FAMILY HISTORY • CONNECTIVE TISSUE DISORDERS TONY 2010 MBBS
  • 23. PERSONAL HISTORY • History of Smoking: • Smoking leads to chronic bronchitis • Collagen deficiency occurs in smokers. TONY 2010 MBBS
  • 26. INSPECTION • Patient in standing position • 1. Site • 2. Size • 3. Shape • 4. Extent • 5. Surface • 6. Skin over the swelling • 7. Visible peristalsis • 8. Cough impulse • 9. Draining lymph nodes • 10. Penis • 11. Urethral meatus • 12. Opposite scrotum TONY 2010 MBBS
  • 27. INSPECTION • EXPOSE 4M UMBILICUSMID THIGH POSITION OF PATIENT STANDING Inguinal, lumbar, femoral, epigastric, obturator, gluteal, spigelian SUPINE TONY 2010 MBBS
  • 28. SWELLING shape spherical femoral direct pyriform indirect TONY 2010 MBBS
  • 29. POSITION & EXTENT • Inguinal hernia  above the inner part of inguinal ligament Inguinal hernia Congenital (complete) Extend in to scrotum acquired (funicular) Stops above testis TONY 2010 MBBS
  • 30. POSITION & EXTENT • Femoral hernia  starts below the inginal ligament and ascend over it TONY 2010 MBBS
  • 31. VISIBLE PERISTALSIS • Invisible = femoral hernia • Visible in case of inguinal hernia when skin is thin as in case of recurrent hernia TONY 2010 MBBS
  • 32. SKIN OVER THE SWELLING • Uncomplicated=normal • Strangulated=reddened • Truss 4 long time=discolouration, due to deposition of hemosiderin streaks, • Scar=recurrence • Wide irregular puckered=wound infectionrecurrence TONY 2010 MBBS
  • 33. IMPULSE ON COUGHING • Characteristic of hernia Impulse on coughing present Expansile impulse on coughing (increase in size with coughing) Momentary bulge synchronous with coughing absent obstructed TONY 2010 MBBS
  • 34. POSITION OF PENIS • Deviation of penis to opposite side= in large complete inguinal hernia TONY 2010 MBBS
  • 36. PALPATION • 1. Temperature • 2. Tenderness • 3. Site • 4. Size • 5. Shape • 6. Extent • 7. Surface • 8. Skin over the swelling • 9. Consistency • 10. Reducibility • 11. Get above the swelling • 12. Cough impulse • 13. Invagination test • 14. Ring occlusion test • 15. Zieman's technique. TONY 2010 MBBS
  • 37. POSITION & EXTENT • SWELLING REACHING SCROTUM/LABIA MAJORA}INGUINAL HERNIA Swelling in the groin Above inguinal ligament Medial to pubic tubercle INGUINAL Below inguinal ligament Lateral to pubic tubercle FEMORAL TONY 2010 MBBS
  • 38. HOW TO IDENTIFY PUBIC TUBERCLE TONY 2010 MBBS
  • 39. GET ABOVE THE SWELLING • DISTINGUISH B/W INGUINAL & INGUINOSCROTAL SWELLING • NO USE IN FEMORAL HERNIA ROOT OF SCROTUM IS HELD B/W THUMB IN FRONT & OTHER FINGERS BEHIND THE SWELLING IN AN ATTEMPT TO GET ABOVE THE SWELLING TONY 2010 MBBS
  • 40. GET ABOVE THE SWELLING INGUINAL HERNIA • NOT ABLE TO GET ABOVE THE SWELLING SCROTAL SWELLING • ABLE TO GET SBOVE THE SWELLING TONY 2010 MBBS
  • 43. CONSISTENCY • DOUGHY & GRANULAR} OMENTUM=OMENTOCELE • ELASTIC} INTESTINE=ENTEROCELE • TENSE & TENDER} STRANGULATED HERNIA TONY 2010 MBBS
  • 44. RELATION OF THE SWELLING TO THE TESTIS & SPERMATIC CORD INGUINAL HERNIA •Remains in front & sides of spermatc cord and testes which remains incorporated in front and sides FUNICULAR • Stops just above the testis TONY 2010 MBBS
  • 45. CLASSICAL SIGNS OF AN UNCOMPLICATED HERNIA TONY 2010 MBBS
  • 46. EXPANSILE IMPULSE ON COUGHING • STANDING POSITION • ABSENT IN CASE OF STRANGULATED & INCARCERATED HERNIA 1. MOMENTARY BULGE IN SUPERFICIAL RING ON COUGHUING 2. ROOT OF SCROTUM B/W INDEX FINGER & THUMB IS SEPARATED ON COUGHING TONY 2010 MBBS
  • 48. EXPANSILE IMPULSE IS ALSO PRESENT IN • Meningocele • Laryngocele • Empyema necessitans TONY 2010 MBBS
  • 49. ZEIMANN’S TECHNIQUE • Distinguish b/w direct, indirect or femoral hernia • Can be used only when the swelling is completely reduce when there is no visible swelling Index finger deep inguinal ring (1/2 “ above mid inguinal point) Middle finger superficial inguinal ring (superomedial to pubic tubercle) Ring finger saphenous opening (4cm blw & lateral 2 pubic tubercle) Hold the nose & blow or cough TONY 2010 MBBS
  • 50. ZEIMANN’S TECHNIQUE Impulse on Index finger Middle finger Ring finger Indirect inguinal hernia Direct inguinal hernia Femoral hernia TONY 2010 MBBS
  • 51. ZEIMANN’S TECHNIQUE • In presence of swelling  coughing  expansile impulse on coughing Movement of swelling is not a criterion bcz as these swellings move with coughing Encysted hydrocele of cord : localized swelling of spermatic cord Undescended testis TONY 2010 MBBS
  • 52. HOW TO IDENTIFY DEEP RING TONY 2010 MBBS
  • 53. HOW TO IDENTIFY DEEP RING TONY 2010 MBBS
  • 55. REDUCIBILITY • Reduces on lying down  direct hernia • Using TAXIS • Flexes the thigh • Adduct the thigh • Rotate internally Relaxes superficial inguinal ring + oblique muscles • Reduces with gurgling=>ENTEROCELE  Difficult to reduce initially but last part slips of easily • First part reduces easily last part difficultomentocele TONY 2010 MBBS
  • 57. INVAGINATION TEST • After reduction of hernia in recumbent position • Using little finger  rt. Hand side for rt. Side lt. hand side for lt. side • Invaginate skin 4m the bottom of scrotum & the little finger is pushed to palpate pubic tubercle • Finger is then rotated & pushed further up in to superficial inguinal ring • Nail will be against spermatic cord pulp will feel walls of ring • Normal ring transmits only tip of finger ,>1 finger}abnormally large TONY 2010 MBBS
  • 60. INVAGINATION TEST Finger goes directly backward=direct hernia TONY 2010 MBBS
  • 61. INVAGINATION TEST Finger goes upwards, backwards, outwards= indirect TONY 2010 MBBS
  • 62. INVAGINATION TEST Impulse on coughing Pulp of finger direct tip indirect TONY 2010 MBBS
  • 63. RING OCCLUSION TEST • Standing position after reduction of swelling • Using thumb pressure over the deep inguinal ring (1/2 “ above mid inguinal point) & is asked to cough • Occlude direct hernia but not direct hernia • Similarly on saphenous opening= femoral hernia TONY 2010 MBBS
  • 64. RING OCCLUSION TEST • Swelling appears even when deep ring is occluded=direct hernia • No swelling when deep ring is occluded = indirect hernia TONY 2010 MBBS
  • 66. IN CASE OF A CHILD • Inguinal hernia is invisible in child due to presence of thick pad of fat over inguinal region • To make it visible ask him to jolt/jump/make it cry • Gornalls test: child is held from back by both hands of the clinician on its abdomen,abdomen is pressed and child is lifted up increased intra abdominal pressure hernia more prominent TONY 2010 MBBS
  • 67. PERCUSSION • Resonant=enterocele • Dull =omentum/extraperitoneal fatty tissue Diff b/w a/c epididymitis a/c filalrial funiclitis & strangulated hernia TONY 2010 MBBS
  • 68. AUSCULTATION • Peristaltic sounds=enterocele TONY 2010 MBBS
  • 69. EXAMINATION OF TESTIS ,SPERMATIC CORDS & EPIDIDYMIS • Testis traction test: pull testis downwards encysted hydrocele}descends slightly & become fixed inguinal hernia}cant be fixed TONY 2010 MBBS
  • 70. EXAMINATION OF TONE OF ABDOMINAL MUSCLES • Inspectionprotrusion of lower abdominal wall • Malgaigne’s bulging: • oval shaped b/l bulge on straining above & parallel to medial half of inguinal ligament • weakness of abdominal wall • DIRECT HERNIA • HERNIOPLASTY IS REQUIRED TONY 2010 MBBS
  • 71. ABDOMINAL MUSCLE STRENGTH TONY 2010 MBBS
  • 72. MALGAGNES BULGING • Head or leg raising test: to test for abdominal muscle tone & malgaignes bulging TONY 2010 MBBS
  • 73. SYSTEMIC EXAMINATION • RESPIRATORY SYSTEM • R/O • C/C BRONCHITIS ,TB • ABDOMEN • MASS • ASCITES TONY 2010 MBBS
  • 74. • Abdominal examination • Respiratory system • Urinary systems • Per rectal examination TONY 2010 MBBS
  • 75. PER-RECTAL EXAMINATION • 1. Benign Prostate hypertrophy—micturition difficulty • 2.Malignant obstruction • 3. Chronic fissure—constipation TONY 2010 MBBS
  • 76. • Diagnosis • • Side—right/left • • Type—indirect/direct • • Inguinal—femoral • • Complete/Incomplete • • Complicated/Uncomplicated • • Content—enterocele/omentocele TONY 2010 MBBS
  • 77. DIFFERENTIAL DIAGNOSIS Inguinal Swelling • 1. Enlarged lymph nodes • 2. Undescended testis • 3. Lipoma • 4. Femoral hernia • 5. Saphena varix • 6. Psoas abscess • 7. Femoral aneurysm Inguinoscrotal Swelling • 1. Encysted hydrocele of cord • 2. Varicocele • 3. Lymphvarix • 4. Diffuse lipoma of cord • 5. Inflammatory thickening of cord Femoral Hernia • 1. Inguinal hernia • 2. Saphenavarix • 3. Cloquet’s node • 4. Lipoma • 5. Femoral aneurysm • 6. Psoas abscess TONY 2010 MBBS
  • 78. DIFFERENTIAL DIAGNOSIS In males • Hydrocele – infantile/encysted/large vaginal/ • Undescended testis • Femoral hernia • Lipoma of the cord • Hydrocele of the canal of nuck (in females) • Inguinal lymph node enlargement • Groin abscess In females • hydrocele of the canal of Nuck – this is the most common dif-ferential diagnostic problem • femoral hernia. TONY 2010 MBBS
  • 80. • Investigations • Treatment TONY 2010 MBBS
  • 81. INVESTIGATIONS • I. Routine • • Hemoglobin • • Bleeding time/Clotting time • • Total count, differential count, ESR • • Urine—albumin, sugar deposits • • Blood—urea, sugar • • Blood grouping/typing—for irreducible hernia/huge hernia • II. Anesthetic Purpose • • X-ray chest (Chronic TB, Asthma—precipitate hernia) • • ECG all leads • III. USG Abdomen and Pelvis • • In old age group—to find benign prostate hyperplasia calculate post-voidal residual urine. If >100 ml it is significant • • To find any mass TONY 2010 MBBS
  • 82. TREATMENT • TREATMENT • Treat the precipitating cause of hernia first. • 1. Benign prostate hypertrophy • 2. Tuberculosis • 3. Stop smoking • Conservative management • indicated only in cases of very old man with direct hernia; since there is no chance of obstruction. • TRUSS • surgery TONY 2010 MBBS
  • 83. TRUSS • Not Curative for hernia. • It is a special belt devised to keep the hernia reduced at the deep ring or Hesselbach triangle for those who are unfit or unwilling for surgery • Hernia should be reducible to wear a truss. • Contraindicated • cases of irreducible hernia, • undescended testis, • associated huge hydrocele, • unintelligent people. TONY 2010 MBBS
  • 84. TAXIS • Supine hip & knee flexed hip internally rotated • Contents are pushed with one hand directed with the other TONY 2010 MBBS
  • 85. TREATMENT • Surgery= treatment of choice • Under LA/GA/spinal/epidural surgery Hernioplasty herniorraphy TONY 2010 MBBS
  • 86. Herniorraphy(strenghthenin g of posterior wall) • 1. Original Bassini • 2. Modified Bassini • 3. McVay’s • 4. Shouldice Hernioplasty (prosthetic repair ) • 1. Lichtenstein • 2. Gilbert’s plug • 3. Prolene hernia system • 4. Laparoscopic mesh repair • 5. Stoppas repair TONY 2010 MBBS
  • 87. HERNIORRHAPHY • 1. Herniotomy • 2. Narrowing of the deepring with 2'0 prolene (Lytle'sRepair) • 3. Approximation of conjoint tendon with inguinal ligament using 1‘ polypropylene material TONY 2010 MBBS
  • 88. HERNIOTOMY In indirect inguinal hernia • Dissecting out and opening of hernia sac ,reducing any contents ,transfixing neck of sac & removing the remainder • NO NEED TO OPEN UP CANAL IN CHILDREN BECAUSE SUPERFICIAL AND DEEP RING ARE SUPERIMPOSED ……THERE FORE NO NEED OF REPAIR • HENCE DONE ALONE IN CHILDREN,ADOLESCENT TONY 2010 MBBS
  • 90. PROCEDURE • ANAESTHESIA: spinal or G/A • Incision is made parallel to medial 2/3rd of inguinal ligament about 1.25 cm above inguinal ligament • After dividing superficial fascia and securing hemostasis • Identify external oblique muscle & superficial inguinal ring • External oblique Apo neurosis is incised in the line of its fibers and is reflected above and below.thus visualize inguinal ligament • Ilioinguinal nerve is thus identified and preserved TONY 2010 MBBS
  • 91. PROCEDURE • Cremasteric muscle is opened TONY 2010 MBBS
  • 92. • Herniotomy = ligation & excision of sac only • Herniorraphy = herniotomy + repair of posterior wall • Hernioplasty= herniotomy + reconstruction of posterior wall with prosthetics TONY 2010 MBBS
  • 94. HERNIORRHAPHY • HERNIOTOMY+ REPAIR OF THE POSTERIOR WALL OF INGUINAL CANAL BY APPOSING CONJOINED MUSCLE TO THE INGUINAL LIGAMENT • INDN • IN ALL INDIRECT HERNIA EXCEPT IN CHILDREN • IN ADULTS WITH GOOD MUSCLE TONE TONY 2010 MBBS
  • 95. BASSINI REPAIR • Is frequently used for indirect inguinal hernias and small direct hernias • The conjoined tendon of the transversus abdominis and the internal oblique muscles is sutured to the inguinal ligament TONY 2010 MBBS
  • 97. BASSINI REPAIR • The conjoined tendon is retracted upward • the aponeurosis of the transversus abdominis muscle is approximated to the iliopubic tract that lies adjacent to the inguinal ligament with several interrupted 3-0 silk sutures. • The second layer of the repair involves suturing the conjoined tendon to the inguinal ligament with interrupted 2-0 silk sutures. • This suture line extends from the pubic tubercle to the medial border of the internal ring. TONY 2010 MBBS
  • 98. MODIFIED BASSINIS REPAIR • Most commonly used EARLIER • Using non absorbable monofilament interrupted suture material strengthening of posterior wall of inguinal canal approximation of conjoint tendon to inguinal ligament • Nonsorbable  adequate tensile strength for about 6 months • Monofilamentpolyfilament has crevices=infn • Interrupted continuous suture= decrease blood supply interfere with healing TONY 2010 MBBS
  • 99. MODIFIED BASSINIS REPAIR TONY 2010 MBBS
  • 100. MCVAY REPAIR • inguinal and femoral canal defects • The conjoined tendon is sutured to Cooper’s ligament from the pubic cubicle laterally TONY 2010 MBBS
  • 101. MC VAYS REPAIR TONY 2010 MBBS
  • 102. SHOULDICE REPAIR • With a no. 15 scalpel an incision is made in the transversalis fascia. This incision is extended from the internal ring to the pubic tubercle. • The repair involves placing four lines of sutures. TONY 2010 MBBS
  • 103. SHOULDICE REPAIR • First, the transversalis fascia is divided from the internal inguinal ring to the pubic tubercle. The posterior wall repair is accomplished by imbricating the lateral and medial leaves of the divided transverse aponeurotic fascial fibers with a continuous suture. The superomedial flap is brought over the inferolateral flap. The first suture line begins at the pubic tubercle and is sewn in a continuous fashion up to the internal ring, suturing the free edge of the inferolateral flap to the underside of the superomedial flap. At the internal inguinal ring, the cranial portion of the cremaster may be included in the suture line. This gives additional strength to the internal inguinal ring. The suture line is then doubled back bringing the leading edge of the superomedial flap to the edge of the inguinal ligament. The lacunar ligament is included in this suture line to obliterate the dead space medial to the femoral vessels. A second suture, beginning at the internal ring, brings the internal oblique and transversus muscles down to the deep surface of the inguinal ligament. At the level of the pubic bone, this suture doubles back, attaching the same structures in a more superficial plane and the suture is tied to itself at the internal ring. TONY 2010 MBBS
  • 104. SHOULDICE REPAIR • The first suture line • is started at the pubic tubercle using 3-0 continuous polypropylene, and the white line is approximated to the free edge of the inferior transversalis fascial flap. • The 2nd suture line : • At the internal ring the suture is tied and then continued medially by approximating the free edge of the superior flap to the shelving edge of the inguinal ligament. When the pubic tubercle is reached, the suture is tied and divided. TONY 2010 MBBS
  • 105. SHOULDICE REPAIR • The third suture line is started at the level of the internal ring where the conjoined tendon is approximated to the inguinal ligament and tied when the pubic tubercle is reached. • Using the same suture, the fourth suture line attaches these same structures to one another and is tied at the level of the internal ring. TONY 2010 MBBS
  • 106. SHOULDICE REPAIR • The cord is replaced within the inguinal canal, and the external inguinal aponeurosis is reapproximated with continuous 2-0 absorbable sutures TONY 2010 MBBS
  • 111. TONY 2010 MBBS Tanner's muscle slide
  • 112. DARNING • • A type of herniorrhaphy which is done by suturing the conjoined tendon with inguinal ligament using 1 prolene without tension. • • The suture material appears like mesh due to multiple crossings. TONY 2010 MBBS
  • 113. TANNER'S MUSCLE SLIDE • Basically all the herniorrhaphy are tension repairs • To avoid tension in the rhaphy site, the incision made curvilinearly over the anterior rectus sheath • This relaxes the conjoined muscles and thus gets approximated with inguinal ligament without tension TONY 2010 MBBS
  • 114. HERNIOPLASTY • SOME FORM OF supportive MATERIAL IS USED TO STRENGTHEN POSTERIOR ABDOMINAL WALL HERNIOPLASTY SYNTHETIC BIOLOGICAL Synthetic non absorbable prolene, Dacron are used Tensor fascia lata,temporal fascia,skin TONY 2010 MBBS
  • 115. INDICATION FOR HERNIOPLASTY • Direct hernia, • Indirect hernia with poor muscle tone • Recurrent hernia • Re-recurrent hernia • Incisional hernia • Old age • Sliding hernia TONY 2010 MBBS
  • 116. COMPLICATION • Mesh extrusion • Foreign body reaction • infection TONY 2010 MBBS
  • 117. PRINCIPLE • Size of mesh >size of defect • Attached above & below to conjoint tendon & inguinal ligament/abdominal wall using non absorbable sutures • Haemostasis, reduce risk of infection TONY 2010 MBBS
  • 118. TYPES OF MESH REPAIR • 1. In lay mesh • 2. On lay mesh • 3. Nyhus preperitoneal mesh repair • 4. Stoppa procedure • 5. Gilbert mesh repair • 6. Lichtenstein’s method • 7. TAPP • 8. TEP TONY 2010 MBBS
  • 120. ONLAY MESH METHOD: • repair by placing mesh in front…..using monofilament non absorbable suture material….above to conjoint tendon & below to inguinal ligament TONY 2010 MBBS
  • 121. INLAY MESH METHOD • mesh deep to conjoint tendon TONY 2010 MBBS
  • 122. NYHUS PREPERITONEAL MESH REPAIR • Broad mesh is kept in the preperitoneal space in b/l direct or recurrent hernia TONY 2010 MBBS
  • 123. LICHTENSTEIN TENSION FREE MESH REPAIR • Less recurrence • Cord is covered with mesh and is sutured as in onlay method TONY 2010 MBBS
  • 124. LICHENSTEIN TENSION FREE REPAIR TONY 2010 MBBS
  • 125. TENSION – FREE REPAIR TONY 2010 MBBS
  • 126. TENSION – FREE REPAIR TONY 2010 MBBS
  • 128. PROLENE HERNIA SYSTEM TONY 2010 MBBS
  • 129. PROLENE HERNIAL SYSTEM TONY 2010 MBBS
  • 131. STOPPAS REPAIR • GPRVS (Giant Prosthesis for Reinforcement of Visceral Sac) • OVER FRICHAUDS MYOPECTINEAL ORIFICE TONY 2010 MBBS
  • 132. • The Stoppa Repair is a tension free type of hernia repair. It is performed by wrapping the lower part of the parietal peritoneum with prosthetic mesh and placing it at a preperitoneal level over Fruchauds myopectineal orifice. It was first described in 1975 by Rene Stoppa.[1] This operation is also known as giant prosthetic reinforcement of the visceral sac (GPRVS).[2] • This technique has met particular success in the repair of bilateral hernias, large scrotal hernias, and recurrent or rerecurrent hernias in which conventional repair is difficult and carries a high morbidity and failure rate. TONY 2010 MBBS
  • 133. LAPAROSCOPIC HERNIA REPAIR • Transabdominal Preperitoneal Procedure (TAPP) • Totally Extraperitoneal (TEP) Repair • Indications include bilateral inguinal hernia, recurring hernia, need for early recovery TONY 2010 MBBS
  • 135. TEP TONY 2010 MBBS
  • 136. TEP TONY 2010 MBBS
  • 137. TAPP TONY 2010 MBBS
  • 138. COMPLICATIONS OF HERNIA REPAIR IMMEDIATE 1. Injury to the blood vessels (inferior epigastric and femoral) 2. Injury to bowel and bladder 3. Injury to ilioinguinal and iliohypogastric nerves 4. Injury to cord structures EARLY 1. Urine retention 2. Hematoma 3. Infection 4. Periostitis of pubic tubercle (as the stitch is taken from periosteum) 5. Postherniorrhaphy hydrocele (due to obstruction of lymphatics At deep ring when narrowed tightly) LATE 1. Recurrence 2. Numbness over the local region if the nerve was cut during surgery TONY 2010 MBBS
  • 140. INGUINAL HERNIA • ANATOMY Superficial inguinal ring: triangular opening in aponeurosis of external oblique muscle 1.25 above pubic tubercle normally ring does not admit tip of little finger TONY 2010 MBBS
  • 141. • Deep inguinal ring: u shaped defect in transversalis fascia 1.25cm above mid inguinal point • Inguinal ligament: It is formed by the lower border of the external oblique aponeurosis which is thickened and folded backwards on itself , extending from anterior superior iliac spine to pubic tubercle. TONY 2010 MBBS
  • 143. • Inguinal canal • :It is an oblique passage in lower part of abdominal wall, 4 cm long, situated above the medial ½ of inguinal ligament, • extending from deep inguinal ring to superficial inguinal ring. TONY 2010 MBBS
  • 144. BOUNDARIES • Anteriorly: external oblique muscle fleshy fibres of internal oblique lateral 1/3rd skin & superficial fascia • Posteriorly: transversalis fascia conjoint tendon reflected part of inguinal ligament • Floor inguinal ligament • Roof fibres of internal oblique TONY 2010 MBBS
  • 145. TONY 2010 MBBS 1, External oblique fascia (fascia of Gallaudet); 2, External oblique aponeurosis; 3, Internal oblique muscle; 4, Transversus abdominis muscle and its aponeurosis; 5, Transversalis fascia anterior lamina (third layer); 6, External spermatic fascia; 7, Cooper's ligament; 8, Pubic bone; 9, Pectineus muscle; 10, Possible union of transversalis fascia laminae; 11, Transversalis fascia posterior lamina (second layer); 12, Vessels (second space); 13, Peritoneum (first layer); 14, Space of Bogros (first space); 15, Preperitoneal fat; 16, Transversus abdominis aponeurosis and anterior lamina of transversalis fascia; 17, Femoral artery; 18, Femoral vein.
  • 148. CONTENTS OF INGUINALCANAL SPERMATIC CORD IN MALE • Vas deferens • Artery to vas • Testicular & cremasteric artery • Pampiniform plexus • Remains of processus vaginalis • Genital branch of genitofemoral nerve • Sympathetic plexus • lymphatics ROUND LIGAMENT IN FEMALE ILIO INGUINAL NERVE TONY 2010 MBBS
  • 149. CONTENTS OF INGUINALCANAL TONY 2010 MBBS
  • 150. COVERING OF SPERMATIC CORD TONY 2010 MBBS
  • 151. DEFENCE MECHANISM OF INGUINAL CANAL • Obliquity of inguinal canal • Arching of conjoint tendon • Shutter mechanism of internal oblique • Ball valve mechanism due to contraction of cremasteric muscle • Slit valve mechanism due to contraction of external oblique muscle • hormone TONY 2010 MBBS
  • 152. FRICHAUDS MYOPECTINEAL ORIFICE The MPO is divided anteriorly by the inguinal ligament, and posteriorly by the iliopubic tract. It is bounded medially by the lateral border of the rectus muscle, superiorly by the arching fibers of the transversus abdominus and the internal oblique muscles, laterally by the iliopsoas muscle and inferiorly by the Cooper ligament. ALL HERNOA ARE THROGH THI ORIFICE TONY 2010 MBBS
  • 154. FRUCHAUD’S MYOPECTINEAL ORIFICE • osseo-myo-aponeurotic tunnel. • medially • lateral border of rectus sheath; • above • the arched fibres of internal oblique and transverse abdominis muscle; • laterally • by the iliopsoas muscle; • below by the pectin pubis and fascia covering it. It Is through this tunnel all groin hernias occur. TONY 2010 MBBS
  • 155. HASSELBACHS TRIANGLE TONY 2010 MBBS The boundaries of the inguinal triangle are as follows • Medial: Lower 5 cm of the lateral border of the rectus abdominis muscle. • Lateral: Inferior epigastric artery. • Inferior: Medial half of the inguinal ligament. • The floor of the triangle is covered by the peritoneum, extraperitoneal tissue, and fascia transversalis.
  • 156. • The lateral umbilical ligament (obliterated umbilical artery) crosses the triangle and divides it into • medial and lateral parts. The medial part of the floor of the triangle is strengthened by the conjoint tendon. The lateral part of the floor of the triangle is weak, hence direct inguinal hernia usually occurs through this part. TONY 2010 MBBS
  • 157. ETIOLOGY • STRAINING C/C CONSTIPATION (HABITUAL,STRICTURE) URINARY PROBLEMS  OLD AGE =BPH, Ca prostate  YOUNG AGE=STRICTURE URETHRA  VERY YOUNG=PHIMOSIS,MEATAL STENOSIS LIFTING OF HEAVY WEIGHT • C/C COUGH =T.B, B.A, C/C BRONCHITIS • OBESITY • PREGNANCY • SMOKING • ASCITES TONY 2010 MBBS
  • 158. ETIOLOGY • APPENDICECTOMY  DESTROY ILIO INGUINAL NDIRECT INGUINALHERNIA McBURNEYS INCISION • FAMILIAL COLLAGEN DISORDER • CONGENITAL PREFORMED SAC (REMAINS OF PROCESSUS VAGINALIS) TONY 2010 MBBS
  • 159. PARTS OF A HERNIA • SAC • COVERING OF SAC • CONTENTS OF SAC TONY 2010 MBBS
  • 160. SAC • A DIVERTICULUM OF PERITONEUM WITH  MOUTH  NECK  BODY  FUNDUS • NECK IS NARROW IN CASE OF INDIRECT WIDE IN CASE OF DIRECT • HERNIA WITHOUT NECK: HERNIA WITH A WIDE MOUTH ,DIRCT HERNIA,INCISIONAL HERNIA • SAC IS THIN IN INFANTS & CHILD THICK IN LONG STANDING & DIRECT HERNIA • HERNIA WITHOUT SAC: EPIGASTRIC HERNIA(Protrusion of extra peritoneal pad of fat) TONY 2010 MBBS
  • 161. COVERING OF SAC • LAYERS OF ABDOMINAL WALL TONY 2010 MBBS
  • 162. CONTENTS OF SAC • OMENTOCELE: omentum….easy to reduce initially,…but difficult later • ENTEROCELE: usuaslly SI,….difficult to reduce initially…easy later • RICHTERS HERNIA :a portion of circumference of bowel • LITTRE’S HERNIA: meckels diverticulum • CYSTOCELE :bladder • Ovary,fallopian tube • Fluid :ascitic, blood from strangulated hernia, from congested bowel TONY 2010 MBBS
  • 164. CLINICAL CLASSIFICATION HERNIA REDUCIBLE HERNIA IRREDUCIBLE HERNIA OBSTRUCTED HERNIA INCARCERATED HERNIA STRANGULATED HERNIA INFLAMMED HERNIA TONY 2010 MBBS
  • 165. CLINICAL CLASSIFICATION • REDUCIBLE HERNIA contents can be reduced by the patient or surgeon expansile impulse on coughing TONY 2010 MBBS
  • 166. • IRREDUCIBLE HERNIA can’t be reduced …due to adhesions b/w contents and sac…or due to crowding irreducibility + no other symptoms}OMENTOCELE Irreducibility predisposes to strangulation TONY 2010 MBBS
  • 167.  OBSTRUCTED HERNIA : bowel is obstructed…but blood supply is good TONY 2010 MBBS
  • 168.  INCARCERATED HERNIA that the lumen of that portion of the colon occupying a hernial sac is blocked with faeces. In this case, the scybalous contents of the bowel should be capable of being indented with the finger, like putty. In incarcerated hernia, sac and contents are densely adherent to each other (contents are fixed to sac). It is always irreducible; often obstructed but may not be strangulated. TONY 2010 MBBS
  • 169. STRANGULATED HERNIA blood supply is impaired ISCHAEMIAGANGRENE OF INTESTINE TENDERNESS…. TENSE SAC NO IMPULSE ON COUGHING FEATURES OF INTESTINAL OBSTRUCTION TONY 2010 MBBS
  • 170. • INFLAMMED HERNIA inflammation of contents of hernia sac appendicitis,salpingitis TONY 2010 MBBS
  • 171. CLASSIFICATION hernia congenital acquired TONY 2010 MBBS
  • 172. TYPES OF INGUINAL HERNIA Inguinal hernia Direct indirect Through hesselbachs triangle in posterior wall of inguinal canal (medially by lateral border of rectus sheath,below by inguinal ligament,laterally by inferior epigastric artery) Through deep ring along with spermatic cord,lateral to inferior epigastric artery TONY 2010 MBBS
  • 173. Indirect inguinal hernia Direct inguinal hernia 1.any age from childhood to adult 1.Common in elderly 2.Occurs in a pre-existing sac 2.Always acquired 3. Protrusion through the deep ring; herniation occurs later 3.Herniation through posterior wall of the inguinal canal 4.Pyriform /oval in shape; descends obliquely and downwards 4.Globular/round in shape; descends directly forward bulge 5.Can become complete by descending down into the scrotum 5.Rarely descend down into the scrotum 6.Sac is antero-lateral to the cord 6.Sac is posterior to the cord 7.Ring occlusion test no impulse after occluding the deep ring 7. impulse even after occluding the deep ring 8.Invagination test shows impulse on the tip of the little finger 8.Invagination test shows impulse on the pulp of the little finger 9.Zieman’s test impulse on the index finger 9.impulse on the middle finger 10.Commonly unilateral may be bilateral 10.Commonly bilateral 11.Obstruction/strangulation are common 11.Rare but can occur TONY 2010 MBBS
  • 175. INDIRECT HERNIA Deep ring Whole of inguinal canal Superficial ring TONY 2010 MBBS DIRECT HERNIA Weak post wall of inguinal canal (hesselbachs triangle) Part of inguinal canal Superficial ring
  • 176. INDIRECT INGUINAL HERNIA • Commonest more in males • Thin sac • Narrow neck • Lateral to inferior epigastric vessels TONY 2010 MBBS
  • 178. CLASSIFICATION( BASED ON EXTENT) Inguinal hernia incomplete bubonocele funicular complete Sac is confined to inguinalcanal Sac crosses superficial ring but not reaches bottom of scrotum Reaches bottom of scrotum TONY 2010 MBBS
  • 182. NYHUS CLASSIFICATION SYSTEM Type I INDIRECT HERNIA; internal abdominal ring normal; typically in infants, children, small adults Type II INDIRECT HERNIA; internal ring enlarged without impingement on the floor of the inguinal canal; does not extend to the scrotum Type IIIA DIRECT HERNIA; size is not taken into account Type IIIB INDIRECT HERNIA that has enlarged enough to encroach upon the posterior inguinal wall; INDIRECT SLIDING OR SCROTAL HERNIAS are usually placed in this category because they are commonly associated with EXTENSION TO THE DIRECT SPACE; also includes PANTALOON HERNIAS Type IIIC FEMORAL HERNIA Type IV RECURRENT HERNIA; modifiers A–D are sometimes added, which correspond TO INDIRECT, DIRECT, FEMORAL, AND MIXED, RESPECTIVELY TONY 2010 MBBS
  • 183. DIRECT INGUINAL HERNIA • ALWAYS ACQUIRED • MEDIAL TO INFERIOR EPIGASTRIC ARTERY • SAC IS THICK • THROUGH HESSELBACHS TRIANGLE….. HESSELBACHS TRIANGLE IS DIVIDED IN TO LATERAL & MEDIAL HALVES BY OBLITERATED UMBILICAL ARTERY(LATERAL UMBILICAL LIGAMENT) DIRECT HERNIA CAN BE DIVIDED IN TO LATERAL AND MEDIAL BASED UPON THIS LIGAMENT TONY 2010 MBBS
  • 184. Direct hernia medial lateral TONY 2010 MBBS
  • 186. 2 CLASSICAL SIGNS OF UNCOMPLICATED HERNIA • Impulse on coughing • Reducibility TONY 2010 MBBS
  • 187. COMPLICATIONS OF HERNIA • Irreducibility • Obstructed hernia • Strangulated hernia • Inflammation • Incarceration TONY 2010 MBBS
  • 188. IRREDUCIBILITY • Adhesions of its contents to each other • Adhesion of its contents with the sac • Adhesion of one part of sac to other • Sliding hernia • Massive hernia (scrotal abdomen) TONY 2010 MBBS
  • 189. OBSTRUCTED HERNIA • Irreducibility + intestinal obstruction ( lumen obstruction) • It does not occur in • Richters hernia • Omentocele • Littres hernia • Features of obstructed hernia • No expansile impulse on coughing • Irreducible • No pain • Lax non tender • symptoms TONY 2010 MBBS
  • 190. INCARCERATED HERNIA • When it contains a portion of colon with faeces  indenting with fingers putty like feeling TONY 2010 MBBS
  • 191. STRANGULATED HERNIA • Irredudicibility + intestinal obstruction + arrest of blood supply • Due to constriction at the neck TONY 2010 MBBS
  • 192. SIGNS OF STRANGULATED HERNIA • Tense • Tender • No impulse on coughing • irreducible • Recent increase in size TONY 2010 MBBS
  • 193. TREATMENT • Raise the foot end (gravityredn of hernia) • Ice bag applin  redue congestion & edema • Nasogastric tube for gastric aspiration • Iv fluid admn • Parenteral antibiotics. • Herniotomy open at the fundus & drain the fluid divide constriction ring & examine the bowel for viability • Nonviable Bowel • Small bowel—end to end resection anastomosis • Omentum—excise the gangrenous part. TONY 2010 MBBS
  • 194. • Non viable bowel • Greenish/blackish in colour • No peristalsis • Gut is flaccid & lusture less • Fluid of sac is bllod stained & foul smelling TONY 2010 MBBS
  • 195. FEMORAL HERNIA Femoral canal Saphenous opening TONY 2010 MBBS
  • 196. ANATOMY • Femoral canal: 2 x 2 cm size • Medial compartment of femoral sheath • Base: Femoral ring • Bounded • Anteriorly—inguinal ligament • Posteriorly—cooper’s ligament • Medially—lacunar ligament • Laterally—femoral vein • Contents: • Cloquets node • Lymphatics • Areolar tissue TONY 2010 MBBS
  • 198. SAPHENOUS OPENING TONY 2010 MBBS • 4cm below & lateral to pubic tubercle • Covered by cribriform fascia • Upper & outer margin are sharp will turn femoral hernia upwards
  • 200. COURSE OF FEMORAL HERNIA TONY 2010 MBBS
  • 201. COVERINGS • Skin • Superficial fascia • Cribriform fscia • Anterior layer of femoral sheath • Fatty content of femoral canal • Femoral septum • peritoneum TONY 2010 MBBS
  • 202. • Increased chance of strangulation • F>M • Uncommon in children • Symptoms • Pain • Swelling TONY 2010 MBBS
  • 203. • Position • Below & lateral to pubic tubercle • Shape • Globular/ retort (if large) • Narrow neck • Absent impulse on coughing • Irreducible • Strangulation • consistency TONY 2010 MBBS
  • 204. • Position • Zeimanns test • Impulse on ring finger • Invagination test • Empty inguinal canal • Ring occlusion of saphenous opening TONY 2010 MBBS
  • 205. DD • Saphena varix • Aneurysm • Psoas abscess • Undescended ectopic testis • Lipoma • Psoas bursa • Hydrocele of femoral hernia sac TONY 2010 MBBS
  • 206. TREATMENT • High operation of McEvedy • A incision above the inguinal ligament. Sac is dissected from below, neck • from above and repair is done from above. It gives a • very good exposure of both neck, fundus of sac and • repair is also easier. strangulated femoral • hernia • Lotheissens operation • Lockwood operation low approach TONY 2010 MBBS
  • 207. MAYDL’S HERNIA • Bowel loop = W SHAPE (HERNIA IN W) • CENTRAL PART CAN GET STRANGULATED (INTRA ABDOMINAL) • NO LOCAL TENDERNESS AS IN OTHER CASES OF STRANGULATION PERITONITIS TONY 2010 MBBS
  • 208. RICHTER’S HERNIA • A portion of circumference of bowel • Usually ANTIMESENTERIC BORDER • ISCHEMIA IN HERNIATED PART • NO OBSTRUCTION AS LUMEN NOT INVOLVED TONY 2010 MBBS
  • 209. SLIDING HERNIA • Hernia –en-glissade • Part of a viscus forms a part of herniating sac • Usually occurs on left side( caeum) & if on right side(sigmoid colon) bladder on both side • In males • Some times sac less TONY 2010 MBBS
  • 210. PANTALOON HERNIA DOUBLE HERNIA • When both direct & indirect hernia sacs are present on the same side • Hernias on both sides of epigatric vessels(like a pants)=pantaloons • Recurrent hernia TONY 2010 MBBS
  • 211. SPIGELIAN HERNIA • Lateral ventral hernia • Herniate b/w muscles of abdomen • At or blw arcuate line due to absence of posterior rectus sheath(half way b/w umbilicus & inguinal ligament) • High risk of strangulation • Rectus abdominis medially & arcuate line laterally TONY 2010 MBBS
  • 215. LUMBAR HERNIA TONY 2010 MBBS
  • 216. UMBILICAL HERNIA Umbilical hernia Exomphalos Umbilical hernia in infants & children Para umbilical hernia of adults TONY 2010 MBBS
  • 217. EXOMPHALOS • Failure of all or part of the midgut to return to the abdominal cavity during early fetal life • Outer } amniotic membrane • Middle } whartons jelly • Inner } peritoneum exomphalos Exomphalos minor Exomphalos major TONY 2010 MBBS
  • 219. EXOMPHALOS MAJOR • Umbilical cord attached to inferior aspect of large swelling • Contains SI… LI & part of liver TONY 2010 MBBS
  • 220. • Exomphalos major may burst • So emergency Sx is needed TONY 2010 MBBS
  • 221. EXOMPHALOS MINOR • Sac is small • Umbilical cord is attached to its summit TONY 2010 MBBS
  • 223. UMBILICAL HERNIA IN INFANTS & CHILDRENS • Through umbilical cicatrix • Spherical in shape • Increase in size in crying TONY 2010 MBBS
  • 225. PARAUMBILICAL HERNIA OF ADULTS • Not through umbilical cicatrix but through linea alba • Above (supraumbilical) • Below (infraumbilical) TONY 2010 MBBS
  • 226. INTERSTITIAL HERNIA • Hernial sac lies between muscle layers of abdominal wall • Preperitoneal/intraparietal • Interparietal • Extraparietal TONY 2010 MBBS
  • 227. LITTRE’S HERNIA • Meckels diverticulum is the content TONY 2010 MBBS
  • 228. CAUSES OF RECURRENCE OF INGUINAL HERNIA • Failure to ligate the sac at the neck • Increased tension • Use of absorbable sutures • Fault in selection of operation • Infection • Lifting of heavy weight with in 3 months • Persistent predisposing factors • Appearance of new hernia TONY 2010 MBBS
  • 229. HERNIA OF A HYDROCELE LOCALIZED THINNING OF TUNICA LEADING TO PSEUDOPODIUM-LIKE PROJECTION, USUALLY SEEN WHEN THE SAC IS THICK AND FLUID IS UNDER TENSION through
  • 230. HYDROCELE OF A HERNIA FLUID SEQUESTRATION IN A LOCULUS OF THE HERNIAL SAC, RESEMBLING HYDROCELE. THIS IS SEEN IN LONG STANDING CASES WITH ADHESIONS WITHIN THE SAC MORE COMMON IN VENTRAL HERNIA CONTAING OMENTUM
  • 231. OGILVIE HERNIA • • Direct hernias are always acquired. Indirect may be congenital or acquired. • • Only congenital direct hernia is ogilvie hernia; through a rigid circular orifice • in the conjoined tendon just lateral to where it inserts into the rectus sheath. TONY 2010 MBBS
