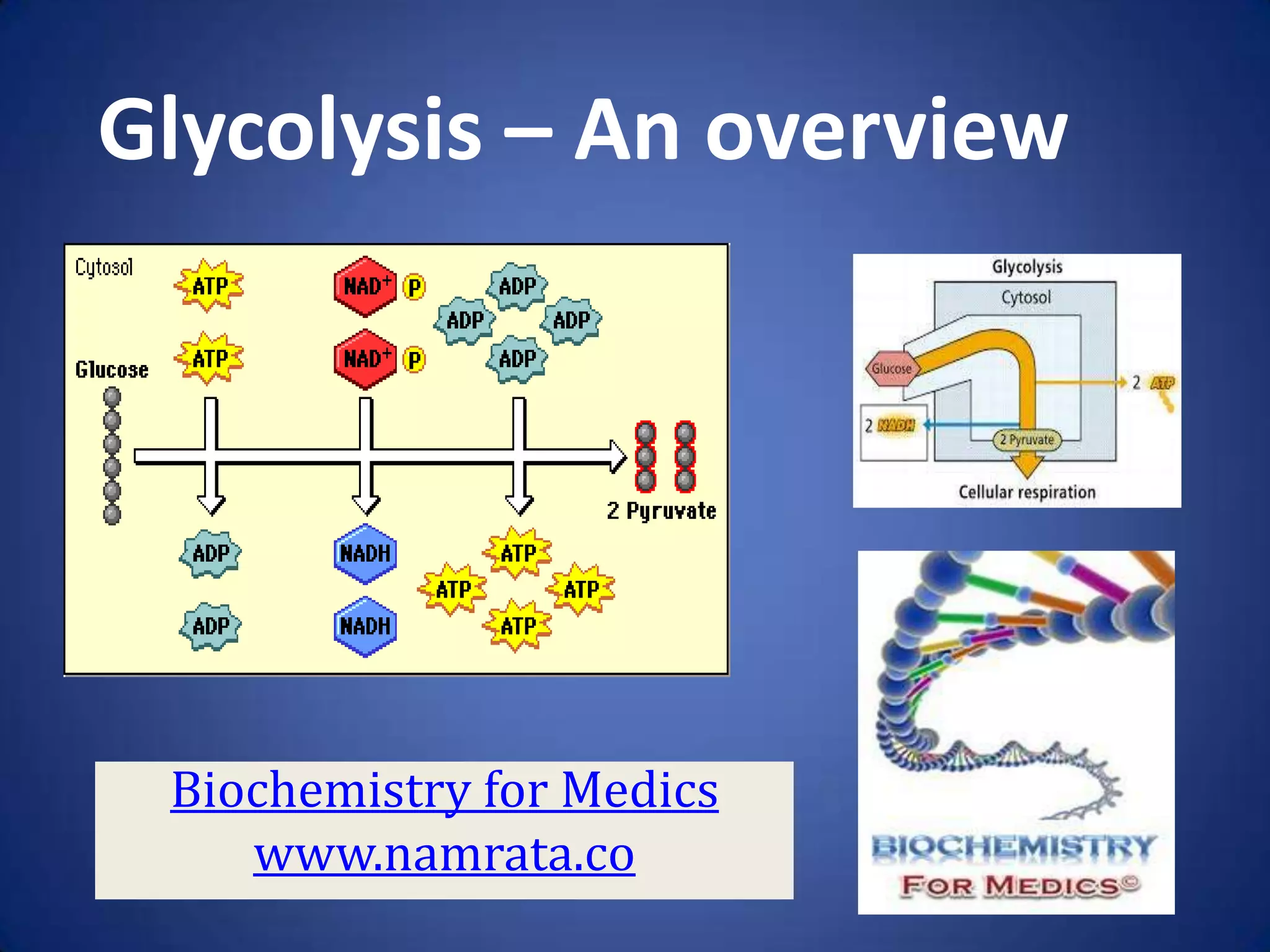

1. Glycolysis – An overview
Biochemistry for Medics
www.namrata.co

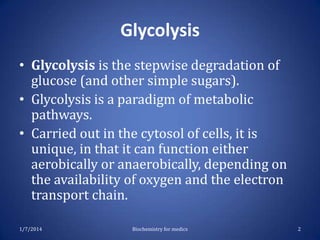

2. Glycolysis
• Glycolysis is the stepwise degradation of
glucose (and other simple sugars).
• Glycolysis is a paradigm of metabolic
pathways.
• Carried out in the cytosol of cells, it is
unique, in that it can function either
aerobically or anaerobically, depending on
the availability of oxygen and the electron
transport chain.
1/7/2014
Biochemistry for medics
2

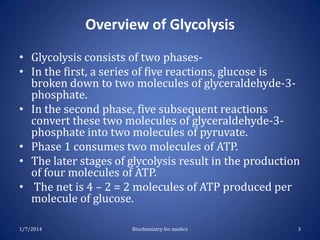

3. Overview of Glycolysis
• Glycolysis consists of two phases• In the first, a series of five reactions, glucose is
broken down to two molecules of glyceraldehyde-3phosphate.
• In the second phase, five subsequent reactions
convert these two molecules of glyceraldehyde-3phosphate into two molecules of pyruvate.
• Phase 1 consumes two molecules of ATP.
• The later stages of glycolysis result in the production
of four molecules of ATP.
• The net is 4 – 2 = 2 molecules of ATP produced per
molecule of glucose.
1/7/2014
Biochemistry for medics
3

4. Overview of Glycolysis
details of
oMost of the(the first
this pathway
metabolic pathway to
be elucidated) were
worked out in the first
half of the 20th century
by the German
biochemists Otto
Warburg, G. Embden,
and O. Meyerhof.
sequence
oIn fact, thein is often
of reactions
1/7/2014
Biochemistry for medics
referred to as the
Embden-Meyerhof
pathway.
4

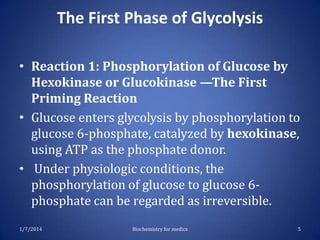

5. The First Phase of Glycolysis
• Reaction 1: Phosphorylation of Glucose by
Hexokinase or Glucokinase —The First
Priming Reaction
• Glucose enters glycolysis by phosphorylation to
glucose 6-phosphate, catalyzed by hexokinase,
using ATP as the phosphate donor.
• Under physiologic conditions, the
phosphorylation of glucose to glucose 6phosphate can be regarded as irreversible.
1/7/2014
Biochemistry for medics
5

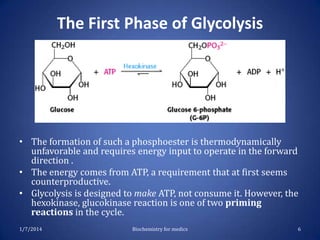

6. The First Phase of Glycolysis
• The formation of such a phosphoester is thermodynamically
unfavorable and requires energy input to operate in the forward
direction .
• The energy comes from ATP, a requirement that at first seems
counterproductive.
• Glycolysis is designed to make ATP, not consume it. However, the
hexokinase, glucokinase reaction is one of two priming
reactions in the cycle.
1/7/2014
Biochemistry for medics
6

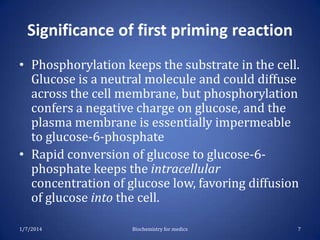

7. Significance of first priming reaction
• Phosphorylation keeps the substrate in the cell.
Glucose is a neutral molecule and could diffuse
across the cell membrane, but phosphorylation
confers a negative charge on glucose, and the
plasma membrane is essentially impermeable
to glucose-6-phosphate
• Rapid conversion of glucose to glucose-6phosphate keeps the intracellular
concentration of glucose low, favoring diffusion
of glucose into the cell.
1/7/2014
Biochemistry for medics
7

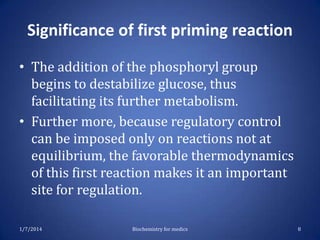

8. Significance of first priming reaction
• The addition of the phosphoryl group
begins to destabilize glucose, thus
facilitating its further metabolism.
• Further more, because regulatory control
can be imposed only on reactions not at
equilibrium, the favorable thermodynamics
of this first reaction makes it an important
site for regulation.
1/7/2014
Biochemistry for medics
8

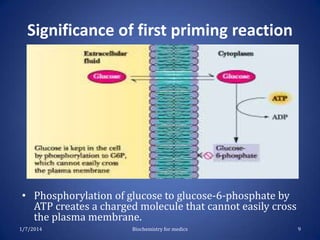

9. Significance of first priming reaction
• Phosphorylation of glucose to glucose-6-phosphate by
ATP creates a charged molecule that cannot easily cross
the plasma membrane.
1/7/2014
Biochemistry for medics
9

10. First priming reaction
• In most animal, plant, and microbial cells, the
enzyme that phosphorylates glucose is
hexokinase.
• Magnesium ion (Mg2+) is required for this
reaction
• Hexokinase can phosphorylate a variety of
hexose sugars, including glucose, mannose, and
fructose.
• Hexokinase reacts strongly with glucose, while
its affinity for fructose and galactose is
relatively low.
1/7/2014
Biochemistry for medics
10

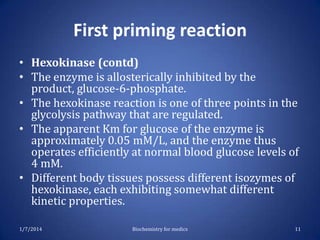

11. First priming reaction
• Hexokinase (contd)
• The enzyme is allosterically inhibited by the
product, glucose-6-phosphate.
• The hexokinase reaction is one of three points in the
glycolysis pathway that are regulated.
• The apparent Km for glucose of the enzyme is
approximately 0.05 mM/L, and the enzyme thus
operates efficiently at normal blood glucose levels of
4 mM.
• Different body tissues possess different isozymes of
hexokinase, each exhibiting somewhat different
kinetic properties.
1/7/2014
Biochemistry for medics
11

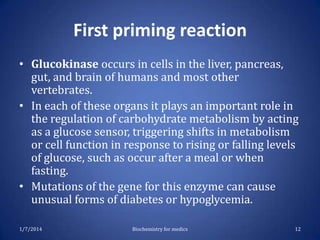

12. First priming reaction
• Glucokinase occurs in cells in the liver, pancreas,
gut, and brain of humans and most other
vertebrates.
• In each of these organs it plays an important role in
the regulation of carbohydrate metabolism by acting
as a glucose sensor, triggering shifts in metabolism
or cell function in response to rising or falling levels
of glucose, such as occur after a meal or when
fasting.
• Mutations of the gene for this enzyme can cause
unusual forms of diabetes or hypoglycemia.
1/7/2014
Biochemistry for medics
12

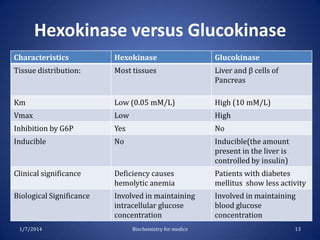

13. Hexokinase versus Glucokinase
Characteristics
Hexokinase
Glucokinase
Tissue distribution:
Most tissues
Liver and β cells of
Pancreas
Km
Low (0.05 mM/L)
High (10 mM/L)
Vmax
Low
High
Inhibition by G6P
Yes
No
Inducible
No
Inducible(the amount
present in the liver is
controlled by insulin)
Clinical significance
Deficiency causes
hemolytic anemia
Patients with diabetes
mellitus show less activity
Biological Significance
Involved in maintaining
intracellular glucose
concentration
Involved in maintaining
blood glucose
concentration
1/7/2014
Biochemistry for medics
13

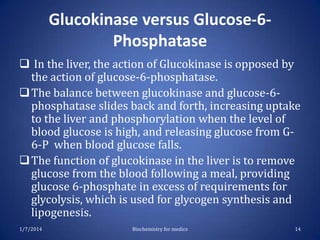

14. Glucokinase versus Glucose-6Phosphatase
 In the liver, the action of Glucokinase is opposed by
the action of glucose-6-phosphatase.
 The balance between glucokinase and glucose-6phosphatase slides back and forth, increasing uptake
to the liver and phosphorylation when the level of
blood glucose is high, and releasing glucose from G6-P when blood glucose falls.
 The function of glucokinase in the liver is to remove
glucose from the blood following a meal, providing
glucose 6-phosphate in excess of requirements for
glycolysis, which is used for glycogen synthesis and
lipogenesis.
1/7/2014
Biochemistry for medics
14

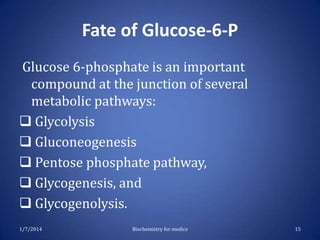

15. Fate of Glucose-6-P
Glucose 6-phosphate is an important
compound at the junction of several
metabolic pathways:
 Glycolysis
 Gluconeogenesis
 Pentose phosphate pathway,
 Glycogenesis, and
 Glycogenolysis.
1/7/2014
Biochemistry for medics
15

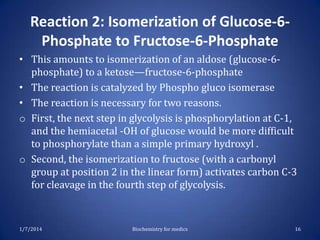

16. Reaction 2: Isomerization of Glucose-6Phosphate to Fructose-6-Phosphate
• This amounts to isomerization of an aldose (glucose-6phosphate) to a ketose—fructose-6-phosphate
• The reaction is catalyzed by Phospho gluco isomerase
• The reaction is necessary for two reasons.
o First, the next step in glycolysis is phosphorylation at C-1,
and the hemiacetal -OH of glucose would be more difficult
to phosphorylate than a simple primary hydroxyl .
o Second, the isomerization to fructose (with a carbonyl
group at position 2 in the linear form) activates carbon C-3
for cleavage in the fourth step of glycolysis.
1/7/2014
Biochemistry for medics
16

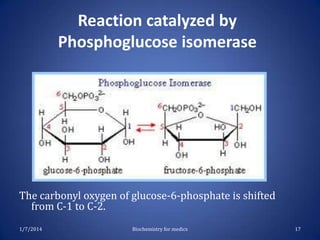

17. Reaction catalyzed by
Phosphoglucose isomerase
The carbonyl oxygen of glucose-6-phosphate is shifted
from C-1 to C-2.
1/7/2014
Biochemistry for medics
17

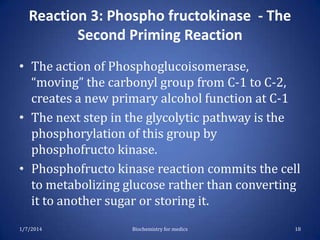

18. Reaction 3: Phospho fructokinase - The
Second Priming Reaction
• The action of Phosphoglucoisomerase,
“moving” the carbonyl group from C-1 to C-2,
creates a new primary alcohol function at C-1
• The next step in the glycolytic pathway is the
phosphorylation of this group by
phosphofructo kinase.
• Phosphofructo kinase reaction commits the cell
to metabolizing glucose rather than converting
it to another sugar or storing it.
1/7/2014
Biochemistry for medics
18

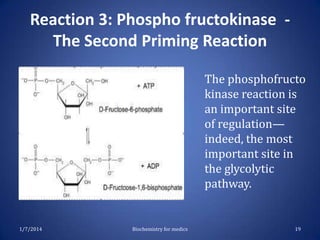

19. Reaction 3: Phospho fructokinase The Second Priming Reaction
The phosphofructo
kinase reaction is
an important site
of regulation—
indeed, the most
important site in
the glycolytic
pathway.
1/7/2014
Biochemistry for medics
19

20. Reaction 4: Cleavage of Fructose-1,6Bisphosphate
Fructose
bisphosphate aldolase
cleaves fructose-1,6bisphosphate between
the C-3 and C-4 carbons
to yield two triose
phosphates.
 The products are
Dihydroxyacetone
phosphate (DHAP) and
glyceraldehyde-3phosphate.

1/7/2014
Biochemistry for medics
20

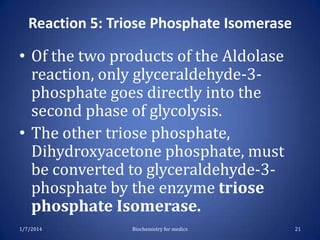

21. Reaction 5: Triose Phosphate Isomerase
• Of the two products of the Aldolase
reaction, only glyceraldehyde-3phosphate goes directly into the
second phase of glycolysis.
• The other triose phosphate,
Dihydroxyacetone phosphate, must
be converted to glyceraldehyde-3phosphate by the enzyme triose
phosphate Isomerase.
1/7/2014
Biochemistry for medics
21

22. Reaction catalyzed by Triose Phosphate
Isomerase
• This reaction thus permits both products of the aldolase
reaction to continue in the glycolytic pathway
• The triose phosphate Isomerase reaction completes the
first phase of glycolysis, each glucose molecule that passes
through being converted to two molecules of
glyceraldehyde-3-phosphate. for medics
1/7/2014
Biochemistry
22

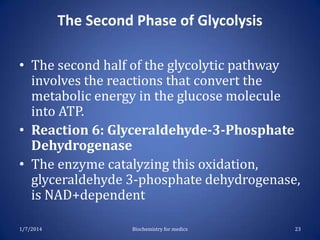

23. The Second Phase of Glycolysis
• The second half of the glycolytic pathway
involves the reactions that convert the
metabolic energy in the glucose molecule
into ATP.
• Reaction 6: Glyceraldehyde-3-Phosphate
Dehydrogenase
• The enzyme catalyzing this oxidation,
glyceraldehyde 3-phosphate dehydrogenase,
is NAD+dependent
1/7/2014
Biochemistry for medics
23

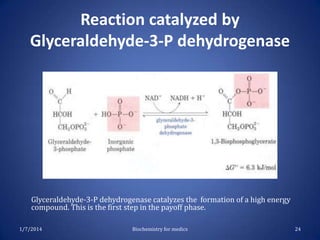

24. Reaction catalyzed by
Glyceraldehyde-3-P dehydrogenase
Glyceraldehyde-3-P dehydrogenase catalyzes the formation of a high energy
compound. This is the first step in the payoff phase.
1/7/2014
Biochemistry for medics
24

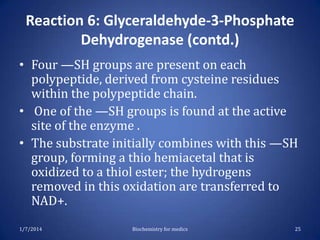

25. Reaction 6: Glyceraldehyde-3-Phosphate
Dehydrogenase (contd.)
• Four —SH groups are present on each
polypeptide, derived from cysteine residues
within the polypeptide chain.
• One of the —SH groups is found at the active
site of the enzyme .
• The substrate initially combines with this —SH
group, forming a thio hemiacetal that is
oxidized to a thiol ester; the hydrogens
removed in this oxidation are transferred to
NAD+.
1/7/2014
Biochemistry for medics
25

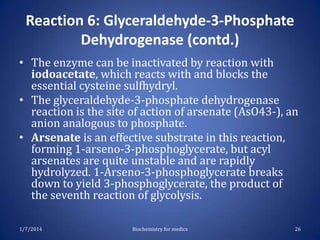

26. Reaction 6: Glyceraldehyde-3-Phosphate
Dehydrogenase (contd.)
• The enzyme can be inactivated by reaction with
iodoacetate, which reacts with and blocks the
essential cysteine sulfhydryl.
• The glyceraldehyde-3-phosphate dehydrogenase
reaction is the site of action of arsenate (AsO43-), an
anion analogous to phosphate.
• Arsenate is an effective substrate in this reaction,
forming 1-arseno-3-phosphoglycerate, but acyl
arsenates are quite unstable and are rapidly
hydrolyzed. 1-Arseno-3-phosphoglycerate breaks
down to yield 3-phosphoglycerate, the product of
the seventh reaction of glycolysis.
1/7/2014
Biochemistry for medics
26

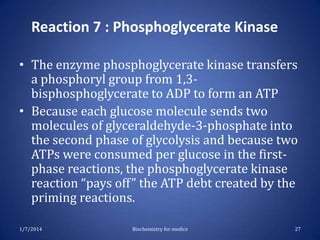

27. Reaction 7 : Phosphoglycerate Kinase
• The enzyme phosphoglycerate kinase transfers
a phosphoryl group from 1,3bisphosphoglycerate to ADP to form an ATP
• Because each glucose molecule sends two
molecules of glyceraldehyde-3-phosphate into
the second phase of glycolysis and because two
ATPs were consumed per glucose in the firstphase reactions, the phosphoglycerate kinase
reaction “pays off” the ATP debt created by the
priming reactions.
1/7/2014
Biochemistry for medics
27

28. Reaction catalyzed by phospho
glycerate kinase
The enzyme phosphoglycerate kinase transfers the high-energy
phosphate group from the carboxyl group of 1,3bisphosphoglycerate to ADP, forming ATP and 3-phosphoglycerate
1/7/2014
Biochemistry for medics
28

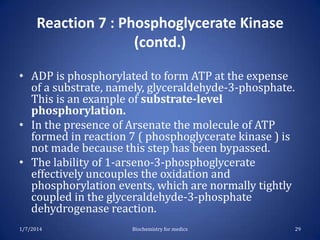

29. Reaction 7 : Phosphoglycerate Kinase
(contd.)
• ADP is phosphorylated to form ATP at the expense
of a substrate, namely, glyceraldehyde-3-phosphate.
This is an example of substrate-level
phosphorylation.
• In the presence of Arsenate the molecule of ATP
formed in reaction 7 ( phosphoglycerate kinase ) is
not made because this step has been bypassed.
• The lability of 1-arseno-3-phosphoglycerate
effectively uncouples the oxidation and
phosphorylation events, which are normally tightly
coupled in the glyceraldehyde-3-phosphate
dehydrogenase reaction.
1/7/2014
Biochemistry for medics
29

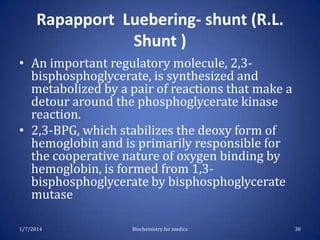

30. Rapapport Luebering- shunt (R.L.
Shunt )
• An important regulatory molecule, 2,3bisphosphoglycerate, is synthesized and
metabolized by a pair of reactions that make a
detour around the phosphoglycerate kinase
reaction.
• 2,3-BPG, which stabilizes the deoxy form of
hemoglobin and is primarily responsible for
the cooperative nature of oxygen binding by
hemoglobin, is formed from 1,3bisphosphoglycerate by bisphosphoglycerate
mutase
1/7/2014
Biochemistry for medics
30

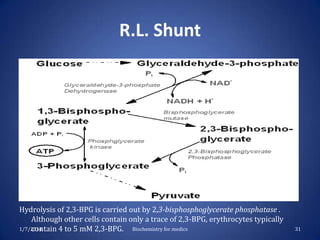

31. R.L. Shunt
Hydrolysis of 2,3-BPG is carried out by 2,3-bisphosphoglycerate phosphatase .
Although other cells contain only a trace of 2,3-BPG, erythrocytes typically
1/7/2014
contain 4 to 5 mM 2,3-BPG. Biochemistry for medics
31

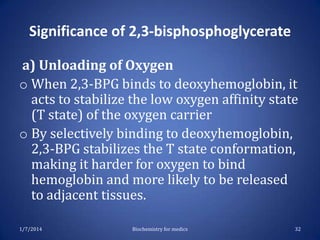

32. Significance of 2,3-bisphosphoglycerate
a) Unloading of Oxygen
o When 2,3-BPG binds to deoxyhemoglobin, it
acts to stabilize the low oxygen affinity state
(T state) of the oxygen carrier
o By selectively binding to deoxyhemoglobin,
2,3-BPG stabilizes the T state conformation,
making it harder for oxygen to bind
hemoglobin and more likely to be released
to adjacent tissues.
1/7/2014
Biochemistry for medics
32

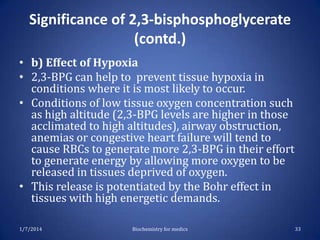

33. Significance of 2,3-bisphosphoglycerate
(contd.)
• b) Effect of Hypoxia
• 2,3-BPG can help to prevent tissue hypoxia in
conditions where it is most likely to occur.
• Conditions of low tissue oxygen concentration such
as high altitude (2,3-BPG levels are higher in those
acclimated to high altitudes), airway obstruction,
anemias or congestive heart failure will tend to
cause RBCs to generate more 2,3-BPG in their effort
to generate energy by allowing more oxygen to be
released in tissues deprived of oxygen.
• This release is potentiated by the Bohr effect in
tissues with high energetic demands.
1/7/2014
Biochemistry for medics
33

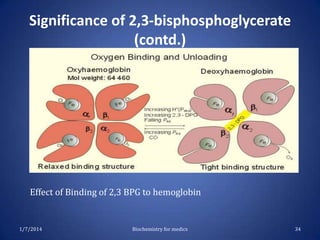

34. Significance of 2,3-bisphosphoglycerate
(contd.)
Effect of Binding of 2,3 BPG to hemoglobin
1/7/2014
Biochemistry for medics
34

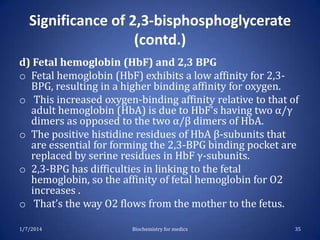

35. Significance of 2,3-bisphosphoglycerate
(contd.)
d) Fetal hemoglobin (HbF) and 2,3 BPG
o Fetal hemoglobin (HbF) exhibits a low affinity for 2,3BPG, resulting in a higher binding affinity for oxygen.
o This increased oxygen-binding affinity relative to that of
adult hemoglobin (HbA) is due to HbF's having two α/γ
dimers as opposed to the two α/β dimers of HbA.
o The positive histidine residues of HbA β-subunits that
are essential for forming the 2,3-BPG binding pocket are
replaced by serine residues in HbF γ-subunits.
o 2,3-BPG has difficulties in linking to the fetal
hemoglobin, so the affinity of fetal hemoglobin for O2
increases .
o That’s the way O2 flows from the mother to the fetus.
1/7/2014
Biochemistry for medics
35

36. Reaction 8: Phosphoglycerate Mutase
• The remaining steps in the glycolytic
pathway prepare for synthesis of the second
ATP equivalent.
• This begins with the phosphoglycerate
mutase reaction in which the phosphoryl
group of 3-phosphoglycerate is moved from
C-3 to C-2.
1/7/2014
Biochemistry for medics
36

37. Reaction 8: Phosphoglycerate Mutase
(contd.)
The term mutase is applied to enzymes that catalyze migration of a
functional group within a substrate molecule.
1/7/2014
Biochemistry for medics
37

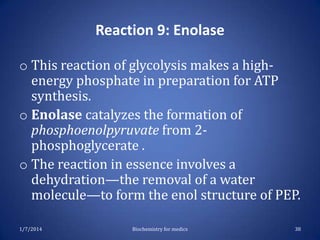

38. Reaction 9: Enolase
o This reaction of glycolysis makes a highenergy phosphate in preparation for ATP
synthesis.
o Enolase catalyzes the formation of
phosphoenolpyruvate from 2phosphoglycerate .
o The reaction in essence involves a
dehydration—the removal of a water
molecule—to form the enol structure of PEP.
1/7/2014
Biochemistry for medics
38

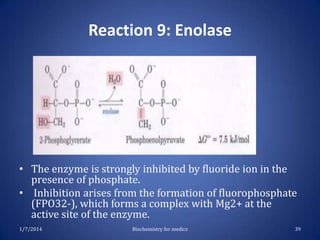

39. Reaction 9: Enolase
• The enzyme is strongly inhibited by fluoride ion in the
presence of phosphate.
• Inhibition arises from the formation of fluorophosphate
(FPO32-), which forms a complex with Mg2+ at the
active site of the enzyme.
1/7/2014
Biochemistry for medics
39

40. Reaction 10: Pyruvate Kinase
• The second ATP-synthesizing reaction of
glycolysis is catalyzed by pyruvate kinase,
which brings the pathway at last to its
pyruvate branch point.
• Pyruvate kinase mediates the transfer of a
phosphoryl group from
phosphoenolpyruvate to ADP to make ATP
and pyruvate .
1/7/2014
Biochemistry for medics
40

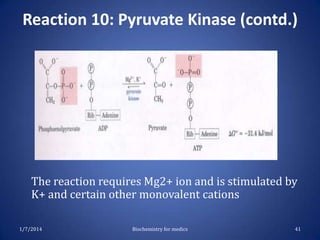

41. Reaction 10: Pyruvate Kinase (contd.)
The reaction requires Mg2+ ion and is stimulated by
K+ and certain other monovalent cations
1/7/2014
Biochemistry for medics
41

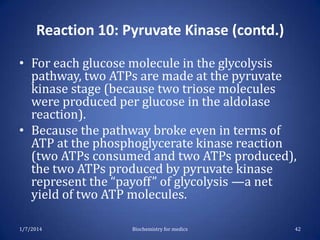

42. Reaction 10: Pyruvate Kinase (contd.)
• For each glucose molecule in the glycolysis
pathway, two ATPs are made at the pyruvate
kinase stage (because two triose molecules
were produced per glucose in the aldolase
reaction).
• Because the pathway broke even in terms of
ATP at the phosphoglycerate kinase reaction
(two ATPs consumed and two ATPs produced),
the two ATPs produced by pyruvate kinase
represent the “payoff” of glycolysis —a net
yield of two ATP molecules.
1/7/2014
Biochemistry for medics
42

43. Formation of keto form of Pyruvate
The enol form tautomerizes rapidly and
nonenzymatically to yield the keto form of pyruvate,
the form that predominates at pH 7.
1/7/2014
Biochemistry for medics
43

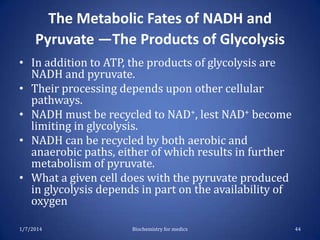

44. The Metabolic Fates of NADH and
Pyruvate —The Products of Glycolysis
• In addition to ATP, the products of glycolysis are
NADH and pyruvate.
• Their processing depends upon other cellular
pathways.
• NADH must be recycled to NAD+, lest NAD+ become
limiting in glycolysis.
• NADH can be recycled by both aerobic and
anaerobic paths, either of which results in further
metabolism of pyruvate.
• What a given cell does with the pyruvate produced
in glycolysis depends in part on the availability of
oxygen
1/7/2014
Biochemistry for medics
44

45. The Metabolic Fates of NADH and
Pyruvate —The Products of Glycolysis
• Under aerobic conditions, pyruvate can be
sent into the citric acid cycle, where it is
oxidized to CO2 with the production of
additional NADH (and FADH2).
• Under aerobic conditions, the NADH
produced in glycolysis and the citric acid
cycle is reoxidized to NAD+ in the
mitochondrial electron transport chain.
1/7/2014
Biochemistry for medics
45

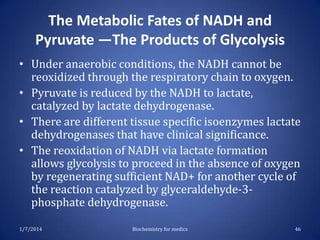

46. The Metabolic Fates of NADH and
Pyruvate —The Products of Glycolysis
• Under anaerobic conditions, the NADH cannot be
reoxidized through the respiratory chain to oxygen.
• Pyruvate is reduced by the NADH to lactate,
catalyzed by lactate dehydrogenase.
• There are different tissue specific isoenzymes lactate
dehydrogenases that have clinical significance.
• The reoxidation of NADH via lactate formation
allows glycolysis to proceed in the absence of oxygen
by regenerating sufficient NAD+ for another cycle of
the reaction catalyzed by glyceraldehyde-3phosphate dehydrogenase.
1/7/2014
Biochemistry for medics
46

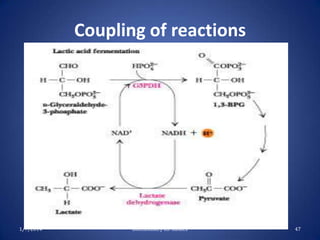

47. Coupling of reactions
1/7/2014
Biochemistry for medics
47

48. Product of glycolysis under anaerobic
conditions
• Tissues that function under Hypoxic Conditions Produce
Lactate
• This is true of skeletal muscle, particularly the white
fibers
• Glycolysis in erythrocytes always terminates in lactate,
because the subsequent reactions of pyruvate oxidation
are mitochondrial, and erythrocytes lack mitochondria.
• Other tissues that normally derive much of their energy
from glycolysis and produce lactate include brain,
gastrointestinal tract, renal medulla, retina, and skin.
• The liver, kidneys, and heart usually take up lactate and
oxidize it but will produce it under hypoxic conditions.
1/7/2014
Biochemistry for medics
48

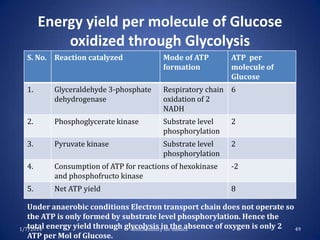

49. Energy yield per molecule of Glucose
oxidized through Glycolysis
S. No. Reaction catalyzed
Mode of ATP
formation
ATP per
molecule of
Glucose
1.
Glyceraldehyde 3-phosphate
dehydrogenase
Respiratory chain 6
oxidation of 2
NADH
2.
Phosphoglycerate kinase
Substrate level
phosphorylation
2
3.
Pyruvate kinase
Substrate level
phosphorylation
2
4.
Consumption of ATP for reactions of hexokinase
and phosphofructo kinase
-2
5.
Net ATP yield
8
Under anaerobic conditions Electron transport chain does not operate so
the ATP is only formed by substrate level phosphorylation. Hence the
total
1/7/2014 energy yield through glycolysis in the absence of oxygen is only 2
Biochemistry for medics
49
ATP per Mol of Glucose.

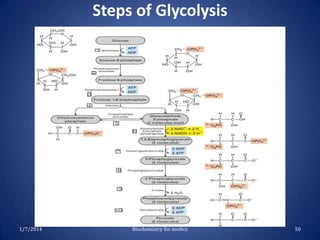

50. Steps of Glycolysis
1/7/2014
Biochemistry for medics
50

51. Regulation of Glycolysis
Flux through a metabolic pathway can be
regulated in several ways:
1. Availability of substrate
2. Concentration of enzymes responsible for
rate-limiting steps
3. Allosteric regulation of enzymes
4. Covalent modification of enzymes (e.g.
phosphorylation)
1/7/2014
Biochemistry for medics
51

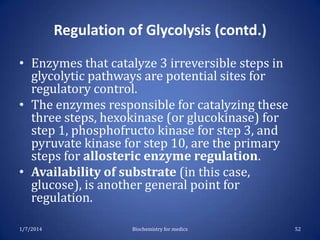

52. Regulation of Glycolysis (contd.)
• Enzymes that catalyze 3 irreversible steps in
glycolytic pathways are potential sites for
regulatory control.
• The enzymes responsible for catalyzing these
three steps, hexokinase (or glucokinase) for
step 1, phosphofructo kinase for step 3, and
pyruvate kinase for step 10, are the primary
steps for allosteric enzyme regulation.
• Availability of substrate (in this case,
glucose), is another general point for
regulation.
1/7/2014
Biochemistry for medics
52

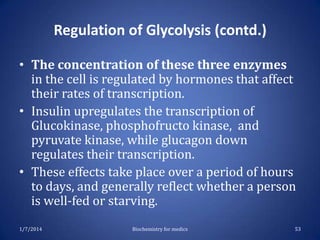

53. Regulation of Glycolysis (contd.)
• The concentration of these three enzymes
in the cell is regulated by hormones that affect
their rates of transcription.
• Insulin upregulates the transcription of
Glucokinase, phosphofructo kinase, and
pyruvate kinase, while glucagon down
regulates their transcription.
• These effects take place over a period of hours
to days, and generally reflect whether a person
is well-fed or starving.
1/7/2014
Biochemistry for medics
53

54. Regulation of Glycolysis (contd.)
1) Regulation at the level of Hexokinase and
Glucokinase
• The Hexokinase enzyme is allosterically
inhibited by the product, glucose-6-phosphate.
• Glucokinase is highly specific for D-glucose, has a
much higher Km for glucose (approximately 10.0
mM ), and is not product-inhibited.
• With such a high Km for glucose, Glucokinase
becomes important metabolically only when liver
glucose levels are high.
• Glucokinase is an inducible enzyme—the amount
present in the liver is controlled by insulin.
1/7/2014
Biochemistry for medics
54

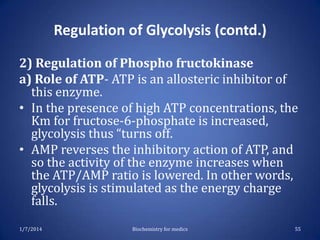

55. Regulation of Glycolysis (contd.)
2) Regulation of Phospho fructokinase
a) Role of ATP- ATP is an allosteric inhibitor of
this enzyme.
• In the presence of high ATP concentrations, the
Km for fructose-6-phosphate is increased,
glycolysis thus “turns off.
• AMP reverses the inhibitory action of ATP, and
so the activity of the enzyme increases when
the ATP/AMP ratio is lowered. In other words,
glycolysis is stimulated as the energy charge
falls.
1/7/2014
Biochemistry for medics
55

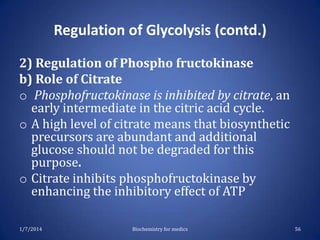

56. Regulation of Glycolysis (contd.)
2) Regulation of Phospho fructokinase
b) Role of Citrate
o Phosphofructokinase is inhibited by citrate, an
early intermediate in the citric acid cycle.
o A high level of citrate means that biosynthetic
precursors are abundant and additional
glucose should not be degraded for this
purpose.
o Citrate inhibits phosphofructokinase by
enhancing the inhibitory effect of ATP
1/7/2014
Biochemistry for medics
56

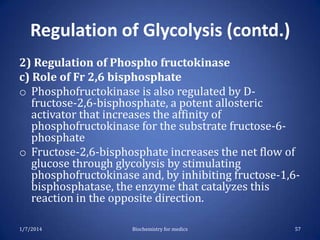

57. Regulation of Glycolysis (contd.)
2) Regulation of Phospho fructokinase
c) Role of Fr 2,6 bisphosphate
o Phosphofructokinase is also regulated by Dfructose-2,6-bisphosphate, a potent allosteric
activator that increases the affinity of
phosphofructokinase for the substrate fructose-6phosphate
o Fructose-2,6-bisphosphate increases the net flow of
glucose through glycolysis by stimulating
phosphofructokinase and, by inhibiting fructose-1,6bisphosphatase, the enzyme that catalyzes this
reaction in the opposite direction.
1/7/2014
Biochemistry for medics
57

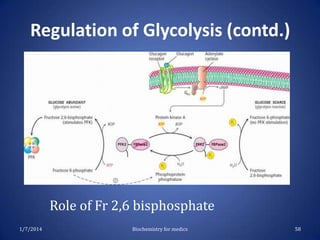

58. Regulation of Glycolysis (contd.)
Role of Fr 2,6 bisphosphate
1/7/2014
Biochemistry for medics
58

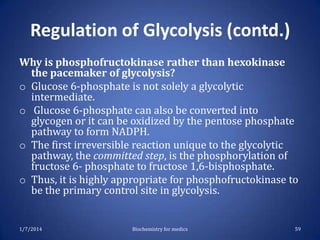

59. Regulation of Glycolysis (contd.)
Why is phosphofructokinase rather than hexokinase
the pacemaker of glycolysis?
o Glucose 6-phosphate is not solely a glycolytic
intermediate.
o Glucose 6-phosphate can also be converted into
glycogen or it can be oxidized by the pentose phosphate
pathway to form NADPH.
o The first irreversible reaction unique to the glycolytic
pathway, the committed step, is the phosphorylation of
fructose 6- phosphate to fructose 1,6-bisphosphate.
o Thus, it is highly appropriate for phosphofructokinase to
be the primary control site in glycolysis.
1/7/2014
Biochemistry for medics
59

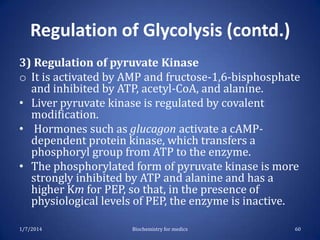

60. Regulation of Glycolysis (contd.)
3) Regulation of pyruvate Kinase
o It is activated by AMP and fructose-1,6-bisphosphate
and inhibited by ATP, acetyl-CoA, and alanine.
• Liver pyruvate kinase is regulated by covalent
modification.
• Hormones such as glucagon activate a cAMPdependent protein kinase, which transfers a
phosphoryl group from ATP to the enzyme.
• The phosphorylated form of pyruvate kinase is more
strongly inhibited by ATP and alanine and has a
higher Km for PEP, so that, in the presence of
physiological levels of PEP, the enzyme is inactive.
1/7/2014
Biochemistry for medics
60

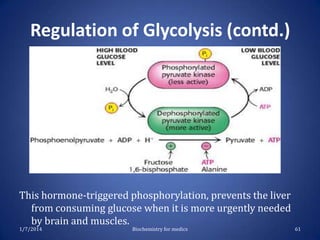

61. Regulation of Glycolysis (contd.)
This hormone-triggered phosphorylation, prevents the liver
from consuming glucose when it is more urgently needed
by brain and muscles.
1/7/2014
Biochemistry for medics
61

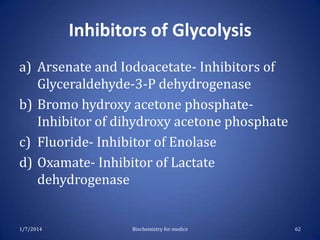

62. Inhibitors of Glycolysis
a) Arsenate and Iodoacetate- Inhibitors of
Glyceraldehyde-3-P dehydrogenase
b) Bromo hydroxy acetone phosphateInhibitor of dihydroxy acetone phosphate
c) Fluoride- Inhibitor of Enolase
d) Oxamate- Inhibitor of Lactate
dehydrogenase
1/7/2014
Biochemistry for medics
62

63. Significance of glycolysis other than
energy production
• Glucose-6-P is a common intermediate for a
number of pathways and is used depending on
the need of the cell, like glycogen synthesis,
Uronic acid pathway, HMP pathway etc.
• Fructose-6-P is used for the synthesis of
Glucosamines.
• Triose like glyceraldehyde-3-P and other
glycolytic intermediates can be used in the HMP
pathway for the production of pentoses.
• Dihydroxy Acetone –phosphate can be used for
the synthesis of Glycerol -3-P , which is used for
the synthesis of Triglycerides or phospholipids.
1/7/2014
Biochemistry for medics
63

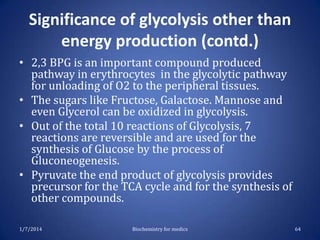

64. Significance of glycolysis other than
energy production (contd.)
• 2,3 BPG is an important compound produced
pathway in erythrocytes in the glycolytic pathway
for unloading of O2 to the peripheral tissues.
• The sugars like Fructose, Galactose. Mannose and
even Glycerol can be oxidized in glycolysis.
• Out of the total 10 reactions of Glycolysis, 7
reactions are reversible and are used for the
synthesis of Glucose by the process of
Gluconeogenesis.
• Pyruvate the end product of glycolysis provides
precursor for the TCA cycle and for the synthesis of
other compounds.
1/7/2014
Biochemistry for medics
64

65. Clinical significance
Pyruvate kinase deficiency
• Manifested by hemolytic anemia
Biochemical basis for hemolytic anemia
Pyruvate kinase activity is critical for the pathway and
therefore critical for energy production.
• If ATP is not produced in amounts sufficient to meet the
energy demand, then those functions are compromised.
• Energy is required to maintain the Na+/K+ balance
within the RBC and to maintain the flexible discoid
shape of the cell.
• In the absence of sufficient pyruvate kinase activity and
therefore ATP, the ionic balance fails, and the membrane
becomes misshapen.
1/7/2014
Biochemistry for medics
65

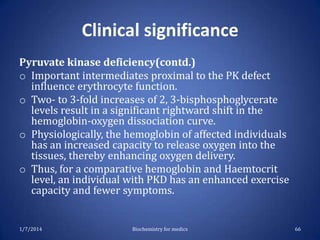

66. Clinical significance
Pyruvate kinase deficiency(contd.)
o Important intermediates proximal to the PK defect
influence erythrocyte function.
o Two- to 3-fold increases of 2, 3-bisphosphoglycerate
levels result in a significant rightward shift in the
hemoglobin-oxygen dissociation curve.
o Physiologically, the hemoglobin of affected individuals
has an increased capacity to release oxygen into the
tissues, thereby enhancing oxygen delivery.
o Thus, for a comparative hemoglobin and Haemtocrit
level, an individual with PKD has an enhanced exercise
capacity and fewer symptoms.
1/7/2014
Biochemistry for medics
66

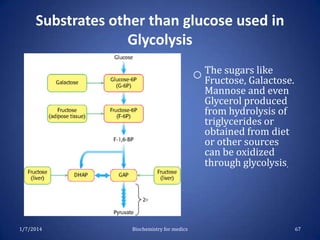

67. Substrates other than glucose used in
Glycolysis
o The sugars like
Fructose, Galactose.
Mannose and even
Glycerol produced
from hydrolysis of
triglycerides or
obtained from diet
or other sources
can be oxidized
through glycolysis.
1/7/2014
Biochemistry for medics
67

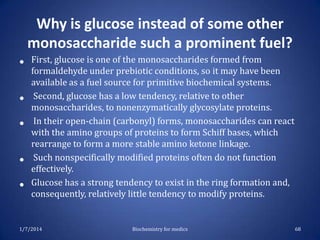

68. Why is glucose instead of some other
monosaccharide such a prominent fuel?
•
•
•
•
•
First, glucose is one of the monosaccharides formed from
formaldehyde under prebiotic conditions, so it may have been
available as a fuel source for primitive biochemical systems.
Second, glucose has a low tendency, relative to other
monosaccharides, to nonenzymatically glycosylate proteins.
In their open-chain (carbonyl) forms, monosaccharides can react
with the amino groups of proteins to form Schiff bases, which
rearrange to form a more stable amino ketone linkage.
Such nonspecifically modified proteins often do not function
effectively.
Glucose has a strong tendency to exist in the ring formation and,
consequently, relatively little tendency to modify proteins.
1/7/2014
Biochemistry for medics
68

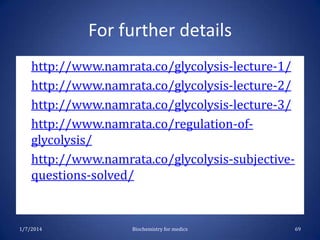

69. For further details
http://www.namrata.co/glycolysis-lecture-1/
http://www.namrata.co/glycolysis-lecture-2/
http://www.namrata.co/glycolysis-lecture-3/
http://www.namrata.co/regulation-ofglycolysis/
• http://www.namrata.co/glycolysis-subjectivequestions-solved/
•
•
•
•
1/7/2014
Biochemistry for medics
69
