Content:
Basic concepts
Fragmentation Process
McLafferty Rearrangement
Mass spectrum
Metastable ion
Isotopic peak
Nitrogen Rule
Basic Concept:
Mass spectrometry uses high energy electrons to break a molecule into fragmentation.
A beam of high-energy electrons breaks the molecule apart.
The masses of the fragments and their relative abundance reveal information about the structure of the molecule.
Separation and analysis of the fragments provides information about:
– Molecular weight
– Structure
Fragmentation Process
Bombardment of molecules by an electron beam with energy between 10-15ev usually results in the ionization of molecules by removal of one electron (Molecular ion formation)
When the energy of electron beam is increased between 50-70ev, these molecular ions acquire a high excitation resulting in their break down into various fragments. This process is called "Fragmentation process".
McLafferty Rearrangement:
Fragmentation due to rearrangement of Molecular or Parent ion:
The cleavage of bonds in Molecular ion is due to the intramolecular atomic rearrangement. This leads to fragmentation whose origin cannot be described by simple cleavage of bonds.
When fragments are accompanied by bond formation as well as bond for breaking, a rearrangement process is said to have occurred.
Such rearrangement involves the transfer of hydrogen from one part of the molecular ion to another via, preferably, a six-membered cyclic transition state.
This process is favoured energetically because as many bonds are formed as are broken.
Compounds containing hydrogen atom at position gamma to carbonyl group have been found to a relative intense peak.
This is probably due to rearrangement and fragmentation is accompanied by the loss of neutral molecule. This rearrangement is known as Mc Lafferty rearrangement.
Thus , the molecular formula of the unknown compound can be determined from the various fragment ions and also the parent ion of the mass spectrum .
More example of McLafferty reaarangements are :
A double McLafferty rearrangement is also reported in ketones .
The second hydrogen atom originates exclusively from the γ – position .
A secondary hydrogen is preffered to a primary hydrogen atom in this process . The mechanism involves.
Ketonisation of the intermediate enol ion by the hydrogen transfer .
Hydrogen transfer to enolic oxygen . Consider the McLafferty rearrangement in 4- Heptanone.
Mass Spectrum :
It is a record of the masses and the relative abundances of the molecular ion and the positively charged fragments formed from it by the electron bombardment.
The molecular ion or Parent ion :
The electron bombardment with energy 10-15 eV usually removes one electron from the molecule of the organic compoound in the vapour phase it results in the formation of molecular ion
The mass of the parent ion gives the molecular mass of the sample. .

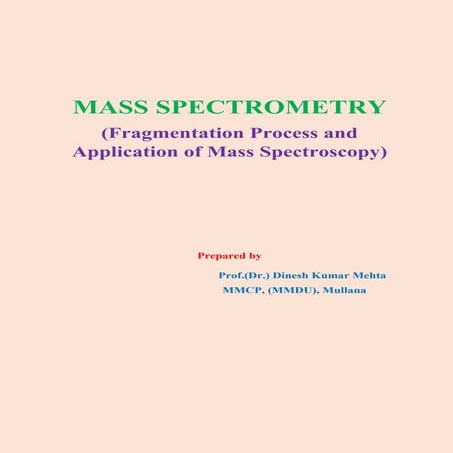

MS Fragmentation Process and Application of MS.pdfDr. Dinesh Mehta
Bombardment of molecules by an electron beam with energy
between 10-15ev usually results in the ionization of molecules by
removal of one electron (Molecular ion formation).
MS Fragmentation Process and Application of MS.pdfDr. Dinesh Mehta
Fragmentation process:
Bombardment of molecules by an electron beam with energy between 10-15ev usually results in the ionization of molecules by removal of one electron (Molecular ion formation).
Freedom to Operate (FTO) refers to whether it’s commercially ‘safe’ for you to make or sell your product in the country in which you wish to do so, without infringing existing third-party rights.
A patent is the granting of a property right by a sovereign authority to an inventor. This grant provides the inventor exclusive rights to the patented process, design, or invention for a designated period in exchange for a comprehensive disclosure of the invention.
The Statisticians Role in Pharmaceutical DevelopmentAshwani Dhingra
Statistics plays an important role in drug development. Its use is necessary for planning and analysing trials and using statistics correctly is crucial for the success of drug development programs.
Electrophoresis is a laboratory technique used to separate DNA, RNA, or protein molecules based on their size and electrical charge. An electric current is used to move molecules to be separated through a gel. Pores in the gel work like a sieve, allowing smaller molecules to move faster than larger molecules.
High-performance liquid chromatography (HPLC), is a technique in analytical chemistry used to separate, identify, and quantify individual components from a mixture.
Ion-exchange chromatography (IEC) is an important analytical technique used for the separation and determination of ionic compounds, together with ion-partition/interaction and ion-exclusion chromatography. It is based on the ionic interactions between ionic and polar analytes, ions present in the eluent and ionic functional groups fixed to the chromatographic support.
Mass spectrometry (MS) is an analytical technique that is used to measure the molecular weight of the compounds. The results are typically presented as a mass spectrum, a plot of intensity as a function of the mass-to-charge ratio.
Hypolipidemic agents, also known as cholesterol-lowering drugs or antihyperlipidemic agents, are a diverse group of pharmaceuticals that are used in the treatment of high levels of fats (lipids), such as cholesterol, in the blood (hyperlipidemia). They are also called lipid-lowering drugs.
UV/Vis spectroscopy is routinely used in analytical chemistry for the quantitative determination of different analytes, such as transition metal ions, highly conjugated organic compounds, and biological macromolecules. Molecules containing bonding and non-bonding electrons undergo electronic transitions and absorb energy in the form of ultraviolet or visible light to excite these electrons to higher anti-bonding molecular orbitals.
Infrared spectroscopy (IR spectroscopy or vibrational spectroscopy) is the measurement of the interaction of infrared radiation with the matter by absorption, emission, or reflection. It is used to study and identify chemical substances or functional groups in solid, liquid, or gaseous forms.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
Acetabularia Information For Class 9 .docxvaibhavrinwa19
Acetabularia acetabulum is a single-celled green alga that in its vegetative state is morphologically differentiated into a basal rhizoid and an axially elongated stalk, which bears whorls of branching hairs. The single diploid nucleus resides in the rhizoid.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
Francesca Gottschalk - How can education support child empowerment.pptxEduSkills OECD
Francesca Gottschalk from the OECD’s Centre for Educational Research and Innovation presents at the Ask an Expert Webinar: How can education support child empowerment?
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Embracing GenAI - A Strategic ImperativePeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
2. Basic concepts
• Mass spectrometry (Mass Spec
or MS) uses high energy
electrons to break a molecule
into fragmentation.
• A beam of high-energy electrons
breaks the moleculeapart.
• The masses of the fragments
and their relative abundance
reveal information about the
structure of the molecule.
• Separation and analysis of the
fragments provides information
about:
– Molecular weight
– Structure

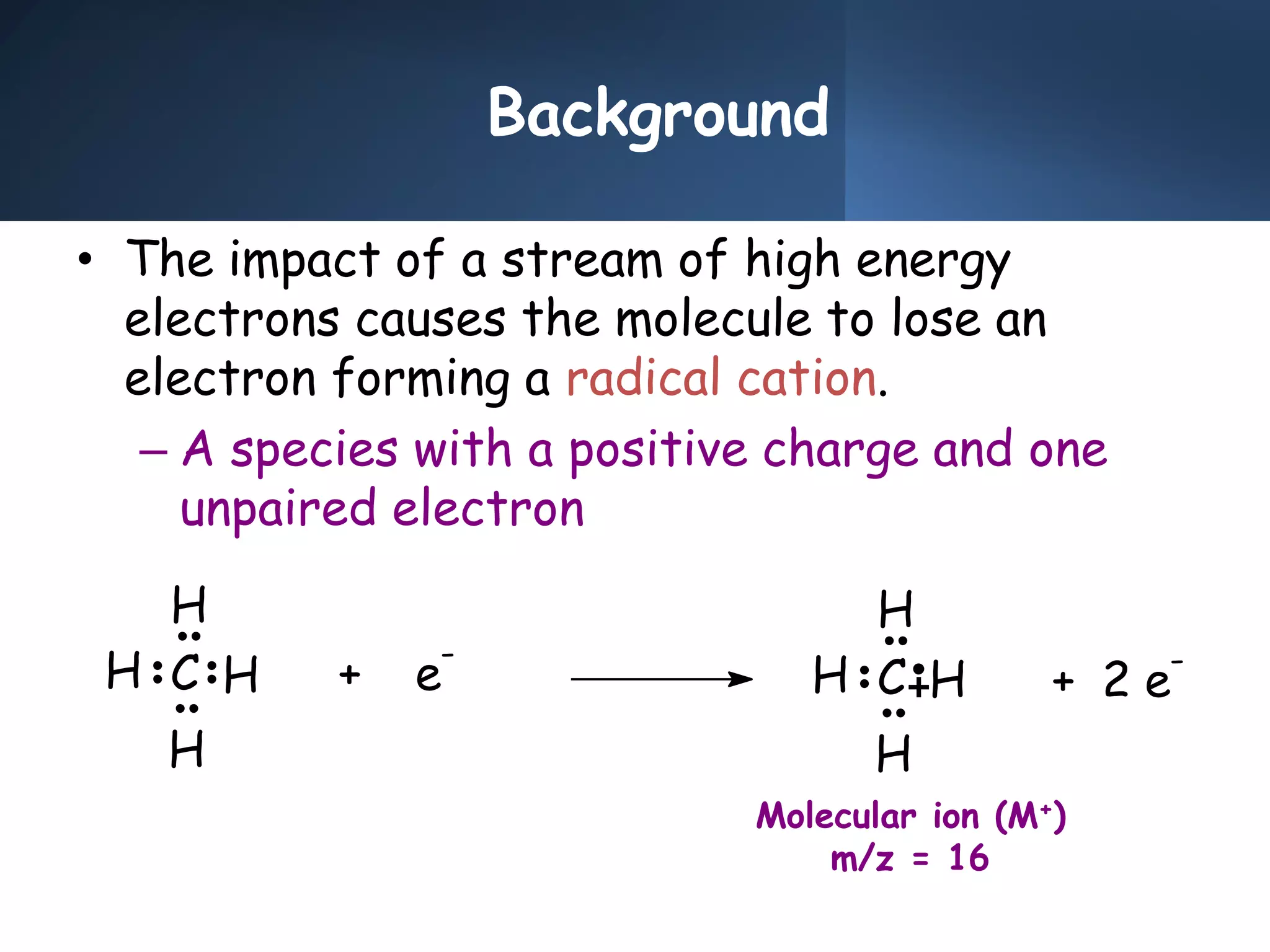

4. Background
• The impact of a stream of high energy
electrons causes the molecule to lose an
electron forming a radical cation.
– A species with a positive charge and one
unpaired electron
+ e
-
C H
H
H
H H
H
H
H
C + 2 e
-
Molecular ion (M+)
m/z = 16

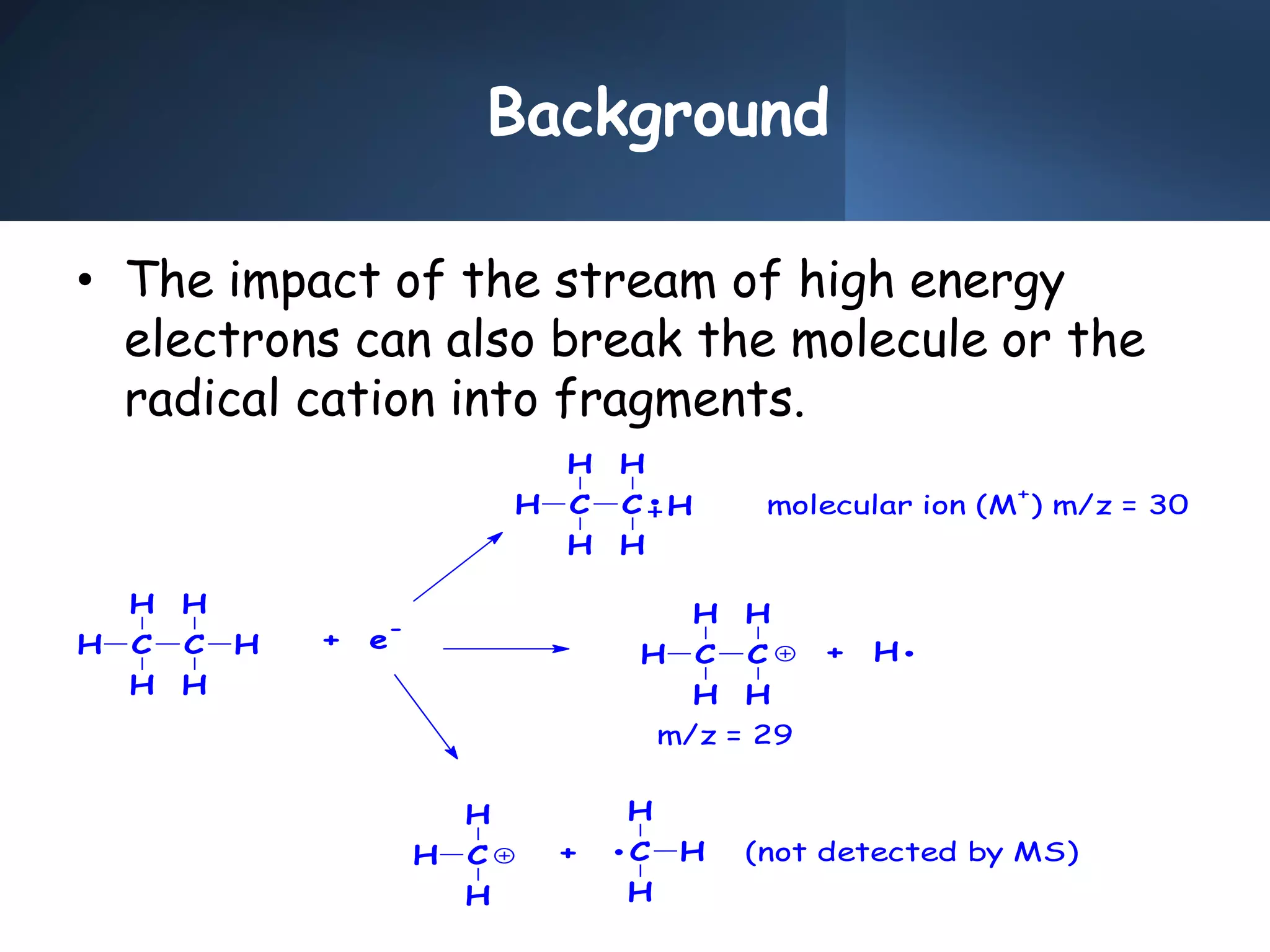

5. Background
• The impact of the stream of high energy
electrons can also break the molecule or the
radical cation into fragments.
(not detected by MS)
m/z = 29
molecular ion (M
+
) m/z = 30
+ C
H
H
H
+ H
H
H C
H
H
C
H
H
H C
H
H
C
H
H
H C
H
H
+ e
-
H C
H
H
C
H
H
H
6. Background

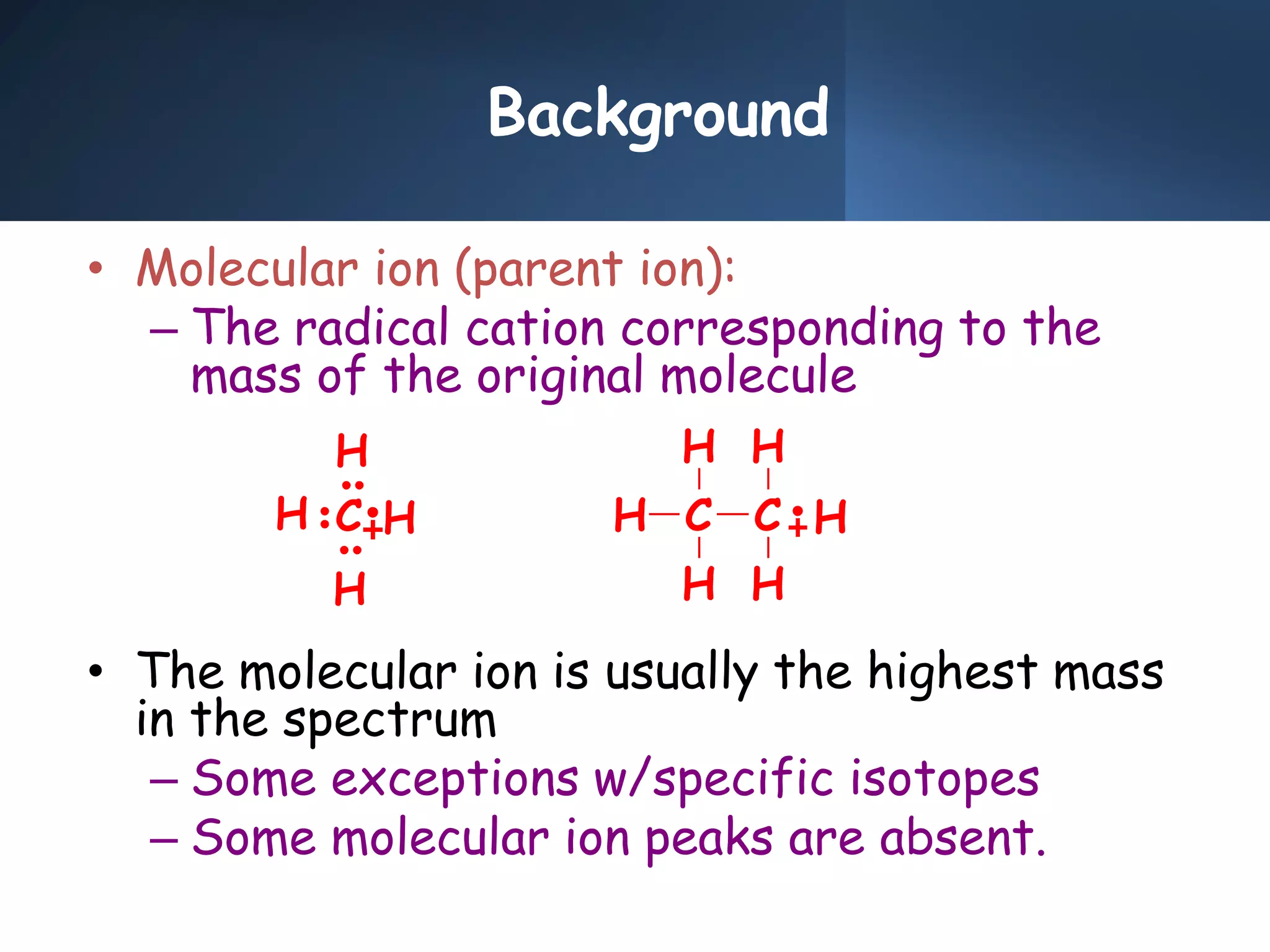

• Molecular ion (parent ion):
– The radical cation corresponding to the
mass of the original molecule
• The molecular ion is usually the highest mass
in the spectrum
– Some exceptions w/specific isotopes
– Some molecular ion peaks are absent.
H
H
H
H
C H C
H
H
C
H
H
H
8. Background

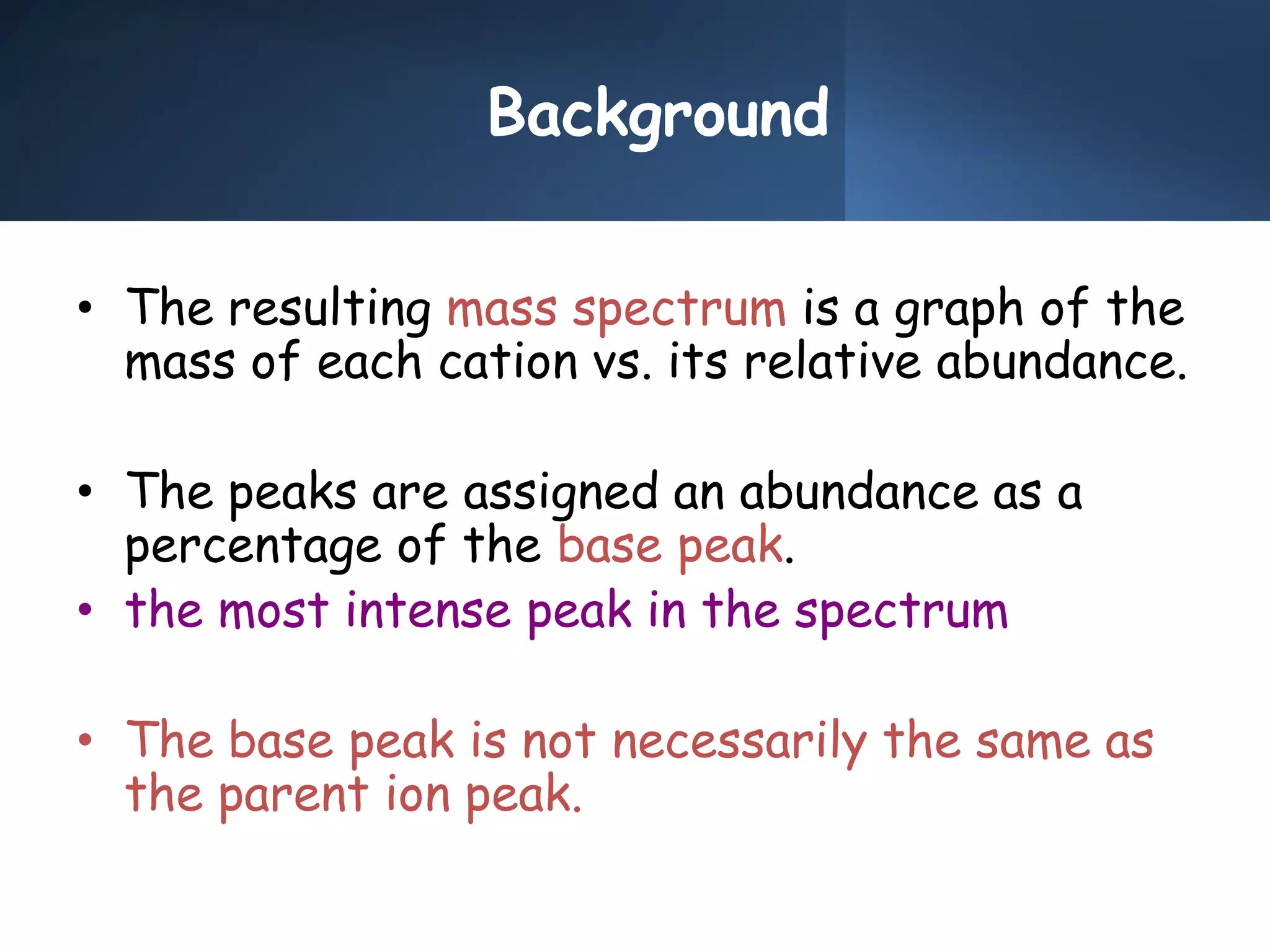

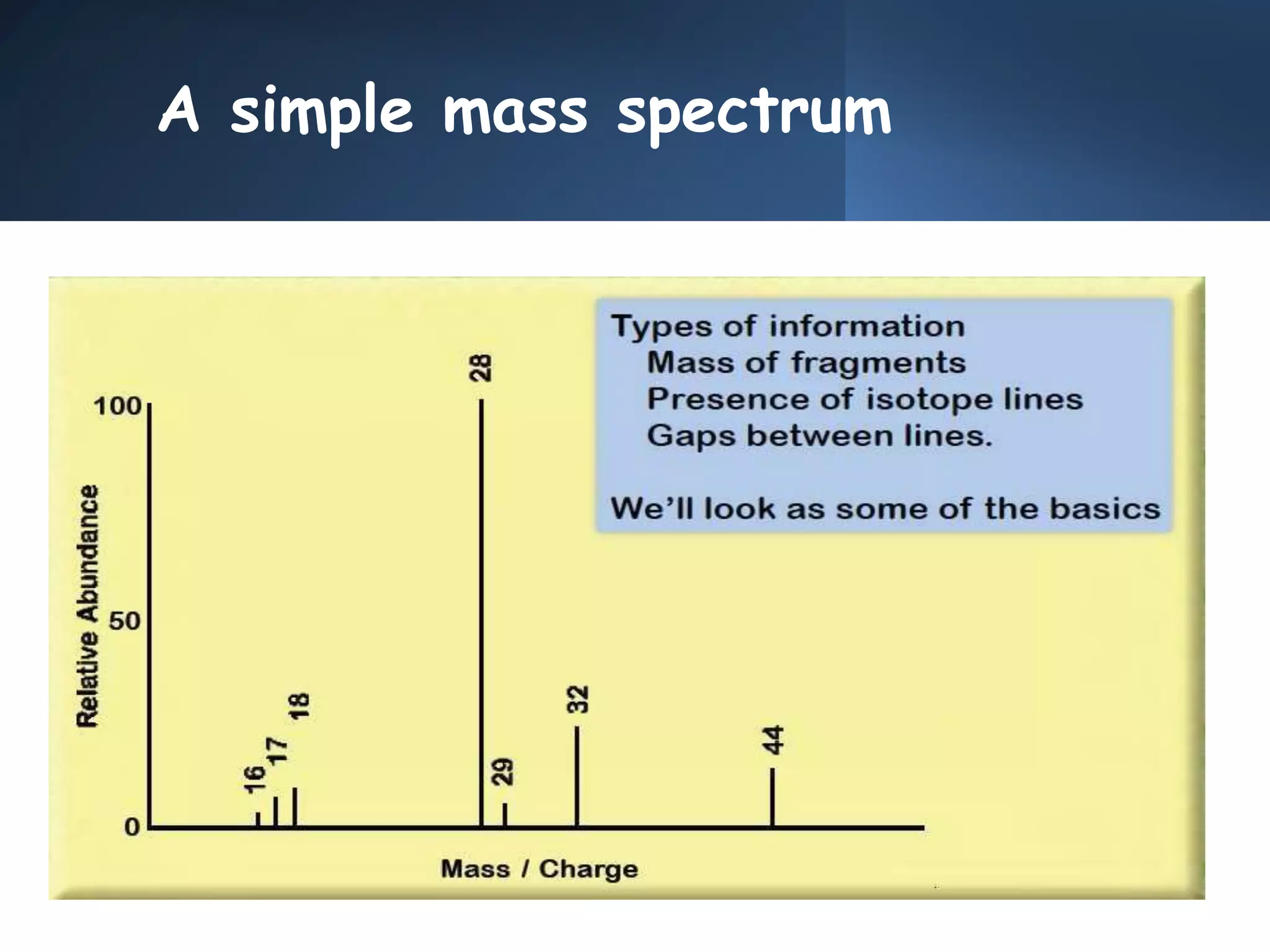

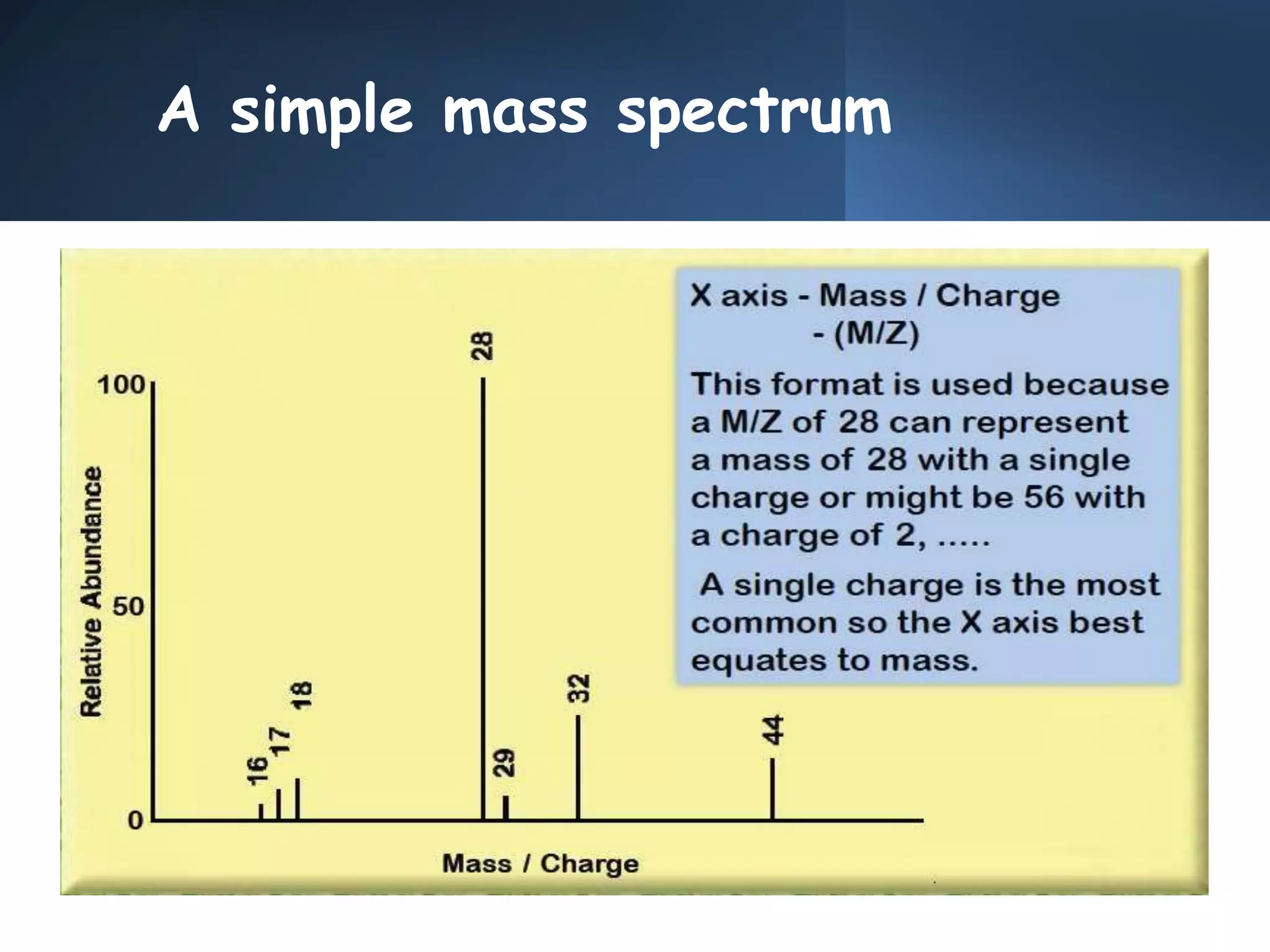

• The resulting mass spectrum is a graph of the
mass of each cation vs. its relative abundance.
• The peaks are assigned an abundance as a
percentage of the base peak.
• the most intense peak in the spectrum
• The base peak is not necessarily the same as
the parent ion peak.

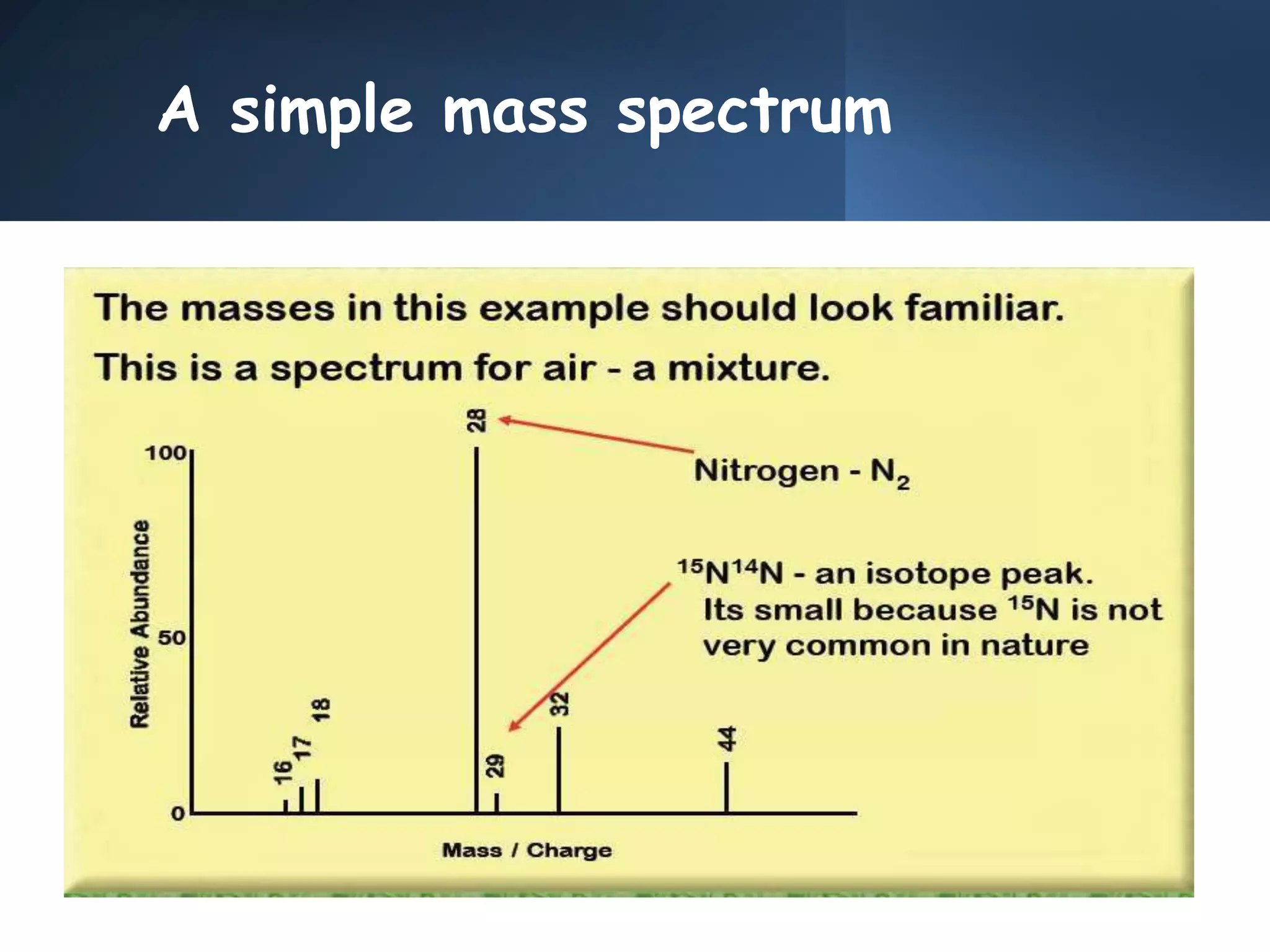

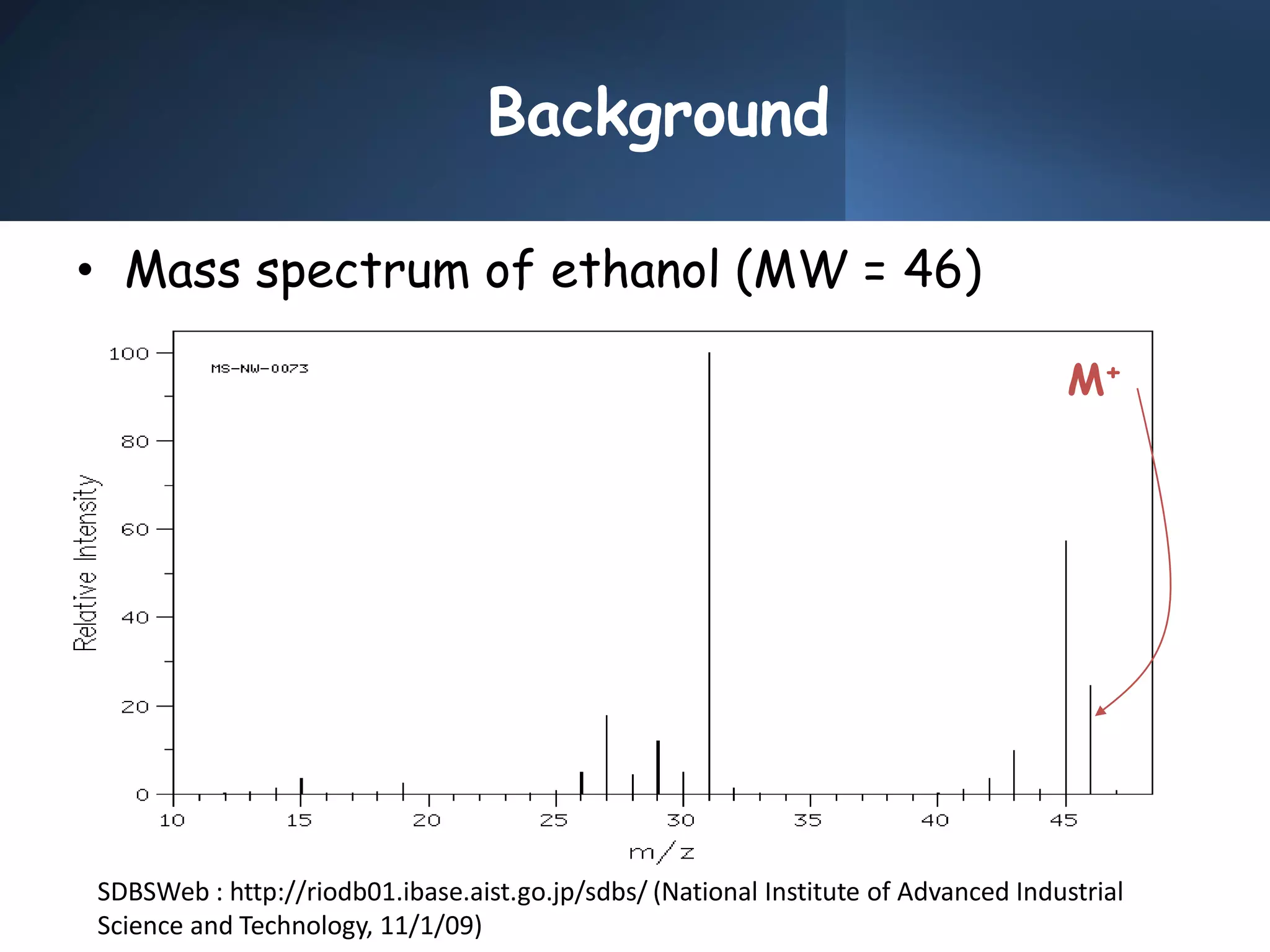

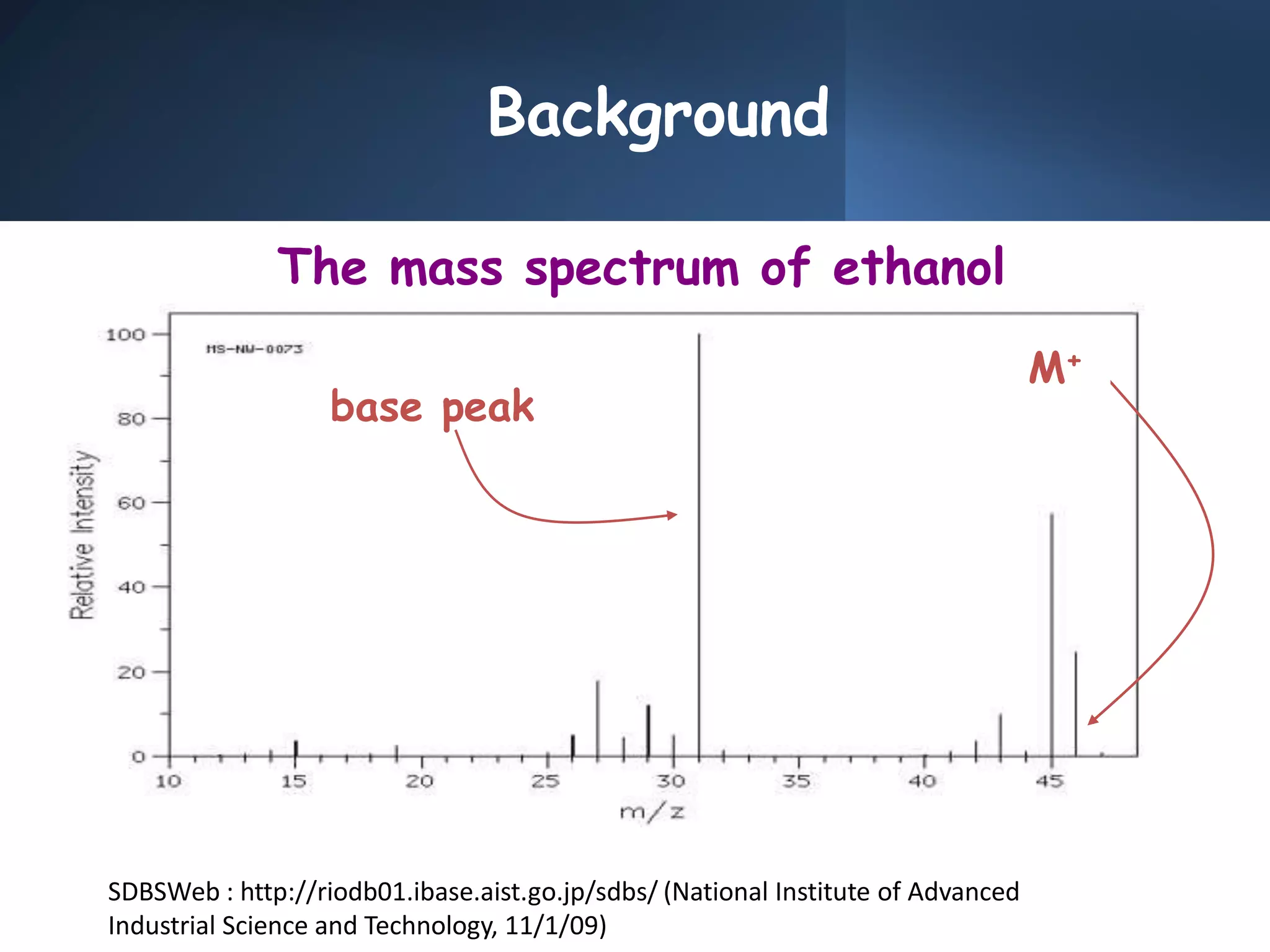

9. Background
The mass spectrum of ethanol
SDBSWeb : http://riodb01.ibase.aist.go.jp/sdbs/ (National Institute of Advanced
Industrial Science and Technology, 11/1/09)
base peak
M+
10. Fragmentation Patterns
• The impact of the stream of high
energy electrons often breaks the
molecule into fragments, commonly a
cation and a radical.
– Bonds break to give the most stable
cation.
– Stability of the radical is less
important.
11. Fragmentation Patterns
• Alkanes
– Fragmentation often splits off simple alkyl
groups:
• Loss of methyl M+ - 15
• Loss of ethyl M+ - 29
• Loss of propyl M+ - 43
• Loss of butyl M+ - 57
– Branched alkanes tend to fragment forming
the most stable carbocations.

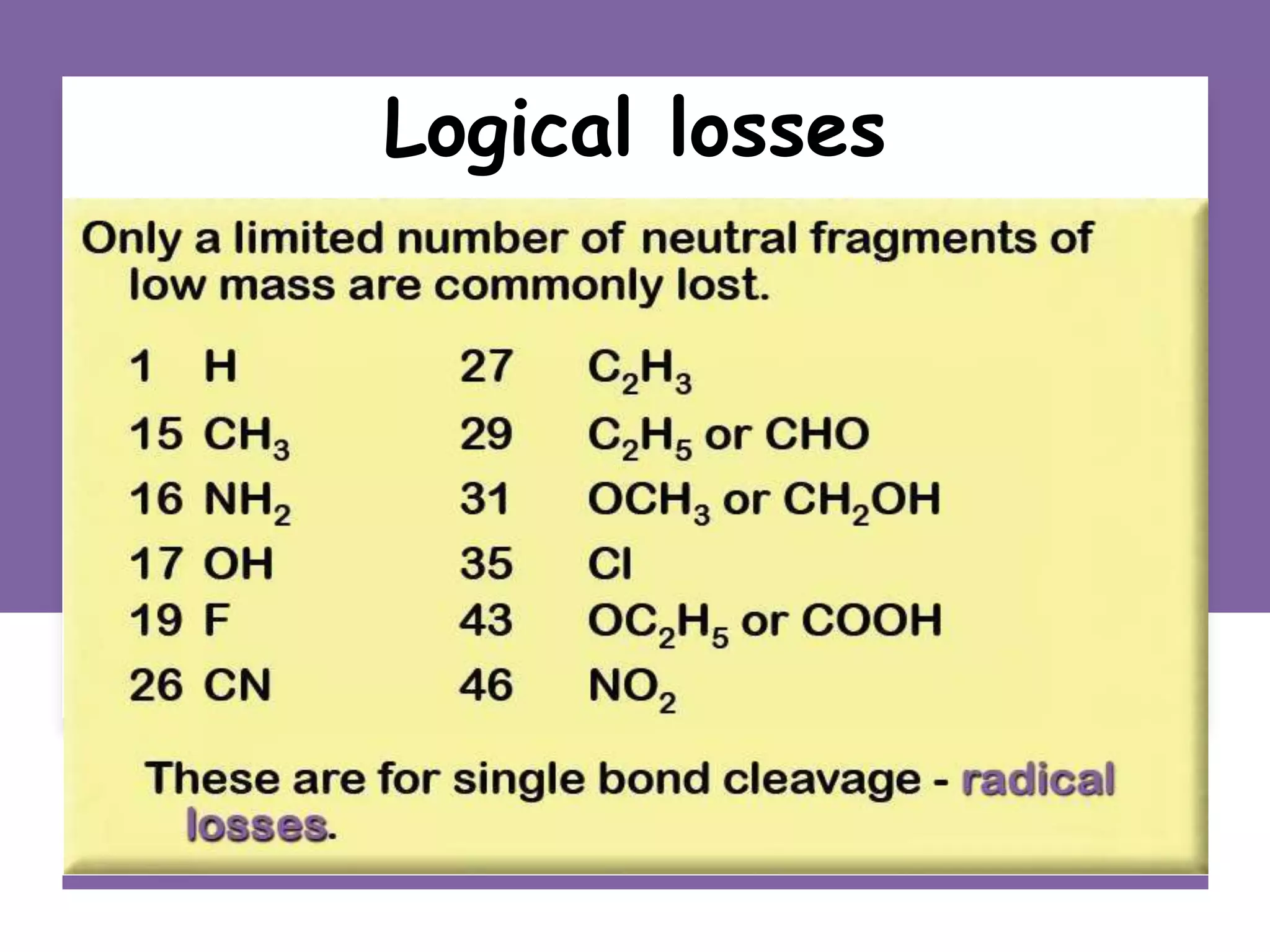

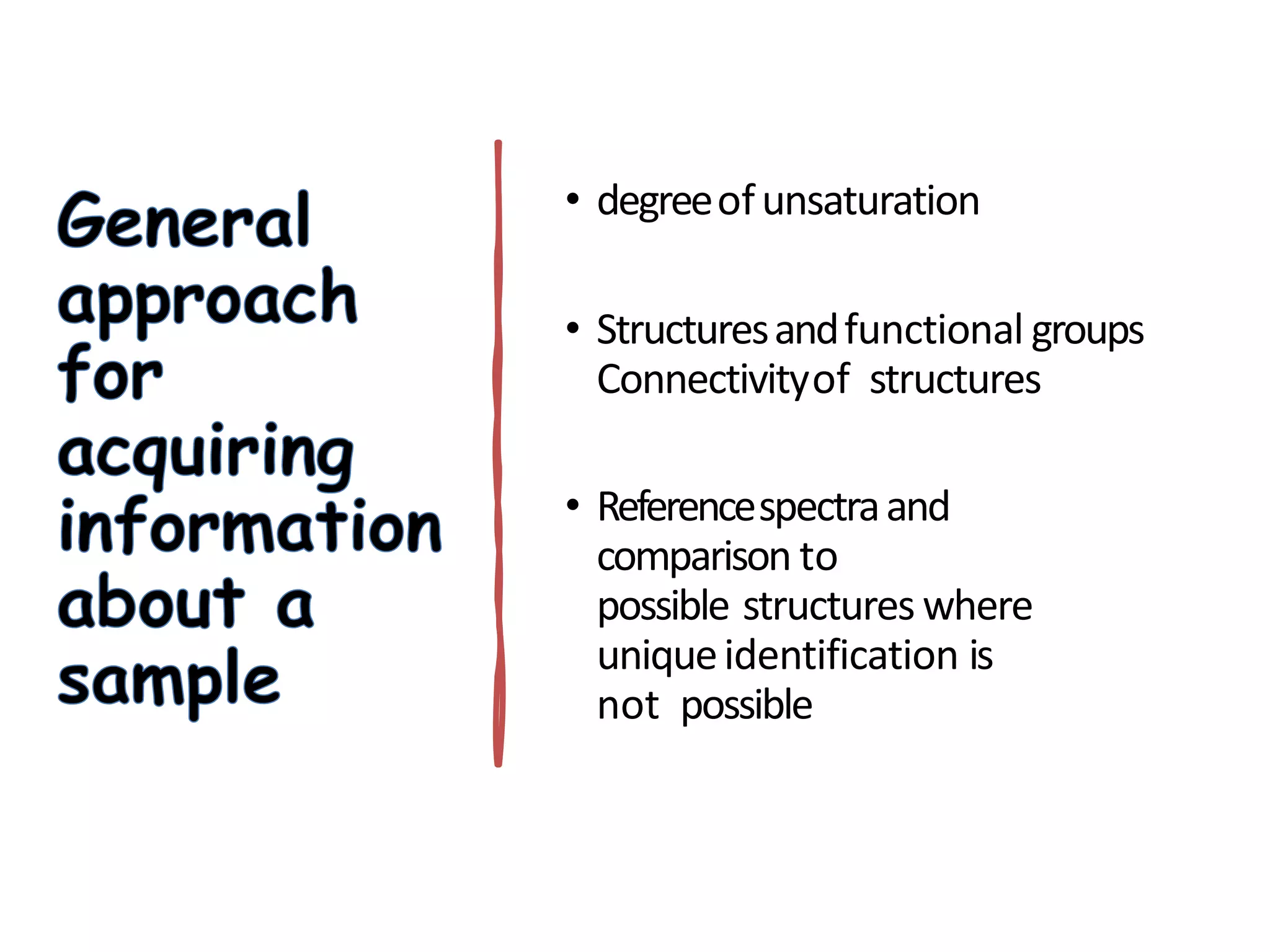

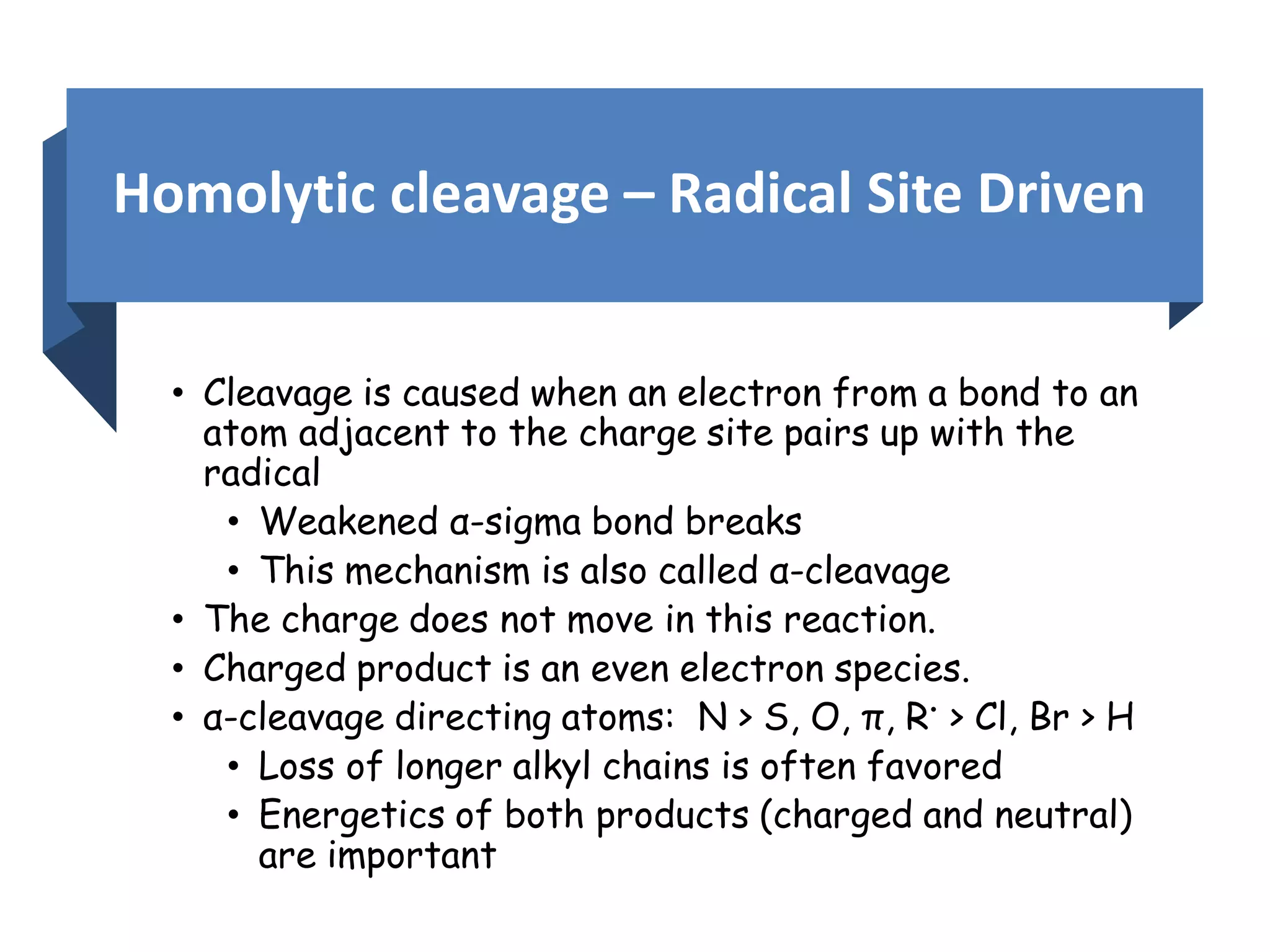

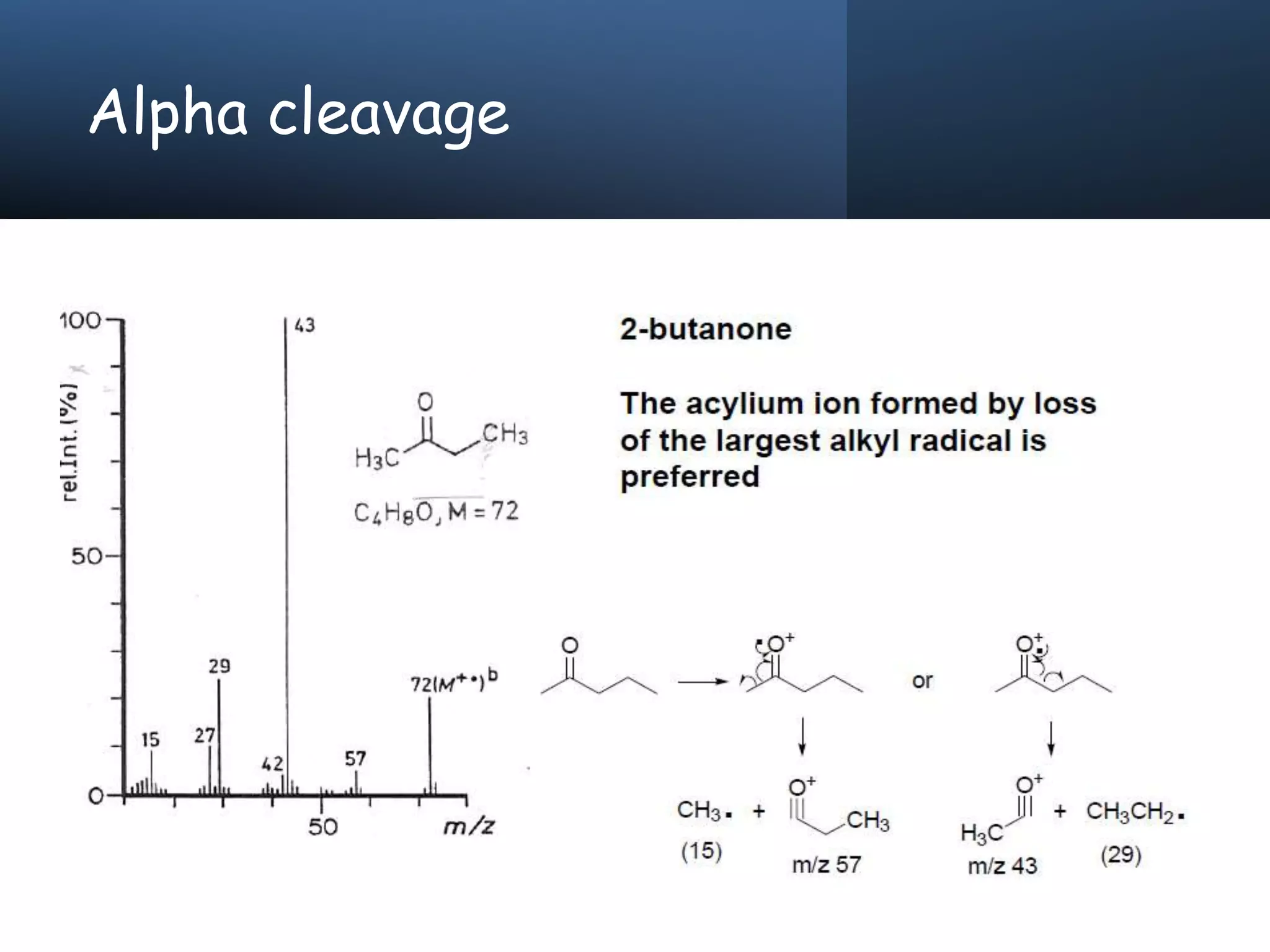

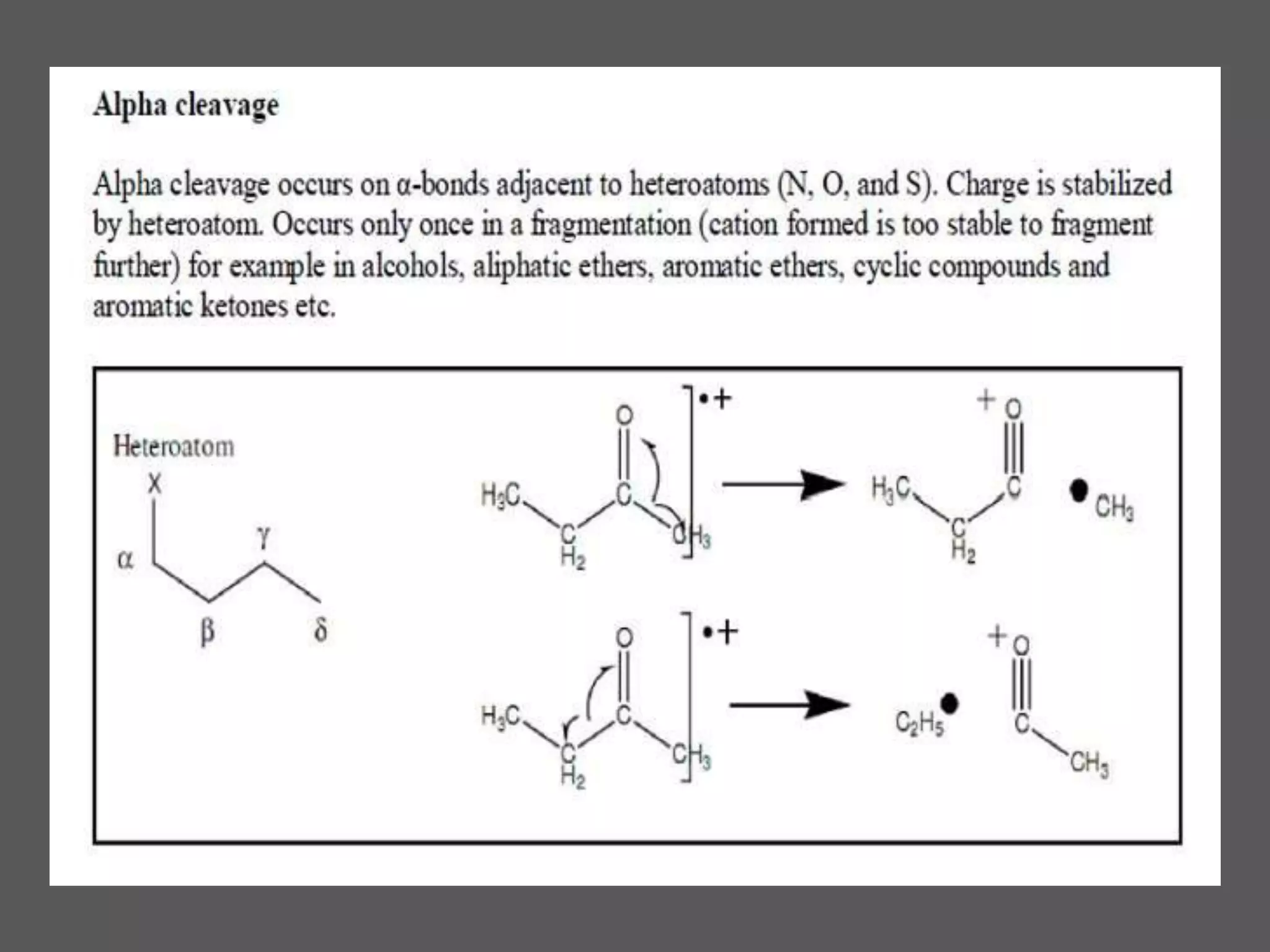

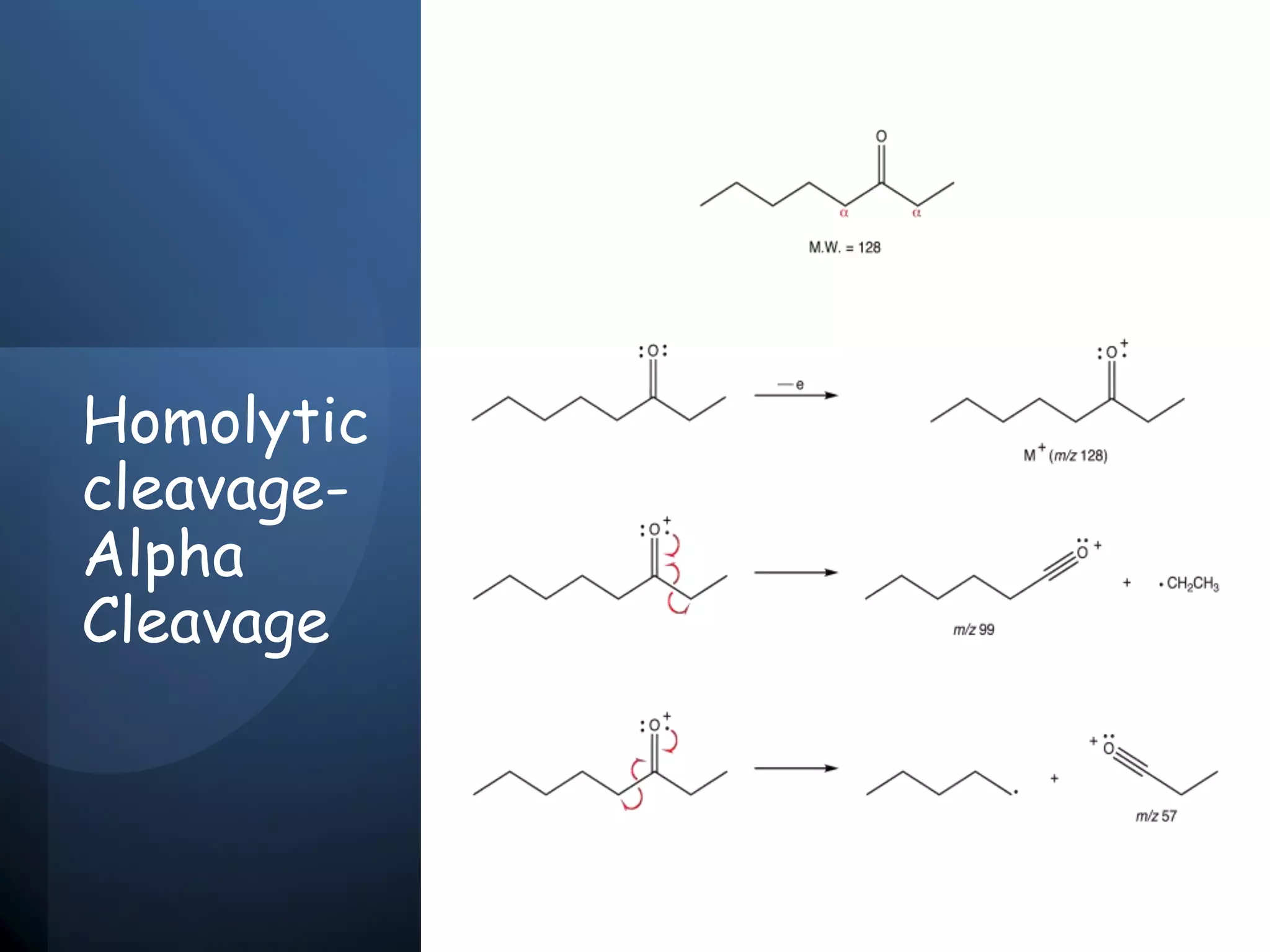

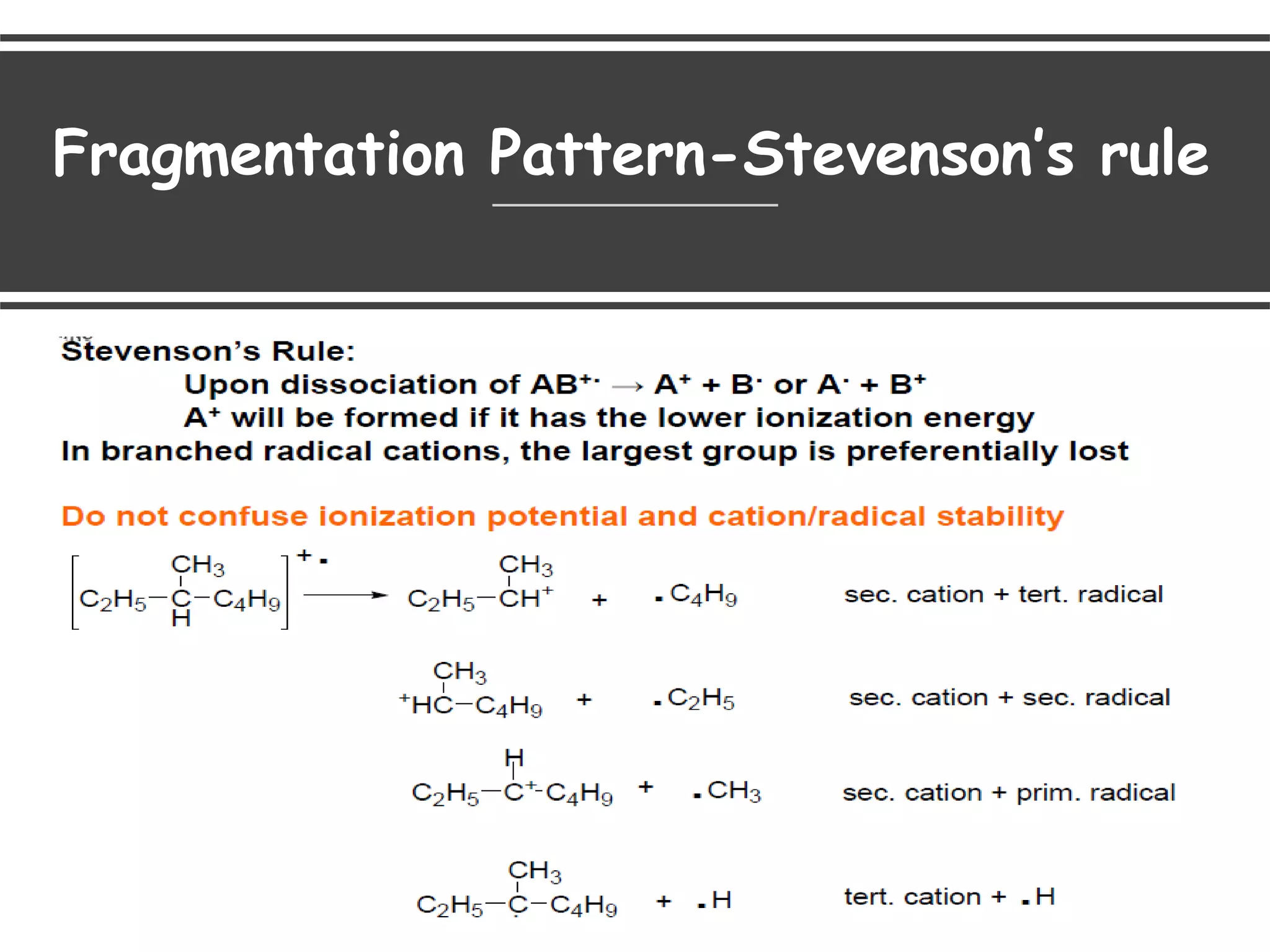

16. Homolytic cleavage – Radical Site Driven
• Cleavage is caused when an electron from a bond to an
atom adjacent to the charge site pairs up with the
radical
• Weakened α-sigma bond breaks
• This mechanism is also called α-cleavage
• The charge does not move in this reaction.
• Charged product is an even electron species.
• α-cleavage directing atoms: N > S, O, π, R• > Cl, Br > H
• Loss of longer alkyl chains is often favored
• Energetics of both products (charged and neutral)
are important

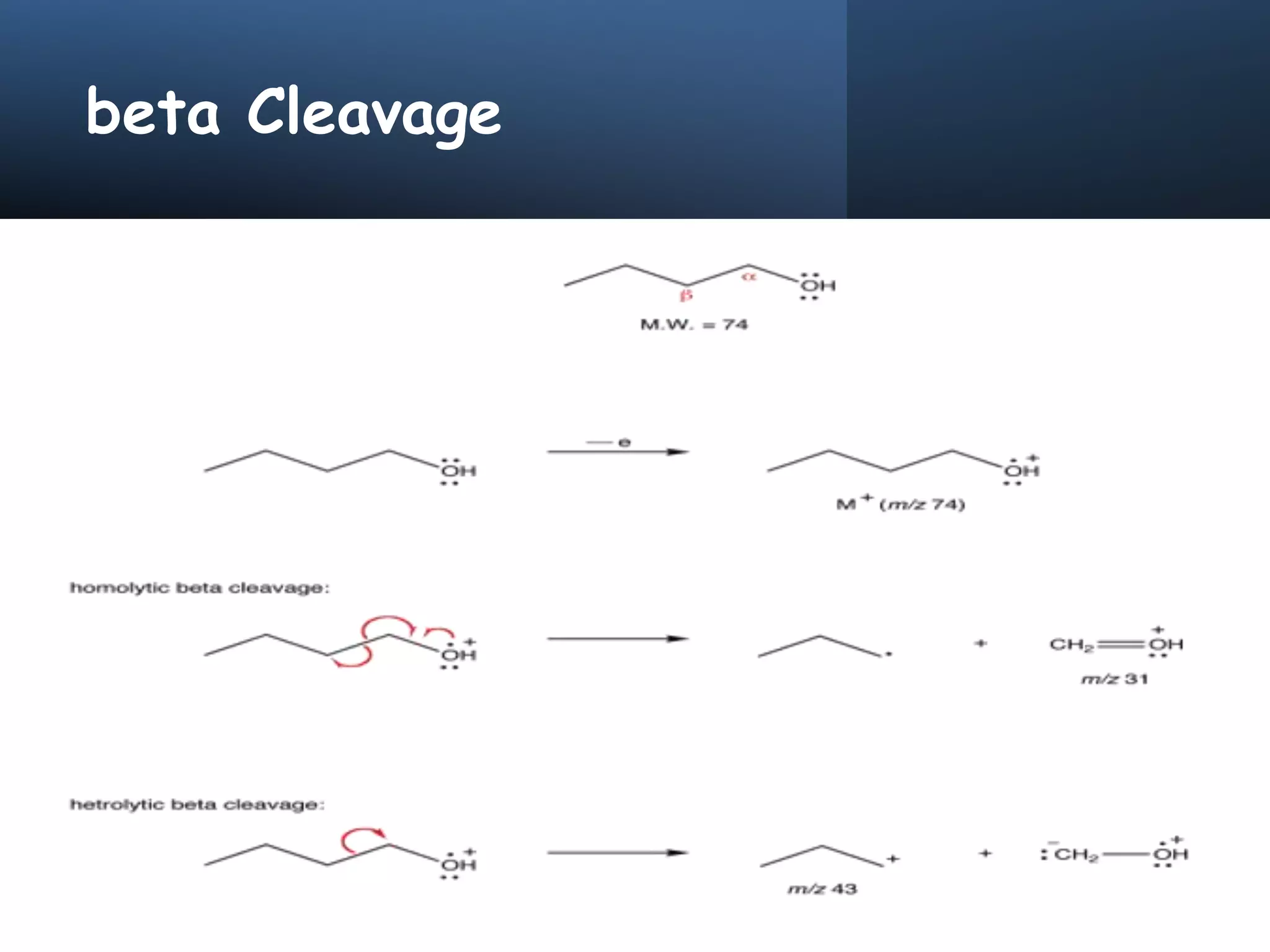

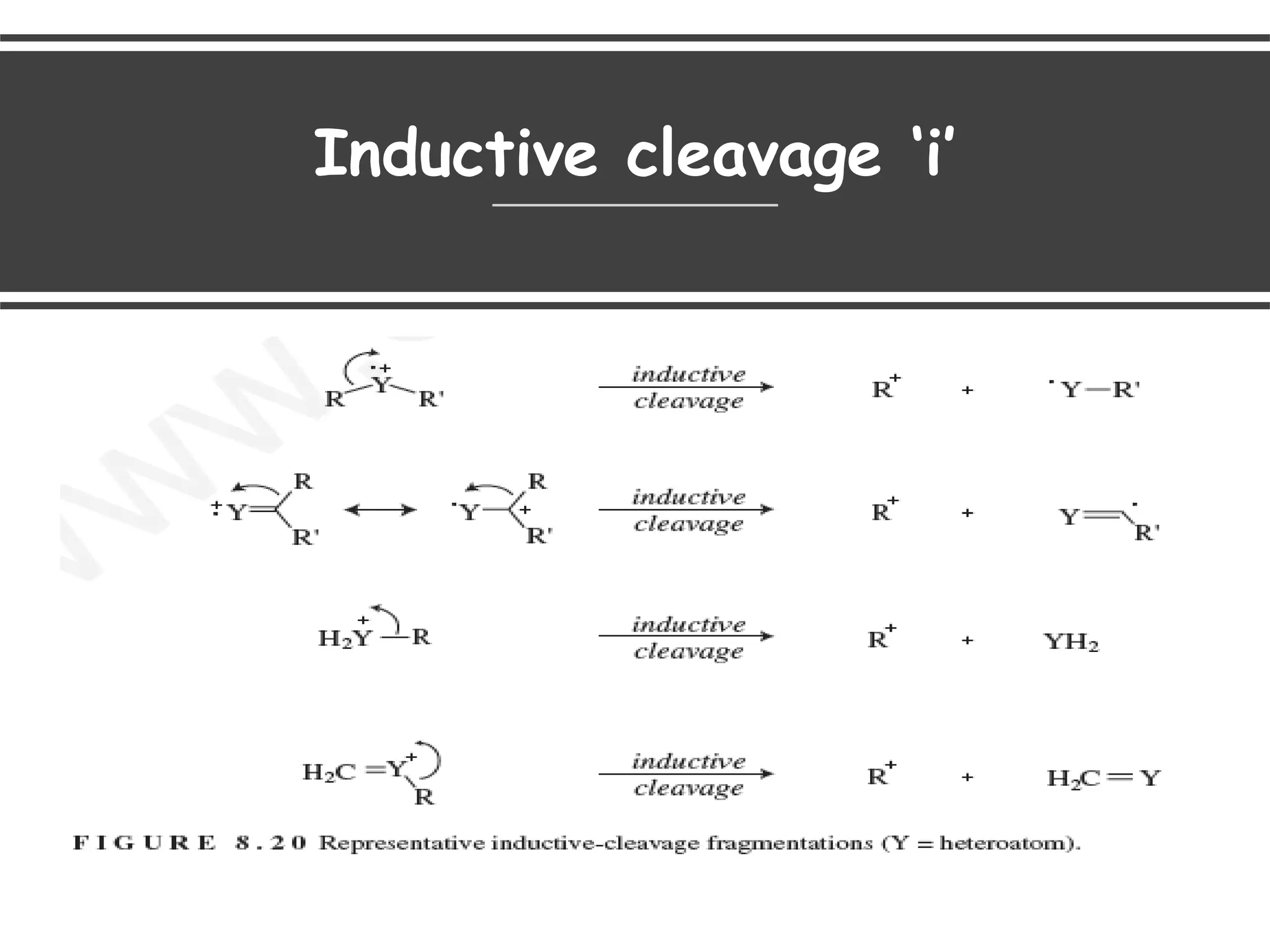

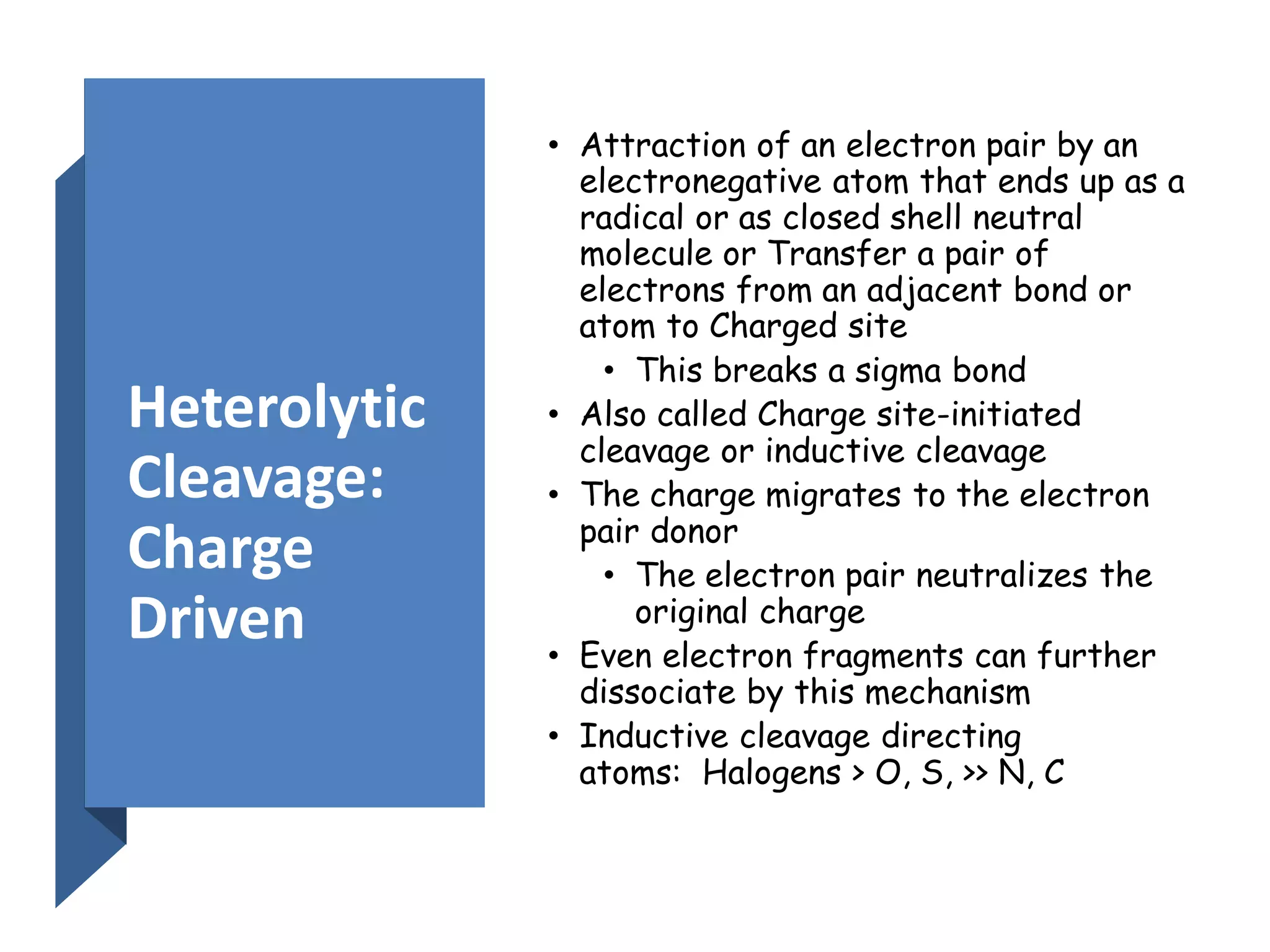

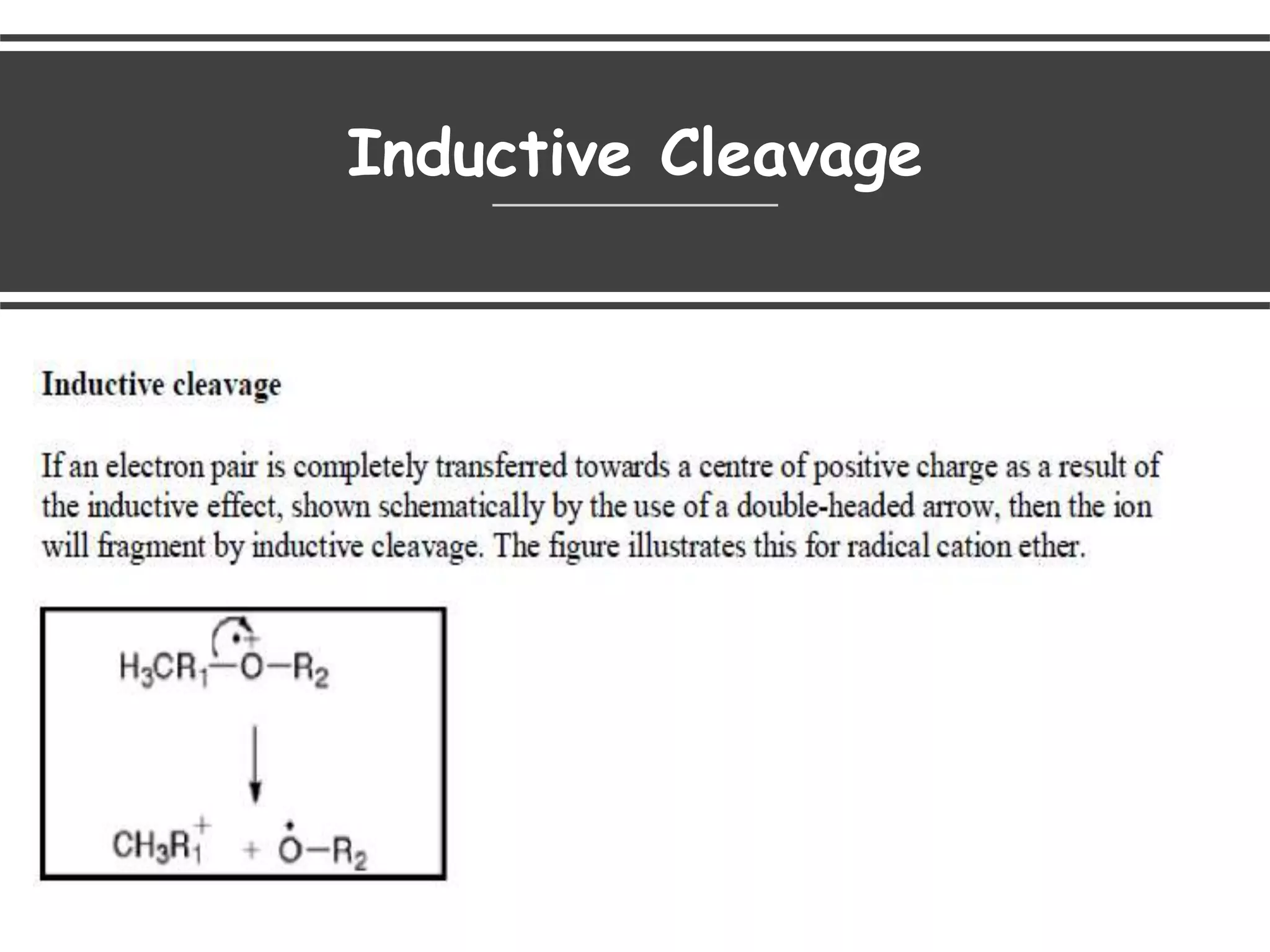

21. Heterolytic
Cleavage:
Charge
Driven
• Attraction of an electron pair by an
electronegative atom that ends up as a
radical or as closed shell neutral
molecule or Transfer a pair of
electrons from an adjacent bond or
atom to Charged site
• This breaks a sigma bond
• Also called Charge site-initiated
cleavage or inductive cleavage
• The charge migrates to the electron
pair donor
• The electron pair neutralizes the
original charge
• Even electron fragments can further
dissociate by this mechanism
• Inductive cleavage directing
atoms: Halogens > O, S, >> N, C

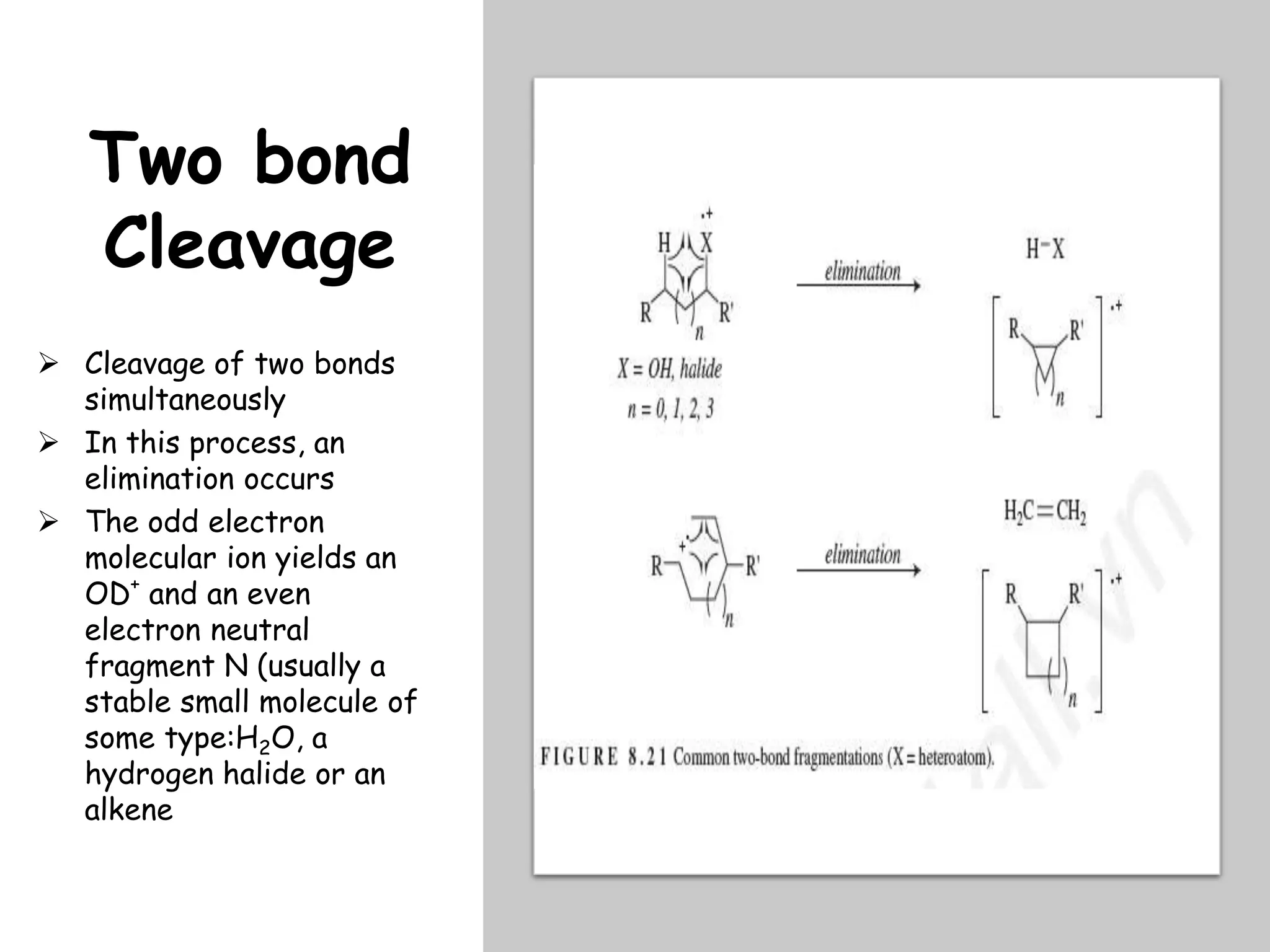

24. Two bond
Cleavage
Cleavage of two bonds
simultaneously
In this process, an
elimination occurs
The odd electron
molecular ion yields an
OD+
and an even
electron neutral
fragment N (usually a
stable small molecule of
some type:H2O, a
hydrogen halide or an
alkene

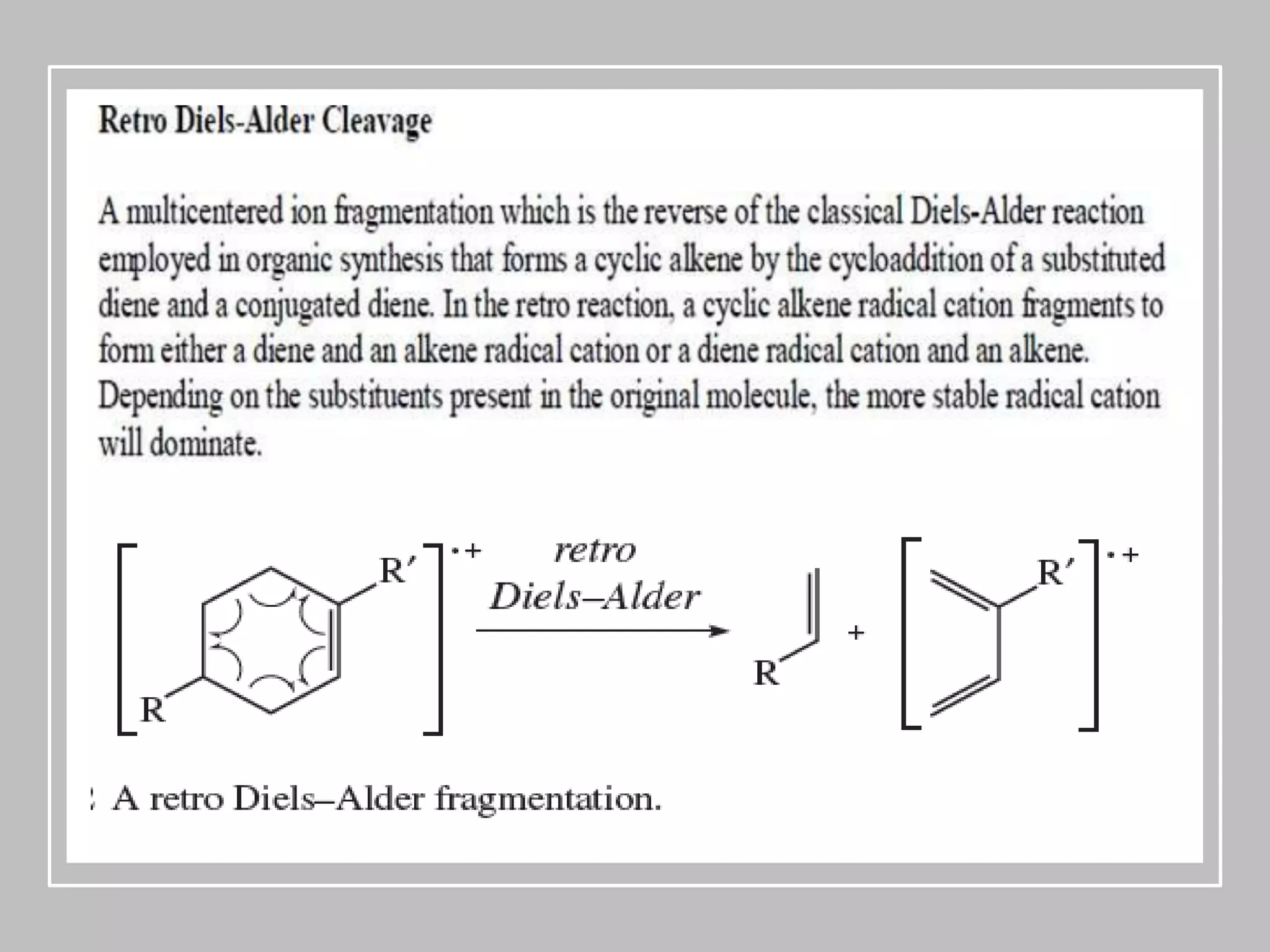

25.

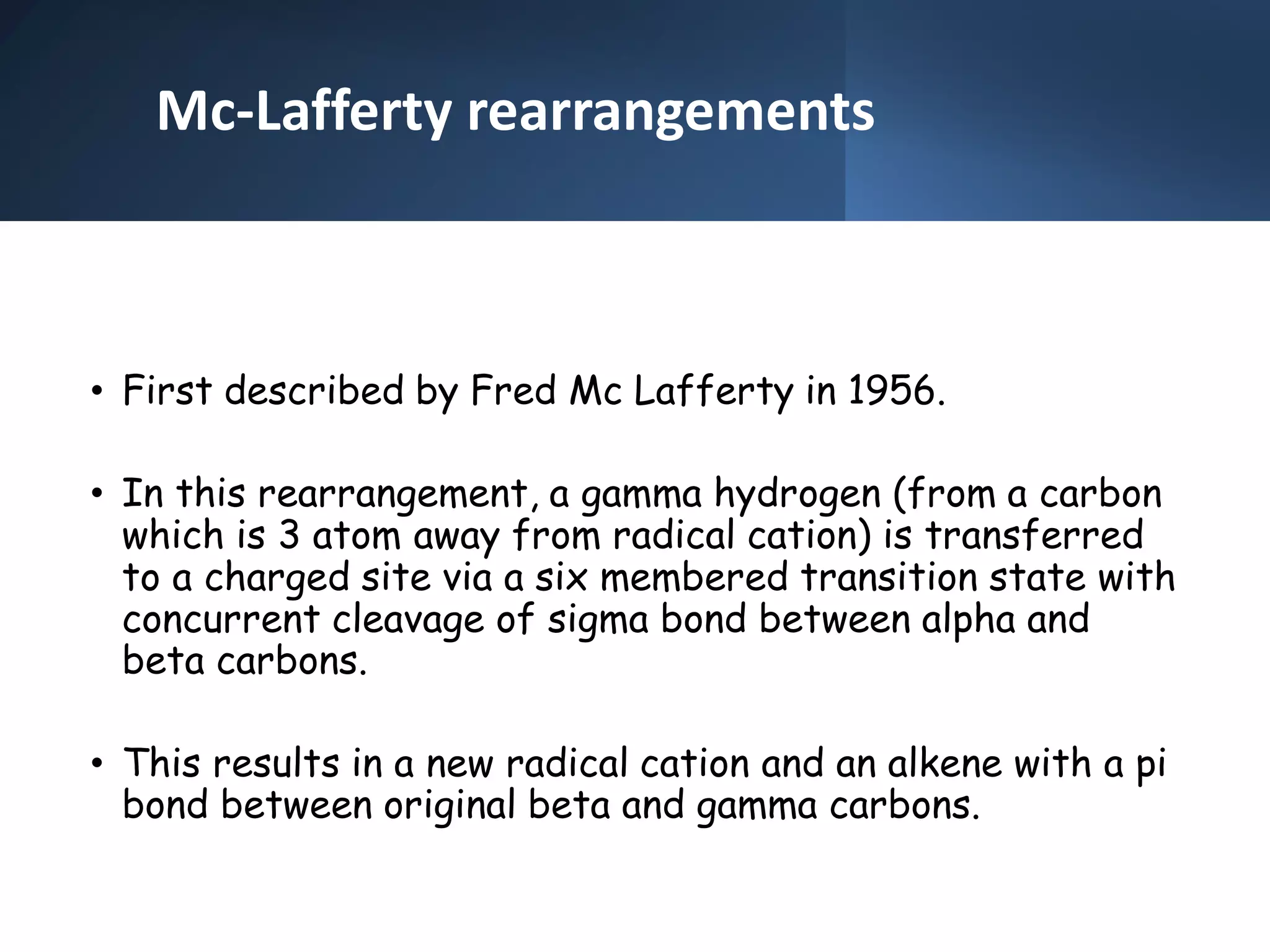

26. Mc-Lafferty rearrangements
• First described by Fred Mc Lafferty in 1956.
• In this rearrangement, a gamma hydrogen (from a carbon
which is 3 atom away from radical cation) is transferred
to a charged site via a six membered transition state with
concurrent cleavage of sigma bond between alpha and
beta carbons.
• This results in a new radical cation and an alkene with a pi
bond between original beta and gamma carbons.
27. Mc-Lafferty
Rearrangement
• The “1,5 shift” in carbonyl-containing ions is
called the McLafferty rearrangement
• Creates a distonic radical cation (charge and
radical separate)
• 6-membered intermediate is sterically
favorable
• Such rearrangements are common
• Once the rearrangement is complete, molecule can
fragment by any previously described mechanism
28.
29. Rearrangements-transfer of atoms
• H-transfer rearrangements:
• involves transfer of a H atom from one
carbon to another over a pi bond sysytem
during fragmentation
or
• “INTRAMOLECULAR HYDROGEN TRANSFER
REARRANGEMENTS”
30. Rearrangements-
transfer of atoms
• Scrambling:
• imp type of H-transfer reaction
is scrambling. It takes place by
rupture and reformation of c-c bonds
and involves equilibrium of identity.
• e.g. Formation of tropylium ion from
benzyl derivative is a good ex of this
fragmentation.
31. Ortho
effect

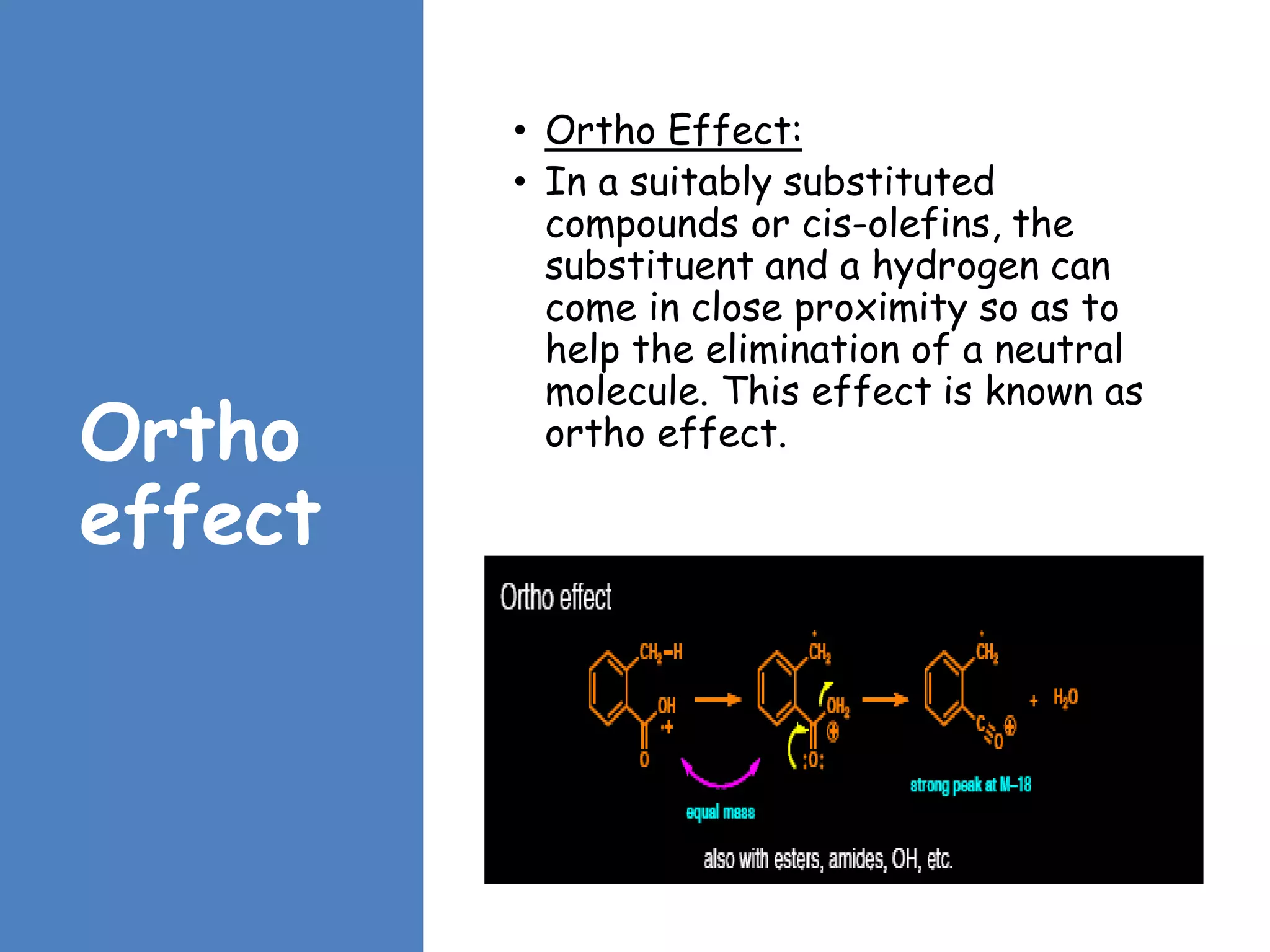

• Ortho Effect:
• In a suitably substituted
compounds or cis-olefins, the
substituent and a hydrogen can
come in close proximity so as to
help the elimination of a neutral
molecule. This effect is known as
ortho effect.
32. • In order to interpret the mass
spectrum , one should attain an
understanding of the ionization
process.
• Toobserve fragmentation pattern.
• Theexact molecular weight: The
molecular weight of apure compound
from the identification of the
parent peak. Themolecular weight
one candetermine molecular formula.

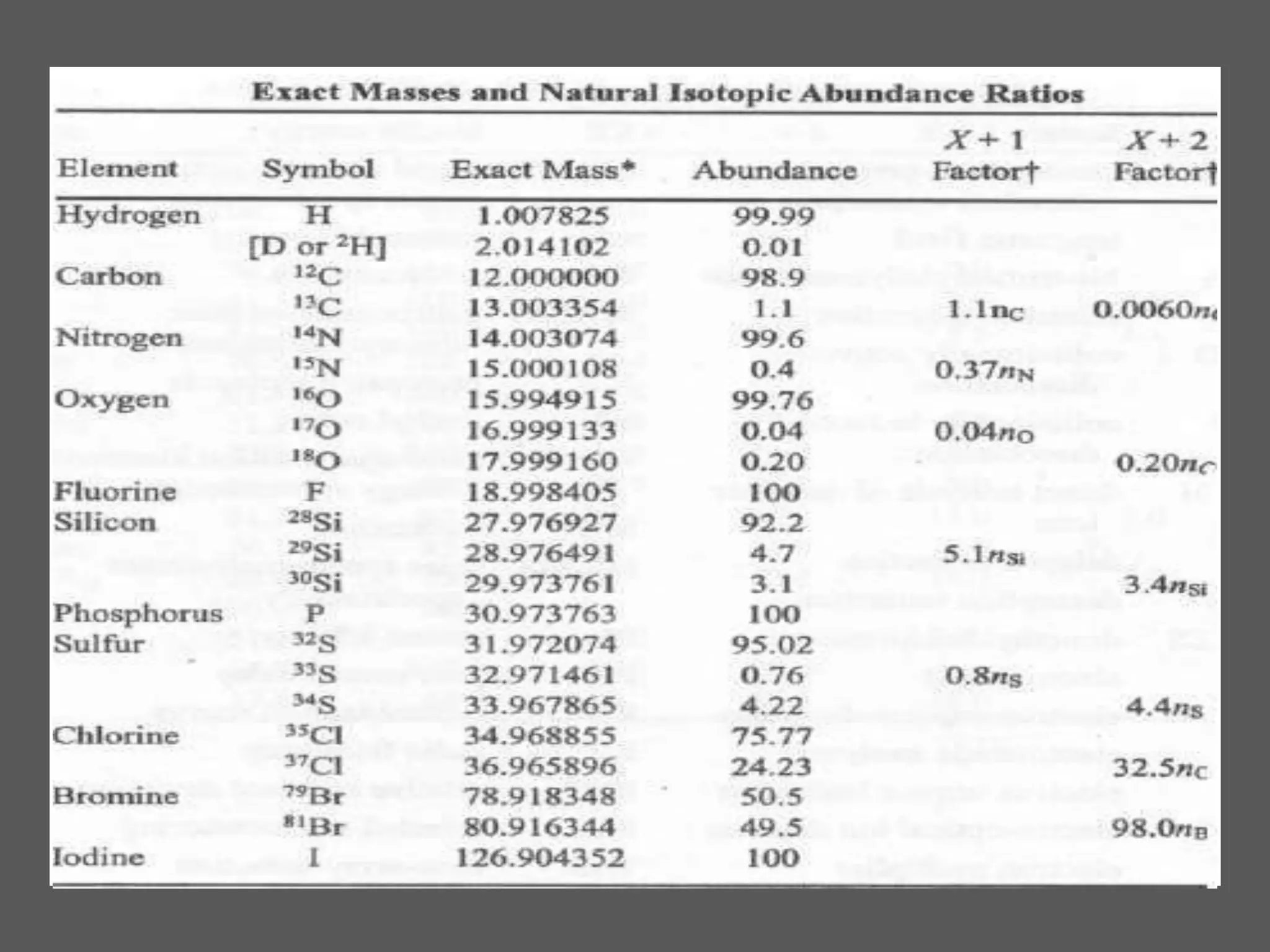

• Theisotope effects : Heavy
isotopes will exhibit peaksin a
massspectrum at m/e one or more
units higher than normal. i.e.,
there will be small peaksatM+1 and
M+2.

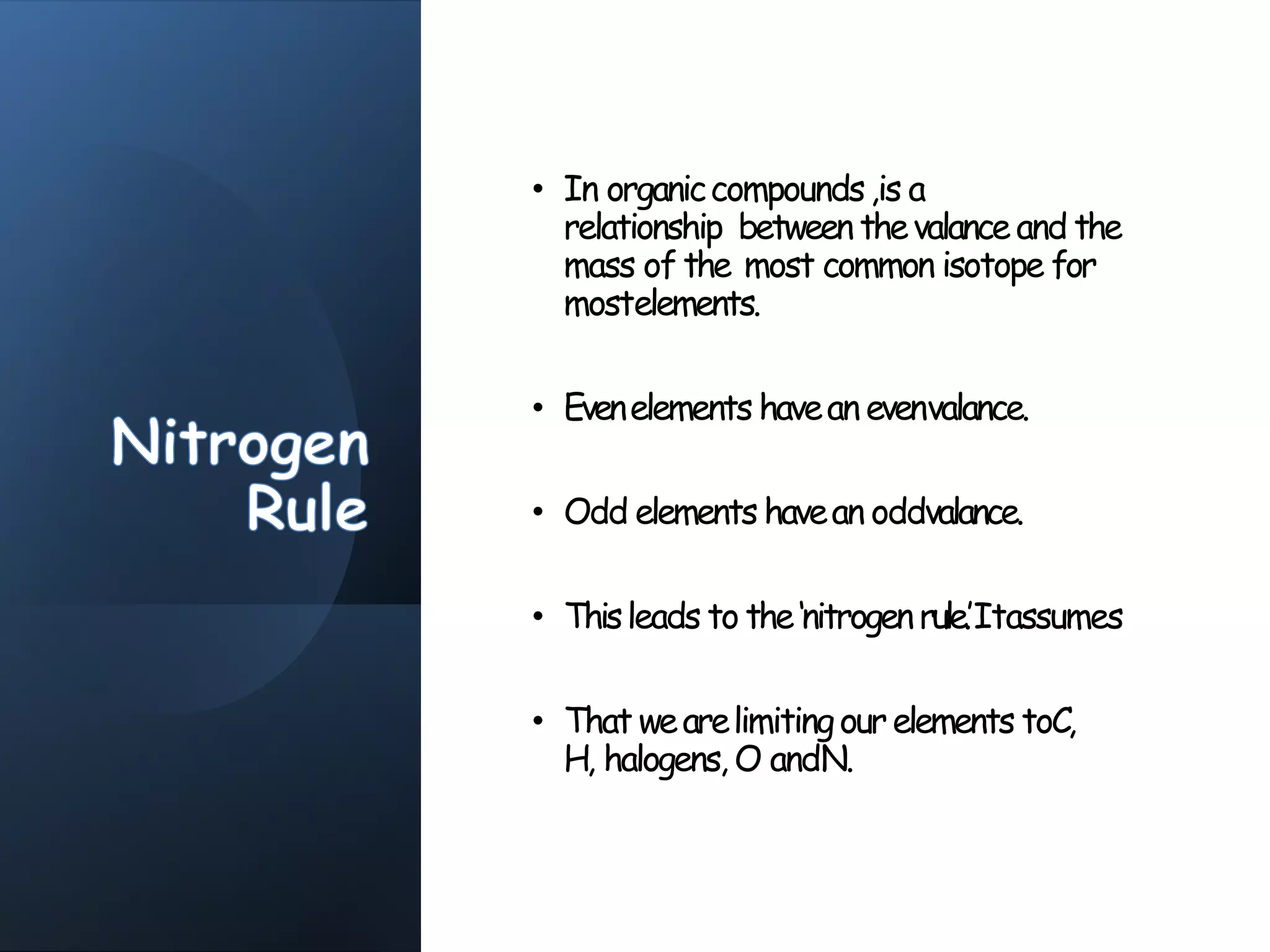

33. • In organiccompounds,is a
relationship between thevalanceand the
mass of the most common isotope for
mostelements.
• Evenelements havean evenvalance.
• Odd elements havean oddvalance.
• Thisleads to the‘nitrogenrule.’Itassumes
• That wearelimitingourelements toC,
H, halogens, O andN.

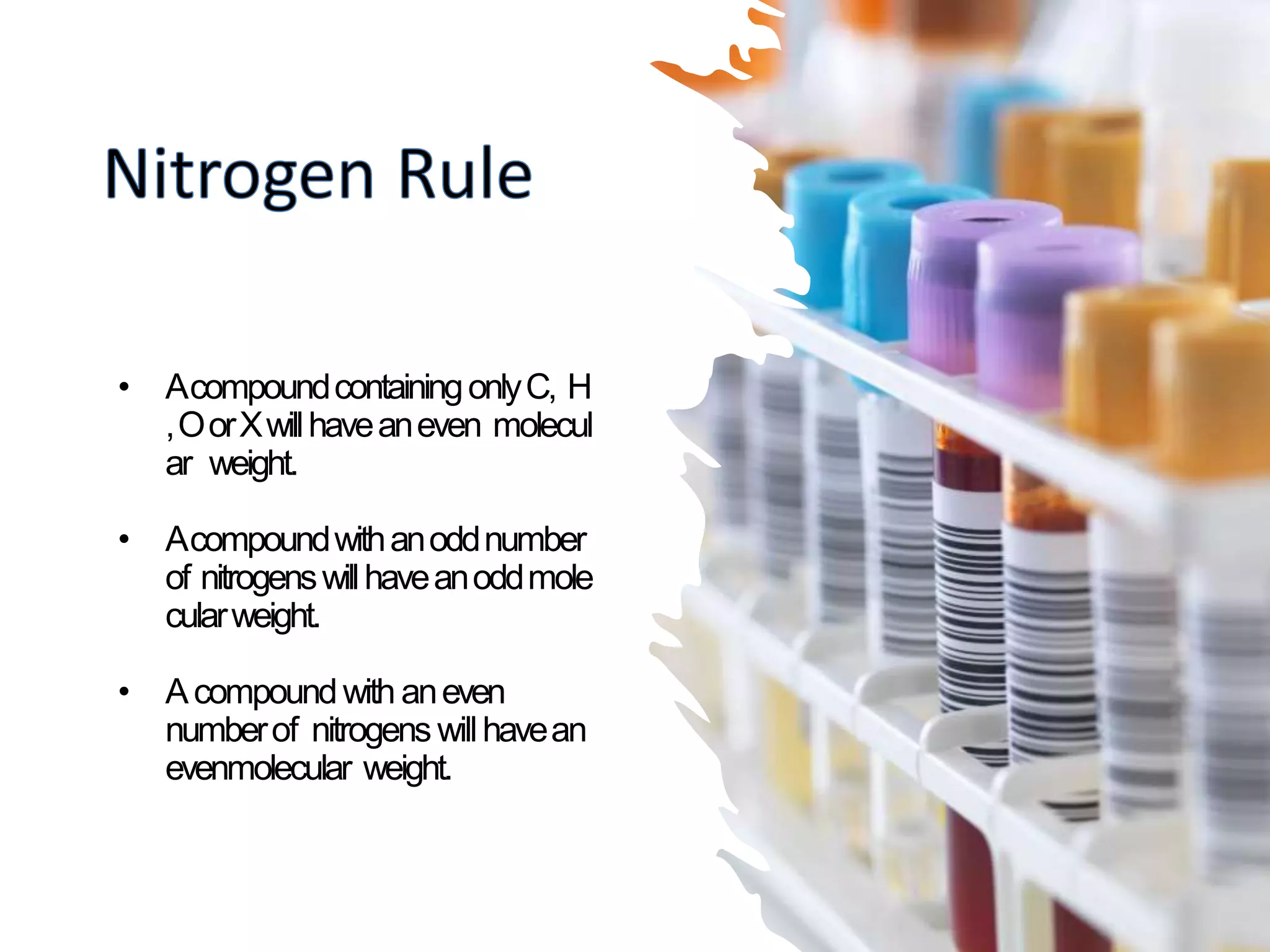

34. • AcompoundcontainingonlyC, H
,OorXwillhaveaneven molecul
ar weight.
• Acompoundwithanoddnumber
of nitrogenswillhaveanoddmole
cularweight.
• Acompoundwith aneven
numberof nitrogens willhavean
evenmolecular weight.

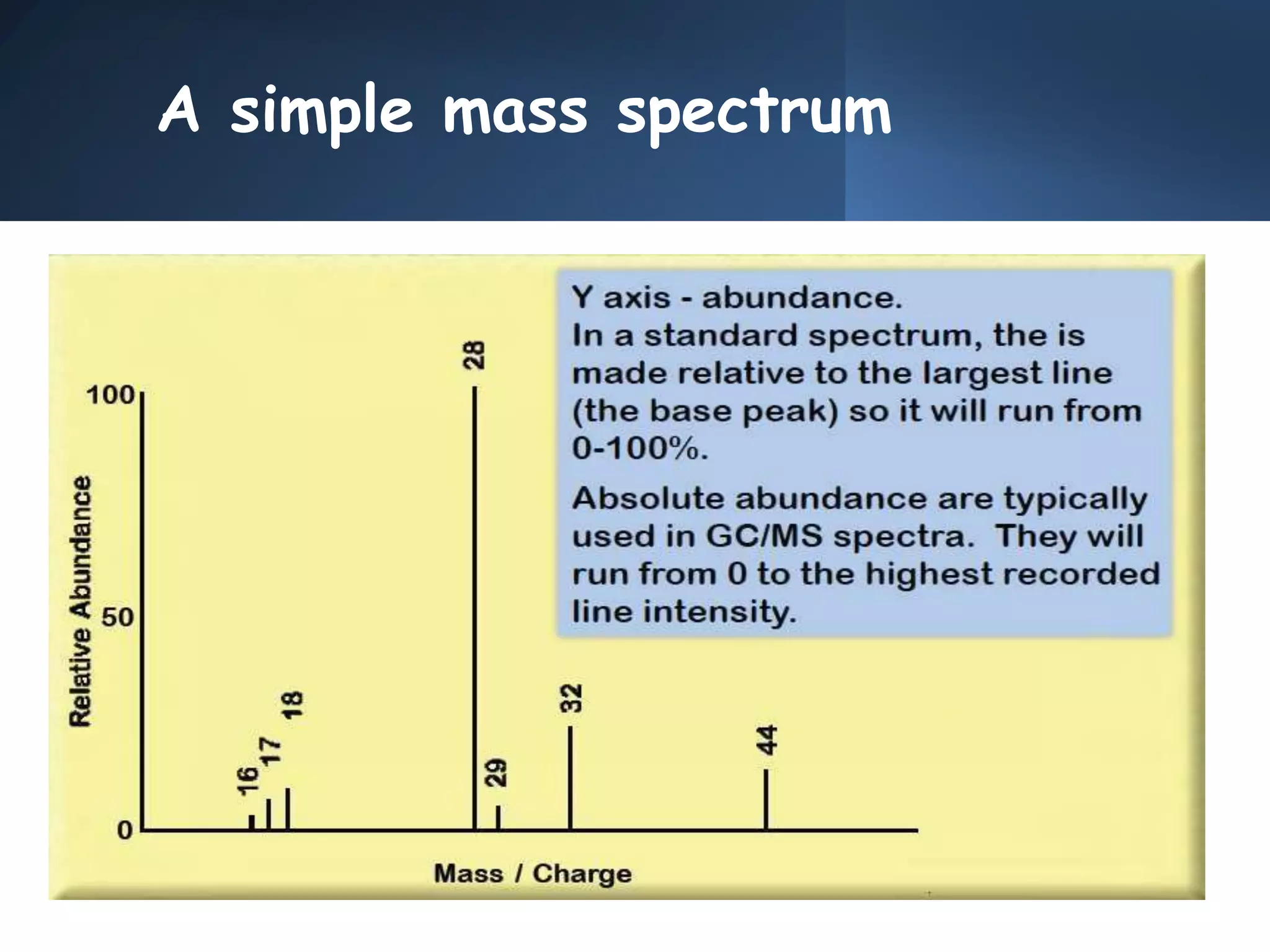

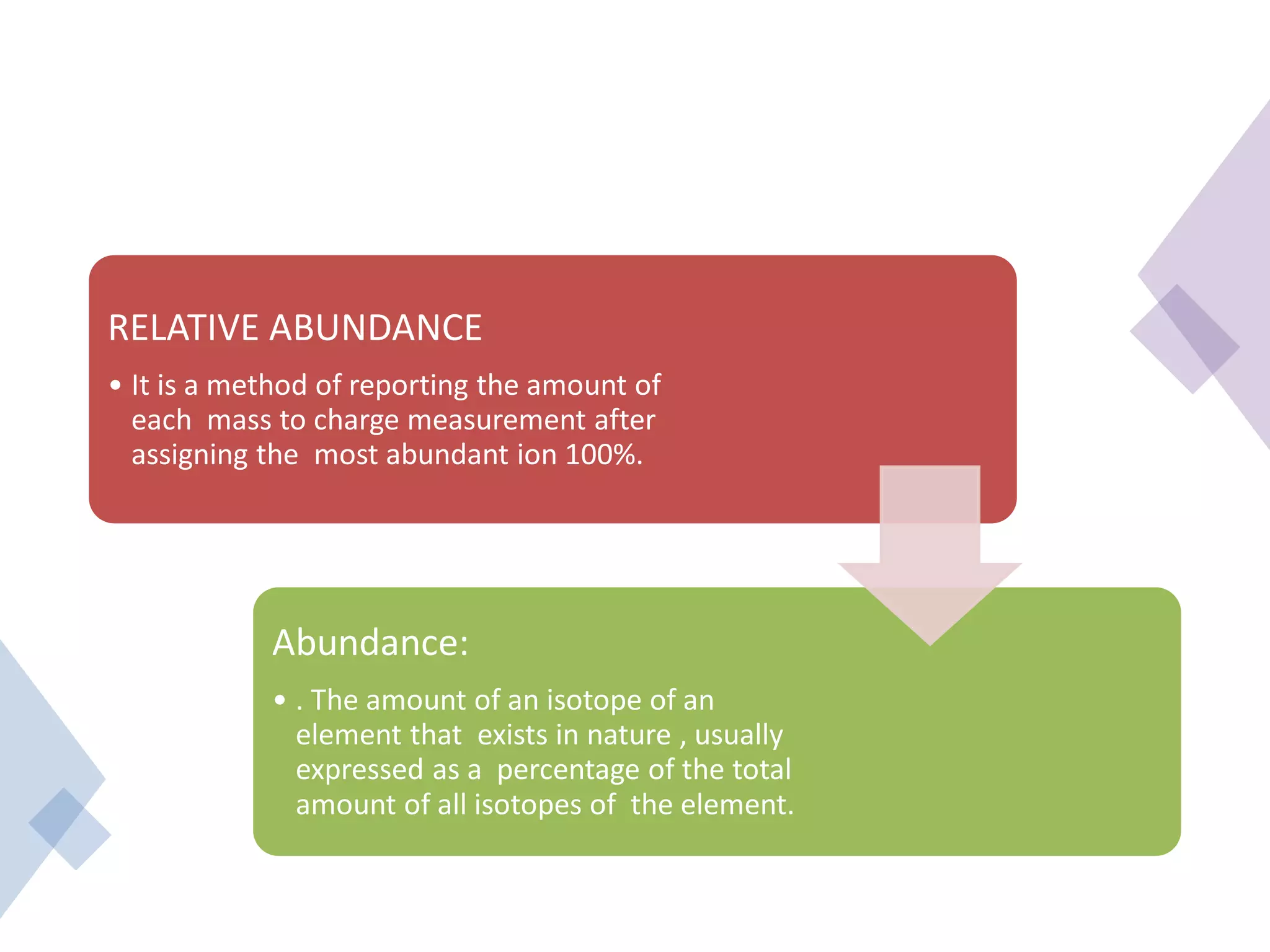

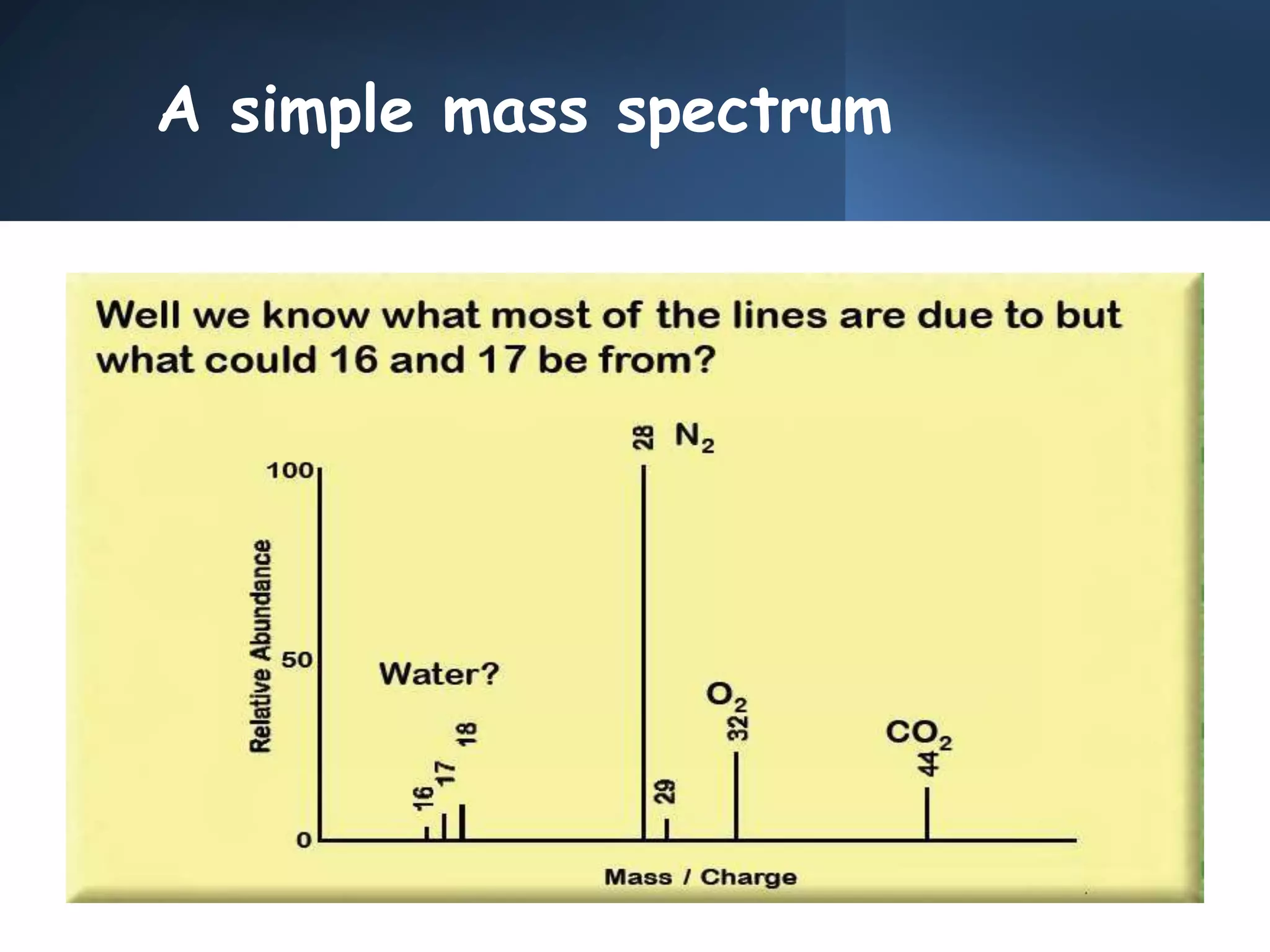

38. RELATIVE ABUNDANCE
• It is a method of reporting the amount of
each mass to charge measurement after
assigning the most abundant ion 100%.
Abundance:
• . The amount of an isotope of an
element that exists in nature , usually
expressed as a percentage of the total
amount of all isotopes of the element.
