This document describes the development of an algorithm for a 16-bit Wallace tree multiplier (WTM). It begins with an overview of binary multiplication methods and why the Wallace tree structure is advantageous in reducing propagation delay. The document then discusses improvements made to the basic WTM algorithm, including a new method for generating partial products using fewer logic gates. It presents the design, synthesis and testing of WTM circuits of varying sizes on a Spartan-3E FPGA board. Performance metrics like delay, area, power-delay product and area-delay product are measured and compared to other multipliers. The 16-bit WTM is found to have superior performance to the other multipliers in terms of delay, area and speed.
Design and Simulation of Radix-8 Booth Encoder Multiplier for Signed and Unsi...ijsrd.com
This paper presents the design and simulation of signed-unsigned Radix-8 Booth Encoding multiplier. The Radix-8 Booth Encoder circuit generates n/3 the partial products in parallel. By extending sign bit of the operands and generating an additional partial product the signed of unsigned Radix-8 BE multiplier is obtained. The Carry Save Adder (CSA) tree and the final Carry Look ahead (CLA) adder used to speed up the multiplier operation. Since signed and unsigned multiplication operation is performed by the same multiplier unit the required hardware and the chip area reduces and this in turn reduces power dissipation and cost of a system. The simulation is done through Verilog on xiling13.3 platform which provide diversity in calculating the various parameters.
Seminar on Digital Multiplier(Booth Multiplier) Using VHDLNaseer LoneRider
This is my Mini project. It is very clear and has lots of animation in it. If you like to know about booth algorithm and VHDL this the perfect presentation. Download it and see as SLIDE SHOW. You will enjoy more of my work, Give blessings.
A Novel Efficient VLSI Architecture for IEEE 754 Floating point multiplier us...IJERA Editor
Due to advancement of new technology in the field of VLSI and Embedded system, there is an increasing
demand of high speed and low power consumption processor. Speed of processor greatly depends on its
multiplier as well as adder performance. In spite of complexity involved in floating point arithmetic, its
implementation is increasing day by day. Due to which high speed adder architecture become important. Several
adder architecture designs have been developed to increase the efficiency of the adder. In this paper, we
introduce an architecture that performs high speed IEEE 754 floating point multiplier using modified carry
select adder (CSA). Modified CSA depend on booth encoder (BEC) Technique. Booth encoder, Mathematics is
an ancient Indian system of Mathematics. Here we are introduced two carry select based design. These designs
are implementation Xilinx Vertex device family.
Principles of Combinational Logic: Definition of combinational logic, canonical forms, Generation of switching equations from truth tables, Karnaugh maps-3,4,5 variables, Incompletely specified functions (Don‘t care terms) Simplifying Max term equations
Design and Simulation of Radix-8 Booth Encoder Multiplier for Signed and Unsi...ijsrd.com
This paper presents the design and simulation of signed-unsigned Radix-8 Booth Encoding multiplier. The Radix-8 Booth Encoder circuit generates n/3 the partial products in parallel. By extending sign bit of the operands and generating an additional partial product the signed of unsigned Radix-8 BE multiplier is obtained. The Carry Save Adder (CSA) tree and the final Carry Look ahead (CLA) adder used to speed up the multiplier operation. Since signed and unsigned multiplication operation is performed by the same multiplier unit the required hardware and the chip area reduces and this in turn reduces power dissipation and cost of a system. The simulation is done through Verilog on xiling13.3 platform which provide diversity in calculating the various parameters.
Seminar on Digital Multiplier(Booth Multiplier) Using VHDLNaseer LoneRider
This is my Mini project. It is very clear and has lots of animation in it. If you like to know about booth algorithm and VHDL this the perfect presentation. Download it and see as SLIDE SHOW. You will enjoy more of my work, Give blessings.
A Novel Efficient VLSI Architecture for IEEE 754 Floating point multiplier us...IJERA Editor
Due to advancement of new technology in the field of VLSI and Embedded system, there is an increasing
demand of high speed and low power consumption processor. Speed of processor greatly depends on its
multiplier as well as adder performance. In spite of complexity involved in floating point arithmetic, its
implementation is increasing day by day. Due to which high speed adder architecture become important. Several
adder architecture designs have been developed to increase the efficiency of the adder. In this paper, we
introduce an architecture that performs high speed IEEE 754 floating point multiplier using modified carry
select adder (CSA). Modified CSA depend on booth encoder (BEC) Technique. Booth encoder, Mathematics is
an ancient Indian system of Mathematics. Here we are introduced two carry select based design. These designs
are implementation Xilinx Vertex device family.
Principles of Combinational Logic: Definition of combinational logic, canonical forms, Generation of switching equations from truth tables, Karnaugh maps-3,4,5 variables, Incompletely specified functions (Don‘t care terms) Simplifying Max term equations
Low-cost finite impulse response (FIR) designs are presented using the concept of faithfully rounded truncated multipliers. Here the optimization of bit width and hardware resources without sacrificing the frequency response and output signal precision are considered. In this multiple constant multiplication/accumulation (MCMA) is used to reduce the area, which reduces the cost and power dissipation and hardware resources also reduced. The MCMA module is realized by accumulating all the partial products (PPs) where unnecessary PP bits (PPBs) are removed without affecting the final precision of the outputs. The bit widths of all the filter coefficients are minimized using non uniform quantization with unequal word lengths in order to reduce the hardware cost while still satisfying the specification of the frequency response.
Design and implementation of high speed baugh wooley and modified booth multi...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
GSP 215 Week 2 iLab Binary Representation of Information
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
Gsp 215 Enthusiastic Study / snaptutorial.comStephenson101
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
GSP 215 Week 2 iLab Binary Representation of Information
GSP 215 Week 2 Homework Representing and Manipulating Information
GSP 215 Week 3 Homework Representing and Manipulating Information
GSP 215 Week 3 iLab Machine-Level Representation of Programs
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
DESIGN OF RADIX-8 BOOTH MULTIPLIER USING KOGGESTONE ADDER FOR HIGH SPEED ARIT...eeiej_journal
This paper presents the design and implementation of radix-8 booth Multiplier .The number of partial
products are reduced to n/2 in radix-4We can reduce the number of partial products even further to n/3 by
using a higher radix-8 in the multiplier encoding, thereby obtaining a simpler CSA tree .This implies less
delay and a smaller area size .Since this multiplication operation is for both signed and unsigned
numbers,cost of the system can also be reduced.
Low-cost finite impulse response (FIR) designs are presented using the concept of faithfully rounded truncated multipliers. Here the optimization of bit width and hardware resources without sacrificing the frequency response and output signal precision are considered. In this multiple constant multiplication/accumulation (MCMA) is used to reduce the area, which reduces the cost and power dissipation and hardware resources also reduced. The MCMA module is realized by accumulating all the partial products (PPs) where unnecessary PP bits (PPBs) are removed without affecting the final precision of the outputs. The bit widths of all the filter coefficients are minimized using non uniform quantization with unequal word lengths in order to reduce the hardware cost while still satisfying the specification of the frequency response.
Design and implementation of high speed baugh wooley and modified booth multi...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology.
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
GSP 215 Week 2 iLab Binary Representation of Information
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
For more classes visit
www.snaptutorial.com
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
Gsp 215 Enthusiastic Study / snaptutorial.comStephenson101
Please check all Included Assignment Details below
GSP 215 Week 1 Homework Command Line in Windows and Linux
GSP 215 Week 2 iLab Binary Representation of Information
GSP 215 Week 2 Homework Representing and Manipulating Information
GSP 215 Week 3 Homework Representing and Manipulating Information
GSP 215 Week 3 iLab Machine-Level Representation of Programs
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
DESIGN OF RADIX-8 BOOTH MULTIPLIER USING KOGGESTONE ADDER FOR HIGH SPEED ARIT...eeiej_journal
This paper presents the design and implementation of radix-8 booth Multiplier .The number of partial
products are reduced to n/2 in radix-4We can reduce the number of partial products even further to n/3 by
using a higher radix-8 in the multiplier encoding, thereby obtaining a simpler CSA tree .This implies less
delay and a smaller area size .Since this multiplication operation is for both signed and unsigned
numbers,cost of the system can also be reduced.
Implementation and Simulation of Ieee 754 Single-Precision Floating Point Mul...inventionjournals
International Journal of Engineering and Science Invention (IJESI) is an international journal intended for professionals and researchers in all fields of computer science and electronics. IJESI publishes research articles and reviews within the whole field Engineering Science and Technology, new teaching methods, assessment, validation and the impact of new technologies and it will continue to provide information on the latest trends and developments in this ever-expanding subject. The publications of papers are selected through double peer reviewed to ensure originality, relevance, and readability. The articles published in our journal can be accessed online.
Dear students get fully solved assignments
Send your semester & Specialization name to our mail id :
“ help.mbaassignments@gmail.com ”
or
Call us at : 08263069601
(Prefer mailing. Call in emergency )
Dear students get fully solved assignments
Send your semester & Specialization name to our mail id :
“ help.mbaassignments@gmail.com ”
or
Call us at : 08263069601
(Prefer mailing. Call in emergency )
Implementation of Low-Complexity Redundant Multiplier Architecture for Finite...ijcisjournal
In the present work, a low-complexity Digit-Serial/parallel Multiplier over Finite Field is proposed. It is
employed in applications like cryptography for data encryption and decryptionto deal with discrete
mathematical andarithmetic structures. The proposedmultiplier utilizes a redundant representation because
of their free squaring and modular reduction. The proposed 10-bit multiplier is simulated and synthesized
using Xilinx VerilogHDL. It is evident from the simulation results that the multiplier has significantly low
area and power when compared to the previous structures using the same representation.
Wave File Features Extraction using Reduced LBP IJECEIAES
In this work, we present a novel approach for extracting features of a digital wave file. This approach will be presented, implemented and tested. A signature or a key to any wave file will be created. This signature will be reduced to minimize the efforts of digital signal processing applications. Hence, the features array can be used as key to recover a wave file from a database consisting of several wave files using reduced Local binary patterns (RLBP). Experimental results are presented and show that The proposed RLBP method is at least 3 times faster than CSLBP method, which mean that the proposed method is more efficient.
For more course tutorials visit
www.newtonhelp.com
Week 1 HomeworkCommand Line in Windows and Linux
Using Google, research what kernel operating systems have been used in the video gaming industry. Describe the architecture and details regarding its advantages or disadvantages (i.e, consider Windows, Linux, based, etc.). A minimum of two paragraphs of research information is required, along with your own interpretation of the content.
For more course tutorials visit
www.newtonhelp.com
Week 1 HomeworkCommand Line in Windows and Linux
Using Google, research what kernel operating systems have been used in the video gaming industry. Describe the architecture and details regarding its advantages or disadvantages (i.e, consider Windows, Linux, based,
GSP 215 Become Exceptional/newtonhelp.combellflower148
For more course tutorials visit
www.newtonhelp.com
Week 1 HomeworkCommand Line in Windows and Linux
Using Google, research what kernel operating systems have been used in the video gaming industry. Describe the architecture and details regarding its advantages or disadvantages (i.e, consider Windows, Linux, based, etc.). A minimum of two paragraphs of research information is required, along with your own interpretation of the content.
For more course tutorials visit
www.newtonhelp.com
Week 1 HomeworkCommand Line in Windows and Linux
Using Google, research what kernel operating systems have been used in the video gaming industry. Describe the architecture and details regarding its advantages or disadvantages (i.e, consider Windows, Linux, based, etc.). A minimum of two paragraphs of research information is required, along with your own interpretation of the content.
ER Publication,
IJETR, IJMCTR,
Journals,
International Journals,
High Impact Journals,
Monthly Journal,
Good quality Journals,
Research,
Research Papers,
Research Article,
Free Journals, Open access Journals,
erpublication.org,
Engineering Journal,
Science Journals,
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Similar to Development of an Algorithm for 16-Bit WTM (20)
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
Courier management system project report.pdfKamal Acharya
It is now-a-days very important for the people to send or receive articles like imported furniture, electronic items, gifts, business goods and the like. People depend vastly on different transport systems which mostly use the manual way of receiving and delivering the articles. There is no way to track the articles till they are received and there is no way to let the customer know what happened in transit, once he booked some articles. In such a situation, we need a system which completely computerizes the cargo activities including time to time tracking of the articles sent. This need is fulfilled by Courier Management System software which is online software for the cargo management people that enables them to receive the goods from a source and send them to a required destination and track their status from time to time.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
Forklift Classes Overview by Intella PartsIntella Parts
Discover the different forklift classes and their specific applications. Learn how to choose the right forklift for your needs to ensure safety, efficiency, and compliance in your operations.
For more technical information, visit our website https://intellaparts.com
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
About
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
Technical Specifications
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
Key Features
Indigenized remote control interface card suitable for MAFI system CCR equipment. Compatible for IDM8000 CCR. Backplane mounted serial and TCP/Ethernet communication module for CCR remote access. IDM 8000 CCR remote control on serial and TCP protocol.
• Remote control: Parallel or serial interface
• Compatible with MAFI CCR system
• Copatiable with IDM8000 CCR
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
Application
• Remote control: Parallel or serial interface.
• Compatible with MAFI CCR system.
• Compatible with IDM8000 CCR.
• Compatible with Backplane mount serial communication.
• Compatible with commercial and Defence aviation CCR system.
• Remote control system for accessing CCR and allied system over serial or TCP.
• Indigenized local Support/presence in India.
• Easy in configuration using DIP switches.
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxR&R Consult
CFD analysis is incredibly effective at solving mysteries and improving the performance of complex systems!
Here's a great example: At a large natural gas-fired power plant, where they use waste heat to generate steam and energy, they were puzzled that their boiler wasn't producing as much steam as expected.
R&R and Tetra Engineering Group Inc. were asked to solve the issue with reduced steam production.
An inspection had shown that a significant amount of hot flue gas was bypassing the boiler tubes, where the heat was supposed to be transferred.
R&R Consult conducted a CFD analysis, which revealed that 6.3% of the flue gas was bypassing the boiler tubes without transferring heat. The analysis also showed that the flue gas was instead being directed along the sides of the boiler and between the modules that were supposed to capture the heat. This was the cause of the reduced performance.
Based on our results, Tetra Engineering installed covering plates to reduce the bypass flow. This improved the boiler's performance and increased electricity production.
It is always satisfying when we can help solve complex challenges like this. Do your systems also need a check-up or optimization? Give us a call!
Work done in cooperation with James Malloy and David Moelling from Tetra Engineering.
More examples of our work https://www.r-r-consult.dk/en/cases-en/

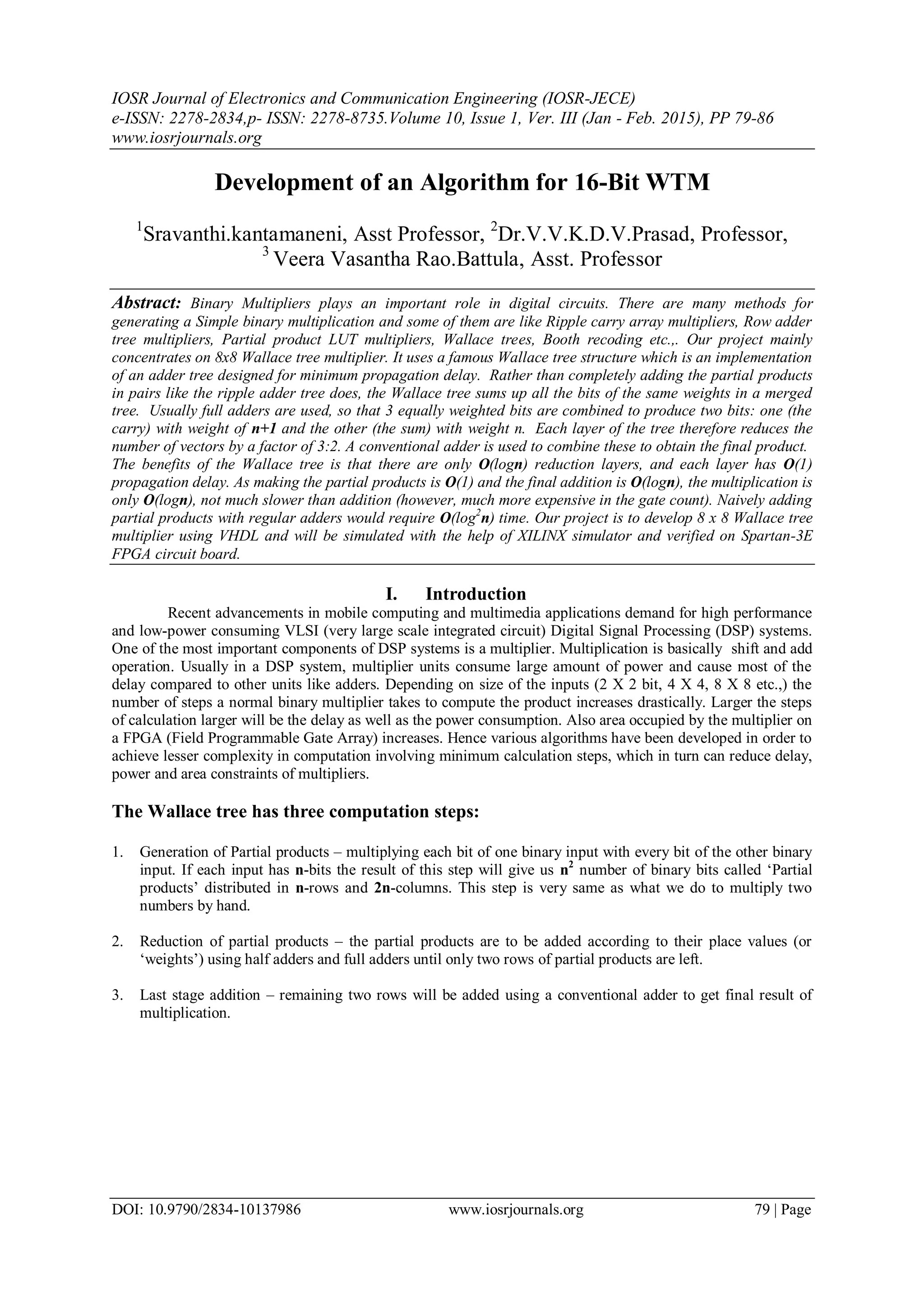

1. IOSR Journal of Electronics and Communication Engineering (IOSR-JECE)
e-ISSN: 2278-2834,p- ISSN: 2278-8735.Volume 10, Issue 1, Ver. III (Jan - Feb. 2015), PP 79-86
www.iosrjournals.org
DOI: 10.9790/2834-10137986 www.iosrjournals.org 79 | Page
Development of an Algorithm for 16-Bit WTM
1
Sravanthi.kantamaneni, Asst Professor, 2
Dr.V.V.K.D.V.Prasad, Professor,
3
Veera Vasantha Rao.Battula, Asst. Professor
Abstract: Binary Multipliers plays an important role in digital circuits. There are many methods for
generating a Simple binary multiplication and some of them are like Ripple carry array multipliers, Row adder
tree multipliers, Partial product LUT multipliers, Wallace trees, Booth recoding etc.,. Our project mainly
concentrates on 8x8 Wallace tree multiplier. It uses a famous Wallace tree structure which is an implementation
of an adder tree designed for minimum propagation delay. Rather than completely adding the partial products
in pairs like the ripple adder tree does, the Wallace tree sums up all the bits of the same weights in a merged
tree. Usually full adders are used, so that 3 equally weighted bits are combined to produce two bits: one (the
carry) with weight of n+1 and the other (the sum) with weight n. Each layer of the tree therefore reduces the
number of vectors by a factor of 3:2. A conventional adder is used to combine these to obtain the final product.
The benefits of the Wallace tree is that there are only O(logn) reduction layers, and each layer has O(1)
propagation delay. As making the partial products is O(1) and the final addition is O(logn), the multiplication is
only O(logn), not much slower than addition (however, much more expensive in the gate count). Naively adding
partial products with regular adders would require O(log2
n) time. Our project is to develop 8 x 8 Wallace tree
multiplier using VHDL and will be simulated with the help of XILINX simulator and verified on Spartan-3E
FPGA circuit board.
I. Introduction
Recent advancements in mobile computing and multimedia applications demand for high performance
and low-power consuming VLSI (very large scale integrated circuit) Digital Signal Processing (DSP) systems.
One of the most important components of DSP systems is a multiplier. Multiplication is basically shift and add
operation. Usually in a DSP system, multiplier units consume large amount of power and cause most of the
delay compared to other units like adders. Depending on size of the inputs (2 X 2 bit, 4 X 4, 8 X 8 etc.,) the
number of steps a normal binary multiplier takes to compute the product increases drastically. Larger the steps
of calculation larger will be the delay as well as the power consumption. Also area occupied by the multiplier on
a FPGA (Field Programmable Gate Array) increases. Hence various algorithms have been developed in order to
achieve lesser complexity in computation involving minimum calculation steps, which in turn can reduce delay,
power and area constraints of multipliers.
The Wallace tree has three computation steps:
1. Generation of Partial products – multiplying each bit of one binary input with every bit of the other binary
input. If each input has n-bits the result of this step will give us n2
number of binary bits called „Partial
products‟ distributed in n-rows and 2n-columns. This step is very same as what we do to multiply two
numbers by hand.
2. Reduction of partial products – the partial products are to be added according to their place values (or
„weights‟) using half adders and full adders until only two rows of partial products are left.
3. Last stage addition – remaining two rows will be added using a conventional adder to get final result of
multiplication.
2. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 80 | Page

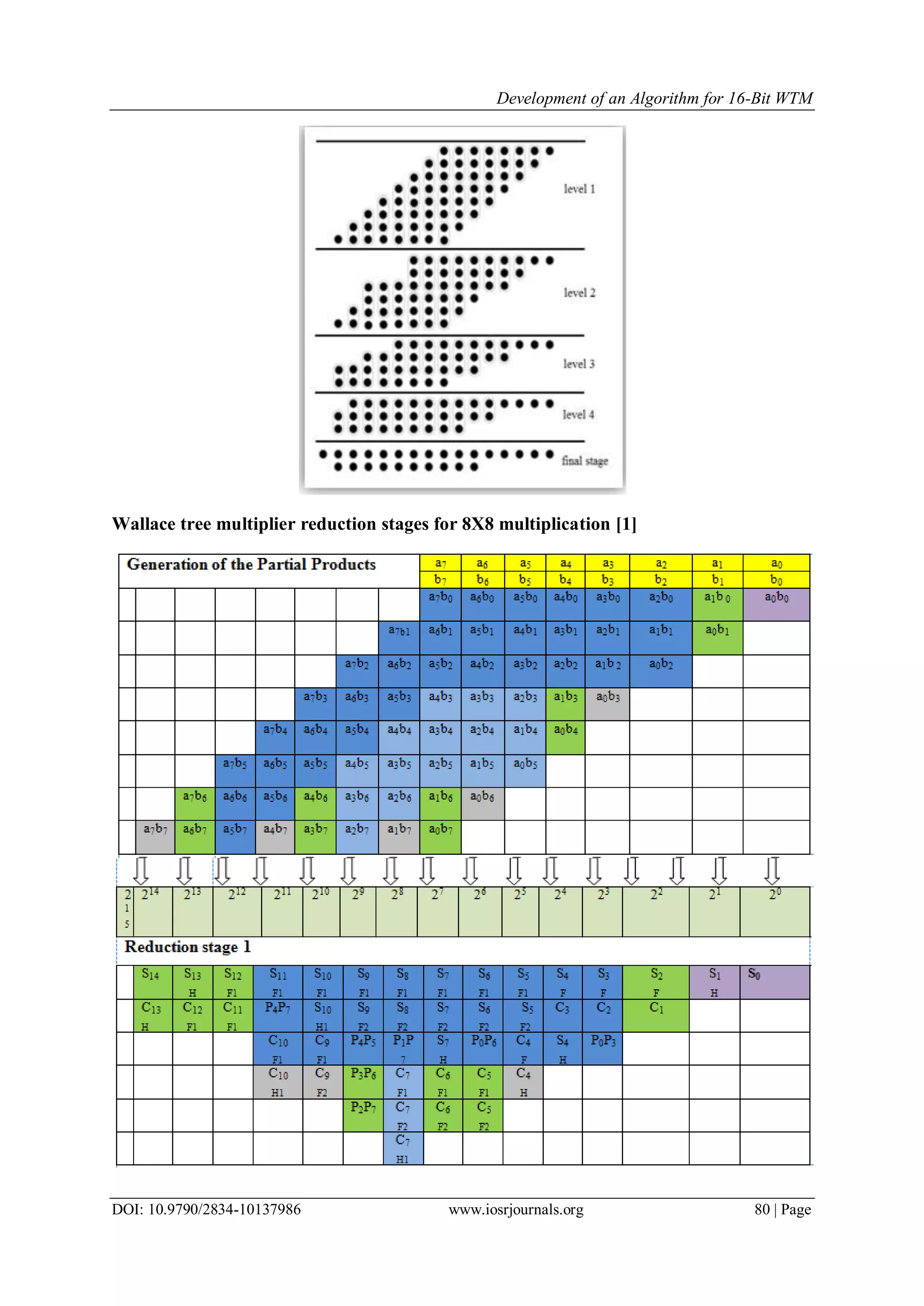

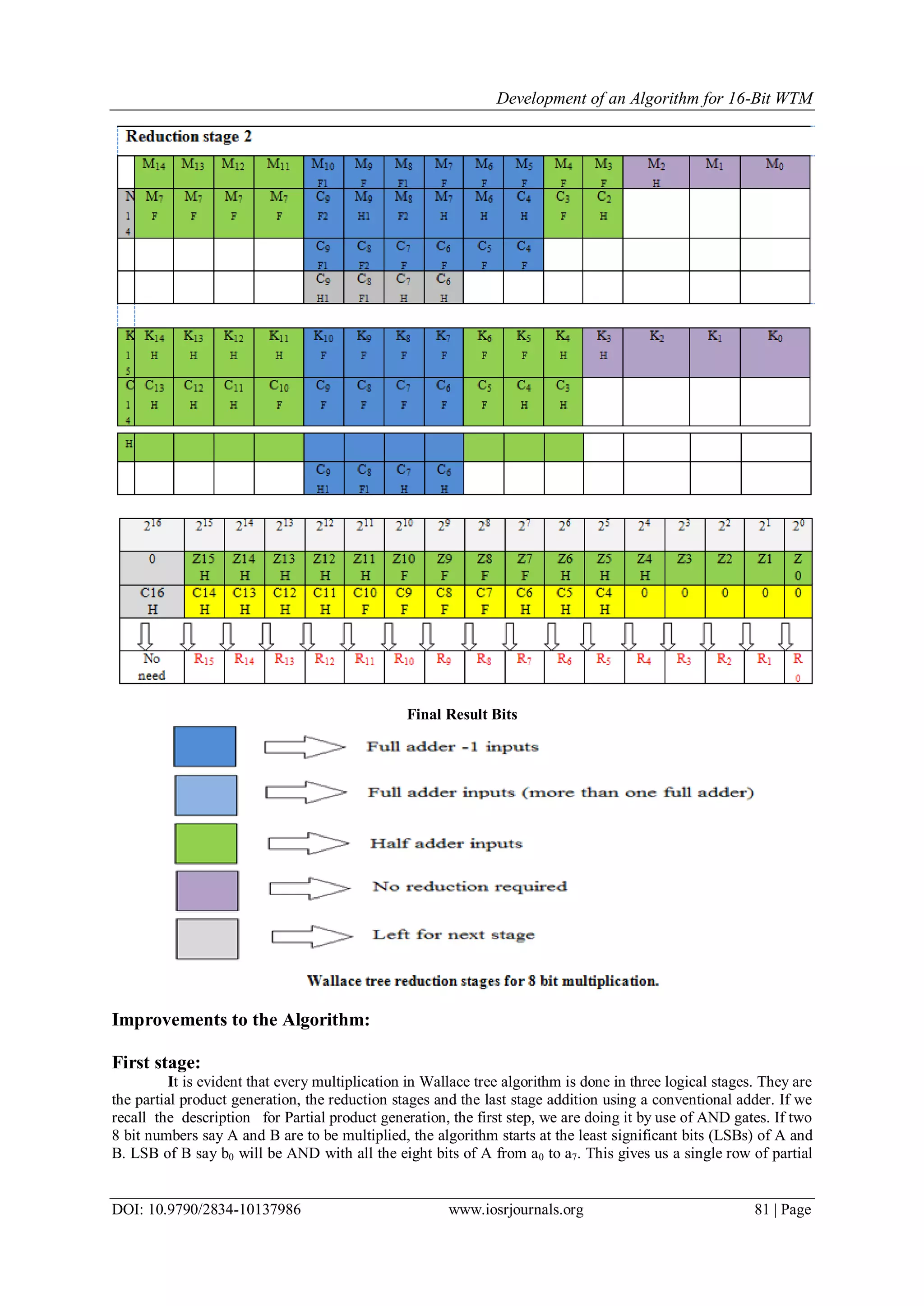

Wallace tree multiplier reduction stages for 8X8 multiplication [1]
3. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 81 | Page
Final Result Bits
Improvements to the Algorithm:
First stage:
It is evident that every multiplication in Wallace tree algorithm is done in three logical stages. They are
the partial product generation, the reduction stages and the last stage addition using a conventional adder. If we
recall the description for Partial product generation, the first step, we are doing it by use of AND gates. If two
8 bit numbers say A and B are to be multiplied, the algorithm starts at the least significant bits (LSBs) of A and
B. LSB of B say b0 will be AND with all the eight bits of A from a0 to a7. This gives us a single row of partial

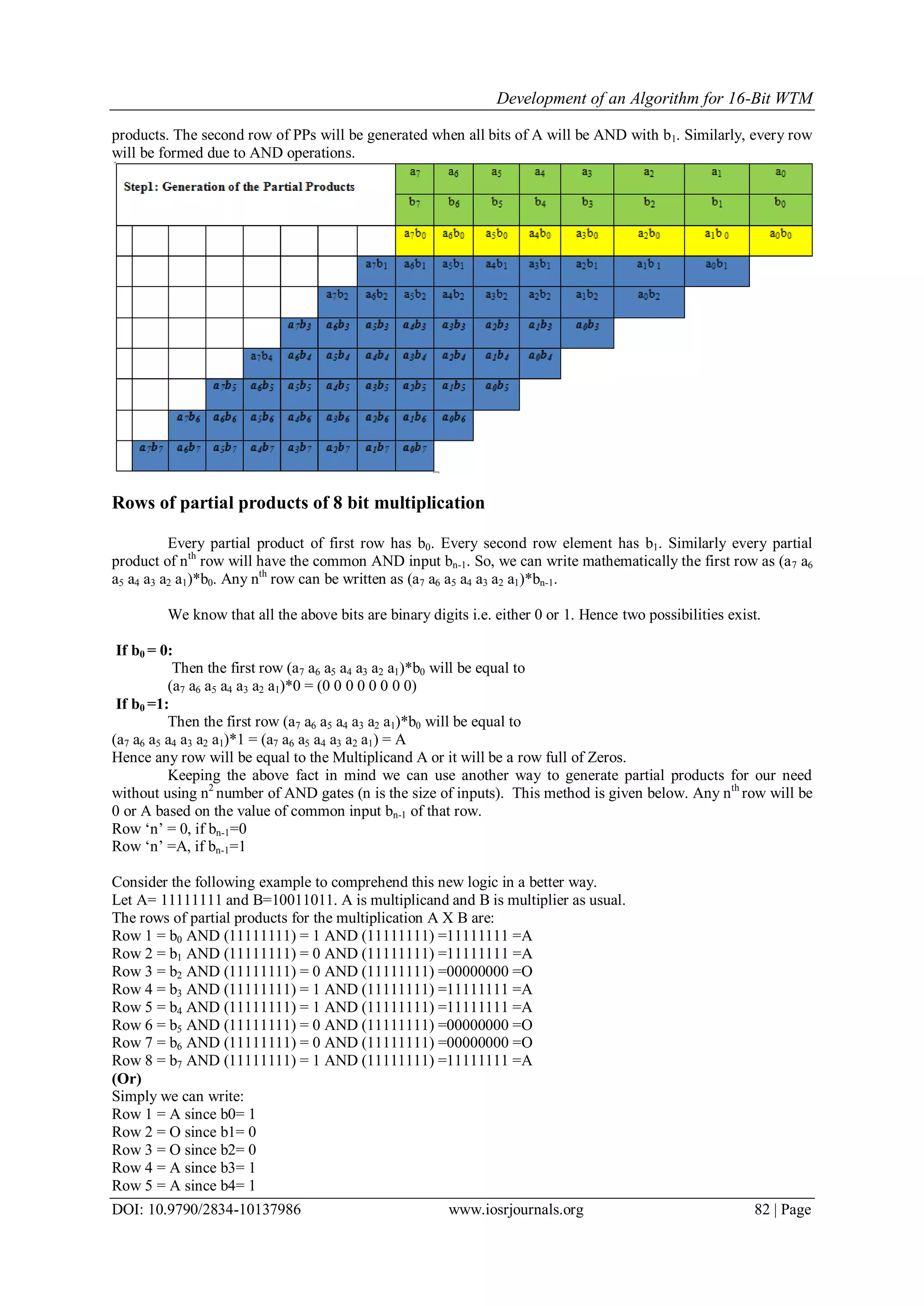

4. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 82 | Page
products. The second row of PPs will be generated when all bits of A will be AND with b1. Similarly, every row
will be formed due to AND operations.
Rows of partial products of 8 bit multiplication
Every partial product of first row has b0. Every second row element has b1. Similarly every partial
product of nth
row will have the common AND input bn-1. So, we can write mathematically the first row as (a7 a6
a5 a4 a3 a2 a1)*b0. Any nth
row can be written as (a7 a6 a5 a4 a3 a2 a1)*bn-1.
We know that all the above bits are binary digits i.e. either 0 or 1. Hence two possibilities exist.
If b0 = 0:
Then the first row (a7 a6 a5 a4 a3 a2 a1)*b0 will be equal to
(a7 a6 a5 a4 a3 a2 a1)*0 = (0 0 0 0 0 0 0 0)
If b0 =1:
Then the first row (a7 a6 a5 a4 a3 a2 a1)*b0 will be equal to
(a7 a6 a5 a4 a3 a2 a1)*1 = (a7 a6 a5 a4 a3 a2 a1) = A
Hence any row will be equal to the Multiplicand A or it will be a row full of Zeros.
Keeping the above fact in mind we can use another way to generate partial products for our need
without using n2
number of AND gates (n is the size of inputs). This method is given below. Any nth
row will be
0 or A based on the value of common input bn-1 of that row.
Row „n‟ = 0, if bn-1=0
Row „n‟ =A, if bn-1=1
Consider the following example to comprehend this new logic in a better way.
Let A= 11111111 and B=10011011. A is multiplicand and B is multiplier as usual.
The rows of partial products for the multiplication A X B are:
Row 1 = b0 AND (11111111) = 1 AND (11111111) =11111111 =A
Row 2 = b1 AND (11111111) = 0 AND (11111111) =11111111 =A
Row 3 = b2 AND (11111111) = 0 AND (11111111) =00000000 =O
Row 4 = b3 AND (11111111) = 1 AND (11111111) =11111111 =A
Row 5 = b4 AND (11111111) = 1 AND (11111111) =11111111 =A
Row 6 = b5 AND (11111111) = 0 AND (11111111) =00000000 =O
Row 7 = b6 AND (11111111) = 0 AND (11111111) =00000000 =O
Row 8 = b7 AND (11111111) = 1 AND (11111111) =11111111 =A
(Or)
Simply we can write:
Row 1 = A since b0= 1
Row 2 = O since b1= 0
Row 3 = O since b2= 0
Row 4 = A since b3= 1
Row 5 = A since b4= 1

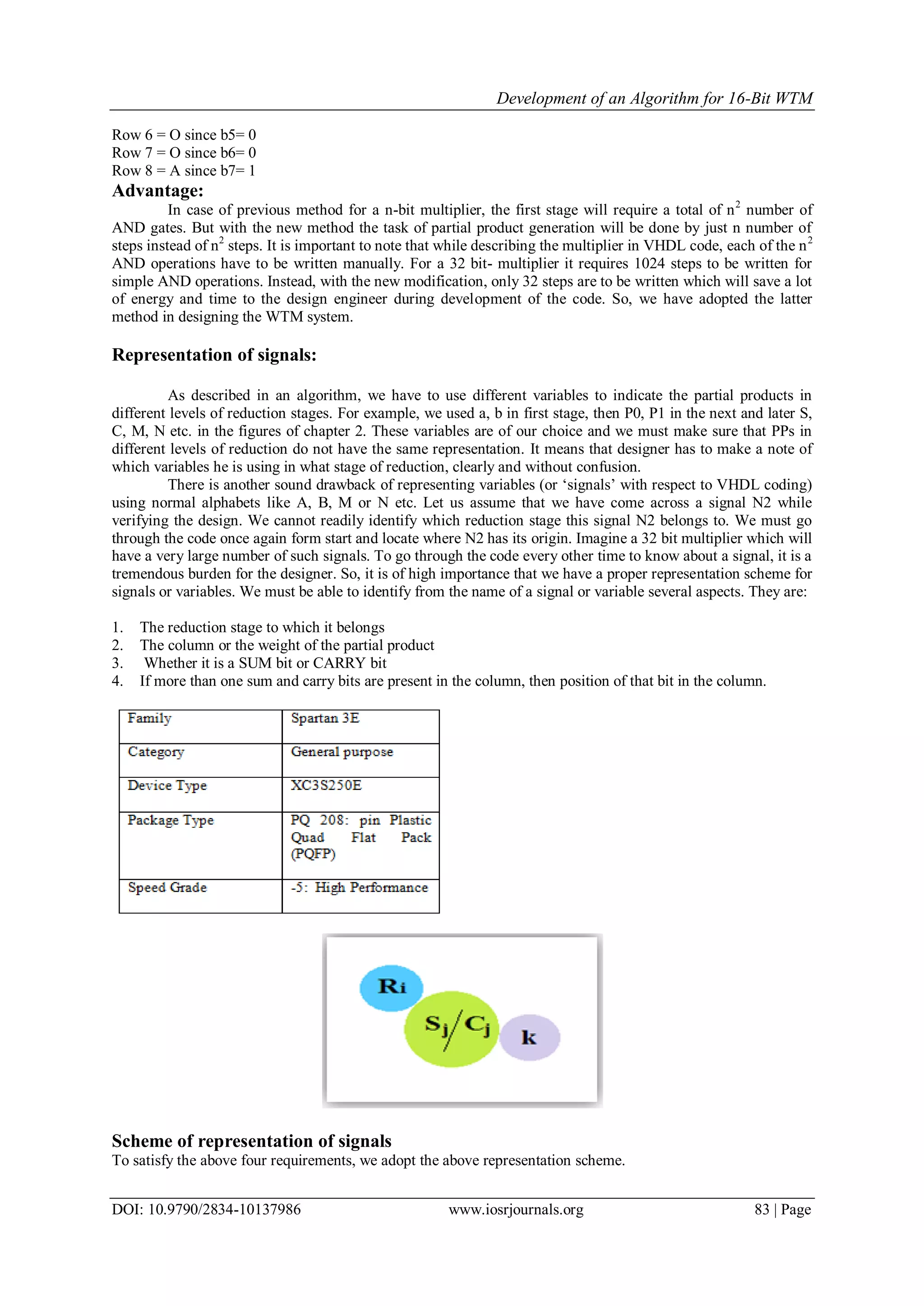

5. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 83 | Page
Row 6 = O since b5= 0
Row 7 = O since b6= 0
Row 8 = A since b7= 1
Advantage:
In case of previous method for a n-bit multiplier, the first stage will require a total of n2
number of
AND gates. But with the new method the task of partial product generation will be done by just n number of
steps instead of n2
steps. It is important to note that while describing the multiplier in VHDL code, each of the n2
AND operations have to be written manually. For a 32 bit- multiplier it requires 1024 steps to be written for
simple AND operations. Instead, with the new modification, only 32 steps are to be written which will save a lot
of energy and time to the design engineer during development of the code. So, we have adopted the latter
method in designing the WTM system.
Representation of signals:
As described in an algorithm, we have to use different variables to indicate the partial products in
different levels of reduction stages. For example, we used a, b in first stage, then P0, P1 in the next and later S,
C, M, N etc. in the figures of chapter 2. These variables are of our choice and we must make sure that PPs in
different levels of reduction do not have the same representation. It means that designer has to make a note of
which variables he is using in what stage of reduction, clearly and without confusion.
There is another sound drawback of representing variables (or „signals‟ with respect to VHDL coding)
using normal alphabets like A, B, M or N etc. Let us assume that we have come across a signal N2 while
verifying the design. We cannot readily identify which reduction stage this signal N2 belongs to. We must go
through the code once again form start and locate where N2 has its origin. Imagine a 32 bit multiplier which will
have a very large number of such signals. To go through the code every other time to know about a signal, it is a
tremendous burden for the designer. So, it is of high importance that we have a proper representation scheme for
signals or variables. We must be able to identify from the name of a signal or variable several aspects. They are:
1. The reduction stage to which it belongs
2. The column or the weight of the partial product
3. Whether it is a SUM bit or CARRY bit
4. If more than one sum and carry bits are present in the column, then position of that bit in the column.
Scheme of representation of signals
To satisfy the above four requirements, we adopt the above representation scheme.

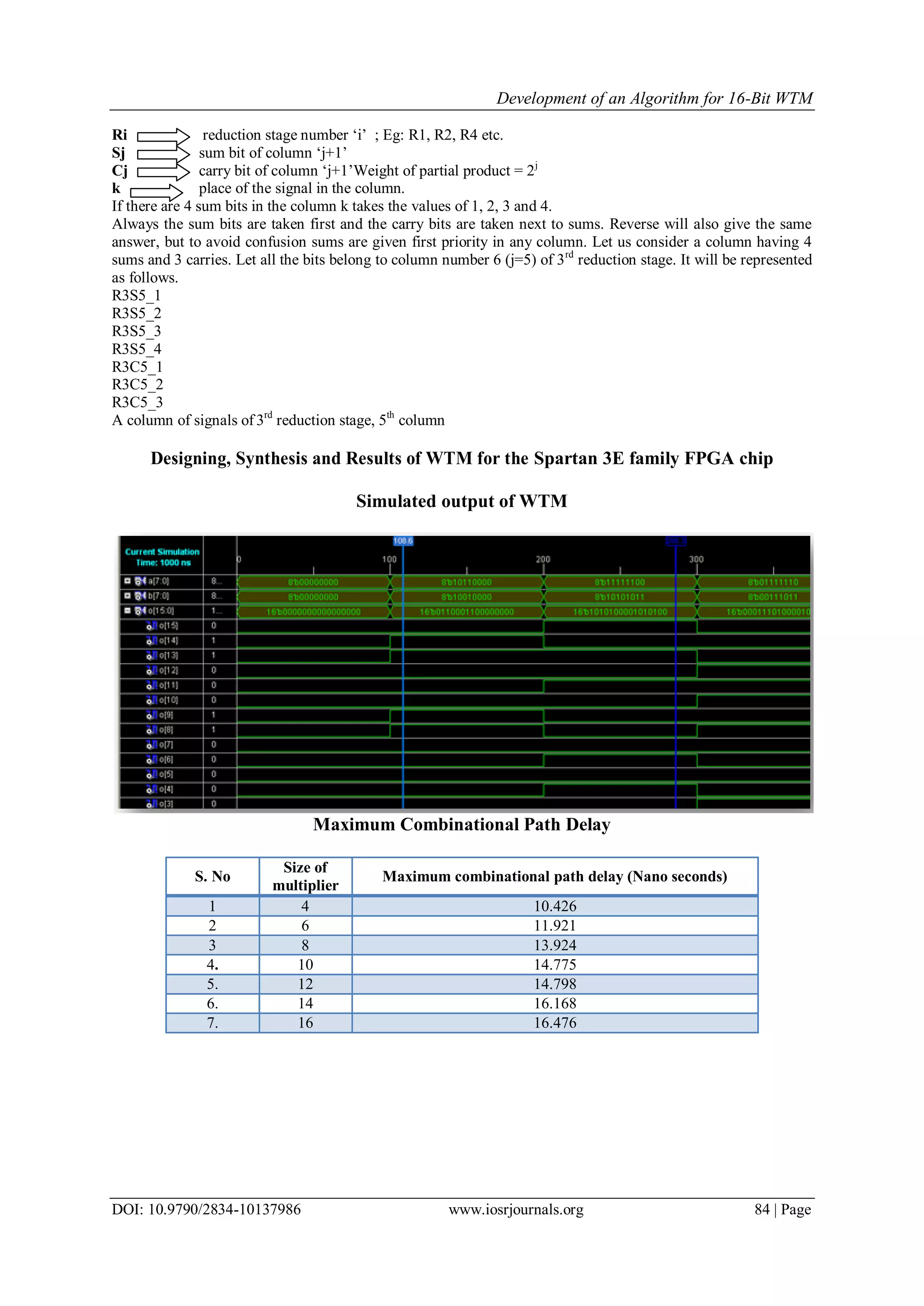

6. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 84 | Page
Ri reduction stage number „i‟ ; Eg: R1, R2, R4 etc.
Sj sum bit of column „j+1‟
Cj carry bit of column „j+1‟Weight of partial product = 2j
k place of the signal in the column.
If there are 4 sum bits in the column k takes the values of 1, 2, 3 and 4.
Always the sum bits are taken first and the carry bits are taken next to sums. Reverse will also give the same
answer, but to avoid confusion sums are given first priority in any column. Let us consider a column having 4
sums and 3 carries. Let all the bits belong to column number 6 (j=5) of 3rd
reduction stage. It will be represented
as follows.
R3S5_1
R3S5_2
R3S5_3
R3S5_4
R3C5_1
R3C5_2
R3C5_3
A column of signals of 3rd
reduction stage, 5th
column
Designing, Synthesis and Results of WTM for the Spartan 3E family FPGA chip
Simulated output of WTM
Maximum Combinational Path Delay
S. No
Size of
multiplier
Maximum combinational path delay (Nano seconds)
1 4 10.426
2 6 11.921
3 8 13.924
4. 10 14.775
5. 12 14.798
6. 14 16.168
7. 16 16.476

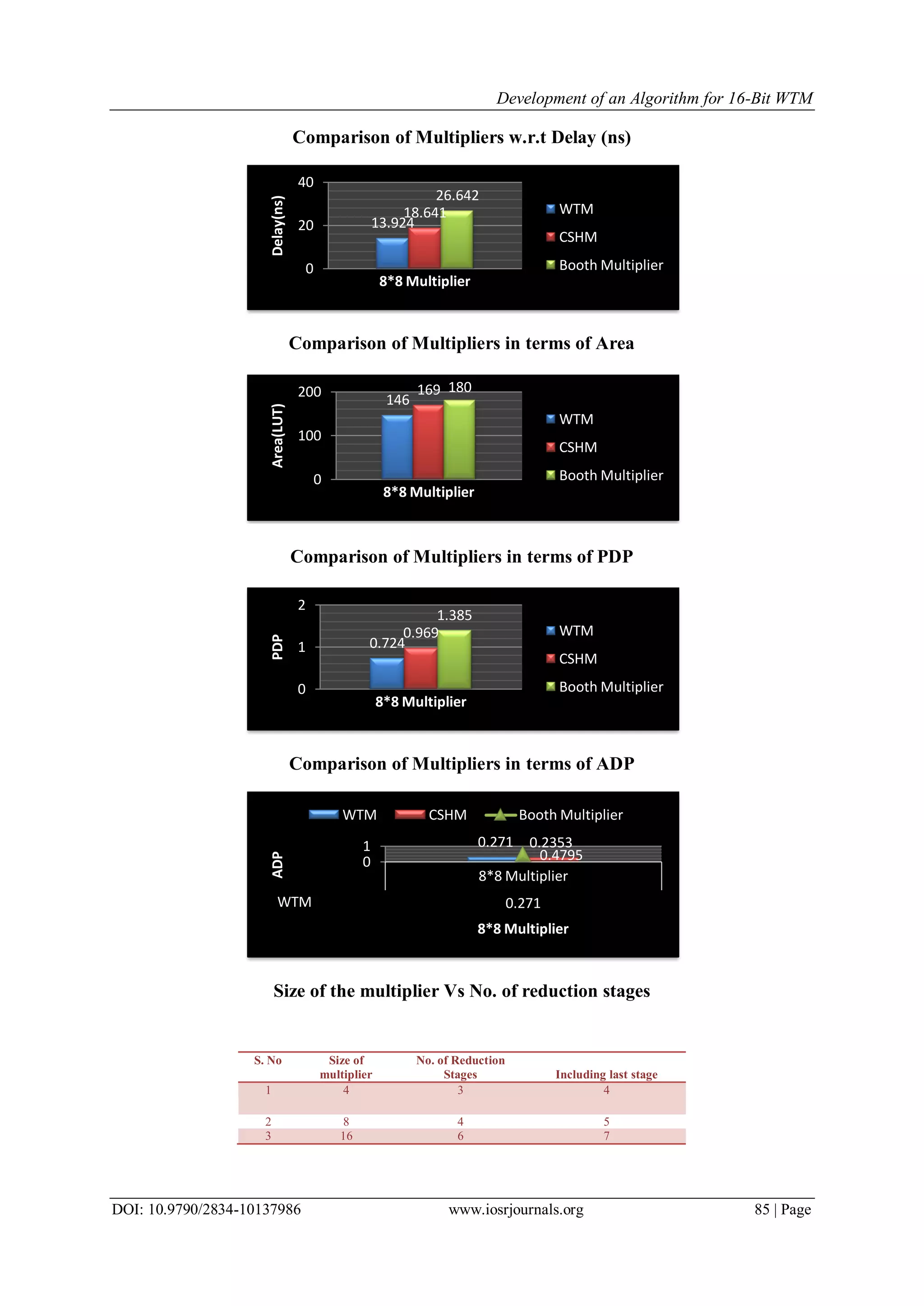

7. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 85 | Page
Comparison of Multipliers w.r.t Delay (ns)
Comparison of Multipliers in terms of Area
Comparison of Multipliers in terms of PDP
Comparison of Multipliers in terms of ADP
Size of the multiplier Vs No. of reduction stages
13.924
18.641
26.642
0
20
40
Delay(ns) 8*8 Multiplier
WTM
CSHM
Booth Multiplier
146
169 180
0
100
200
Area(LUT)
8*8 Multiplier
WTM
CSHM
Booth Multiplier
0.724
0.969
1.385
0
1
2
PDP
8*8 Multiplier
WTM
CSHM
Booth Multiplier
8*8 Multiplier
WTM 0.271
0.271 0.2353
0.47950
1
ADP
8*8 Multiplier
WTM CSHM Booth Multiplier
S. No Size of
multiplier
No. of Reduction
Stages Including last stage
1 4 3 4
2 8 4 5
3 16 6 7
8. Development of an Algorithm for 16-Bit WTM
DOI: 10.9790/2834-10137986 www.iosrjournals.org 86 | Page

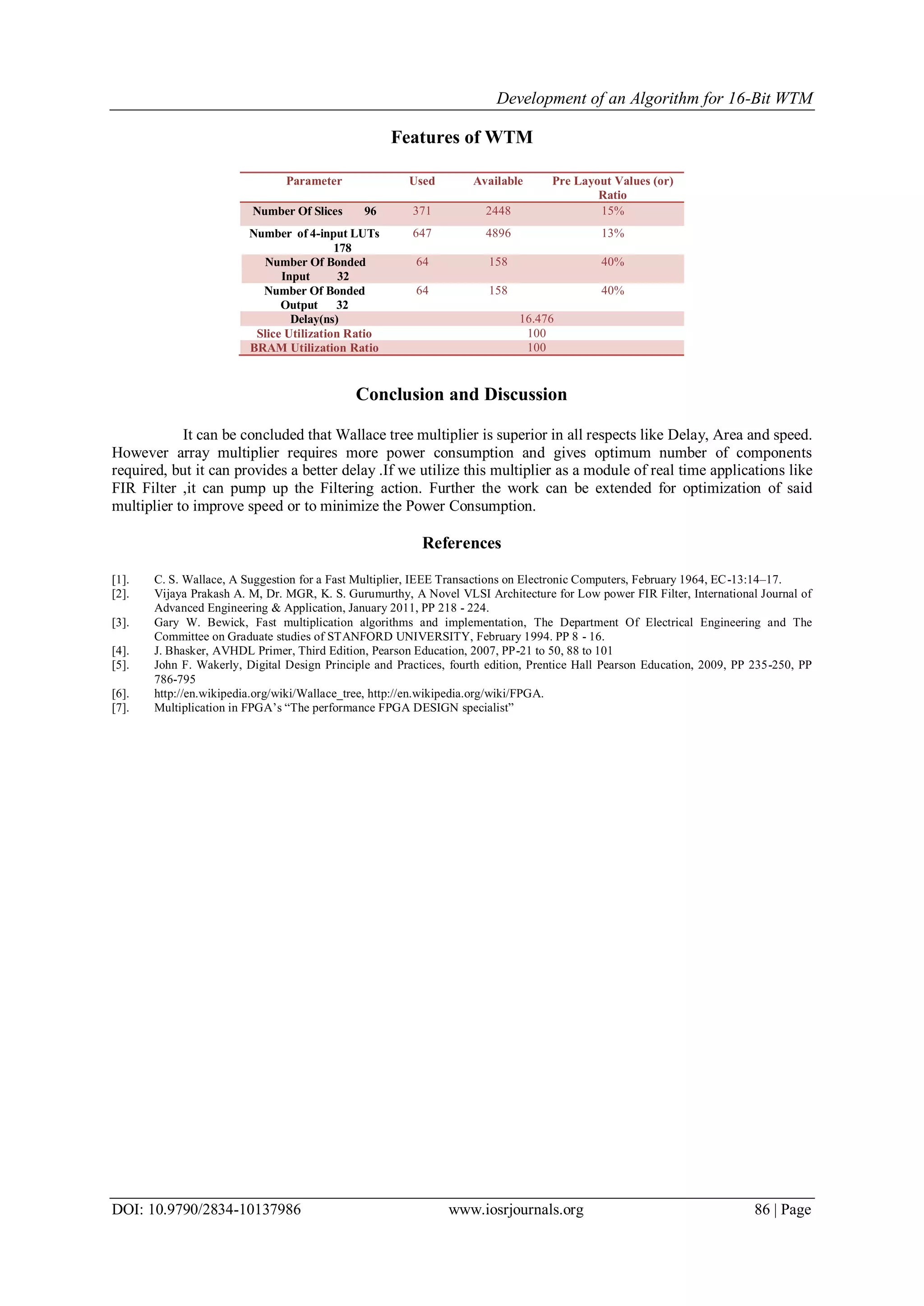

Features of WTM
Conclusion and Discussion
It can be concluded that Wallace tree multiplier is superior in all respects like Delay, Area and speed.
However array multiplier requires more power consumption and gives optimum number of components
required, but it can provides a better delay .If we utilize this multiplier as a module of real time applications like
FIR Filter ,it can pump up the Filtering action. Further the work can be extended for optimization of said
multiplier to improve speed or to minimize the Power Consumption.
References
[1]. C. S. Wallace, A Suggestion for a Fast Multiplier, IEEE Transactions on Electronic Computers, February 1964, EC-13:14–17.
[2]. Vijaya Prakash A. M, Dr. MGR, K. S. Gurumurthy, A Novel VLSI Architecture for Low power FIR Filter, International Journal of
Advanced Engineering & Application, January 2011, PP 218 - 224.
[3]. Gary W. Bewick, Fast multiplication algorithms and implementation, The Department Of Electrical Engineering and The
Committee on Graduate studies of STANFORD UNIVERSITY, February 1994. PP 8 - 16.
[4]. J. Bhasker, AVHDL Primer, Third Edition, Pearson Education, 2007, PP-21 to 50, 88 to 101
[5]. John F. Wakerly, Digital Design Principle and Practices, fourth edition, Prentice Hall Pearson Education, 2009, PP 235-250, PP
786-795
[6]. http://en.wikipedia.org/wiki/Wallace_tree, http://en.wikipedia.org/wiki/FPGA.
[7]. Multiplication in FPGA‟s “The performance FPGA DESIGN specialist”
Parameter Used Available Pre Layout Values (or)
Ratio
Number Of Slices 96 371 2448 15%
Number of 4-input LUTs
178
647 4896 13%
Number Of Bonded
Input 32
64 158 40%
Number Of Bonded
Output 32
64 158 40%
Delay(ns) 16.476
Slice Utilization Ratio 100
BRAM Utilization Ratio 100
