Comp Arithmetic Basic.ppt

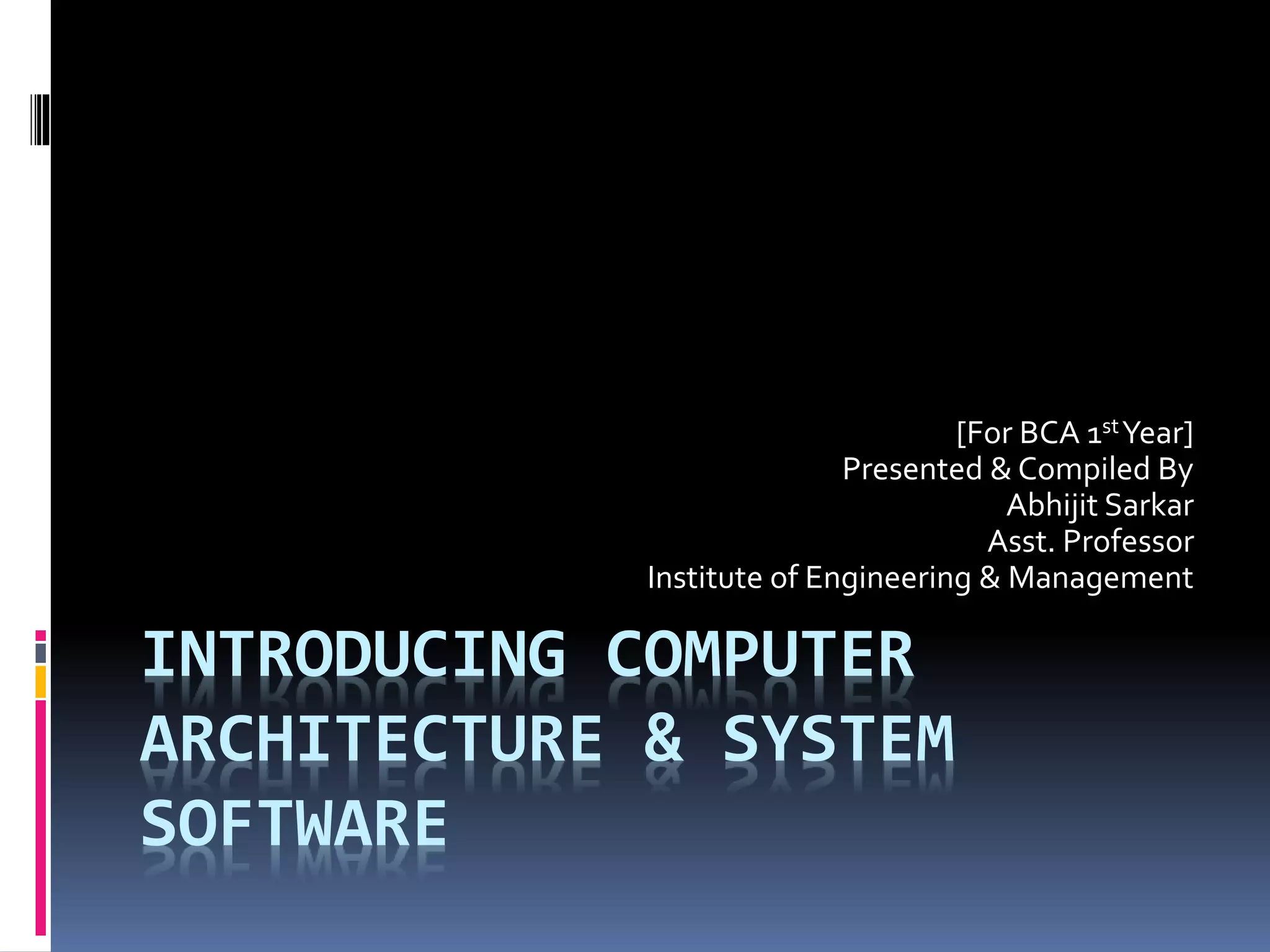

1. INTRODUCING COMPUTER
ARCHITECTURE & SYSTEM
SOFTWARE
[For BCA 1stYear]
Presented & Compiled By
Abhijit Sarkar
Asst. Professor
Institute of Engineering & Management

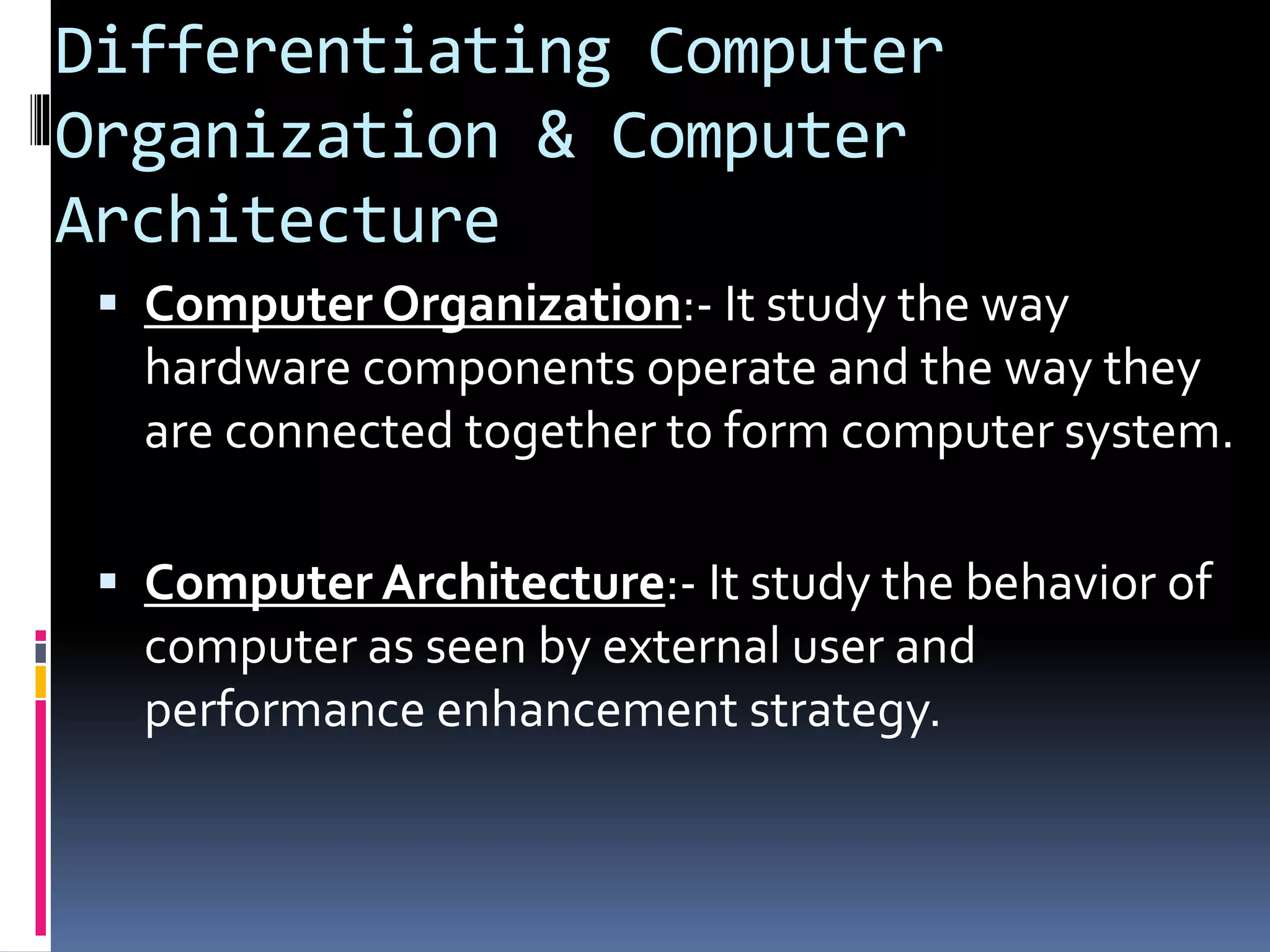

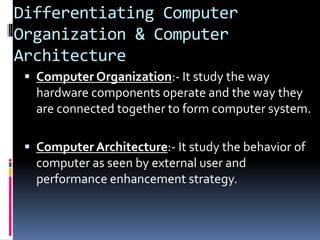

2. Differentiating Computer
Organization & Computer
Architecture
 Computer Organization:- It study the way
hardware components operate and the way they
are connected together to form computer system.
 Computer Architecture:- It study the behavior of
computer as seen by external user and
performance enhancement strategy.

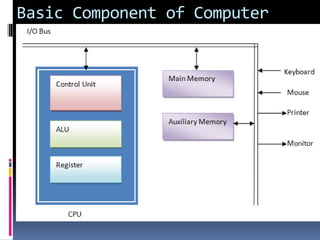

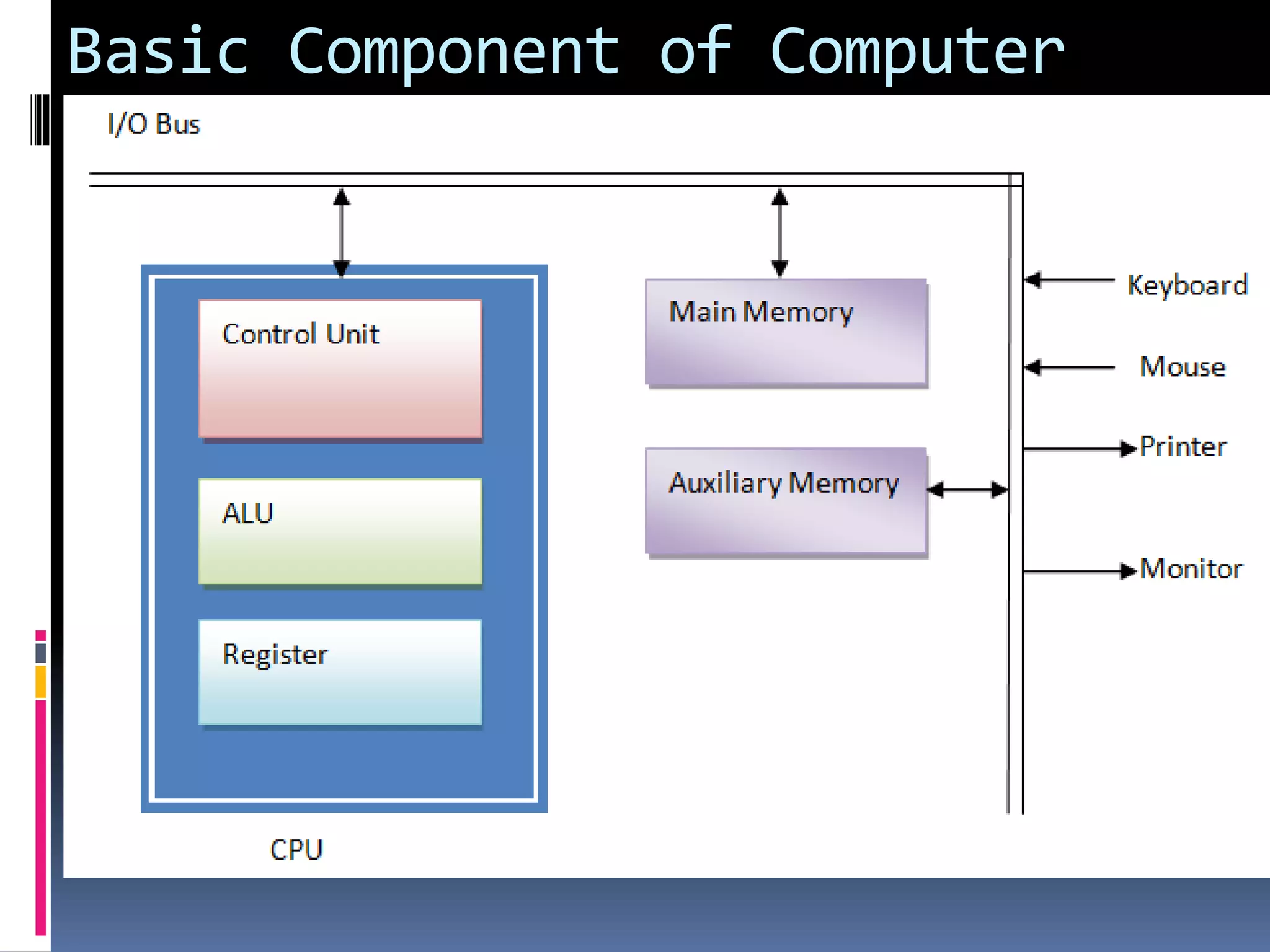

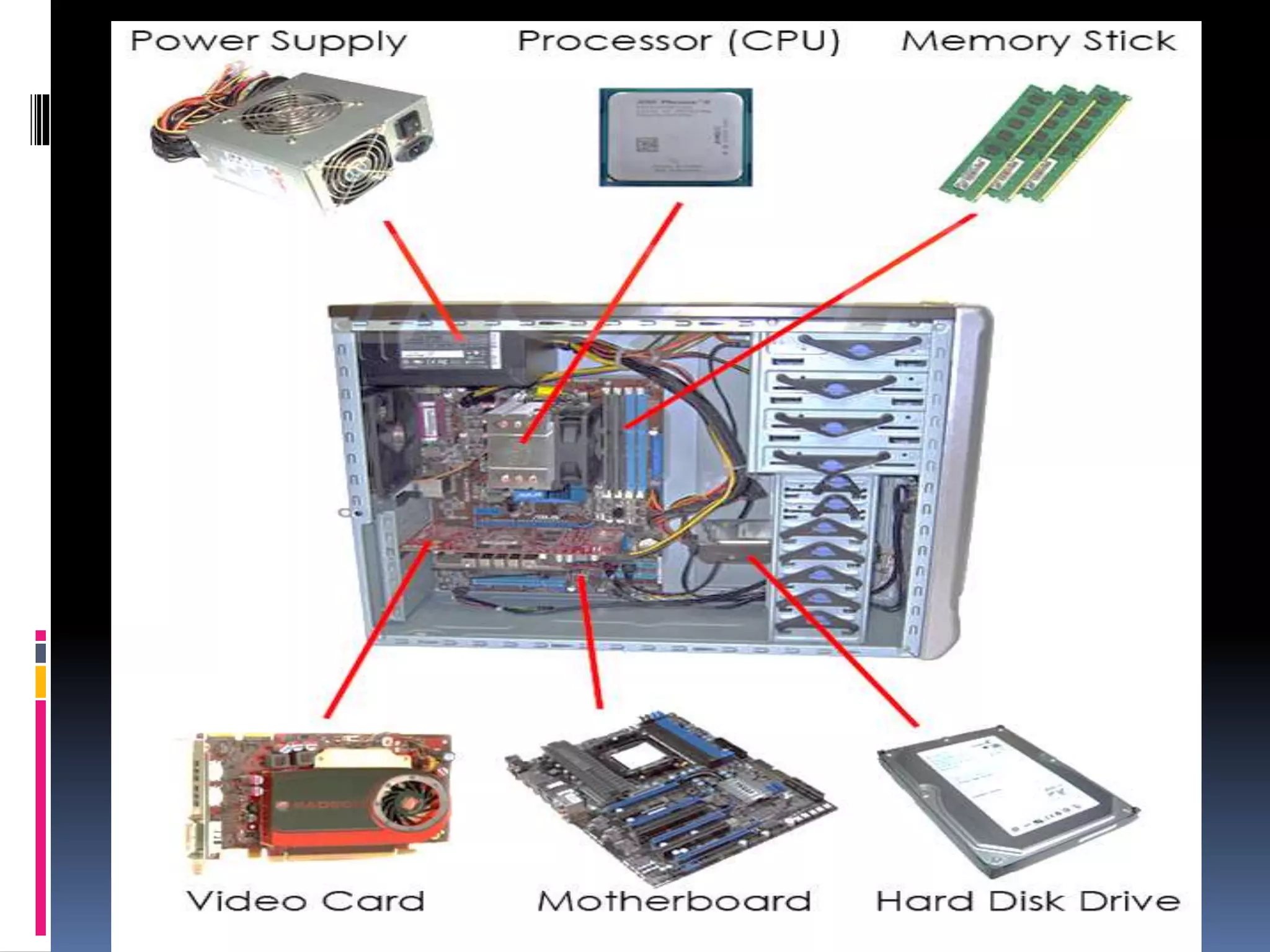

3. Basic Component of Computer

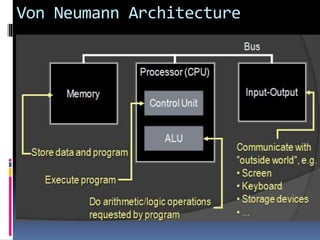

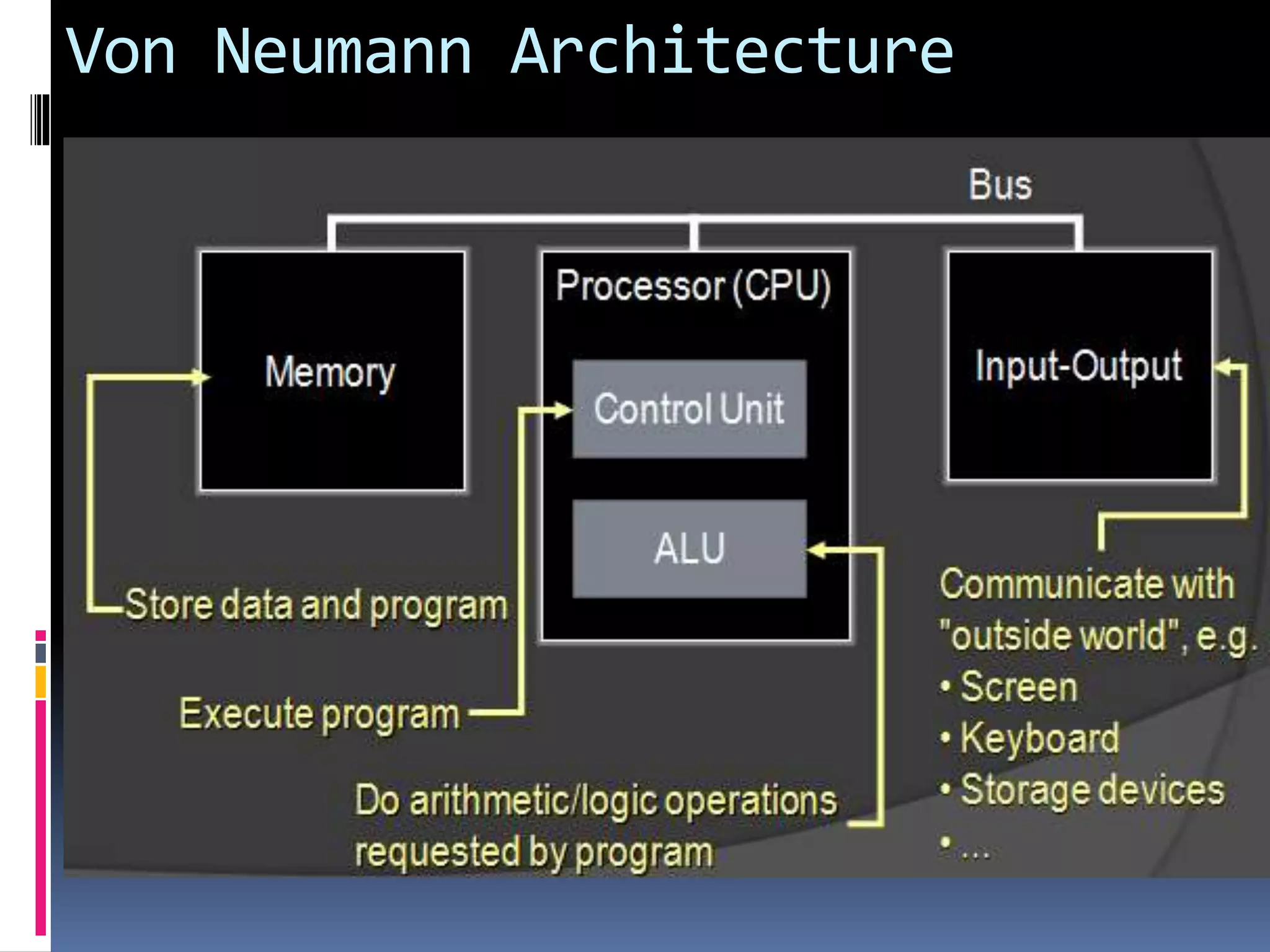

5. Von Neumann Architecture

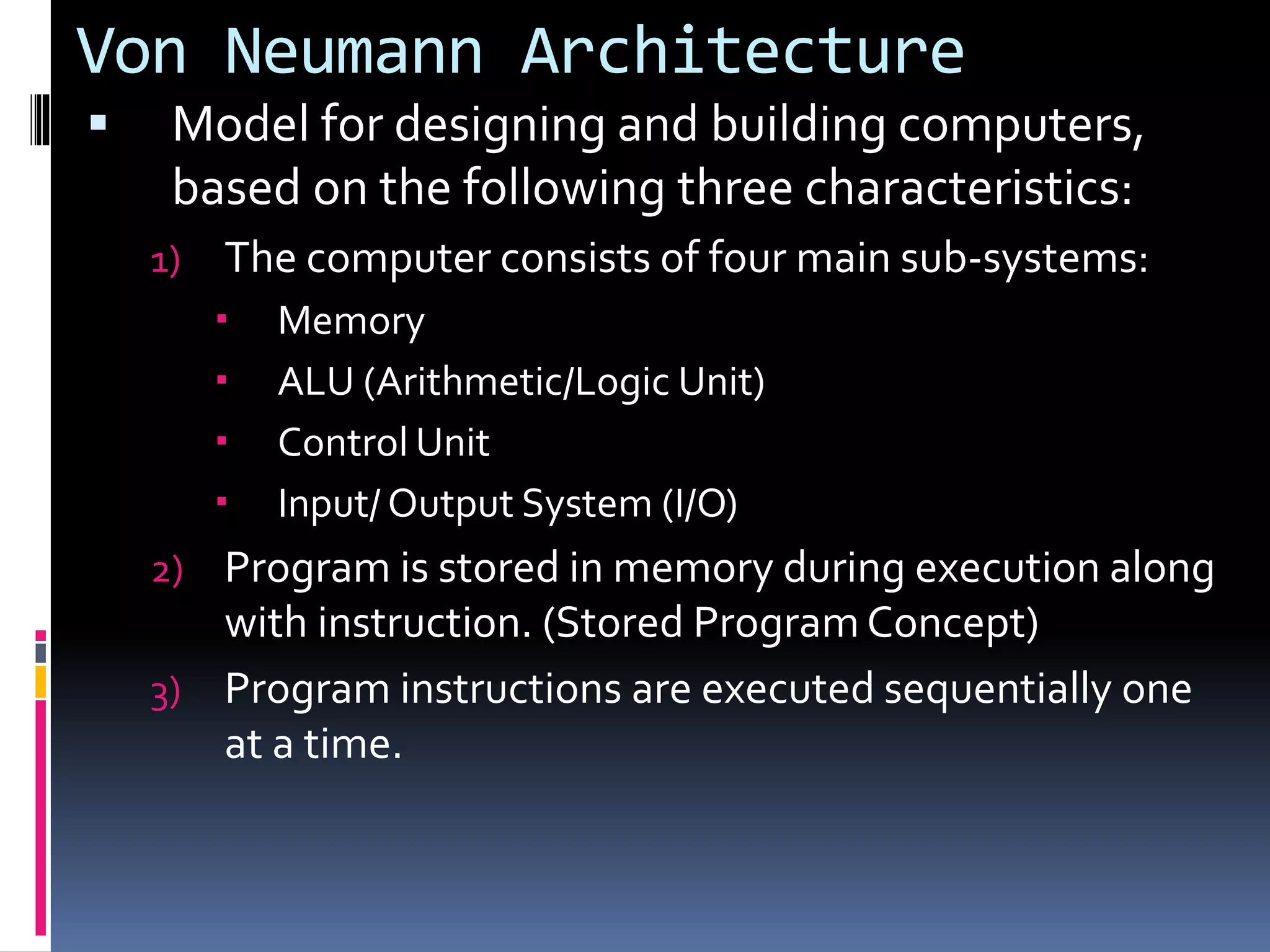

 Model for designing and building computers,
based on the following three characteristics:
1) The computer consists of four main sub-systems:
 Memory
 ALU (Arithmetic/Logic Unit)
 Control Unit
 Input/ Output System (I/O)
2) Program is stored in memory during execution along
with instruction. (Stored Program Concept)
3) Program instructions are executed sequentially one
at a time.

6. Von Neumann Architecture

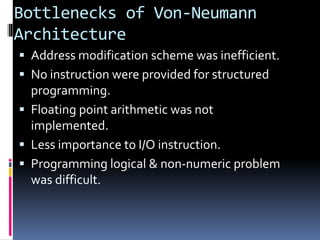

7. Bottlenecks of Von-Neumann
Architecture
 Address modification scheme was inefficient.
 No instruction were provided for structured
programming.
 Floating point arithmetic was not
implemented.
 Less importance to I/O instruction.
 Programming logical & non-numeric problem
was difficult.

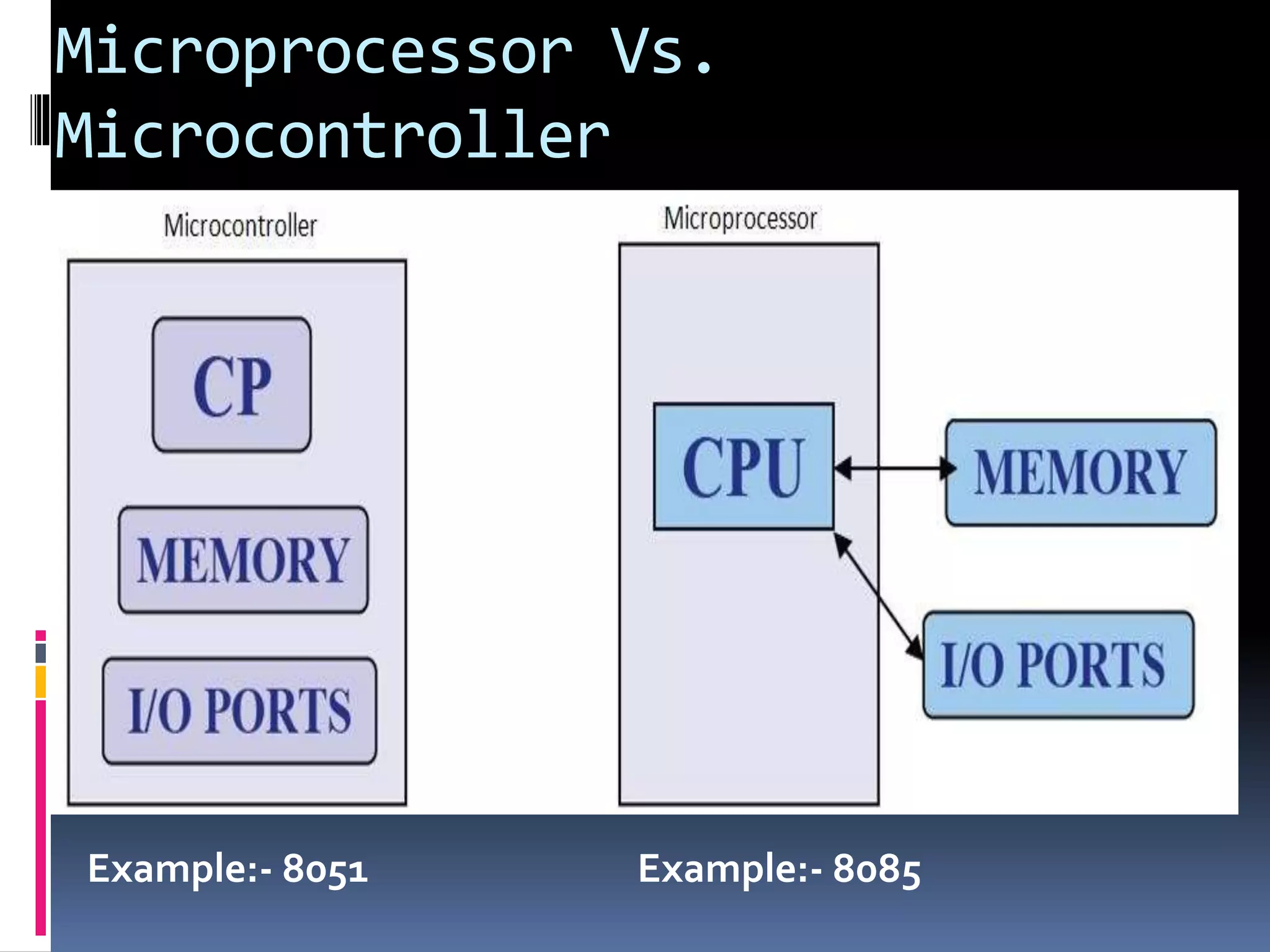

8. Microprocessor Vs.
Microcontroller
Example:- 8085
Example:- 8051

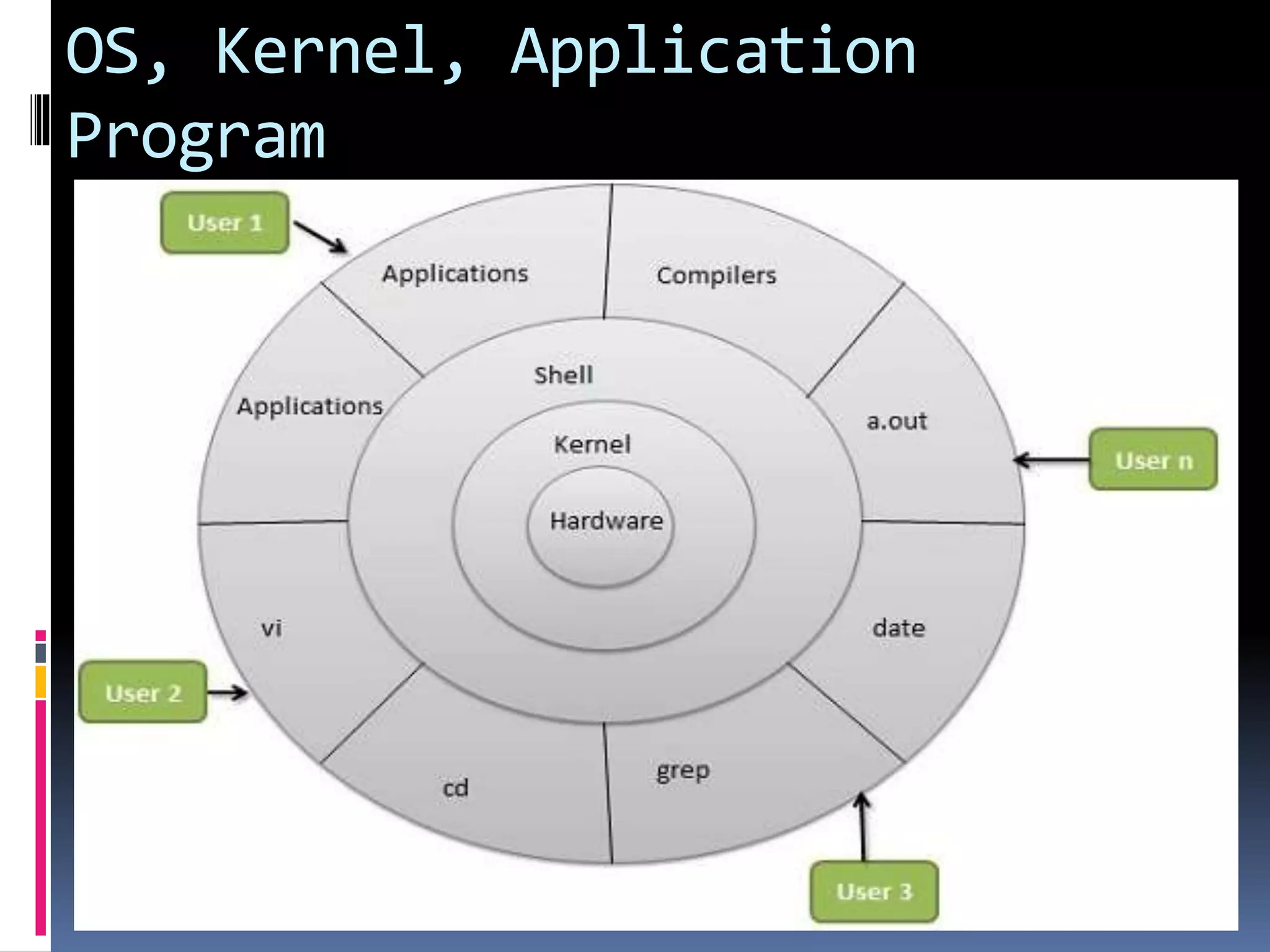

9. OS, Kernel, Application
Program

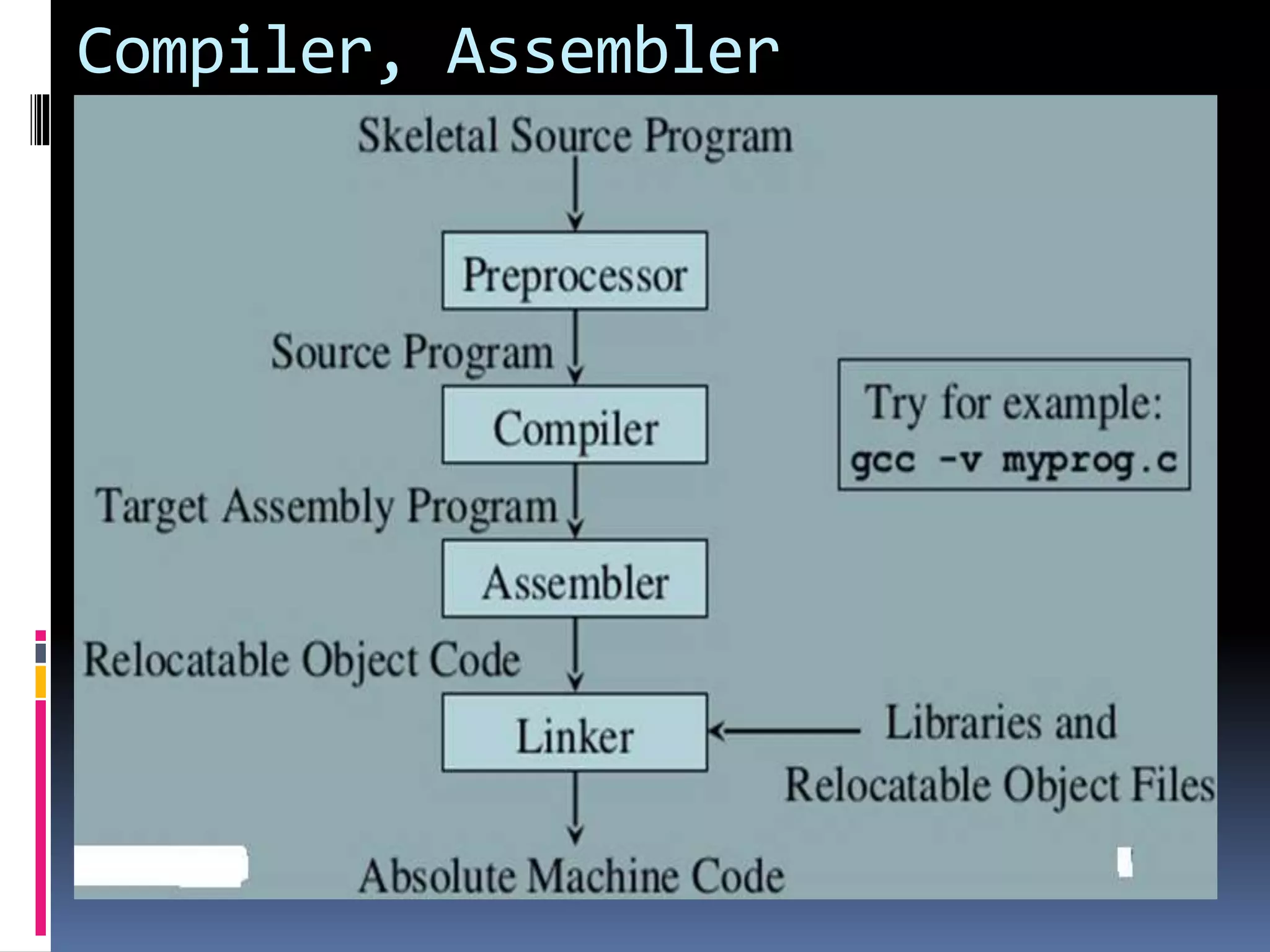

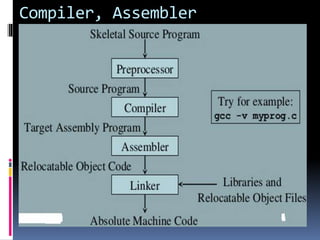

10. Compiler, Assembler

11. COMPUTER ARITHMETIC

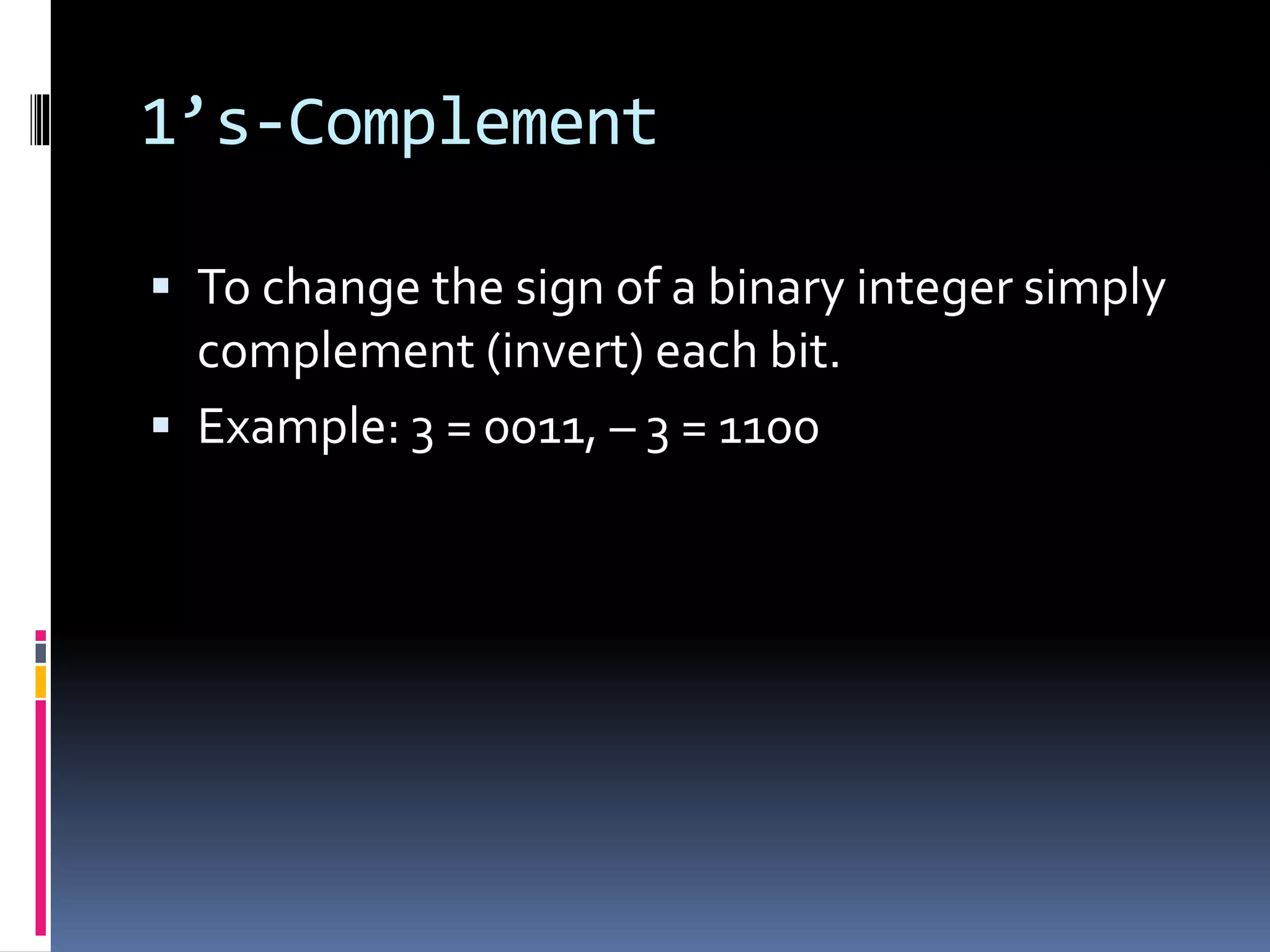

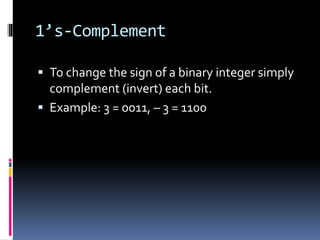

12. 1’s-Complement
 To change the sign of a binary integer simply
complement (invert) each bit.
 Example: 3 = 0011, – 3 = 1100

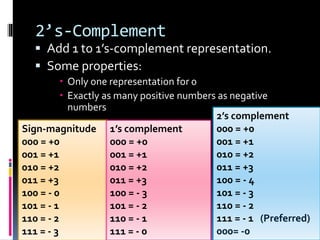

13. 2’s-Complement
 Add 1 to 1’s-complement representation.
 Some properties:
 Only one representation for 0
 Exactly as many positive numbers as negative
numbers
Sign-magnitude
000 = +0
001 = +1
010 = +2
011 = +3
100 = - 0
101 = - 1
110 = - 2
111 = - 3
1’s complement
000 = +0
001 = +1
010 = +2
011 = +3
100 = - 3
101 = - 2
110 = - 1
111 = - 0
2’s complement
000 = +0
001 = +1
010 = +2
011 = +3
100 = - 4
101 = - 3
110 = - 2
111 = - 1 (Preferred)
000= -0

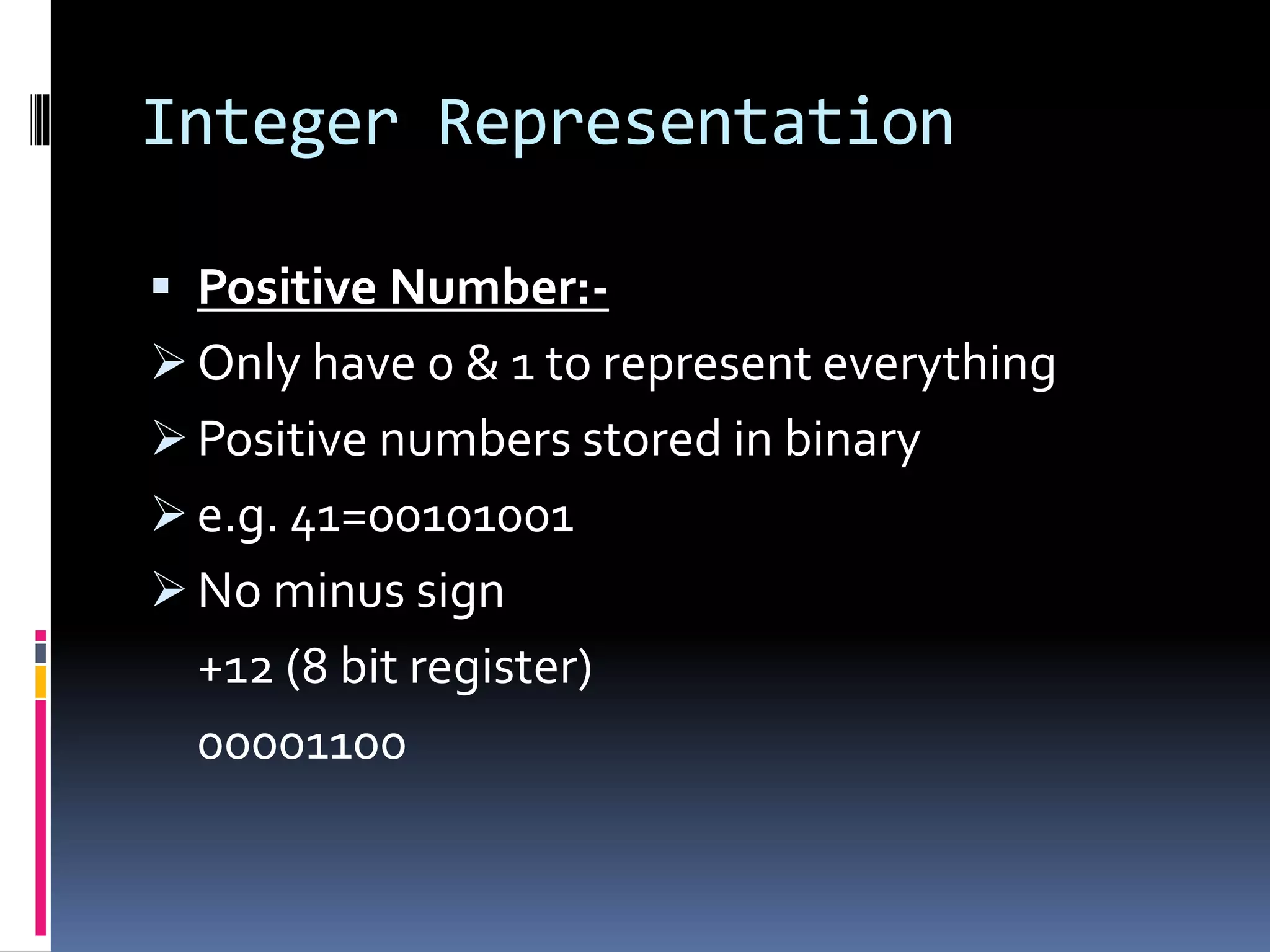

14. Integer Representation
 Positive Number:-
 Only have 0 & 1 to represent everything
 Positive numbers stored in binary
 e.g. 41=00101001
 No minus sign
+12 (8 bit register)
00001100

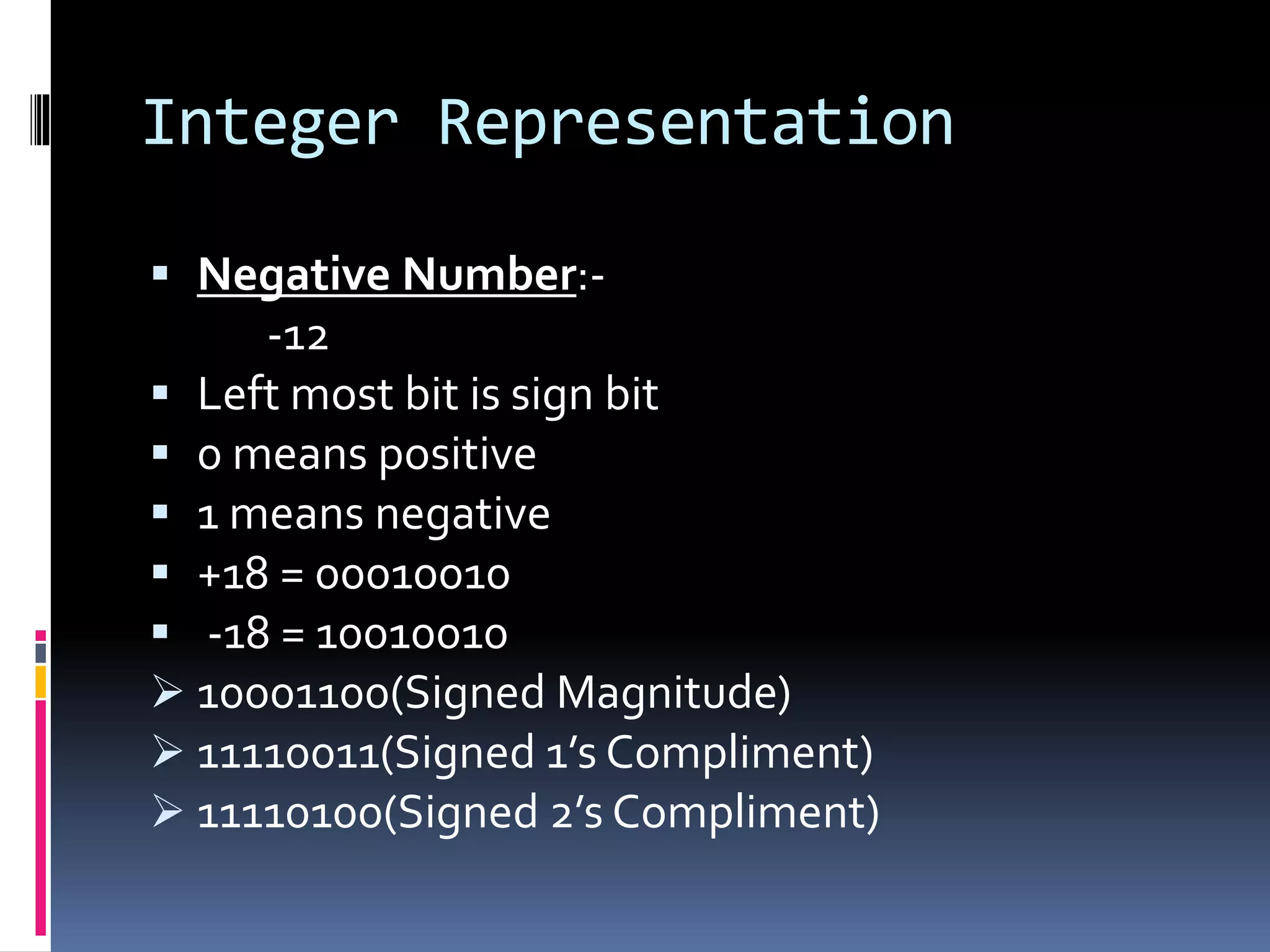

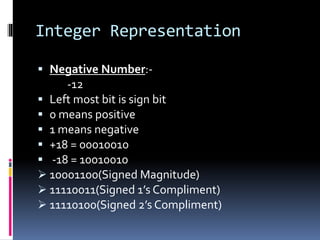

15. Integer Representation
 Negative Number:-
-12
 Left most bit is sign bit
 0 means positive
 1 means negative
 +18 = 00010010
 -18 = 10010010
 10001100(Signed Magnitude)
 11110011(Signed 1’s Compliment)
 11110100(Signed 2’s Compliment)

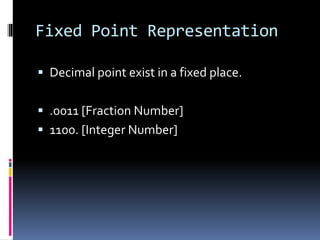

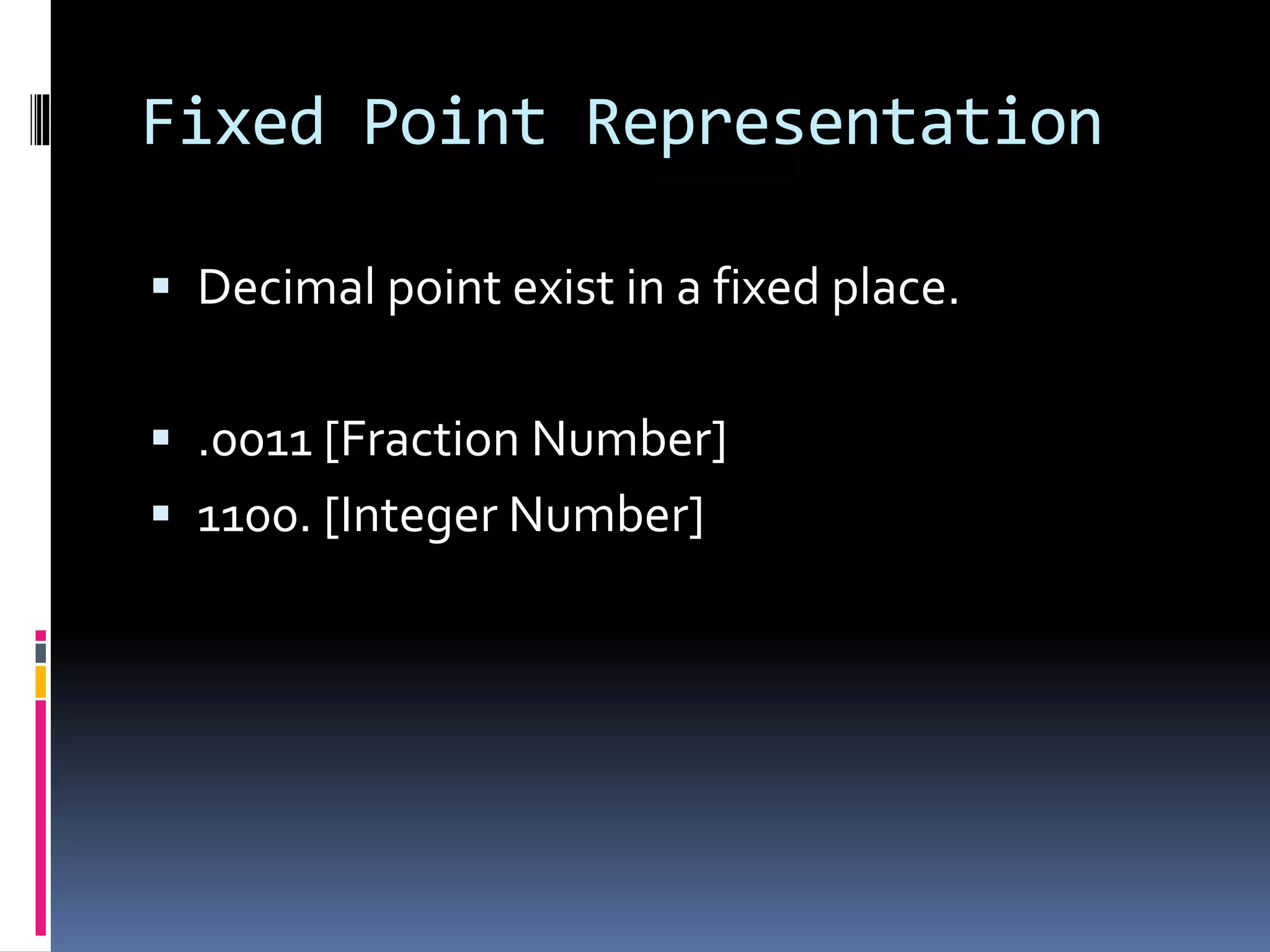

16. Fixed Point Representation
 Decimal point exist in a fixed place.
 .0011 [Fraction Number]
 1100. [Integer Number]

17. Floating Point
Representation
 Floating-point numbers allow an arbitrary
number of decimal places to the right of the
decimal point.
 For example: 0.5  0.25 = 0.125
 They are often expressed in scientific notation.
 For example:
0.125 = 1.25  10-1
5,000,000 = 5.0  106

18. Floating Point
Representation

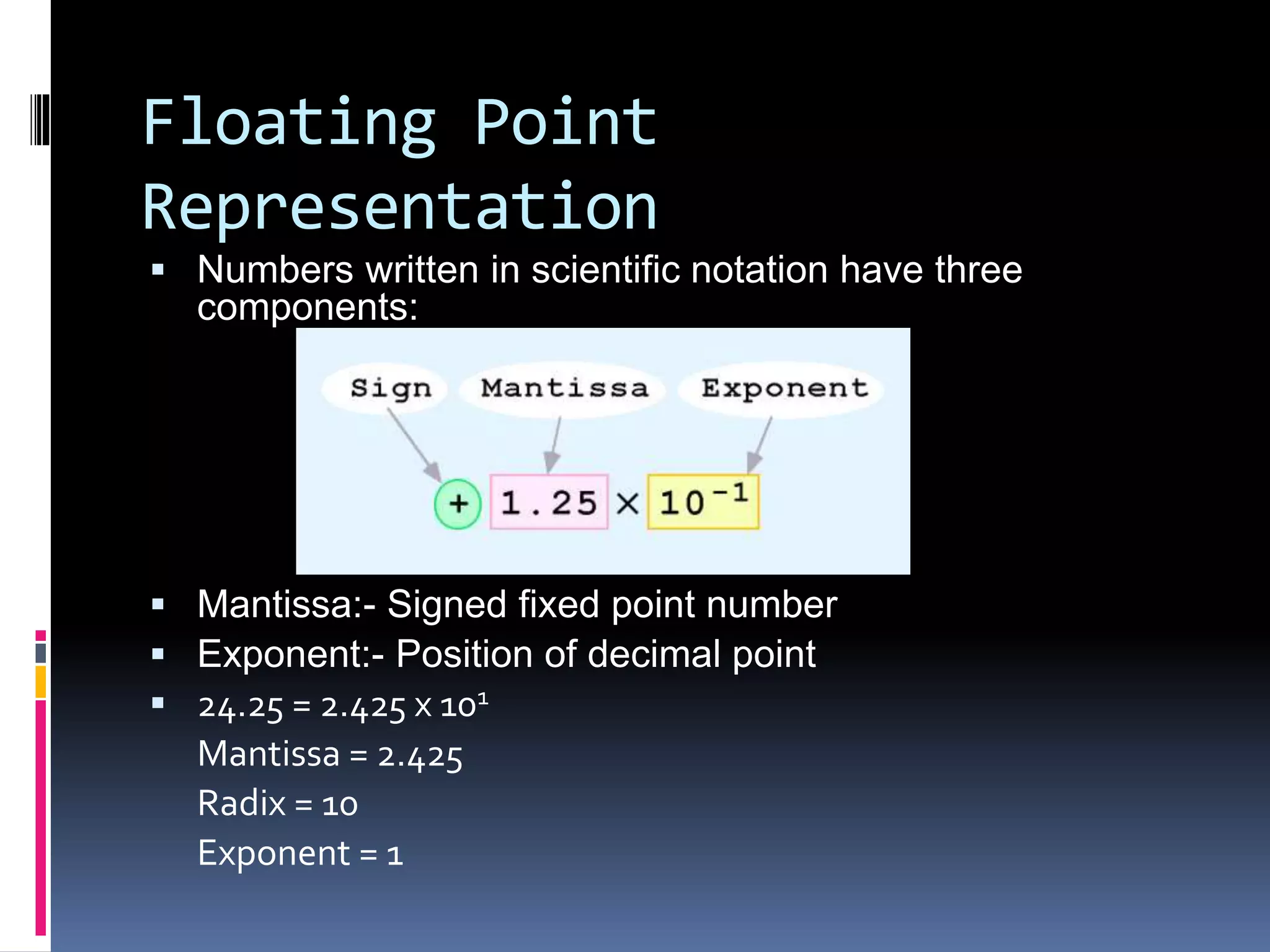

 Numbers written in scientific notation have three
components:
 Mantissa:- Signed fixed point number
 Exponent:- Position of decimal point
 24.25 = 2.425 x 101
Mantissa = 2.425
Radix = 10
Exponent = 1

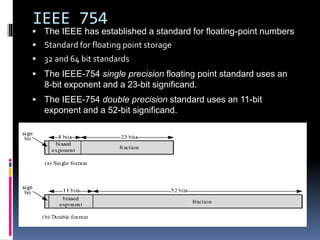

19. IEEE 754

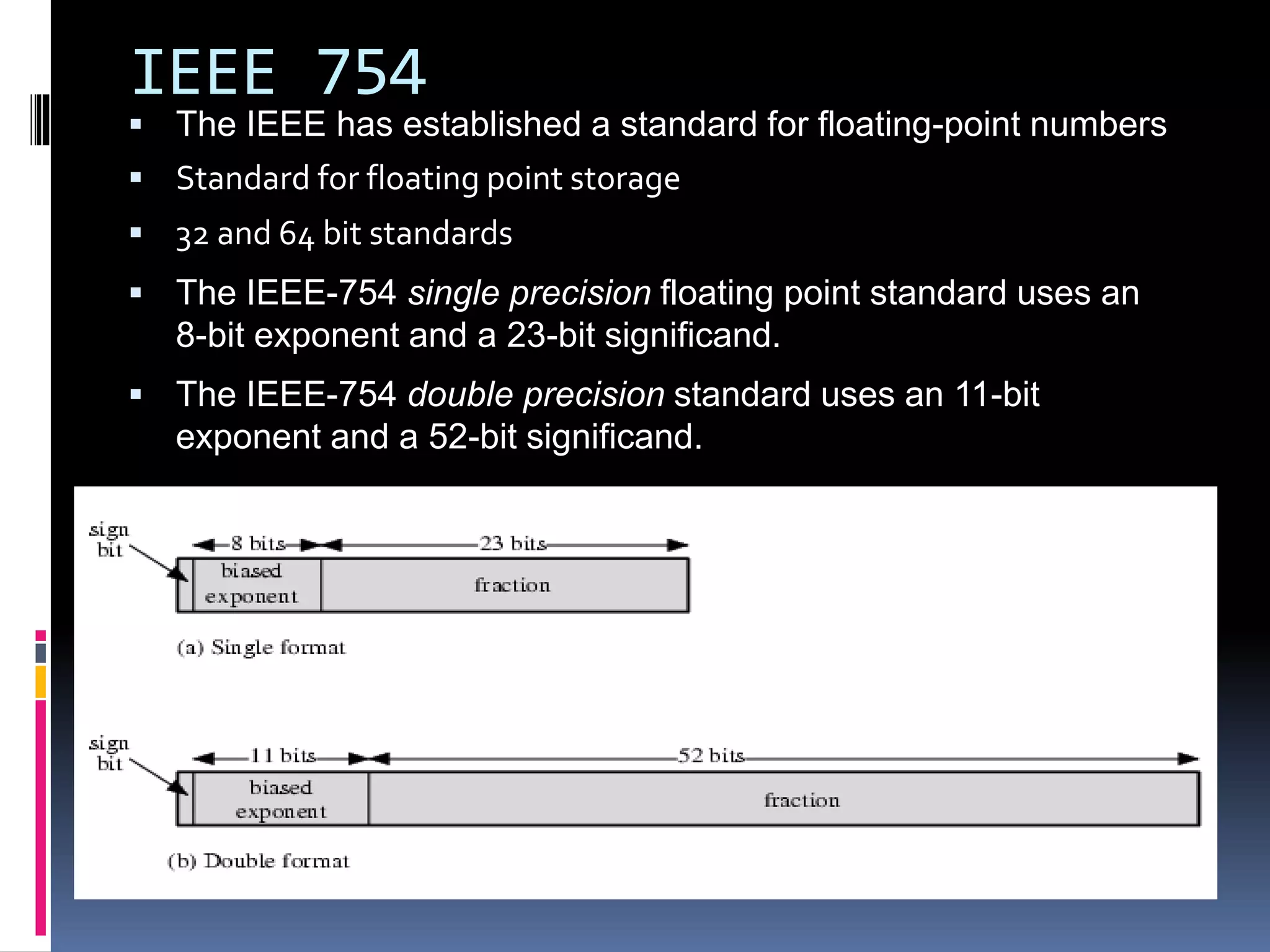

 The IEEE has established a standard for floating-point numbers
 Standard for floating point storage
 32 and 64 bit standards
 The IEEE-754 single precision floating point standard uses an
8-bit exponent and a 23-bit significand.
 The IEEE-754 double precision standard uses an 11-bit
exponent and a 52-bit significand.

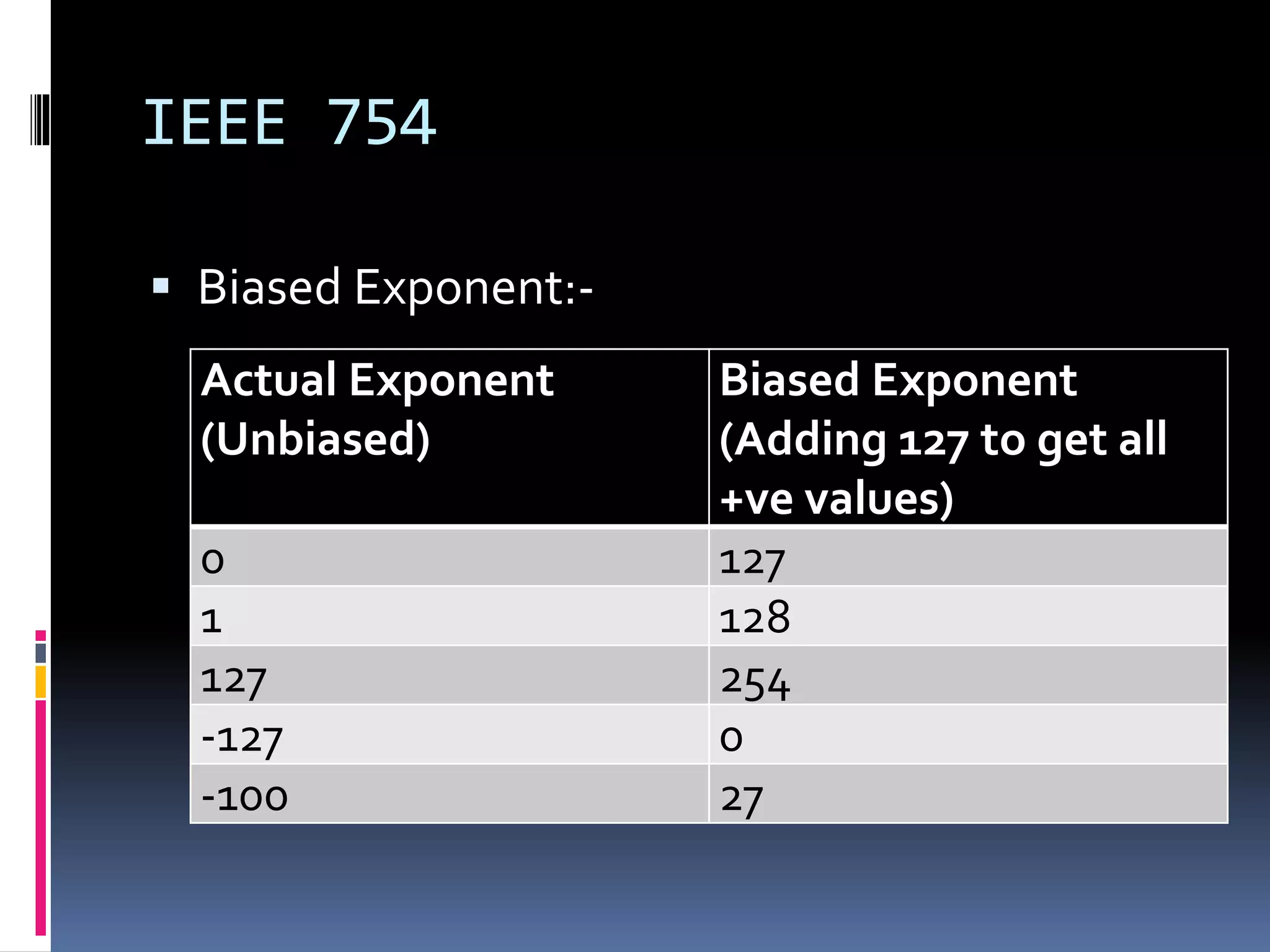

20. IEEE 754
 Biased Exponent:-
Actual Exponent
(Unbiased)
Biased Exponent
(Adding 127 to get all
+ve values)
0 127
1 128
127 254
-127 0
-100 27

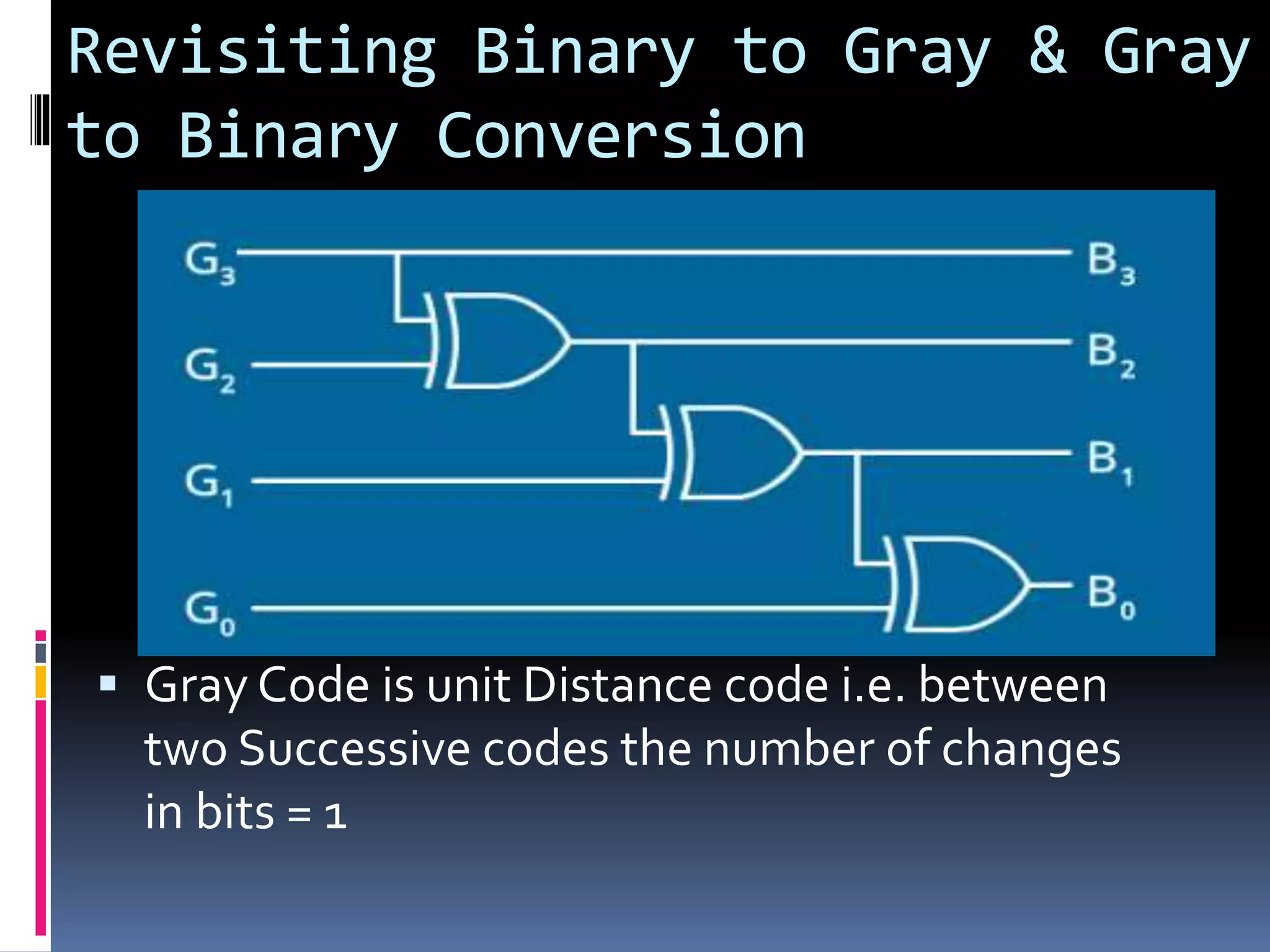

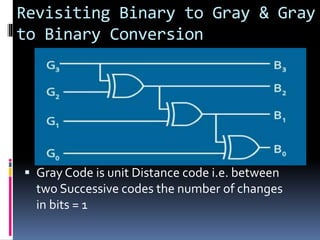

21. Revisiting Binary to Gray & Gray
to Binary Conversion
 Gray Code is unit Distance code i.e. between
two Successive codes the number of changes
in bits = 1

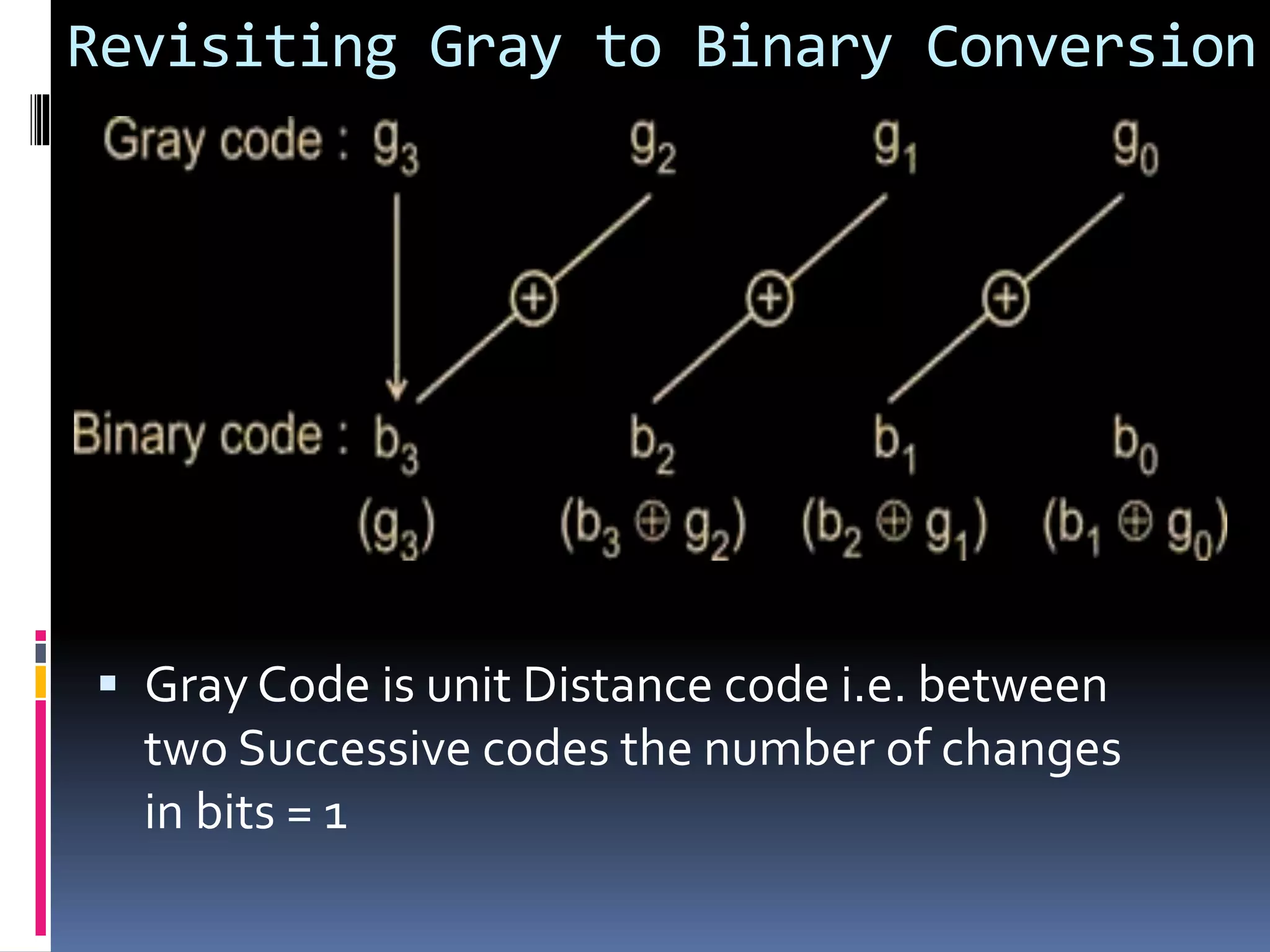

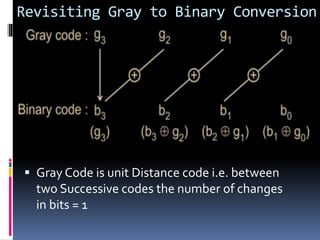

22. Revisiting Gray to Binary Conversion
 Gray Code is unit Distance code i.e. between
two Successive codes the number of changes
in bits = 1

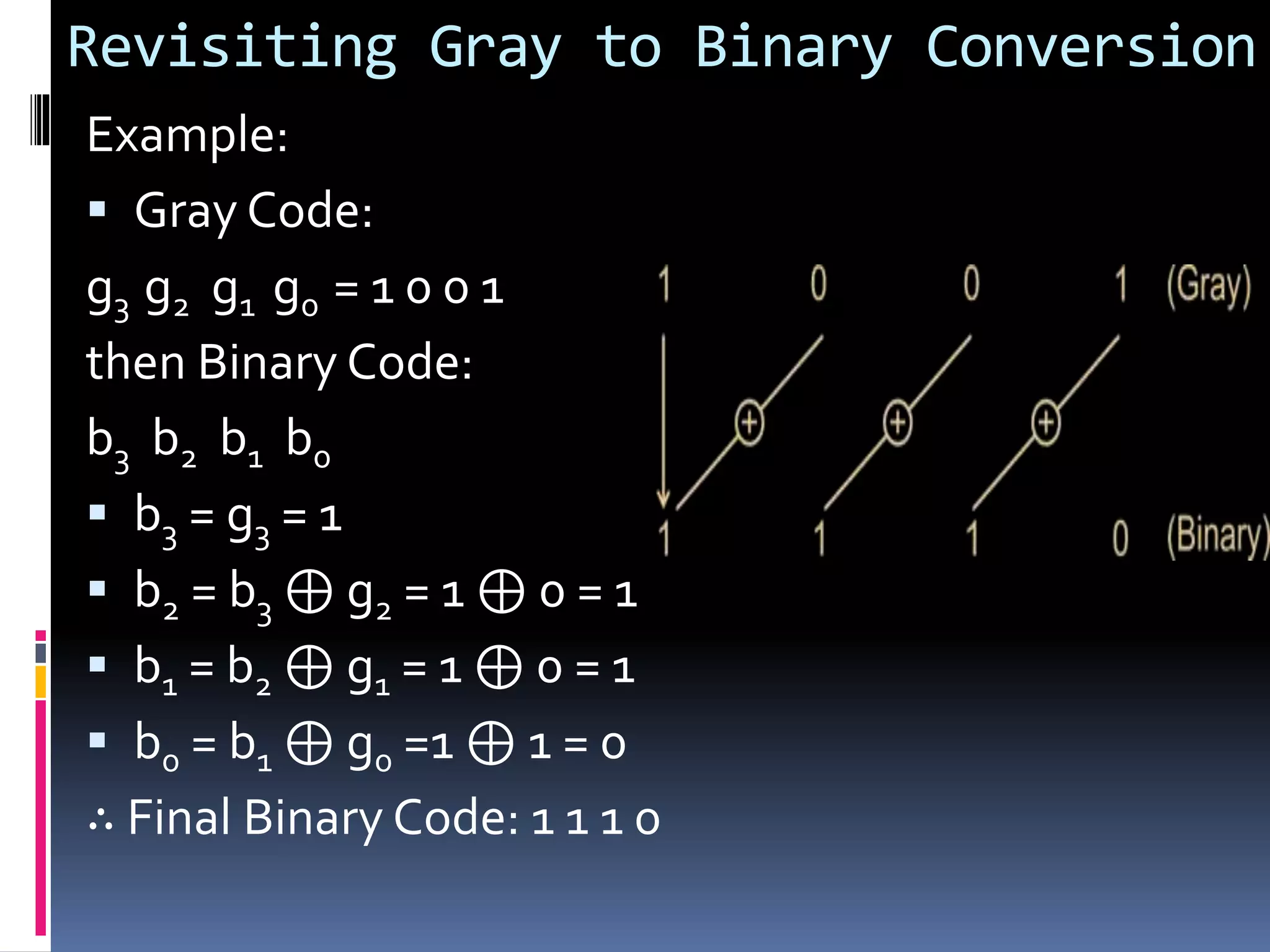

23. Revisiting Gray to Binary Conversion
Example:
 Gray Code:
g3 g2 g1 g0 = 1 0 0 1
then Binary Code:
b3 b2 b1 b0
 b3 = g3 = 1
 b2 = b3 ⊕ g2 = 1 ⊕ 0 = 1
 b1 = b2 ⊕ g1 = 1 ⊕ 0 = 1
 b0 = b1 ⊕ g0 =1 ⊕ 1 = 0
∴ Final Binary Code: 1 1 1 0

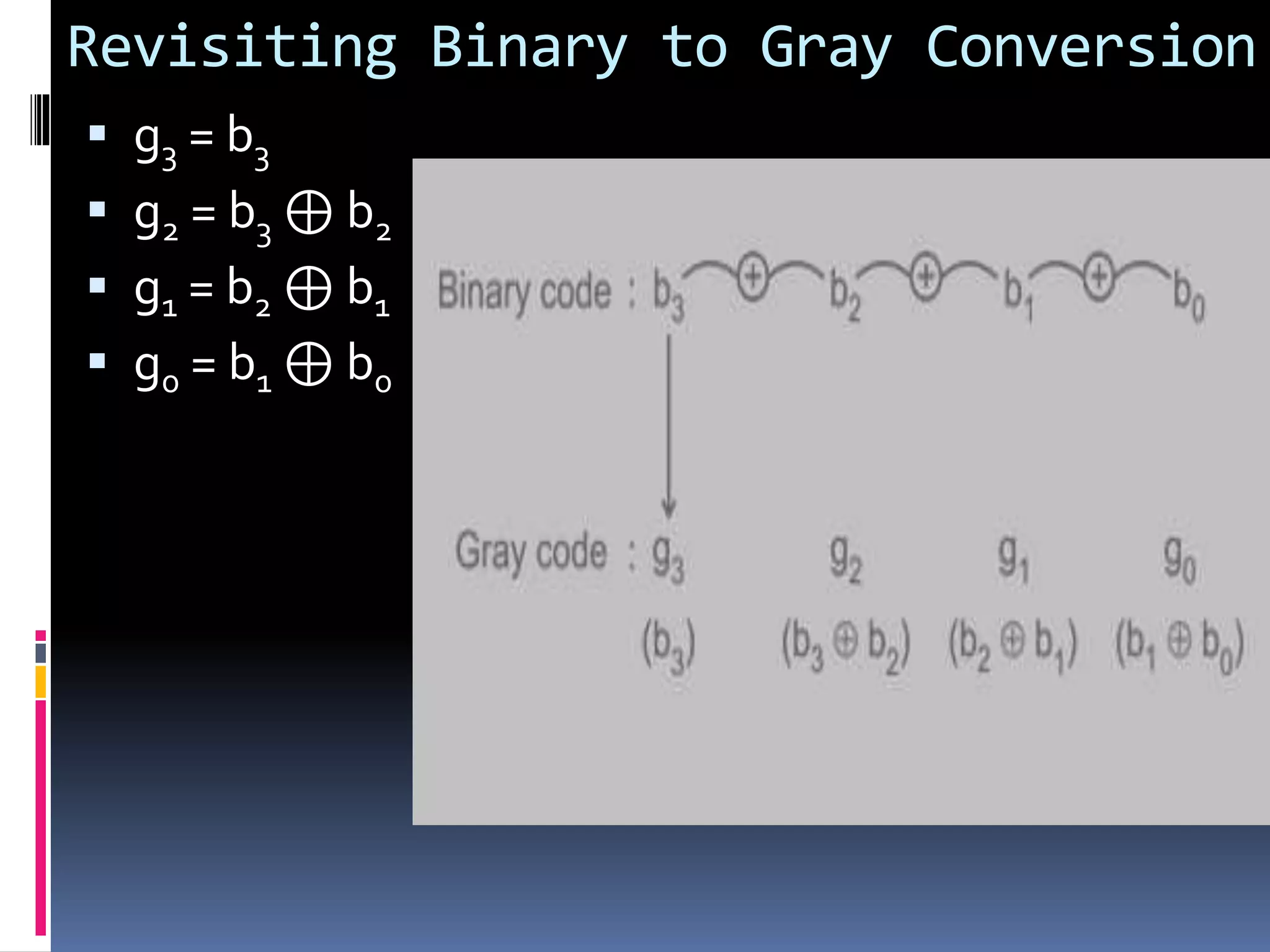

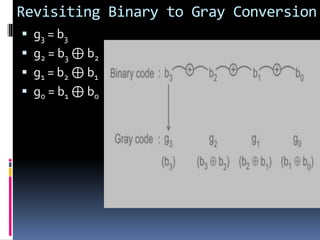

24. Revisiting Binary to Gray Conversion
 g3 = b3
 g2 = b3 ⊕ b2
 g1 = b2 ⊕ b1
 g0 = b1 ⊕ b0

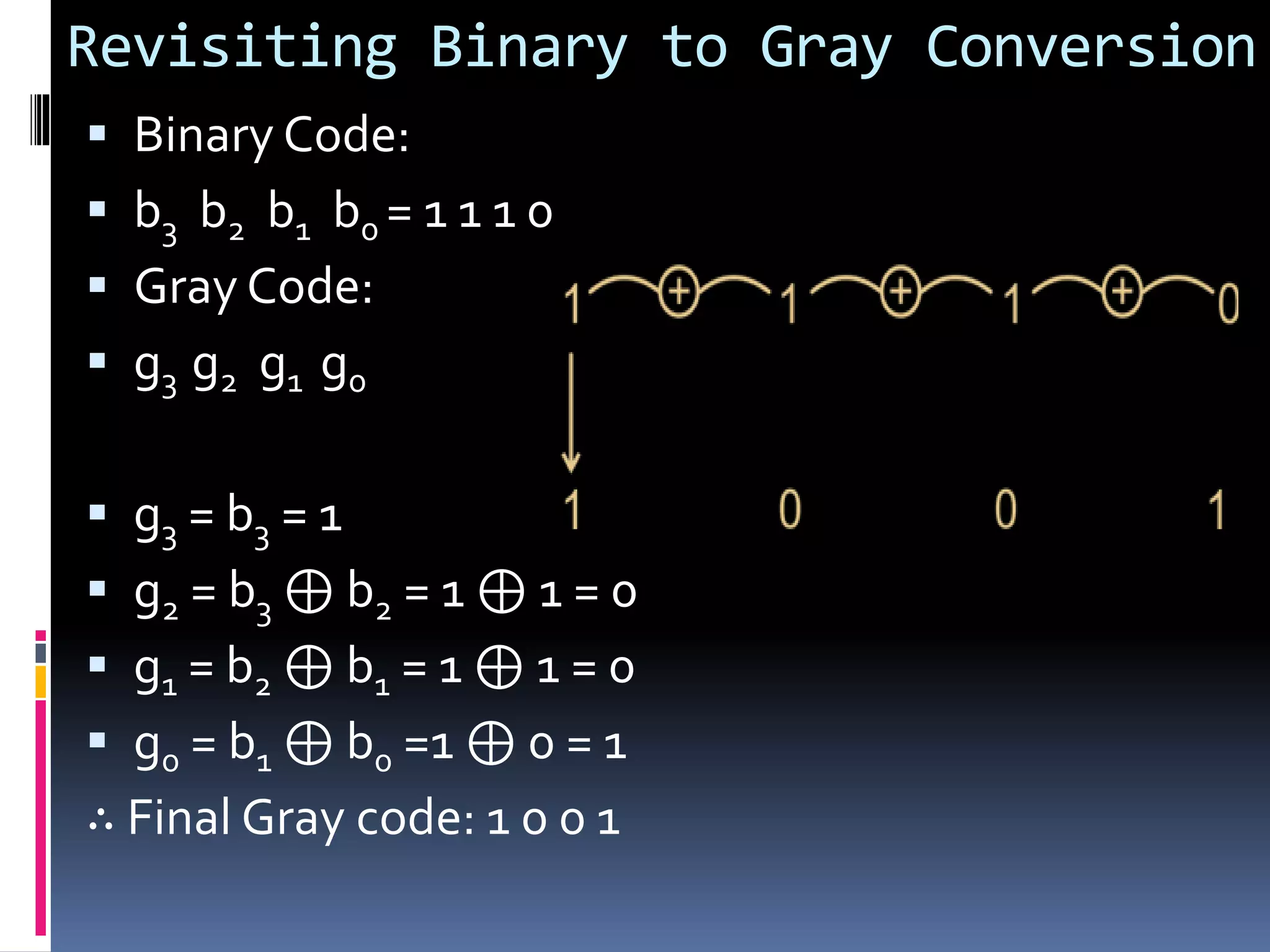

25. Revisiting Binary to Gray Conversion
 Binary Code:
 b3 b2 b1 b0 = 1 1 1 0
 Gray Code:
 g3 g2 g1 g0
 g3 = b3 = 1
 g2 = b3 ⊕ b2 = 1 ⊕ 1 = 0
 g1 = b2 ⊕ b1 = 1 ⊕ 1 = 0
 g0 = b1 ⊕ b0 =1 ⊕ 0 = 1
∴ Final Gray code: 1 0 0 1

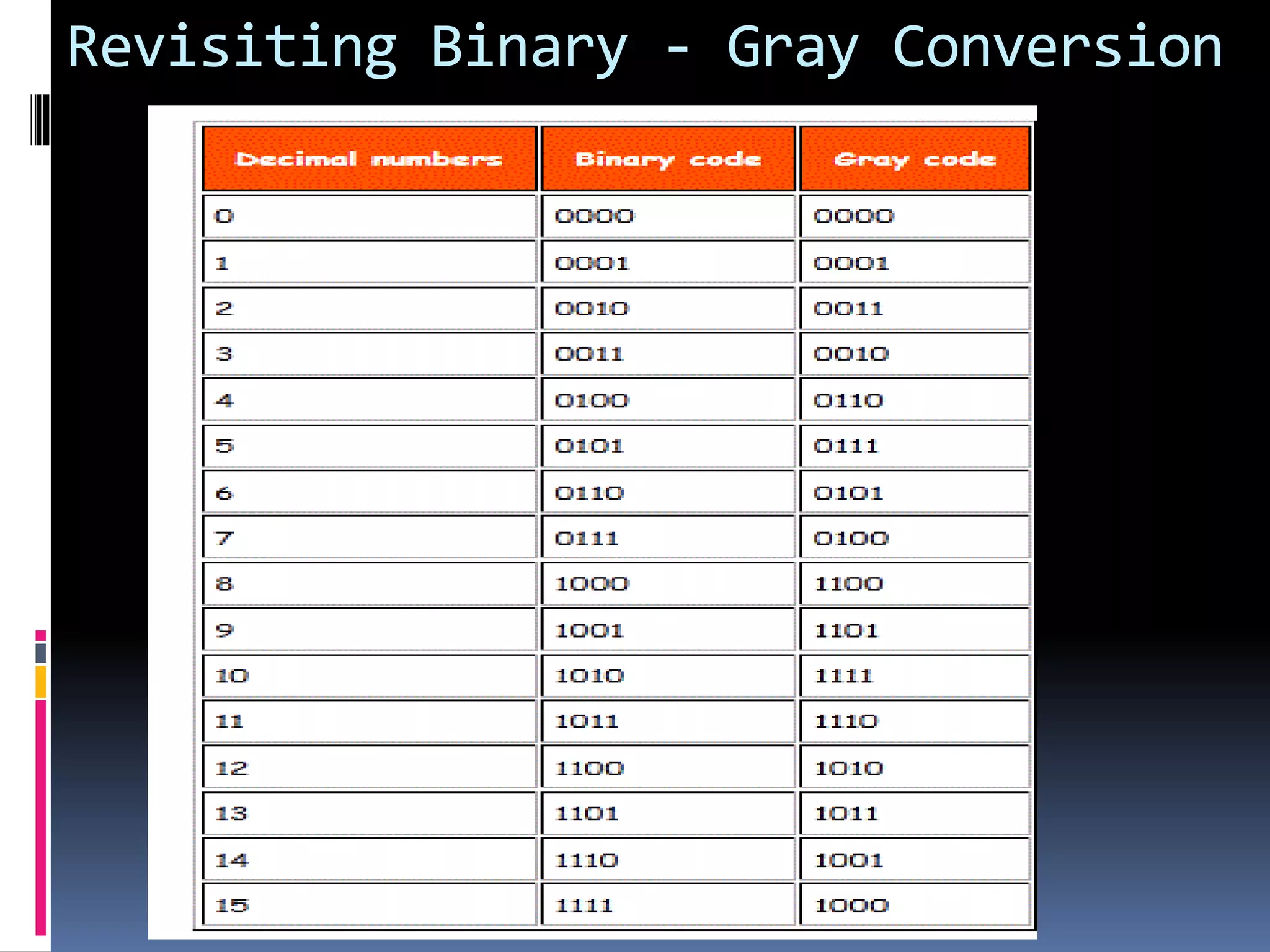

26. Revisiting Binary - Gray Conversion

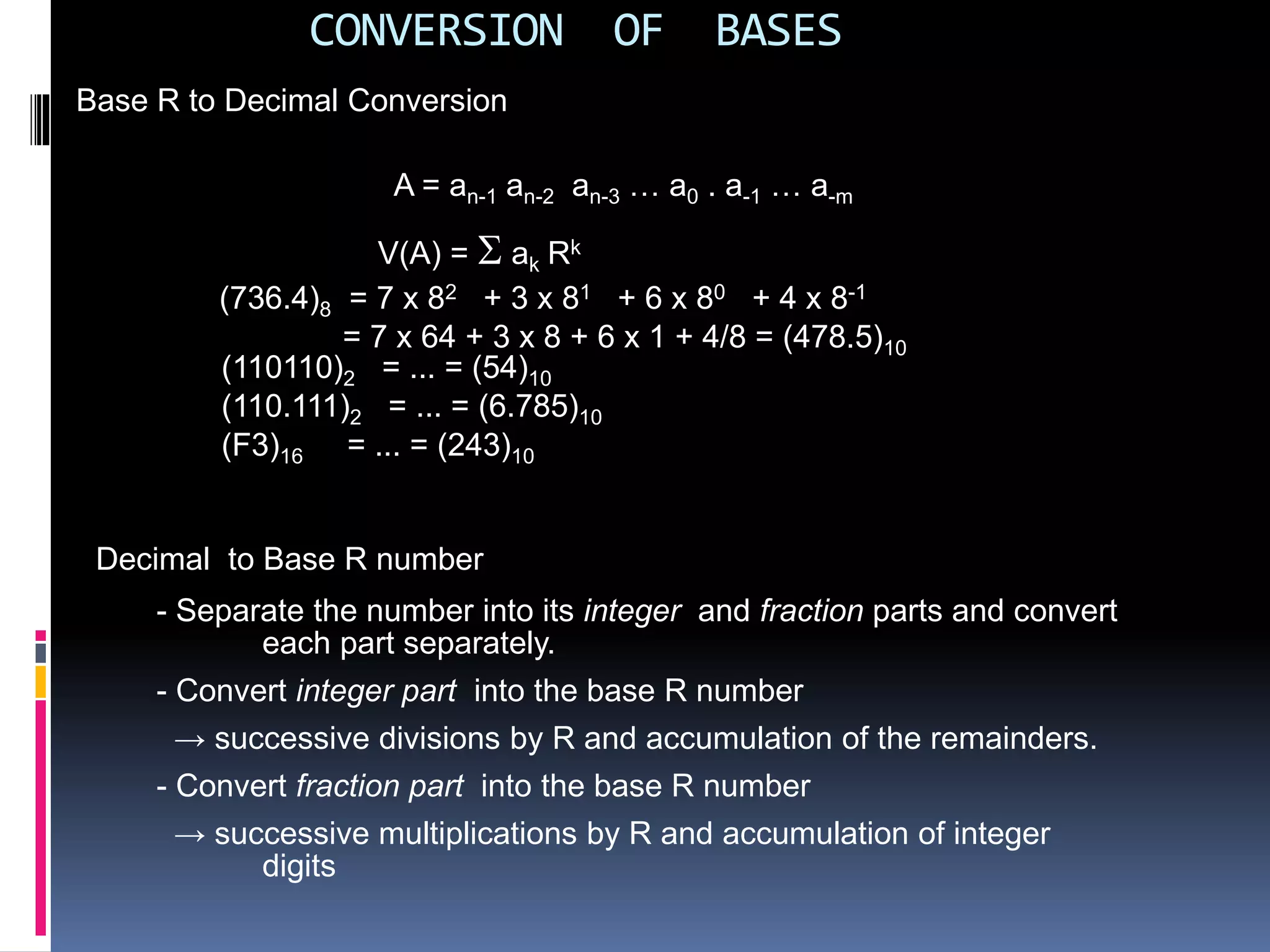

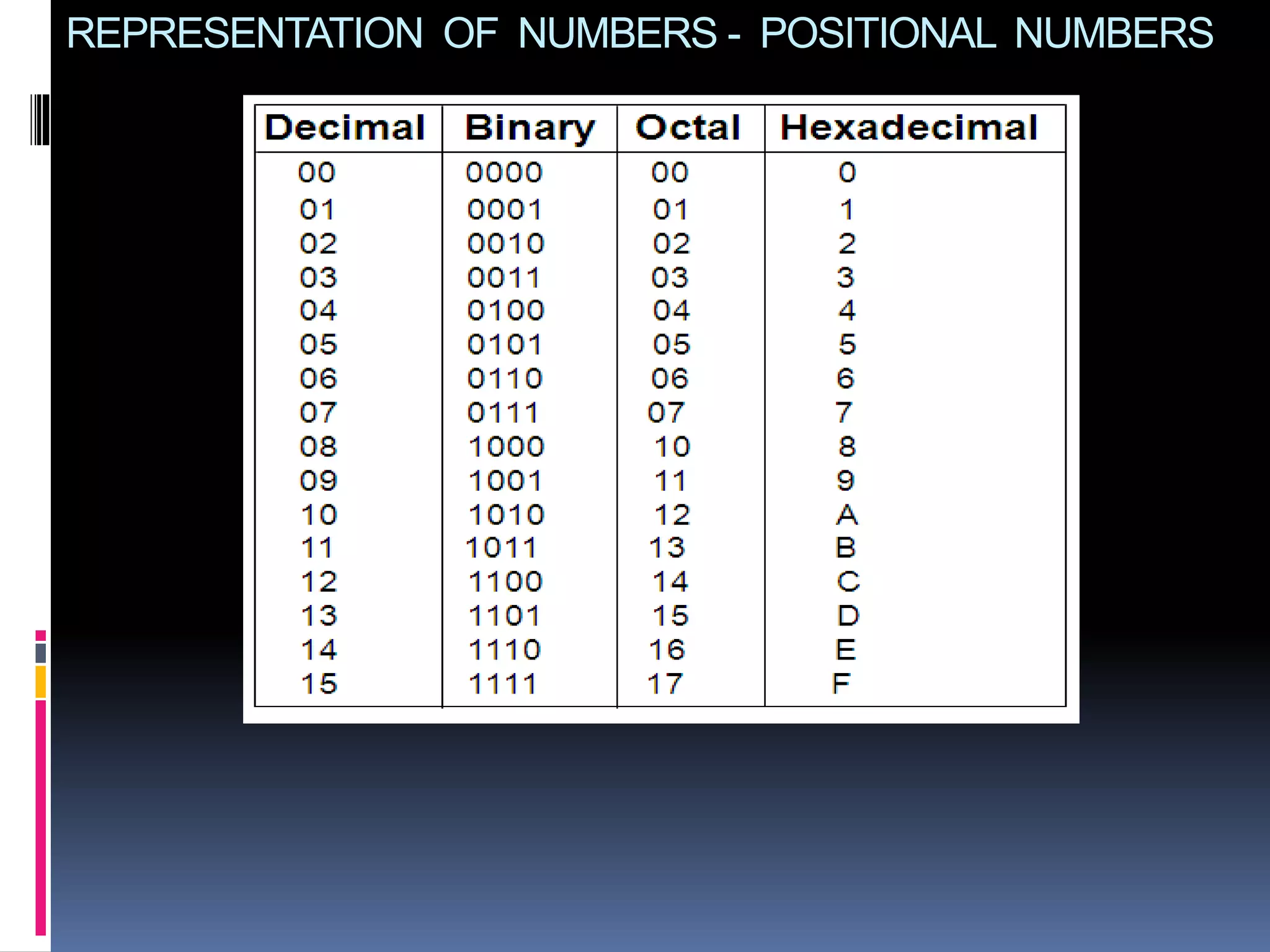

27. REPRESENTATION OF NUMBERS - POSITIONAL NUMBERS

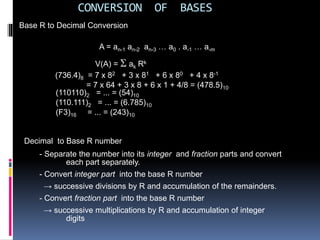

28. CONVERSION OF BASES
Decimal to Base R number
Base R to Decimal Conversion
V(A) =  ak Rk
A = an-1 an-2 an-3 … a0 . a-1 … a-m
(736.4)8 = 7 x 82 + 3 x 81 + 6 x 80 + 4 x 8-1
= 7 x 64 + 3 x 8 + 6 x 1 + 4/8 = (478.5)10
(110110)2 = ... = (54)10
(110.111)2 = ... = (6.785)10
(F3)16 = ... = (243)10
- Separate the number into its integer and fraction parts and convert
each part separately.
- Convert integer part into the base R number
→ successive divisions by R and accumulation of the remainders.
- Convert fraction part into the base R number
→ successive multiplications by R and accumulation of integer
digits

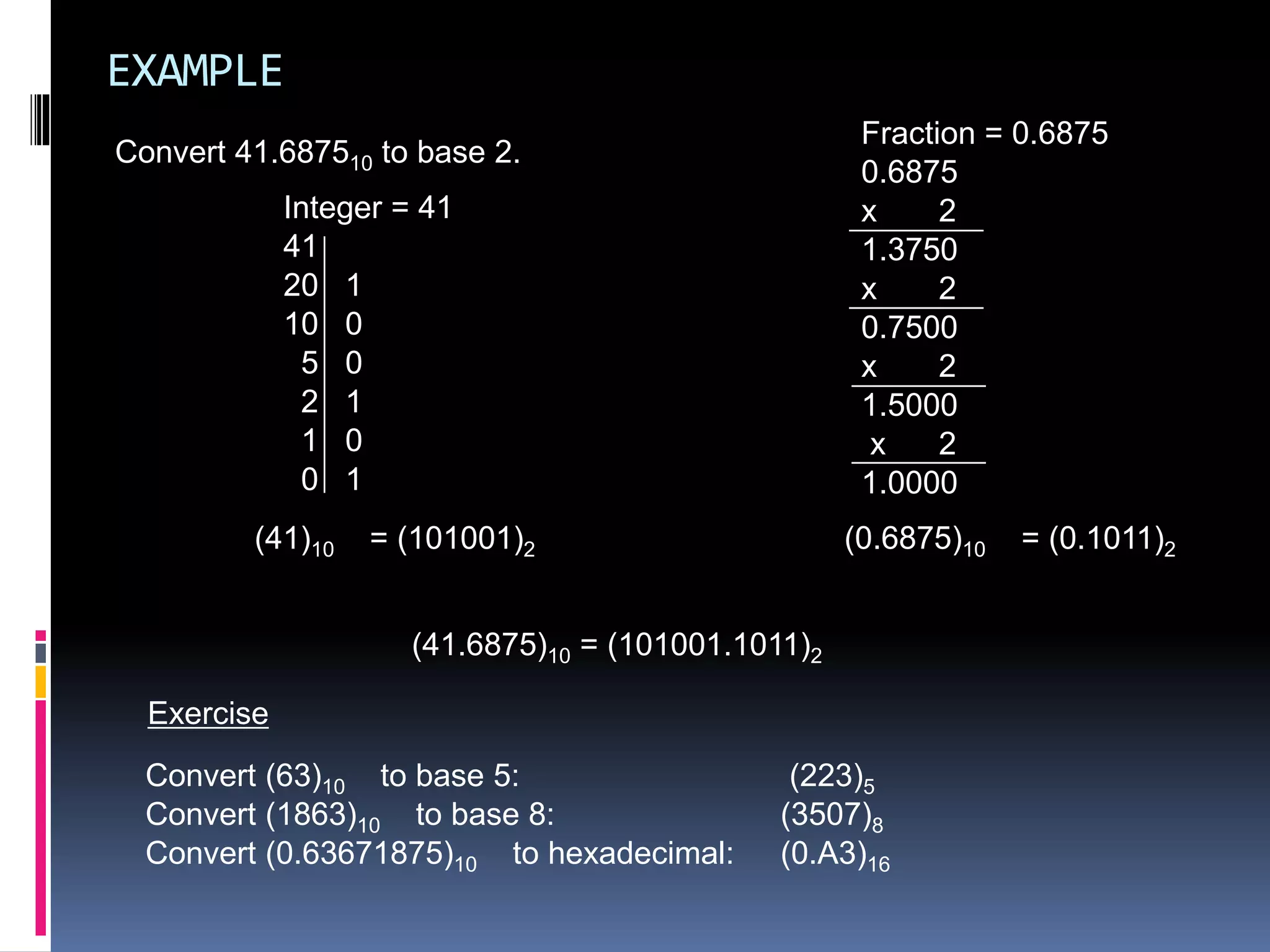

29. EXAMPLE
Convert 41.687510 to base 2.
Integer = 41
41
20 1
10 0
5 0
2 1
1 0
0 1
Fraction = 0.6875
0.6875
x 2
1.3750
x 2
0.7500
x 2
1.5000
x 2
1.0000
(41)10 = (101001)2 (0.6875)10 = (0.1011)2
(41.6875)10 = (101001.1011)2
Convert (63)10 to base 5: (223)5
Convert (1863)10 to base 8: (3507)8
Convert (0.63671875)10 to hexadecimal: (0.A3)16
Exercise

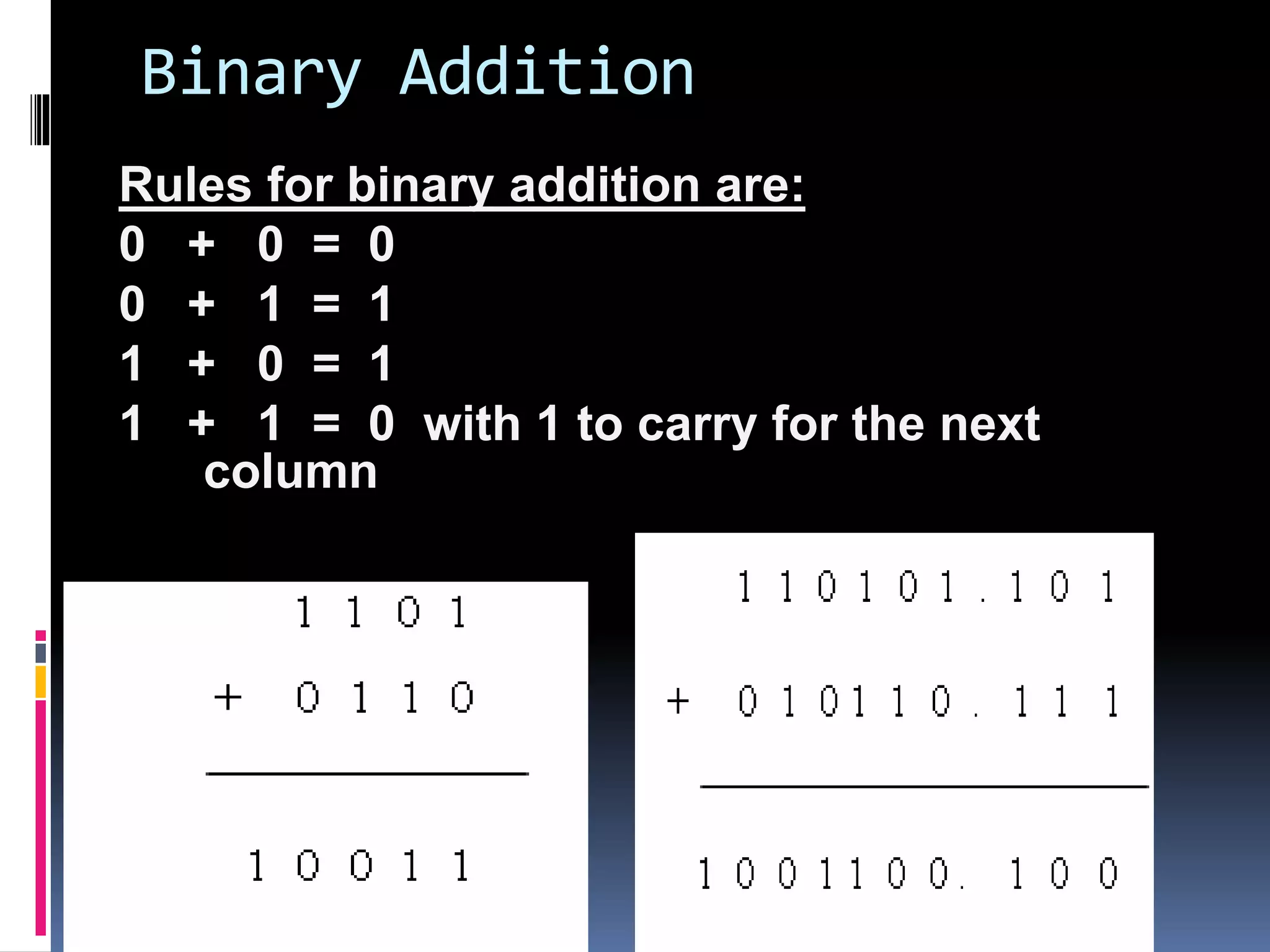

30. Binary Addition
Rules for binary addition are:
0 + 0 = 0
0 + 1 = 1
1 + 0 = 1
1 + 1 = 0 with 1 to carry for the next
column

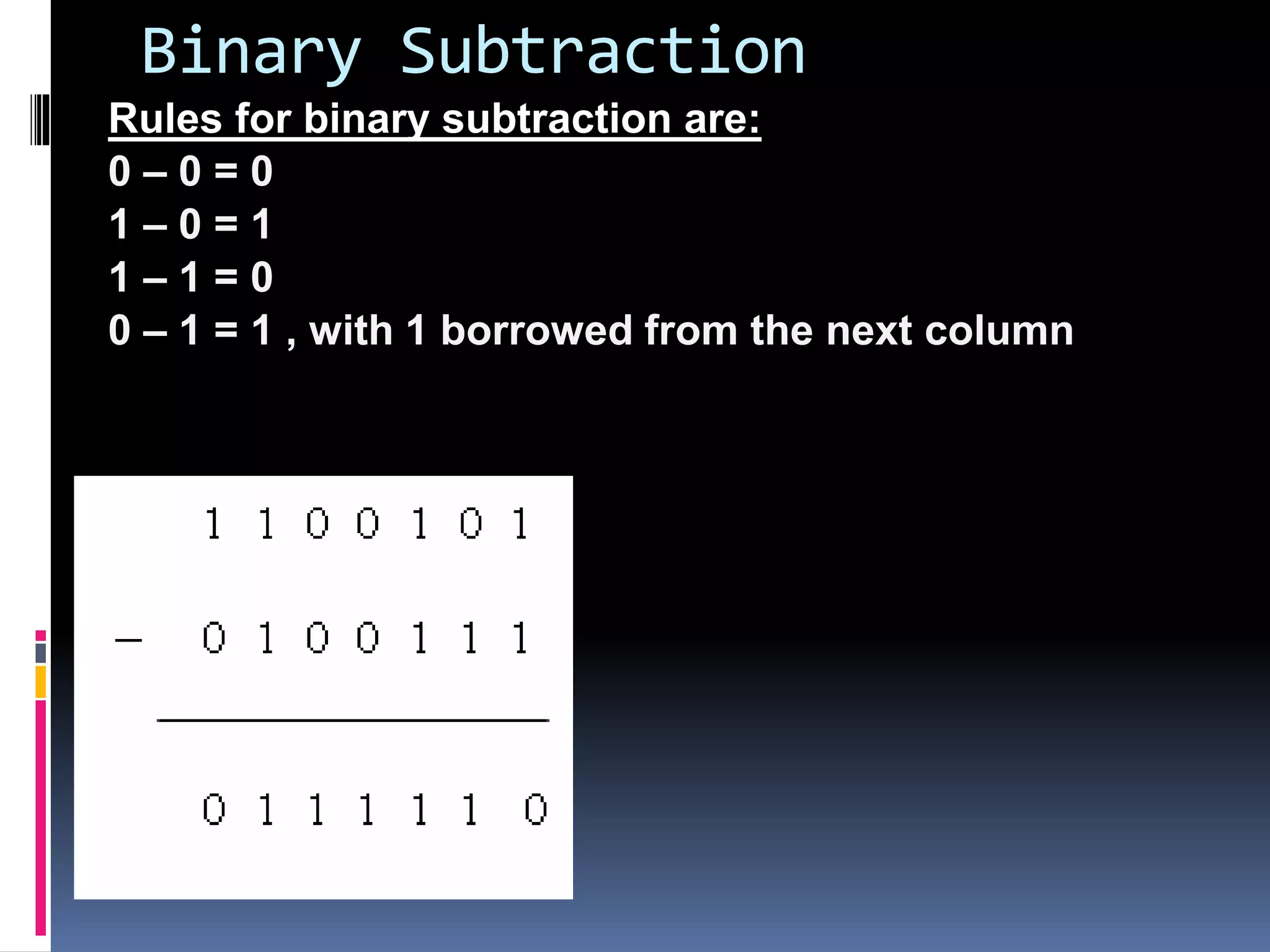

31. Binary Subtraction
Rules for binary subtraction are:
0 – 0 = 0
1 – 0 = 1
1 – 1 = 0
0 – 1 = 1 , with 1 borrowed from the next column

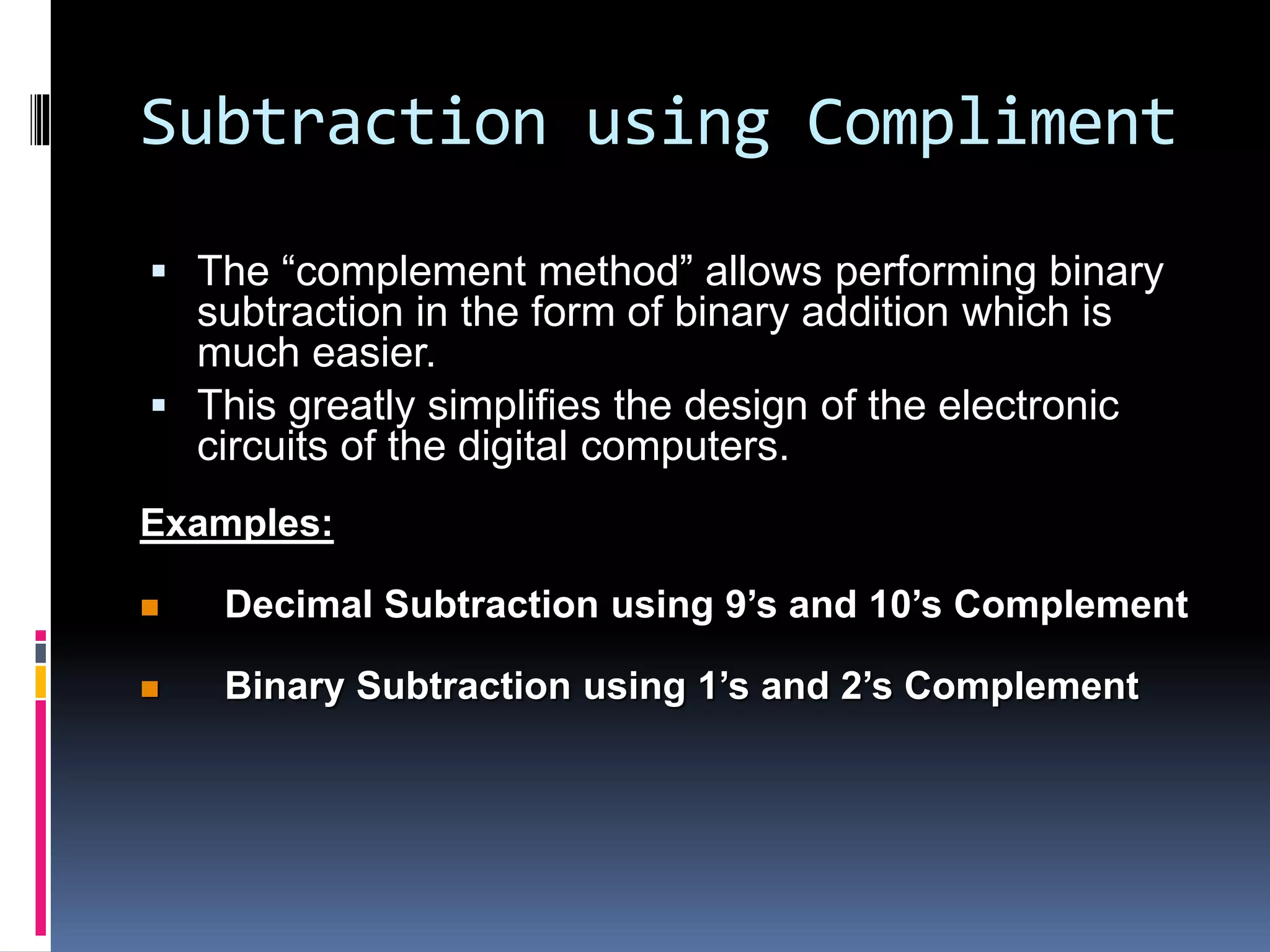

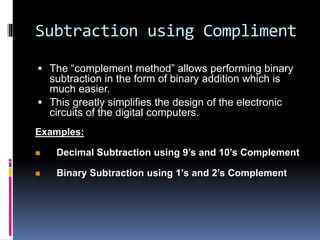

32. Subtraction using Compliment
 The “complement method” allows performing binary
subtraction in the form of binary addition which is
much easier.
 This greatly simplifies the design of the electronic
circuits of the digital computers.
Examples:
 Decimal Subtraction using 9’s and 10’s Complement
 Binary Subtraction using 1’s and 2’s Complement

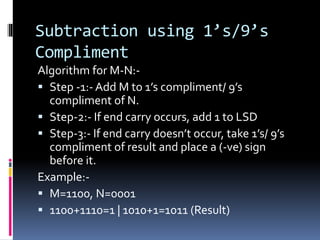

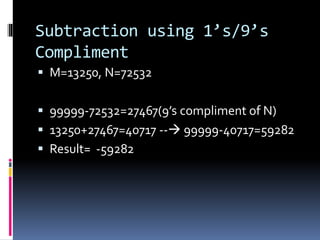

33. Subtraction using 1’s/9’s
Compliment
Algorithm for M-N:-
 Step -1:- Add M to 1’s compliment/ 9’s
compliment of N.
 Step-2:- If end carry occurs, add 1 to LSD
 Step-3:- If end carry doesn’t occur, take 1’s/ 9’s
compliment of result and place a (-ve) sign
before it.
Example:-
 M=1100, N=0001
 1100+1110=1 | 1010+1=1011 (Result)

34. Subtraction using 1’s/9’s
Compliment
 M=13250, N=72532
 99999-72532=27467(9’s compliment of N)
 13250+27467=40717 -- 99999-40717=59282
 Result= -59282

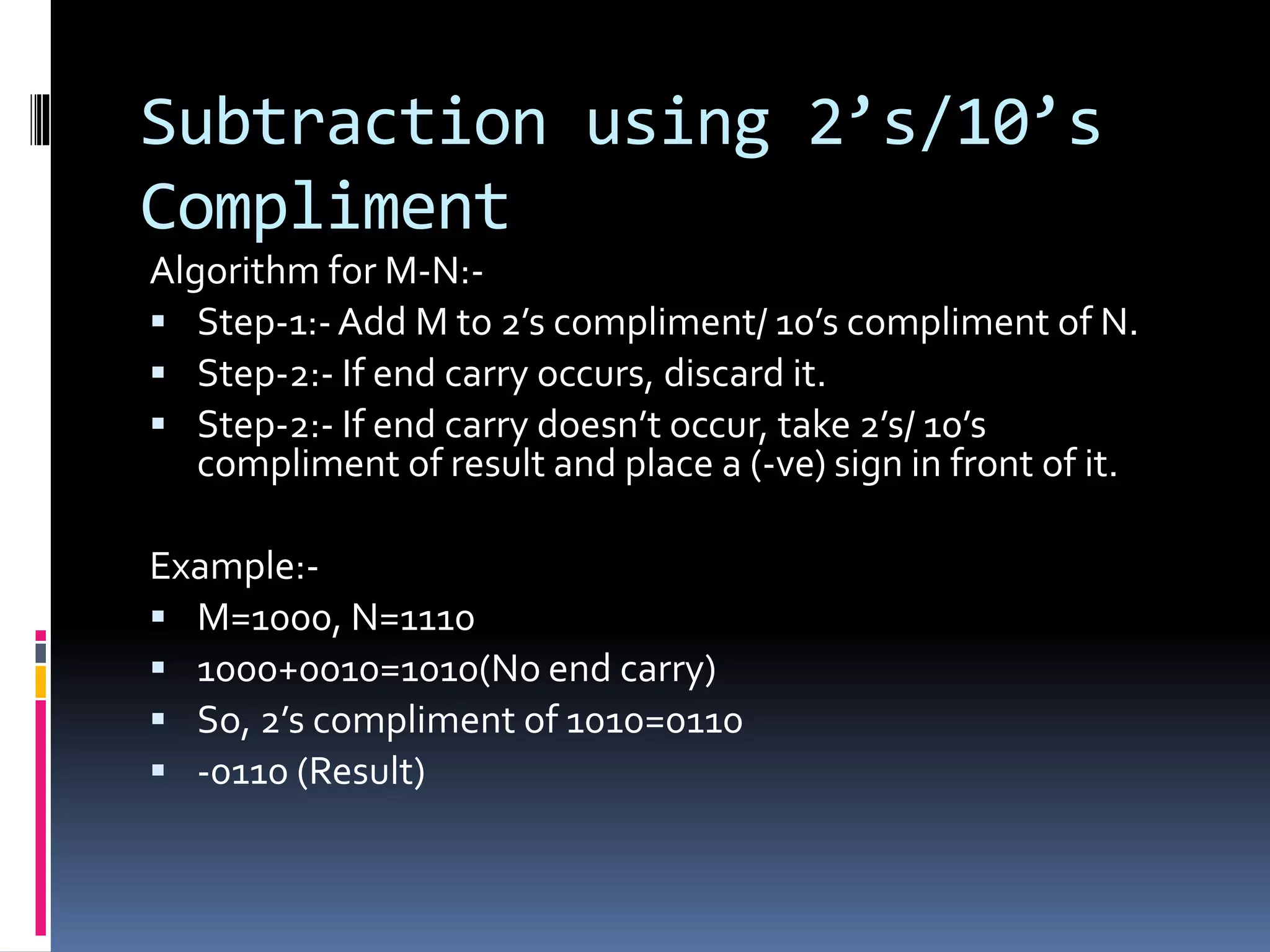

35. Subtraction using 2’s/10’s
Compliment
Algorithm for M-N:-
 Step-1:-Add M to 2’s compliment/ 10’s compliment of N.
 Step-2:- If end carry occurs, discard it.
 Step-2:- If end carry doesn’t occur, take 2’s/ 10’s
compliment of result and place a (-ve) sign in front of it.
Example:-
 M=1000, N=1110
 1000+0010=1010(No end carry)
 So, 2’s compliment of 1010=0110
 -0110 (Result)

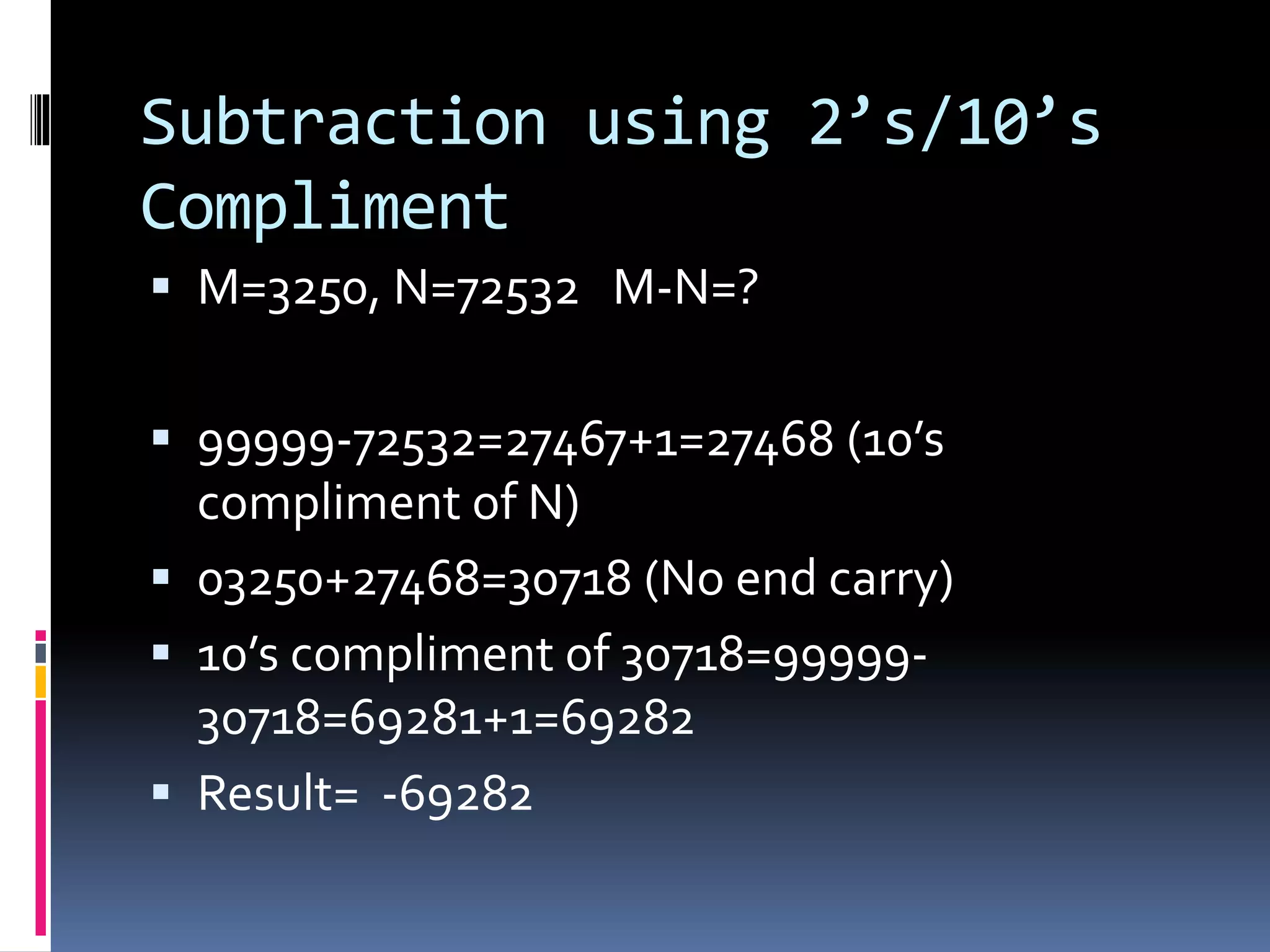

36. Subtraction using 2’s/10’s
Compliment
 M=3250, N=72532 M-N=?
 99999-72532=27467+1=27468 (10’s
compliment of N)
 03250+27468=30718 (No end carry)
 10’s compliment of 30718=99999-
30718=69281+1=69282
 Result= -69282

37. Subtraction using Complement
Exercise

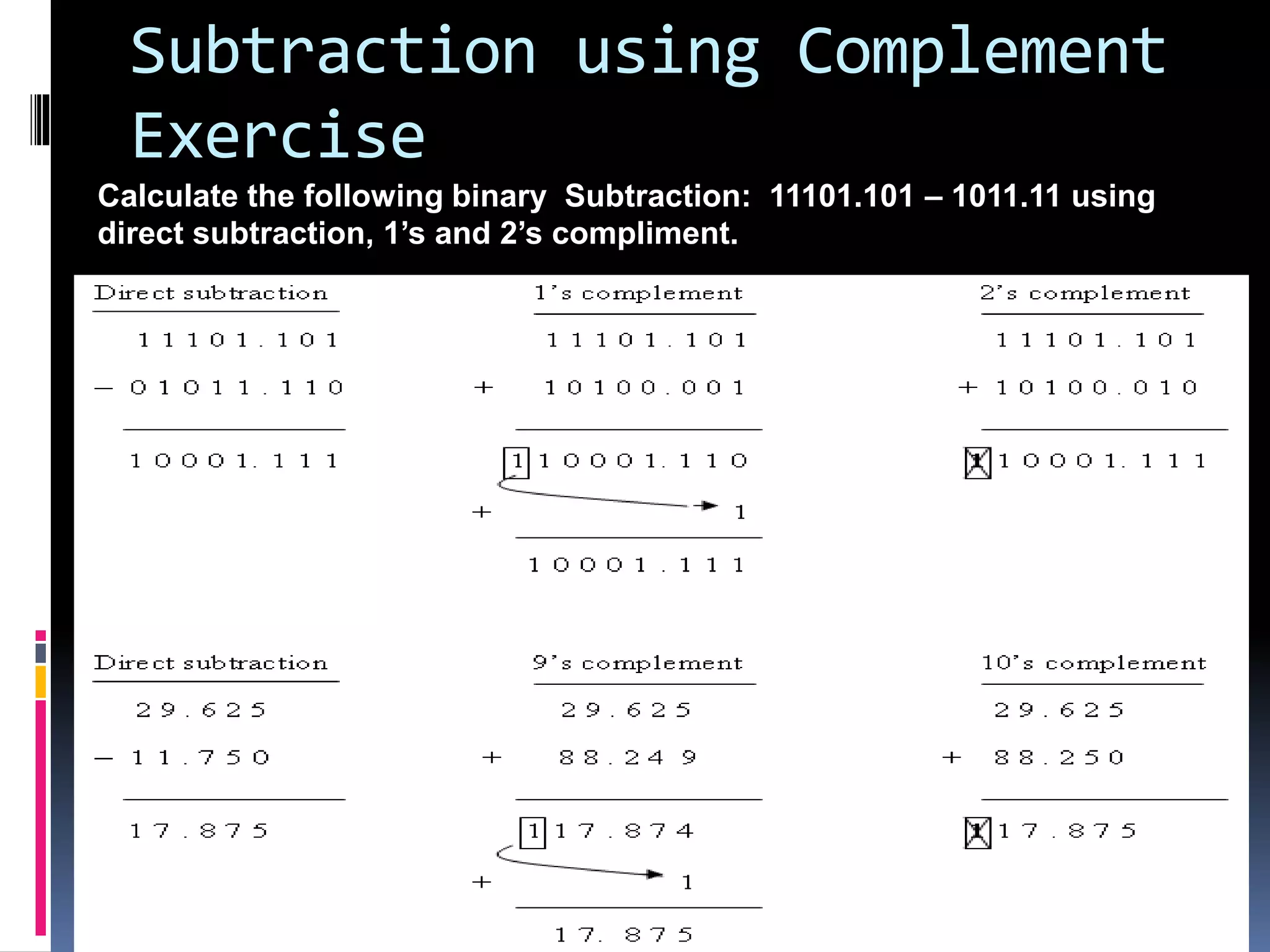

Calculate the following binary Subtraction: 11101.101 – 1011.11 using
direct subtraction, 1’s and 2’s compliment.

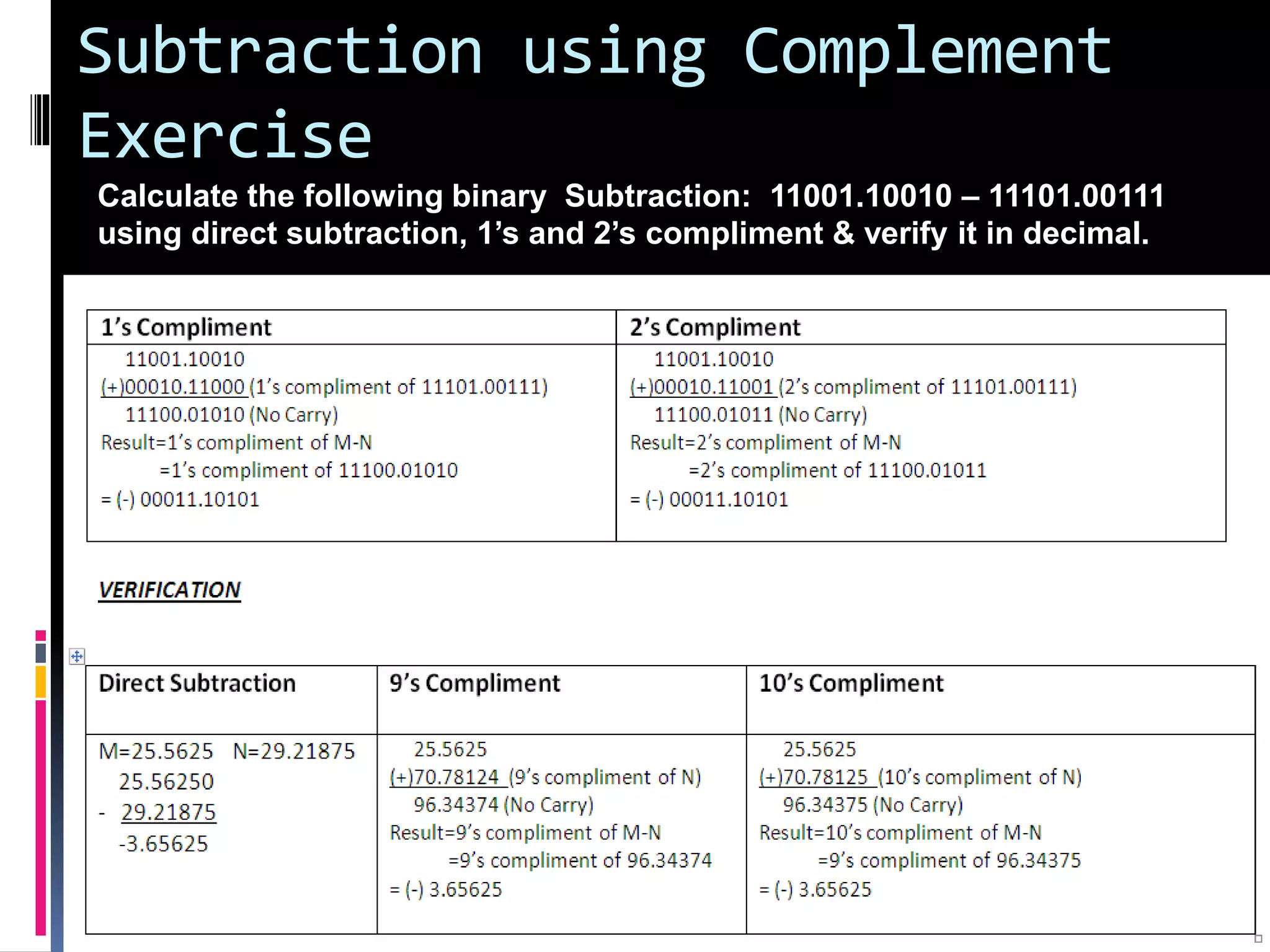

38. Subtraction using Complement
Exercise
Calculate the following binary Subtraction: 11001.10010 – 11101.00111
using direct subtraction, 1’s and 2’s compliment & verify it in decimal.

39. Design Hardware Bit by Bit

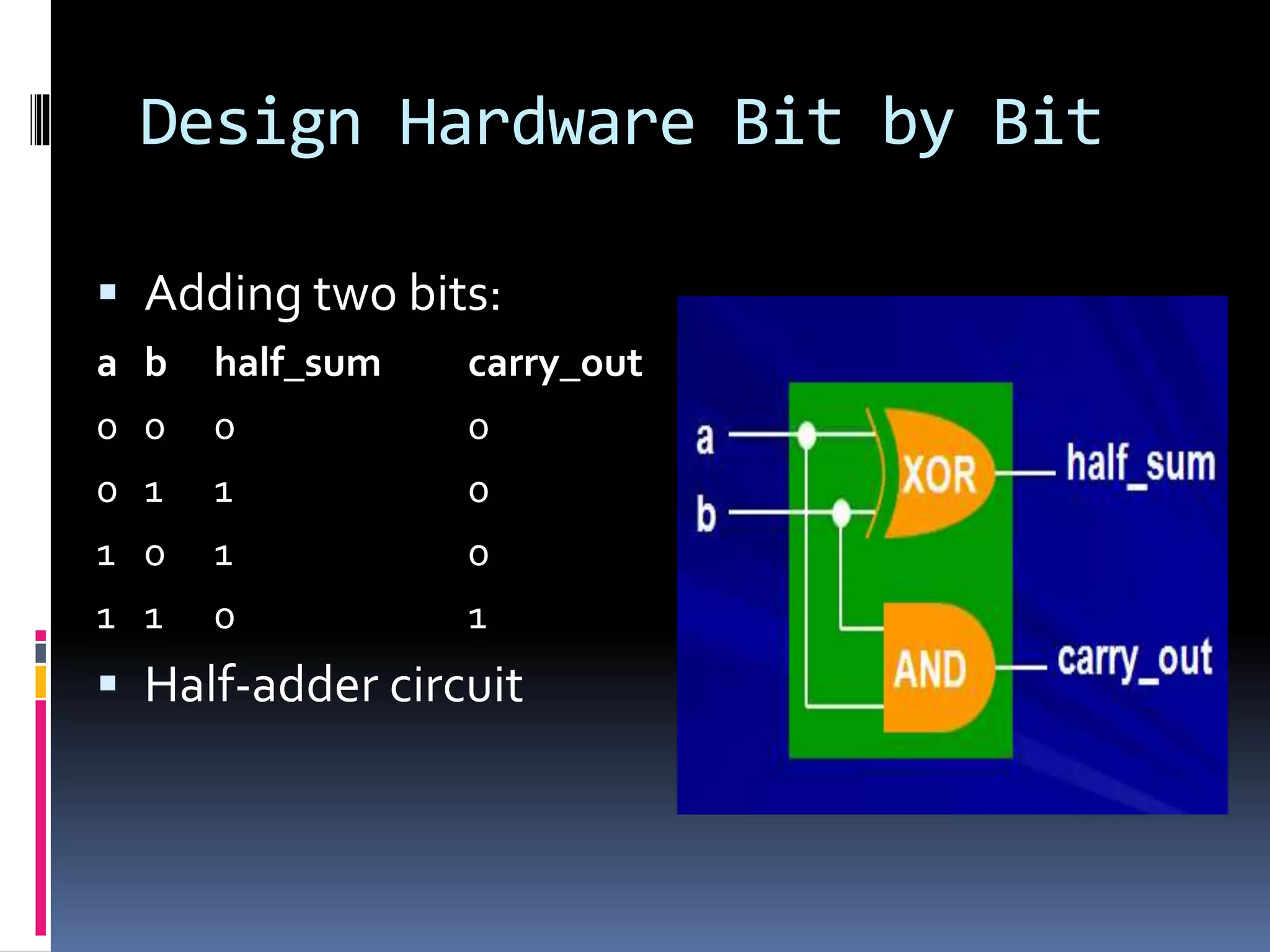

 Adding two bits:
a b half_sum carry_out
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1
 Half-adder circuit

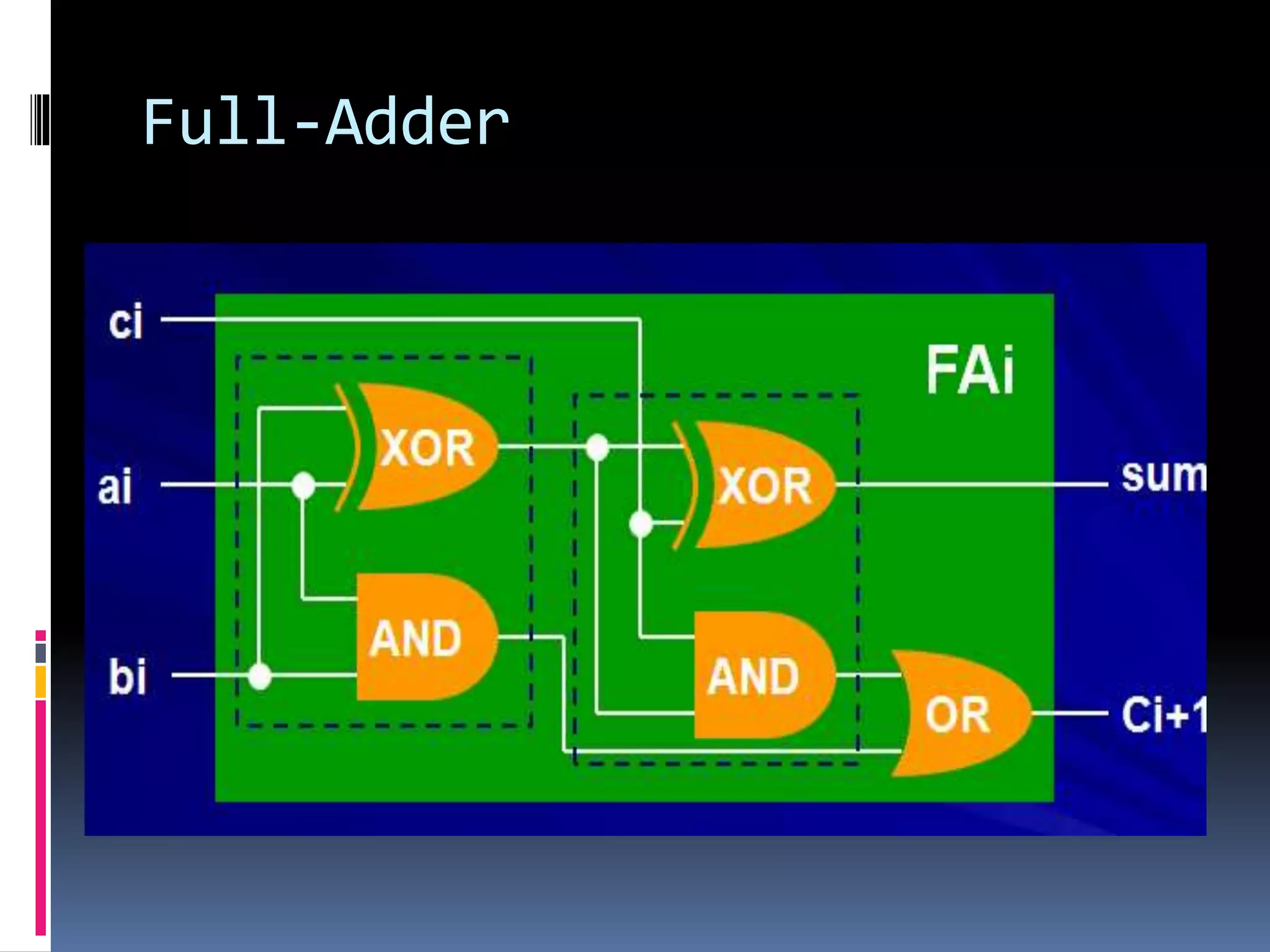

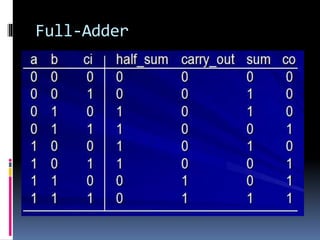

40. Full-Adder

41. Full-Adder

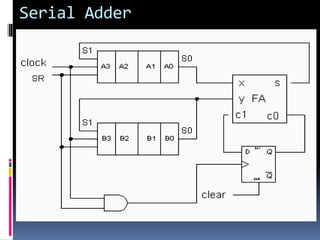

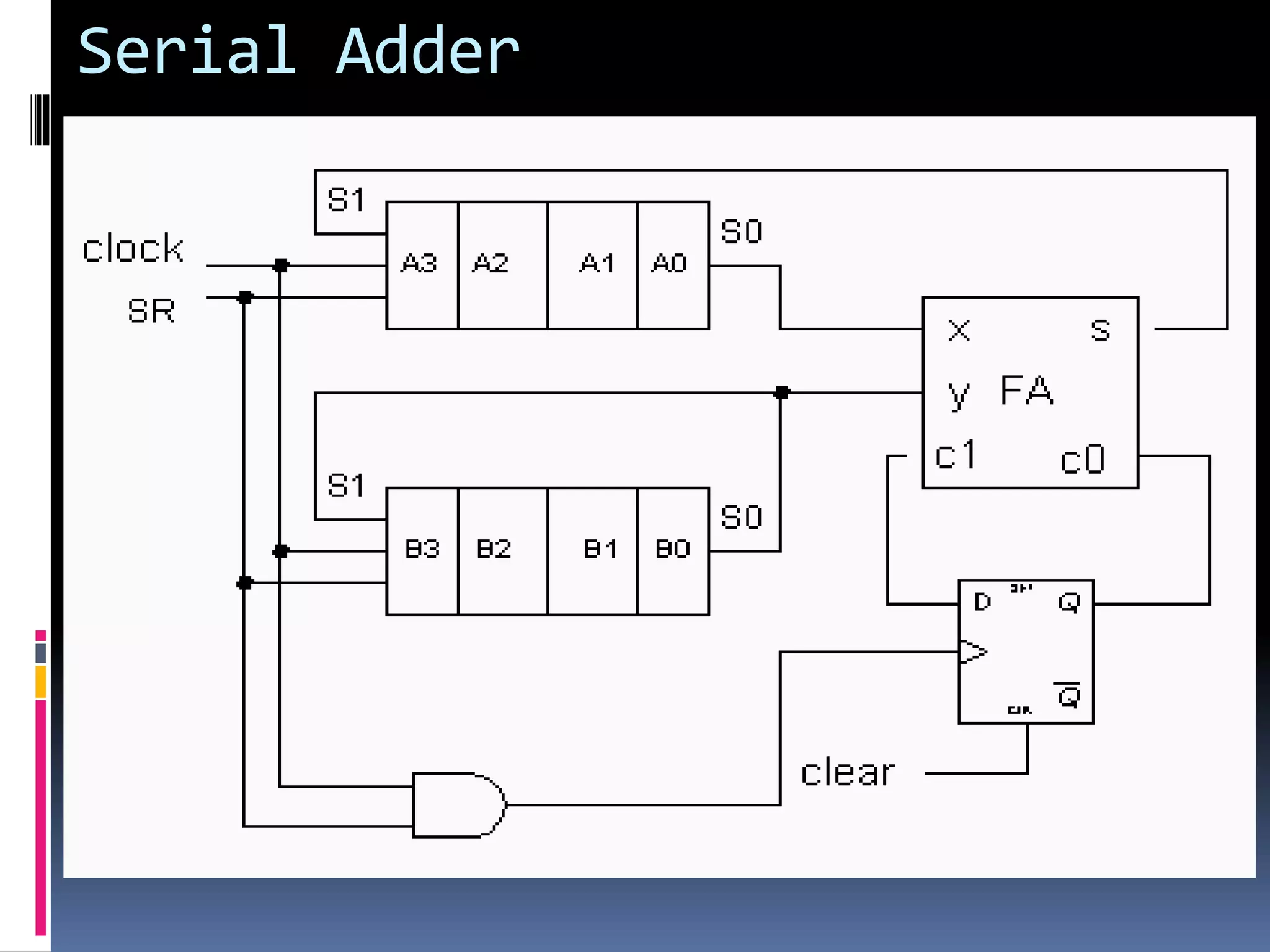

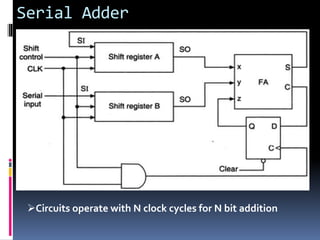

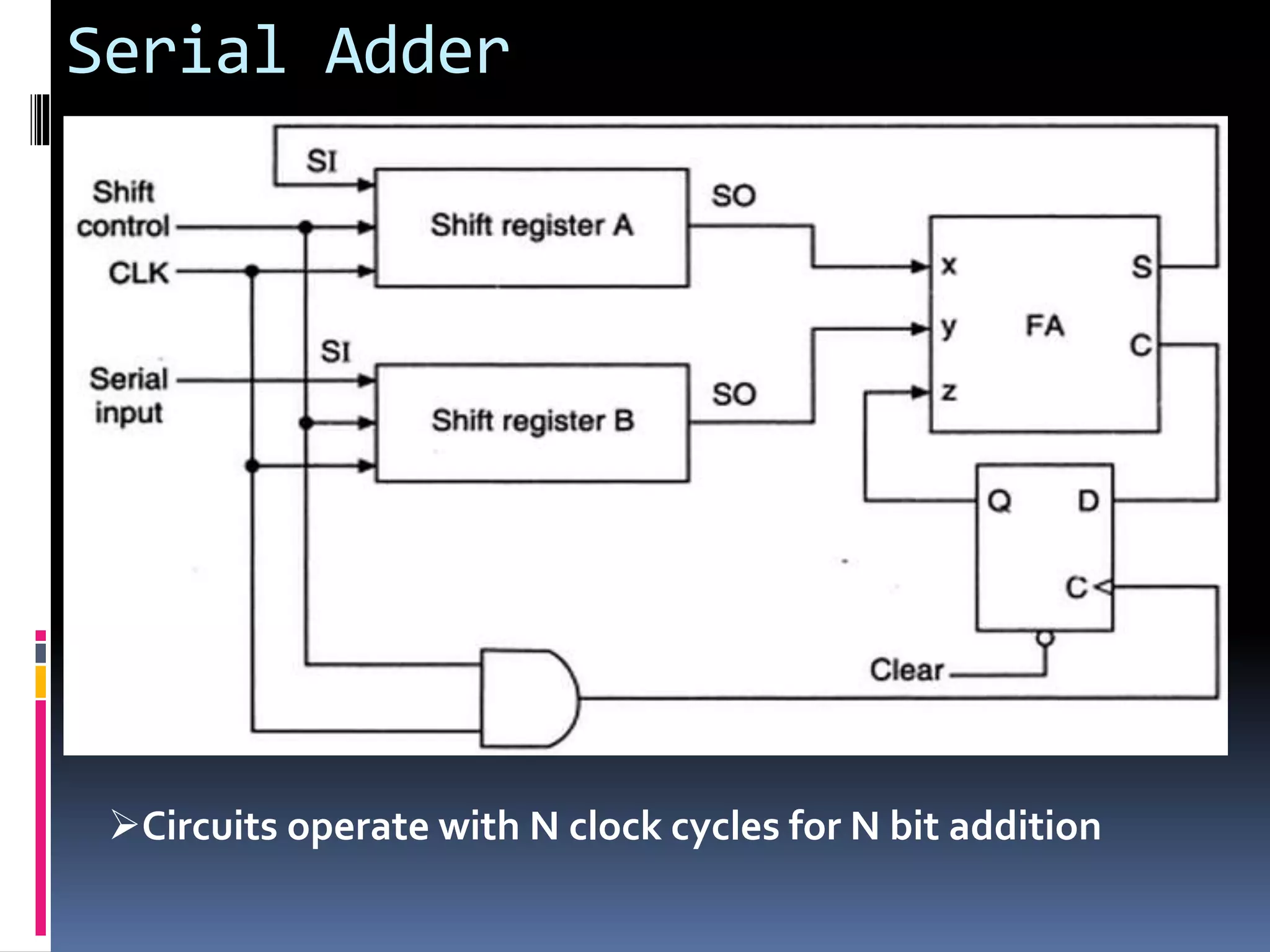

42. Serial Adder
Circuits operate with N clock cycles for N bit addition

43. Serial Adder

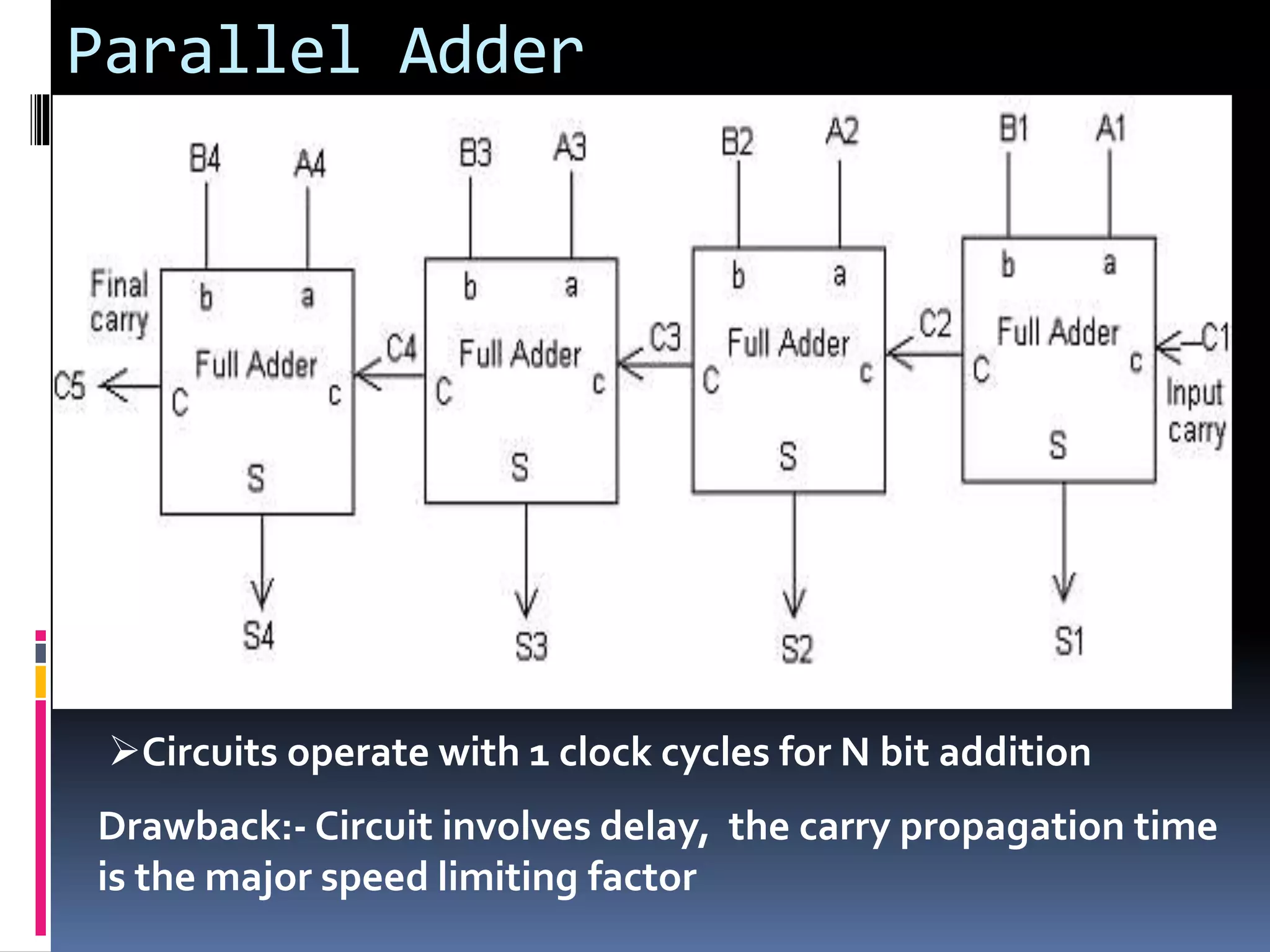

44. Parallel Adder
Drawback:- Circuit involves delay, the carry propagation time
is the major speed limiting factor
Circuits operate with 1 clock cycles for N bit addition

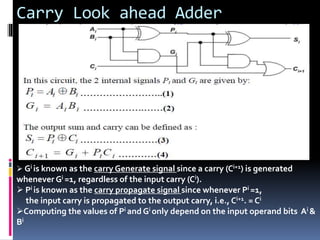

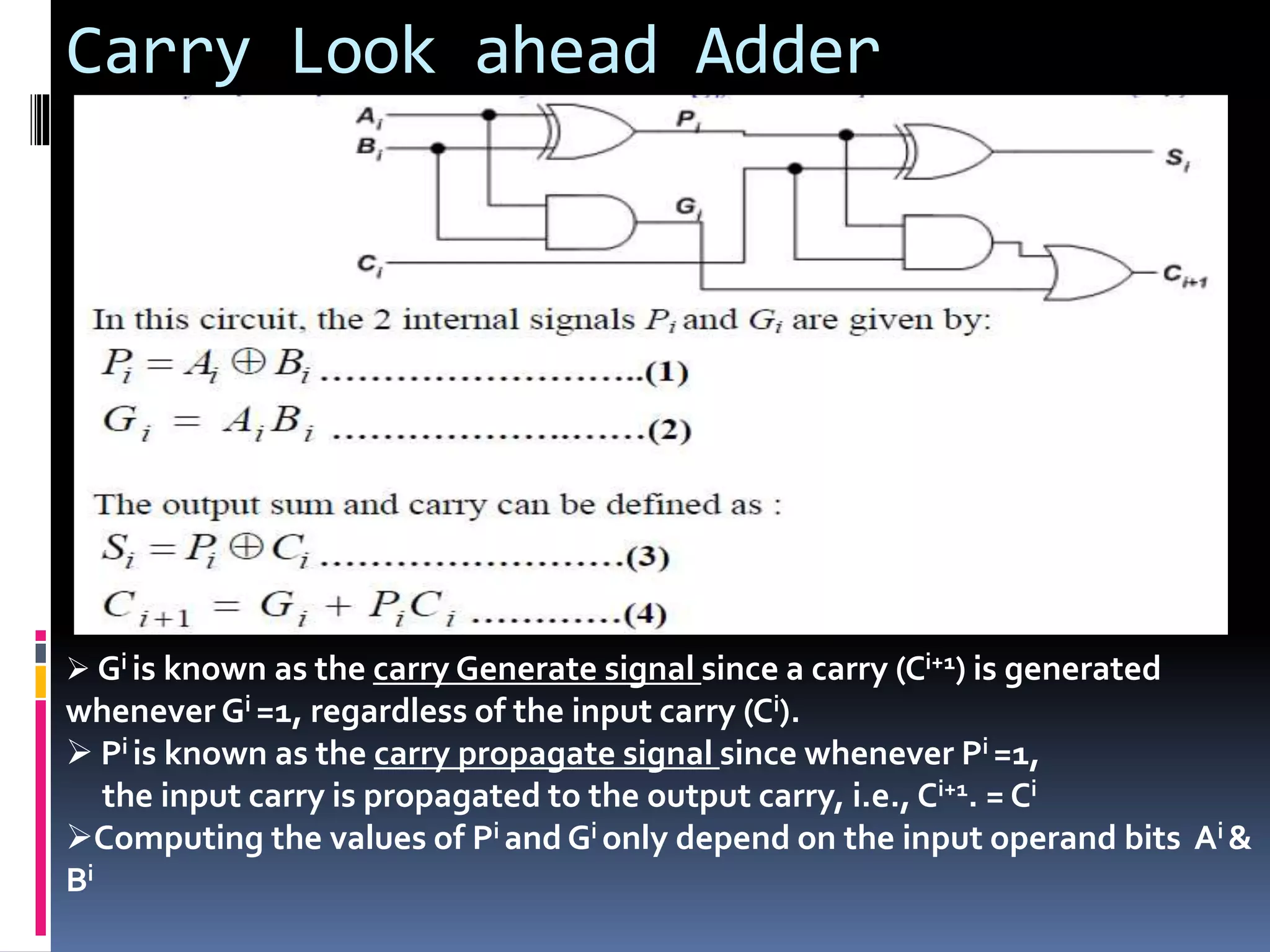

45. Carry Look ahead Adder
 Gi is known as the carry Generate signal since a carry (Ci+1) is generated
whenever Gi =1, regardless of the input carry (Ci).
 Pi is known as the carry propagate signal since whenever Pi =1,
the input carry is propagated to the output carry, i.e., Ci+1. = Ci
Computing the values of Pi and Gi only depend on the input operand bits Ai &
Bi

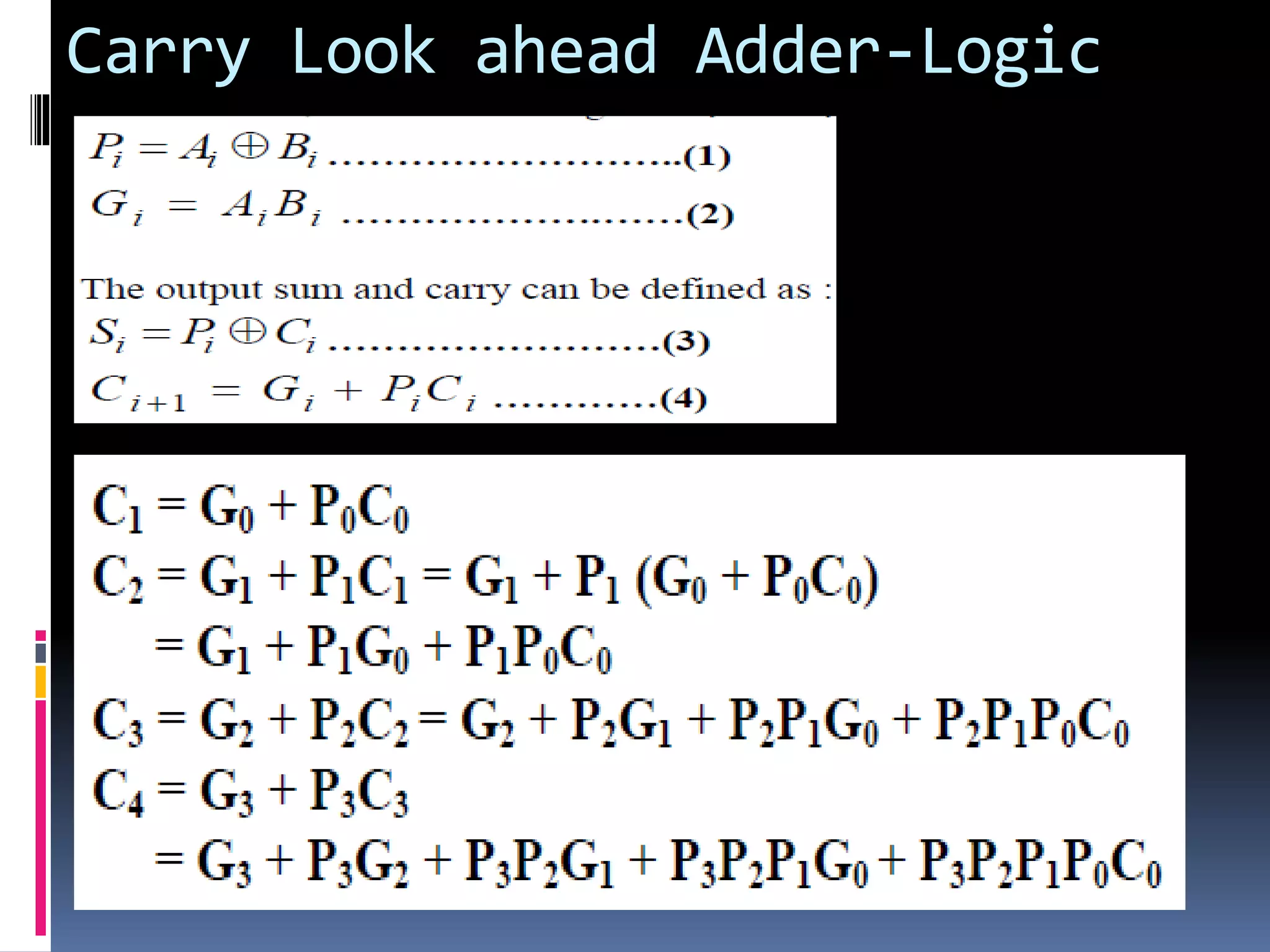

46. Carry Look ahead Adder-Logic

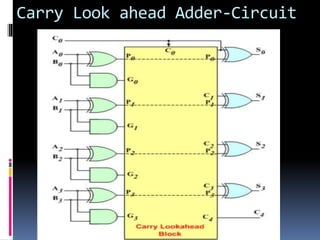

47. Carry Look ahead Adder-Circuit

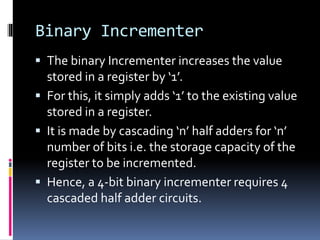

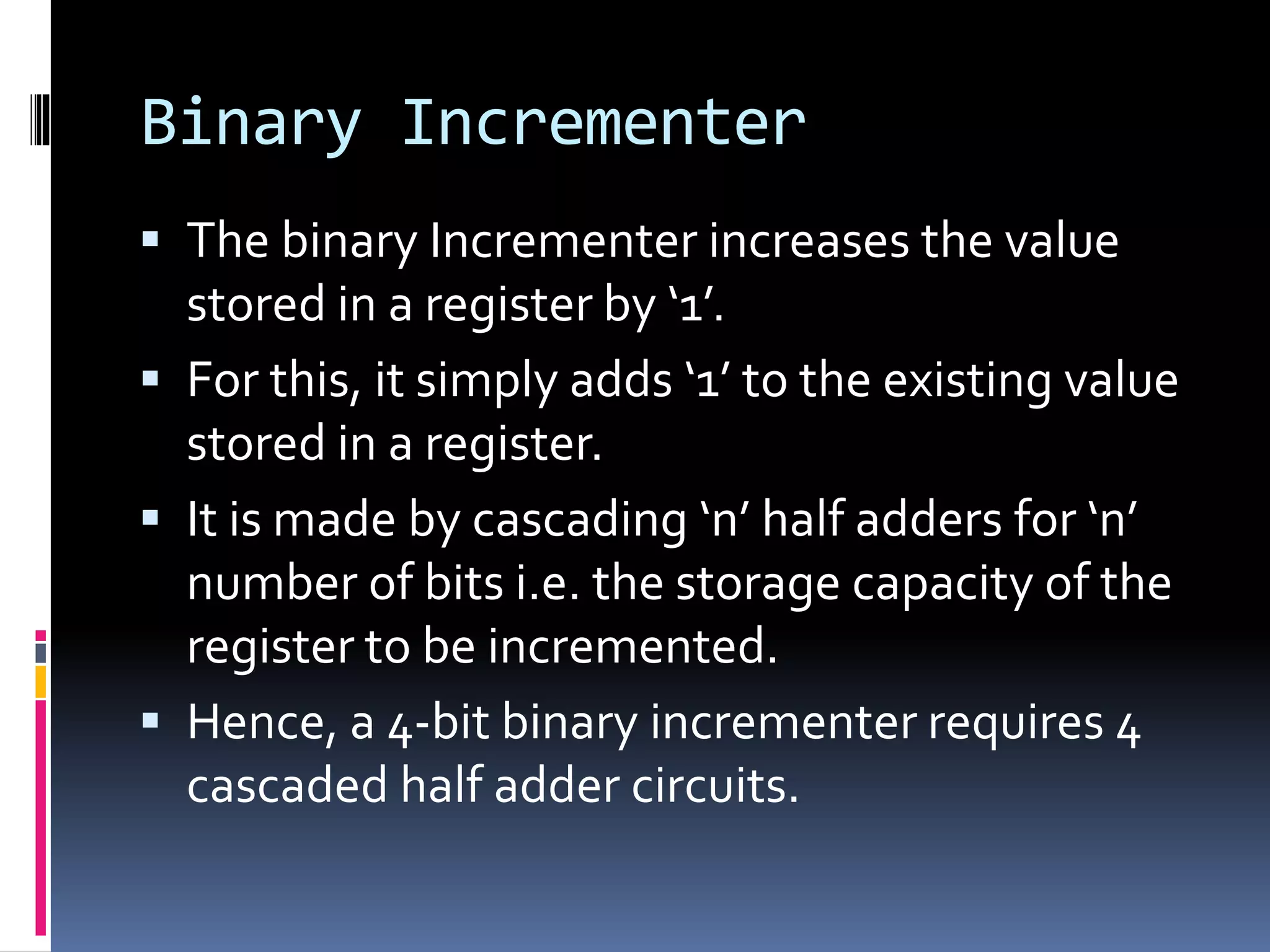

48. Binary Incrementer
 The binary Incrementer increases the value
stored in a register by ‘1’.
 For this, it simply adds ‘1’ to the existing value
stored in a register.
 It is made by cascading ‘n’ half adders for ‘n’
number of bits i.e. the storage capacity of the
register to be incremented.
 Hence, a 4-bit binary incrementer requires 4
cascaded half adder circuits.

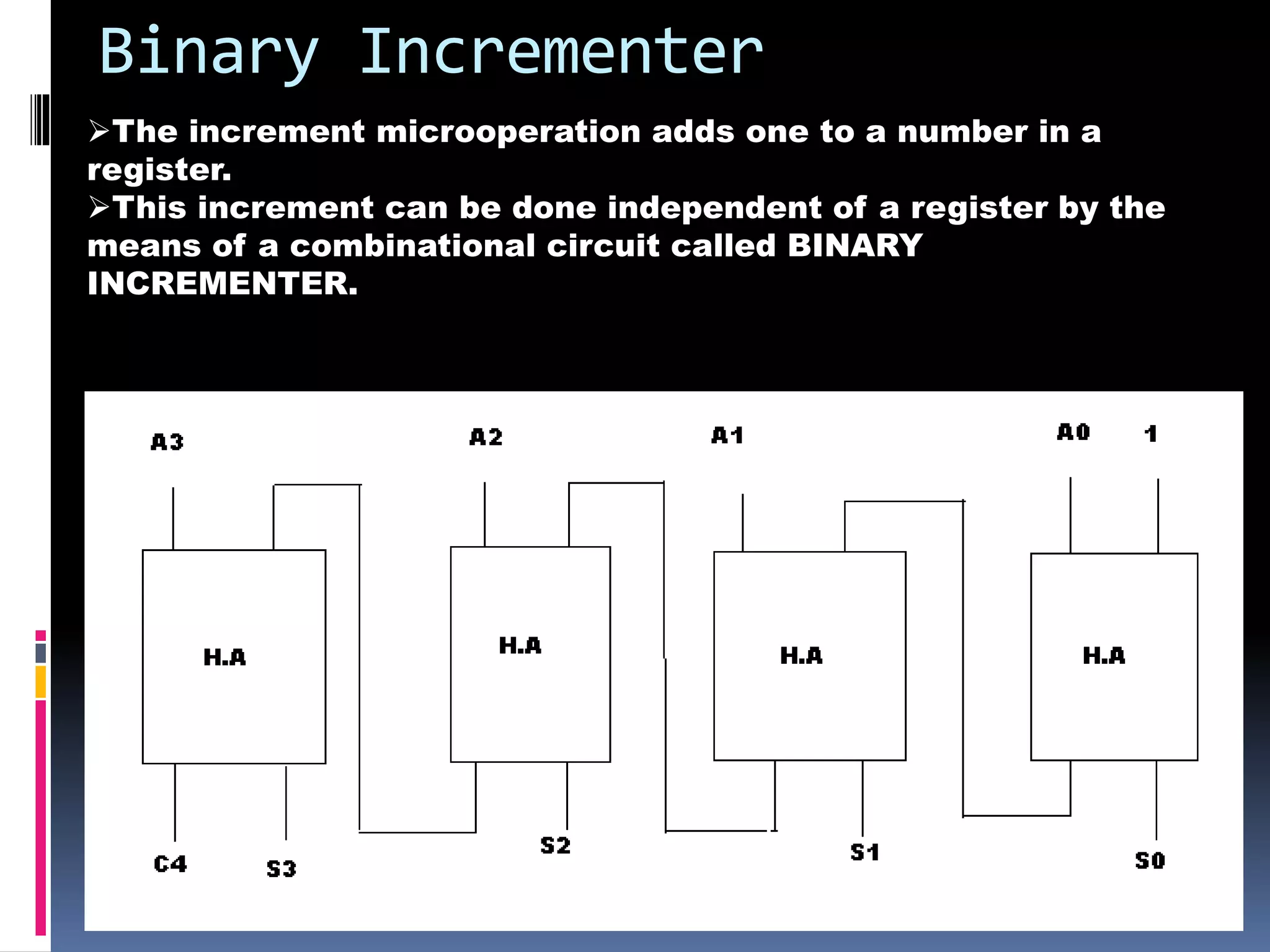

49. Binary Incrementer
The increment microoperation adds one to a number in a
register.
This increment can be done independent of a register by the
means of a combinational circuit called BINARY
INCREMENTER.

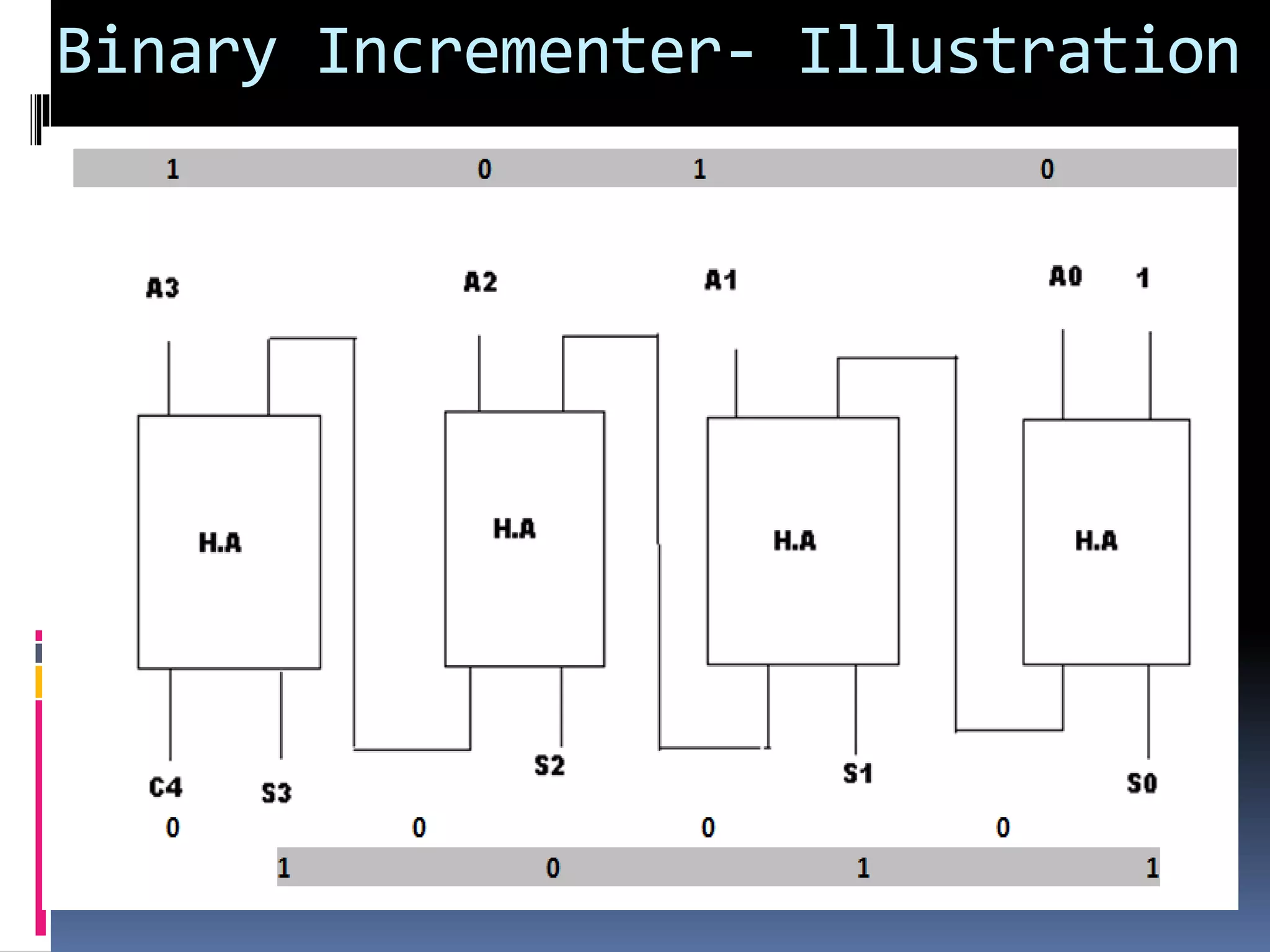

50. Binary Incrementer- Illustration

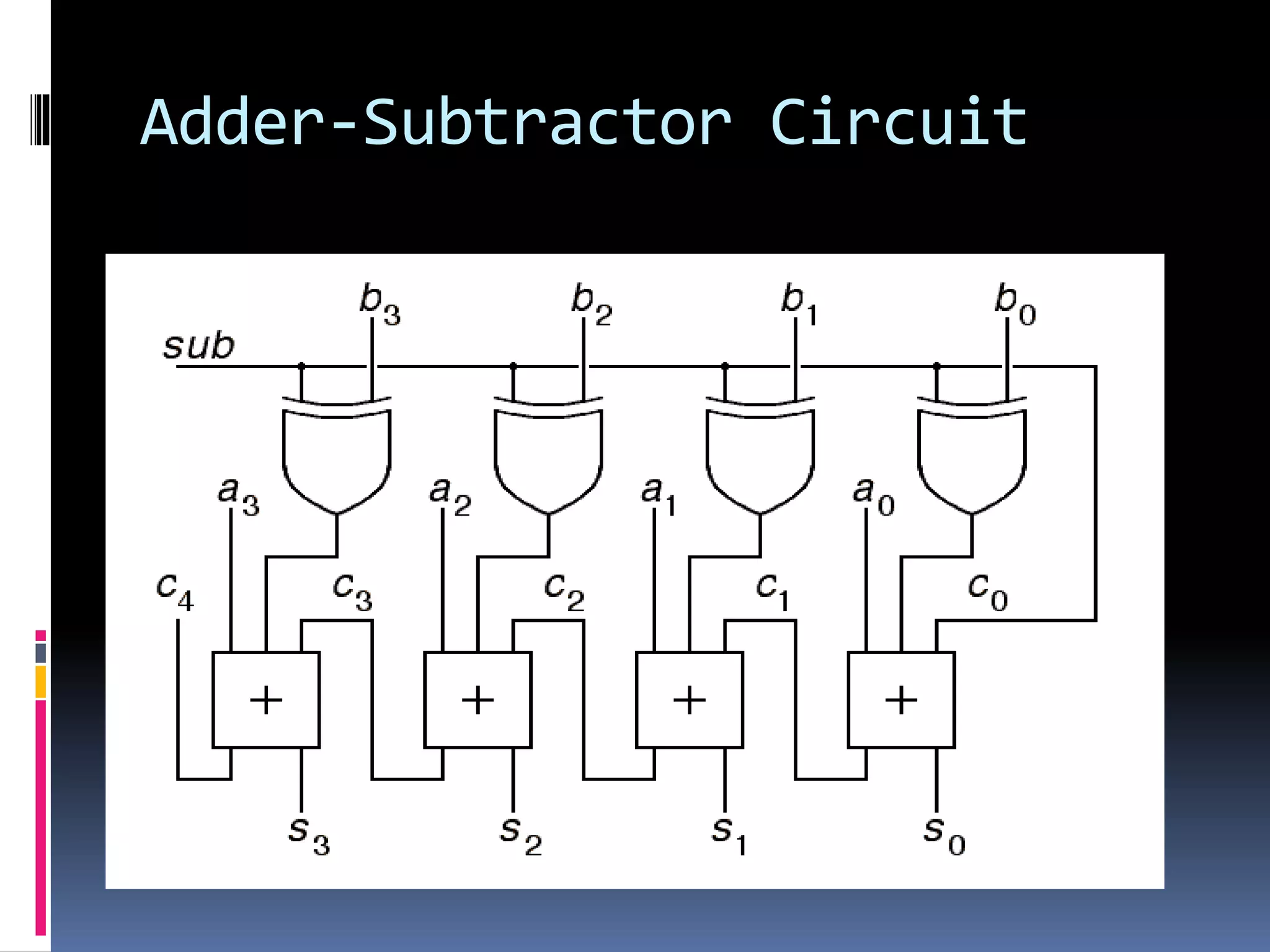

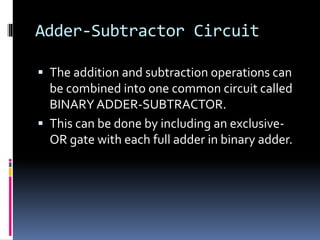

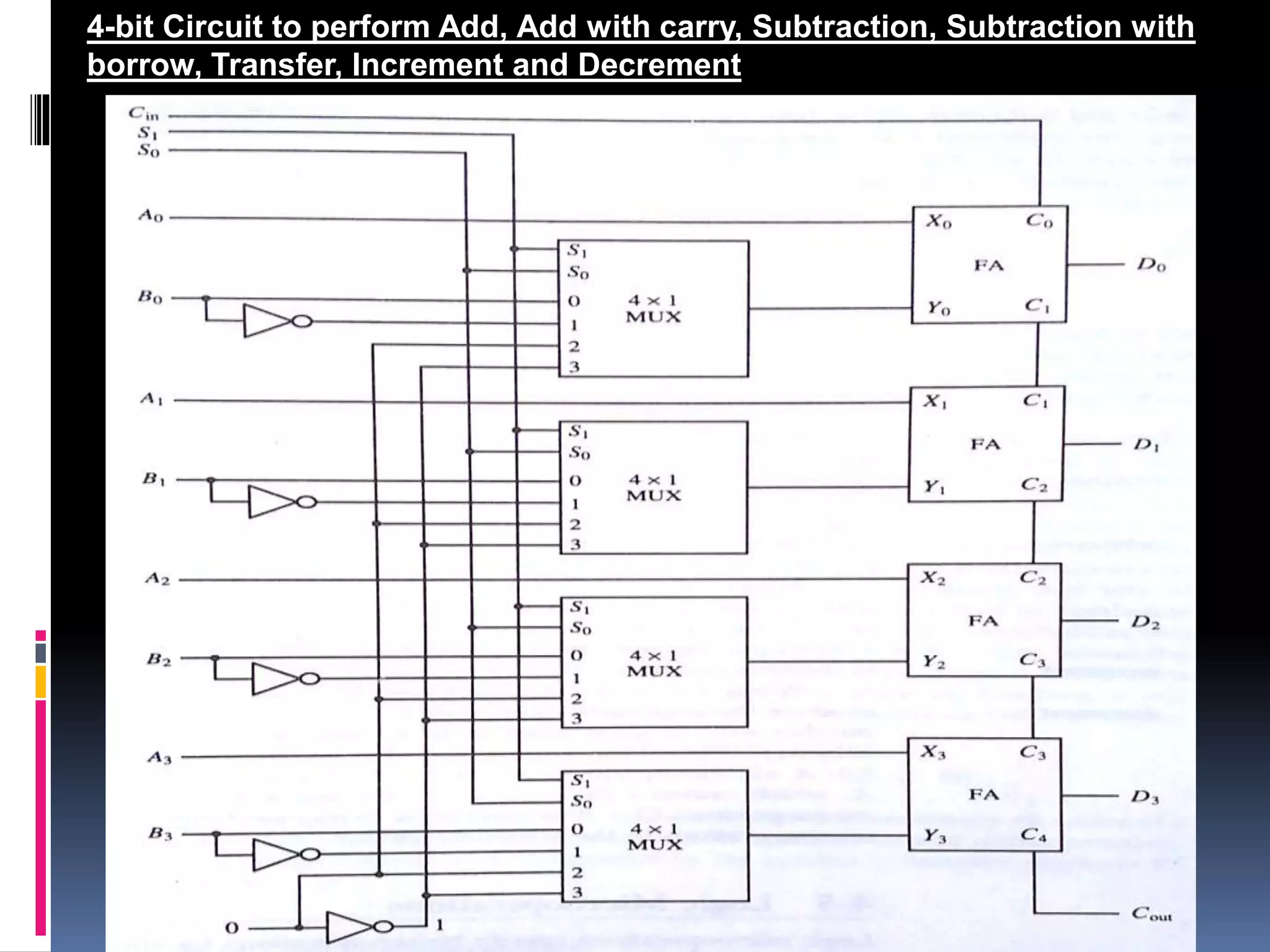

51. Adder-Subtractor Circuit
 The addition and subtraction operations can
be combined into one common circuit called
BINARY ADDER-SUBTRACTOR.
 This can be done by including an exclusive-
OR gate with each full adder in binary adder.

52. Adder-Subtractor Circuit

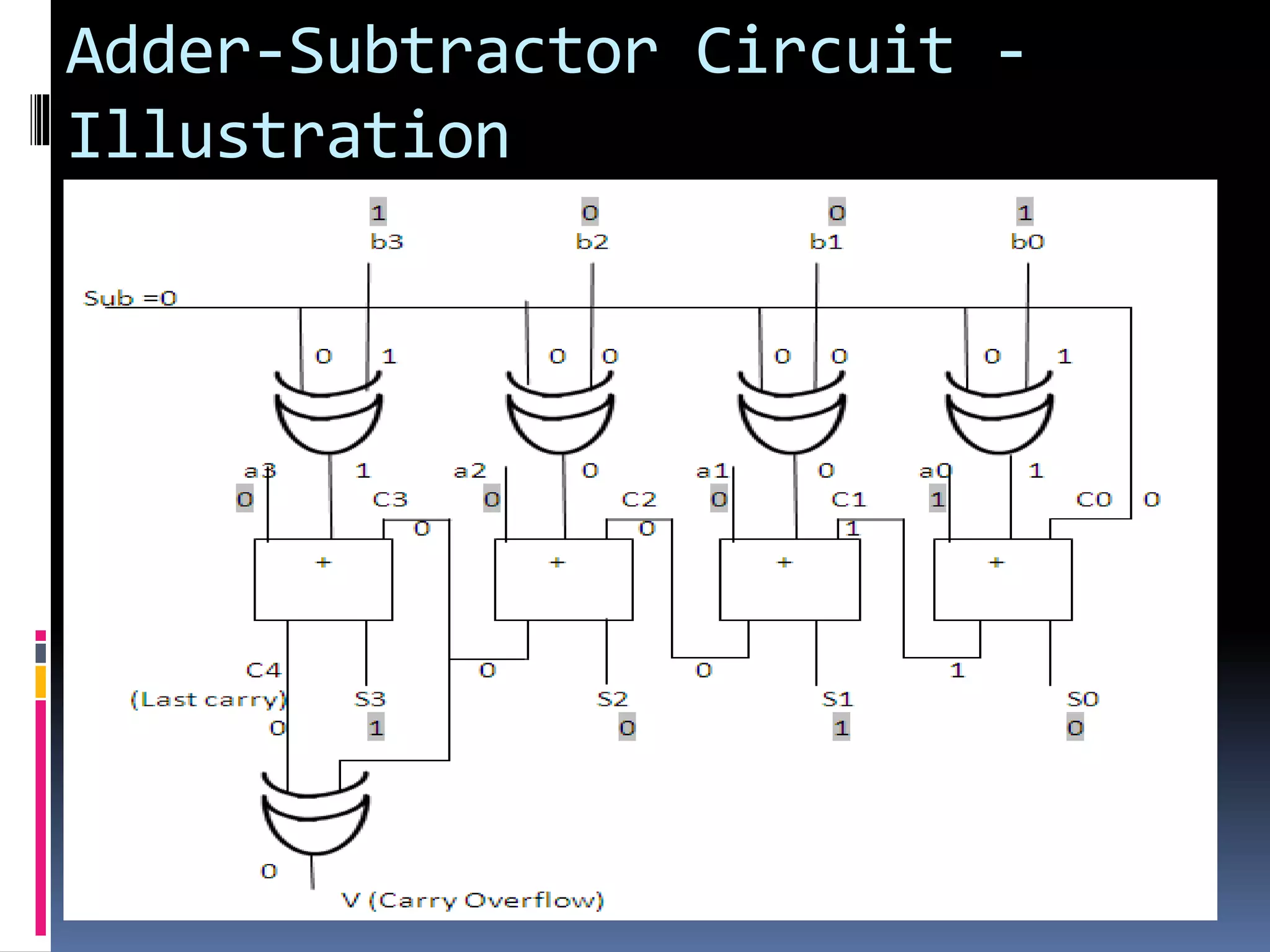

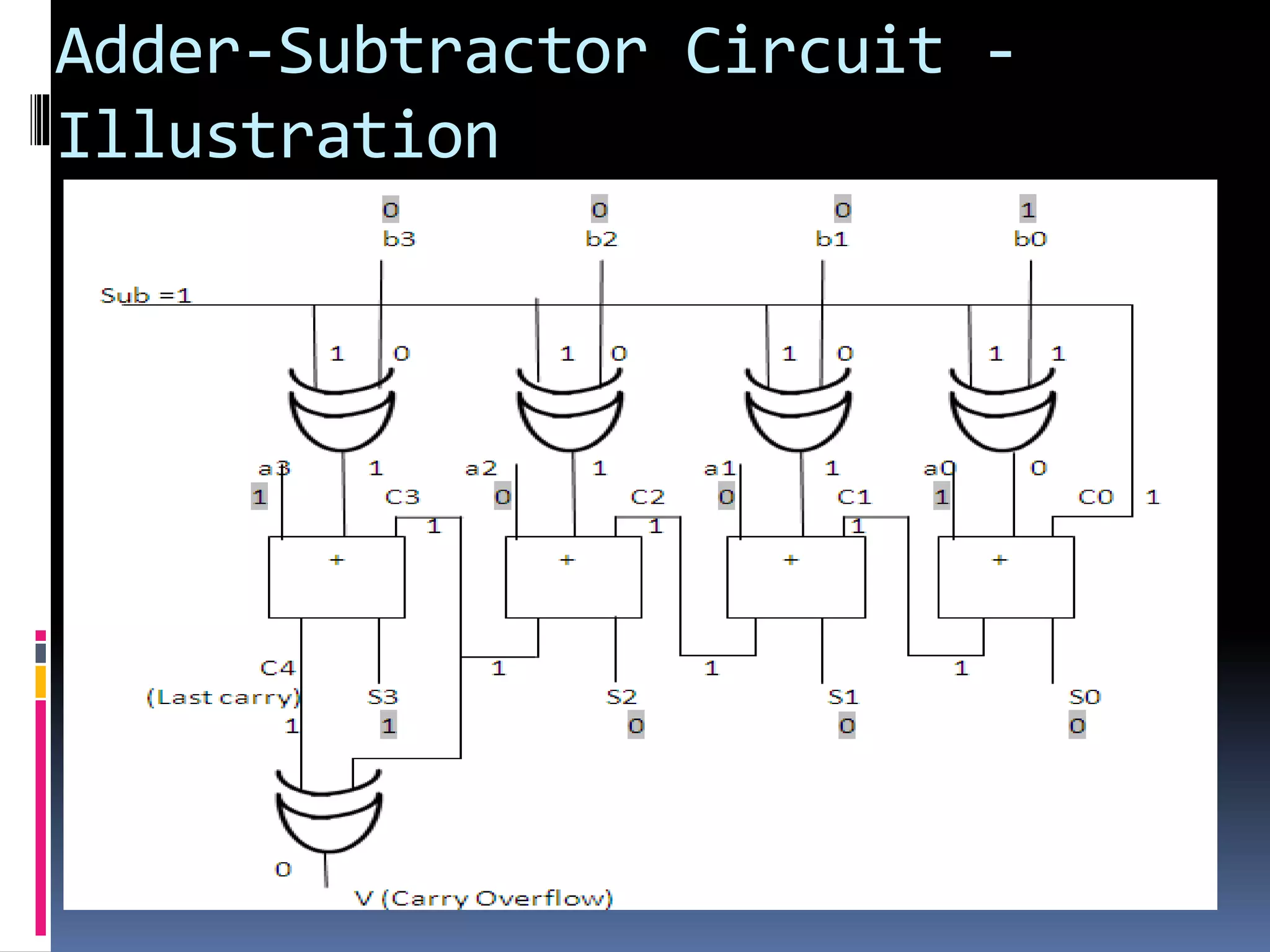

53. Adder-Subtractor Circuit -
Illustration

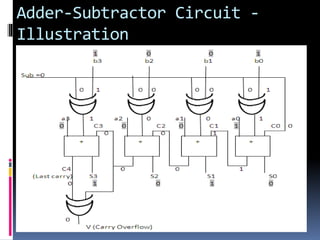

54. Adder-Subtractor Circuit -
Illustration

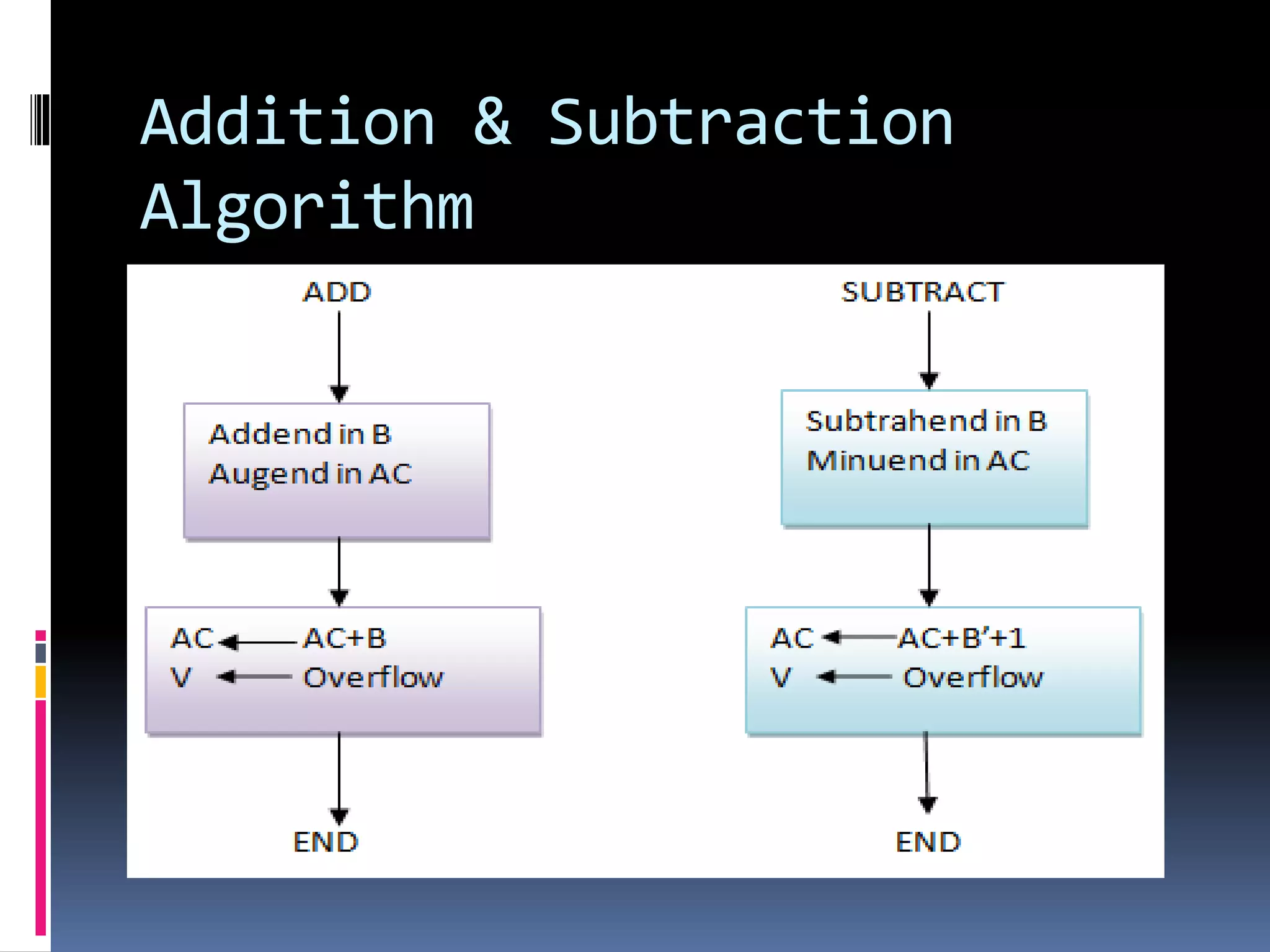

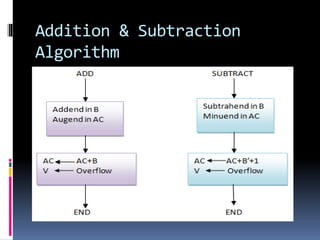

55. Addition & Subtraction
Algorithm

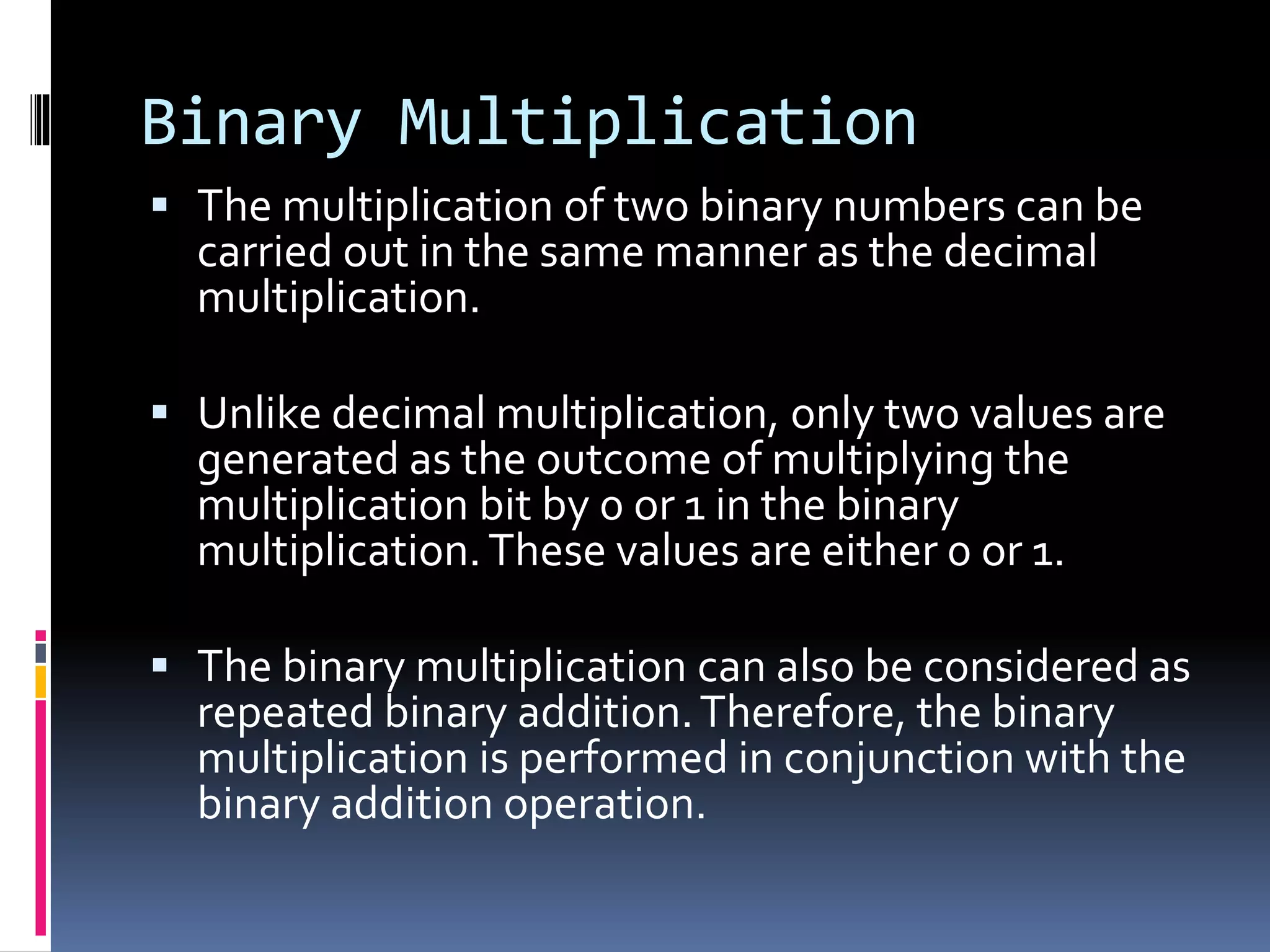

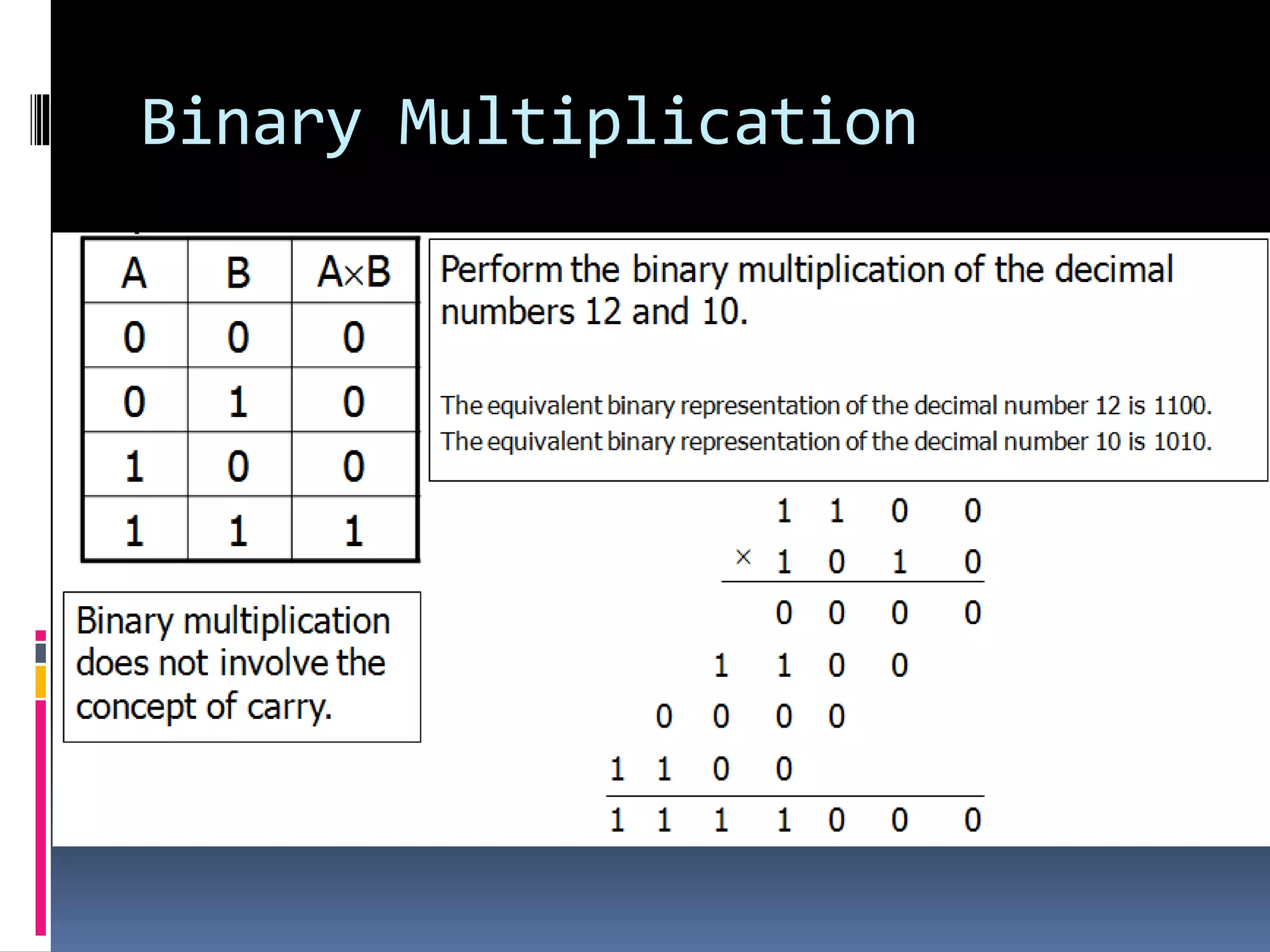

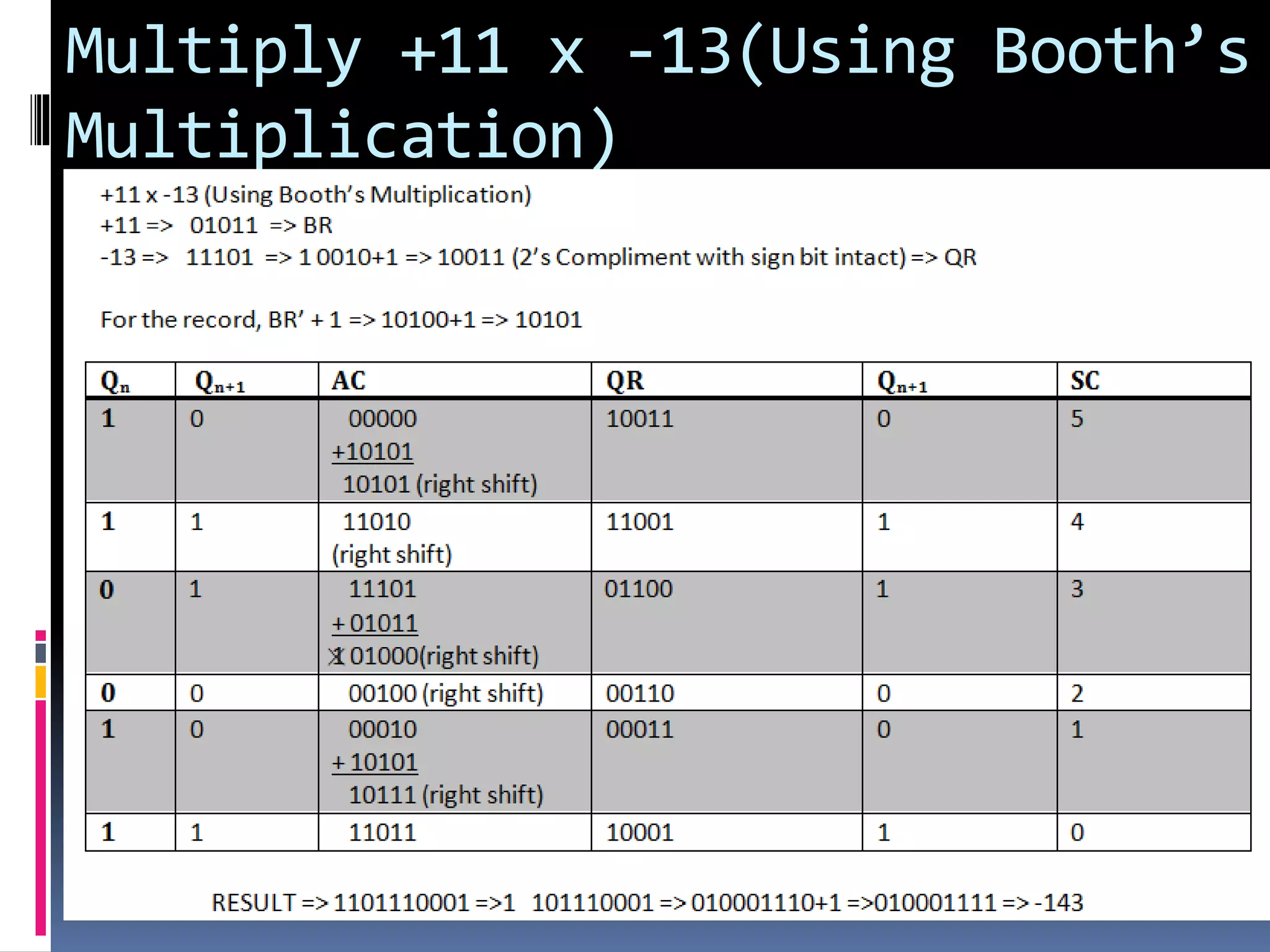

56. Binary Multiplication
 The multiplication of two binary numbers can be
carried out in the same manner as the decimal
multiplication.
 Unlike decimal multiplication, only two values are
generated as the outcome of multiplying the
multiplication bit by 0 or 1 in the binary
multiplication.These values are either 0 or 1.
 The binary multiplication can also be considered as
repeated binary addition.Therefore, the binary
multiplication is performed in conjunction with the
binary addition operation.

57. Binary Multiplication

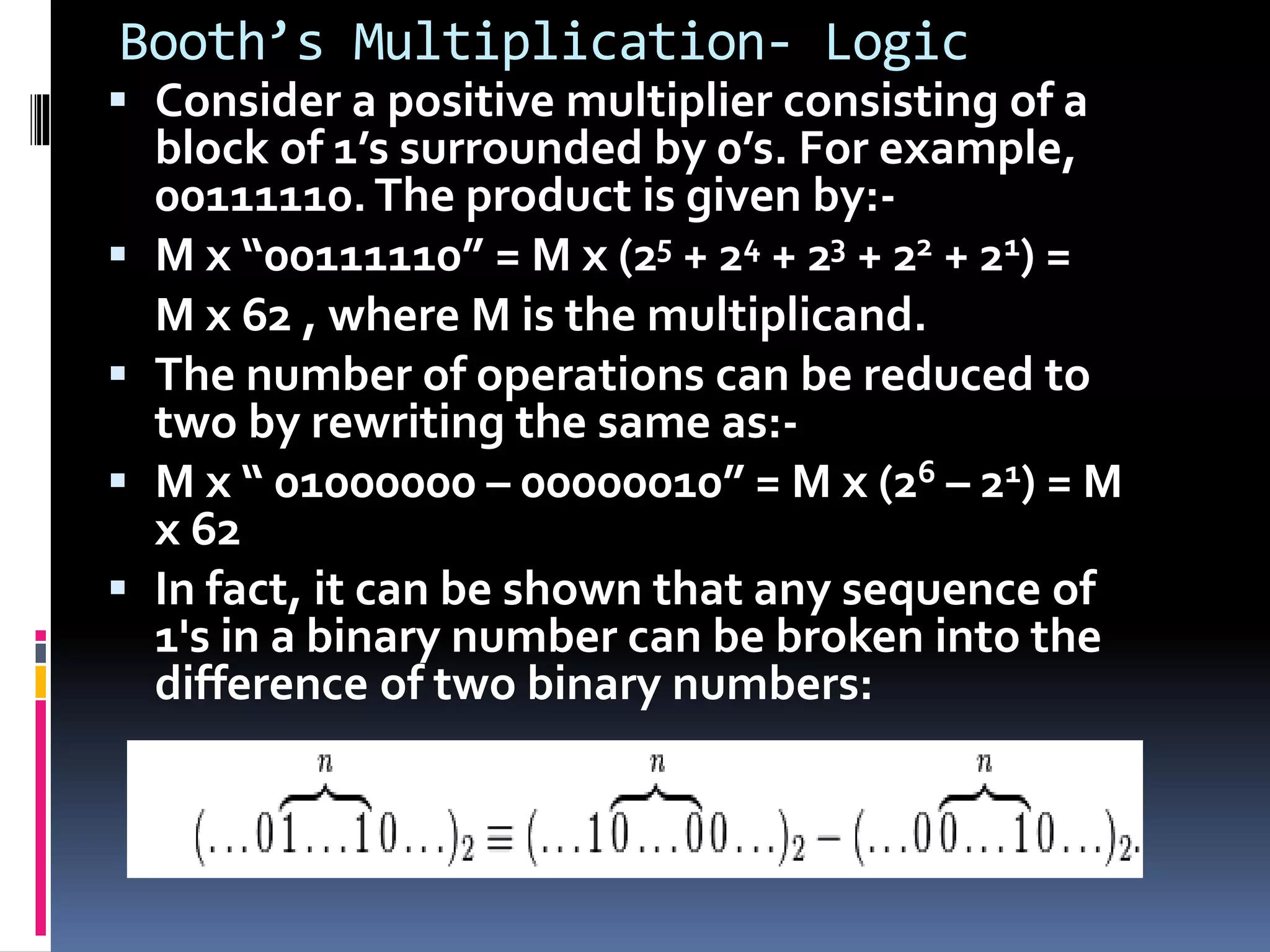

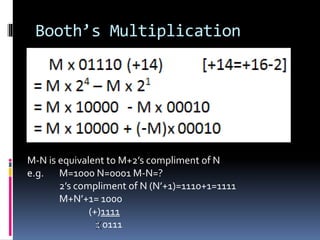

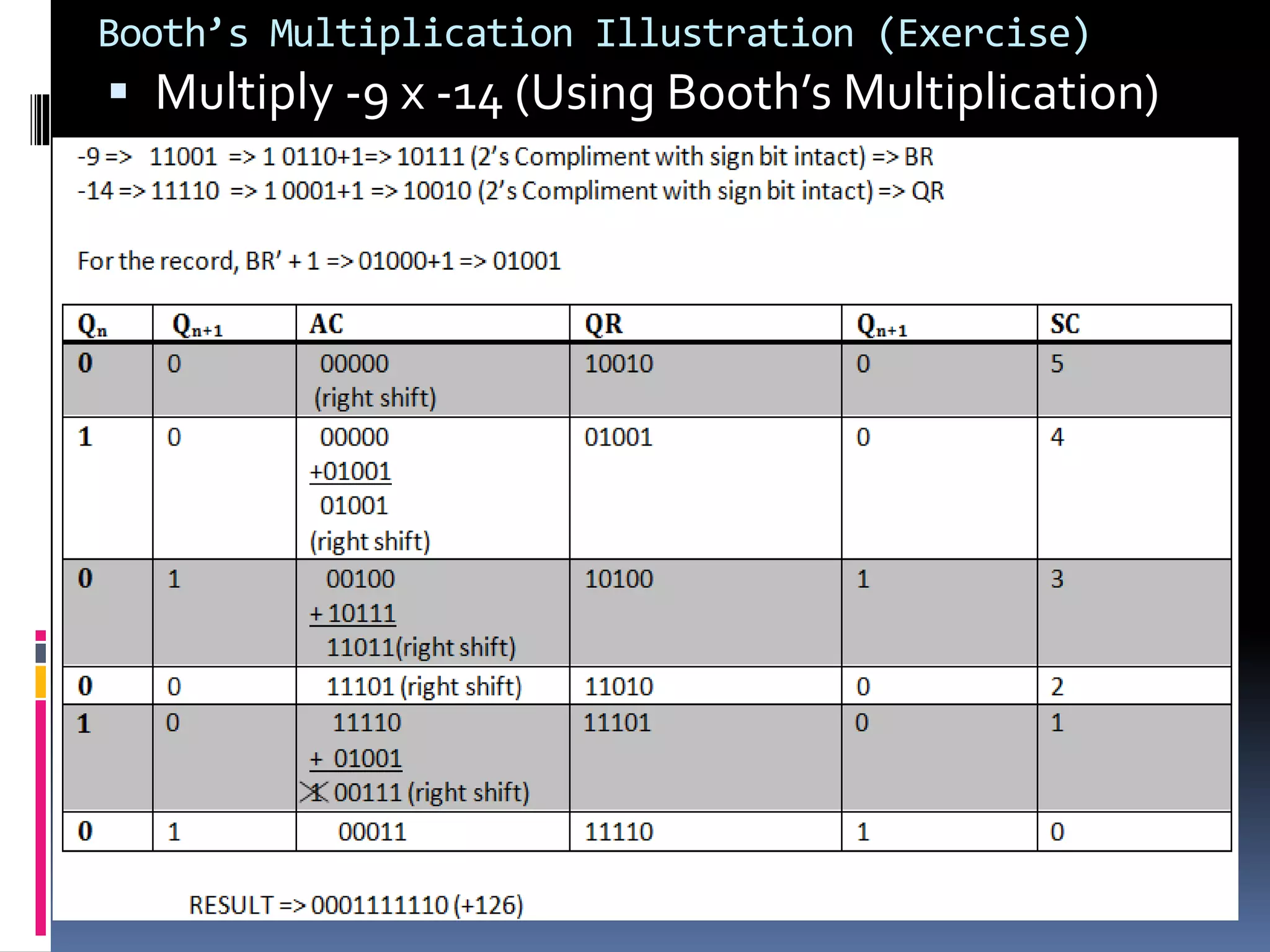

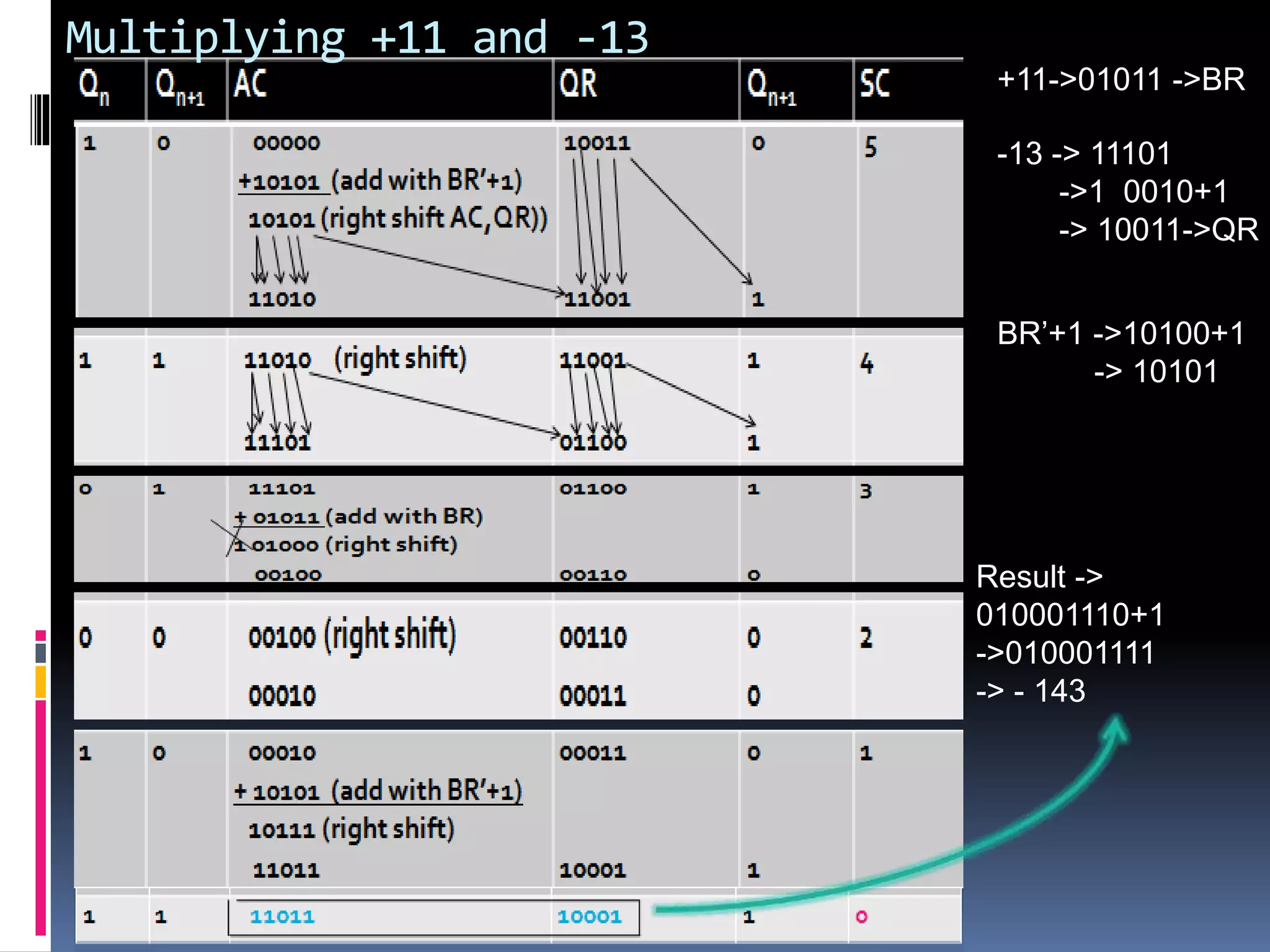

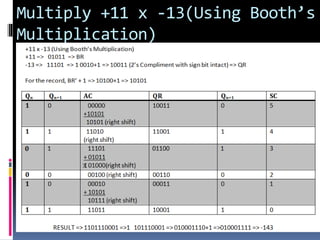

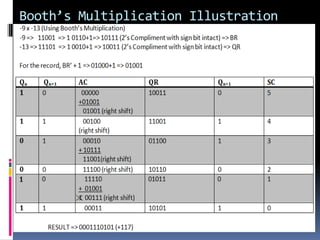

58. Booth’s Multiplication- Logic
 Consider a positive multiplier consisting of a
block of 1’s surrounded by 0’s. For example,
00111110.The product is given by:-
 M x “00111110” = M x (25 + 24 + 23 + 22 + 21) =
M x 62 , where M is the multiplicand.
 The number of operations can be reduced to
two by rewriting the same as:-
 M x “ 01000000 – 00000010” = M x (26 – 21) = M
x 62
 In fact, it can be shown that any sequence of
1's in a binary number can be broken into the
difference of two binary numbers:

59. Booth’s Multiplication
M-N is equivalent to M+2’s compliment of N
e.g. M=1000 N=0001 M-N=?
2’s compliment of N (N’+1)=1110+1=1111
M+N’+1= 1000
(+)1111
1 0111

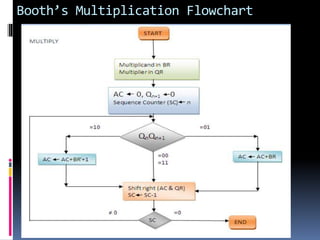

60. Booth’s Multiplication Flowchart

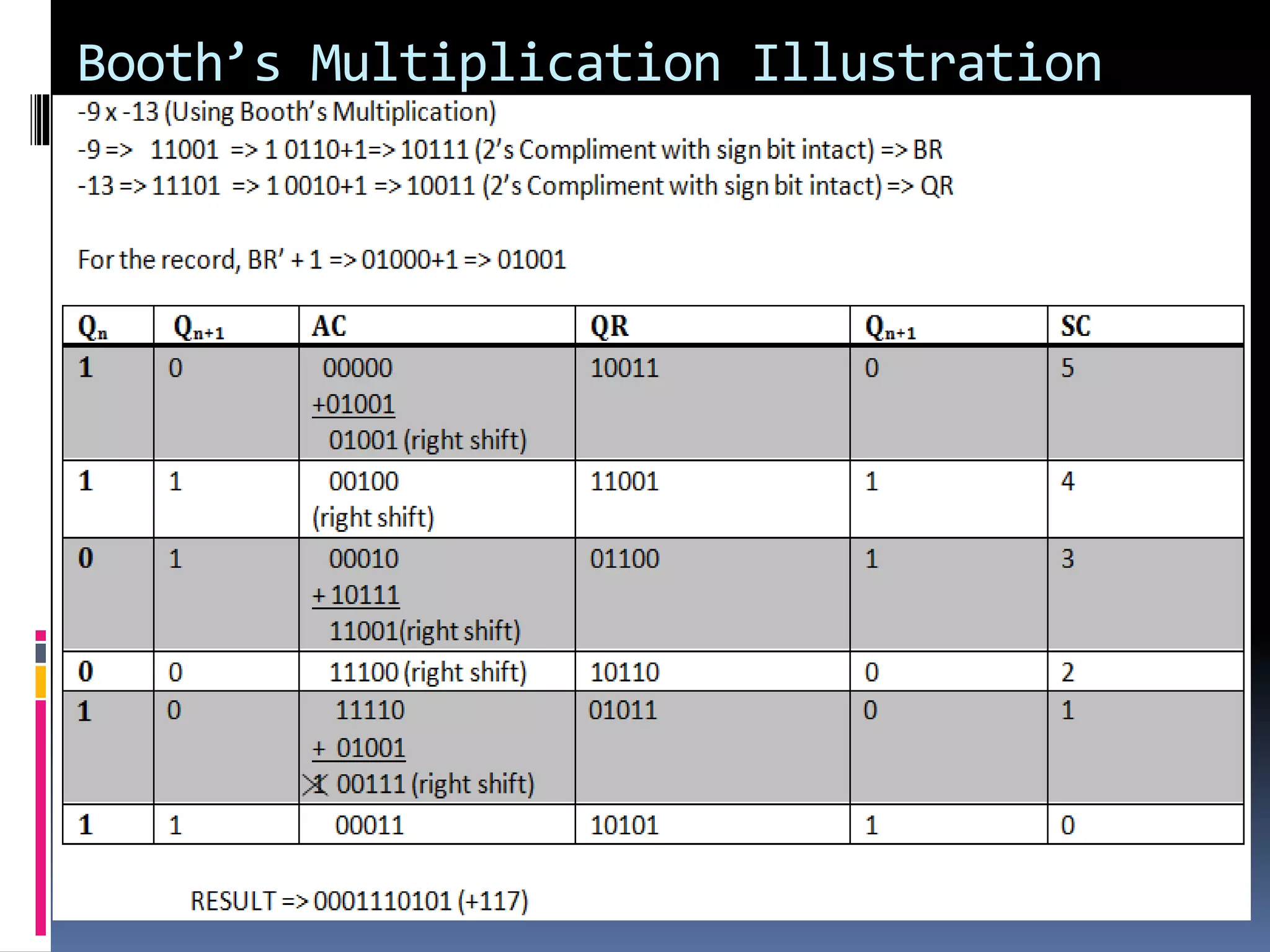

61. Booth’s Multiplication Illustration

62. Booth’s Multiplication Illustration (Exercise)
 Multiply -9 x -14 (Using Booth’s Multiplication)

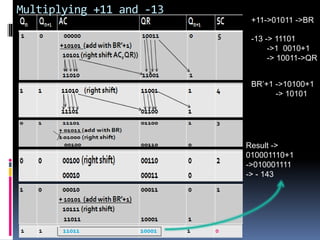

63. Multiply +11 x -13(Using Booth’s
Multiplication)

64. Multiplying +11 and -13
+11->01011 ->BR
-13 -> 11101
->1 0010+1
-> 10011->QR
BR’+1 ->10100+1
-> 10101
Result ->
010001110+1
->010001111
-> - 143

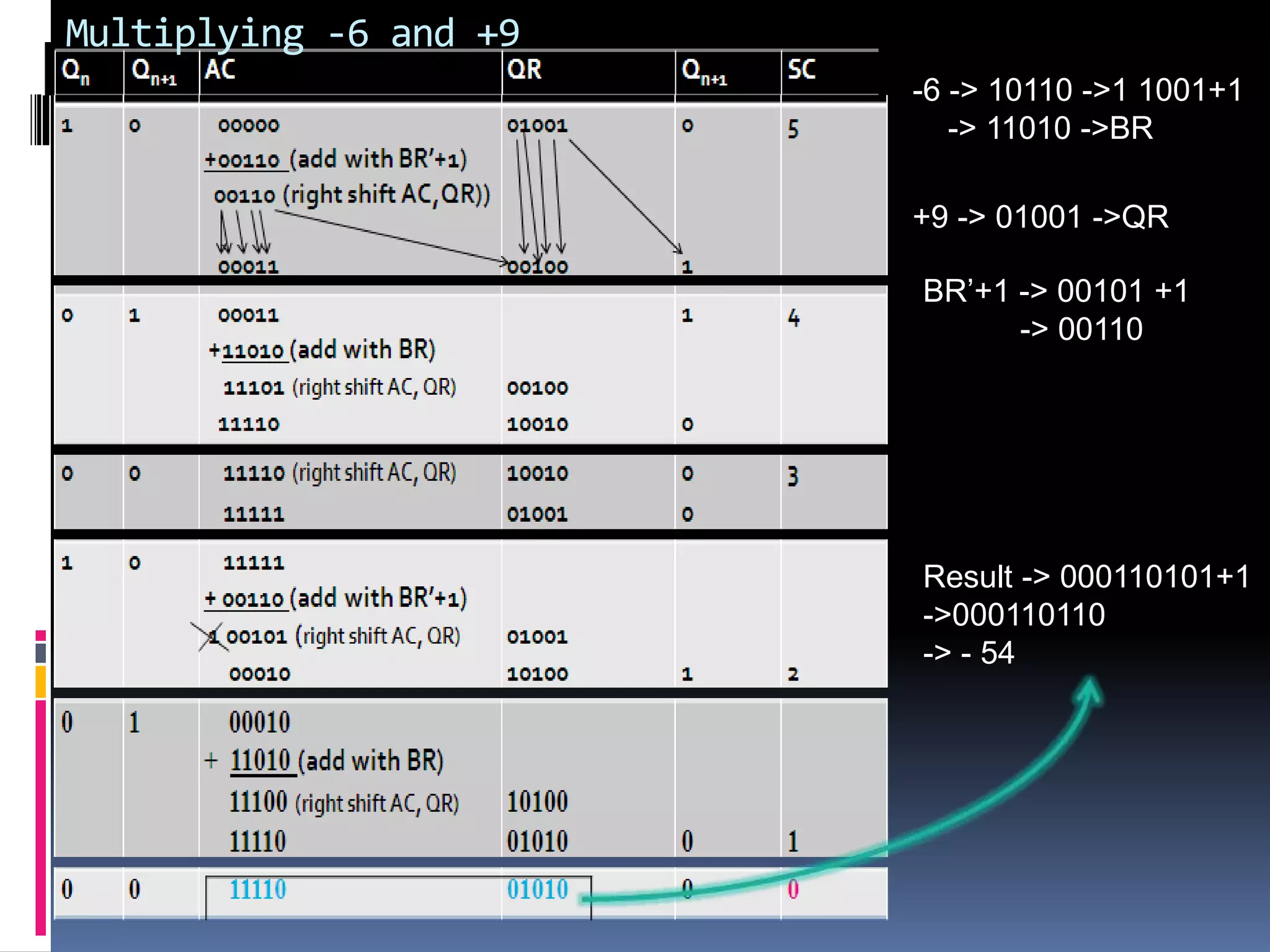

65. Multiplying -6 and +9
-6 -> 10110 ->1 1001+1
-> 11010 ->BR
+9 -> 01001 ->QR
BR’+1 -> 00101 +1
-> 00110
Result -> 000110101+1
->000110110
-> - 54

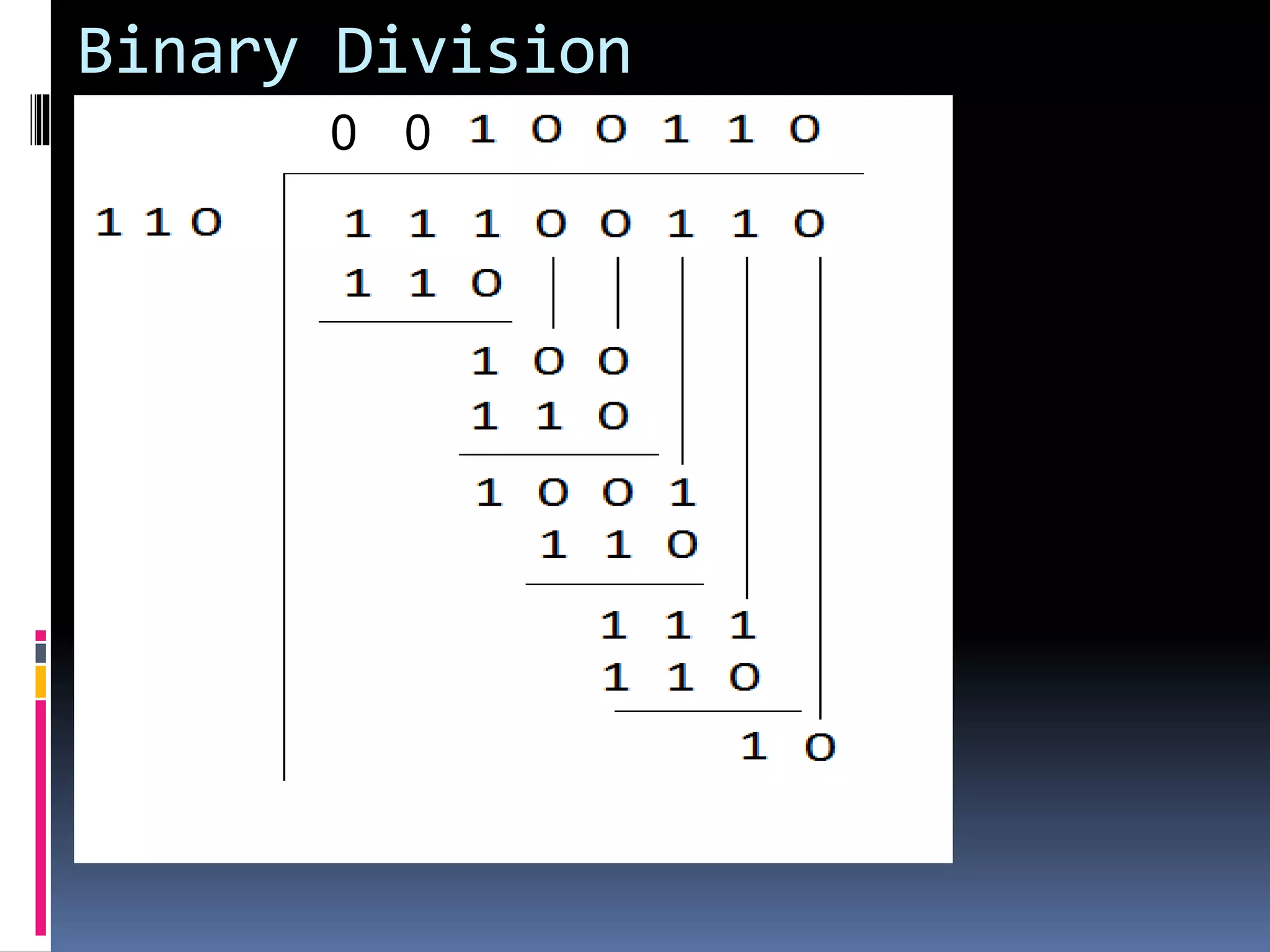

66. Binary Division
0
0

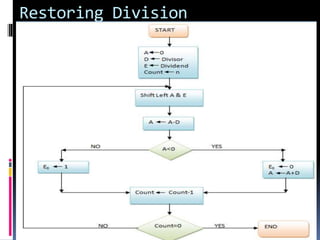

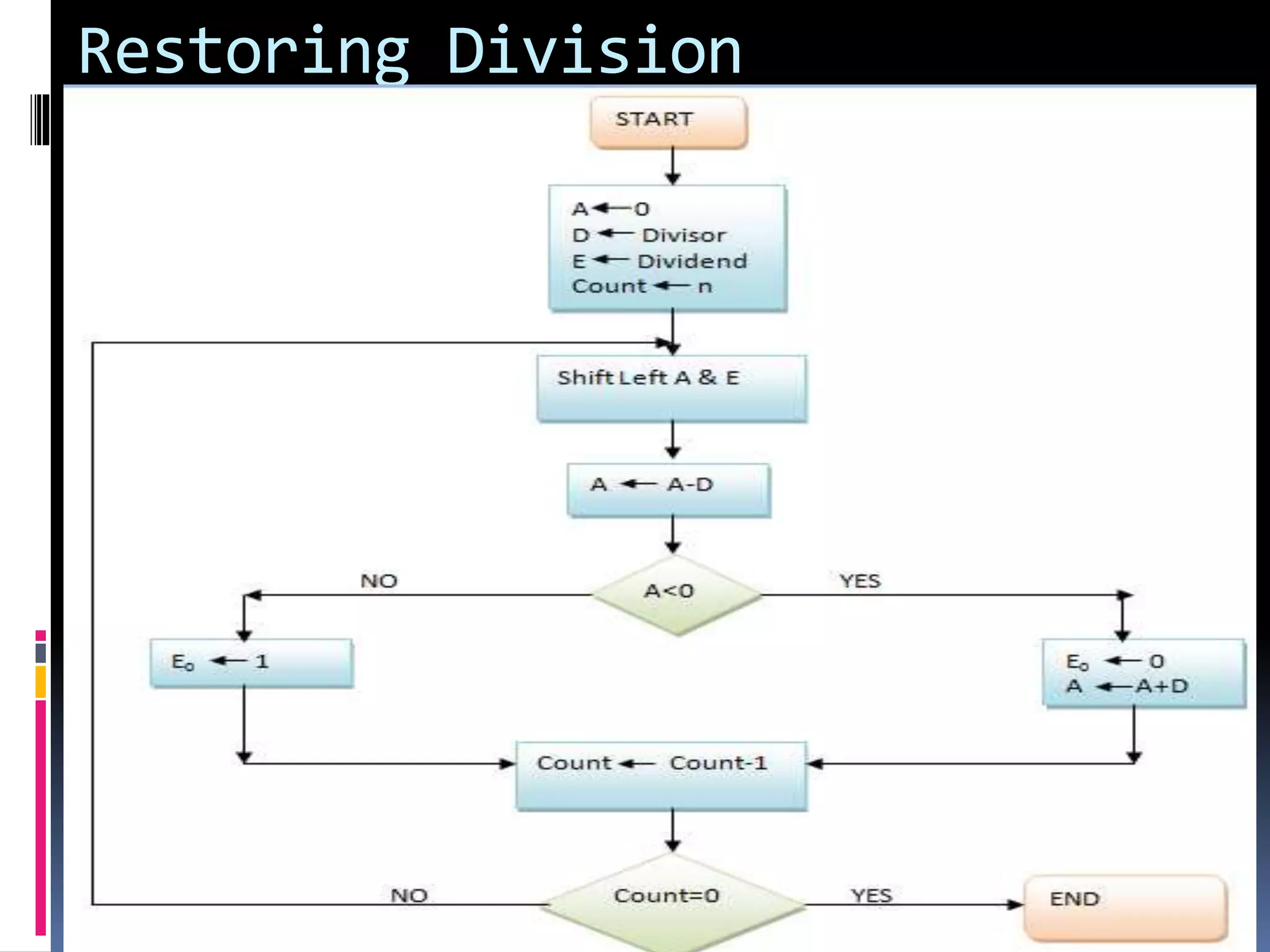

67. Restoring Division

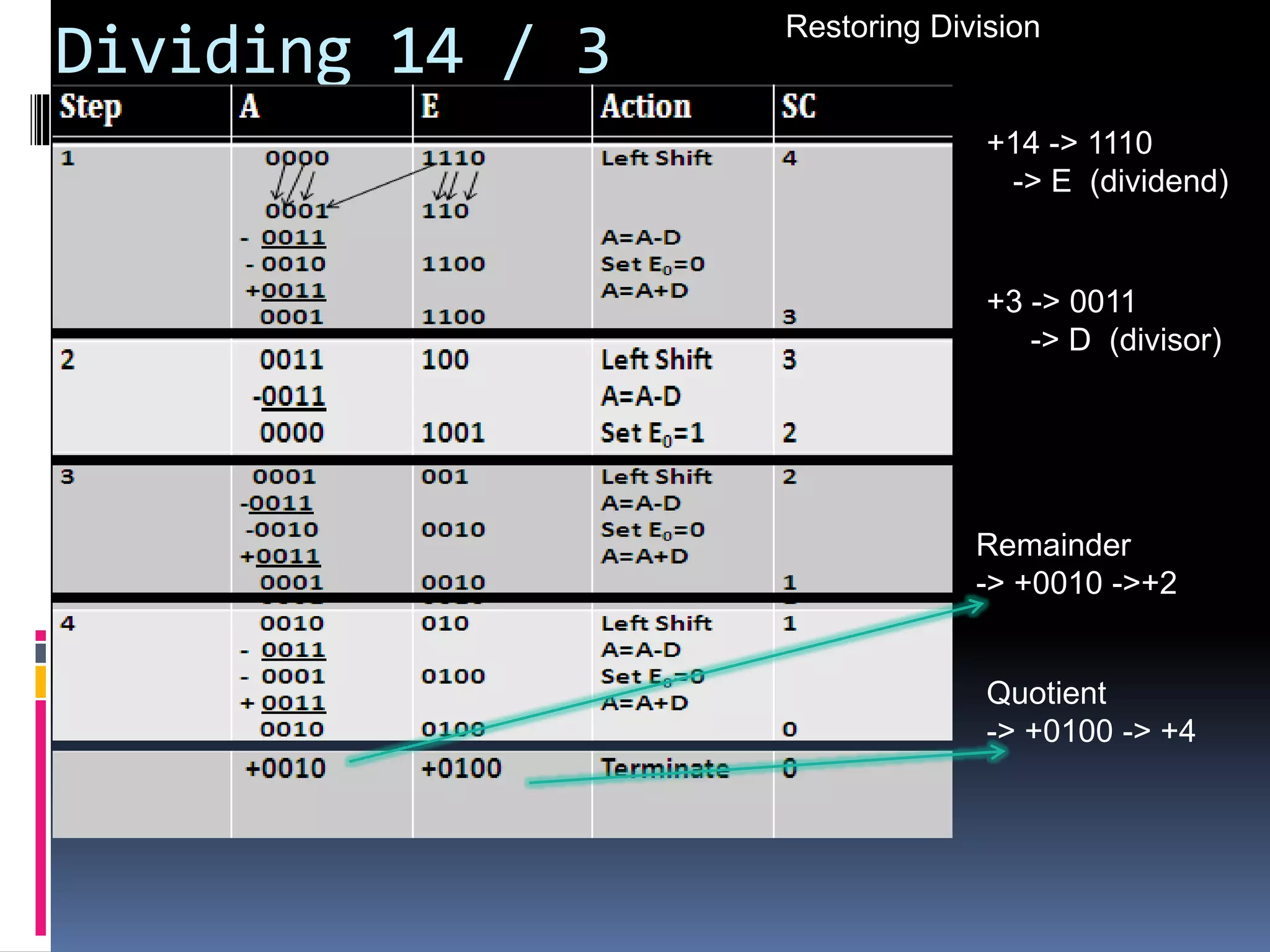

68. Dividing 14 / 3
Remainder
-> +0010 ->+2
Quotient
-> +0100 -> +4
+14 -> 1110
-> E (dividend)
+3 -> 0011
-> D (divisor)
Restoring Division

69. Non-restoring Division

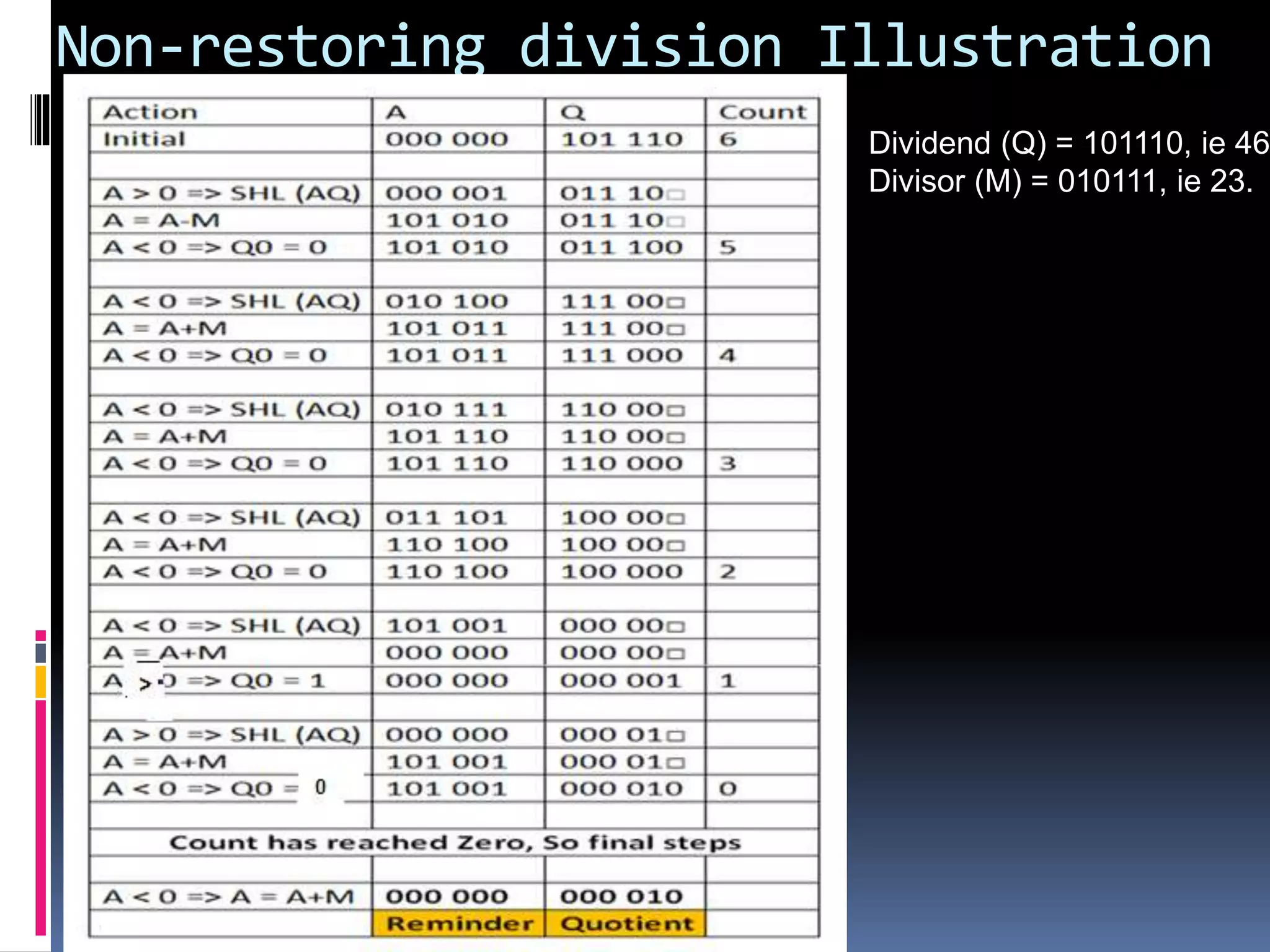

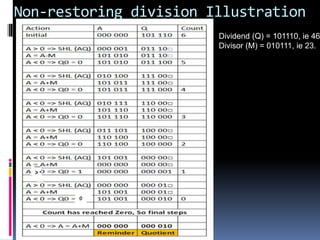

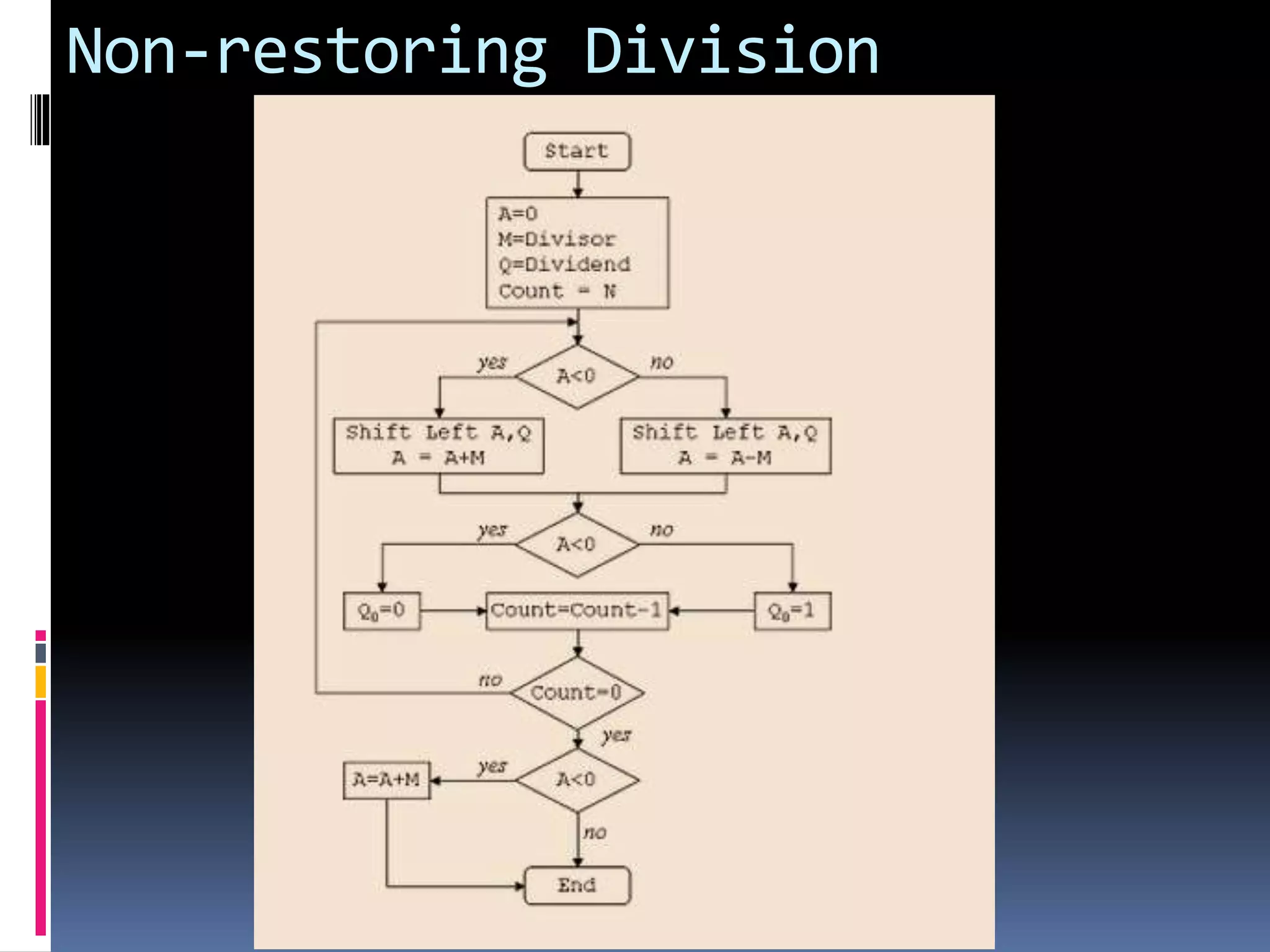

70. Non-restoring division Illustration
Dividend (Q) = 101110, ie 46
Divisor (M) = 010111, ie 23.

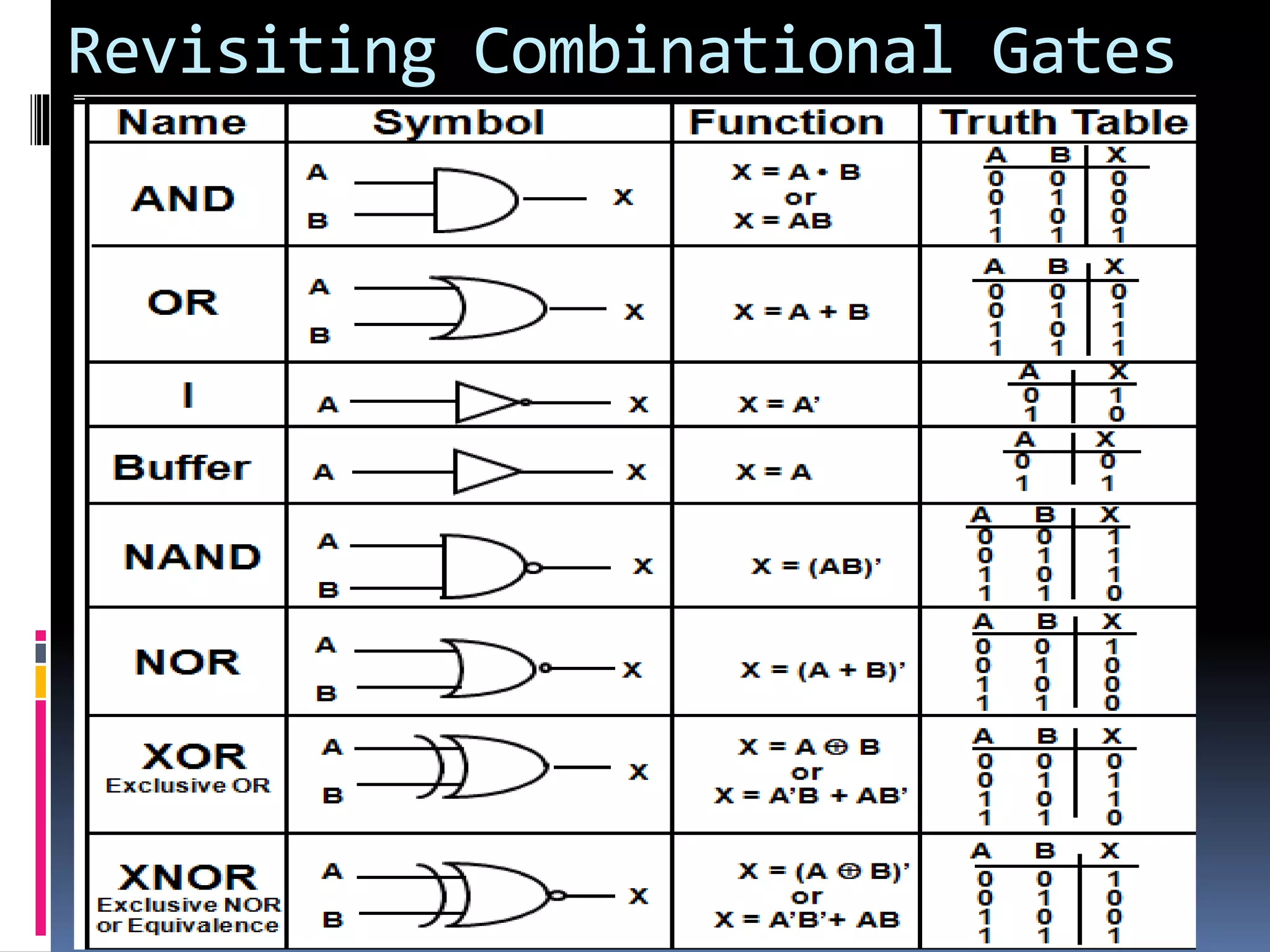

71. Revisiting Combinational Gates

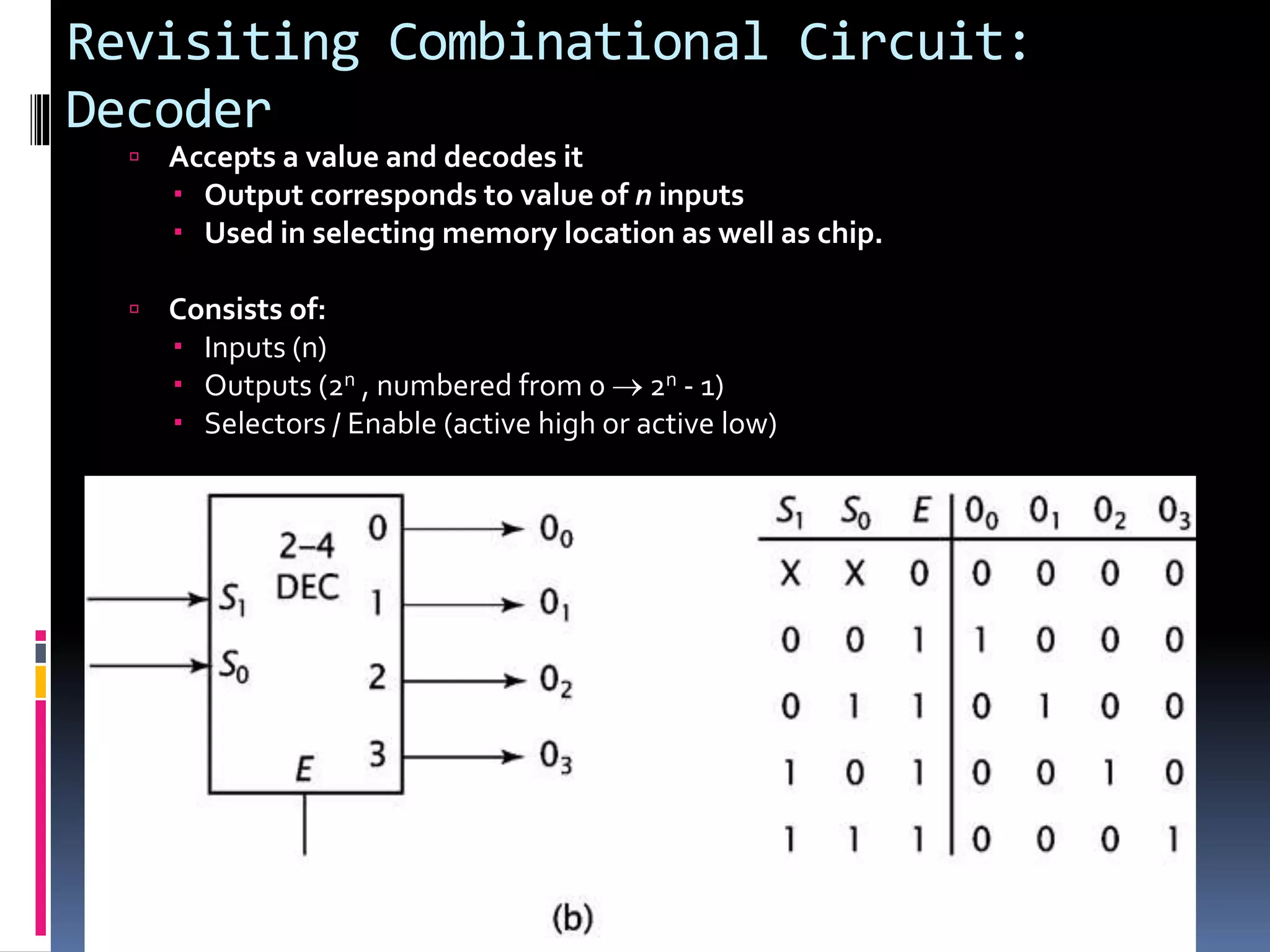

72. Revisiting Combinational Circuit:
Decoder
 Accepts a value and decodes it
 Output corresponds to value of n inputs
 Used in selecting memory location as well as chip.
 Consists of:
 Inputs (n)
 Outputs (2n , numbered from 0  2n - 1)
 Selectors / Enable (active high or active low)

73. Revisiting Combinational Circuit:
Decoder

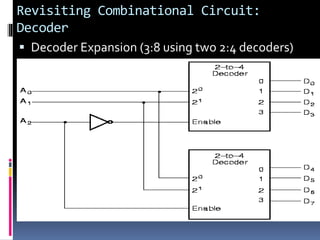

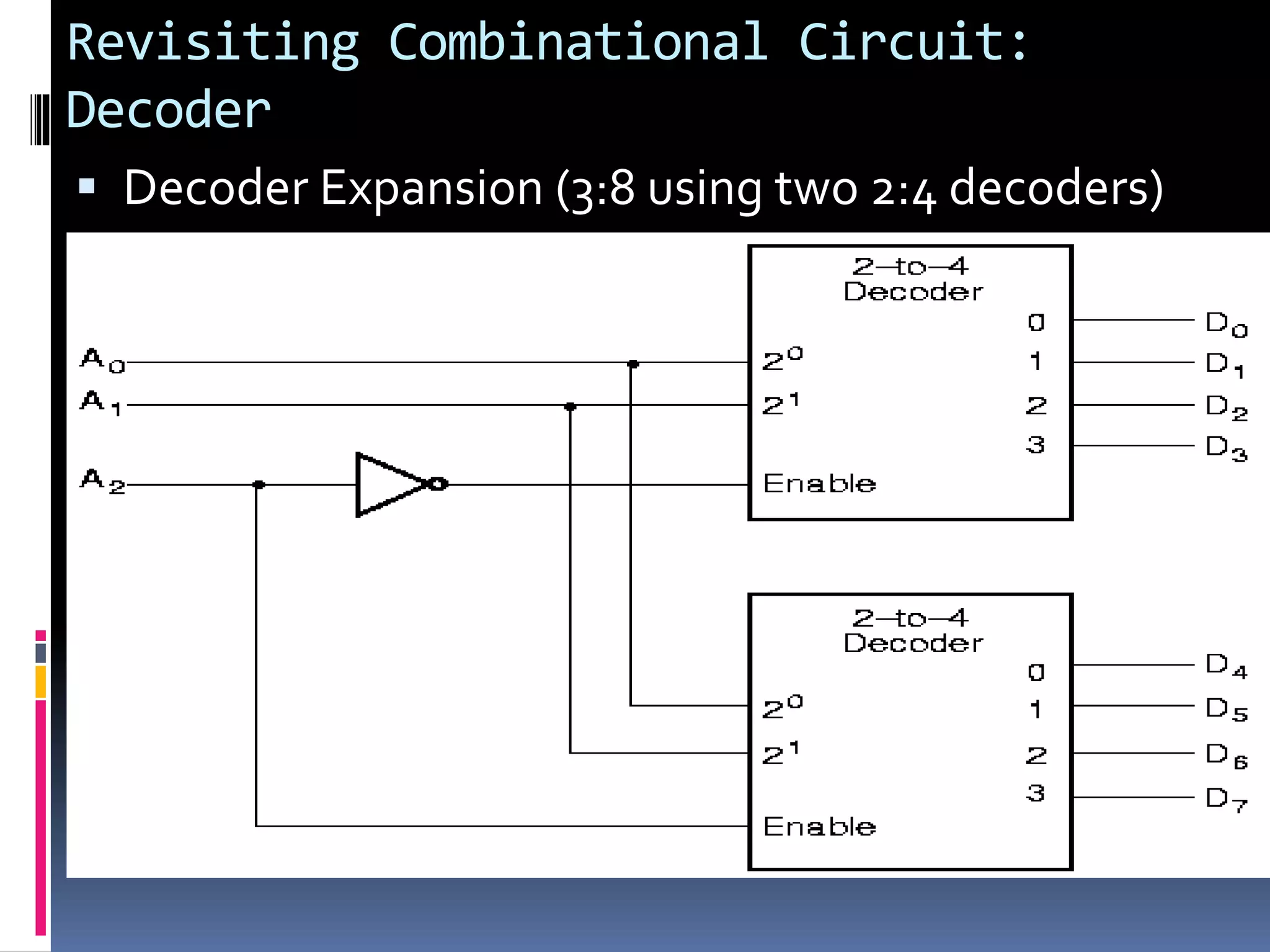

 Decoder Expansion (3:8 using two 2:4 decoders)

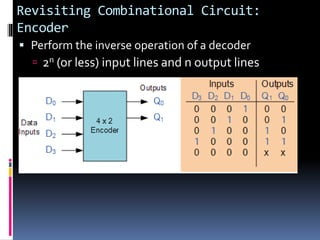

74. Revisiting Combinational Circuit:
Encoder

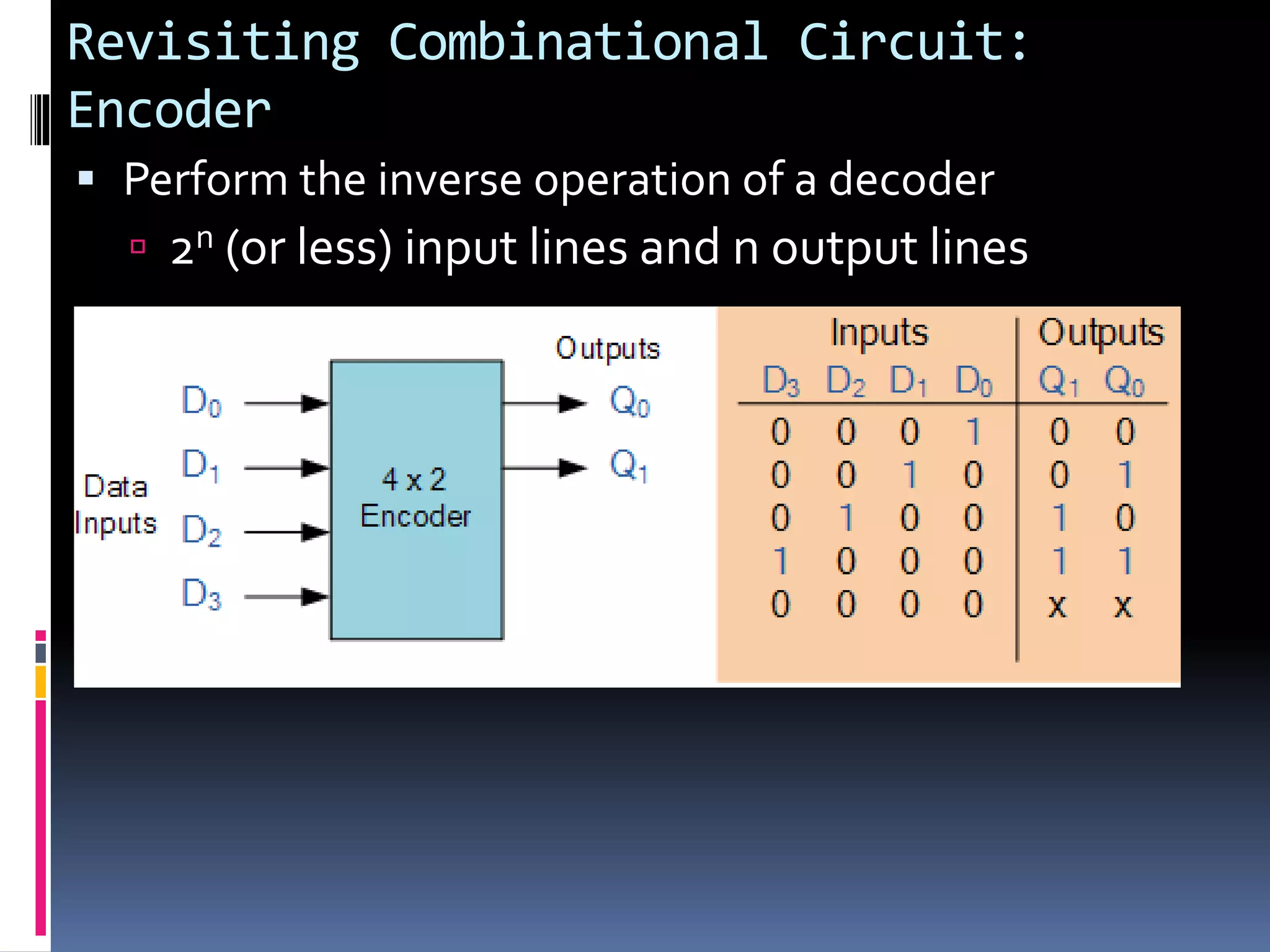

 Perform the inverse operation of a decoder
 2n (or less) input lines and n output lines

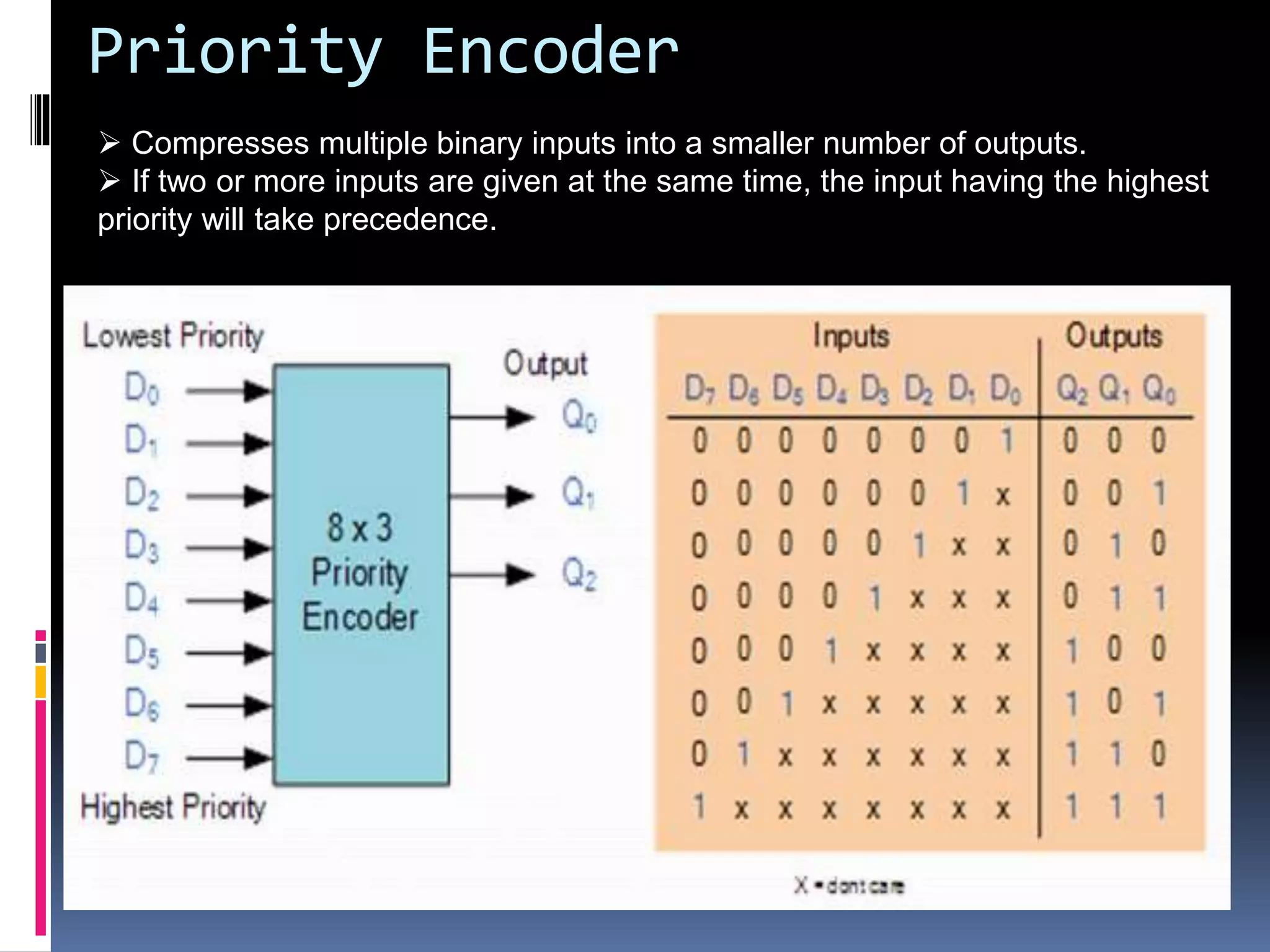

75. Priority Encoder
 Compresses multiple binary inputs into a smaller number of outputs.
 If two or more inputs are given at the same time, the input having the highest
priority will take precedence.

76. Revisiting Combinational Circuit:
Multiplexer

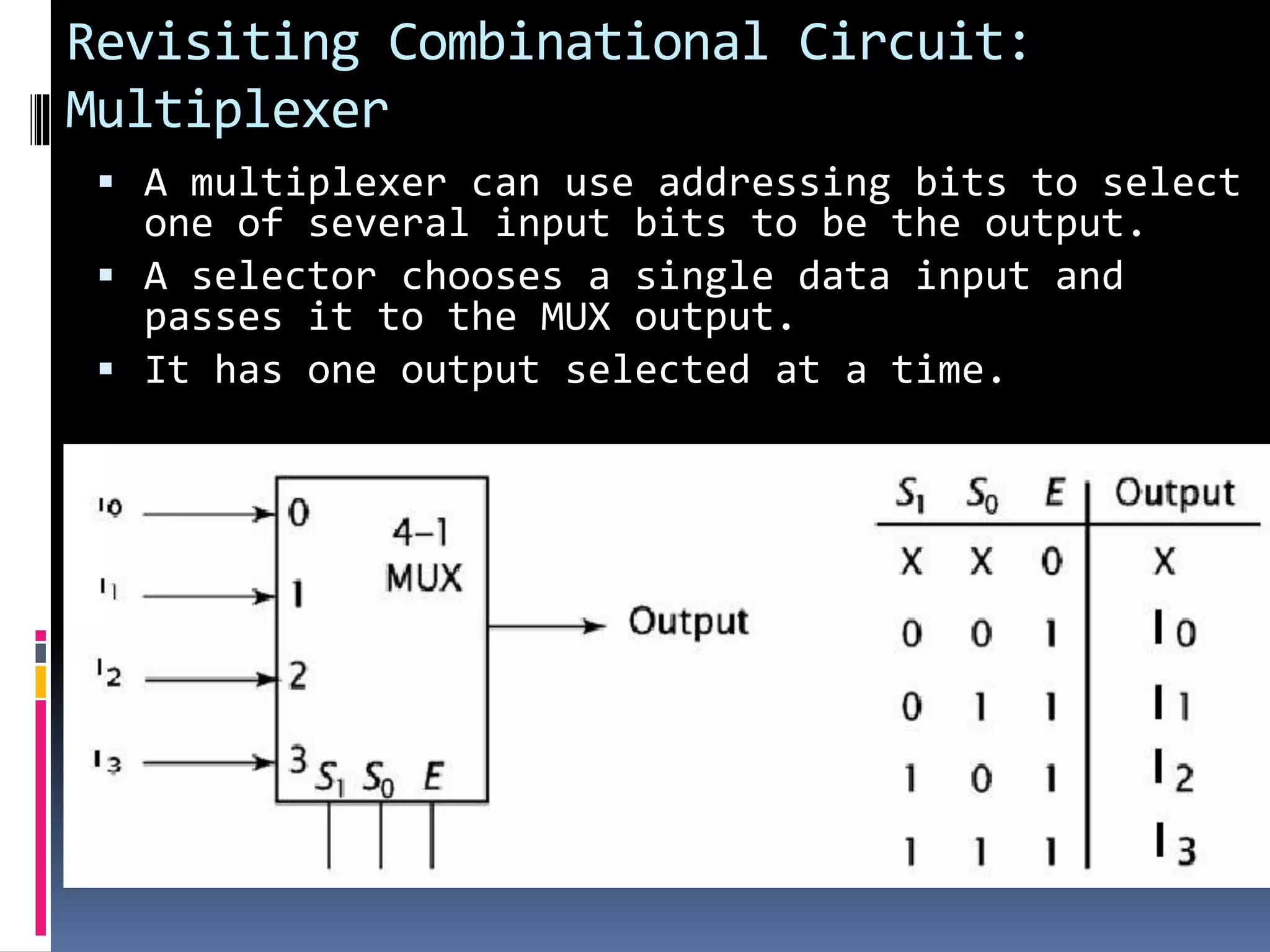

 A multiplexer can use addressing bits to select
one of several input bits to be the output.
 A selector chooses a single data input and
passes it to the MUX output.
 It has one output selected at a time.

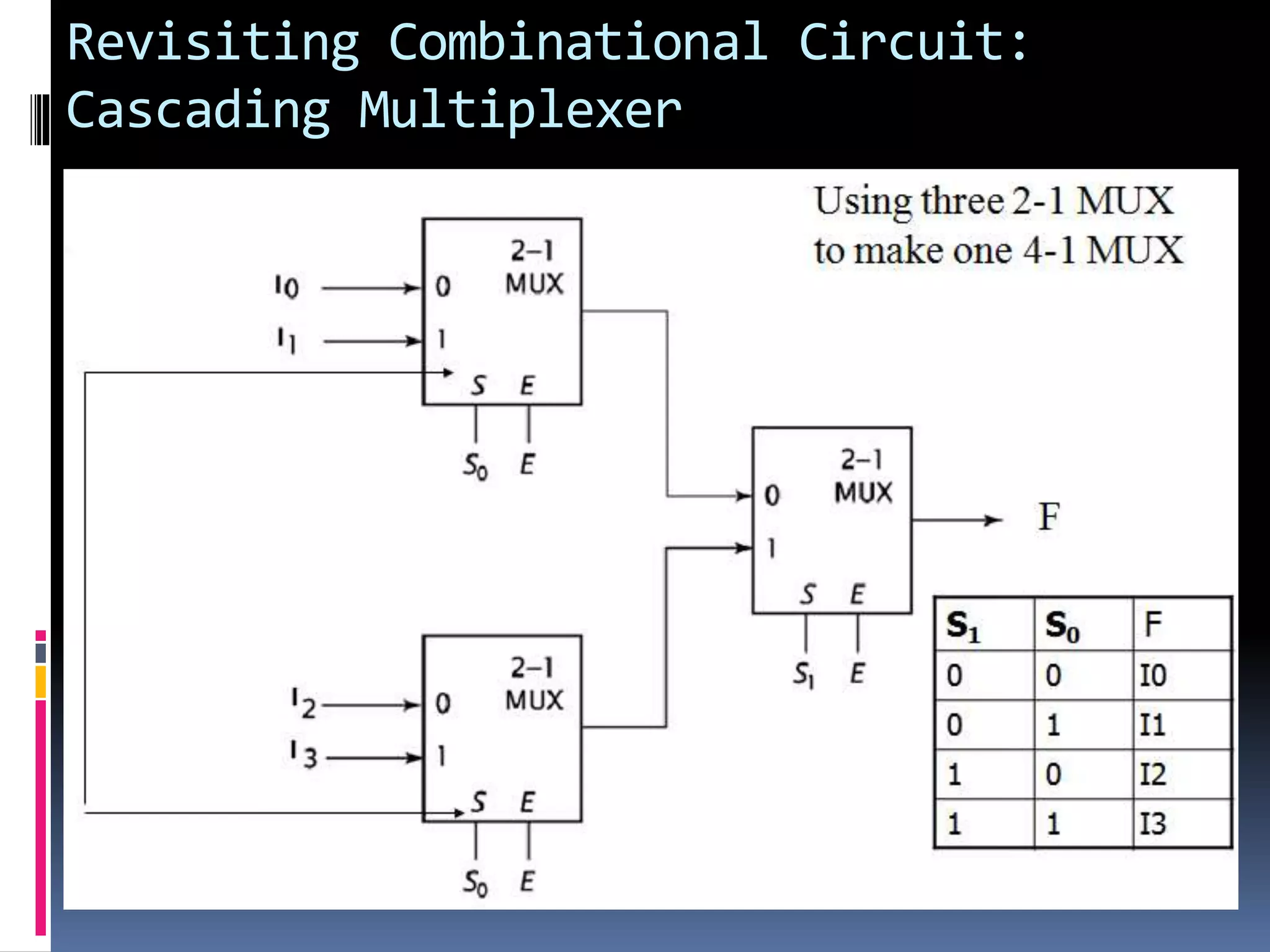

77. Revisiting Combinational Circuit:
Cascading Multiplexer

78. Revisiting Combinational Circuit:

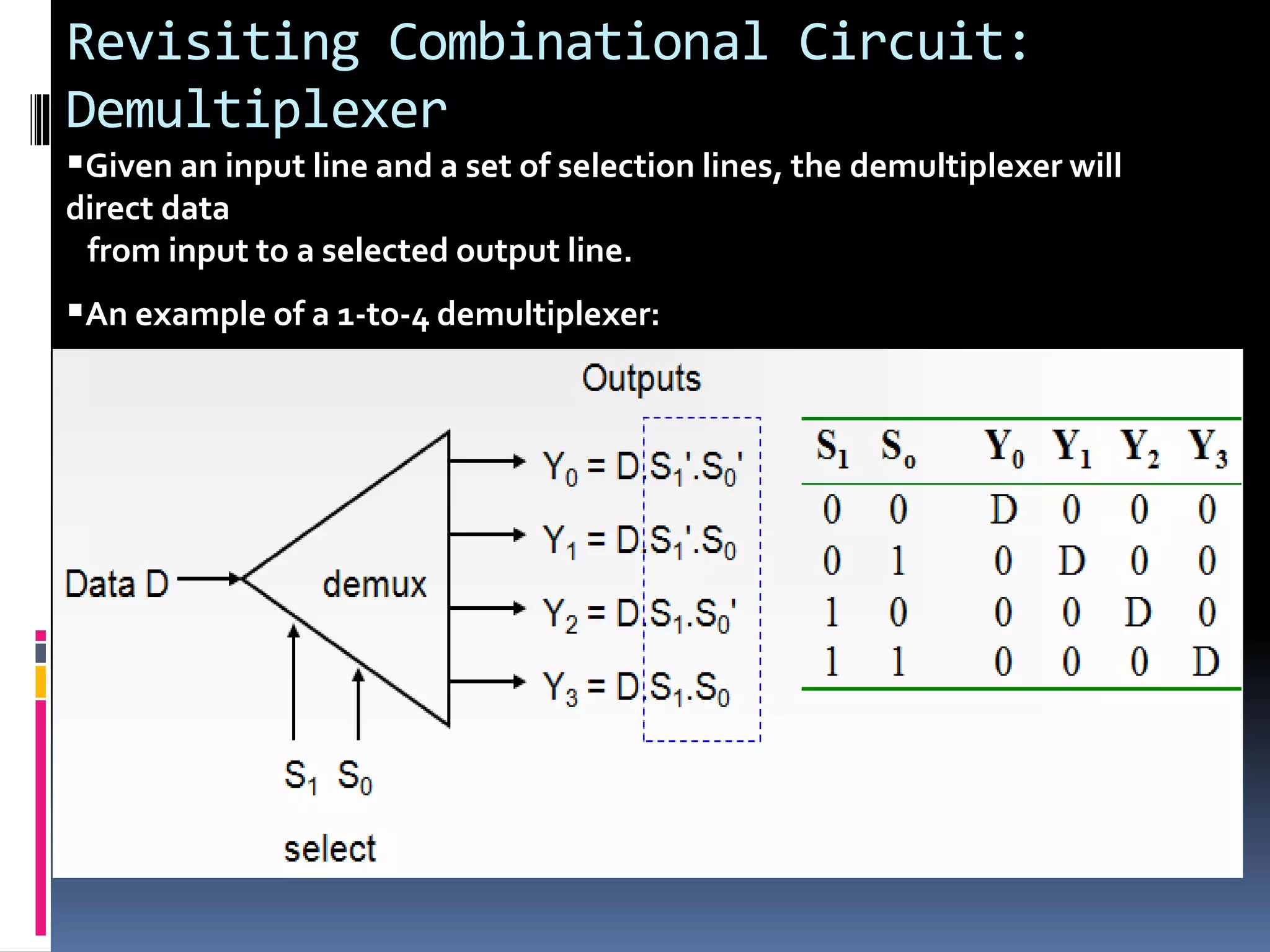

Demultiplexer
Given an input line and a set of selection lines, the demultiplexer will
direct data
from input to a selected output line.
An example of a 1-to-4 demultiplexer:

79. 4-bit Circuit to perform Add, Add with carry, Subtraction, Subtraction with
borrow, Transfer, Increment and Decrement

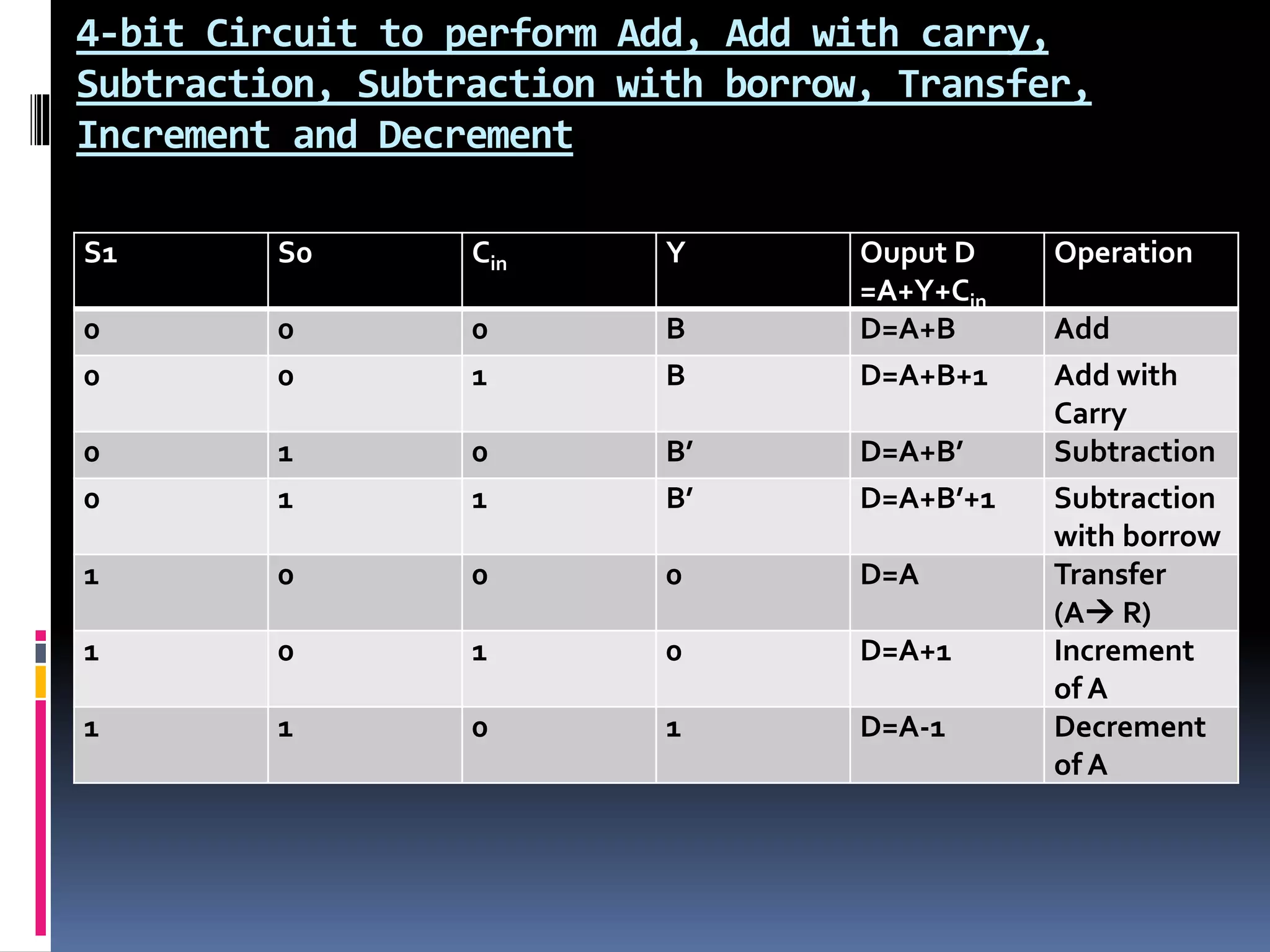

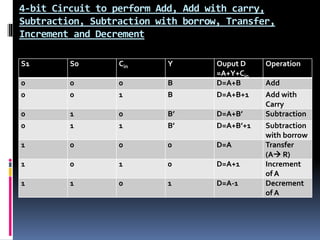

80. 4-bit Circuit to perform Add, Add with carry,
Subtraction, Subtraction with borrow, Transfer,
Increment and Decrement
S1 S0 Cin Y Ouput D
=A+Y+Cin
Operation
0 0 0 B D=A+B Add
0 0 1 B D=A+B+1 Add with
Carry
0 1 0 B’ D=A+B’ Subtraction
0 1 1 B’ D=A+B’+1 Subtraction
with borrow
1 0 0 0 D=A Transfer
(A R)
1 0 1 0 D=A+1 Increment
of A
1 1 0 1 D=A-1 Decrement
of A
