Design of Intelligent Autonomous Wheeled Robot Using Rf
Transmission
P. Radhika,
ME, Assistant Professor / MCT,
Akshay Venkat, BE MCT, Gowtham. G, BE MCT.
P. Athul, BE MCT,
Abstract: Embedded system is an emerging field with immense applications in Science and Engineering.
The designed ROBOT is a portable machine. Communication between ROBOT and the Control Unit is
performed through Radio Frequency (RF) Communication. The system basically has two modes. The
automatic mode is the first mode and the user control mode is the second mode. ROBOT is controlled with the
help of Microcontroller in the control unit and is programmed my means of microcontroller in it. The primary
aim of the project is to design, develop and implement Automatic Wall Painting Robot which helps to achieve
low cost painting equipment along with object recognition. The robotic system is remote controlled. Thus the
aim is to provide a robotic system that can be used in industrial applications. In this paper the robot is
controlled from the system using MATLAB software
I. Introduction
Embedded systems are controlled by one or more processing cores that are either microcontrollers or
digital signal processors (DSP). Hence, the robot is designed using the concept of embedded systems.
Embedded Systems are mostly Processor and controller based like General Processors, Micro Processors, DSP
and Microcontroller. In this paper, the S8951 Micro controller is used for controlling the robot[1][2].
Industrial automation and robotics are at a high demand in the industry as both of them directly affect
the growth of the industry. Autonomous robots with sensors used in industries directly results in the growth of
the industry. When construction workers and robots are properly integrated in industries, the whole construction
process can be better managed and savings in human labour and timing can be obtained as a consequence.
Colour is the most common feature to distinguish between objects for sorting, recognizing and tracking.
The robot in this paper is used for general tasks such as painting and object recognition with high
precision and accuracy. Robot is mounted with a camera in its workspace to detect the object and also to telecast
the video for live transmission of video signals in the control unit PC. The robot works based on the sensory
information and programmed in Image processing toolbox in MATLAB. The robot can be used in material
handling in logistics and packaging industry where the objects moving through a conveyer belt can be separated
using a colour detecting robot.
Radio Frequency (RF) transmission uses radio waves like radio or television signals to transmit audio
and video signals via a carrier from a transmitter to a receiver. Radio frequency (RF) is a rate of oscillation in
the range of about 30 kHz to 300 GHz, which corresponds to the frequency of electrical signals used to produce
and detect radio waves. The transmitter has an antenna attached to the transmitter unit which needs to be
positioned to cover the listening area. The receiver unit is either single channel or multichannel and it receives
the modulated radio waves and convert them back into an audio signal which is sent to the headphone
output[3][4].
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 41 | Page
Figure 1: Process Diagram
Characteristics of Robotics
Robots can be in various forms like Manipulator, humanoid robot, Legged robot, wheeled robot,
Autonomous underwater robot, unmanned aerial robot. The robot performs jobs that are dangerous, boring,
stressful or labour-intensive for humans. The characteristics of a robot can be programmed through softwares
like MATLAB, Visual Basic, LabVIEW, C, etc.,
Need For Robots
Often, robots are used to do jobs that could be done by humans but there are many reasons why robots
are better than humans in performing certain tasks.
Speed: Robot may be used because they are FASTER than people at carrying out tasks as it is a mechanism
which is controlled by a computer. Some robots actually MOVE more quickly than we can, so they can carry
out a task such as picking up and inserting items, more quickly.
Hazardous (Dangerous Environments): Robots may be used in places where a human would be in danger. For
example, robots can be designed to withstand greater amounts of Heat, Radiation, Chemical fumes, than humans
could.
Repetitive Tasks: Sometimes robots are not really much faster than humans, but they are good at simply doing
the same job over and over again. This is easy for a robot, because once the robot has been programmed to do a
job the same programcan be run many times to carry out a job many times. And the robot will not get bored as a
human would.
Efficiency: Efficiency is all about carrying tasks without waste. This could mean not wasting time, not wasting
materials, not wasting energy.
Accuracy: Accuracy is about carrying out tasks very precisely. When items are being assembled, a robot can
position parts within fractions of millimeter
A Robot Has Four Essential Characteristics:
Sensing: First of all, Robot would have to be able to sense its surroundings. A robot needs to move arou nd its
environment either rolling on wheels, walking on legs.
Energy: A robot needs to power itself. A robot might be solar powered, electrically powered, battery powered.
Intelligence: A robot needs some kind of "smarts" where it is programmed.
Adaptability: Adaptability is where a robot can be used to carry out more than one task. The program which
controls the robot can be changed. An adaptability robot is developed and designed in this paper
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 42 | Page
Laws Of Robotics
Asimov proposed three “Laws of Robotics”
Law 1: A robot may not injure a human being or through inaction, allow a human being to come to harm.
Law 2: A robot must obey orders given to it by human beings, except where such orders would conflict with a
higher order law.
Law 3: A robot must protect its own existence as long as such protection does not conflict with a higher order
law.
II. Existing Work
Labours in the construction industry are not sufficient because of the difficulty in work, improvement
in the education level makes people to think that these types of work is not as prestigious as the other jobs. In
construction industry, during the work in tall buildings the risky situation is more. The nature of painting and
object recognition procedure requires repeated work and hand rising makes it boring, time and effort consuming.
The painting chemicals can cause hazards to the human painters in eye and respiratory system.
III. Proposed Work
In addition to manual mode, the system has automatic mode in which the robot can take its own
decision. Applications of robotics and automation in construction industries improve safety and ensures quality
environment. In order to reduce the number of labours, automation in painting was introduced in this paper.
Features like object recognition, gas detection is also included. Thus our system is more reliable to be used in
industries than the existing manual method of object detection in pick and place application and painting. The
systemcontains object and color recognition module which is carried out using vision system techniques.
IV. Construction And System Model
The robot model contains a 3 axis robot arm with three servomotors for painting and color
identification. It is a type of programmable mechanical arm, similar to a human arm. The links of the robot
manipulator are connected by joints allowing either rotational motion or translational dis placement. The robot
arm consists of three DC motors one for the base, one in the middle and another for the gripper to pick and drop
the objects detected. Two servomotors are used for movement. The two wheels of the robotic vehicle are
connected to the DC motors which are in turn connected to the microcontroller. The microcontroller through
the incoming signal controls the movements of the robot while performing painting operation and object
recognition operation. The microcontroller used is 89S51. RS232 communication was used for MATLAB to
communicate with the microcontroller.
V. Object Recognition
In the object recognition mode, the robot can identify the object through the microcontroller and sends
the signal to the control unit using RF transmitter for driving the motor to pick and place the object . In the
control unit, the object can be sorted along with colour recognition using the MATLAB algorithm in the PC and
send command to the controller using serial communication. The robot detects the object using vision system.
Other features such as orientation, gradient magnitude can also be added. In this paper the detection of different
colours is done through image processing technique using MATLAB. For object recognition MATLAB has the
most powerful tool box for image improving, enhancing and categorizing using features such as colour,
dimensions and texture of the object. Wavelet transforms in the PC decomposes the image into a group of
pixels. The robot model is used to pick and place the desired colour objects from one location to another with
actions like gripper open, gripper close, left and right movement on the robot. This robot sorts the objects in a
mixture of different coloured objects fromthe conveyor belt [7].
VI. Painting System
The construction of the automatic wall painting robot consists of two main parts. They are Mobile
platform and spray gun mount. The mobile platform consists of Frame stand, IR sensor, Solenoid valve,
Sprocket , Flow control valve and Spray gun and the spray condition determining unit at the control unit. The
frame stand is the steel welded to carry the spray gun. The movement of the frame stand is controlled by the DC
motor rotation which is controlled by the microcontroller. The robot is simple and portable. The systemop erates
in pneumatics and it needs air tank or compressor [8].
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 43 | Page

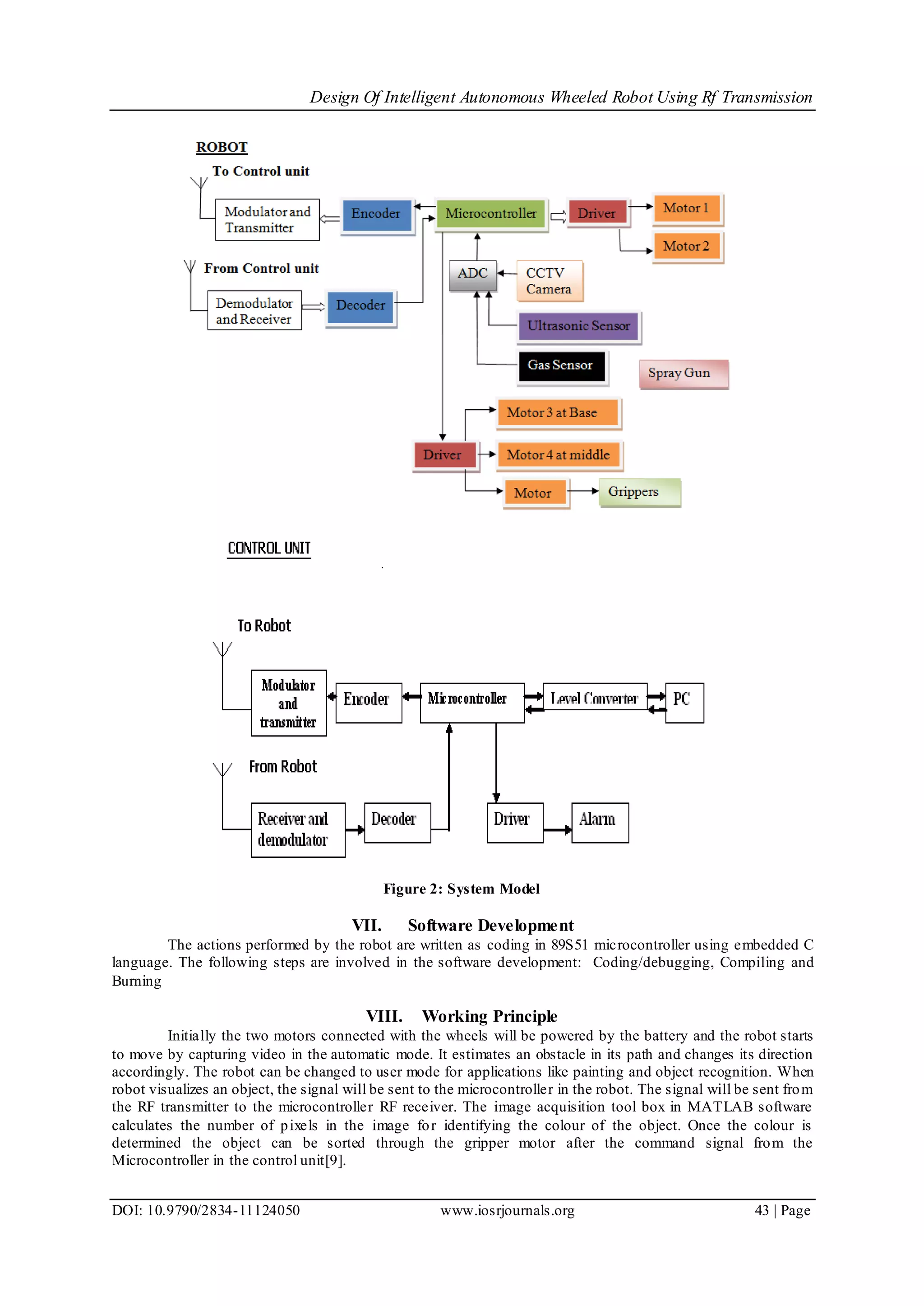

Figure 2: System Model
VII. Software Development
The actions performed by the robot are written as coding in 89S51 microcontroller using embedded C
language. The following steps are involved in the software development: Coding/debugging, Compiling and
Burning
VIII. Working Principle
Initially the two motors connected with the wheels will be powered by the battery and the robot starts
to move by capturing video in the automatic mode. It estimates an obstacle in its path and changes its direction
accordingly. The robot can be changed to user mode for applications like painting and object recognition. When
robot visualizes an object, the signal will be sent to the microcontroller in the robot. The signal will be sent from
the RF transmitter to the microcontroller RF receiver. The image acquisition tool box in MATLAB software
calculates the number of pixels in the image for identifying the colour of the object. Once the colour is
determined the object can be sorted through the gripper motor after the command signal from the
Microcontroller in the control unit[9].
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 44 | Page
IX. Hardware Requirements
Automatic Mode and User Mode
In automatic mode the user has no control over the robot. The robot takes it own decisions and
performs the required operation using Artificial Intelligence. At unavoidable circumstances the control
automatically goes to the user mode. In user mode, the user has the full control of the robot from remote
location and performs the required operation.
Microcontroller
Microcontroller is a microprocessor with memory unit. The Microcontrollers used in the Main Station
and the Robot is ATMEL 89S51. Micro controller can control external signals from Robot, Control Unit.

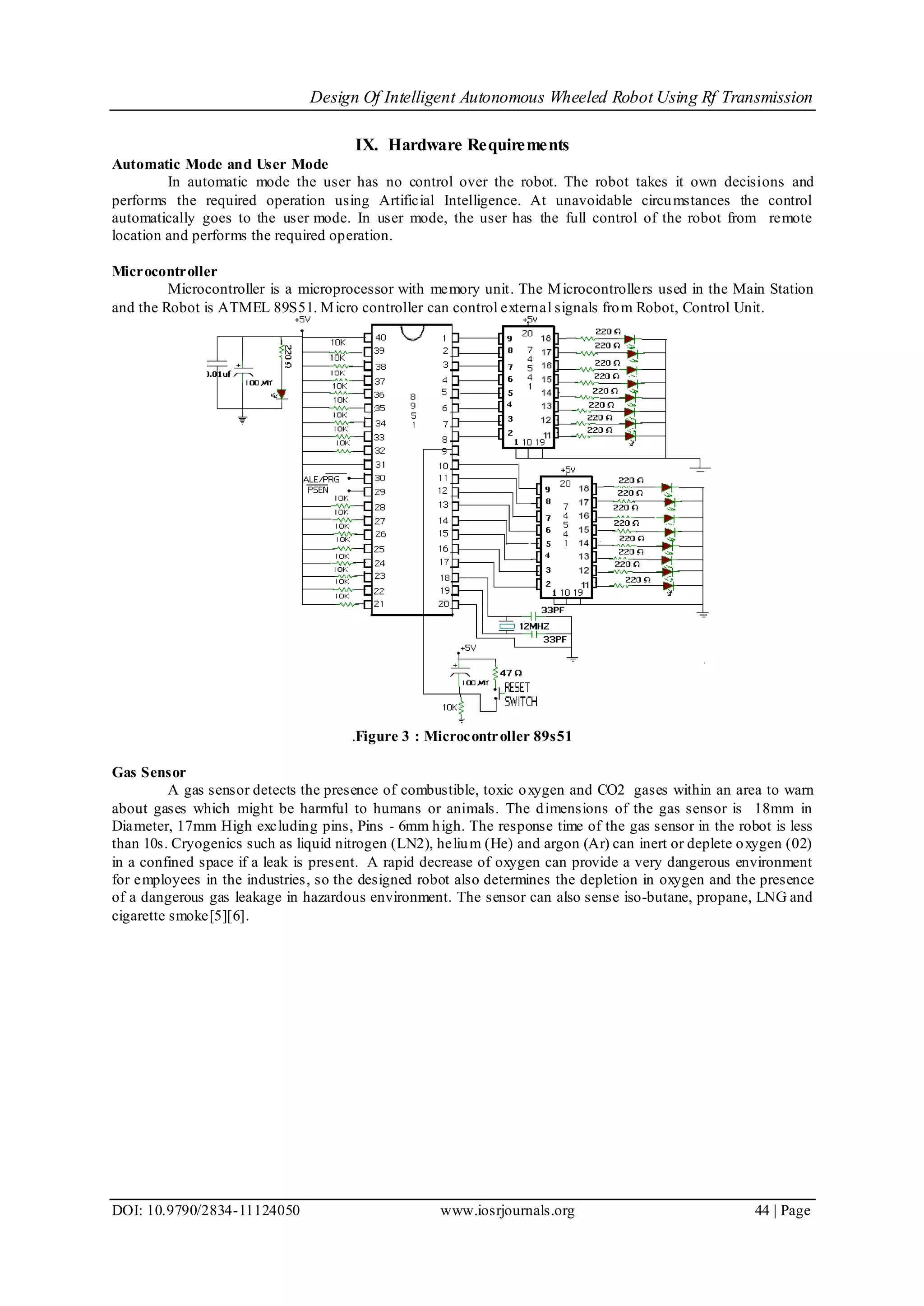

.Figure 3 : Microcontroller 89s51
Gas Sensor
A gas sensor detects the presence of combustible, toxic oxygen and CO2 gases within an area to warn
about gases which might be harmful to humans or animals. The dimensions of the gas sensor is 18mm in
Diameter, 17mm High excluding pins, Pins - 6mm high. The response time of the gas sensor in the robot is less
than 10s. Cryogenics such as liquid nitrogen (LN2), helium (He) and argon (Ar) can inert or deplete oxygen (02)
in a confined space if a leak is present. A rapid decrease of oxygen can provide a very dangerous environment
for employees in the industries, so the designed robot also determines the depletion in oxygen and the presence
of a dangerous gas leakage in hazardous environment. The sensor can also sense iso-butane, propane, LNG and
cigarette smoke[5][6].
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 45 | Page
Figure 4: Gas Sensor
Ultrasonic Sensors
The ultrasonic sensor makes uses of ultrasonic waves to sense the presence of an obstacle in its path
and deviates its path or stops its journey. The sensor is connected to the pins of the microcontroller and takes
any action depending upon the feedback received from the ultrasonic sensor. The circuit consists of ultrasonic
transmitter and receiver both are similar to LED. Its operating voltage is around 1.4V. The transmitter
continuously transmits the ultrasonic rays. At the output pin, voltage is approximately 5v. Here the micro
controller part is to control the movement of the robot as well as to read the input from the sensor unit. The
robot consists of 2 dc motors to rotate the wheels of the robot. The motor is rotated as per the direction in which
the robot should move in the automatic mode or as per the instruction from the user in user mode.
Figure 5: Ultrasonic Sensor
Dc Motor
Servomotors are also called as DC motors with built in gearing system and feedback loop control
circuitry. When the shaft of the motor is at the desired position, power supplied to the motor is stopped. If not,
the motor is turned in the appropriate direction. The desired position is sent by electrical pulses through the
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 46 | Page
signal wire. The motor's speed is proportional to the difference between its actual pos ition and desired position.
If the motor is near the desired position, it will turn slowly, otherwise it will turn fast. This is called proportional
control. Servomotors have rotary actuators that allow precise angular position [10].
Figure 6 :Dc Motor
DC Motor Driver
The DC motors of the robot are connected to the controller using a motor driver IC. As the output of
the controller is maximum 5v, it cannot drive the motors. So, to amplify this voltage motor driver, IC is used.
L293D can amplify up to 36v.The driver IC has 16 pins. 2, 7, 10, 15 are input pins and are connected to the
PD0-PD3 pins of microcontroller.16 pin is connected to 12v. This voltage drives the motors. 8th
pin is connected
to 5v for internal operations of the IC[9].
Figure 7 :Dc Motor Driver
Video Transmission
In this paper, live video transmission is carried out by video capturing device -wireless camera in the
robot and with video perception device- TV tuner in the control unit. The CCTV camera can be equipped to
capture images and then transmit them to a central device. With the help of camera real time image of an object
can be sent to PC with MATLAB software.
Image Processing
Pixel is the building blocks of an image. A Binary image consists of black and white pixels. Grey
scale Image contains intensity values ranging from a minimum (absolute black) to a maximum (absolute white)
and in between varying shades of grey. Typically, the range is between 0 and 255. For a binary image, the value
of each element in the matrix is either 0 or 1 and for a grey scale image each value lies between 0 and 255
Colour image is composed of the three primary colours like Red, Green and Blue. Hence it is called as RGB
image. A colour image is stored as an m x n x 3 matrix where each element is the RGB value of that particular
pixel.
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 47 | Page
Encoder
The 212
encoders are a series of CMOS LSIs for remote control system applications . They are capable
of encoding information, which consists of N address bits and 12N
data bits. The encoders begin a 4-word
transmission cycle upon receipt of a transmission enable (TE). This cycle will repeat itself as long as the
transmission enable (TE) is held low.
Decoder
The 212
decoders are a series of CMOS LSIs for remote control system applications. They are paired
with 212
series of encoders. For proper operation, a pair of encoder/decoder with the same number of addresses
and data format should be chosen. The decoders receive serial addresses and data from a programmed 212
series
of encoders that are transmitted by a carrier using an RF transmission medium. They compare the serial input
data three times continuously with their local addresses. If no error or unmatched codes are found, the input data
codes are decoded and then transferred to the output pins.
The 212
series of decoders provides various combinations of addresses and data pins in different
packages to pair with the 212
series of encoders. The decoders receive data that are transmitted by an encoder. A
signal on the DIN pin activates the oscillator, which in turn decodes the incoming address and data. The
decoders will then check the received address three times continuously. If the received address codes matches
with the contents of the decoder’s local address, the 12N
bits of data are decoded to activate the output pins and
the VT pin is set high to indicate a valid transmission. This will last unless the address code is incorrect o r no
signal is received. The output of the VT pin is high only when the transmission is valid. Otherwise, it is always
low[9].
Figure 8 :Encoder And Decoder
Analog To Digital Converter
ADC 0809 analog to digital converter is a successive approximation type Analog to Digital Converter .
The ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital
converter, 8-channel multiplexer and microprocessor compatible control logic [10].
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 48 | Page
FIGURE 9: Circuit Diagram of Analog to Digital Converter
Level Converter
When PC communicates with microcontrollers the RS232 levels should be converted down to lower
levels, typically 3.3 or 5.0 Volts. Serial RS-232 (V.24) communication works with voltages -15V to +15V
for high and low. On the other hand, TTL logic in the microcontroller operates between 0Vand +5V. Modern
low power consumption logic operates in the range of 0V and +3.3V or even lower. Thus the RS -232 signal
levels are far too high TTL electronics, and the negative RS-232 voltage for high can’t be handled at all by
computer logic. To receive serial data froman RS-232 interface the voltage has to be reduced. Also the low and
high voltage level has to be inverted. This level converter uses a Max232 and five capacitors. The max232 is
quite cheap. The MAX232 from Maxim was the first IC which contains drivers and receivers to adapt the RS-
232 signal voltage levels to TTL logic[11].
Fig 10: Circuit diagram of Level Converter
Rf Transmission
Radio Frequency (RF) transmission uses radio signals to transmit audio by a carrier from a transmitter
to a receiver. Like a radio station transmitter, the transmitter has an antenna attached to the transmitter unit
which needs to be positioned to adequately cover the listening area[4]. The receiver units are either single
channel or multi channel and they receive the modulated radio waves and convert them back into an audio
signal. Multichannel receivers will have a channel selector which allows a user to select a specific transmission
channel. Since the antenna may pick up thousands of radio signals at a time, a radio tuner is necessary to tune
in to a particular frequency (or frequency range). This is done by a resonator with a capacitor and an inductor
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 49 | Page
forming a tuned circuit. The resonator amplifies oscillations within a particular frequency band. Often the
inductor or the capacitor of the tuned circuit is adjustable and allows the user to change the frequencies at which
it resonates [3].
1) RF Transmitter:
The TWS-434 transmitter is used for short-range RF remote controls. The TWS-434 transmitter is
placed inside a small plastic enclosure. The transmitter is given a power supply of 5V. The output power of the
transmitter is up to 8mW at 433.92 MHz. The coverage area of the transmitter will be 400 foot in open area or in
the outdoors and in indoor the coverage area will be about 200 foot. The TWS-434 transmitter accepts both
linear and digital inputs can operate from 1.5 to 12 Volts-DC. The input is given to the pin-2. The power supply
is provided in the pin-3. The RF output is produced in the pin-4, where the antenna is connected.
Fig 11: Transmitter Section
The transmitter transmits 4 words for each transmission of the signal. The 4 bit data from the pin 17 of
the encoder moves to the data input pin of the transmitter and from there the data is transmitted through the
antenna .The voltage consumed by the transmitter will be about 2.85v in the encoder. The carrie r frequency is
433MHZ [3][4].
2) RF Receiver
The receiver RWS 434 also operates at 433 MHz. The receiver has a sensitivity of 3µA. It operates at
4.5V to 5.5V. The output produced by receiver can be either linear or digital. The distance between the pin1 and
pin 8 is 43.5mm. The distance between the pin4 and pin5 is 25.4mm. The digital output will reach the decoder
fromthe pin2 and the linear output will be present in the pin 3. The receiver RWS 434 section is used along with
the HT-12D decoder IC for a 4-bit RF remote control system. For maximum range, the antenna size can be
increased from 30-35cm [3][4].
Fig 12: Receiver Section
Advantages
 Less noise vibration
 It has longer life
 low cost and highly efficient
 Ruggedness with longer life
 Simplicity in construction
 High reliability with flexibility
 No maintenance and Wide acceptance
Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission
DOI: 10.9790/2834-11124050 www.iosrjournals.org 50 | Page
 Installation is simple
 No feedback components are needed
 The rotation angle of motor is proportional to input pulse.
 The motor has full torque at standstill
 Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3-5% of a
step and this error is non-cumulative from one step to next.
 Excellent response to starting, stopping, reversing.
X. Future Enhancements
The color detection capacity of the robot can be increased to blue and green along with red which can
sort out wide range of objects. The robot can be enhanced with pattern recognition and Speech recognition
features which plays a vital role in many industries and also increases the accuracy of the task in logistic and
packaging industry.
XI. Conclusion
The developed ROBOT detects the presence and colour of the object and place it in the desired
location. The robot is controlled through wireless communication in industries with hazardous environment. The
objective is met by sorting the objects based on the color from a group of objects which can be monitored
through live video transmission. Thus an automatic painting robotic system can be developed along with the
capability of detecting gas leakage in the working environment.
References
[1]. C.Alippi: Intelligence for Embedded Systems. Springer, 2014, 283pp, ISBN 978-3-319-05278-6.
[2]. Heath, Steve (2003). Embedded systems design. EDN series for design engineers (2 ed.). Newnes. p. 2. ISBN 978-0-7506-5546-0.
An embedded system is a microprocessor based systemthat is built to control a function or a range of functions
[3]. Jeffrey S. Beasley; Gary M. Miller (2008). Modern Electronic Communication (9th ed.). pp. 4–5. ISBN 978-0132251136.
[4]. Jump up "Definition of RADIO FREQUENCY". Merriam-Webster. Encyclopedia Britannica. n.d. Retrieved6 August 2015.
[5]. Kneip, L., F.Tache, et al., 2009. Characterization ofthe compact Hokyo URG-04LX 2D laser range scanner Proc. of IEEE Int. Cof.
on Robotics and Automation, pp: 1447-1454.
[6]. ROBOTICS, Control, Sensing, Vision and Intelligence - K.S Fu, R.C Gonazalez, C.S.G Lee
[7]. PRINCIPLES OF ROBOT MOTION, Theory, Algorithm, Implementation -Choset, Lynch, Hutchinson, Kantor, Burgard, Kavraki
andThrun FUNDAMENTALS OF ROBOTICS Analysis and Control – Robert J Schilling
[8]. S.C.Jacobsen, et al.(1986) “Design ofthe UItah/MIT Dexterous Hand,”Proc. IEEE Inter Conf. on Robotics and Automation, pp
1520-1532.
[9]. Yoky Matsuoka(1997) “The Mechanism in a Humanoid Robot Hand”, Autonomous Robots, Vol.4, No. 2, pp.1999- 2009.
[10]. C. S. Lovchic and M. A. Diftler:The Robonaut Hand(1999) “A Dexterous Robot Hand for Space”, Procd. of the 1999 IEEE
International Conference on Robotics and Automation, pp. 907-912.

More Related Content

What's hot

Visual pattern recognition in robotics
Visual pattern recognition in roboticsVisual pattern recognition in robotics
Visual pattern recognition in robotics
IAEME Publication

Unit III - Solved Question Bank- Robotics Engineering -
Unit III - Solved Question Bank-  Robotics Engineering -Unit III - Solved Question Bank-  Robotics Engineering -
Unit III - Solved Question Bank- Robotics Engineering -
Sanjay Singh

Machine Learning and Robotic Vision
Machine Learning and Robotic VisionMachine Learning and Robotic Vision
Machine Learning and Robotic Vision
Open Knowledge Nepal

IRJET- Oranges Sorting using Arduino Microcontroller
IRJET- Oranges Sorting using Arduino MicrocontrollerIRJET- Oranges Sorting using Arduino Microcontroller
IRJET- Oranges Sorting using Arduino Microcontroller
IRJET Journal

Follow Me Robot Technology
Follow Me Robot TechnologyFollow Me Robot Technology
Follow Me Robot Technology
ijsrd.com

Colour Sensor Based Object Sorting Robot
Colour Sensor Based Object Sorting RobotColour Sensor Based Object Sorting Robot
Colour Sensor Based Object Sorting Robot
IRJET Journal

IRJET- Finger Gesture Recognition using Laser Line Generator and Camera
IRJET- Finger Gesture Recognition using Laser Line Generator and CameraIRJET- Finger Gesture Recognition using Laser Line Generator and Camera
IRJET- Finger Gesture Recognition using Laser Line Generator and Camera
IRJET Journal

Swarm robotics : Design and implementation
Swarm robotics : Design and implementationSwarm robotics : Design and implementation
Swarm robotics : Design and implementation
IJECEIAES

Simultaneous Mapping and Navigation For Rendezvous in Space Applications
Simultaneous Mapping and Navigation For Rendezvous in Space ApplicationsSimultaneous Mapping and Navigation For Rendezvous in Space Applications
Simultaneous Mapping and Navigation For Rendezvous in Space Applications
Nandakishor Jahagirdar

2D mapping using omni-directional mobile robot equipped with LiDAR
2D mapping using omni-directional mobile robot equipped with LiDAR2D mapping using omni-directional mobile robot equipped with LiDAR
2D mapping using omni-directional mobile robot equipped with LiDAR
TELKOMNIKA JOURNAL

Hand Segmentation for Hand Gesture Recognition
Hand Segmentation for Hand Gesture RecognitionHand Segmentation for Hand Gesture Recognition
Hand Segmentation for Hand Gesture Recognition
AM Publications,India

IRJET- Vision Based Sign Language by using Matlab
IRJET- Vision Based Sign Language by using MatlabIRJET- Vision Based Sign Language by using Matlab
IRJET- Vision Based Sign Language by using Matlab
IRJET Journal

IRJET- Survey Paper on Vision based Hand Gesture Recognition
IRJET- Survey Paper on Vision based Hand Gesture RecognitionIRJET- Survey Paper on Vision based Hand Gesture Recognition
IRJET- Survey Paper on Vision based Hand Gesture Recognition
IRJET Journal

Learning of robots by using & sharing the cloud computing techniques
Learning of robots by using & sharing the cloud computing techniquesLearning of robots by using & sharing the cloud computing techniques
Learning of robots by using & sharing the cloud computing techniques
Er. rahul abhishek

Voice controlled wheel chair
Voice controlled wheel chairVoice controlled wheel chair
Voice controlled wheel chair
monu singh

Darshan--Ip Engineer
Darshan--Ip EngineerDarshan--Ip Engineer
Darshan--Ip Engineer
Darshan YS

MRL Team Description Paper for Humanoid KidSize League of Robocup 2014
MRL Team Description Paper  for Humanoid KidSize League of Robocup 2014MRL Team Description Paper  for Humanoid KidSize League of Robocup 2014
MRL Team Description Paper for Humanoid KidSize League of Robocup 2014
Emad Farrokhi


What's hot (17)

Visual pattern recognition in robotics
Visual pattern recognition in roboticsVisual pattern recognition in robotics
Visual pattern recognition in robotics

Unit III - Solved Question Bank- Robotics Engineering -
Unit III - Solved Question Bank-  Robotics Engineering -Unit III - Solved Question Bank-  Robotics Engineering -
Unit III - Solved Question Bank- Robotics Engineering -

Machine Learning and Robotic Vision
Machine Learning and Robotic VisionMachine Learning and Robotic Vision
Machine Learning and Robotic Vision

IRJET- Oranges Sorting using Arduino Microcontroller
IRJET- Oranges Sorting using Arduino MicrocontrollerIRJET- Oranges Sorting using Arduino Microcontroller
IRJET- Oranges Sorting using Arduino Microcontroller

Follow Me Robot Technology
Follow Me Robot TechnologyFollow Me Robot Technology
Follow Me Robot Technology

Colour Sensor Based Object Sorting Robot
Colour Sensor Based Object Sorting RobotColour Sensor Based Object Sorting Robot
Colour Sensor Based Object Sorting Robot

IRJET- Finger Gesture Recognition using Laser Line Generator and Camera
IRJET- Finger Gesture Recognition using Laser Line Generator and CameraIRJET- Finger Gesture Recognition using Laser Line Generator and Camera
IRJET- Finger Gesture Recognition using Laser Line Generator and Camera

Swarm robotics : Design and implementation
Swarm robotics : Design and implementationSwarm robotics : Design and implementation
Swarm robotics : Design and implementation

Simultaneous Mapping and Navigation For Rendezvous in Space Applications
Simultaneous Mapping and Navigation For Rendezvous in Space ApplicationsSimultaneous Mapping and Navigation For Rendezvous in Space Applications
Simultaneous Mapping and Navigation For Rendezvous in Space Applications

2D mapping using omni-directional mobile robot equipped with LiDAR
2D mapping using omni-directional mobile robot equipped with LiDAR2D mapping using omni-directional mobile robot equipped with LiDAR
2D mapping using omni-directional mobile robot equipped with LiDAR

Hand Segmentation for Hand Gesture Recognition
Hand Segmentation for Hand Gesture RecognitionHand Segmentation for Hand Gesture Recognition
Hand Segmentation for Hand Gesture Recognition

IRJET- Vision Based Sign Language by using Matlab
IRJET- Vision Based Sign Language by using MatlabIRJET- Vision Based Sign Language by using Matlab
IRJET- Vision Based Sign Language by using Matlab

IRJET- Survey Paper on Vision based Hand Gesture Recognition
IRJET- Survey Paper on Vision based Hand Gesture RecognitionIRJET- Survey Paper on Vision based Hand Gesture Recognition
IRJET- Survey Paper on Vision based Hand Gesture Recognition

Learning of robots by using & sharing the cloud computing techniques
Learning of robots by using & sharing the cloud computing techniquesLearning of robots by using & sharing the cloud computing techniques
Learning of robots by using & sharing the cloud computing techniques

Voice controlled wheel chair
Voice controlled wheel chairVoice controlled wheel chair
Voice controlled wheel chair

Darshan--Ip Engineer
Darshan--Ip EngineerDarshan--Ip Engineer
Darshan--Ip Engineer

MRL Team Description Paper for Humanoid KidSize League of Robocup 2014
MRL Team Description Paper  for Humanoid KidSize League of Robocup 2014MRL Team Description Paper  for Humanoid KidSize League of Robocup 2014
MRL Team Description Paper for Humanoid KidSize League of Robocup 2014


Viewers also liked

J013118591
J013118591J013118591
J013118591
IOSR Journals

D011122934
D011122934D011122934
D011122934
IOSR Journals

G017334248
G017334248G017334248
G017334248
IOSR Journals

S130403131140
S130403131140S130403131140
S130403131140
IOSR Journals

E012513749
E012513749E012513749
E012513749
IOSR Journals

B012630608
B012630608B012630608
B012630608
IOSR Journals

E011122530
E011122530E011122530
E011122530
IOSR Journals

Polymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin
Polymer Concrete Made With Recycled Glass Aggregates, Flyash and MetakaolinPolymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin
Polymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin
IOSR Journals

Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite
Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 compositeStudy of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite
Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite
IOSR Journals

Simulation of Signals with Field Signal Simulator
Simulation of Signals with Field Signal SimulatorSimulation of Signals with Field Signal Simulator
Simulation of Signals with Field Signal Simulator
IOSR Journals

N010417991
N010417991N010417991
N010417991
IOSR Journals

Finite Element Analysis of Copper Deformed By Conventional Forward Extrusion
Finite Element Analysis of Copper Deformed By Conventional Forward ExtrusionFinite Element Analysis of Copper Deformed By Conventional Forward Extrusion
Finite Element Analysis of Copper Deformed By Conventional Forward Extrusion
IOSR Journals

B1103010918
B1103010918B1103010918
B1103010918
IOSR Journals

Development of Model for Quality Costing in a Medium Scale Industry-A Case Study
Development of Model for Quality Costing in a Medium Scale Industry-A Case StudyDevelopment of Model for Quality Costing in a Medium Scale Industry-A Case Study
Development of Model for Quality Costing in a Medium Scale Industry-A Case Study
IOSR Journals

I012646171
I012646171I012646171
I012646171
IOSR Journals

I011125866
I011125866I011125866
I011125866
IOSR Journals

Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...
Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...
Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...
IOSR Journals

Prevention of Selective Jamming Attacks by Using Packet Hiding Methods
Prevention of Selective Jamming Attacks by Using Packet Hiding MethodsPrevention of Selective Jamming Attacks by Using Packet Hiding Methods
Prevention of Selective Jamming Attacks by Using Packet Hiding Methods
IOSR Journals

F03124246
F03124246F03124246
F03124246
IOSR Journals

Touchpad Monitored Car
Touchpad Monitored Car Touchpad Monitored Car
Touchpad Monitored Car
IOSR Journals


Viewers also liked (20)

J013118591
J013118591J013118591
J013118591

D011122934
D011122934D011122934
D011122934

G017334248
G017334248G017334248
G017334248

S130403131140
S130403131140S130403131140
S130403131140

E012513749
E012513749E012513749
E012513749

B012630608
B012630608B012630608
B012630608

E011122530
E011122530E011122530
E011122530

Polymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin
Polymer Concrete Made With Recycled Glass Aggregates, Flyash and MetakaolinPolymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin
Polymer Concrete Made With Recycled Glass Aggregates, Flyash and Metakaolin

Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite
Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 compositeStudy of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite
Study of the Tribological behavior of as cast Al-4.2%Cu-Al2O3 composite

Simulation of Signals with Field Signal Simulator
Simulation of Signals with Field Signal SimulatorSimulation of Signals with Field Signal Simulator
Simulation of Signals with Field Signal Simulator

N010417991
N010417991N010417991
N010417991

Finite Element Analysis of Copper Deformed By Conventional Forward Extrusion
Finite Element Analysis of Copper Deformed By Conventional Forward ExtrusionFinite Element Analysis of Copper Deformed By Conventional Forward Extrusion
Finite Element Analysis of Copper Deformed By Conventional Forward Extrusion

B1103010918
B1103010918B1103010918
B1103010918

Development of Model for Quality Costing in a Medium Scale Industry-A Case Study
Development of Model for Quality Costing in a Medium Scale Industry-A Case StudyDevelopment of Model for Quality Costing in a Medium Scale Industry-A Case Study
Development of Model for Quality Costing in a Medium Scale Industry-A Case Study

I012646171
I012646171I012646171
I012646171

I011125866
I011125866I011125866
I011125866

Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...
Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...
Modelling of Permanent Deformation on Flexible Pavement Using Accelerated Pav...

Prevention of Selective Jamming Attacks by Using Packet Hiding Methods
Prevention of Selective Jamming Attacks by Using Packet Hiding MethodsPrevention of Selective Jamming Attacks by Using Packet Hiding Methods
Prevention of Selective Jamming Attacks by Using Packet Hiding Methods

F03124246
F03124246F03124246
F03124246

Touchpad Monitored Car
Touchpad Monitored Car Touchpad Monitored Car
Touchpad Monitored Car


Similar to H011124050

Material Handling Robot For Smart Manufacturing in Industries
Material Handling Robot For Smart Manufacturing in IndustriesMaterial Handling Robot For Smart Manufacturing in Industries
Material Handling Robot For Smart Manufacturing in Industries
dbpublications

Fire fighting final report
Fire fighting final report Fire fighting final report
Fire fighting final report
Pooja M

Summer Training Program Report On Embedded system and robot
Summer Training Program Report On Embedded system and robot Summer Training Program Report On Embedded system and robot
Summer Training Program Report On Embedded system and robot
Arcanjo Salazaku

Pick and place
Pick and placePick and place
Pick and place
bharinalaharidhar

Robotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth ModuleRobotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth Module
ijceronline

Development of Pick and Place Robot for Industrial Applications
Development of Pick and Place Robot for Industrial ApplicationsDevelopment of Pick and Place Robot for Industrial Applications
Development of Pick and Place Robot for Industrial Applications
IRJET Journal

Robotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth ModuleRobotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth Module
ijceronline

Final-Report
Final-ReportFinal-Report
Final-Report
KAJAL PANDA

Camouflage color changing robot for miltary purpose
Camouflage color changing robot for miltary purposeCamouflage color changing robot for miltary purpose
Camouflage color changing robot for miltary purpose
AtharvaPathak13

robotics.pptx
robotics.pptxrobotics.pptx
robotics.pptx
nireekshan1

An improved approach_for_monitoring_and
An improved approach_for_monitoring_andAn improved approach_for_monitoring_and
An improved approach_for_monitoring_and
Tahia2017

An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...
An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...
An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...
IJCSIS Research Publications

All Terrain Offensive and Defensive Robot
All Terrain Offensive and Defensive RobotAll Terrain Offensive and Defensive Robot
All Terrain Offensive and Defensive Robot
ijtsrd

Unit 6-Role of Microcontroller in Robotics.pdf
Unit 6-Role of Microcontroller in Robotics.pdfUnit 6-Role of Microcontroller in Robotics.pdf
Unit 6-Role of Microcontroller in Robotics.pdf
2075AAGEPRATIK

IRJET - Swarm Robotic System for Mapping and Exploration of Extreme Envir...
IRJET -  	  Swarm Robotic System for Mapping and Exploration of Extreme Envir...IRJET -  	  Swarm Robotic System for Mapping and Exploration of Extreme Envir...
IRJET - Swarm Robotic System for Mapping and Exploration of Extreme Envir...
IRJET Journal

ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES
ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIESROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES
ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES
IJCNCJournal

Wireless AI based industrial security robot
Wireless AI based industrial security robotWireless AI based industrial security robot
Wireless AI based industrial security robot
Varun B P

Robot arm ppt
Robot arm pptRobot arm ppt
Robot arm ppt
Minuchaudhari1

Computer project
Computer projectComputer project
Computer project
Muhammad Ahmad

Wireless industrial robot
Wireless  industrial robotWireless  industrial robot
Wireless industrial robot
Varun B P


Similar to H011124050 (20)

Material Handling Robot For Smart Manufacturing in Industries
Material Handling Robot For Smart Manufacturing in IndustriesMaterial Handling Robot For Smart Manufacturing in Industries
Material Handling Robot For Smart Manufacturing in Industries

Fire fighting final report
Fire fighting final report Fire fighting final report
Fire fighting final report

Summer Training Program Report On Embedded system and robot
Summer Training Program Report On Embedded system and robot Summer Training Program Report On Embedded system and robot
Summer Training Program Report On Embedded system and robot

Pick and place
Pick and placePick and place
Pick and place

Robotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth ModuleRobotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth Module

Development of Pick and Place Robot for Industrial Applications
Development of Pick and Place Robot for Industrial ApplicationsDevelopment of Pick and Place Robot for Industrial Applications
Development of Pick and Place Robot for Industrial Applications

Robotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth ModuleRobotic Soldier with EM Gun using Bluetooth Module
Robotic Soldier with EM Gun using Bluetooth Module

Final-Report
Final-ReportFinal-Report
Final-Report

Camouflage color changing robot for miltary purpose
Camouflage color changing robot for miltary purposeCamouflage color changing robot for miltary purpose
Camouflage color changing robot for miltary purpose

robotics.pptx
robotics.pptxrobotics.pptx
robotics.pptx

An improved approach_for_monitoring_and
An improved approach_for_monitoring_andAn improved approach_for_monitoring_and
An improved approach_for_monitoring_and

An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...
An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...
An Improved Approach for Monitoring and Controlling of Flyovers and Bridges U...

All Terrain Offensive and Defensive Robot
All Terrain Offensive and Defensive RobotAll Terrain Offensive and Defensive Robot
All Terrain Offensive and Defensive Robot

Unit 6-Role of Microcontroller in Robotics.pdf
Unit 6-Role of Microcontroller in Robotics.pdfUnit 6-Role of Microcontroller in Robotics.pdf
Unit 6-Role of Microcontroller in Robotics.pdf

IRJET - Swarm Robotic System for Mapping and Exploration of Extreme Envir...
IRJET -  	  Swarm Robotic System for Mapping and Exploration of Extreme Envir...IRJET -  	  Swarm Robotic System for Mapping and Exploration of Extreme Envir...
IRJET - Swarm Robotic System for Mapping and Exploration of Extreme Envir...

ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES
ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIESROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES
ROBOT HUMAN INTERFACE FOR HOUSEKEEPER ROBOT WITH WIRELESS CAPABILITIES

Wireless AI based industrial security robot
Wireless AI based industrial security robotWireless AI based industrial security robot
Wireless AI based industrial security robot

Robot arm ppt
Robot arm pptRobot arm ppt
Robot arm ppt

Computer project
Computer projectComputer project
Computer project

Wireless industrial robot
Wireless  industrial robotWireless  industrial robot
Wireless industrial robot


More from IOSR Journals

A011140104
A011140104A011140104
A011140104
IOSR Journals

M0111397100
M0111397100M0111397100
M0111397100
IOSR Journals

L011138596
L011138596L011138596
L011138596
IOSR Journals

K011138084
K011138084K011138084
K011138084
IOSR Journals

J011137479
J011137479J011137479
J011137479
IOSR Journals

I011136673
I011136673I011136673
I011136673
IOSR Journals

G011134454
G011134454G011134454
G011134454
IOSR Journals

H011135565
H011135565H011135565
H011135565
IOSR Journals

F011134043
F011134043F011134043
F011134043
IOSR Journals

E011133639
E011133639E011133639
E011133639
IOSR Journals

D011132635
D011132635D011132635
D011132635
IOSR Journals

C011131925
C011131925C011131925
C011131925
IOSR Journals

B011130918
B011130918B011130918
B011130918
IOSR Journals

A011130108
A011130108A011130108
A011130108
IOSR Journals

I011125160
I011125160I011125160
I011125160
IOSR Journals

G011123539
G011123539G011123539
G011123539
IOSR Journals

F011123134
F011123134F011123134
F011123134
IOSR Journals

D011121524
D011121524D011121524
D011121524
IOSR Journals

C011121114
C011121114C011121114
C011121114
IOSR Journals

B011120510
B011120510B011120510
B011120510
IOSR Journals


More from IOSR Journals (20)

A011140104
A011140104A011140104
A011140104

M0111397100
M0111397100M0111397100
M0111397100

L011138596
L011138596L011138596
L011138596

K011138084
K011138084K011138084
K011138084

J011137479
J011137479J011137479
J011137479

I011136673
I011136673I011136673
I011136673

G011134454
G011134454G011134454
G011134454

H011135565
H011135565H011135565
H011135565

F011134043
F011134043F011134043
F011134043

E011133639
E011133639E011133639
E011133639

D011132635
D011132635D011132635
D011132635

C011131925
C011131925C011131925
C011131925

B011130918
B011130918B011130918
B011130918

A011130108
A011130108A011130108
A011130108

I011125160
I011125160I011125160
I011125160

G011123539
G011123539G011123539
G011123539

F011123134
F011123134F011123134
F011123134

D011121524
D011121524D011121524
D011121524

C011121114
C011121114C011121114
C011121114

B011120510
B011120510B011120510
B011120510


Recently uploaded

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities
Arpan Buwa

leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...
leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...
leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...
alexjohnson7307

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch
softsuave

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
bellared2

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio
Ivanti

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx
BrainSell Technologies

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries
Brian Pichman

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
Priyanka Aash

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development
Baishakhi Ray

Sonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdfSonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdf
SubhamMandal40

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview
Steven Carlson

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights
SynapseIndia

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash


Recently uploaded (20)

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities

leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...
leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...
leewayhertz.com-Generative AI tech stack Frameworks infrastructure models and...

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...

Semantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software DevelopmentSemantic-Aware Code Model: Elevating the Future of Software Development
Semantic-Aware Code Model: Elevating the Future of Software Development

Sonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdfSonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdf

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview

Tailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer InsightsTailored CRM Software Development for Enhanced Customer Insights
Tailored CRM Software Development for Enhanced Customer Insights

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf


H011124050

  • 1. IOSR Journal of Electronics and Communication Engineering (IOSR-JECE) e-ISSN: 2278-2834,p- ISSN: 2278-8735.Volume 11, Issue 1, Ver. II (Jan. - Feb .2016), PP 40-50 www.iosrjournals.org DOI: 10.9790/2834-11124050 www.iosrjournals.org 40 | Page Design of Intelligent Autonomous Wheeled Robot Using Rf Transmission P. Radhika, ME, Assistant Professor / MCT, Akshay Venkat, BE MCT, Gowtham. G, BE MCT. P. Athul, BE MCT, Abstract: Embedded system is an emerging field with immense applications in Science and Engineering. The designed ROBOT is a portable machine. Communication between ROBOT and the Control Unit is performed through Radio Frequency (RF) Communication. The system basically has two modes. The automatic mode is the first mode and the user control mode is the second mode. ROBOT is controlled with the help of Microcontroller in the control unit and is programmed my means of microcontroller in it. The primary aim of the project is to design, develop and implement Automatic Wall Painting Robot which helps to achieve low cost painting equipment along with object recognition. The robotic system is remote controlled. Thus the aim is to provide a robotic system that can be used in industrial applications. In this paper the robot is controlled from the system using MATLAB software I. Introduction Embedded systems are controlled by one or more processing cores that are either microcontrollers or digital signal processors (DSP). Hence, the robot is designed using the concept of embedded systems. Embedded Systems are mostly Processor and controller based like General Processors, Micro Processors, DSP and Microcontroller. In this paper, the S8951 Micro controller is used for controlling the robot[1][2]. Industrial automation and robotics are at a high demand in the industry as both of them directly affect the growth of the industry. Autonomous robots with sensors used in industries directly results in the growth of the industry. When construction workers and robots are properly integrated in industries, the whole construction process can be better managed and savings in human labour and timing can be obtained as a consequence. Colour is the most common feature to distinguish between objects for sorting, recognizing and tracking. The robot in this paper is used for general tasks such as painting and object recognition with high precision and accuracy. Robot is mounted with a camera in its workspace to detect the object and also to telecast the video for live transmission of video signals in the control unit PC. The robot works based on the sensory information and programmed in Image processing toolbox in MATLAB. The robot can be used in material handling in logistics and packaging industry where the objects moving through a conveyer belt can be separated using a colour detecting robot. Radio Frequency (RF) transmission uses radio waves like radio or television signals to transmit audio and video signals via a carrier from a transmitter to a receiver. Radio frequency (RF) is a rate of oscillation in the range of about 30 kHz to 300 GHz, which corresponds to the frequency of electrical signals used to produce and detect radio waves. The transmitter has an antenna attached to the transmitter unit which needs to be positioned to cover the listening area. The receiver unit is either single channel or multichannel and it receives the modulated radio waves and convert them back into an audio signal which is sent to the headphone output[3][4].
  • 2. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 41 | Page Figure 1: Process Diagram Characteristics of Robotics Robots can be in various forms like Manipulator, humanoid robot, Legged robot, wheeled robot, Autonomous underwater robot, unmanned aerial robot. The robot performs jobs that are dangerous, boring, stressful or labour-intensive for humans. The characteristics of a robot can be programmed through softwares like MATLAB, Visual Basic, LabVIEW, C, etc., Need For Robots Often, robots are used to do jobs that could be done by humans but there are many reasons why robots are better than humans in performing certain tasks. Speed: Robot may be used because they are FASTER than people at carrying out tasks as it is a mechanism which is controlled by a computer. Some robots actually MOVE more quickly than we can, so they can carry out a task such as picking up and inserting items, more quickly. Hazardous (Dangerous Environments): Robots may be used in places where a human would be in danger. For example, robots can be designed to withstand greater amounts of Heat, Radiation, Chemical fumes, than humans could. Repetitive Tasks: Sometimes robots are not really much faster than humans, but they are good at simply doing the same job over and over again. This is easy for a robot, because once the robot has been programmed to do a job the same programcan be run many times to carry out a job many times. And the robot will not get bored as a human would. Efficiency: Efficiency is all about carrying tasks without waste. This could mean not wasting time, not wasting materials, not wasting energy. Accuracy: Accuracy is about carrying out tasks very precisely. When items are being assembled, a robot can position parts within fractions of millimeter A Robot Has Four Essential Characteristics: Sensing: First of all, Robot would have to be able to sense its surroundings. A robot needs to move arou nd its environment either rolling on wheels, walking on legs. Energy: A robot needs to power itself. A robot might be solar powered, electrically powered, battery powered. Intelligence: A robot needs some kind of "smarts" where it is programmed. Adaptability: Adaptability is where a robot can be used to carry out more than one task. The program which controls the robot can be changed. An adaptability robot is developed and designed in this paper
  • 3. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 42 | Page Laws Of Robotics Asimov proposed three “Laws of Robotics” Law 1: A robot may not injure a human being or through inaction, allow a human being to come to harm. Law 2: A robot must obey orders given to it by human beings, except where such orders would conflict with a higher order law. Law 3: A robot must protect its own existence as long as such protection does not conflict with a higher order law. II. Existing Work Labours in the construction industry are not sufficient because of the difficulty in work, improvement in the education level makes people to think that these types of work is not as prestigious as the other jobs. In construction industry, during the work in tall buildings the risky situation is more. The nature of painting and object recognition procedure requires repeated work and hand rising makes it boring, time and effort consuming. The painting chemicals can cause hazards to the human painters in eye and respiratory system. III. Proposed Work In addition to manual mode, the system has automatic mode in which the robot can take its own decision. Applications of robotics and automation in construction industries improve safety and ensures quality environment. In order to reduce the number of labours, automation in painting was introduced in this paper. Features like object recognition, gas detection is also included. Thus our system is more reliable to be used in industries than the existing manual method of object detection in pick and place application and painting. The systemcontains object and color recognition module which is carried out using vision system techniques. IV. Construction And System Model The robot model contains a 3 axis robot arm with three servomotors for painting and color identification. It is a type of programmable mechanical arm, similar to a human arm. The links of the robot manipulator are connected by joints allowing either rotational motion or translational dis placement. The robot arm consists of three DC motors one for the base, one in the middle and another for the gripper to pick and drop the objects detected. Two servomotors are used for movement. The two wheels of the robotic vehicle are connected to the DC motors which are in turn connected to the microcontroller. The microcontroller through the incoming signal controls the movements of the robot while performing painting operation and object recognition operation. The microcontroller used is 89S51. RS232 communication was used for MATLAB to communicate with the microcontroller. V. Object Recognition In the object recognition mode, the robot can identify the object through the microcontroller and sends the signal to the control unit using RF transmitter for driving the motor to pick and place the object . In the control unit, the object can be sorted along with colour recognition using the MATLAB algorithm in the PC and send command to the controller using serial communication. The robot detects the object using vision system. Other features such as orientation, gradient magnitude can also be added. In this paper the detection of different colours is done through image processing technique using MATLAB. For object recognition MATLAB has the most powerful tool box for image improving, enhancing and categorizing using features such as colour, dimensions and texture of the object. Wavelet transforms in the PC decomposes the image into a group of pixels. The robot model is used to pick and place the desired colour objects from one location to another with actions like gripper open, gripper close, left and right movement on the robot. This robot sorts the objects in a mixture of different coloured objects fromthe conveyor belt [7]. VI. Painting System The construction of the automatic wall painting robot consists of two main parts. They are Mobile platform and spray gun mount. The mobile platform consists of Frame stand, IR sensor, Solenoid valve, Sprocket , Flow control valve and Spray gun and the spray condition determining unit at the control unit. The frame stand is the steel welded to carry the spray gun. The movement of the frame stand is controlled by the DC motor rotation which is controlled by the microcontroller. The robot is simple and portable. The systemop erates in pneumatics and it needs air tank or compressor [8].
  • 4. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 43 | Page Figure 2: System Model VII. Software Development The actions performed by the robot are written as coding in 89S51 microcontroller using embedded C language. The following steps are involved in the software development: Coding/debugging, Compiling and Burning VIII. Working Principle Initially the two motors connected with the wheels will be powered by the battery and the robot starts to move by capturing video in the automatic mode. It estimates an obstacle in its path and changes its direction accordingly. The robot can be changed to user mode for applications like painting and object recognition. When robot visualizes an object, the signal will be sent to the microcontroller in the robot. The signal will be sent from the RF transmitter to the microcontroller RF receiver. The image acquisition tool box in MATLAB software calculates the number of pixels in the image for identifying the colour of the object. Once the colour is determined the object can be sorted through the gripper motor after the command signal from the Microcontroller in the control unit[9].
  • 5. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 44 | Page IX. Hardware Requirements Automatic Mode and User Mode In automatic mode the user has no control over the robot. The robot takes it own decisions and performs the required operation using Artificial Intelligence. At unavoidable circumstances the control automatically goes to the user mode. In user mode, the user has the full control of the robot from remote location and performs the required operation. Microcontroller Microcontroller is a microprocessor with memory unit. The Microcontrollers used in the Main Station and the Robot is ATMEL 89S51. Micro controller can control external signals from Robot, Control Unit. .Figure 3 : Microcontroller 89s51 Gas Sensor A gas sensor detects the presence of combustible, toxic oxygen and CO2 gases within an area to warn about gases which might be harmful to humans or animals. The dimensions of the gas sensor is 18mm in Diameter, 17mm High excluding pins, Pins - 6mm high. The response time of the gas sensor in the robot is less than 10s. Cryogenics such as liquid nitrogen (LN2), helium (He) and argon (Ar) can inert or deplete oxygen (02) in a confined space if a leak is present. A rapid decrease of oxygen can provide a very dangerous environment for employees in the industries, so the designed robot also determines the depletion in oxygen and the presence of a dangerous gas leakage in hazardous environment. The sensor can also sense iso-butane, propane, LNG and cigarette smoke[5][6].
  • 6. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 45 | Page Figure 4: Gas Sensor Ultrasonic Sensors The ultrasonic sensor makes uses of ultrasonic waves to sense the presence of an obstacle in its path and deviates its path or stops its journey. The sensor is connected to the pins of the microcontroller and takes any action depending upon the feedback received from the ultrasonic sensor. The circuit consists of ultrasonic transmitter and receiver both are similar to LED. Its operating voltage is around 1.4V. The transmitter continuously transmits the ultrasonic rays. At the output pin, voltage is approximately 5v. Here the micro controller part is to control the movement of the robot as well as to read the input from the sensor unit. The robot consists of 2 dc motors to rotate the wheels of the robot. The motor is rotated as per the direction in which the robot should move in the automatic mode or as per the instruction from the user in user mode. Figure 5: Ultrasonic Sensor Dc Motor Servomotors are also called as DC motors with built in gearing system and feedback loop control circuitry. When the shaft of the motor is at the desired position, power supplied to the motor is stopped. If not, the motor is turned in the appropriate direction. The desired position is sent by electrical pulses through the
  • 7. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 46 | Page signal wire. The motor's speed is proportional to the difference between its actual pos ition and desired position. If the motor is near the desired position, it will turn slowly, otherwise it will turn fast. This is called proportional control. Servomotors have rotary actuators that allow precise angular position [10]. Figure 6 :Dc Motor DC Motor Driver The DC motors of the robot are connected to the controller using a motor driver IC. As the output of the controller is maximum 5v, it cannot drive the motors. So, to amplify this voltage motor driver, IC is used. L293D can amplify up to 36v.The driver IC has 16 pins. 2, 7, 10, 15 are input pins and are connected to the PD0-PD3 pins of microcontroller.16 pin is connected to 12v. This voltage drives the motors. 8th pin is connected to 5v for internal operations of the IC[9]. Figure 7 :Dc Motor Driver Video Transmission In this paper, live video transmission is carried out by video capturing device -wireless camera in the robot and with video perception device- TV tuner in the control unit. The CCTV camera can be equipped to capture images and then transmit them to a central device. With the help of camera real time image of an object can be sent to PC with MATLAB software. Image Processing Pixel is the building blocks of an image. A Binary image consists of black and white pixels. Grey scale Image contains intensity values ranging from a minimum (absolute black) to a maximum (absolute white) and in between varying shades of grey. Typically, the range is between 0 and 255. For a binary image, the value of each element in the matrix is either 0 or 1 and for a grey scale image each value lies between 0 and 255 Colour image is composed of the three primary colours like Red, Green and Blue. Hence it is called as RGB image. A colour image is stored as an m x n x 3 matrix where each element is the RGB value of that particular pixel.
  • 8. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 47 | Page Encoder The 212 encoders are a series of CMOS LSIs for remote control system applications . They are capable of encoding information, which consists of N address bits and 12N data bits. The encoders begin a 4-word transmission cycle upon receipt of a transmission enable (TE). This cycle will repeat itself as long as the transmission enable (TE) is held low. Decoder The 212 decoders are a series of CMOS LSIs for remote control system applications. They are paired with 212 series of encoders. For proper operation, a pair of encoder/decoder with the same number of addresses and data format should be chosen. The decoders receive serial addresses and data from a programmed 212 series of encoders that are transmitted by a carrier using an RF transmission medium. They compare the serial input data three times continuously with their local addresses. If no error or unmatched codes are found, the input data codes are decoded and then transferred to the output pins. The 212 series of decoders provides various combinations of addresses and data pins in different packages to pair with the 212 series of encoders. The decoders receive data that are transmitted by an encoder. A signal on the DIN pin activates the oscillator, which in turn decodes the incoming address and data. The decoders will then check the received address three times continuously. If the received address codes matches with the contents of the decoder’s local address, the 12N bits of data are decoded to activate the output pins and the VT pin is set high to indicate a valid transmission. This will last unless the address code is incorrect o r no signal is received. The output of the VT pin is high only when the transmission is valid. Otherwise, it is always low[9]. Figure 8 :Encoder And Decoder Analog To Digital Converter ADC 0809 analog to digital converter is a successive approximation type Analog to Digital Converter . The ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic [10].
  • 9. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 48 | Page FIGURE 9: Circuit Diagram of Analog to Digital Converter Level Converter When PC communicates with microcontrollers the RS232 levels should be converted down to lower levels, typically 3.3 or 5.0 Volts. Serial RS-232 (V.24) communication works with voltages -15V to +15V for high and low. On the other hand, TTL logic in the microcontroller operates between 0Vand +5V. Modern low power consumption logic operates in the range of 0V and +3.3V or even lower. Thus the RS -232 signal levels are far too high TTL electronics, and the negative RS-232 voltage for high can’t be handled at all by computer logic. To receive serial data froman RS-232 interface the voltage has to be reduced. Also the low and high voltage level has to be inverted. This level converter uses a Max232 and five capacitors. The max232 is quite cheap. The MAX232 from Maxim was the first IC which contains drivers and receivers to adapt the RS- 232 signal voltage levels to TTL logic[11]. Fig 10: Circuit diagram of Level Converter Rf Transmission Radio Frequency (RF) transmission uses radio signals to transmit audio by a carrier from a transmitter to a receiver. Like a radio station transmitter, the transmitter has an antenna attached to the transmitter unit which needs to be positioned to adequately cover the listening area[4]. The receiver units are either single channel or multi channel and they receive the modulated radio waves and convert them back into an audio signal. Multichannel receivers will have a channel selector which allows a user to select a specific transmission channel. Since the antenna may pick up thousands of radio signals at a time, a radio tuner is necessary to tune in to a particular frequency (or frequency range). This is done by a resonator with a capacitor and an inductor
  • 10. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 49 | Page forming a tuned circuit. The resonator amplifies oscillations within a particular frequency band. Often the inductor or the capacitor of the tuned circuit is adjustable and allows the user to change the frequencies at which it resonates [3]. 1) RF Transmitter: The TWS-434 transmitter is used for short-range RF remote controls. The TWS-434 transmitter is placed inside a small plastic enclosure. The transmitter is given a power supply of 5V. The output power of the transmitter is up to 8mW at 433.92 MHz. The coverage area of the transmitter will be 400 foot in open area or in the outdoors and in indoor the coverage area will be about 200 foot. The TWS-434 transmitter accepts both linear and digital inputs can operate from 1.5 to 12 Volts-DC. The input is given to the pin-2. The power supply is provided in the pin-3. The RF output is produced in the pin-4, where the antenna is connected. Fig 11: Transmitter Section The transmitter transmits 4 words for each transmission of the signal. The 4 bit data from the pin 17 of the encoder moves to the data input pin of the transmitter and from there the data is transmitted through the antenna .The voltage consumed by the transmitter will be about 2.85v in the encoder. The carrie r frequency is 433MHZ [3][4]. 2) RF Receiver The receiver RWS 434 also operates at 433 MHz. The receiver has a sensitivity of 3µA. It operates at 4.5V to 5.5V. The output produced by receiver can be either linear or digital. The distance between the pin1 and pin 8 is 43.5mm. The distance between the pin4 and pin5 is 25.4mm. The digital output will reach the decoder fromthe pin2 and the linear output will be present in the pin 3. The receiver RWS 434 section is used along with the HT-12D decoder IC for a 4-bit RF remote control system. For maximum range, the antenna size can be increased from 30-35cm [3][4]. Fig 12: Receiver Section Advantages  Less noise vibration  It has longer life  low cost and highly efficient  Ruggedness with longer life  Simplicity in construction  High reliability with flexibility  No maintenance and Wide acceptance
  • 11. Design Of Intelligent Autonomous Wheeled Robot Using Rf Transmission DOI: 10.9790/2834-11124050 www.iosrjournals.org 50 | Page  Installation is simple  No feedback components are needed  The rotation angle of motor is proportional to input pulse.  The motor has full torque at standstill  Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3-5% of a step and this error is non-cumulative from one step to next.  Excellent response to starting, stopping, reversing. X. Future Enhancements The color detection capacity of the robot can be increased to blue and green along with red which can sort out wide range of objects. The robot can be enhanced with pattern recognition and Speech recognition features which plays a vital role in many industries and also increases the accuracy of the task in logistic and packaging industry. XI. Conclusion The developed ROBOT detects the presence and colour of the object and place it in the desired location. The robot is controlled through wireless communication in industries with hazardous environment. The objective is met by sorting the objects based on the color from a group of objects which can be monitored through live video transmission. Thus an automatic painting robotic system can be developed along with the capability of detecting gas leakage in the working environment. References [1]. C.Alippi: Intelligence for Embedded Systems. Springer, 2014, 283pp, ISBN 978-3-319-05278-6. [2]. Heath, Steve (2003). Embedded systems design. EDN series for design engineers (2 ed.). Newnes. p. 2. ISBN 978-0-7506-5546-0. An embedded system is a microprocessor based systemthat is built to control a function or a range of functions [3]. Jeffrey S. Beasley; Gary M. Miller (2008). Modern Electronic Communication (9th ed.). pp. 4–5. ISBN 978-0132251136. [4]. Jump up "Definition of RADIO FREQUENCY". Merriam-Webster. Encyclopedia Britannica. n.d. Retrieved6 August 2015. [5]. Kneip, L., F.Tache, et al., 2009. Characterization ofthe compact Hokyo URG-04LX 2D laser range scanner Proc. of IEEE Int. Cof. on Robotics and Automation, pp: 1447-1454. [6]. ROBOTICS, Control, Sensing, Vision and Intelligence - K.S Fu, R.C Gonazalez, C.S.G Lee [7]. PRINCIPLES OF ROBOT MOTION, Theory, Algorithm, Implementation -Choset, Lynch, Hutchinson, Kantor, Burgard, Kavraki andThrun FUNDAMENTALS OF ROBOTICS Analysis and Control – Robert J Schilling [8]. S.C.Jacobsen, et al.(1986) “Design ofthe UItah/MIT Dexterous Hand,”Proc. IEEE Inter Conf. on Robotics and Automation, pp 1520-1532. [9]. Yoky Matsuoka(1997) “The Mechanism in a Humanoid Robot Hand”, Autonomous Robots, Vol.4, No. 2, pp.1999- 2009. [10]. C. S. Lovchic and M. A. Diftler:The Robonaut Hand(1999) “A Dexterous Robot Hand for Space”, Procd. of the 1999 IEEE International Conference on Robotics and Automation, pp. 907-912.
