This document provides an overview of interpreting chest x-rays and identifies several key factors. It discusses the importance of inspiration, penetration, and rotation in obtaining a technically quality radiograph. It also outlines different views of chest x-rays including PA, AP, and lateral views. Finally, it identifies several anatomical structures that should be evaluated when interpreting a chest x-ray such as the lungs, heart, diaphragm, bones, and soft tissues.

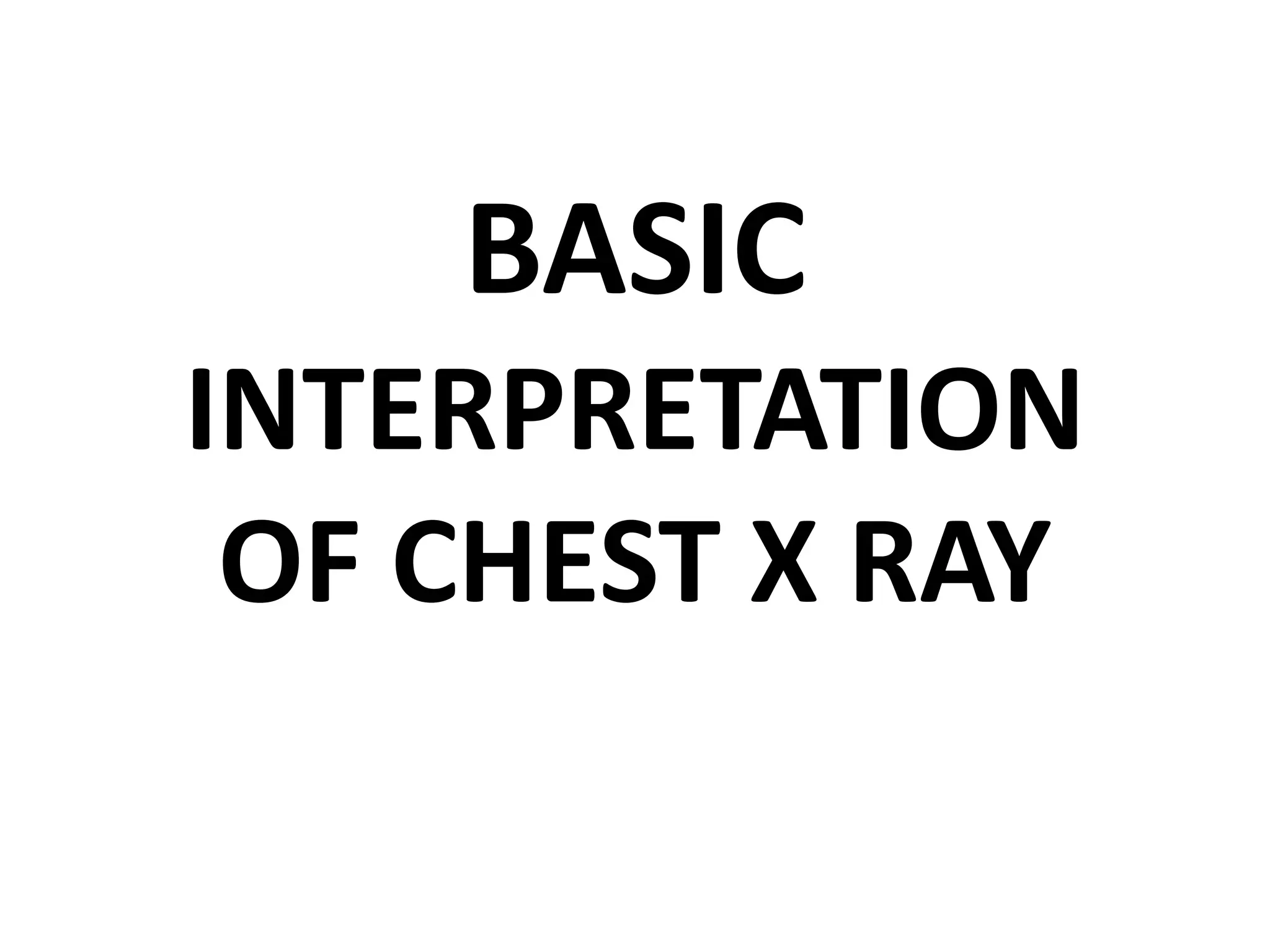

1. BASIC
INTERPRETATION
OF CHEST X RAY

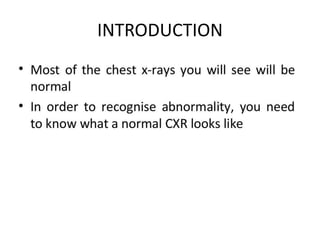

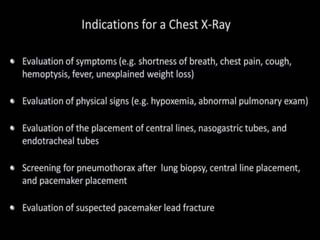

3. INTRODUCTION

5. GENERAL PRINCIPLES

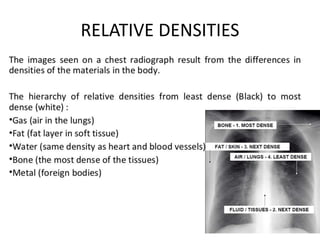

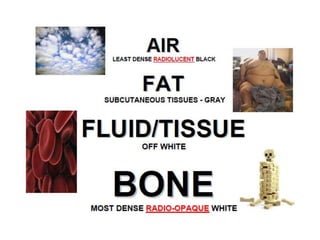

6. RELATIVE DENSITIES

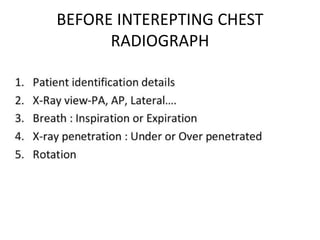

8. BEFORE INTEREPTING CHEST
RADIOGRAPH

9. VIEWS OF CHEST RADIOGRAPH

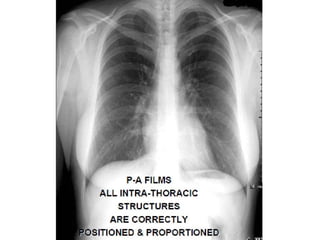

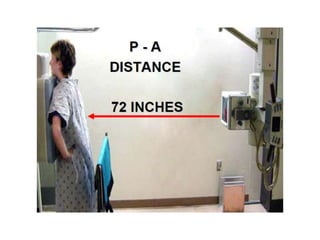

10. PA VIEW

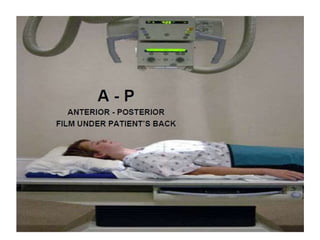

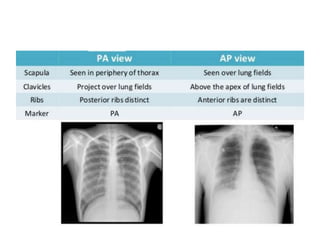

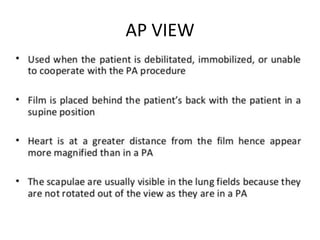

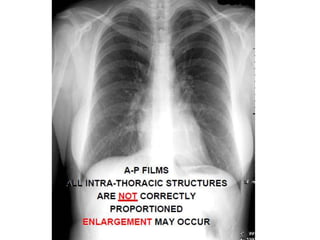

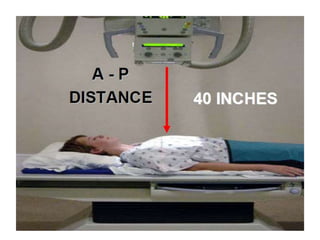

14. AP VIEW

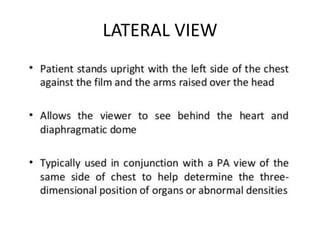

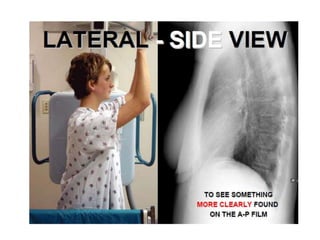

19. LATERAL VIEW

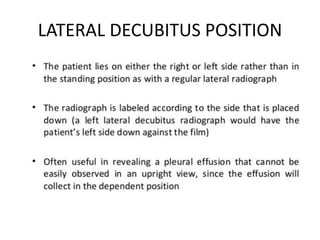

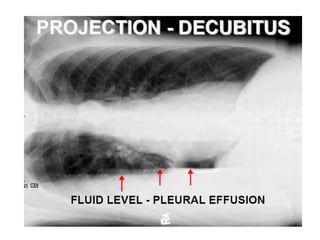

21. LATERAL DECUBITUS POSITION

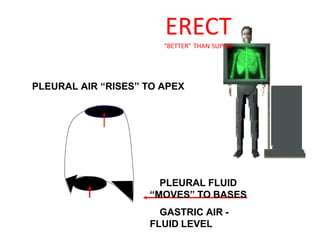

23. ERECT
“BETTER” THAN SUPINE
PLEURAL FLUID
“MOVES” TO BASES
GASTRIC AIR -
FLUID LEVEL
PLEURAL AIR “RISES” TO APEX

24. ERECT
NORMAL PULMONARY BLOOD DISTRIBUTION

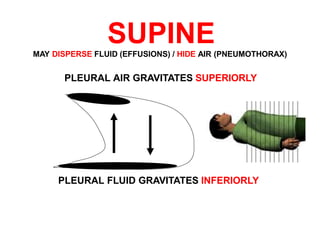

25. PLEURAL AIR GRAVITATES SUPERIORLY
PLEURAL FLUID GRAVITATES INFERIORLY

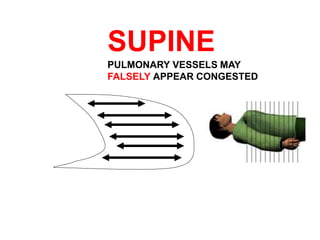

SUPINEMAY DISPERSE FLUID (EFFUSIONS) / HIDE AIR (PNEUMOTHORAX)

26. SUPINE
PULMONARY VESSELS MAY
FALSELY APPEAR CONGESTED

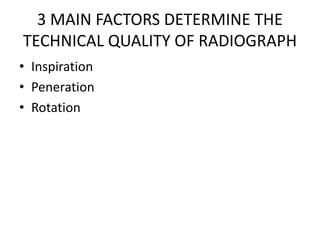

27. 3 MAIN FACTORS DETERMINE THE
TECHNICAL QUALITY OF RADIOGRAPH
• Inspiration
• Peneration
• Rotation

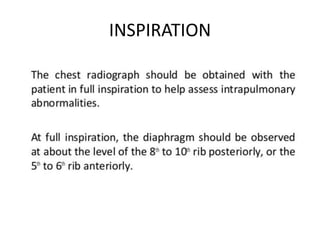

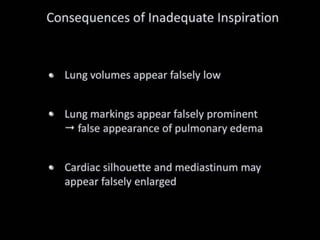

28. INSPIRATION

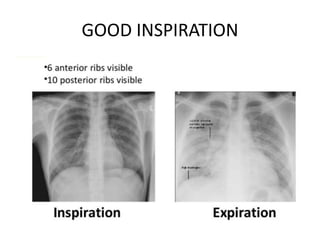

29. GOOD INSPIRATION

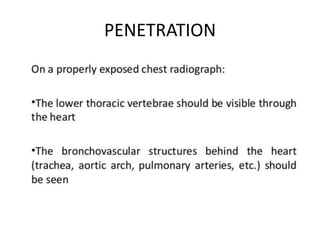

32. PENETRATION

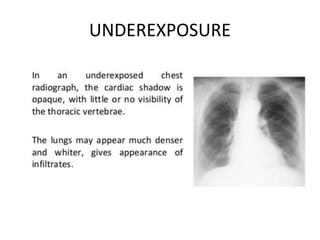

33. UNDEREXPOSURE

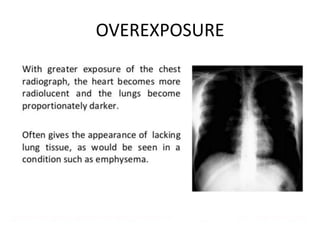

34. OVEREXPOSURE

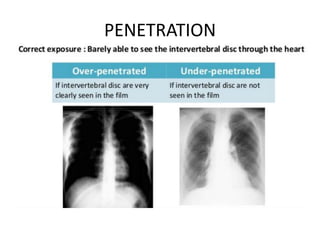

35. PENETRATION

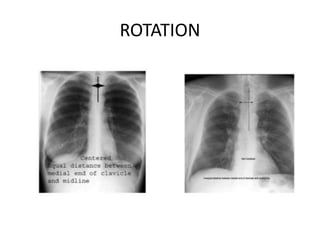

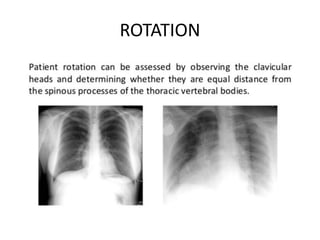

36. ROTATION

37. ROTATION

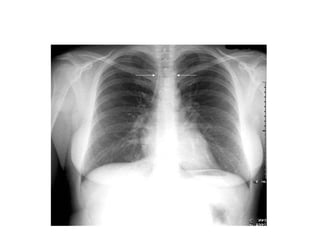

38. NO ROTATION

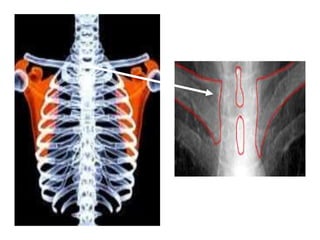

39. CLAVICLES
CLAVICLE ENDS ARE EQUI-
DISTANT FROM
VERTEBRAE

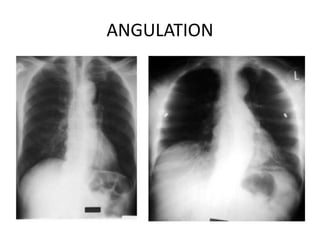

40. ANGULATION

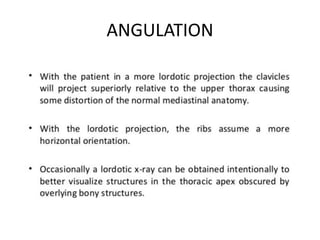

41. ANGULATION

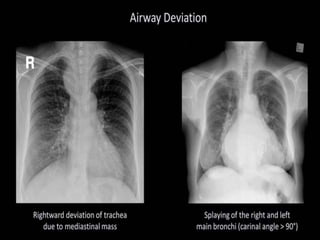

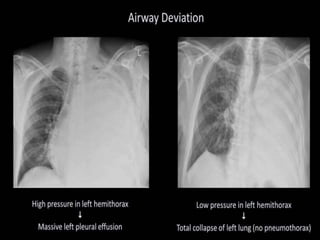

43. AIRWAY

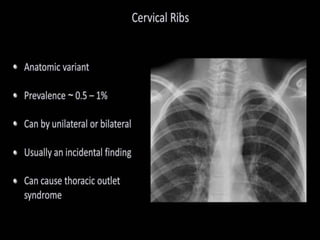

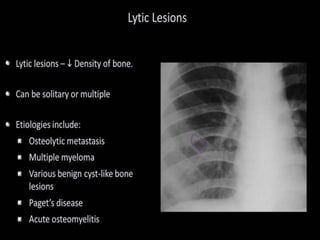

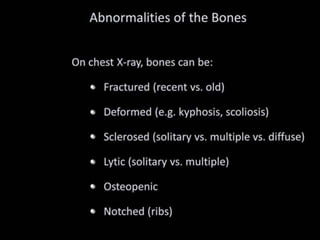

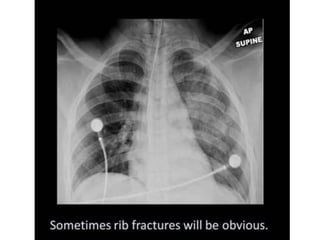

46. BONES AND SOFT TISSUE

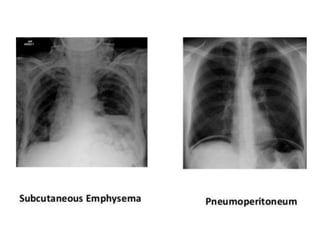

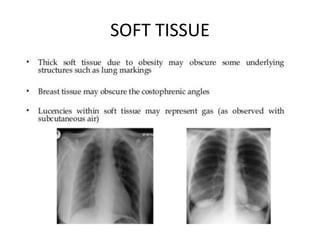

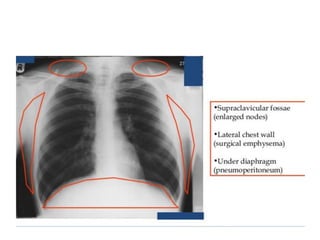

53. SOFT TISSUE

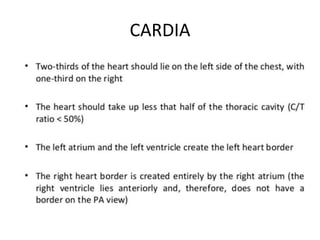

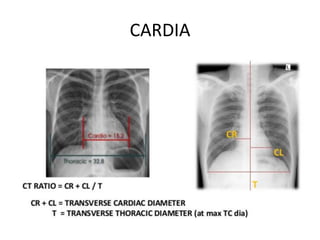

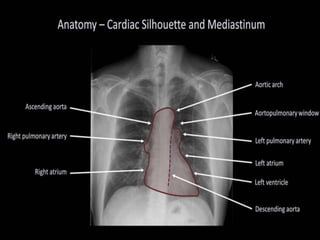

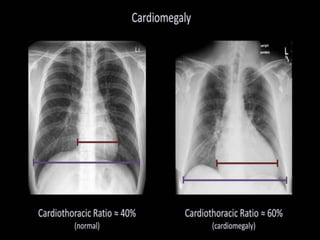

56. CARDIA

58. CARDIA

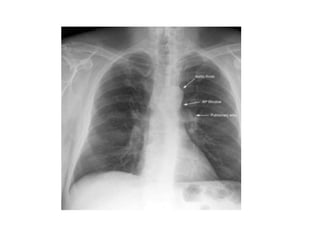

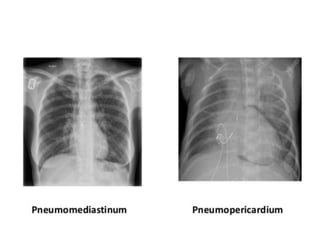

60. CARDIA

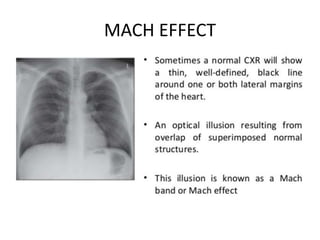

62. MACH EFFECT

63. DIAPHRAGM

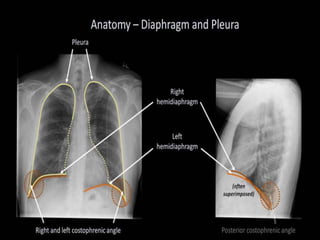

64. DIAPHRAGMATIC HUMPS

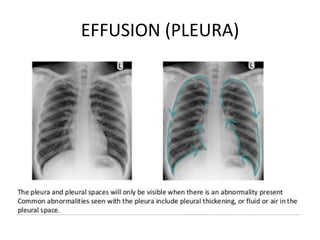

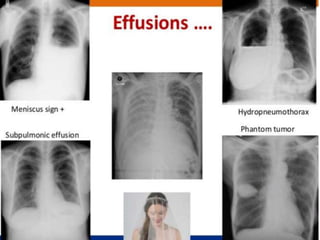

65. EFFUSION (PLEURA)

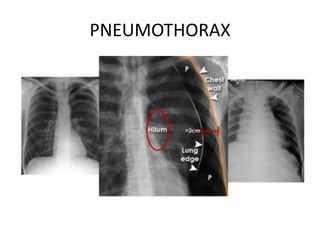

67. PNEUMOTHORAX

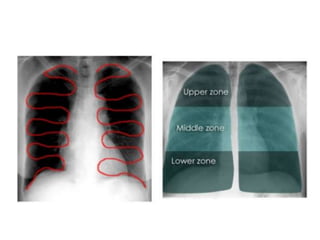

68. LUNG FIELDS

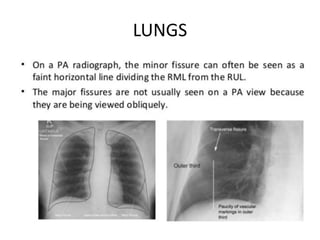

70. LUNGS

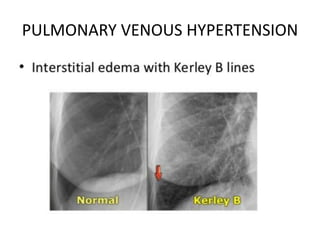

71. PULMONARY VENOUS HYPERTENSION

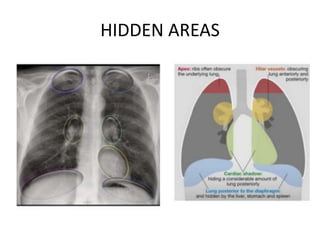

74. HIDDEN AREAS

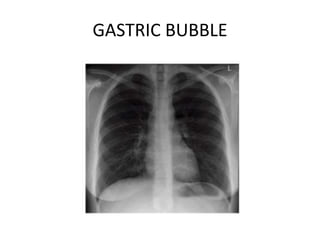

75. GASTRIC BUBBLE

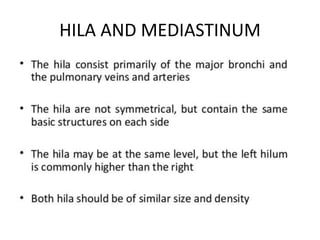

76. HILA AND MEDIASTINUM

78. PULMONARY ARTERY HYPERTENSION

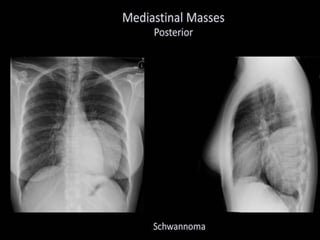

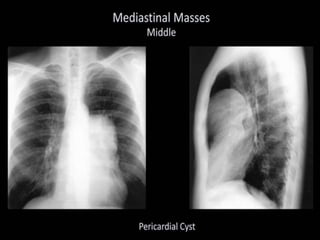

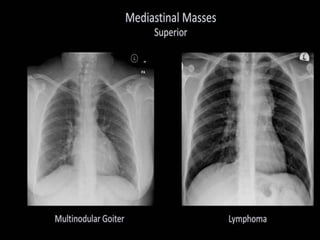

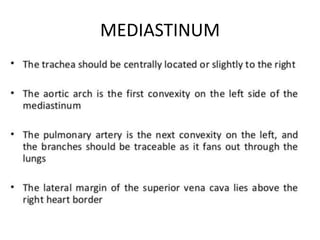

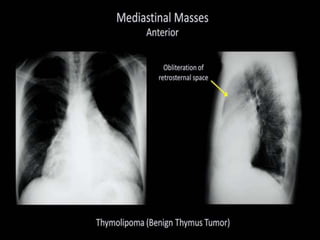

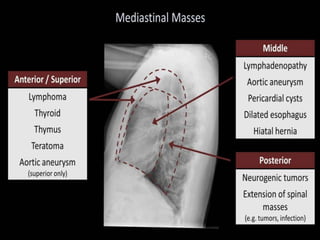

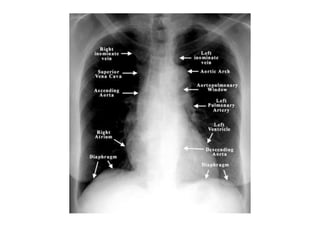

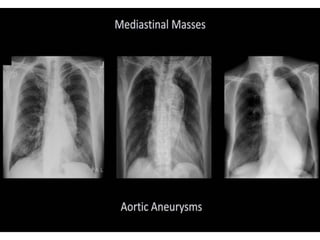

79. MEDIASTINUM

83. • THANK YOU

87. THANK YOU…
