Chest radiography involves several standard views and positions to properly visualize the lungs and chest. The posteroanterior view is standard and involves the patient standing facing the cassette with chin extended. Additional views include lateral, lateral decubitus, lordotic, and oblique views which provide different angles. Proper inspiration, penetration, and no rotation are important for technical quality. Positioning varies slightly for anteroposterior supine views and between views, but consistently aims to properly center and collimate the chest within the beam and cassette.

1. Chest radiography
positioning and Technique

2. Chest Xray Views
• Posteroanterior view- Erect
• Anteroposterior view – Erect
- Supine
Additional views
• Lateral view
• lateral decubitus view
• Lordotic view
• Apical view

3. Posteroanterior view
• standard frontal chest projection
•collimation
• superiorly 5 cm above the shoulder joint to allow proper
visualization of the upper airways
• inferior to the inferior border of the 12th rib
• lateral to the level of the acromioclavicular joints

4. Patient position
The patient is positioned facing the cassette
the chin extended and centered to the middle of the top of the cassette.
The median sagittal plane is adjusted at right-angles to the middle of the cassette. The shoulders are
rotated forward and pressed downward in contact with the cassette
This is achieved by placing the dorsal aspect of the hands behind and below the hips, with the elbows
brought forward, or by allowing the arms to encircle the cassette.
Patient is asked to take a deep breath in and the xray is taken.

5. Centering Point
The horizontal central beam is directed at right-angles to the cassette
thoracic vertebrae (i.e. spinous process of T7),
T7 spinous process can be assessed by using the inferior angle of the
shoulders are pushed forward.
FFD=180cm/6feet
Film size used in adults= 14x17cm
Film size used= 14x17cm
KVp( Kilovoltage peak)=60-70kVp
mAs(milliampere second)=20mAs
The higher the kVp, the more likely the x-ray beam will be able to
through more thicker and dense material. Based on how
of tissue kVp is selected.

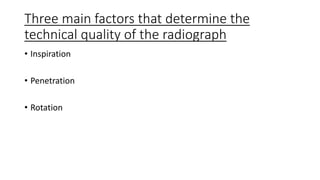

6. Three main factors that determine the
technical quality of the radiograph
• Inspiration
• Penetration
• Rotation

7. Good Inspiration
• 6 or more anterior ribs will be visible
• 9-10 posterior ribs will be visible
What if there is submaximal inspiration?
The heart will swing up to a more horizontal lie and may thus appear enlarged.
• The lung bases will be less well inflated, which may simulate a variety of
pathologies or cause abnormal areas to lie hidden.Lung markings will be falsly
prominent.
• Under-inflation of the lower lobes causes diversion of blood to the upper lobe
vessels, mimicking the early signs of heart failure

8. PA view on expiration
• A radiograph may be taken on full expiration to confirm the presence of a pneumothorax. This has the
effect of increasing intrapleural pressure, which results in the compression of the lung, making a
pneumothorax bigger. The technique is useful
• in demonstrating a small pneumothorax and is also used to demonstrate the effects of air-trapping
associated with an inhaled foreign body obstructing the passage of air into a segment of lung, and the
extent of diaphragmatic movement.

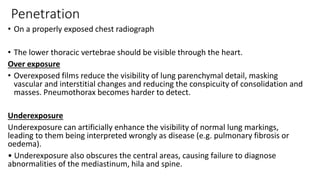

10. Penetration
• On a properly exposed chest radiograph
• The lower thoracic vertebrae should be visible through the heart.
Over exposure
• Overexposed films reduce the visibility of lung parenchymal detail, masking
vascular and interstitial changes and reducing the conspicuity of consolidation and
masses. Pneumothorax becomes harder to detect.
Underexposure
Underexposure can artificially enhance the visibility of normal lung markings,
leading to them being interpreted wrongly as disease (e.g. pulmonary fibrosis or
oedema).
• Underexposure also obscures the central areas, causing failure to diagnose
abnormalities of the mediastinum, hila and spine.

11. Rotation
The medial ends of
clavicles should be
equidistant from a vertical
line drawn along the
spinous processes of
thoracic vertebra

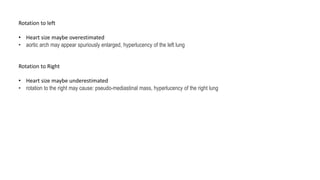

13. Rotation to left
• Heart size maybe overestimated
• aortic arch may appear spuriously enlarged, hyperlucency of the left lung
Rotation to Right
• Heart size maybe underestimated
• rotation to the right may cause: pseudo-mediastinal mass, hyperlucency of the right lung

14. Anterioposterior view
• AP-supine
• Used when patient is debilitated
,immobilized or unable to tolerate
standing
• With assistance, a cassette is carefully
positioned under the patient’s chest
with the upper edge of the cassette
above the lung apices.
• The arms are rotated laterally and
supported by the side of the trunk. The
head is supported on a pillow, with the
chin slightly raised.
• Patient is asked to take a deep breath
(if possible) and xray is taken
FFD=100CM

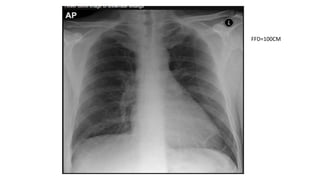

15. FFD=100CM

16. •AP images are of inferior quality to PA images (posterior-anterior)
•This projection moves the heart away from the image receptor plane, increasing
magnification and reducing the accuracy of assessment of heart size
As a general rule the heart should not be considered large if the CTR is increased on
an AP view
• The scapula are usually visible in the lung fields because they are not rotated out of
view.
The normal biomechanics of blood flow are different from those in the erect position,
producing relative prominence of upper-lobe vessels and mimicking the signs of heart
failure.
• Pleural fluid will layer against the posterior chest wall, producing an ill-defined
increase attenuation of the affected hemithorax rather than the usual blunting of the
costophrenic angle; fluid levels are not seen.
• A pneumothorax, if present, will be located at the front of the chest in the supine
position. Unless it is large, it will be more difficult to detect if a lateral horizontal beam
image is not employed.

17. AP view – Errect
This projection is used as an alternative to the postero-
anterior erect projection for elucidation of an opacity seen
on a posteroanterior, or when the patient’s shape
(kyphosis) or medical condition makes it difficult or unsafe
for the patient to stand.
•patient is upright as possible with their back against the
image receptor
•the chin is raised as to be out of the image field
•if possible, the hands are placed by the patient's side
The shoulders are brought downward and forward to move
the clavicles below the lung apices

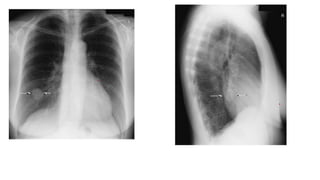

18. Lateral view-standing

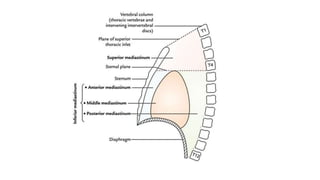

• A supplementary lateral projection may be
useful in certain clinical circumstances for
localizing the position of a lesion and
demonstrating anterior mediastinal masses
not shown on the postero-anterior
projection.
• Position of patient and cassette
• The patient is turned to bring the side under
investigation in contact with the cassette.
• • The median sagittal plane is adjusted
parallel to the cassette. • The arms are
folded over the head or raised above the
head to rest on a horizontal bar.
• • The mid-axillary line is coincident with the
middle of the film, and the cassette is
adjusted to include the apices and the lower
lobes to the level of the first lumbar
vertebra.

21. Lateral Decubitus position
• Patient lies on the affected side.The
patient’s hands should be raised
to avoid superimposing on the
region of interest, legs may be
flexed for balance.
•
• Often useful in revealing a pleural
effusion that cannot be easily
observed in an upright view, since
effusion will collect in a dependent
position.
• The lateral decubitus view may be
helpful in determining the confines
of a cavity and in demonstrating a
small pneumothorax

22. Apical view
• Opacities obscured in
the apical region by
overlying ribs or
clavicular shadows may
be demonstrated by this
view
• Position
• For the postero-anterior
projection, the central
ray is angled 30 degrees
caudally towards the
seventh cervical spinous
process coincident with
the sternal angle.

23. Lordotic view
• This technique may be used to
demonstrate right middle-lobe
collapse or an inter-lobar
pleural effusion. The patient is
positioned to bring the middle-
lobe fissure horizontal.
• Position of patient and cassette
• • The patient is placed for the
postero-anterior projection.
Then clasping the sides of the
vertical Bucky, the patient bends
backwards at the waist.
• • The degree of dorsiflexion
varies for each subject, but in
general it is about 30–40
degrees

24. Anterior oblique View
• Right anterior oblique (RAO)/left anterior oblique (LAO) view
• For rib fractures and intrathoracic lesions (RAO also used routinely
used in barium esophagography)

25. References
• CLARKS POSITIONING 13edition
• Radiopedia
