1. Chest X-rays
S A Saleemi

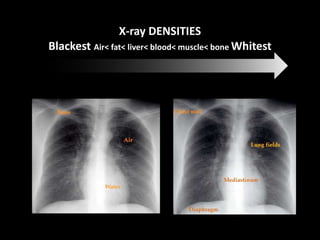

2. X-ray DENSITIES
Blackest Air< fat< liver< blood< muscle< bone Whitest

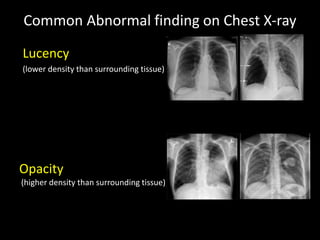

3. Common Abnormal finding on Chest X-ray
Lucency
(lower density than surrounding tissue)
Opacity
(higher density than surrounding tissue)

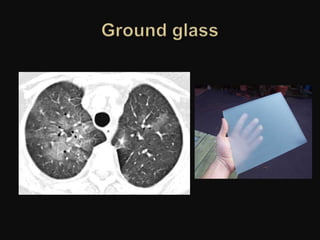

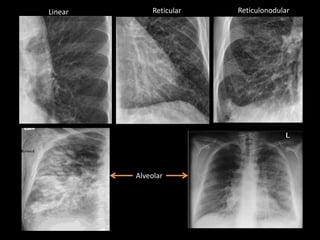

4. Linear Reticular Reticulonodular
Alveolar

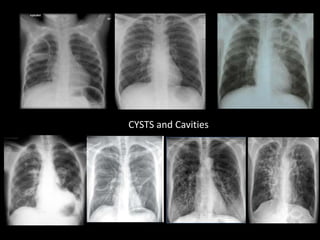

5. CYSTS and Cavities

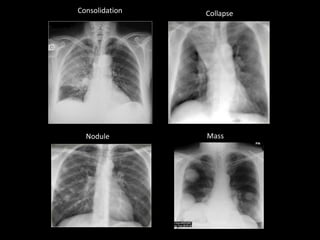

6. Consolidation Collapse
Nodule Mass

7. M C Alraies 7

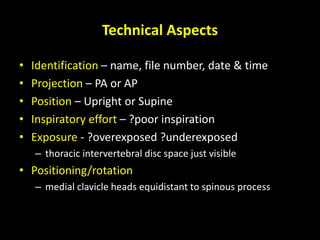

Technical Aspects
• Identification – name, file number, date & time
• Projection – PA or AP
• Position – Upright or Supine
• Inspiratory effort – ?poor inspiration
• Exposure - ?overexposed ?underexposed
– thoracic intervertebral disc space just visible
• Positioning/rotation
– medial clavicle heads equidistant to spinous process

8. Four major positions are utilized for
producing a chest radiograph:
• Posterior-anterior (PA)
• Anterior-posterior (AP)
• Lateral
• Lateral Decubitus

9. 9
AP (Antero-posterior)
(Portable)
FILM
FILM
X-ray Beam
PA ( Postero-anterior)
PA or AP view

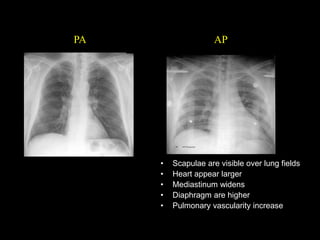

10. PA
• Scapulae are visible over lung fields
• Heart appear larger
• Mediastinum widens
• Diaphragm are higher
• Pulmonary vascularity increase
AP

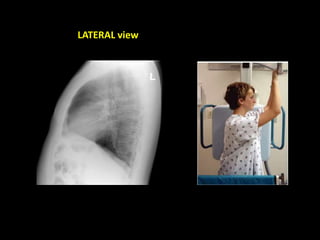

11. LATERAL view

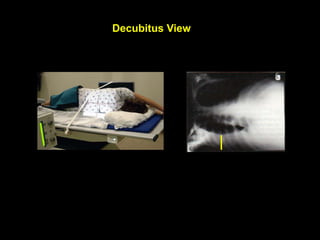

12. Decubitus View
• "decubitus" means "lying down“
• To confirm free flowing effusion.

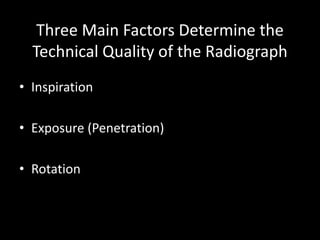

13. Three Main Factors Determine the
Technical Quality of the Radiograph
• Inspiration
• Exposure (Penetration)
• Rotation

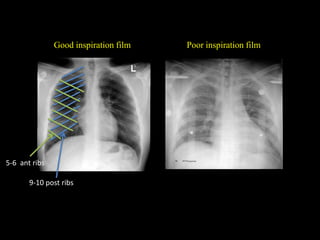

14. Good inspiration film Poor inspiration film
9-10 post ribs
5-6 ant ribs

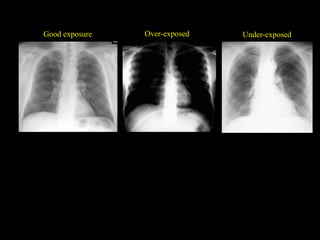

15. Good exposure Under-exposed
Over-exposed
Over-exposed Under-exposed

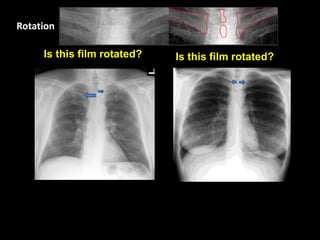

16. Is this film rotated? Is this film rotated?
Rotation

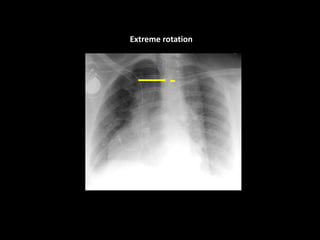

17. Extreme rotation

18. Cardiothoracic Ratio

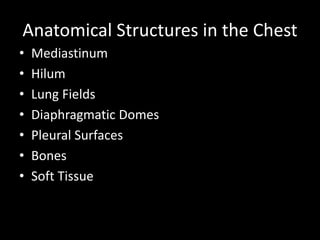

19. Anatomical Structures in the Chest
• Mediastinum
• Hilum
• Lung Fields
• Diaphragmatic Domes
• Pleural Surfaces
• Bones
• Soft Tissue

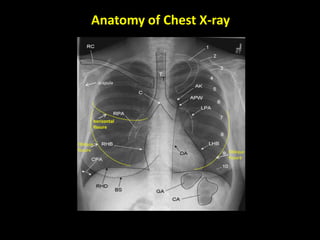

20. Anatomy of Chest X-ray
scapula
Oblique
fissure
Oblique
fissure
horizontal
fissure

21. Upper lobe
Lower lobe
Left LUNG
Right Lung
Upper lobe
Lower
lobe
Middle
lobe
Right Lung
2 fissures (oblique and
horizontal).
3 lobes (upper,
middle, lower)
10 segments
Left Lung
1 fissure (oblique)
2 lobes (upper and
lower)
8 segments
Lingula

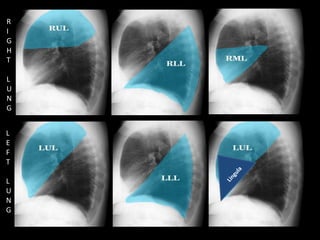

22. R
I
G
H
T
L
U
N
G
L
E
F
T
L
U
N
G

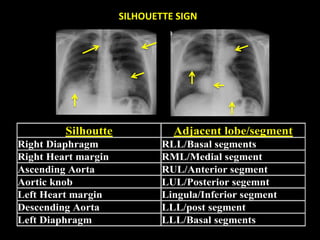

23. Silhoutte Adjacent lobe/segment
Right Diaphragm RLL/Basal segments
Right Heart margin RML/Medial segment
Ascending Aorta RUL/Anterior segment
Aortic knob LUL/Posterior segemnt
Left Heart margin Lingula/Inferior segment
Descending Aorta LLL/post segment
Left Diaphragm LLL/Basal segments
SILHOUETTE SIGN

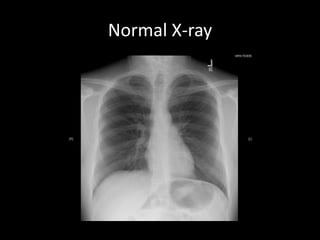

24. Normal X-ray

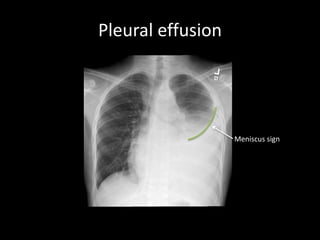

25. Pleural effusion
Meniscus sign

26. Pulmonary edema

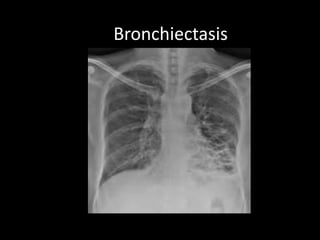

27. Bronchiectasis

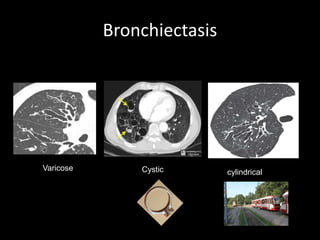

28. Bronchiectasis
Varicose Cystic cylindrical

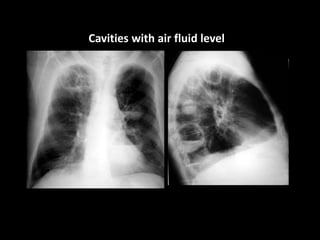

29. Cavities with air fluid level

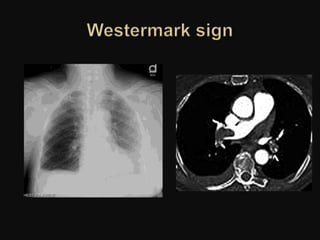

30. Pulmonary infarction secondary to pulmonary embolism

32. ILD

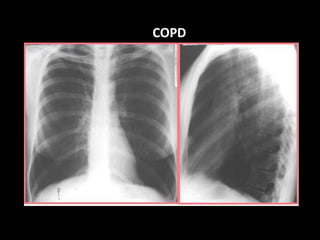

34. COPD

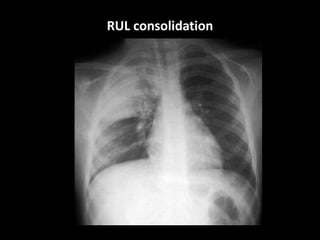

35. RUL consolidation

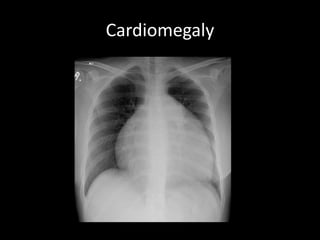

36. Cardiomegaly

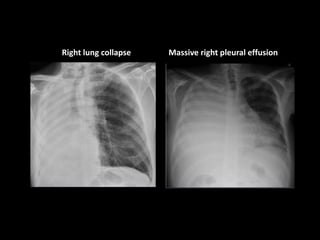

37. Right lung collapse Massive right pleural effusion

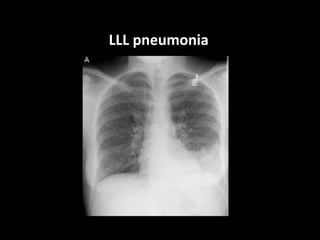

38. LLL pneumonia

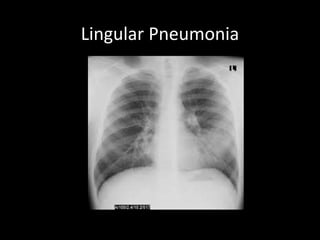

39. Lingular Pneumonia

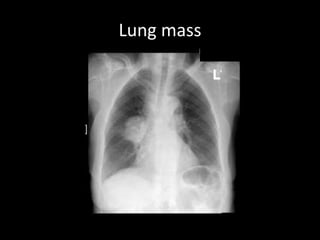

40. Lung mass

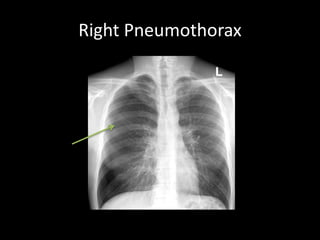

41. Right Pneumothorax

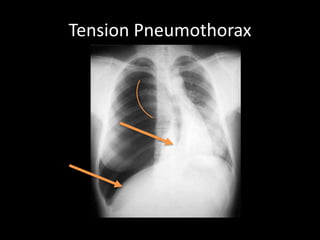

42. Tension Pneumothorax

43. Dextro-cardia/situs inverses

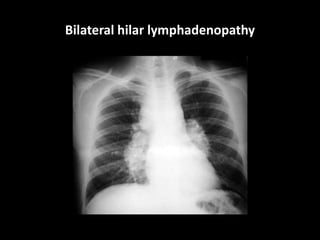

44. Bilateral hilar lymphadenopathy

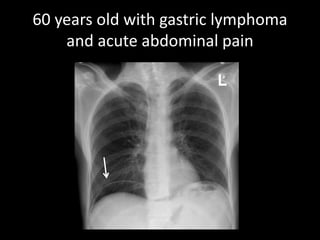

45. 60 years old with gastric lymphoma
and acute abdominal pain

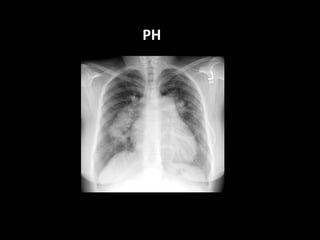

46. PH

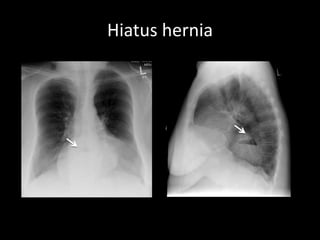

47. Hiatus hernia

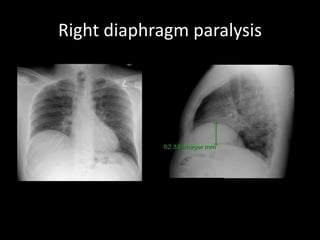

48. Right diaphragm paralysis

49. Tenting of right diaphragm due to right upper lobe
collapse

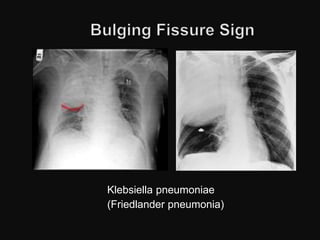

50. Klebsiella pneumoniae
(Friedlander pneumonia)

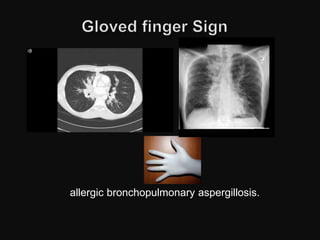

52. allergic bronchopulmonary aspergillosis.

53. Invasive aspergillus infection
Adenocarcinoma
Metastatic disease

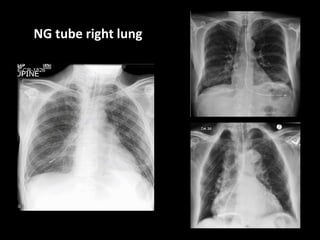

54. NG tube right lung

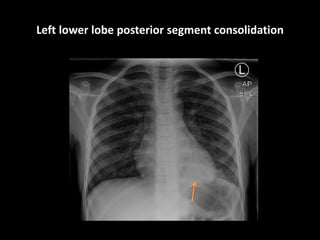

55. Left lower lobe posterior segment consolidation

56. Hidden areas of Chest X-ray

57. Thanks
