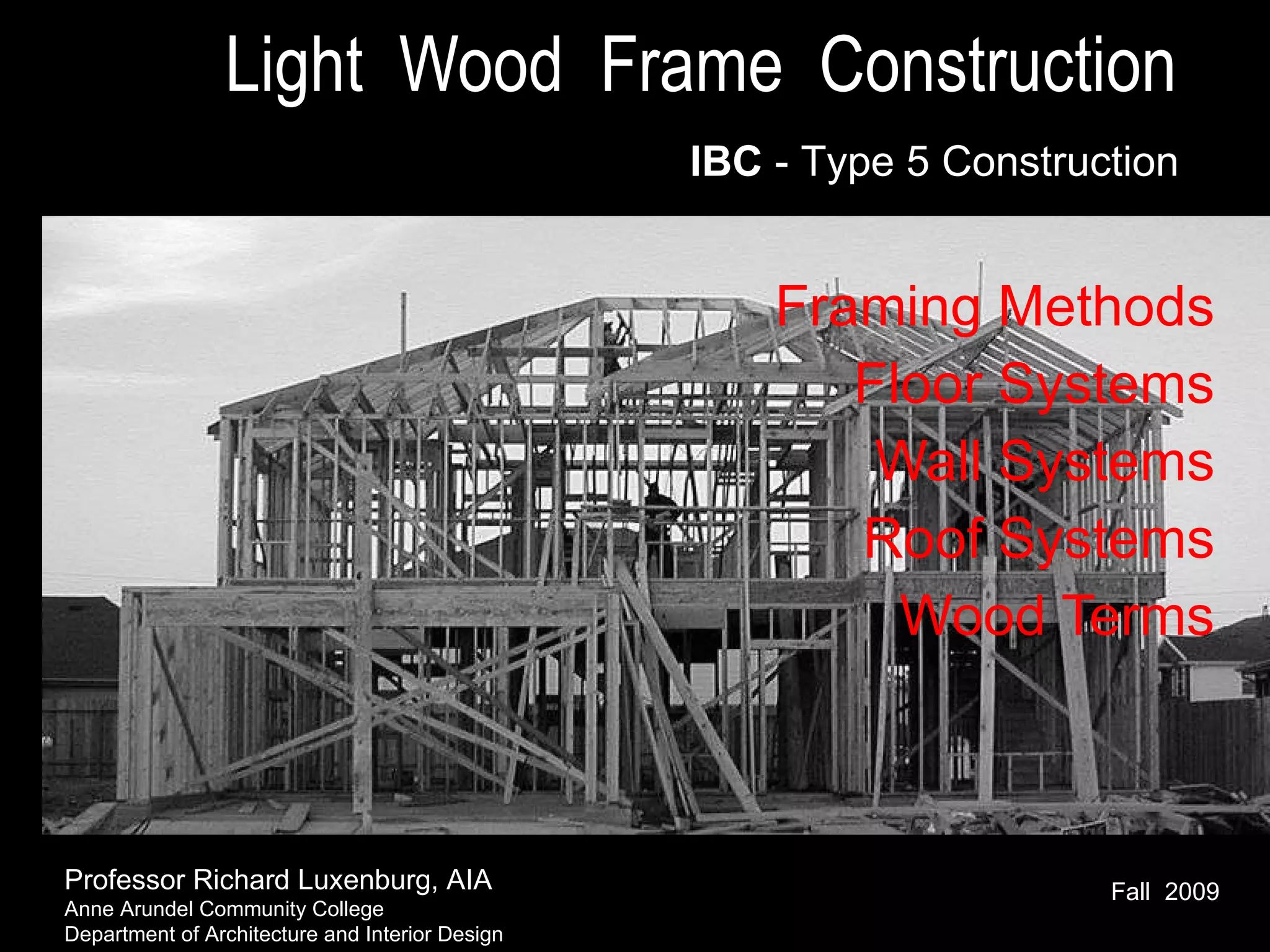

1. Light Wood Frame Construction Framing Methods Floor Systems Wall Systems Roof Systems Wood Terms IBC - Type 5 Construction Professor Richard Luxenburg, AIA Anne Arundel Community College Department of Architecture and Interior Design Fall 2009

2. L arger (5”x5” min) and fewer members (spaced further apart 2’,4’,6’, 8’o.c) IBC - Type 4 Construction (different code requirements) D iagonal bracing or rigid connections required for lateral stability Exposed construction (no cavities) T ends to be Very Expensive – guess why? LWF (light wood framing) is Not Heavy Timber Heavy Timber is:

3. Light Wood Frame Construction………………………….(like a light balloon!) http:// www.canforcentre.com/system.html

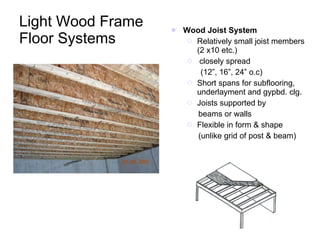

4. Light Wood Frame Floor Systems Wood Joist System Relatively small joist members (2 x10 etc.) closely spread (12”, 16”, 24” o.c) Short spans for subflooring, underlayment and gypbd. clg. Joists supported by beams or walls Flexible in form & shape (unlike grid of post & beam)

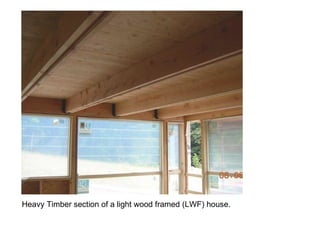

5. Heavy Timber section of a light wood framed (LWF) house.

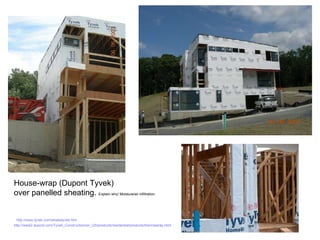

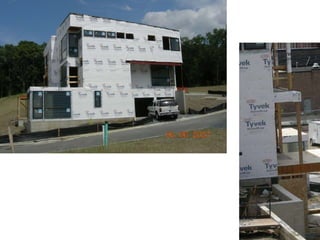

6. House-wrap (Dupont Tyvek) over panelled sheating. Explain why! Moisture/air infiltration. http://www.tyvek.com/whatistyvek.htm http://www2.dupont.com/Tyvek_Construction/en_US/products/residential/products/thermawrap.html

7. Project No. 1 Here’s a project you’re going to have to do this semester! So pay attention! That’s a student’s bass wood ( not balsa wood) model!

9. Wall Systems Wood Stud Walls 2 x 4’s or 2 x 6’s 16” or 24” o.c. Insulation vapor barriers Interior finish (gypsum)

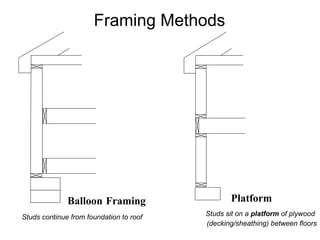

10. Framing Methods Studs sit on a platform of plywood (decking/sheathing) between floors Studs continue from foundation to roof Platform Balloon Framing

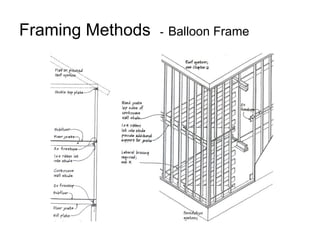

11. Framing Methods - Balloon Frame

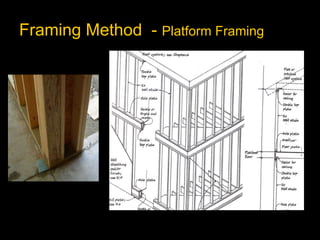

12. Framing Method - Platform Framing

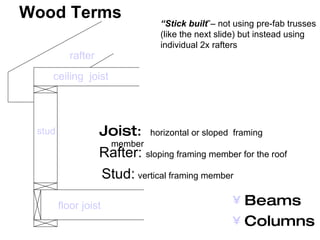

13. Wood Terms Joist : horizontal or sloped framing member Rafter: sloping framing member for the roof Stud: vertical framing member Beams Columns “ Stick built ”– not using pre-fab trusses (like the next slide) but instead using individual 2x rafters ceiling joist floor joist stud rafter

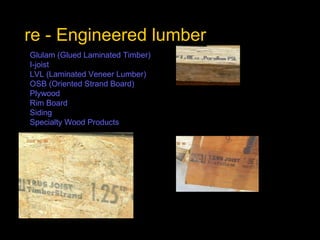

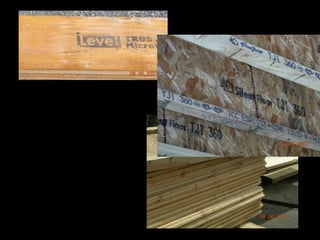

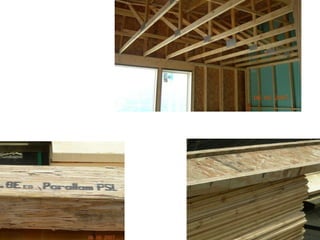

15. re - Engineered lumber Glulam (Glued Laminated Timber) I-joist LVL (Laminated Veneer Lumber) OSB (Oriented Strand Board) Plywood Rim Board Siding Specialty Wood Products

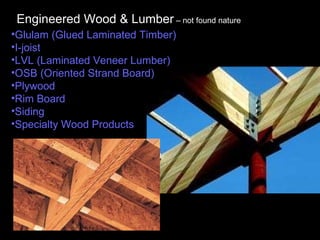

16. Glulam (Glued Laminated Timber) I-joist LVL (Laminated Veneer Lumber) OSB (Oriented Strand Board) Plywood Rim Board Siding Specialty Wood Products Engineered Wood & Lumber – not found nature

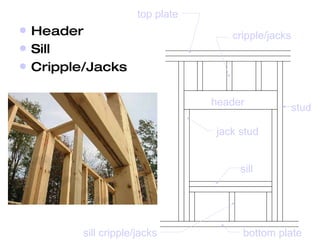

19. Header Sill Cripple/Jacks sill header cripple/jacks sill cripple/jacks stud jack stud bottom plate top plate

20. Plates - Horizontal members at top & bottom of studs @ Sill @ Wall @ Foundation stud bottom plate top plate

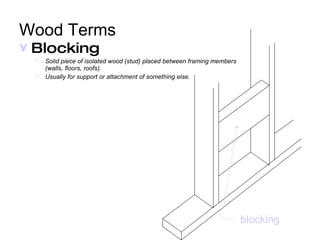

21. Wood Terms Blocking Solid piece of isolated wood (stud) placed between framing members (walls, floors, roofs). Usually for support or attachment of something else. blocking

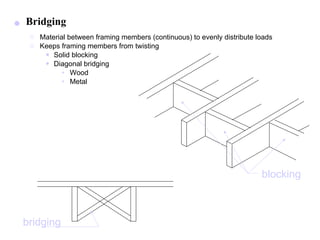

22. Bridging Material between framing members (continuous) to evenly distribute loads Keeps framing members from twisting Solid blocking Diagonal bridging Wood Metal blocking bridging

23. Sheathing - material covering the framing members (roof, floor & walls) Plywood (typically 4’ x 8’ modular sheets) roll sliced lumber OSB (oriented strand board) reconstituted (recycled) wood Boards (cut lumber) http://www.rd.com/content/openContent.do?contentId=17535&pageIndex=1 http://www.canply.org/english/products/manufacturing/manufacture.htm http://www.afrc.uamont.edu/pattersond/Coursework/Undergrad/plywood.htm http://www.apawood.org/level_b.cfm?content=prd_main

24. http://www.apawood.org

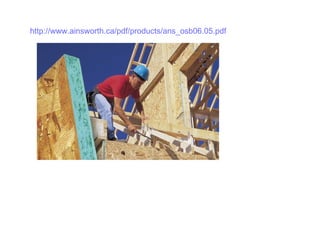

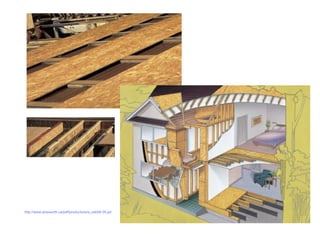

25. http://www.ainsworth.ca/pdf/products/ans_osb06.05.pdf

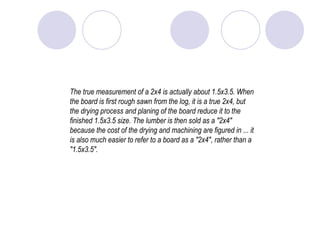

26. The true measurement of a 2x4 is actually about 1.5x3.5. When the board is first rough sawn from the log, it is a true 2x4, but the drying process and planing of the board reduce it to the finished 1.5x3.5 size. The lumber is then sold as a "2x4" because the cost of the drying and machining are figured in ... it is also much easier to refer to a board as a "2x4", rather than a "1.5x3.5".

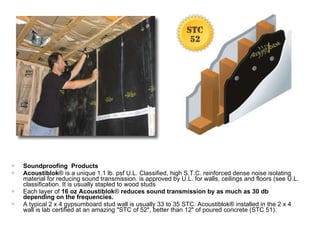

28. Soundproofing Products Acoustiblok ® is a unique 1.1 lb. psf U.L. Classified, high S.T.C. reinforced dense noise isolating material for reducing sound transmission. is approved by U.L. for walls, ceilings and floors (see U.L. classification. It is usually stapled to wood studs Each layer of 16 oz Acoustiblok ® reduces sound transmission by as much as 30 db depending on the frequencies. A typical 2 x 4 gypsumboard stud wall is usually 33 to 35 STC. Acoustiblok® installed in the 2 x 4 wall is lab certified at an amazing "STC of 52", better than 12" of poured concrete (STC 51).

29. http://www.ainsworth.ca/pdf/products/ans_osb06.05.pdf

30. Floor Systems

31. Floor Systems

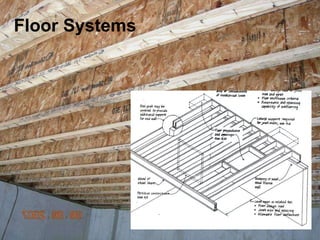

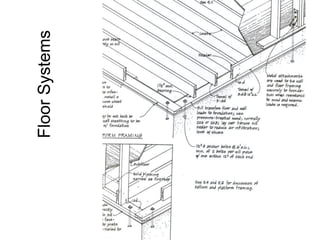

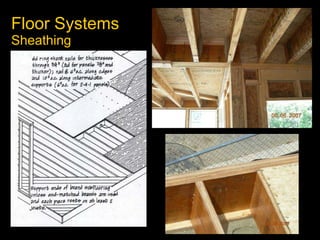

32. Floor Systems Sheathing

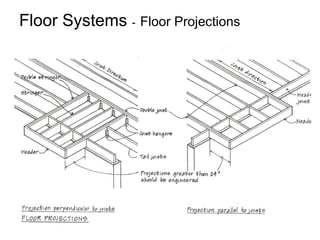

33. Floor Systems - Floor Projections

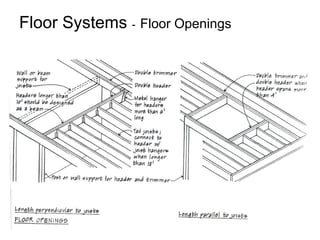

34. Floor Systems - Floor Openings

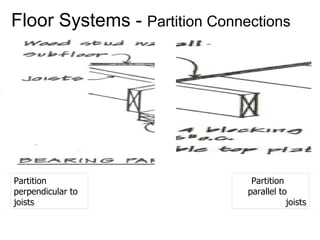

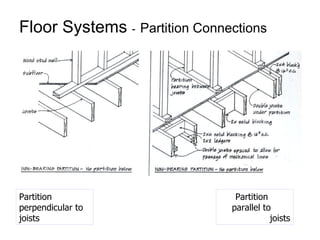

35. Floor Systems - Partition Connections Partition parallel to joists Partition perpendicular to joists

36. Floor Systems - Partition Connections Partition perpendicular to joists Partition parallel to joists

37. Floor Systems - Partition Connections Partition perpendicular to joists Partition parallel to joists

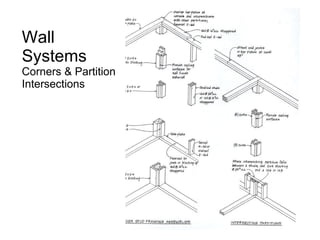

38. Wall Systems Corners & Partition Intersections

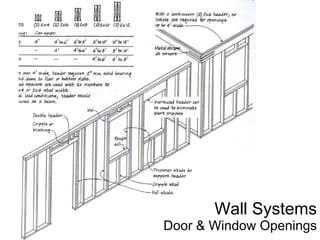

40. Wall Systems Door & Window Openings

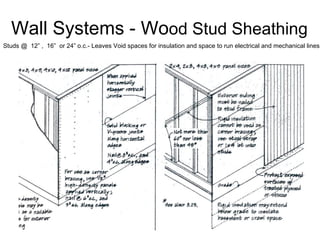

41. Wall Systems - Wo od Stud Sheathing Studs @ 12” , 16” or 24” o.c.- Leaves Void spaces for insulation and space to run electrical and mechanical lines
