The document discusses different types of partition walls used to divide interior spaces in buildings. It describes timber stud, metal stud, drywall, glass block, and block partitions. Timber stud partitions can be plaster skimmed, dry-lined, or partially glazed. Metal stud partitions are lightweight but strong, consisting of a metal framework covered in plasterboard or fire-resistant sheeting. Glass block partitions are made of translucent glass blocks laid in mortar, sometimes with reinforcement. Block partitions are constructed from masonry blocks.

1. PARTITION WALLS

2. • Partitions are the vertical walls or panels used to divide rooms or portions of
buildings.

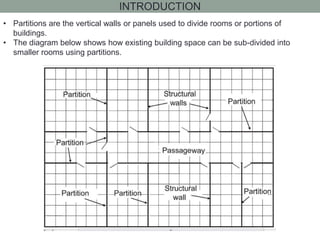

• The diagram below shows how existing building space can be sub-divided into
smaller rooms using partitions.
INTRODUCTION

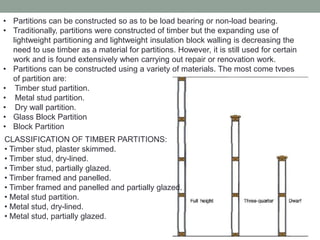

3. • Partitions can be constructed so as to be load bearing or non-load bearing.
• Traditionally, partitions were constructed of timber but the expanding use of
lightweight partitioning and lightweight insulation block walling is decreasing the
need to use timber as a material for partitions. However, it is still used for certain
work and is found extensively when carrying out repair or renovation work.
• Partitions can be constructed using a variety of materials. The most come types
of partition are:
• Timber stud partition.
• Metal stud partition.
• Dry wall partition.
• Glass Block Partition
• Block Partition
CLASSIFICATION OF TIMBER PARTITIONS:
• Timber stud, plaster skimmed.
• Timber stud, dry-lined.
• Timber stud, partially glazed.
• Timber framed and panelled.
• Timber framed and panelled and partially glazed.
• Metal stud partition.
• Metal stud, dry-lined.
• Metal stud, partially glazed.

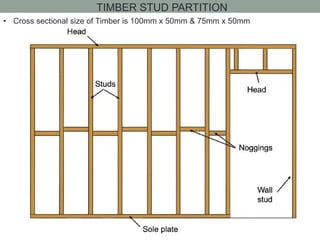

4. TIMBER STUD PARTITION
• Cross sectional size of Timber is 100mm x 50mm & 75mm x 50mm

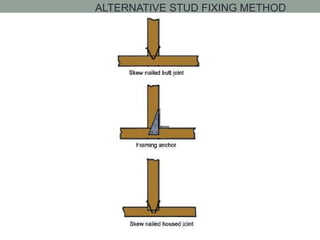

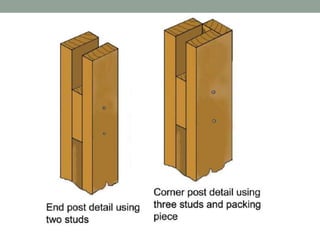

5. ALTERNATIVE STUD FIXING METHOD

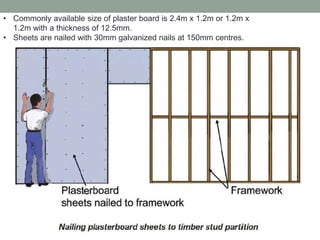

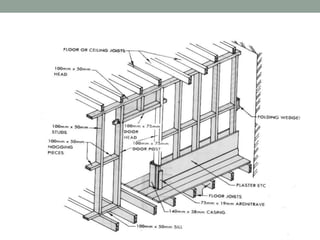

6. • Commonly available size of plaster board is 2.4m x 1.2m or 1.2m x
1.2m with a thickness of 12.5mm.
• Sheets are nailed with 30mm galvanized nails at 150mm centres.

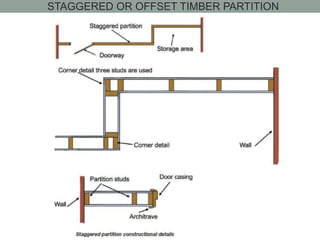

8. STAGGERED OR OFFSET TIMBER PARTITION

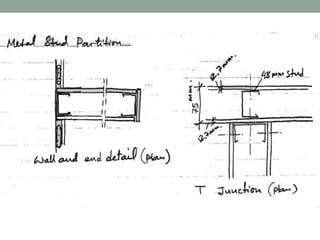

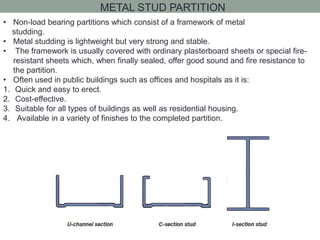

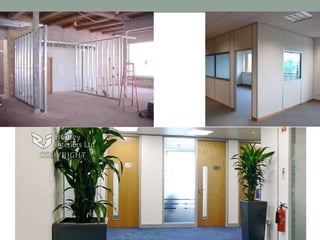

11. METAL STUD PARTITION
• Non-load bearing partitions which consist of a framework of metal
studding.
• Metal studding is lightweight but very strong and stable.
• The framework is usually covered with ordinary plasterboard sheets or special fire-
resistant sheets which, when finally sealed, offer good sound and fire resistance to
the partition.
• Often used in public buildings such as offices and hospitals as it is:
1. Quick and easy to erect.
2. Cost-effective.
3. Suitable for all types of buildings as well as residential housing.
4. Available in a variety of finishes to the completed partition.

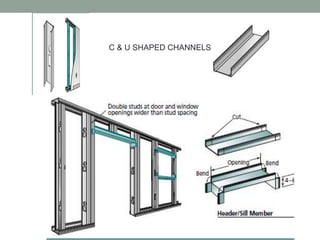

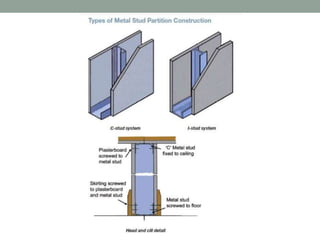

17. C & U SHAPED CHANNELS

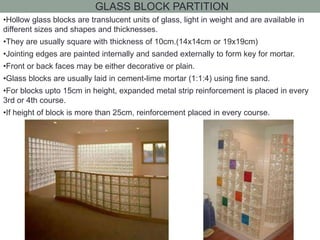

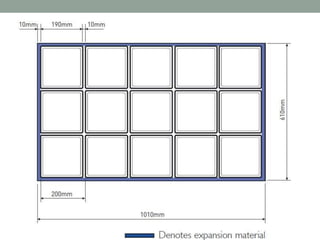

19. GLASS BLOCK PARTITION
•Hollow glass blocks are translucent units of glass, light in weight and are available in
different sizes and shapes and thicknesses.
•They are usually square with thickness of 10cm.(14x14cm or 19x19cm)
•Jointing edges are painted internally and sanded externally to form key for mortar.
•Front or back faces may be either decorative or plain.
•Glass blocks are usually laid in cement-lime mortar (1:1:4) using fine sand.
•For blocks upto 15cm in height, expanded metal strip reinforcement is placed in every
3rd or 4th course.
•If height of block is more than 25cm, reinforcement placed in every course.

21. PREPARATION OF OPENING

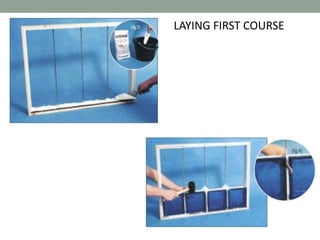

22. LAYING FIRST COURSE

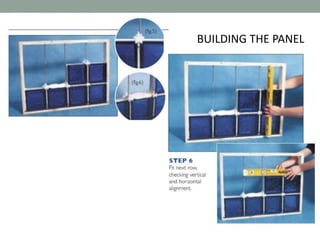

23. BUILDING THE PANEL

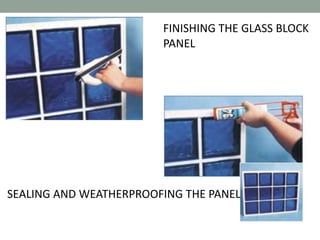

24. FINISHING THE GLASS BLOCK
PANEL
SEALING AND WEATHERPROOFING THE PANEL

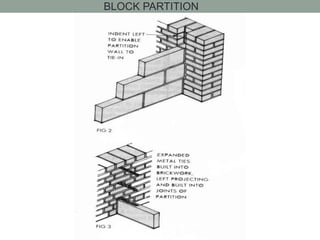

26. BLOCK PARTITION
