VOLCANISM
The Walker School
Geology
Volcanism is a Constructive Process
   Atmosphere
   Water
   Crust




     Painting of Early Earth’s Volcanism
Current Volcanism
   Iceland
   Hawaiian Islands
   Azores
   Galapagos Islands


                        Volcanism at Hawaii’s National Park
Notable Volcanic Eruptions




                             Table 5-1, p. 135
Mount Vesuvius Continues to Errupt




                               Fig. 5-1, p. 134

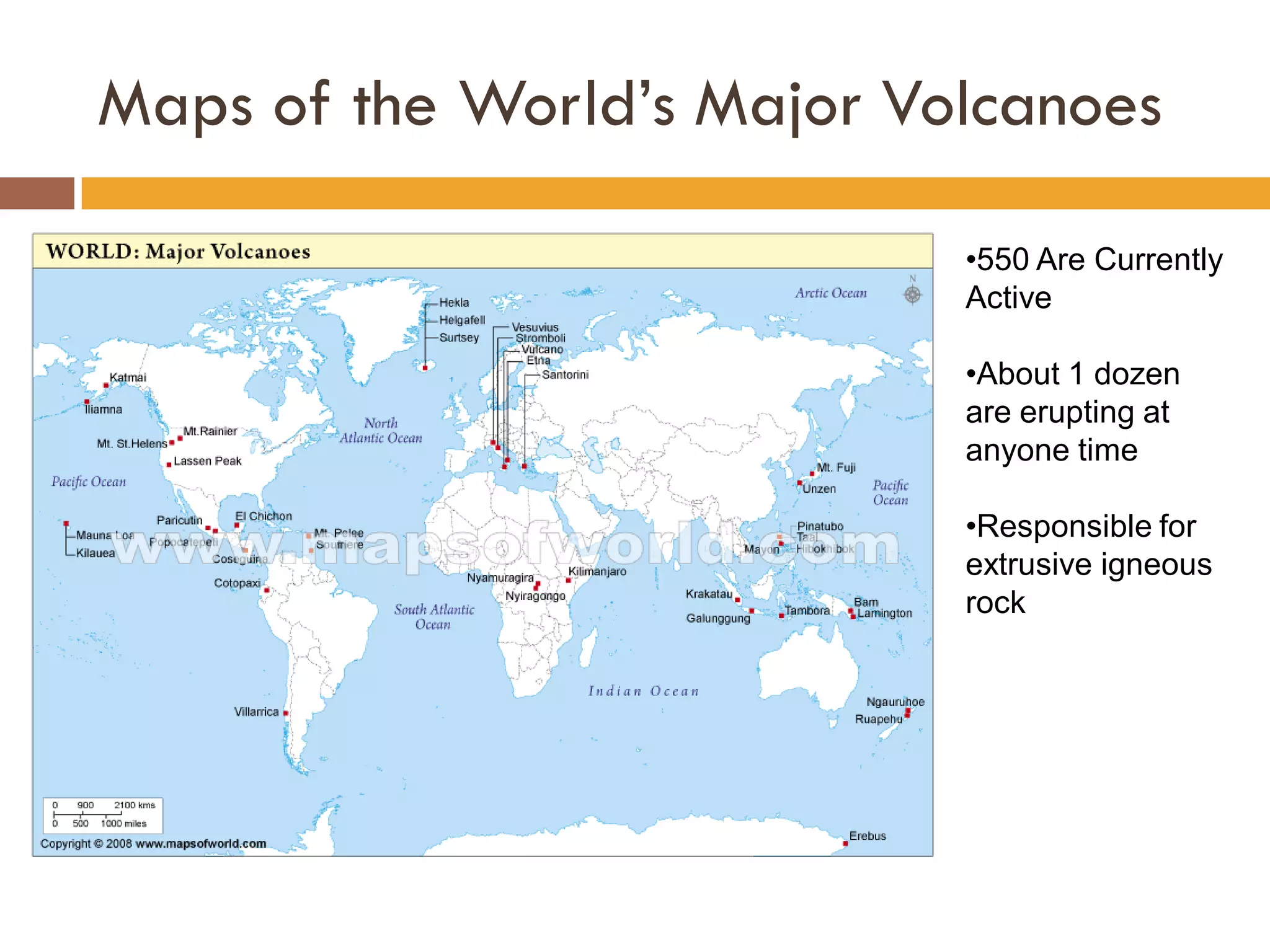

Maps of the World’s Major Volcanoes

                            •550 Are Currently
                            Active

                            •About 1 dozen
                            are erupting at
                            anyone time

                            •Responsible for
                            extrusive igneous
                            rock
Viewing Volcanoes in Google Earth
Basic Volcanic Structure
Pyroclastic Materials
   Blocks
   Bombs
   Lapilli
   Ash

              Size



                     Volcanic Bomb
Lava Tubes at Volcanic National Park, HI




                                    Lava Tube
                                    in Hawaii




                                      Fig. 5-3a, p. 137

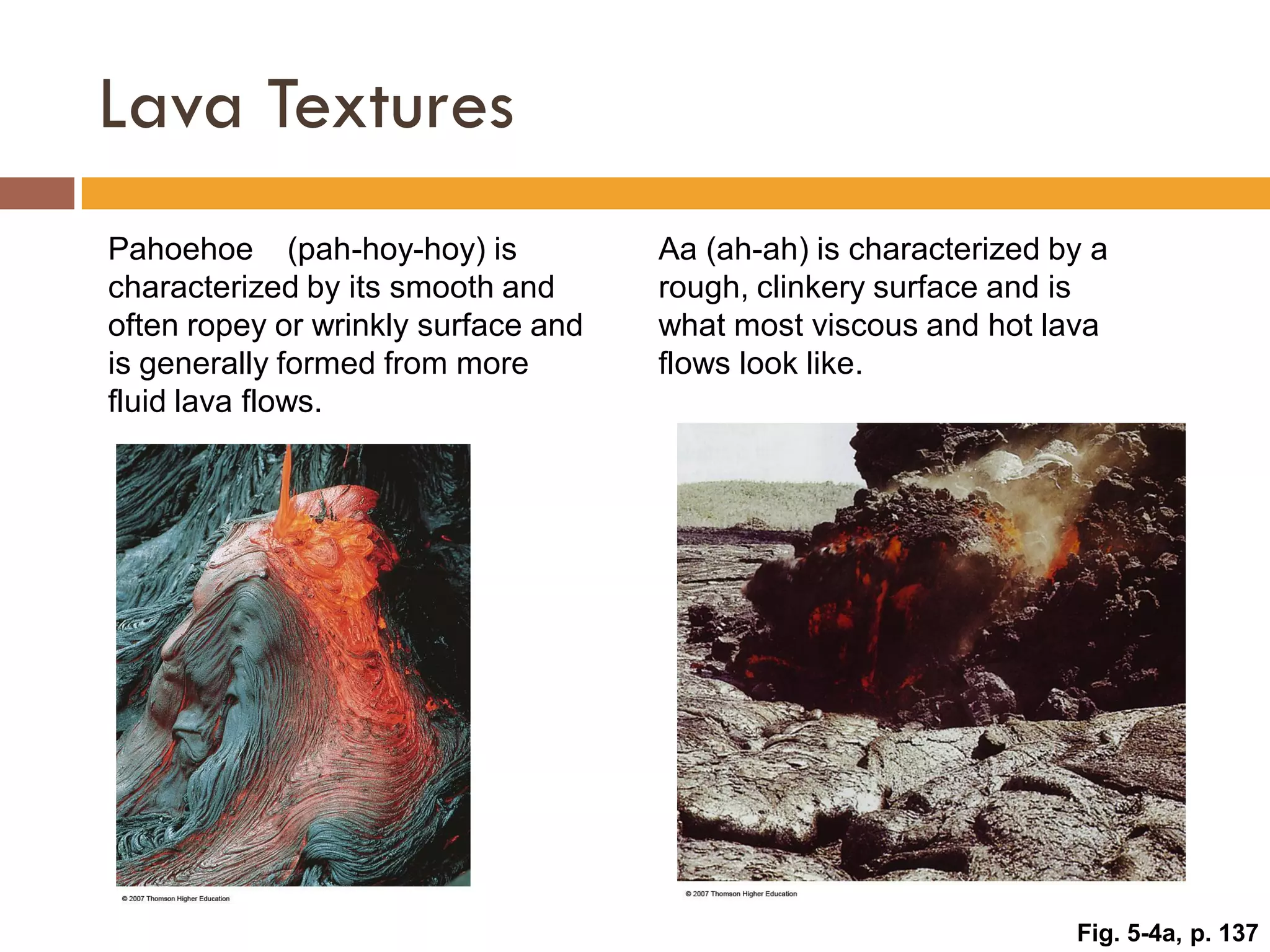

Lava Textures
Pahoehoe (pah-hoy-hoy) is            Aa (ah-ah) is characterized by a
characterized by its smooth and      rough, clinkery surface and is
often ropey or wrinkly surface and   what most viscous and hot lava
is generally formed from more        flows look like.
fluid lava flows.




                                                                  Fig. 5-4a, p. 137
Lava Composition
   Felsic Lava: high percentage (>63%) of silica, and
    trapped gasses; highest viscosity, lowest temperatures
   Andesitic Lava: (52-63%) of silica
   Mafic Lava: (45-52%) of silica + high percentage of
    Magnesium (Mg); typically occur at subduction zones
   Balsitic Lava: (45-52%) of silica + high percentage of
    Iron (Fe); typically occur at oceanic divergent pages
   Ultramafic Lava: (=<45%) of silica; lowest vicsosity,
    highest temperatures

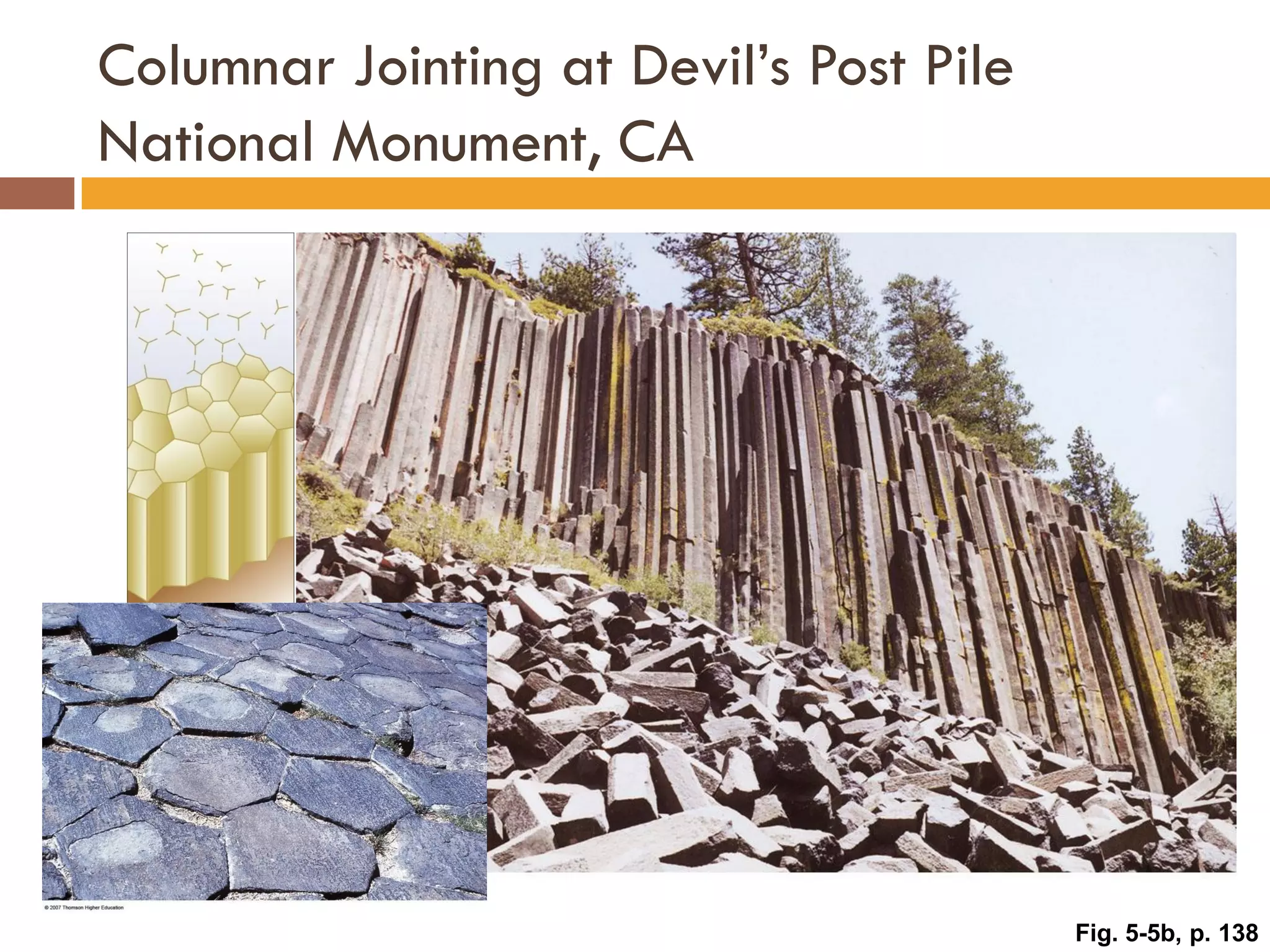

Columnar Jointing at Devil’s Post Pile
National Monument, CA




                                         Fig. 5-5b, p. 138

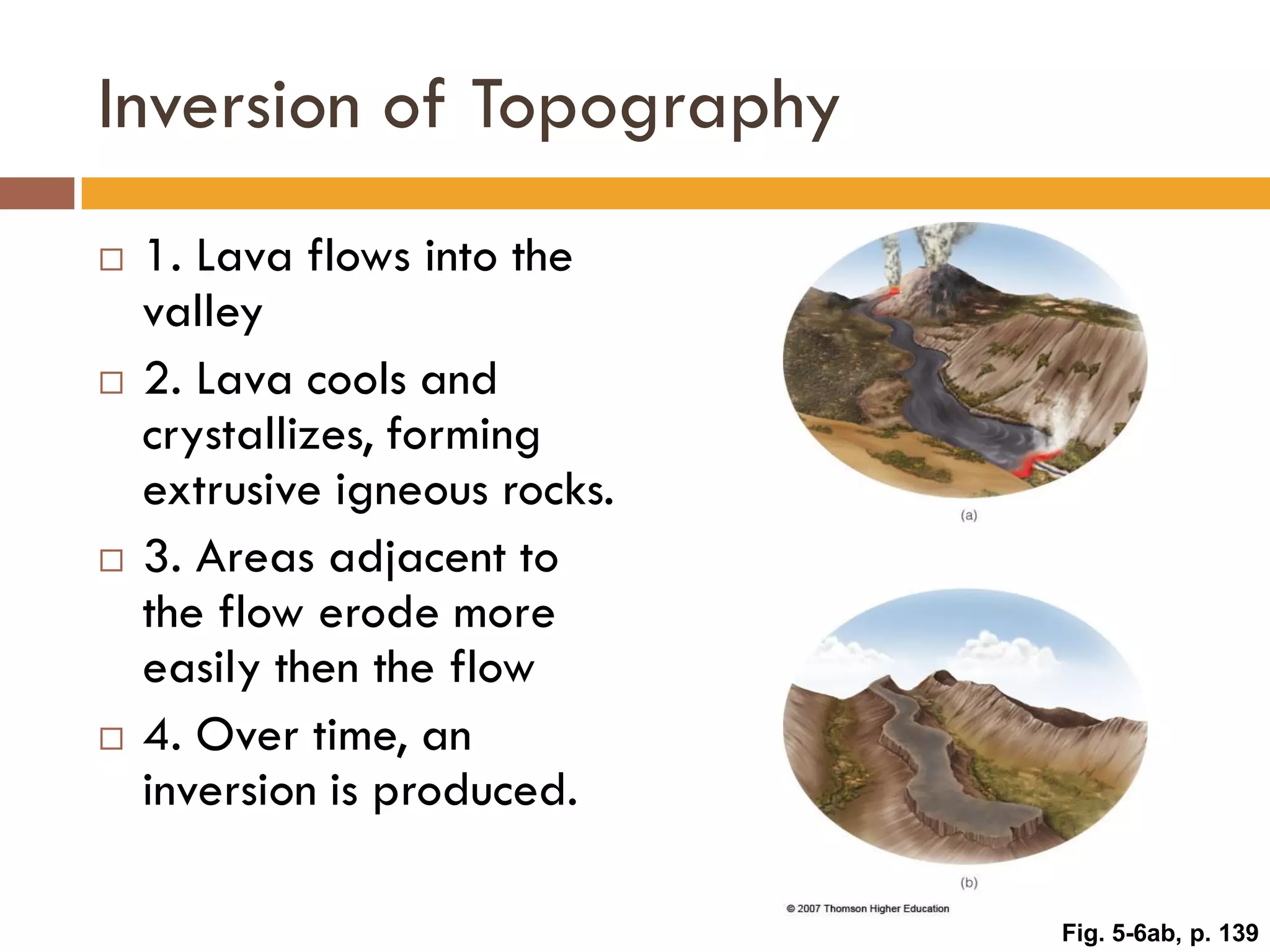

Inversion of Topography
   1. Lava flows into the
    valley
   2. Lava cools and
    crystallizes, forming
    extrusive igneous rocks.
   3. Areas adjacent to
    the flow erode more
    easily then the flow
   4. Over time, an
    inversion is produced.

                               Fig. 5-6ab, p. 139
Craters of the Moon National Monument, ID
http://www.nps.gov/crmo/




                                    Fig. 5-3b, p. 137
VOLCANIC TYPES
Types of Volcanoes
Fig. 5-18, p. 149
Plutonic Bodies
Formation of a Caldera




                         Fig. 5-9a-d, p. 142
Crater Lake, OR Caldera


Caldera Floor of Crater Lake




                               Wizard Island, Crater Lake, OR
Shield Volcanos




                  Fig. 5-10a, p. 143
Shield Volcano, Mauna Loa, HI




                •Low Viscosity Basalt Flows
                •Lava fountains
                •Most common in ocean basins
Cinder Cones




               Fig. 5-11a, p. 144
Cinder Cones, Mojave Desert, CA




                •Eruptions are short-lived.
                •Large, bowl-shaped craters.
                •Ash builds up rapidly.
                •Few lava flows.
                •Lava flows typically from base of cone.

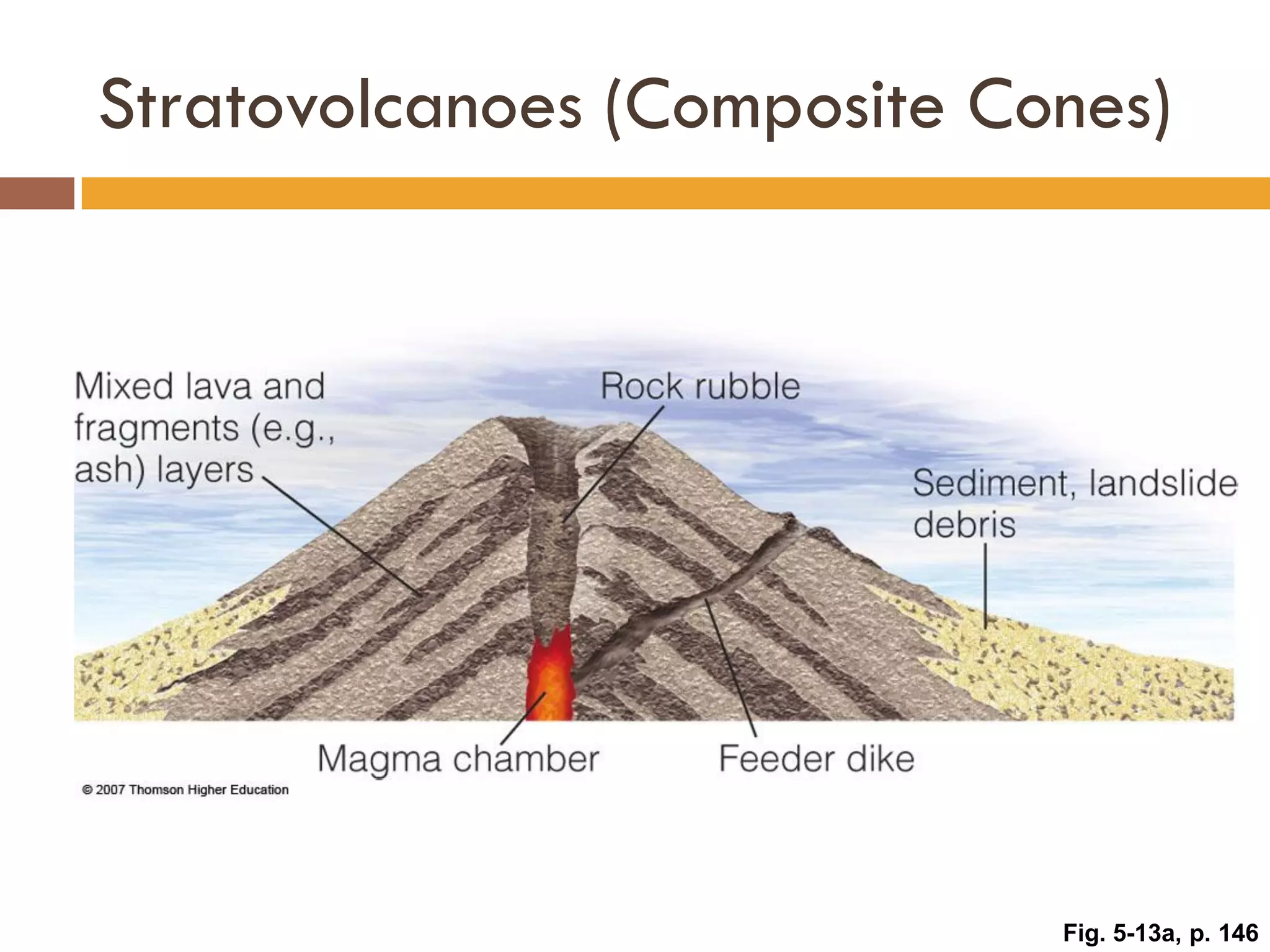

Stratovolcanoes (Composite Cones)




                             Fig. 5-13a, p. 146
Stratovolcano, Mt. Rainier, WA




From Space




             •Composed of layered sills.
             •Lahars, or volcanic mud flows are common.
             •Have steep slops near summit.
             •Lava flows from andesite.
Lahar Flows, Mt. Pinatubo, Philippines




 Mt. Pinatubo
 from Space
                                   Fig. 5-14a, p. 146
Lava Domes




             Fig. 5-15b, p. 147
Lava Dome, Mt. St. Helens, WA




 •Composed of felsic magma.
 •Formed from intermediate magma forced up under great pressure.
 •Highly unstable, will collapse under weight of rock.

                                                              Fig. 5-15a, p. 147
Mt. Saint Helens Eruption
http://www.youtube.com/watch?v=bgRnVhbfIKQ
VOLCANIC ERUPTIONS

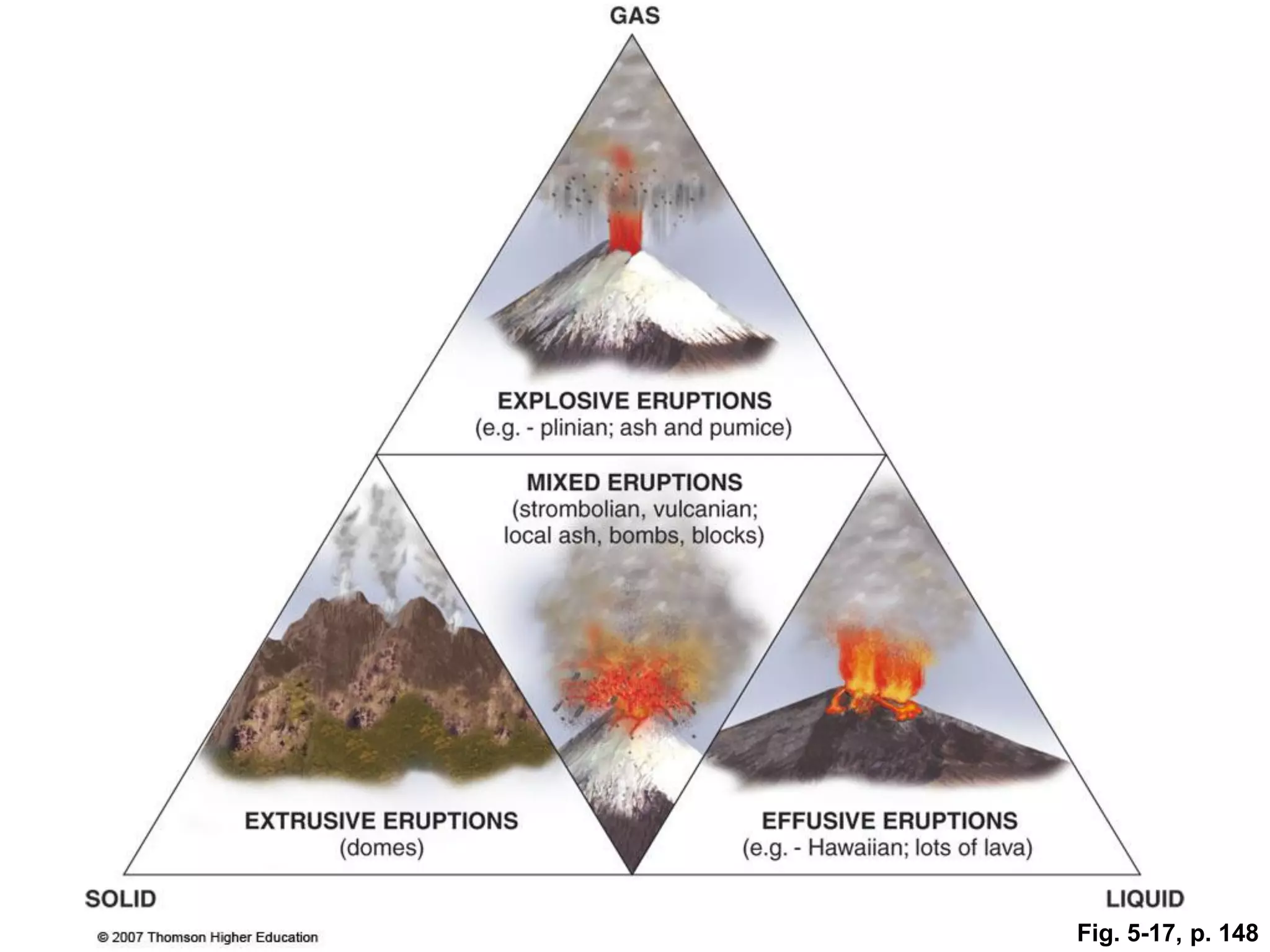

Types of Erruptions
Fig. 5-17, p. 148
Fissure Eruptions
   Generated along a
    linear fracture
   Composed of low-
    viscosity melt
   Commonly occur along
    divergent plate
    boundaries
   Also common on the
    edges of large          Fissure eruption in Iceland
    volcanoes.
   Produces a curtain of
    fire.
Columbia River Basalt Plateau




                                Fig. 5-19, p. 150
Volcanic Explosive Index
Primary Effects of Volcanoes
   Pyroclastic Flows
   Fumaroles
   Landslides
   Ash Fall
   Earthquakes
   High Temperatures
Secondary Effects of Explosions
   Suffocation from Ash
   Asphyxiation from Volcanic Gasses
   Tsunamis
   Temperatures Decreases

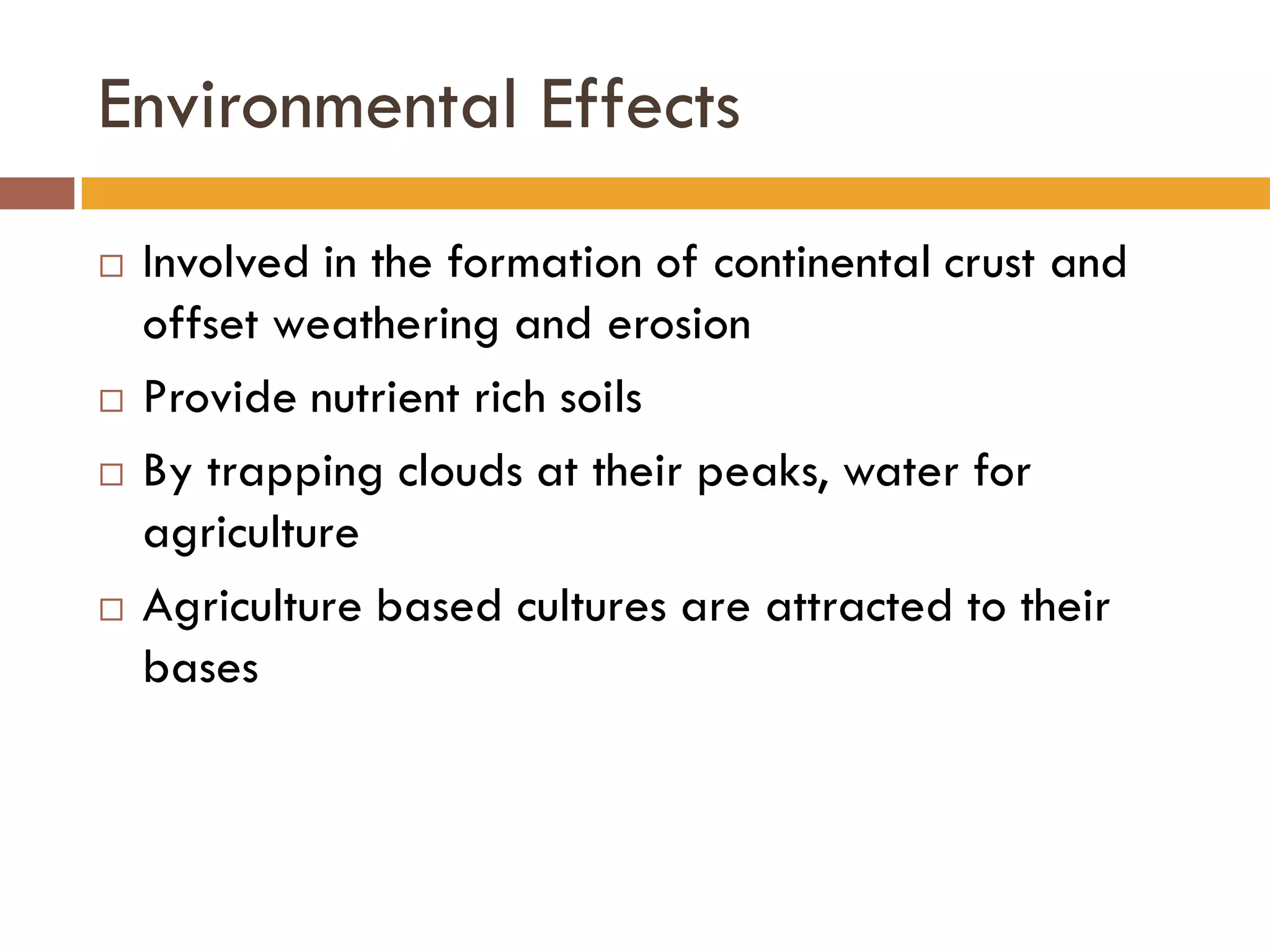

Environmental Effects
   Involved in the formation of continental crust and
    offset weathering and erosion
   Provide nutrient rich soils
   By trapping clouds at their peaks, water for
    agriculture
   Agriculture based cultures are attracted to their
    bases

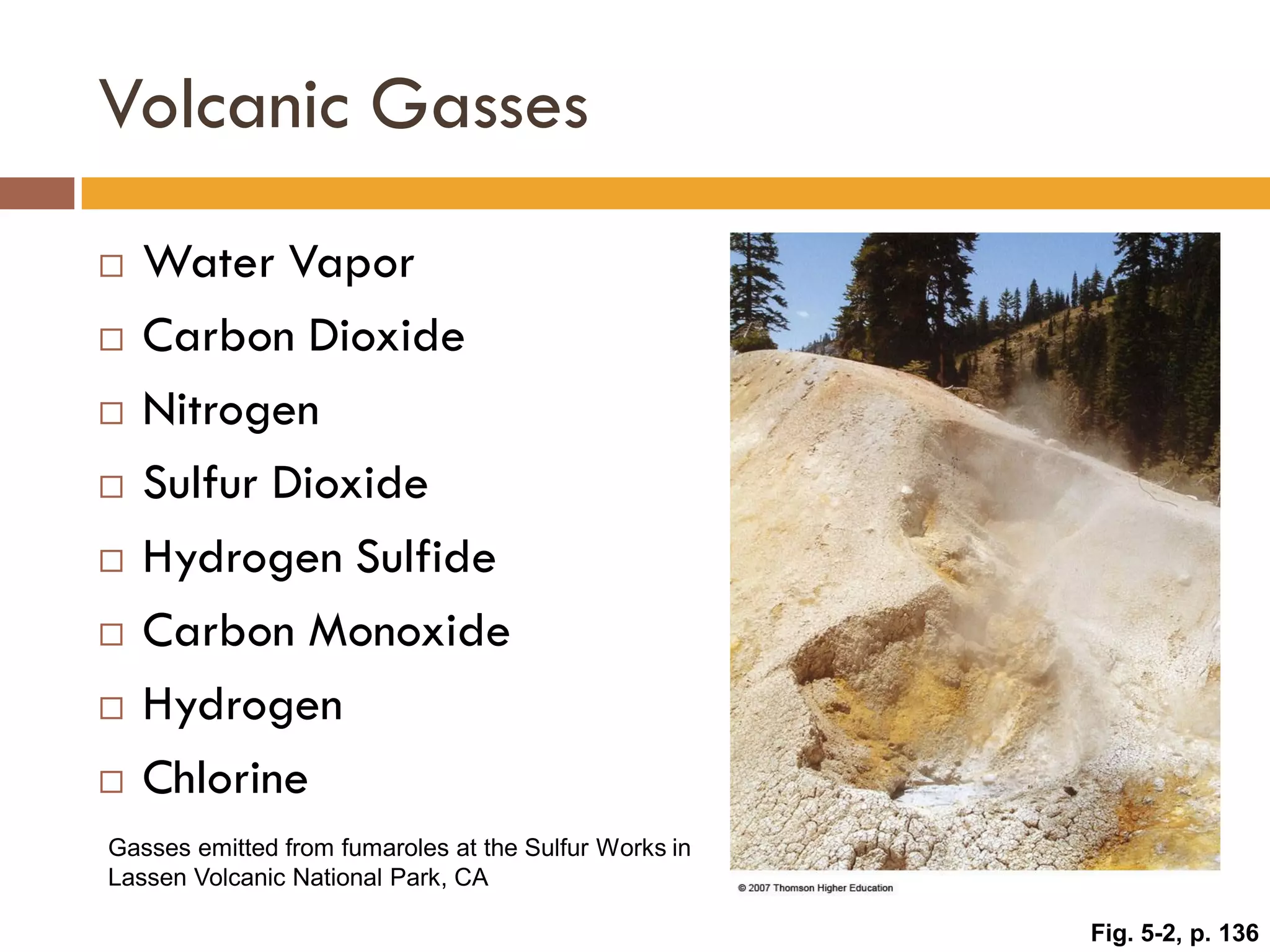

Volcanic Gasses
   Water Vapor
   Carbon Dioxide
   Nitrogen
   Sulfur Dioxide
   Hydrogen Sulfide
   Carbon Monoxide
   Hydrogen
   Chlorine
Gasses emitted from fumaroles at the Sulfur Works in
Lassen Volcanic National Park, CA

                                                       Fig. 5-2, p. 136
Effects of Volcanoes on Climate
   Nucleation, condensation, and sedimentation of aerosols (acid rain)
   Change in Albedo from ash cloud
   Tropospheric cooling from the addition of sulfur to the stratsophere
   Ozone destruction through the formation of atomic chlorine
SUPER ERUPTIONS
Supereruptions
http://www.pbs.org/wgbh/nova/megavolcano/about.html
Discovery Questions
   What does it take to be classified as a super
    eruption?
   When did the last one occur? Why is their
    controversy about the date?
   What would be the primary effects of such an
    eruption?
   For those who survived the initial eruption, what
    would happen in the following months, or years?
   How did the Toba explosion effect the evolution of
    humans?
DISTRIBUTION &
MONITORING
Distribution of Volcanoes
   Circum-Pacific
    Belt (60%)
   Mediterranean
    Belt (20%)
   Mid-Oceanic
    Ridges (20%)

   More common along both divergent than convergent plate boundaries.
   Mainly composed of intrusive magma flows.
   Composed of mafic magma that forms beneath spreading plates.
   Pyroclastic materials are not common because lava is fluid.
   Water pressure prevents gasses from expanding and escaping.
                                                                         Fig. 5-20, p. 151
USGS Volcano Hazards Program
http://volcanoes.usgs.gov/
Alaska’s Volcano Observatory
http://www.avo.alaska.edu/
Alaska’s Volcanoes
Cascade Volcano Observatory
http://vulcan.wr.usgs.gov/
The Cascade Range
Lassen Peak, CA




            Largest Lava Dome in the World
Lassen Peak Diagram




                      Concept Art, p. 154
Mid-Atlantic Ridge & Iceland

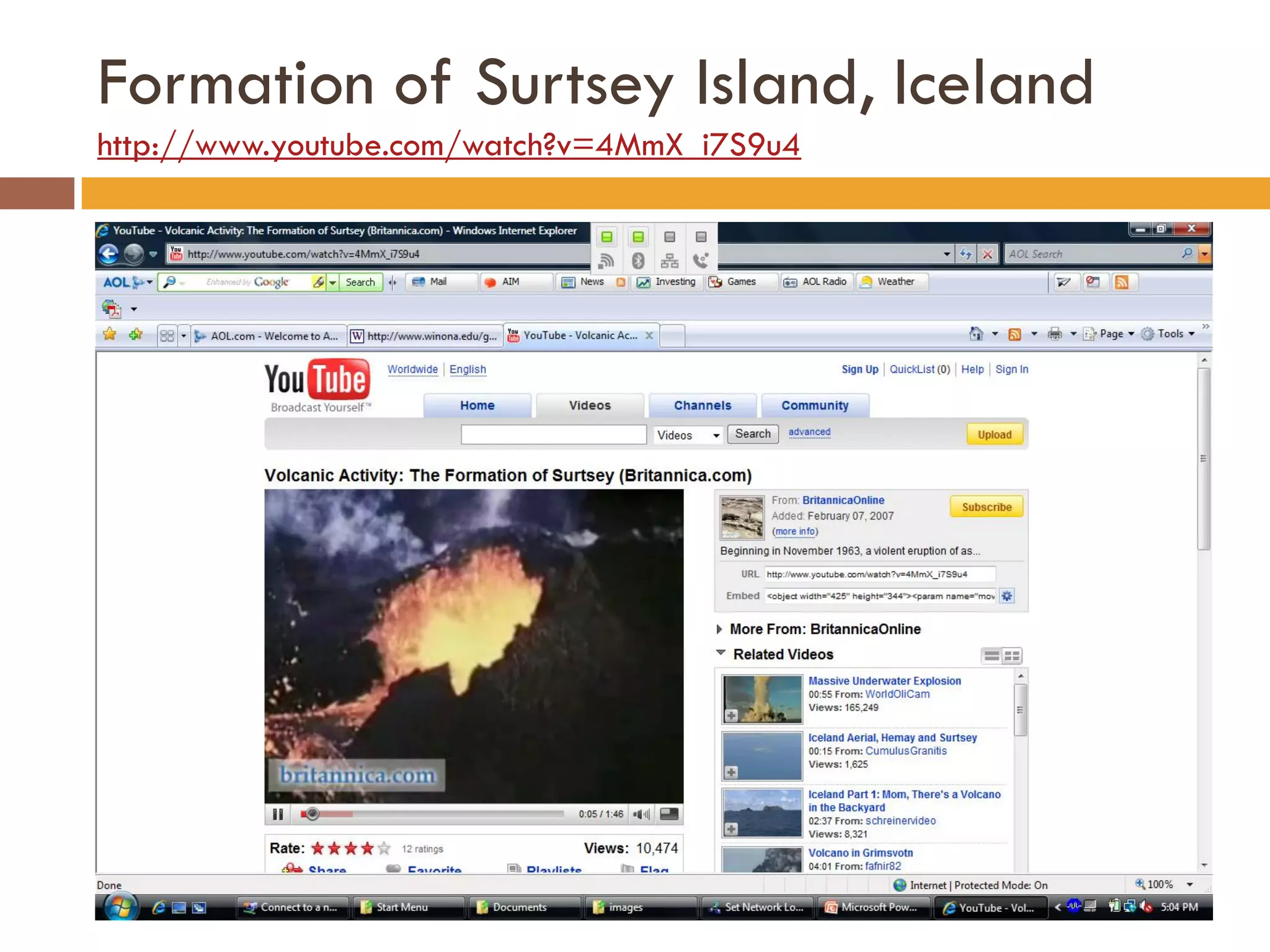

Formation of Surtsey Island, Iceland
http://www.youtube.com/watch?v=4MmX_i7S9u4
Important Monitoring Techniques




                              Fig. 5-23, p. 159
Fumarole Gas Monitoring
   Chemically-selective sensors
    for SO2 and CO2 measure
    gas concentrations and a wind
    sensor measures wind speed
    and direction.
   Data from solar-powered
    stations are transmitted to
    GOES geostationary satellite
    and then down to
    observatories every 10
    minutes, providing near real
    time data on degassing of
    volcanoes
Ground Deformation Monitoring
   Paint
   Electronic Distance Meters
       determine the horizontal movements
        that occur on active volcanoes
   Tiltmeters
       leveling surveys to measure vertical
        motions
   Global Positioning Systems
       allows us to measure horizontal
        motions much more accurately and
        conveniently, and also to estimate
        vertical motions in the same survey
Remote Sensing
   The Advanced Very High
    Resolution Radiometer (AVHRR)
    is a space-borne sensor
    embarked on the NOAA family
    of polar orbiting platforms.
   The primary purpose of these
    instruments is to monitor clouds
    and to measure the thermal
    emission (cooling) of the Earth.
   The main difficulty associated
    with these investigations is to
    properly deal with the many
    limitations of these instruments,
    especially in the early period
    (sensor calibration, orbital drift,
    limited spectral and directional
    sampling, etc).
WHAT ARE BLACK
SMOKERS?
Hydrothermal Vents
   Distributes heat and
    drives water circulation
    in the ocean through
    convection
   Provides energy source
    in the form of hydrogen
    sulfide to benthic
    chemotrophs
   Distributes minerals and
    influences the
    composition of the ocean
Hydrothermal Plume



                                         White
                         Black smoker   smoker

                           Sulfide
                           deposit

                         Tube worms
                     Magma White clam


                        White crab
Location of Major Vent Systems
Learn More About Vents
http://www.divediscover.whoi.edu/vents/index.html
Hydrothermal Vent Chemistry
