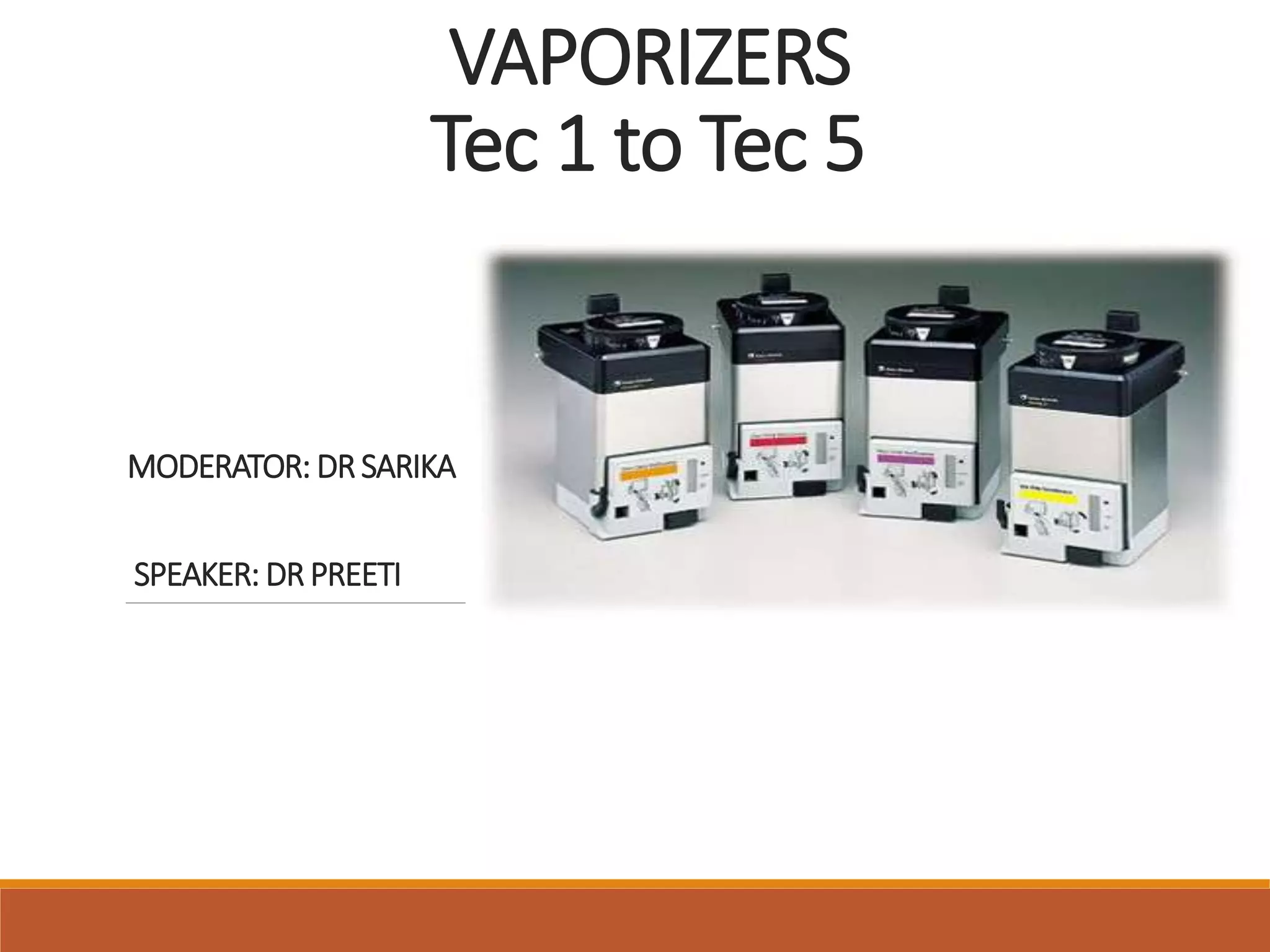

1. VAPORIZERS
Tec 1 to Tec 5
MODERATOR: DRSARIKA
SPEAKER: DR PREETI

2. INTRODUCTION

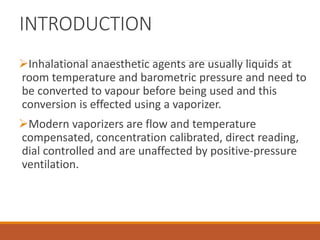

Inhalational anaesthetic agents are usually liquids at
room temperature and barometric pressure and need to
be converted to vapour before being used and this
conversion is effected using a vaporizer.
Modern vaporizers are flow and temperature
compensated, concentration calibrated, direct reading,
dial controlled and are unaffected by positive-pressure
ventilation.

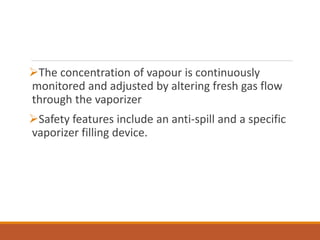

3. The concentration of vapour is continuously
monitored and adjusted by altering fresh gas flow
through the vaporizer
Safety features include an anti-spill and a specific
vaporizer filling device.

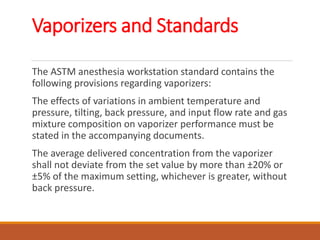

4. Vaporizers and Standards
The ASTM anesthesia workstation standard contains the
following provisions regarding vaporizers:
The effects of variations in ambient temperature and
pressure, tilting, back pressure, and input flow rate and gas
mixture composition on vaporizer performance must be
stated in the accompanying documents.
The average delivered concentration from the vaporizer
shall not deviate from the set value by more than ±20% or
±5% of the maximum setting, whichever is greater, without
back pressure.

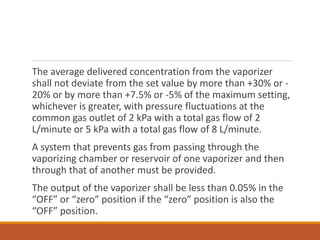

5. The average delivered concentration from the vaporizer
shall not deviate from the set value by more than +30% or -
20% or by more than +7.5% or -5% of the maximum setting,
whichever is greater, with pressure fluctuations at the
common gas outlet of 2 kPa with a total gas flow of 2
L/minute or 5 kPa with a total gas flow of 8 L/minute.
A system that prevents gas from passing through the
vaporizing chamber or reservoir of one vaporizer and then
through that of another must be provided.
The output of the vaporizer shall be less than 0.05% in the
“OFF” or “zero” position if the “zero” position is also the
“OFF” position.

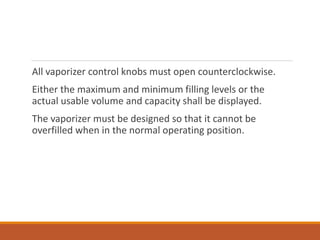

6. All vaporizer control knobs must open counterclockwise.
Either the maximum and minimum filling levels or the
actual usable volume and capacity shall be displayed.
The vaporizer must be designed so that it cannot be
overfilled when in the normal operating position.

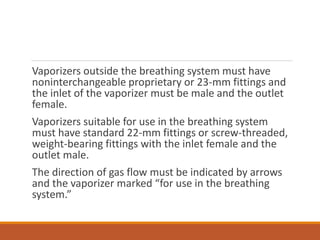

7. Vaporizers outside the breathing system must have
noninterchangeable proprietary or 23-mm fittings and
the inlet of the vaporizer must be male and the outlet
female.
Vaporizers suitable for use in the breathing system
must have standard 22-mm fittings or screw-threaded,
weight-bearing fittings with the inlet female and the
outlet male.
The direction of gas flow must be indicated by arrows
and the vaporizer marked “for use in the breathing
system.”

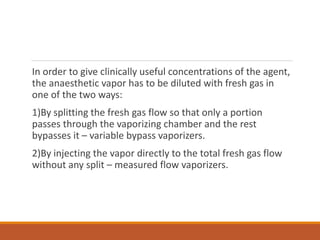

8. In order to give clinically useful concentrations of the agent,
the anaesthetic vapor has to be diluted with fresh gas in
one of the two ways:
1)By splitting the fresh gas flow so that only a portion
passes through the vaporizing chamber and the rest
bypasses it – variable bypass vaporizers.
2)By injecting the vapor directly to the total fresh gas flow
without any split – measured flow vaporizers.

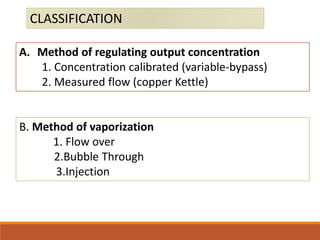

9. A. Method of regulating output concentration
1. Concentration calibrated (variable-bypass)
2. Measured flow (copper Kettle)
CLASSIFICATION
B. Method of vaporization
1. Flow over
2.Bubble Through
3.Injection

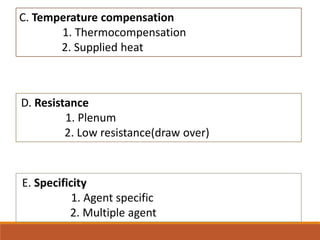

10. C. Temperature compensation
1. Thermocompensation
2. Supplied heat
E. Specificity
1. Agent specific
2. Multiple agent
D. Resistance
1. Plenum
2. Low resistance(draw over)

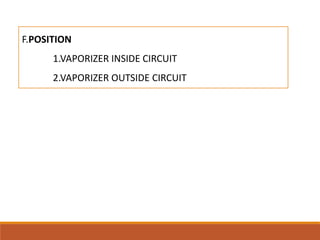

11. F.POSITION
1.VAPORIZER INSIDE CIRCUIT
2.VAPORIZER OUTSIDE CIRCUIT

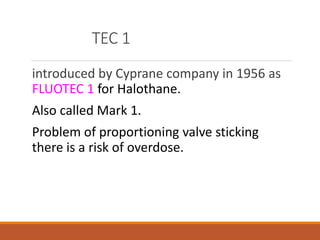

12. TEC 1
introduced by Cyprane company in 1956 as
FLUOTEC 1 for Halothane.
Also called Mark 1.
Problem of proportioning valve sticking
there is a risk of overdose.

13. •variable bypass,
•flow over with wick
•out of system
•temperature compensated
•agent specific

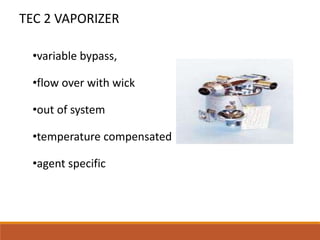

TEC 2 VAPORIZER

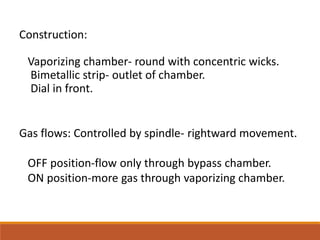

14. Construction:
Vaporizing chamber- round with concentric wicks.
Bimetallic strip- outlet of chamber.
Dial in front.
Gas flows: Controlled by spindle- rightward movement.
OFF position-flow only through bypass chamber.
ON position-more gas through vaporizing chamber.

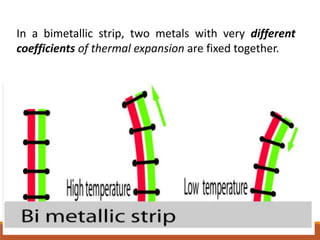

16. In a bimetallic strip, two metals with very different
coefficients of thermal expansion are fixed together.

17. When the temp. of the vaporizing chamber drops, the
bimetallic strip bends and moves away. This reduces
the resistance to flow and thus more flow occurs into
the vaporizing chamber

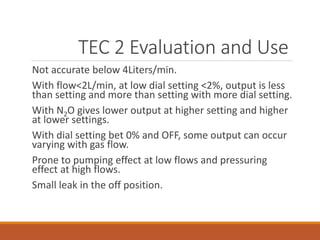

18. TEC 2 Evaluation and Use
Not accurate below 4Liters/min.
With flow<2L/min, at low dial setting <2%, output is less
than setting and more than setting with more dial setting.
With N2O gives lower output at higher setting and higher
at lower settings.
With dial setting bet 0% and OFF, some output can occur
varying with gas flow.
Prone to pumping effect at low flows and pressuring
effect at high flows.
Small leak in the off position.

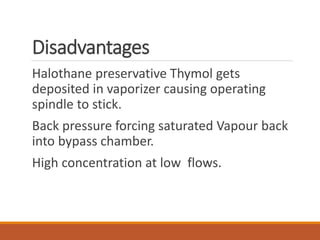

19. Disadvantages
Halothane preservative Thymol gets
deposited in vaporizer causing operating
spindle to stick.
Back pressure forcing saturated Vapour back
into bypass chamber.
High concentration at low flows.

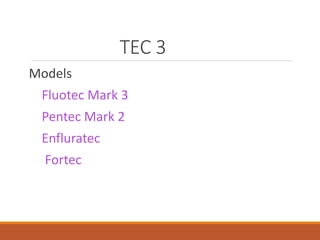

20. TEC 3
Models
Fluotec Mark 3
Pentec Mark 2
Enfluratec
Fortec

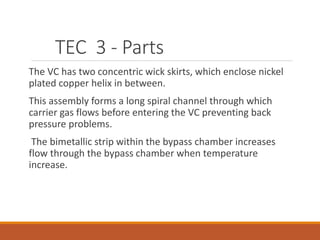

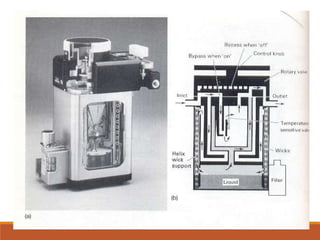

21. TEC 3 - Parts
The VC has two concentric wick skirts, which enclose nickel
plated copper helix in between.
This assembly forms a long spiral channel through which
carrier gas flows before entering the VC preventing back
pressure problems.
The bimetallic strip within the bypass chamber increases
flow through the bypass chamber when temperature
increase.

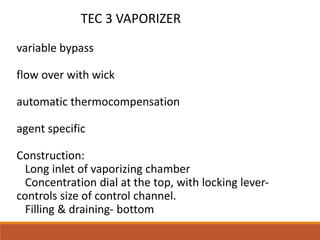

22. TEC 3 VAPORIZER
variable bypass
flow over with wick
automatic thermocompensation
agent specific
Construction:
Long inlet of vaporizing chamber
Concentration dial at the top, with locking lever-
controls size of control channel.
Filling & draining- bottom

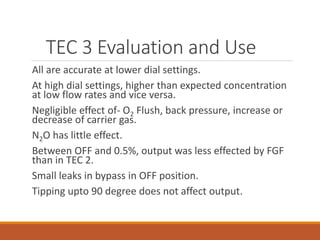

24. TEC 3 Evaluation and Use
All are accurate at lower dial settings.
At high dial settings, higher than expected concentration
at low flow rates and vice versa.
Negligible effect of- O2 Flush, back pressure, increase or
decrease of carrier gas.
N2O has little effect.
Between OFF and 0.5%, output was less effected by FGF
than in TEC 2.
Small leaks in bypass in OFF position.
Tipping upto 90 degree does not affect output.

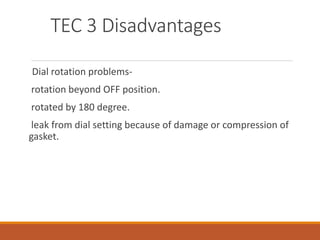

25. TEC 3 Disadvantages
Dial rotation problems-
rotation beyond OFF position.
rotated by 180 degree.
leak from dial setting because of damage or compression of
gasket.

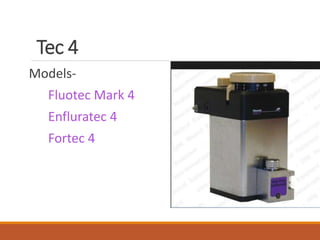

26. Tec 4
Models-
Fluotec Mark 4
Enfluratec 4
Fortec 4

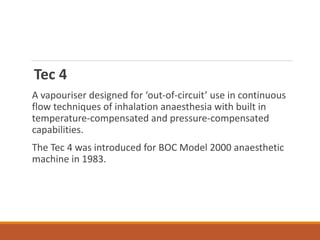

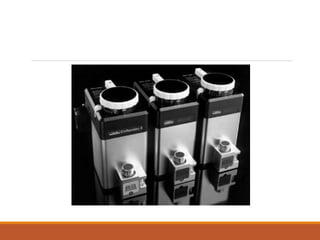

28. Tec 4
A vapouriser designed for ‘out-of-circuit’ use in continuous
flow techniques of inhalation anaesthesia with built in
temperature-compensated and pressure-compensated
capabilities.
The Tec 4 was introduced for BOC Model 2000 anaesthetic
machine in 1983.

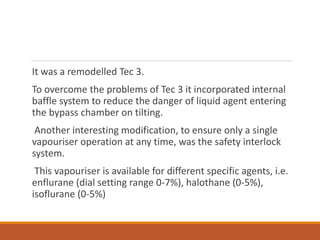

29. It was a remodelled Tec 3.
To overcome the problems of Tec 3 it incorporated internal
baffle system to reduce the danger of liquid agent entering
the bypass chamber on tilting.
Another interesting modification, to ensure only a single
vapouriser operation at any time, was the safety interlock
system.
This vapouriser is available for different specific agents, i.e.
enflurane (dial setting range 0-7%), halothane (0-5%),
isoflurane (0-5%)

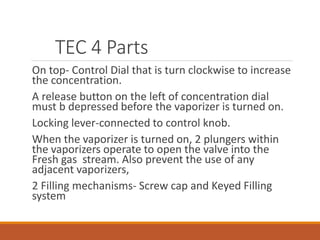

30. TEC 4 Parts
On top- Control Dial that is turn clockwise to increase
the concentration.
A release button on the left of concentration dial
must b depressed before the vaporizer is turned on.
Locking lever-connected to control knob.
When the vaporizer is turned on, 2 plungers within
the vaporizers operate to open the valve into the
Fresh gas stream. Also prevent the use of any
adjacent vaporizers,
2 Filling mechanisms- Screw cap and Keyed Filling
system

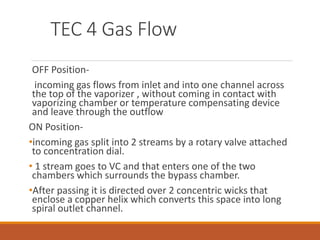

31. TEC 4 Gas Flow
OFF Position-
incoming gas flows from inlet and into one channel across
the top of the vaporizer , without coming in contact with
vaporizing chamber or temperature compensating device
and leave through the outflow
ON Position-
•incoming gas split into 2 streams by a rotary valve attached
to concentration dial.
• 1 stream goes to VC and that enters one of the two
chambers which surrounds the bypass chamber.
•After passing it is directed over 2 concentric wicks that
enclose a copper helix which converts this space into long
spiral outlet channel.

32. TEC 4

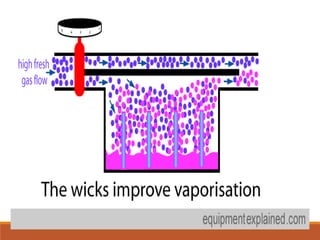

•Wicks assure maximum contact between gas and
agent.
•This vapor laden gas leaves via the second chamber
surrounding bypass chamber to outlet.
The remaining Fresh gas flows to the bypass chamber
which contains temperature sensitive element.
No spillage after tilting or inversion.

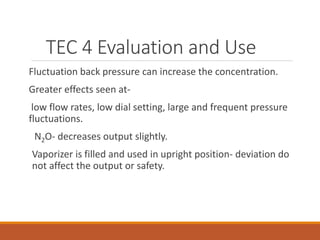

33. TEC 4 Evaluation and Use
Fluctuation back pressure can increase the concentration.
Greater effects seen at-
low flow rates, low dial setting, large and frequent pressure
fluctuations.
N2O- decreases output slightly.
Vaporizer is filled and used in upright position- deviation do
not affect the output or safety.

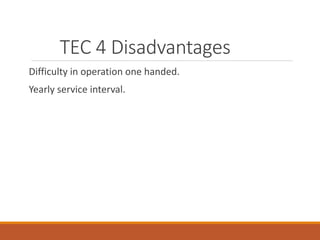

34. TEC 4 Disadvantages
Difficulty in operation one handed.
Yearly service interval.

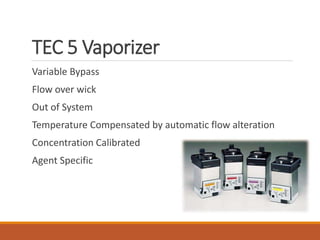

35. TEC 5 Vaporizer
Variable Bypass
Flow over wick
Out of System
Temperature Compensated by automatic flow alteration
Concentration Calibrated
Agent Specific

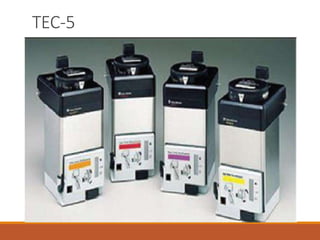

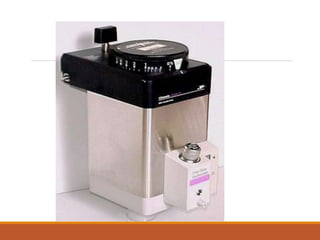

37. TEC-5

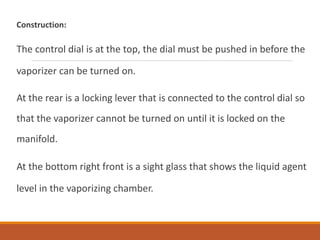

40. Construction:
The control dial is at the top, the dial must be pushed in before the
vaporizer can be turned on.
At the rear is a locking lever that is connected to the control dial so
that the vaporizer cannot be turned on until it is locked on the
manifold.
At the bottom right front is a sight glass that shows the liquid agent
level in the vaporizing chamber.

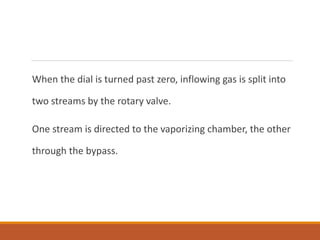

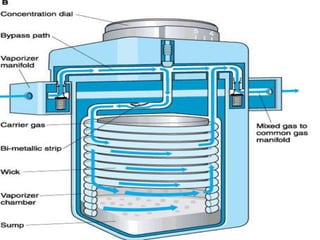

41. When the dial is turned past zero, inflowing gas is split into
two streams by the rotary valve.
One stream is directed to the vaporizing chamber, the other
through the bypass.

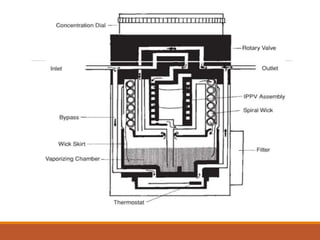

42. The internal baffle system is designed to keep liquid from
reaching the outlet if the vaporizer is tipped or inverted.
When the concentration dial is in the zero position, all of the gas
from the flowmeters bypasses the vaporizer through the select a
tec bar.

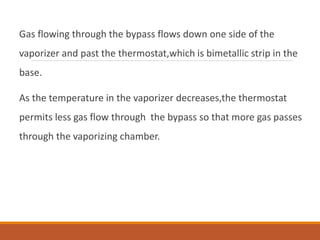

43. Gas flowing through the bypass flows down one side of the
vaporizer and past the thermostat,which is bimetallic strip in the
base.
As the temperature in the vaporizer decreases,the thermostat
permits less gas flow through the bypass so that more gas passes
through the vaporizing chamber.

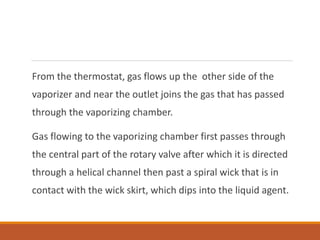

44. From the thermostat, gas flows up the other side of the
vaporizer and near the outlet joins the gas that has passed
through the vaporizing chamber.
Gas flowing to the vaporizing chamber first passes through
the central part of the rotary valve after which it is directed
through a helical channel then past a spiral wick that is in
contact with the wick skirt, which dips into the liquid agent.

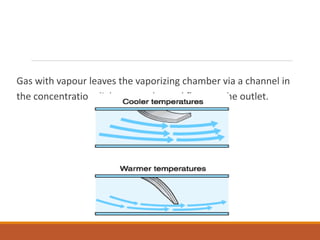

45. Gas with vapour leaves the vaporizing chamber via a channel in
the concentration dial rotary valve and flows to the outlet.

46. Benefits of TEC 5:
Helical IPPV assemble to minimize effects of positive
pressure ventilation.
Volatile Agent capacity increased from 125ml to 300ml
One Handed Dial and more obvious off position
Internal Baffle system designed to prevent liquid from
reaching the outlet if vaporizer is tipped or inverted.

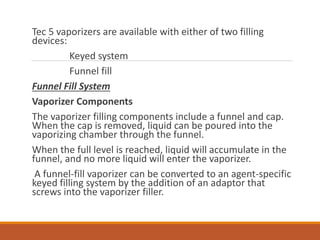

47. Tec 5 vaporizers are available with either of two filling
devices:
Keyed system
Funnel fill
Funnel Fill System
Vaporizer Components
The vaporizer filling components include a funnel and cap.
When the cap is removed, liquid can be poured into the
vaporizing chamber through the funnel.
When the full level is reached, liquid will accumulate in the
funnel, and no more liquid will enter the vaporizer.
A funnel-fill vaporizer can be converted to an agent-specific
keyed filling system by the addition of an adaptor that
screws into the vaporizer filler.

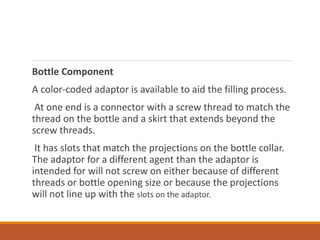

48. Bottle Component
A color-coded adaptor is available to aid the filling process.
At one end is a connector with a screw thread to match the
thread on the bottle and a skirt that extends beyond the
screw threads.
It has slots that match the projections on the bottle collar.
The adaptor for a different agent than the adaptor is
intended for will not screw on either because of different
threads or bottle opening size or because the projections
will not line up with the slots on the adaptor.

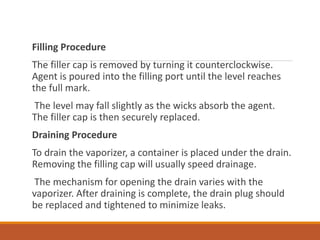

49. Filling Procedure
The filler cap is removed by turning it counterclockwise.
Agent is poured into the filling port until the level reaches
the full mark.
The level may fall slightly as the wicks absorb the agent.
The filler cap is then securely replaced.
Draining Procedure
To drain the vaporizer, a container is placed under the drain.
Removing the filling cap will usually speed drainage.
The mechanism for opening the drain varies with the
vaporizer. After draining is complete, the drain plug should
be replaced and tightened to minimize leaks.

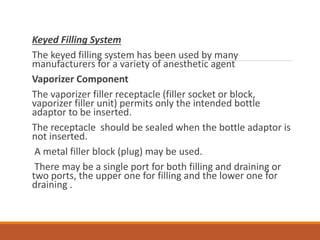

50. Keyed Filling System
The keyed filling system has been used by many
manufacturers for a variety of anesthetic agent
Vaporizer Component
The vaporizer filler receptacle (filler socket or block,
vaporizer filler unit) permits only the intended bottle
adaptor to be inserted.
The receptacle should be sealed when the bottle adaptor is
not inserted.
A metal filler block (plug) may be used.
There may be a single port for both filling and draining or
two ports, the upper one for filling and the lower one for
draining .

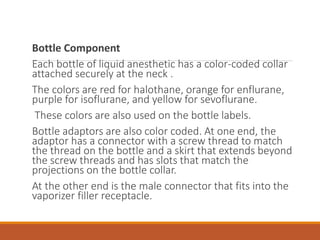

51. Bottle Component
Each bottle of liquid anesthetic has a color-coded collar
attached securely at the neck .

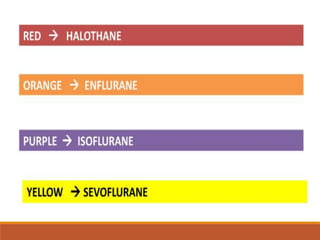

The colors are red for halothane, orange for enflurane,
purple for isoflurane, and yellow for sevoflurane.
These colors are also used on the bottle labels.
Bottle adaptors are also color coded. At one end, the
adaptor has a connector with a screw thread to match
the thread on the bottle and a skirt that extends beyond
the screw threads and has slots that match the
projections on the bottle collar.
At the other end is the male connector that fits into the
vaporizer filler receptacle.

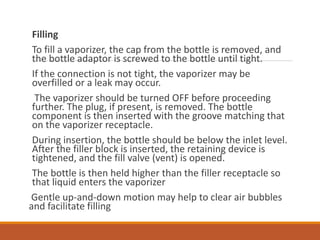

53. Filling
To fill a vaporizer, the cap from the bottle is removed, and
the bottle adaptor is screwed to the bottle until tight.
If the connection is not tight, the vaporizer may be
overfilled or a leak may occur.
The vaporizer should be turned OFF before proceeding
further. The plug, if present, is removed. The bottle
component is then inserted with the groove matching that
on the vaporizer receptacle.
During insertion, the bottle should be below the inlet level.
After the filler block is inserted, the retaining device is
tightened, and the fill valve (vent) is opened.
The bottle is then held higher than the filler receptacle so
that liquid enters the vaporizer
Gentle up-and-down motion may help to clear air bubbles
and facilitate filling

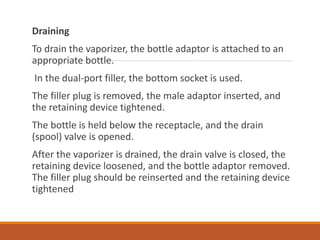

54. Draining
To drain the vaporizer, the bottle adaptor is attached to an
appropriate bottle.
In the dual-port filler, the bottom socket is used.
The filler plug is removed, the male adaptor inserted, and
the retaining device tightened.
The bottle is held below the receptacle, and the drain
(spool) valve is opened.
After the vaporizer is drained, the drain valve is closed, the
retaining device loosened, and the bottle adaptor removed.
The filler plug should be reinserted and the retaining device
tightened

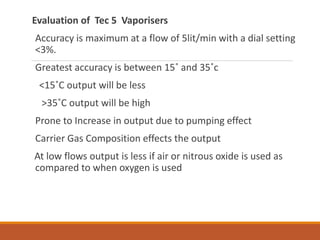

55. Evaluation of Tec 5 Vaporisers
Accuracy is maximum at a flow of 5lit/min with a dial setting
<3%.
Greatest accuracy is between 15˚ and 35˚c
<15˚C output will be less
>35˚C output will be high
Prone to Increase in output due to pumping effect
Carrier Gas Composition effects the output
At low flows output is less if air or nitrous oxide is used as
compared to when oxygen is used

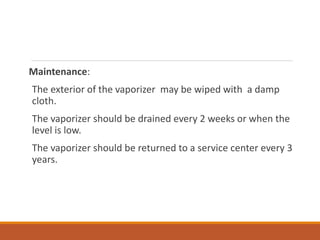

56. Maintenance:
The exterior of the vaporizer may be wiped with a damp
cloth.
The vaporizer should be drained every 2 weeks or when the
level is low.
The vaporizer should be returned to a service center every 3
years.

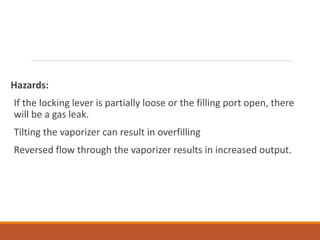

57. Hazards:
If the locking lever is partially loose or the filling port open, there
will be a gas leak.
Tilting the vaporizer can result in overfilling
Reversed flow through the vaporizer results in increased output.

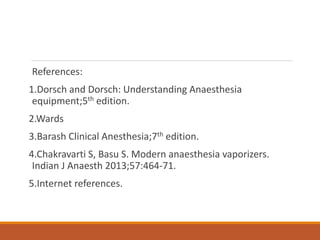

58. References:
1.Dorsch and Dorsch: Understanding Anaesthesia
equipment;5th edition.
2.Wards
3.Barash Clinical Anesthesia;7th edition.
4.Chakravarti S, Basu S. Modern anaesthesia vaporizers.
Indian J Anaesth 2013;57:464-71.
5.Internet references.

59. THANK YOU
