This document discusses vaporizers, which are devices used to convert liquid anesthetic agents into vapor for delivery to patients. It covers the basic principles of vaporization, factors that affect vaporizer output concentration, different types of vaporizers classified by their design and operating characteristics, and standards for vaporizer design. The key points are that vaporizers precisely regulate anesthetic vapor concentrations, multiple factors influence output, and designs vary in things like temperature compensation, agent specificity, and positioning within the breathing circuit.

1. http://www.ppt-to-video.comPresenter : Dr Unnikrishnan PCoordinator : Dr C MadhusoodhananPillaiModerators : Dr SheelaRani Dr RaviVaporizers : 1

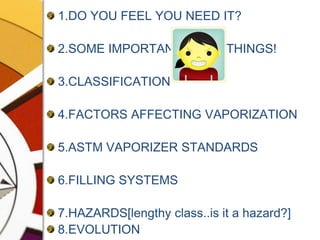

2. 1.DO YOU FEEL YOU NEED IT?2.SOME IMPORTANT THINGS!3.CLASSIFICATION4.FACTORS AFFECTING VAPORIZATION5.ASTM VAPORIZER STANDARDS6.FILLING SYSTEMS7.HAZARDS[lengthy class..is it a hazard?]8.EVOLUTION

3. Why we need a vaporizer? Most volatile agents exist as liquid at room temp & atm pressureVaporizers convert this liquid form to vapor phase And add a certain amount of this vapor to the anesthesia circuit...In precisely determined concentrations over a wide range of temperatures, pressures and carrier gas flowrates.

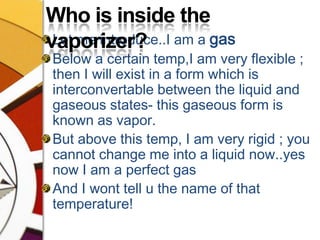

4. Who is inside the vaporizer?Let me introduce..I am a gasBelow a certain temp,I am very flexible ; then I will exist in a form which is interconvertable between the liquid and gaseous states- this gaseous form is known as vapor.But above this temp, I am very rigid ; you cannot change me into a liquid now..yes now I am a perfect gasAnd I wont tell u the name of that temperature!

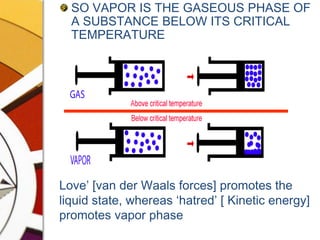

5. SO VAPOR IS THE GASEOUS PHASE OF A SUBSTANCE BELOW ITS CRITICAL TEMPERATURELove’ [van der Waals forces] promotes the liquid state, whereas ‘hatred’ [ Kinetic energy] promotes vapor phase

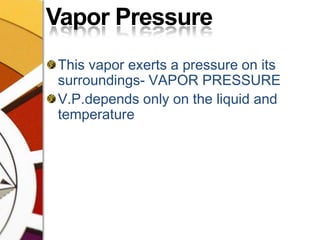

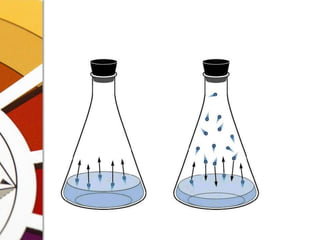

6. Vapor PressureThis vapor exerts a pressure on its surroundings- VAPOR PRESSUREV.P.depends only on the liquid and temperature

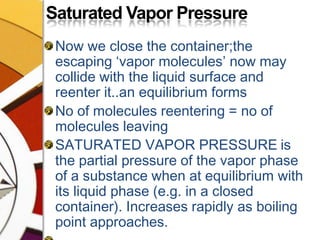

8. Saturated Vapor PressureNow we close the container;the escaping ‘vapor molecules’ now may collide with the liquid surface and reenter it..an equilibrium formsNo of molecules reentering = no of molecules leavingSATURATED VAPOR PRESSUREis the partial pressure of the vapor phase of a substance when at equilibrium with its liquid phase (e.g. in a closed container). Increases rapidly as boiling point approaches.

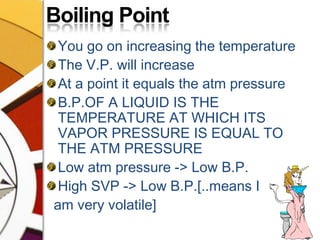

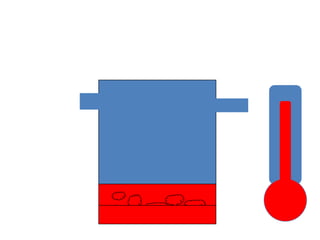

10. Boiling PointYou go on increasing the temperatureThe V.P. will increaseAt a point it equals the atm pressureB.P.OF A LIQUID IS THE TEMPERATURE AT WHICH ITS VAPOR PRESSURE IS EQUAL TO THE ATM PRESSURELow atm pressure -> Low B.P.High SVP -> Low B.P.[..means I am very volatile]

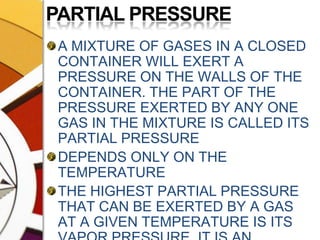

11. PARTIAL PRESSUREA MIXTURE OF GASES IN A CLOSED CONTAINER WILL EXERT A PRESSURE ON THE WALLS OF THE CONTAINER. THE PART OF THE PRESSURE EXERTED BY ANY ONE GAS IN THE MIXTURE IS CALLED ITS PARTIAL PRESSUREDEPENDS ONLY ON THE TEMPERATURETHE HIGHEST PARTIAL PRESSURE THAT CAN BE EXERTED BY A GAS AT A GIVEN TEMPERATURE IS ITS VAPOR PRESSURE. IT IS AN ABSOLUTE VALUE.

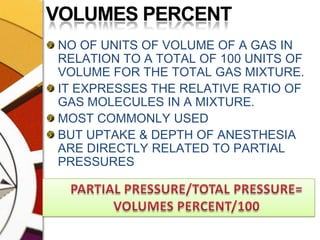

12. VOLUMES PERCENTNO OF UNITS OF VOLUME OF A GAS IN RELATION TO A TOTAL OF 100 UNITS OF VOLUME FOR THE TOTAL GAS MIXTURE. IT EXPRESSES THE RELATIVE RATIO OF GAS MOLECULES IN A MIXTURE.MOST COMMONLY USEDBUT UPTAKE & DEPTH OF ANESTHESIA ARE DIRECTLY RELATED TO PARTIAL PRESSURES PARTIAL PRESSURE/TOTAL PRESSURE= VOLUMES PERCENT/100

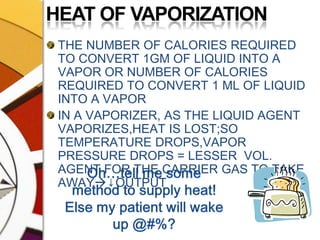

13. HEAT OF VAPORIZATIONTHE NUMBER OF CALORIES REQUIRED TO CONVERT 1GM OF LIQUID INTO A VAPOR OR NUMBER OF CALORIES REQUIRED TO CONVERT 1 ML OF LIQUID INTO A VAPORIN A VAPORIZER, AS THE LIQUID AGENT VAPORIZES,HEAT IS LOST;SO TEMPERATURE DROPS,VAPOR PRESSURE DROPS = LESSER VOL. AGENT FOR THE CARRIER GAS TO TAKE AWAY↓OUTPUTOh…tell me some method to supply heat! Else my patient will wake up @#%?

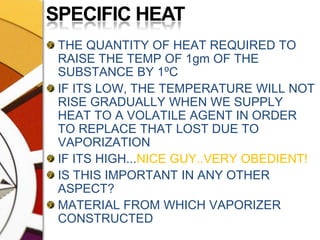

14. SPECIFIC HEATTHE QUANTITY OF HEAT REQUIRED TO RAISE THE TEMP OF 1gm OF THE SUBSTANCE BY 1⁰CIF ITS LOW, THE TEMPERATURE WILL NOT RISE GRADUALLY WHEN WE SUPPLY HEAT TO A VOLATILE AGENT IN ORDER TO REPLACE THAT LOST DUE TO VAPORIZATIONIF ITS HIGH...NICE GUY..VERY OBEDIENT!IS THIS IMPORTANT IN ANY OTHER ASPECT?MATERIAL FROM WHICH VAPORIZER CONSTRUCTED

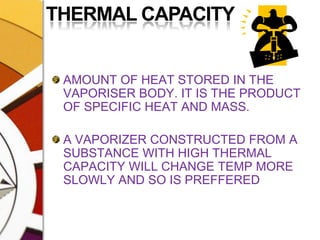

15. THERMAL CAPACITYAMOUNT OF HEAT STORED IN THE VAPORISER BODY. IT IS THE PRODUCT OF SPECIFIC HEAT AND MASS. A VAPORIZER CONSTRUCTED FROM A SUBSTANCE WITH HIGH THERMAL CAPACITY WILL CHANGE TEMP MORE SLOWLY AND SO IS PREFFERED

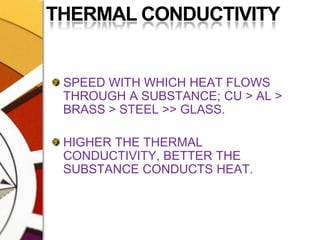

16. THERMAL CONDUCTIVITYSPEED WITH WHICH HEAT FLOWS THROUGH A SUBSTANCE; CU > AL > BRASS > STEEL >> GLASS.HIGHER THE THERMAL CONDUCTIVITY, BETTER THE SUBSTANCE CONDUCTS HEAT.

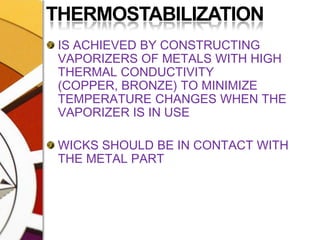

17. THERMOSTABILIZATIONIS ACHIEVED BY CONSTRUCTING VAPORIZERS OF METALS WITH HIGH THERMAL CONDUCTIVITY (COPPER, BRONZE) TO MINIMIZE TEMPERATURE CHANGES WHEN THE VAPORIZER IS IN USEWICKS SHOULD BE IN CONTACT WITH THE METAL PART

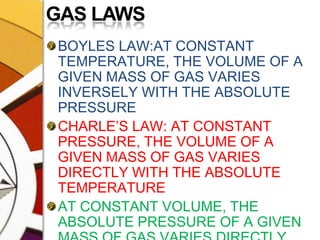

18. GAS LAWSBOYLES LAW:AT CONSTANT TEMPERATURE, THE VOLUME OF A GIVEN MASS OF GAS VARIES INVERSELY WITH THE ABSOLUTE PRESSURECHARLE’S LAW: AT CONSTANT PRESSURE, THE VOLUME OF A GIVEN MASS OF GAS VARIES DIRECTLY WITH THE ABSOLUTE TEMPERATUREAT CONSTANT VOLUME, THE ABSOLUTE PRESSURE OF A GIVEN MASS OF GAS VARIES DIRECTLY WITH THE ABSOLUTE TEMPERATURE

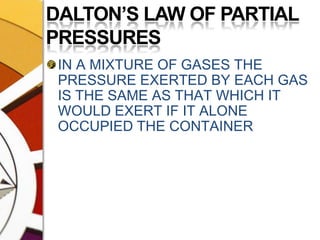

19. DALTON’S LAW OF PARTIAL PRESSURESIN A MIXTURE OF GASES THE PRESSURE EXERTED BY EACH GAS IS THE SAME AS THAT WHICH IT WOULD EXERT IF IT ALONE OCCUPIED THE CONTAINER

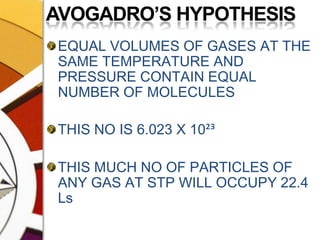

20. AVOGADRO’S HYPOTHESISEQUAL VOLUMES OF GASES AT THE SAME TEMPERATURE AND PRESSURE CONTAIN EQUAL NUMBER OF MOLECULESTHIS NO IS 6.023 X 10²³THIS MUCH NO OF PARTICLES OF ANY GAS AT STP WILL OCCUPY 22.4 Ls

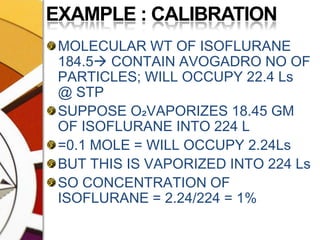

21. EXAMPLE : CALIBRATIONMOLECULAR WT OF ISOFLURANE 184.5 CONTAIN AVOGADRO NO OF PARTICLES; WILL OCCUPY 22.4 Ls @ STPSUPPOSE O₂VAPORIZES 18.45 GM OF ISOFLURANE INTO 224 L=0.1 MOLE = WILL OCCUPY 2.24LsBUT THIS IS VAPORIZED INTO 224 LsSO CONCENTRATION OF ISOFLURANE = 2.24/224 = 1%

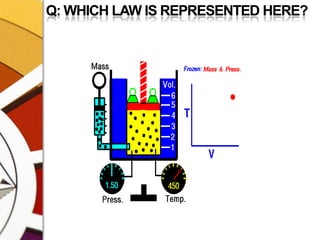

22. Q: WHICH LAW IS REPRESENTED HERE?

23. CLASSIFICATION OF VAPORIZERS

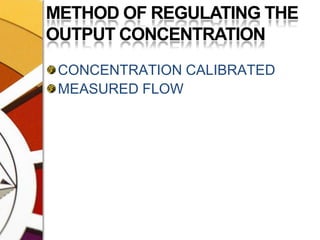

24. METHOD OF REGULATING THE OUTPUT CONCENTRATIONCONCENTRATION CALIBRATED MEASURED FLOW

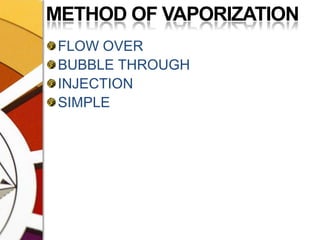

25. METHOD OF VAPORIZATIONFLOW OVERBUBBLE THROUGHINJECTIONSIMPLE

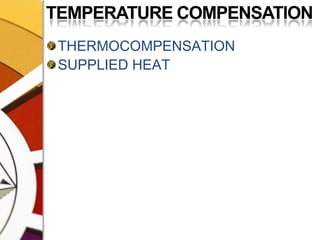

26. TEMPERATURE COMPENSATIONTHERMOCOMPENSATIONSUPPLIED HEAT

27. SPECIFICITYAGENT SPECIFICMULTIPLE AGENTS

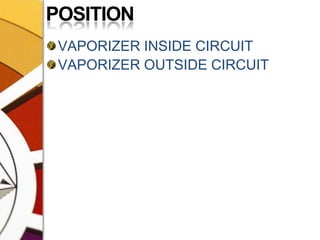

28. POSITIONVAPORIZER INSIDE CIRCUITVAPORIZER OUTSIDE CIRCUIT

29. RESISTANCEPLENUMLOW RESISTANCE/DRAW OVER

30. BASIC DESIGN

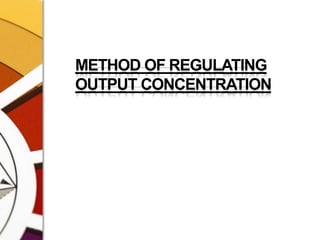

31. METHOD OF REGULATING OUTPUT CONCENTRATION

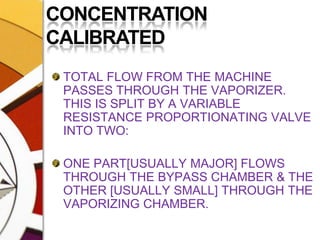

32. CONCENTRATION CALIBRATEDTOTAL FLOW FROM THE MACHINE PASSES THROUGH THE VAPORIZER. THIS IS SPLIT BY A VARIABLE RESISTANCE PROPORTIONATING VALVE INTO TWO:ONE PART[USUALLY MAJOR] FLOWS THROUGH THE BYPASS CHAMBER & THE OTHER [USUALLY SMALL] THROUGH THE VAPORIZING CHAMBER.

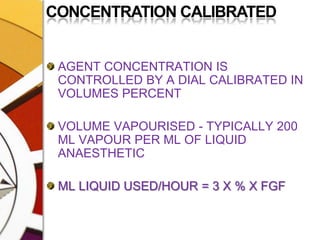

33. CONCENTRATION CALIBRATEDAGENT CONCENTRATION IS CONTROLLED BY A DIAL CALIBRATED IN VOLUMES PERCENTVOLUME VAPOURISED - TYPICALLY 200 ML VAPOUR PER ML OF LIQUID ANAESTHETICML LIQUID USED/HOUR = 3 X % X FGF

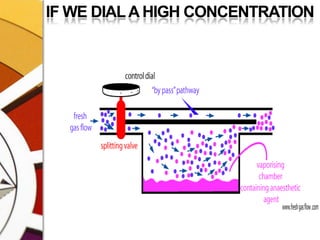

34. IF WE DIAL A HIGH CONCENTRATION

35. IF WE DIAL A LOW CONCENTRATION

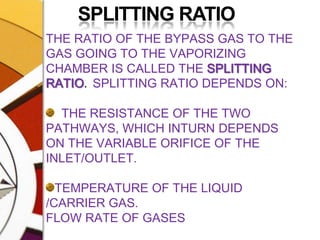

36. SPLITTING RATIOTHE RATIO OF THE BYPASS GAS TO THE GAS GOING TO THE VAPORIZING CHAMBER IS CALLED THE SPLITTING RATIO. SPLITTING RATIO DEPENDS ON: THE RESISTANCE OF THE TWO PATHWAYS, WHICH INTURN DEPENDS ON THE VARIABLE ORIFICE OF THE INLET/OUTLET.TEMPERATURE OF THE LIQUID /CARRIER GAS.FLOW RATE OF GASESDENSITY OF THE PARTICULAR GAS ENTERING VAP CHAMBER. MOSTLY CARRIER GAS IS O₂

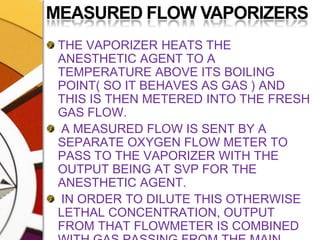

37. MEASURED FLOW VAPORIZERSTHE VAPORIZER HEATS THE ANESTHETIC AGENT TO A TEMPERATURE ABOVE ITS BOILING POINT( SO IT BEHAVES AS GAS ) AND THIS IS THEN METERED INTO THE FRESH GAS FLOW. A MEASURED FLOW IS SENT BY A SEPARATE OXYGEN FLOW METER TO PASS TO THE VAPORIZER WITH THE OUTPUT BEING AT SVP FOR THE ANESTHETIC AGENT. IN ORDER TO DILUTE THIS OTHERWISE LETHAL CONCENTRATION, OUTPUT FROM THAT FLOWMETER IS COMBINED WITH GAS PASSING FROM THE MAIN FLOWMETER e.g. COPPER KETTLE, VERNI-TRIOL

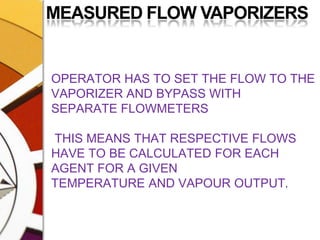

38. MEASURED FLOW VAPORIZERSOPERATOR HAS TO SET THE FLOW TO THE VAPORIZER AND BYPASS WITHSEPARATE FLOWMETERS THIS MEANS THAT RESPECTIVE FLOWS HAVE TO BE CALCULATED FOR EACH AGENT FOR A GIVENTEMPERATURE AND VAPOUR OUTPUT.

39. VAPORIZATION METHODS

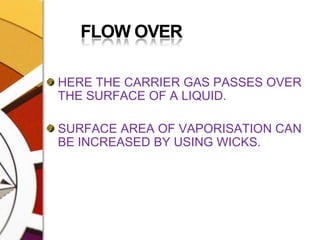

40. FLOW OVERHERE THE CARRIER GAS PASSES OVER THE SURFACE OF A LIQUID.SURFACE AREA OF VAPORISATION CAN BE INCREASED BY USING WICKS.

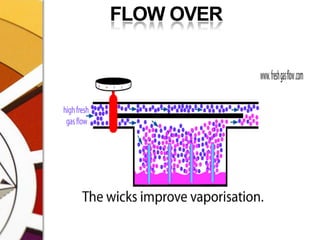

41. FLOW OVER

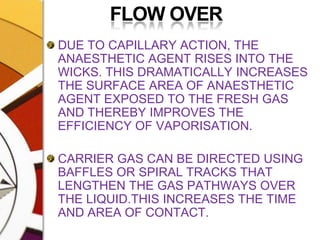

42. FLOW OVERDUE TO CAPILLARY ACTION, THE ANAESTHETIC AGENT RISES INTO THE WICKS. THIS DRAMATICALLY INCREASES THE SURFACE AREA OF ANAESTHETIC AGENT EXPOSED TO THE FRESH GAS AND THEREBY IMPROVES THE EFFICIENCY OF VAPORISATION.CARRIER GAS CAN BE DIRECTED USING BAFFLES OR SPIRAL TRACKS THAT LENGTHEN THE GAS PATHWAYS OVER THE LIQUID.THIS INCREASES THE TIME AND AREA OF CONTACT.

43. FLOW OVER

44. BUBBLE THROUGHCARRIER GAS IS ALLOWED TO BUBBLE THROUGH THE LIQUID. SMALLER THE BUBBLE ,LARGER WILL BE THE SURFACE AREA. METHODS TO BREAK THE GAS INTO SMALL BUBBLES ARE AGITATION & SPLASHING.FACTORS INFLUENCING THE VAPORIZER OUTPUT : SIZE OF THE BUBBLE, DEPTH OF LIQUID, BUBBLING SPEED

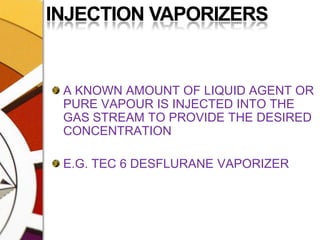

45. INJECTION VAPORIZERSA KNOWN AMOUNT OF LIQUID AGENT OR PURE VAPOUR IS INJECTED INTO THE GAS STREAM TO PROVIDE THE DESIRED CONCENTRATIONE.G. TEC 6 DESFLURANE VAPORIZER

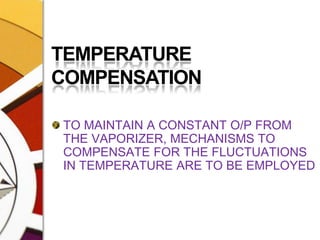

46. TEMPERATURE COMPENSATIONTO MAINTAIN A CONSTANT O/P FROM THE VAPORIZER, MECHANISMS TO COMPENSATE FOR THE FLUCTUATIONS IN TEMPERATURE ARE TO BE EMPLOYED

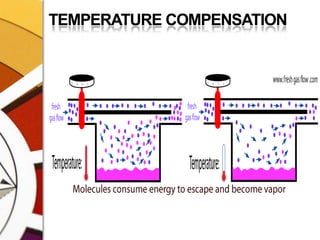

47. TEMPERATURE COMPENSATION

48. THERMOCOMPENSATIONMOST VARIABLE BYPASS VAPORIZERS COMPENSATE FOR CHANGES IN VAPOR PRESSURE BY ALTERING THE SPLITTING RATIO.DONE BY USING A THERMOSENSITIVE ELEMENT [BIMETALLIC STRIP] INCORPORATED IN THE VAPORIZING CHAMBER OR BYPASS CHAMBER.SO, THE SPLITTING OF GAS IS CONTROLLED BY TWO VALVES: (1)THE DIAL WE SET (SPLITTING VALVE) AND (2)THE TEMPERATURE COMPENSATING VALVE

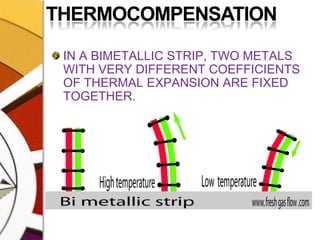

49. THERMOCOMPENSATIONIN A BIMETALLIC STRIP, TWO METALS WITH VERY DIFFERENT COEFFICIENTS OF THERMAL EXPANSION ARE FIXED TOGETHER.

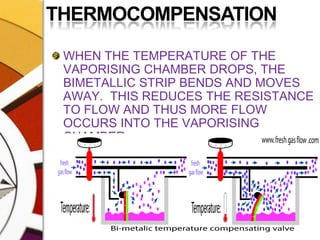

50. THERMOCOMPENSATIONWHEN THE TEMPERATURE OF THE VAPORISING CHAMBER DROPS, THE BIMETALLIC STRIP BENDS AND MOVES AWAY. THIS REDUCES THE RESISTANCE TO FLOW AND THUS MORE FLOW OCCURS INTO THE VAPORISING CHAMBER.

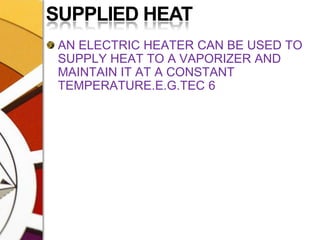

51. SUPPLIED HEATAN ELECTRIC HEATER CAN BE USED TO SUPPLY HEAT TO A VAPORIZER AND MAINTAIN IT AT A CONSTANT TEMPERATURE.E.G.TEC 6

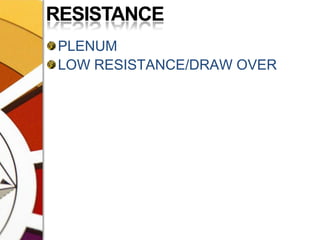

52. RESISTANCE

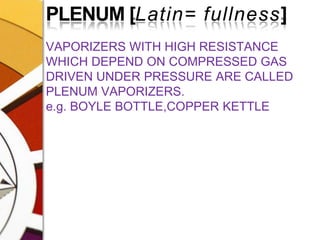

53. PLENUM [Latin= fullness]VAPORIZERS WITH HIGH RESISTANCE WHICH DEPEND ON COMPRESSED GAS DRIVEN UNDER PRESSURE ARE CALLED PLENUM VAPORIZERS.e.g. BOYLE BOTTLE,COPPER KETTLE

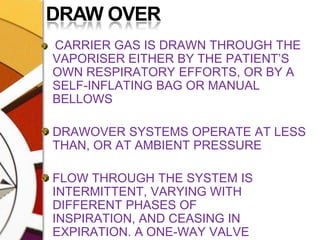

54. DRAW OVERCARRIER GAS IS DRAWN THROUGH THE VAPORISER EITHER BY THE PATIENT’S OWN RESPIRATORY EFFORTS, OR BY A SELF-INFLATING BAG OR MANUAL BELLOWSDRAWOVER SYSTEMS OPERATE AT LESS THAN, OR AT AMBIENT PRESSUREFLOW THROUGH THE SYSTEM IS INTERMITTENT, VARYING WITH DIFFERENT PHASES OF INSPIRATION, AND CEASING IN EXPIRATION. A ONE-WAY VALVE PREVENTS REVERSE FLOW IN THE CIRCUIT. E.G. EMO

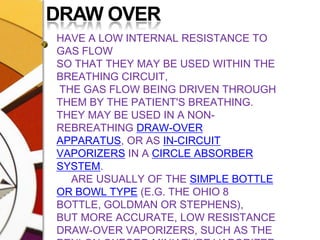

55. DRAW OVERHAVE A LOW INTERNAL RESISTANCE TO GAS FLOW SO THAT THEY MAY BE USED WITHIN THE BREATHING CIRCUIT, THE GAS FLOW BEING DRIVEN THROUGH THEM BY THE PATIENT'S BREATHING. THEY MAY BE USED IN A NON-REBREATHING DRAW-OVER APPARATUS, OR AS IN-CIRCUIT VAPORIZERS IN A CIRCLE ABSORBER SYSTEM. ARE USUALLY OF THE SIMPLE BOTTLE OR BOWL TYPE (E.G. THE OHIO 8 BOTTLE, GOLDMAN OR STEPHENS), BUT MORE ACCURATE, LOW RESISTANCE DRAW-OVER VAPORIZERS, SUCH AS THE PENLON OXFORD MINIATURE VAPORIZER (OMV) AND OHMEDA DRAW-OVER TEC VAPORIZERS, HAVE BEEN MANUFACTURED.

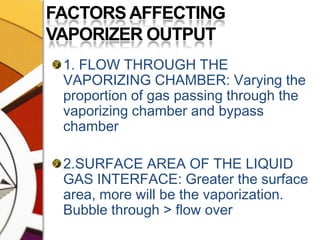

56. FACTORS AFFECTING VAPORIZER OUTPUT1. FLOW THROUGH THE VAPORIZING CHAMBER: Varying the proportion of gas passing through the vaporizing chamber and bypass chamber2.SURFACE AREA OF THE LIQUID GAS INTERFACE: Greater the surface area, more will be the vaporization. Bubble through > flow over

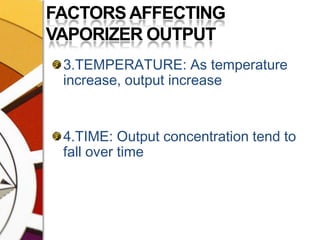

57. FACTORS AFFECTING VAPORIZER OUTPUT3.TEMPERATURE: As temperature increase, output increase4.TIME: Output concentration tend to fall over time

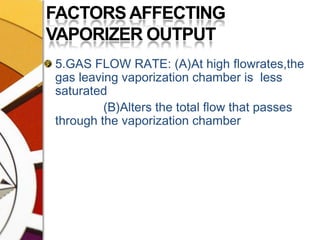

58. FACTORS AFFECTING VAPORIZER OUTPUT5.GAS FLOW RATE: (A)At high flowrates,the gas leaving vaporization chamber is less saturated (B)Alters the total flow that passes through the vaporization chamber

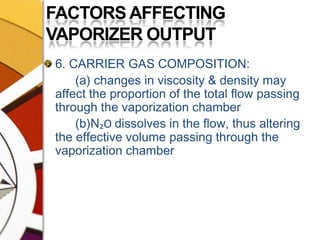

59. FACTORS AFFECTING VAPORIZER OUTPUT6. CARRIER GAS COMPOSITION: (a) changes in viscosity & density may affect the proportion of the total flow passing through the vaporization chamber (b)N₂O dissolves in the flow, thus altering the effective volume passing through the vaporization chamber

60. FACTORS AFFECTING VAPORIZER OUTPUT7.BOILING POINT :HIGHER THE BOILING POINT,LESS WILL BE THE VAPOUR O/P.8. AMBIENT PRESSURE : SVP IS SOLELY A FUNCTION OF TEMP. SO IF AMBIENT PRESSURE IS REDUCED,THE CONSTANT SVP BECOMES A GREATER PROPORTION OF THE TOTAL PRESSURE OUTPUT INCREASES.AGENTS WITH LOW BOILING POINTS ARE MORE SUSCEPTIBLE TO THE INFLUENCE OF AMBIENT PRESSURE

61. EFFECT OF LOW ATMOSPHERIC PRESSURE

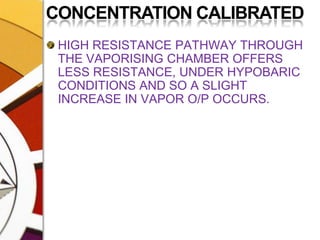

62. CONCENTRATION CALIBRATEDHIGH RESISTANCE PATHWAY THROUGH THE VAPORISING CHAMBER OFFERS LESS RESISTANCE, UNDER HYPOBARIC CONDITIONS AND SO A SLIGHT INCREASE IN VAPOR O/P OCCURS.

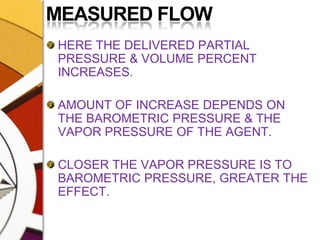

63. MEASURED FLOWHERE THE DELIVERED PARTIAL PRESSURE & VOLUME PERCENT INCREASES.AMOUNT OF INCREASE DEPENDS ON THE BAROMETRIC PRESSURE & THE VAPOR PRESSURE OF THE AGENT.CLOSER THE VAPOR PRESSURE IS TO BAROMETRIC PRESSURE, GREATER THE EFFECT.

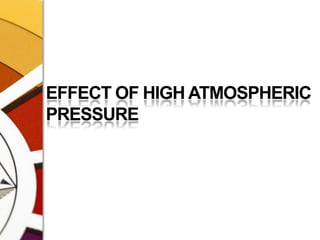

64. EFFECT OF HIGH ATMOSPHERIC PRESSURE

65. CONCENTRATION CALIBRATEDATM PRESSURE INCREASESDENSITY OF GAS CHANGESMORE RESISTANCE TO FLOW OF GAS THROUGH THE VAPORIZING CHAMBERDECREASED VAPOUR O/P (PARTIAL PRESSURE & VOLUME PERCENT) EFFECT ON PARTIAL PRESSURE IS LESS DRAMATIC

66. MEASURED FLOWLOWER CONCENTRATION IN TERMS OF PP/VOLUME PERCENT

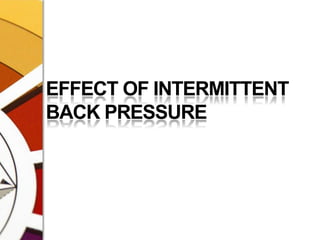

67. EFFECT OF INTERMITTENT BACK PRESSURE

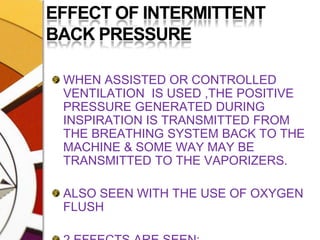

68. EFFECT OF INTERMITTENT BACK PRESSUREWHEN ASSISTED OR CONTROLLED VENTILATION IS USED ,THE POSITIVE PRESSURE GENERATED DURING INSPIRATION IS TRANSMITTED FROM THE BREATHING SYSTEM BACK TO THE MACHINE & SOME WAY MAY BE TRANSMITTED TO THE VAPORIZERS.ALSO SEEN WITH THE USE OF OXYGEN FLUSH2 EFFECTS ARE SEEN:

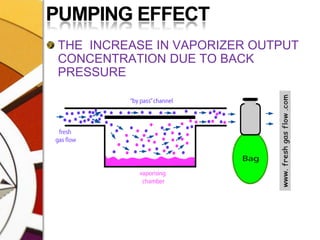

69. PUMPING EFFECTTHE INCREASE IN VAPORIZER OUTPUT CONCENTRATION DUE TO BACK PRESSURE

70. PUMPING EFFECTWhen the bag is squeezed ,pressure is transmitted back into both, the "by pass" channel and also to the vaporising chamber. The fresh gas tries to move forward and gets compressed both in the 'by pass' channel and the vaporising chamber. However, the vaporising chamber volume is much larger than the 'by pass' channel volume, and thus, more fresh gas gets compressed into it than into the 'by pass' channel.

71. PUMPING EFFECT This extra fresh gas that enters the vaporising chamber collects anaesthetic vapor

72. PUMPING EFFECTwhen the positive pressure is suddenly released (expiration) the previously compressed gases now suddenly expands in all directions. Some of the rapidly expanding gas (containing vapor) enter the inlet of the vaporiser and cross over into the 'by pass' channel

73. PUMPING EFFECTNormally, a vaporiser 'by pass' channel does not have vapor. So this vapor due the 'pumping effect' is additional. When this 'by pass' vapor flows across to the exit, it meets the vapor from the vaporising chamber. The addition of the 'by pass' vapor to the vapor from the vaporising chamber raises the final concentration of anaesthetic delivered. i.e. The 'pumping effect' increases the delivered concentration of anaesthetic agent.

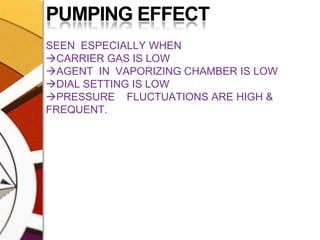

74. PUMPING EFFECTSEEN ESPECIALLY WHENCARRIER GAS IS LOWAGENT IN VAPORIZING CHAMBER IS LOWDIAL SETTING IS LOWPRESSURE FLUCTUATIONS ARE HIGH & FREQUENT.

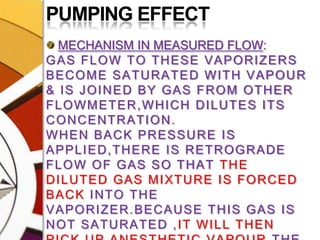

75. PUMPING EFFECTMECHANISM IN MEASURED FLOW:GAS FLOW TO THESE VAPORIZERS BECOME SATURATED WITH VAPOUR & IS JOINED BY GAS FROM OTHER FLOWMETER,WHICH DILUTES ITS CONCENTRATION.WHEN BACK PRESSURE IS APPLIED,THERE IS RETROGRADE FLOW OF GAS SO THAT THE DILUTED GAS MIXTURE IS FORCED BACK INTO THE VAPORIZER.BECAUSE THIS GAS IS NOT SATURATED ,IT WILL THEN PICK UP ANESTHETIC VAPOUR.THE RESULT IS AN INCREASE IN O/P.

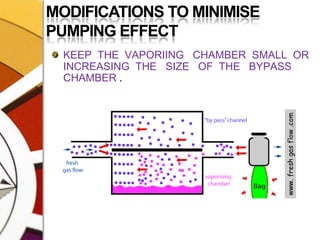

76. MODIFICATIONS TO MINIMISE PUMPING EFFECTKEEP THE VAPORIING CHAMBER SMALL OR INCREASING THE SIZE OF THE BYPASS CHAMBER .

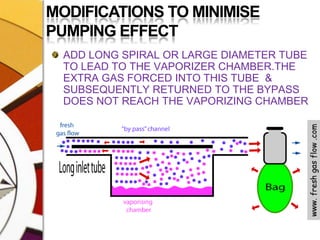

77. MODIFICATIONS TO MINIMISE PUMPING EFFECTADD LONG SPIRAL OR LARGE DIAMETER TUBE TO LEAD TO THE VAPORIZER CHAMBER.THE EXTRA GAS FORCED INTO THIS TUBE & SUBSEQUENTLY RETURNED TO THE BYPASS DOES NOT REACH THE VAPORIZING CHAMBER

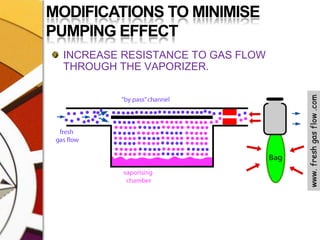

78. MODIFICATIONS TO MINIMISE PUMPING EFFECTINCREASE RESISTANCE TO GAS FLOW THROUGH THE VAPORIZER.

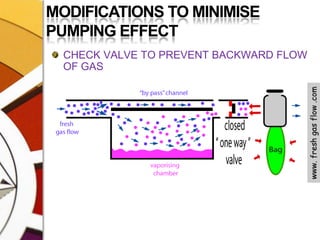

79. MODIFICATIONS TO MINIMISE PUMPING EFFECTCHECK VALVE TO PREVENT BACKWARD FLOW OF GAS

80. MODIFICATIONS TO MINIMISE PUMPING EFFECTEXCLUDE WICKS FROM THE AREA WHERE THE INLET TUBE JOINS THE VAPORIZING CHAMBER.OUTLET TUBE MAY BE MADE LONGER SO THAT UNSATURATED GAS WILL HAVE TO PASS FURTHER BACK BEFORE PICKING UP ANESTHETIC VAPOUR.CONNECTIONS OF OXYGEN FLUSH VALVE LINE TO THE COMMON GAS OUTLET BE DESIGNED TO MINIMISE PRESSURE FLUCTUATIONS THAT MAY PRODUCE A PUMPING EFFECTLIMIT PRESSURE TRANSMITTED TO VAPORIZER TO <10KPa ABOVE NORMAL WORKING PRESSURE ,CONC NOT TO INCREASE >20%

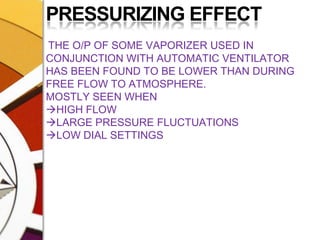

81. PRESSURIZING EFFECTTHE O/P OF SOME VAPORIZER USED IN CONJUNCTION WITH AUTOMATIC VENTILATOR HAS BEEN FOUND TO BE LOWER THAN DURING FREE FLOW TO ATMOSPHERE.MOSTLY SEEN WHENHIGH FLOWLARGE PRESSURE FLUCTUATIONSLOW DIAL SETTINGS

83. PRESSURIZING EFFECTNo of mol.s of the agent picked by carrier gas ∝ density of vapor mol.s in vaporizing chamber ∝ vapor pressure Increased pressure in vaporizer chamber compress carrier gas more mol.s/mL No of mols of the anesthetic agent same o/p ↓edThe Changes In Vaporizer O/P Caused By The Pumping Effect Usually Are Greater In Magnitude Than Those Associated With The Pressurizing Effect

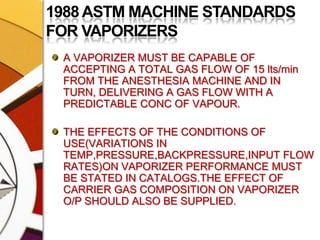

84. 1988 ASTM MACHINE STANDARDS FOR VAPORIZERSA VAPORIZER MUST BE CAPABLE OF ACCEPTING A TOTAL GAS FLOW OF 15 lts/min FROM THE ANESTHESIA MACHINE AND IN TURN, DELIVERING A GAS FLOW WITH A PREDICTABLE CONC OF VAPOUR.THE EFFECTS OF THE CONDITIONS OF USE(VARIATIONS IN TEMP,PRESSURE,BACKPRESSURE,INPUT FLOW RATES)ON VAPORIZER PERFORMANCE MUST BE STATED IN CATALOGS.THE EFFECT OF CARRIER GAS COMPOSITION ON VAPORIZER O/P SHOULD ALSO BE SUPPLIED.

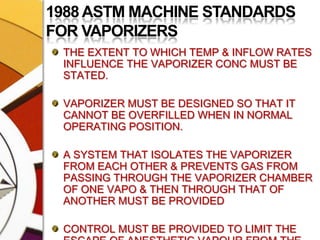

85. 1988 ASTM MACHINE STANDARDS FOR VAPORIZERSTHE EXTENT TO WHICH TEMP & INFLOW RATES INFLUENCE THE VAPORIZER CONC MUST BE STATED.VAPORIZER MUST BE DESIGNED SO THAT IT CANNOT BE OVERFILLED WHEN IN NORMAL OPERATING POSITION.A SYSTEM THAT ISOLATES THE VAPORIZER FROM EACH OTHER & PREVENTS GAS FROM PASSING THROUGH THE VAPORIZER CHAMBER OF ONE VAPO & THEN THROUGH THAT OF ANOTHER MUST BE PROVIDEDCONTROL MUST BE PROVIDED TO LIMIT THE ESCAPE OF ANESTHETIC VAPOUR FROM THE VAP CHAMBER INTO THE FRESH GAS ,SO THAT THE DELVERED CONC IS <0.1% WHEN THE VAPORIZER IS TURNED OFF

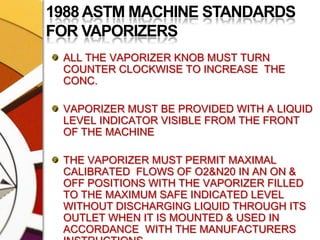

86. 1988 ASTM MACHINE STANDARDS FOR VAPORIZERSALL THE VAPORIZER KNOB MUST TURN COUNTER CLOCKWISE TO INCREASE THE CONC.VAPORIZER MUST BE PROVIDED WITH A LIQUID LEVEL INDICATOR VISIBLE FROM THE FRONT OF THE MACHINETHE VAPORIZER MUST PERMIT MAXIMAL CALIBRATED FLOWS OF O2&N20 IN AN ON & OFF POSITIONS WITH THE VAPORIZER FILLED TO THE MAXIMUM SAFE INDICATED LEVEL WITHOUT DISCHARGING LIQUID THROUGH ITS OUTLET WHEN IT IS MOUNTED & USED IN ACCORDANCE WITH THE MANUFACTURERS INSTRUCTIONS

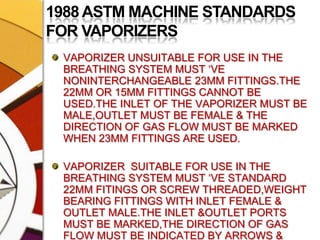

87. 1988 ASTM MACHINE STANDARDS FOR VAPORIZERSVAPORIZER UNSUITABLE FOR USE IN THE BREATHING SYSTEM MUST ‘VE NONINTERCHANGEABLE 23MM FITTINGS.THE 22MM OR 15MM FITTINGS CANNOT BE USED.THE INLET OF THE VAPORIZER MUST BE MALE,OUTLET MUST BE FEMALE & THE DIRECTION OF GAS FLOW MUST BE MARKED WHEN 23MM FITTINGS ARE USED.VAPORIZER SUITABLE FOR USE IN THE BREATHING SYSTEM MUST ‘VE STANDARD 22MM FITINGS OR SCREW THREADED,WEIGHT BEARING FITTINGS WITH INLET FEMALE & OUTLET MALE.THE INLET &OUTLET PORTS MUST BE MARKED,THE DIRECTION OF GAS FLOW MUST BE INDICATED BY ARROWS & VAPORIZER MUST BE MARKED “FOR USE IN BREATHING SYSTEM”.

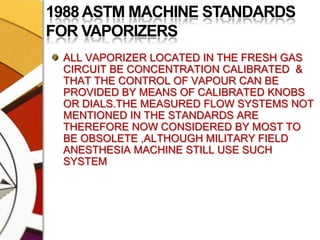

88. 1988 ASTM MACHINE STANDARDS FOR VAPORIZERSALL VAPORIZER LOCATED IN THE FRESH GAS CIRCUIT BE CONCENTRATION CALIBRATED & THAT THE CONTROL OF VAPOUR CAN BE PROVIDED BY MEANS OF CALIBRATED KNOBS OR DIALS.THE MEASURED FLOW SYSTEMS NOT MENTIONED IN THE STANDARDS ARE THEREFORE NOW CONSIDERED BY MOST TO BE OBSOLETE ,ALTHOUGH MILITARY FIELD ANESTHESIA MACHINE STILL USE SUCH SYSTEM

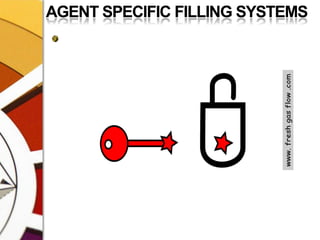

89. AGENT SPECIFIC FILLING SYSTEMS

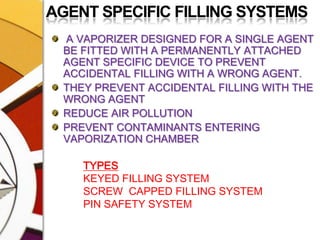

90. AGENT SPECIFIC FILLING SYSTEMS A VAPORIZER DESIGNED FOR A SINGLE AGENT BE FITTED WITH A PERMANENTLY ATTACHED AGENT SPECIFIC DEVICE TO PREVENT ACCIDENTAL FILLING WITH A WRONG AGENT. THEY PREVENT ACCIDENTAL FILLING WITH THE WRONG AGENTREDUCE AIR POLLUTIONPREVENT CONTAMINANTS ENTERING VAPORIZATION CHAMBERTYPES KEYED FILLING SYSTEM SCREW CAPPED FILLING SYSTEM PIN SAFETY SYSTEM

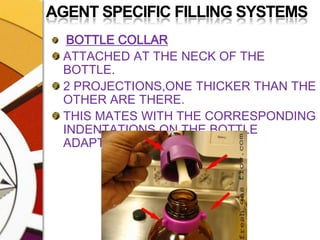

91. AGENT SPECIFIC FILLING SYSTEMSBOTTLE COLLARATTACHED AT THE NECK OF THE BOTTLE.2 PROJECTIONS,ONE THICKER THAN THE OTHER ARE THERE.THIS MATES WITH THE CORRESPONDING INDENTATIONS ON THE BOTTLE ADAPTOR.

92. AGENT SPECIFIC FILLING SYSTEMS

93. AGENT SPECIFIC FILLING SYSTEMSBOTTLE ADAPTORAT ONE END IS1) THE BOTTLE CONNECTOR WITH A SCREW THREAD TO MATCH THE THREAD ON THE BOTTLE2)SKIRT THAT EXTENDS BEYOND THE SCREW THREADS 3)SLOTS THAT MATCH THE PROJECTIONS ON THE BOTTLE COLLAR

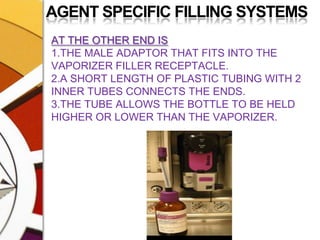

94. AGENT SPECIFIC FILLING SYSTEMSAT THE OTHER END IS1.THE MALE ADAPTOR THAT FITS INTO THE VAPORIZER FILLER RECEPTACLE.2.A SHORT LENGTH OF PLASTIC TUBING WITH 2 INNER TUBES CONNECTS THE ENDS.3.THE TUBE ALLOWS THE BOTTLE TO BE HELD HIGHER OR LOWER THAN THE VAPORIZER.

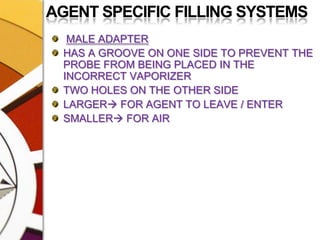

95. AGENT SPECIFIC FILLING SYSTEMSMALE ADAPTERHAS A GROOVE ON ONE SIDE TO PREVENT THE PROBE FROM BEING PLACED IN THE INCORRECT VAPORIZERTWO HOLES ON THE OTHER SIDELARGER FOR AGENT TO LEAVE / ENTERSMALLER FOR AIR

96. AGENT SPECIFIC FILLING SYSTEMSFILLER RECEPTACLE[FILLER SOCKET/VAPORIZER FILLER UNIT/FILL & DRAIN SYSTEM]MUST PERMIT THE INSERTION OF THE INTENDED BOTTLE.MUST ‘VE A MEANS OF TIGHTENING THE MALE ADAPTER ,TO FORM A TIGHT SEAL.

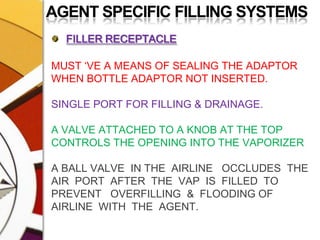

97. AGENT SPECIFIC FILLING SYSTEMSFILLER RECEPTACLEMUST ‘VE A MEANS OF SEALING THE ADAPTOR WHEN BOTTLE ADAPTOR NOT INSERTED.SINGLE PORT FOR FILLING & DRAINAGE.A VALVE ATTACHED TO A KNOB AT THE TOP CONTROLS THE OPENING INTO THE VAPORIZERA BALL VALVE IN THE AIRLINE OCCLUDES THE AIR PORT AFTER THE VAP IS FILLED TO PREVENT OVERFILLING & FLOODING OF AIRLINE WITH THE AGENT.

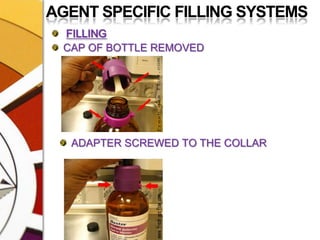

98. AGENT SPECIFIC FILLING SYSTEMSFILLINGCAP OF BOTTLE REMOVEDADAPTER SCREWED TO THE COLLAR

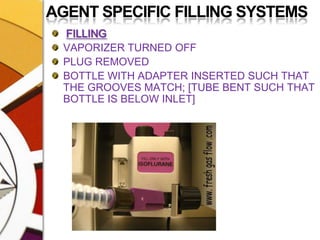

99. AGENT SPECIFIC FILLING SYSTEMSFILLINGVAPORIZER TURNED OFF PLUG REMOVEDBOTTLE WITH ADAPTER INSERTED SUCH THAT THE GROOVES MATCH; [TUBE BENT SUCH THAT BOTTLE IS BELOW INLET]

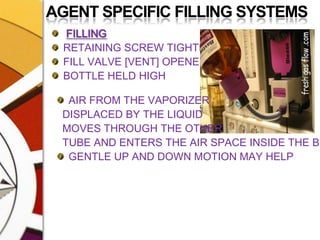

100. AGENT SPECIFIC FILLING SYSTEMSFILLINGRETAINING SCREW TIGHTENEDFILL VALVE [VENT] OPENEDBOTTLE HELD HIGHAIR FROM THE VAPORIZER DISPLACED BY THE LIQUID MOVES THROUGH THE OTHER TUBE AND ENTERS THE AIR SPACE INSIDE THE BOTTLEGENTLE UP AND DOWN MOTION MAY HELP

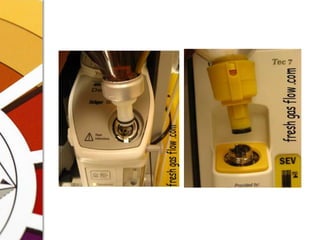

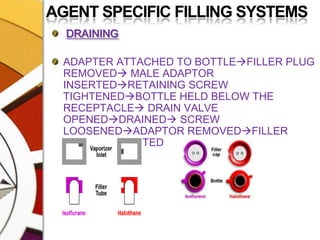

102. AGENT SPECIFIC FILLING SYSTEMSDRAININGADAPTER ATTACHED TO BOTTLEFILLER PLUG REMOVED MALE ADAPTOR INSERTEDRETAINING SCREW TIGHTENEDBOTTLE HELD BELOW THE RECEPTACLE DRAIN VALVE OPENEDDRAINED SCREW LOOSENEDADAPTOR REMOVEDFILLER PLUG REINSERTED

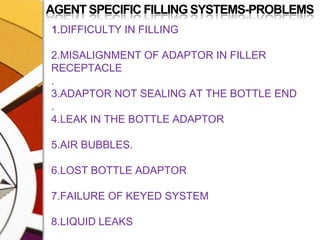

103. AGENT SPECIFIC FILLING SYSTEMS-PROBLEMS1.DIFFICULTY IN FILLING2.MISALIGNMENT OF ADAPTOR IN FILLER RECEPTACLE.3.ADAPTOR NOT SEALING AT THE BOTTLE END.4.LEAK IN THE BOTTLE ADAPTOR5.AIR BUBBLES.6.LOST BOTTLE ADAPTOR7.FAILURE OF KEYED SYSTEM8.LIQUID LEAKS9.INCOMPLETE EMPTYING

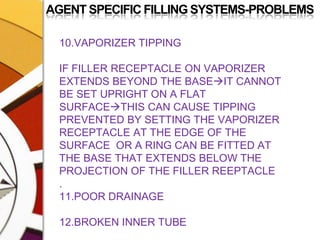

104. AGENT SPECIFIC FILLING SYSTEMS-PROBLEMS10.VAPORIZER TIPPINGIF FILLER RECEPTACLE ON VAPORIZER EXTENDS BEYOND THE BASEIT CANNOT BE SET UPRIGHT ON A FLAT SURFACETHIS CAN CAUSE TIPPING PREVENTED BY SETTING THE VAPORIZER RECEPTACLE AT THE EDGE OF THE SURFACE OR A RING CAN BE FITTED AT THE BASE THAT EXTENDS BELOW THE PROJECTION OF THE FILLER REEPTACLE.11.POOR DRAINAGE12.BROKEN INNER TUBE

105. LOCATIONBETWEEN THE FLOWMETERS & COMMON GAS OUTLETBETWEEN THE COMMON GAS OUTLET & BREATHING SYSTEMIN- SYSTEM VAPORIZERS

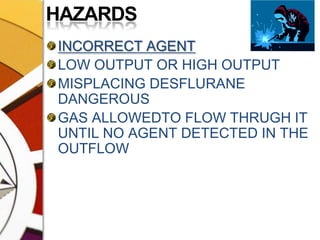

106. HAZARDSINCORRECT AGENTLOW OUTPUT OR HIGH OUTPUTMISPLACING DESFLURANE DANGEROUSGAS ALLOWEDTO FLOW THRUGH IT UNTIL NO AGENT DETECTED IN THE OUTFLOW

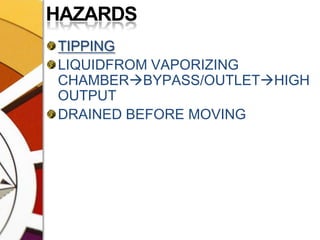

107. HAZARDSTIPPINGLIQUIDFROM VAPORIZING CHAMBERBYPASS/OUTLETHIGH OUTPUTDRAINED BEFORE MOVING

108. HAZARDSOVERFILLINGIN MAJORITY, THE DESIGN OF THE FILLING PORT AND AGENT SPECIFIC FILLING SYSTEMS PREVENT THISDURING FILLING DO NOT: TURN THE DIAL ON/ UNSCREW THE BOTTLE ADAPTOR

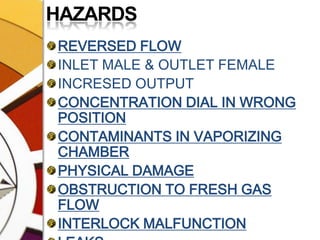

109. HAZARDSREVERSED FLOWINLET MALE & OUTLET FEMALEINCRESED OUTPUTCONCENTRATION DIAL IN WRONG POSITIONCONTAMINANTS IN VAPORIZING CHAMBERPHYSICAL DAMAGEOBSTRUCTION TO FRESH GAS FLOWINTERLOCK MALFUNCTIONLEAKS

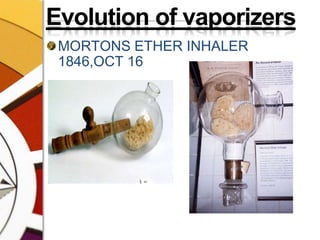

110. Evolution of vaporizersMORTONS ETHER INHALER 1846,OCT 16

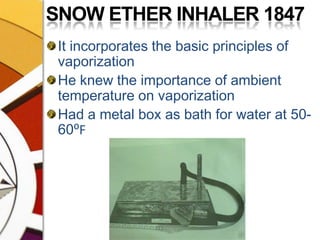

111. SNOW ETHER INHALER 1847It incorporates the basic principles of vaporizationHe knew the importance of ambient temperature on vaporizationHad a metal box as bath for water at 50-60⁰F

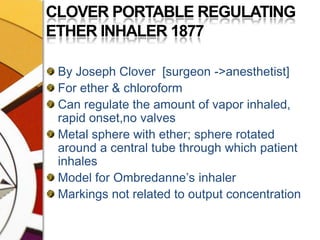

112. CLOVER PORTABLE REGULATING ETHER INHALER 1877By Joseph Clover [surgeon ->anesthetist]For ether & chloroformCan regulate the amount of vapor inhaled, rapid onset,no valvesMetal sphere with ether; sphere rotated around a central tube through which patient inhalesModel for Ombredanne’s inhalerMarkings not related to output concentration

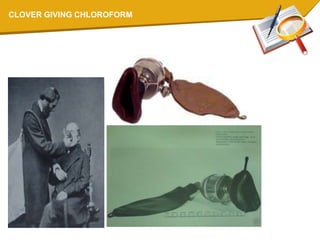

113. CLOVER GIVING CHLOROFORM

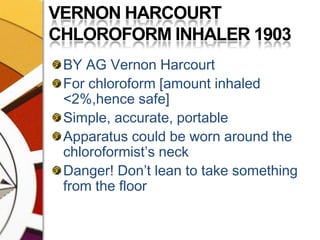

114. VERNON HARCOURT CHLOROFORM INHALER 1903BY AG Vernon HarcourtFor chloroform [amount inhaled <2%,hence safe]Simple, accurate, portableApparatus could be worn around the chloroformist’s neckDanger! Don’t lean to take something from the floor

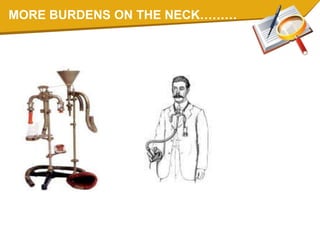

115. MORE BURDENS ON THE NECK………

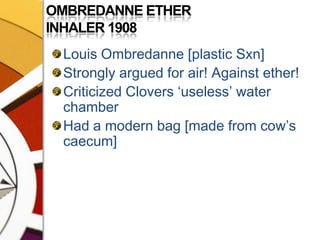

116. OMBREDANNE ETHER INHALER 1908Louis Ombredanne [plastic Sxn]Strongly argued for air! Against ether!Criticized Clovers ‘useless’ water chamber Had a modern bag [made from cow’s caecum]

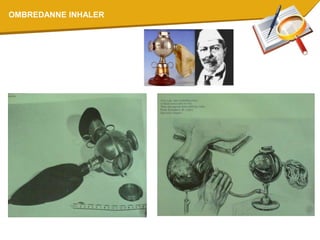

117. OMBREDANNE INHALER

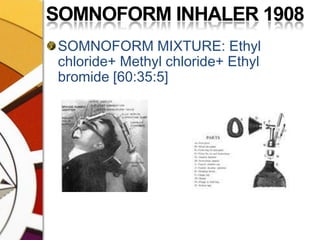

118. SOMNOFORM INHALER 1908SOMNOFORM MIXTURE: Ethyl chloride+ Methyl chloride+ Ethyl bromide [60:35:5]

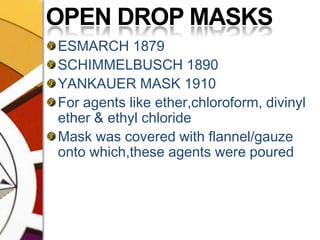

119. OPEN DROP MASKSESMARCH 1879SCHIMMELBUSCH 1890 YANKAUER MASK 1910For agents like ether,chloroform, divinyl ether & ethyl chlorideMask was covered with flannel/gauze onto which,these agents were poured

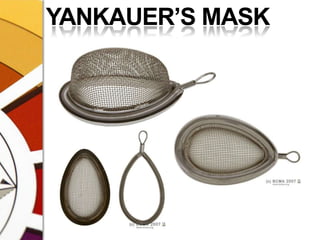

120. YANKAUER’S MASK

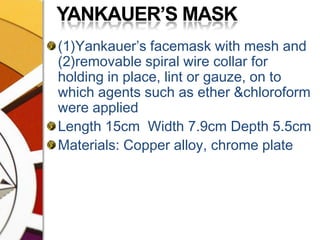

121. YANKAUER’S MASK(1)Yankauer’s facemask with mesh and (2)removable spiral wire collar for holding in place, lint or gauze, on to which agents such as ether &chloroform were appliedLength 15cm Width 7.9cm Depth 5.5cmMaterials: Copper alloy, chrome plate

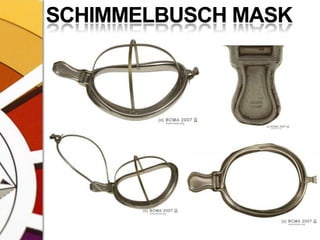

122. SCHIMMELBUSCH MASK

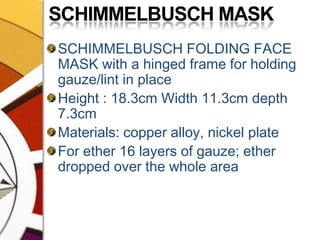

123. SCHIMMELBUSCH MASKSCHIMMELBUSCH FOLDING FACE MASK with a hinged frame for holding gauze/lint in placeHeight : 18.3cm Width 11.3cm depth 7.3cmMaterials: copper alloy, nickel plateFor ether 16 layers of gauze; ether dropped over the whole area

124. SCHIMMELBUSCH MASKHeat of vaporization high;so require much latent heatMask cools & water vapour condenses on it and freezesIncreased resistance and reduced rate of vaporisationKeep a second mask and fresh gauze in supplyThere should be a Drop Bottle to drop the agent into the mask

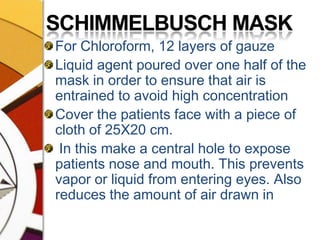

125. SCHIMMELBUSCH MASKFor Chloroform, 12 layers of gauzeLiquid agent poured over one half of the mask in order to ensure that air is entrained to avoid high concentration Cover the patients face with a piece of cloth of 25X20 cm. In this make a central hole to expose patients nose and mouth. This prevents vapor or liquid from entering eyes. Also reduces the amount of air drawn in

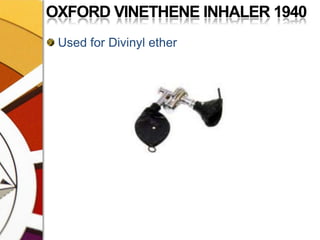

126. OXFORD VINETHENE INHALER 1940Used for Divinyl ether

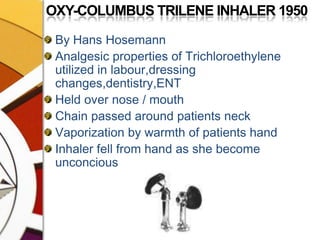

127. OXY-COLUMBUS TRILENE INHALER 1950By Hans HosemannAnalgesic properties of Trichloroethylene utilized in labour,dressingchanges,dentistry,ENTHeld over nose / mouthChain passed around patients neckVaporization by warmth of patients handInhaler fell from hand as she become unconcious

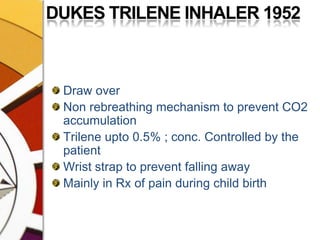

128. DUKES TRILENE INHALER 1952Draw overNon rebreathing mechanism to prevent CO2 accumulationTrileneupto 0.5% ; conc. Controlled by the patientWrist strap to prevent falling awayMainly in Rx of pain during child birth

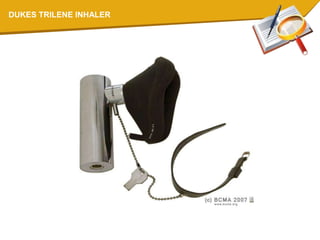

129. DUKES TRILENE INHALER

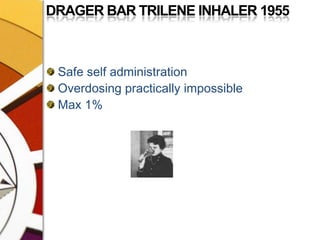

130. DRAGER BAR TRILENE INHALER 1955Safe self administrationOverdosing practically impossibleMax 1%

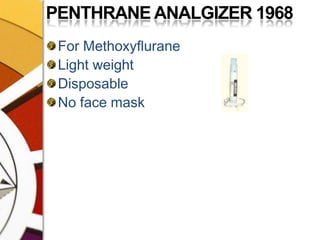

131. PENTHRANE ANALGIZER 1968For MethoxyfluraneLight weightDisposable No face mask

132. SKINNERS WIRE FACE MASK 1862By Thomas Skinner , an Obstetric PhysicianFor chloroformWire frame and gauzeCan be folded and kept in pocket

133. JUNKERS CHLOROFORM BOTTLEFIRST BLOW OVER APPARATUSAir blown by hand held bellows through glass bottles containing chloroformModified later with wire face mask,which is safer

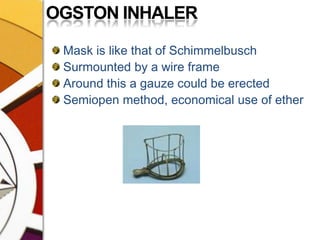

134. OGSTON INHALERMask is like that of SchimmelbuschSurmounted by a wire frameAround this a gauze could be erected Semiopen method, economical use of ether

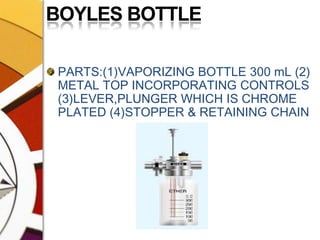

135. BOYLES BOTTLEPARTS:(1)VAPORIZING BOTTLE 300 mL (2) METAL TOP INCORPORATING CONTROLS (3)LEVER,PLUNGER WHICH IS CHROME PLATED (4)STOPPER & RETAINING CHAIN

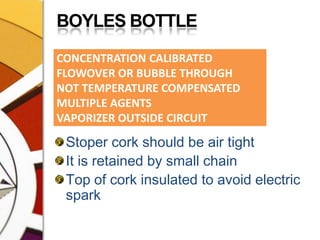

136. BOYLES BOTTLEStoper cork should be air tightIt is retained by small chainTop of cork insulated to avoid electric spark

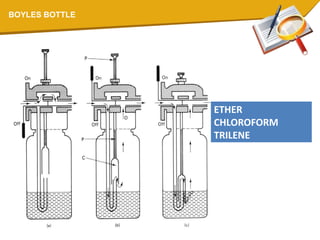

137. BOYLES BOTTLE

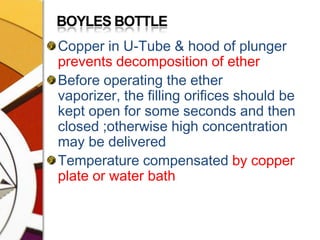

138. BOYLES BOTTLECopper in U-Tube & hood of plunger prevents decomposition of etherBefore operating the ether vaporizer, the filling orifices should be kept open for some seconds and then closed ;otherwise high concentration may be deliveredTemperature compensated by copper plate or water bath

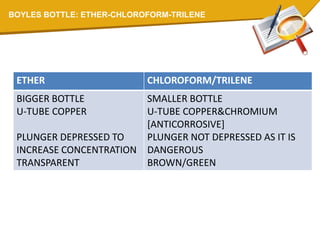

139. BOYLES BOTTLE: ETHER-CHLOROFORM-TRILENE

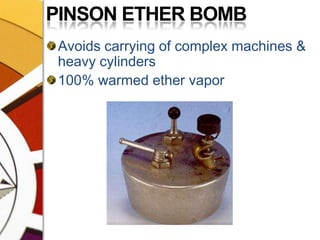

140. PINSON ETHER BOMBAvoids carrying of complex machines & heavy cylinders100% warmed ether vapor

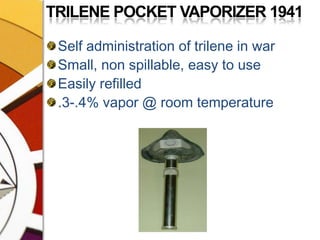

141. TRILENE POCKET VAPORIZER 1941Self administration of trilene in warSmall, non spillable, easy to useEasily refilled .3-.4% vapor @ room temperature

142. OXFORD MINIATURE VAPORIZER[OMV]AdvantagesSmall, portable, simple, less servicingMay be drained of one agent & filled with the otherDetachable scales for several agents

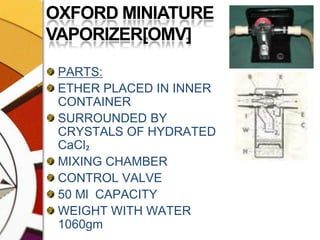

143. OXFORD MINIATURE VAPORIZER[OMV]PARTS:ETHER PLACED IN INNER CONTAINERSURROUNDED BY CRYSTALS OF HYDRATED CaCl₂ MIXING CHAMBERCONTROL VALVE 50 Ml CAPACITYWEIGHT WITH WATER 1060gm

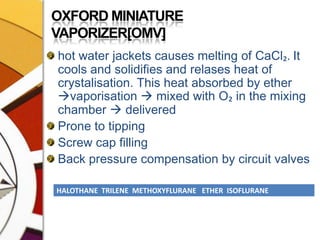

144. OXFORD MINIATURE VAPORIZER[OMV]hot water jackets causes melting of CaCl₂. It cools and solidifies and relases heat of crystalisation. This heat absorbed by ether vaporisation  mixed with O₂ in the mixing chamber  deliveredProne to tippingScrew cap fillingBack pressure compensation by circuit valves

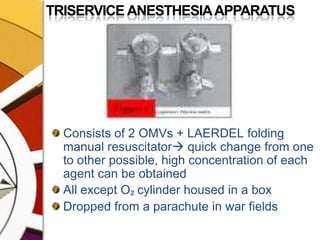

145. TRISERVICE ANESTHESIA APPARATUSConsists of 2 OMVs + LAERDEL folding manual resuscitator quick change from one to other possible, high concentration of each agent can be obtainedAll except O₂ cylinder housed in a boxDropped from a parachute in war fields

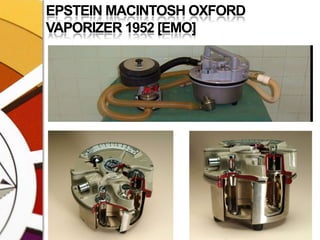

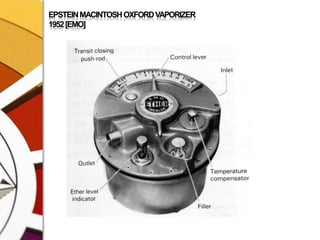

146. EPSTEIN MACINTOSH OXFORD VAPORIZER 1952 [EMO]

147. EPSTEIN MACINTOSH OXFORD VAPORIZER 1952 [EMO]

148. EPSTEIN MACINTOSH OXFORD VAPORIZER 1952 [EMO]

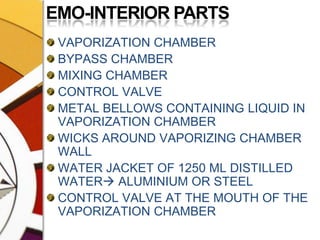

149. EMO-INTERIOR PARTSVAPORIZATION CHAMBERBYPASS CHAMBERMIXING CHAMBERCONTROL VALVEMETAL BELLOWS CONTAINING LIQUID IN VAPORIZATION CHAMBERWICKS AROUND VAPORIZING CHAMBER WALLWATER JACKET OF 1250 ML DISTILLED WATER ALUMINIUM OR STEELCONTROL VALVE AT THE MOUTH OF THE VAPORIZATION CHAMBER

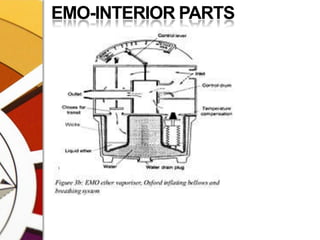

150. EMO-INTERIOR PARTS

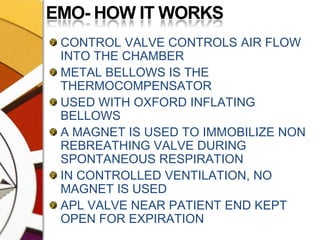

151. EMO- HOW IT WORKSCONTROL VALVE CONTROLS AIR FLOW INTO THE CHAMBERMETAL BELLOWS IS THE THERMOCOMPENSATORUSED WITH OXFORD INFLATING BELLOWSA MAGNET IS USED TO IMMOBILIZE NON REBREATHING VALVE DURING SPONTANEOUS RESPIRATIONIN CONTROLLED VENTILATION, NO MAGNET IS USEDAPL VALVE NEAR PATIENT END KEPT OPEN FOR EXPIRATION

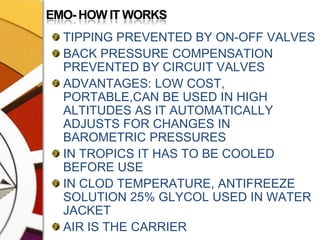

152. EMO- HOW IT WORKSTIPPING PREVENTED BY ON-OFF VALVESBACK PRESSURE COMPENSATION PREVENTED BY CIRCUIT VALVESADVANTAGES: LOW COST, PORTABLE,CAN BE USED IN HIGH ALTITUDES AS IT AUTOMATICALLY ADJUSTS FOR CHANGES IN BAROMETRIC PRESSURESIN TROPICS IT HAS TO BE COOLED BEFORE USEIN CLOD TEMPERATURE, ANTIFREEZE SOLUTION 25% GLYCOL USED IN WATER JACKETAIR IS THE CARRIER

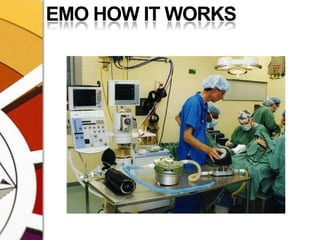

153. EMO HOW IT WORKS

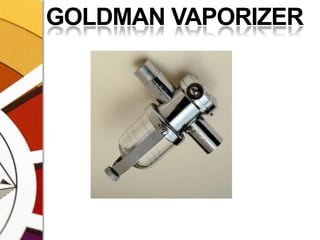

154. GOLDMAN VAPORIZER

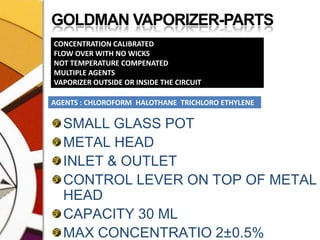

155. GOLDMAN VAPORIZER-PARTSSMALL GLASS POTMETAL HEAD INLET & OUTLETCONTROL LEVER ON TOP OF METAL HEADCAPACITY 30 MLMAX CONCENTRATIO 2±0.5%

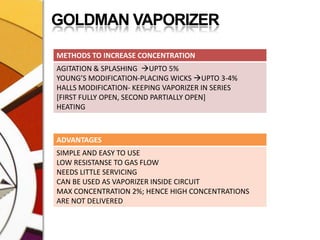

156. GOLDMAN VAPORIZER

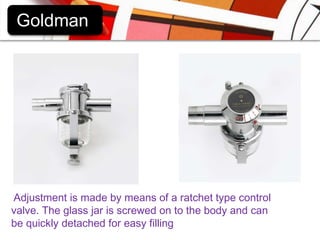

157. GoldmanAdjustment is made by means of a ratchet type control valve. The glass jar is screwed on to the body and can be quickly detached for easy filling

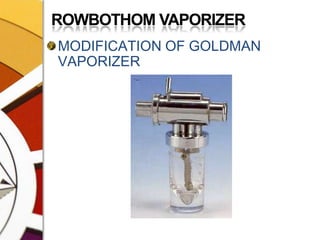

158. ROWBOTHOM VAPORIZERMODIFICATION OF GOLDMAN VAPORIZER

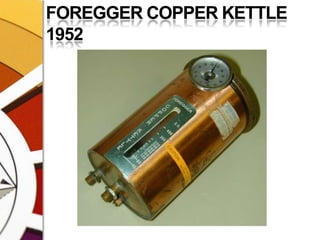

159. FOREGGER COPPER KETTLE 1952

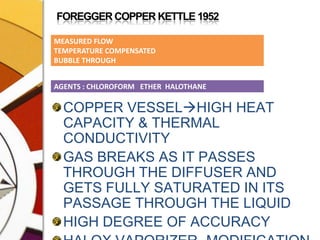

160. FOREGGER COPPER KETTLE 1952COPPER VESSELHIGH HEAT CAPACITY & THERMAL CONDUCTIVITYGAS BREAKS AS IT PASSES THROUGH THE DIFFUSER AND GETS FULLY SATURATED IN ITS PASSAGE THROUGH THE LIQUIDHIGH DEGREE OF ACCURACYHALOX VAPORIZER- MODIFICATION

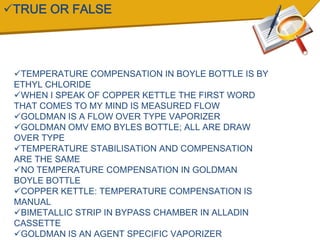

161. TRUE OR FALSE

162. TEMPERATURE COMPENSATION IN BOYLE BOTTLE IS BY ETHYL CHLORIDE

163. WHEN I SPEAK OF COPPER KETTLE THE FIRST WORD THAT COMES TO MY MIND IS MEASURED FLOW

164. GOLDMAN IS A FLOW OVER TYPE VAPORIZER
