1. The document discusses using explainable neural networks to compare climate model projections and evaluate which climate models best match observations. 2. Temperature maps from observations are input into a neural network trained on climate model data to classify each observation year with a climate model. 3. Layer-wise relevance propagation is used to explain the neural network's classifications and identify differences between climate models, which can help evaluate models, especially in regions with known biases like the Arctic.

1. Using explainable neural networks
for comparing climate model
projections
@ZLabe
Zachary M. Labe
with Elizabeth A. Barnes
Colorado State University
Department of Atmospheric Science
24 January 2022
J3.5 AMS Annual Meeting
27th Conference on Probability and Statistics
Statistics and Machine Learning for Climate Science. Part I

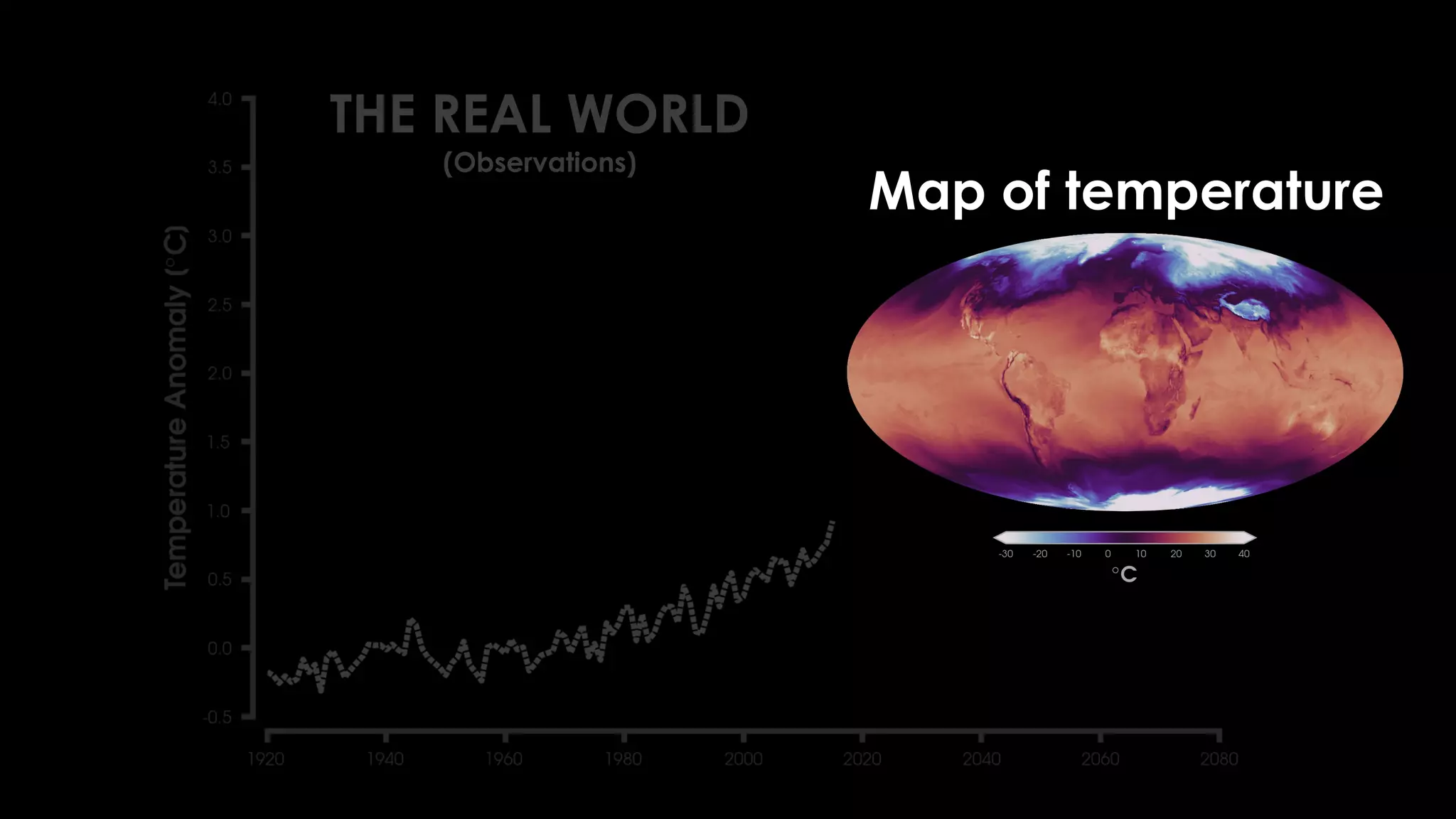

2. THE REAL WORLD
(Observations)
Map of temperature

3. THE REAL WORLD
(Observations)
Anomaly is relative to 1951-1980

4. THE REAL WORLD
(Observations)
CLIMATE MODEL
ENSEMBLES
Range of ensembles
= internal variability (noise)
Mean of ensembles
= forced response (climate change)

5. Range of ensembles
= internal variability (noise)
Mean of ensembles
= forced response (climate change)
But let’s remove
climate change…

6. Range of ensembles
= internal variability (noise)
Mean of ensembles
= forced response (climate change)
After removing the
forced response…
anomalies/noise!

7. 2-m Temperature (°C)
THERE ARE MANY CLIMATE MODEL LARGE ENSEMBLES…
Annual mean 2-m temperature
7 global climate models
16 ensembles each
ERA5-BE (observations)

8. STANDARD EVALUATION OF
CLIMATE MODELS
Pattern correlation
RMSE
EOFs
Trends, anomalies, mean state
Climate modes of variability

9. STANDARD EVALUATION OF
CLIMATE MODELS
Pattern correlation
RMSE
EOFs
Trends, anomalies, mean state
Climate modes of variability
CORRELATION
[R]

10. STANDARD EVALUATION OF
CLIMATE MODELS
Pattern correlation
RMSE
EOFs
Trends, anomalies, mean state
Climate modes of variability
CORRELATION
[R]

11. STANDARD EVALUATION OF
CLIMATE MODELS
Pattern correlation
RMSE
EOFs
Trends, anomalies, mean state
Climate modes of variability
Negative Correlation Positive Correlation
PATTERN CORRELATION – T2M

12. INPUT
[DATA]
PREDICTION
Machine
Learning

13. ----ANN----
2 Hidden Layers
10 Nodes each
Ridge Regularization
Early Stopping
TEMPERATURE
We know some metadata…
+ What year is it? (Labe & Barnes, 2021)
+ Where did it come from?

14. TEMPERATURE
We know some metadata…
+ What year is it? (Labe & Barnes, 2021)
+ Where did it come from?
Train on data from the
Multi-Model Large
Ensemble Archive

15. TEMPERATURE
We know some metadata…
+ What year is it? (Labe & Barnes, 2021)
+ Where did it come from?
NEURAL NETWORK
CLASSIFICATION TASK
HIDDEN LAYERS
INPUT LAYER
INPUT LAYER
OUTPUT LAYER
HIDDEN LAYERS

16. CLIMATE MODEL
MAP
[DATA]
Machine
Learning
CLASSIFICATION

17. CLASSIFICATION
Machine
Learning
CLIMATE MODEL
MAP
[DATA]

18. CLASSIFICATION
Machine
Learning
CLIMATE MODEL
MAP
[DATA]
Explainable AI
Learn new
science!

19. LAYER-WISE RELEVANCE PROPAGATION (LRP)
Volcano
Great White
Shark
Timber
Wolf
Image Classification LRP
https://heatmapping.org/
LRP heatmaps show regions
of “relevance” that
contribute to the neural
network’s decision-making
process for a sample
belonging to a particular
output category
Neural Network
WHY
WHY
WHY
Backpropagation – LRP

20. LAYER-WISE RELEVANCE PROPAGATION (LRP)
Volcano
Great White
Shark
Timber
Wolf
Image Classification LRP
https://heatmapping.org/
LRP heatmaps show regions
of “relevance” that
contribute to the neural
network’s decision-making
process for a sample
belonging to a particular
output category
Neural Network
WHY
WHY
WHY
Backpropagation – LRP

21. LAYER-WISE RELEVANCE PROPAGATION (LRP)
Volcano
Great White
Shark
Timber
Wolf
Image Classification LRP
https://heatmapping.org/
LRP heatmaps show regions
of “relevance” that
contribute to the neural
network’s decision-making
process for a sample
belonging to a particular
output category
Neural Network
WHY
WHY
WHY
Backpropagation – LRP

22. LAYER-WISE RELEVANCE PROPAGATION (LRP)
Image Classification LRP
https://heatmapping.org/
NOT PERFECT
Crock
Pot
Neural Network
WHY
Backpropagation – LRP

23. [Adapted from Adebayo et al., 2020]
EXPLAINABLE AI IS
NOT PERFECT
THERE ARE MANY
METHODS

24. [Adapted from Adebayo et al., 2020]
THERE ARE MANY
METHODS
EXPLAINABLE AI IS
NOT PERFECT

25. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

26. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

27. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

28. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

29. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

30. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

31. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low

32. COMPARING CLIMATE MODELS
LRP
(Explainable AI)
Raw data
(Difference from
multi-model mean)
Colder
Warmer
High
Low
EXPLAINABLE AI

33. What climate model
does the neural
network predict for
each year of
observations?

34. APPLYING METHODOLOGY TO THE ARCTIC

35. NEURAL NETWORK
CLASSIFICATION TASK
HIDDEN LAYERS
INPUT LAYER
OUTPUT LAYER
TEMPERATURE MAP

36. COMPARING CLIMATE MODELS IN THE ARCTIC
High
Low
RECENT ARCTIC AMPLIFICATION

37. High
Low
HISTORICAL PERIOD
COMPARING CLIMATE MODELS IN THE ARCTIC

38. High
Low
DIFFERENCE IN LAYER-WISE RELEVANCE PROPAGATION
COMPARING CLIMATE MODELS IN THE ARCTIC

39. Colder Warmer
RELEVANCE
DIFFERENCE [°C]
EVALUATING OBSERVATIONS IN THE ARCTIC
High
Low

40. Colder Warmer
RELEVANCE
DIFFERENCE [°C]
EVALUATING OBSERVATIONS IN THE ARCTIC
REMOVE THE ANNUAL MEAN AT EACH GRID POINT
High
Low
Colder Warmer

41. APPLY SOFTMAX OPERATOR
IN THE OUTPUT LAYER
RANK

42. APPLY SOFTMAX OPERATOR
IN THE OUTPUT LAYER
[ 0.71 ]
[ 0.05 ]
[ 0.01 ]
[ 0.01 ]
[ 0.03 ]
[ 0.11 ]
[ 0.08 ]
RANK

43. APPLY SOFTMAX OPERATOR
IN THE OUTPUT LAYER
[ 0.71 ]
[ 0.05 ]
[ 0.01 ]
[ 0.01 ]
[ 0.03 ]
[ 0.11 ]
[ 0.08 ]
RANK
[ 1 ]
[ 4 ]
[ 7 ]
[ 6 ]
[ 5 ]
[ 2 ]
[ 3 ]

44. APPLY SOFTMAX OPERATOR
IN THE OUTPUT LAYER
[ 0.71 ]
[ 0.05 ]
[ 0.01 ]
[ 0.01 ]
[ 0.03 ]
[ 0.11 ]
[ 0.08 ]
RANK
[ 1 ]
[ 4 ]
[ 7 ]
[ 6 ]
[ 5 ]
[ 2 ]
[ 3 ]
Confidence/Probability

45. RANKING CLIMATE MODEL PREDICTIONS FOR EACH YEAR IN OBSERVATIONS

46. RANKING CLIMATE MODEL PREDICTIONS FOR EACH YEAR IN OBSERVATIONS

47. KEY POINTS
Zachary Labe
zmlabe@rams.colostate.edu
@ZLabe
1. Explainable neural networks can be used to identify unique differences in temperature
simulated between global climate model large ensembles
2. As a method of climate model evaluation, we input maps from observations into the neural
network in order to classify each year with a climate model
3. The neural network architecture can be used in regions with known large biases, such as over
the Arctic, or for different methods of preprocessing climate data
