Evaluating global climate models using simple, explainable neural networks
- 1. Evaluating global climate models using simple, explainable neural networks @ZLabe Zachary M. Labe with Elizabeth A. Barnes Colorado State University Department of Atmospheric Science 17 December 2021 NG51A-06 – AGU Fall Meeting Climate Variability Across Scales and Climate States and Neural Earth System Modeling [Oral Session I]

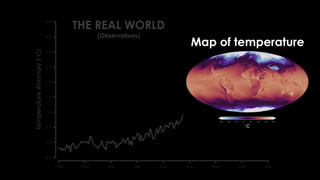

- 2. THE REAL WORLD (Observations) Map of temperature

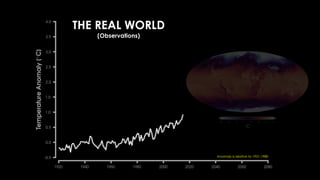

- 3. THE REAL WORLD (Observations) Anomaly is relative to 1951-1980

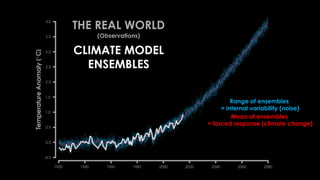

- 4. THE REAL WORLD (Observations) CLIMATE MODEL ENSEMBLES Range of ensembles = internal variability (noise) Mean of ensembles = forced response (climate change)

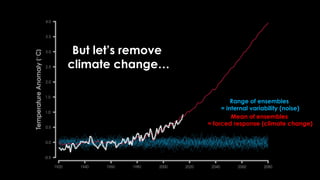

- 5. Range of ensembles = internal variability (noise) Mean of ensembles = forced response (climate change) But let’s remove climate change…

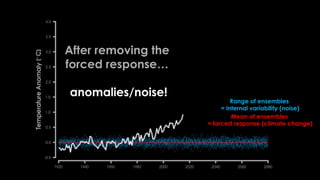

- 6. Range of ensembles = internal variability (noise) Mean of ensembles = forced response (climate change) After removing the forced response… anomalies/noise!

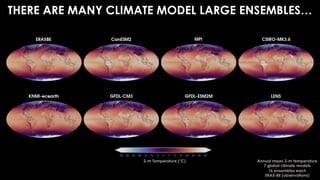

- 7. 2-m Temperature (°C) THERE ARE MANY CLIMATE MODEL LARGE ENSEMBLES… Annual mean 2-m temperature 7 global climate models 16 ensembles each ERA5-BE (observations)

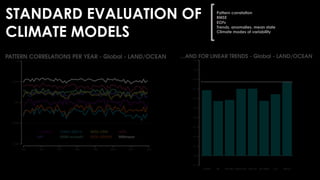

- 8. STANDARD EVALUATION OF CLIMATE MODELS Pattern correlation RMSE EOFs Trends, anomalies, mean state Climate modes of variability

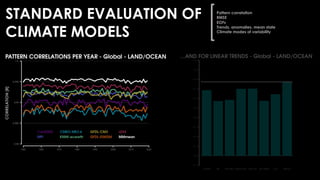

- 9. STANDARD EVALUATION OF CLIMATE MODELS Pattern correlation RMSE EOFs Trends, anomalies, mean state Climate modes of variability CORRELATION [R]
- 10. STANDARD EVALUATION OF CLIMATE MODELS Pattern correlation RMSE EOFs Trends, anomalies, mean state Climate modes of variability CORRELATION [R]

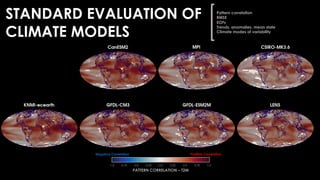

- 11. STANDARD EVALUATION OF CLIMATE MODELS Pattern correlation RMSE EOFs Trends, anomalies, mean state Climate modes of variability Negative Correlation Positive Correlation PATTERN CORRELATION – T2M

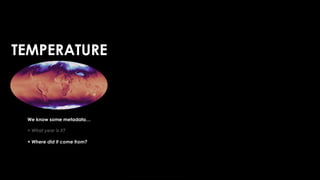

- 13. ----ANN---- 2 Hidden Layers 10 Nodes each Ridge Regularization Early Stopping TEMPERATURE We know some metadata… + What year is it? + Where did it come from?

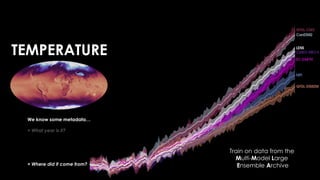

- 14. TEMPERATURE We know some metadata… + What year is it? + Where did it come from? Train on data from the Multi-Model Large Ensemble Archive

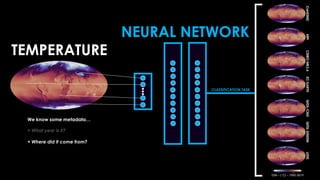

- 15. TEMPERATURE We know some metadata… + What year is it? + Where did it come from? NEURAL NETWORK CLASSIFICATION TASK HIDDEN LAYERS INPUT LAYER

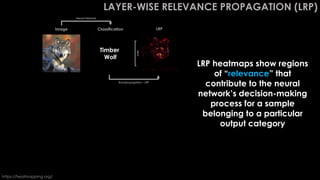

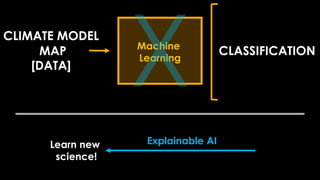

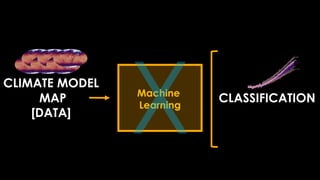

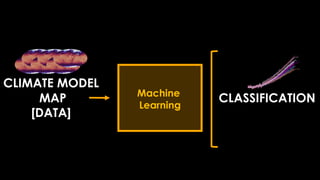

- 19. LAYER-WISE RELEVANCE PROPAGATION (LRP) Volcano Great White Shark Timber Wolf Image Classification LRP https://heatmapping.org/ LRP heatmaps show regions of “relevance” that contribute to the neural network’s decision-making process for a sample belonging to a particular output category Neural Network WHY WHY WHY Backpropagation – LRP
- 20. LAYER-WISE RELEVANCE PROPAGATION (LRP) Volcano Great White Shark Timber Wolf Image Classification LRP https://heatmapping.org/ LRP heatmaps show regions of “relevance” that contribute to the neural network’s decision-making process for a sample belonging to a particular output category Neural Network WHY WHY WHY Backpropagation – LRP

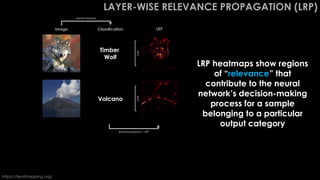

- 21. LAYER-WISE RELEVANCE PROPAGATION (LRP) Volcano Great White Shark Timber Wolf Image Classification LRP https://heatmapping.org/ LRP heatmaps show regions of “relevance” that contribute to the neural network’s decision-making process for a sample belonging to a particular output category Neural Network WHY WHY WHY Backpropagation – LRP

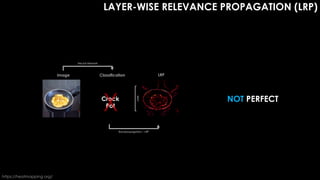

- 22. LAYER-WISE RELEVANCE PROPAGATION (LRP) Image Classification LRP https://heatmapping.org/ NOT PERFECT Crock Pot Neural Network WHY Backpropagation – LRP

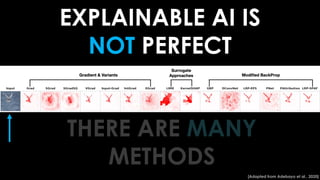

- 23. [Adapted from Adebayo et al., 2020] EXPLAINABLE AI IS NOT PERFECT THERE ARE MANY METHODS

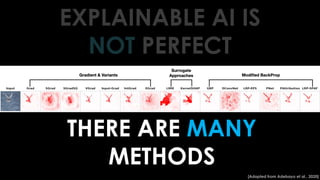

- 24. [Adapted from Adebayo et al., 2020] THERE ARE MANY METHODS EXPLAINABLE AI IS NOT PERFECT

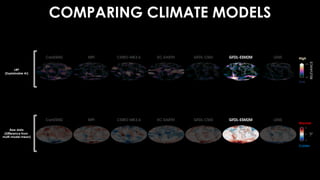

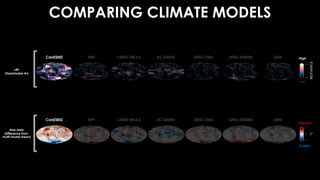

- 25. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low

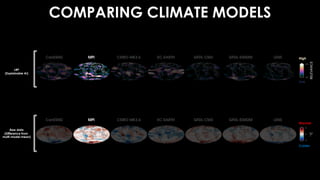

- 26. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low

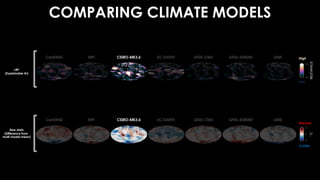

- 27. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low

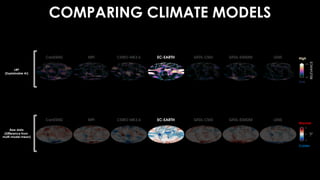

- 28. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low
- 29. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low

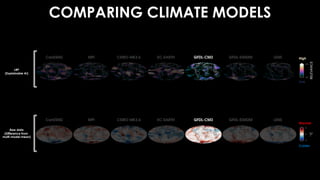

- 30. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low
- 31. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low

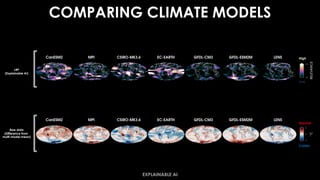

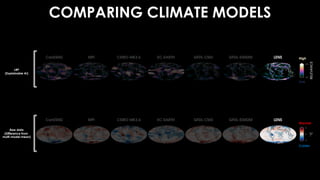

- 32. COMPARING CLIMATE MODELS LRP (Explainable AI) Raw data (Difference from multi-model mean) Colder Warmer High Low EXPLAINABLE AI

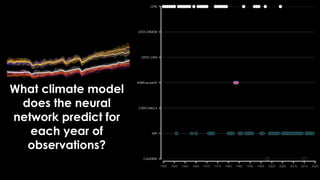

- 33. What climate model does the neural network predict for each year of observations?

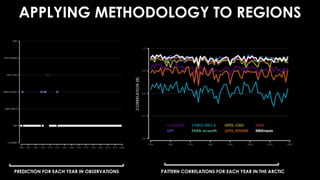

- 34. APPLYING METHODOLOGY TO REGIONS PREDICTION FOR EACH YEAR IN OBSERVATIONS PATTERN CORRELATIONS FOR EACH YEAR IN THE ARCTIC CORRELATION [R]

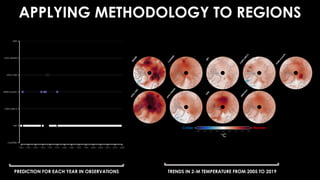

- 35. APPLYING METHODOLOGY TO REGIONS PREDICTION FOR EACH YEAR IN OBSERVATIONS TRENDS IN 2-M TEMPERATURE FROM 2005 TO 2019 Colder Warmer °C

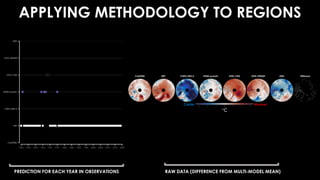

- 36. APPLYING METHODOLOGY TO REGIONS PREDICTION FOR EACH YEAR IN OBSERVATIONS RAW DATA (DIFFERENCE FROM MULTI-MODEL MEAN) Colder Warmer °C

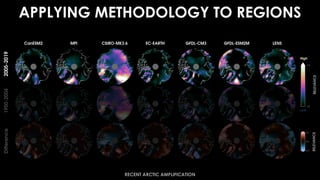

- 37. APPLYING METHODOLOGY TO REGIONS High Low RECENT ARCTIC AMPLIFICATION

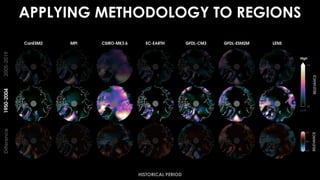

- 38. APPLYING METHODOLOGY TO REGIONS High Low HISTORICAL PERIOD

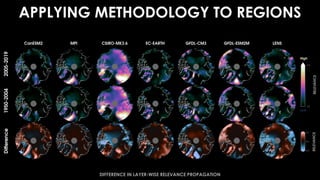

- 39. APPLYING METHODOLOGY TO REGIONS High Low DIFFERENCE IN LAYER-WISE RELEVANCE PROPAGATION
- 40. APPLY SOFTMAX OPERATOR IN THE OUTPUT LAYER RANK
- 41. APPLY SOFTMAX OPERATOR IN THE OUTPUT LAYER [ 0.71 ] [ 0.05 ] [ 0.01 ] [ 0.01 ] [ 0.03 ] [ 0.11 ] [ 0.08 ] RANK

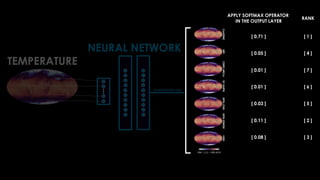

- 42. APPLY SOFTMAX OPERATOR IN THE OUTPUT LAYER [ 0.71 ] [ 0.05 ] [ 0.01 ] [ 0.01 ] [ 0.03 ] [ 0.11 ] [ 0.08 ] RANK [ 1 ] [ 4 ] [ 7 ] [ 6 ] [ 5 ] [ 2 ] [ 3 ]

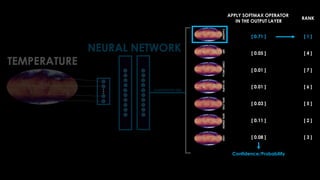

- 43. APPLY SOFTMAX OPERATOR IN THE OUTPUT LAYER [ 0.71 ] [ 0.05 ] [ 0.01 ] [ 0.01 ] [ 0.03 ] [ 0.11 ] [ 0.08 ] RANK [ 1 ] [ 4 ] [ 7 ] [ 6 ] [ 5 ] [ 2 ] [ 3 ] Confidence/Probability

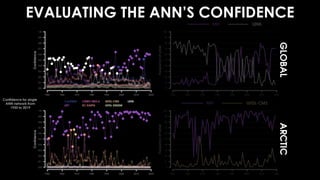

- 44. EVALUATING THE ANN’S CONFIDENCE Confidence for single ANN network from 1950 to 2019

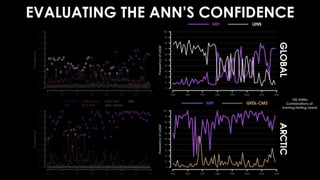

- 45. EVALUATING THE ANN’S CONFIDENCE 100 ANNs: Combinations of training/testing/seeds

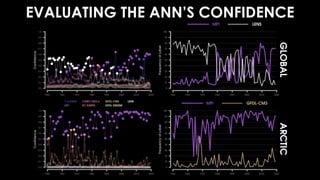

- 46. EVALUATING THE ANN’S CONFIDENCE
- 47. RANKING CLIMATE MODEL PREDICTIONS FOR EACH YEAR IN OBSERVATIONS

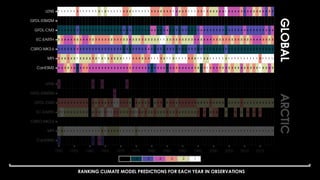

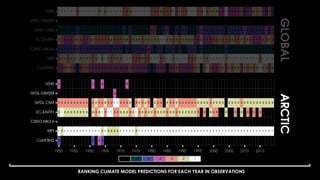

- 48. RANKING CLIMATE MODEL PREDICTIONS FOR EACH YEAR IN OBSERVATIONS

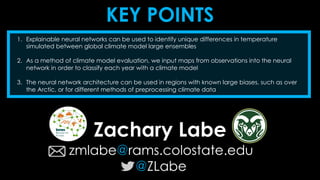

- 49. KEY POINTS Zachary Labe zmlabe@rams.colostate.edu @ZLabe 1. Explainable neural networks can be used to identify unique differences in temperature simulated between global climate model large ensembles 2. As a method of climate model evaluation, we input maps from observations into the neural network in order to classify each year with a climate model 3. The neural network architecture can be used in regions with known large biases, such as over the Arctic, or for different methods of preprocessing climate data
