EEG

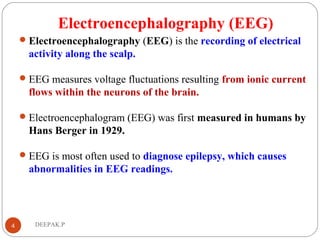

Electroencephalography (EEG)
Electroencephalography (EEG) is the recording of electrical
activity along the scalp.
EEG measures voltage fluctuations resulting from ionic current
flows within the neurons of the brain.
Electroencephalogram (EEG) was first measured in humans by
Hans Berger in 1929.
EEG is most often used to diagnose epilepsy, which causes
abnormalities in EEG readings.
4 DEEPAK.P

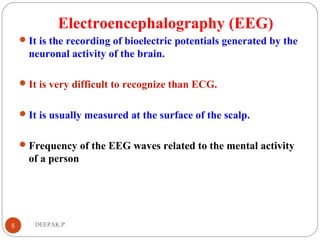

Electroencephalography (EEG)
It is the recording of bioelectric potentials generated by the
neuronal activity of the brain.
It is very difficult to recognize than ECG.
It is usually measured at the surface of the scalp.
Frequency of the EEG waves related to the mental activity
of a person
5 DEEPAK.P
Electroencephalography (EEG)
Spontaneous activity is measured on the scalp or on the
brain and is called the electroencephalogram.
The amplitude of the EEG is about 100 µV when measured
on the scalp, and about 1-2 mV when measured on the
surface of the brain.
Evoked potentials are those components of the EEG that arise
in response to a stimulus
Single-neuron behavior can be examined through the use of
microelectrodes which impale the cells of interest.
6 DEEPAK.P
Electroencephalography (EEG)
7 DEEPAK.P
Electroencephalography (EEG)
8 DEEPAK.P
DEEPAK.P9

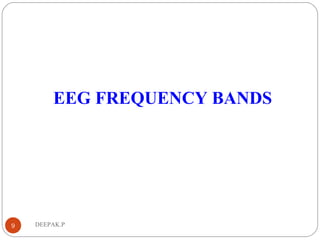

EEG FREQUENCY BANDS
Electroencephalography (EEG)

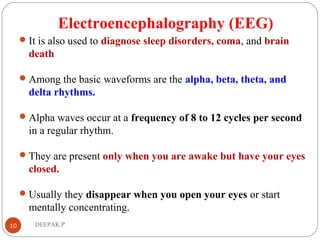

It is also used to diagnose sleep disorders, coma, and brain
death

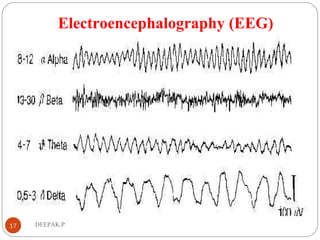

Among the basic waveforms are the alpha, beta, theta, and
delta rhythms.
Alpha waves occur at a frequency of 8 to 12 cycles per second
in a regular rhythm.
They are present only when you are awake but have your eyes
closed.
Usually they disappear when you open your eyes or start
mentally concentrating.
10 DEEPAK.P
Electroencephalogram (EEG)
11 DEEPAK.P

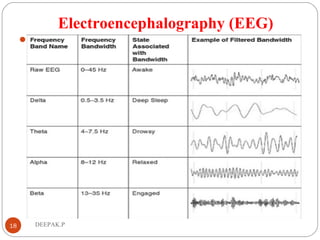

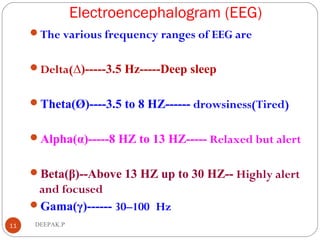

The various frequency ranges of EEG are
Delta(∆)-----3.5 Hz-----Deep sleep
Theta(Ø)----3.5 to 8 HZ------ drowsiness(Tired)
Alpha(α)-----8 HZ to 13 HZ----- Relaxed but alert
Beta(β)--Above 13 HZ up to 30 HZ-- Highly alert
and focused
Gama(γ)------ 30–100 Hz
Electroencephalogram (EEG)
12 DEEPAK.P
EEG waves

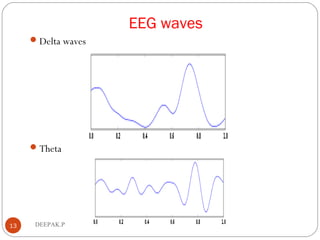

Delta waves
Theta
13 DEEPAK.P
EEG waves
Alpha waves
Beta
14 DEEPAK.P
EEG waves

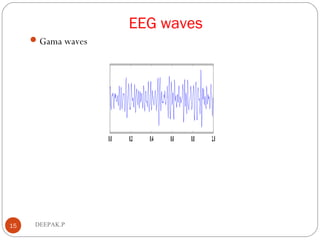

Gama waves
15 DEEPAK.P
Electroencephalography (EEG)
Beta waves occur at a frequency of 13 to 30 cycles per second.
They are usually associated with anxiety, depression, or the
use of sedatives.
Theta waves occur at a frequency of 4 to 7 cycles per second.
They are most common in children and young adults.
Delta waves occur at a frequency of 0.5 to 3.5 cycles per
second.
They generally occur only in young children during sleep.
16 DEEPAK.P
Electroencephalography (EEG)
.
17 DEEPAK.P
Electroencephalography (EEG)
.
18 DEEPAK.P
Electroencephalography (EEG)
.
19 DEEPAK.P
Electroencephalography (EEG)

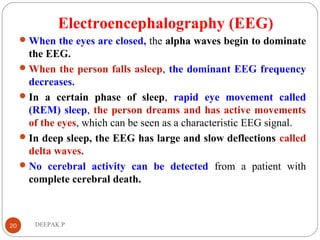

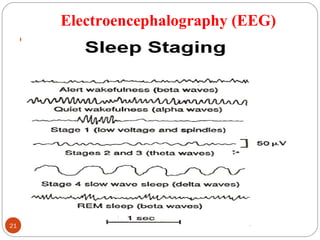

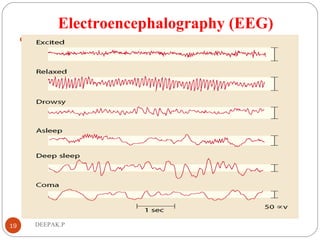

When the eyes are closed, the alpha waves begin to dominate
the EEG.
When the person falls asleep, the dominant EEG frequency
decreases.
In a certain phase of sleep, rapid eye movement called
(REM) sleep, the person dreams and has active movements
of the eyes, which can be seen as a characteristic EEG signal.
In deep sleep, the EEG has large and slow deflections called
delta waves.
No cerebral activity can be detected from a patient with
complete cerebral death.
20 DEEPAK.P
Electroencephalography (EEG)
.
21 DEEPAK.P
DEEPAK.P22
EVOKED POTENTIALS
Evoked Potentials

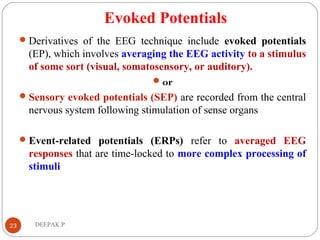

Derivatives of the EEG technique include evoked potentials
(EP), which involves averaging the EEG activity to a stimulus
of some sort (visual, somatosensory, or auditory).
or
Sensory evoked potentials (SEP) are recorded from the central
nervous system following stimulation of sense organs
Event-related potentials (ERPs) refer to averaged EEG
responses that are time-locked to more complex processing of
stimuli
23 DEEPAK.P

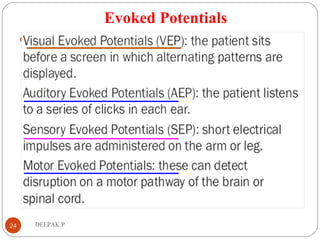

Evoked Potentials
.
24 DEEPAK.P
DEEPAK.P25
EEG RECORDER
Electroencephalography (EEG)
EEG machine consists of the following components
1- Electrodes.
2- Amplifiers.
3- Filters.
4- Recording unit.
26 DEEPAK.P

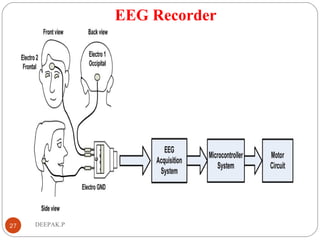

EEG Recorder
27 DEEPAK.P

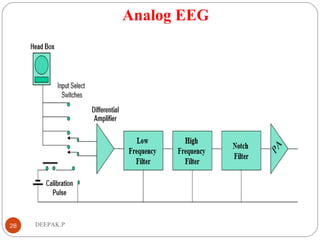

Analog EEG
28 DEEPAK.P

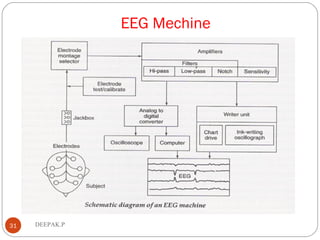

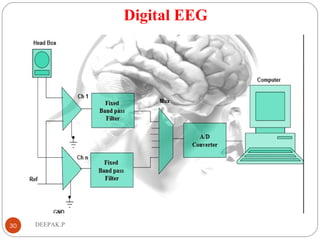

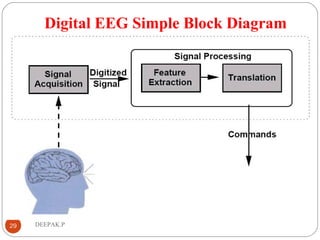

Digital EEG Simple Block Diagram
29 DEEPAK.P
Digital EEG
30 DEEPAK.P
EEG Mechine
31 DEEPAK.P
DEEPAK.P32
EEG ARTIFACTS
Electroencephalography (EEG)
Since EEG signals are very weak (ranging from 1 to 100 V),
they can easily be contaminated by other sources.
An EEG signal that does not originate from the brain is called an
artifact.
The amplitude of artifacts can be quite large relative to the size
of amplitude of the cortical signals of interest.

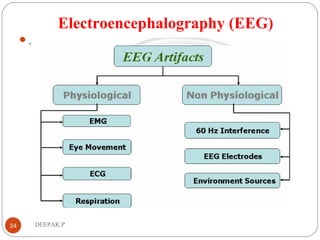

Artifacts can be divided into two categories:
Physiologic and non-physiologic
33 DEEPAK.P
Electroencephalography (EEG)
.
34 DEEPAK.P
DEEPAK.P35
EEG ELECTRODE
EEG Electrode Placement
Normal EEG waves
36 DEEPAK.P
Electrode Placement
37 DEEPAK.P

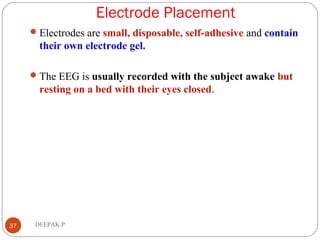

Electrodes are small, disposable, self-adhesive and contain
their own electrode gel.
The EEG is usually recorded with the subject awake but
resting on a bed with their eyes closed.

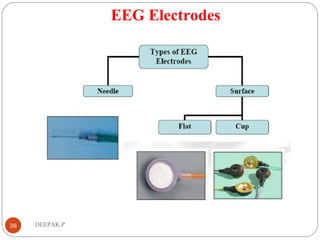

EEG Electrodes
38 DEEPAK.P
Electrode Placement
39 DEEPAK.P
1.Bipolar (between pairs of electrodes, usually adjacent)
2. Monopolar (between one electrode and a
distant reference electrode usually attached to
one or both earlobes)
3. Monopolar (between one electrode and a
reference formed by averaging all the other
electrodes by connecting them through resistors)

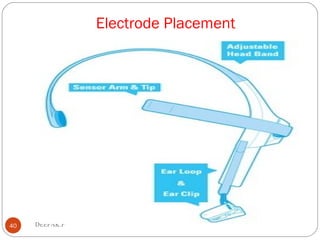

Electrode Placement
40 DEEPAK.P
Electrode Placement
41 DEEPAK.P

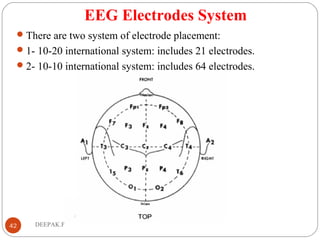

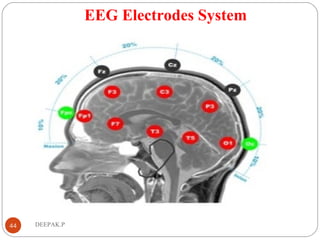

EEG Electrodes System
There are two system of electrode placement:
1- 10-20 international system: includes 21 electrodes.
2- 10-10 international system: includes 64 electrodes.
42 DEEPAK.P
EEG Electrodes System

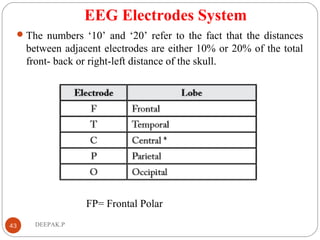

The numbers ‘10’ and ‘20’ refer to the fact that the distances
between adjacent electrodes are either 10% or 20% of the total
front- back or right-left distance of the skull.
43 DEEPAK.P
FP= Frontal Polar
EEG Electrodes System
44 DEEPAK.P

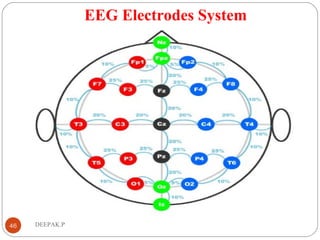

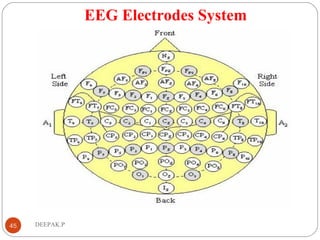

EEG Electrodes System
45 DEEPAK.P
EEG Electrodes System
46 DEEPAK.P
DEEPAK.P47
EMG

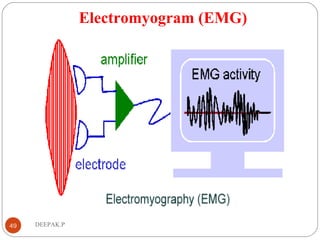

Electromyogram (EMG)
Electromyography (EMG) is a technique for evaluating and
recording the electrical activity produced by skeletal muscles.
EMG is performed using an instrument called an
electromyograph
An Electromyograph detects the electrical potential generated
by muscle cells when these cells are electrically or
neurologically activated
Measured EMG potentials range between less than 50 μV and
up to 20 to 30 mV, depending on the muscle under observation.
48 DEEPAK.P

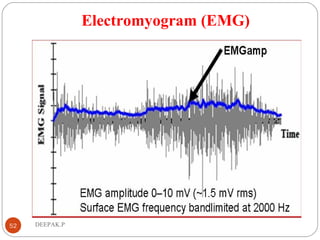

Electromyogram (EMG)
49 DEEPAK.P
Electromyogram (EMG)
EMG is used as a diagnostics tool for identifying neuromuscular
diseases.
50 DEEPAK.P

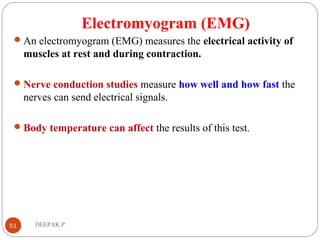

Electromyogram (EMG)
An electromyogram (EMG) measures the electrical activity of
muscles at rest and during contraction.
Nerve conduction studies measure how well and how fast the
nerves can send electrical signals.
Body temperature can affect the results of this test.
51 DEEPAK.P

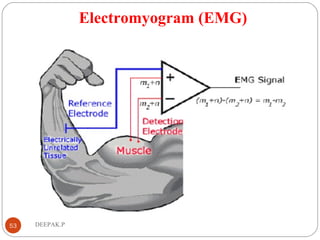

Electromyogram (EMG)
52 DEEPAK.P
Electromyogram (EMG)
53 DEEPAK.P

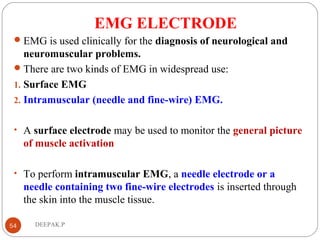

EMG ELECTRODE
EMG is used clinically for the diagnosis of neurological and
neuromuscular problems.
There are two kinds of EMG in widespread use:

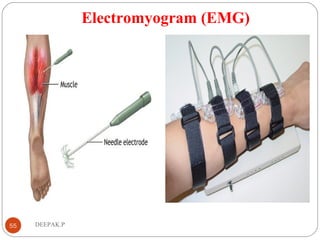

1. Surface EMG
2. Intramuscular (needle and fine-wire) EMG.
• A surface electrode may be used to monitor the general picture
of muscle activation
• To perform intramuscular EMG, a needle electrode or a
needle containing two fine-wire electrodes is inserted through
the skin into the muscle tissue.
54 DEEPAK.P

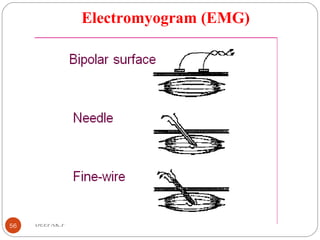

Electromyogram (EMG)
55 DEEPAK.P
Electromyogram (EMG)
56 DEEPAK.P
DEEPAK.P57

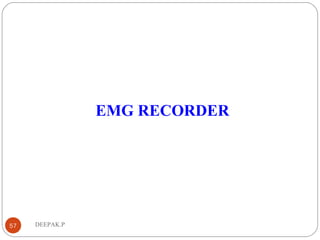

EMG RECORDER

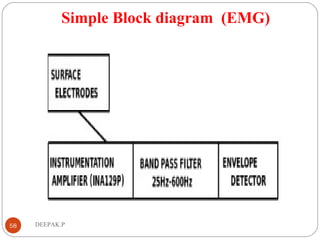

Simple Block diagram (EMG)
58 DEEPAK.P

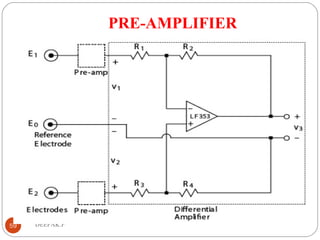

PRE-AMPLIFIER
59 DEEPAK.P
Properties of an ideal pre-amplifier
 High common mode rejection ratio
 Very high input impedance
 Short distance to the signal source
 Strong DC signal suppression
60 DEEPAK.P

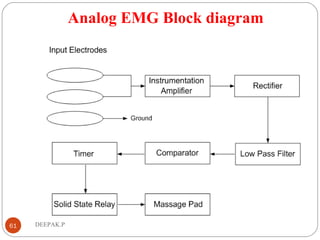

Analog EMG Block diagram
61 DEEPAK.P
Digital EMG Block diagram
62 DEEPAK.P

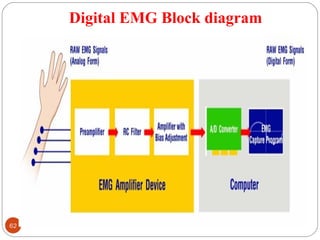

Digital EMG Block diagram
63 DEEPAK.P
DEEPAK.P64
PATIENT MONITORING
Patient Monitoring

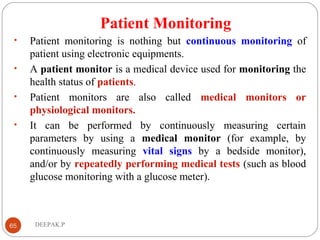

• Patient monitoring is nothing but continuous monitoring of
patient using electronic equipments.
• A patient monitor is a medical device used for monitoring the
health status of patients.
• Patient monitors are also called medical monitors or
physiological monitors.
• It can be performed by continuously measuring certain
parameters by using a medical monitor (for example, by
continuously measuring vital signs by a bedside monitor),
and/or by repeatedly performing medical tests (such as blood
glucose monitoring with a glucose meter).
65 DEEPAK.P

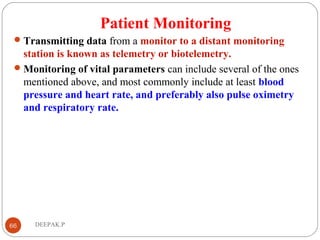

Patient Monitoring
Transmitting data from a monitor to a distant monitoring
station is known as telemetry or biotelemetry.
Monitoring of vital parameters can include several of the ones
mentioned above, and most commonly include at least blood
pressure and heart rate, and preferably also pulse oximetry
and respiratory rate.
66 DEEPAK.P
Patient Monitoring

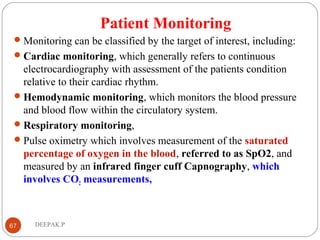

Monitoring can be classified by the target of interest, including:
Cardiac monitoring, which generally refers to continuous
electrocardiography with assessment of the patients condition
relative to their cardiac rhythm.
Hemodynamic monitoring, which monitors the blood pressure
and blood flow within the circulatory system.
Respiratory monitoring,
Pulse oximetry which involves measurement of the saturated
percentage of oxygen in the blood, referred to as SpO2, and
measured by an infrared finger cuff Capnography, which
involves CO2 measurements,
67 DEEPAK.P
DEEPAK.P68

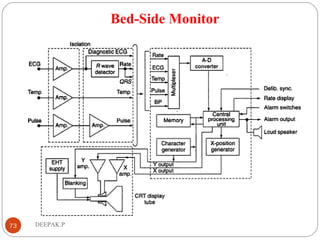

Bed -Side Monitor
Patient Monitoring
In medicine, monitoring is the observation of a disease,
condition or one or several medical parameters over time.
It can be performed by continuously measuring certain
parameters by using a medical monitor
Transmitting data from a monitor to a distant monitoring
station is known as telemetry or biotelemetry.
Vital signs (often shortened to just vitals) are used to measure
the body’s basic functions
69 DEEPAK.P
Patient Monitoring
Vital measurements are taken to help assess the general
physical health of a person, give clues to possible diseases.
There are four primary vital signs: body temperature, blood
pressure, pulse (heart rate), and breathing rate (respiratory
rate).
70 DEEPAK.P

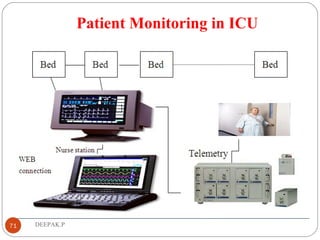

Patient Monitoring in ICU
71 DEEPAK.P

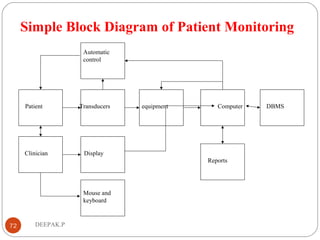

Simple Block Diagram of Patient Monitoring
72 DEEPAK.P
Automatic
control
Patient equipment Computer DBMS
Reports
Mouse and
keyboard
Display
Transducers
Clinician
Bed-Side Monitor
73 DEEPAK.P

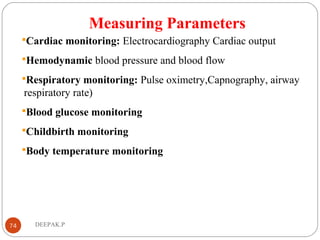

Measuring Parameters
Cardiac monitoring: Electrocardiography Cardiac output
Hemodynamic blood pressure and blood flow
Respiratory monitoring: Pulse oximetry,Capnography, airway
respiratory rate)
Blood glucose monitoring
Childbirth monitoring
Body temperature monitoring
74 DEEPAK.P
DEEPAK.P75

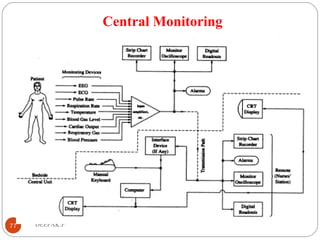

Central Monitor
Central Monitoring
76 DEEPAK.P
Physiological data
Bedside Monitors
Hard wire Remote Link
From other beds
Central Monitor Console

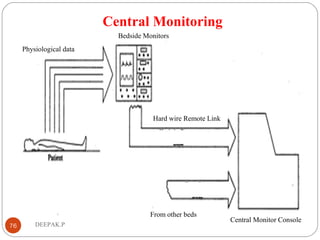

Central Monitoring
77 DEEPAK.P
DEEPAK.P78
Cardiac Tachometer
Tachometer

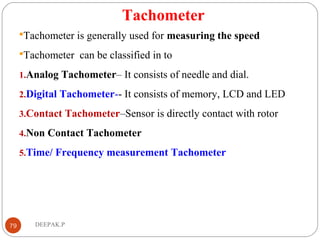

Tachometer is generally used for measuring the speed
Tachometer can be classified in to
1.Analog Tachometer– It consists of needle and dial.
2.Digital Tachometer-- It consists of memory, LCD and LED
3.Contact Tachometer–Sensor is directly contact with rotor
4.Non Contact Tachometer
5.Time/ Frequency measurement Tachometer
79 DEEPAK.P
Non-Contact Tachometer
• Non Contact Tachometer is classified into
1. Inductive type
2. Capacitive type
80 DEEPAK.P

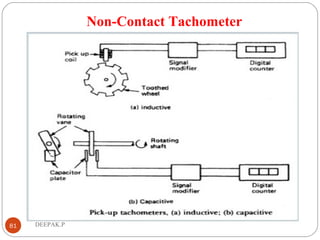

Non-Contact Tachometer
81 DEEPAK.P

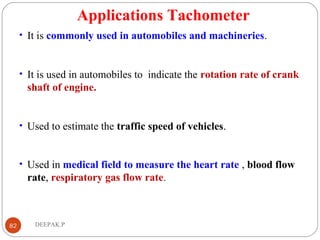

Applications Tachometer
• It is commonly used in automobiles and machineries.
• It is used in automobiles to indicate the rotation rate of crank
shaft of engine.
• Used to estimate the traffic speed of vehicles.
• Used in medical field to measure the heart rate , blood flow
rate, respiratory gas flow rate.
82 DEEPAK.P
Cardiac Tachometer
 Heart rate can be measured either by calculating the average or
instantaneous time interval between two R peaks.

83 DEEPAK.P
Cardiac Tachometer
84 DEEPAK.P

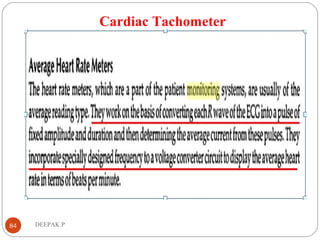

Cardiac Tachometer
85 DEEPAK.P
Cardiac Tachometer
86 DEEPAK.P

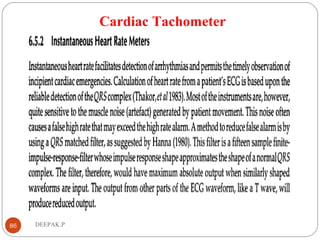

Cardiac Tachometer
87 DEEPAK.P

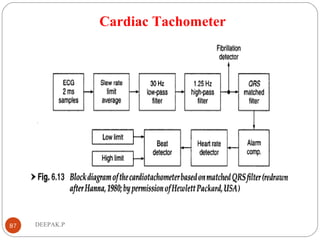

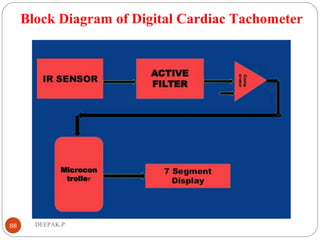

Block Diagram of Digital Cardiac Tachometer
88 DEEPAK.P
Digital Cardiac Tachometer
• It senses the heart beat from finger tip using IR reflection
method
• When heart contracts, the volume of blood in the finger tip
decreases.
• When heart expands, the volume of blood in the finger tip
increases.
• The resultant pulsing of blood volume inside the tip is
proportional to heart rate.
89 DEEPAK.P
Digital Cardiac Tachometer
• IR TX-RX pair is placed in finger tip with close contact.
• The reflected IR wave is sensed by the circuit.
• The intensity of the reflected wave is proportional to the
volume of blood in the finger tip.
•
90 DEEPAK.P

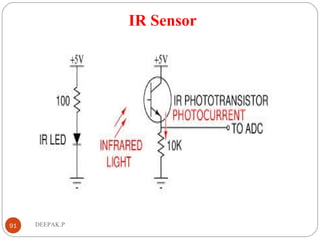

IR Sensor
91 DEEPAK.P

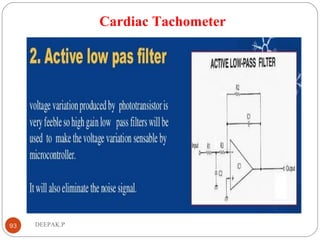

Cardiac Tachometer
92 DEEPAK.P

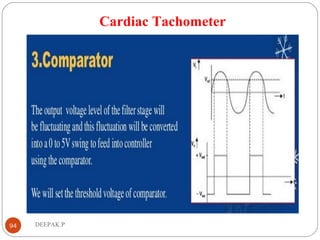

Cardiac Tachometer
93 DEEPAK.P
Cardiac Tachometer
94 DEEPAK.P
DEEPAK.P95
Alarms

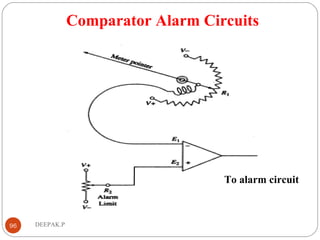

Comparator Alarm Circuits
96 DEEPAK.P
To alarm circuit
Comparator Alarm Circuits

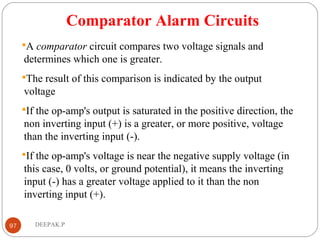

A comparator circuit compares two voltage signals and
determines which one is greater.
The result of this comparison is indicated by the output
voltage
If the op-amp's output is saturated in the positive direction, the
non inverting input (+) is a greater, or more positive, voltage
than the inverting input (-).
If the op-amp's voltage is near the negative supply voltage (in
this case, 0 volts, or ground potential), it means the inverting
input (-) has a greater voltage applied to it than the non
inverting input (+).
97 DEEPAK.P

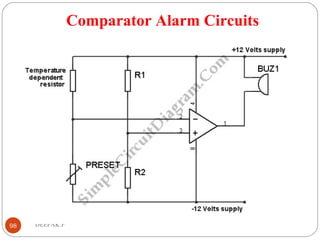

Comparator Alarm Circuits
98 DEEPAK.P

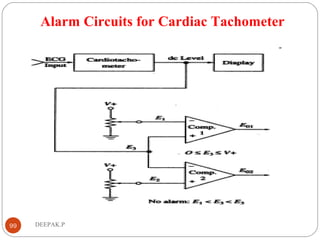

Alarm Circuits for Cardiac Tachometer
99 DEEPAK.P
DEEPAK.P100
Lead Fault Indicator

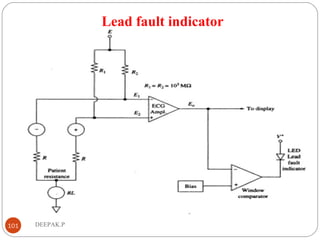

Lead fault indicator
101 DEEPAK.P
Lead fault indicator
When a monitor electrode or lead wire comes loose, the
appearance of display will be either a base line or 60Hz
interface.
102 DEEPAK.P
DEEPAK.P103
Bio Telemetry

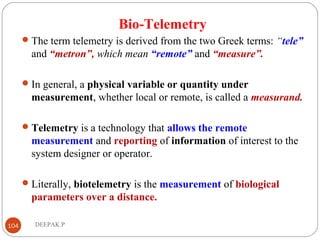

Bio-Telemetry
The term telemetry is derived from the two Greek terms: “tele”
and “metron”, which mean “remote” and “measure”.
In general, a physical variable or quantity under
measurement, whether local or remote, is called a measurand.
Telemetry is a technology that allows the remote
measurement and reporting of information of interest to the
system designer or operator.
Literally, biotelemetry is the measurement of biological
parameters over a distance.
104 DEEPAK.P
Bio-Telemetry

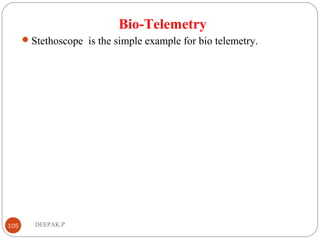

Stethoscope is the simple example for bio telemetry.
105 DEEPAK.P
DEEPAK.P106
Elements of Bio Telemetry

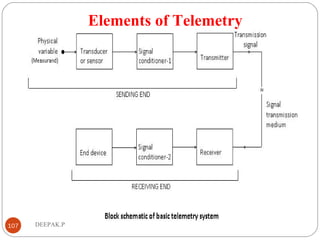

Elements of Telemetry
107 DEEPAK.P

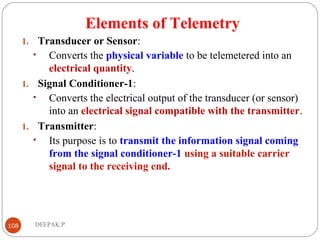

Elements of Telemetry
1. Transducer or Sensor:
• Converts the physical variable to be telemetered into an
electrical quantity.
1. Signal Conditioner-1:
• Converts the electrical output of the transducer (or sensor)
into an electrical signal compatible with the transmitter.
1. Transmitter:
• Its purpose is to transmit the information signal coming
from the signal conditioner-1 using a suitable carrier
signal to the receiving end.
108 DEEPAK.P
Elements of Telemetry

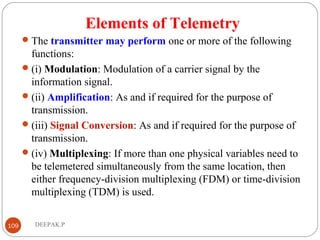

The transmitter may perform one or more of the following
functions:
(i) Modulation: Modulation of a carrier signal by the
information signal.
(ii) Amplification: As and if required for the purpose of
transmission.
(iii) Signal Conversion: As and if required for the purpose of
transmission.
(iv) Multiplexing: If more than one physical variables need to
be telemetered simultaneously from the same location, then
either frequency-division multiplexing (FDM) or time-division
multiplexing (TDM) is used.
109 DEEPAK.P
Elements of Telemetry
Receiver: Its purpose is to receive the signal(s) coming from
the transmitter (located at the sending end of the telemetry
system) via the signal transmission medium and recover the
information from the same.
It may perform one or more of the following functions:
1. Amplification
2. Demodulation:
3. Reverse Signal Conversion
4. De-multiplexing
110 DEEPAK.P

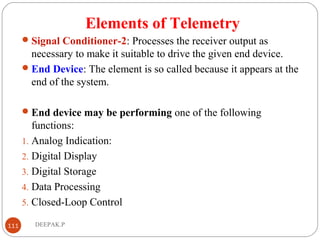

Elements of Telemetry
Signal Conditioner-2: Processes the receiver output as
necessary to make it suitable to drive the given end device.
End Device: The element is so called because it appears at the
end of the system.
End device may be performing one of the following
functions:
1. Analog Indication:
2. Digital Display
3. Digital Storage
4. Data Processing
5. Closed-Loop Control
111 DEEPAK.P

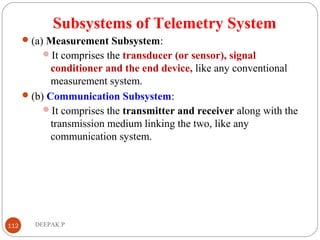

Subsystems of Telemetry System
(a) Measurement Subsystem:
It comprises the transducer (or sensor), signal
conditioner and the end device, like any conventional
measurement system.
(b) Communication Subsystem:
It comprises the transmitter and receiver along with the
transmission medium linking the two, like any
communication system.
112 DEEPAK.P
DEEPAK.P113
Classifications of Bio Telemetry
Telemetry Classification Based on Transmission
Medium
1. Wire-Link Telemetry or Wire Telemetry
2. Radio Telemetry or Wireless Telemetry
114 DEEPAK.P
DEEPAK.P115
Wired Bio Telemetry

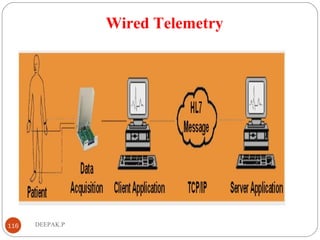

Wired Telemetry
116 DEEPAK.P

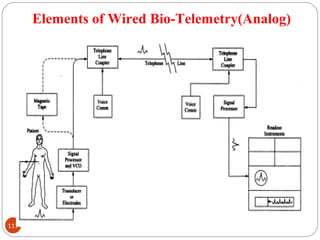

Elements of Wired Bio-Telemetry(Analog)
117 DEEPAK.P
DEEPAK.P118
Digital Wired Bio Telemetry

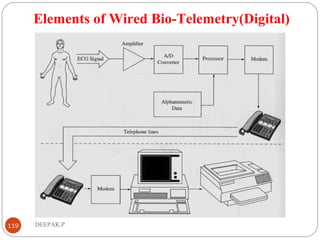

Elements of Wired Bio-Telemetry(Digital)
119 DEEPAK.P

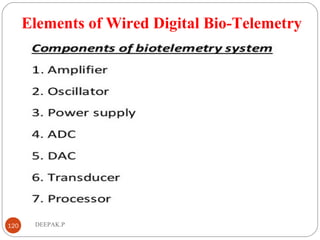

Elements of Wired Digital Bio-Telemetry
120 DEEPAK.P
DEEPAK.P121
Wireless Bio Telemetry
Elements of Wireless Bio-Telemetry

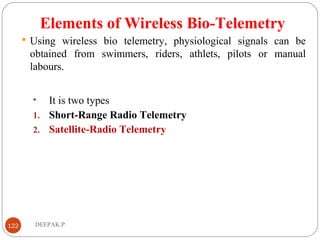

 Using wireless bio telemetry, physiological signals can be
obtained from swimmers, riders, athlets, pilots or manual
labours.
• It is two types
1. Short-Range Radio Telemetry
2. Satellite-Radio Telemetry
122 DEEPAK.P

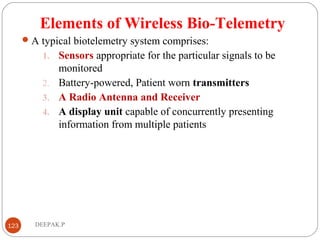

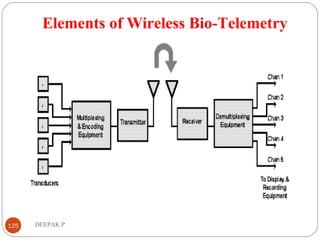

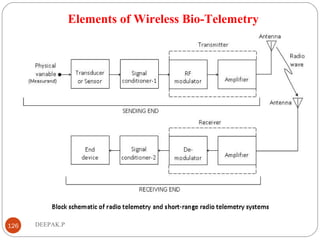

Elements of Wireless Bio-Telemetry
A typical biotelemetry system comprises:
1. Sensors appropriate for the particular signals to be
monitored
2. Battery-powered, Patient worn transmitters
3. A Radio Antenna and Receiver
4. A display unit capable of concurrently presenting
information from multiple patients
123 DEEPAK.P

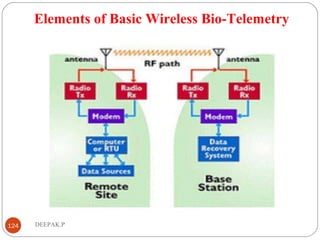

Elements of Basic Wireless Bio-Telemetry
124 DEEPAK.P
Elements of Wireless Bio-Telemetry
125 DEEPAK.P
Elements of Wireless Bio-Telemetry
126 DEEPAK.P

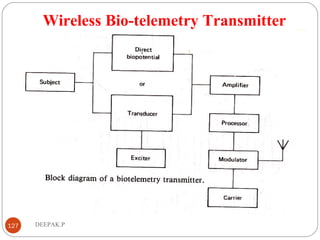

Wireless Bio-telemetry Transmitter
127 DEEPAK.P

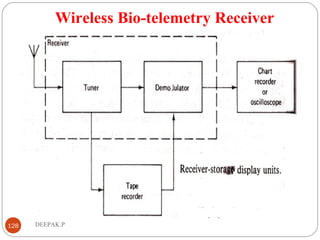

Wireless Bio-telemetry Receiver
128 DEEPAK.P
DEEPAK.P129
Portable Bio Telemetry
Portable Telemetry

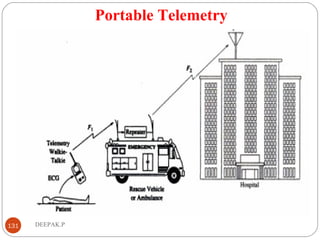

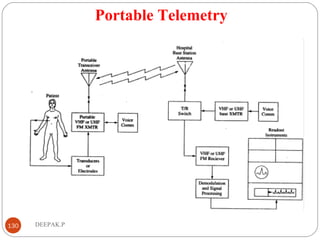

130 DEEPAK.P
Portable Telemetry
131 DEEPAK.P
DEEPAK.P132
Bio Telemetry Modulation

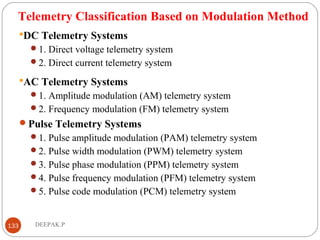

Telemetry Classification Based on Modulation Method
DC Telemetry Systems
1. Direct voltage telemetry system
2. Direct current telemetry system
AC Telemetry Systems
1. Amplitude modulation (AM) telemetry system
2. Frequency modulation (FM) telemetry system
Pulse Telemetry Systems
1. Pulse amplitude modulation (PAM) telemetry system
2. Pulse width modulation (PWM) telemetry system
3. Pulse phase modulation (PPM) telemetry system
4. Pulse frequency modulation (PFM) telemetry system
5. Pulse code modulation (PCM) telemetry system
133 DEEPAK.P

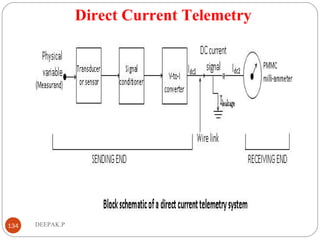

Direct Current Telemetry
134 DEEPAK.P

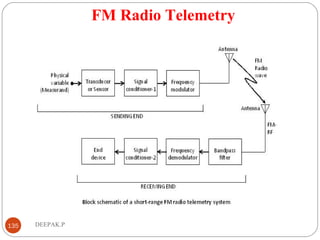

FM Radio Telemetry
135 DEEPAK.P
DEEPAK.P136
Single Channel Bio Telemetry

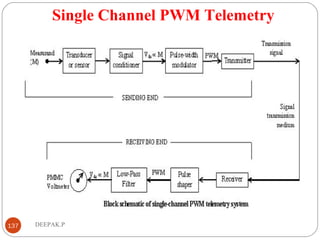

Single Channel PWM Telemetry
137 DEEPAK.P

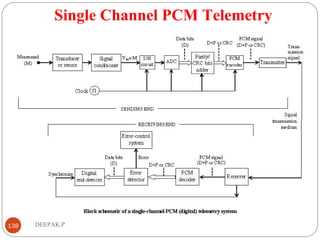

Single Channel PCM Telemetry
138 DEEPAK.P
DEEPAK.P139
Choice of Carrier frequency

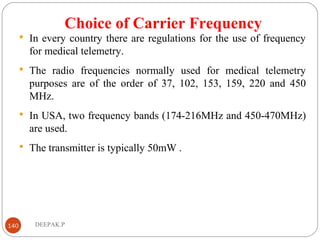

Choice of Carrier Frequency
 In every country there are regulations for the use of frequency
for medical telemetry.
 The radio frequencies normally used for medical telemetry
purposes are of the order of 37, 102, 153, 159, 220 and 450
MHz.
 In USA, two frequency bands (174-216MHz and 450-470MHz)
are used.
 The transmitter is typically 50mW .
140 DEEPAK.P

More Related Content

What's hot

Biotelemetry
BiotelemetryBiotelemetry
Biotelemetry
Samuely


What's hot (20)

Topic 3 Bioelectrodes-sensors-transducers
Topic 3 Bioelectrodes-sensors-transducersTopic 3 Bioelectrodes-sensors-transducers
Topic 3 Bioelectrodes-sensors-transducers

Isolation amplifier
Isolation amplifierIsolation amplifier
Isolation amplifier

blood flow measurement
blood flow measurementblood flow measurement
blood flow measurement

PCG
PCGPCG
PCG

Biomedical signal processing
Biomedical signal processingBiomedical signal processing
Biomedical signal processing

Electromagnetic blood flow meter
Electromagnetic blood flow meterElectromagnetic blood flow meter
Electromagnetic blood flow meter

Unit 4 biomedical
Unit 4 biomedicalUnit 4 biomedical
Unit 4 biomedical

Bio amplifiers - basics
Bio amplifiers - basicsBio amplifiers - basics
Bio amplifiers - basics

medical electronics 5 module ppt
medical electronics 5 module pptmedical electronics 5 module ppt
medical electronics 5 module ppt

EEG
EEGEEG
EEG

410815333-Bio-Telemetry-ppt.ppt
410815333-Bio-Telemetry-ppt.ppt410815333-Bio-Telemetry-ppt.ppt
410815333-Bio-Telemetry-ppt.ppt

Origin of biopotentials
Origin of biopotentialsOrigin of biopotentials
Origin of biopotentials

Temperature measurement
Temperature measurement Temperature measurement
Temperature measurement

Ecg Signal Processing
Ecg Signal ProcessingEcg Signal Processing
Ecg Signal Processing

Basic transducer principles
Basic transducer principlesBasic transducer principles
Basic transducer principles

Sensors for Biomedical Devices and systems
Sensors for Biomedical Devices and systemsSensors for Biomedical Devices and systems
Sensors for Biomedical Devices and systems

Biopotential electrodes
Biopotential electrodesBiopotential electrodes
Biopotential electrodes

Biotelemetry
BiotelemetryBiotelemetry
Biotelemetry

Respiration rate measurement
Respiration rate measurement Respiration rate measurement
Respiration rate measurement

Biomedical Instrumentation introduction, Bioamplifiers
Biomedical Instrumentation introduction, BioamplifiersBiomedical Instrumentation introduction, Bioamplifiers
Biomedical Instrumentation introduction, Bioamplifiers


Viewers also liked

Biolelemetry1
Biolelemetry1Biolelemetry1
Biolelemetry1
Samuely


Viewers also liked (20)

Biolelemetry1
Biolelemetry1Biolelemetry1
Biolelemetry1

Unit 2 biomedical
Unit 2 biomedicalUnit 2 biomedical
Unit 2 biomedical

Medical electronics
Medical electronicsMedical electronics
Medical electronics

Unit 1 biomedical
Unit 1 biomedicalUnit 1 biomedical
Unit 1 biomedical

Telemetry types, frequency,position and multiplexing in telemetry
Telemetry types, frequency,position and multiplexing in telemetryTelemetry types, frequency,position and multiplexing in telemetry
Telemetry types, frequency,position and multiplexing in telemetry

Biomedical engineering (BME)
Biomedical engineering (BME)Biomedical engineering (BME)
Biomedical engineering (BME)

Biomedical instrumentation PPT
Biomedical instrumentation PPTBiomedical instrumentation PPT
Biomedical instrumentation PPT

IEEE BASE paper on artifical retina using TTF technology
IEEE BASE paper on artifical retina using TTF technologyIEEE BASE paper on artifical retina using TTF technology
IEEE BASE paper on artifical retina using TTF technology

Shortwave diathermy
Shortwave diathermyShortwave diathermy
Shortwave diathermy

Data transmission and telemetry
Data transmission and telemetryData transmission and telemetry
Data transmission and telemetry

The Telegraph, Part 1
The Telegraph, Part 1The Telegraph, Part 1
The Telegraph, Part 1

Harvard_Transcript
Harvard_TranscriptHarvard_Transcript
Harvard_Transcript

Emotiv Epoc/BCi/EEG
Emotiv Epoc/BCi/EEGEmotiv Epoc/BCi/EEG
Emotiv Epoc/BCi/EEG

Regulatory Considerations In Medical Electronics G Nobis Apr 20 2010
Regulatory Considerations In Medical Electronics G Nobis Apr 20 2010Regulatory Considerations In Medical Electronics G Nobis Apr 20 2010
Regulatory Considerations In Medical Electronics G Nobis Apr 20 2010

Brain Computer Interface. Research and Innovation Project
Brain Computer Interface. Research and Innovation ProjectBrain Computer Interface. Research and Innovation Project
Brain Computer Interface. Research and Innovation Project

Vlsi design notes l7 a&b batch , ece , sngce
Vlsi design notes l7 a&b batch , ece , sngceVlsi design notes l7 a&b batch , ece , sngce
Vlsi design notes l7 a&b batch , ece , sngce

Tonometry and tonography
Tonometry and tonographyTonometry and tonography
Tonometry and tonography

It's all about telemetry
It's all about telemetryIt's all about telemetry
It's all about telemetry

Lecture 3 4. prnet
Lecture 3 4. prnetLecture 3 4. prnet
Lecture 3 4. prnet

Thereport
ThereportThereport
Thereport


Similar to Unit 3 biomedical

Eeg presentation for studying and understanding
Eeg presentation for studying and understandingEeg presentation for studying and understanding
Eeg presentation for studying and understanding
Susanwong54

SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...
SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...
SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...
BharathSrinivasG


Similar to Unit 3 biomedical (20)

Presentation EEG (1).pptx
Presentation EEG (1).pptxPresentation EEG (1).pptx
Presentation EEG (1).pptx

EEG_circut.ppt
EEG_circut.pptEEG_circut.ppt
EEG_circut.ppt

EEG_circuit.ppt
EEG_circuit.pptEEG_circuit.ppt
EEG_circuit.ppt

Eeg presentation for studying and understanding
Eeg presentation for studying and understandingEeg presentation for studying and understanding
Eeg presentation for studying and understanding

Eeg by prc
Eeg by prcEeg by prc
Eeg by prc

Eeg by prc
Eeg by prcEeg by prc
Eeg by prc

Clinical teaching on electroencephelography
Clinical teaching on electroencephelographyClinical teaching on electroencephelography
Clinical teaching on electroencephelography

EEG-132 Pract. (1).ppt
EEG-132 Pract. (1).pptEEG-132 Pract. (1).ppt
EEG-132 Pract. (1).ppt

Eeg & ecg
Eeg & ecgEeg & ecg
Eeg & ecg

SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...
SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...
SUMSEM-2021-22_ECE6007_ETH_VL2021220701295_Reference_Material_I_04-07-2022_EE...

Electroencephalogram(EEG)
Electroencephalogram(EEG)Electroencephalogram(EEG)
Electroencephalogram(EEG)

Biomedical Instruments.pptx
Biomedical Instruments.pptxBiomedical Instruments.pptx
Biomedical Instruments.pptx

EEG & EMG new.pptx
EEG & EMG new.pptxEEG & EMG new.pptx
EEG & EMG new.pptx

NEUROPHYSIOLOGY technique.pptx
NEUROPHYSIOLOGY technique.pptxNEUROPHYSIOLOGY technique.pptx
NEUROPHYSIOLOGY technique.pptx

Recording brain activity
Recording brain activityRecording brain activity
Recording brain activity

EEG (electroencephalogram)
EEG (electroencephalogram)EEG (electroencephalogram)
EEG (electroencephalogram)

Eeg
EegEeg
Eeg

Eeg
EegEeg
Eeg

Sec 2 eeg
Sec 2 eegSec 2 eeg
Sec 2 eeg

Electroencephal ogram (eeg)
Electroencephal ogram (eeg)Electroencephal ogram (eeg)
Electroencephal ogram (eeg)


Recently uploaded

DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf
DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdfDR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf
DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf
DrGurudutt

Digital Signal Processing Lecture notes n.pdf
Digital Signal Processing Lecture notes n.pdfDigital Signal Processing Lecture notes n.pdf
Digital Signal Processing Lecture notes n.pdf
AbrahamGadissa

Paint shop management system project report.pdf
Paint shop management system project report.pdfPaint shop management system project report.pdf
Paint shop management system project report.pdf
Kamal Acharya

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
R&R Consult


Recently uploaded (20)

ONLINE CAR SERVICING SYSTEM PROJECT REPORT.pdf
ONLINE CAR SERVICING SYSTEM PROJECT REPORT.pdfONLINE CAR SERVICING SYSTEM PROJECT REPORT.pdf
ONLINE CAR SERVICING SYSTEM PROJECT REPORT.pdf

2024 DevOps Pro Europe - Growing at the edge
2024 DevOps Pro Europe - Growing at the edge2024 DevOps Pro Europe - Growing at the edge
2024 DevOps Pro Europe - Growing at the edge

NO1 Pandit Black Magic Removal in Uk kala jadu Specialist kala jadu for Love ...
NO1 Pandit Black Magic Removal in Uk kala jadu Specialist kala jadu for Love ...NO1 Pandit Black Magic Removal in Uk kala jadu Specialist kala jadu for Love ...
NO1 Pandit Black Magic Removal in Uk kala jadu Specialist kala jadu for Love ...

KIT-601 Lecture Notes-UNIT-4.pdf Frequent Itemsets and Clustering
KIT-601 Lecture Notes-UNIT-4.pdf Frequent Itemsets and ClusteringKIT-601 Lecture Notes-UNIT-4.pdf Frequent Itemsets and Clustering
KIT-601 Lecture Notes-UNIT-4.pdf Frequent Itemsets and Clustering

DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf
DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdfDR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf
DR PROF ING GURUDUTT SAHNI WIKIPEDIA.pdf

A case study of cinema management system project report..pdf
A case study of cinema management system project report..pdfA case study of cinema management system project report..pdf
A case study of cinema management system project report..pdf

Natalia Rutkowska - BIM School Course in Kraków
Natalia Rutkowska - BIM School Course in KrakówNatalia Rutkowska - BIM School Course in Kraków
Natalia Rutkowska - BIM School Course in Kraków

Digital Signal Processing Lecture notes n.pdf
Digital Signal Processing Lecture notes n.pdfDigital Signal Processing Lecture notes n.pdf
Digital Signal Processing Lecture notes n.pdf

Top 13 Famous Civil Engineering Scientist
Top 13 Famous Civil Engineering ScientistTop 13 Famous Civil Engineering Scientist
Top 13 Famous Civil Engineering Scientist

Paint shop management system project report.pdf
Paint shop management system project report.pdfPaint shop management system project report.pdf
Paint shop management system project report.pdf

Online resume builder management system project report.pdf
Online resume builder management system project report.pdfOnline resume builder management system project report.pdf
Online resume builder management system project report.pdf

Dairy management system project report..pdf
Dairy management system project report..pdfDairy management system project report..pdf
Dairy management system project report..pdf

Maestro Scripting Language CNC programacion
Maestro Scripting Language CNC programacionMaestro Scripting Language CNC programacion
Maestro Scripting Language CNC programacion

BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING
BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWINGBRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING
BRAKING SYSTEM IN INDIAN RAILWAY AutoCAD DRAWING

retail automation billing system ppt.pptx
retail automation billing system ppt.pptxretail automation billing system ppt.pptx
retail automation billing system ppt.pptx

İTÜ CAD and Reverse Engineering Workshop
İTÜ CAD and Reverse Engineering WorkshopİTÜ CAD and Reverse Engineering Workshop
İTÜ CAD and Reverse Engineering Workshop

The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...
The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...
The battle for RAG, explore the pros and cons of using KnowledgeGraphs and Ve...

Electrostatic field in a coaxial transmission line
Electrostatic field in a coaxial transmission lineElectrostatic field in a coaxial transmission line
Electrostatic field in a coaxial transmission line

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

Event Management System Vb Net Project Report.pdf
Event Management System Vb Net  Project Report.pdfEvent Management System Vb Net  Project Report.pdf
Event Management System Vb Net Project Report.pdf


Unit 3 biomedical
