System development life cycle

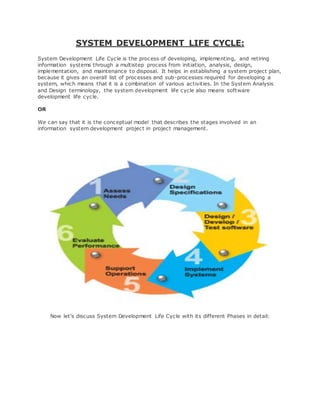

SYSTEM DEVELOPMENT LIFE CYCLE:
System Development Life Cycle is the process of developing, implementing, and retiring
information systems through a multistep process from initiation, analysis, design,
implementation, and maintenance to disposal. It helps in establishing a system project plan,
because it gives an overall list of processes and sub-processes required for developing a
system, which means that it is a combination of various activities. In the System Analysis
and Design terminology, the system development life cycle also means software
development life cycle.
OR
We can say that it is the conceptual model that describes the stages involved in an
information system development project in project management.
Now let's discuss System Development Life Cycle with its different Phases in detail:

Phases:
o SYSTEM STUDY
a) Preliminary System Study
b) Feasibility Study
c) Detailed System Study
d) System Analysis
e) System Design
o Preliminary or General Design
o Structured or Detailed Design
o CODING
o TESTING
--Program Test
--System Test
o IMPLEMENTATION
o MAINTAINANCE
SYSTEM STUDY:
1. Preliminary System Study: As the name says it is the first stage of a
system development life cycle, a brief investigation of the system under
consideration and gives a clear picture of what actually the physical system
is? It involves the preparation of a 'System Proposal' which lists the Problem
Definition, Objectives of the Study, Terms of reference for Study,

Constraints, and Expected benefits of the new system, etc. A System Analyst
will prepare the proposal and cycle proceeds to the next stage. It depends
on the management to accept it; they also reject it or request some
modifications in the proposal. Actually a system study phase passes through
the following steps:
 Problem identification and project initiation
 Background analysis
 Inference or findings (system proposal)
2. Feasibility Study: If the proposal is accepted by the management then
the next phase is to examine the feasibility of the system. In this phase the
software analysts and strategy makers establish a descriptive view of the
intended project and determine its goals & objectives. If the project is to
proceed, the feasibility study will produce a project plan and budget
estimates for the future stages of development. The main goal of feasibility
study is not to solve the problem but to achieve the scope. In the process of
feasibility study, the cost and benefits are estimated with greater accuracy
to find the Return on Investment (ROI).
3. Detailed System Study: In accordance with the objectives of the
proposed system the detailed investigation of the system is carried out.
Various operations performed by a system and their relationships within and
outside the system. In this process data are collected on the available files,
decision points and transactions handled by the present system. It becomes
easy to draw the exact boundary of the new system under consideration by
following the steps below:
 Keeping in view the problems and new requirements
 Workout the pros and cons including new areas of the system
There should be proper documentation of all the data and the findings in the
form of
detailed data flow diagrams (DFDs), data dictionary, logical data structures
and miniature specification. The important points that should be discussed in
this stage are:
 Specification of what the new system is to accomplish based on the user
requirements.
 Functional hierarchy showing the functions to be performed by the new system and
their relationship with each other.
 Functional network, which are similar to function hierarchy but they highlight the
functions which are common to more than one procedure.

 List of attributes of the entities these are the data items which need to be held
about each entity (record).
4. System Analysis: In this phase there is a main role of system analyst,
he is the one who should analyze the end-user information needs and
prepare a solid plan. Analysis gathers the requirements for the system. This
stage includes a detailed study of the business needs of the organization.
Options for changing the business process may be considered. In other
words it is a process of collecting factual data, understand the processes
involved, identifying problems and recommending feasible suggestions for
improving the system functioning. It also includes subdividing of complex
process involving the entire system, identification of data store and manual
processes. The major objectives of systems analysis are to find answers for
each business process: What is being done? How is it being done? Who is
doing it? When is he doing it? Why is it being done? and How can it be
improved? It is more of a thinking process and involves the creative skills of
the System Analyst.
5. System Design: System Design is the most crucial phase in the
development of System Software. After the detailed analysis of the existing
system and requirement of the user, the new system must be designed,
that's why the name of this phase is "System Design". The logical system
design arrived at as a result of systems analysis is converted into physical
system design. Normally, the design proceeds in two stages:
 Preliminary or General Design
 Structured or Detailed Design
a. Preliminary or General Design: The specification of the features of the
new system and the cost estimation in implementing these features of the
system are estimated in this stage. And if the project is still considered to be
feasible, we move to the detailed design stage.
b. Structured or Detailed Design: The design of the system becomes
more structured at this stage. Structured design is a blueprint of a computer
system solution to a given problem having the same components and inter-relationships
among the same components as the original problem. Input,
output, databases, forms, codification schemes and processing specifications
are drawn up in detail.
In the design stage, the programming language and the hardware and
software platform in which the new system will run are also decided.
The various tools and techniques used to describe the system design are:

 Flowchart
 Data flow diagram (DFD)
 Data dictionary
 Structured English
 Decision table
 Decision tree
The System design involves the following steps:
1. Defining precisely the required system output
2. Determining the data requirement for producing the output
3. Determining the medium and format of files and databases
4. Devising processing methods and use of software to produce output
5. Determine the methods of data capture and data input
6. Designing Input forms
7. Designing Codification Schemes
8. Detailed manual procedures
9. Documenting the Design
CODING
The system design needs to be implemented to make it a workable system
which means that once the design is complete, this demands the coding of
design into computer understandable language i.e. programming language,
that's why this phase is also known as a programming phase. The goal of
the coding phase is to translate the design of the system into code in a given
programming language. For a given design, the aim of this phase is to
implement the design in the best possible manner. The coding phase affects
both testing and maintenance profoundly. A well written code reduces the
testing and maintenance effort. As the cost of testing and maintenance is
much higher than the coding cost, the goal of coding should be to reduce the
testing and maintenance effort. Hence, during coding the focus should be on
developing programs that are easy to write. Simplicity and clarity should be
strived for, during the coding phase. It is an important stage where the
defined procedures are transformed into control specifications by the help of
a computer language. It is generally felt that the programs must be modular
in nature. This helps in fast development, maintenance and future changes,
if required.
TESTING
The main thrust of the approach is to intensively test the front end in the
first two releases, thus raising approximately 80% of errors in this period.

Software testing is a process of verifying and validating that a software
application or program meets the business and technical requirements that
guided its design and development, and works as expected.
Formal review points in testing:
The diagram above outlines the Test Approach. Boxes 1 - 6 show the major
review stages prior to Test execution. Boxes 7 - 10 show the phases planned
for & after test execution.
It is an important phase of a successful system. After codifying the whole
programs of the system, a test plan should be developed and run on a given
set of test data. The output of the test run should match the expected
results. Using the test data following test run are carried out:
 Program Test
 System Test
Program Test: In program test the programs must be individually tested
with the prepared test data at the time of coding, compiling and brought to
working conditions. Any undesirable happening must be noted and debugged
(error corrections).
System Test: After the program test for each program of the system, and
also the errors are removed then its turn for System test. In this the test is
done on actual data. The complete system is executed on the actual data. At
each stage of the execution, the results or output of the system is analyzed.

At the time of result analysis, it may be found that the outputs are not
matching the expected output of the system. In such case, the errors in the
particular programs are identified and are fixed and further tested for the
expected output.
IMPLEMENTATION
After having the user acceptance of the new system developed, the
Implementation Phase begins. In the implementation phase, the
organization configures and enables system security features, tests the
functionality of these features, installs or implements the system, and
obtains a formal authorization to operate the system. Design reviews and
system tests should be performed before placing the system into operation
to ensure that it meets all required security specifications. In addition, if new
controls are added to the application or the support system, additional
acceptance tests of those new controls must be performed. This approach
ensures that new controls meet security specifications and do not conflict
with or invalidate existing controls. The results of the design reviews and
system tests should be fully documented, updated as new reviews or tests
are performed, and maintained in the organization's official records.
The major steps involved in this phase are:
 Acquisition and Installation of Hardware and Software
 Conversion
 User Training
 Documentation
During this phase, all the programs of the system are loaded onto the user's
computer. After loading the system, training of the user starts. Main topics
of such type of training are:
 How to execute the package
 How to enter the data
 How to process the data (processing details)
 How to take out the reports
After the users are trained about the computerized system, working has to
shift from manual to computerized working. The process is called
'Changeover'. The following strategies are followed for changeover of the
system:
 Direct Changeover
 Parallel Run

 Pilot Run
MAINTENANCE
It is the least glamorous and perhaps most important step of all, goes
forever during whole system life. Inevitably the system will need
maintenance. Software will definitely undergo change once it is delivered to
the customer. There are many reasons for the change. Change could happen
because of some unexpected input values into the system. In addition, the
changes in the system could directly affect the software operations. The
software should be developed to accommodate changes that could happen
during the post implementation period. Maintenance is necessary to
eliminate errors in the system during its working life and to tune the system
to any variations in its working environments. It has been seen that there
are always some errors found in the systems that must be noted and
corrected. It also means the review of the system from time to time. The
review of the system is done for:
 Knowing the full capabilities of the system
 Knowing the required changes or the additional requirements
 Studying the performance.
If a major change to a system is needed, a new project may have to be set
up to carry out the change. The new project will then proceed through all the
above life cycle phases.
Various Models in SDLC:
Why SDLC is necessary?
Software Development Life Cycle (SDLC) is recognized by different website and software
developers all over the world. However there's always a question of the need to implement this
type of planning. We all know that SDLC could help us answer specific needs of different users.
That is a given. But could that problem be answered when you are already familiar with that
specific difficulty? In-house developers could even create the software on their own without
consultation to users since they are also a part of the user group and has a clear understanding of
what is needed. Clearly, SDLC is not needed to create software in this environment.
Various SDLC methodologies have been developed to guide the processes involved including
the waterfall model (the original SDLC method), rapid application development (RAD), joint
application development (JAD), the fountain model and the spiral model.

Various System Development Life Cycle models are:
1. Waterfall Software Development Life Cycle Model
2. Prototyping Software Development Life Cycle Model
3. Iterative Enhancement Model
4. The Spiral Model
5. Object Oriented Methodology
6. V- Model Methodology
7. Joint application development (JAD)
8. Rapid application development (RAD)
From the above models first the SDLC method that describes the various phases involved in the
development is the classic Waterfall model methodology which is shown below:
Waterfall Model:
The Waterfall Model is a popular version of the Systems Development life cycle model for
Software Engineering. It is a linear sequential model. Waterfall development has different goals
for each phase of development. Once a phase of development is completed, the development
proceeds to the next phase and there is no backtracking. The basic steps involved in this model
are:
The stages of the Waterfall Model are:

1. Analysis/Requirement Gathering
This step is the most important of the entire model because it involves gathering
information about customer requirements and defining them in the clearest possible
terms, the problem that the product is expected to solve. This step includes understanding
customer's business context and constraints, functions that must be performed by product
and the external systems it must be compatible with. The result obtained from the
analysis done are typically captured in a formal requirement specification that later on
serves as input to the next step.
2. Designing
This step includes "defining the hardware and software architecture", components,
modules, interfaces and data to satisfy given requirements". It also involves specifying
performance and security parameters, selecting the IDE and programming language and
indicating strategies to deal with issues such as exception handling, resource management
and interface connectivity. The result of this stage is used in the next stage of
implementation.
3. Coding
In this step, the work is intended to set up the defined modules or units and the actual
coding begins. The system is first developed in smaller portions. These smaller portions
are called "units". Later on these units are integrated to form the complete software
package.
4. Testing
In this stage, both individual components and the integrated whole are methodologically
verified to ensure that they are error free and fully meets the requirements defined in the
first step "Analysis/Requirement Gathering". Three types of testing is done: unit testing
of single code modules, system testing of integrated products and acceptance testing
formally done by or on behalf of the customer. If defects are found then they are logged
and feedback is provided to the implementation team for correction.
5. Implementation
This step includes the actual construction of the product as per the design specification
developed in the previous steps. In this step, programmers, interface designers and other
specialists are involved using tools such as compilers, debuggers, interpreters and media
editors. The output of this step is one or more product components, built according to a
pre-defined coding standard and debugged, tested and integrated to satisfy the system
architecture requirements.

6. Maintenance
This step occurs after installation and involves making modifications to the system or an
individual component to alter attributes or improve performance. These modifications
arise either due to change requests initiated by the customer, or defects uncovered during
live use of the system. Every change made to the product during the maintenance cycle is
recorded and a new product release is performed to enable the customer to gain the
benefit of the update.
Advantages
The Waterfall Model is the oldest and most widely used model in the field of software
development. There are certain advantages of this model that makes it, one of the most widely
used models as yet. Some of them are:
 Being a linear model, so easy to understand and implement.
 Fixed requirements.
 The amount of resources required to implement this model is minimal.
Disadvantages
With so many advantages at hand, the Waterfall Model has some disadvantages. Here are a few:
 For long duration projects, requirements may change, therefore there is a potential
reduction of the acceptability of the product.
 Testing is postponed to the later stage until coding is completed.
 The working model is not seen until later stages.
Iterative Enhancement Model:
In Iterative model, iterative process starts with a simple implementation of a small set of the
software requirements and iteratively enhances the evolving versions until the complete system
is implemented and ready to be deployed.
An iterative life cycle model does not attempt to start with a full specification of requirements.
Instead, development begins by specifying and implementing just part of the software, which is
then reviewed in order to identify further requirements. This process is then repeated, producing
a new version of the software at the end of each iteration of the model.

Iterative Model design
Iterative process starts with a simple implementation of a subset of the software requirements
and iteratively enhances the evolving versions until the full system is implemented. At each
iteration, design modifications are made and new functional capabilities are added. The basic
idea behind this method is to develop a system through repeated cycles (iterative) and in smaller
portions at a time (incremental).
Following is the pictorial representation of Iterative and Incremental model:
Iterative and Incremental development is a combination of both iterative design or iterative
method and incremental build model for development. "During software development, more than
one iteration of the software development cycle may be in progress at the same time." and "This
process may be described as an "evolutionary acquisition" or "incremental build" approach."
In incremental model the whole requirement is divided into various builds. During each iteration,
the development module goes through the requirements, design, implementation and testing
phases. Each subsequent release of the module adds function to the previous release. The process
continues till the complete system is ready as per the requirement.
The key to successful use of an iterative software development lifecycle is rigorous validation of
requirements, and verification & testing of each version of the software against those
requirements within each cycle of the model. As the software evolves through successive cycles,
tests have to be repeated and extended to verify each version of the software.
Iterative Model Application
Like other SDLC models, Iterative and incremental development has some specific applications
in the software industry. This model is most often used in the following scenarios:
 Requirements of the complete system are clearly defined and understood.
 Major requirements must be defined; however, some functionalities or requested enhancements
may evolve with time.

 There is a time to the market constraint.
 A new technology is being used and is being learnt by the development team while working on
the project.
 Resources with needed skill set are not available and are planned to be used on contract basis for
specific iterations.
 There are some high risk features and goals which may change in the future.
Spiral Model:
The spiral model combines the idea of iterative development with the systematic, controlled
aspects of the waterfall model.
Spiral model is a combination of iterative development process model and sequential linear
development model i.e. waterfall model with very high emphasis on risk analysis.
It allows for incremental releases of the product, or incremental refinement through each
iteration around the spiral.
Spiral Model design
The spiral model has four phases. A software project repeatedly passes through these phases in
iterations called Spirals.
 Identification:This phase starts with gathering the business requirements in the baseline spiral.
In the subsequent spirals as the product matures, identification of system requirements,
subsystem requirements and unit requirements are all done in this phase.
This also includes understanding the system requirements by continuous communication
between the customer and the system analyst. At the end of the spiral the product is deployed in
the identified market.
 Design:Design phase starts with the conceptual design in the baseline spiral and involves
architectural design, logical design of modules, physical product design and final design in the
subsequent spirals.
 Construct or Build:Construct phase refers to production of the actual software product at every
spiral. In the baseline spiral when the product is just thought of and the design is being developed
a POC (Proof of Concept) is developed in this phase to get customer feedback.
Then in the subsequent spirals with higher clarity on requirements and design details a working
model of the software called build is produced with a version number. These builds are sent to
customer for feedback.
 Evaluation and Risk Analysis:Risk Analysis includes identifying, estimating, and monitoring
technical feasibility and management risks, such as schedule slippage and cost overrun. After

testing the build, at the end of first iteration, the customer evaluates the software and provides
feedback.
Following is a diagrammatic representation of spiral model listing the activities in each phase:
Based on the customer evaluation, software development process enters into the next iteration
and subsequently follows the linear approach to implement the feedback suggested by the
customer. The process of iterations along the spiral continues throughout the life of the software.
Spiral Model Application
Spiral Model is very widely used in the software industry as it is in synch with the natural
development process of any product i.e. learning with maturity and also involves minimum risk
for the customer as well as the development firms. Following are the typical uses of Spiral
model:
 When costs there is a budget constraint and risk evaluation is important.
 For medium to high-risk projects.
 Long-term project commitment because of potential changes to economic priorities as the
requirements change with time.
 Customer is not sure of their requirements which are usually the case.

 Requirements are complex and need evaluation to get clarity.
 New product line which should be released in phases to get enough customer feedback.
 Significant changes are expected in the product during the development cycle.
Prototyping Model:
The Software Prototyping refers to building software application prototypes which display the
functionality of the product under development but may not actually hold the exact logic of the
original software.
Software prototyping is becoming very popular as a software development model, as it enables
to understand customer requirements at an early stage of development. It helps get valuable
feedback from the customer and helps software designers and developers understand about what
exactly is expected from the product under development.
What is Software Prototyping?
 Prototype is a working model of software with some limited functionality.
 The prototype does not always hold the exact logic used in the actual software application and is
an extra effort to be considered under effort estimation.
 Prototyping is used to allow the users evaluate developer proposals and try them out before
implementation.
 It also helps understand the requirements which are user specific and may not have been
considered by the developer during product design.
Following is the stepwise approach to design a software prototype:
 Basic Requirement Identification: This step involves understanding the very basics product
requirements especially in terms of user interface. The more intricate details of the internal
design and external aspects like performance and security can be ignored at this stage.
 Developing the initial Prototype: The initial Prototype is developed in this stage, where the
very basic requirements are showcased and user interfaces are provided. These features may not
exactly work in the same manner internally in the actual software developed and the
workarounds are used to give the same look and feel to the customer in the prototype developed.
 Review of the Prototype:The prototype developed is then presented to the customer and the
other important stakeholders in the project. The feedback is collected in an organized manner
and used for further enhancements in the product under development.
 Revise and enhance the Prototype: The feedback and the review comments are discussed
during this stage and some negotiations happen with the customer based on factors like , time

and budget constraints and technical feasibility of actual implementation. The changes accepted
are again incorporated in the new Prototype developed and the cycle repeats until customer
expectations are met.
Prototypes can have horizontal or vertical dimensions. Horizontal prototype displays the user
interface for the product and gives a broader view of the entire system, without concentrating on
internal functions. A vertical prototype on the other side is a detailed elaboration of a specific
function or a sub system in the product.
The purpose of both horizontal and vertical prototype is different. Horizontal prototypes are used
to get more information on the user interface level and the business requirements. It can even be
presented in the sales demos to get business in the market. Vertical prototypes are technical in
nature and are used to get details of the exact functioning of the sub systems. For example,
database requirements, interaction and data processing loads in a given sub system.
Software Prototyping Types
There are different types of software prototypes used in the industry. Following are the major
software prototyping types used widely:
 Throwaway/Rapid Prototyping: Throwaway prototyping is also called as rapid or close ended
prototyping. This type of prototyping uses very little efforts with minimum requirement analysis
to build a prototype. Once the actual requirements are understood, the prototype is discarded and
the actual system is developed with a much clear understanding of user requirements.
 Evolutionary Prototyping: Evolutionary prototyping also called as breadboard prototyping is
based on building actual functional prototypes with minimal functionality in the beginning. The
prototype developed forms the heart of the future prototypes on top of which the entire system is
built. Using evolutionary prototyping only well understood requirements are included in the
prototype and the requirements are added as and when they are understood.
 Incremental Prototyping: Incremental prototyping refers to building multiple functional
prototypes of the various sub systems and then integrating all the available prototypes to form a
complete system.
 Extreme Prototyping : Extreme prototyping is used in the web development domain. It consists
of three sequential phases. First, a basic prototype with all the existing pages is presented in the
html format. Then the data processing is simulated using a prototype services layer. Finally the
services are implemented and integrated to the final prototype. This process is called Extreme
Prototyping used to draw attention to the second phase of the process, where a fully functional
UI is developed with very little regard to the actual services.
Software Prototyping Application
Software Prototyping is most useful in development of systems having high level of user
interactions such as online systems. Systems which need users to fill out forms or go through
various screens before data is processed can use prototyping very effectively to give the exact
look and feel even before the actual software is developed.

Software that involves too much of data processing and most of the functionality is internal with
very little user interface does not usually benefit from prototyping. Prototype development could
be an extra overhead in such projects and may need lot of extra efforts.
RAD Model:
The RAD (Rapid Application Development) model is based on prototyping and iterative
development with no specific planning involved. The process of writing the software itself
involves the planning required for developing the product.
Rapid Application development focuses on gathering customer requirements through workshops
or focus groups, early testing of the prototypes by the customer using iterative concept, reuse of
the existing prototypes (components), continuous integration and rapid delivery.
What is RAD?
Rapid application development (RAD) is a software development methodology that uses
minimal planning in favor of rapid prototyping. A prototype is a working model that is
functionally equivalent to a component of the product.
In RAD model the functional modules are developed in parallel as prototypes and are integrated
to make the complete product for faster product delivery.
Since there is no detailed preplanning, it makes it easier to incorporate the changes within the
development process. RAD projects follow iterative and incremental model and have small
teams comprising of developers, domain experts, customer representatives and other IT
resources working progressively on their component or prototype.
The most important aspect for this model to be successful is to make sure that the prototypes
developed are reusable.

RAD Model Design
RAD model distributes the analysis, design, build, and test phases into a series of short, iterative
development cycles. Following are the phases of RAD Model:
 Business Modeling: The business model for the product under development is designed in terms
of flow of information and the distribution of information between various business channels. A
complete business analysis is performed to find the vital information for business, how it can be
obtained, how and when is the information processed and what are the factors driving successful
flow of information.
 Data Modeling: The information gathered in the Business Modeling phase is reviewed and
analyzed to form sets of data objects vital for the business. The attributes of all data sets is
identified and defined. The relation between these data objects are established and defined in
detail in relevance to the business model.
 Process Modeling: The data object sets defined in the Data Modeling phase are converted to
establish the business information flow needed to achieve specific business objectives as per the
business model. The process model for any changes or enhancements to the data object sets is
defined in this phase. Process descriptions for adding , deleting, retrieving or modifying a data
object are given.
 Application Generation: The actual system is built and coding is done by using automation
tools to convert process and data models into actual prototypes.
 Testing and Turnover: The overall testing time is reduced in RAD model as the prototypes are
independently tested during every iteration. However the data flow and the interfaces between all
the components need to be thoroughly tested with complete test coverage. Since most of the
programming components have already been tested, it reduces the risk of any major issues.
Following image illustrates the RAD Model:

RAD Model Vs Traditional SDLC
The traditional SDLC follows a rigid process models with high emphasis on requirement
analysis and gathering before the coding starts. It puts a pressure on the customer to sign off the
requirements before the project starts and the customer doesn.t get the feel of the product as there
is no working build available for a long time.
The customer may need some changes after he actually gets to see the software, however the
change process is quite rigid and it may not be feasible to incorporate major changes in the
product in traditional SDLC.
RAD model focuses on iterative and incremental delivery of working models to the customer.
This results in rapid delivery to the customer and customer involvement during the complete
development cycle of product reducing the risk of non conformance with the actual user
requirements.
RAD Model Application
RAD model can be applied successfully to the projects in which clear modularization is possible.
If the project cannot be broken into modules, RAD may fail. Following are the typical scenarios
where RAD can be used:
 RAD should be used only when a system can be modularized to be delivered in incremental
manner.
 It should be used if there’s high availability of designers for modeling.
 It should be used only if the budget permits use of automated code generating tools.
 RAD SDLC model should be chosen only if domain experts are available with relevant business
knowledge.
 Should be used where the requirements change during the course of the project and working
prototypes are to be presented to customer in small iterations of 2-3 months.
V-Model
The V - model is SDLC model where execution of processes happens in a sequential manner in
V-shape. It is also known as Verification and Validation model.
V - Model is an extension of the waterfall model and is based on association of a testing phase
for each corresponding development stage. This means that for every single phase in the
development cycle there is a directly associated testing phase. This is a highly disciplined model
and next phase starts only after completion of the previous phase.

V- Model design
Under V-Model, the corresponding testing phase of the development phase is planned in parallel.
So there are Verification phases on one side of the .V. and Validation phases on the other side.
Coding phase joins the two sides of the V-Model.
The below figure illustrates the different phases in V-Model of SDLC.
Verification Phases
Following are the Verification phases in V-Model:
 Business Requirement Analysis: This is the first phase in the development cycle where the
product requirements are understood from the customer perspective. This phase involves detailed
communication with the customer to understand his expectations and exact requirement. This is a
very important activity and need to be managed well, as most of the customers are not sure about
what exactly they need. The acceptance test design planning is done at this stage as business
requirements can be used as an input for acceptance testing.
 System Design: Once you have the clear and detailed product requirements, it.s time to design
the complete system. System design would comprise of understanding and detailing the complete
hardware and communication setup for the product under development. System test plan is
developed based on the system design. Doing this at an earlier stage leaves more time for actual
test execution later.
 Architectural Design: Architectural specifications are understood and designed in this phase.
Usually more than one technical approach is proposed and based on the technical and financial
feasibility the final decision is taken. System design is broken down further into modules taking
up different functionality. This is also referred to as High Level Design (HLD).

The data transfer and communication between the internal modules and with the outside world
(other systems) is clearly understood and defined in this stage. With this information, integration
tests can be designed and documented during this stage.
 Module Design: In this phase the detailed internal design for all the system modules is specified,
referred to as Low Level Design (LLD). It is important that the design is compatible with the
other modules in the system architecture and the other external systems. Unit tests are an
essential part of any development process and helps eliminate the maximum faults and errors at a
very early stage. Unit tests can be designed at this stage based on the internal module designs.
Coding Phase
The actual coding of the system modules designed in the design phase is taken up in the Coding
phase. The best suitable programming language is decided based on the system and architectural
requirements. The coding is performed based on the coding guidelines and standards. The code
goes through numerous code reviews and is optimized for best performance before the final build
is checked into the repository.
Validation Phases
Following are the Validation phases in V-Model:
 Unit Testing: Unit tests designed in the module design phase are executed on the code during
this validation phase. Unit testing is the testing at code level and helps eliminate bugs at an early
stage, though all defects cannot be uncovered by unit testing.
 Integration Testing: Integration testing is associated with the architectural design phase.
Integration tests are performed to test the coexistence and communication of the internal
modules within the system.
 System Testing: System testing is directly associated with the System design phase. System
tests check the entire system functionality and the communication of the system under
development with external systems. Most of the software and hardware compatibility issues can
be uncovered during system test execution.
 Acceptance Testing: Acceptance testing is associated with the business requirement analysis
phase and involves testing the product in user environment. Acceptance tests uncover the
compatibility issues with the other systems available in the user environment. It also discovers
the nonfunctional issues such as load and performance defects in the actual user environment.
V- Model Application
V- Model application is almost same as waterfall model, as both the models are of sequential
type. Requirements have to be very clear before the project starts, because it is usually expensive
to go back and make changes. This model is used in the medical development field, as it is
strictly disciplined domain. Following are the suitable scenarios to use V-Model:
 Requirements are well defined, clearly documented and fixed.
 Product definition is stable.
 Technology is not dynamic and is well understood by the project team.

 There are no ambiguous or undefined requirements.
 The project is short.
Joint application development (JAD) Model:
Uses for JAD:
1. Application Development, Adaptation, & Selection
Requirements
External Design/Prototypes
User Test Cases
Training
Post-Implementation Reviews
2. Strategic Planning
3. Customer Satisfaction Session
4. Organization Changes
5. Request for Proposal Development
6. Curriculum Design/Development
Why Use JAD?
1. Accelerates Application Development/Selection Process
2. Increases Developers’ Productivity
3. User Participation in Application’s Design
4. Improves Communications Between:
User and I/S
User and User

I/S and I/S
5. Enables Consensus, Commitment, and Partnership across the Enterprise
Why JAD Works
Users:
1. Educates Users about Development Process
2. Gives Users More Input & Accountability for Design
3. Leverages User's Subject Matter Expertise at Right Time
I/S:
1. Ensures I/S and Users Come to Consensus Early
2. Provides I/S Subject Matter Expertise at Right Time
3. Educates I/S about Business Process
MANAGEMENT:
1. Ensures Management Communications & Participation
Through Executive Sponsor
2. Enforces Top-Down Design to Ensure Business Objectives
Are Met
3. Educates Management On Both I/S and Business Area Detail
4. Leverages Management Subject Matter Expertise at Right Time
Agile Model:
Agile SDLC model is a combination of iterative and incremental process models with focus on
process adaptability and customer satisfaction by rapid delivery of working software product.
Agile Methods break the product into small incremental builds. These builds are provided in
iterations. Each iteration typically lasts from about one to three weeks. Every iteration involves
cross functional teams working simultaneously on various areas like planning, requirements
analysis, design, coding, unit testing, and acceptance testing.
At the end of the iteration a working product is displayed to the customer and important
stakeholders.
What is Agile?
Agile model believes that every project needs to be handled differently and the existing methods
need to be tailored to best suit the project requirements. In agile the tasks are divided to time
boxes (small time frames) to deliver specific features for a release.

Iterative approach is taken and working software build is delivered after each iteration. Each
build is incremental in terms of features; the final build holds all the features required by the
customer.
Here is a graphical illustration of the Agile Model:
Agile thought process had started early in the software development and started becoming
popular with time due to its flexibility and adaptability.
The most popular agile methods include Rational Unified Process (1994), Scrum (1995), Crystal
Clear, Extreme Programming (1996), Adaptive Software Development, Feature Driven
Development, and Dynamic Systems Development Method (DSDM) (1995). These are now
collectively referred to as agile methodologies, after the Agile Manifesto was published in 2001.
Following are the Agile Manifesto principles
 Individuals and interactions - in agile development, self-organization and motivation are
important, as are interactions like co-location and pair programming.
 Working software - Demo working software is considered the best means of communication
with the customer to understand their requirement, instead of just depending on documentation.
 Customer collaboration - As the requirements cannot be gathered completely in the beginning
of the project due to various factors, continuous customer interaction is very important to get
proper product requirements.
 Responding to change - agile development is focused on quick responses to change and
continuous development.

Agile Vs Traditional SDLC Models
Agile is based on the adaptive software development methods where as the traditional SDLC
models like waterfall model is based on predictive approach.
Predictive teams in the traditional SDLC models usually work with detailed planning and have a
complete forecast of the exact tasks and features to be delivered in the next few months or during
the product life cycle. Predictive methods entirely depend on the requirement analysis and
planning done in the beginning of cycle. Any changes to be incorporated go through a strict
change control management and prioritization.
Agile uses adaptive approach where there is no detailed planning and there is clarity on future
tasks only in respect of what features need to be developed. There is feature driven development
and the team adapts to the changing product requirements dynamically. The product is tested
very frequently, through the release iterations, minimizing the risk of any major failures in
future.
Customer interaction is the backbone of Agile methodology, and open communication with
minimum documentation are the typical features of Agile development environment. The agile
teams work in close collaboration with each other and are most often located in the same
geographical location.

System development life cycle

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to System development life cycle

Similar to System development life cycle (20)

More from Yaswanth Babu Gummadivelli

More from Yaswanth Babu Gummadivelli (20)

Recently uploaded

Recently uploaded (20)

System development life cycle
