1. Software Engineering I
PROJECT
 PROJECT TITLE
MEDICAL STORE MANAGEMENT SYSTEM
 SUBMITTED TO
MAM SARFARAZ
 SUBMITTEDBY
MUHAMMAD HANIF (13-Arid-1289)
BILAL IQBAL (13-Arid-1254)
KASHIFSULTAN (13-Arid-
1296

2.  Introduction
 Project Name: - Medical Store Management
 This project is used mainly for medical stores to
maintain the details of medical store such as stock
and account.
 This medical shop management software is so
designed as to ease the work load of medical shop
professionals. The main feature includes inventory
and stock control, accounting, client management

3.  Scope & Objectives
 As this is generic software it can be used by a wide
variety of outlets (Retailers and Wholesalers) to
automate the process of manually maintaining the
records related to the subject of maintaining the
stock and cash flows.
 This project is basically updating the manual
chemist inventory System To Automated inventory
system, So that organization can manage their
record in efficient and organized form.

4.  This software helps you to track all the products
of medical shop moreover it’s a medical shop
accounting software. Flexible and adaptive
software suited to medical shops or stores or
pharmacies of any size.
 Project Characteristics:
 Customer management
 Transition management
 Sales management
 Reporting

5.  The main goal of the application is to maintain
the records of purchase, Sales and stock
details with cash transaction maintenance.
 Medical Store Management software is very
needy for Medical Store . This software help
them maintain day to day transactions in
computer.

6.  Drawbacks
 Problem To maintian record of daily
trananctions
 They have Work load so they Also
haveproblem in dealing with their
customer
 At the End of the they t also have
problem in calculating their profit
,sales,Purchases etc,

7.  They also have problem to find a
specific product
 Problem I also occur while creating
invoices&reports.

8.  Project deliveries&budget
 The Total Cost of the project is
45,000.
 The project Is Deliver within the
time of 3 months as per contract
negotiations.

9.  Model Implementation
 Water Fall Model Is Used To develop this project

10.  Reason For choosing WaterFall
Model
 This is Small Project and Requirements Are Well
understood.
 This model is simple and easy to understand and
use.
 Waterfall model is simple to implement and also
the amount of resources required for it are
minimal.
 It is easy to manage due to the rigidity of the
model – each phase has specific deliverables and
a review process.

11.  In this model, output is generated after each
stage (as seen before), therefore it has high
visibility. The client and project manager gets a
feel that there is considerable progress. Here it
is important to note that in any project
psychological factors also play an important
role.
 In this model phases are processed and
completed one at a time. Phases do not
overlap.
 This Project Is Conversion From Manual To
Automatic

12.  Software Requirement
Specification (SRS)
 Purpose
 This document outlines the software requirements for the
Chemist management system for the D-Watson Chemist. It
describes the functional and non-functional requirements,
modeling requirements, diagrams and user profiles of the
proposed system.
 The Chemist Management System enables D-watson staff
to maintain computerized Record Of Customer Who visits,
their Employees & product.Its also perform quick search for
their products,Manages Counter sales And Keep record of
salesman. This SRS provides detailed information on the
internal and external view of the system as well as
interfaces required by Chemist management System.

13.  Document Convention
 The following are the list of conventions and
synonyms’ used in the Document &project
 Administrator :
 A log in Id representing the user with user
administration privileges To Software.
 Cilient:
 Intend user of Software
 Sql
 (Structured Query language ).used To perform
CRUD operations on Database.

14.  Oracle
A server used To store data in organized form
 Java
Coding language.
 DFD:
Show the Data Flow Between Entities.
 User interface:
Something through which user communicate with
system.

15.  Project Features
 There Will be two user Accessing System System
 Manager : Who will act As Administrator
 Other Staff: Who Will accessing the System
 User
The Features for manager are
 Add ,delete update any product
 Manage store i-e(put price,make salaries,Calculate
Revenue )

16. The features for the Other Staff Are
 Cashier can only search the product
and make the bill
 Can see the list of product
 Other staff can mark their attendance
And check their Status.
 User can only see the product price
and available products

17.  User Classes and
Characteristics
 User Of project include customers and staff
 Customer can be Member or visitor who are
accessing this system.
 Staff Which act as administrator and controlling
overall system
 User Should IT literate And know to use computer
 Cashier Should Know Data entry & Typing
 Manager should have knowledge of Internet &
Browsing


18. Operating environment
 This project will be operating in windows environment.Also compatible with
internet explorer.
 The only requirement For using this project is having machine.
Design and implemention constraints
 This project is developed using java.on the back hand for database we are
using Sql server. The product is Accomplished With the login facility for user.
User Documentation
 This project will include a user manual. The user manual include Complete
overview of the producst,Configuration of the Tool used (Sql Sever or other),
technical details, backup procedures and Contact Information which will
include email address and Ph# .

19.  Hardware Requirements
 Processor : Intel Pentium 4
 RAM : 512 MB RAM
 Monitor : 1 5”Colour Monitor
 Processor Speed : 1.7 GHZ
 Hard disk : 1.44 MB FDD
 CD Drive : 52- X CD ROM
 Keyboard : Mercury 110 Keys
 Mouse : Logitech Mouse

20.  System Features
Description & priorirty
 Proposed Database is intended to store, retrieve, update,
andmanipulate information related to Chemist which include
 Order Processing & taking
 Staff information
 Customer Bill Detail
 Product Details
 Calculation of Revenue,Staff Salaries
 Searching of product
 Remainder About Products expiry,Shaortage
 Generate Reports

21.  Functional Requirements
 The software must allow input of products data from
Administrator& secured access at , and from the data
streaming real-time monitoring equipment
 The project must request username and password for
access to data, only after authentication will allow access
to the system.
 The project must require high levels of error correction and
input validation.
 The project must allow browsing by the Director&Staff of
Cms To Acces And update information products &
Customers ,vendors.
 The project must identify the Products & Customer by a
unique numeric identifier derived from a function
performed on the Customer’s birth date or product Id;

22.  The software to be developed must operate without
interruption twenty-four hours a day.
 The software to be developed shall display the correct
time of day in compliance with Standards (ISO etc).
 The software must retrieve, update, and store data from
multiple input .
 The software must allow full and complete record search
queries by Users
 The product must allow Customer to view their own
Concern record allowing changes only to address, phone
number, and insurer after initial input.
.

23.  Non Functional Requirements

 The software interface must follow design conventions
which allow for familiar location of menus,etc.
 Input errors will be returned in red with appropriate
message box.
 More than three attempts at login and failure will
produce a red flag to system administrator.
 Response Time Should be minimum.
 No of daily system downs Should not more than 10.
 System should Automatically Update After Every
Transcation

24.  Performance Requirements
 The Physician software should be able to support at least three
simultaneous users.
 95% of the transactions shall be processed in less than one
second.
 Data should be secured and backed up every quarter hour.
 Power supply should have a back up and a disaster recovery
plan.
 System should be operable 24 hours a day and accessible in
real-time.
 Encryption will Enable Security

25.  Safety Requirements
 The Database may get crashed or damaged due to
some viruses or operating system requirements.Therefore
Its is mandatory to have backup for your
data.Ups/inverter facility should be there in case of
power failure.
 Security Requirements
 System will use secure Database
 Staff can just see the products & mark their attendance
.They Cannot edit or,modify anything except their
personal information.
 Proper user Authentication Will be provided.
 There should be separate account for Admin &user. So
that no one else can access the database except
Admin.

26.  User requirements
 The User Of system are Staff ,Managers and
customer of the store.
 The members share assumed to have basic
knowledge of computer & internet browsing
While administrator of system should have
more knowledge so he/she can resolve small
problems and perform information’s.
 The user manual ,installation guide and other
related material should be sufficient to
educate the user how to use and maintain the
system.

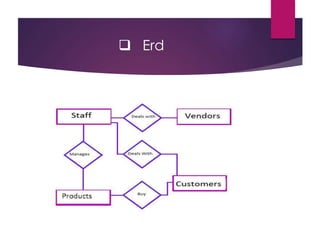

27.  Erd

28.  Data Flow Diagram (Dfd)O
Level/Context Level

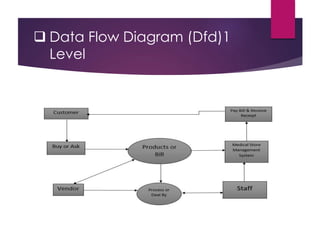

29.  Data Flow Diagram (Dfd)1
Level

30.  WORK BREAK DOWN
STRUCTURE

31.  Activity Table
Activity Description Duration Pre E.S L.S E.F L.F Slack
A Requirement Gathering 3 Weeks None 0 9 3 12 4
B Hadware Selection 2 weeks None 0 9 2 11 4
C Designing 4 weeks A 3 7 7 11 0
D Coding` 4 weeks C,A 7 7 7 11 0
E Debugging/testing 4 weeks D,B 11 11 11 15 4
F Writing User Manuals 8 weeks E 22 15 19 23 4
G User training 1 week F, 12 23 16 24 4

32.  PDM

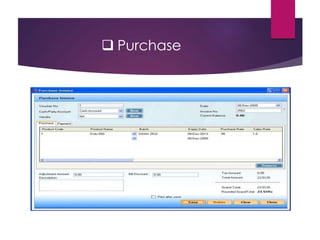

34.  Purchase

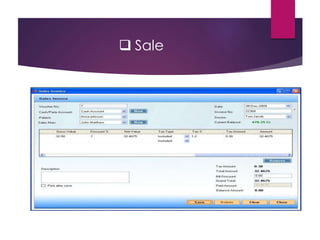

35.  Sale
