The document discusses systems analysis and design. It states that system analysis describes what a system should do to meet user needs, while system design specifies how the system will accomplish this through design activities that produce specifications satisfying requirements developed in analysis. The document then provides details on various aspects of systems analysis, design, feasibility, lifecycles and more.

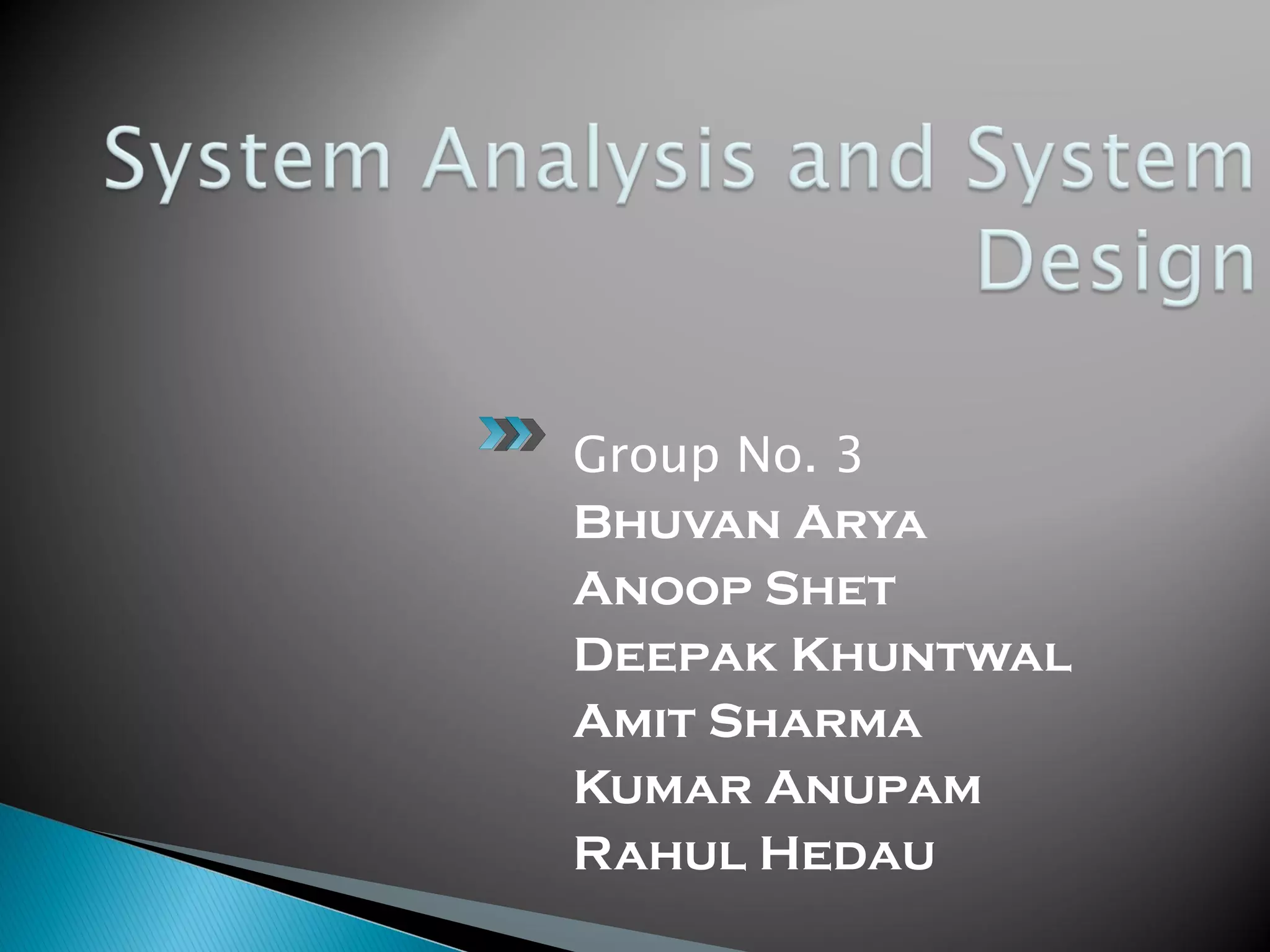

1. Group No. 3
Bhuvan Arya
Anoop Shet
Deepak Khuntwal
Amit Sharma
Kumar Anupam
Rahul Hedau

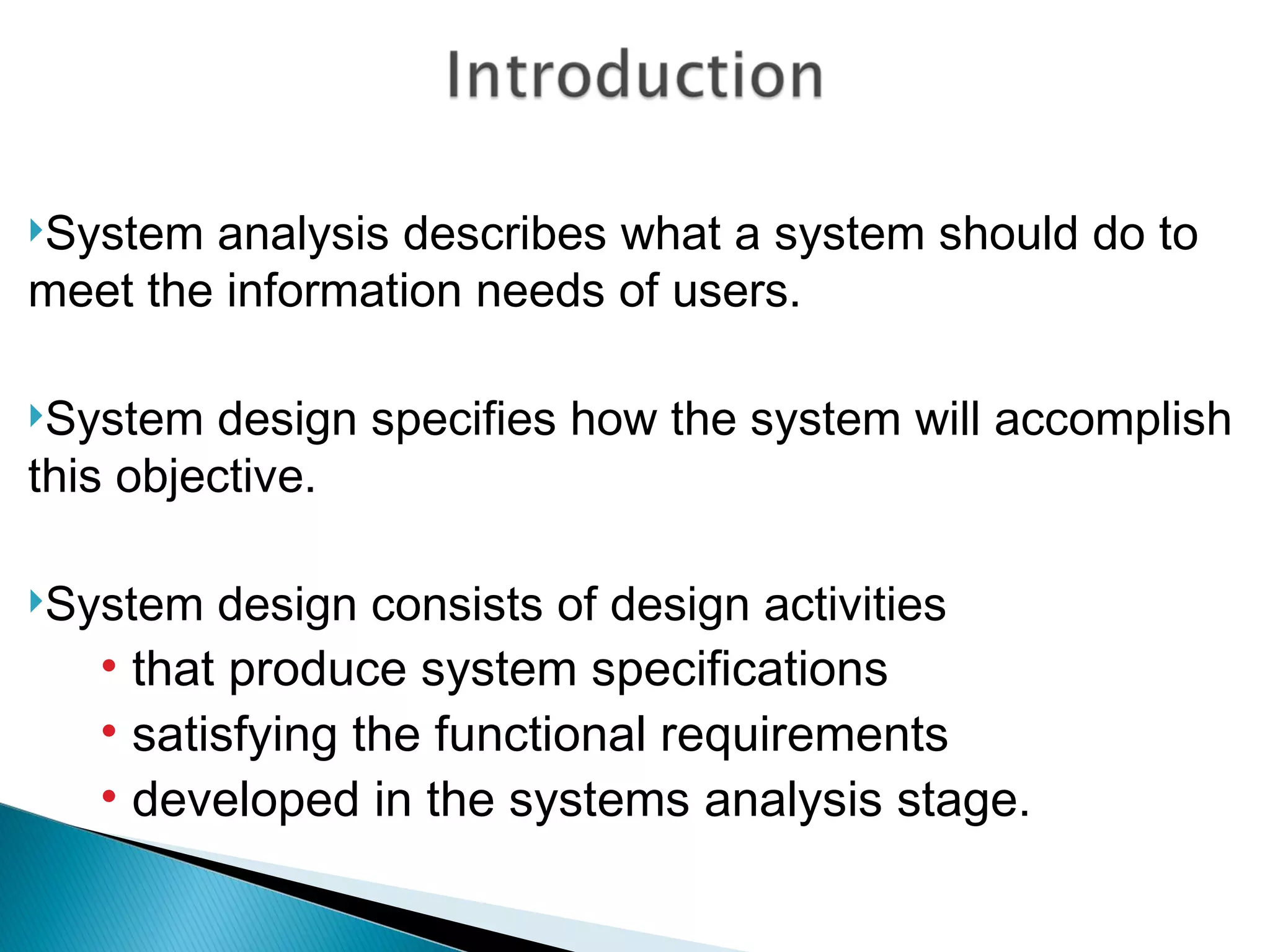

2. System analysis describes what a system should do to
meet the information needs of users.
System design specifies how the system will accomplish
this objective.
System design consists of design activities
• that produce system specifications
• satisfying the functional requirements
• developed in the systems analysis stage.

3.  Describe the strategic planning process, and why it is
important to IT managers
 Explain the purpose of a mission statement
 Explain the SDLC as a framework for systems
development and business modeling
 Explain the reasons for information systems projects
and the factors that affect such projects

4.  Describe the initial review of systems requests and the
role of the systems review committee
 Describe the internal and external factors that affect
information systems projects
 Define operational feasibility, technical feasibility, and
economic feasibility
 Describe the steps and end product of a preliminary
investigation

5.  Systems planning tasks
◦ Examine the systems request
◦ Conduct a preliminary investigation
◦ Using SDLC and CASE tools to provide a framework

6. The SDLC is generally presented as an iterative sequence of five steps:
◦ Systems Planning
◦ Systems Analysis
◦ Systems Design
◦ Systems Implementation
◦ Systems Operation and Support
each culminating in a deliverable, either a written document or a piece
of software (or both)
SDLC allows organizations to incorporate new requirements,
technology and human resources to IT development

7. 1. Systems Planning
 Project definition
 Feasibility study
 Project scope, deliverables
 Standards, techniques and methods
 Task assessment, skill assessment, preliminary time estimation
2. Systems Analysis
 Analysis of existing hardware/software
 User requirements analysis
 Logical systems design:
A. Conceptual data model
B. Conceptual process model
C. Functional application description

8. 3. Systems Design
 Relational database model and data dictionary
 Detailed description of application inputs and outputs
 Detailed conceptual design of forms, reports, application
programs and other application components
4. Systems Implementation
 Application development
 Testing and Evaluation
 Yields Functional Information System
5. Systems Operation and Support
 Maintenance
 Revisions
 Yields Operating Information System

9.  Reasons for Systems Analysis
◦ Improved service
◦ Better performance
◦ More information
◦ Stronger controls
◦ Reduced cost

10.  Overview of feasibility
◦ Feasibility study uses three main yardsticks:
 Operational feasibility
 Technical feasibility
 Economic feasibility

11.  Operational feasibility
◦ Is the system a practical and effective approach?
 Operational feasibility depends on:
◦ Management and user support
◦ User involvement in planning
◦ Impact of performance on customers and company
◦ Reasonable schedules

12.  Technical feasibility
◦ Does the organization have resources to develop/purchase
and operate the system?
 Technical feasibility depends on:
◦ Technical expertise within the organization
◦ Availability of necessary equipment
◦ Hardware and software reliability
◦ Adequate performance that will meet specifications
◦ Capacity for future needs/projected growth

13.  Economic feasibility
◦ Do the projected benefits outweigh the estimated costs
of development, installation, and operation?
 Economic feasibility depends on:
◦ Costs — one time and continuing costs
◦ Benefits — tangible and intangible benefits
◦ Timing of various costs and benefits
◦ Cost of not developing the system

14.  Determining feasibility
◦ First step is a determination of feasibility
◦ Goal is to identify non-feasible projects as soon as
possible
◦ Feasibility can change over time
 Non-feasible projects can be resubmitted
 Initially feasible projects can be rejected later

15.  Criteria used to evaluate systems requests
◦ Reduce costs
◦ Increase revenue
◦ Produce more information or better results
◦ Serve customers and the organization better
◦ Reasonable time frame and lasting results
◦ Resources available
◦ Necessary or discretionary
◦ Tangible or intangible factors

16.  Discretionary and non-discretionary projects
◦ Necessity of project
◦ Possibly no need to review non-discretionary projects
in committee

17.  Purpose
◦ To decide whether to continue the project
 Objectives for a preliminary investigation
1. Understand the problem
2. Define the project scope and constraints
3. Identify the benefits
4. Estimate the time and costs
5. Report to management
 Interaction with managers and users

18.  Step 1: Understand the problem
◦ Identify the true nature of the problem and the reason
for the systems request
◦ Stated problem may not be the real problem
◦ Clear statement defines the investigation scope

19.  Step 2: Define the project scope and constraints
◦ Project scope
 Define the range or extent of the project
 Set project boundaries
◦ Constraints
 Identify conditions, restrictions, or requirements
« Present vs. future
« Internal vs. external
« Mandatory vs. desirable

20.  Step 3: Perform fact finding
◦ Analyze organization charts
◦ Conduct interviews
◦ Observe operations
◦ Carry out a user survey

21.  Step 4: Determine feasibility
◦ Determine operational, technical, and economic
feasibility

22.  Step 5: Estimate time and cost to continue development
◦ Determine what information is needed
◦ Identify the sources of information
◦ Decide whether to use interviews, if so how many, and
what time needed
◦ Decide whether to use surveys, if so who to complete
it, and what time needed
◦ Estimate the cost of gathering, analyzing, and
reporting the information to management

23.  Step 6: Present results and recommendations to
management
◦ Final task in the preliminary investigation
◦ Key elements
 Evaluation of systems request
 Estimate of costs and benefits
 Recommendations

25.  Focuses on designing the interactions between end
users and computer systems.
 Designers concentrate on
- input/ output methods and
- the conversion of data and information between
human-readable and machine-readable forms.
 This is a proto typing process where working models or
prototypes of user interface methods are designed and
modified with feedback from the end users.

26.  Focuses on
-the design of the structure of databases and
-files to be used by a proposed information
system.
 Data design frequently produces a data dictionary,
which catalogs detailed descriptions of:
• The attributes of the entities about which the
proposed information system needs to maintain
information.
• The relationships these entities have with each
other.
• The specific data elements(databases, files, record,
etc..) that need to be maintained for each activity.
• The integrity rules that govern how each data

27.  Focuses on the development of software resources,
(the programs, procedures) needed by the proposed
information system.
 Process design produces detailed program
specifications and procedures needed to meet
-the user interface and data design specifications
that
are developed.
-meet the functional control and performance
requirements developed in the analysis stage.

28.  Final design must specify what types of hardware
resources, network resources, and people resources
will be needed.
 It must specify how such resources will convert data
resources into information products.
 These specifications are the final product of the
systems design stage called system specifications.

29.  User interface specifications
- Content, format, sequence of user interface products
and methods.
 Database specifications
- Content, structure, distribution, maintenance,
retention of databases.
 Software specifications
- The required software package of the proposed
system

30.  Hardware specifications
- The physical and performance characteristics of the
equipments and
networks.
 Personnel specifications
- Job descriptions of persons who will operate the
system.

31. Systems Analysis and Design Fourth
Edition
