Skeletal System

Anatomy and
Physiology “2”
………..
For Students of Occupational Therapy

Lecturer: Mohammed Subhi El-Lulu

Skeletal System

Anatomy & Physiology 2
2
mohdlulu@hotmail.com

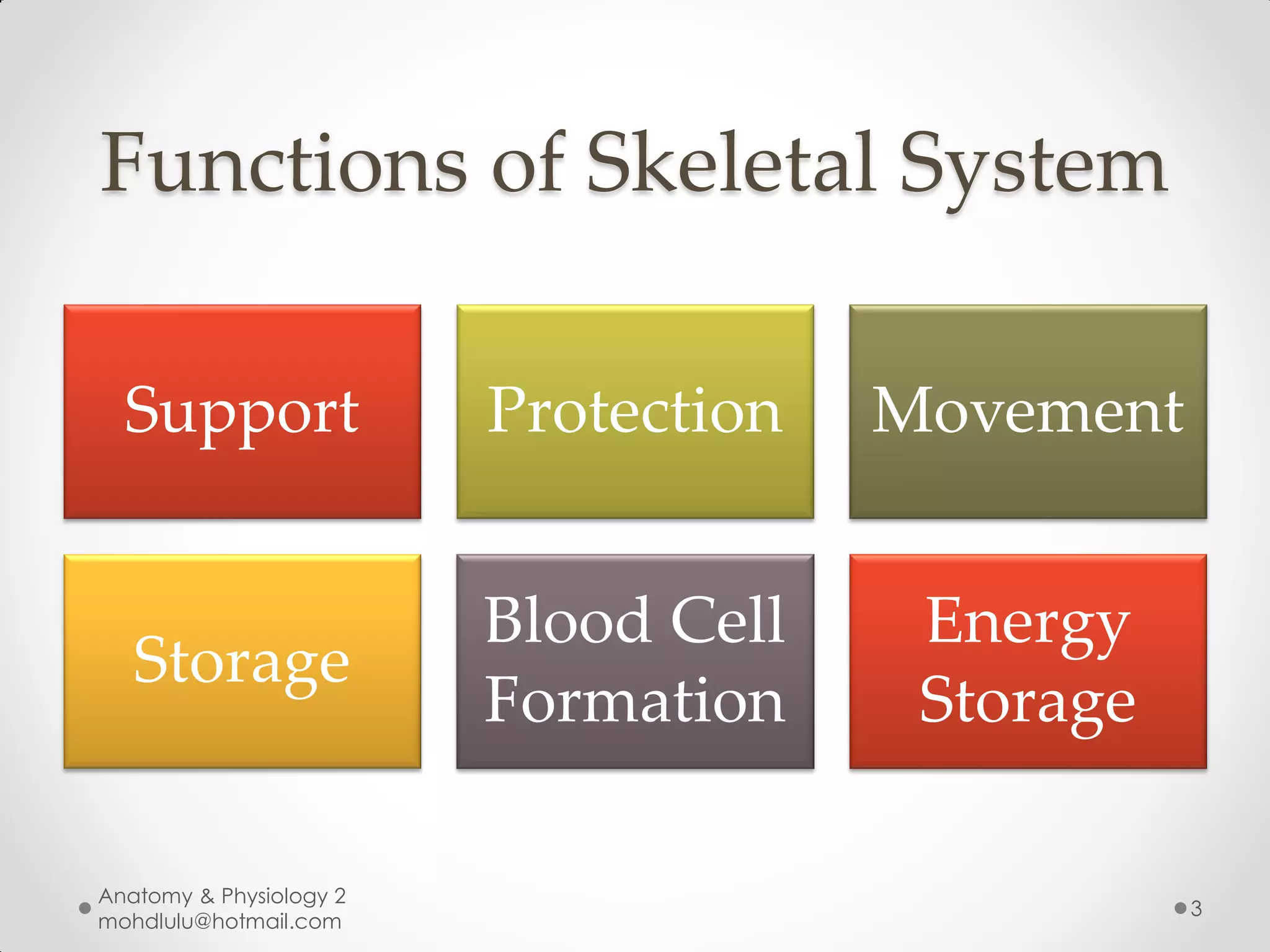

Functions of Skeletal System

Support Protection Movement

Blood Cell Energy
Storage
Formation Storage

3

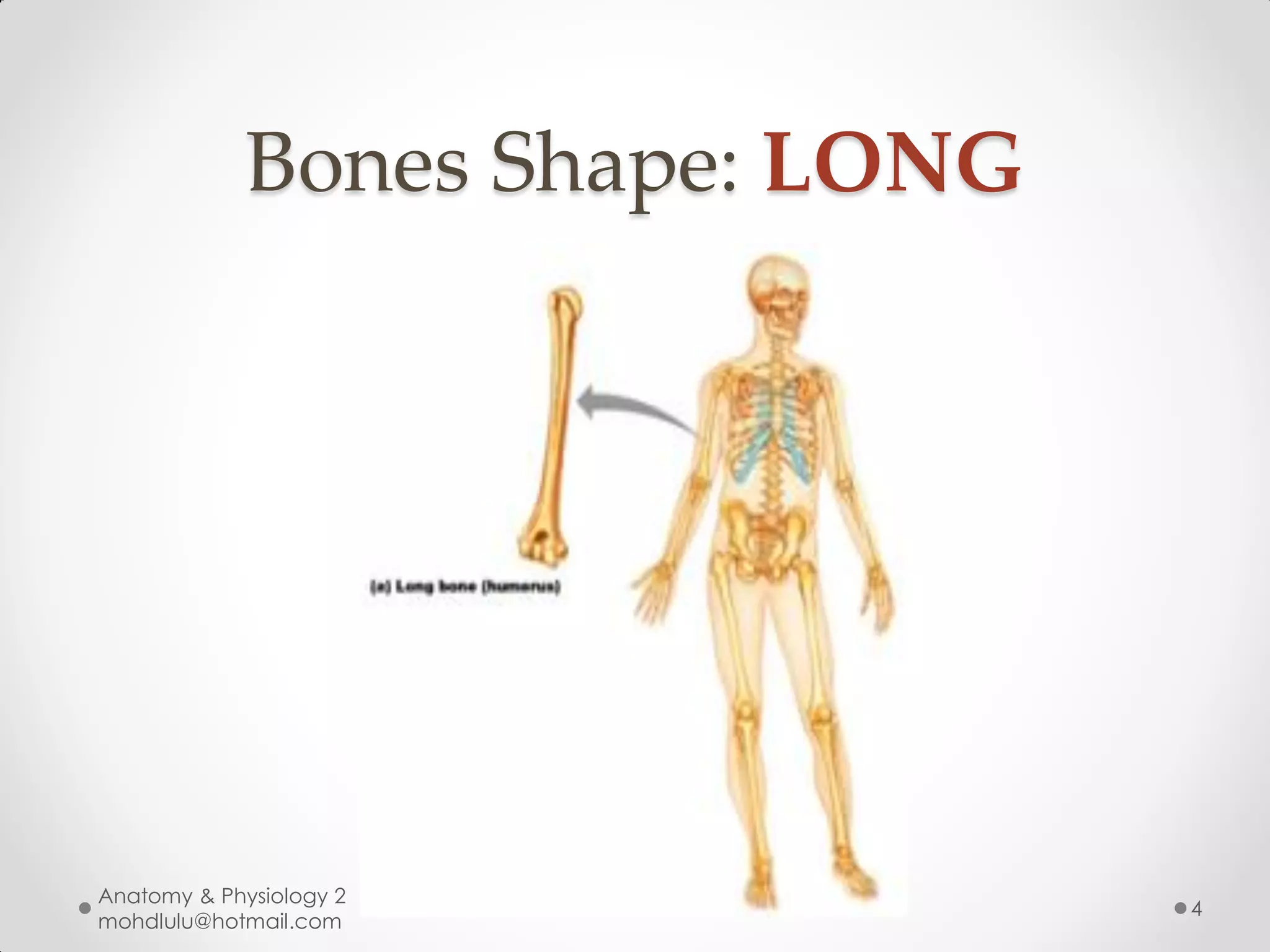

Bones Shape: LONG

4

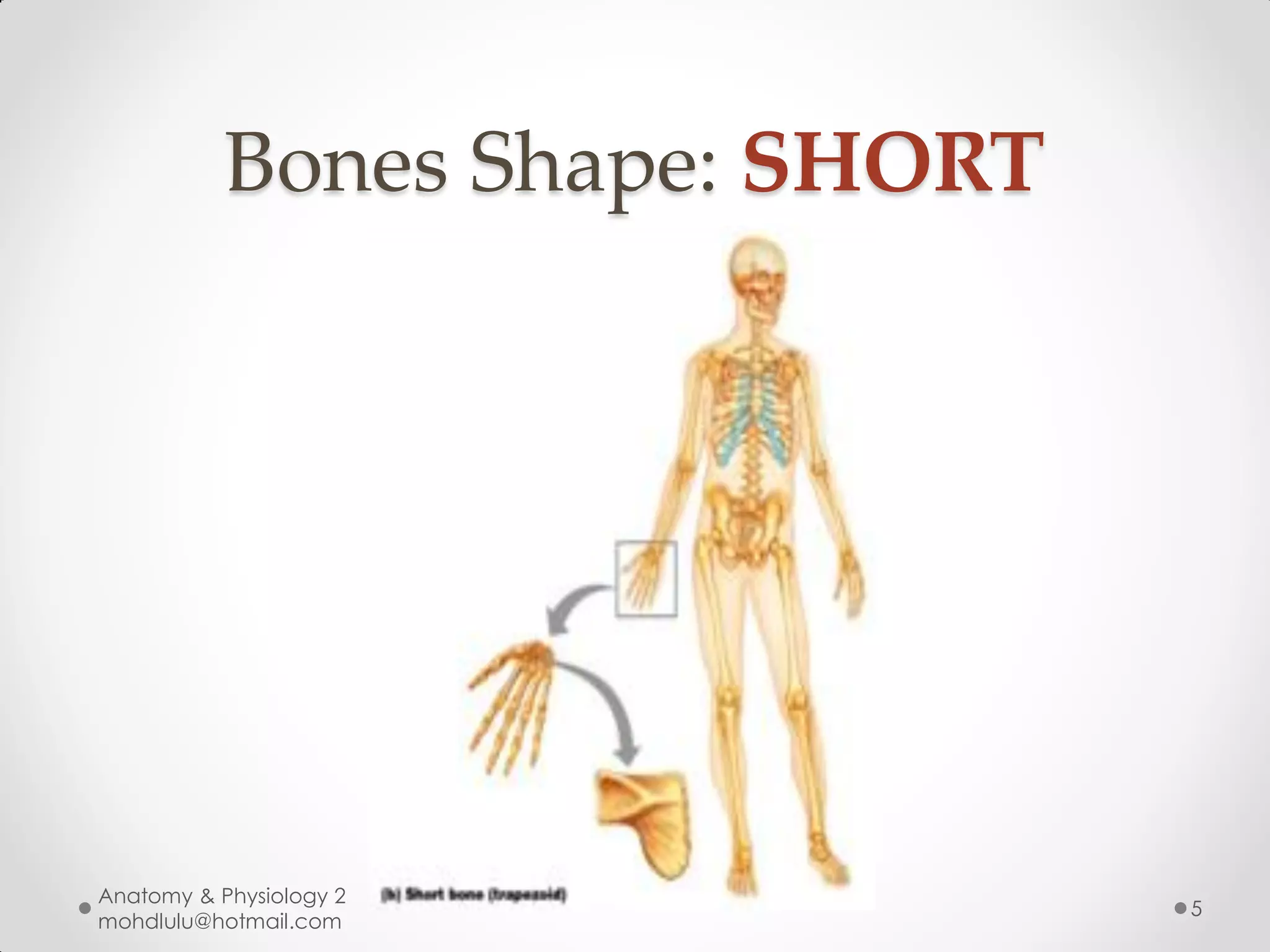

Bones Shape: SHORT

5

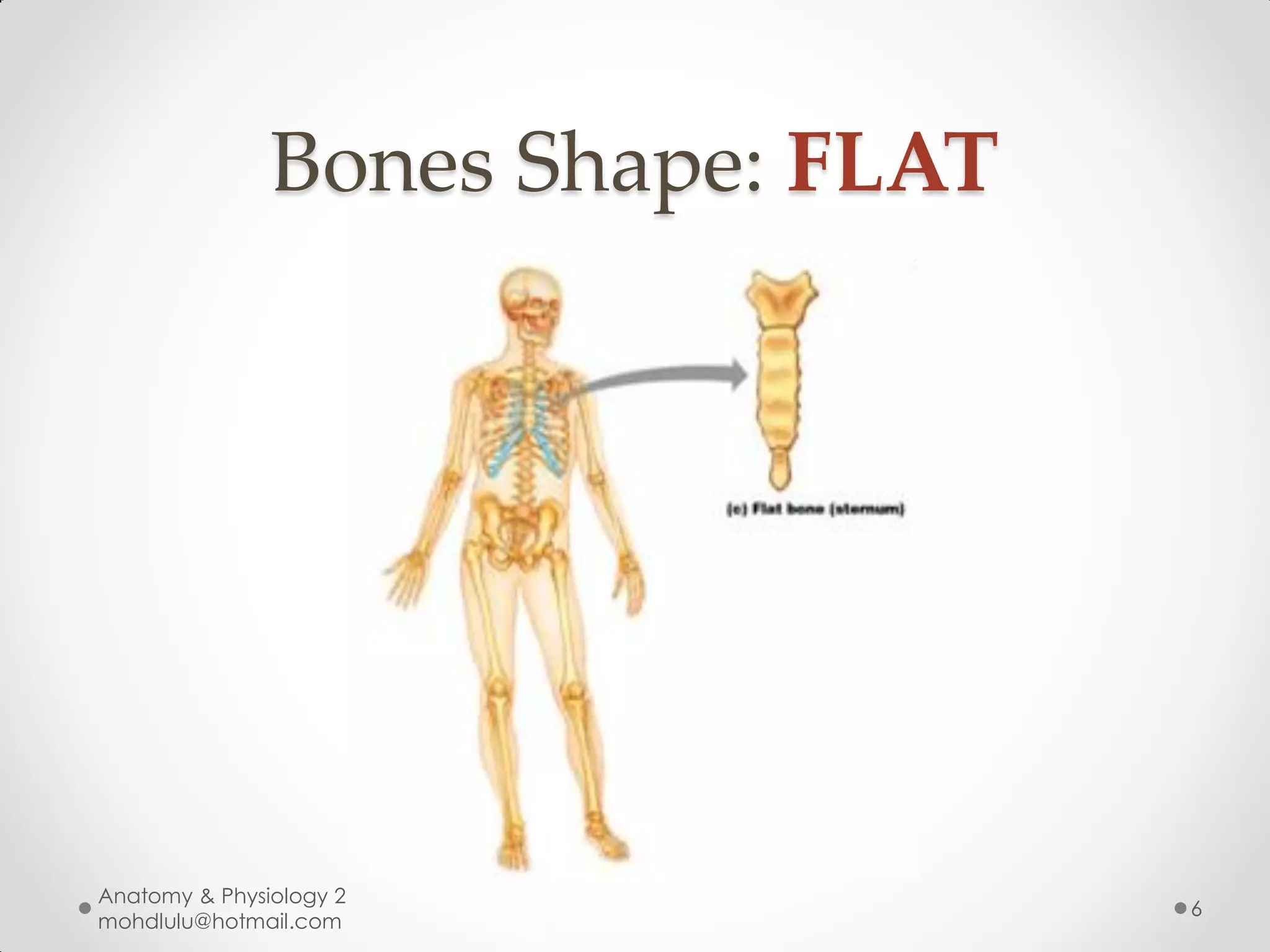

Bones Shape: FLAT

6

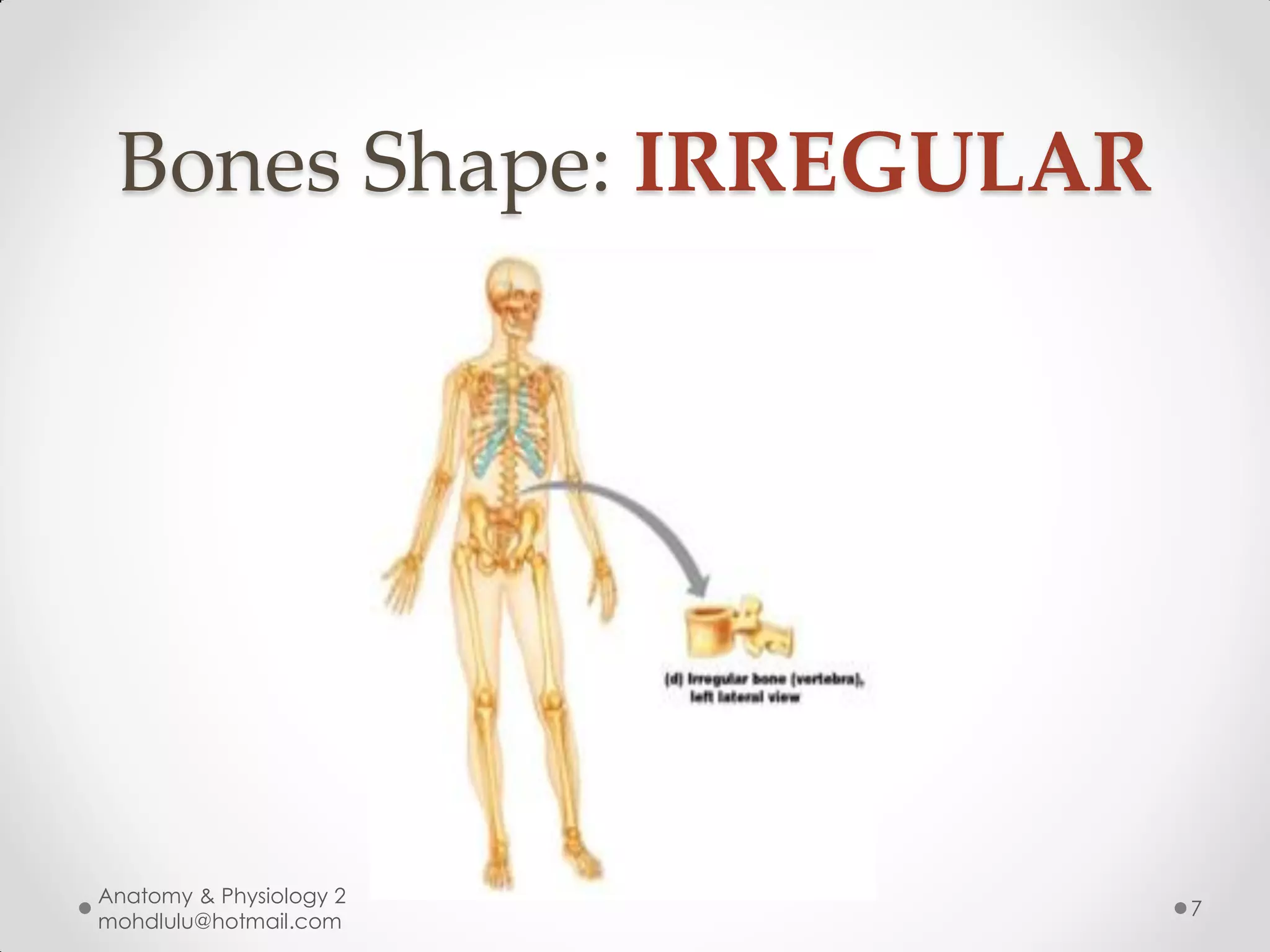

Bones Shape: IRREGULAR

7

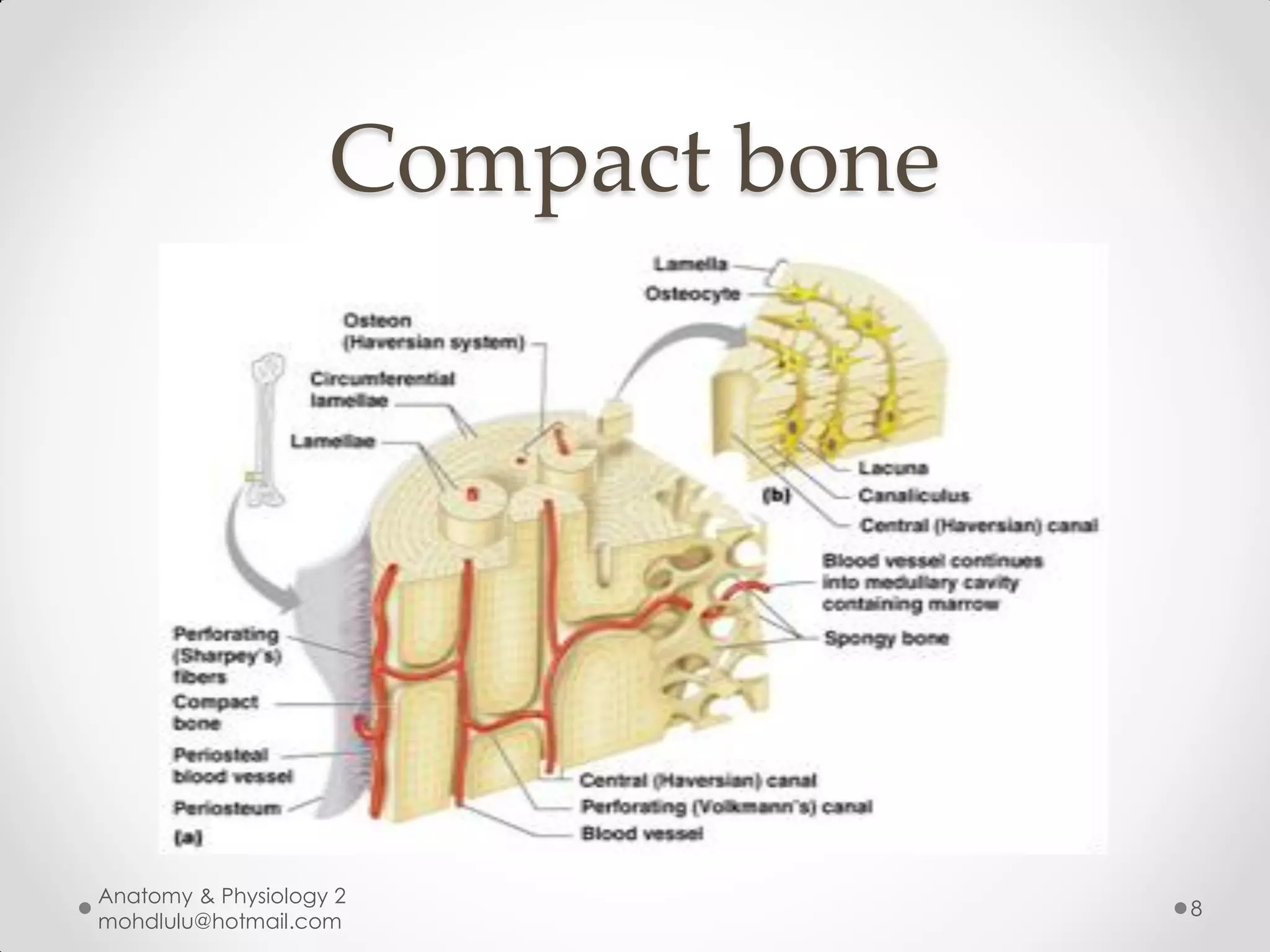

Compact bone

8

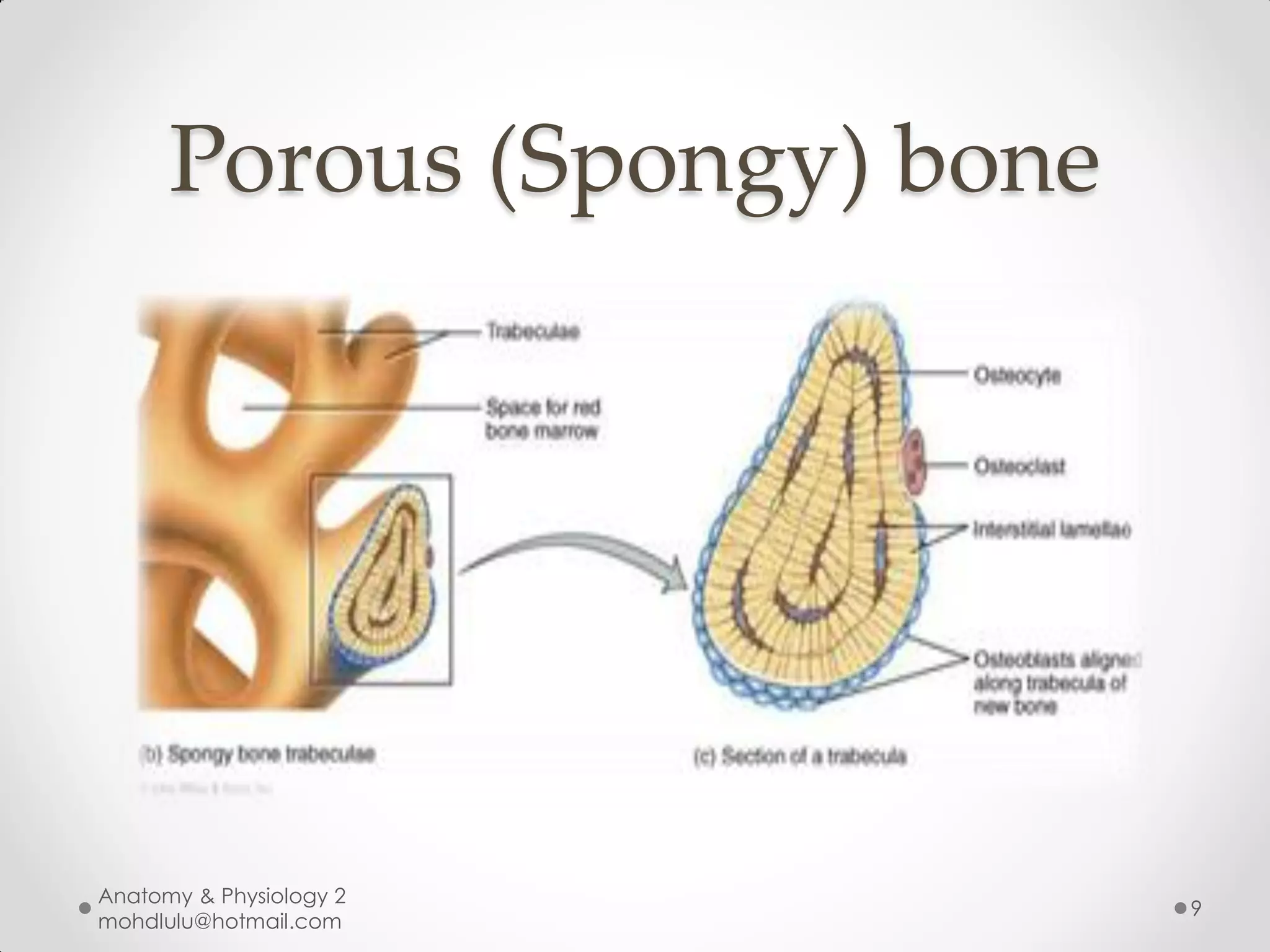

Porous (Spongy) bone

9

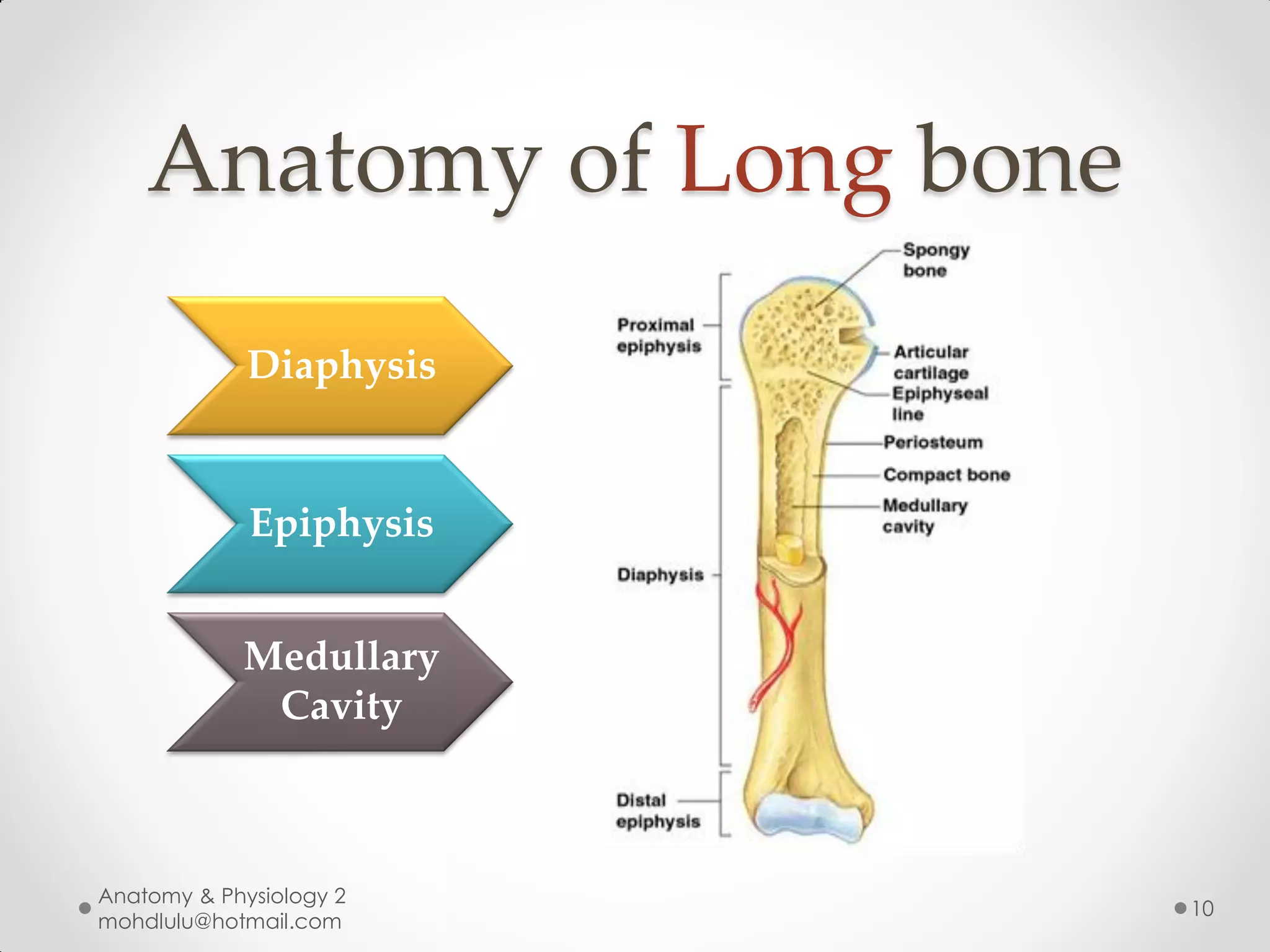

Anatomy of Long bone
Diaphysis

Epiphysis

Medullary
Cavity

10

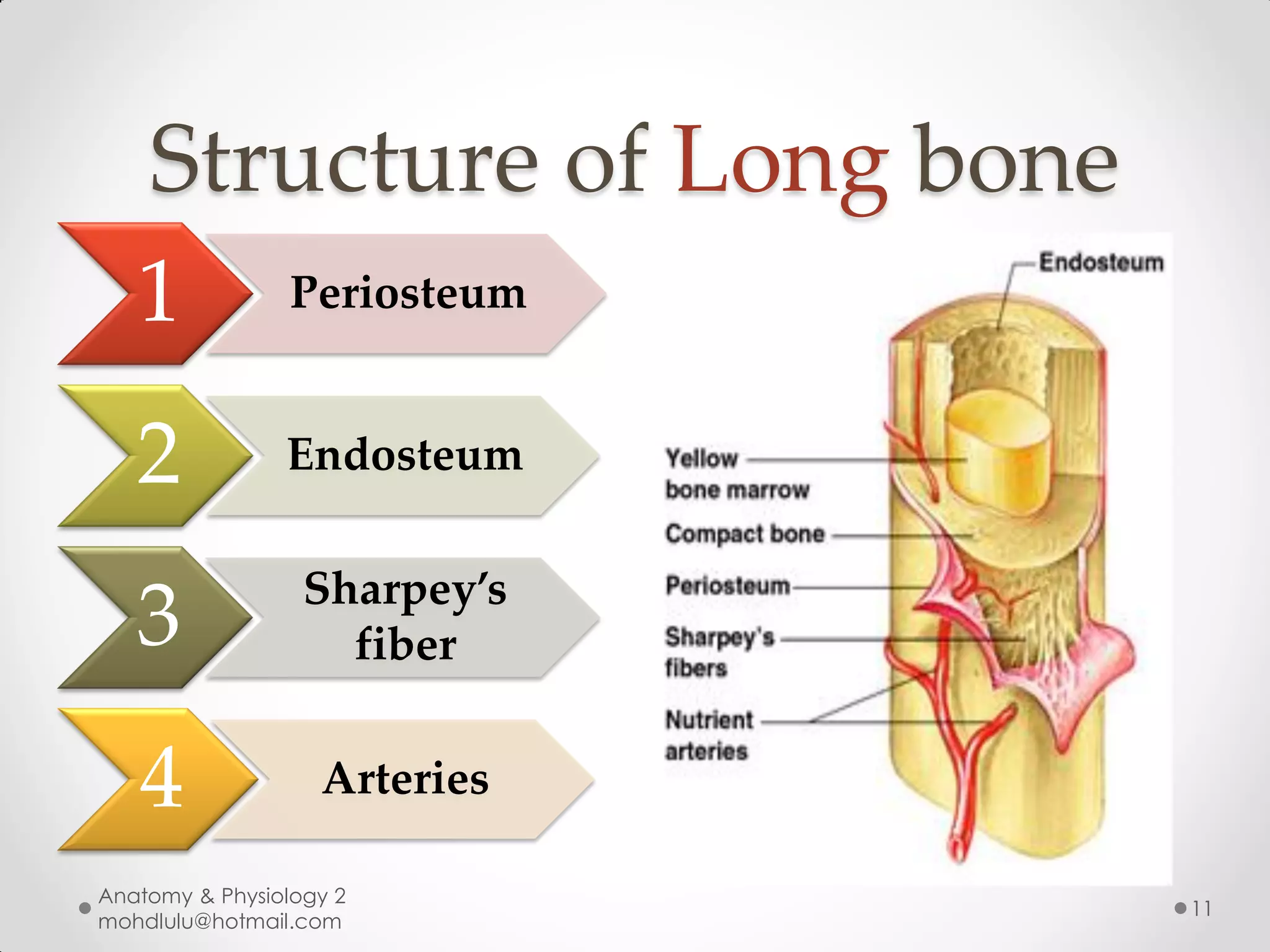

Structure of Long bone
1 Periosteum

2 Endosteum

Sharpey’s
3 fiber

4 Arteries

11

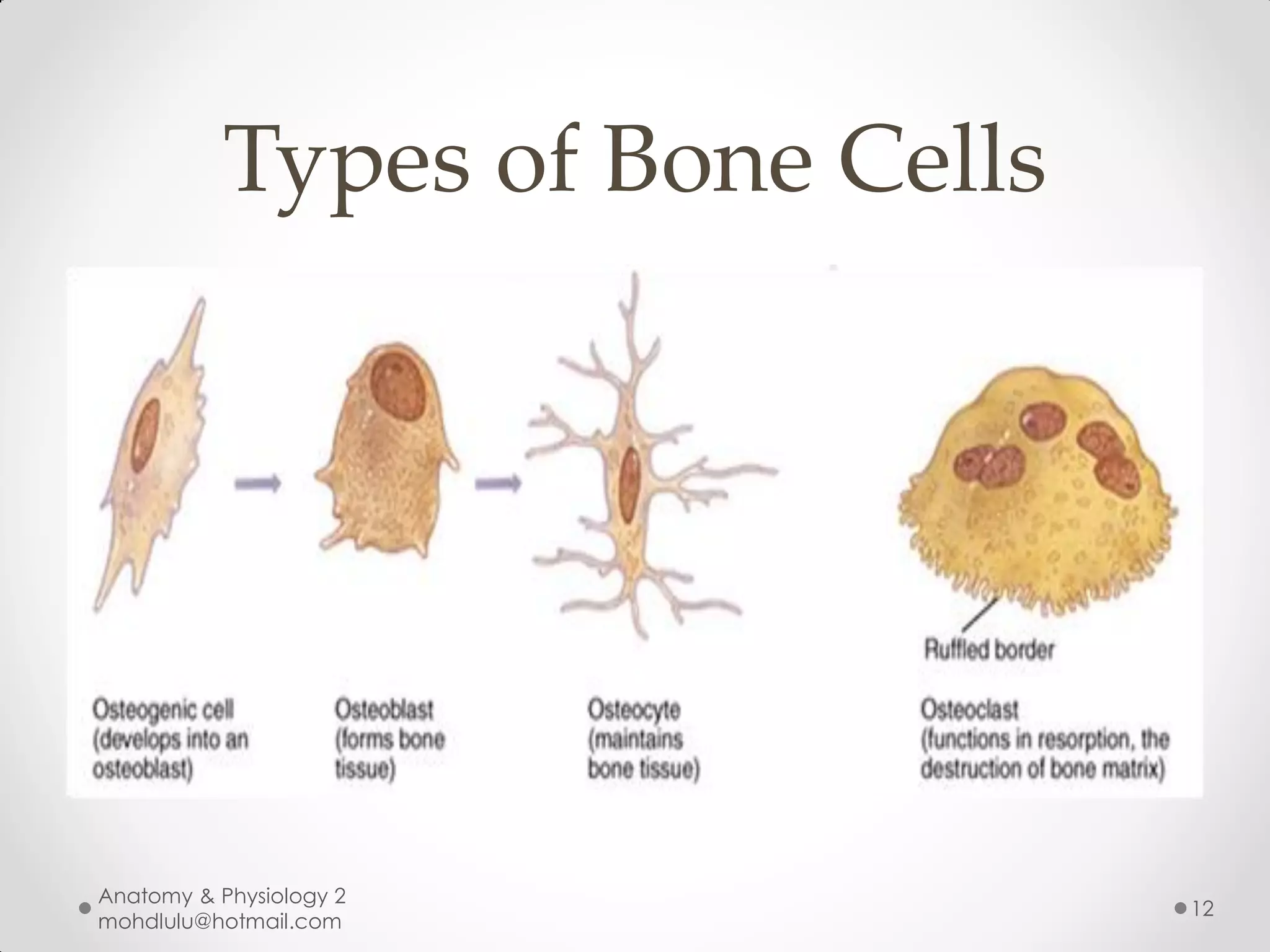

Types of Bone Cells

12

13

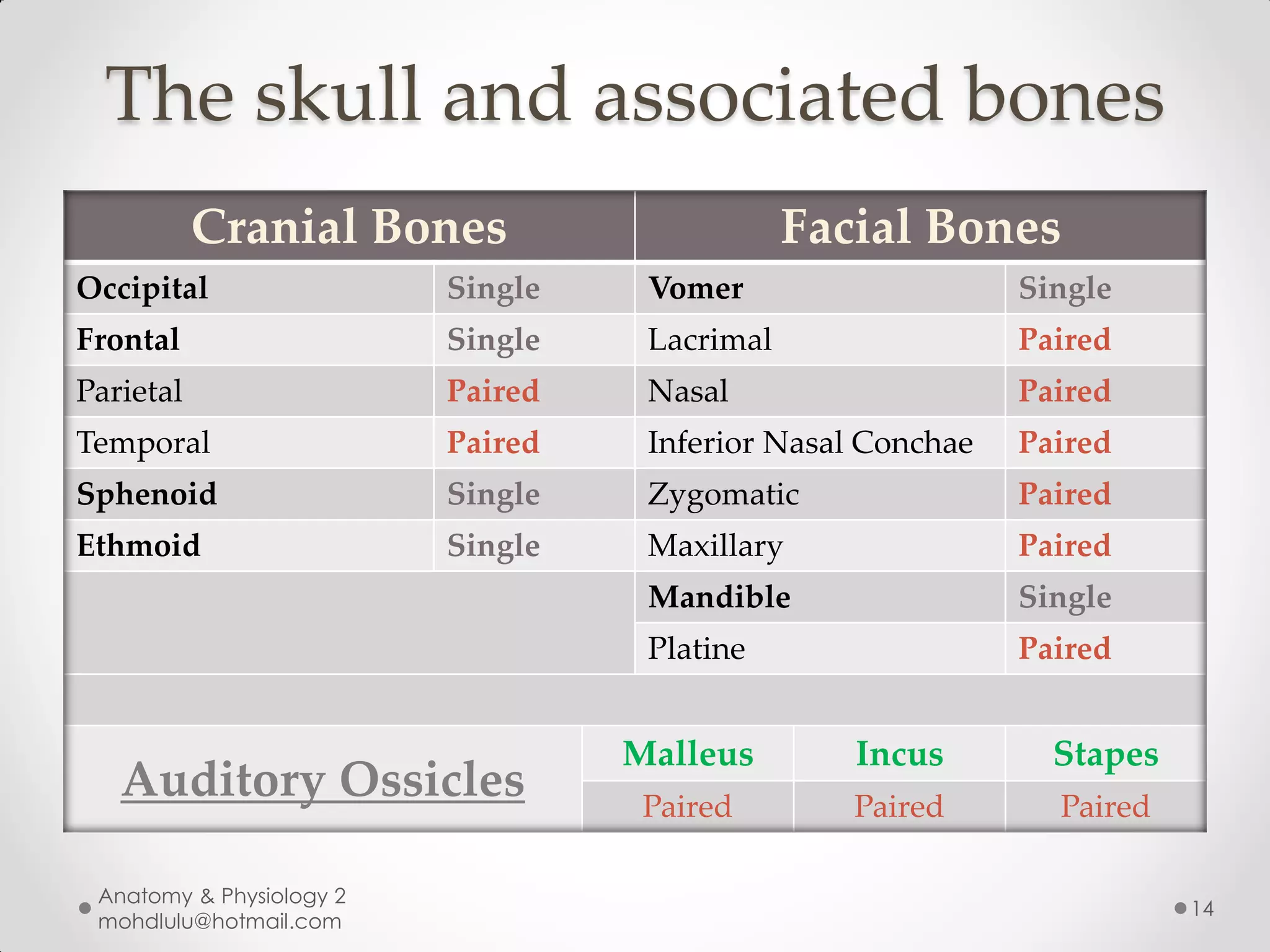

The skull and associated bones
Cranial Bones Facial Bones
Occipital Single Vomer Single
Frontal Single Lacrimal Paired
Parietal Paired Nasal Paired
Temporal Paired Inferior Nasal Conchae Paired
Sphenoid Single Zygomatic Paired
Ethmoid Single Maxillary Paired
Mandible Single
Platine Paired

Malleus Incus Stapes
Auditory Ossicles Paired Paired Paired

14

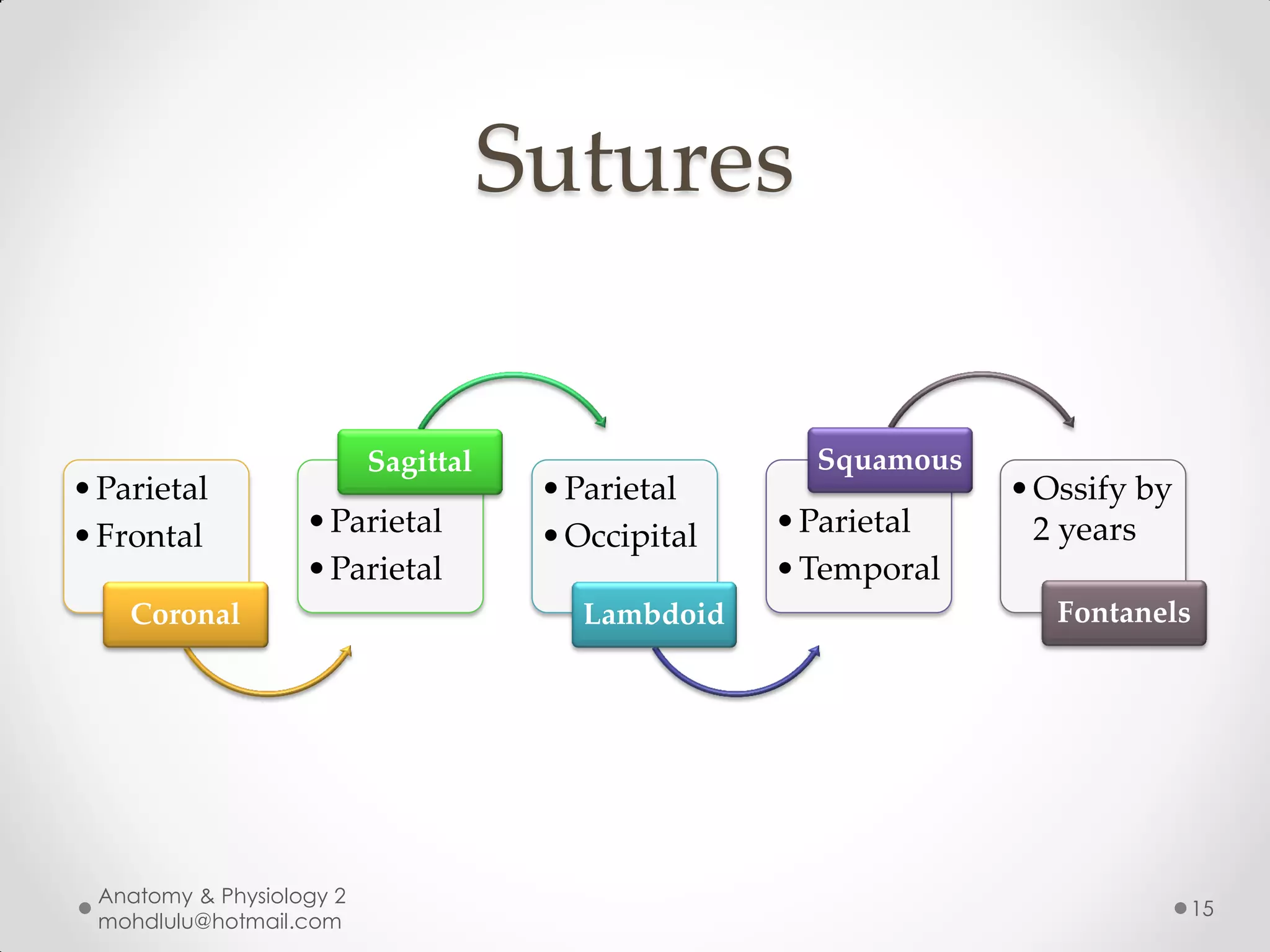

Sutures

Sagittal Squamous
• Parietal • Parietal • Ossify by
• Frontal • Parietal • Occipital • Parietal 2 years
• Parietal • Temporal
Coronal Lambdoid Fontanels

15

16

17

18

19

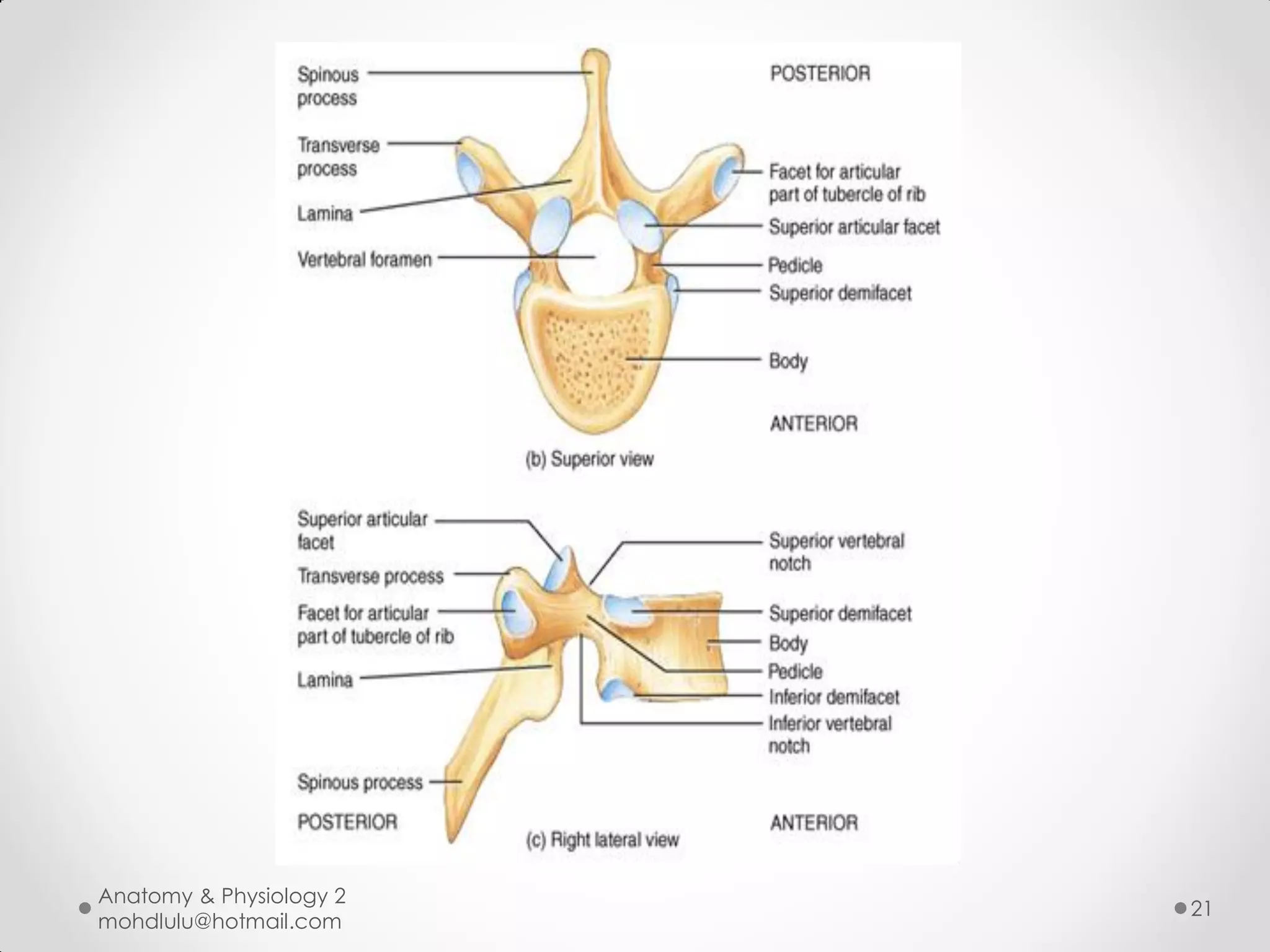

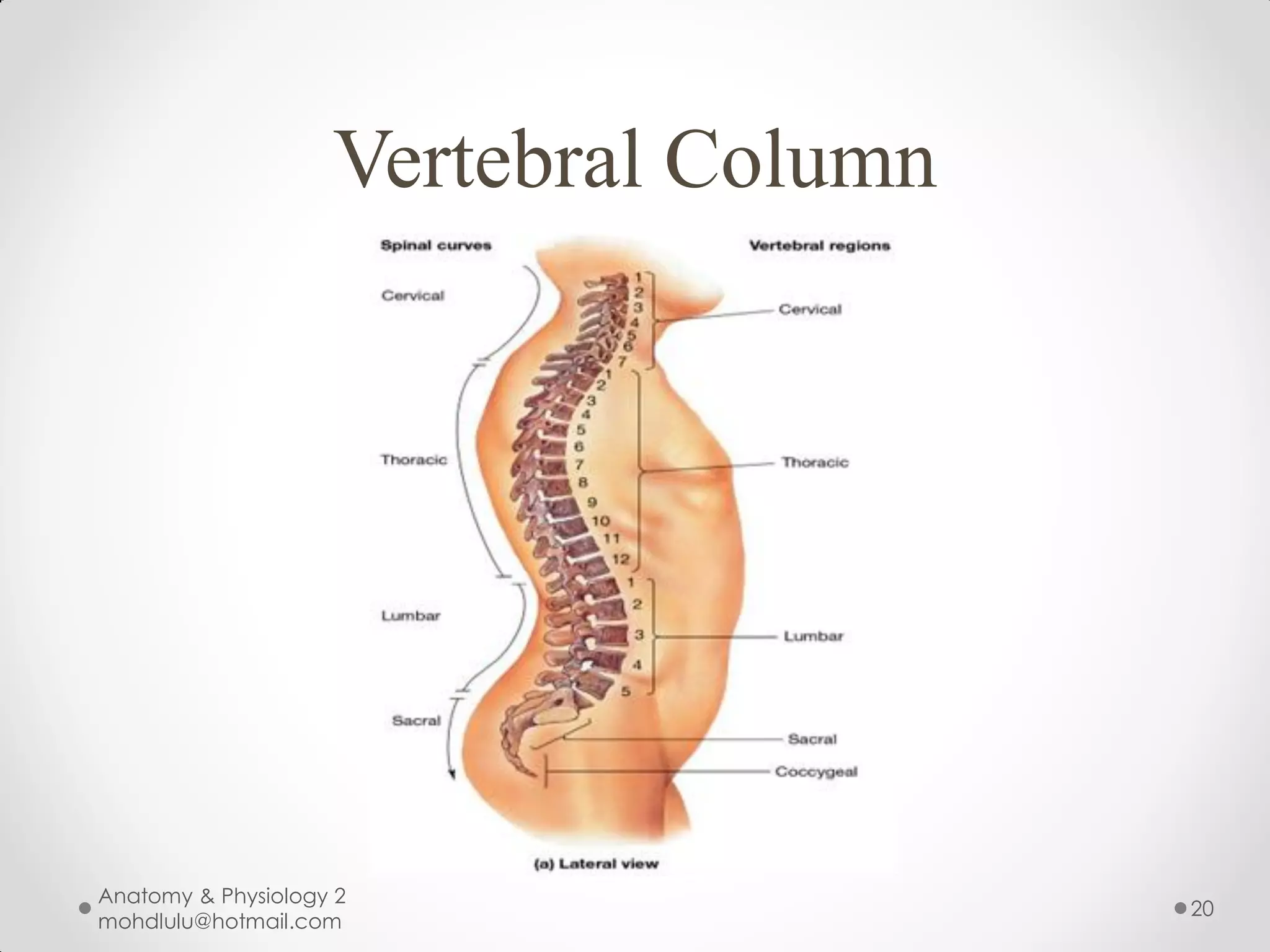

Vertebral Column

20

21

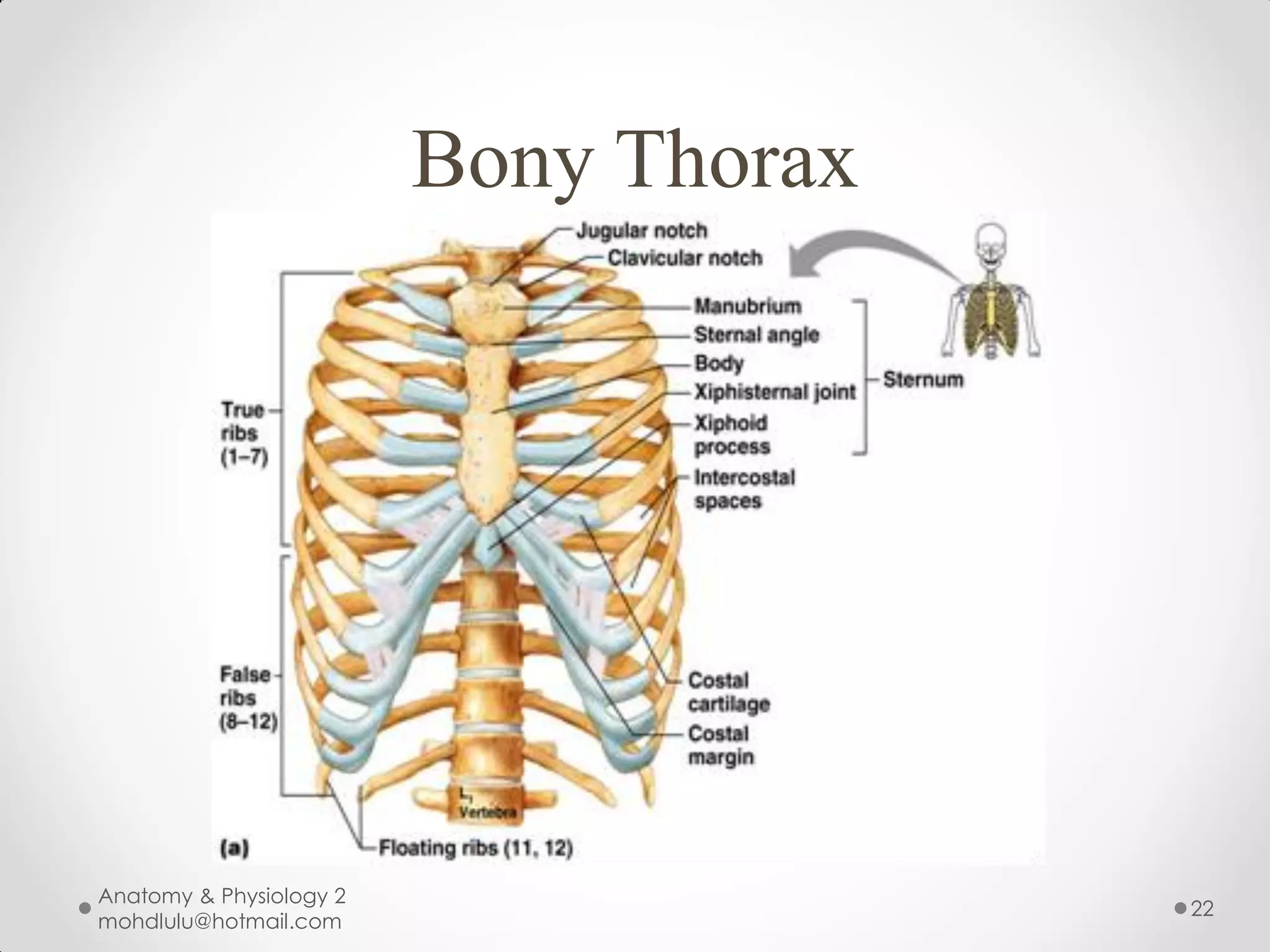

Bony Thorax

22

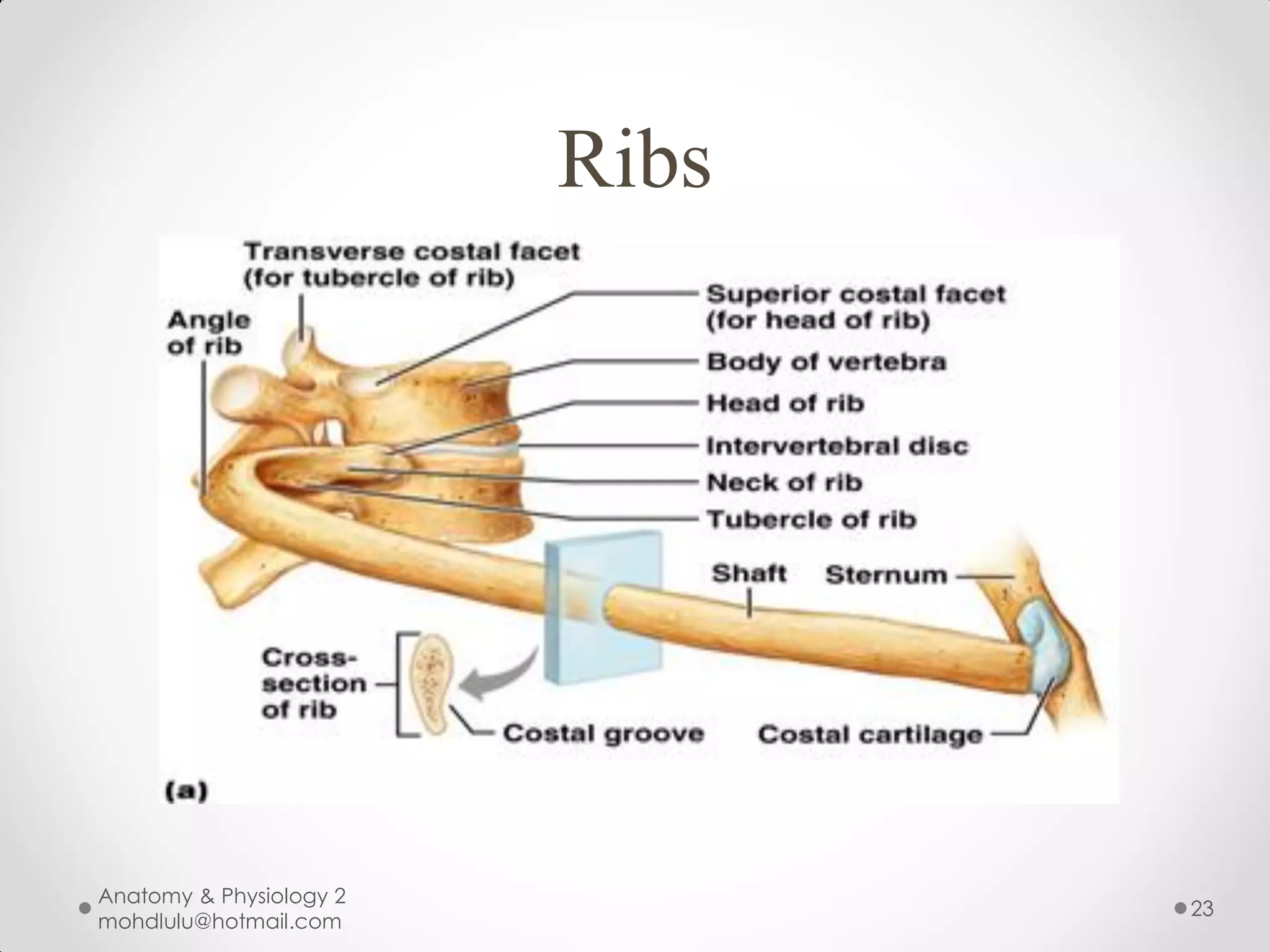

Ribs

23

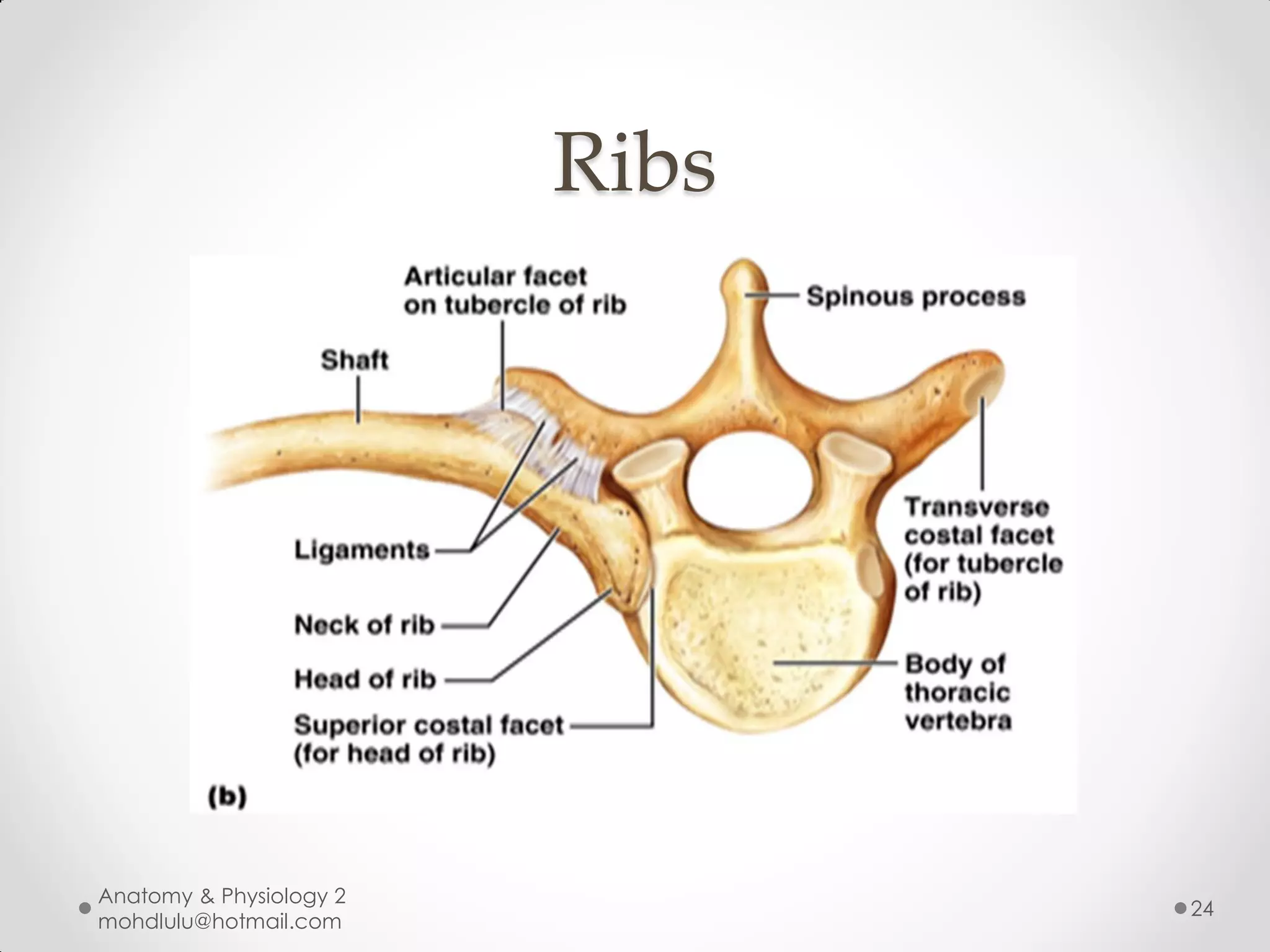

Ribs

24

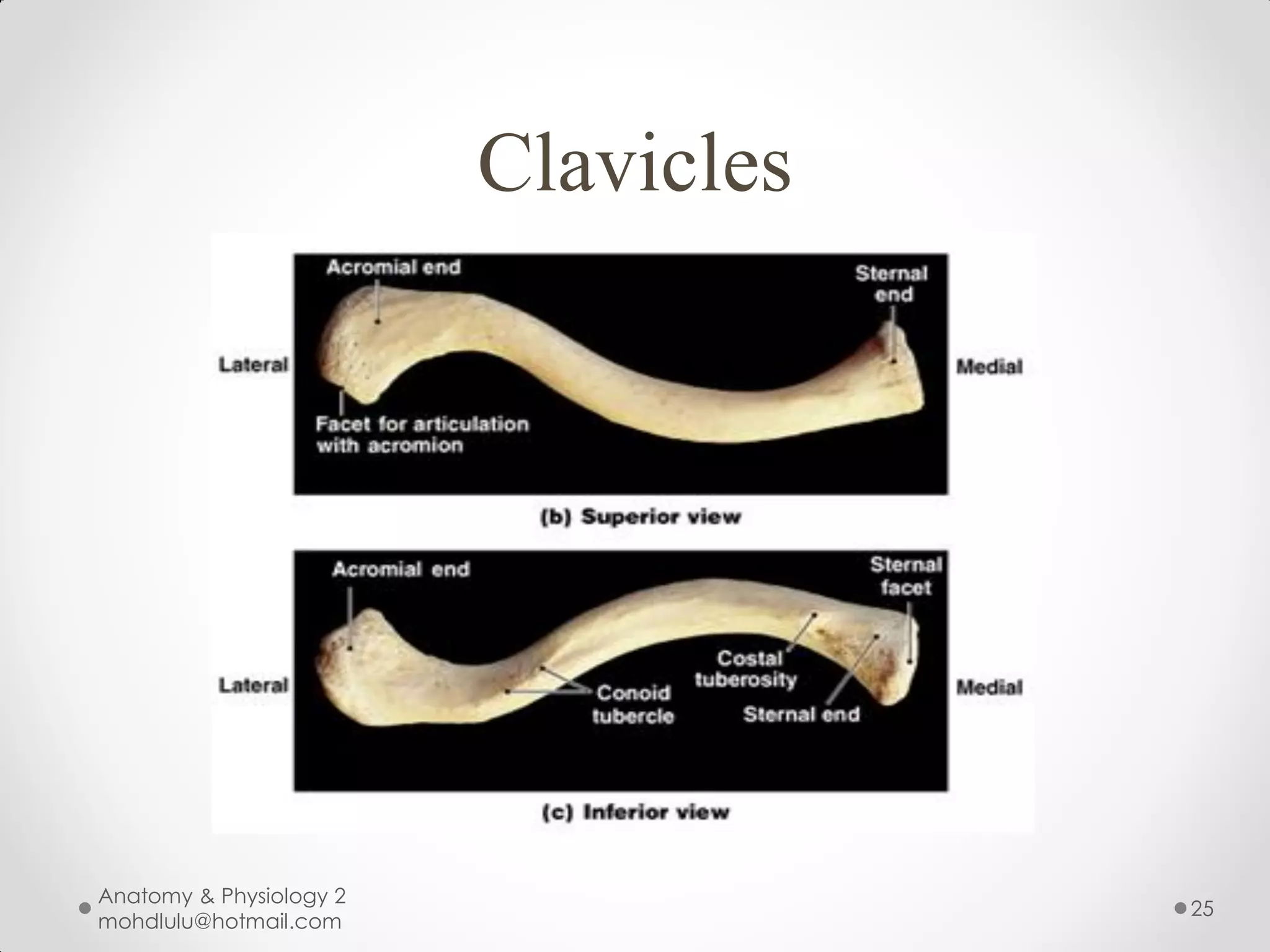

Clavicles

25

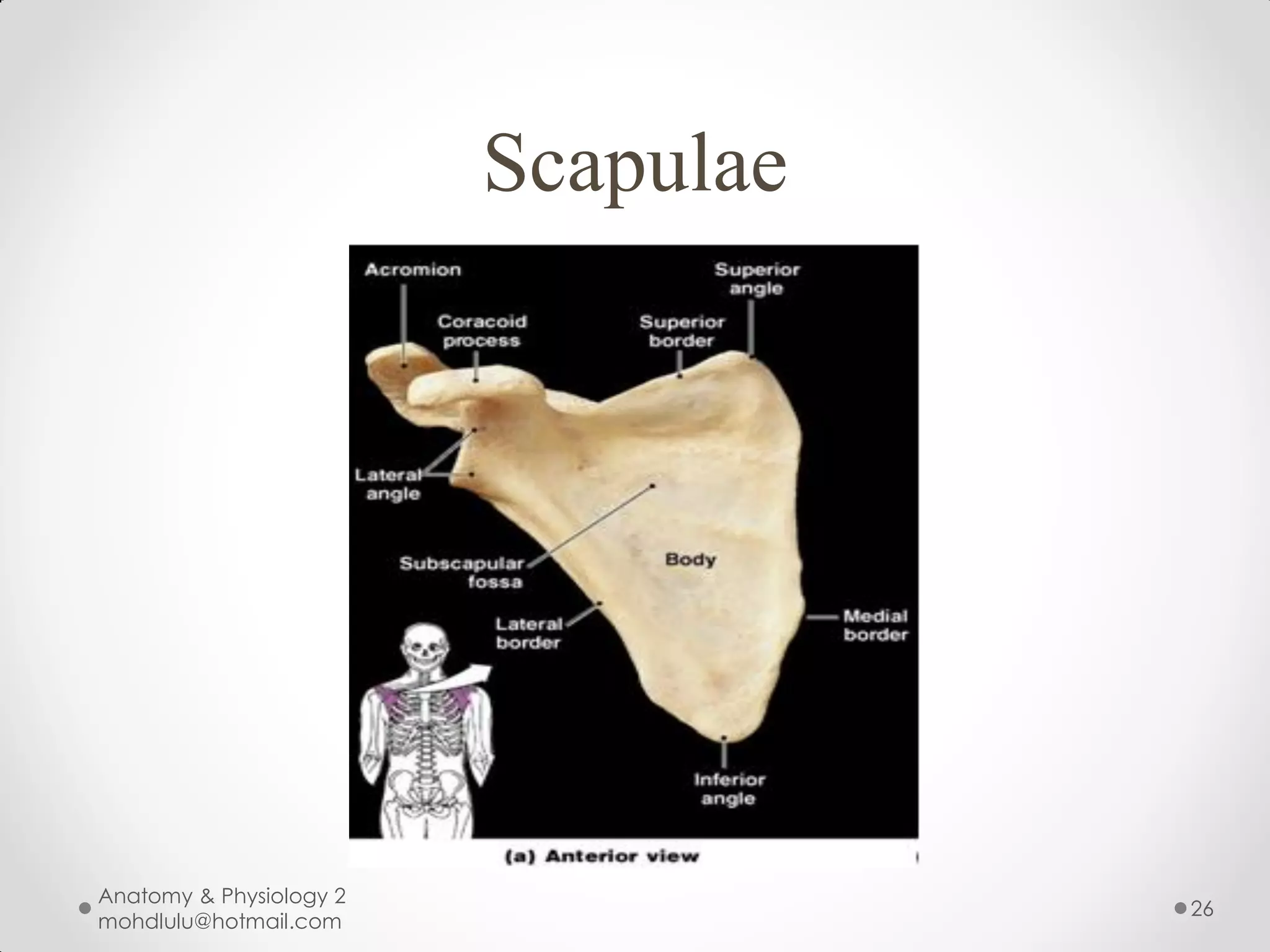

Scapulae

26

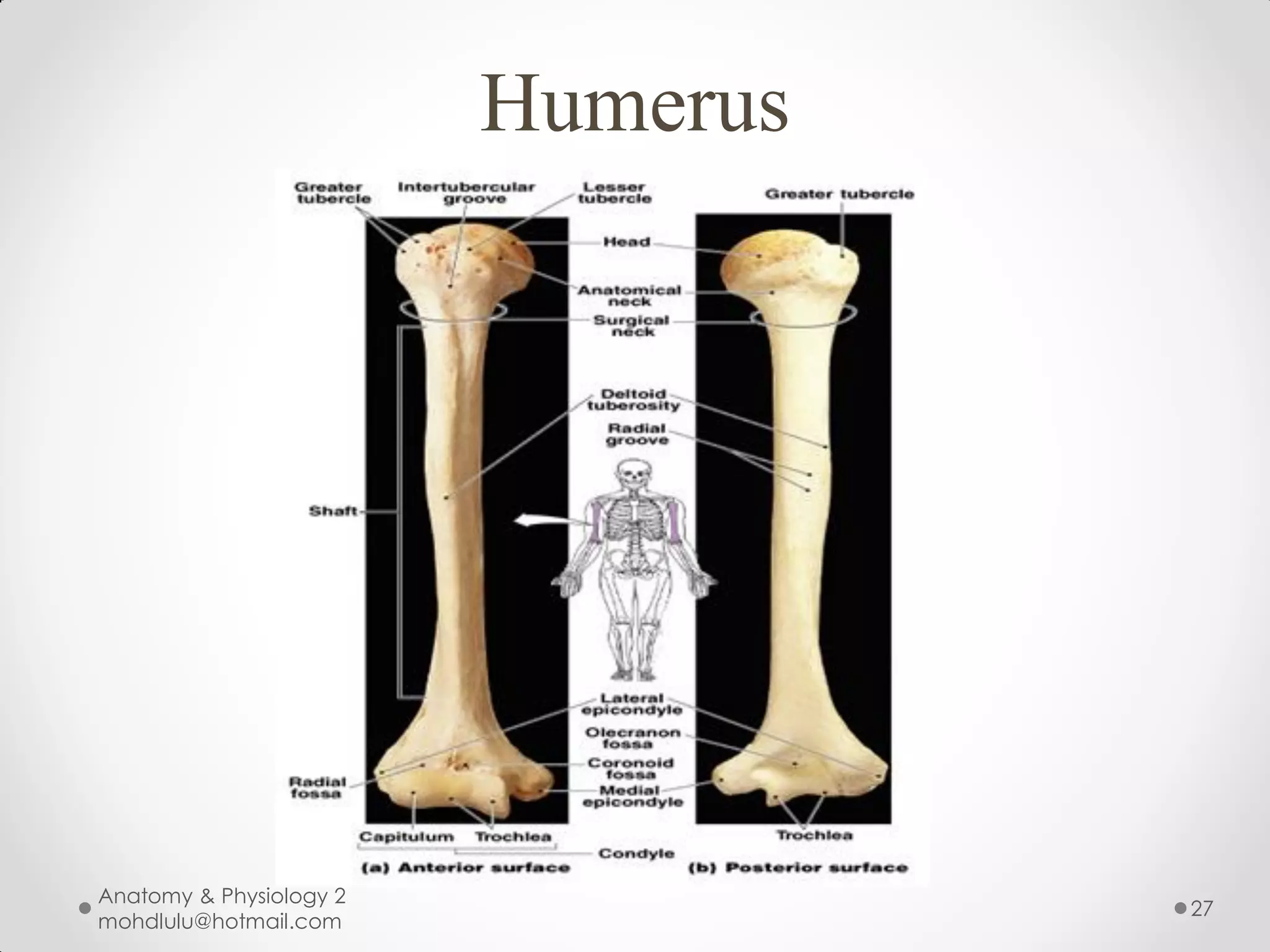

Humerus

27

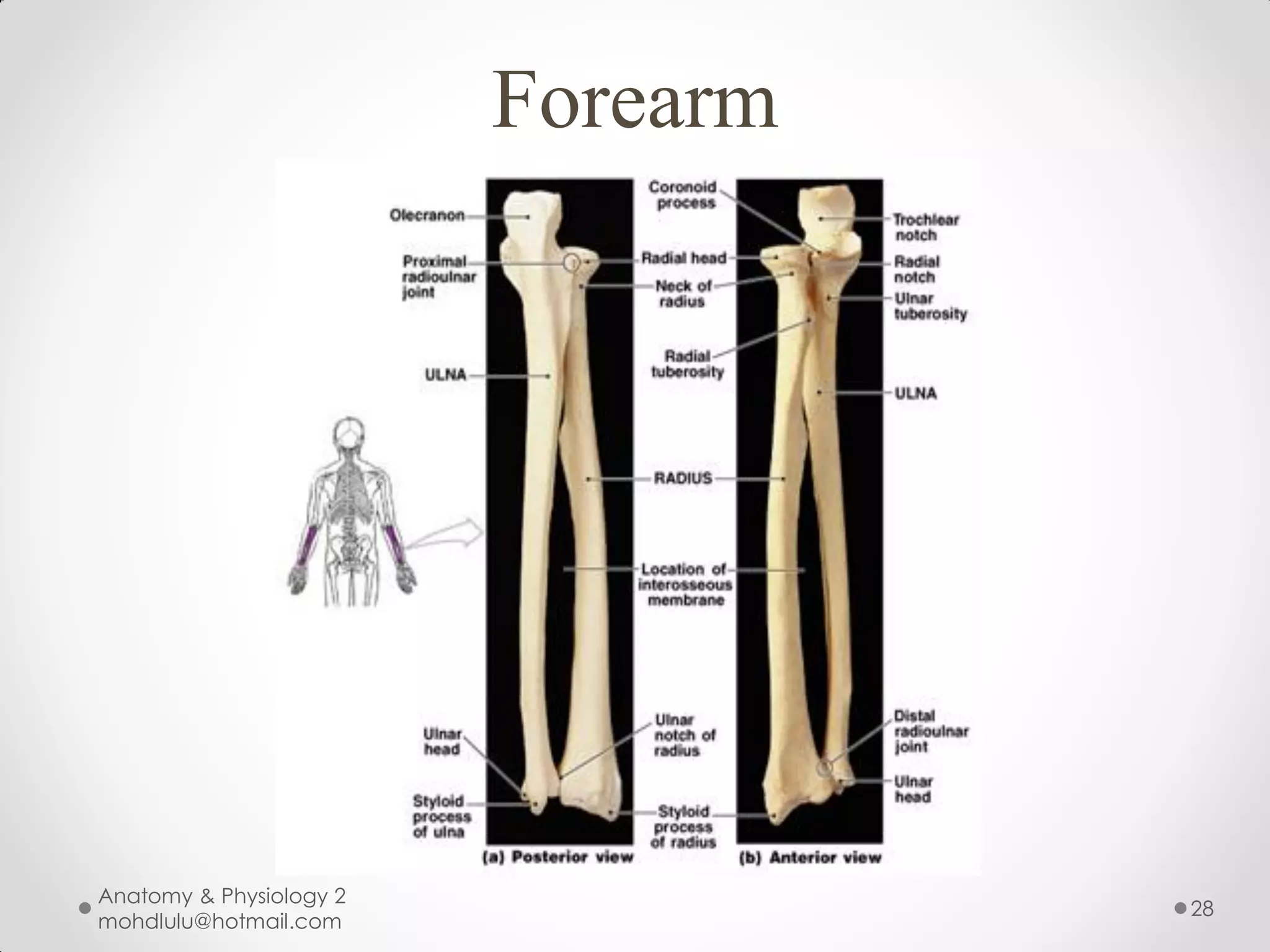

Forearm

28

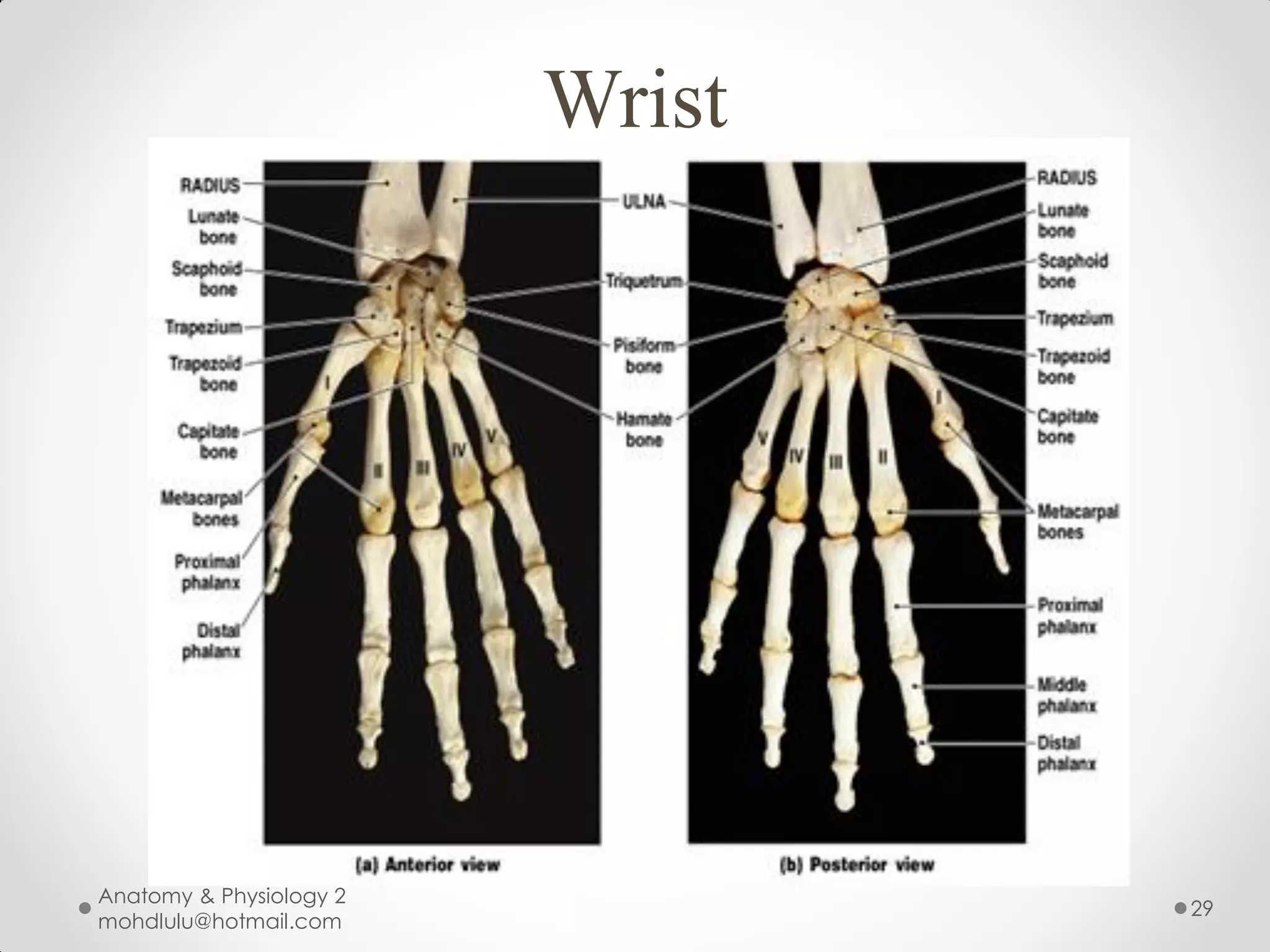

Wrist

29

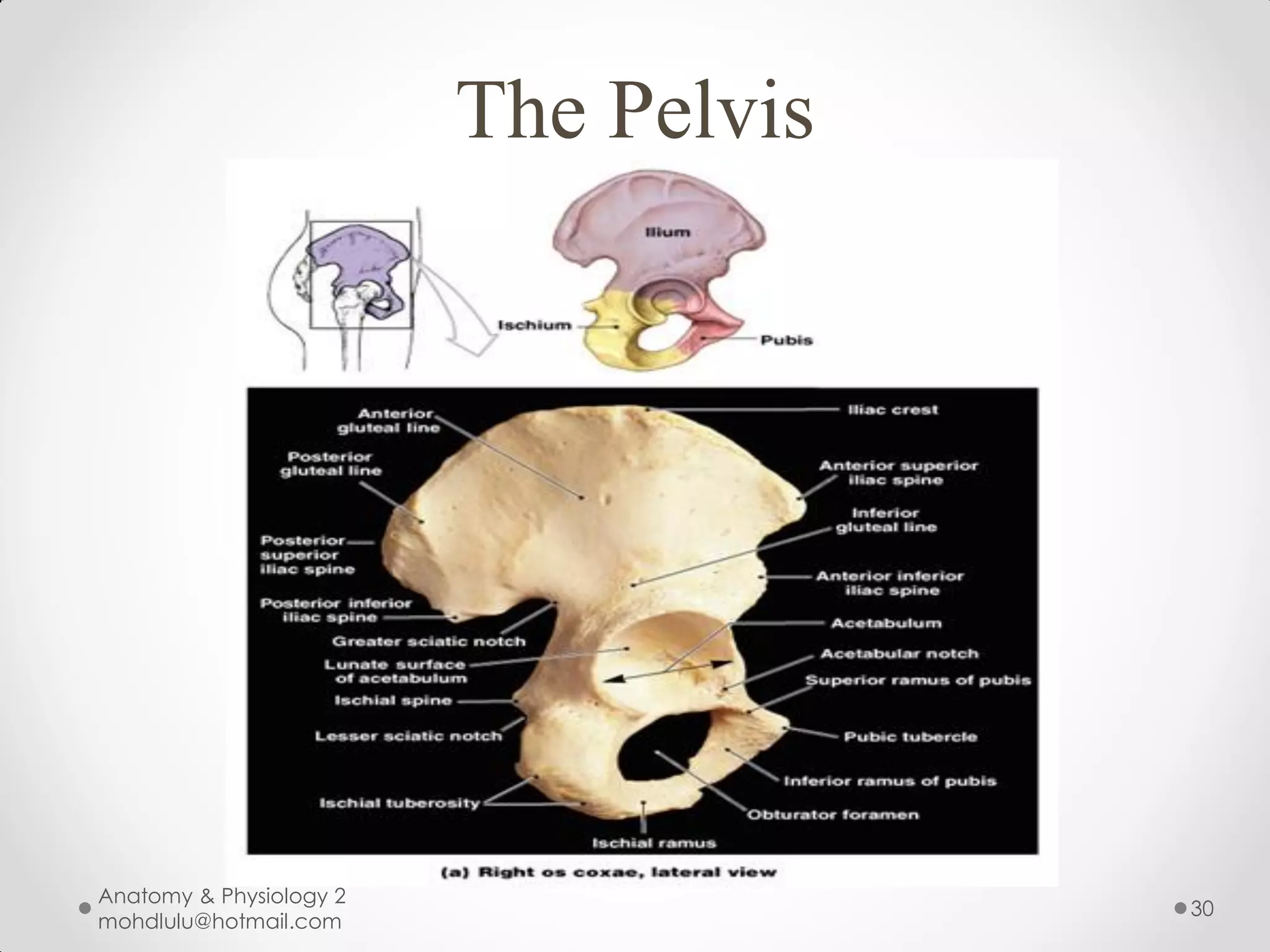

The Pelvis

30

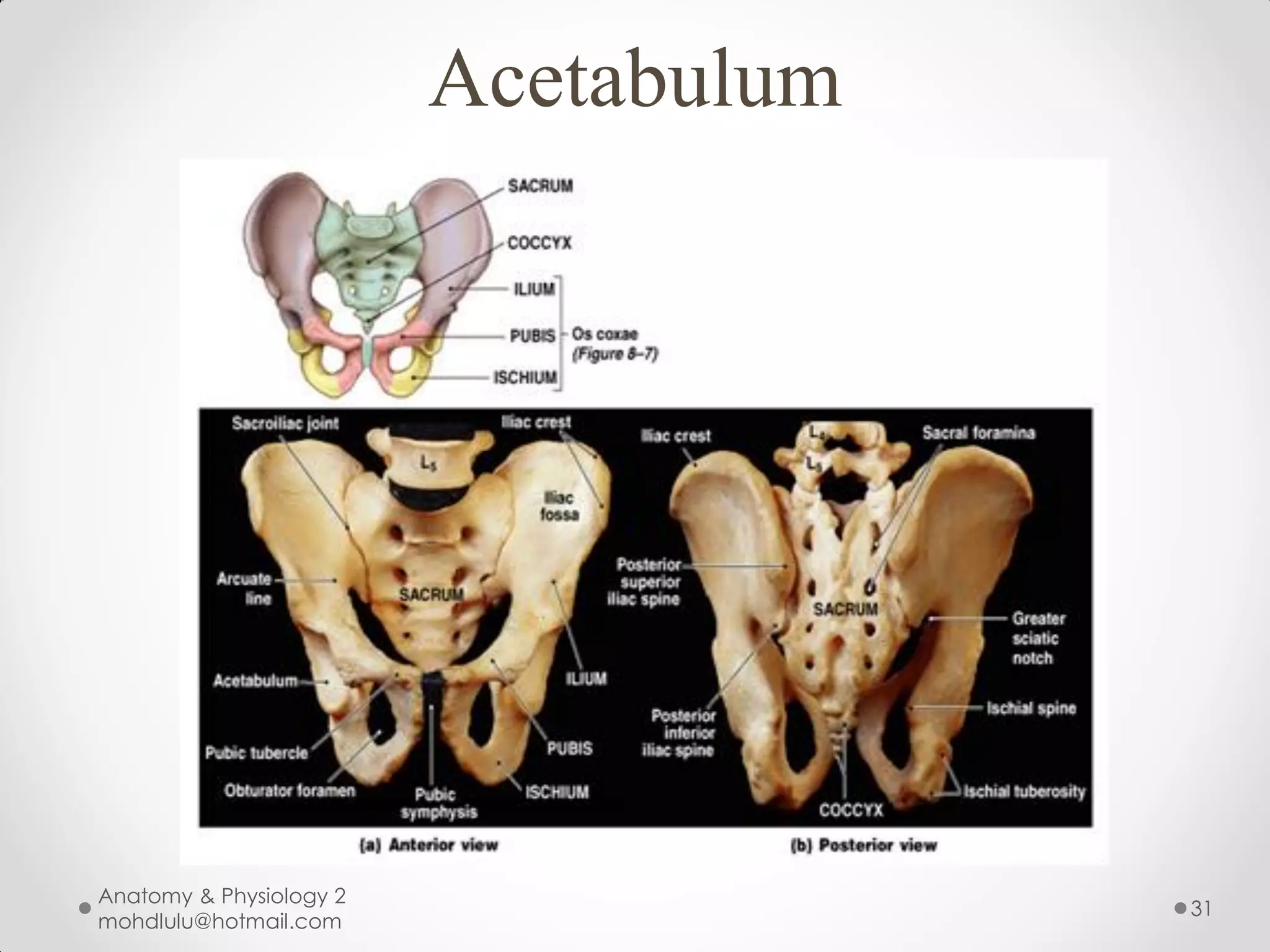

Acetabulum

31

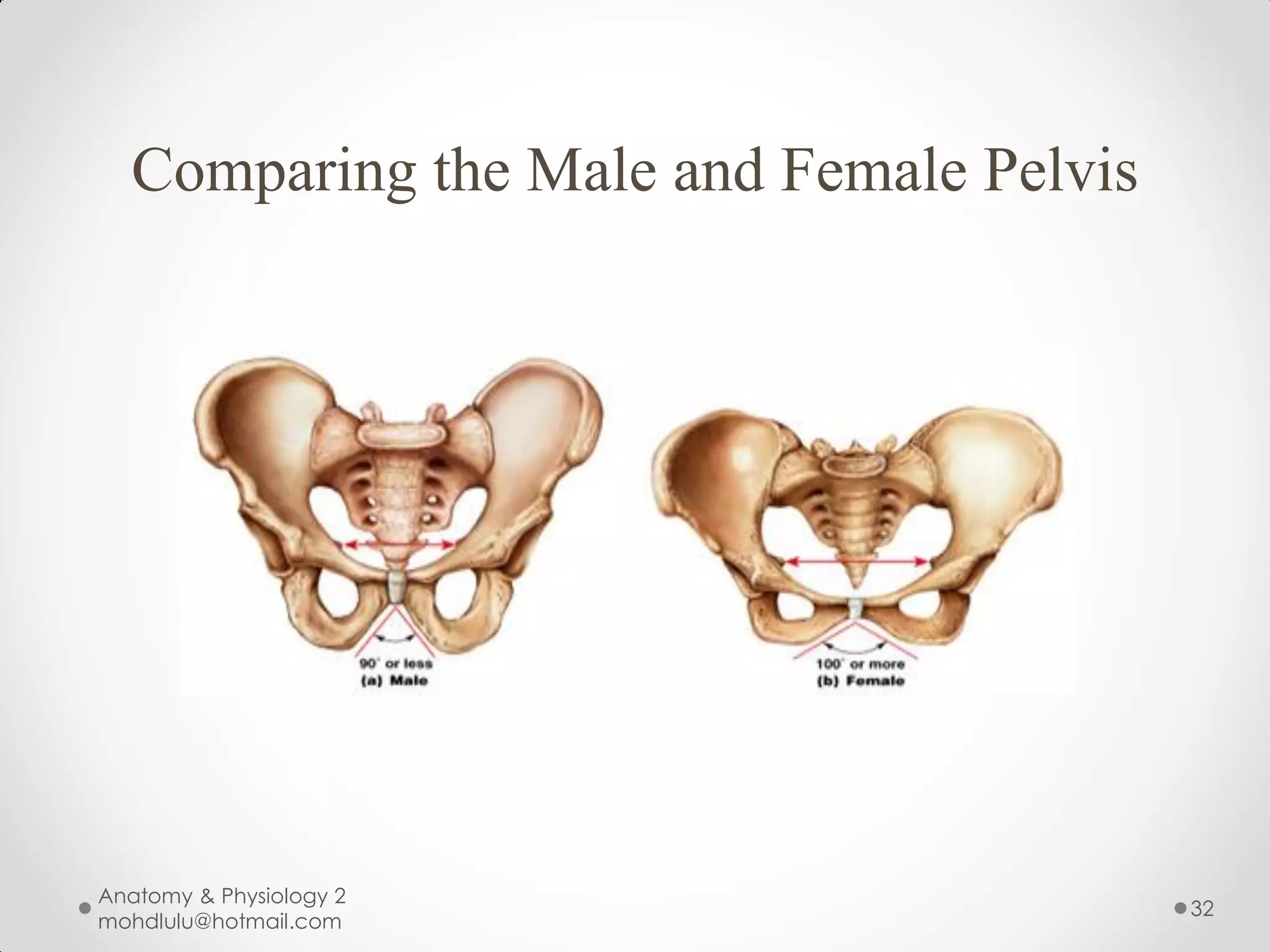

Comparing the Male and Female Pelvis

32

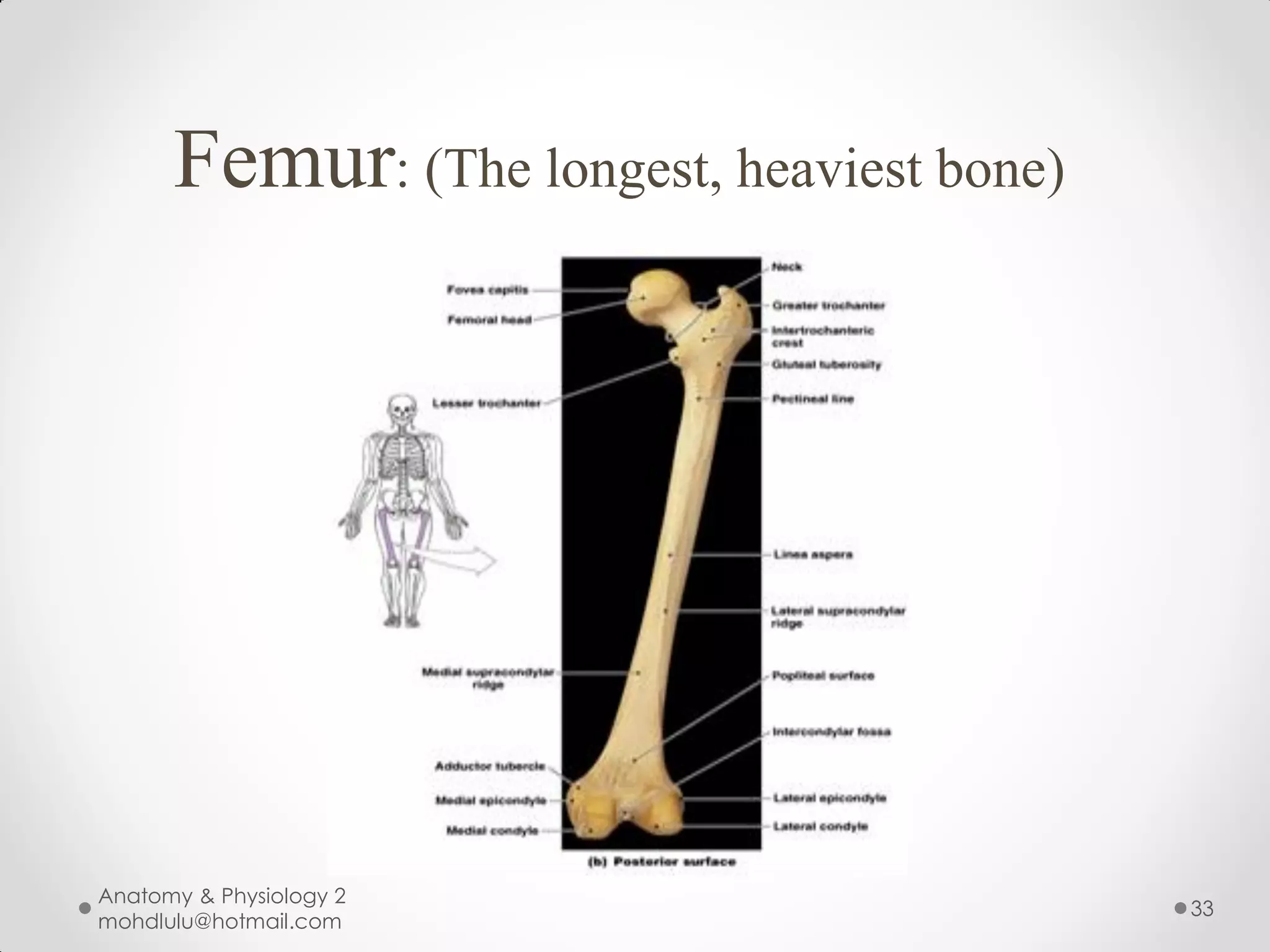

Femur: (The longest, heaviest bone)

33

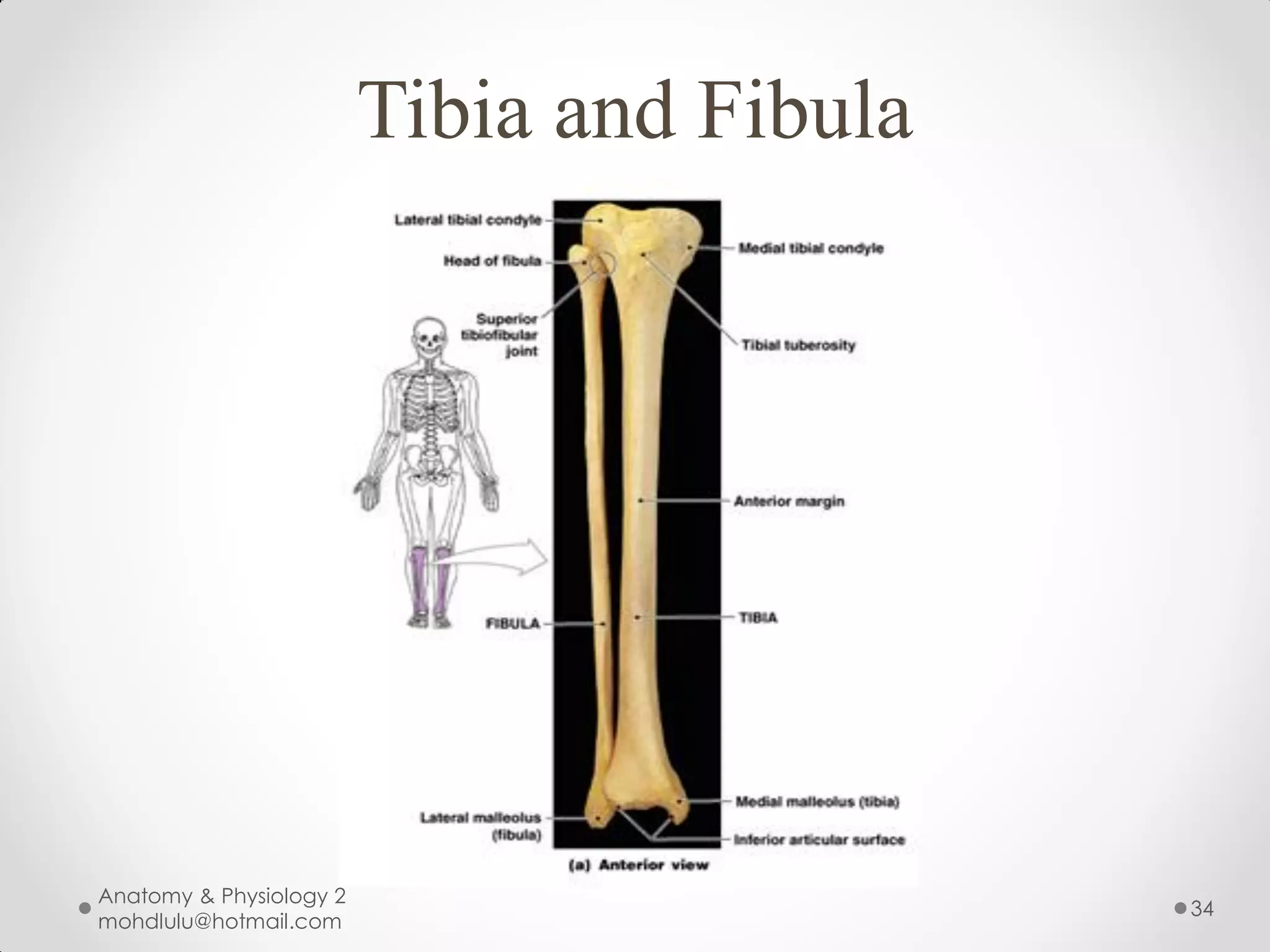

Tibia and Fibula

34

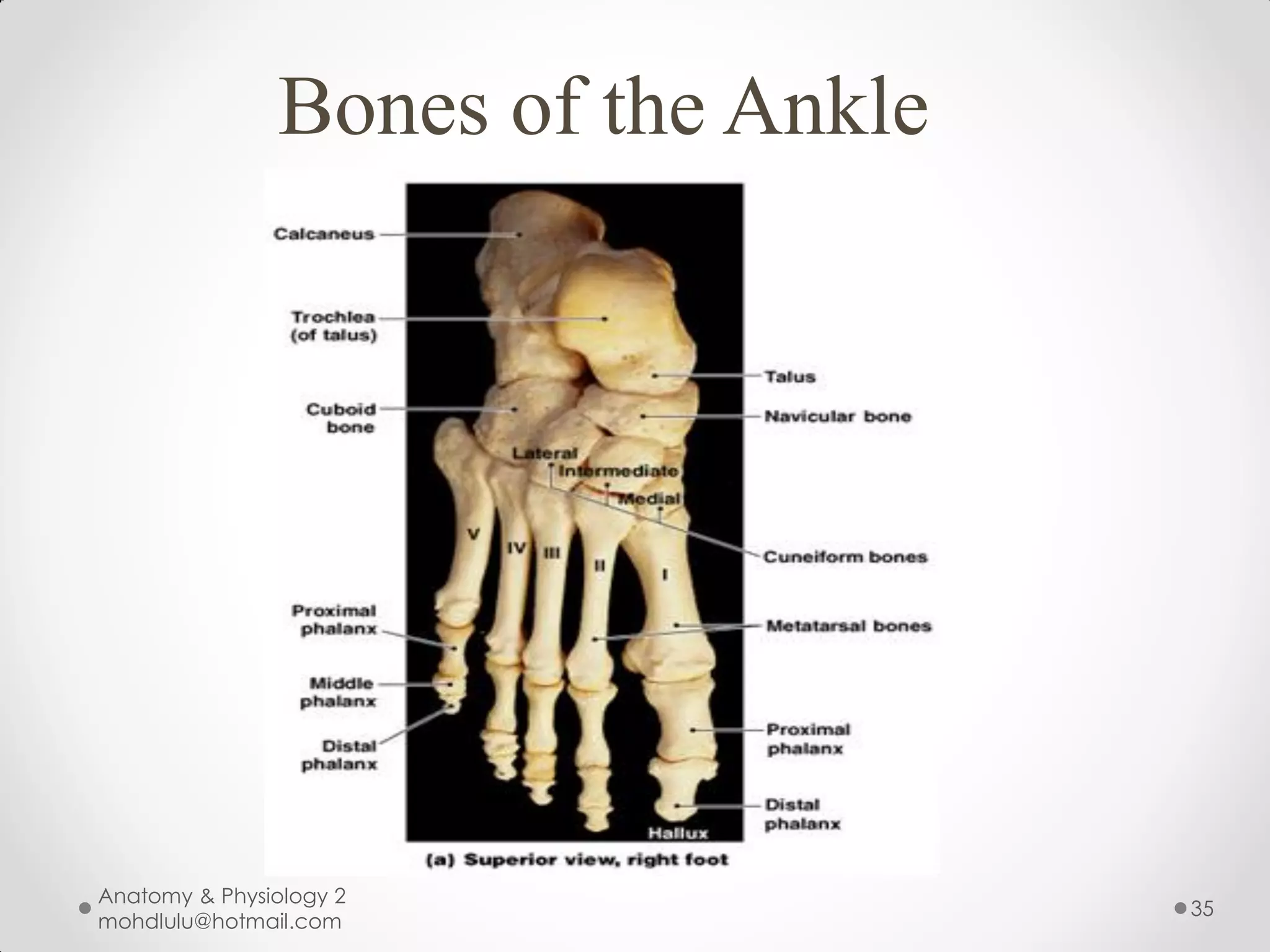

Bones of the Ankle

35

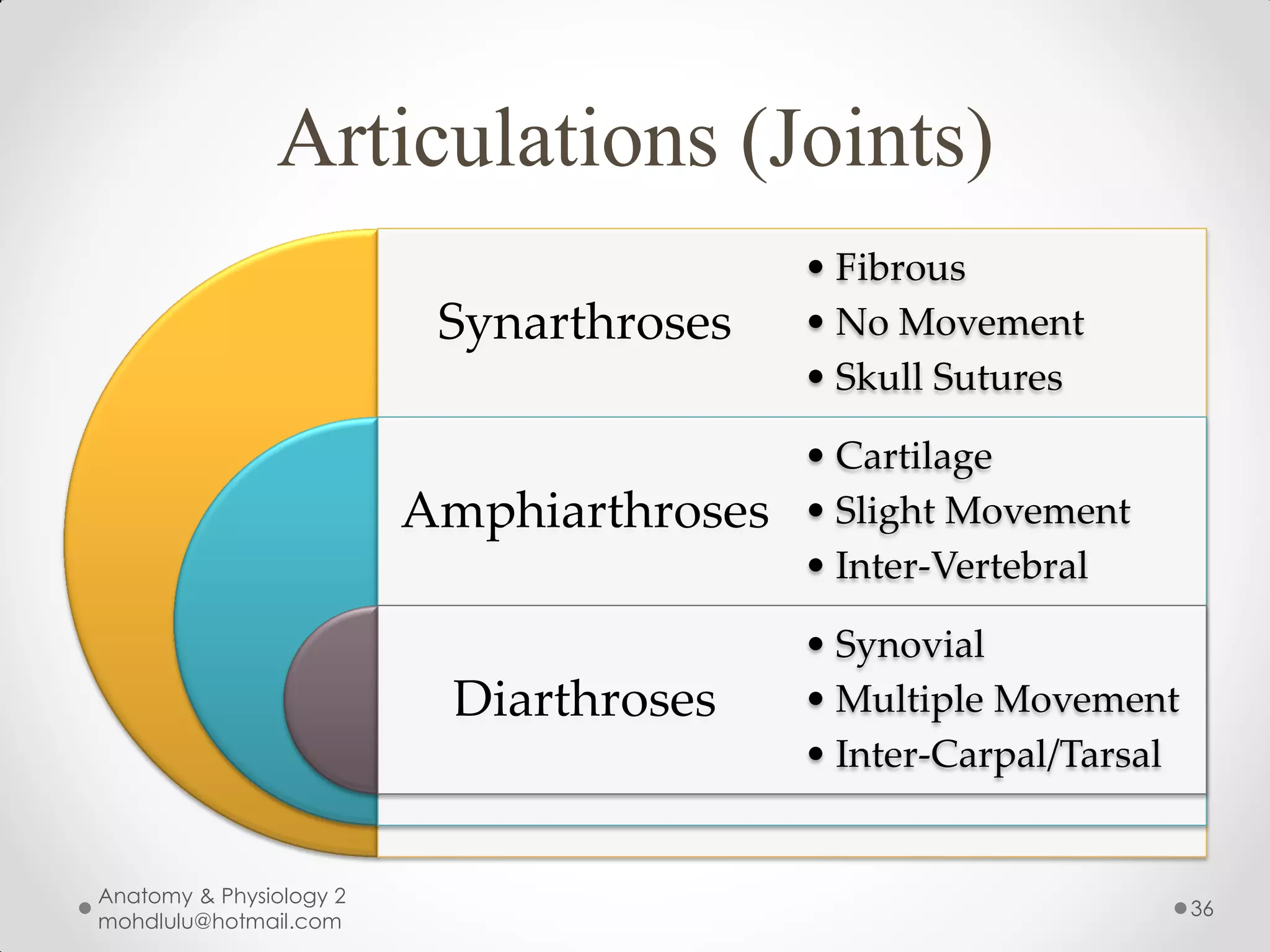

Articulations (Joints)
• Fibrous
Synarthroses • No Movement
• Skull Sutures

• Cartilage
Amphiarthroses • Slight Movement
• Inter-Vertebral

• Synovial
Diarthroses • Multiple Movement
• Inter-Carpal/Tarsal

36

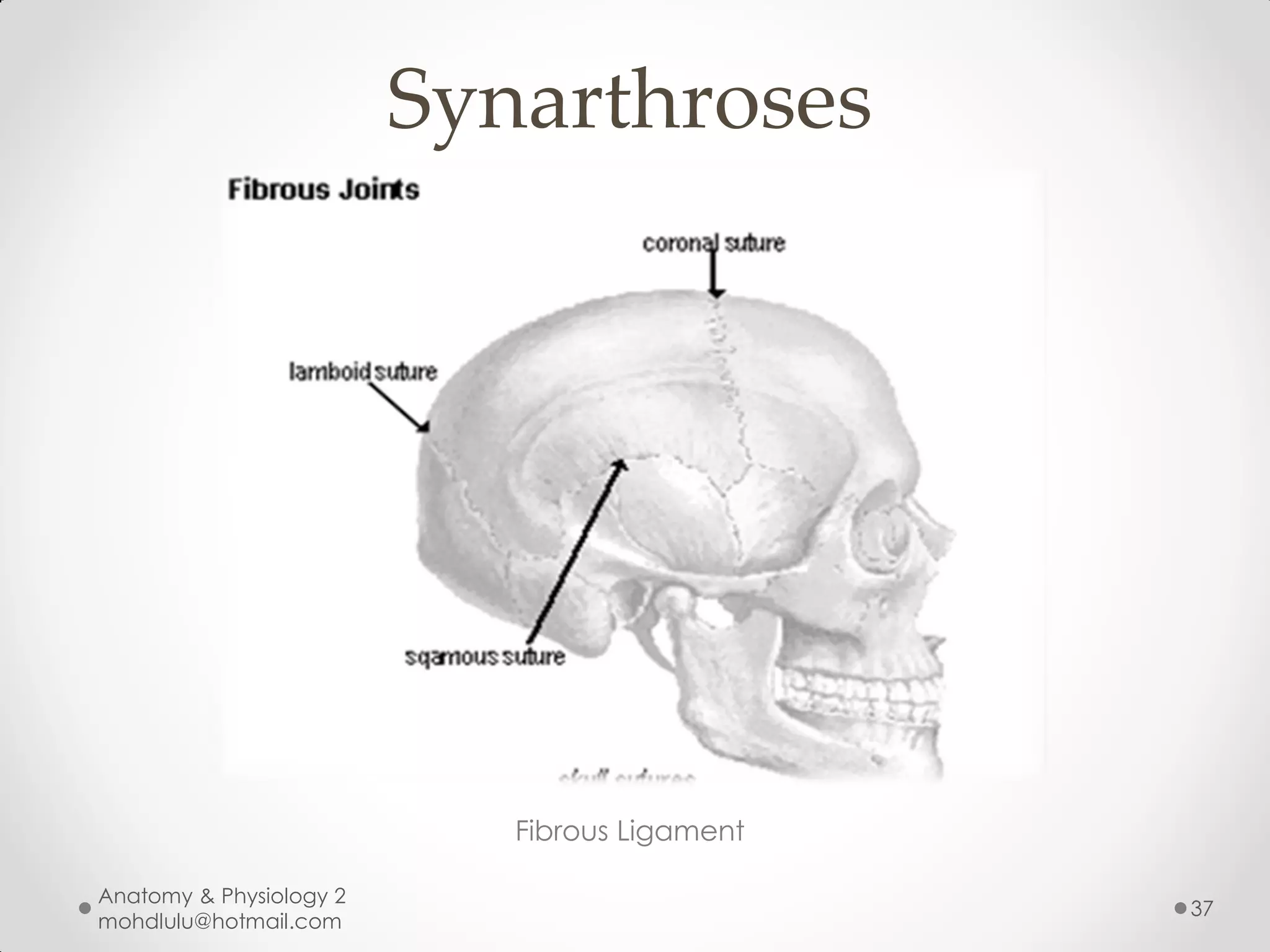

Synarthroses

Fibrous Ligament

37

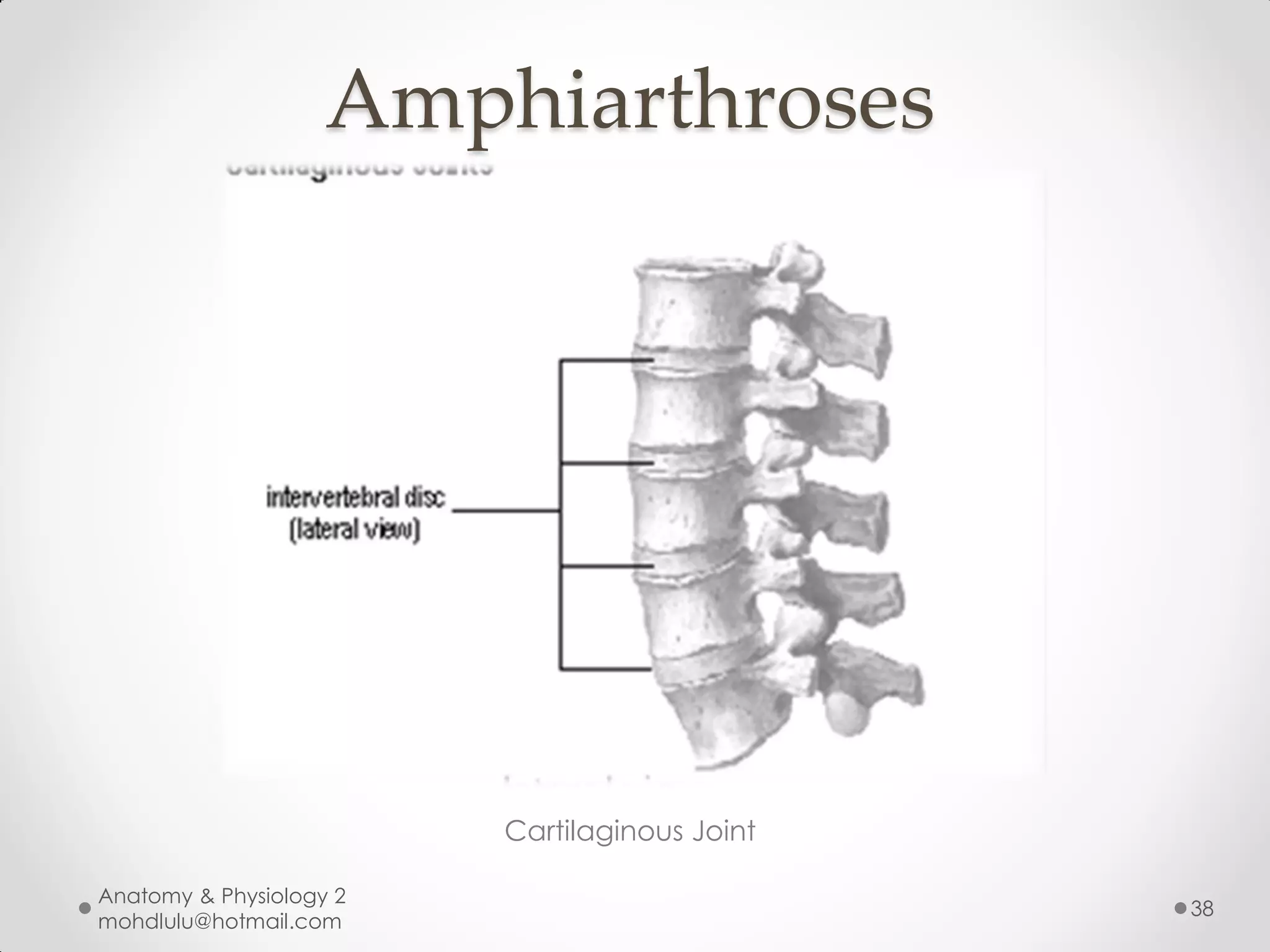

Amphiarthroses

Cartilaginous Joint

38

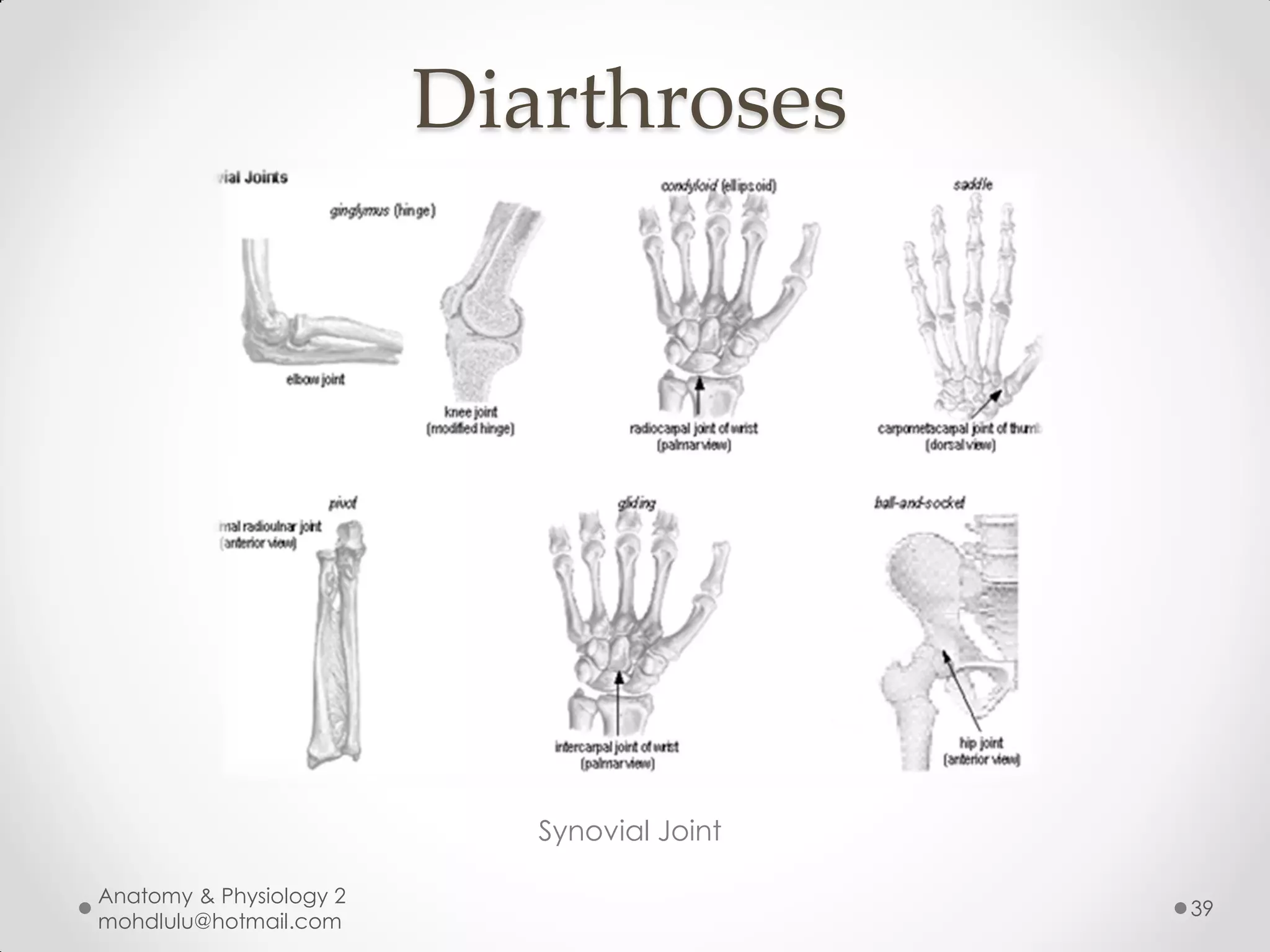

Diarthroses

Synovial Joint

39

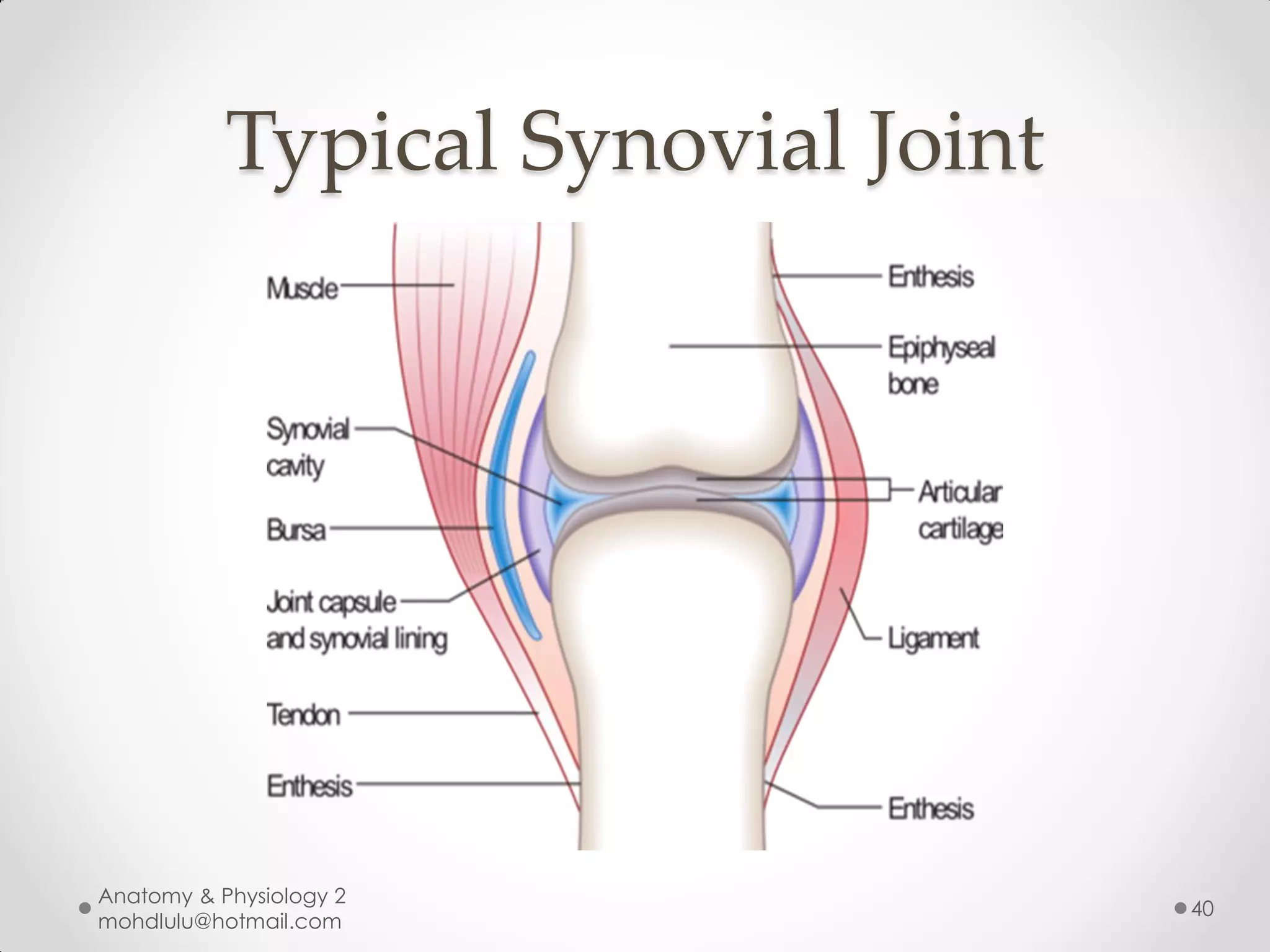

Typical Synovial Joint

40

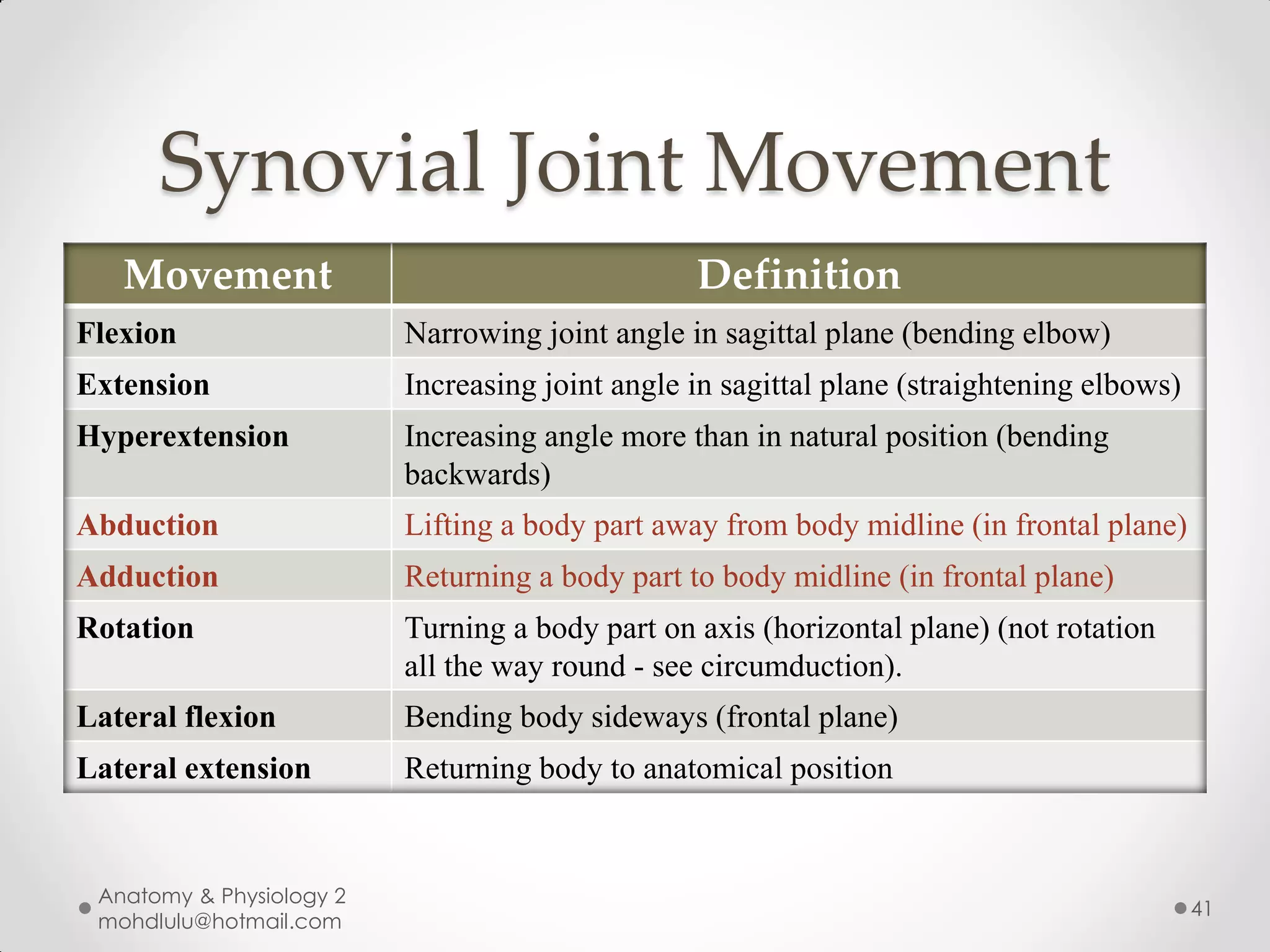

Synovial Joint Movement
Movement Definition
Flexion Narrowing joint angle in sagittal plane (bending elbow)
Extension Increasing joint angle in sagittal plane (straightening elbows)
Hyperextension Increasing angle more than in natural position (bending
backwards)
Abduction Lifting a body part away from body midline (in frontal plane)
Adduction Returning a body part to body midline (in frontal plane)
Rotation Turning a body part on axis (horizontal plane) (not rotation
all the way round - see circumduction).
Lateral flexion Bending body sideways (frontal plane)
Lateral extension Returning body to anatomical position

41

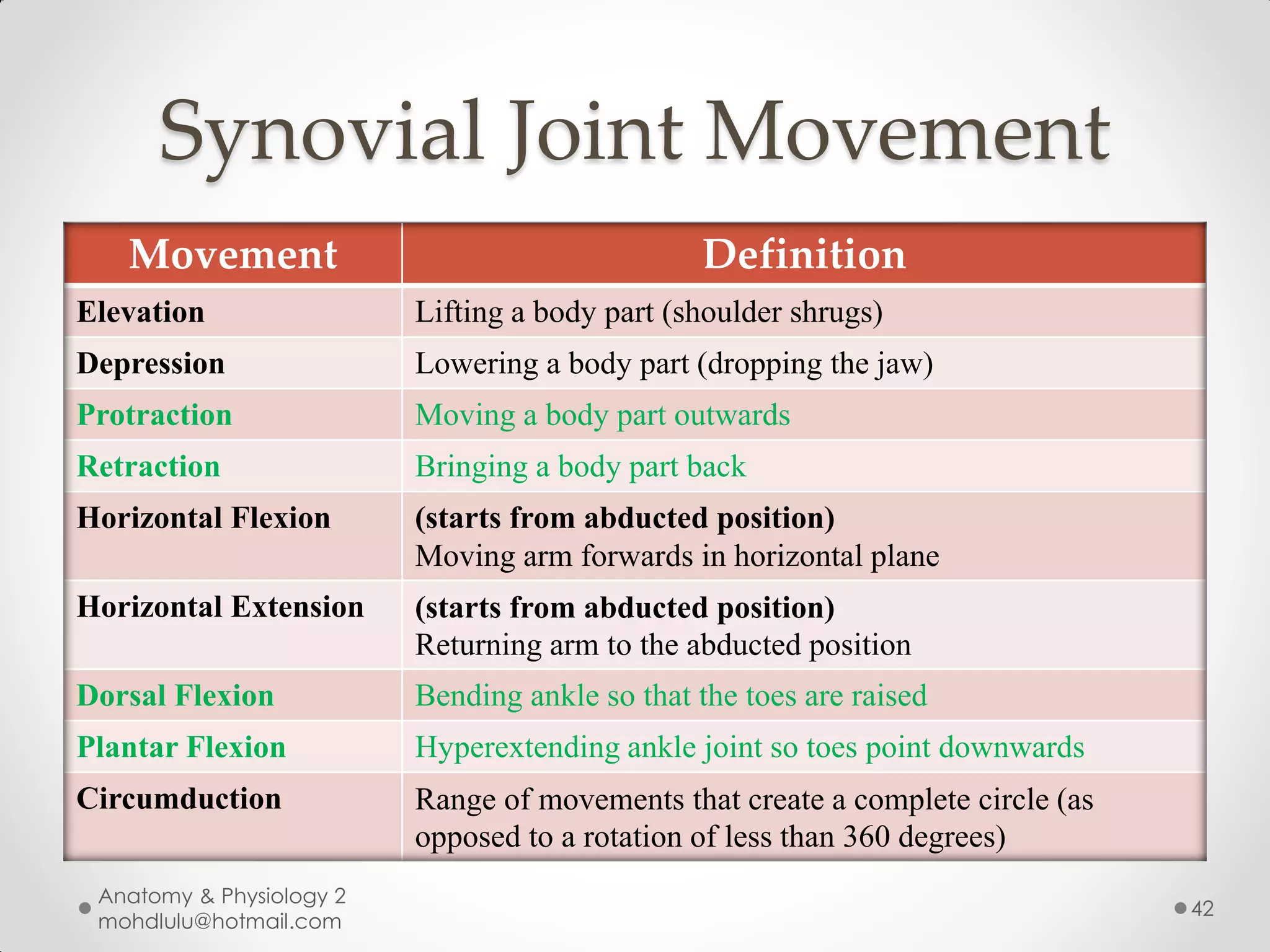

Synovial Joint Movement
Movement Definition
Elevation Lifting a body part (shoulder shrugs)
Depression Lowering a body part (dropping the jaw)
Protraction Moving a body part outwards
Retraction Bringing a body part back
Horizontal Flexion (starts from abducted position)
Moving arm forwards in horizontal plane
Horizontal Extension (starts from abducted position)
Returning arm to the abducted position
Dorsal Flexion Bending ankle so that the toes are raised
Plantar Flexion Hyperextending ankle joint so toes point downwards
Circumduction Range of movements that create a complete circle (as
opposed to a rotation of less than 360 degrees)
42

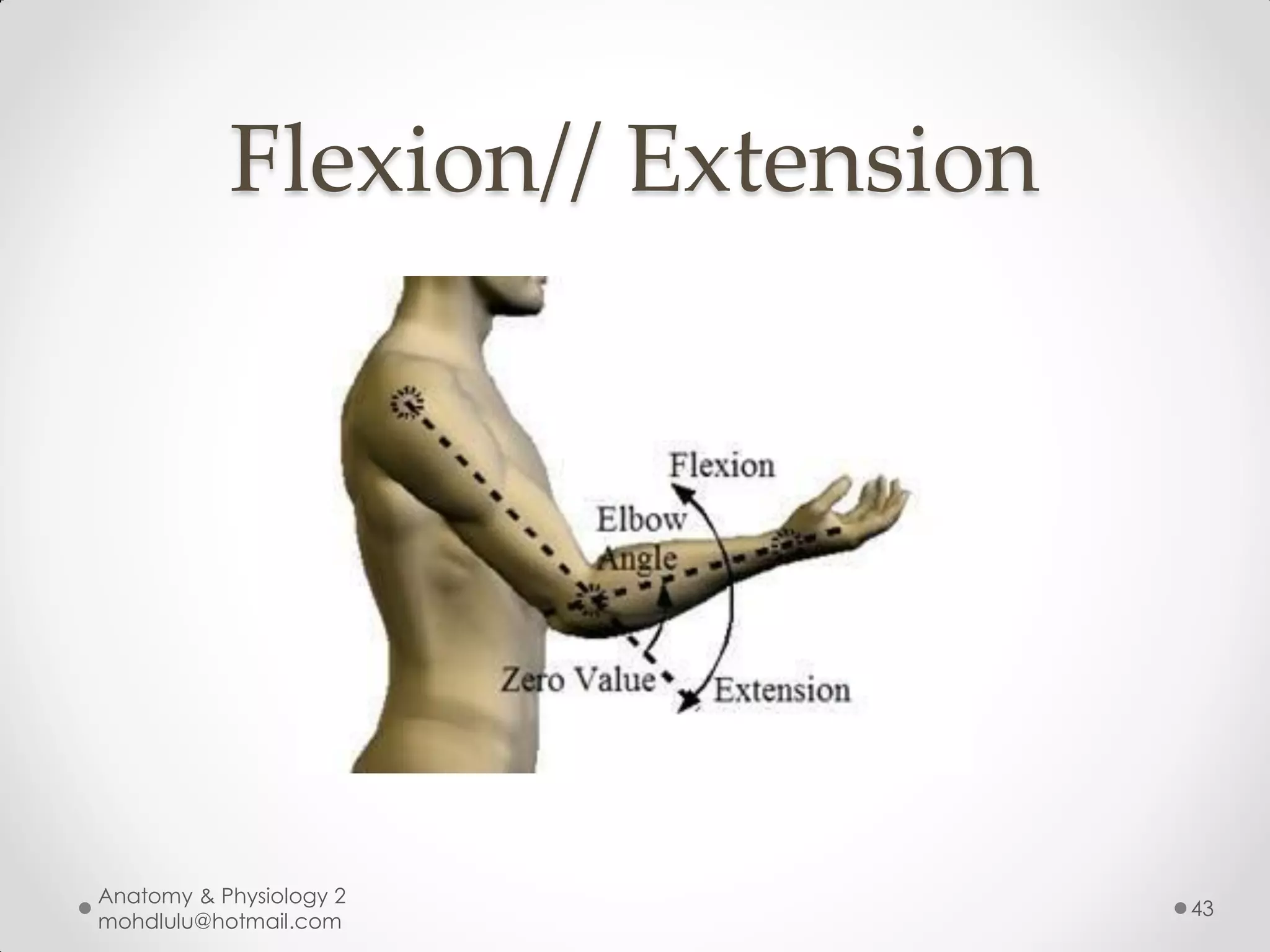

Flexion// Extension

43

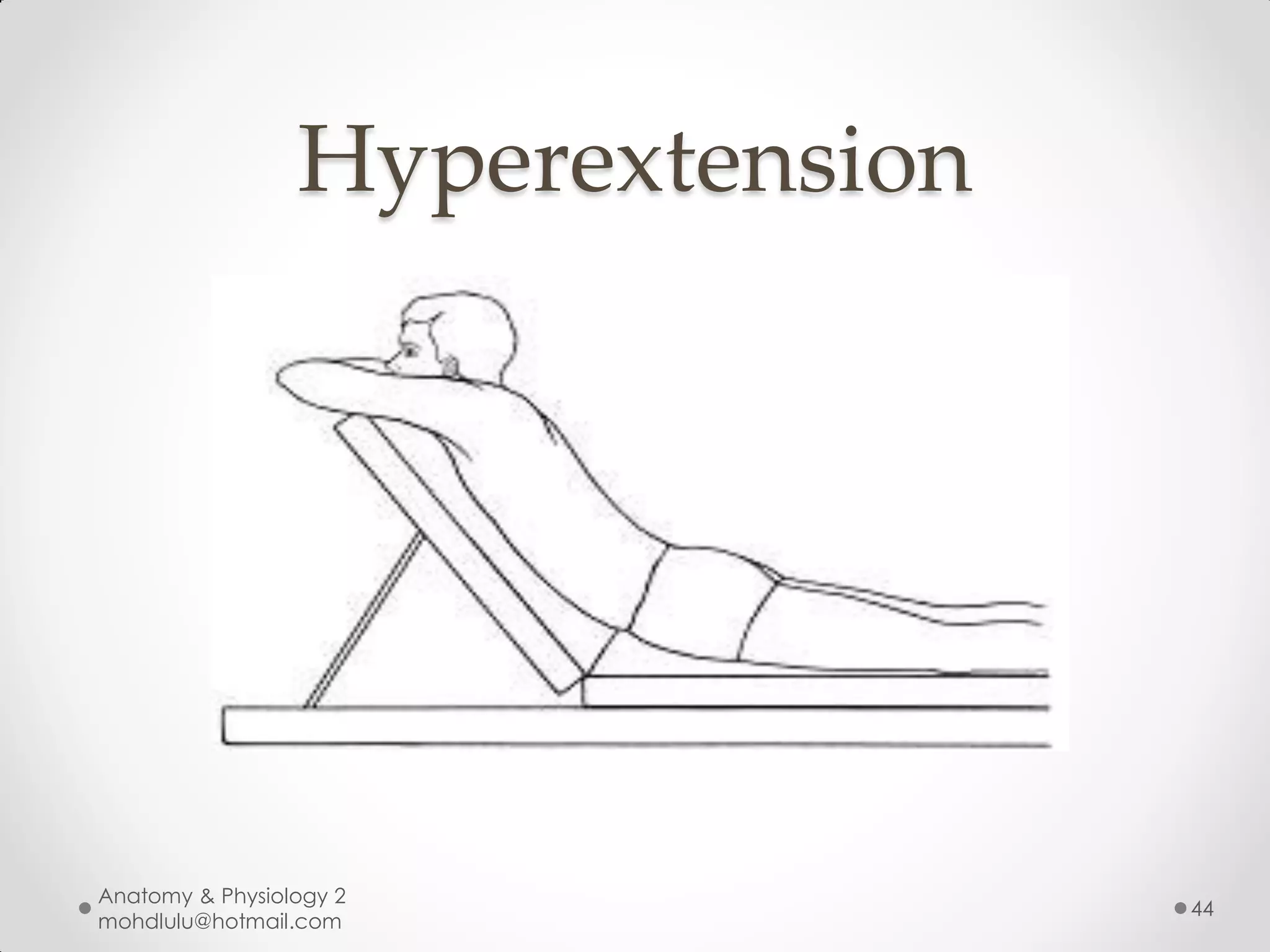

Hyperextension

44

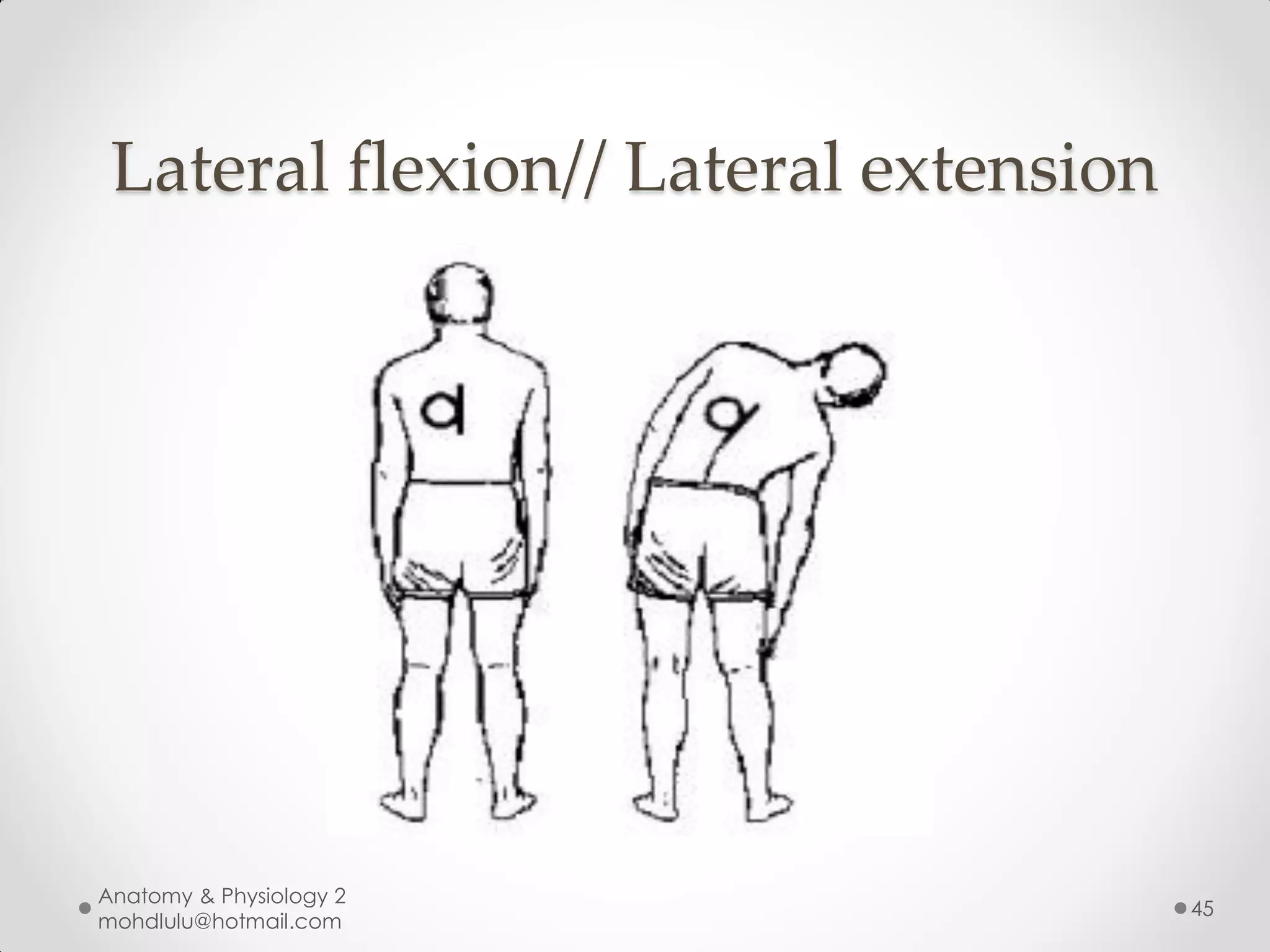

Lateral flexion// Lateral extension

45

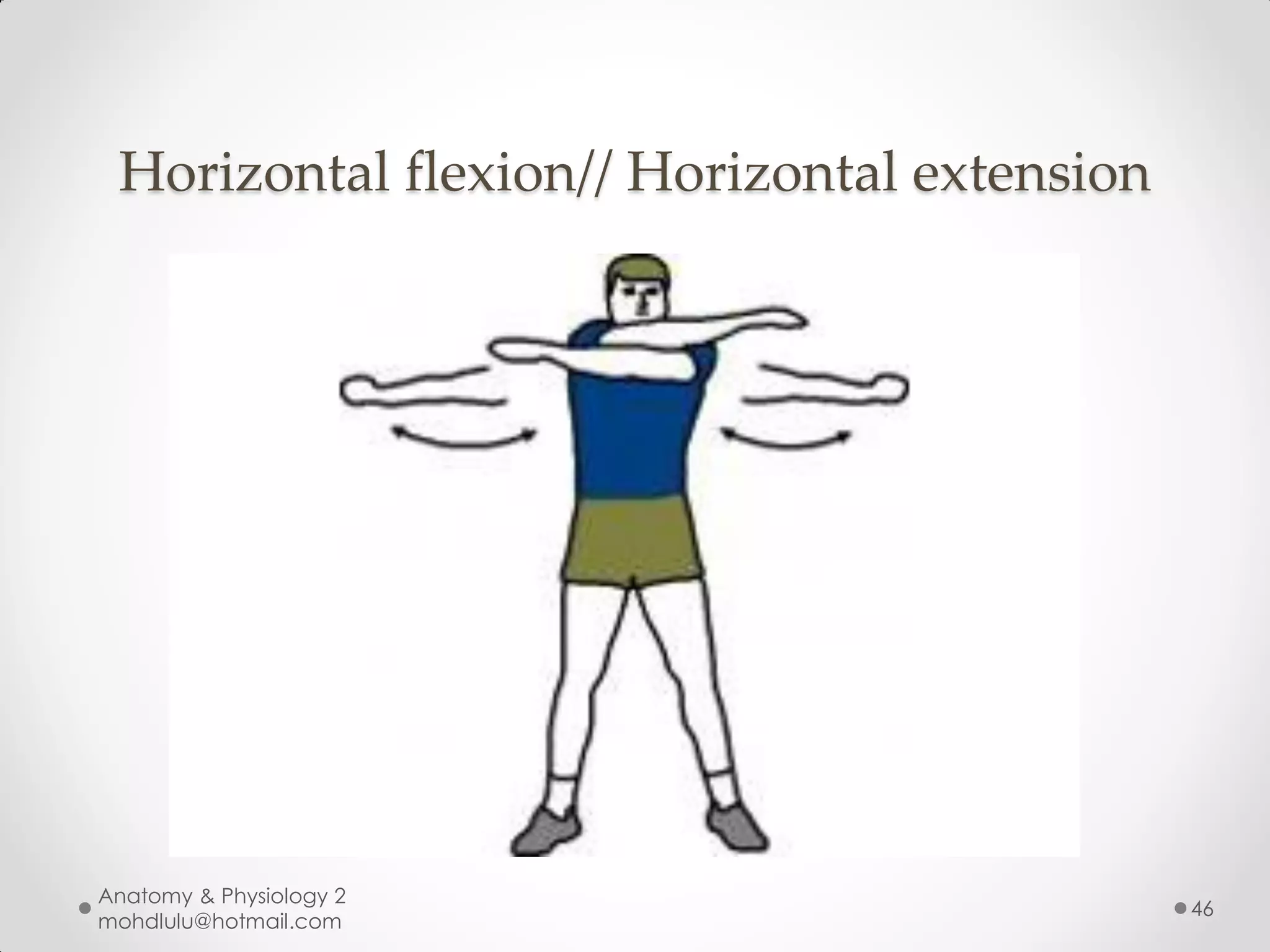

Horizontal flexion// Horizontal extension

46

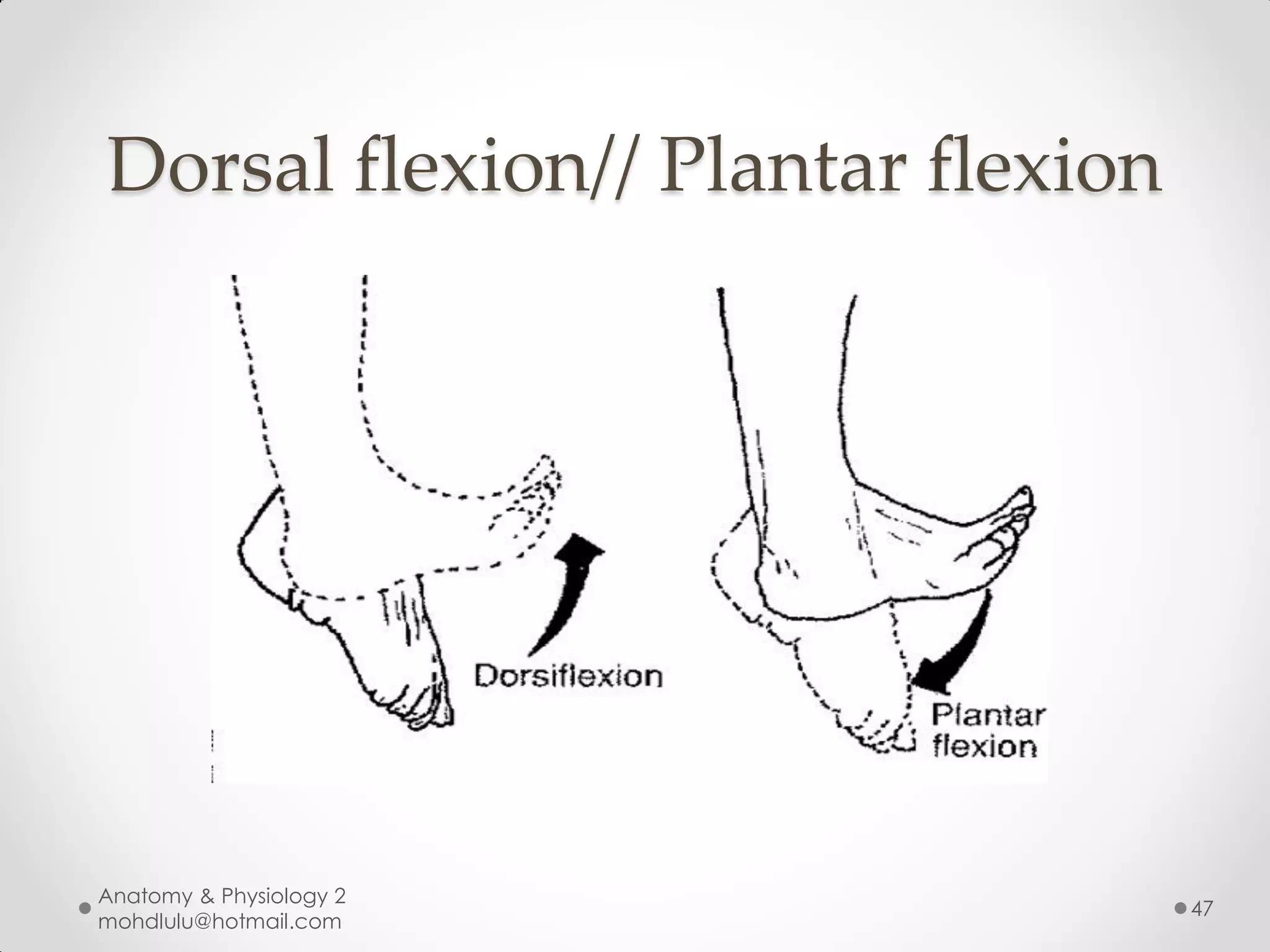

Dorsal flexion// Plantar flexion

47

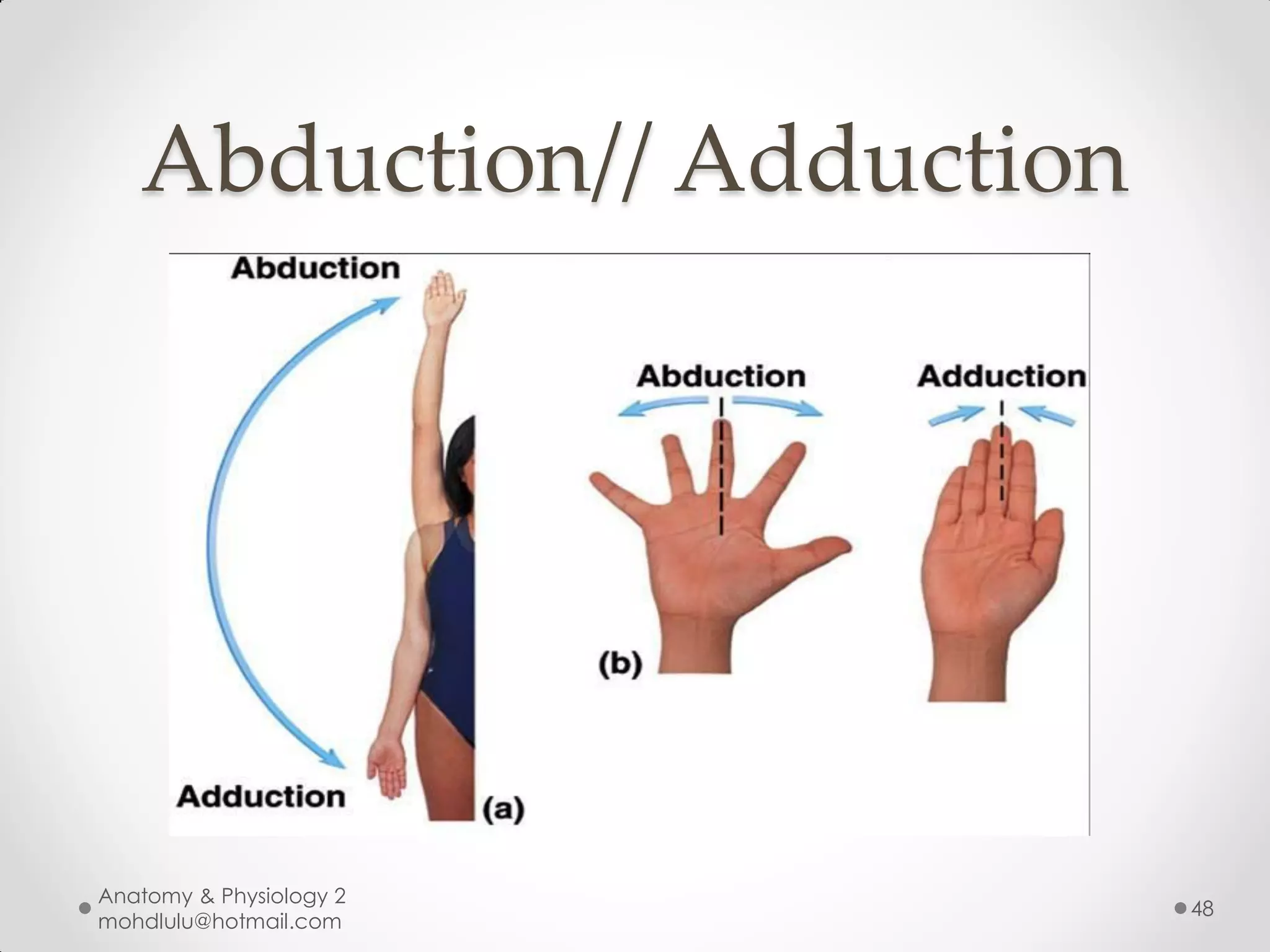

Abduction// Adduction

48

Elevation// Depression

49

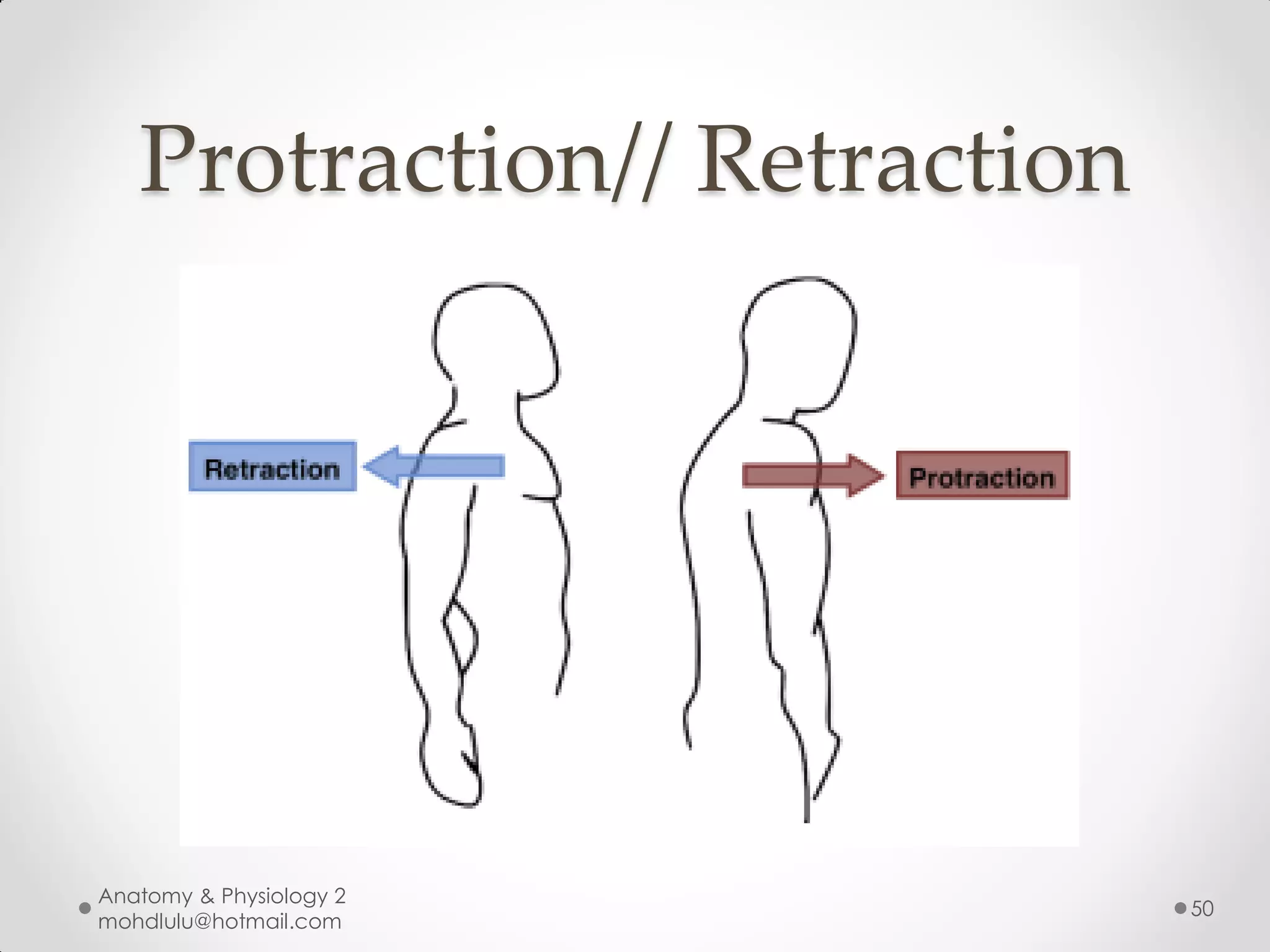

Protraction// Retraction

50

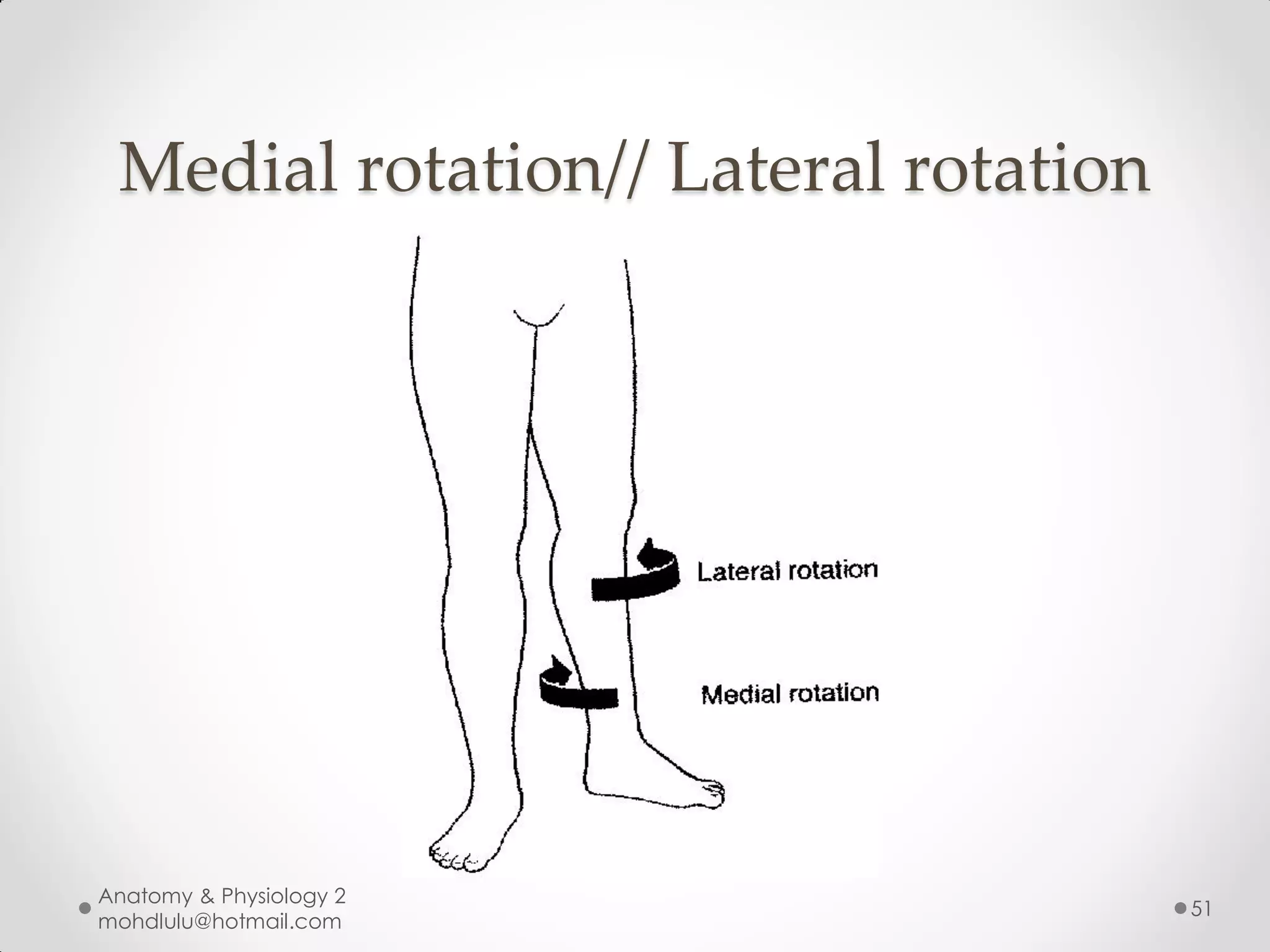

Medial rotation// Lateral rotation

51

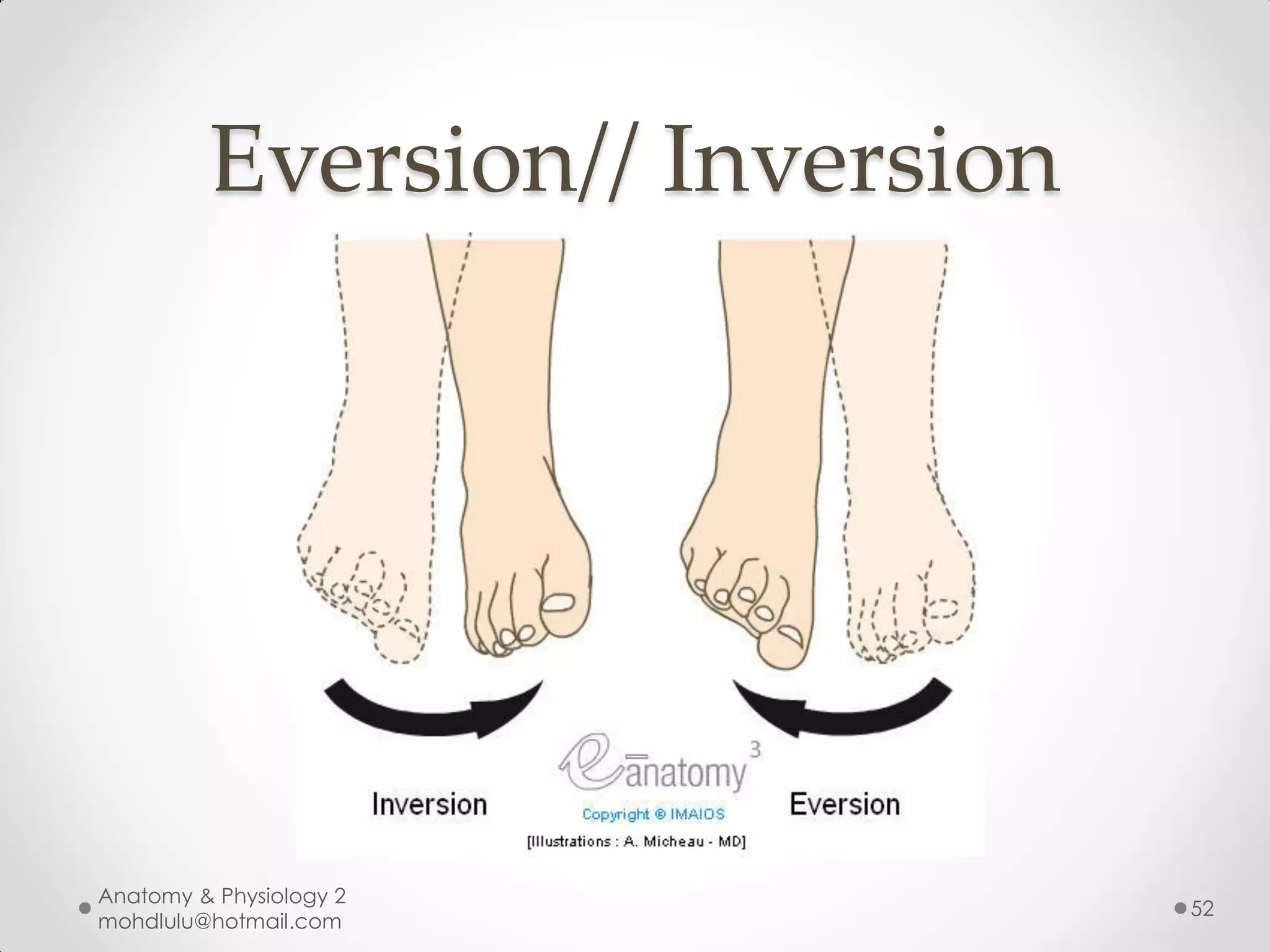

Eversion// Inversion

52

Pronation// Supination

53

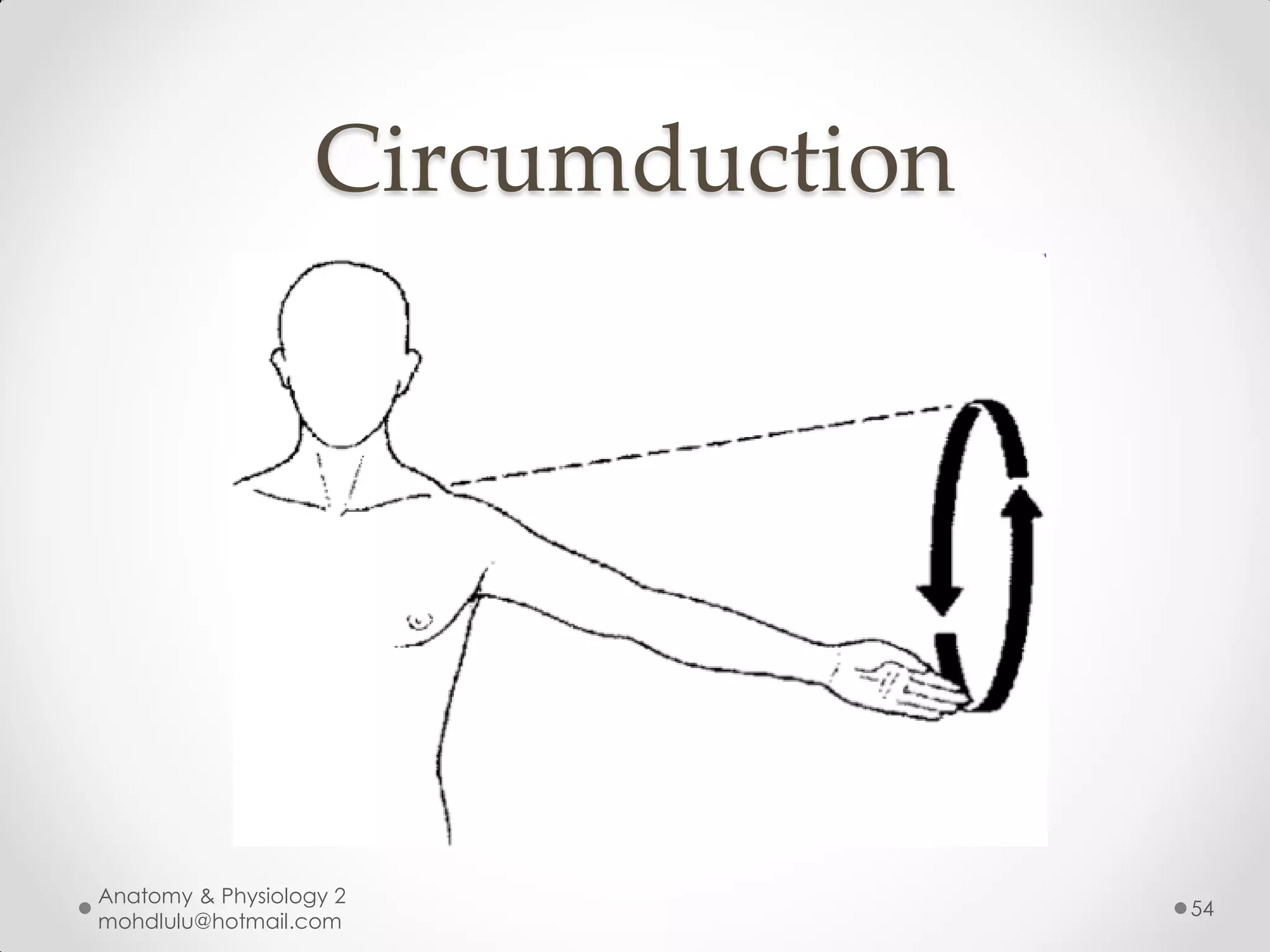

Circumduction

54

Thank you “ Ladies”
