Ossification
1. OSSIFICATION
INTRAMEMBRANOUS
DIRECT METHOD
Source of most flat bones.
Begin in 2nd
month of i.u life.
Formation of a membrane by
condensation of mesenchyme in
the area.
Vascularisation of the
mesenchyme
Differentiation into osteoblast.
Formation of osteoid
Calcification of osteoid.
Formation of spongy bone.
2. continued
Fusion of ossification centres and replacement of orignal
c.tissue.
Fontanelles of newborn are unossified c.tissue.
Spaces between trabeculae filled with lamellar bone so
inner and outer tables of skull bone form. Entire primordium
is surrounded by dense mesenchyme which gives fibrous
layer of periosteum.

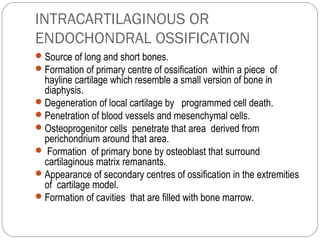

3. INTRACARTILAGINOUS OR
ENDOCHONDRAL OSSIFICATION
Source of long and short bones.
Formation of primary centre of ossification within a piece of
hayline cartilage which resemble a small version of bone in
diaphysis.
Degeneration of local cartilage by programmed cell death.
Penetration of blood vessels and mesenchymal cells.
Osteoprogenitor cells penetrate that area derived from
perichondrium around that area.
Formation of primary bone by osteoblast that surround
cartilaginous matrix remanants.
Appearance of secondary centres of ossification in the extremities
of cartilage model.
Formation of cavities that are filled with bone marrow.
4. CONTINUE
Cartilage remains in two region in secondary ossification
centres.
Articular cartilage, which persist throught adult life and do
not contribute to bone growth.
Epiphyseal cartilage which connect two epiphysis to the
diaphysis. It is responsible for the growth in length of the
bone, it disappear in adults that’s why growth ceases in
adulthood.
5. ENDOCHONDRAL ossificationFormation of long bone
on a model made of
cartilage
Two basic events in
endochondral
ossification
Destruction and removal of
the hyaline cartilage
except at joint surfaces.
Formation of bone tissue
in the spaces previously
occupied by cartilage.
7. EPIPHYSEAL CARTILAGE
Resting zone, consist of
hyaline cartilage.
Proliferative zone,
chondrocytes divide rapidly
and form colums of packed
cells.
Hypertrophic cartilage zone,
consist of large chondrocytes
with accumulated glycogen
,resorbed matrix is in the
form of thin septa.
8. CONTINUE
Calcified cartilage zone
,chondrocyte die,thin septa
calcified by deposition of
hydroxyapatite crystals.
Ossification zone,
endochondral bone tissue
appears,blood capillaries and
osteoprogenitor cells formed
which differentiate into
osteoblasts which deposit
bone matrix over the septa of
calcified cartilage matrix.
9. THREE DIMENSIONAL SHAPE OF
BONE IN THE EPIPHYSEAL PLATE
AREA
Rates of two opposing
events i.e proliferation and
destruction are equal
epipheal plate donot
change in thickness
It is displaced away from
the middle of the diaphysis
resulting in growth in
length of the bone.
10. CLINICAL
APPLICATION
Ricket, ca deficency in
children.Bone matrix does
not calcify normaly and
epiphyseal plate distorted
,ossification process Is
hindred, bone growth is slow.
Osteomalacia ,ca deficency
in adults characterised by
deficent calcification of
recently formed bone .
Osteoprosis ,found in
immobilised patients and in
postmenopausal women.It is
an imbalance in skeletal
turnover ,bone resorption
exceeds bone formation.
Osteopetrosis or
marblebone.a genetic
disorder charterised by dense
heavy bone ,osteoclast lack
ruffled border defective bone
resorption.
