1. CME March 2015
David Moore

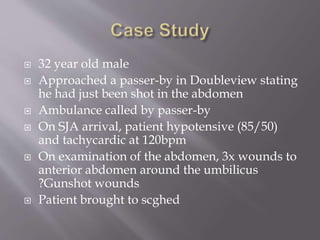

2.  32 year old male
 Approached a passer-by in Doubleview stating
he had just been shot in the abdomen
 Ambulance called by passer-by
 On SJA arrival, patient hypotensive (85/50)
and tachycardic at 120bpm
 On examination of the abdomen, 3x wounds to
anterior abdomen around the umbilicus
?Gunshot wounds
 Patient brought to scghed

3.  Stab wounds (SW) are more common than
gunshot wounds (GSW)
 SW have a lower mortality due to the lower
energy transmitted.
 In the USA, 90% of deaths related to
penetrating abdominal injury (PAI) are caused
by GSW.
 Incidentally, blunt abdominal trauma has
greater mortality than PAI (more difficult to
diagnose, commonly associated with trauma to
multiple organs/systems).

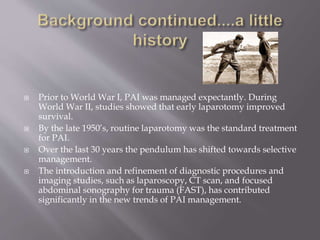

4.  Prior to World War I, PAI was managed expectantly. During
World War II, studies showed that early laparotomy improved
survival.
 By the late 1950’s, routine laparotomy was the standard treatment
for PAI.
 Over the last 30 years the pendulum has shifted towards selective
management.
 The introduction and refinement of diagnostic procedures and
imaging studies, such as laparoscopy, CT scan, and focused
abdominal sonography for trauma (FAST), has contributed
significantly in the new trends of PAI management.

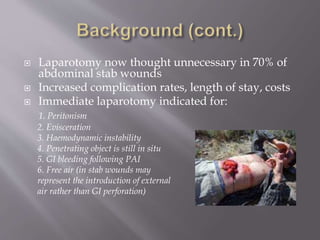

5.  Laparotomy now thought unnecessary in 70% of
abdominal stab wounds
 Increased complication rates, length of stay, costs
 Immediate laparotomy indicated for:
1. Peritonism
2. Evisceration
3. Haemodynamic instability
4. Penetrating object is still in situ
5. GI bleeding following PAI
6. Free air (in stab wounds may
represent the introduction of external
air rather than GI perforation)

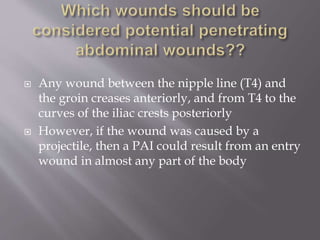

7.  Any wound between the nipple line (T4) and
the groin creases anteriorly, and from T4 to the
curves of the iliac crests posteriorly
 However, if the wound was caused by a
projectile, then a PAI could result from an entry
wound in almost any part of the body

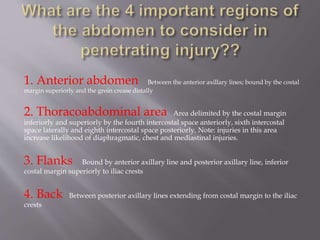

9. 1. Anterior abdomen Between the anterior axillary lines; bound by the costal
margin superiorly and the groin crease distally
2. Thoracoabdominal area Area delimited by the costal margin
inferiorly and superiorly by the fourth intercostal space anteriorly, sixth intercostal
space laterally and eighth intercostal space posteriorly. Note: injuries in this area
increase likelihood of diaphragmatic, chest and mediastinal injuries.
3. Flanks Bound by anterior axillary line and posterior axillary line, inferior
costal margin superiorly to iliac crests
4. Back Between posterior axillary lines extending from costal margin to the iliac
crests

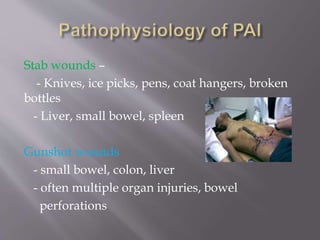

11. Stab wounds –
- Knives, ice picks, pens, coat hangers, broken
bottles
- Liver, small bowel, spleen
Gunshot wounds
- small bowel, colon, liver
- often multiple organ injuries, bowel
perforations

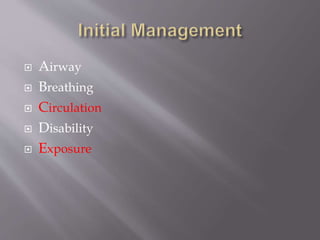

12.  Airway
 Breathing
 Circulation
 Disability
 Exposure

13.  General Trauma principles:
Airway management, 2x large bore IVs, fluid
resuscitation, major haemorrhage protocol.
 Cover penetrating wounds and eviscerations
with sterile dressings.
 Prophylactic Abx: Decrease risk of
intraabdominal sepsis (eg Cephazolin 2g).
 In general, leave foreign bodies in and remove
in theatre.

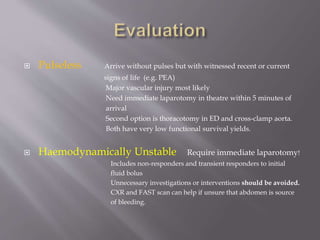

14.  Pulseless Arrive without pulses but with witnessed recent or current
signs of life (e.g. PEA)
Major vascular injury most likely
Need immediate laparotomy in theatre within 5 minutes of
arrival
Second option is thoracotomy in ED and cross-clamp aorta.
Both have very low functional survival yields.
 Haemodynamically Unstable Require immediate laparotomy!
Includes non-responders and transient responders to initial
fluid bolus
Unnecessary investigations or interventions should be avoided.
CXR and FAST scan can help if unsure that abdomen is source
of bleeding.

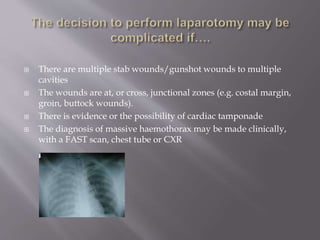

15.  There are multiple stab wounds/gunshot wounds to multiple
cavities
 The wounds are at, or cross, junctional zones (e.g. costal margin,
groin, buttock wounds).
 There is evidence or the possibility of cardiac tamponade
 The diagnosis of massive haemothorax may be made clinically,
with a FAST scan, chest tube or CXR

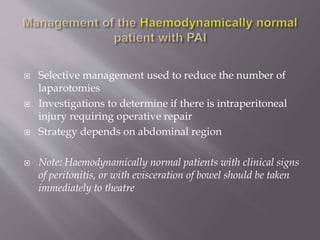

16.  Selective management used to reduce the number of
laparotomies
 Investigations to determine if there is intraperitoneal
injury requiring operative repair
 Strategy depends on abdominal region
 Note: Haemodynamically normal patients with clinical signs
of peritonitis, or with evisceration of bowel should be taken
immediately to theatre

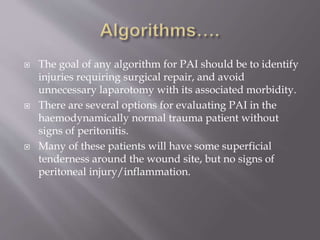

17.  The goal of any algorithm for PAI should be to identify
injuries requiring surgical repair, and avoid
unnecessary laparotomy with its associated morbidity.
 There are several options for evaluating PAI in the
haemodynamically normal trauma patient without
signs of peritonitis.
 Many of these patients will have some superficial
tenderness around the wound site, but no signs of
peritoneal injury/inflammation.

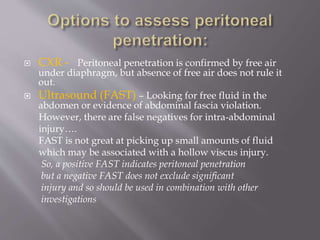

18.  CXR - Peritoneal penetration is confirmed by free air
under diaphragm, but absence of free air does not rule it
out.
 Ultrasound (FAST) – Looking for free fluid in the
abdomen or evidence of abdominal fascia violation.
However, there are false negatives for intra-abdominal
injury….
FAST is not great at picking up small amounts of fluid
which may be associated with a hollow viscus injury.
So, a positive FAST indicates peritoneal penetration
but a negative FAST does not exclude significant
injury and so should be used in combination with other
investigations

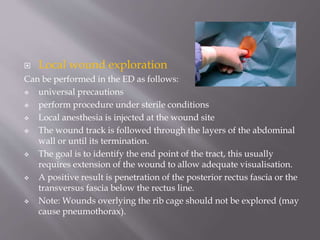

19.  Local wound exploration
Can be performed in the ED as follows:
 universal precautions
 perform procedure under sterile conditions
 Local anesthesia is injected at the wound site
 The wound track is followed through the layers of the abdominal
wall or until its termination.
 The goal is to identify the end point of the tract, this usually
requires extension of the wound to allow adequate visualisation.
 A positive result is penetration of the posterior rectus fascia or the
transversus fascia below the rectus line.
 Note: Wounds overlying the rib cage should not be explored (may
cause pneumothorax).

20.  Diagnostic Peritoneal Lavage (DPL)
The role of DPL in the haemodynamically normal patient is to
identify hollow viscus injury (stomach, small bowel, colon) or
diaphragmatic injury.
Disadvantages: It is invasive, does not evaluate the retroperitoneum,
has a significant false positive rate.
A positive result is >100,000 RBCs for anterior abdominal wounds
and 10,000 RBCs for thoracoabdominal wounds.
DPL is now used only if FAST and CT not available.

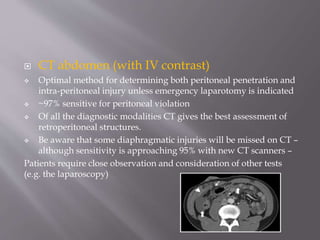

21.  CT abdomen (with IV contrast)
 Optimal method for determining both peritoneal penetration and
intra-peritoneal injury unless emergency laparotomy is indicated
 ~97% sensitive for peritoneal violation
 Of all the diagnostic modalities CT gives the best assessment of
retroperitoneal structures.
 Be aware that some diaphragmatic injuries will be missed on CT –
although sensitivity is approaching 95% with new CT scanners –
Patients require close observation and consideration of other tests
(e.g. the laparoscopy)

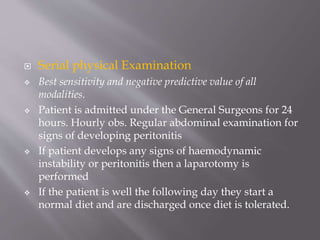

22.  Serial physical Examination
 Best sensitivity and negative predictive value of all
modalities.
 Patient is admitted under the General Surgeons for 24
hours. Hourly obs. Regular abdominal examination for
signs of developing peritonitis
 If patient develops any signs of haemodynamic
instability or peritonitis then a laparotomy is
performed
 If the patient is well the following day they start a
normal diet and are discharged once diet is tolerated.

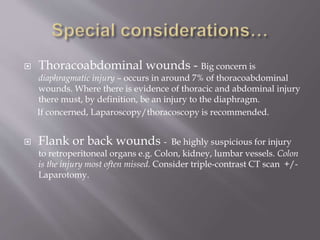

23.  Thoracoabdominal wounds - Big concern is
diaphragmatic injury – occurs in around 7% of thoracoabdominal
wounds. Where there is evidence of thoracic and abdominal injury
there must, by definition, be an injury to the diaphragm.
If concerned, Laparoscopy/thoracoscopy is recommended.
 Flank or back wounds - Be highly suspicious for injury
to retroperitoneal organs e.g. Colon, kidney, lumbar vessels. Colon
is the injury most often missed. Consider triple-contrast CT scan +/-
Laparotomy.

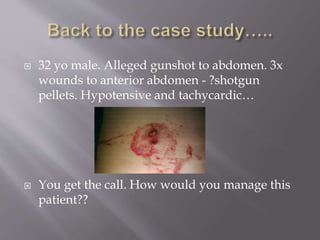

24.  32 yo male. Alleged gunshot to abdomen. 3x
wounds to anterior abdomen - ?shotgun
pellets. Hypotensive and tachycardic…
 You get the call. How would you manage this
patient??

25.  Major trauma call
 Major haemorrhage pack
 Appropriate setting and staff
 Preparation – bilateral chest drains if required
- Drugs (anaesthetics, analgesia,
inotropes)
- Airway equipment + difficult
airway trolley

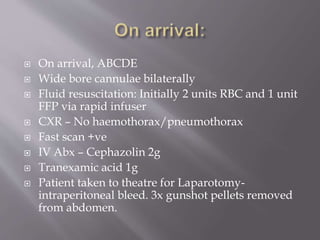

26.  On arrival, ABCDE
 Wide bore cannulae bilaterally
 Fluid resuscitation: Initially 2 units RBC and 1 unit
FFP via rapid infuser
 CXR – No haemothorax/pneumothorax
 Fast scan +ve
 IV Abx – Cephazolin 2g
 Tranexamic acid 1g
 Patient taken to theatre for Laparotomy-
intraperitoneal bleed. 3x gunshot pellets removed
from abdomen.
