Principles of VOR Navigation
The VOR System was introduce in 1945 with the introduction of VHF
OmniRange (VOR) navigation stations.
VOR stations appear on the U.S. Aeronautical Charts as a compass circle
centered over the station and oriented toward magnetic north.
Lines, known as radials, are drawn from the station out in the direction of a
magnetic heading.
A VOR station broadcasts an infinite number of radials.
If the VOR system indicates that the aircraft is on a zero radial, this means
that it is somewhere on a line drawn from the VOR station to magnetic north.
– So VOR indication is independent of aircraft heading, whereas the ADF
indication changes with the aircraft heading as the ADF points to the
station.
Subj Code:AFD31202
ect
I
ssue No

:000

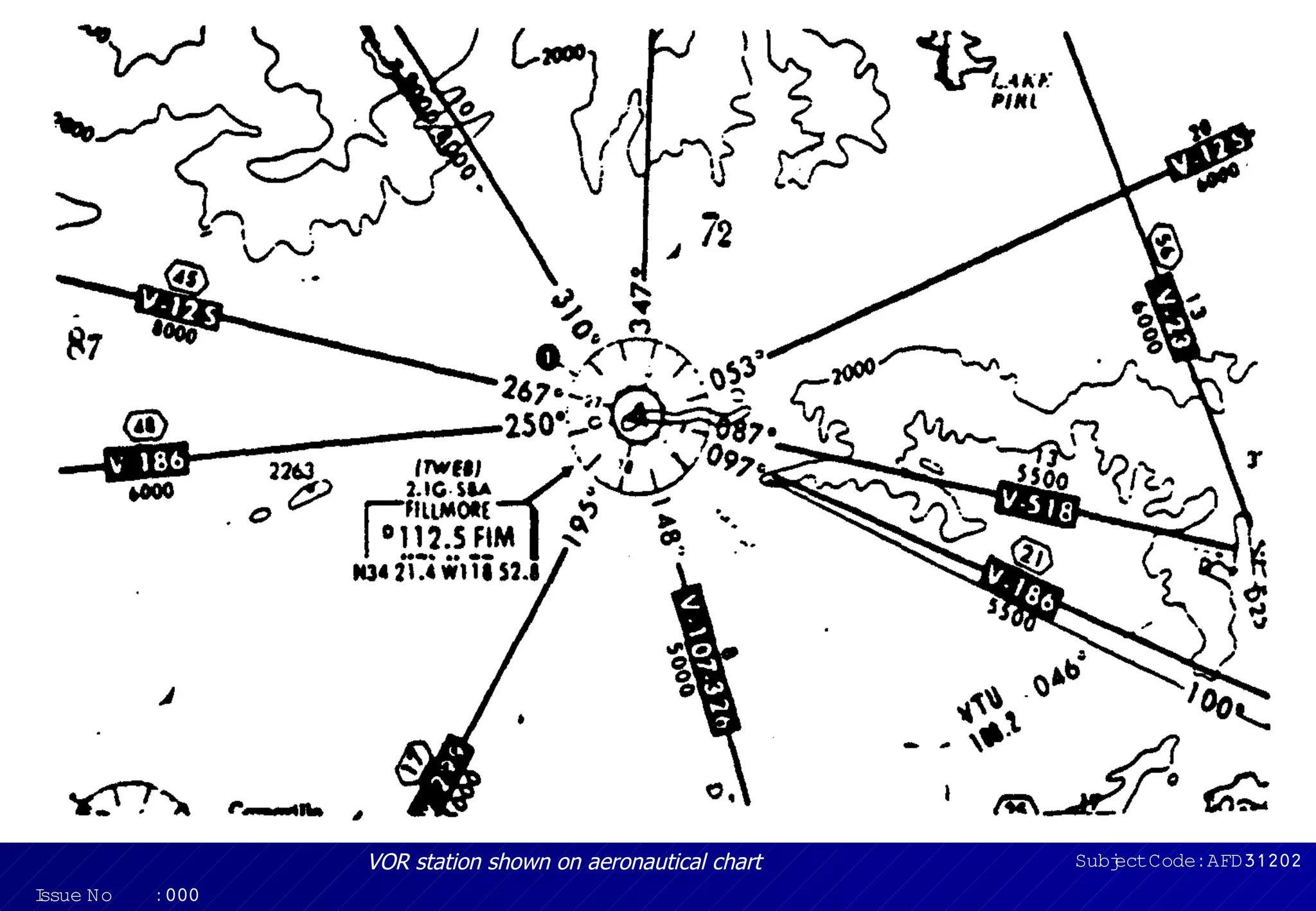

VOR station shown on aeronautical chart
I
ssue No

:000


Subj Code:AFD31202
ect

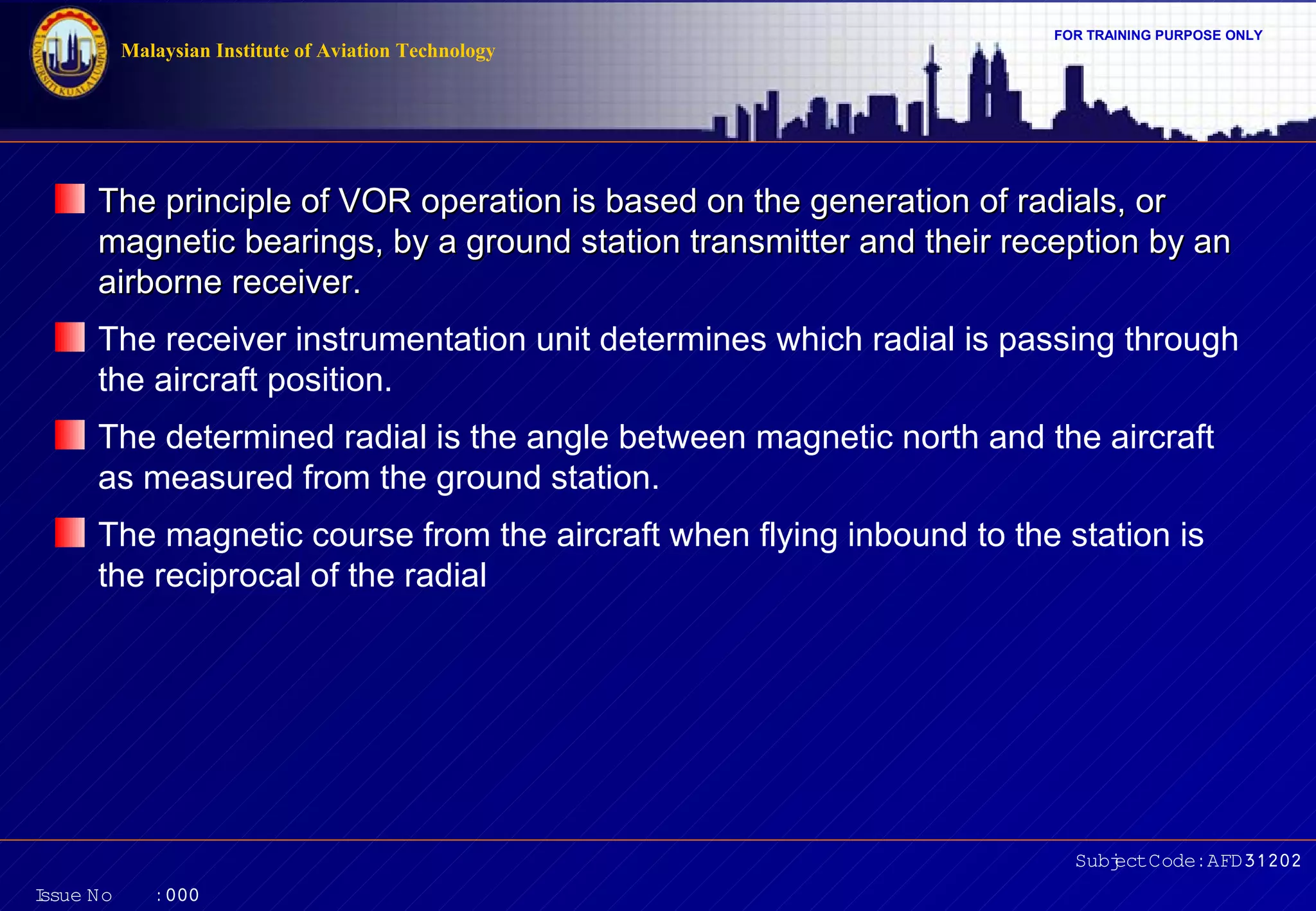

The principle of VOR operation is based on the generation of radials, or
magnetic bearings, by a ground station transmitter and their reception by an
airborne receiver.
The receiver instrumentation unit determines which radial is passing through
the aircraft position.
The determined radial is the angle between magnetic north and the aircraft
as measured from the ground station.
The magnetic course from the aircraft when flying inbound to the station is
the reciprocal of the radial

Subj Code:AFD31202
ect
I
ssue No

:000

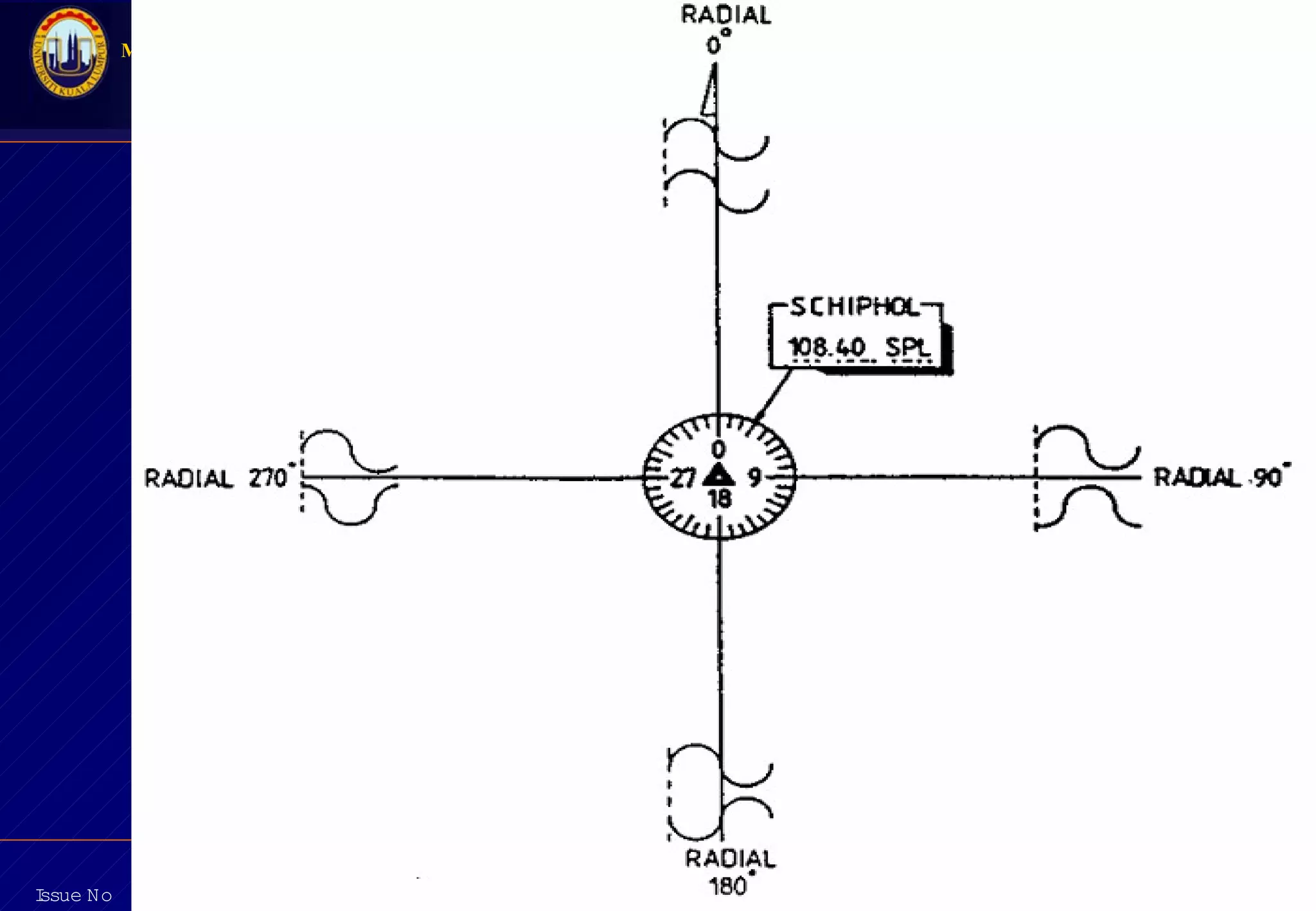

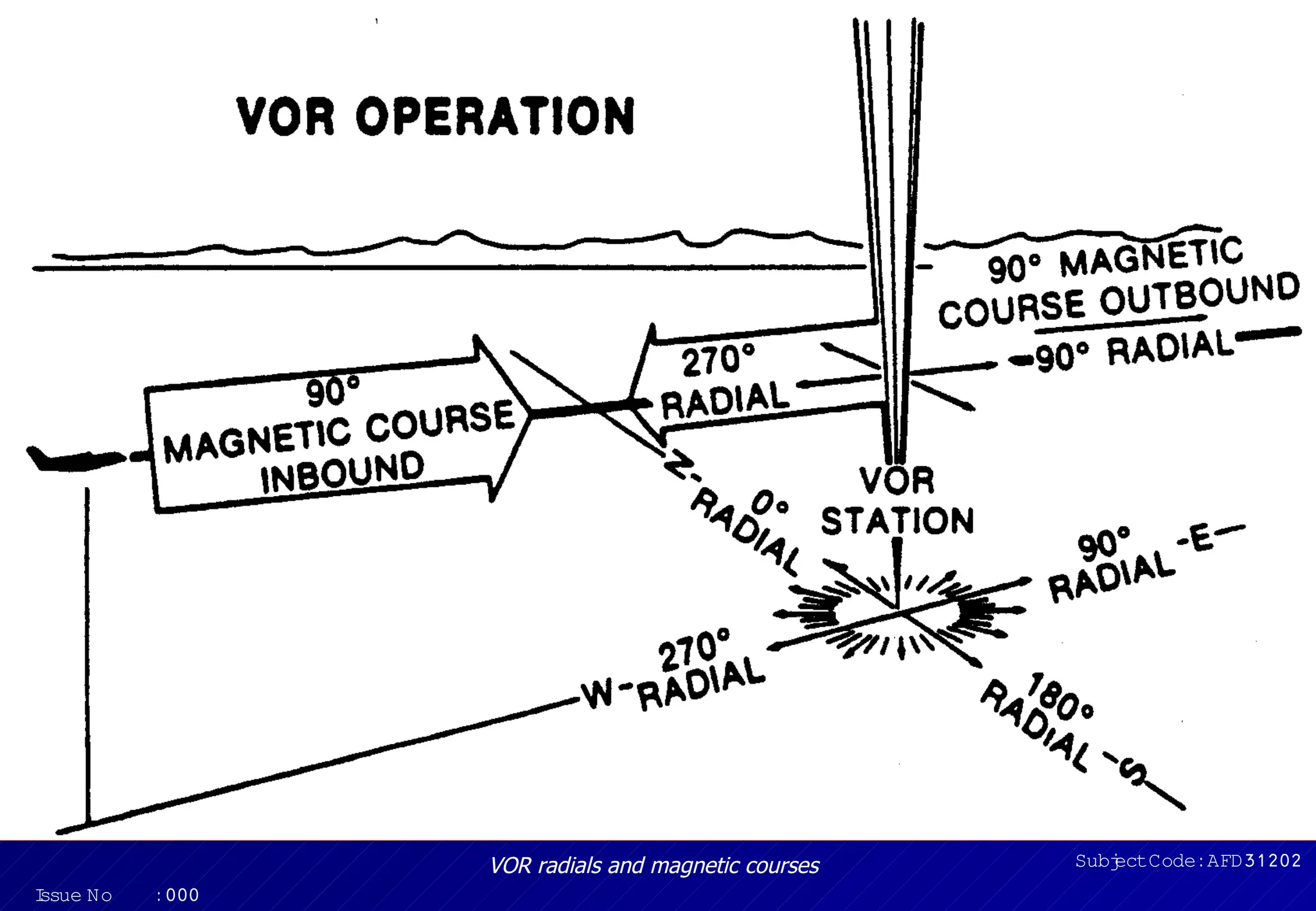

VOR radials and magnetic courses
I
ssue No

:000


Subj Code:AFD31202
ect

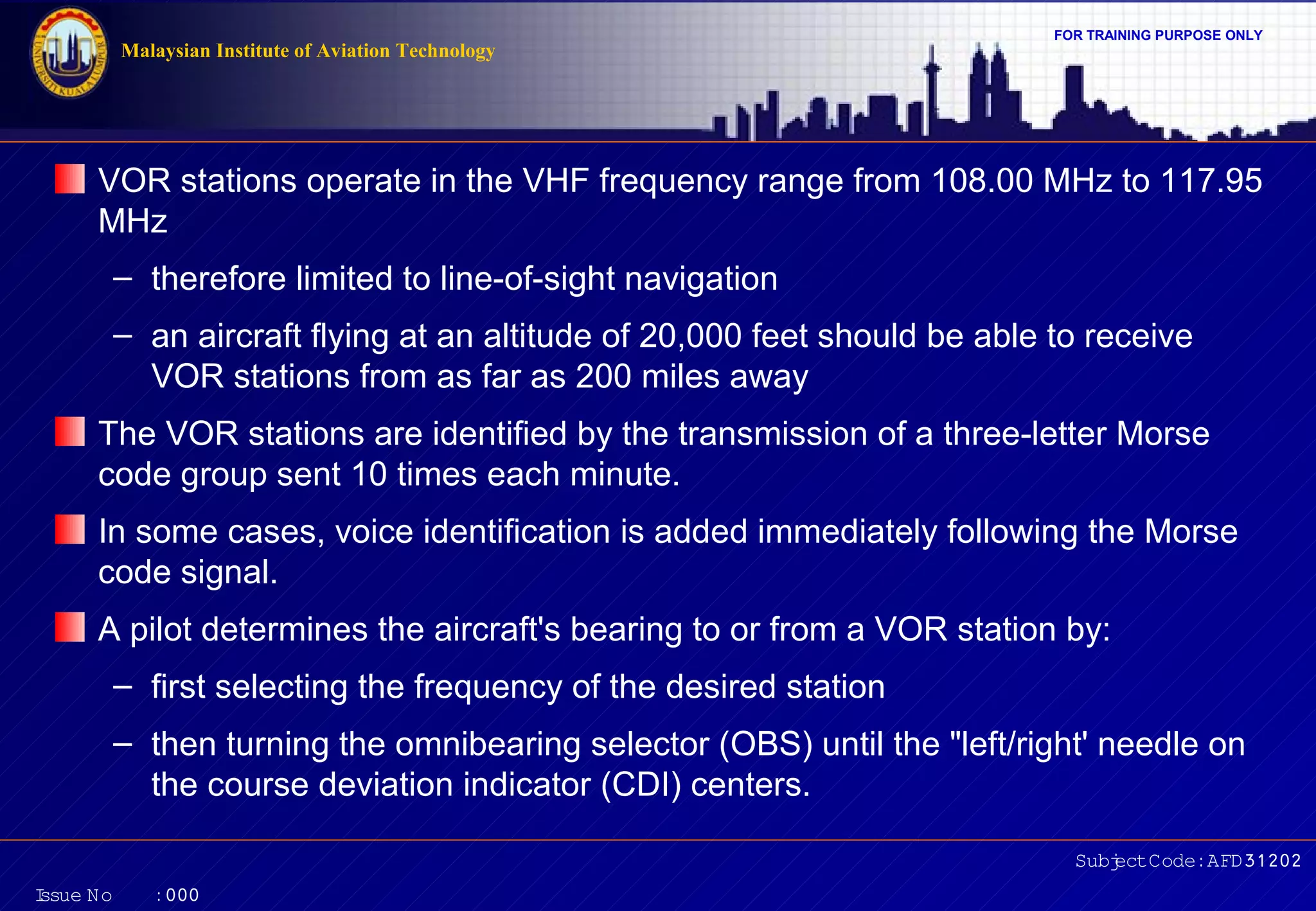

VOR stations operate in the VHF frequency range from 108.00 MHz to 117.95
MHz
– therefore limited to line-of-sight navigation
– an aircraft flying at an altitude of 20,000 feet should be able to receive
VOR stations from as far as 200 miles away
The VOR stations are identified by the transmission of a three-letter Morse
code group sent 10 times each minute.
In some cases, voice identification is added immediately following the Morse
code signal.
A pilot determines the aircraft's bearing to or from a VOR station by:
– first selecting the frequency of the desired station
– then turning the omnibearing selector (OBS) until the "left/right' needle on
the course deviation indicator (CDI) centers.
Subj Code:AFD31202
ect
I
ssue No

:000

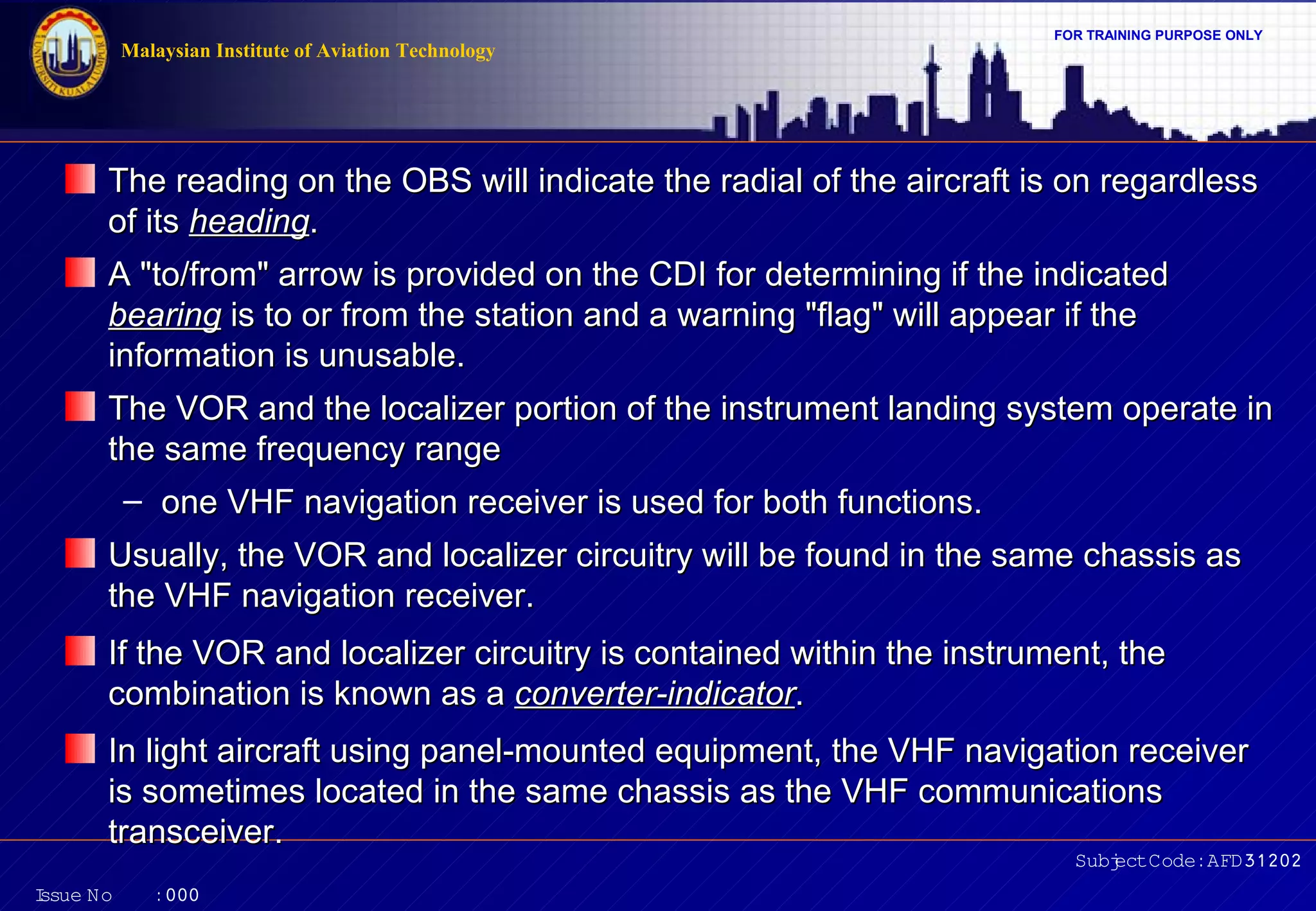

The reading on the OBS will indicate the radial of the aircraft is on regardless
of its heading.
A "to/from" arrow is provided on the CDI for determining if the indicated
bearing is to or from the station and a warning "flag" will appear if the
information is unusable.
The VOR and the localizer portion of the instrument landing system operate in
the same frequency range
– one VHF navigation receiver is used for both functions.
Usually, the VOR and localizer circuitry will be found in the same chassis as
the VHF navigation receiver.
If the VOR and localizer circuitry is contained within the instrument, the
combination is known as a converter-indicator.
In light aircraft using panel-mounted equipment, the VHF navigation receiver
is sometimes located in the same chassis as the VHF communications
transceiver.
Subj Code:AFD31202
ect
I
ssue No

:000

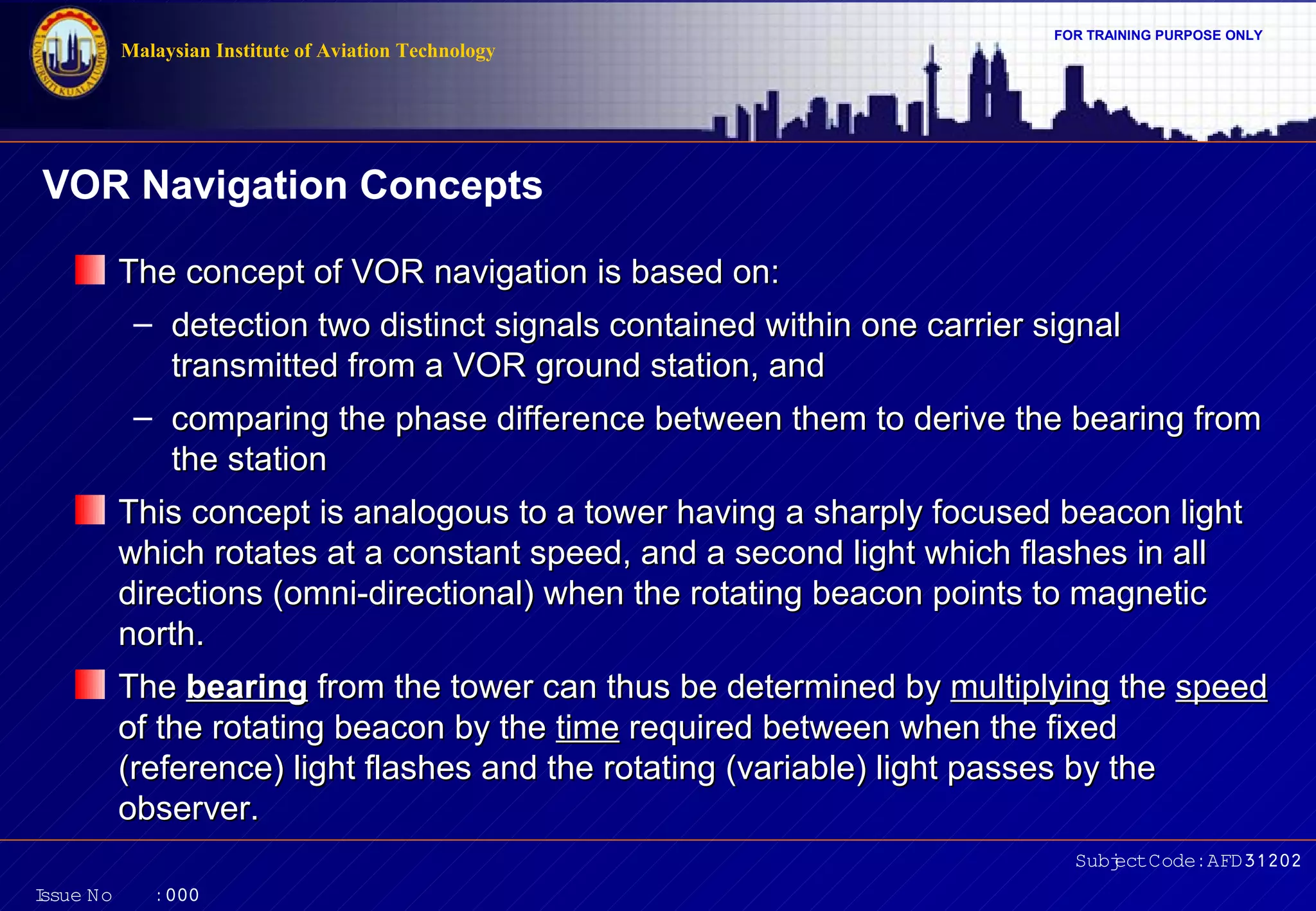

VOR Navigation Concepts
The concept of VOR navigation is based on:
– detection two distinct signals contained within one carrier signal
transmitted from a VOR ground station, and
– comparing the phase difference between them to derive the bearing from
the station
This concept is analogous to a tower having a sharply focused beacon light
which rotates at a constant speed, and a second light which flashes in all
directions (omni-directional) when the rotating beacon points to magnetic
north.
The bearing from the tower can thus be determined by multiplying the speed
of the rotating beacon by the time required between when the fixed
(reference) light flashes and the rotating (variable) light passes by the
observer.
Subj Code:AFD31202
ect
I
ssue No

:000

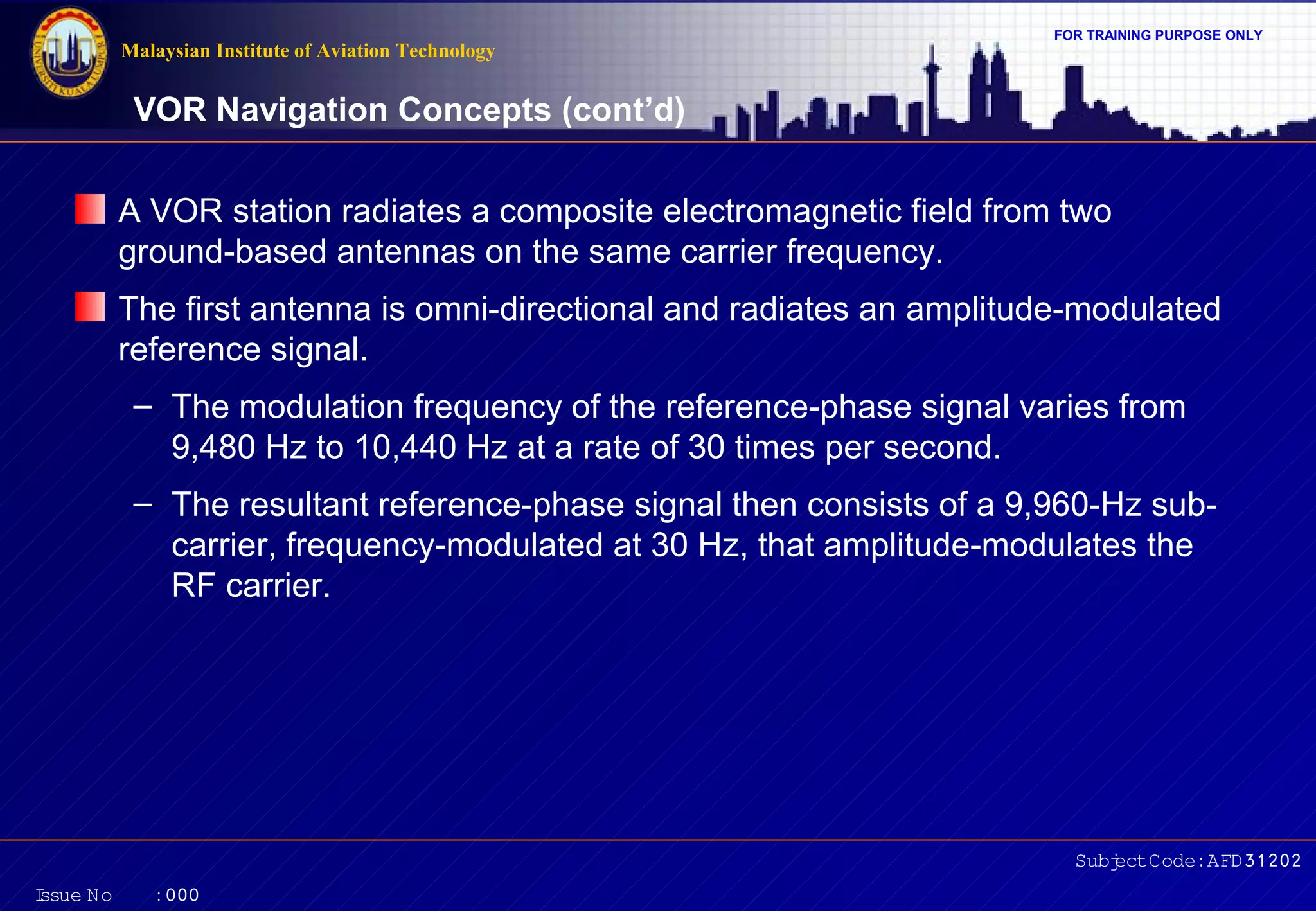

VOR Navigation Concepts (cont’d)
A VOR station radiates a composite electromagnetic field from two
ground-based antennas on the same carrier frequency.
The first antenna is omni-directional and radiates an amplitude-modulated
reference signal.
– The modulation frequency of the reference-phase signal varies from
9,480 Hz to 10,440 Hz at a rate of 30 times per second.
– The resultant reference-phase signal then consists of a 9,960-Hz subcarrier, frequency-modulated at 30 Hz, that amplitude-modulates the
RF carrier.

Subj Code:AFD31202
ect
I
ssue No

:000



The second antenna is a horizontal dipole which rotates at the rate of 1,800
revolutions per minute (30 revolutions per second) and produces a figureeight electromagnetic field pattern.
– The RF field within one of the lobes is exactly in phase with the RF
radiated from the omni-directional field.
– The in-phase lobe extends the omni-directional pattern on one side that
result in a cardioids field pattern which rotates at the rate of 30
revolutions per second.

Subj Code:AFD31202
ect
I
ssue No

:000

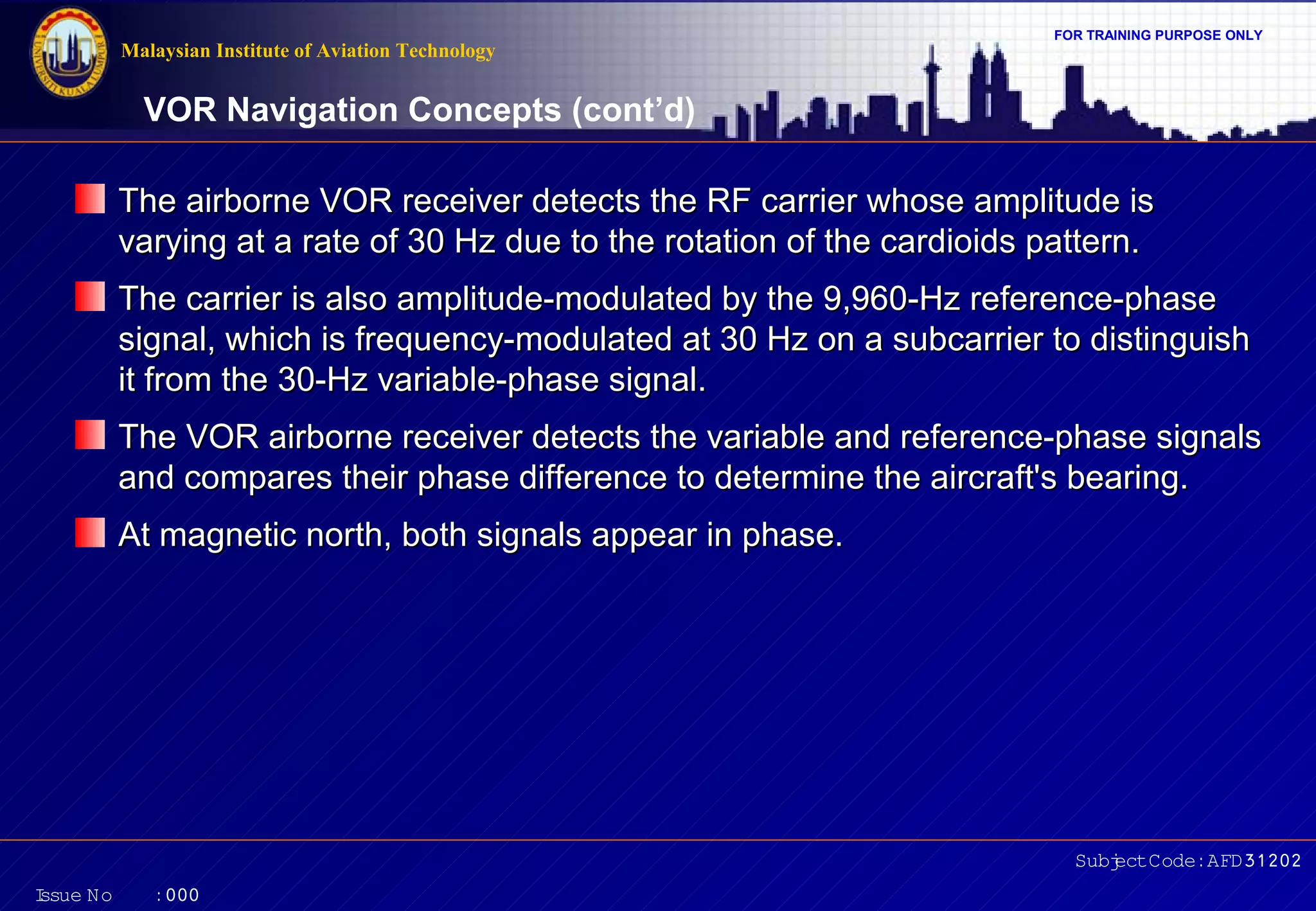

The airborne VOR receiver detects the RF carrier whose amplitude is
varying at a rate of 30 Hz due to the rotation of the cardioids pattern.
The carrier is also amplitude-modulated by the 9,960-Hz reference-phase
signal, which is frequency-modulated at 30 Hz on a subcarrier to distinguish
it from the 30-Hz variable-phase signal.
The VOR airborne receiver detects the variable and reference-phase signals
and compares their phase difference to determine the aircraft's bearing.
At magnetic north, both signals appear in phase.

Subj Code:AFD31202
ect
I
ssue No

:000



VOR System Operation

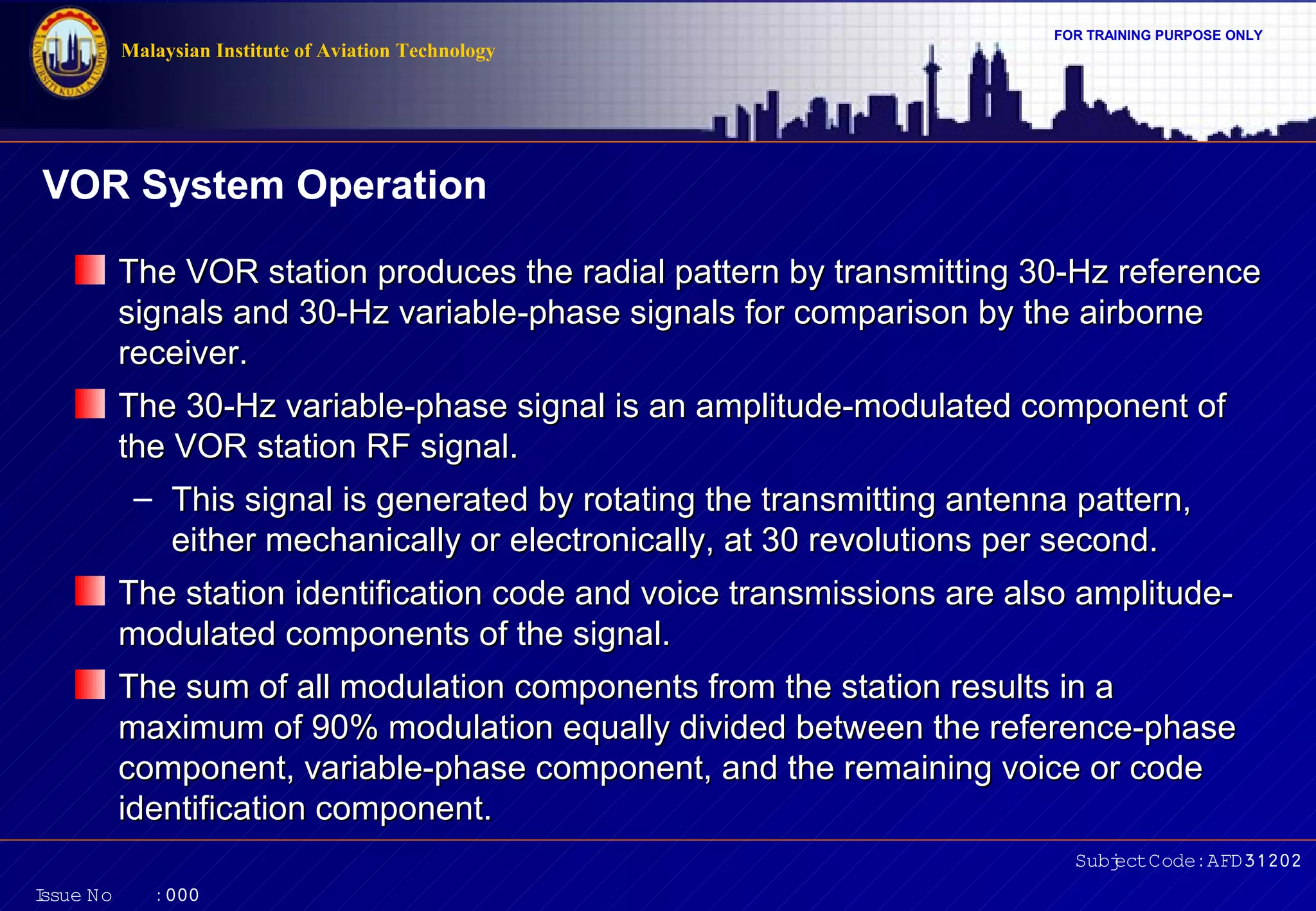

The VOR station produces the radial pattern by transmitting 30-Hz reference
signals and 30-Hz variable-phase signals for comparison by the airborne
receiver.
The 30-Hz variable-phase signal is an amplitude-modulated component of
the VOR station RF signal.
– This signal is generated by rotating the transmitting antenna pattern,
either mechanically or electronically, at 30 revolutions per second.
The station identification code and voice transmissions are also amplitudemodulated components of the signal.
The sum of all modulation components from the station results in a
maximum of 90% modulation equally divided between the reference-phase
component, variable-phase component, and the remaining voice or code
identification component.
Subj Code:AFD31202
ect
I
ssue No

:000



VOR System Operation (cont’d)
Magnetic north is the reference for
all VOR measurements.
– At magnetic north, the 30-Hz
variable signal is in phase with
the 30-Hz reference signal.
At all other radials, the 30-Hz
variable signal lead or lag the 30Hz reference signal by the number
of degrees from magnetic north to
the radial.
For example, at 180o from magnetic
north, the variable signal is 180o
out-of-phase with the reference
signal.
VOR phase relationships
Subj Code:AFD31202
ect
I
ssue No

:000



Figure on the right-side
illustrates the phase relationship
of the 30-Hz reference and
variable signals for an aircraft
flying to a VOR station on the
260o radial.
The 30-Hz reference component
is applied to an FM detector that
produces a 30-Hz reference
signal:
– positive when the subcarrier
frequency is high (10,440
Hz)
– negative when the frequency
is low (9,480 Hz)

Phase relationships of a 260o VOR radial
Subj Code:AFD31202
ect

I
ssue No

:000



Subj Code:AFD31202
ect
I
ssue No

:000

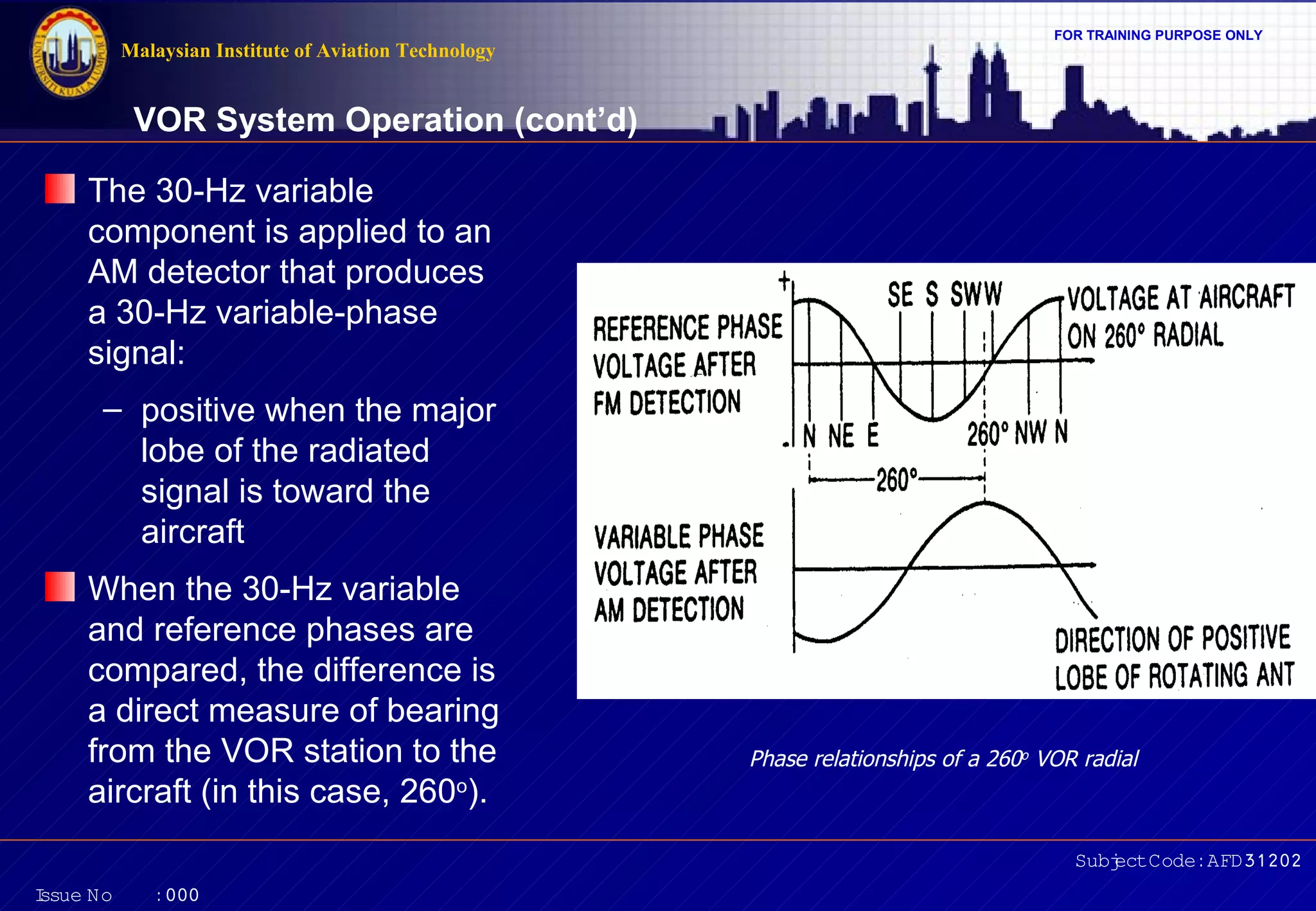

The 30-Hz variable
component is applied to an
AM detector that produces
a 30-Hz variable-phase
signal:
– positive when the major
lobe of the radiated
signal is toward the
aircraft
When the 30-Hz variable
and reference phases are
compared, the difference is
a direct measure of bearing
from the VOR station to the
aircraft (in this case, 260o).

Phase relationships of a 260o VOR radial

Subj Code:AFD31202
ect
I
ssue No

:000

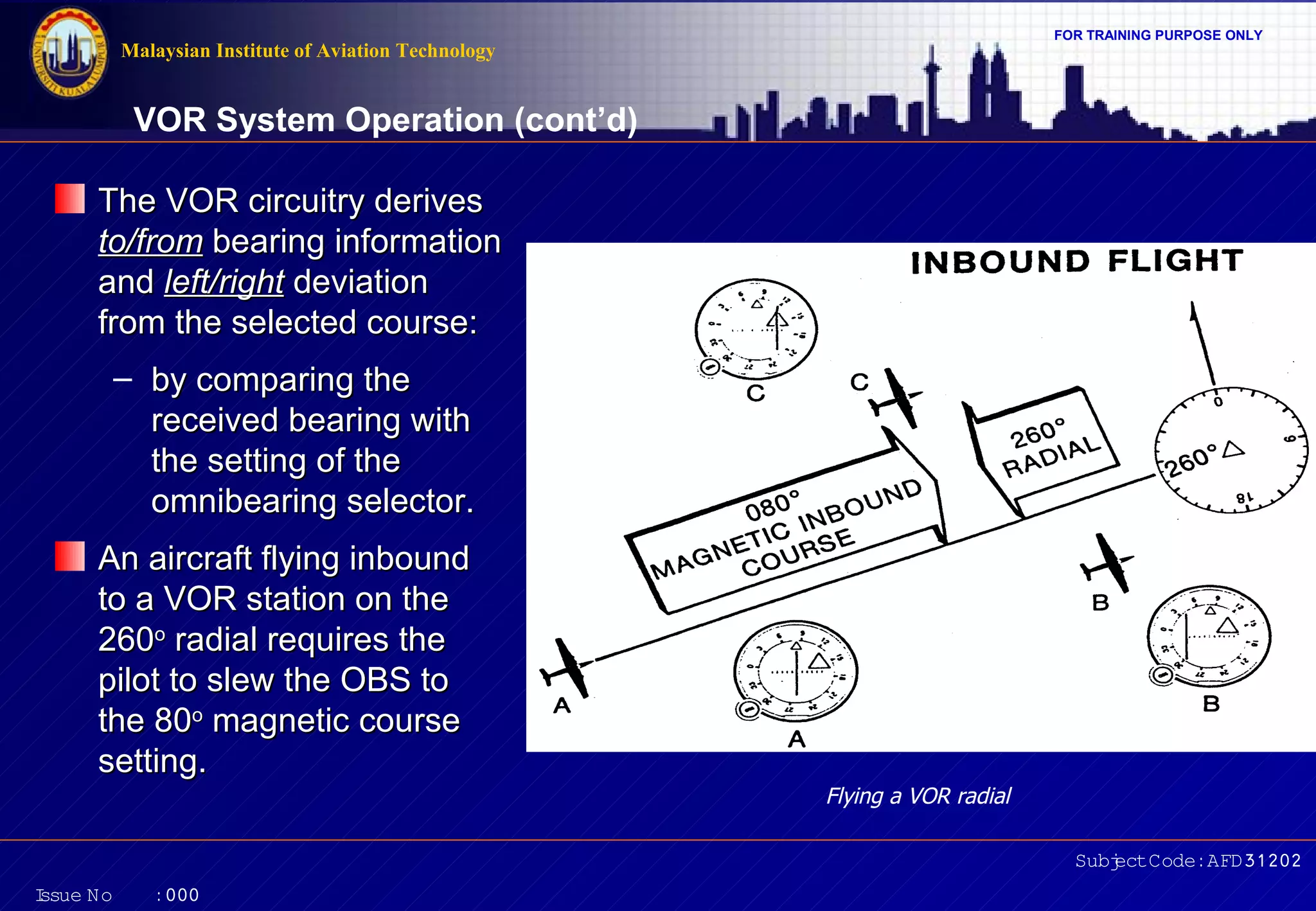

The VOR circuitry derives
to/from bearing information
and left/right deviation
from the selected course:
– by comparing the
received bearing with
the setting of the
omnibearing selector.
An aircraft flying inbound
to a VOR station on the
260o radial requires the
pilot to slew the OBS to
the 80o magnetic course
setting.
Flying a VOR radial
Subj Code:AFD31202
ect
I
ssue No

:000

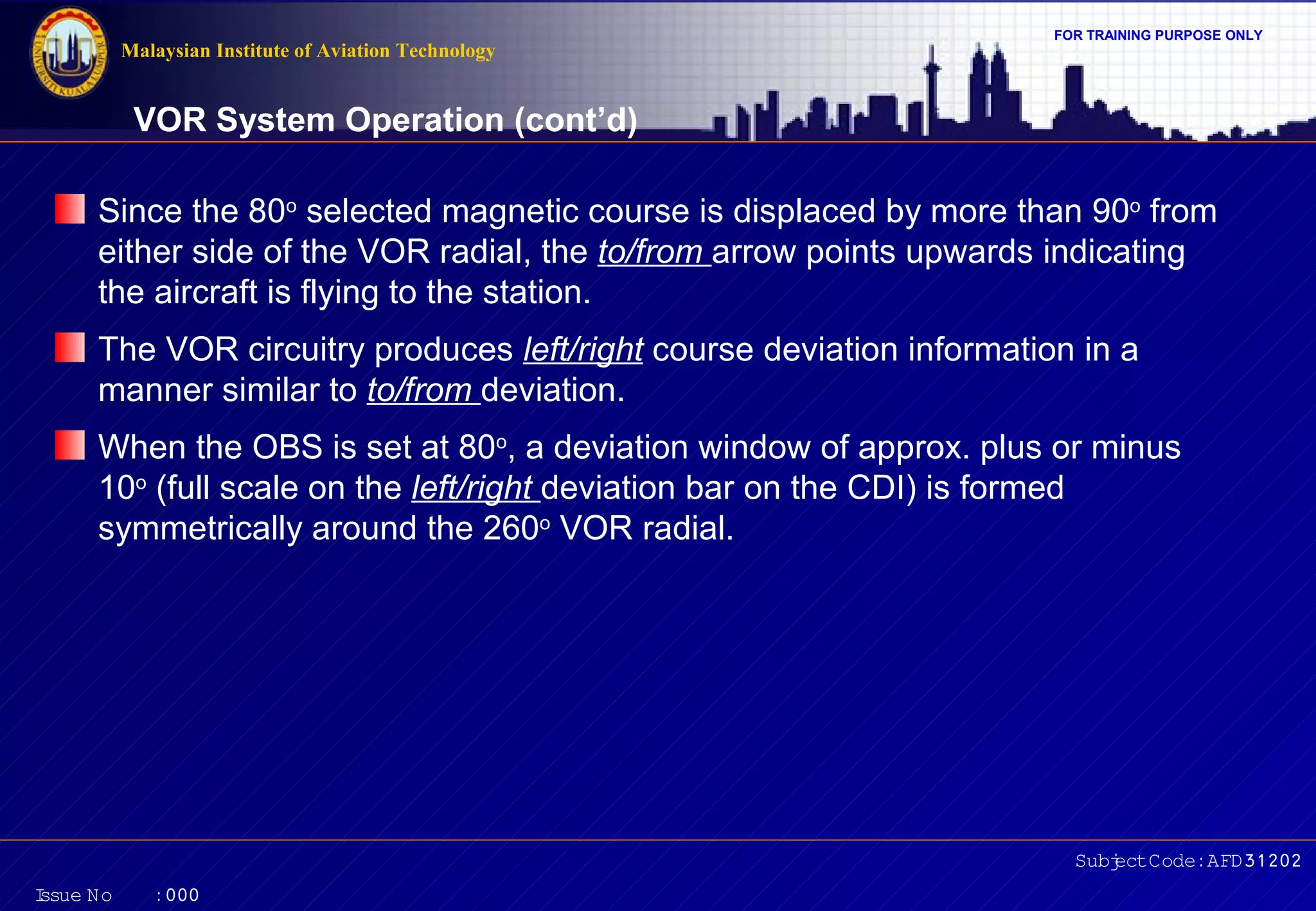

Since the 80o selected magnetic course is displaced by more than 90o from
either side of the VOR radial, the to/from arrow points upwards indicating
the aircraft is flying to the station.
The VOR circuitry produces left/right course deviation information in a
manner similar to to/from deviation.
When the OBS is set at 80o, a deviation window of approx. plus or minus
10o (full scale on the left/right deviation bar on the CDI) is formed
symmetrically around the 260o VOR radial.

Subj Code:AFD31202
ect
I
ssue No

:000

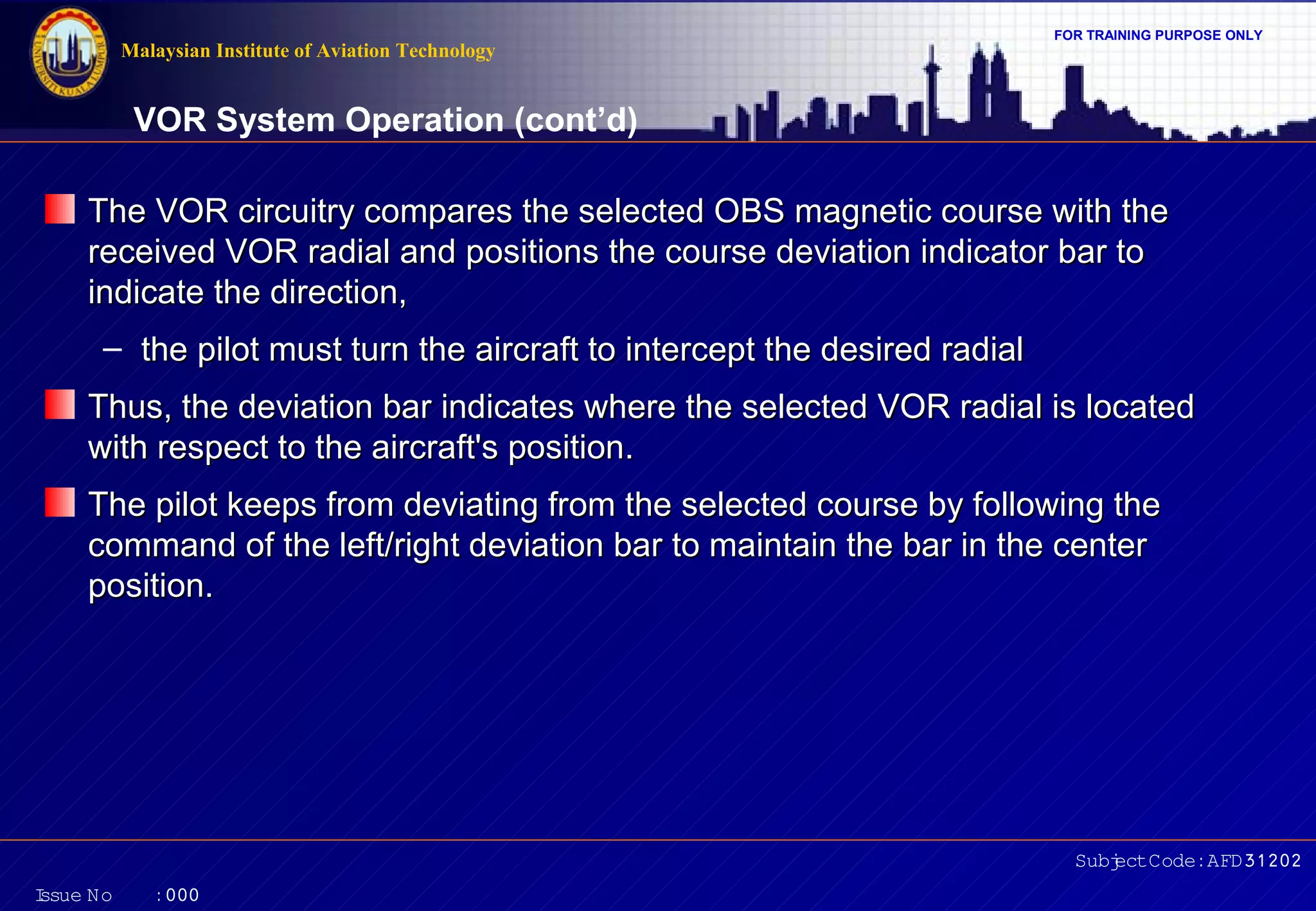

The VOR circuitry compares the selected OBS magnetic course with the
received VOR radial and positions the course deviation indicator bar to
indicate the direction,
– the pilot must turn the aircraft to intercept the desired radial
Thus, the deviation bar indicates where the selected VOR radial is located
with respect to the aircraft's position.
The pilot keeps from deviating from the selected course by following the
command of the left/right deviation bar to maintain the bar in the center
position.

Subj Code:AFD31202
ect
I
ssue No

:000

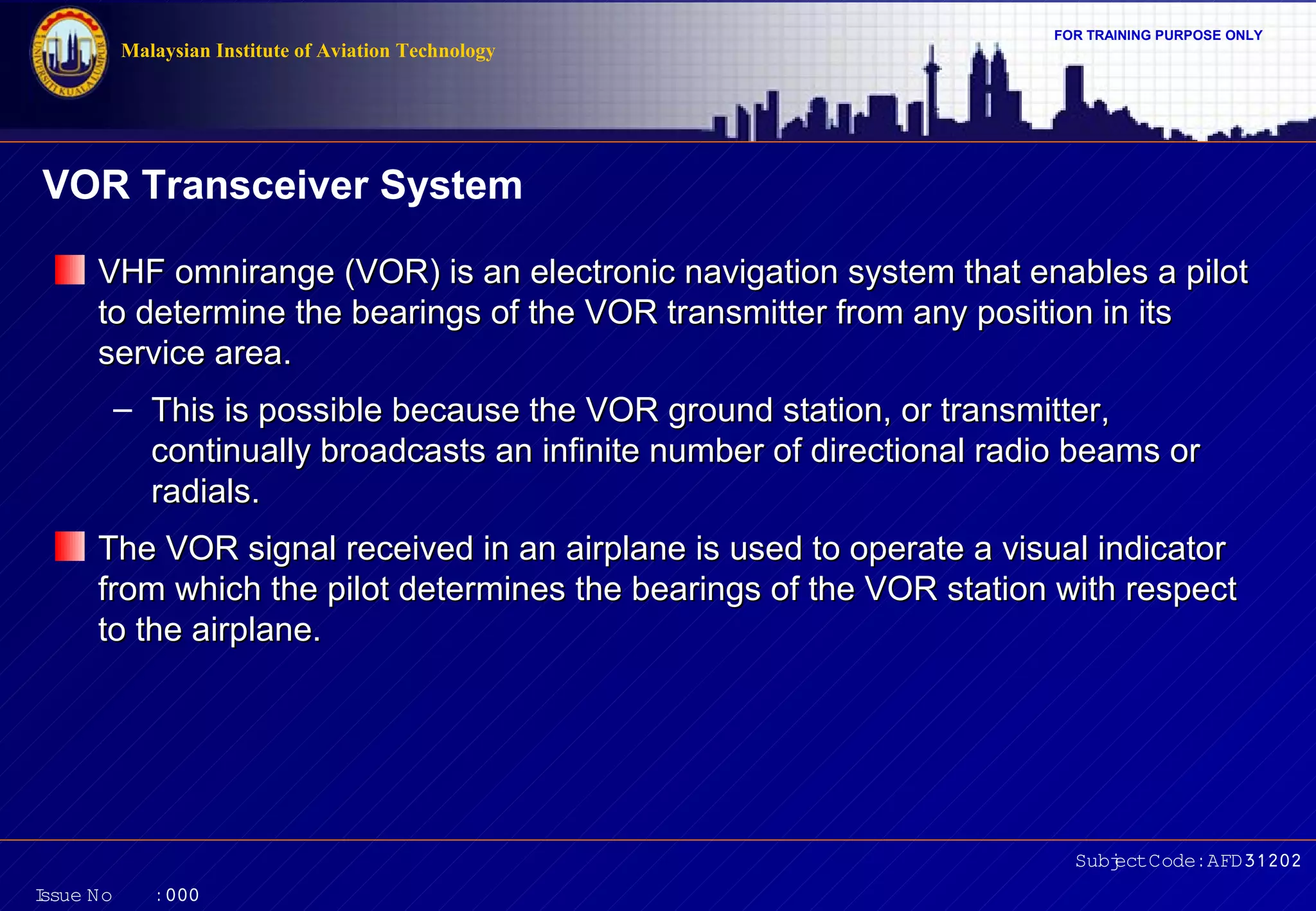

VOR Transceiver System
VHF omnirange (VOR) is an electronic navigation system that enables a pilot
to determine the bearings of the VOR transmitter from any position in its
service area.
– This is possible because the VOR ground station, or transmitter,
continually broadcasts an infinite number of directional radio beams or
radials.
The VOR signal received in an airplane is used to operate a visual indicator
from which the pilot determines the bearings of the VOR station with respect
to the airplane.

Subj Code:AFD31202
ect
I
ssue No

:000

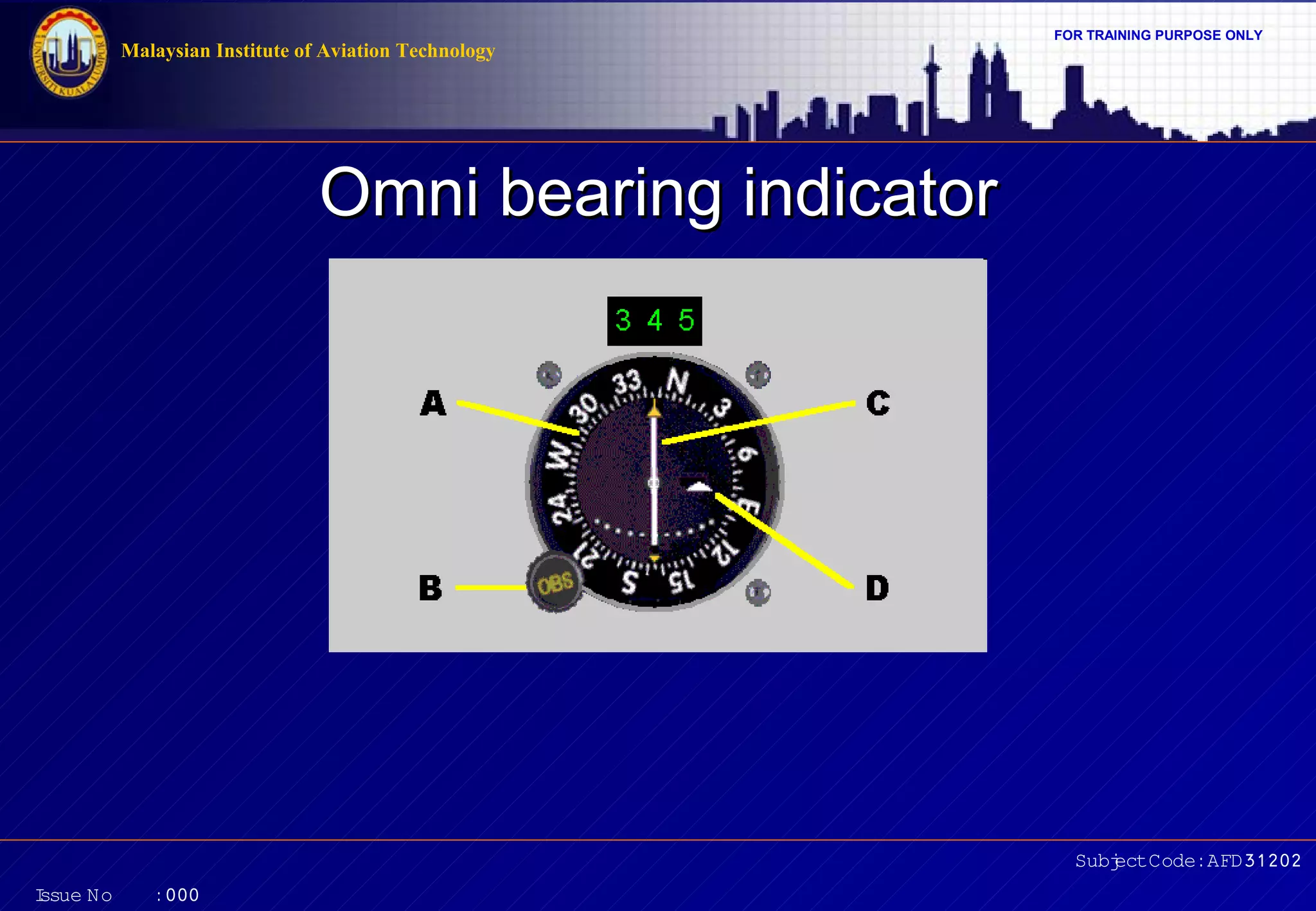

Omni bearing indicator

Subj Code:AFD31202
ect
I
ssue No

:000



Subj Code:AFD31202
ect
I
ssue No

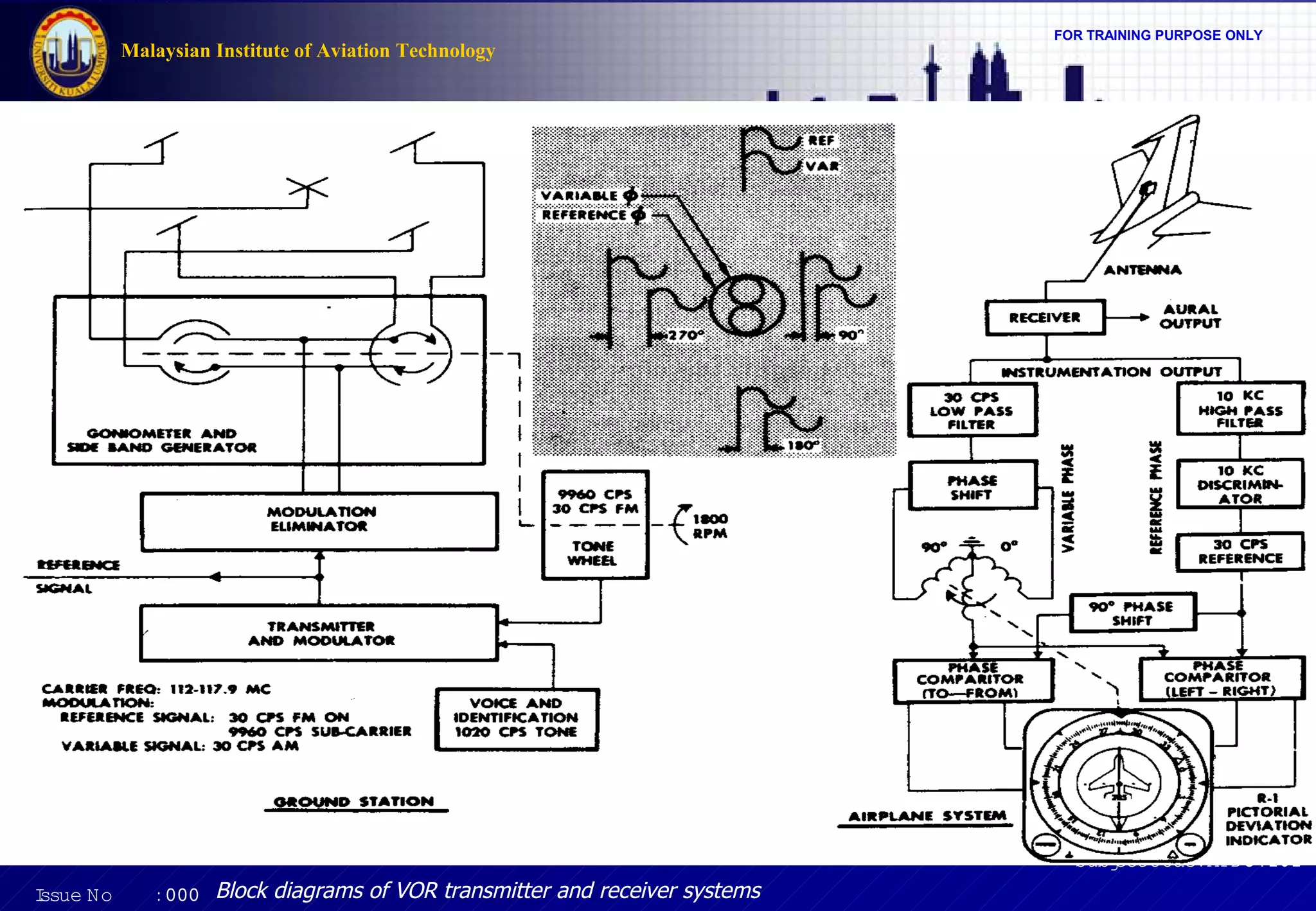

:000 Block diagrams of VOR transmitter and receiver systems



VOR Transceiver System (cont’d)

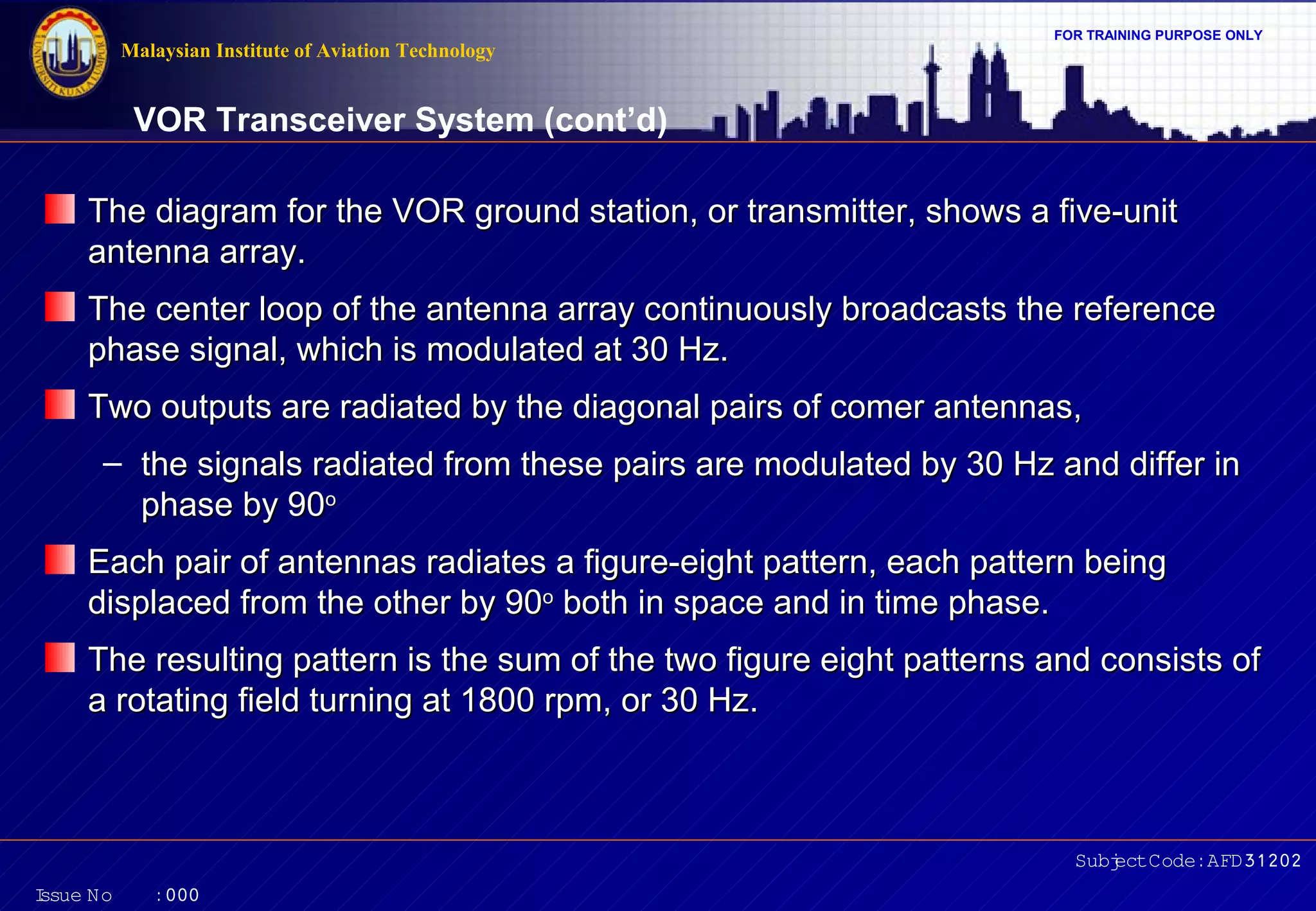

The diagram for the VOR ground station, or transmitter, shows a five-unit
antenna array.
The center loop of the antenna array continuously broadcasts the reference
phase signal, which is modulated at 30 Hz.
Two outputs are radiated by the diagonal pairs of comer antennas,
– the signals radiated from these pairs are modulated by 30 Hz and differ in
phase by 90o
Each pair of antennas radiates a figure-eight pattern, each pattern being
displaced from the other by 90o both in space and in time phase.
The resulting pattern is the sum of the two figure eight patterns and consists of
a rotating field turning at 1800 rpm, or 30 Hz.

Subj Code:AFD31202
ect
I
ssue No

:000

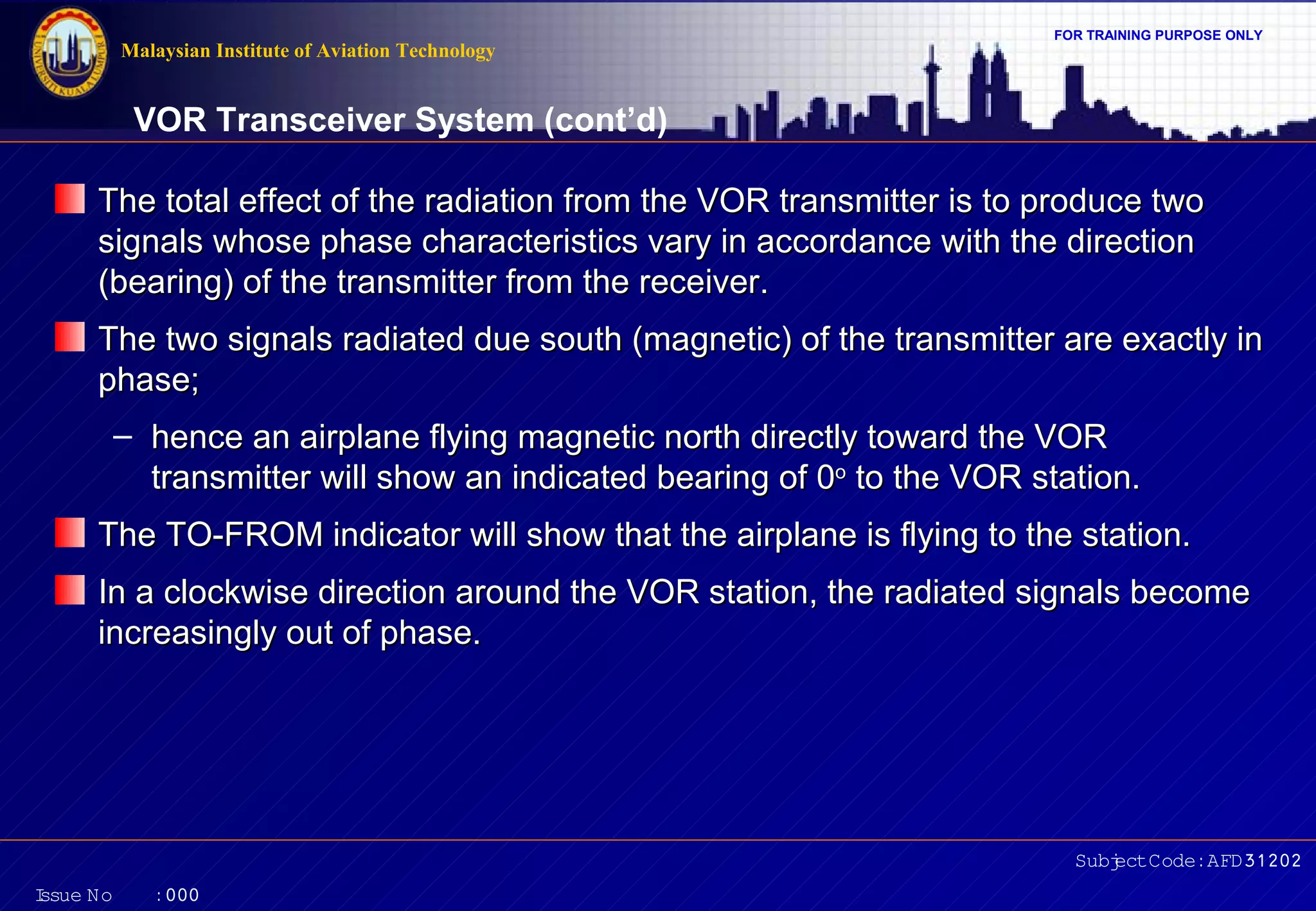

The total effect of the radiation from the VOR transmitter is to produce two
signals whose phase characteristics vary in accordance with the direction
(bearing) of the transmitter from the receiver.
The two signals radiated due south (magnetic) of the transmitter are exactly in
phase;
– hence an airplane flying magnetic north directly toward the VOR
transmitter will show an indicated bearing of 0o to the VOR station.
The TO-FROM indicator will show that the airplane is flying to the station.
In a clockwise direction around the VOR station, the radiated signals become
increasingly out of phase.

Subj Code:AFD31202
ect
I
ssue No

:000



At 90o clockwise from the due south direction, the signals are 90o out of
phase, at 180o they are 180o out of phase; at 270o they are 270o out of phase;
and at 360o (0o) they are back in phase.
The phase difference of the two signals makes it possible for the receiver to
establish the bearings of the ground station.
The directional bearings of VOR stations are set up in accordance with the
earth's magnetic field so that they may be compared directly with magneticcompass indications on the airplane.
During the operation of VOR equipment on a particular heading, an airplane
flying toward the VOR station will show a TO indication on the omni-indicator.
After the airplane passes the station, the indicator will show FROM, and the
heading information will remain the same as it was.

Subj Code:AFD31202
ect
I
ssue No

:000

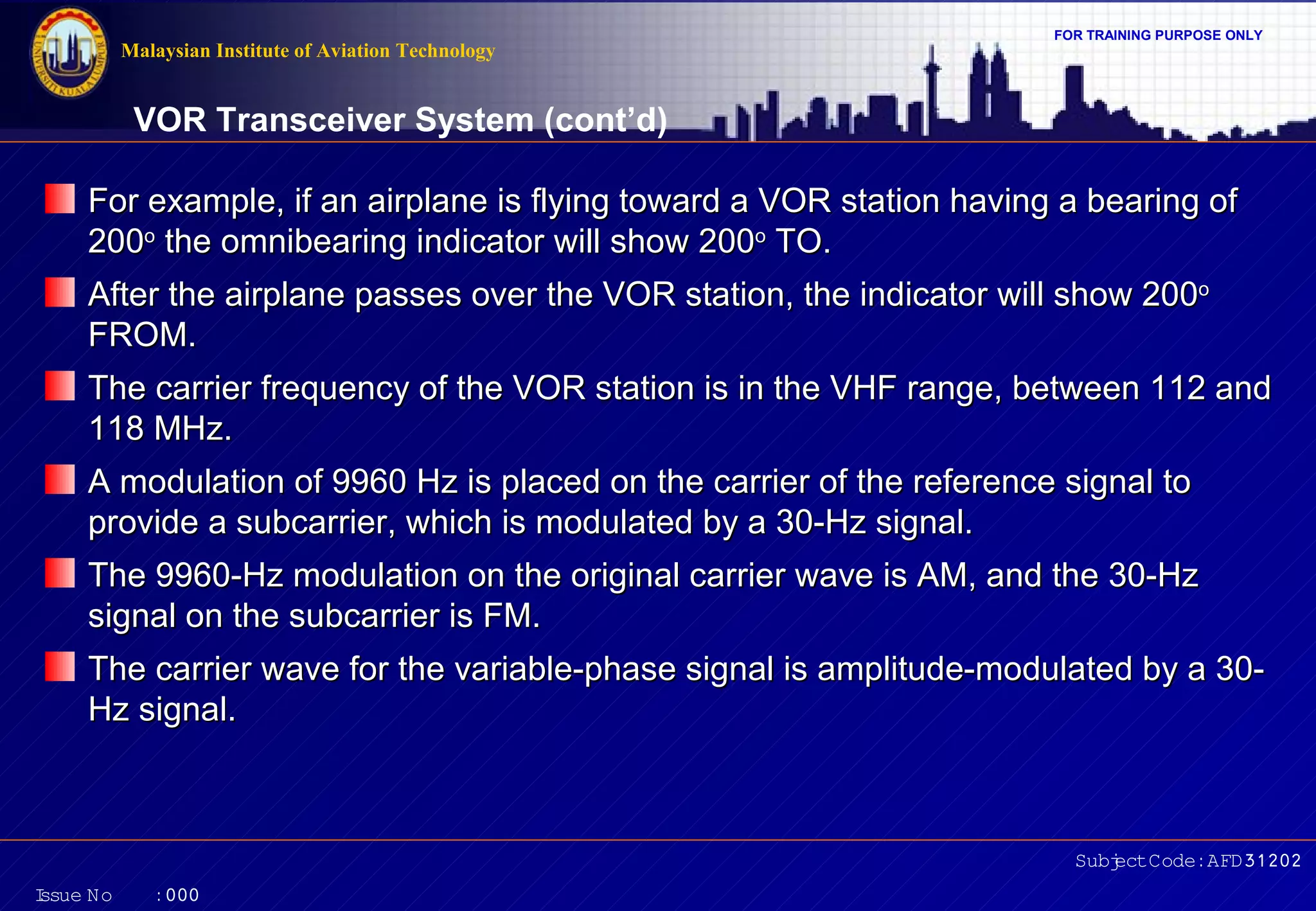

For example, if an airplane is flying toward a VOR station having a bearing of
200o the omnibearing indicator will show 200o TO.
After the airplane passes over the VOR station, the indicator will show 200o
FROM.
The carrier frequency of the VOR station is in the VHF range, between 112 and
118 MHz.
A modulation of 9960 Hz is placed on the carrier of the reference signal to
provide a subcarrier, which is modulated by a 30-Hz signal.
The 9960-Hz modulation on the original carrier wave is AM, and the 30-Hz
signal on the subcarrier is FM.
The carrier wave for the variable-phase signal is amplitude-modulated by a 30Hz signal.

Subj Code:AFD31202
ect
I
ssue No

:000

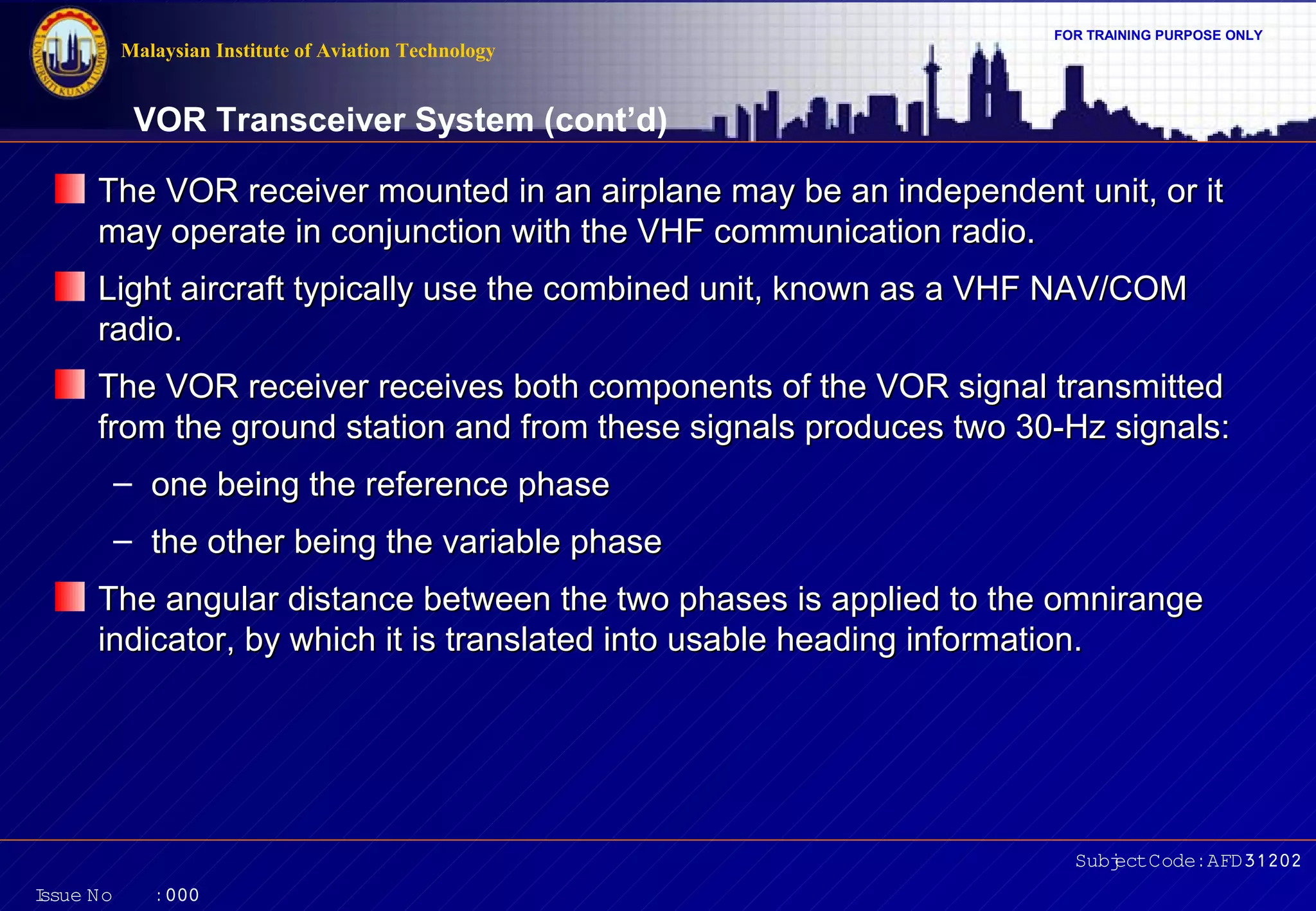

The VOR receiver mounted in an airplane may be an independent unit, or it
may operate in conjunction with the VHF communication radio.
Light aircraft typically use the combined unit, known as a VHF NAV/COM
radio.
The VOR receiver receives both components of the VOR signal transmitted
from the ground station and from these signals produces two 30-Hz signals:
– one being the reference phase
– the other being the variable phase
The angular distance between the two phases is applied to the omnirange
indicator, by which it is translated into usable heading information.

Subj Code:AFD31202
ect
I
ssue No

:000

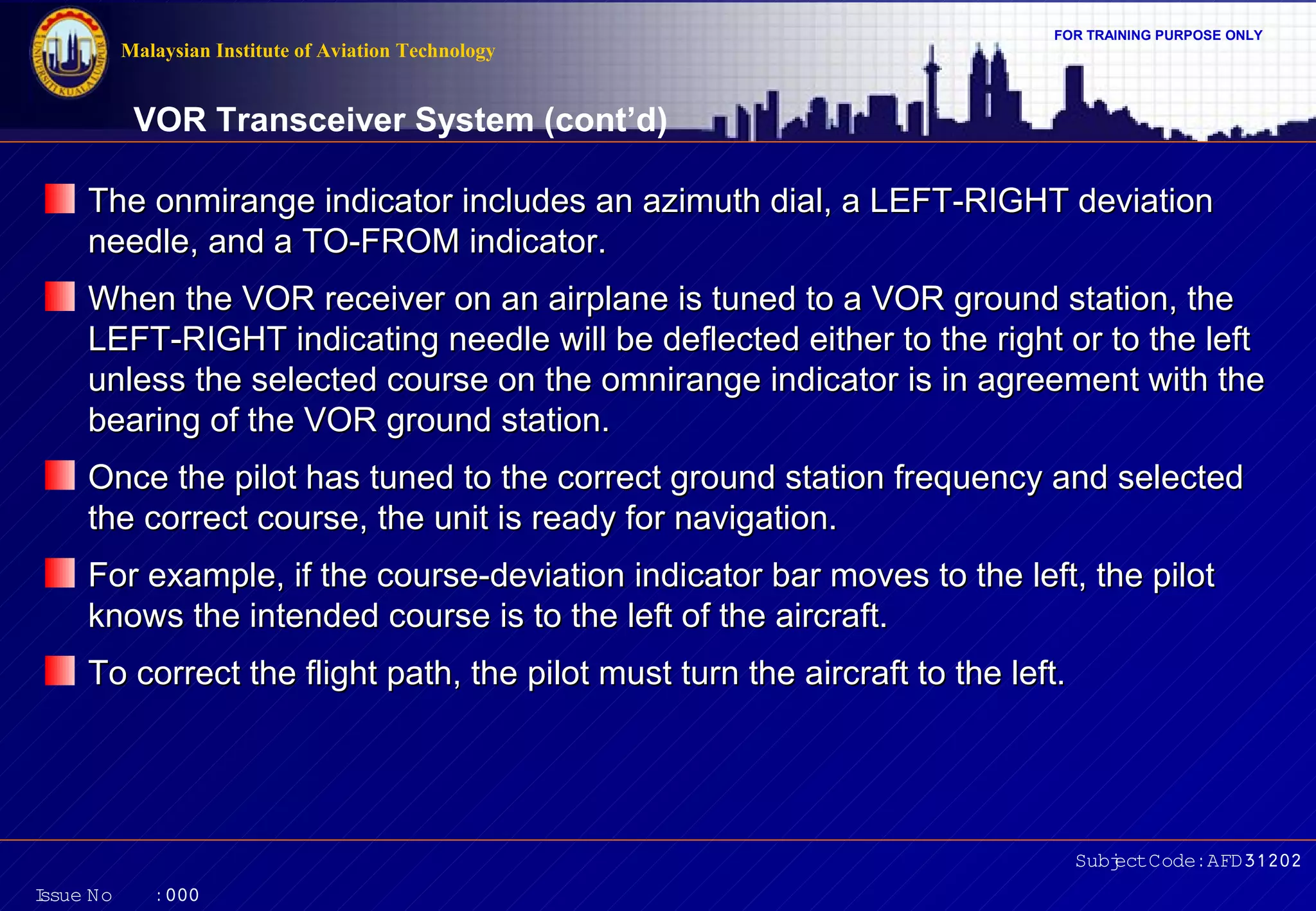

The onmirange indicator includes an azimuth dial, a LEFT-RIGHT deviation
needle, and a TO-FROM indicator.
When the VOR receiver on an airplane is tuned to a VOR ground station, the
LEFT-RIGHT indicating needle will be deflected either to the right or to the left
unless the selected course on the omnirange indicator is in agreement with the
bearing of the VOR ground station.
Once the pilot has tuned to the correct ground station frequency and selected
the correct course, the unit is ready for navigation.
For example, if the course-deviation indicator bar moves to the left, the pilot
knows the intended course is to the left of the aircraft.
To correct the flight path, the pilot must turn the aircraft to the left.

Subj Code:AFD31202
ect
I
ssue No

:000

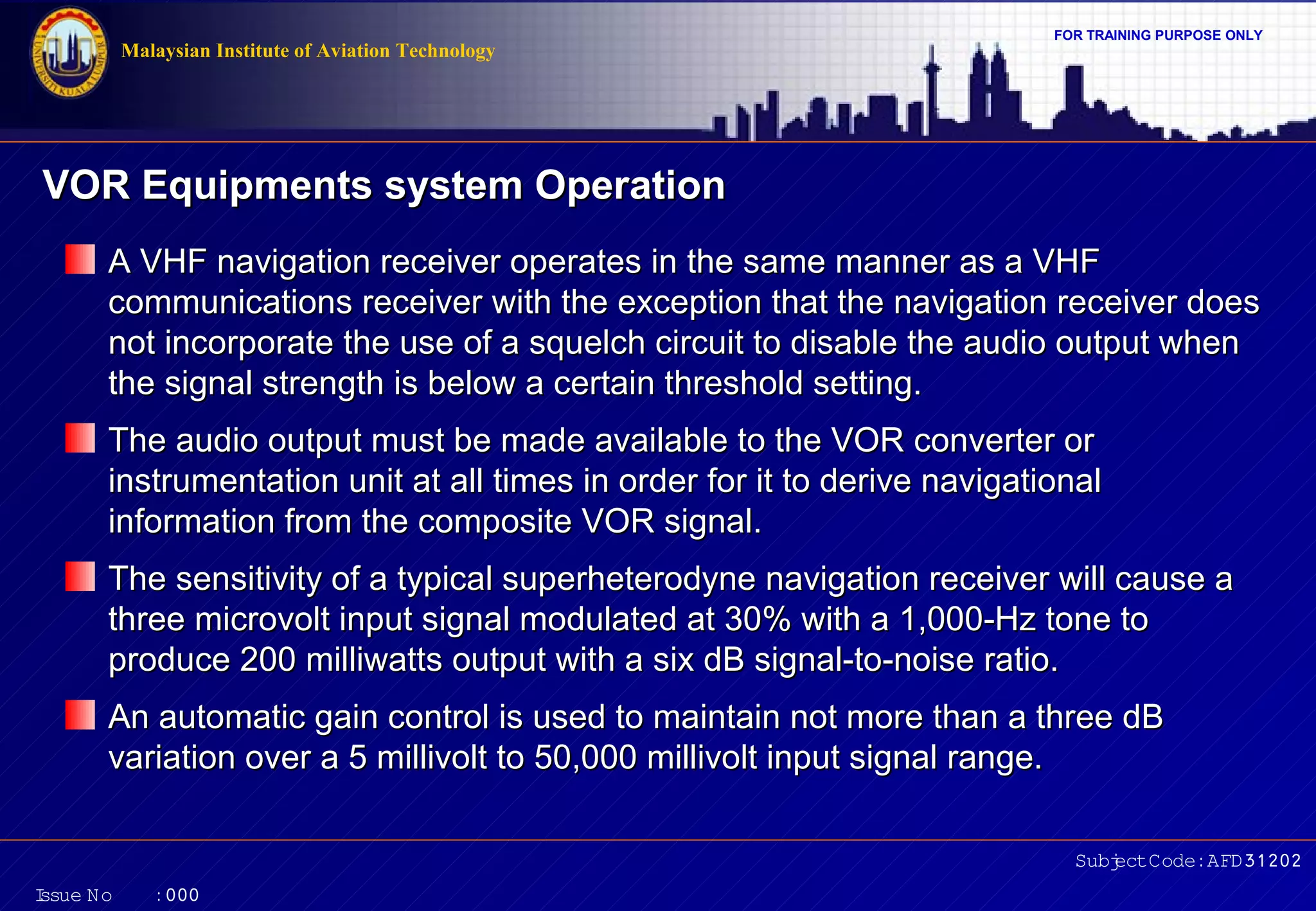

VOR Equipments system Operation
A VHF navigation receiver operates in the same manner as a VHF
communications receiver with the exception that the navigation receiver does
not incorporate the use of a squelch circuit to disable the audio output when
the signal strength is below a certain threshold setting.
The audio output must be made available to the VOR converter or
instrumentation unit at all times in order for it to derive navigational
information from the composite VOR signal.
The sensitivity of a typical superheterodyne navigation receiver will cause a
three microvolt input signal modulated at 30% with a 1,000-Hz tone to
produce 200 milliwatts output with a six dB signal-to-noise ratio.
An automatic gain control is used to maintain not more than a three dB
variation over a 5 millivolt to 50,000 millivolt input signal range.
Subj Code:AFD31202
ect
I
ssue No

:000

Nav Topic 9 vhf omni range (vor)

More Related Content

What's hot

Viewers also liked

Similar to Nav Topic 9 vhf omni range (vor)

More from Izah Asmadi

Recently uploaded

Nav Topic 9 vhf omni range (vor)
