This session includes a discussion on rapid prototyping concepts using Xilinx All Programmable FPGAs and SoCs with Analog Devices high speed and precision products. Covered in this session will be common use cases for Xilinx devices in DSP applications that interface to high speed analog. An overview will be provided of how Xilinx accelerates development with DSP platforms that can be used to quickly evaluate and prototype systems that include high speed analog, programmable logic, and embedded processing. Also covered will be an introduction to Xilinx’s new Vivado Design Suite development environment that shortens design cycles by providing an IP centric design flow, easy to use design analysis and debug, and high level design flows supporting C/C++ and MATLAB/Simulink.

1. High Performance DSP with Xilinx
All Programmable Devices

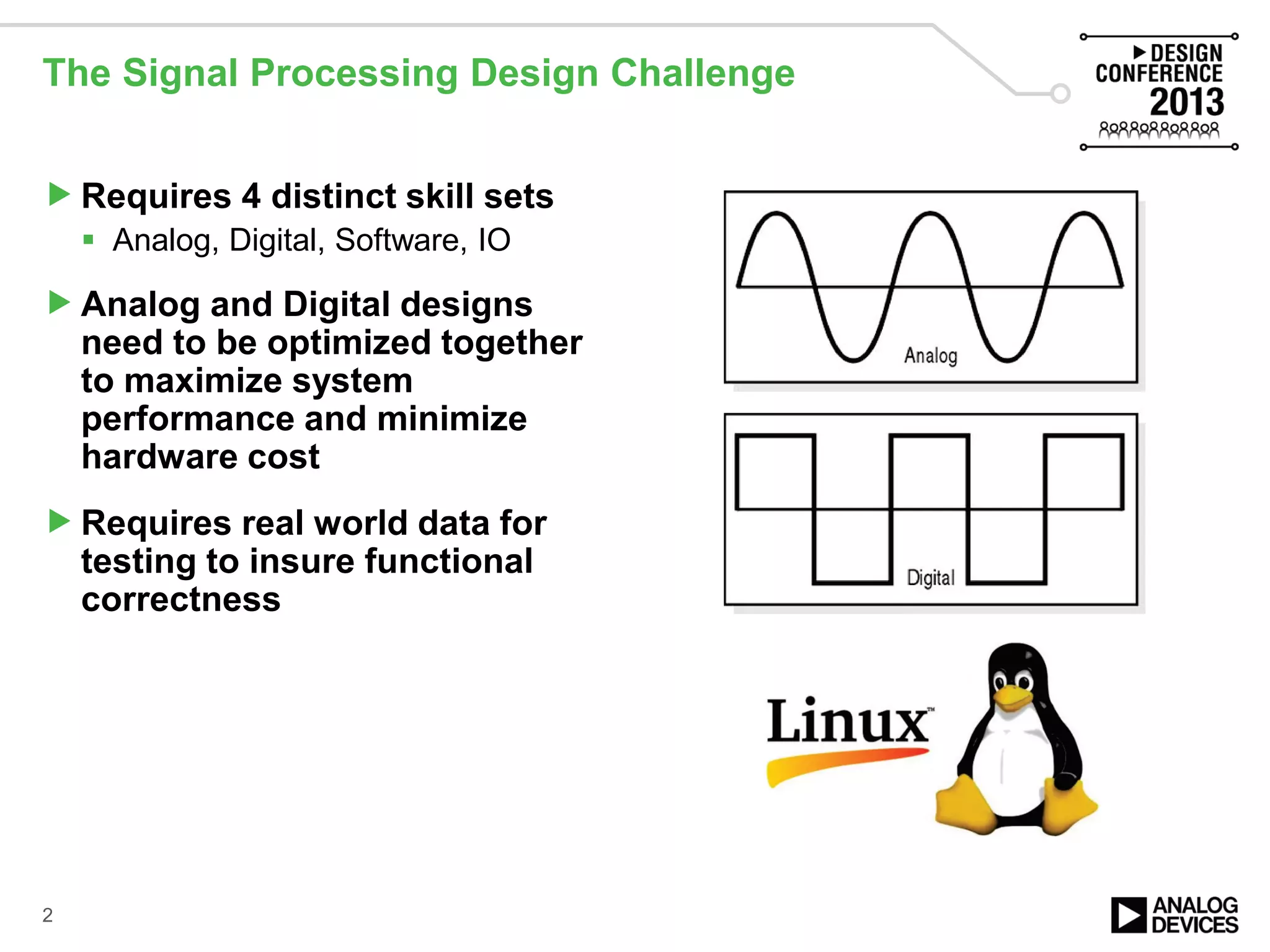

2. The Signal Processing Design Challenge
Requires 4 distinct skill sets
 Analog, Digital, Software, IO
Analog and Digital designs
need to be optimized together
to maximize system
performance and minimize
hardware cost
Requires real world data for
testing to insure functional
correctness
2

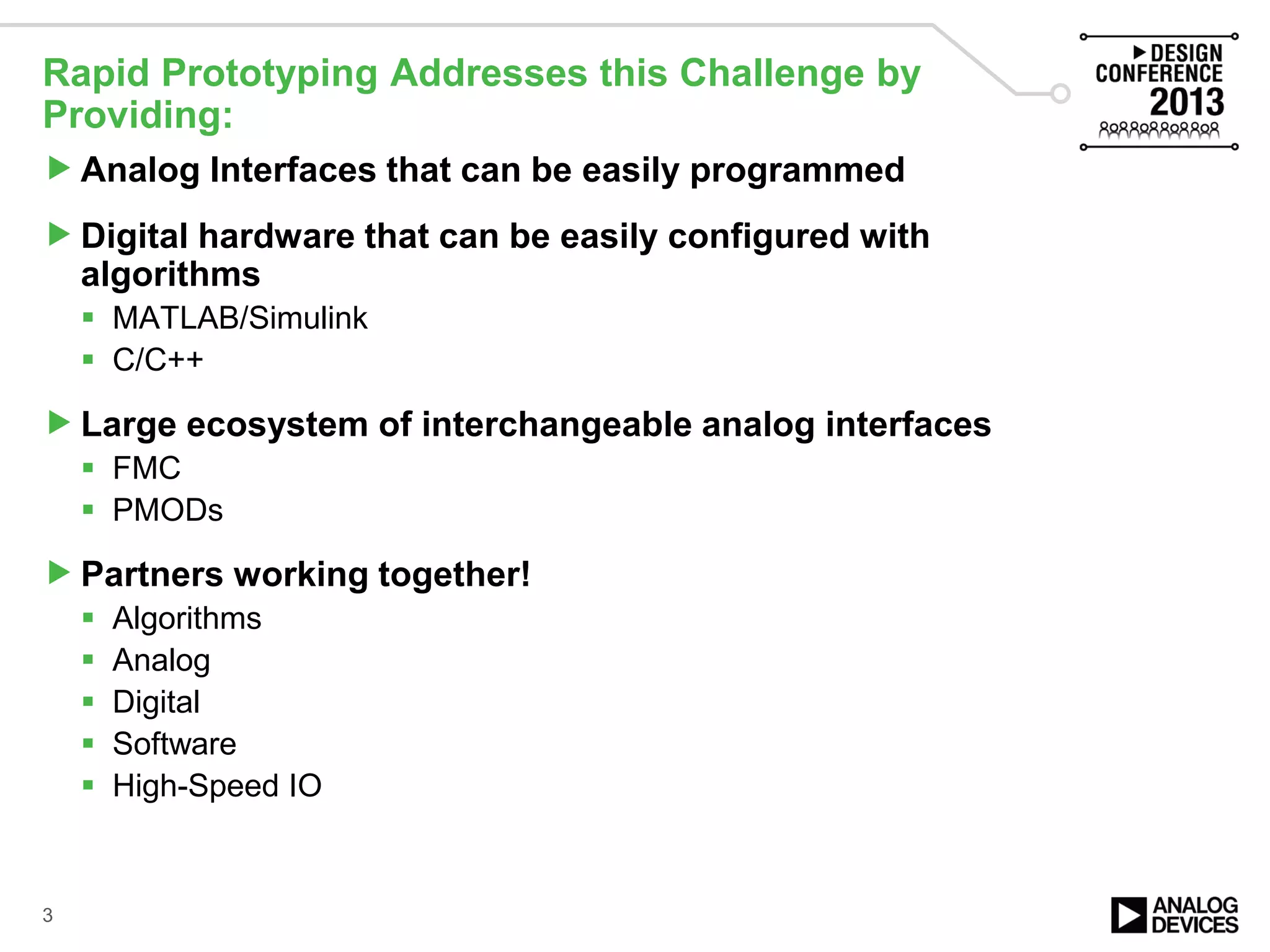

3. Rapid Prototyping Addresses this Challenge by
Providing:
Analog Interfaces that can be easily programmed
Digital hardware that can be easily configured with
algorithms
 MATLAB/Simulink
 C/C++
Large ecosystem of interchangeable analog interfaces
 FMC
 PMODs
Partners working together!
 Algorithms
 Analog
 Digital
 Software
 High-Speed IO
3

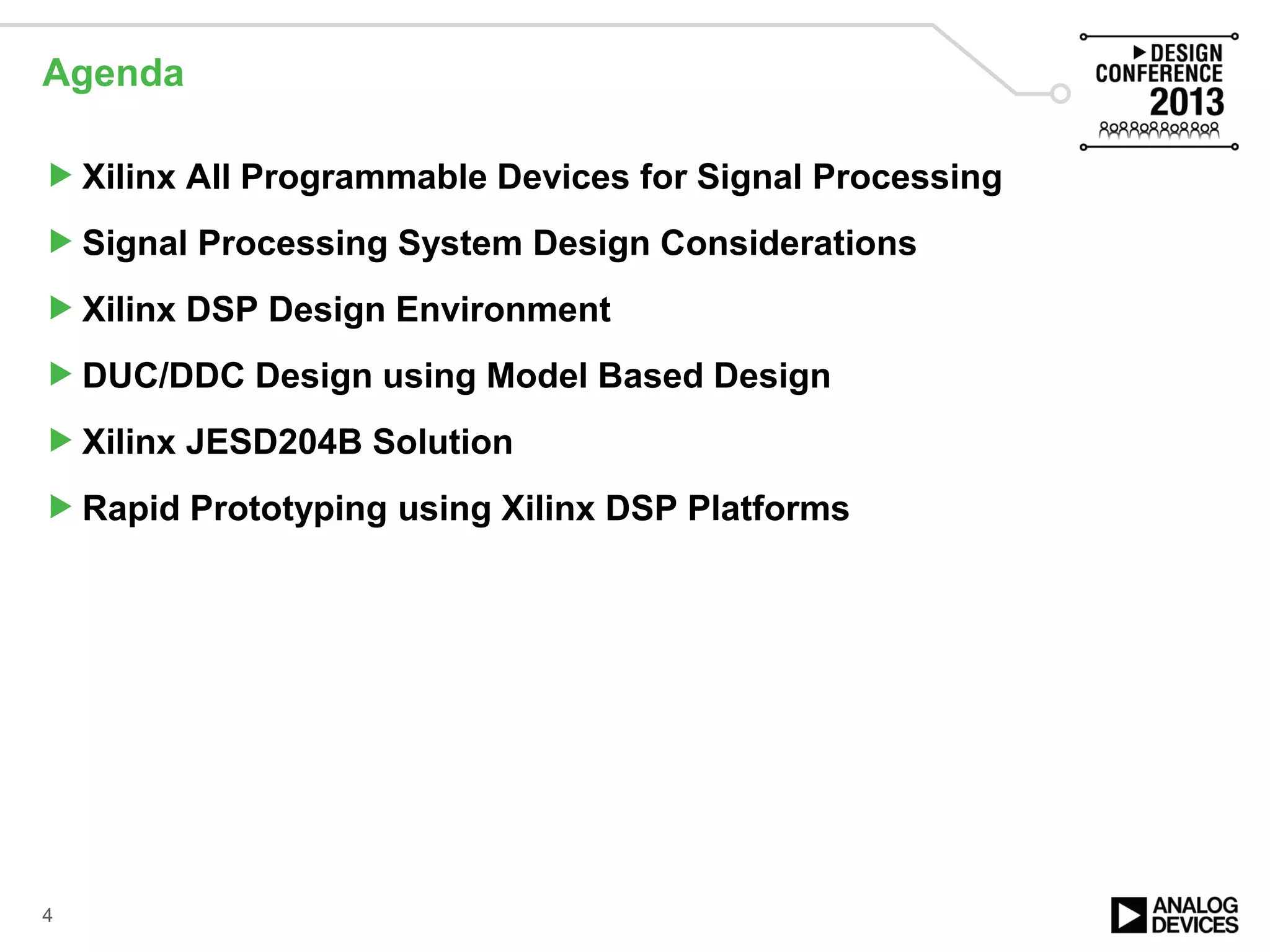

4. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
4

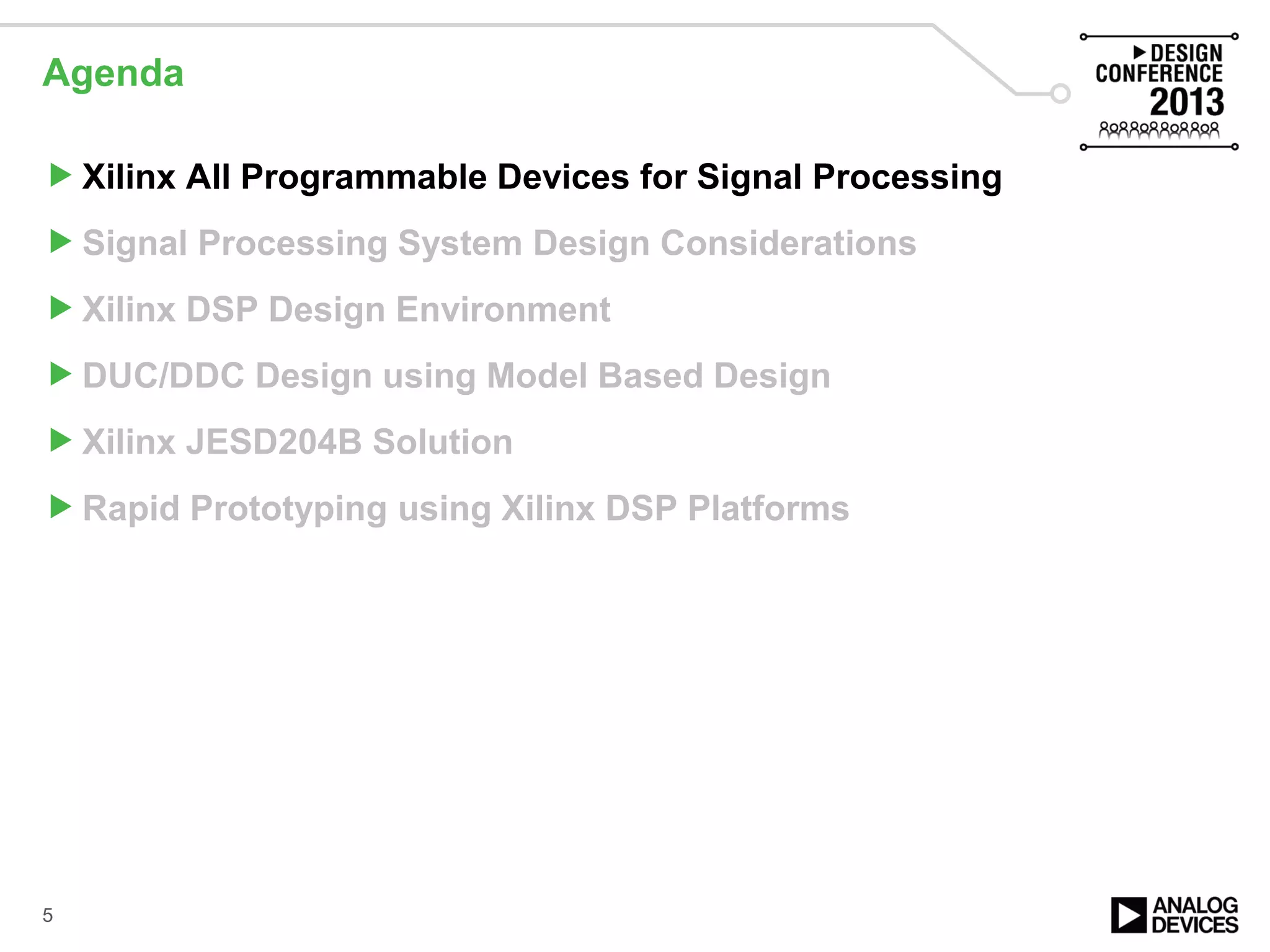

5. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
5

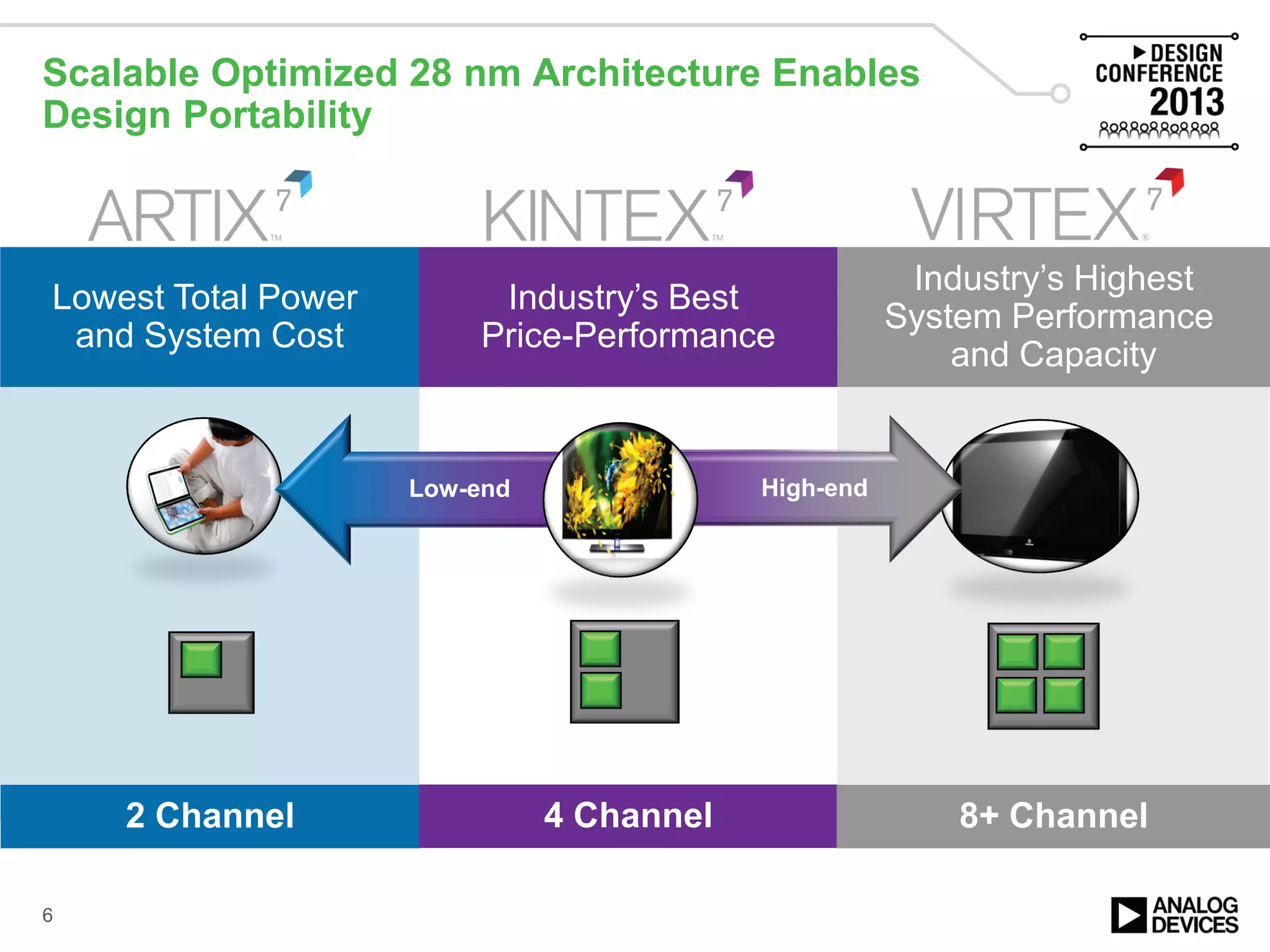

6. Lowest Total Power
and System Cost
Industry’s Best
Price-Performance
Industry’s Highest
System Performance
and Capacity
Scalable Optimized 28 nm Architecture Enables
Design Portability
6
Low-end HDTVHigh-end
2 Channel 4 Channel 8+ Channel

7. Lowest Total Power
and System Cost
Industry’s Best
Price-Performance
Industry’s Highest
System Performance
and Capacity
Scalable Optimized 28 nm Architecture Enables
Design Portability
7
Low-end HDTVHigh-end
2 Channel 4 Channel 8+ Channel

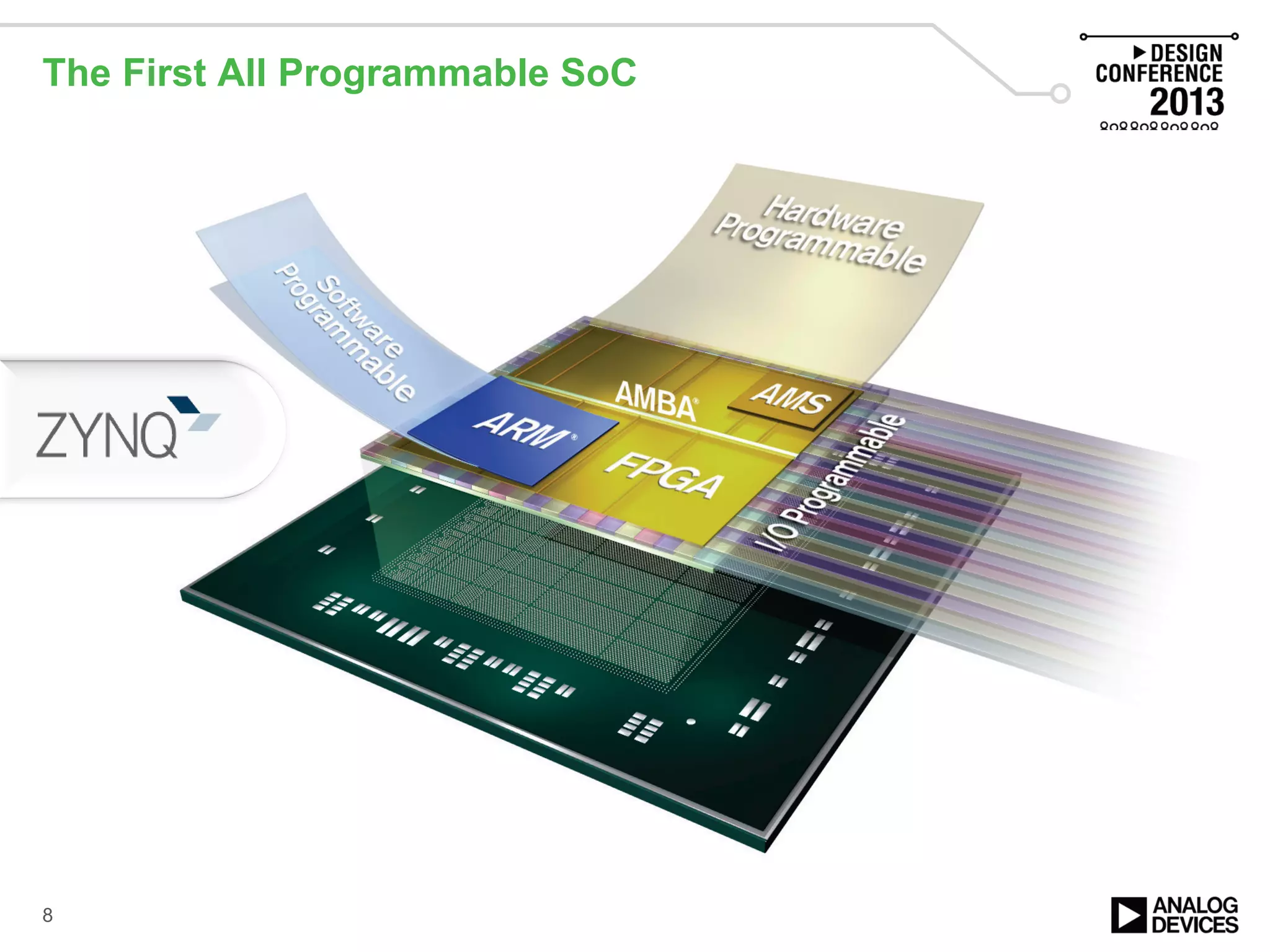

8. The First All Programmable SoC
8

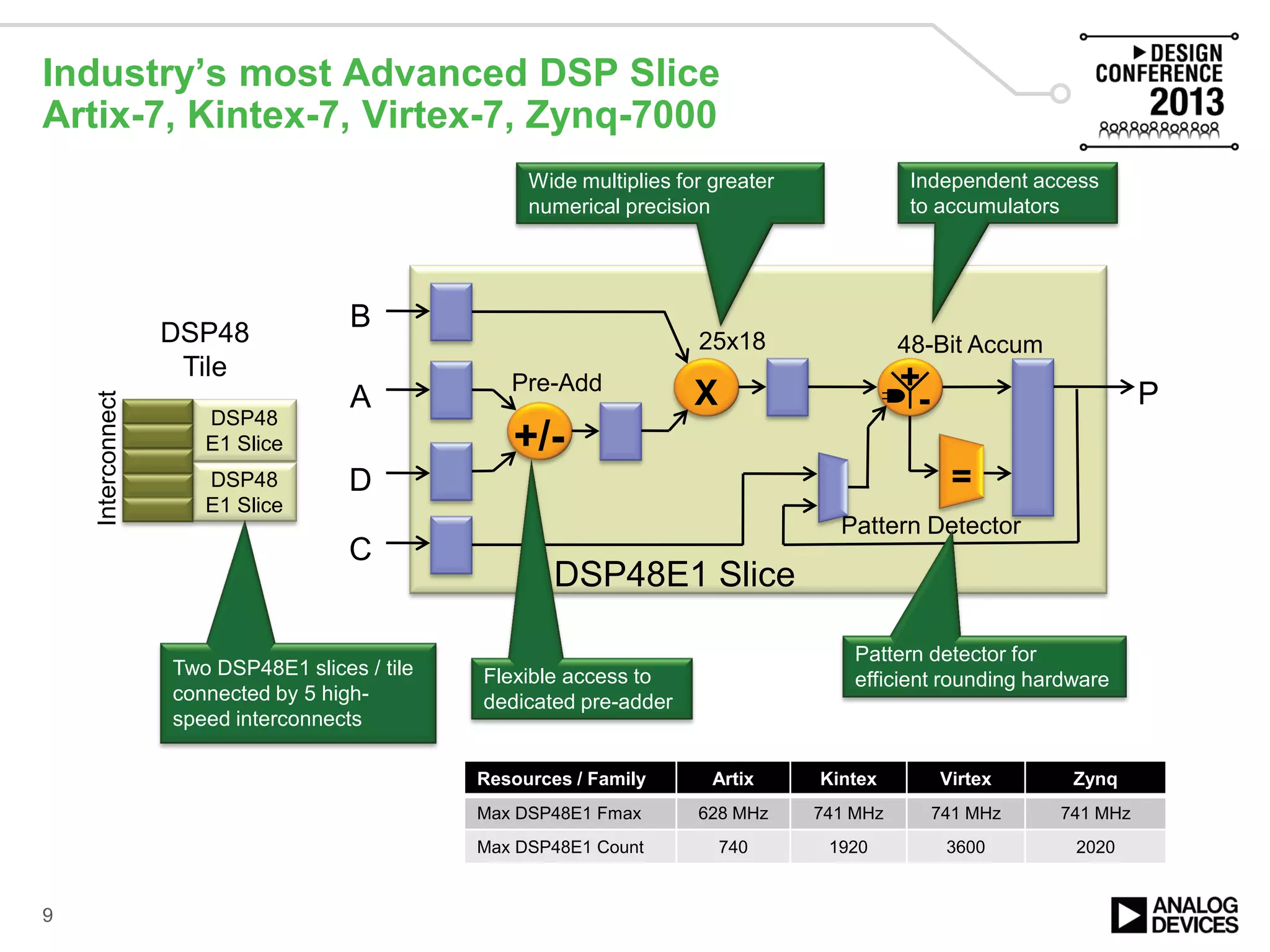

9. Industry’s most Advanced DSP Slice
Artix-7, Kintex-7, Virtex-7, Zynq-7000
+/-
X
=
B
A
D
C
+
-
Pre-Add
25x18
Pattern Detector
48-Bit Accum
P
DSP48
E1 Slice
DSP48
E1 Slice
Interconnect
DSP48
Tile
DSP48E1 Slice
Two DSP48E1 slices / tile
connected by 5 high-
speed interconnects
Independent access
to accumulators
Wide multiplies for greater
numerical precision
Flexible access to
dedicated pre-adder
Pattern detector for
efficient rounding hardware
Resources / Family Artix Kintex Virtex Zynq
Max DSP48E1 Fmax 628 MHz 741 MHz 741 MHz 741 MHz
Max DSP48E1 Count 740 1920 3600 2020
9

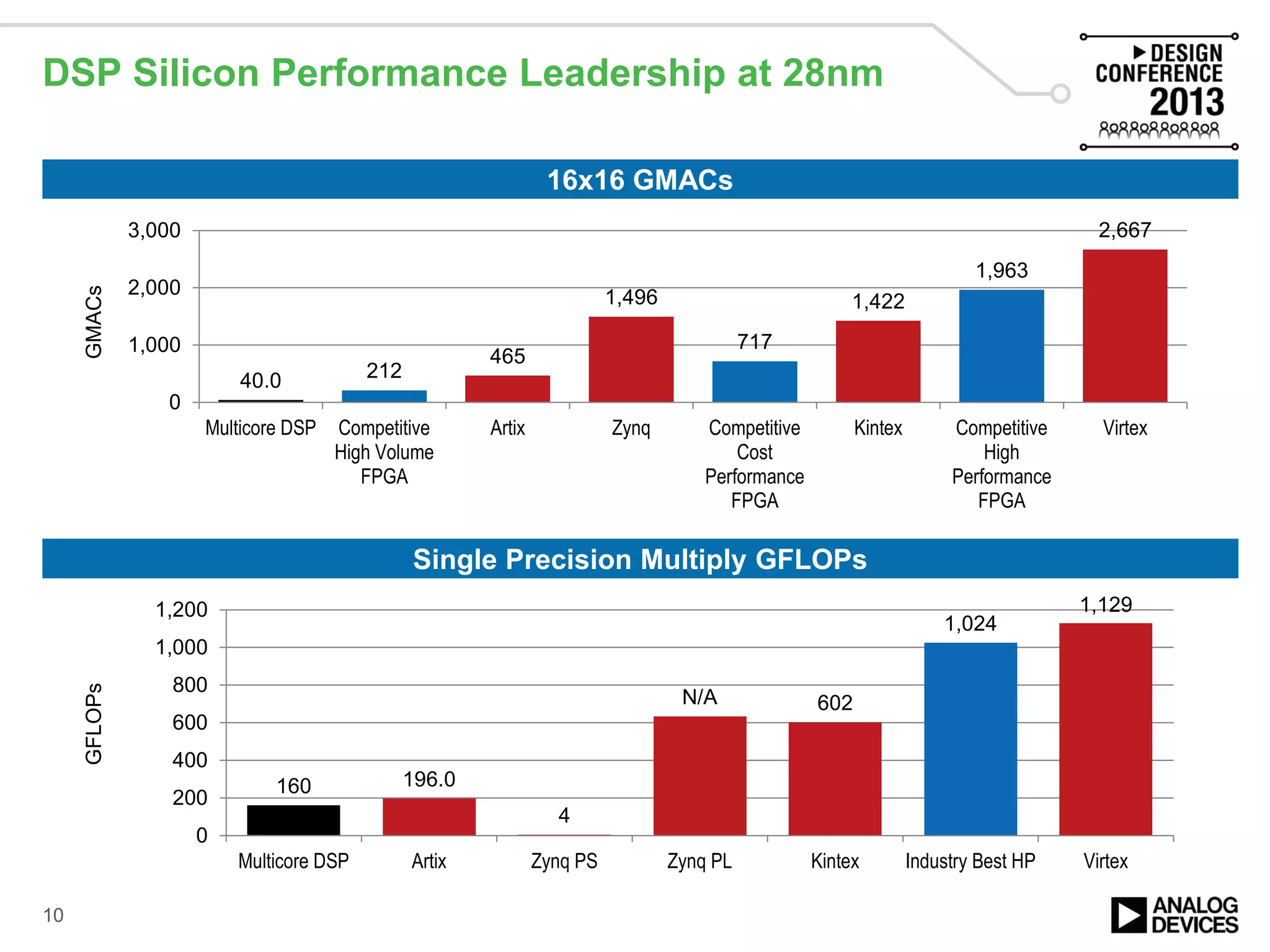

10. 16x16 GMACs
Single Precision Multiply GFLOPs
DSP Silicon Performance Leadership at 28nm
10
160 196.0
4
N/A 602
1,024
1,129
0
200
400
600
800
1,000
1,200
Multicore DSP Artix Zynq PS Zynq PL Kintex Industry Best HP Virtex
GMACs
40.0 212
465
1,496
717
1,422
1,963
2,667
0
1,000
2,000
3,000
Multicore DSP Competitive
High Volume
FPGA
Artix Zynq Competitive
Cost
Performance
FPGA
Kintex Competitive
High
Performance
FPGA
Virtex
GFLOPs

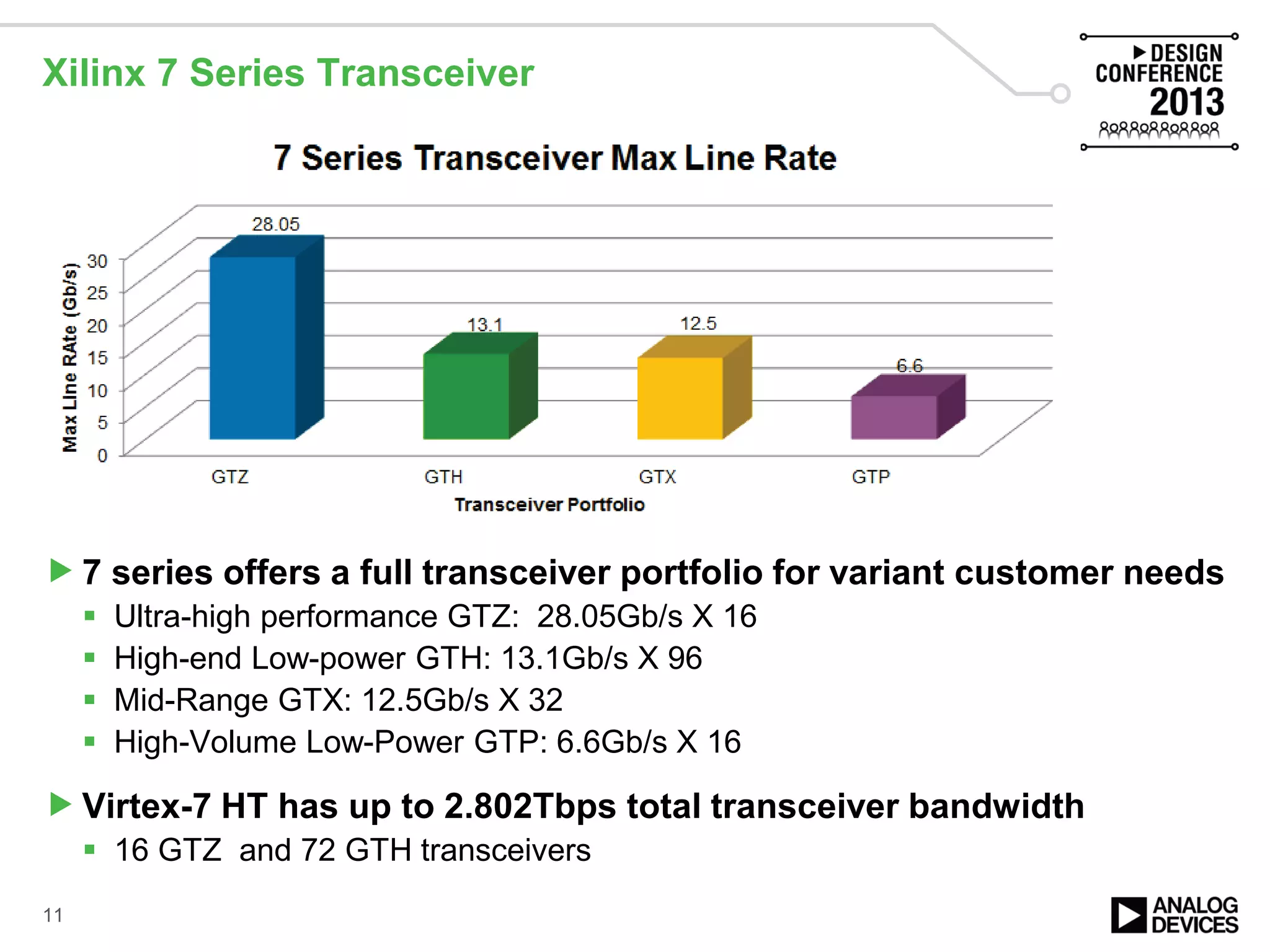

11. Xilinx 7 Series Transceiver
7 series offers a full transceiver portfolio for variant customer needs
 Ultra-high performance GTZ: 28.05Gb/s X 16
 High-end Low-power GTH: 13.1Gb/s X 96
 Mid-Range GTX: 12.5Gb/s X 32
 High-Volume Low-Power GTP: 6.6Gb/s X 16
Virtex-7 HT has up to 2.802Tbps total transceiver bandwidth
 16 GTZ and 72 GTH transceivers
11

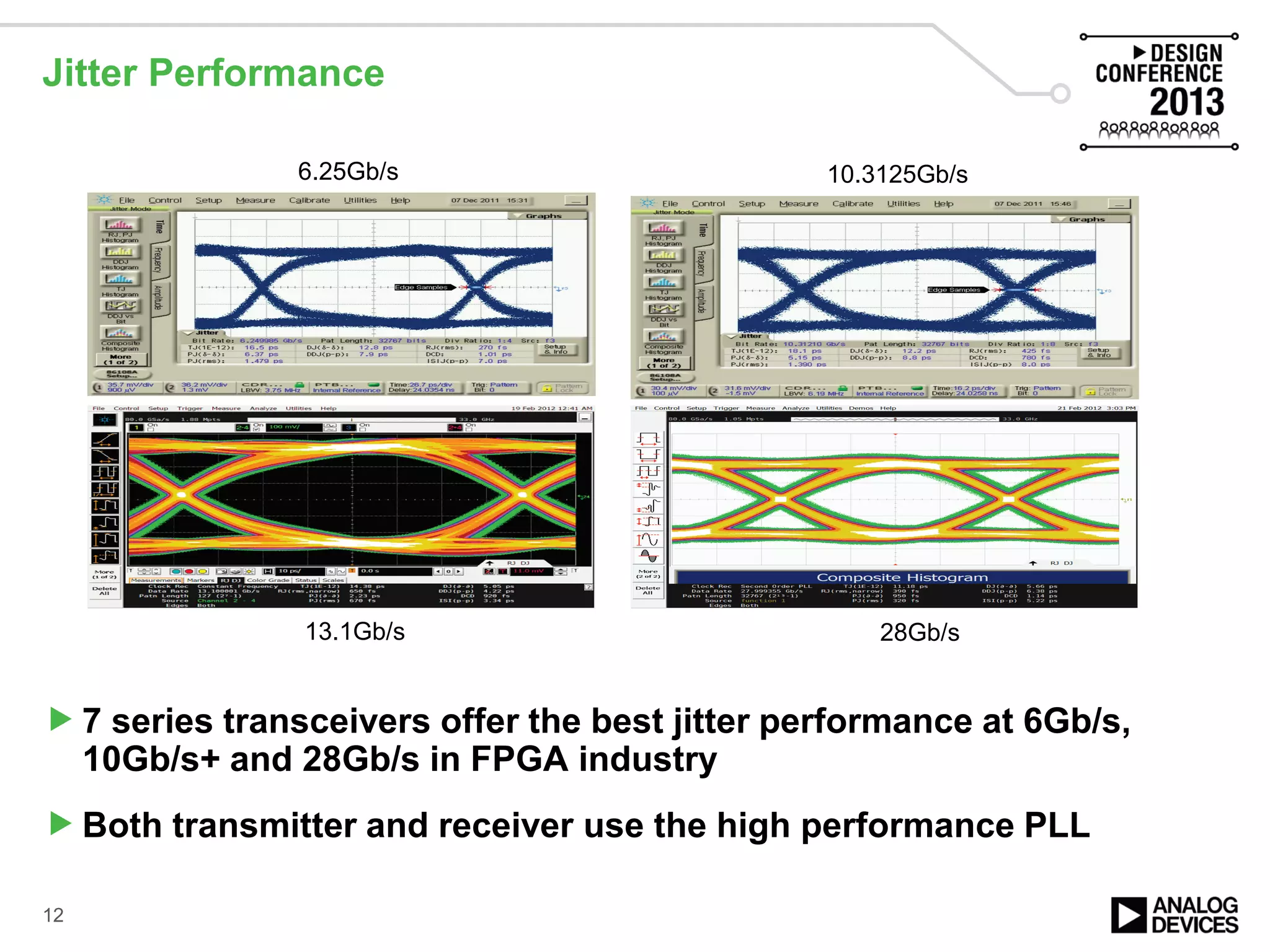

12. Jitter Performance
7 series transceivers offer the best jitter performance at 6Gb/s,
10Gb/s+ and 28Gb/s in FPGA industry
Both transmitter and receiver use the high performance PLL
12
6.25Gb/s 10.3125Gb/s
28Gb/s13.1Gb/s

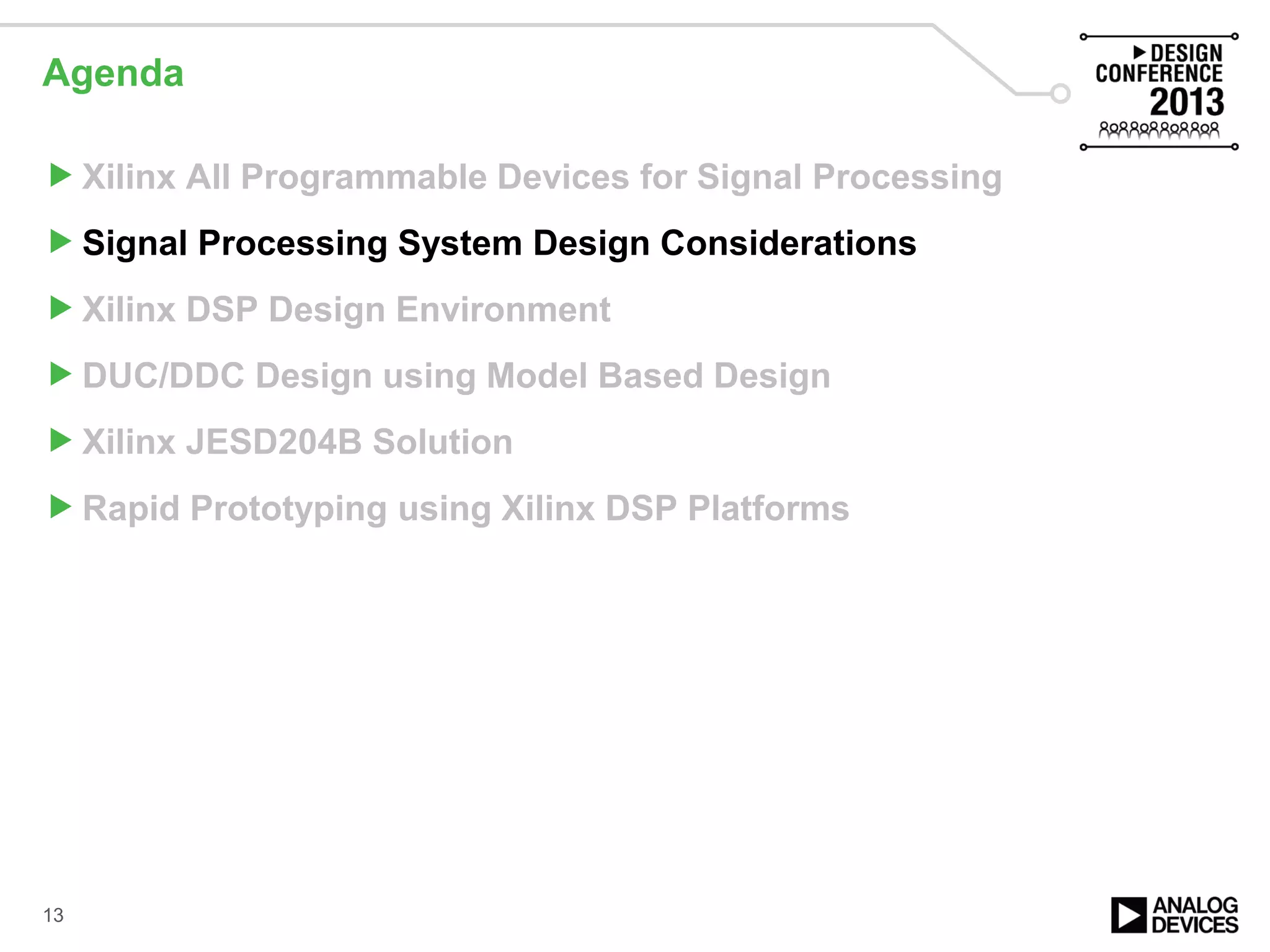

13. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
13

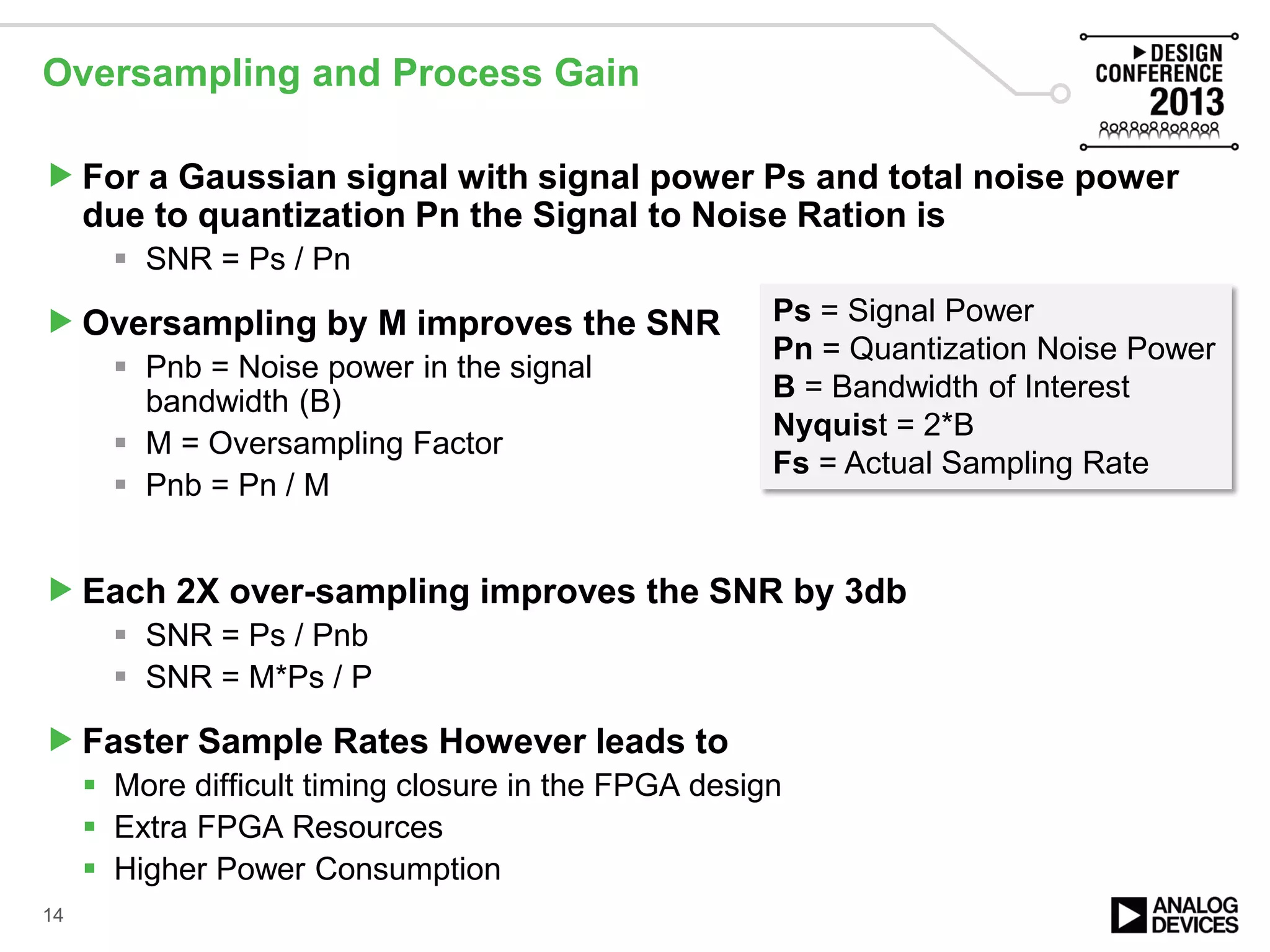

14. Oversampling and Process Gain
For a Gaussian signal with signal power Ps and total noise power
due to quantization Pn the Signal to Noise Ration is
 SNR = Ps / Pn
Oversampling by M improves the SNR
 Pnb = Noise power in the signal
bandwidth (B)
 M = Oversampling Factor
 Pnb = Pn / M
Each 2X over-sampling improves the SNR by 3db
 SNR = Ps / Pnb
 SNR = M*Ps / P
Faster Sample Rates However leads to
 More difficult timing closure in the FPGA design
 Extra FPGA Resources
 Higher Power Consumption
14
Ps = Signal Power
Pn = Quantization Noise Power
B = Bandwidth of Interest
Nyquist = 2*B
Fs = Actual Sampling Rate

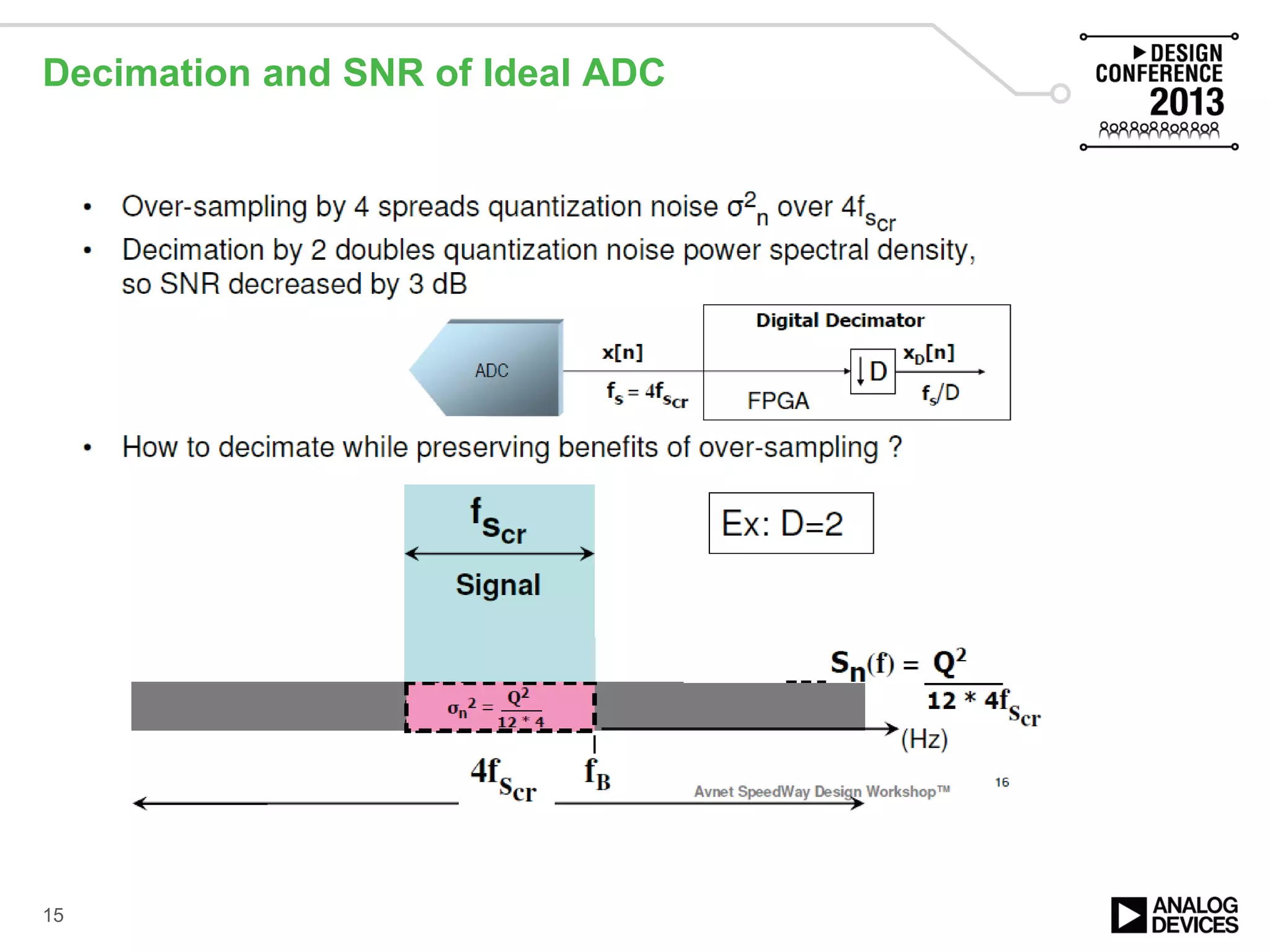

15. Decimation and SNR of Ideal ADC
15

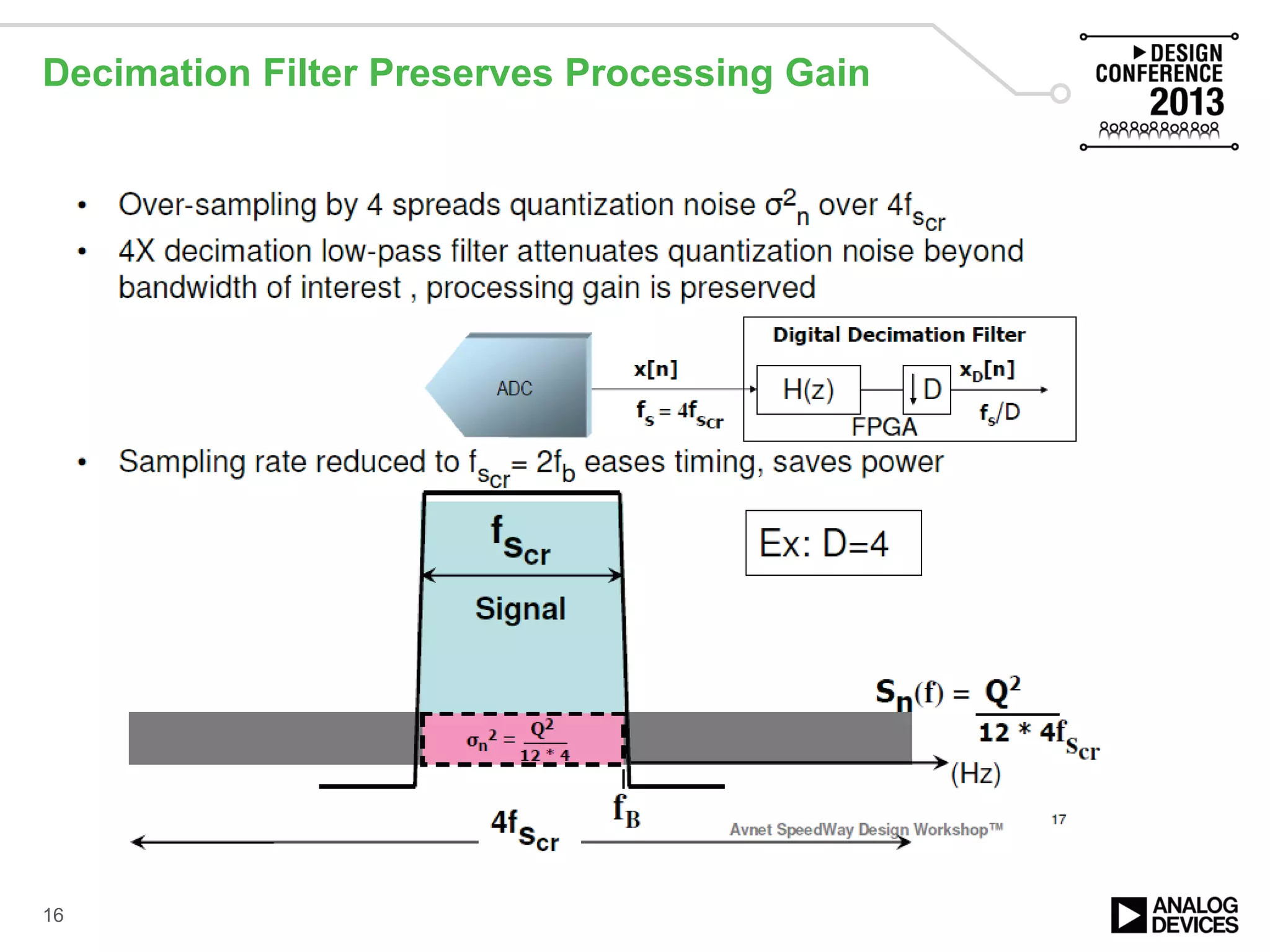

16. Decimation Filter Preserves Processing Gain
16

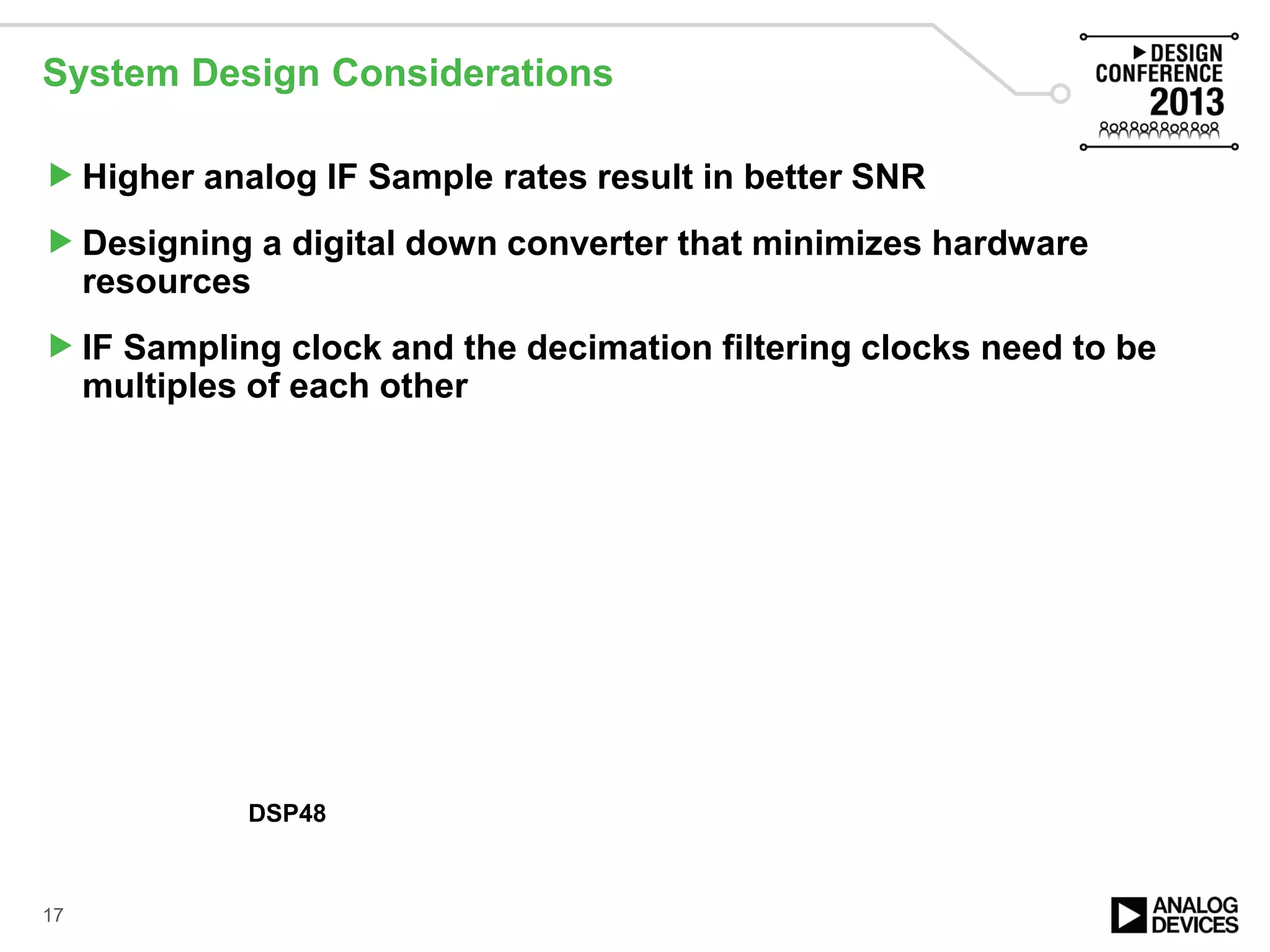

17. System Design Considerations
Higher analog IF Sample rates result in better SNR
Designing a digital down converter that minimizes hardware
resources
IF Sampling clock and the decimation filtering clocks need to be
multiples of each other
17
DSP48

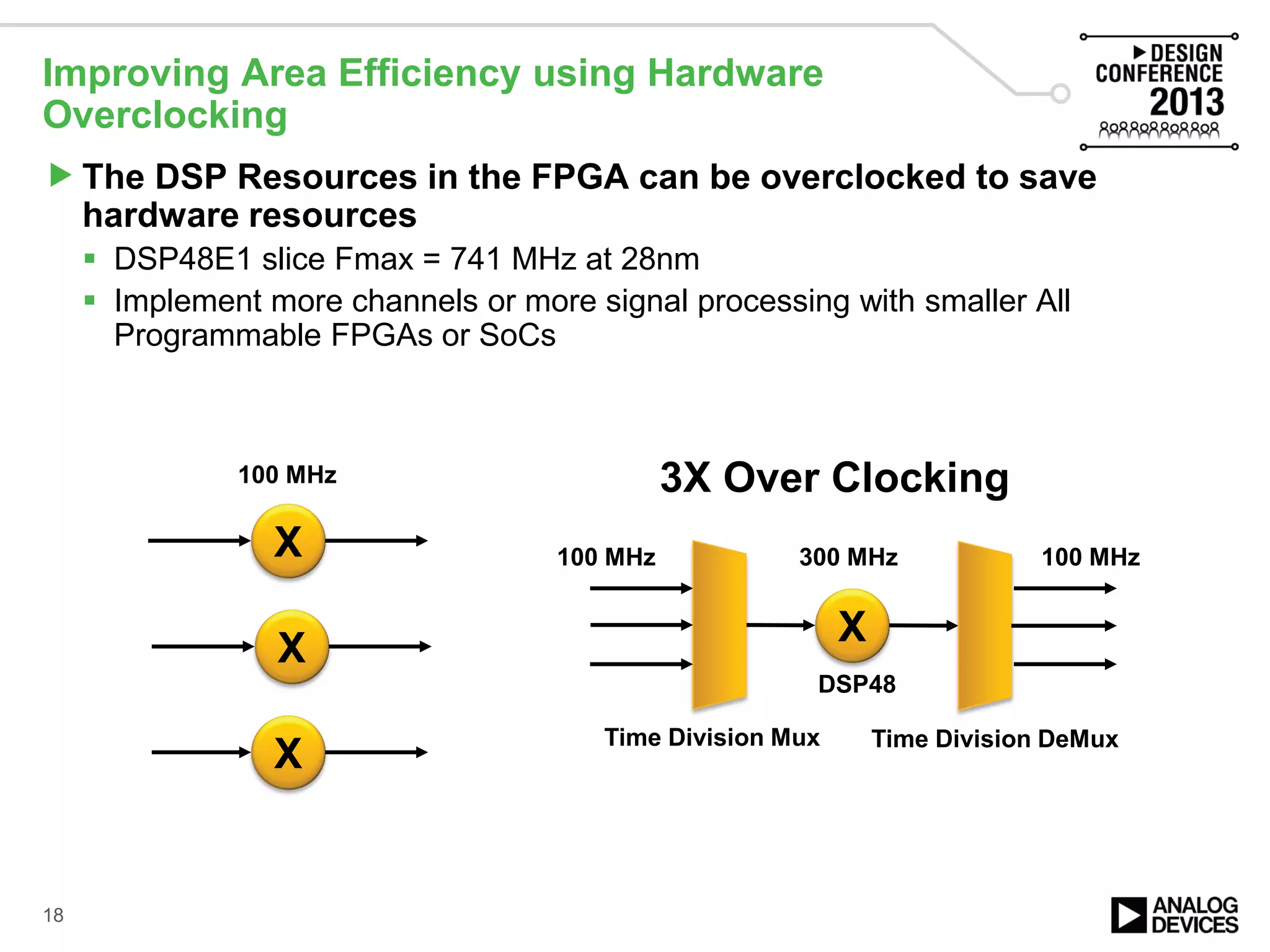

18. Improving Area Efficiency using Hardware
Overclocking
The DSP Resources in the FPGA can be overclocked to save
hardware resources
 DSP48E1 slice Fmax = 741 MHz at 28nm
 Implement more channels or more signal processing with smaller All
Programmable FPGAs or SoCs
18
X
X
X
100 MHz
X
Time Division Mux Time Division DeMux
100 MHz 300 MHz 100 MHz
3X Over Clocking
DSP48

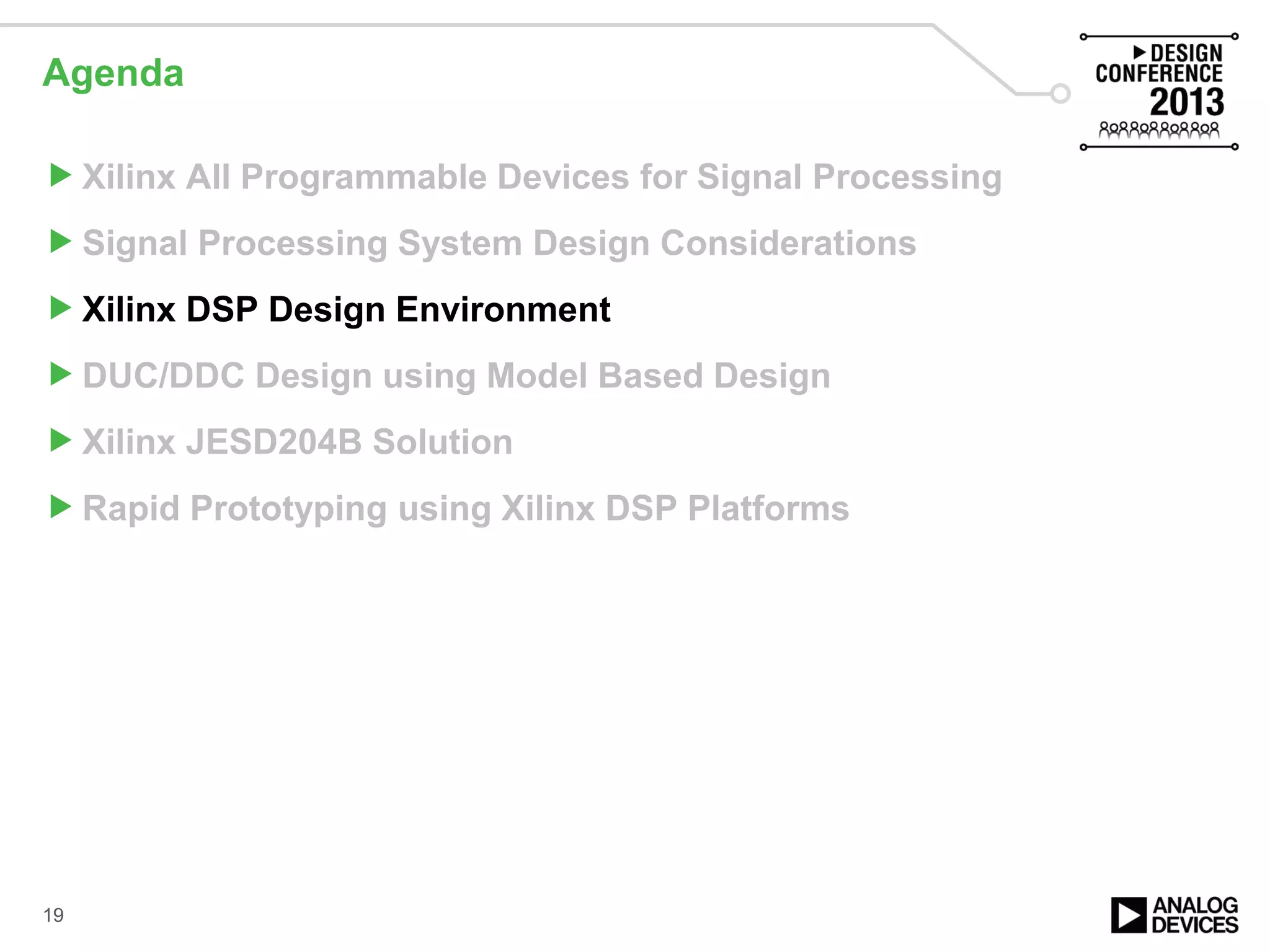

19. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
19

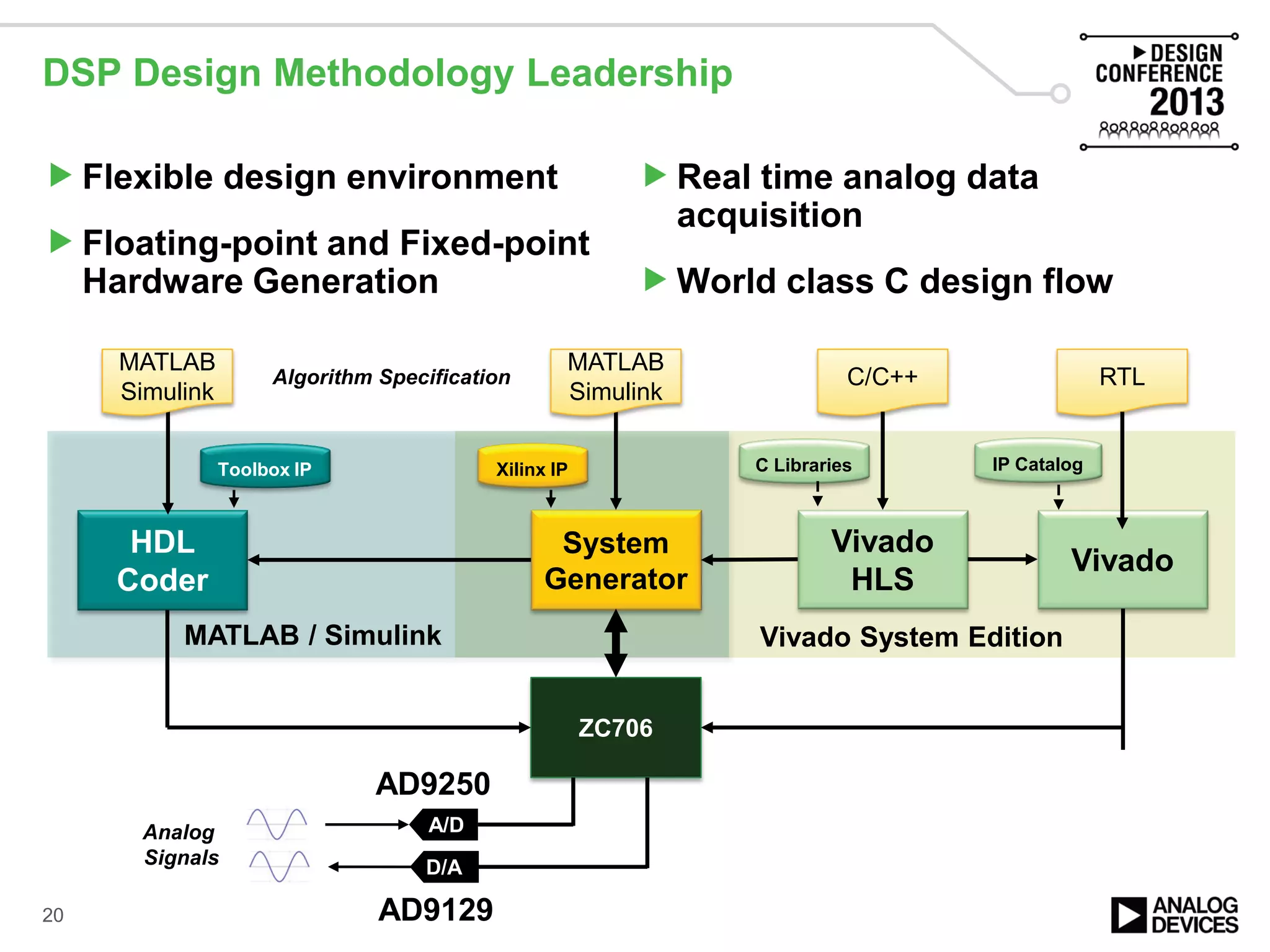

20. DSP Design Methodology Leadership
Flexible design environment
Floating-point and Fixed-point
Hardware Generation
Real time analog data
acquisition
World class C design flow
20
HDL
Coder
System
Generator
Vivado
HLS
ZC706
MATLAB / Simulink
Toolbox IP Xilinx IP
MATLAB
Simulink
MATLAB
Simulink
C/C++
C Libraries
Analog
Signals
A/D
D/A
Vivado
RTL
IP Catalog
Vivado System Edition
Algorithm Specification
AD9250
AD9129

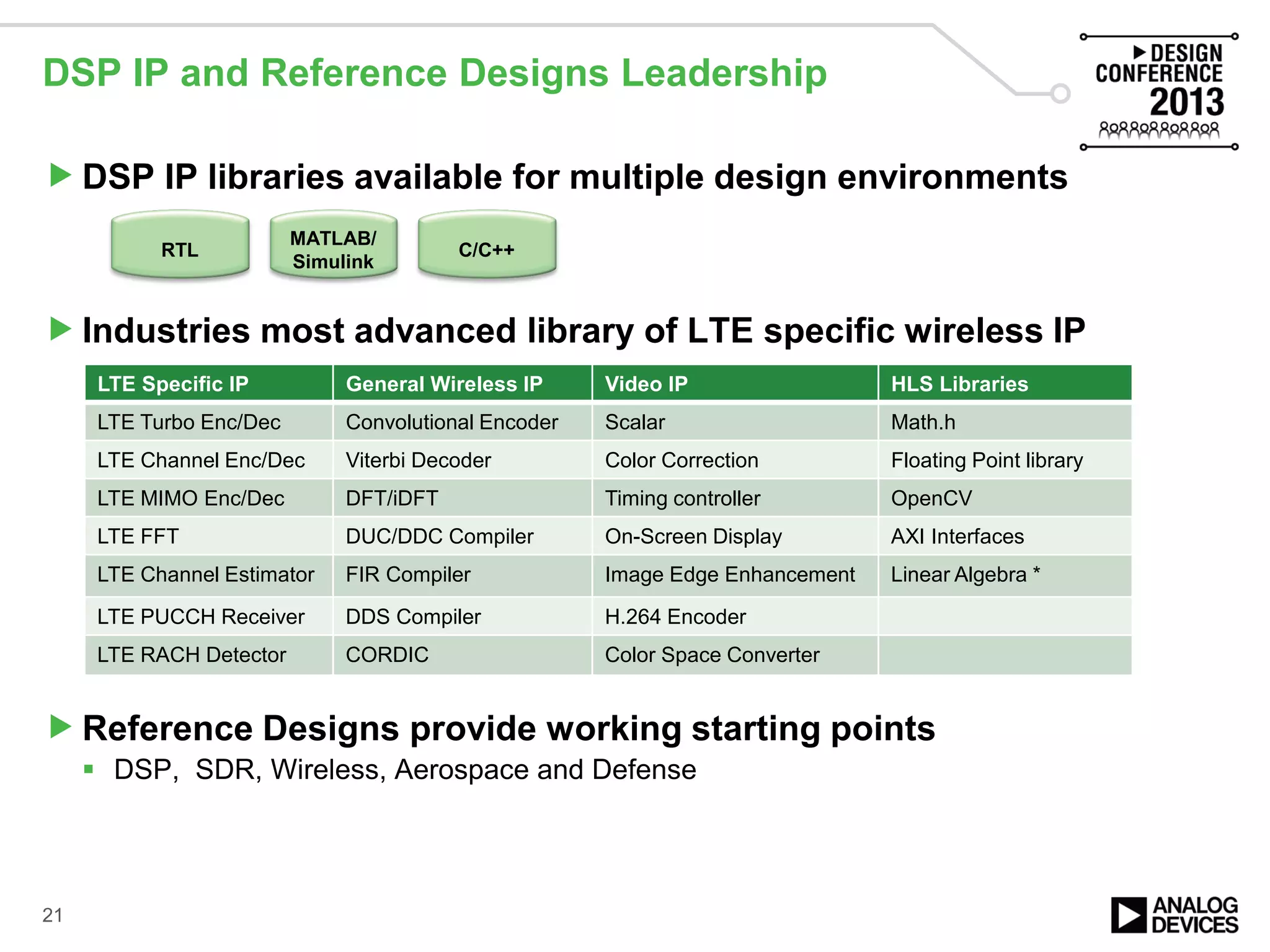

21. DSP IP and Reference Designs Leadership
DSP IP libraries available for multiple design environments
Industries most advanced library of LTE specific wireless IP
Reference Designs provide working starting points
 DSP, SDR, Wireless, Aerospace and Defense
21
LTE Specific IP General Wireless IP Video IP HLS Libraries
LTE Turbo Enc/Dec Convolutional Encoder Scalar Math.h
LTE Channel Enc/Dec Viterbi Decoder Color Correction Floating Point library
LTE MIMO Enc/Dec DFT/iDFT Timing controller OpenCV
LTE FFT DUC/DDC Compiler On-Screen Display AXI Interfaces
LTE Channel Estimator FIR Compiler Image Edge Enhancement Linear Algebra *
LTE PUCCH Receiver DDS Compiler H.264 Encoder
LTE RACH Detector CORDIC Color Space Converter
RTL
MATLAB/
Simulink
C/C++

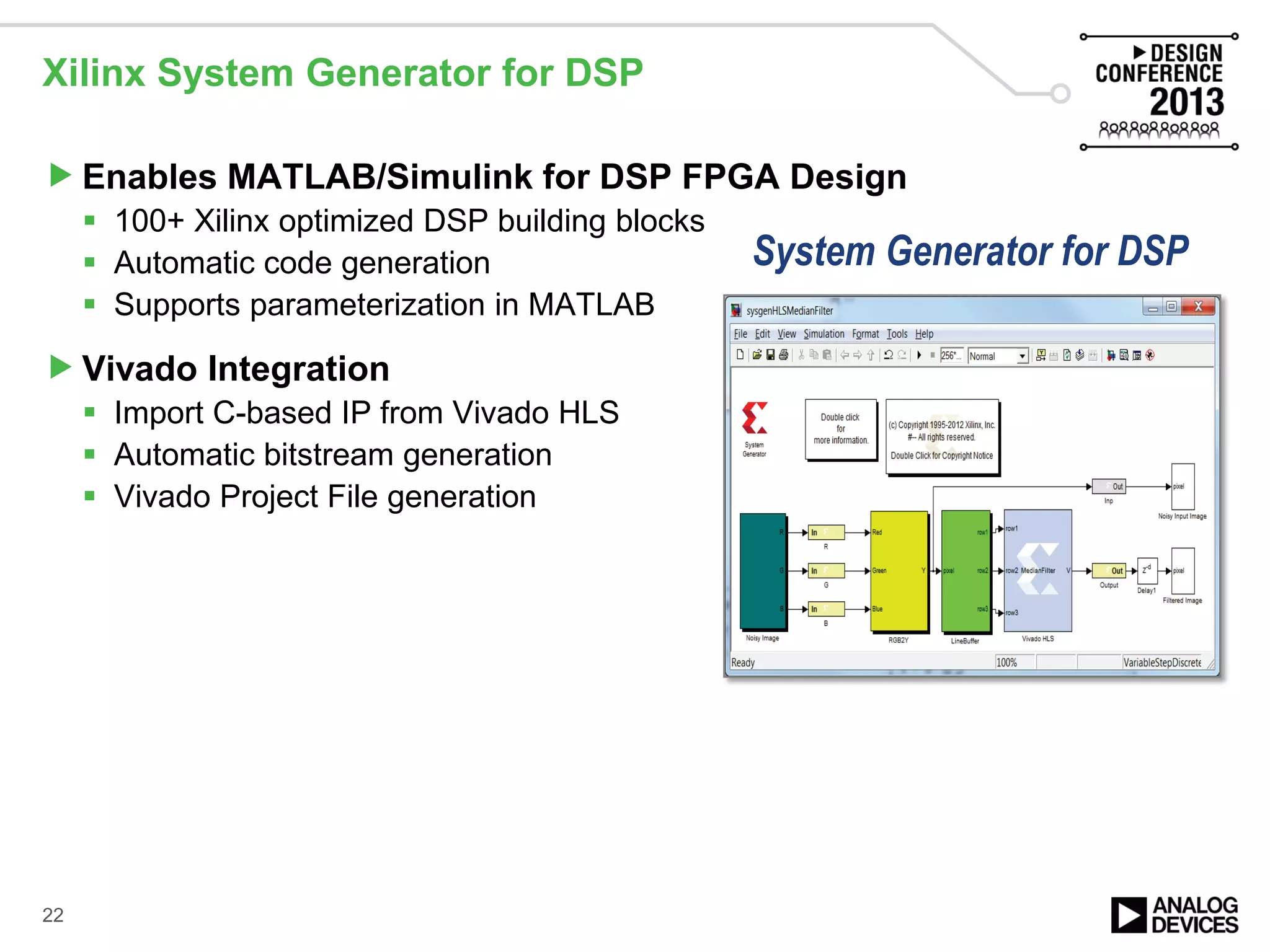

22. Xilinx System Generator for DSP
Enables MATLAB/Simulink for DSP FPGA Design
 100+ Xilinx optimized DSP building blocks
 Automatic code generation
 Supports parameterization in MATLAB
Vivado Integration
 Import C-based IP from Vivado HLS
 Automatic bitstream generation
 Vivado Project File generation
22
System Generator for DSP

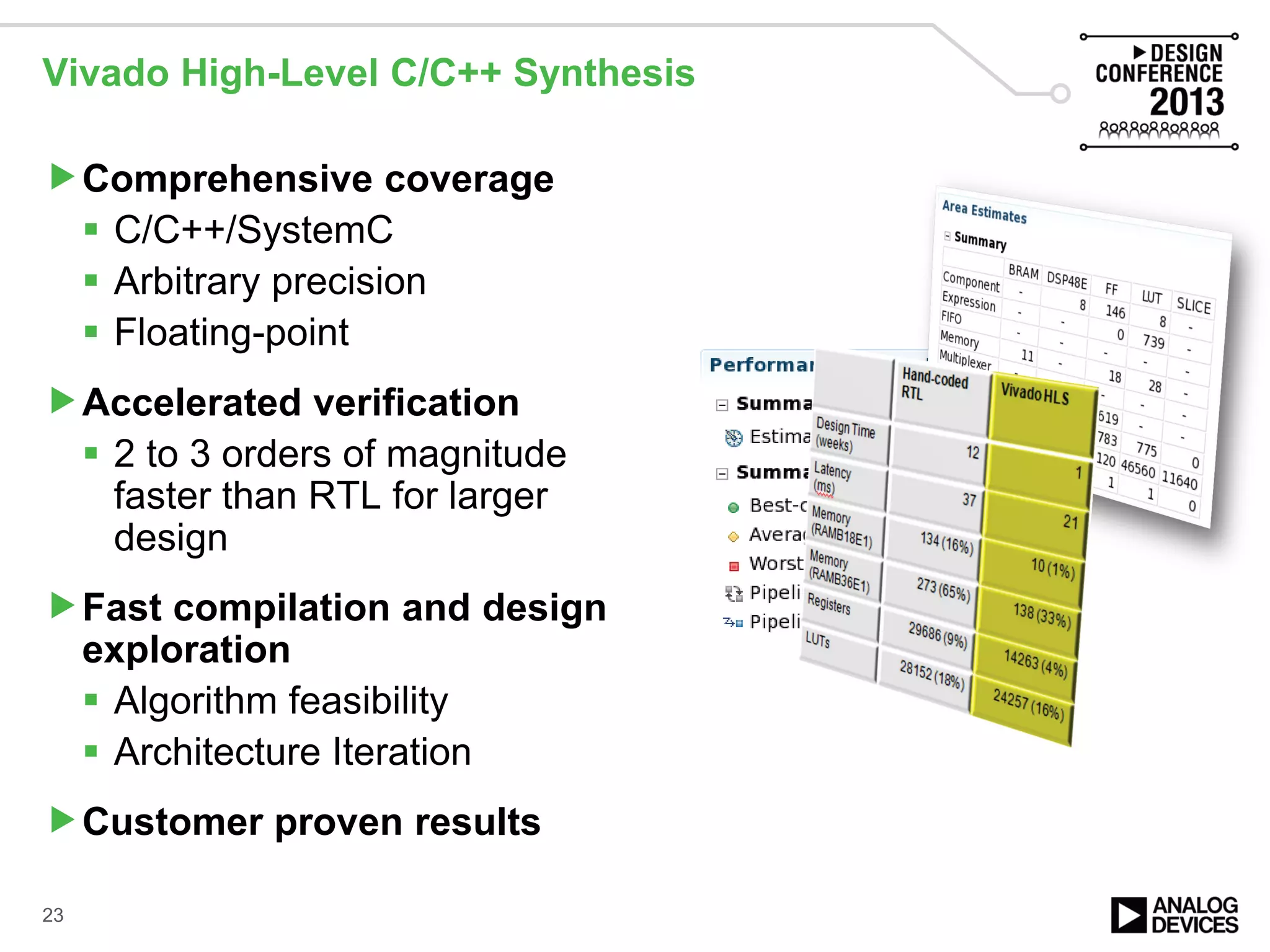

23. Vivado High-Level C/C++ Synthesis
Comprehensive coverage
 C/C++/SystemC
 Arbitrary precision
 Floating-point
Accelerated verification
 2 to 3 orders of magnitude
faster than RTL for larger
design
Fast compilation and design
exploration
 Algorithm feasibility
 Architecture Iteration
Customer proven results
23

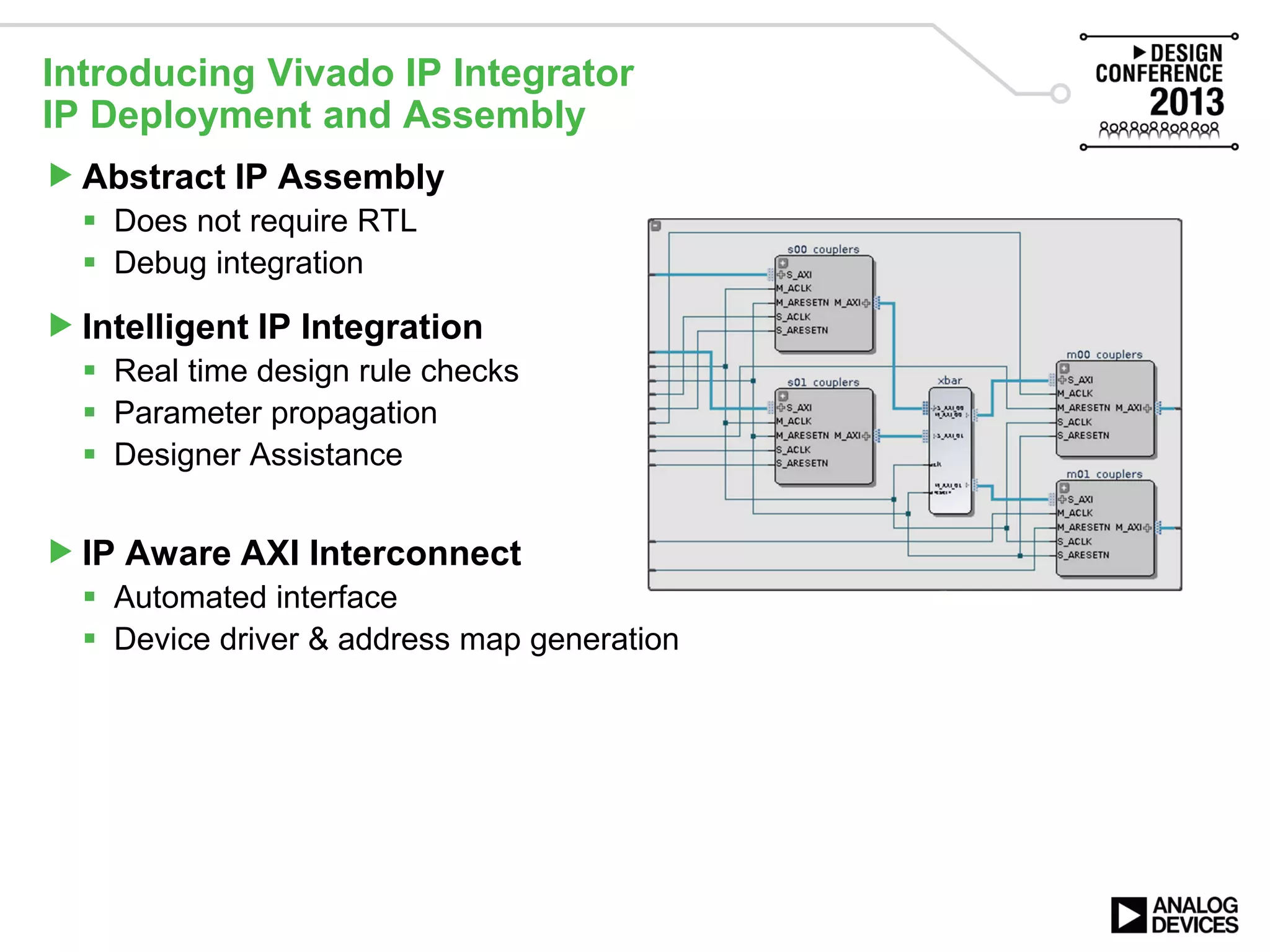

24. Introducing Vivado IP Integrator
IP Deployment and Assembly
Abstract IP Assembly
 Does not require RTL
 Debug integration
Intelligent IP Integration
 Real time design rule checks
 Parameter propagation
 Designer Assistance
IP Aware AXI Interconnect
 Automated interface
 Device driver & address map generation

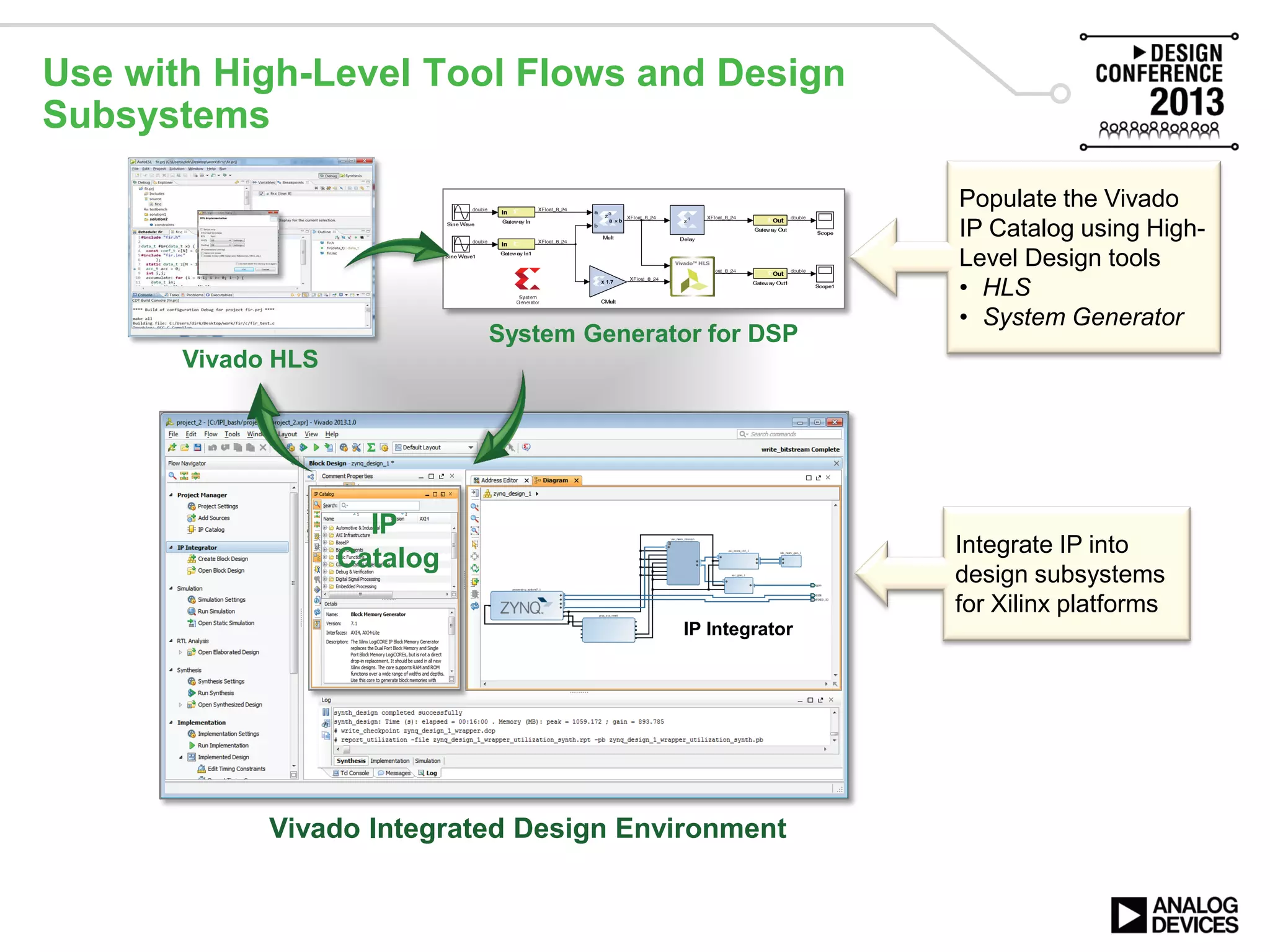

25. Use with High-Level Tool Flows and Design
Subsystems
IP
Catalog
IP Integrator
Vivado HLS
System Generator for DSP
Vivado Integrated Design Environment
Populate the Vivado
IP Catalog using High-
Level Design tools
• HLS
• System Generator
Integrate IP into
design subsystems
for Xilinx platforms

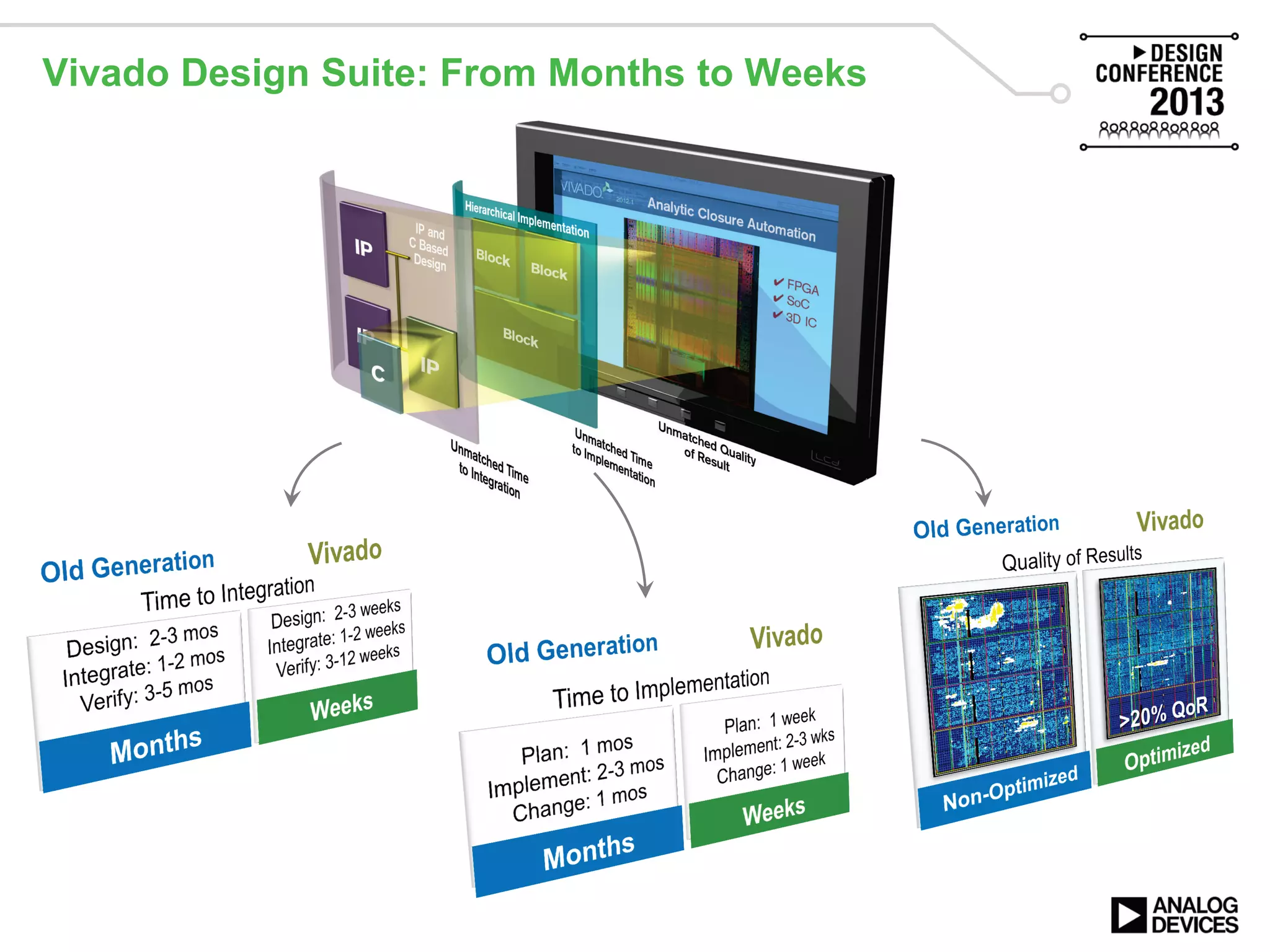

26. Vivado Design Suite: From Months to Weeks

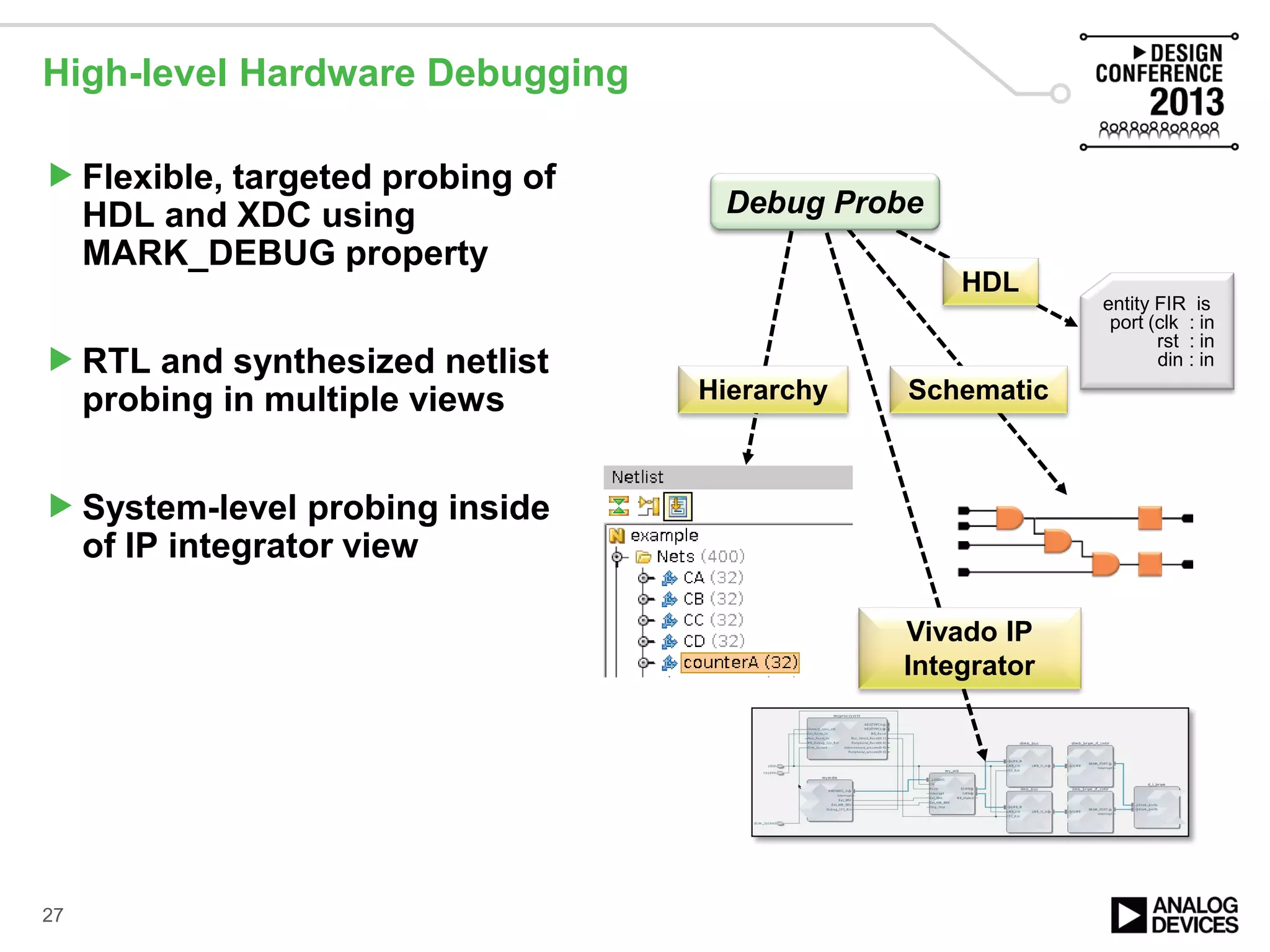

27. High-level Hardware Debugging
Flexible, targeted probing of
HDL and XDC using
MARK_DEBUG property
RTL and synthesized netlist
probing in multiple views
System-level probing inside
of IP integrator view
27
entity FIR is
port (clk : in
rst : in
din : in
HDL
SchematicHierarchy
Debug Probe
Vivado IP
Integrator

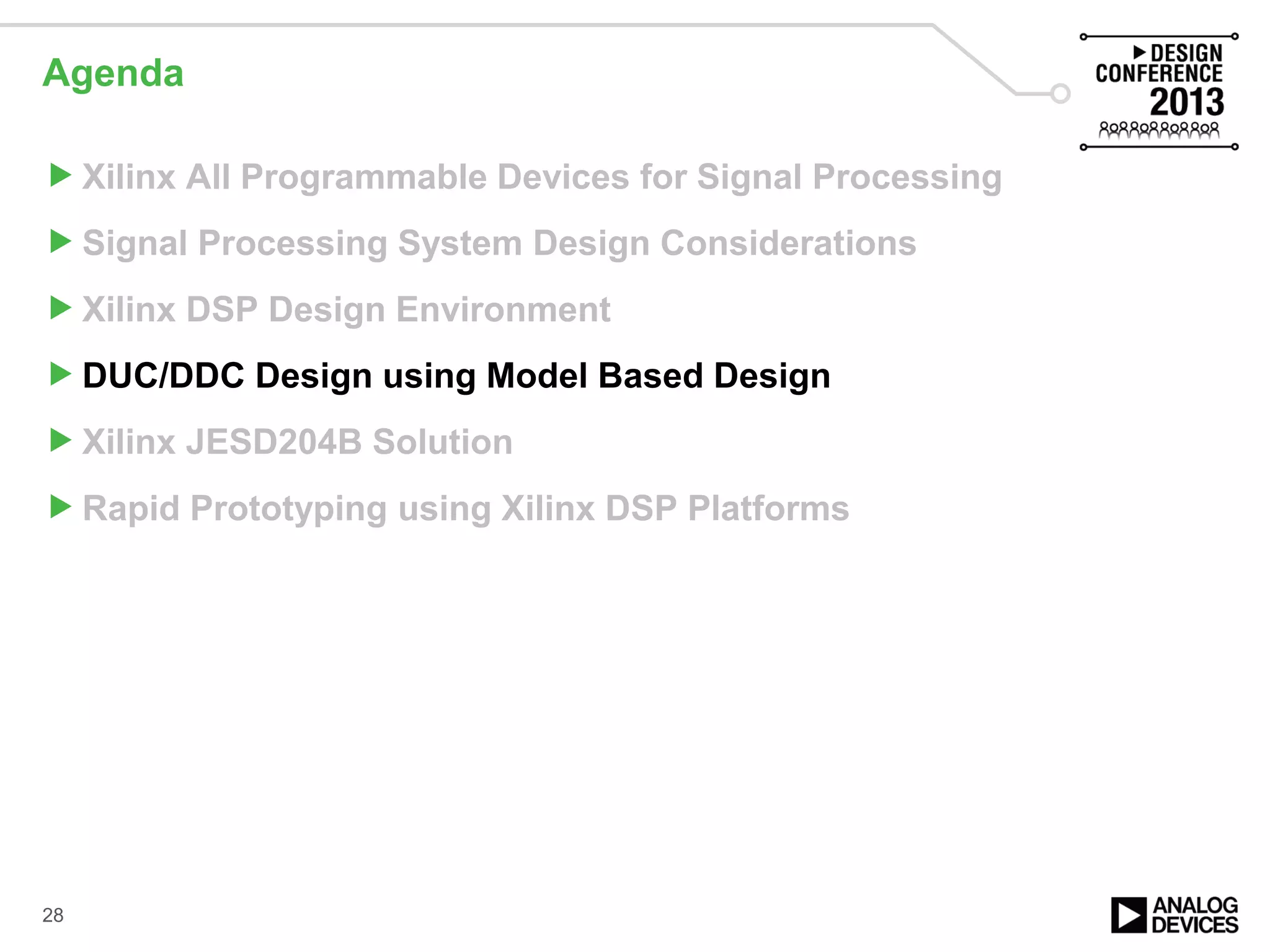

28. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
28

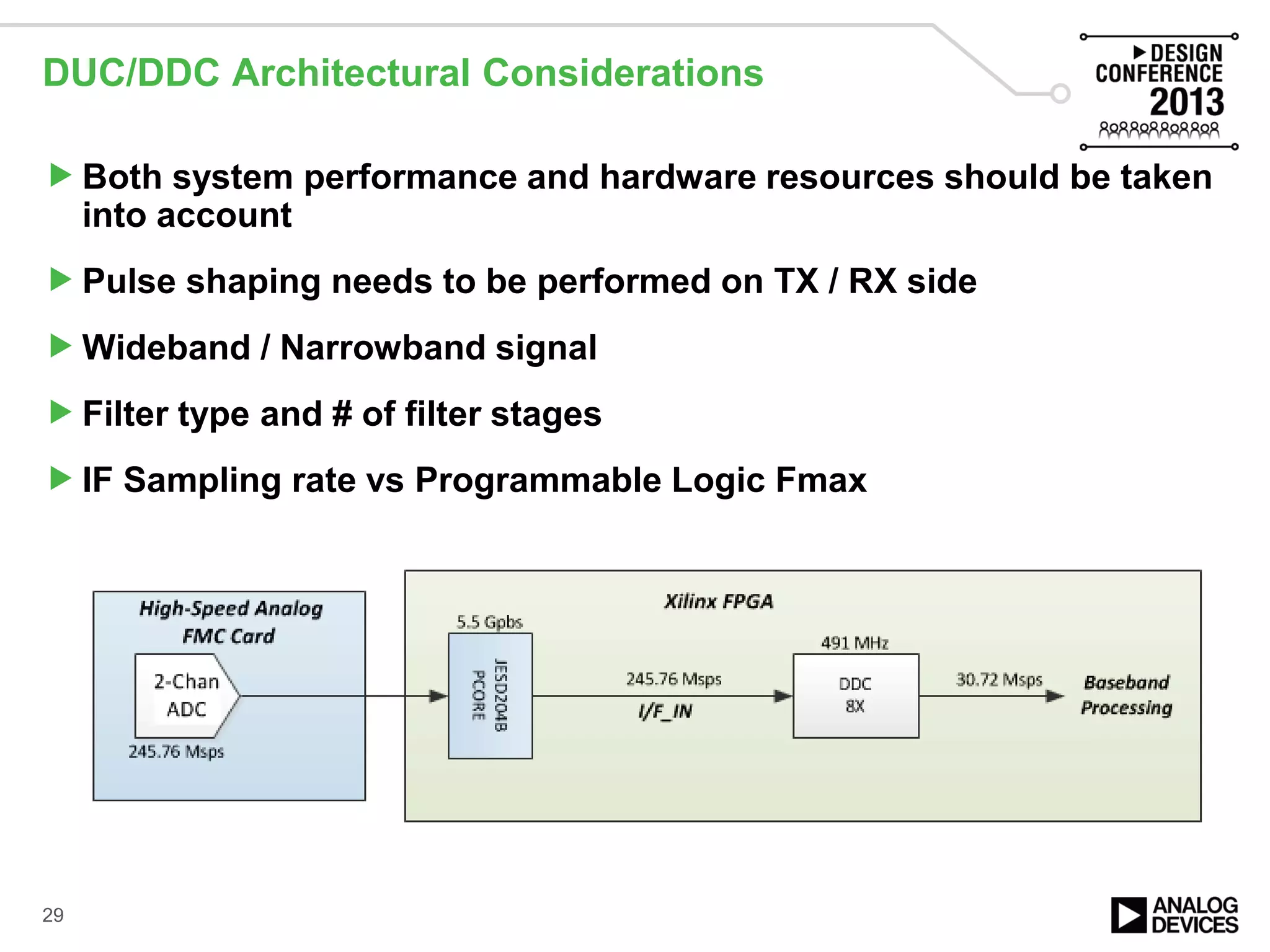

29. DUC/DDC Architectural Considerations
Both system performance and hardware resources should be taken
into account
Pulse shaping needs to be performed on TX / RX side
Wideband / Narrowband signal
Filter type and # of filter stages
IF Sampling rate vs Programmable Logic Fmax
29

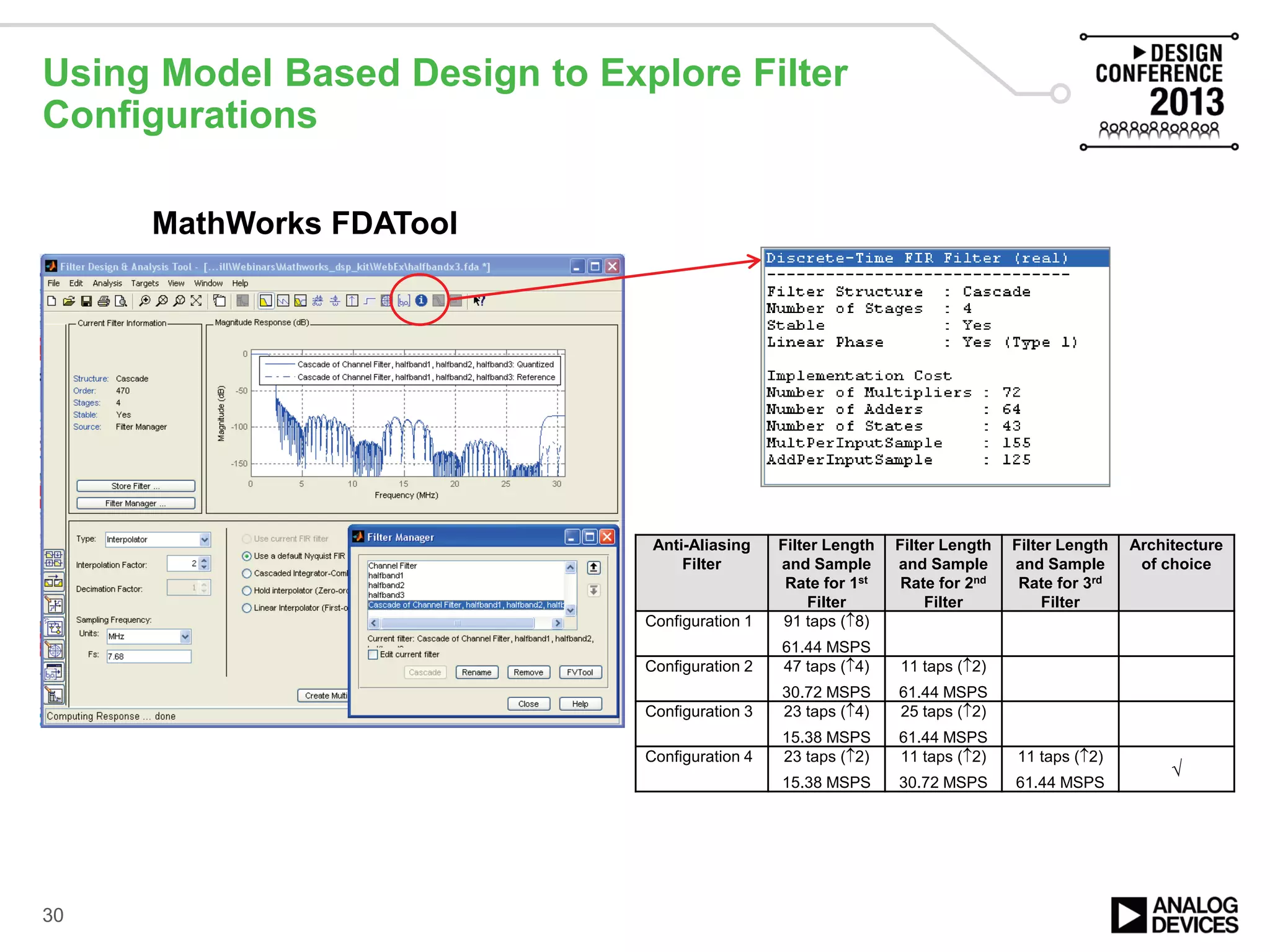

30. Using Model Based Design to Explore Filter
Configurations
30
Anti-Aliasing
Filter
Filter Length
and Sample
Rate for 1st
Filter
Filter Length
and Sample
Rate for 2nd
Filter
Filter Length
and Sample
Rate for 3rd
Filter
Architecture
of choice
Configuration 1 91 taps (↑8)
61.44 MSPS
Configuration 2 47 taps (↑4)
30.72 MSPS
11 taps (↑2)
61.44 MSPS
Configuration 3 23 taps (↑4)
15.38 MSPS
25 taps (↑2)
61.44 MSPS
Configuration 4 23 taps (↑2)
15.38 MSPS
11 taps (↑2)
30.72 MSPS
11 taps (↑2)
61.44 MSPS
√
MathWorks FDATool

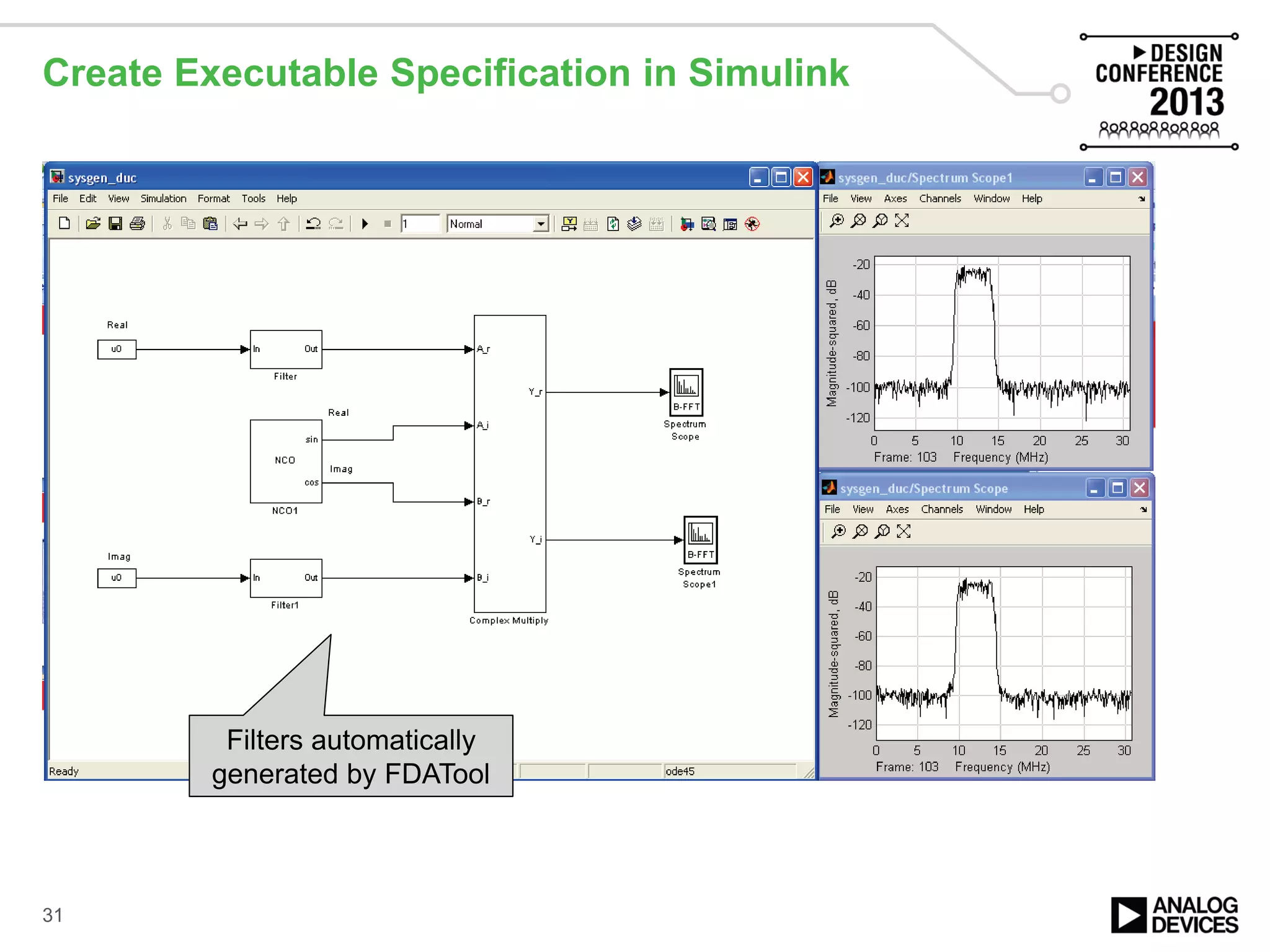

31. Create Executable Specification in Simulink
31
Filters automatically
generated by FDATool

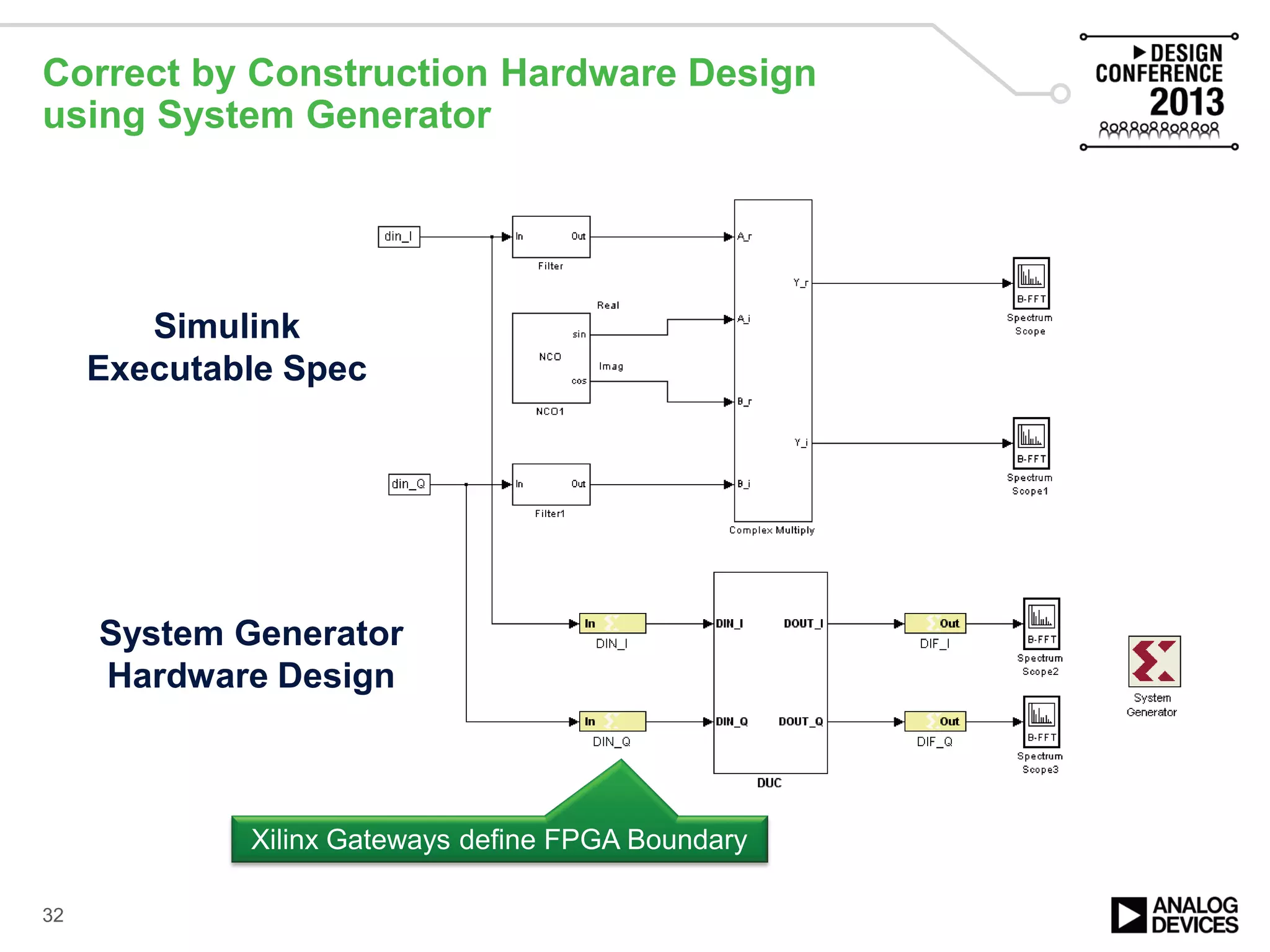

32. Correct by Construction Hardware Design
using System Generator
32
System Generator
Hardware Design
Simulink
Executable Spec
Xilinx Gateways define FPGA Boundary

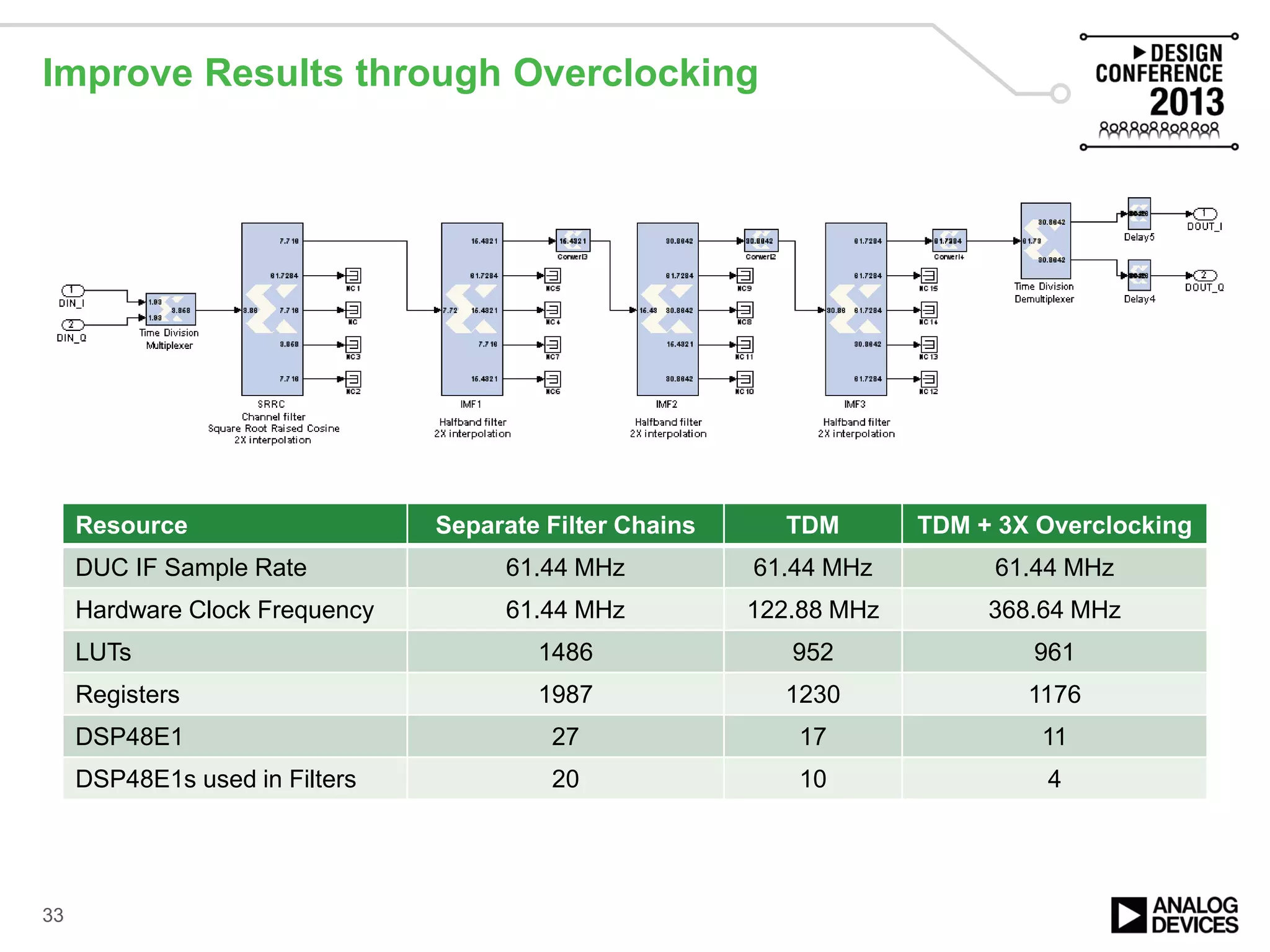

33. Improve Results through Overclocking
33
Resource Separate Filter Chains TDM TDM + 3X Overclocking
DUC IF Sample Rate 61.44 MHz 61.44 MHz 61.44 MHz
Hardware Clock Frequency 61.44 MHz 122.88 MHz 368.64 MHz
LUTs 1486 952 961
Registers 1987 1230 1176
DSP48E1 27 17 11
DSP48E1s used in Filters 20 10 4

34. Agenda

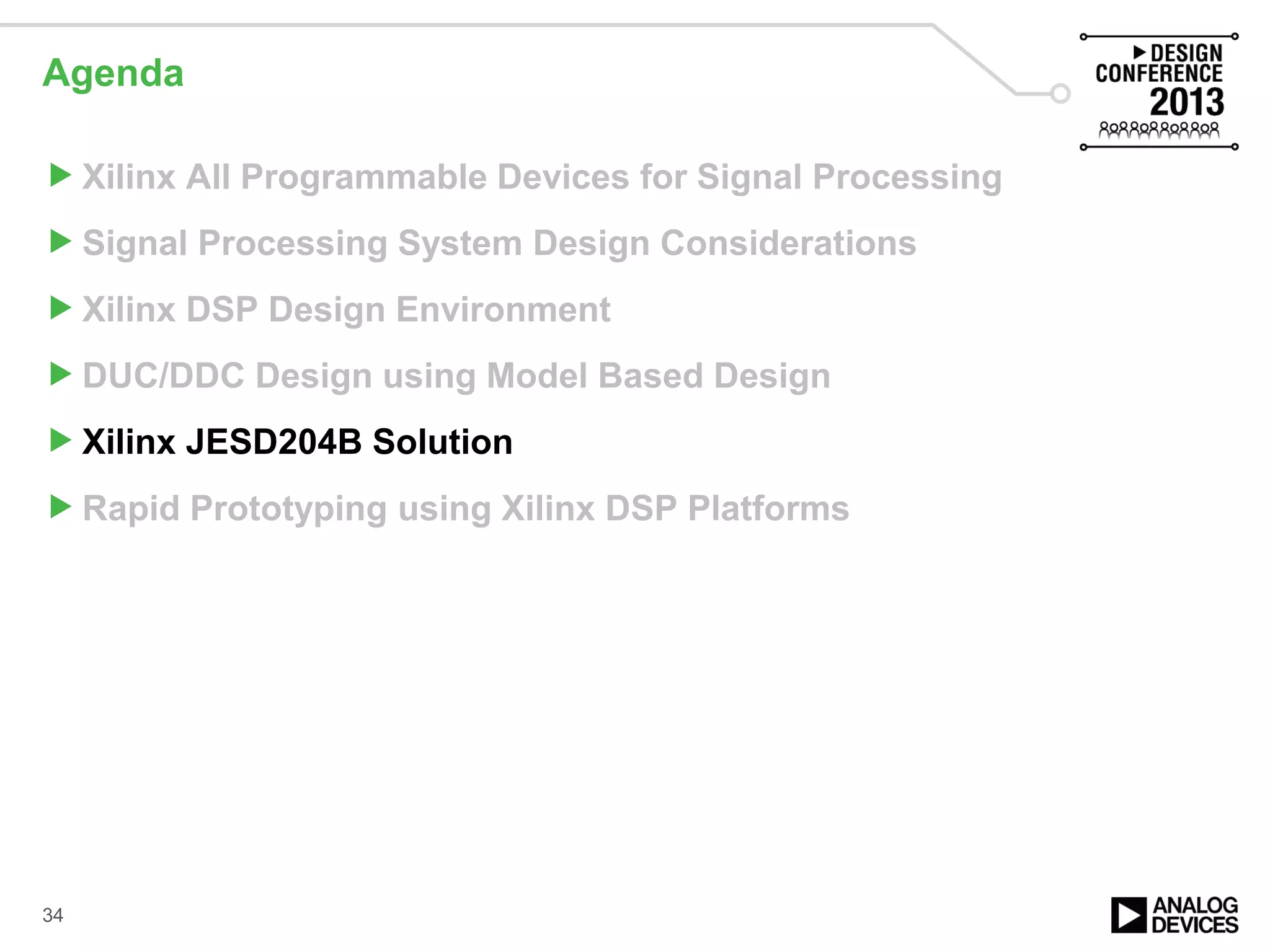

Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
34

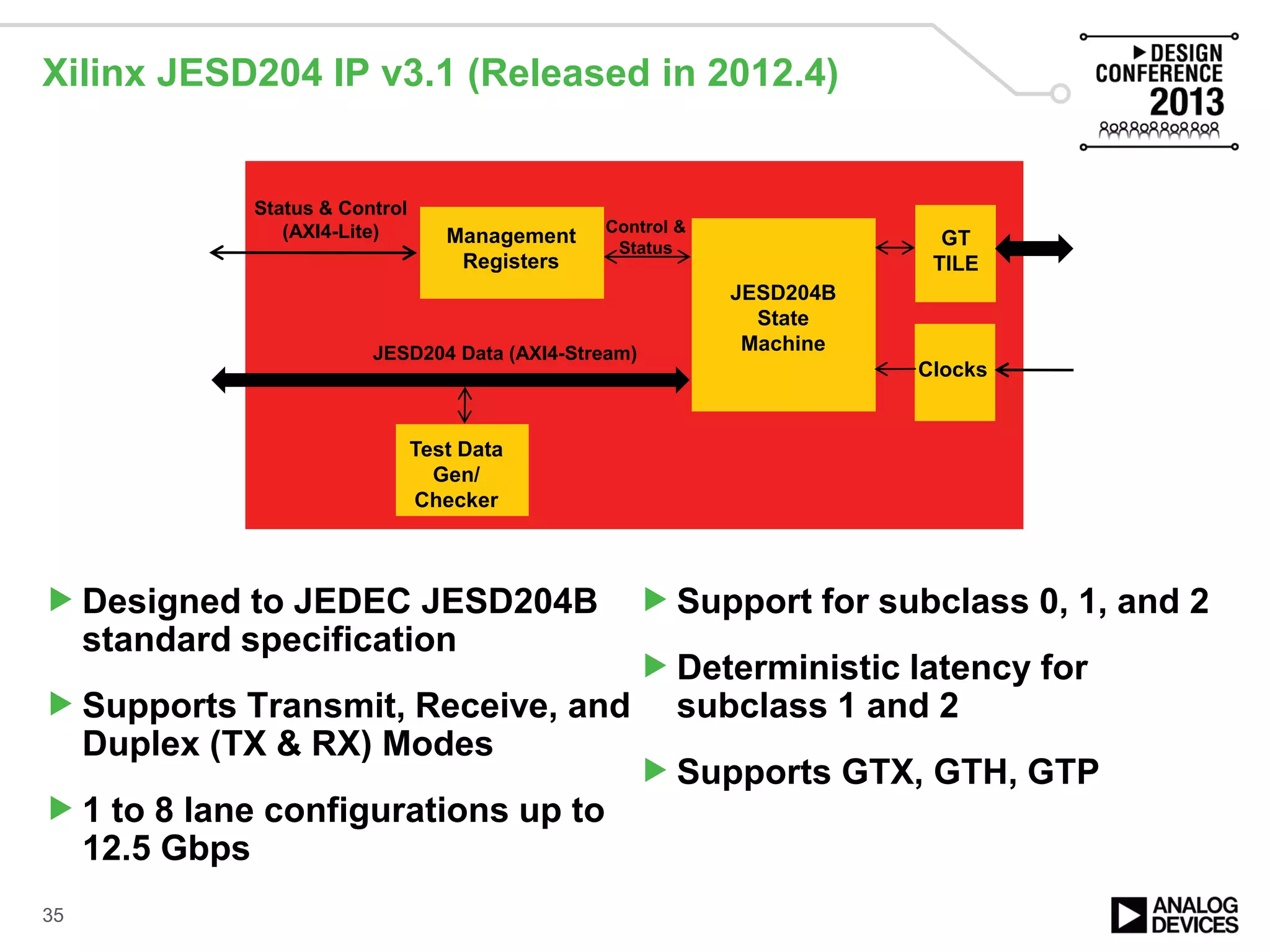

35. Xilinx JESD204 IP v3.1 (Released in 2012.4)
Designed to JEDEC JESD204B
standard specification
Supports Transmit, Receive, and
Duplex (TX & RX) Modes
1 to 8 lane configurations up to
12.5 Gbps
Support for subclass 0, 1, and 2
Deterministic latency for
subclass 1 and 2
Supports GTX, GTH, GTP
35
JESD204B
State
Machine
GT
TILE
Clocks
Management
Registers
Control &
Status
JESD204 Data (AXI4-Stream)
Test Data
Gen/
Checker
Status & Control
(AXI4-Lite)

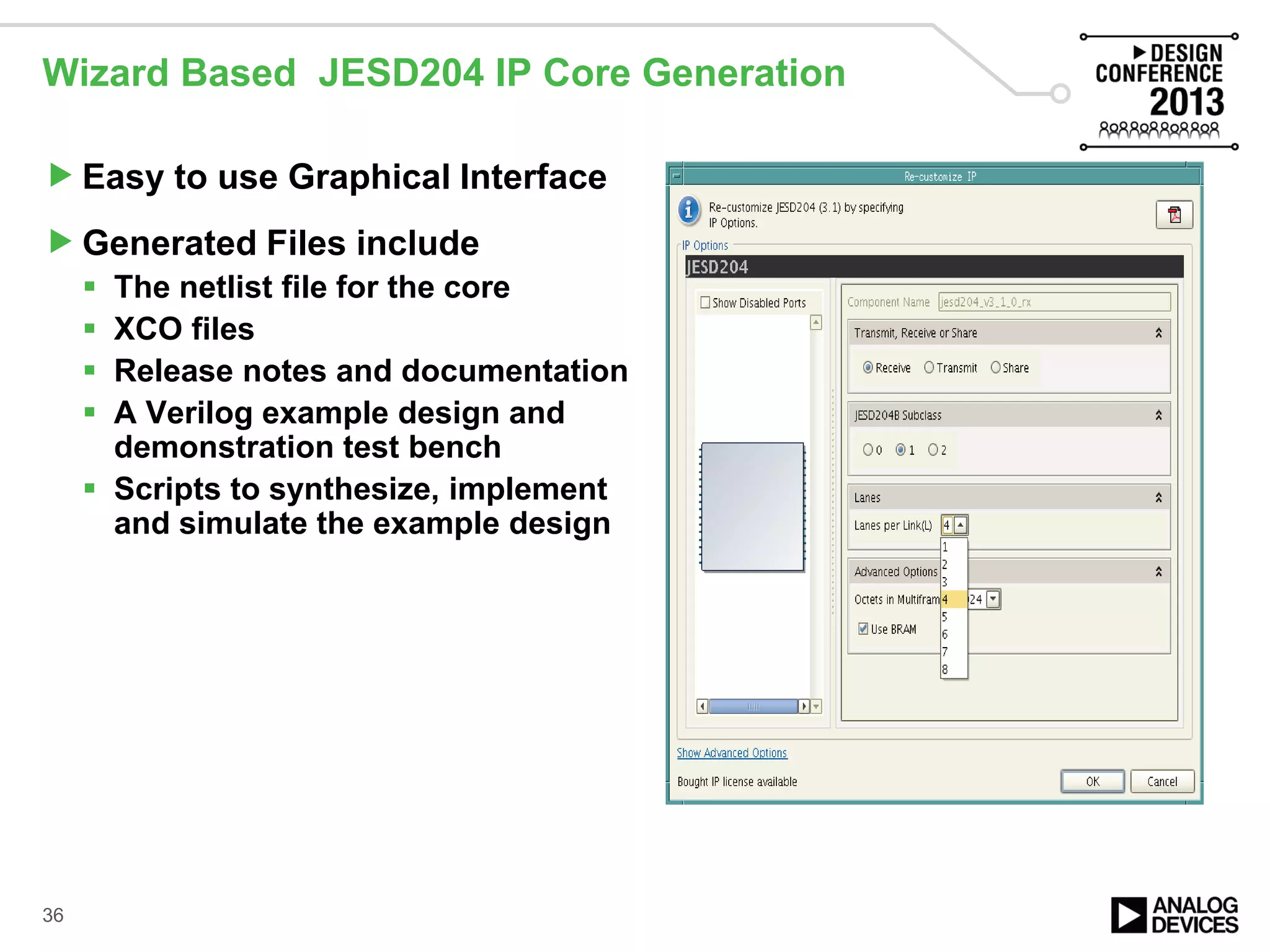

36. Wizard Based JESD204 IP Core Generation
Easy to use Graphical Interface
Generated Files include
 The netlist file for the core
 XCO files
 Release notes and documentation
 A Verilog example design and
demonstration test bench
 Scripts to synthesize, implement
and simulate the example design
36

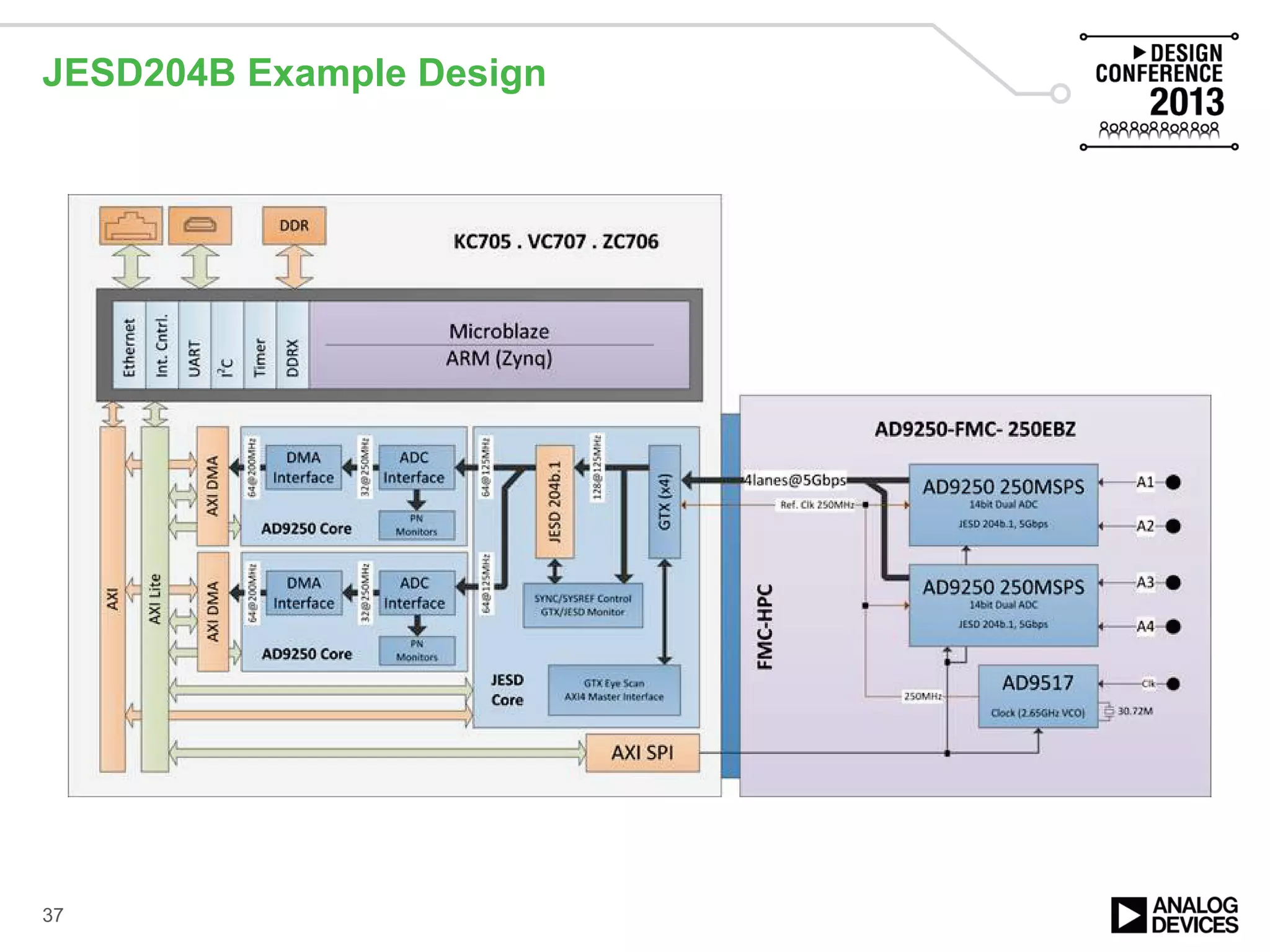

37. JESD204B Example Design
37

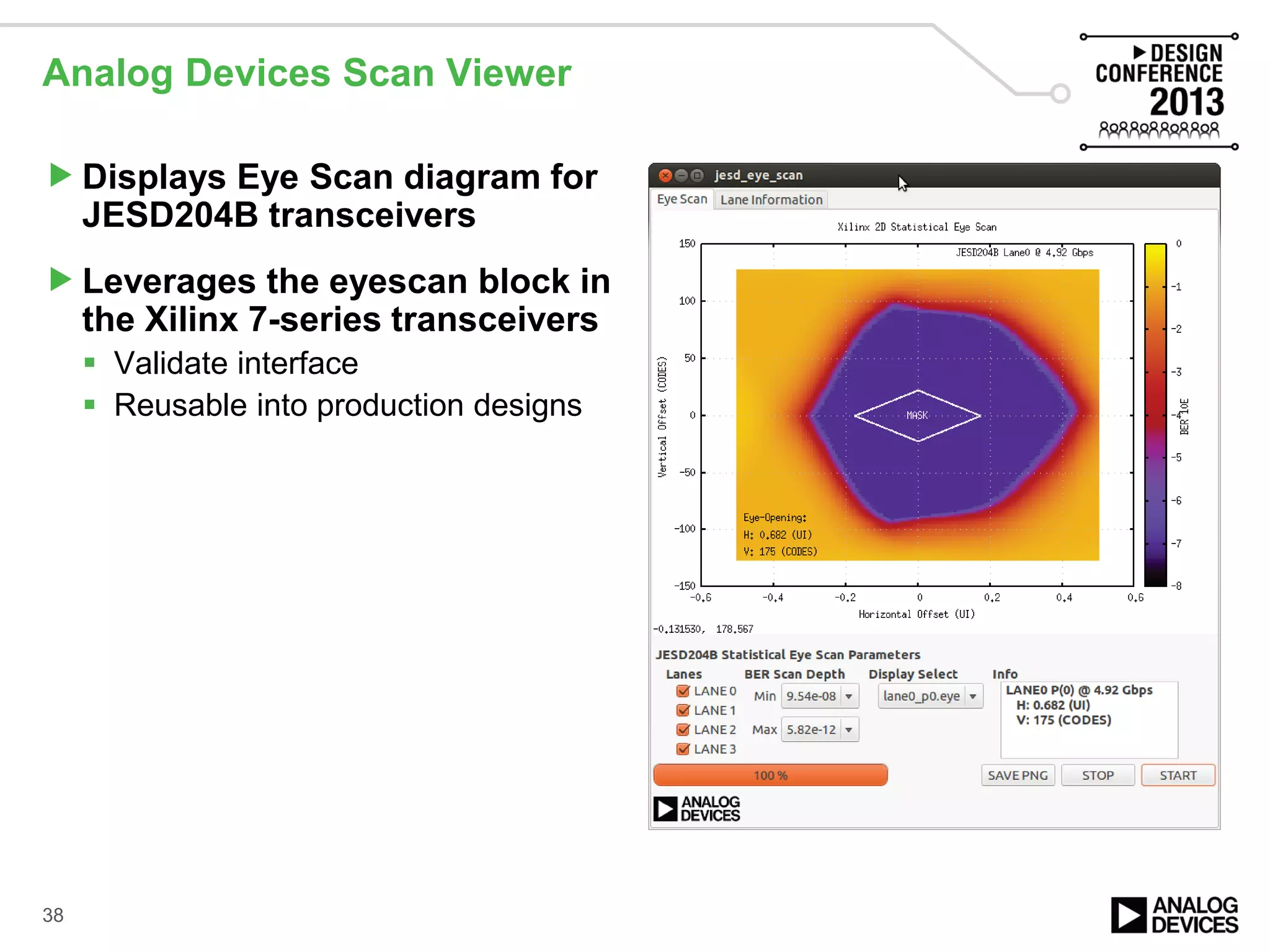

38. Analog Devices Scan Viewer
Displays Eye Scan diagram for
JESD204B transceivers
Leverages the eyescan block in
the Xilinx 7-series transceivers
 Validate interface
 Reusable into production designs
38

39. Agenda
Xilinx All Programmable Devices for Signal Processing
Signal Processing System Design Considerations
Xilinx DSP Design Environment
DUC/DDC Design using Model Based Design
Xilinx JESD204B Solution
Rapid Prototyping using Xilinx DSP Platforms
39

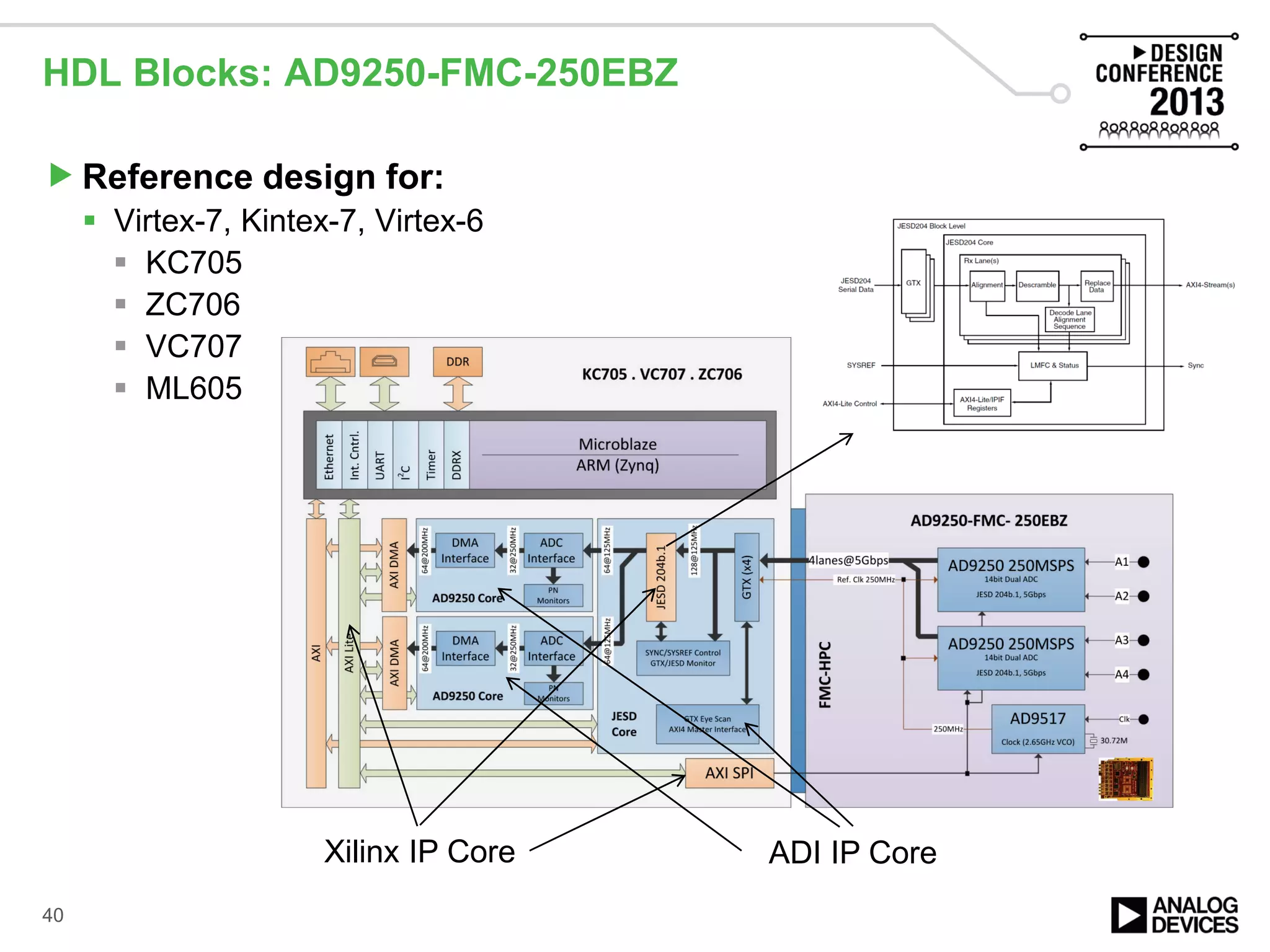

40. HDL Blocks: AD9250-FMC-250EBZ
Reference design for:
 Virtex-7, Kintex-7, Virtex-6
 KC705
 ZC706
 VC707
 ML605
40
ADI IP CoreXilinx IP Core

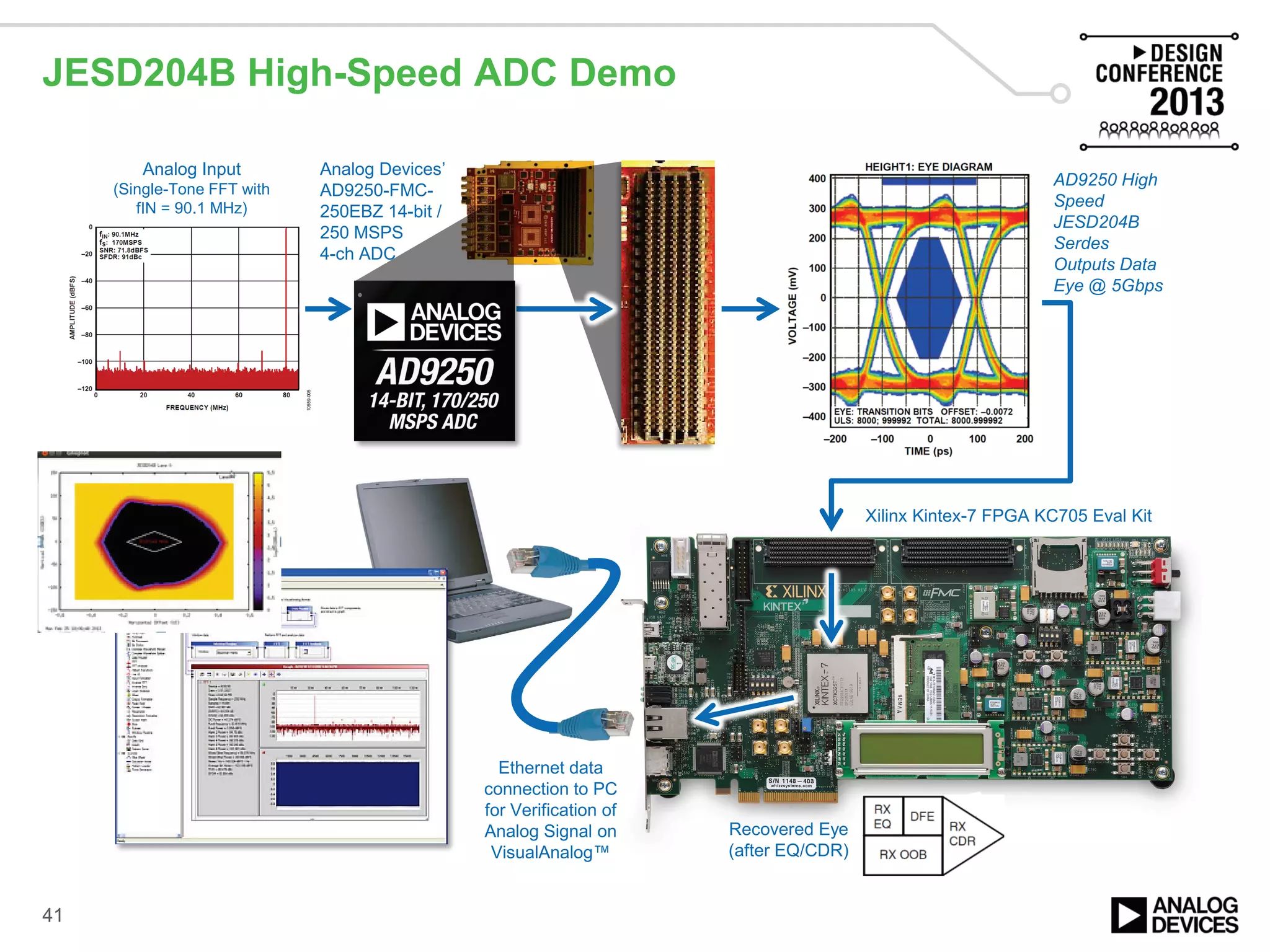

41. JESD204B High-Speed ADC Demo
41
Analog Devices’
AD9250-FMC-
250EBZ 14-bit /
250 MSPS
4-ch ADC
AD9250 High
Speed
JESD204B
Serdes
Outputs Data
Eye @ 5Gbps
Analog Input
(Single-Tone FFT with
fIN = 90.1 MHz)
Ethernet data
connection to PC
for Verification of
Analog Signal on
VisualAnalog™
Xilinx Kintex-7 FPGA KC705 Eval Kit
Recovered Eye
(after EQ/CDR)

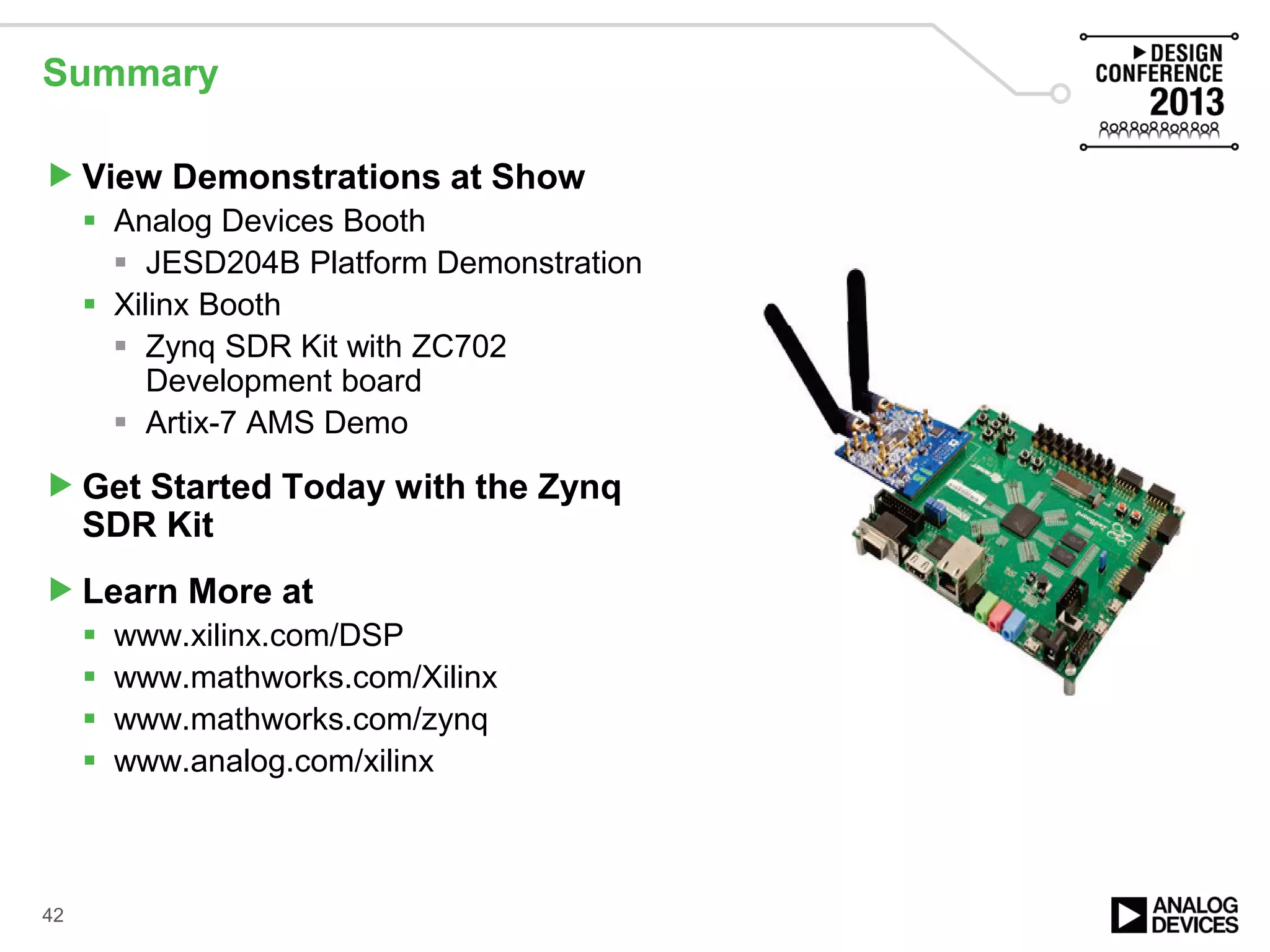

42. Summary
View Demonstrations at Show
 Analog Devices Booth
 JESD204B Platform Demonstration
 Xilinx Booth
 Zynq SDR Kit with ZC702
Development board
 Artix-7 AMS Demo
Get Started Today with the Zynq
SDR Kit
Learn More at
 www.xilinx.com/DSP
 www.mathworks.com/Xilinx
 www.mathworks.com/zynq
 www.analog.com/xilinx
42
