This document discusses the chi-square test and t-tests as methods for analyzing data in SPSS, particularly focusing on their applications in comparing groups. It explains the chi-square test's purpose in testing independence and goodness of fit, alongside step-by-step instructions for conducting these tests in SPSS using examples like Titanic survivor data. Additionally, the document introduces the t-test and its variations, detailing how to perform it in SPSS to determine significant differences between group means.

1. Chi Square and t-tests
Presented by
Group C

2. Introduction
Data analysis can be done basically in
three ways using SPSS, as
i. Describing data through descriptive
statistics
ii. Examining relationships between
variables
iii. Comparing groups to determine
significant differences between
them

3. Introduction
Considering the third category i.e.
comparing groups, chi square and t-tests
are two of the important tests. These are
tests of significance.

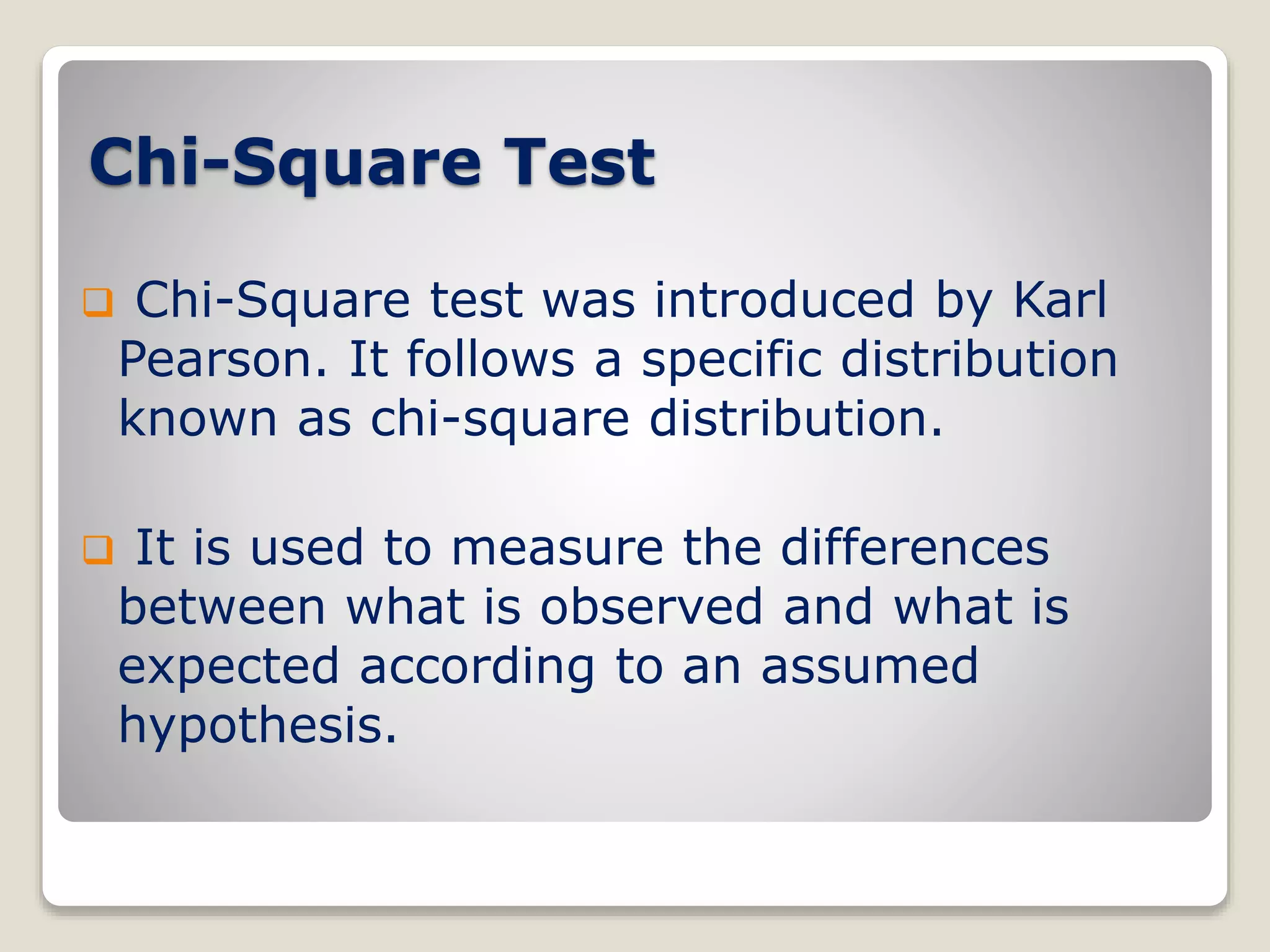

4. Chi-Square Test
 Chi-Square test was introduced by Karl
Pearson. It follows a specific distribution
known as chi-square distribution.
 It is used to measure the differences
between what is observed and what is
expected according to an assumed
hypothesis.

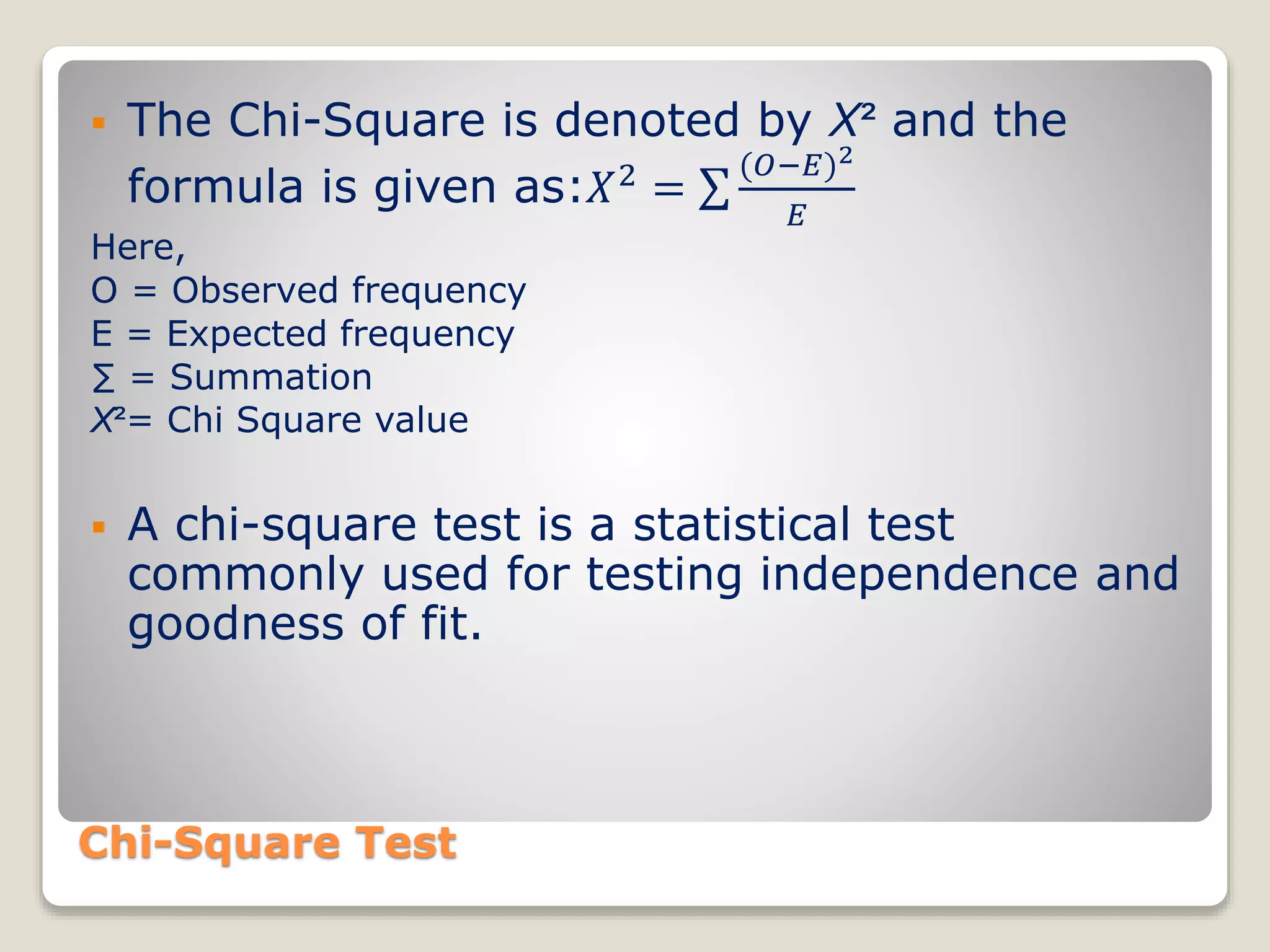

5. Chi-Square Test
 The Chi-Square is denoted by X² and the
formula is given as:𝑋2
=
(𝑂−𝐸)2
𝐸
Here,
O = Observed frequency
E = Expected frequency
∑ = Summation
X²= Chi Square value
 A chi-square test is a statistical test
commonly used for testing independence and
goodness of fit.

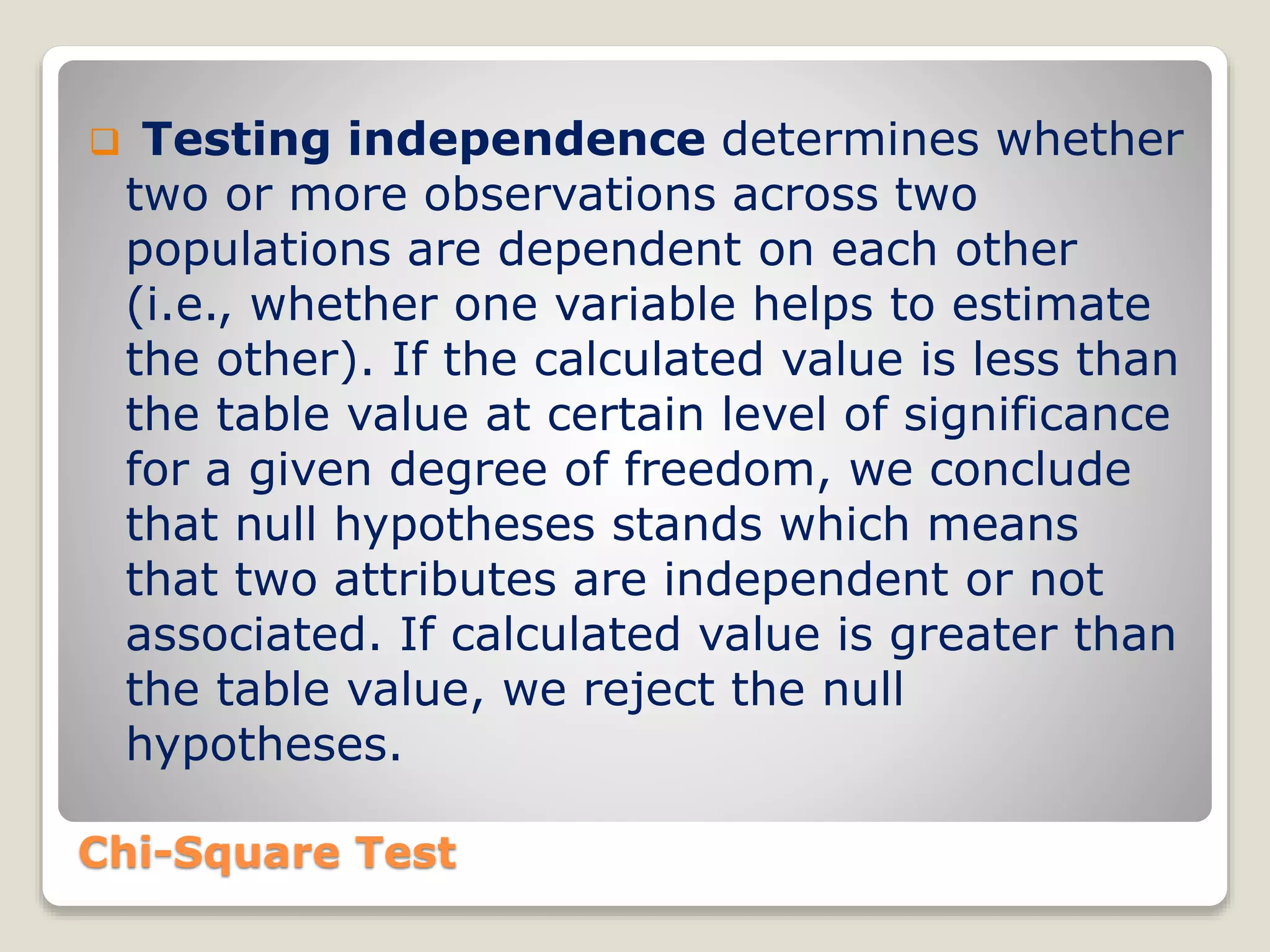

6. Chi-Square Test
 Testing independence determines whether
two or more observations across two
populations are dependent on each other
(i.e., whether one variable helps to estimate
the other). If the calculated value is less than
the table value at certain level of significance
for a given degree of freedom, we conclude
that null hypotheses stands which means
that two attributes are independent or not
associated. If calculated value is greater than
the table value, we reject the null
hypotheses.

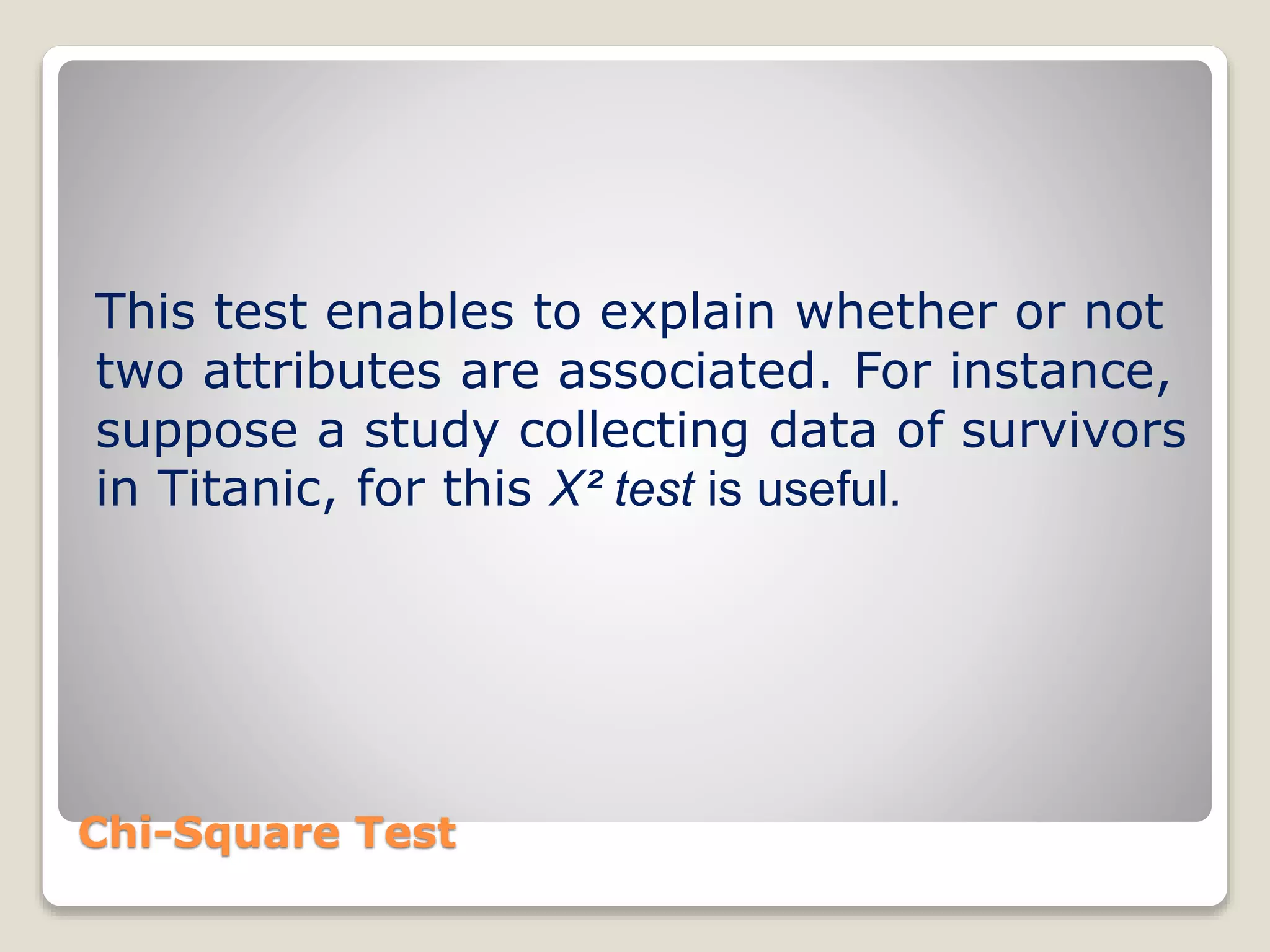

7. Chi-Square Test
This test enables to explain whether or not
two attributes are associated. For instance,
suppose a study collecting data of survivors
in Titanic, for this X² test is useful.

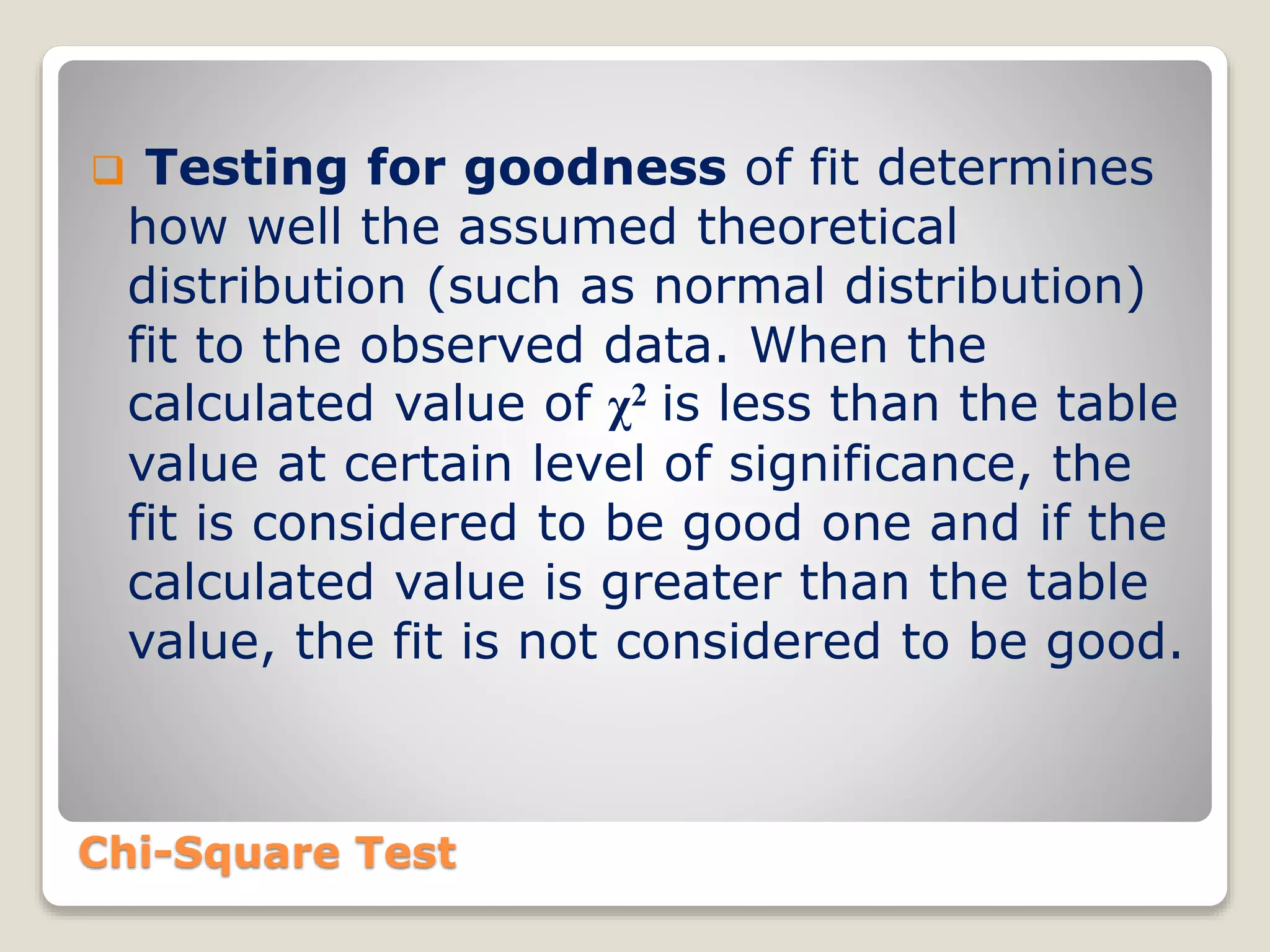

8. Chi-Square Test
 Testing for goodness of fit determines
how well the assumed theoretical
distribution (such as normal distribution)
fit to the observed data. When the
calculated value of χ2 is less than the table
value at certain level of significance, the
fit is considered to be good one and if the
calculated value is greater than the table
value, the fit is not considered to be good.

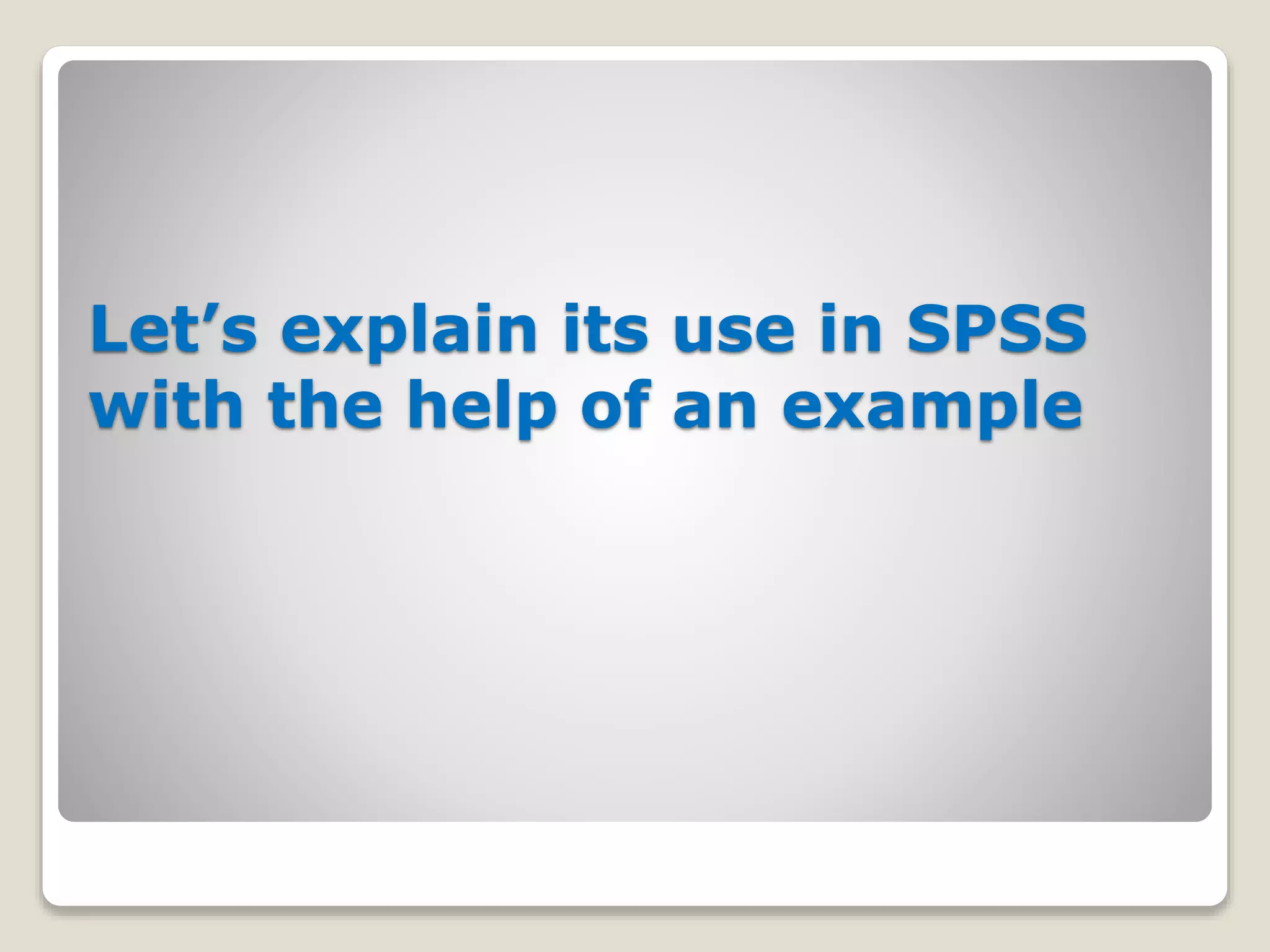

9. Let’s explain its use in SPSS
with the help of an example

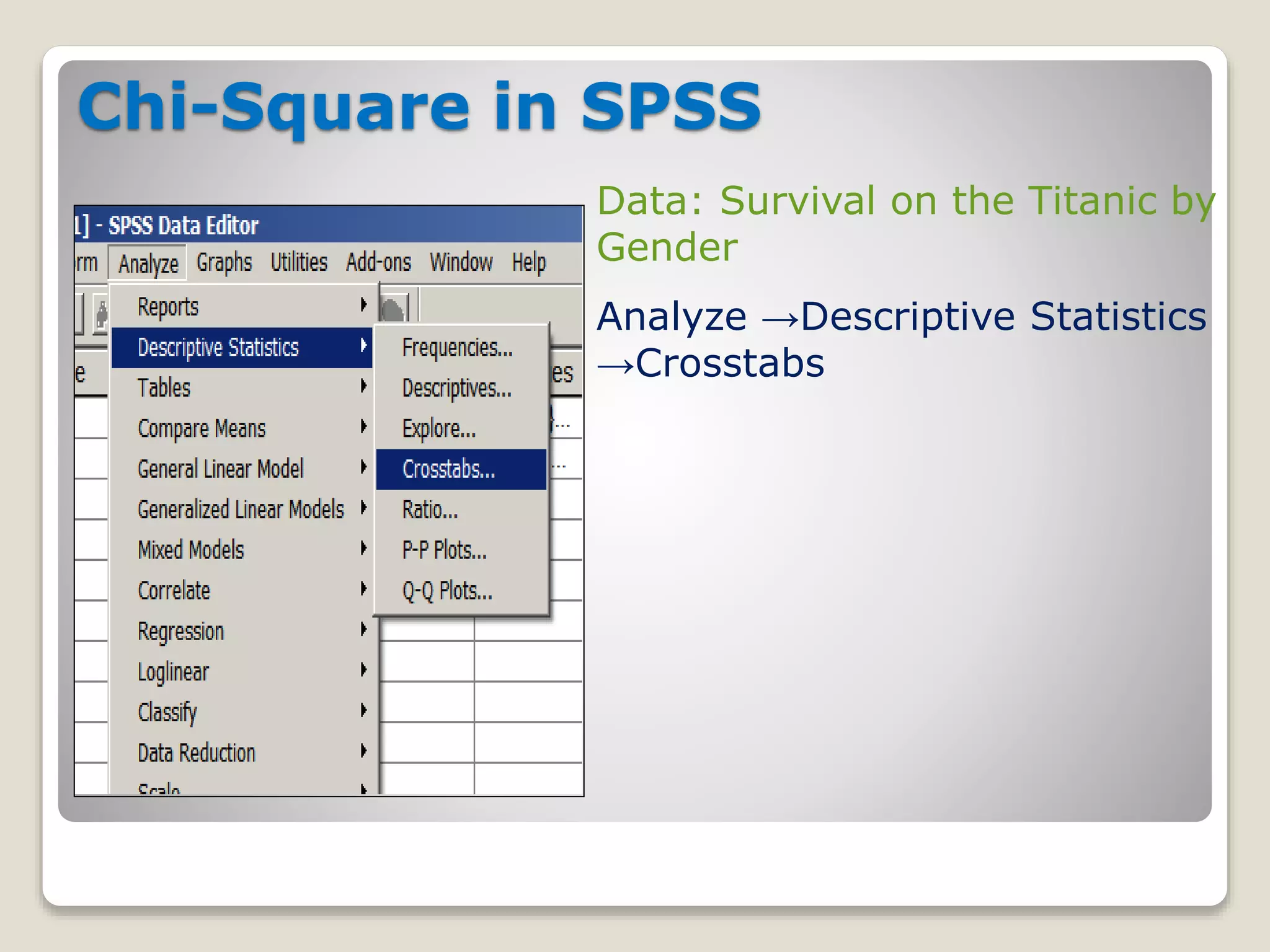

10. Chi-Square in SPSS
Data: Survival on the Titanic by
Gender
Analyze →Descriptive Statistics
→Crosstabs

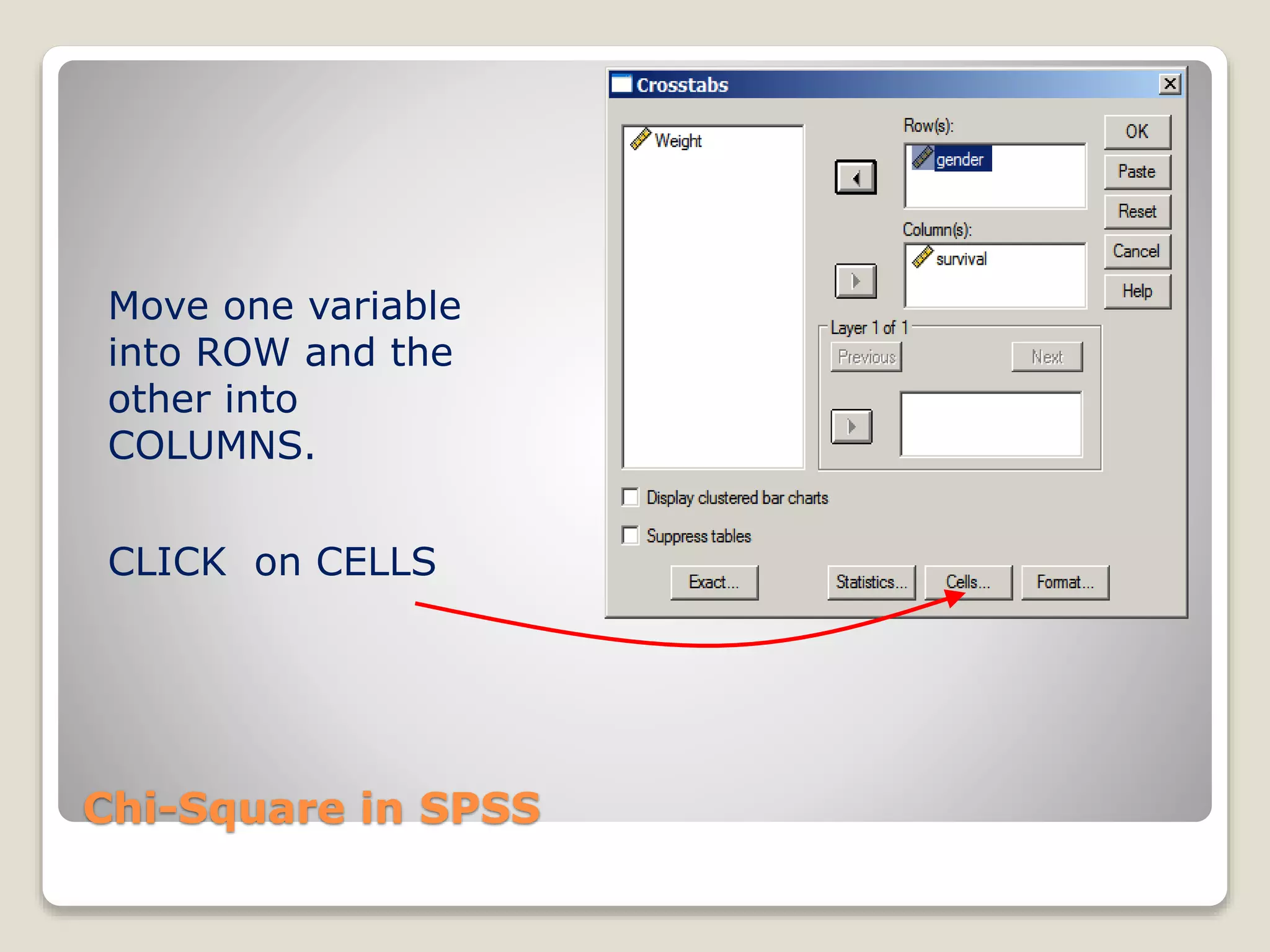

11. Chi-Square in SPSS
Move one variable
into ROW and the
other into
COLUMNS.
CLICK on CELLS

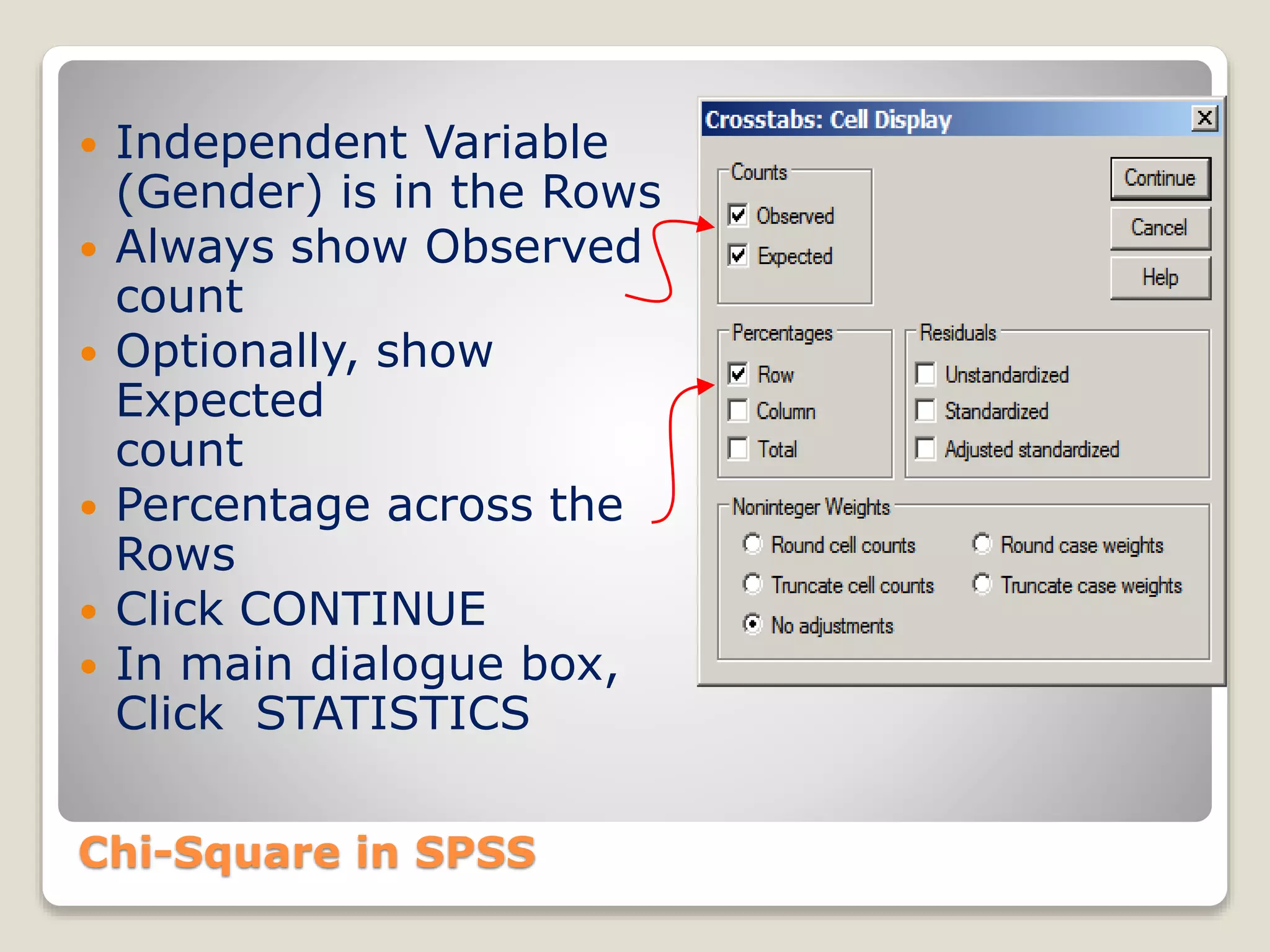

12. Chi-Square in SPSS
 Independent Variable
(Gender) is in the Rows
 Always show Observed
count
 Optionally, show
Expected
count
 Percentage across the
Rows
 Click CONTINUE
 In main dialogue box,
Click STATISTICS

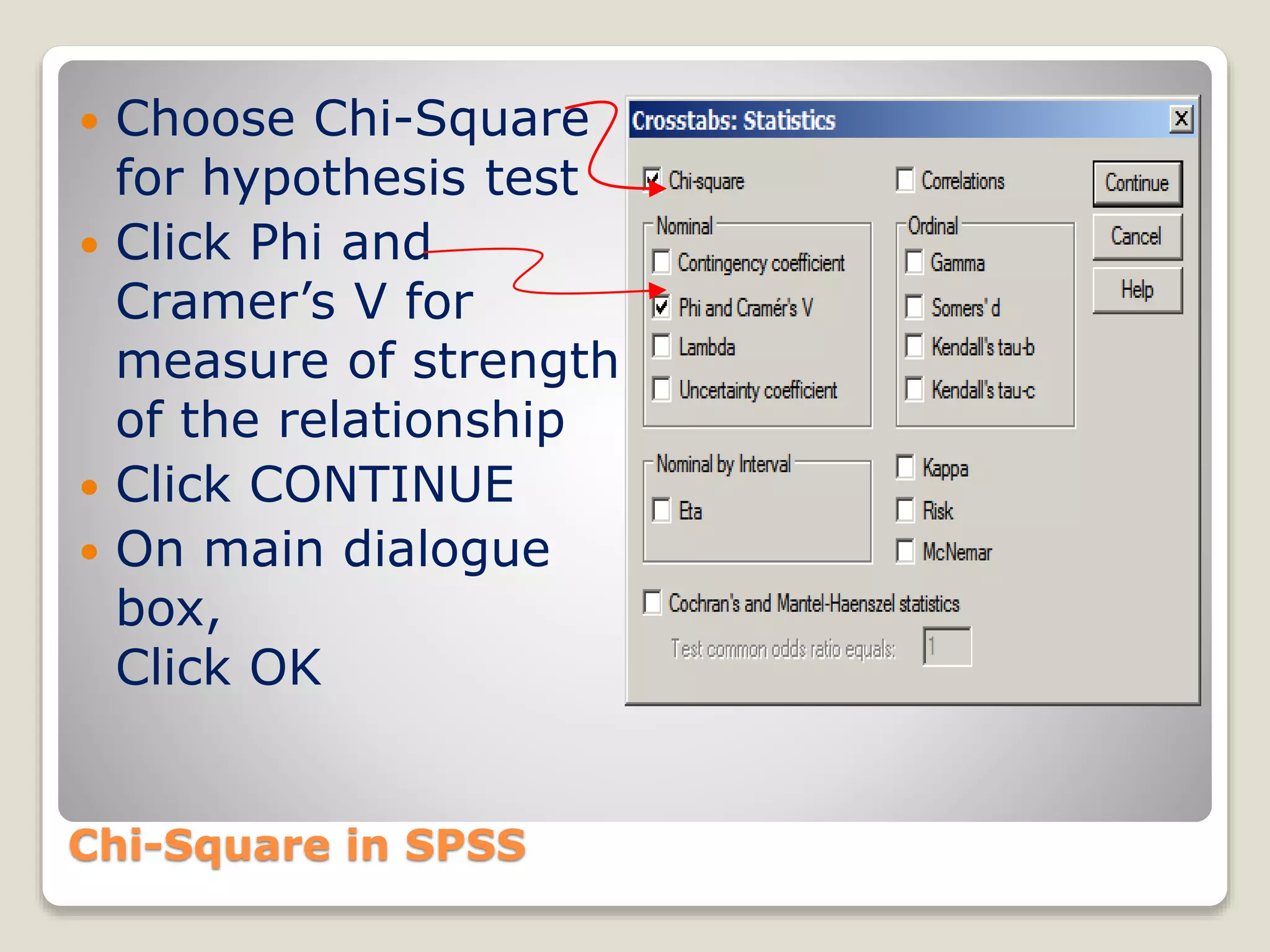

13. Chi-Square in SPSS
 Choose Chi-Square
for hypothesis test
 Click Phi and
Cramer’s V for
measure of strength
of the relationship
 Click CONTINUE
 On main dialogue
box,
Click OK

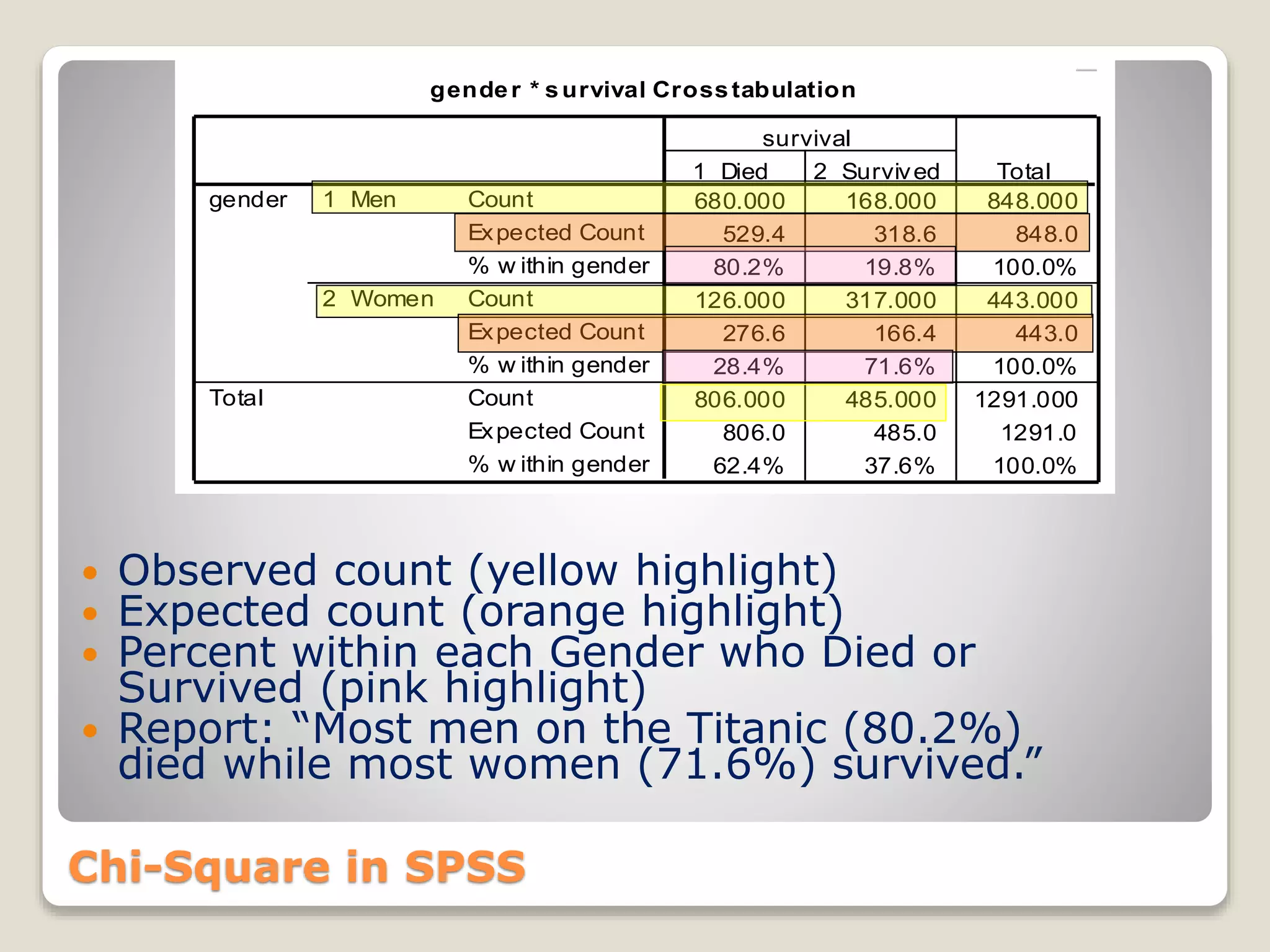

14. Chi-Square in SPSS
 Observed count (yellow highlight)
 Expected count (orange highlight)
 Percent within each Gender who Died or
Survived (pink highlight)
 Report: “Most men on the Titanic (80.2%)
died while most women (71.6%) survived.”
gender * survival Crosstabulation
680.000 168.000 848.000
529.4 318.6 848.0
80.2% 19.8% 100.0%
126.000 317.000 443.000
276.6 166.4 443.0
28.4% 71.6% 100.0%
806.000 485.000 1291.000
806.0 485.0 1291.0
62.4% 37.6% 100.0%
Count
Expected Count
% w ithin gender
Count
Expected Count
% w ithin gender
Count
Expected Count
% w ithin gender
1 Men
2 Women
gender
Total
1 Died 2 Survived
survival
Total

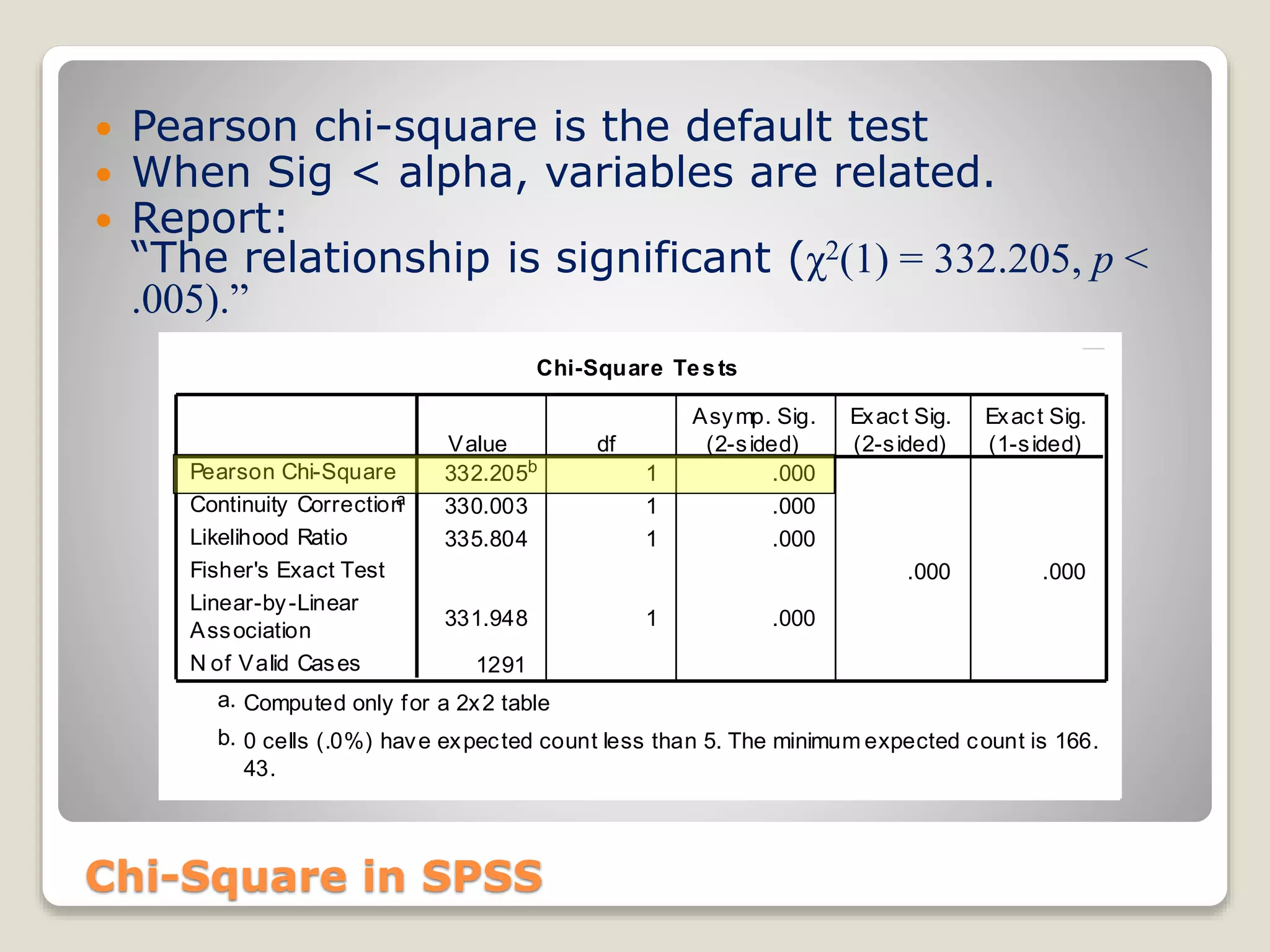

15. Chi-Square Tests
332.205b
1 .000
330.003 1 .000
335.804 1 .000
.000 .000
331.948 1 .000
1291
Pearson Chi-Square
Continuity Correctiona
Likelihood Ratio
Fisher's Exact Test
Linear-by-Linear
Association
N of Valid Cases
Value df
Asymp. Sig.
(2-sided)
Exact Sig.
(2-sided)
Exact Sig.
(1-sided)
Computed only for a 2x2 tablea.
0 cells (.0%) have expected count less than 5. The minimum expected count is 166.
43.
b.
Chi-Square in SPSS
 Pearson chi-square is the default test
 When Sig < alpha, variables are related.
 Report:
“The relationship is significant (χ2(1) = 332.205, p <
.005).”

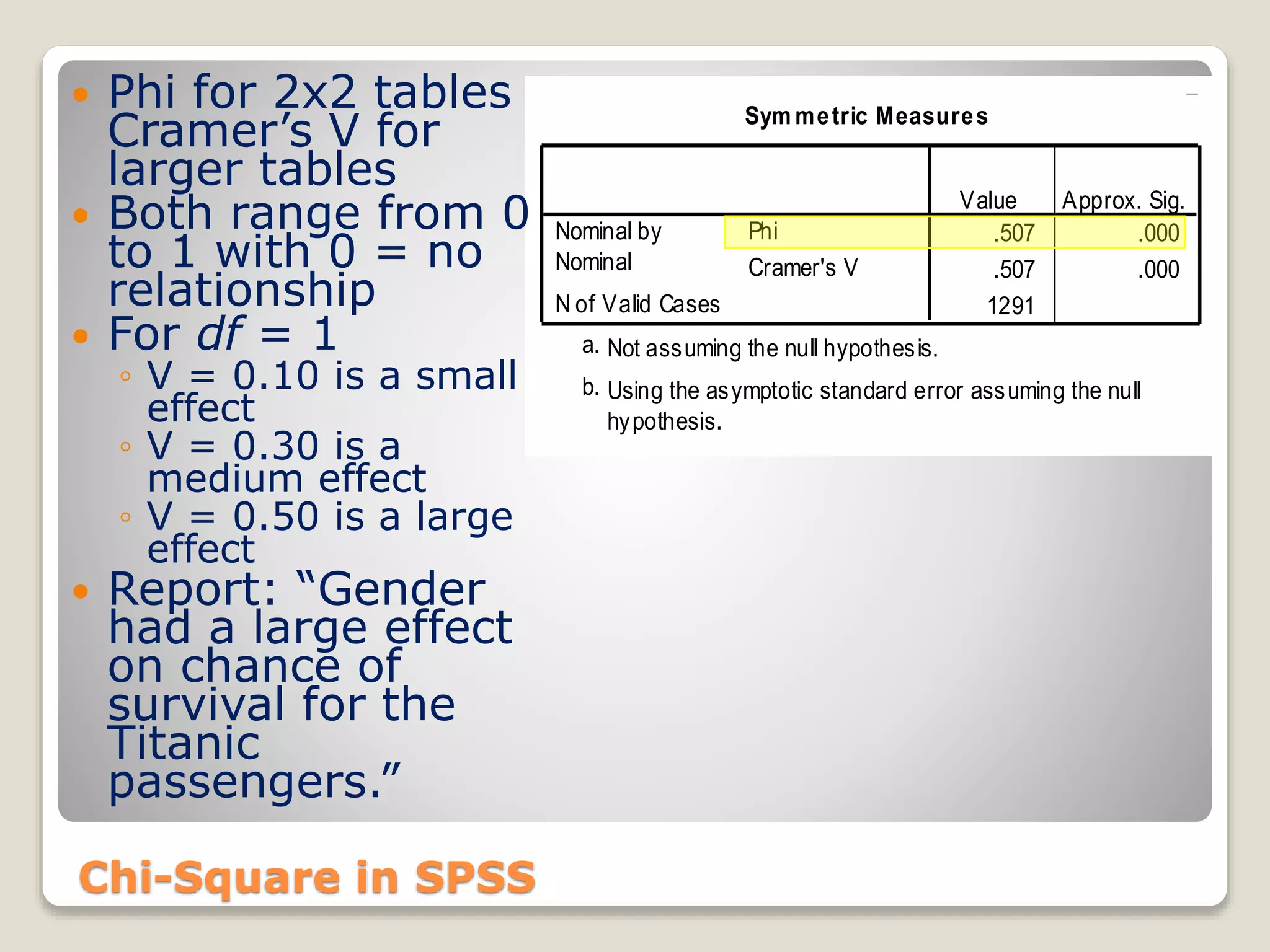

16. Sym metric Measures
.507 .000
.507 .000
1291
Phi
Cramer's V
Nominal by
Nominal
N of Valid Cases
Value Approx. Sig.
Not assuming the null hypothesis.a.
Using the asymptotic standard error assuming the null
hypothesis.
b.
Chi-Square in SPSS
 Phi for 2x2 tables
Cramer’s V for
larger tables
 Both range from 0
to 1 with 0 = no
relationship
 For df = 1
◦ V = 0.10 is a small
effect
◦ V = 0.30 is a
medium effect
◦ V = 0.50 is a large
effect
 Report: “Gender
had a large effect
on chance of
survival for the
Titanic
passengers.”

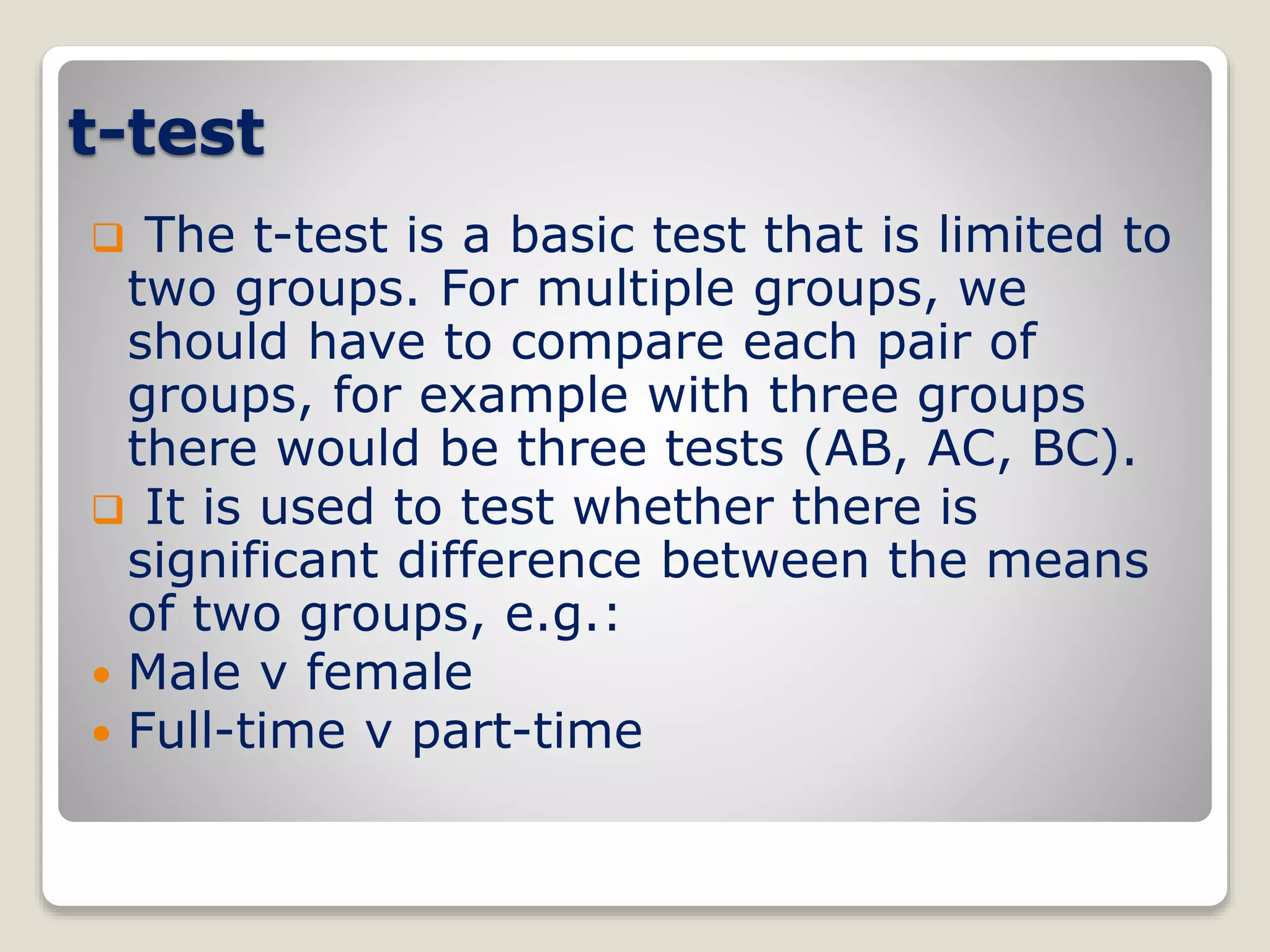

17. t-test
 The t-test is a basic test that is limited to
two groups. For multiple groups, we
should have to compare each pair of
groups, for example with three groups
there would be three tests (AB, AC, BC).
 It is used to test whether there is
significant difference between the means
of two groups, e.g.:
 Male v female
 Full-time v part-time

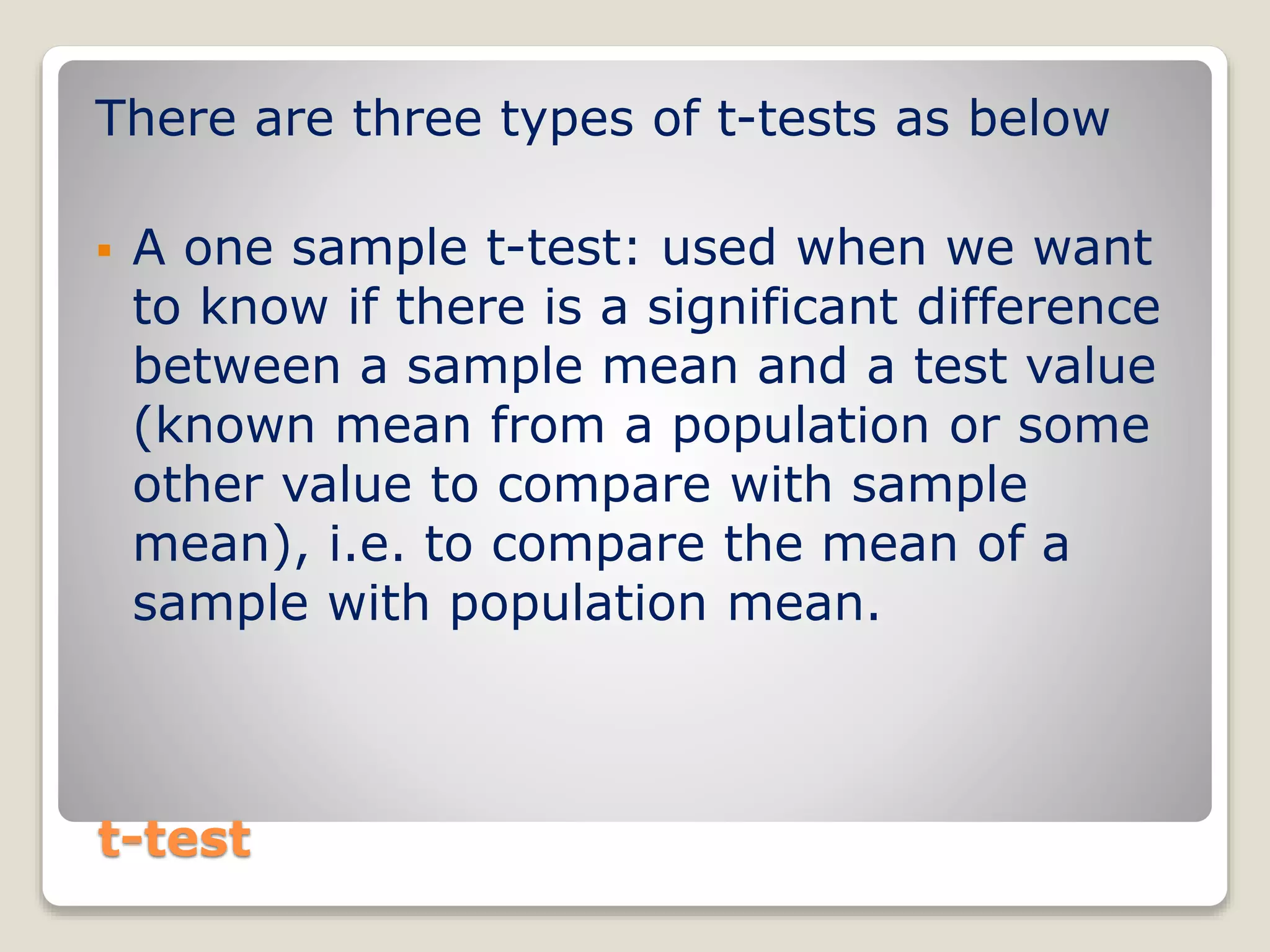

18. t-test
There are three types of t-tests as below
 A one sample t-test: used when we want
to know if there is a significant difference
between a sample mean and a test value
(known mean from a population or some
other value to compare with sample
mean), i.e. to compare the mean of a
sample with population mean.

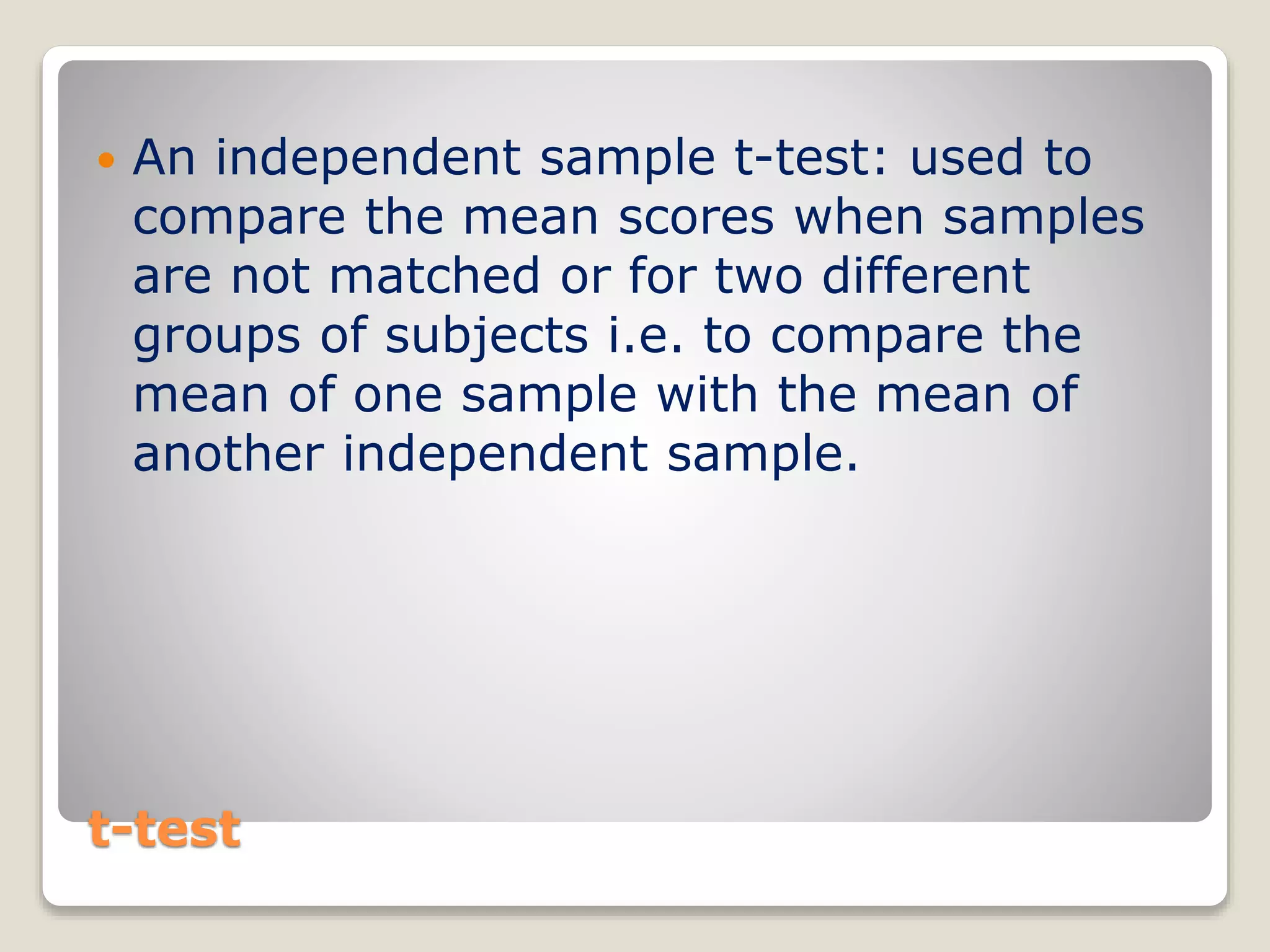

19. t-test
 An independent sample t-test: used to
compare the mean scores when samples
are not matched or for two different
groups of subjects i.e. to compare the
mean of one sample with the mean of
another independent sample.

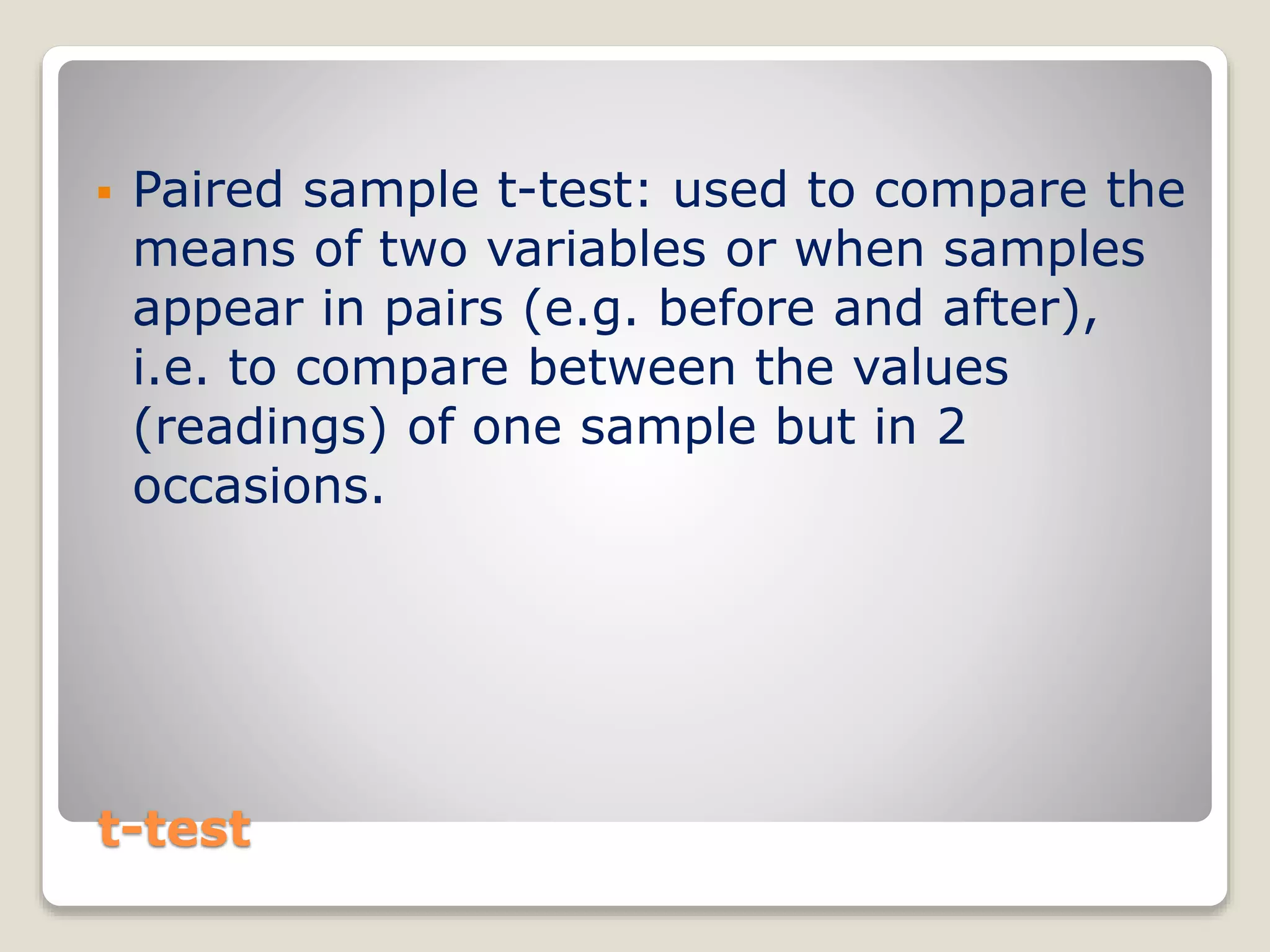

20. t-test
 Paired sample t-test: used to compare the
means of two variables or when samples
appear in pairs (e.g. before and after),
i.e. to compare between the values
(readings) of one sample but in 2
occasions.

21. Let’s explain performing t-test in
SPSS…

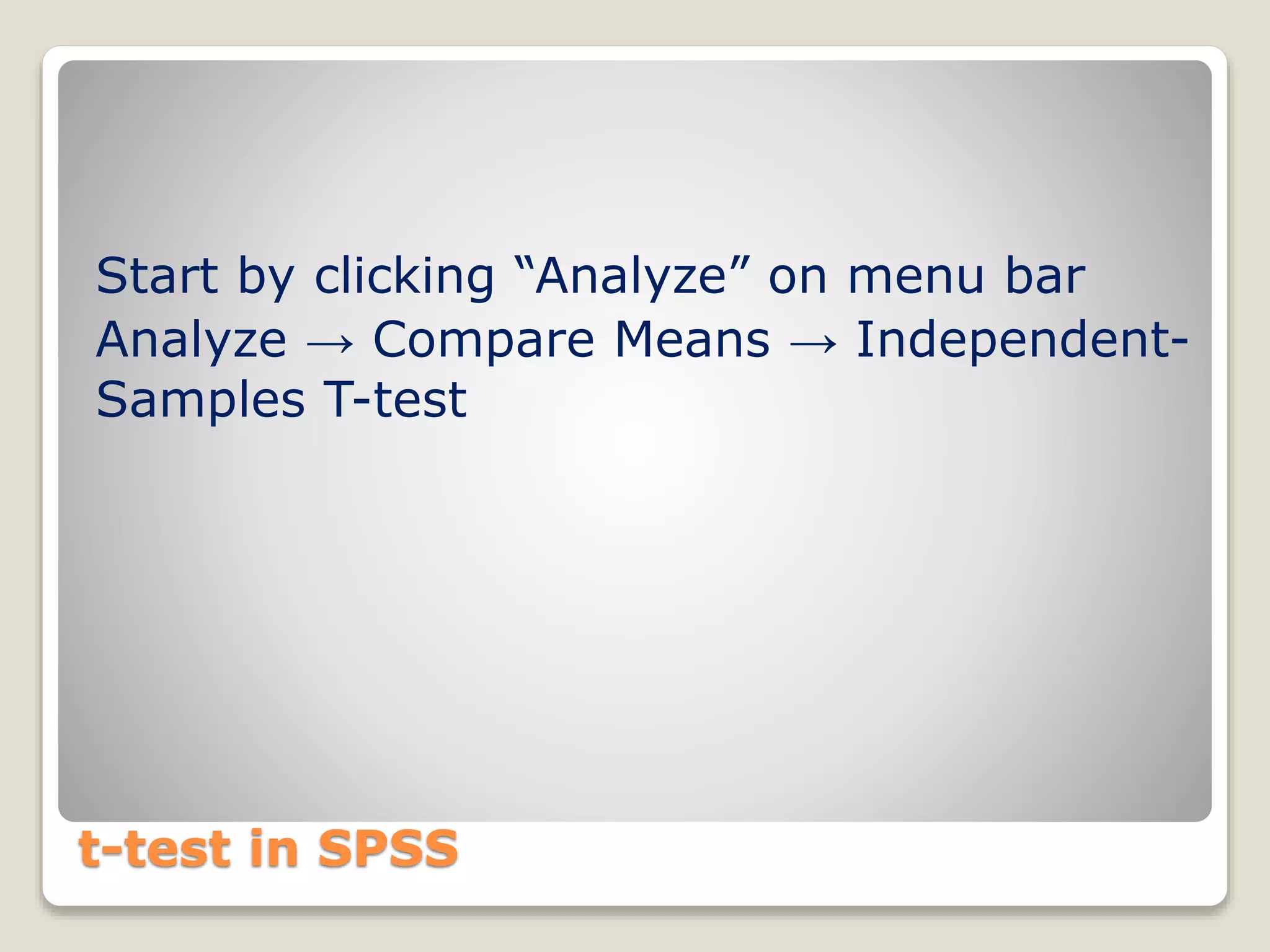

22. t-test in SPSS
Start by clicking “Analyze” on menu bar
Analyze → Compare Means → Independent-
Samples T-test

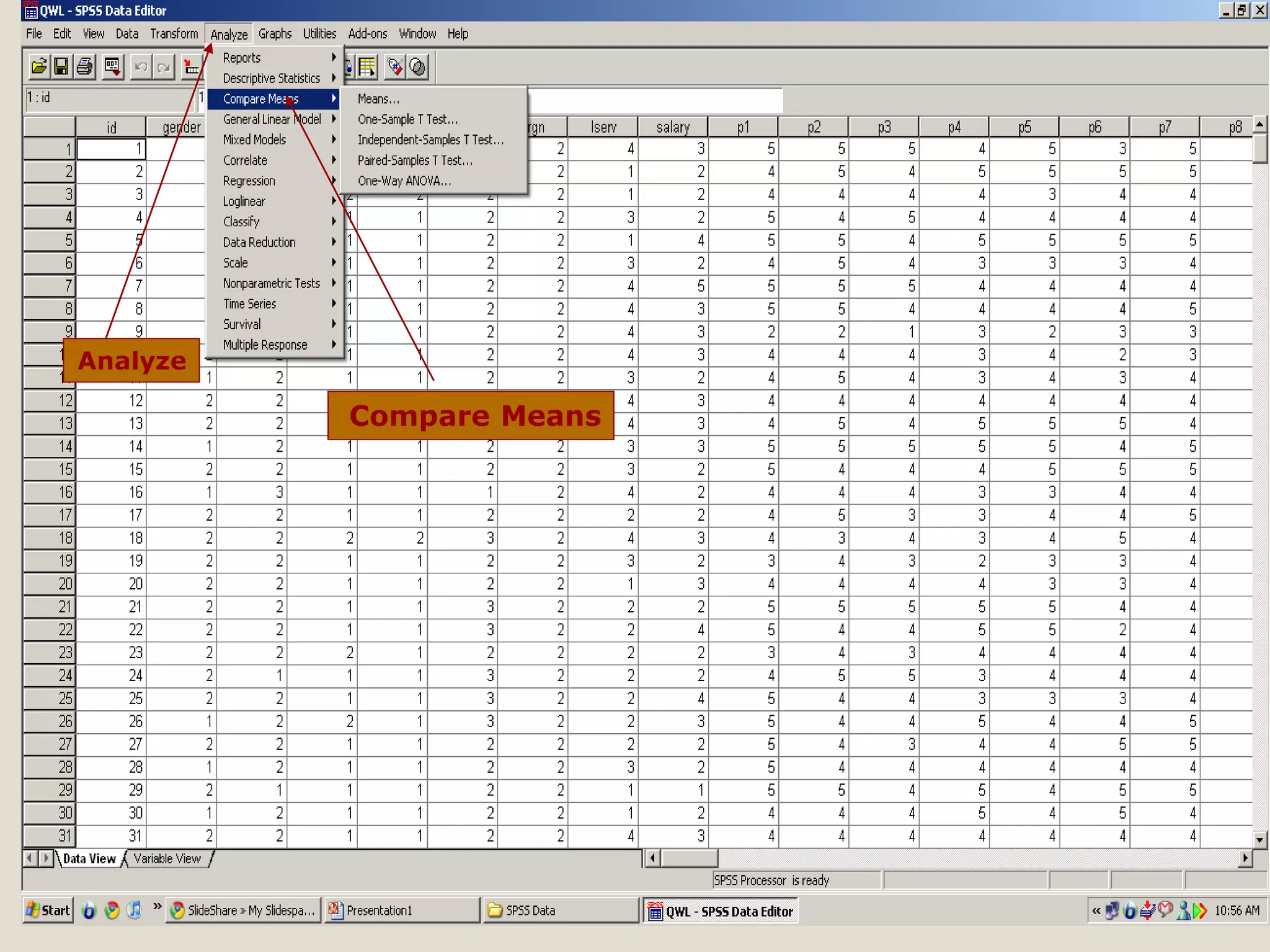

23. Compare Means
Analyze

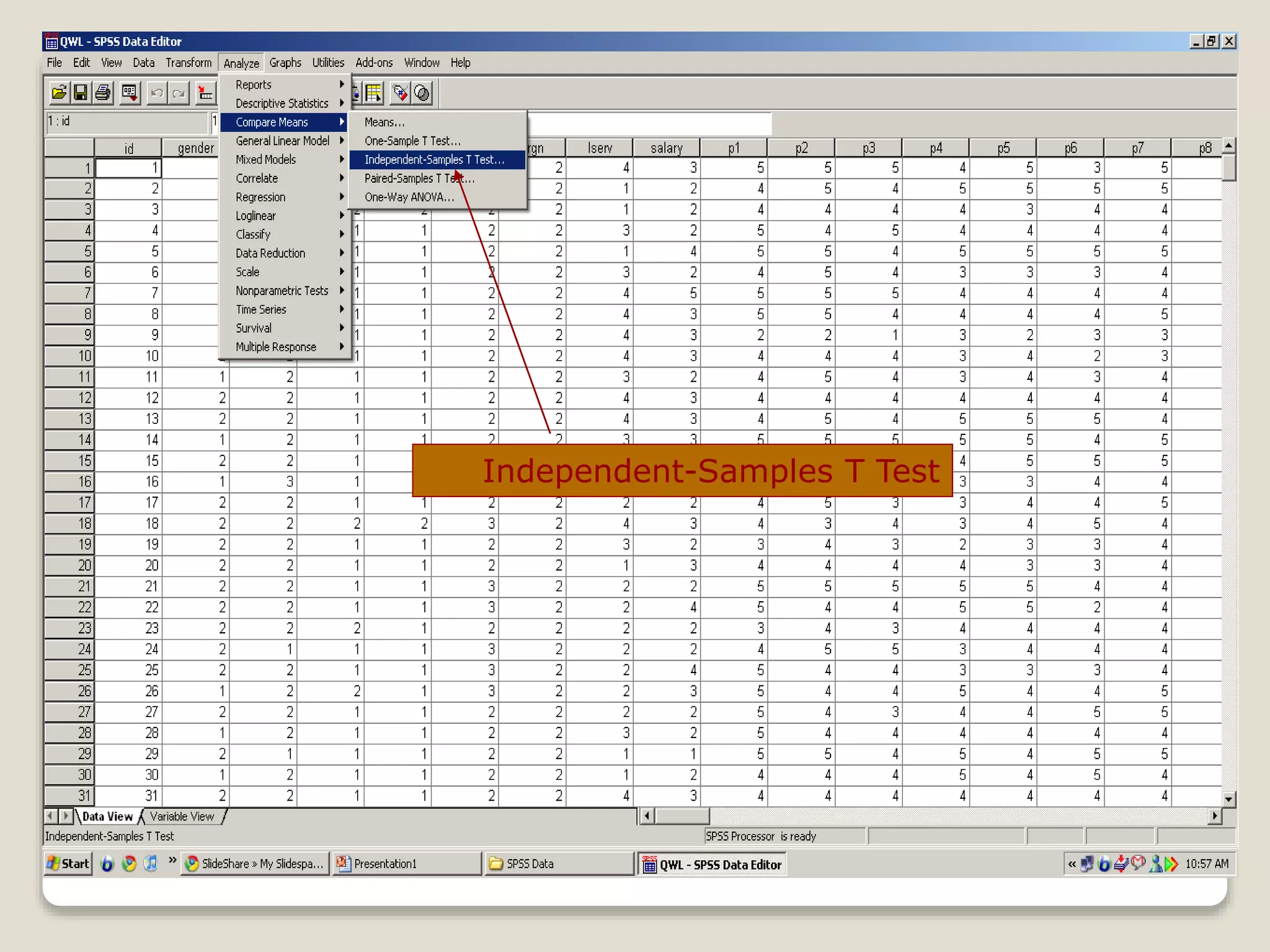

24. Independent-Samples T Test

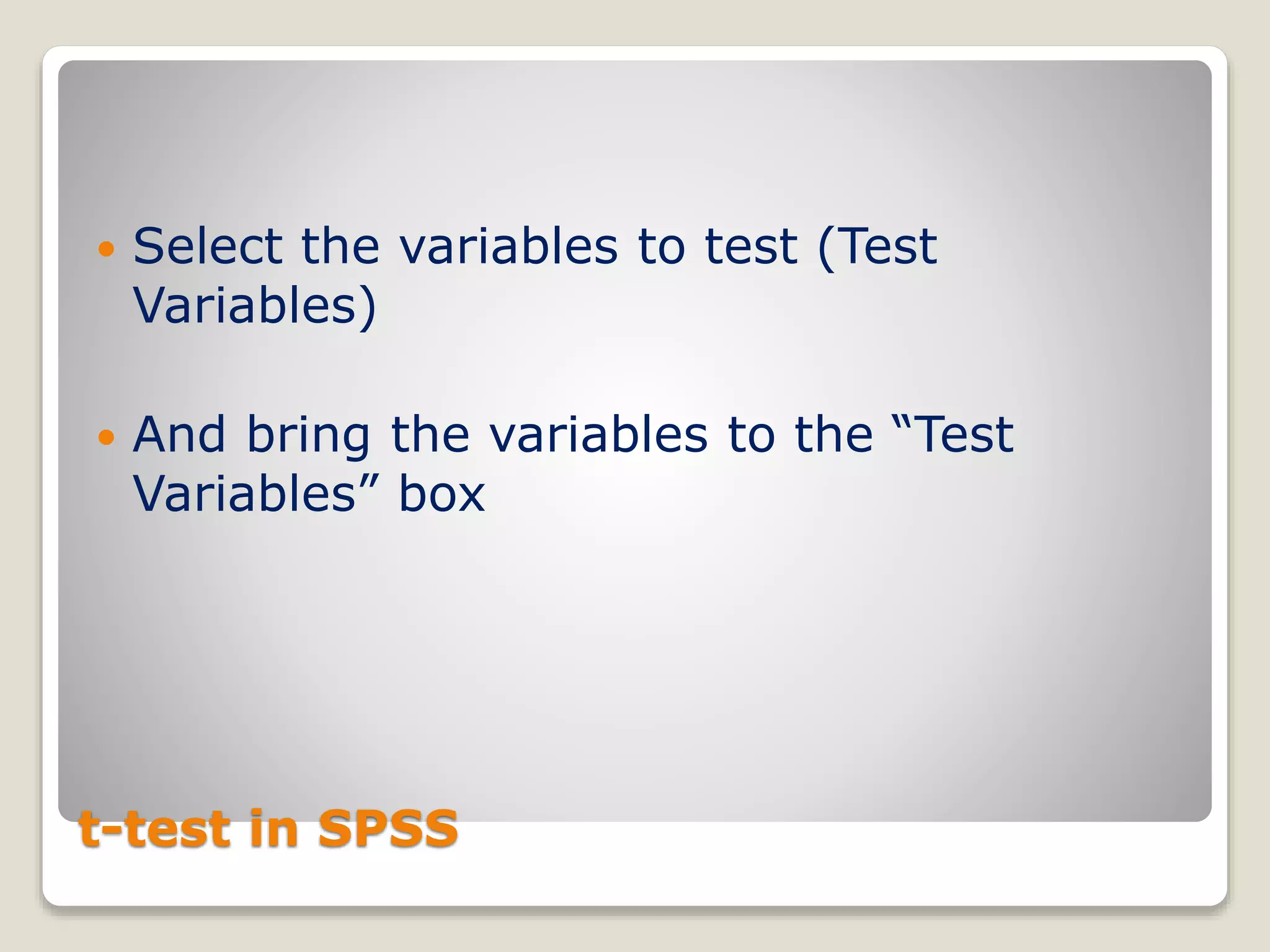

25. t-test in SPSS
 Select the variables to test (Test
Variables)
 And bring the variables to the “Test
Variables” box

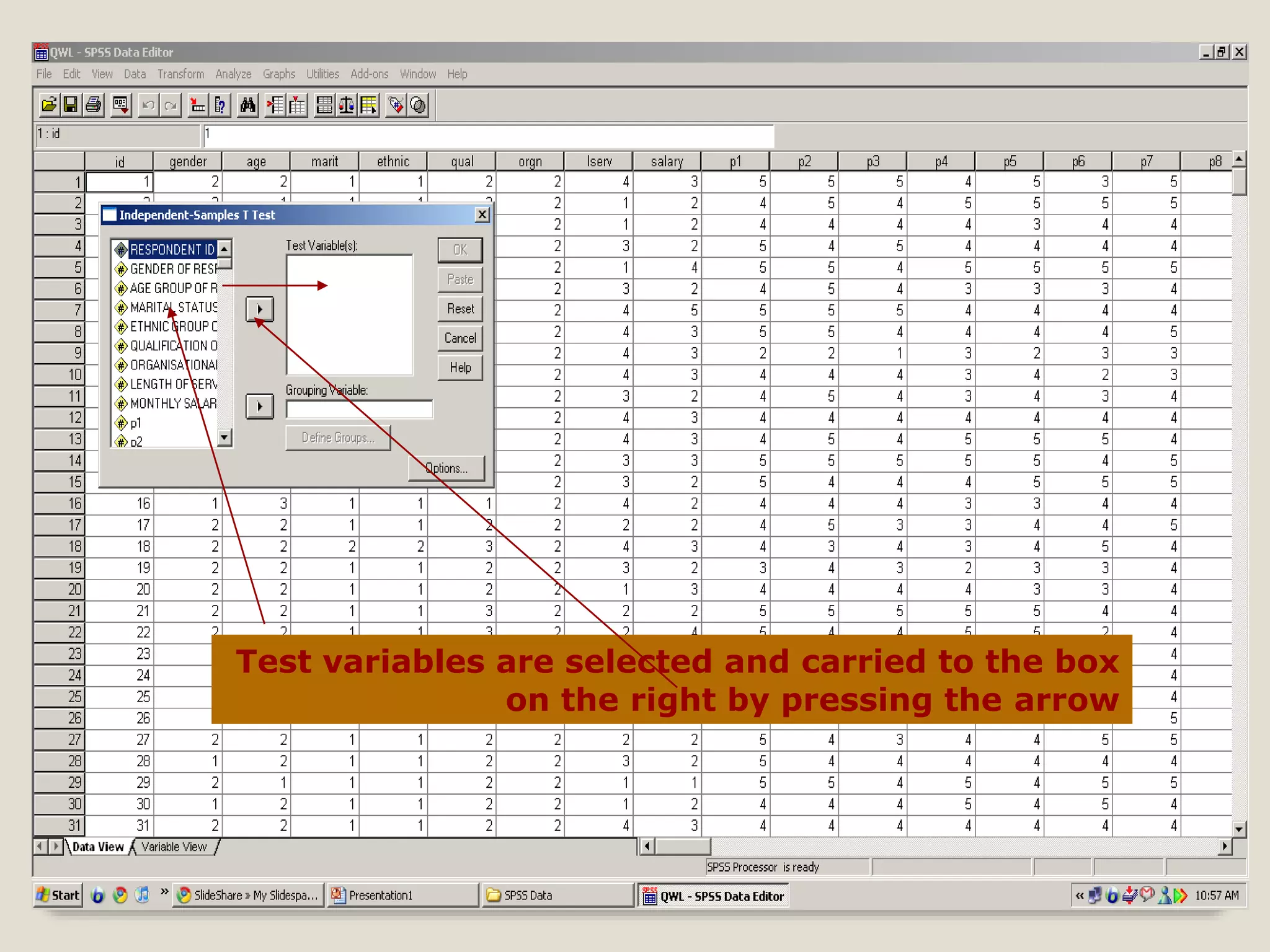

26. Test variables are selected and carried to the box
on the right by pressing the arrow

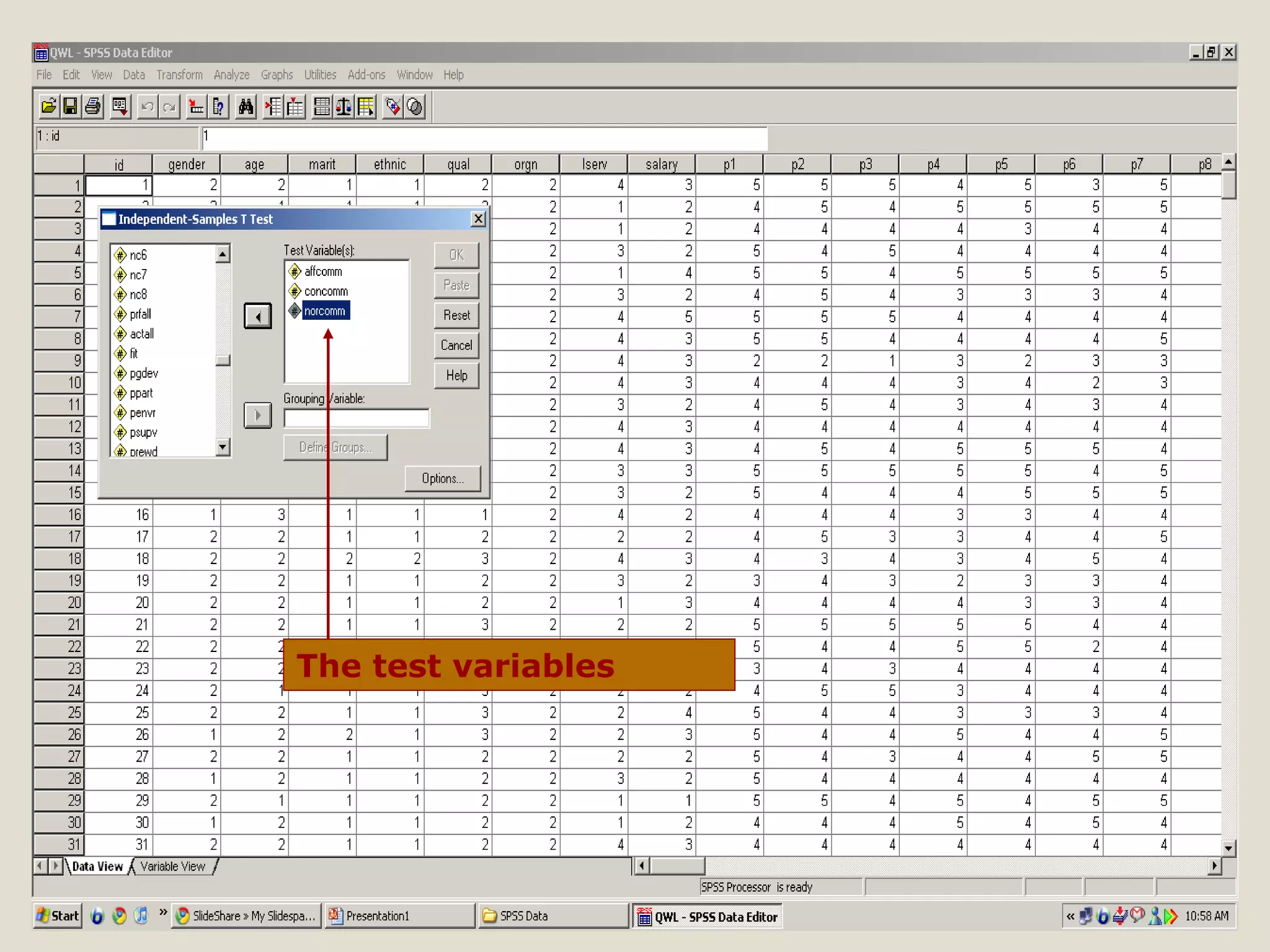

27. The test variables

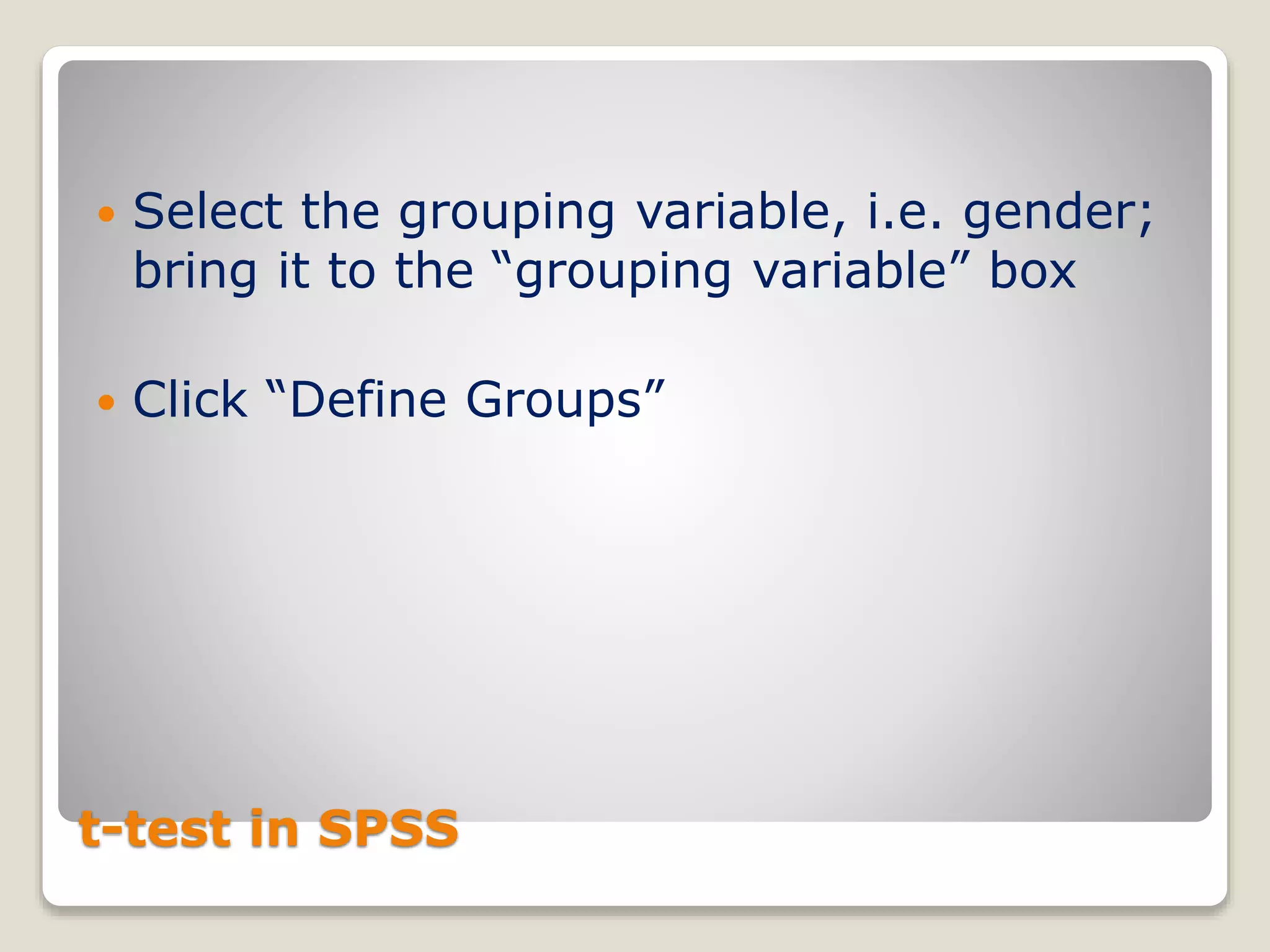

28. t-test in SPSS
 Select the grouping variable, i.e. gender;
bring it to the “grouping variable” box
 Click “Define Groups”

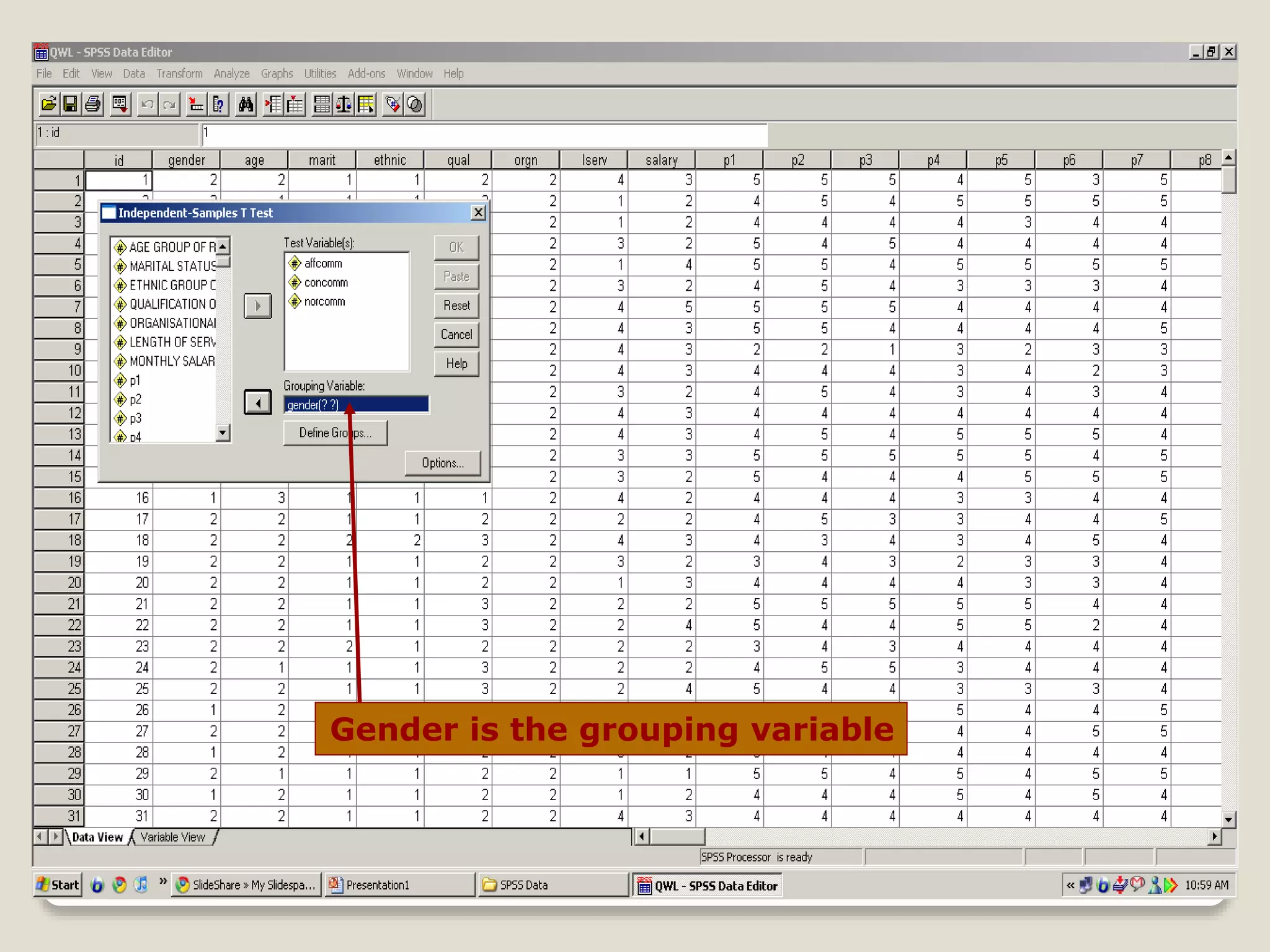

29. Gender is the grouping variable

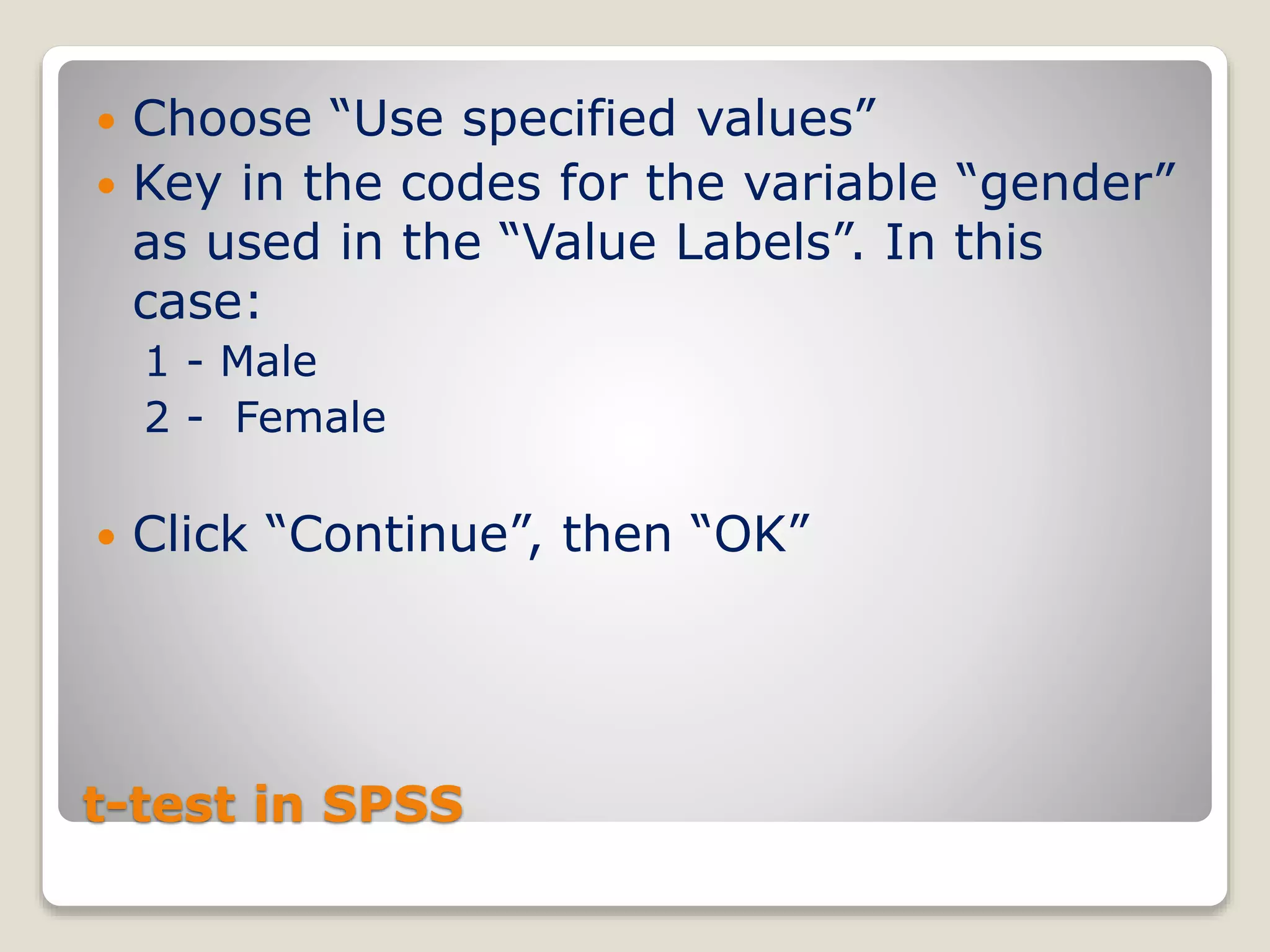

30. t-test in SPSS
 Choose “Use specified values”
 Key in the codes for the variable “gender”
as used in the “Value Labels”. In this
case:
1 - Male
2 - Female
 Click “Continue”, then “OK”

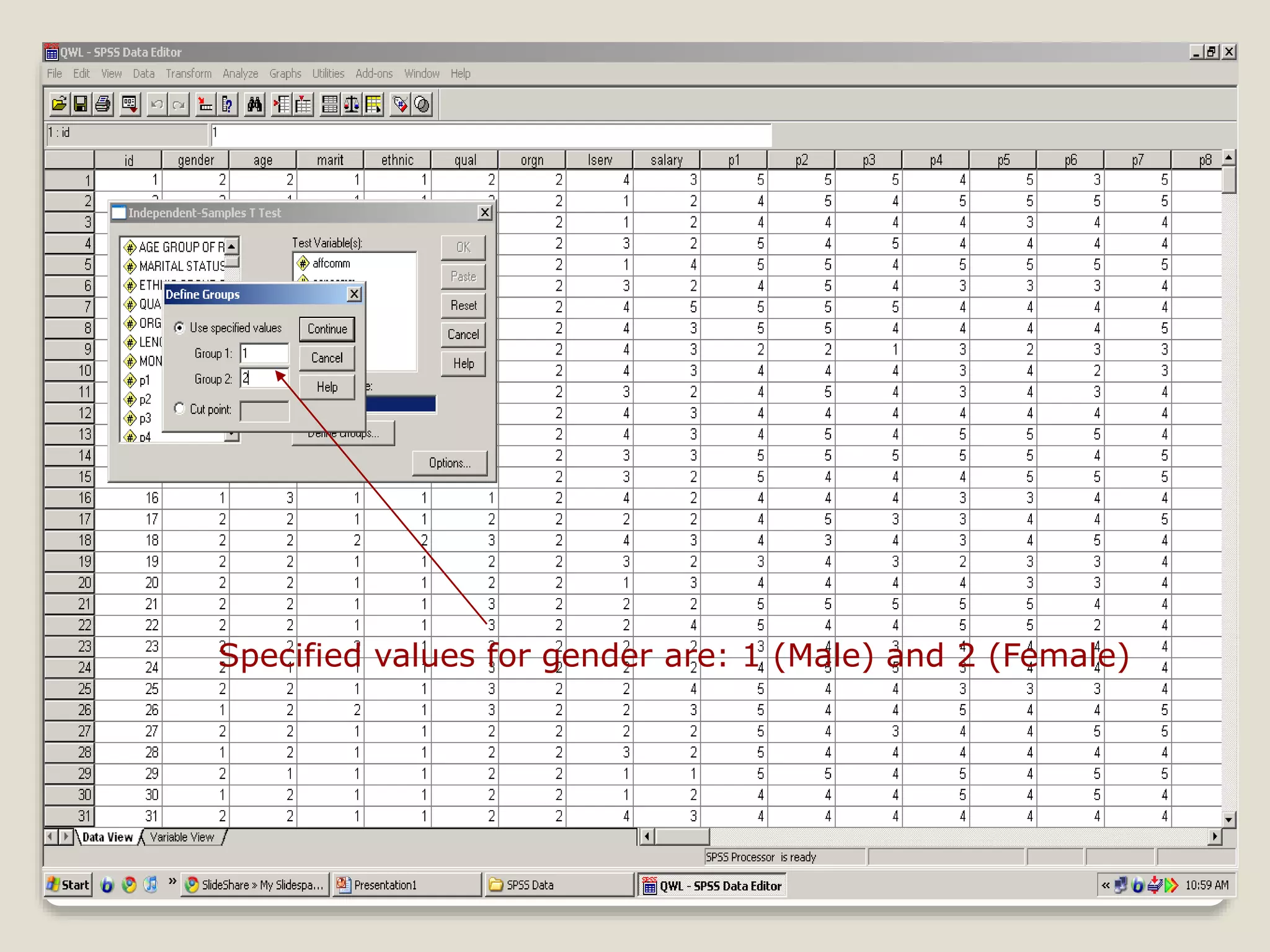

31. Specified values for gender are: 1 (Male) and 2 (Female)

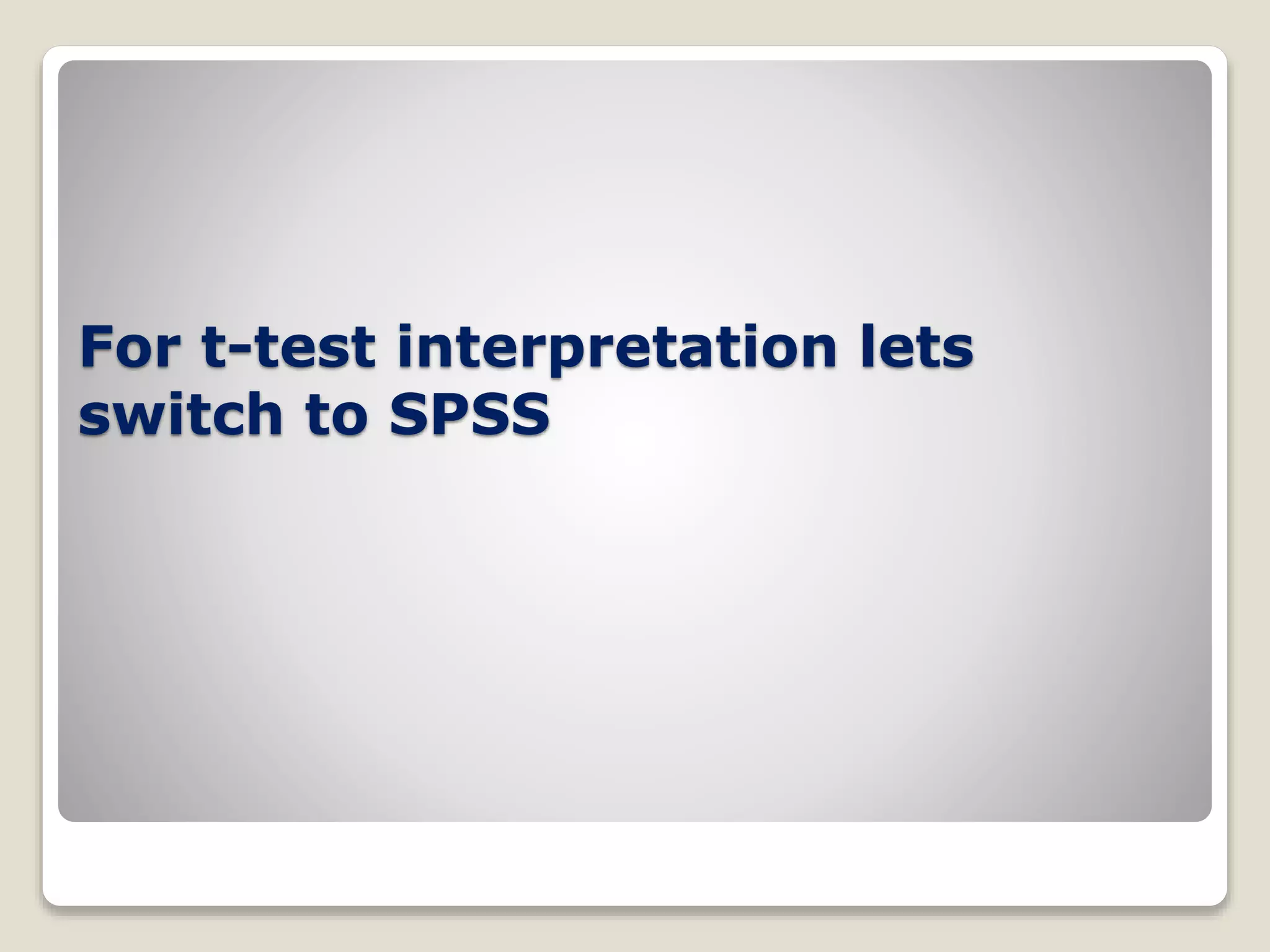

32. For t-test interpretation lets
switch to SPSS

33. The End
