1. Rocks and the
Rock Cycle
Mr. Silva

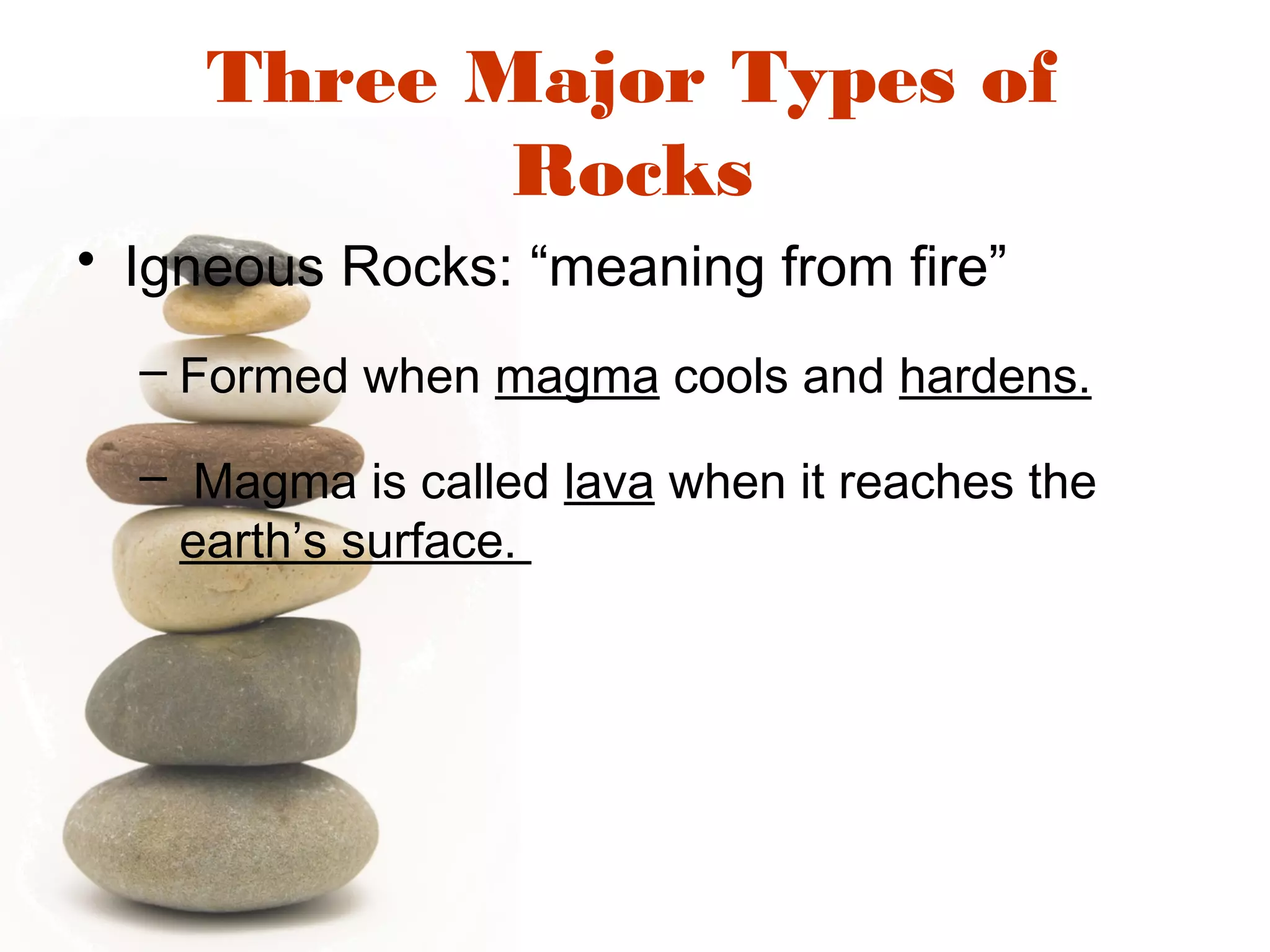

2. Three Major Types of
Rocks
• Igneous Rocks: “meaning from fire”
– Formed when magma cools and hardens.
– Magma is called lava when it reaches the
earth’s surface.

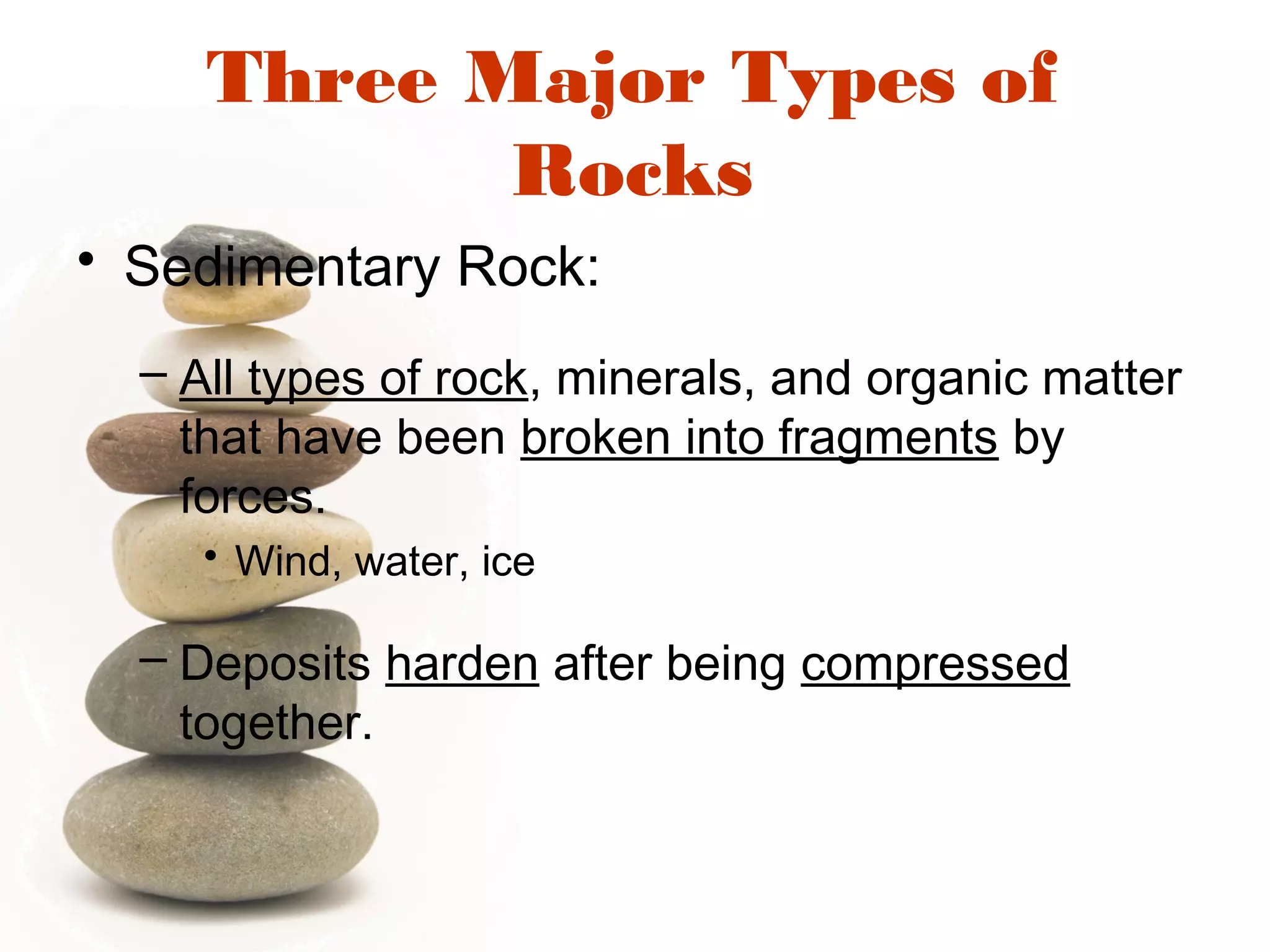

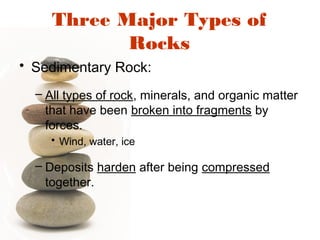

3. Three Major Types of
Rocks
• Sedimentary Rock:
– All types of rock, minerals, and organic matter
that have been broken into fragments by
forces.
• Wind, water, ice
– Deposits harden after being compressed
together.

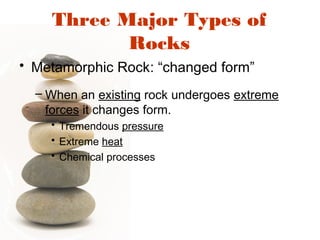

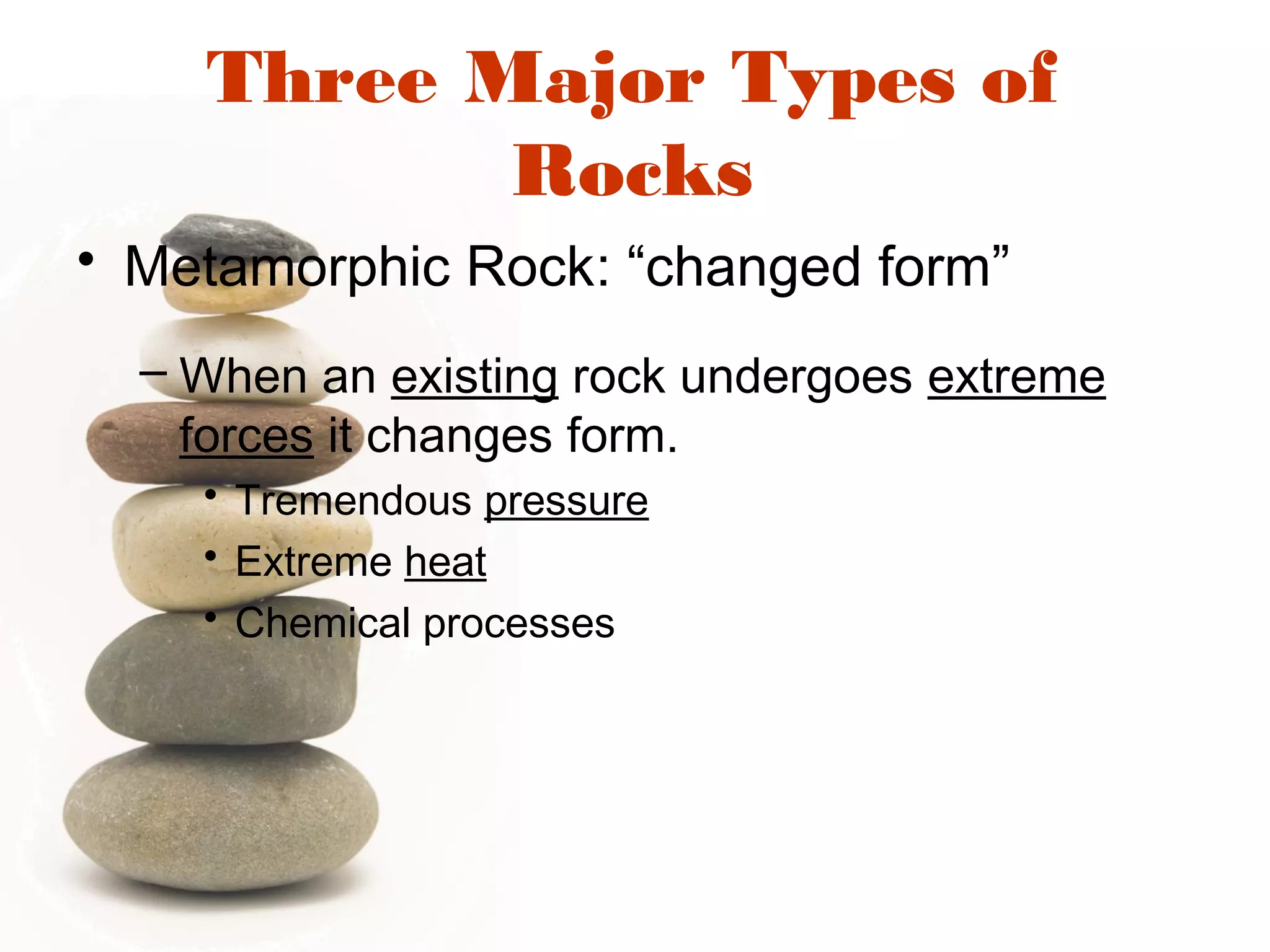

4. Three Major Types of
Rocks
• Metamorphic Rock: “changed form”
– When an existing rock undergoes extreme
forces it changes form.
• Tremendous pressure
• Extreme heat
• Chemical processes

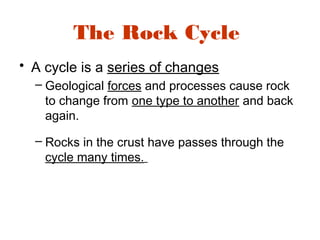

5. The Rock Cycle
• A cycle is a series of changes
– Geological forces and processes cause rock
to change from one type to another and back
again.
– Rocks in the crust have passes through the
cycle many times.

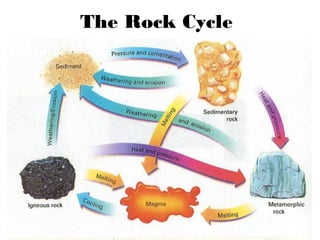

6. The Rock Cycle

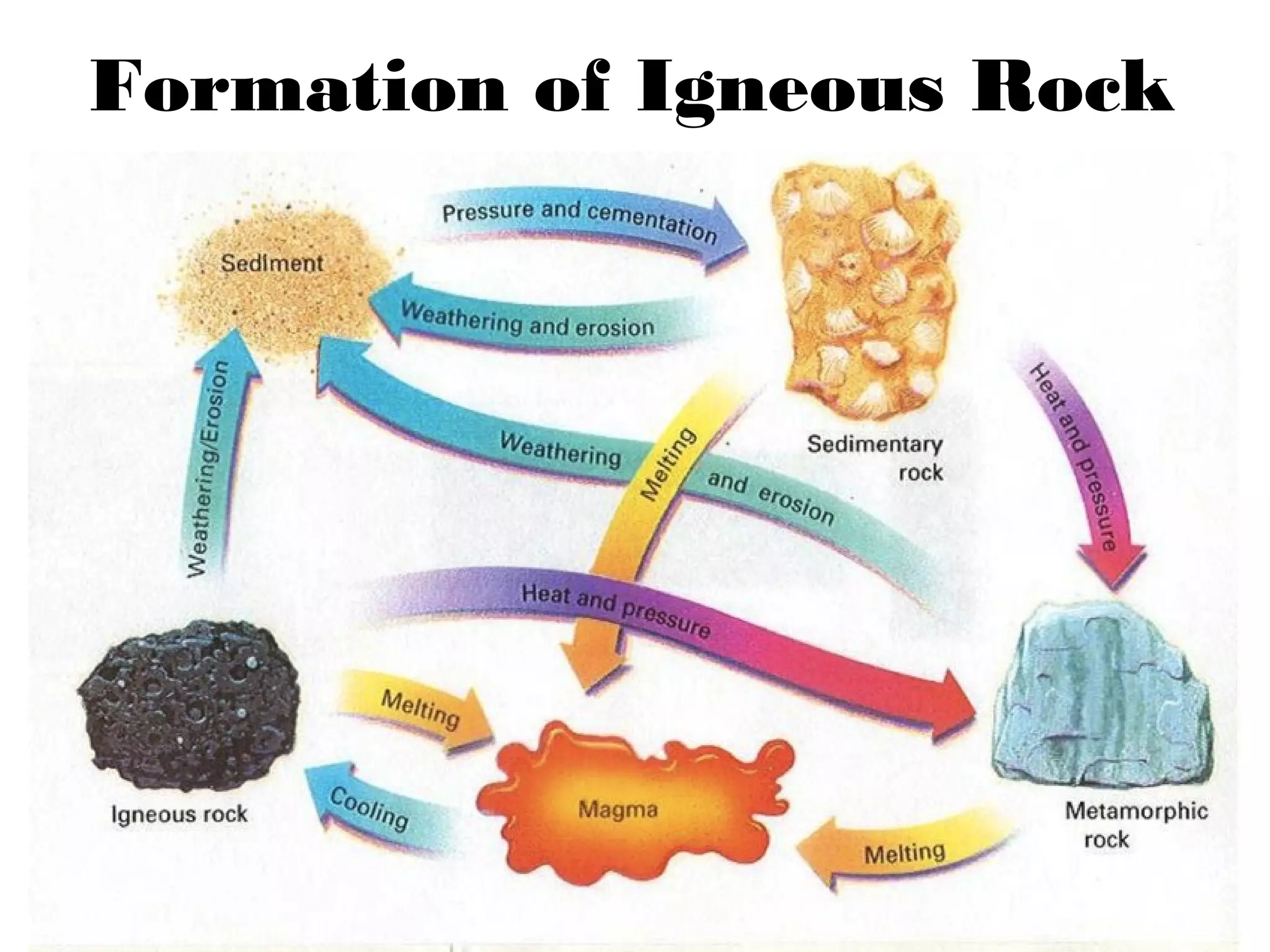

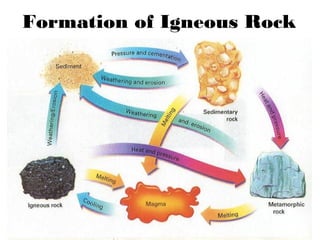

7. Formation of Igneous Rock

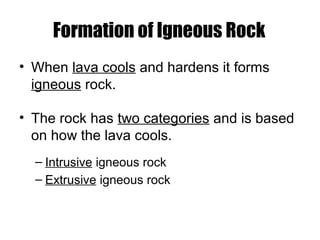

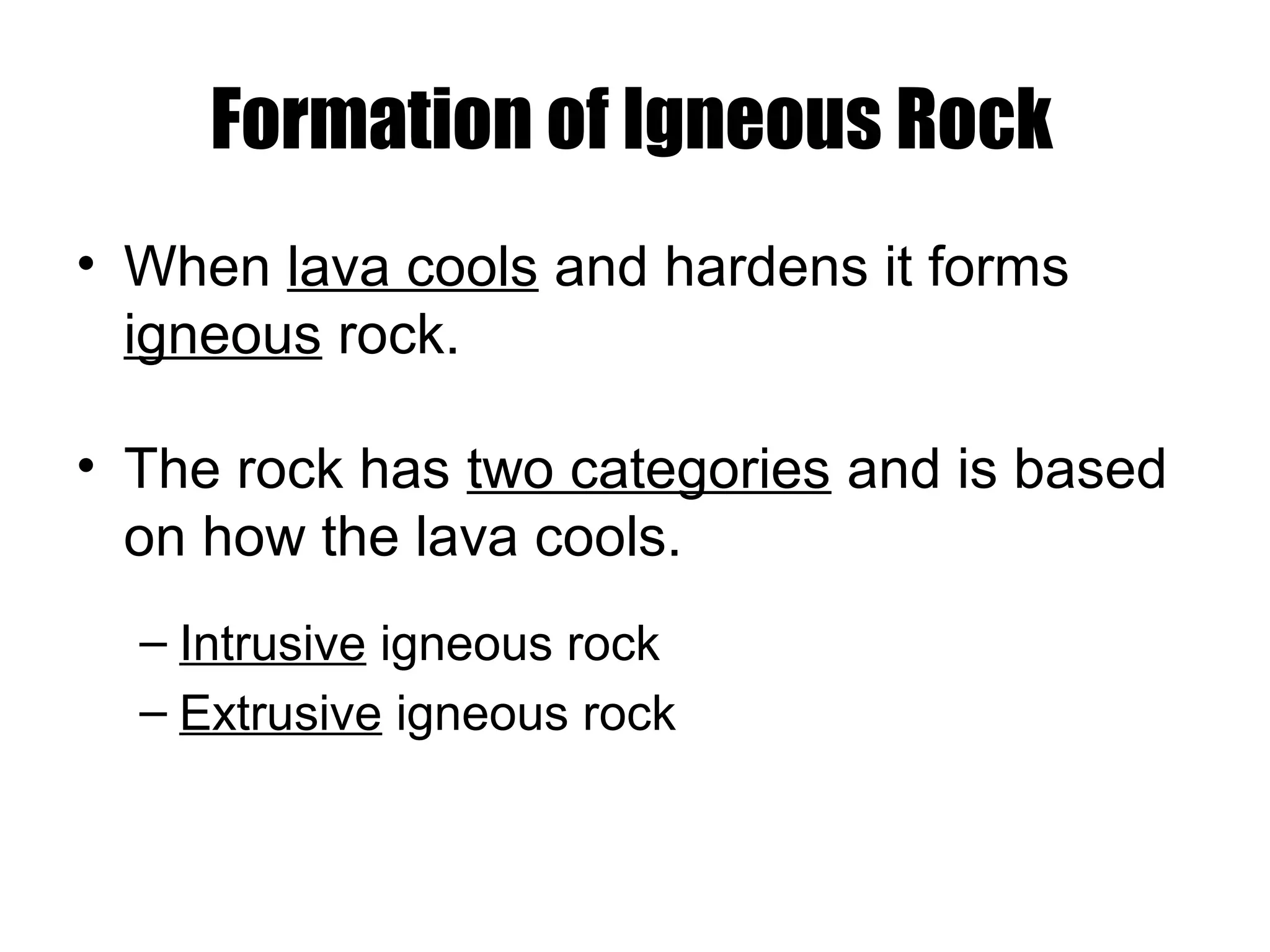

8. Formation of Igneous Rock
• When lava cools and hardens it forms
igneous rock.
• The rock has two categories and is based
on how the lava cools.
– Intrusive igneous rock
– Extrusive igneous rock

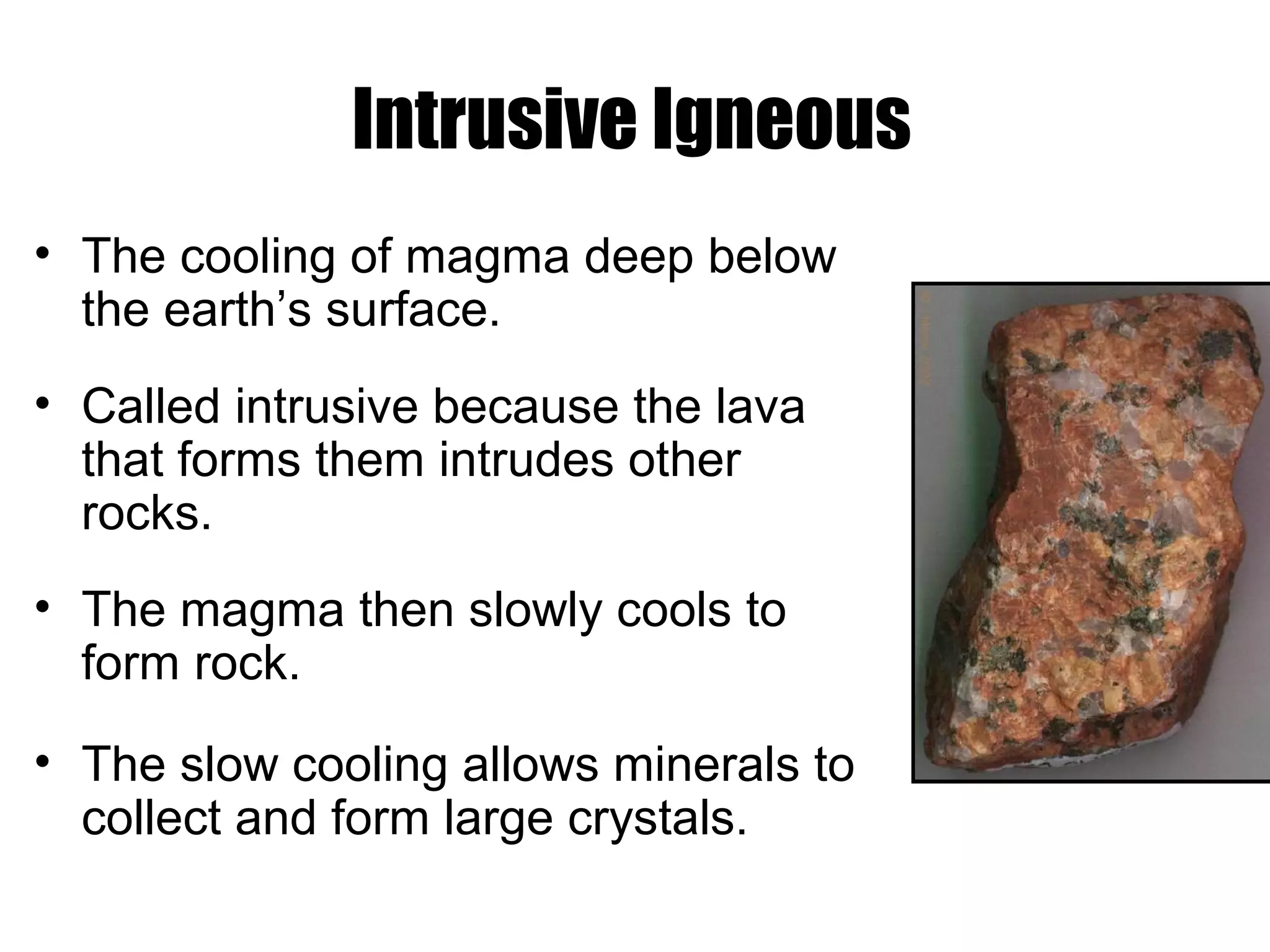

9. Intrusive Igneous
• The cooling of magma deep below
the earth’s surface.
• Called intrusive because the lava
that forms them intrudes other
rocks.
• The magma then slowly cools to
form rock.
• The slow cooling allows minerals to
collect and form large crystals.

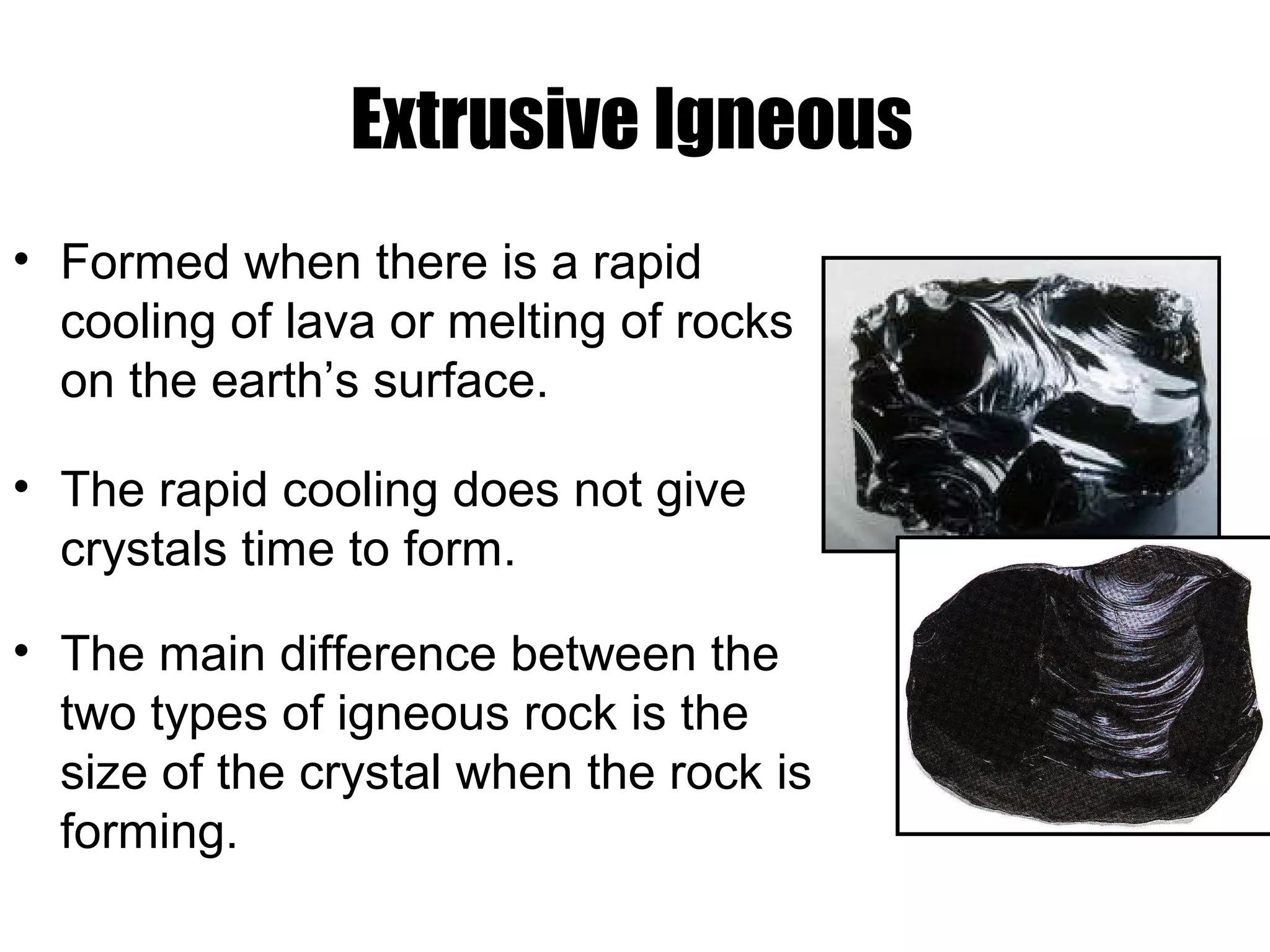

10. Extrusive Igneous
• Formed when there is a rapid
cooling of lava or melting of rocks
on the earth’s surface.
• The rapid cooling does not give
crystals time to form.
• The main difference between the
two types of igneous rock is the
size of the crystal when the rock is
forming.

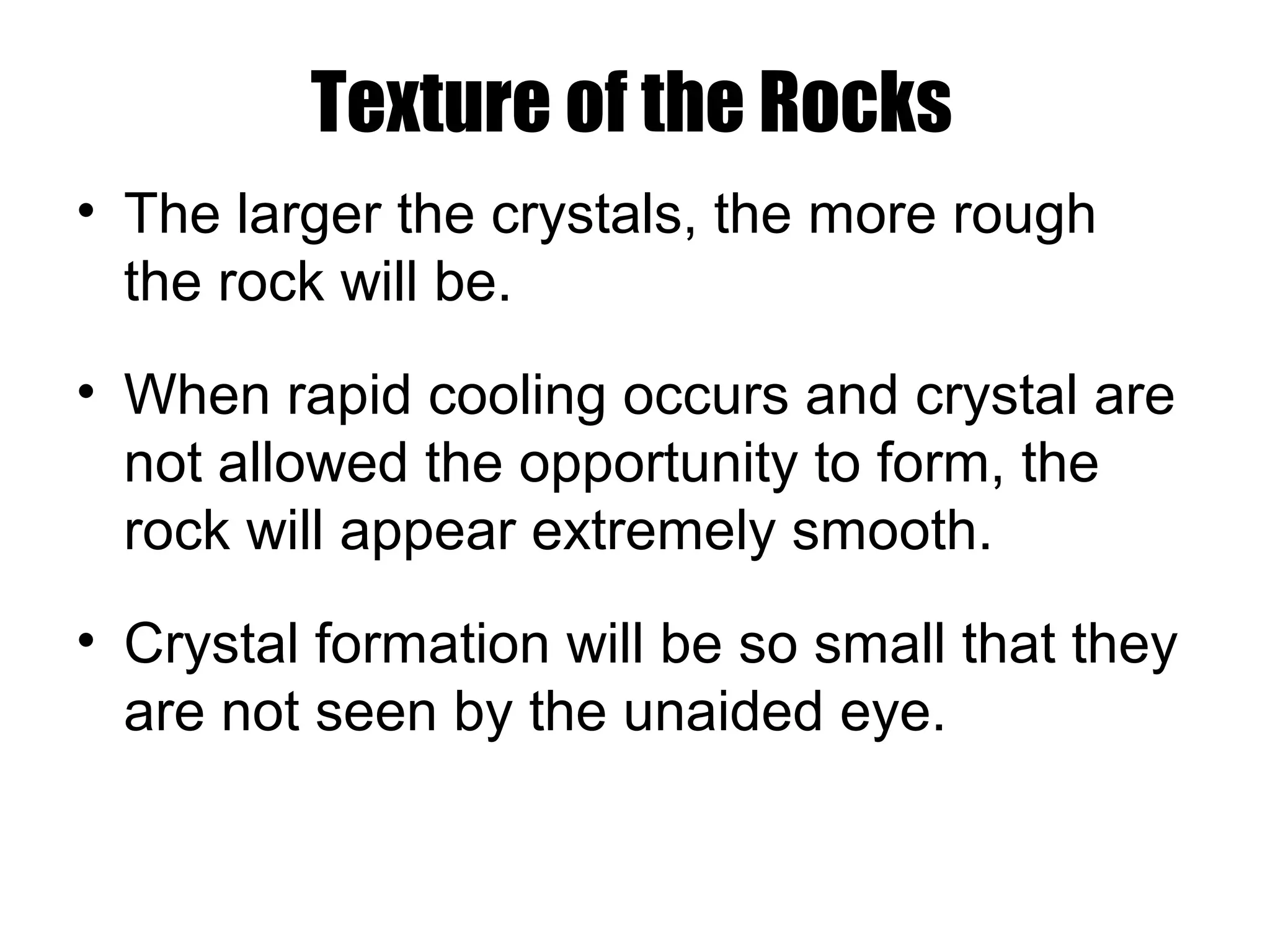

11. Texture of the Rocks
• The larger the crystals, the more rough
the rock will be.
• When rapid cooling occurs and crystal are
not allowed the opportunity to form, the
rock will appear extremely smooth.
• Crystal formation will be so small that they
are not seen by the unaided eye.

12. Texture of the Rocks
• An igneous rock with both large and small
crystals is called porphyritic.
• The porphyritic texture is created when
lava cools slowly and is then sped up.

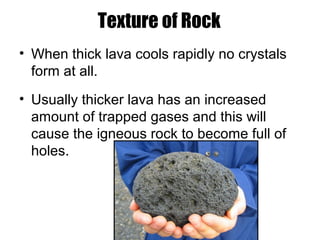

13. Texture of Rock
• When thick lava cools rapidly no crystals
form at all.
• Usually thicker lava has an increased
amount of trapped gases and this will
cause the igneous rock to become full of
holes.

14. Composition of Rock
• The mineral make of the lava determines
the chemical make-up of the rock.
• There are 3 different types of families:
– Felsic
– Mafic
– Intermediate

15. Formation of Sedimentary
Rock

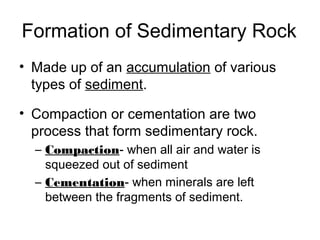

16. Formation of Sedimentary Rock
• Made up of an accumulation of various
types of sediment.
• Compaction or cementation are two
process that form sedimentary rock.
– Compaction- when all air and water is
squeezed out of sediment
– Cementation- when minerals are left
between the fragments of sediment.

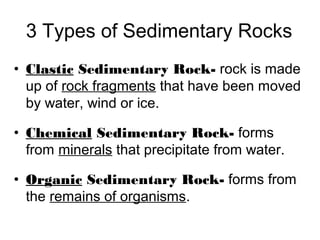

17. 3 Types of Sedimentary Rocks
• Clastic Sedimentary Rock- rock is made
up of rock fragments that have been moved
by water, wind or ice.
• Chemical Sedimentary Rock- forms
from minerals that precipitate from water.
• Organic Sedimentary Rock- forms from
the remains of organisms.

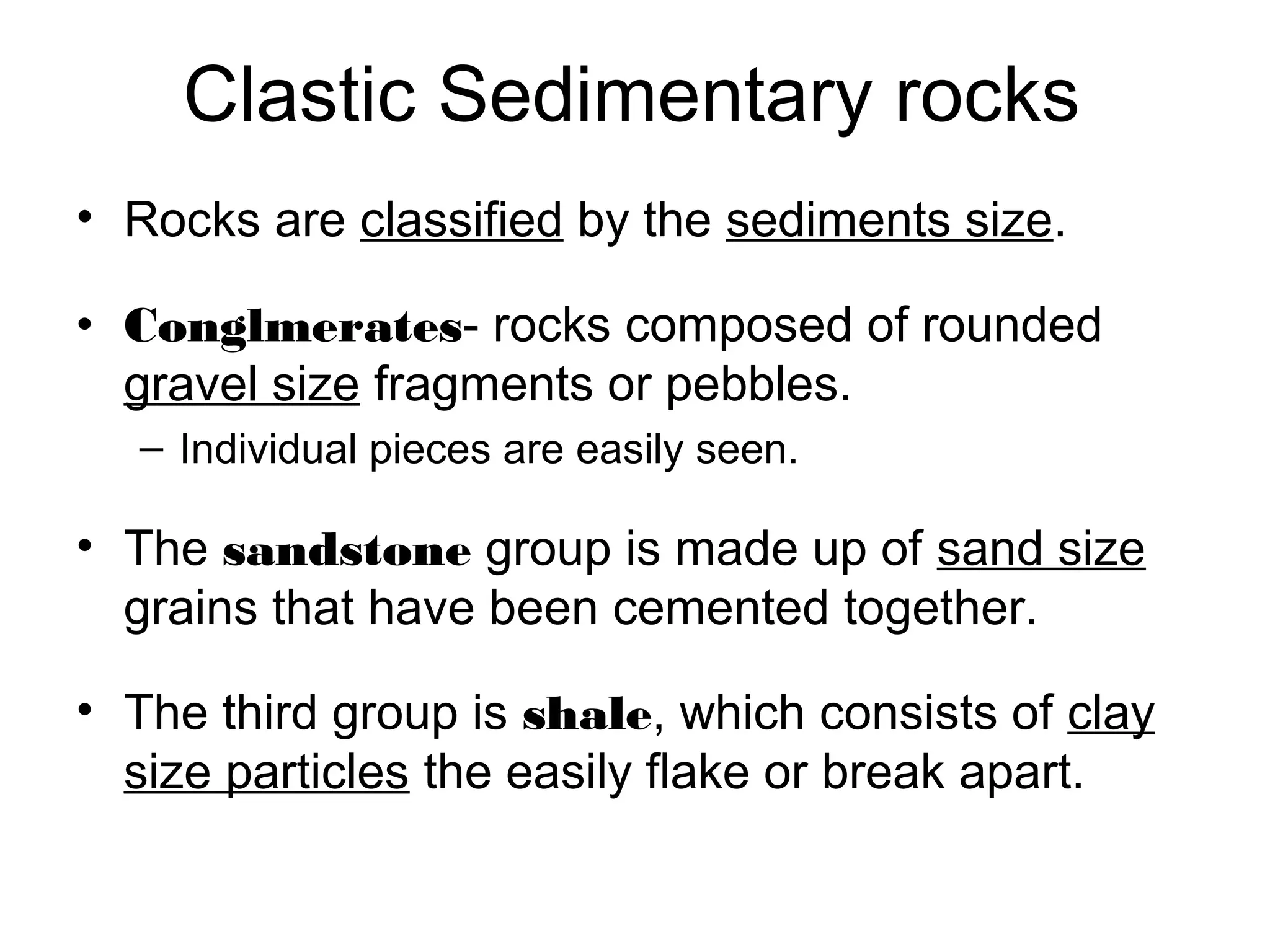

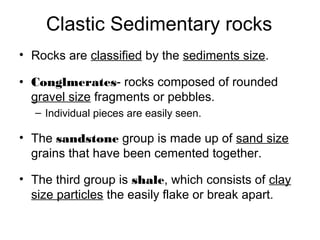

18. Clastic Sedimentary rocks
• Rocks are classified by the sediments size.
• Conglmerates- rocks composed of rounded
gravel size fragments or pebbles.
– Individual pieces are easily seen.
• The sandstone group is made up of sand size
grains that have been cemented together.
• The third group is shale, which consists of clay
size particles the easily flake or break apart.

19. Conglomerates

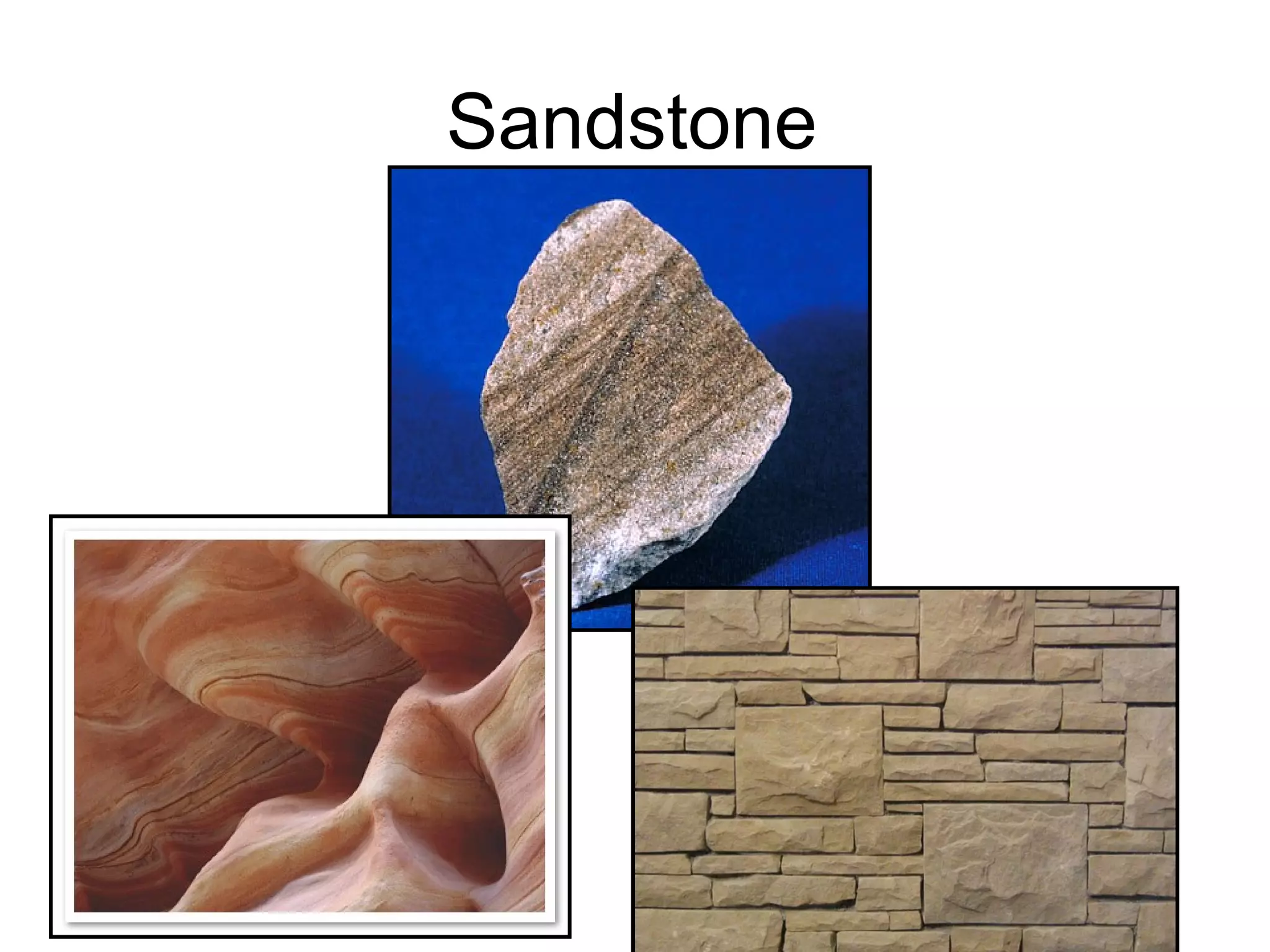

20. Sandstone

21. Shale

22. Chemical Sedimentary Rocks
• Rocks that form from
minerals that were once
dissolved by water.
• These rocks are called
evaporates.

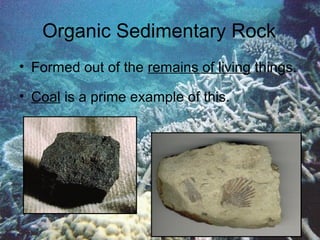

23. Organic Sedimentary Rock
• Formed out of the remains of living things.
• Coal is a prime example of this.

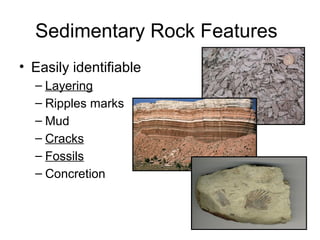

24. Sedimentary Rock Features
• Easily identifiable
– Layering
– Ripples marks
– Mud
– Cracks
– Fossils
– Concretion

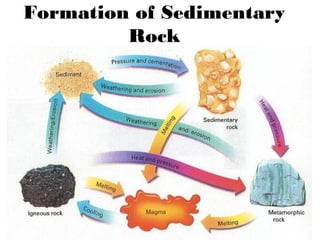

25. Formation of Sedimentary
Rock

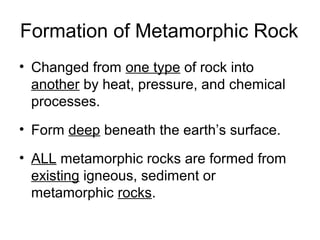

26. Formation of Metamorphic Rock
• Changed from one type of rock into
another by heat, pressure, and chemical
processes.
• Form deep beneath the earth’s surface.
• ALL metamorphic rocks are formed from
existing igneous, sediment or
metamorphic rocks.

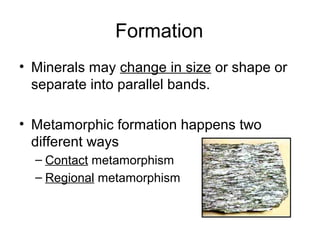

27. Formation
• Minerals may change in size or shape or
separate into parallel bands.
• Metamorphic formation happens two
different ways
– Contact metamorphism
– Regional metamorphism

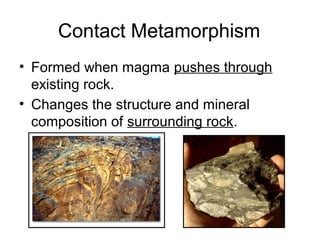

28. Contact Metamorphism
• Formed when magma pushes through
existing rock.
• Changes the structure and mineral
composition of surrounding rock.

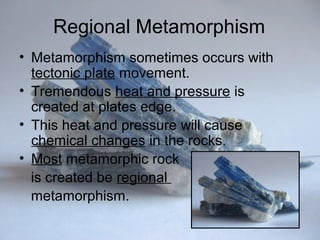

29. Regional Metamorphism
• Metamorphism sometimes occurs with
tectonic plate movement.
• Tremendous heat and pressure is
created at plates edge.
• This heat and pressure will cause
chemical changes in the rocks.
• Most metamorphic rock
is created be regional
metamorphism.

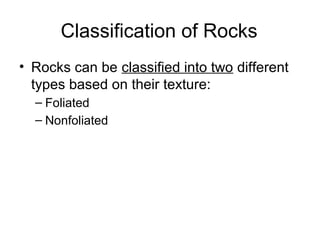

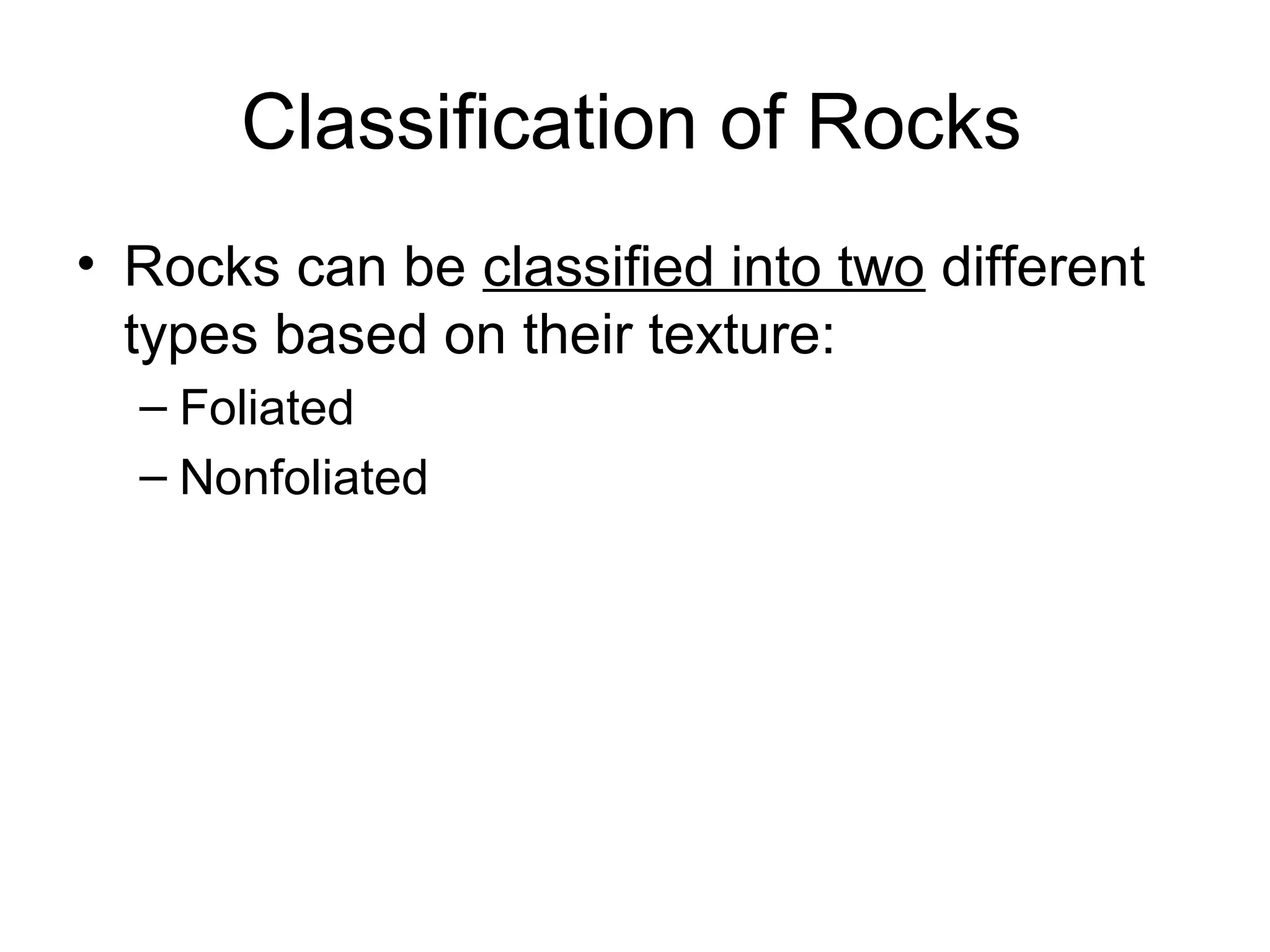

30. Classification of Rocks
• Rocks can be classified into two different
types based on their texture:
– Foliated
– Nonfoliated
