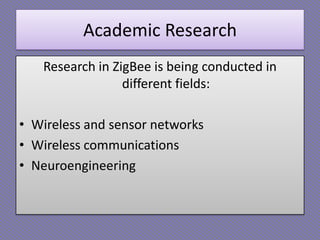

ZigBee is a wireless networking standard used for control and sensor applications that requires low data rates, low power consumption, and secure networking. It is based on the IEEE 802.15.4 standard and allows for up to 65,000 nodes to connect in a mesh network topology. ZigBee operates in the 2.4GHz, 868MHz, and 915MHz frequency bands and is designed for use in personal area networks for applications like home automation, lighting control, and wireless sensor networks. Research is ongoing to expand ZigBee's uses in fields like wireless communications and neuroengineering.

1. welcome

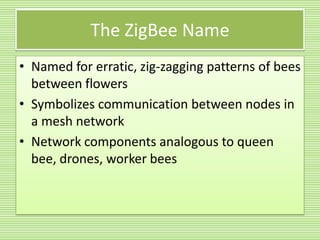

3. The ZigBee NameNamed for erratic, zig-zagging patterns of bees between flowersSymbolizes communication between nodes in a mesh networkNetwork components analogous to queen bee, drones, worker bees

4. What is ZigBee?Technological Standard Created for Control and Sensor Networks Based on the IEEE 802.15.4 Standard Created by the ZigBee Alliance

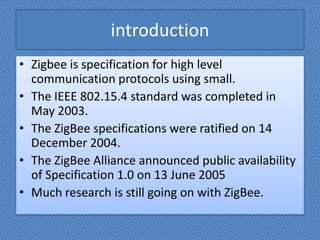

5. introductionZigbee is specification for high level communication protocols using small.The IEEE 802.15.4 standard was completed in May 2003.The ZigBee specifications were ratified on 14 December 2004.The ZigBee Alliance announced public availability of Specification 1.0 on 13 June 2005Much research is still going on with ZigBee.

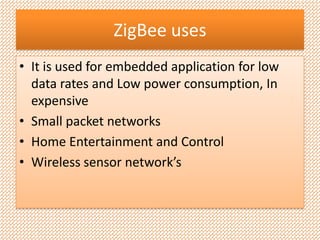

6. ZigBee usesIt is used for embedded application for low data rates and Low power consumption, In expensiveSmall packet networksHome Entertainment and ControlWireless sensor network’s

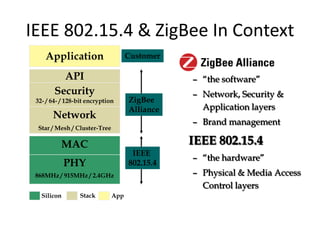

7. IEEE 802.15.4 & ZigBee In ContextApplicationCustomer“the software”

8. Network, Security & Application layers

9. Brand managementIEEE 802.15.4“the hardware”

10. Physical & Media Access Control layersAPISecurity32- / 64- / 128-bit encryptionZigBeeAllianceNetworkStar / Mesh / Cluster-TreeMACIEEE 802.15.4PHY868MHz / 915MHz / 2.4GHzStackSiliconApp

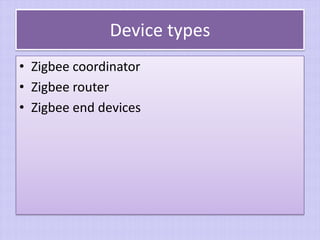

11. Device typesZigbee coordinatorZigbee routerZigbee end devices

12. What Does ZigBee Do?Designed for wireless controls and sensorsOperates in Personal Area Networks (PAN’s) and device-to-device networksConnectivity between small packet devicesControl of lights, switches, thermostats, appliances, etc.

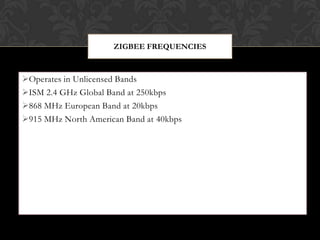

13. Operates in Unlicensed Bands

14. ISM 2.4 GHz Global Band at 250kbps

15. 868 MHz European Band at 20kbps

16. 915 MHz North American Band at 40kbpsZigBee Frequencies

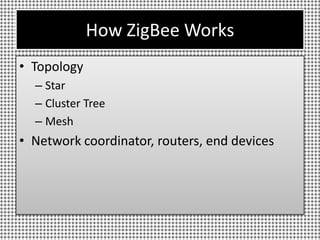

17. How ZigBee WorksTopologyStarCluster TreeMeshNetwork coordinator, routers, end devices

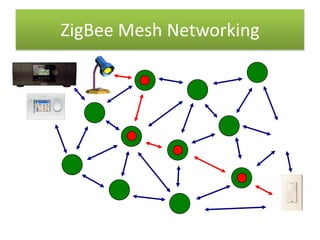

18. ZigBee Mesh Networking

19. ZigBee Mesh Networking

20. ZigBee Mesh Networking

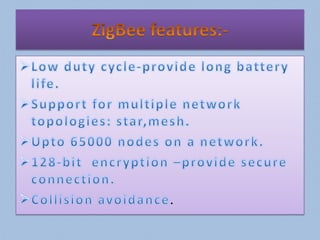

21. ZigBeefeatures:-Low duty cycle-provide long battery life.
