1. SPIRAL MODEL
(SDLC)
Inam Ul-Haq
Lecturer in Computer Science
University of Education, Okara Campus
inam.bth@gmail.com
Submitted by:
Hira Mehar
Roll No. 3006
BS-IT-Eve
IV Semester
UniversityofEducationOkara
Campus
1

2. Introduction
In this system development method, we combine
the features of both, prototype model and
waterfall model.
UniversityofEducationOkara
Campus
2

3. Introduction
•In spiral model we can arrange all the
activities in the form of a spiral
•A spiral model is divided into number
of framework activities, called task
regions
•Typically, there are between three and
six task regions
UniversityofEducationOkara
Campus
3

4. Why Spiral Model ???
4
UniversityofEducationOkara
Campus

5. Why Spiral Model ???
5
UniversityofEducationOkara
Campus

6. Why Spiral Model ???
6
UniversityofEducationOkara
Campus

7. History
•The spiral model was
defined by Barry Boehm
in his 1988 article.
•This model was not the
first model to discuss
iterative development,
but it was the first
model to explain why
the iteration matters.
7
UniversityofEducationOkara
Campus

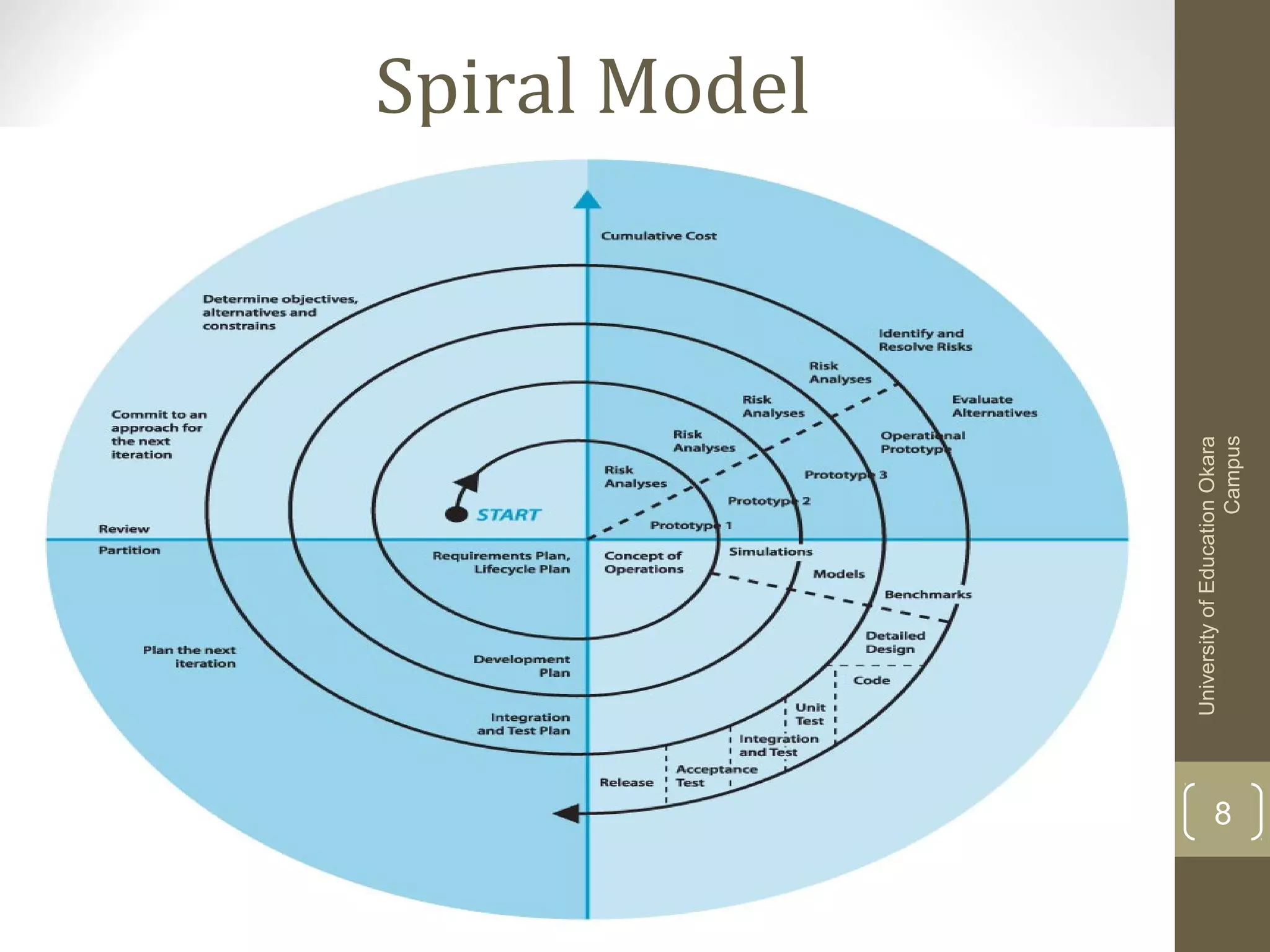

8. Spiral Model
8
UniversityofEducationOkara
Campus

9. Phases
•Customer Communication
•Planning
•Risk Analysis
•Engineering
•Customer Evaluation
9
UniversityofEducationOkara
Campus

10. Customer Communication
•Includes understanding
the system
requirements by
continuous
communication
between the customer
and the system analyst.
10
UniversityofEducationOkara
Campus

11. Planning
• Task required to define resources,
timelines and other project related
information
11
UniversityofEducationOkara
Campus

12. Risk Analysis
• In the risk analysis phase, a
process is undertaken to
identify risk and alternate
solutions. A prototype is
produced at the end of the
risk analysis phase. If any risk
is found during the risk
analysis then alternate
solutions are suggested and
implemented. 12
UniversityofEducationOkara
Campus

13. Engineering
•In this phase software
is developed, along
with testing at the
end of the phase.
Hence in this phase
the development and
testing is done
13
UniversityofEducationOkara
Campus

14. Customer Evaluation
• This phase allows the customer to
evaluate the output of the project to date
before the project continues to the next
spiral
14
UniversityofEducationOkara
Campus

15. Advantages
High amount of risk analysis hence,
avoidance of risk is enhanced.
UniversityofEducationOkara
Campus
15

16. Advantages
Good for mission critical projects.
UniversityofEducationOkara
Campus
16

17. Advantages
Strong approval and documentation control.
UniversityofEducationOkara
Campus
17

18. Advantages
Additional functionality can be added at a
later date.
UniversityofEducationOkara
Campus
18

19. Disadvantages
Can be costly model to use.
UniversityofEducationOkara
Campus
19

20. Disadvantages
Risk analysis requires highly specific expertise.
UniversityofEducationOkara
Campus
20

21. Disadvantages
Project`s success is highly dependent on the
risk analysis phase.
UniversityofEducationOkara
Campus
21

22. Strengths
• Provides early indication of
insurmountable risks, without much
cost
• Users see the system early because of
rapid prototyping tools
• Critical high-risk functions are
developed first
• The design does not have to be
perfect
• Users can be closely tied to all
lifecycle steps
• Early and frequent feedback from
users
22
UniversityofEducationOkara
Campus

23. Conclusions
• The risk-driven nature provides adaptability for a full range of
software projects.
• The model has been successful in a large application, the
TRW-SPS.
• The model is not yet fully elaborated.
• Even partial implementations of the model, such as the risk
management plan, are compatible with the other process
models.
23
UniversityofEducationOkara
Campus

24. References
• www.slideshare.net
• www.buzzle.com
• www.cavehill.uwi.edu
