This document summarizes a student project that aims to prevent car theft and accidents. It presents the contents, introduction, flow chart, interfacing diagram, description of the hardware and software used, and features of the key components - ARM7 microcontroller, alcohol sensor, speed sensor, and ultrasonic sensor. The system works by storing owner details in the microcontroller. If the car is stolen, the owner can send an SMS to locate it using the GSM modem and GPS. Sensors can also detect alcohol levels, speed, and obstacles to prevent accidents and unauthorized driving. The main advantages are easy vehicle recovery and accident prevention.

1. Presented by :Siddharth Jain (G.L.)
Sourabh Baya
Vineet Bhatnagar
Preetam Jawaria
Project Guide : Prof. G.P. Jain
Group no: G2 Batch: E1

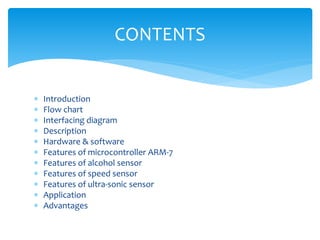

2.  Introduction
 Flow chart
 Interfacing diagram
 Description
 Hardware & software
 Features of microcontroller ARM-7
 Features of alcohol sensor
 Features of speed sensor
 Features of ultra-sonic sensor
 Application
 Advantages
CONTENTS

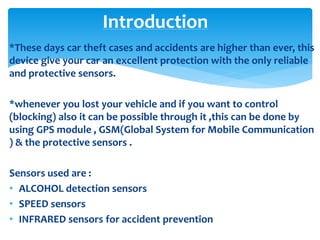

3. *These days car theft cases and accidents are higher than ever, this
device give your car an excellent protection with the only reliable
and protective sensors.
*whenever you lost your vehicle and if you want to control
(blocking) also it can be possible through it ,this can be done by
using GPS module , GSM(Global System for Mobile Communication
) & the protective sensors .
Sensors used are :
• ALCOHOL detection sensors
• SPEED sensors
• INFRARED sensors for accident prevention
Introduction

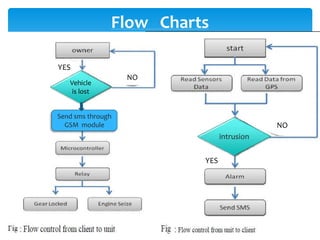

4. Flow Charts
Vehicle
is lost
Send sms through
GSM module
intrusion
NO
YES
YES
NO

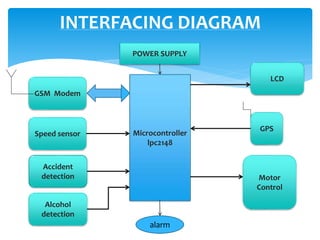

5. INTERFACING DIAGRAM
Microcontroller
lpc2148
GSM Modem
Speed sensor
Accident
detection
Alcohol
detection
POWER SUPPLY
Motor
Control
GPS
LCD
alarm

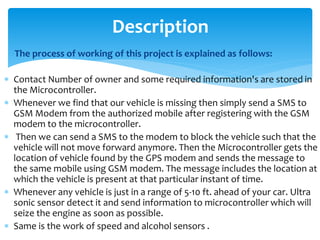

6. The process of working of this project is explained as follows:
 Contact Number of owner and some required information's are stored in
the Microcontroller.
 Whenever we find that our vehicle is missing then simply send a SMS to
GSM Modem from the authorized mobile after registering with the GSM
modem to the microcontroller.
 Then we can send a SMS to the modem to block the vehicle such that the
vehicle will not move forward anymore. Then the Microcontroller gets the
location of vehicle found by the GPS modem and sends the message to
the same mobile using GSM modem. The message includes the location at
which the vehicle is present at that particular instant of time.
 Whenever any vehicle is just in a range of 5-10 ft. ahead of your car. Ultra
sonic sensor detect it and send information to microcontroller which will
seize the engine as soon as possible.
 Same is the work of speed and alcohol sensors .
Description

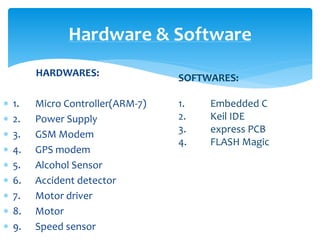

7. HARDWARES:
 1. Micro Controller(ARM-7)
 2. Power Supply
 3. GSM Modem
 4. GPS modem
 5. Alcohol Sensor
 6. Accident detector
 7. Motor driver
 8. Motor
 9. Speed sensor
Hardware & Software
SOFTWARES:
1. Embedded C
2. Keil IDE
3. express PCB
4. FLASH Magic

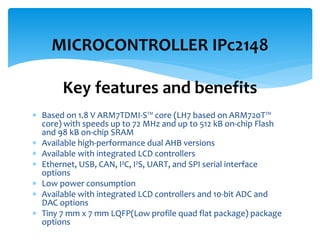

8.  Based on 1.8 V ARM7TDMI-S™ core (LH7 based on ARM720T™
core) with speeds up to 72 MHz and up to 512 kB on-chip Flash
and 98 kB on-chip SRAM
 Available high-performance dual AHB versions
 Available with integrated LCD controllers
 Ethernet, USB, CAN, I²C, I²S, UART, and SPI serial interface
options
 Low power consumption
 Available with integrated LCD controllers and 10-bit ADC and
DAC options
 Tiny 7 mm x 7 mm LQFP(Low profile quad flat package) package
options
MICROCONTROLLER IPc2148
Key features and benefits

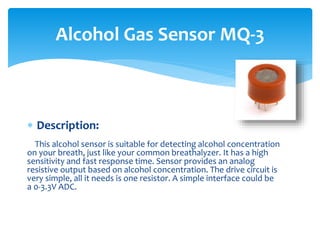

9.  Description:
This alcohol sensor is suitable for detecting alcohol concentration
on your breath, just like your common breathalyzer. It has a high
sensitivity and fast response time. Sensor provides an analog
resistive output based on alcohol concentration. The drive circuit is
very simple, all it needs is one resistor. A simple interface could be
a 0-3.3V ADC.
Alcohol Gas Sensor MQ-3

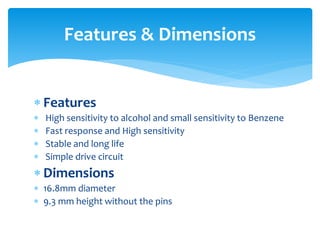

10.  Features
 High sensitivity to alcohol and small sensitivity to Benzene
 Fast response and High sensitivity
 Stable and long life
 Simple drive circuit
 Dimensions
 16.8mm diameter
 9.3 mm height without the pins
Features & Dimensions

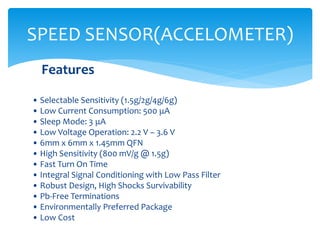

11. Features
• Selectable Sensitivity (1.5g/2g/4g/6g)
• Low Current Consumption: 500 μA
• Sleep Mode: 3 μA
• Low Voltage Operation: 2.2 V – 3.6 V
• 6mm x 6mm x 1.45mm QFN
• High Sensitivity (800 mV/g @ 1.5g)
• Fast Turn On Time
• Integral Signal Conditioning with Low Pass Filter
• Robust Design, High Shocks Survivability
• Pb-Free Terminations
• Environmentally Preferred Package
• Low Cost
SPEED SENSOR(ACCELOMETER)

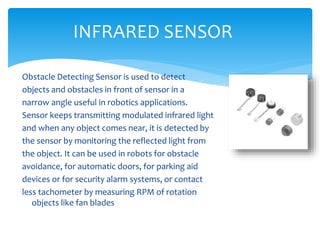

12. Obstacle Detecting Sensor is used to detect
objects and obstacles in front of sensor in a
narrow angle useful in robotics applications.
Sensor keeps transmitting modulated infrared light
and when any object comes near, it is detected by
the sensor by monitoring the reflected light from
the object. It can be used in robots for obstacle
avoidance, for automatic doors, for parking aid
devices or for security alarm systems, or contact
less tachometer by measuring RPM of rotation
objects like fan blades
INFRARED SENSOR

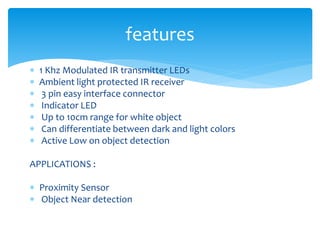

13.  1 Khz Modulated IR transmitter LEDs
 Ambient light protected IR receiver
 3 pin easy interface connector
 Indicator LED
 Up to 10cm range for white object
 Can differentiate between dark and light colors
 Active Low on object detection
APPLICATIONS :
 Proximity Sensor
 Object Near detection
features

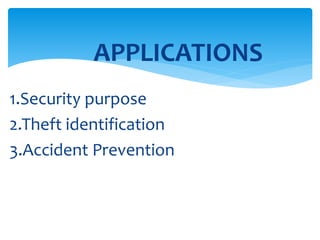

14. APPLICATIONS
1.Security purpose
2.Theft identification
3.Accident Prevention

15.  The main advantage of using this
project is to find out theft vehicle easily
and with the least amount of time. And
also we can save people from accident
like to give fast treatment for them.
ADVANTAGE

16. Thank you !!!!!
