Vehicle Accident detection System using arduino and GSM

1. VEHICLE ACCIDENT
DETECTION SYSTEM

2. MOTIVATION
 About 1.24 million people die each year as a result of
road traffic crashes.
 Without action, road traffic crashes are predicted to result
in the deaths of around 1.9 million people annually by
2020.
 Decade of Action for Road Safety (2011–2020) with the
aim of saving millions of lives by improving the safety
of roads, vehicles and improving emergency services.
VehicleAccidentDetectionSystem
2

3. INTRODUCTION
 Arduino is interfaced with piezo electric sensor to detect
accidents.
 GSM is interfaced to Arduino to send notification
messages to Authorized users.
 Buzzer is interfaced with Arduino to alert accidents.
VehicleAccidentDetectionSystem
3

4. BLOCK DIAGRAM
Arduino
Piezo Electric
Sensor 1
Piezo Electric
Sensor 2
GSM Module
Voltage Regulator
5volts
VehicleAccidentDetectionSystem
4

5. HARDWARE COMPONENTS
 Arduino Micro controller
 Piezo Electric Sensor
 GSM modem
 Voltage Regulator
 Buzzer
 Led
VehicleAccidentDetectionSystem
5

6. MICRO CONTROLLER
 28-pin AVR Microcontroller
 Flash Program Memory: 32
kbytes
 EEPROM Data Memory: 1
kbytes
 SRAM Data Memory: 2 kb
 I/O Pins: 23
 Timers: Two 8-bit / One 16-bit
 A/D Converter: 10-bit Six PWM:
Six Channels
 RTC: Yes with Separate
Oscillator
 MSSP: SPI and I²C Master and
Slave Support
 USART: Yes
 External Oscillator: up to 20MHz
VehicleAccidentDetectionSystem
6

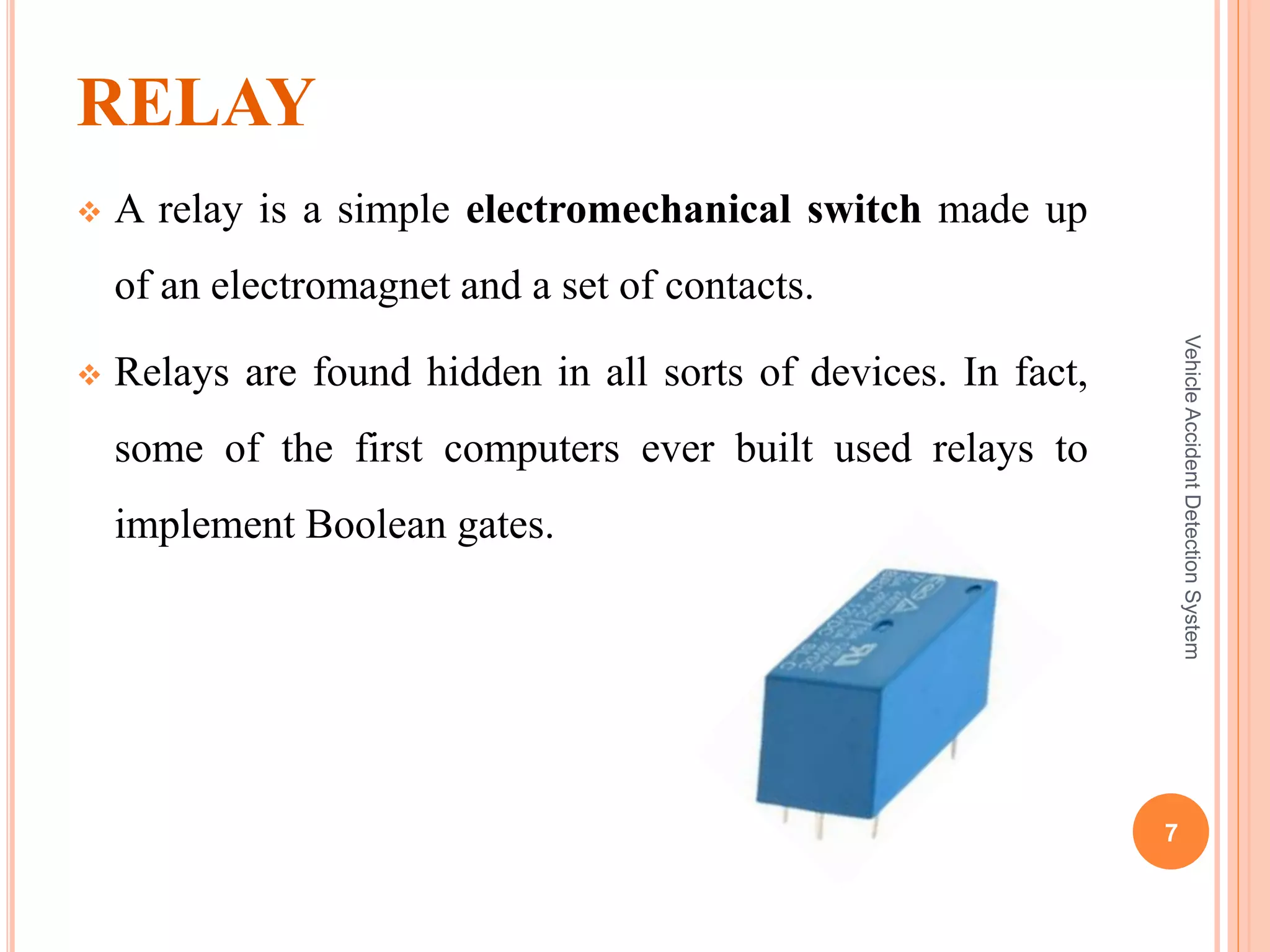

7. RELAY
 A relay is a simple electromechanical switch made up
of an electromagnet and a set of contacts.
 Relays are found hidden in all sorts of devices. In fact,
some of the first computers ever built used relays to
implement Boolean gates.
VehicleAccidentDetectionSystem
7

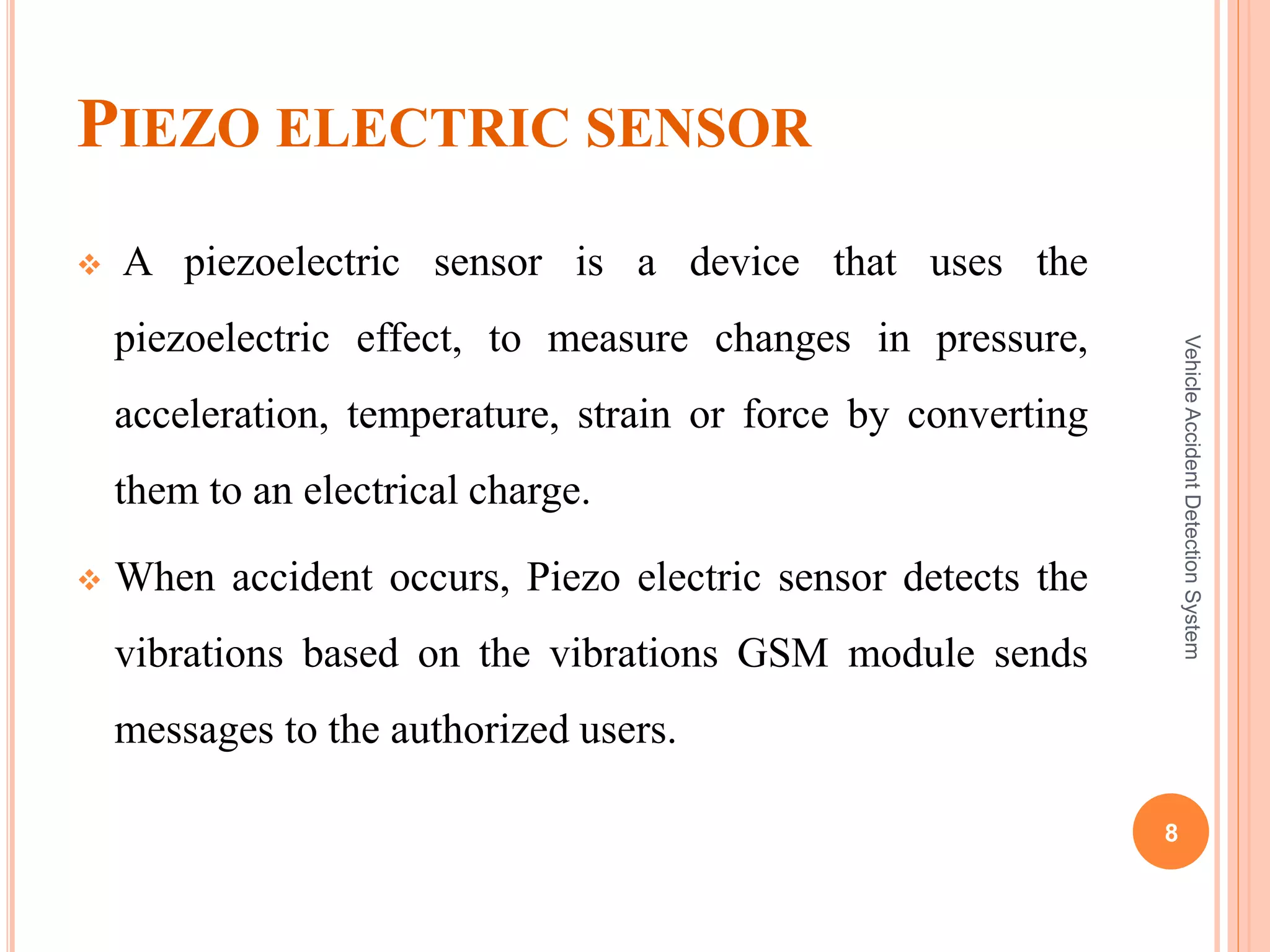

8. PIEZO ELECTRIC SENSOR
 A piezoelectric sensor is a device that uses the
piezoelectric effect, to measure changes in pressure,
acceleration, temperature, strain or force by converting
them to an electrical charge.
 When accident occurs, Piezo electric sensor detects the
vibrations based on the vibrations GSM module sends
messages to the authorized users.
VehicleAccidentDetectionSystem
8

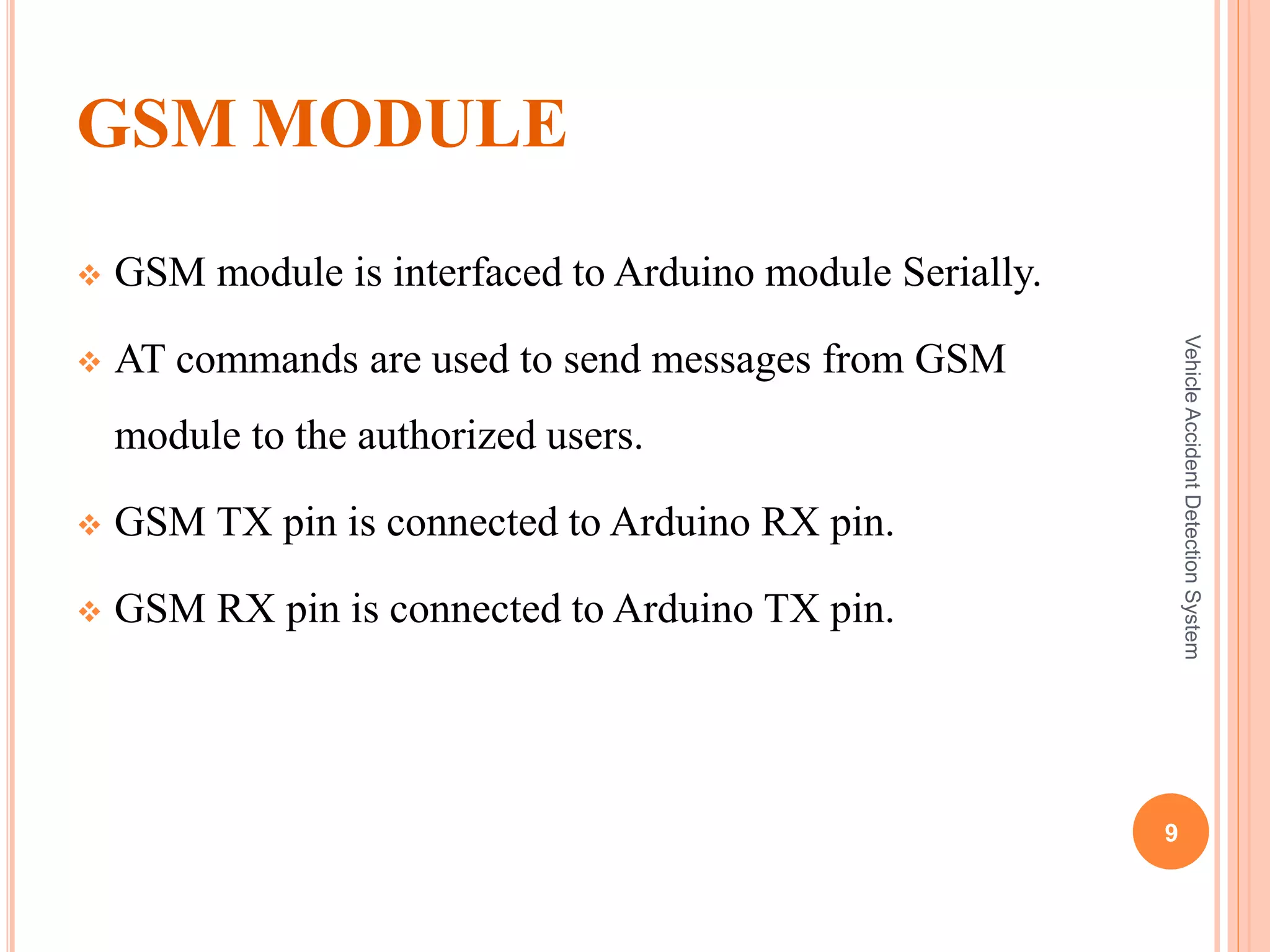

9. GSM MODULE
 GSM module is interfaced to Arduino module Serially.
 AT commands are used to send messages from GSM
module to the authorized users.
 GSM TX pin is connected to Arduino RX pin.
 GSM RX pin is connected to Arduino TX pin.
VehicleAccidentDetectionSystem
9

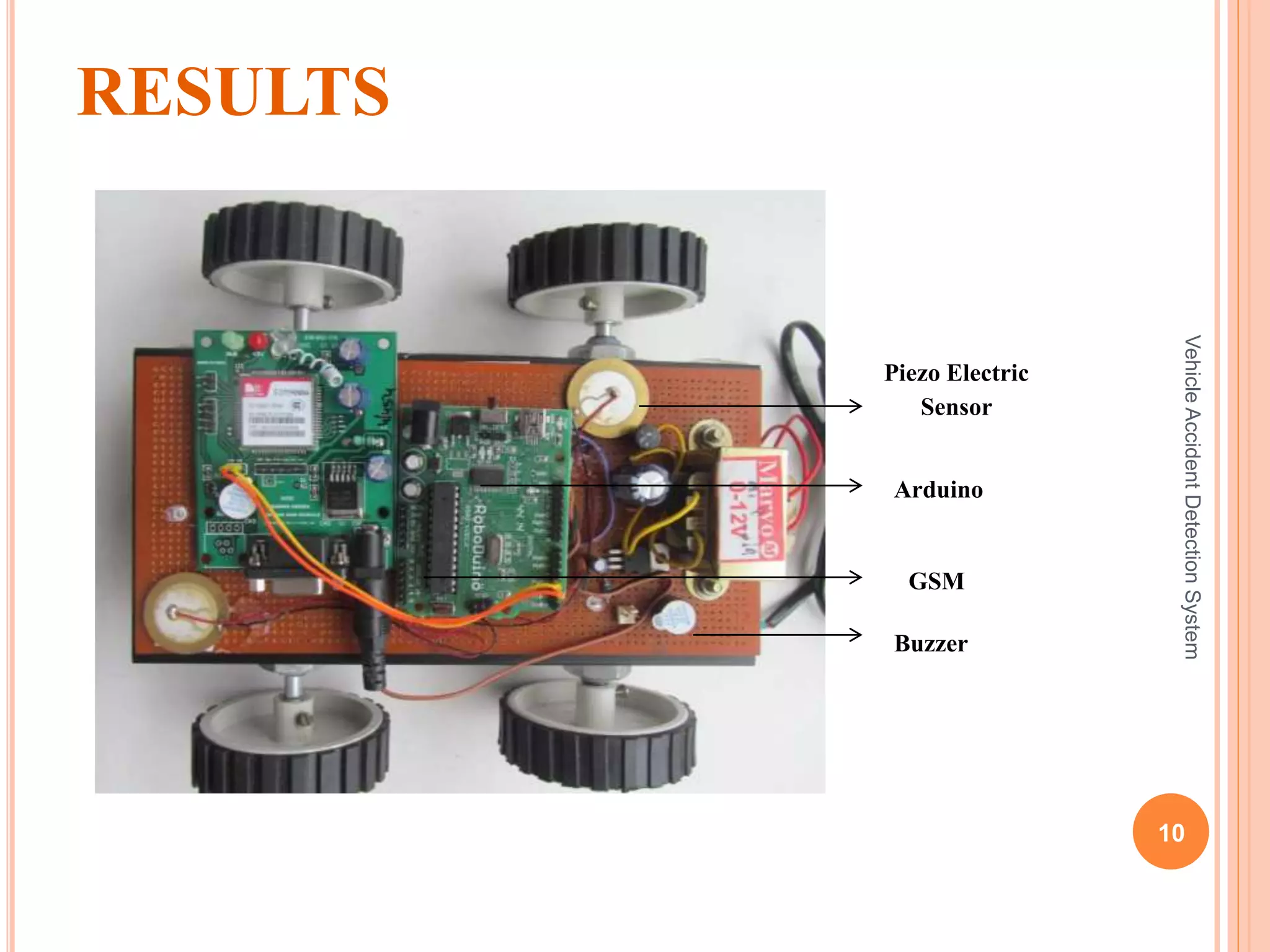

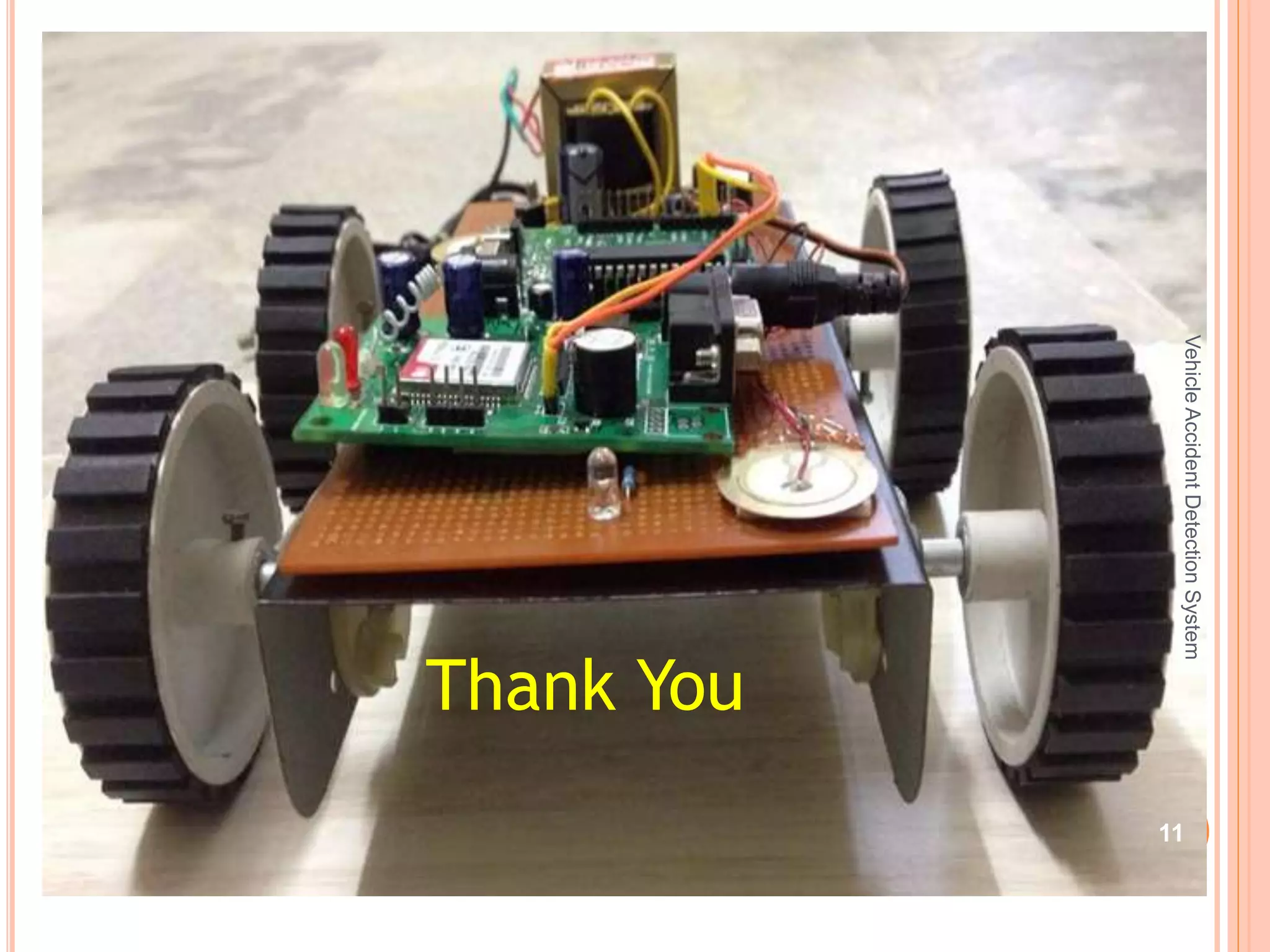

10. RESULTS
Arduino
Piezo Electric
Sensor
GSM
Buzzer
VehicleAccidentDetectionSystem
10
