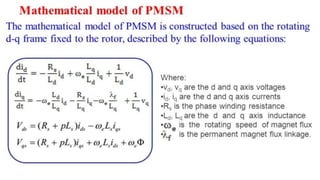

Mathematical modelling of PMSM motor.
Advantages and dis Advantages of PMSM motor
A permanent magnet AC (PMAC) motor is a synchronous motor, meaning that its rotor spins at the same speed as the motor's internal rotating magnetic field. Other AC synchronous technologies include hysteresis motors, larger DC-excited motors, and common reluctance motors.
(c) beta.machinedesign.com
A permanent magnet AC (PMAC) motor is a synchronous motor, meaning that its rotor spins at the same speed as the motor's internal rotating magnetic field. Other AC synchronous technologies include hysteresis motors, larger DC-excited motors, and common reluctance motors.
(c) beta.machinedesign.com
A reluctance motor is a type of electric motor that induces non-permanent magnetic poles on the ferromagnetic rotor. The rotor does not have any windings. It generates torque through magnetic reluctance.
Reluctance motor sub types include synchronous, variable, switched and variable stepping.
Reluctance motors can deliver high power density at low cost, making them attractive for many applications. Disadvantages include high torque ripple (the difference between maximum and minimum torque during one revolution) when operated at low speed, and noise due to torque ripple.
A synchronous motor is electrically identical with an alternator or AC generator.
A given alternator ( or synchronous machine) can be used as a motor, when driven electrically.
Some characteristic features of a synchronous motor are as follows:
1. It runs either at synchronous speed or not at all i.e. while running it maintains a constant speed. The only way to change its speed is to vary the supply frequency (because NS=120f/P).
2. It is not inherently self-starting. It has to be run up to synchronous (or near synchronous) speed by some means, before it can be synchronized to the supply.
3. It is capable of being operated under a wide range of power factors, both lagging and leading. Hence, it can be used for power correction purposes, in addition to supplying torque to drive loads.
Speed control in 3 phase induction motorKakul Gupta
Speed control in induction motors is required for efficient operation
Various methods of speed control through semiconductor devices:
1. Stator voltage control
2. Stator frequency control
3. Stator voltage control
4. Stator current control
5. Static Rotor Resistance Control
6. Slip Energy Recovery Control
This predefined speed control of BLDC motor runs a motor at user desired speed by using EEPROM for storing speed. It is an effective speed control method.
This ppt shows the modelling and simulation of permanent magnet synchronous motor by using torque control method.
And this is the most advanced and soffestigated method to control the pmsm motors.
A reluctance motor is a type of electric motor that induces non-permanent magnetic poles on the ferromagnetic rotor. The rotor does not have any windings. It generates torque through magnetic reluctance.
Reluctance motor sub types include synchronous, variable, switched and variable stepping.
Reluctance motors can deliver high power density at low cost, making them attractive for many applications. Disadvantages include high torque ripple (the difference between maximum and minimum torque during one revolution) when operated at low speed, and noise due to torque ripple.
A synchronous motor is electrically identical with an alternator or AC generator.
A given alternator ( or synchronous machine) can be used as a motor, when driven electrically.
Some characteristic features of a synchronous motor are as follows:
1. It runs either at synchronous speed or not at all i.e. while running it maintains a constant speed. The only way to change its speed is to vary the supply frequency (because NS=120f/P).
2. It is not inherently self-starting. It has to be run up to synchronous (or near synchronous) speed by some means, before it can be synchronized to the supply.
3. It is capable of being operated under a wide range of power factors, both lagging and leading. Hence, it can be used for power correction purposes, in addition to supplying torque to drive loads.
Speed control in 3 phase induction motorKakul Gupta
Speed control in induction motors is required for efficient operation
Various methods of speed control through semiconductor devices:
1. Stator voltage control
2. Stator frequency control
3. Stator voltage control
4. Stator current control
5. Static Rotor Resistance Control
6. Slip Energy Recovery Control
This predefined speed control of BLDC motor runs a motor at user desired speed by using EEPROM for storing speed. It is an effective speed control method.
This ppt shows the modelling and simulation of permanent magnet synchronous motor by using torque control method.
And this is the most advanced and soffestigated method to control the pmsm motors.
BLDC motors are used widely due to various advantages.
This slide includes construction, working, modes of operation and braking, and applications. We also compare it with Brushed DC motor and Induction Motor.
Fiction is a form of narrative, one of the four rhetorical modes of discourse. Fiction-writing also has modes for fiction-writing: action, exposition, description, dialogue, summary, and transition (Morrell 2006, p. 127). Author Peter Selgin refers to methods, including action, dialogue, thoughts, summary, scene, and description (Selgin 2007, p. 38). Currently, there is no consensus within the writing community regarding the number and composition of fiction-writing modes and their uses.
Description is the fiction-writing mode for transmitting a mental image of the particulars of a story. Together with dialogue, narration, exposition, and summarization, description is one of the most widely recognized of the fiction-writing modes. As stated in Writing from A to Z, edited by Kirk Polking, description is more than the amassing of details; it is bringing something to life by carefully choosing and arranging words and phrases to produce the desired effect (Polking 1990, p. 106). The most appropriate and effective techniques for presenting description are a matter of ongoing discussion among writers and writing coaches.Fiction is a form of narrative, one of the four rhetorical modes of discourse. Fiction-writing also has modes for fiction-writing: action, exposition, description, dialogue, summary, and transition (Morrell 2006, p. 127). Author Peter Selgin refers to methods, including action, dialogue, thoughts, summary, scene, and description (Selgin 2007, p. 38). Currently, there is no consensus within the writing community regarding the number and composition of fiction-writing modes and their uses.
Description is the fiction-writing mode for transmitting a mental image of the particulars of a story. Together with dialogue, narration, exposition, and summarization, description is one of the most widely recognized of the fiction-writing modes. As stated in Writing from A to Z, edited by Kirk Polking, description is more than the amassing of details; it is bringing something to life by carefully choosing and arranging words and phrases to produce the desired effect (Polking 1990, p. 106). The most appropriate and effective techniques for presenting description are a matter of ongoing discussion among writers and writing coaches.Fiction is a form of narrative, one of the four rhetorical modes of discourse. Fiction-writing also has modes for fiction-writing: action, exposition, description, dialogue, summary, and transition (Morrell 2006, p. 127). Author Peter Selgin refers to methods, including action, dialogue, thoughts, summary, scene, and description (Selgin 2007, p. 38). Currently, there is no consensus within the writing community regarding the number and composition of fiction-writing modes and their uses.
Description is the fiction-writing mode for transmitting a mental image of the particulars of a story. Together with dialogue, narration, exposition, and summarization, description is one of the most widely recognized of the fiction-w
Recent technological developments have led to the introduction of very efficient motors, often referred to as Super- and Ultra- Premium Efficiency Motors, with efficiencies well above the IE3 level (mandatory in the USA and in the EU). Cost-effective induction motors (IM) with efficiencies above the IE4 threshold are now widely available on the market and other advanced technologies (Permanent Magnet Motors and Synchronous Reluctance) have enabled manufacturers to produce motors that exceed the IE4 and even meet IE5 thresholds.
This webinar gives an overview of these advanced technologies, their principles of operation, potential efficiency gains, benefits and drawbacks.
Introduction to IGBT & its losses with videos demonstration Zeeshan Akhtar
Contents of this presentation:
General Introduction to IGBT
IGBT Equivalent Circuit
IGBT Output Characteristics
IGBT usage as a Switch
IGBT Datasheet
IGBT Applications
IGBT Power Losses
Some FAQs about IGBTs
along with some demonstration videos from different sources
Contents of this presentation:
General Introduction to IGBT
IGBT Equivalent Circuit
IGBT Output Characteristics
IGBT usage as a Switch
IGBT Datasheet
IGBT Applications
IGBT Power Losses
Some FAQs about IGBTs
High voltage technology & insulation testingZeeshan Akhtar
About HV Transmission, distribution, Voltage level classification, Insulation testing.
Part 1
What is High Voltage?
Why Needed
Levels of Voltages
Application of High Voltage
Electrical Insulation and Dielectrics
Part 2
Design & Test Issues for High Voltage
Aircraft Electric Power System
Introduction to the importance of HV in electric actuator systems
Basic review of HV design
Discussion of test methods
Summary
Part 3
Voltage Testing & Partial Discharge Measurement For Power Cable Accessories
Introduction
Ac Test After Installation
Acrf Test System
Schematic Diagram Of Test System
Arallel Operation Mode Of Test System
Artial Discharge Methods & Principle.
Iscussion & Conclusion.
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Student information management system project report ii.pdfKamal Acharya
Our project explains about the student management. This project mainly explains the various actions related to student details. This project shows some ease in adding, editing and deleting the student details. It also provides a less time consuming process for viewing, adding, editing and deleting the marks of the students.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Permanent magnet synchronous motor
1. Permanent Magnet Synchronous motor
Presented By: Zeeshan Akhtar
ID : 6118000011
Control Theory of Motor
Prof. Wang Xiaoyuan (王晓远)
Tianjin University, China

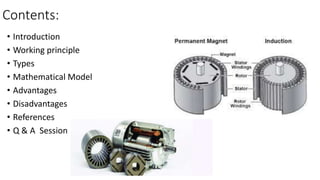

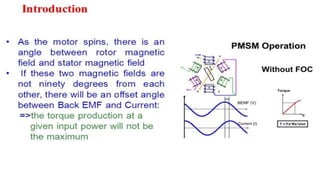

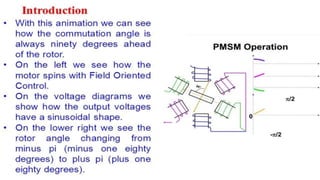

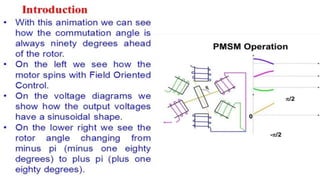

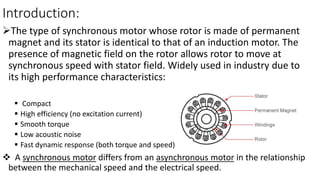

3. Introduction:
The type of synchronous motor whose rotor is made of permanent
magnet and its stator is identical to that of an induction motor. The
presence of magnetic field on the rotor allows rotor to move at
synchronous speed with stator field. Widely used in industry due to
its high performance characteristics:
Compact
High efficiency (no excitation current)
Smooth torque
Low acoustic noise
Fast dynamic response (both torque and speed)

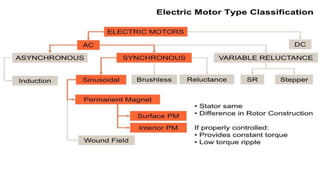

A synchronous motor differs from an asynchronous motor in the relationship
between the mechanical speed and the electrical speed.
4.

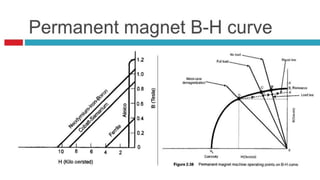

5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

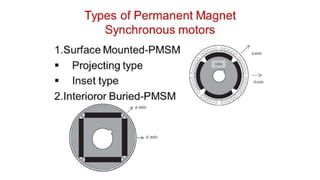

15.
16.

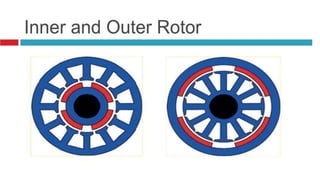

17.

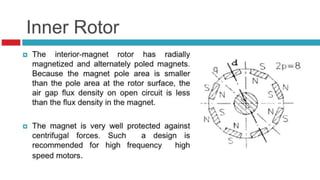

18.

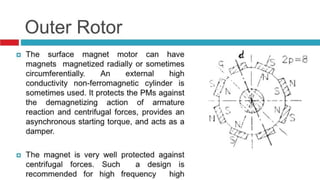

19.

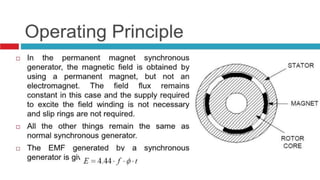

20.
21.

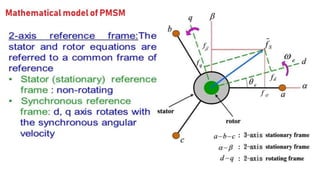

22.
23.
24.
25.

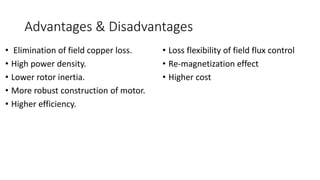

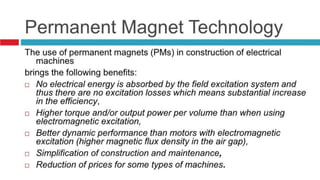

26. Advantages & Disadvantages
• Elimination of field copper loss.
• High power density.
• Lower rotor inertia.
• More robust construction of motor.
• Higher efficiency.
• Loss flexibility of field flux control
• Re-magnetization effect

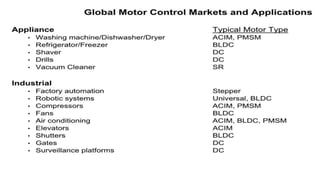

• Higher cost
