1) AC motors can be categorized as induction motors or synchronous motors. Induction motors are the most common type and can be single-phase or three-phase. 2) Three-phase induction motors have a stationary stator and a rotating rotor. The rotor can be a squirrel cage design or wound rotor design. Squirrel cage rotors are simpler and require less maintenance. 3) Synchronous motors rotate at exactly the same speed as the frequency of the power supply. They are more efficient than induction motors but require an external mechanism to start rotating.

1. AC Motors & Their Types

2. Topic Introduction
 What is an Electric
Motor?
 Electromechanical device that converts electrical
energy to mechanical energy.
 Mechanical energy used to e.g.
 Rotate pump impeller, fan, blower
 Drive compressors
 Lift materials
 Motors in industry: 70% of electrical load.

3. Principle of how motors work

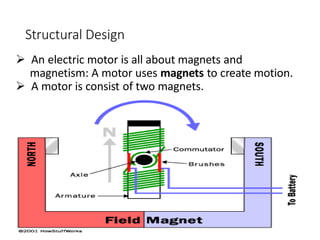

4. Structural Design
 An electric motor is all about magnets and
magnetism: A motor uses magnets to create motion.
 A motor is consist of two magnets.

5. Classification of Motors
Electric Motors
Alternating Current (AC)
Motors
Direct Current (DC)
Motors
Synchronous Induction
Three-Phase
Single-Phase
Self Excited
Separately
Excited
Series Shunt
Compound

6. AC Motors
Alternating Current (AC)
Motors
Synchronous Induction
Three-Phase
Single-Phase

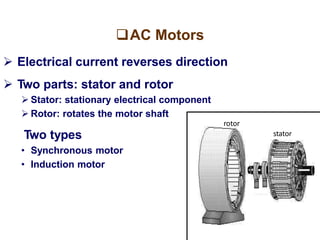

7. AC Motors
Two types
• Synchronous motor
• Induction motor
 Electrical current reverses direction
 Two parts: stator and rotor
 Stator: stationary electrical component
 Rotor: rotates the motor shaft
rotor
stator

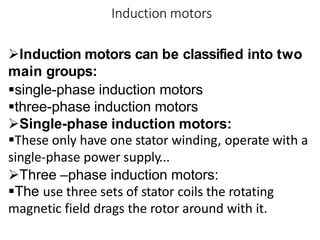

8. Induction motors
Induction motors can be classified into two
main groups:
single-phase induction motors
three-phase induction motors
Single-phase induction motors:
These only have one stator winding, operate with a
single-phase power supply...
Three –phase induction motors:
The use three sets of stator coils the rotating
magnetic field drags the rotor around with it.

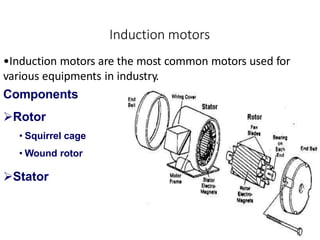

9. Induction motors
•Induction motors are the most common motors used for
various equipments in industry.
Components
Rotor
• Squirrel cage
• Wound rotor
Stator

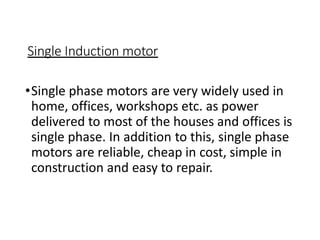

10. Single Induction motor
•Single phase motors are very widely used in
home, offices, workshops etc. as power
delivered to most of the houses and offices is
single phase. In addition to this, single phase
motors are reliable, cheap in cost, simple in
construction and easy to repair.

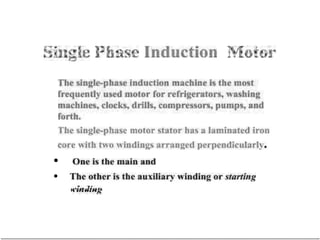

11. •
•

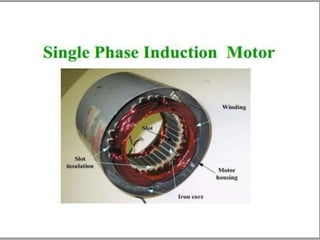

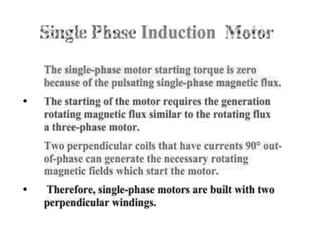

13. •
•

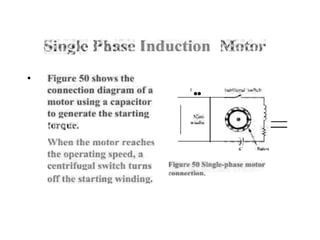

14. •
I
..

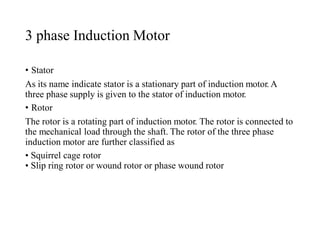

15. 3 phase Induction Motor
• Stator
As its name indicate stator is a stationary part of induction motor. A
three phase supply is given to the stator of induction motor.
• Rotor
The rotor is a rotating part of induction motor. The rotor is connected to
the mechanical load through the shaft. The rotor of the three phase
induction motor are further classified as
• Squirrel cage rotor
• Slip ring rotor or wound rotor or phase wound rotor

16. Squirrel Cage Induction Motor
Rotor
l!nrlng
or.
E'•roll
End
Stalor
EI K iro •
M•gnel•
l A J u m i n
8Grs
?1/;A., - - Stator Laminations
r d f j 1 J l
Shaft

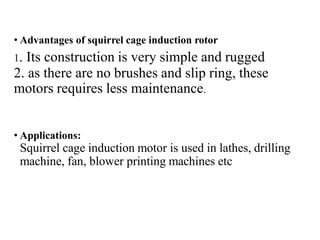

17. • Advantages of squirrel cage induction rotor
1. Its construction is very simple and rugged
2. as there are no brushes and slip ring, these
motors requires less maintenance.
• Applications:
Squirrel cage induction motor is used in lathes, drilling
machine, fan, blower printing machines etc

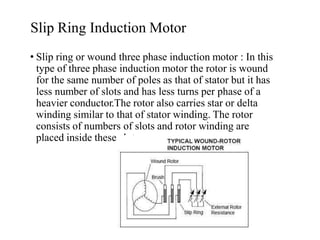

18. Slip Ring Induction Motor
• Slip ring or wound three phase induction motor : In this
type of three phase induction motor the rotor is wound
for the same number of poles as that of stator but it has
less number of slots and has less turns per phase of a
heavier conductor.The rotor also carries star or delta
winding similar to that of stator winding. The rotor
consists of numbers of slots and rotor winding are
placed inside these slots.

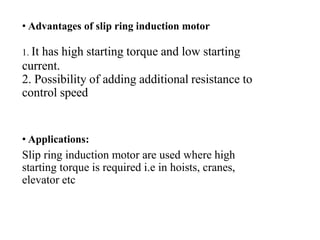

19. • Advantages of slip ring induction motor
1. It has high starting torque and low starting
current.
2. Possibility of adding additional resistance to
control speed
• Applications:
Slip ring induction motor are used where high
starting torque is required i.e in hoists, cranes,
elevator etc

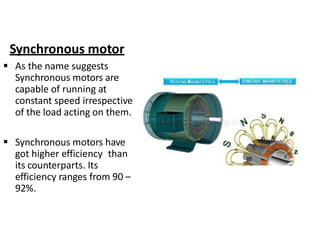

20. Synchronous motor
 As the name suggests
Synchronous motors are
capable of running at
constant speed irrespective
of the load acting on them.
 Synchronous motors have
got higher efficiency than
its counterparts. Its
efficiency ranges from 90 –
92%.

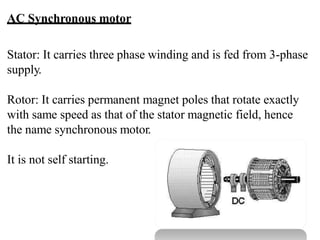

21. AC Synchronous motor
Stator: It carries three phase winding and is fed from 3-phase
supply.
Rotor: It carries permanent magnet poles that rotate exactly
with same speed as that of the stator magnetic field, hence
the name synchronous motor.
It is not self starting.

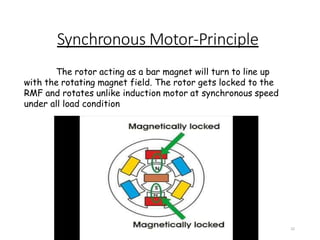

22. Synchronous Motor-Principle
22
The rotor acting as a bar magnet will turn to line up
with the rotating magnet field. The rotor gets locked to the
RMF and rotates unlike induction motor at synchronous speed
under all load condition

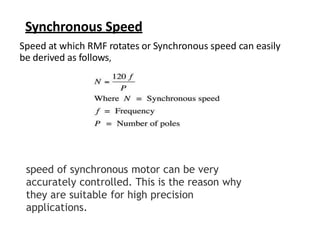

23. Synchronous Speed
Speed at which RMF rotates or Synchronous speed can easily
be derived as follows,
speed of synchronous motor can be very
accurately controlled. This is the reason why
they are suitable for high precision
applications.

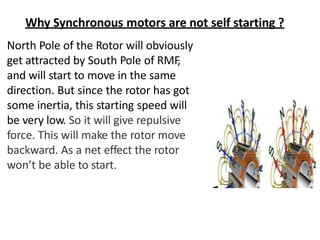

24. Why Synchronous motors are not self starting ?
North Pole of the Rotor will obviously
get attracted by South Pole of RMF
,
and will start to move in the same
direction. But since the rotor has got
some inertia, this starting speed will
be very low. So it will give repulsive
force. This will make the rotor move
backward. As a net effect the rotor
won’t be able to start.

25. Making Synchronous Motor Self Start
• To make synchronous motor self start, a squirrel cage
arrangement is cleverly fitted through pole tips. They are
also called as damper windings.
At the starting rotor field coils are not energized.
So with revolving magnetic field, electricity is
induced in squirrel cage bars and rotor starts
rotating just like an induction motor starts.

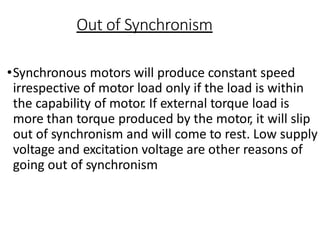

26. Out of Synchronism
•Synchronous motors will produce constant speed
irrespective of motor load only if the load is within
the capability of motor
. If external torque load is
more than torque produced by the motor, it will slip
out of synchronism and will come to rest. Low supply
voltage and excitation voltage are other reasons of
going out of synchronism

27. Application of Synchronous
Motor
•Synchronous motor having no load connected to its shaft is used for
power factor improvement. it is used in power system in situations
where static capacitors are expensive.
•Synchronous motor finds application where operating speed is less
(around 500 rpm) and high power is required. For power requirement
from 35 kW to 2500KW, the size, weight and cost of the
corresponding induction motor is very high. Hence these motors are
preferably used. Ex- Reciprocating pump, compressor, rolling mills etc
