Amit Kirti Saran and Ramit Kirti Saran presented a design for a microstrip patch antenna at 2.45GHz. They described the basic structure of a microstrip patch antenna and the design equations used to calculate the patch dimensions. They then outlined the steps taken to design the patch antenna using HFSS software, including assigning the calculated values and adding an inset feed. Simulation results showed the radiation patterns and return loss of the designed antenna. Applications of microstrip patch antennas include mobile/satellite communication, GPS, Bluetooth, and medical and radar uses.

1. P R E S E N T E D B Y: -
A M I T K I RT I S A R A N
R A M I T K I RT I S A R A N
B - T E C H ( E C E )
3 R D Y E A R
DESIGN MICROSTRIP PATCH
ANTENNAAT 2.45GHz

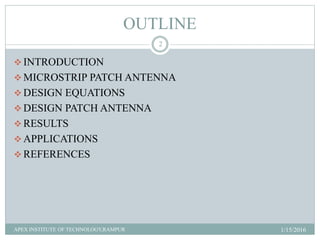

2. OUTLINE
 INTRODUCTION
 MICROSTRIP PATCH ANTENNA
 DESIGN EQUATIONS
 DESIGN PATCH ANTENNA
 RESULTS
 APPLICATIONS
 REFERENCES
1/15/2016
2
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

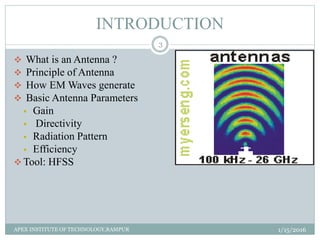

3. INTRODUCTION
 What is an Antenna ?
 Principle of Antenna
 How EM Waves generate
 Basic Antenna Parameters
 Gain
 Directivity
 Radiation Pattern
 Efficiency
 Tool: HFSS
1/15/2016
3
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

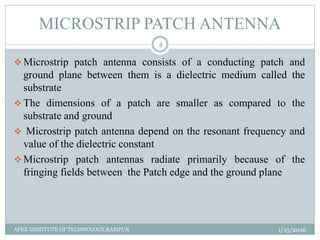

4. MICROSTRIP PATCH ANTENNA
 Microstrip patch antenna consists of a conducting patch and
ground plane between them is a dielectric medium called the
substrate
 The dimensions of a patch are smaller as compared to the
substrate and ground
 Microstrip patch antenna depend on the resonant frequency and
value of the dielectric constant
 Microstrip patch antennas radiate primarily because of the
fringing fields between the Patch edge and the ground plane
1/15/2016
4
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

5. DESIGN EQUATIONS
 Step 1: Calculation of the Width (W):
 The width of the Microstrip patch antenna is given as:
Substituting c = 3.00e+008 m/s, εr = 2.45 and fo = 2.4 GHz
W = 0.0475 m = 47.5 mm.
 Step 2: Calculation of Effective dielectric constant (εreff):
 The effective dielectric constant is: Substituting εr = 2.45, W = 47.5 mm and h
= 1.58 mm
εreff = 2.3368
1/15/2016
5
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

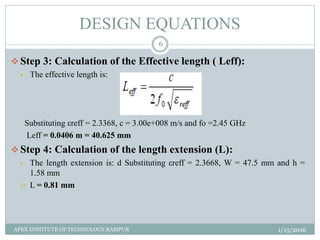

6.  Step 3: Calculation of the Effective length ( Leff):
 The effective length is:
Substituting εreff = 2.3368, c = 3.00e+008 m/s and fo =2.45 GHz
Leff = 0.0406 m = 40.625 mm
 Step 4: Calculation of the length extension (L):
 The length extension is: d Substituting εreff = 2.3668, W = 47.5 mm and h =
1.58 mm
 L = 0.81 mm
DESIGN EQUATIONS
1/15/2016
6
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

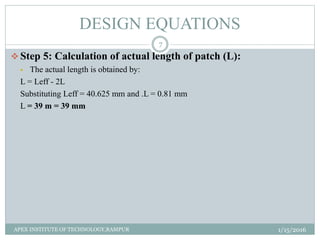

7.  Step 5: Calculation of actual length of patch (L):
 The actual length is obtained by:
L = Leff - 2L
Substituting Leff = 40.625 mm and .L = 0.81 mm
L = 39 m = 39 mm
DESIGN EQUATIONS
1/15/2016
7
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

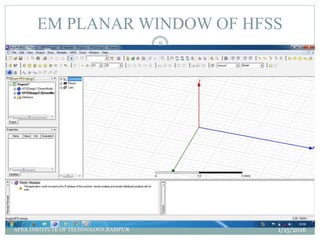

8. EM PLANAR WINDOW OF HFSS
1/15/2016
8
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

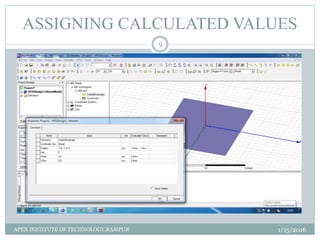

9. ASSIGNING CALCULATED VALUES
1/15/2016
9
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

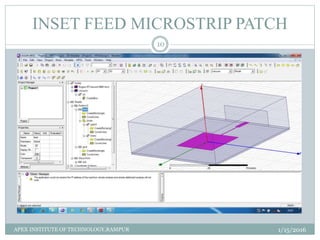

10. INSET FEED MICROSTRIP PATCH
1/15/2016
10
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

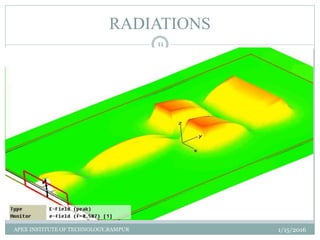

11. RADIATIONS
1/15/2016
11
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

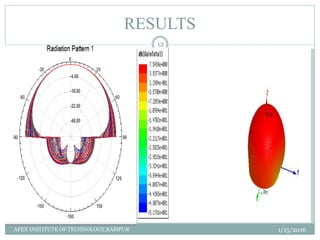

12. RESULTS
1/15/2016
12
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

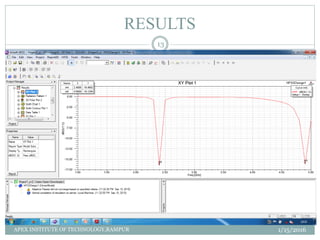

13. RESULTS
1/15/2016
13
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

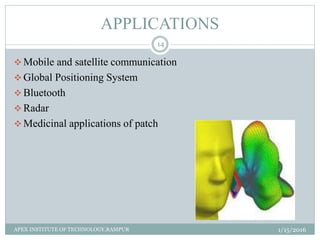

14. APPLICATIONS
 Mobile and satellite communication
 Global Positioning System
 Bluetooth
 Radar
 Medicinal applications of patch
1/15/2016
14
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

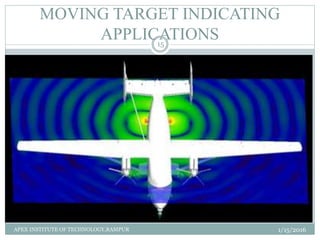

15. MOVING TARGET INDICATING
APPLICATIONS
1/15/2016
15
APEX INSTITUTE OF TECHNOLOGY,RAMPUR

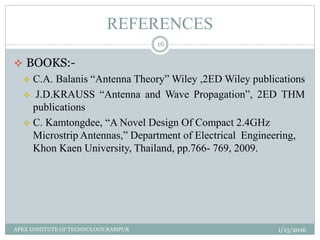

16. REFERENCES
 BOOKS:-
 C.A. Balanis “Antenna Theory” Wiley ,2ED Wiley publications
 J.D.KRAUSS “Antenna and Wave Propagation”, 2ED THM
publications
 C. Kamtongdee, “A Novel Design Of Compact 2.4GHz
Microstrip Antennas,” Department of Electrical Engineering,
Khon Kaen University, Thailand, pp.766- 769, 2009.
1/15/2016
16
APEX INSTITUTE OF TECHNOLOGY,RAMPUR
